The PoolCleaner™ Robotic R110
User Instructions
EN
Contents
1. INTRODUCTION ...................................................................... 2
2. SPECIFICATIONS ..................................................................... 2
3. WARNINGS AND CAUTIONS .................................................. 2
3.1 Warnings ............................................................................ 2
3.2 Cautions ............................................................................. 2
4. POOL CLEANER PARTS ........................................................... 3
5. USING THE POOL CLEANER ................................................... 4
5.1 Setup ................................................................................. 4
5.2 Putting the Pool Cleaner into the pool ............................. 5
5.3 Removing the Pool Cleaner from the pool ........................ 5
6. CLEANING THE FILTER BASKET .............................................. 7
6.1 Cleaning after use ............................................................. 7
6.2 Periodic cleaning ............................................................... 8
7. CLEANING THE NET CANISTER ............................................. 9
8. CLEANING THE IMPELLER ...................................................... 10
9. OFF-SEASON STORAGE ......................................................... 11
10. TROUBLESHOOTING .............................................................. 11
2
The PoolCleaner Robotic R110 | User Instructions
The PoolCleaner Robotic R110
User Instructions
1. INTRODUCTION
Thank you for purchasing a Hayward Robotic Pool Cleaner.
We are sure that your Robotic Pool Cleaner will provide you with reliable, convenient
and cost-effective pool cleaning. Its reliable filtration in all pool conditions and active brushing,
enhance pool hygiene.
Robotic Pool Cleaners deliver advanced cleaning technologys, long-lasting performance and easy
maintenance. You and your family will be free to enjoy your swim with full confidence that your pool is
completely clean.
2. SPECIFICATIONS
Motor protection: IP 68
Minimum depth: 0.80m / 2.6ft
Maximum depth: 5m / 16.4ft
3. WARNINGS AND CAUTIONS
3.1 Warnings
• Use the originally supplied power supply only
• Ensure the electrical outlet is protected by a ground fault interrupter (GFI) or an
earth leakage interrupter (ELI)
• Keep the power supply out of standing water
• Position the power supply at least 3m/10ft away from the edge of the pool
• Do not enter the pool while the Pool Cleaner is working
• Unplug the power supply before servicing
3.2 Cautions
Use the Pool Cleaner in the following water conditions only:
Chlorine Maximum 4 ppm
pH 7.0-7.8
Temperature 6-34°C / 43-93°F
NaCl Maximum 5000 ppm
CAUTION
Digital Power supply
Input: 100-125 AC Volts / 200-230 AC Volts
50-60 Hertz
Output: <30 VDC
IP 54
3
The PoolCleaner Robotic R110 | User Instructions

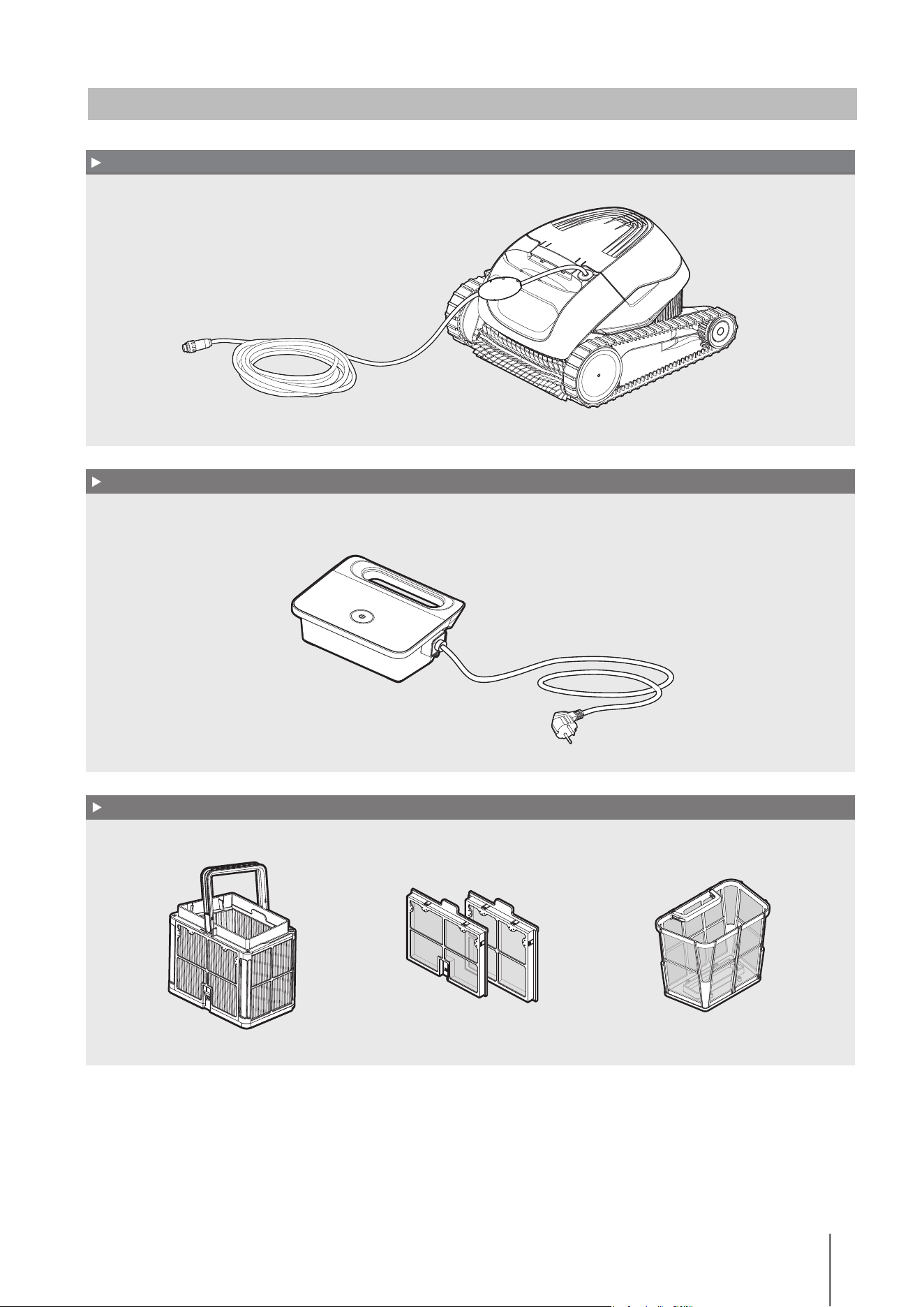

4. POOL CLEANER PARTS
Robotic Pool Cleaner Model Mass 13
Power supply unit
Filtration - options
The PoolCleaner Robotic R110
4
The PoolCleaner Robotic R110 | User Instructions

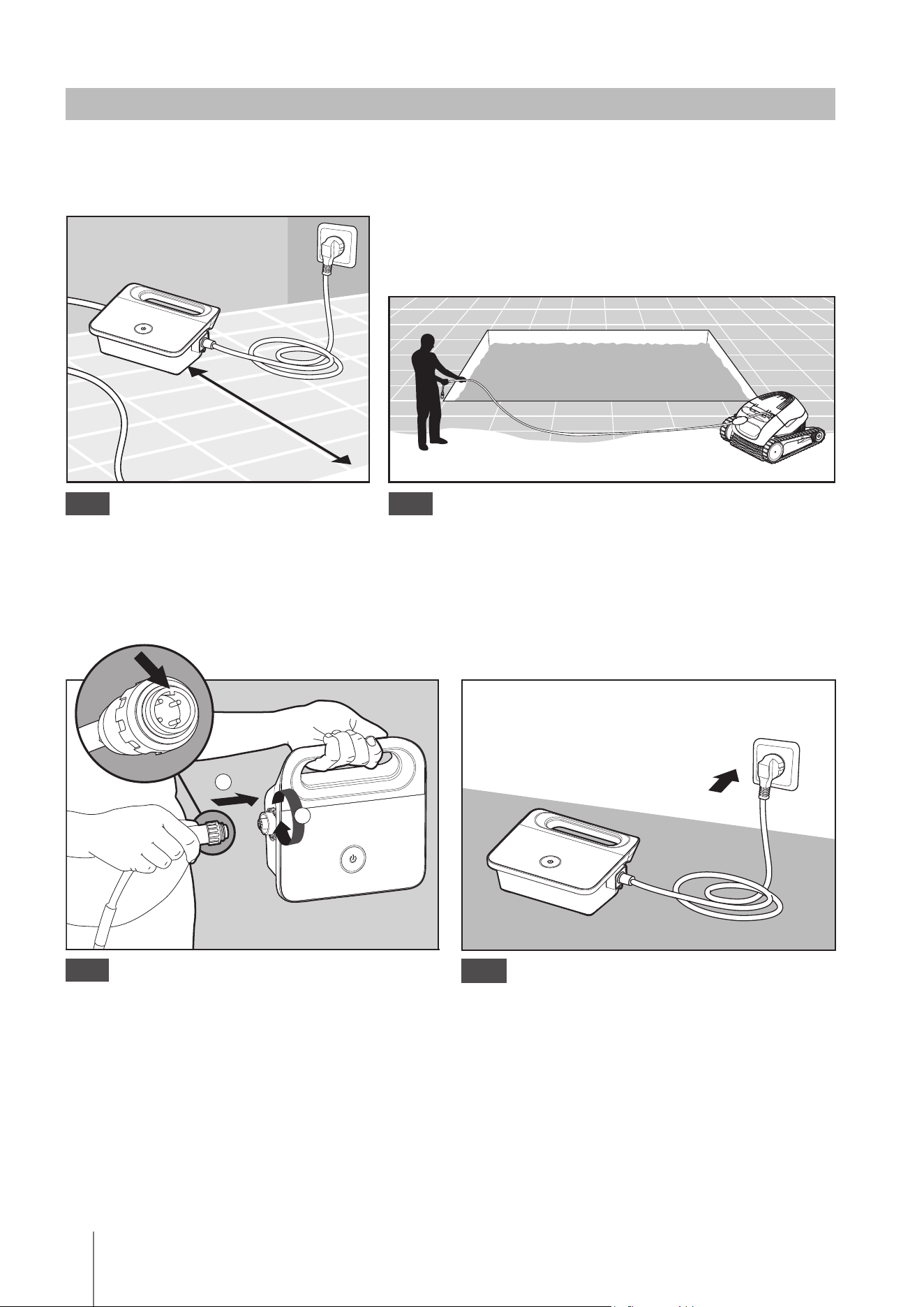

5. USING THE POOL CLEANER
5.1 Setup
Before using the Pool Cleaner for the first time, perform the following steps:
Position the power supply so
that it is approximately in the middle
of the long side of the pool at
a distance of 3m /10ft.
Unwind the cable and stretch it out completely so that
it has no kinks.
Attach the floating cable to the power
supply by inserting it with the notch on the
connector (1), lined up with the groove in
the socket on the power supply, and turning
clockwise (2).
Plug in the power supply and leave it in the
OFF position.
5.1.1
5.1.4
5.1.2
5.1.3
1
2
3m/10ft
5
The PoolCleaner Robotic R110 | User Instructions

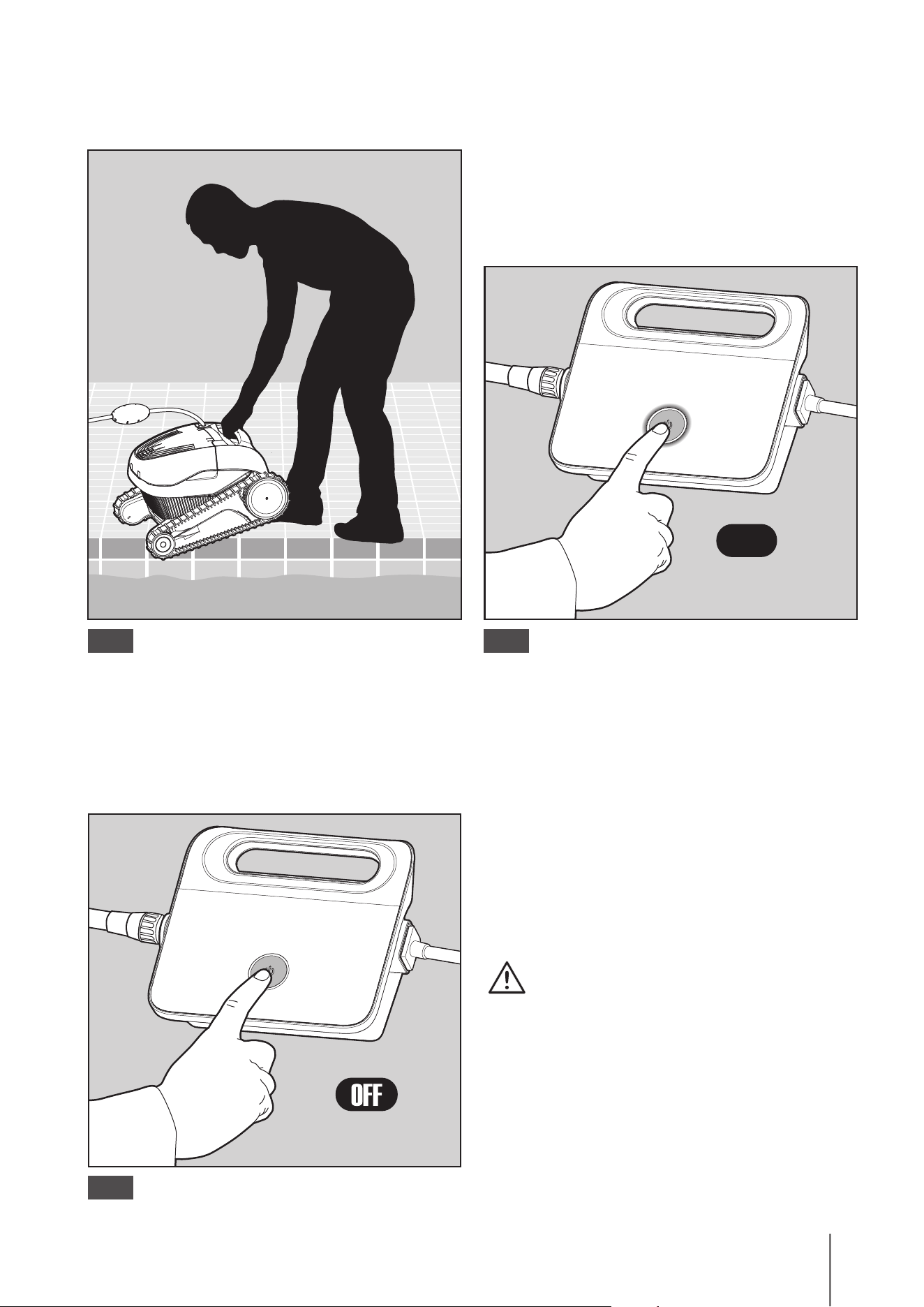

5.2 Putting the Pool Cleaner into the pool
5.3 Removing the Pool Cleaner from the pool
CAUTION
Turn OFF and unplug the power supply.
Put the Pool Cleaner into the pool.
Release the Pool Cleaner and let it sink to the floor
of the pool.
Make sure that the floating cable is free of any
obstructions.
5.2.1
Turn the power supply ON.
The Pool Cleaner will now operate until it has
reached the end of the cleaning cycle.
5.2.2
5.3.1
ON
6
The PoolCleaner Robotic R110 | User Instructions

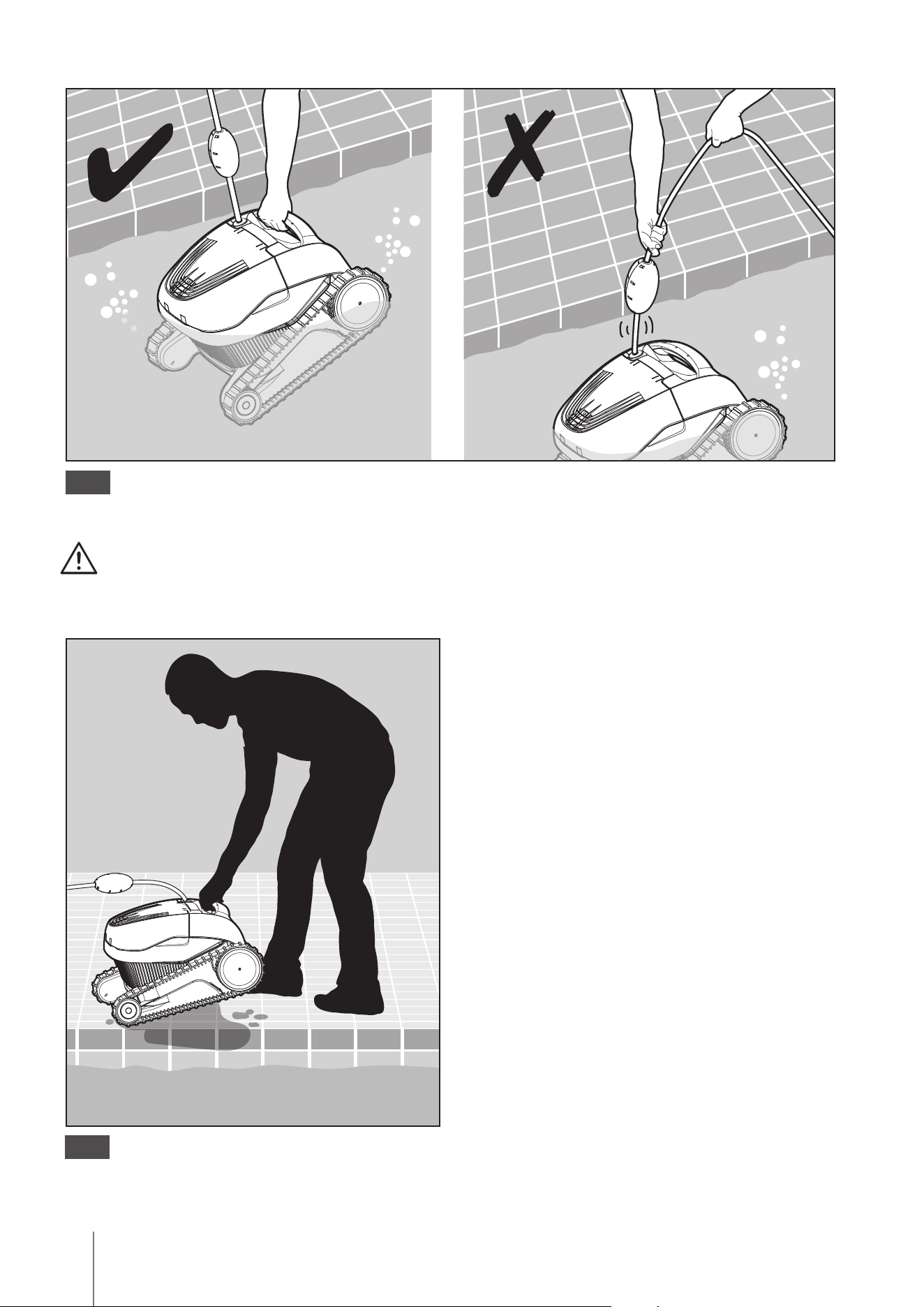

CAUTION
DO NOT PULL THE POOL CLEANER FROM THE POOL USING THE CABLE.
Using the floating cable, bring the Pool Cleaner to the pool’s edge.
Using the handle, remove the Pool Cleaner from the pool.
Place the Pool Cleaner on the edge of the
pool and let the water drain out.
5.3.3
5.3.2
7
The PoolCleaner Robotic R110 | User Instructions

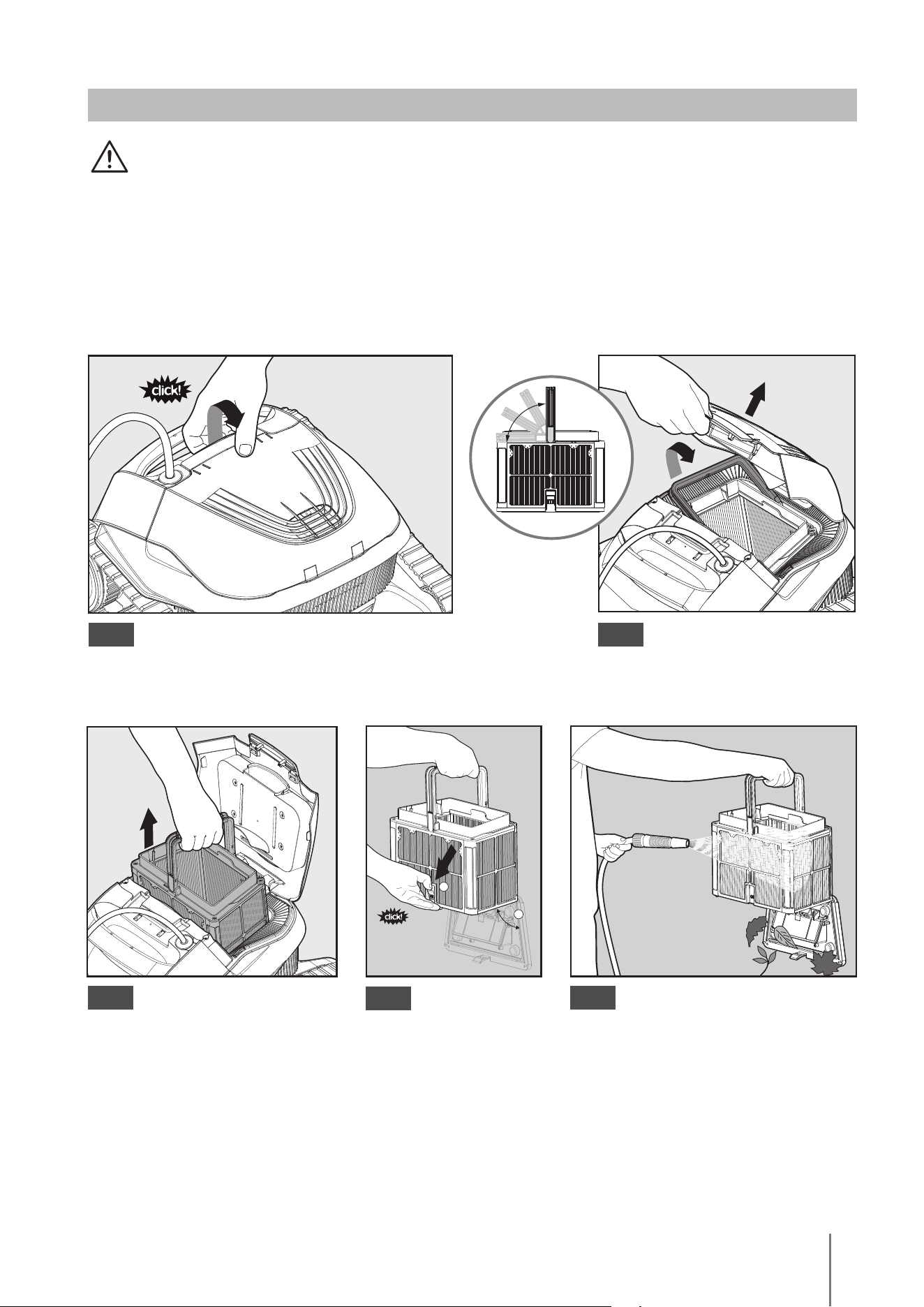

6. CLEANING THE FILTER BASKET
CAUTION
Make sure the power supply is switched off and unplugged.
It is highly recommended to clean the filter basket after each cleaning cycle.
Note: Do not let the filter basket dry out before cleaning.
Open the filter cover.
Upon opening the filter cover,
the handle will lift independently.
6.1.1
6.1.2
Lift up the basket.
Open the latch
to release the bottom
lid in order to remove
the debris.
6.1.3
6.1.4
Clean the filter basket with a hose.
6.1.5
1
2
6.1 Cleaning after use - removing and cleaning the filter basket
8
The PoolCleaner Robotic R110 | User Instructions

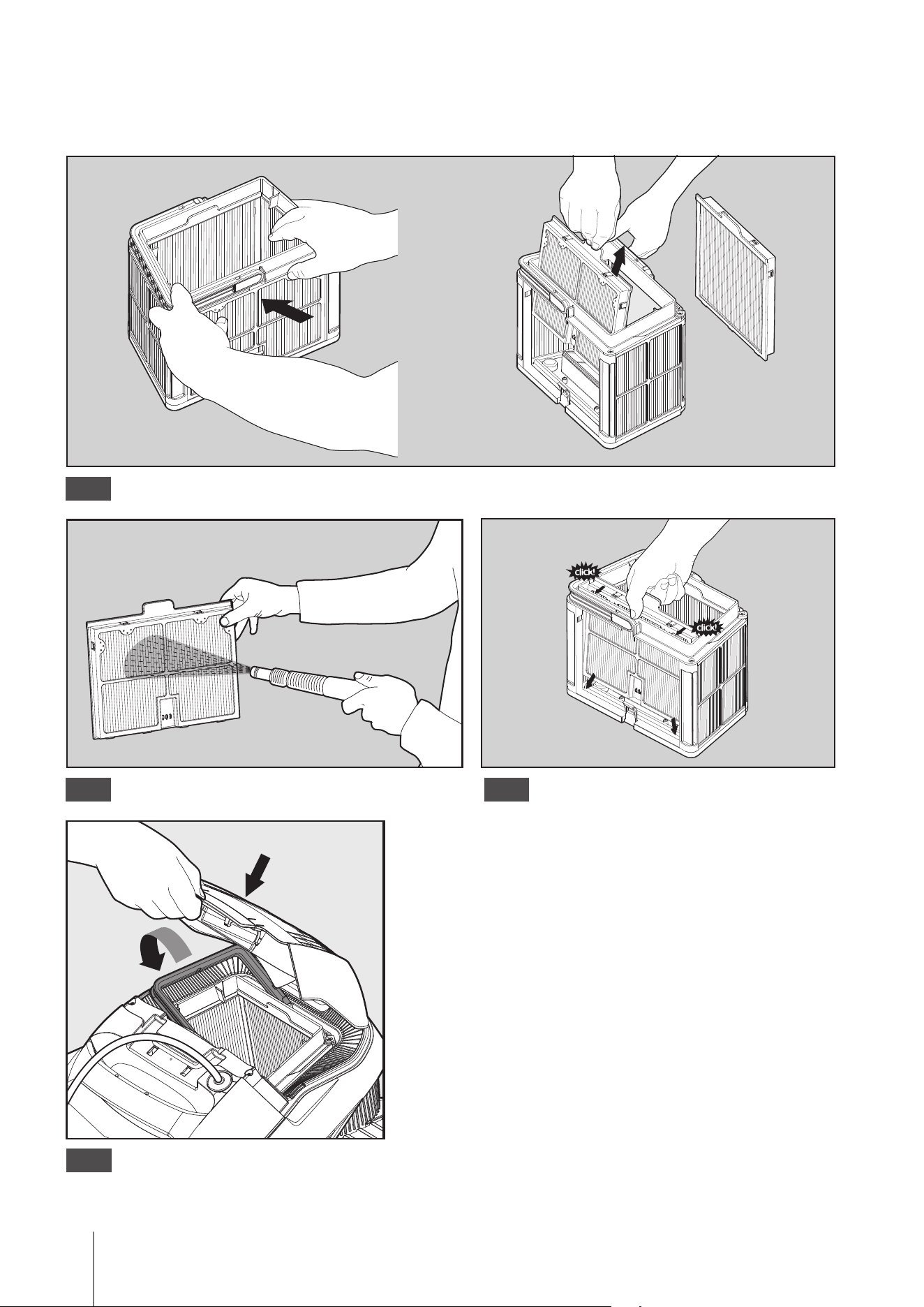

Dismantle the 2 ultra-fine filter panels of the basket, according to the following steps:
Insert the clean filter basket and
close the filter cover.
6.2.4
6.2 Periodic cleaning – recommended at least once a month
Clean the filter panels with a hose.
Assemble the filter panels
.
Dismantle the 2 panels using your thumbs.
6.2.2 6.2.3
6.2.1
9
The PoolCleaner Robotic R110 | User Instructions

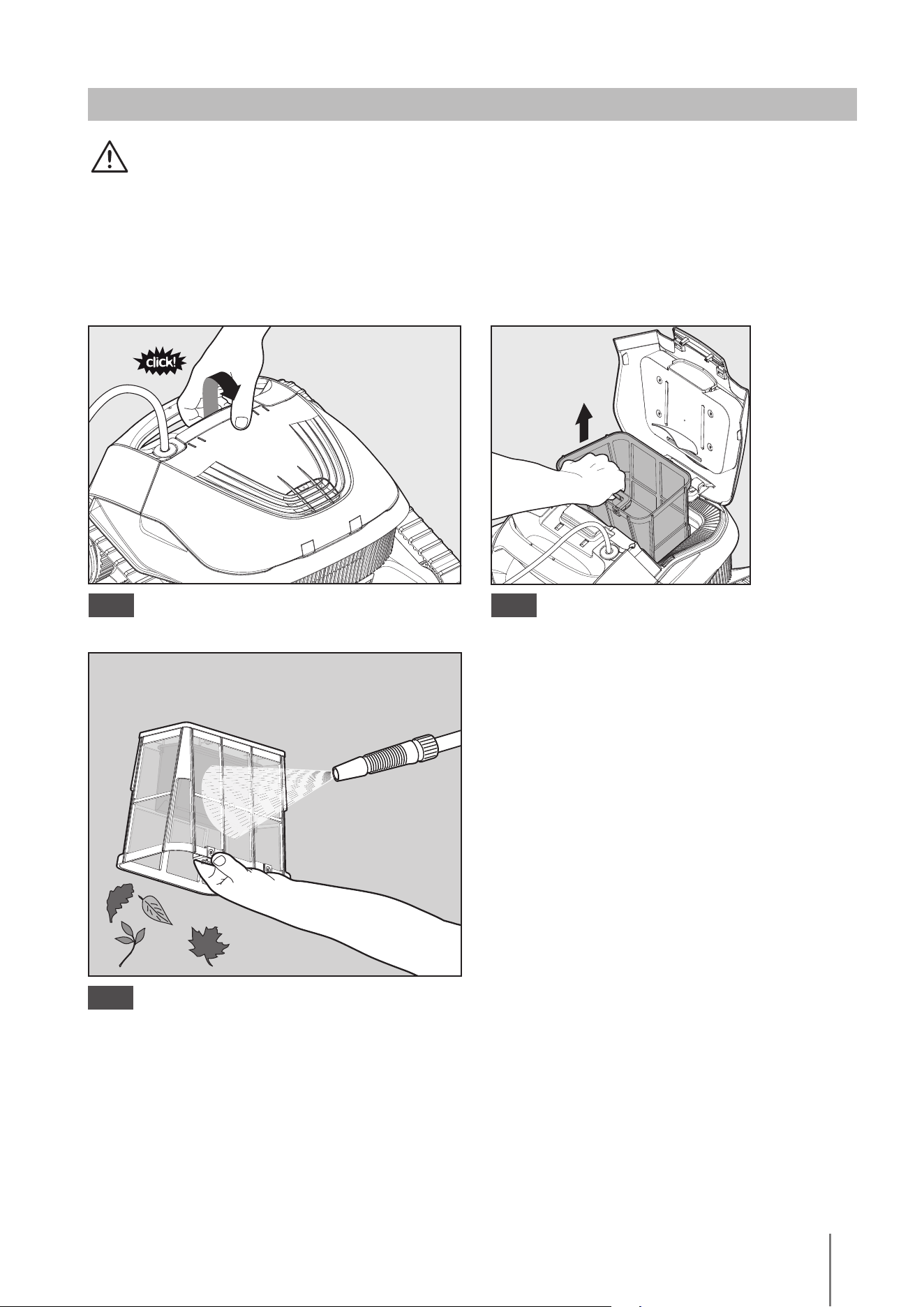

7. CLEANING THE NET CANISTER
CAUTION
Make sure the power supply is switched off and unplugged.
It is highly recommended to clean the net canister after each cleaning cycle.
Note: Do not let the net canister dry out before cleaning.
7.1 Cleaning after use - removing and cleaning the net canister
Open the filter cover. Lift up the net canister.
7.1.1 7.1.2
Clean the net canister with a hose.
7.1.3
10
The PoolCleaner Robotic R110 | User Instructions
CAUTION
Make sure the power supply is switched off and unplugged.
8.1 Clean the debris trapped in the impeller opening, according to the
following steps:

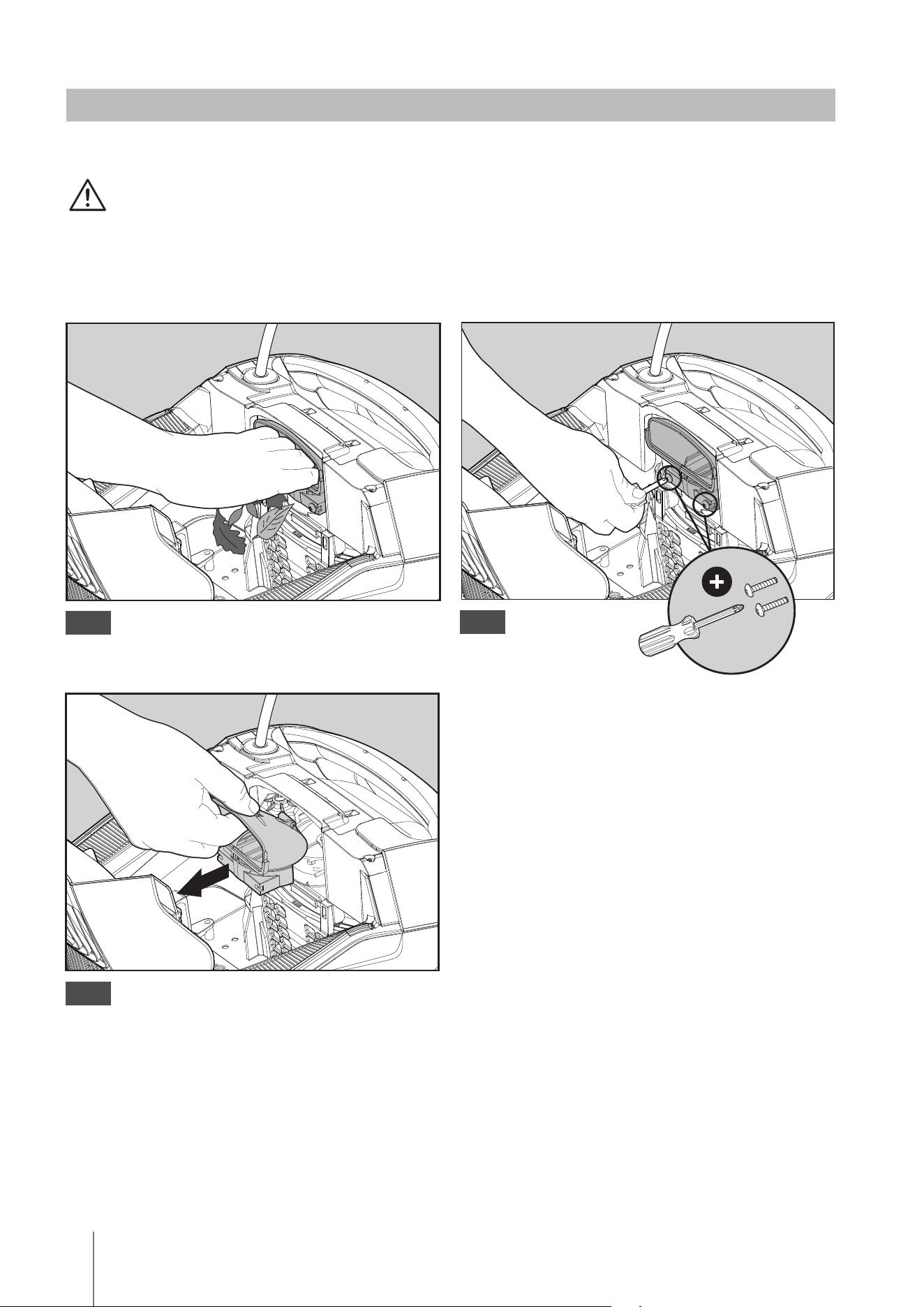

8. CLEANING THE IMPELLER
If you notice debris trapped in the impeller:
Pull the impeller cover backwards to release it.
Clean the debris trapped around the impeller.
Assemble the impeller cover.
8.1.3
If the debris is not reachable follow the next
steps.
8.1.1
Using a short
screwdriver open the 2
screws.
8.1.2
11
The PoolCleaner Robotic R110 | User Instructions
If the Pool Cleaner will not be in use for an extended period of time, perform the following storage steps:
If the suggested solutions do not solve the problem, please contact your dealer or Service Center.
• Make sure that no water is left in the Pool Cleaner
• Thoroughly clean the filter basket and panels / canister and insert in place
• Roll up the cable so that it has no kinks
• Store the Pool Cleaner in a protected area out of direct sun / rain / frost, at a temperature of between
5°-45°C / 41°-113°F
9. OFF-SEASON STORAGE
10. TROUBLESHOOTING
Symptom Possible reason Corrective action
The power-supply
or its switch led
are not working.
• No voltage in the power socket in the wall.
• The power supply is not switched ON.
• The power cable is not well connected
into the power supply inlet.
• Check that there is voltage in the power socket in the wall.
• Check that the power supply is plugged in and turned ON.
• Check that the power cable is securely connected all the way
into the power supply.
• Turn the power supply off. Wait 30 seconds then turn it back on.
The Pool Cleaner
does not move.
• The floating cable is not well connected
into the power supply outlet.
• An obstacle blocks the impeller,
tracks or wheels.
• Check that the floating cable is securely connected all the way
into the power supply.
• Unplug the power supply. Open the impeller cover
and check that nothing is trapped in the impeller.
Verify that nothing blocks the tracks or wheels.
The Pool Cleaner
is moving in
circles.
• Clogged filter basket/canister.
• Debris stuck in the impeller-house or
impeller-cover.
• Power supply incorrectly positioned.
• Algae or pool water is out of Spec.
• Clean the filter basket/canister.
• Remove debris stuck in the impeller-house or impeller-cover
(according to the drawings).
• Place power supply in a position so that the Pool Cleaner
can freely reach all the pool area.
• Correct pool and water conditions.
The Pool Cleaner
does not turn
or moves in one
direction only.
• Debris stuck in the impeller-house
or impeller-cover.
• Remove debris stuck in the impeller-house or impeller-cover
(according to the drawings).
The Pool Cleaner
moves but does
not clean the
pool.
• Clogged filter basket/canister.
• Debris stuck in the impeller-house or
impeller-cover.
• Clean the filter basket/canister.
• Remove debris stuck in the impeller-house or impeller-cover
(according to the drawings).
The Pool Cleaner
cleans only part
of the pool.
• Power supply incorrectly positioned.
• Not enough floating is released for the
correct operation of the Pool Cleaner.
• Place the power supply in a position so that the Pool Cleaner
can freely reach all the pool area.
• Check that there is enough slack in the floating cable
for the Pool Cleaner to reach all of the pool.
• Clean the filter basket/canister.
The floating cable
has kinks.
• Clogged filter basket/canister.
• Debris stuck in the impeller-house or
impeller-cover.
• Clean the filter basket/canister.
• Remove debris stuck in the impeller-house or impeller-cover
(according to the drawings).
• To remove the kinks, stretch the floating cable out completely
and let it sit for at least a day in the sun.
The Pool Cleaner
doesn’t climb
the walls.
• Clogged filter basket/canister.
• Algae on walls.
• Unsuitable pH level.
•
• Debris stuck in the impeller-house or
impeller-cover.
• Clean the filter basket/canister.
• Check the level of the chemicals of the water. Improper levels
may allow the growth of algae making the walls slippery.
If so, adjust the levels and scrub the walls.
• Remove debris stuck in the impeller-house or impeller-cover
(according to the drawings).
The PoolCleaner Robotic R110 | User Instructions
Supplier’s Declaration of Conformity
47 CFR § 2.1077 Compliance Information
Unique Identifier: R110 and R130 Robotic Pool Cleaner Systems
FCC Responsible Party:
Hayward Industries, Inc.
One Hayward Industrial Drive
Clemmons, NC 27012
hayward.com
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any interference received, including interference that may cause unde-
sired operation.
Changes or modifications not expressly approved by Hayward could void the user’s authority to operate this equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particu-
lar installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-- Consult the dealer or an experienced radio / TV technician for help.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
W3RCH411CU
We Build Better.
®
