User Manual
WSF6602WB
DO NOT RETURN THIS PRODUCT TO THE STORE.
If you have questions or need assistance, please call customer service.
Contact details can be found on the last page of user manual.
ENVIRONMENTAL TIPS
Congratulations and thank you for choosing our product. We are sure
you will find your new appliance a pleasure to use and a great asset to
your cooking. Before you use the appliance, we recommend you
read through the whole user manual which provides
a description of the product and its functions.
To make the best use of your new appliance, it is important that
the appliance is installed correctly and that you read the safety
instructions carefully to avoid misuse and hazards. We recommend
that you keep this instruction booklet for future reference and
pass it on to any future owners. This appliance complies with the
requirements of Australian Standard AS/NZ 60335.2.5.
Conditions of use
This appliance is intended to be used in household
and similar applications such as:
• Staff kitchen areas in shops, offices and other
working environments
• Farm houses
• By clients in hotels, motels and other residential
type environments
• Bed and breakfast type environments.
Record model and serial number here:
Model:
..............................................................................
Serial number: ................................................................
TIPS & INFORMATION
TIPS AND INFORMATION
Important: Check for any damage or marks
If you find the dishwasher is damaged or marked, you must report
it within 7 days if you wish to claim for damage/marks under the
manufacturer’s warranty.
This does not affect your statutory rights.
CONGRATULATIONS
IMPORTANT INFORMATION THAT MAY
IMPACT YOUR MANUFACTURER’S WARRANTY
Adherence to the directions for use in this manual is extremely
important for health and safety. Failure to strictly adhere to
the requirements in this manual may result in personal injury,
property damage and affect your ability to make a claim under
the Westinghouse manufacturer’s warranty provided with
your product. Products must be used, installed and operated in
accordance with this manual. You may not be able to claim on
the Westinghouse manufacturer’s warranty in the event that
your product fault is due to failure to adhere this manual.
2
Important safety instructions 3
Recycling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Safety information . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Recommendations . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Items not suitable for dishwashing . . . . . . . . . . . . . . . . . .4
Description of your appliance 5
Technical specications 5
The Control Panel 6
Changing a program . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Cancelling a program . . . . . . . . . . . . . . . . . . . . . . . . .. . 7
Installig The Machine 8
Positioning the machine . . . . . . . . . . . . . . . . . . . . . . . . . .8
Water connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Water inlet hose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Water drain hose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Water drain hose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Electrical Connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Filling with rinse aid and setting . . . . . . . . . . . . . . . . . . . . 9
Preparing The Machine For Use 11
Prior to using the machine for the rst time . . . . . . . . . . . . . . . .11
Detergent usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Filling the detergent compartment . . . . . . . . . . . . . . . . . . . . . .11
Combined detergent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
When you STOP using combined detergents . . . . . . . . . . . . . . 12
Filling with rinse aid and setting. . . . . . . . . . . . . . . . . . . . . . . 12
Loading your dishwasher 13
Upper Basket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Alternative modular basket position . . . . . . . . . . . . . . . . . 14
Program descriptions 16
Program items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Maintenance and Cleaning 17
Filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Spray arms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Drain Pump . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Failure codes and what to do in case of failure 18
Troubleshooting 19
Warranty 20
ENVIRONMENTAL TIPS
Information on disposal for users
• Most of the packaging materials are recyclable. Please dispose of
those materials through your local recycling depot or by placing
them in appropriate collection containers.
• If you wish to discard this product, please contact
your local authorities and ask for the correct method of disposal.
CONTENTS
3
IMPORTANT SAFETY INSTRUCTIONS
These warnings have been provided in the interest of safety. You
MUST read them carefully before installing or using the appliance.
Please read the user manual carefully and store in a handy place for
later reference. Pass the user manual on to possible new owners of
the appliance.
If you need assistance, contact your Customer Care Department. The
manufacturer will not accept liability, should these instructions or
any other safety instructions incorporated in this book be ignored.
WARNING
WARNING
This symbol indicates information concerning your personal safety.
TIPS & INFORMATION
TIPS AND INFORMATION
This symbol indicates tips and information about
use of the appliance.
ENVIRONMENTAL TIPS
ENVIRONMENTAL TIPS
This symbol indicates tips and information about economical and
ecological use of the appliance.
Recycling
• Certain components and the packaging of your machine have been
produced from recyclable materials.
• Plastic parts are marked with international abbreviations: (>PE< ,
>PS< , >POM<, >PP<, ....)
• Cardboard parts have been produced from recycled paper
and they should be disposed of into waste paper collection
containers for recycling.
• These materials should not be disposed of into garbage bins.
They should be delivered to recycling centres instead.
• Contact relevant centres in order to obtain information on
methods and points of disposal.
Safety Information
When you take delivery of your machine
• Check for any damage to your machine or to its packaging. Never
start a damaged machine, make sure to contact an authorised
technician.
• Unwrap the packaging materials as indicated and dispose of
them in accordance with the rules.
The points to pay attention during machine installation
• Choose a suitable, safe and level location to install
your machine.
• Carry out the installation and connection of your machine by
following the instructions.
• This machine should be installed and repaired by
an authorised technician only.
• Only original spare parts should be used with the machine.
• Before commencing the dishwasher installation,
be sure that the machine is unplugged.
• Check whether the indoor electrical fuse system
is connected according to the regulations.
• Make sure that the electrical information on the rating plate is the
same as the power supply. If not, contact an electrician.
• Always use a correctly installed shockproof socket.
• Make sure not to cause damage to the mains plug and to the
mains cable. Should the mains cable need to be replaced, this
must be carried out by our
• Authorised Service Centre.
• Connect the mains plug to the mains socket only at the end of
the installation. Make sure that there is access to the mains plug
after the installation.
• Do not pull the mains cable to disconnect the appliance. Always
pull the mains plug.
• If the supply cord is damaged, it must be replaced by the
manufacturer, its Authorised Service Centre or similarly qualified
persons in order to avoid a hazard.
• Pay special attention and make sure that the machine does not
crush the power cord.
• Never use an extension cord or a multiple socket to make a
connection. The plug should be easily accessible after the
machine has been installed.
• After installing the machine, run it unloaded for
the first time.
In daily use
• Do not use water spray and steam to clean the appliance.
• Do not stand, sit or place a load on the open door of the
dishwasher, it may fall over.
• Only use detergents and rinse aids which are produced
specifically for dishwashers. Otherwise Electrolux does not take
any responsibility for damage that might occur to your machine.
WARNING
WARNING
The water in the machine’s washing section is not
drinking water, do not drink it.
Due to danger of explosion, do not put into the machine’s washing
section any chemical agents such as solvents.
• Check whether plastic items are heat-resistant before washing
them in the machine.
• Do not put into your machine those items which
are not suitable for dishwashing. Also, do not
overload basket.
• The machine door should not be opened while the machine is in
operation, to avoid the risk of hot water spraying out. A safety
device ensures that the machine stops if the door is opened.
IMPORTANT SAFETY INSTRUCTIONS
4
SAFETY INFORMATION AND REOMMENDATIONS
SAFETY INFORMATION AND RECOMMENDATIONS
WARNING
WARNING
Do not leave your dishwasher’s door open, this may lead to accidents
and injur
y.
WARNING
RISK OF INJURY OR
PERMANENT DISABILITY
Place knives and other sharp ended objects in the cutlery basket in
the point down position.
• This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a
person responsible for their safety.
For your children’s safety
• After removing the machine’s packaging, make
sure that the packaging material is out of reach
of children.
• Do not allow children to play with or start the machine.
• Keep your children away from detergents and
rinse aids.
• Keep children away from the machine while it
is open because there may still be residues of
cleaning substances inside the machine.
• Be sure that your old machine does not pose any threat to
children. Remove the dishwasher door
lock and power supply cord.
In case of malfunctioning
• Any malfunction in the machine should be repaired by qualified
persons. Any repair work performed by anyone other than the
authorised service personnel will cause your machine to be left
outside the scope of warranty.
• Prior to any repair work on the machine, be sure to unplug the
dishwasher from the power supply. Do not pull by the cable when
unplugging. Make sure to turn off the water tap.
Recommendations
• For energy and water saving, remove coarse residues on your
dishes before placing the dishes into the machine. Start your
machine after having fully loaded it.
• Use the pre-wash program only whenever necessary.
• Place items such as bowls, glasses and pots into
the machine face down.
Items not suitable for dishwashing:
• Cigarette ashes, candle leftovers, polish, paint, chemical
substances, iron-alloy materials;
• Forks, spoons and knives with wooden or bone, ivory or nacre-
coated handles; glued items, items soiled with abrasive, acidic or
base chemicals;
• Plastic items that are not heat-resistant, copper
or tin coated containers;
• Aluminium and silver objects (they may discolour, become dull);
• Certain delicate glass types, porcelains with ornamental printed
patterns (may fade even after the first wash); certain crystal
items (may lose their transparency over time), laminated cutlery
that is not heat-resistant, lead crystal glasses, cutting boards,
items manufactured with synthetic fibre;
• Absorbent items such as sponges or kitchen rags are not suitable
for dishwashing.
WARNING
WARNING
Some dishwasher detergents are strongly alkaline. They can be
extremely dangerous if swallowed. Avoid contact with the skin
and eyes and keep children away from the dishwasher when the
door is open. Check that the detergent compartment is empty after
completion of wash cycle.
5
DESCRIPTION OF YOUR APPLIANCE
TECHNICAL SPECIFICATIONS
Capacity ............................................................................ 14 place settings
Height
..............................................................................................850 mm
Height (without worktop)
.............................................................820* mm
Width.................................................................................................598 mm
Depth
.................................................................................................598 mm
Net weight ..........................................................................................43.5 kg
Electricity input
...............................................................220-240 V, 50 Hz
Total power
....................................................................................... 1900 W
Heating power
.................................................................................. 1800 W
Pump power
.......................................................................................... 100W
Drain pump power
................................................................................30 W
Water supply pressure
........................
0.03 MPa (0,3 bar) - 1 MPa (10 bar)
Water supply temperature
.................................................................
5 - 60°C
Current
.....................................................................................................10 A
1

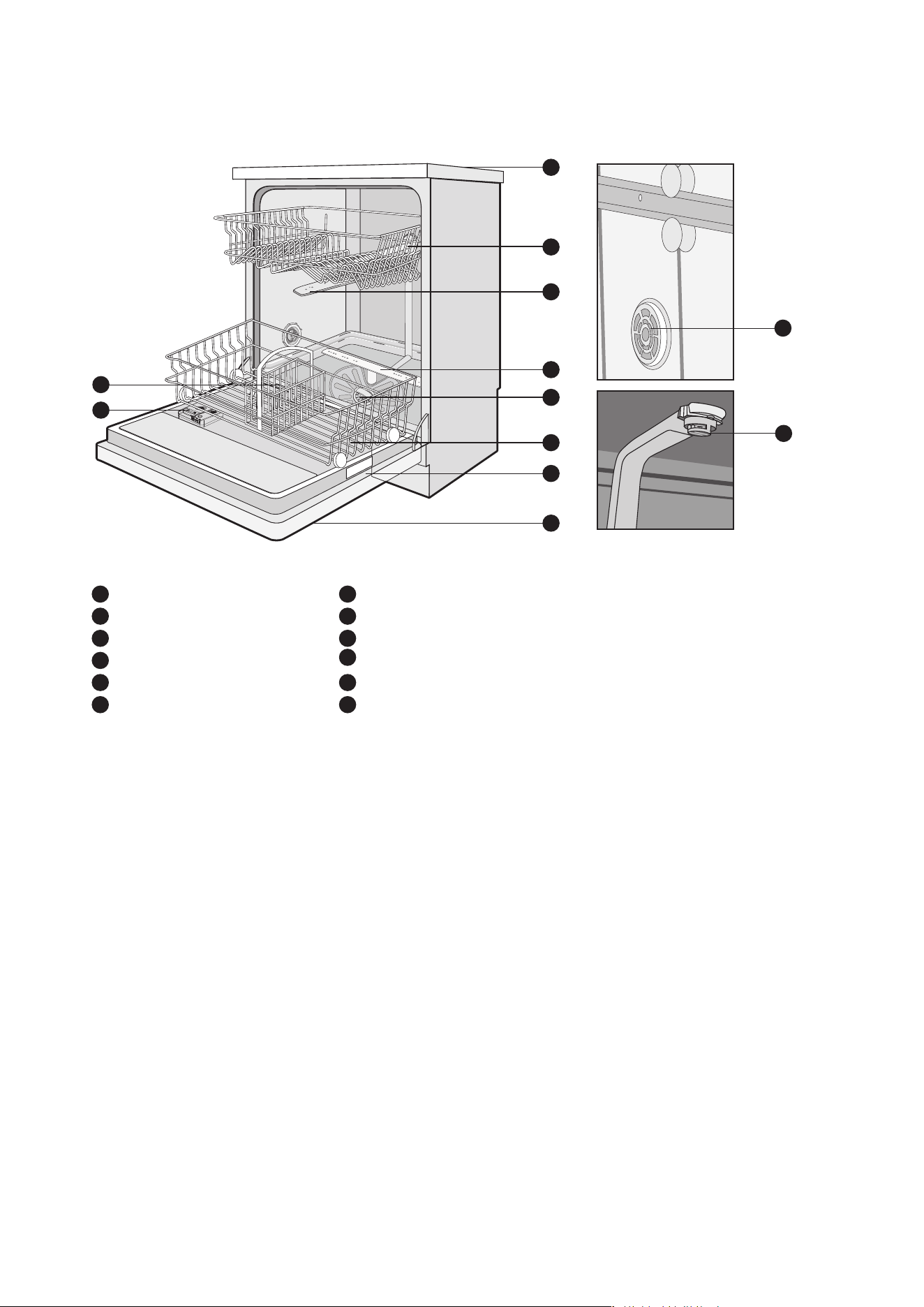

Worktop
2
Upper basket with racks
3
Upper spray arm
4
Lower spray arm
5
Filters
6
Lower basket
7
Rating plate
8
Control panel
9
Detergent and rinse-aid dispenser
10
Cutlery basket
11
Turbo Drying unit
12
Ceiling spray rose
• Electrolux reserves the right to amend design and
technical specifications.
• Do not use this appliance with power and
temperature specifications different to those
indicated.
• Do not change the specification of this appliance.
with counterweight and insulation removed
10
9
1
10
2
3
4
5
6
7
8
11
12
DESCRIPTION OF YOUR APPLIANCE
6
THE CONTROL PANEL
8
By pressing On/Off button(4), power on the machine. On/Off lamp
lights as long as the machine is on. Select the suitable program by
pressing Program button(5).
Press Start/Pause button (3) to start the program. Start/ Pause lamp
becomes off and Wash lamp turns on.If you open the door of your
machine while program is continuing, Start/Pause lamp will blink and
related washing step lamp is on.
Program flow can be monitored via Wash,Rinse Dry and End lamps (7)
on control panel. Machine remains silent for about 40-50 minutes
when the drying lamp is on.
NOTE: Pressing Delay and Half load button(2) for 3 seconds activates
half load option which shortens the durations of the programs that
you have selected and reduce the energy and water consumption.
If you have used an extra feature(delay or half load) (2) on the latest
washing program, this feature will remain active also on the next
washing program. If you want to cancel this feature on the newly
selected washing program, press Delay and Half load button (2) until
related lamps are off or turn the machine off with On/Off button (4). If
you would like to use extra feature with newly selected program,
select the desired functions.
NOTE: You can delay start time of the program for 3-6-9 hours by
pressing delay button (2) before program starts. If you want to
change delay time,first press Start/Pause button and then Delay
button to select new delay time. To activate new delay time, press
Start/Pause button. To to cancel the delay, you need to press Delay
button until all delay lamps are off.
NOTE: If user switches the machine to off position after selecting the
delay time and the program has started, delayed time is cancelled.
NOTE: Power On indicator (6) will be on during the machine is
energized.
NOTE: When rinse aid is not enough, rinse aid lack warning indicator
(8) turns on and you need to fill in rinse aid chamber.
CONTROL DESCRIPTIONS
7

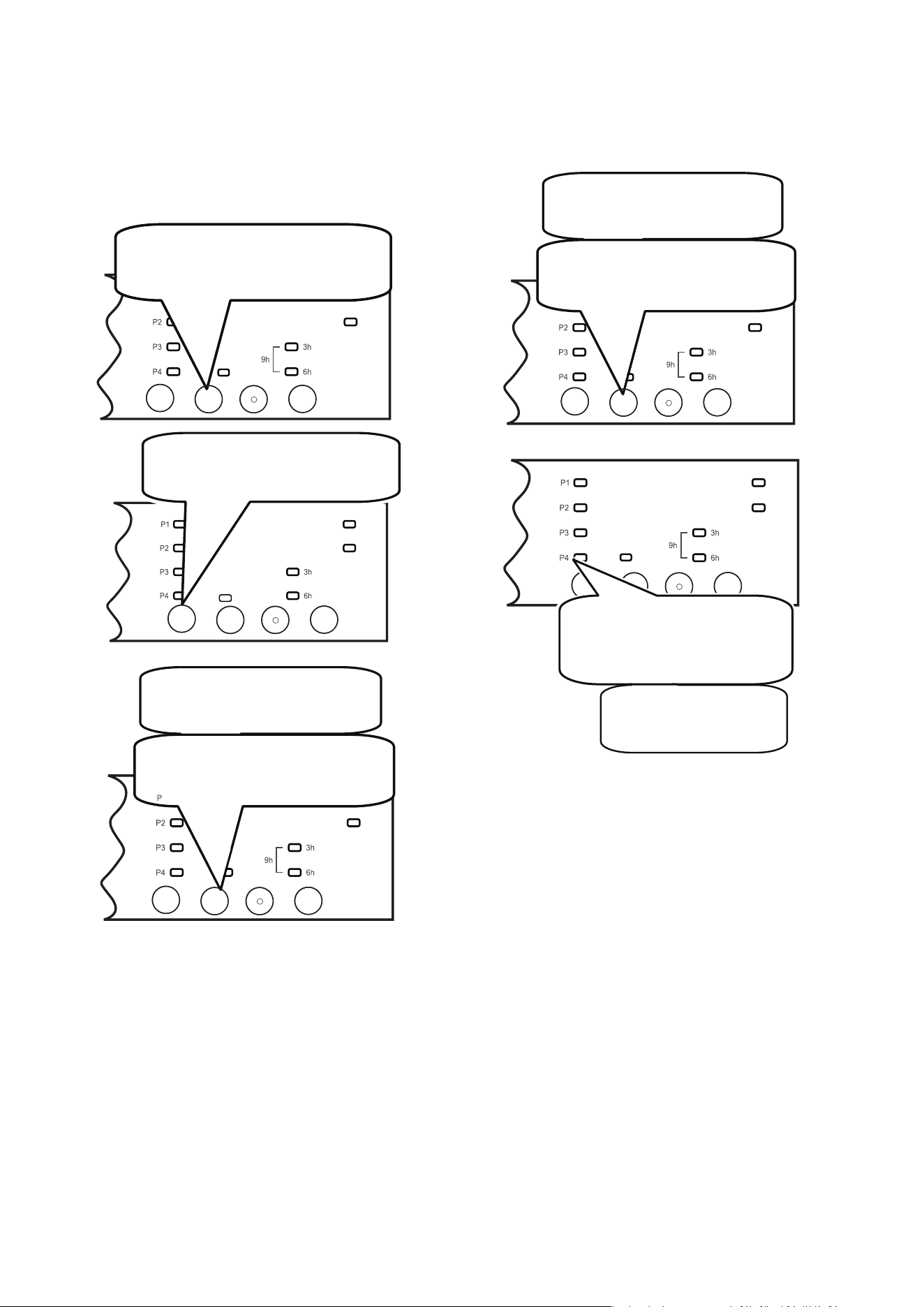

Cancelling a program
If you would like to cancel a program while was
hing is continuing.
Press Start/Pause button
for 3 seconds.
During cancellation, End light
blinks. The machine discharges the
water inside it about 30 seconds.
Press the Start/Pause button.
CONTROL DESCRIPTIONS
Press the Start/Pause button.
After the program stops, select your
desir
ed program via the Program
selection button.
Start newly selected program by
pressing Start/Pause button.
The new program started
will resume the course
of the old program.
THE CONTROL PANEL
Changing a prog
ram
If you would like to change the program while washing is
continuing.
When the End light turns
on, switch your machine off
by pressing On/Off button.
Pull the plug out of
the outlet. Turn off
the water tap.
When the End light turns
on, switch your machine off
by pressing On/Off button.
Pull the plug out of
the outlet. Turn off
the water tap.
NOTE: Do not open the door before the program is complete.
NOTE: Leave the door slightly open at the end of a wash program to
speed up the drying process.
NOTE: If the door of the machine is opened or the power is cut off
during a wash program, the program will continue when the door is
closed or when the power returns.
NOTE: If the power is interrupted or if the machine door is opened
during the drying process, the program will terminate and your
machine will now be ready for a new program selection.
8
INSTALLING THE MACHINE
Positioning the machine
• When considering the location for the dishwasher, ensure that
there is adequate space to enable loading and unloading of the
dishes
• Do not put your machine in any location where
the ambient temperature can fall below 5°C.
• Before positioning, take the machine out of its packaging by
following the warnings located on
the package.
• Position the machine close to a water tap and drain. You need
to postion your machine, taking into consideration that its
connections will not be altered once they are made.
• Do not grip the machine by its door or panel in
order to move it.
• Take care to leave a certain clearance from all sides of the
machine so that you can comfortably move
it back and forth during cleaning.
• Make sure that the water inlet and outlet hoses do not get
squeezed while positioning the machine. Also, make sure that
the machine does not stand on the electrical cable. Adjust the
machine’s feet so that it is level and stable. Proper positioning
of the machine ensures problem-free opening and closing of its
door.
• If the door of your machine does not close properly, check if the
machine is stable on the floor; if not, adjust the feet and ensure it
is level and stable.
Water connection
Ensure that the indoor plumbing is suitable for installing
a dishwasher and complies with AS/NZS 3500.1.
Also, we recommend that you fit a filter at the entrance of your place
or apartment so as to avoid any damage to your machine because of
any contamination (sand, clay, rust etc) that might be occasionally
carried in through the main’s water supply or the indoor plumbing,
and to avoid problems of staining and formation of deposits after
washing.

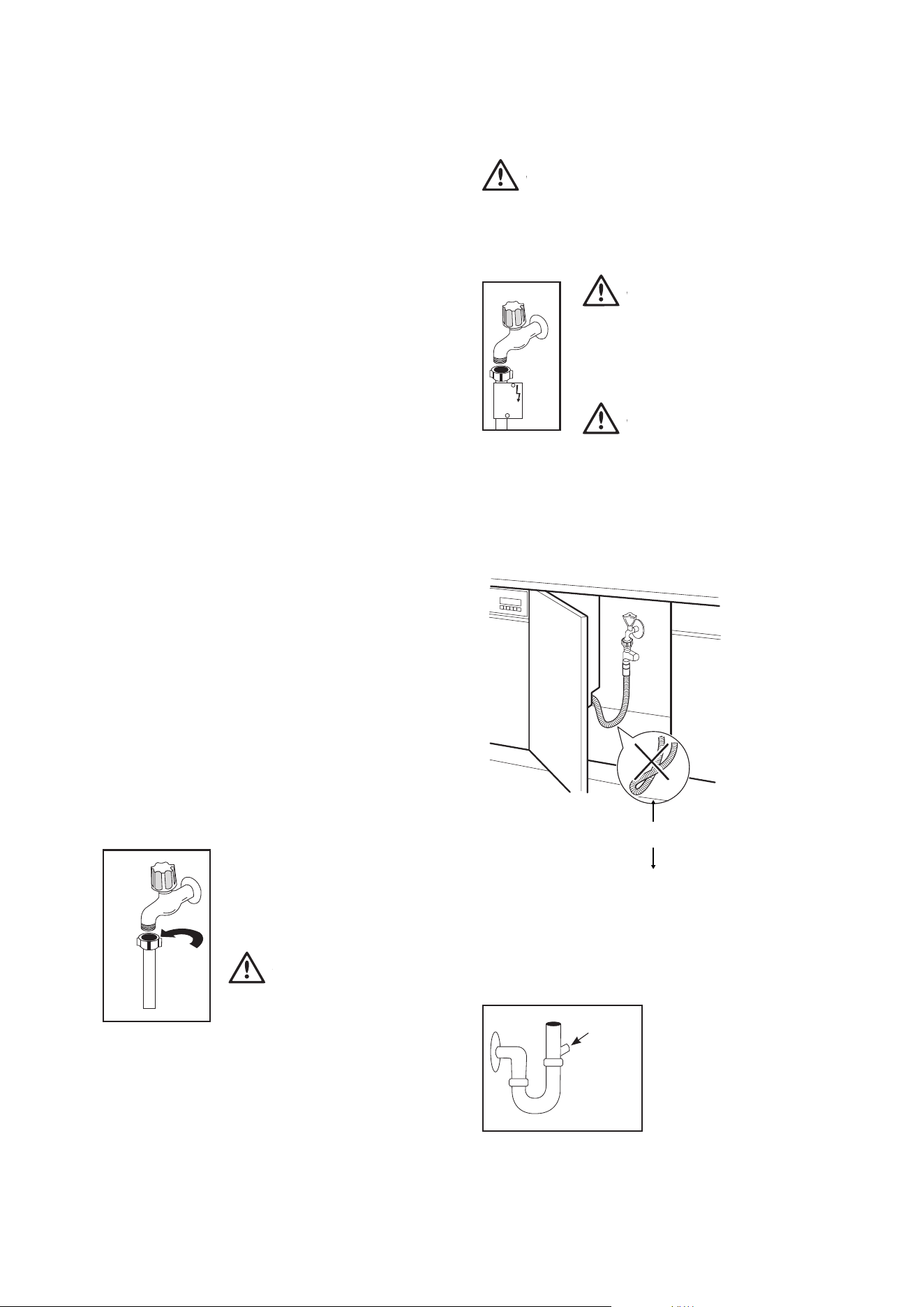

Water inlet hose
Do not use the water inlet hose of your old machine, you must use the
new water inlet hose supplied with your machine. Before connecting
the water inlet hose to the water tap, ensure clean water is flowing
from the tap before making the connection. Connect the water inlet
hose directly to the water inlet tap. The
pressure supplied by the tap should be at a
minimum of 0.03 MPa and at a maximum of
1 MPa. If the water pressure is above 1 MPa, a
pressure-relief valve should be installed.
WARNING
WARNING
Only turn the locking nut to secure hose - do
not turn the hose.
• The first time you use the appliance, make sure that there is no
leakage.
• The water inlet hose has a safety valve and a sheath with an
inner mains cable.
After the connections are made, the tap should be turned on fully and
checked for water tightness. For the safety of your machine, make
sure to always turn off the water inlet tap after each wash program is
WARNING
WARNING
NOTE: Aquastop inlet hose has components using 240V. Do not
cut Aquastop inlet hose. Do not let it get folded, twisted, kinked or
crushed.
WARNING
WARNING
NOTE: A water tempering valve is required if the
water temperature is
over 60°C.
WARNING
CAUTION
Always use new hoses when you connect the
appliance to the water mains. Old hoses must
not be used. The water inlet hose must be examined at an interval of
twelve months for deterioration and replaced if necessary.
In order to pass the safety valve through the kitchen cabinets, an
opening of at least 45mm x 90mm is needed.
Water drain hose
If you connect the water drain hose to a trap spigot under the sink,
remove the plastic membrane. If you do not remove the entire
membrane, remaining food can cause a blockage in the drain hose
spigot. Ensure a hose clamp is used to secure the hose to the spigot.
INSTALLING THE MACHINE
Remove
entire
internal
membrane
30cm
min.
9
INSTALLING THE MACHINE
Water drain hose

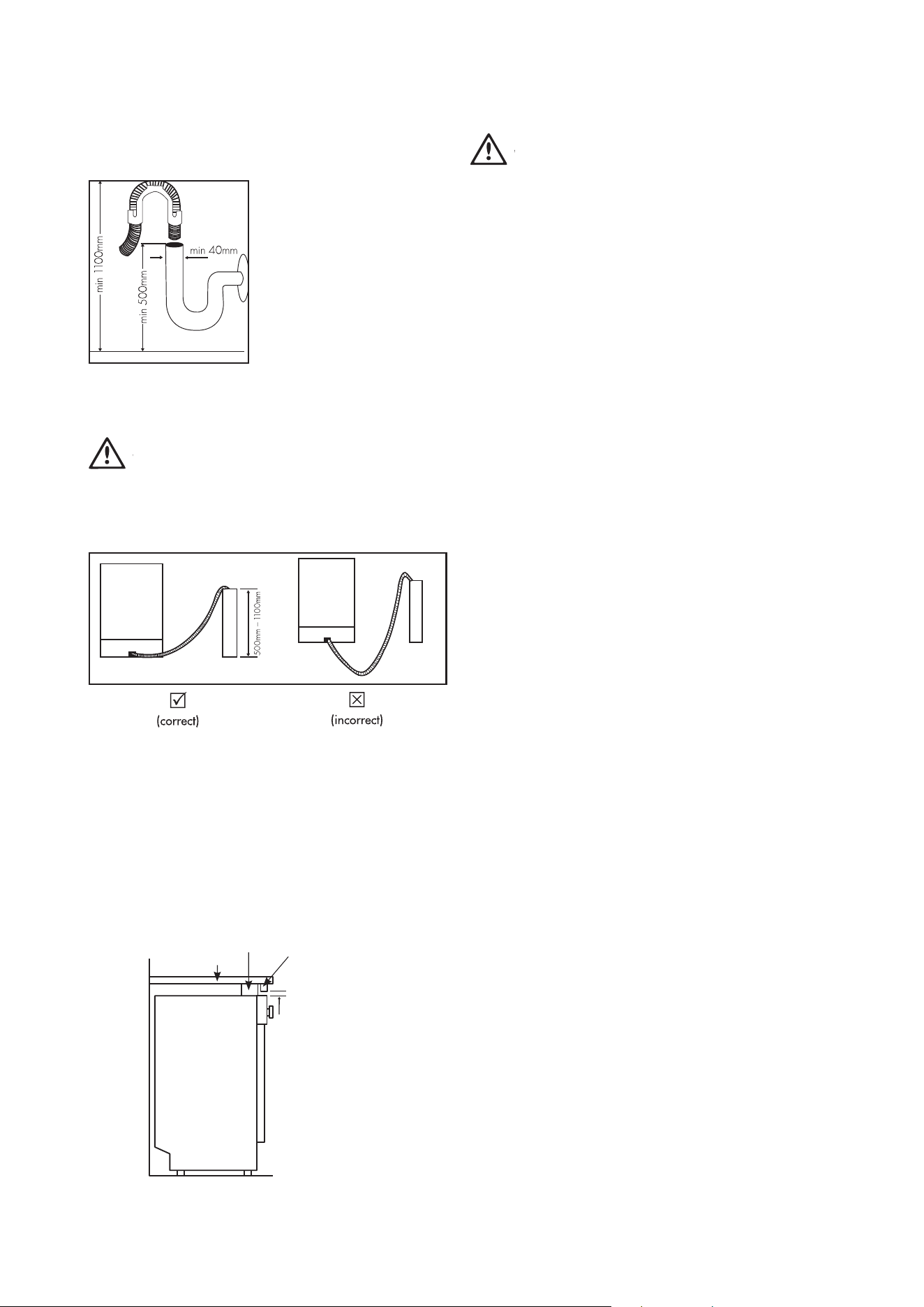

The water drain hose can be
connected either directly to the
water drain hole or to the sink
outlet spigot. Using a hose hook (if
available), the water can be drained
directly into the sink by positioning
the hose hook over the edge of the
sink.
This connection should be at
a minimum of 50 cm and at a
maximum of 110 cm above the base
of the dishwasher.
WARNING
WARNING
Maximum drain hose length
is 4m. Longer hose length will prevent correct draining, and result in
poor wash performance.
INSTALLING THE MACHINE
WARNING
WARNING
Electrical Connection
The plug of your machine should be connected to an earthed outlet that
s
upplies suitable voltage and current. If there is no earthing installation,
have a competent electrician carry out an earthing installation. In case of
usage without earthing installed, our company will not be responsible for
any loss of usage that might occur.
The indoor fuse current value should be 10-16 A.
Your machine is designed for 220-240 V. The machine
should not be plugged in during installation.
Always use the molded plug supplied with your machine.
Running in low voltage will cause a decline in
washing quality.
The machine’s electrical cable should be replaced by an authorised service
or an authorised electrician only. Failure to do so may lead to accidents.
For safety purposes, always make sure to disconnect the plug when a
wash program is finished.
In order not to cause an electric shock, do not unplug when your hands are
wet.
When disconnecting your machine from the mains supply, always pull
from the plug. Never pull the cord itself.
Fitting the machine undercounter
If you wish to fit your machine undercounter, check whether you have
sufficient space under your countertop and whether the wiring-plumbing
is suitable to do so.
To ensure the stability of the dishwasher for an underbench installation,
if the underbench dimension is greater than 820mm, any gap between
the dishwasher and the underside of the benchtop should be bridged
with a packing piece. This may be achieved by wedging a piece of timber
between the dishwasher and the benchtop as shown
Timber
wedging
piece
Bench top
3mm gap
Filler piece cut to
suit installation
Floor level
10
INSTALLING THE MACHINE

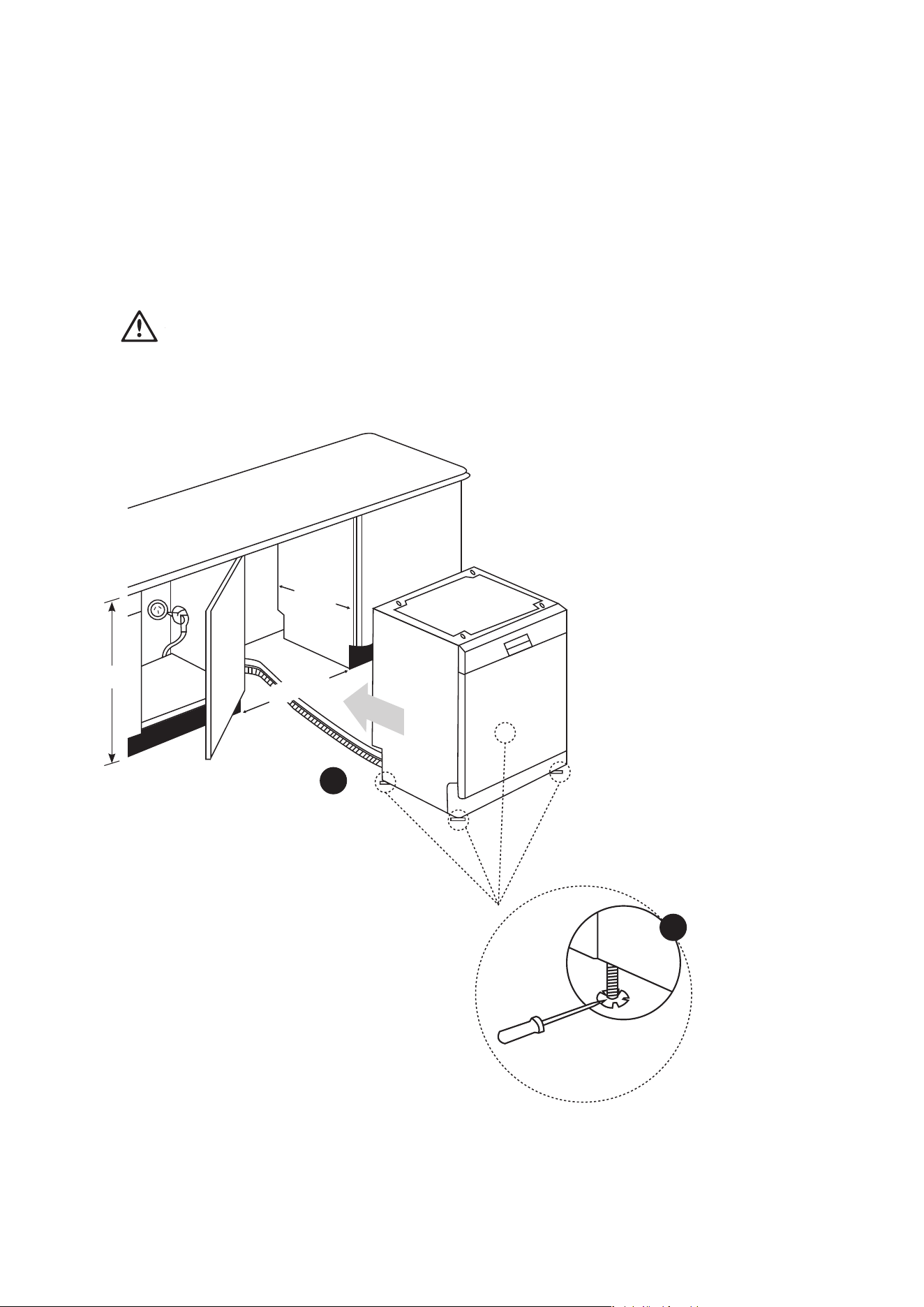

1 Adjust the machine feet according to the slope
of the floor.
2 Fit your machine by pushing it undercounter without letting the
hoses get crushed or bent.
WARNING
WARNING
Ensure the opening for the dishwasher is according to the
following dimensions.
5
4
min. 600mm
850-870mm
570mm
INSTALLING THE MACHINE
11
PREPARING THE MACHINE FOR USE
Combined detergent
Detergent manufacturers also produce combined detergents called
“2 in 1”, “3 in 1” or “5 in 1” etc.
“2 in 1” detergents contain detergent or rinse aid.
When using “2 in 1” detergent make sure to check
the specifications of the tablet.
Other tablet detergents contain detergent + rinse aid
+ various extra functions/additives.
Generally, combined detergents produce acceptable results under
certain usage conditions only. These detergents contain rinse aid in
preset amounts.
Points to consider when using these type of products:
• Always make sure to check the specifications of
the detergent you will use or whether or not it is
a combined detergent.
• Check if the detergent used is appropriate for the hardness of mains
water.
• Observe the instructions on packaging when
using such products.
• If detergents are in the form of tablets, never put them into the
interior section or the cutlery basket of the dishwasher. Always
put the tablets into the detergent compartment in the detergent
dispenser.
• Tablets produce good results for certain types of usage only.
If you are using this type of detergent, you need to contact the
manufacturer and find out about the suitable conditions of use.
• When the conditions of use of such products and the machine
settings are appropriate, they ensure savings in rinse aid
consumption.
• Contact the detergent manufacturers if you are not obtaining
good wash results (if your dishes have limescale and stay
wet) after having used 2 in 1 or 3 in 1 detergents. The scope
of warranty for your machine does not cover any complaints
caused by the use of these types of detergents.
Recommended usage: If you want to obtain better
results while using combined detergents, add rinse aid
into your machine and adjust the rinse aid setting to the lowest
position.
Solubility of the tablet detergents produced by different companies
can vary depending on the temperature and time Therefore, it is not
recommended to use these detergents in short programs It is more
suitable to use powder detergents and rinse aid in short programs
WARNING
WARNING
Should any problem occur which you have not encountered before,
with the use of these types of detergents, contact the detergent
manufacturers directly.
Prior to using the machine for the first time
• Check whether the electricity and water supply specifications
match the values indicated by the installation instructions for the
machine.
• Remove all packaging materials inside the machine.
• Fill the rinse aid compartment.
Detergent usage
Use a detergent specifically designed for use in domestic
dishwashers. You can find powder, gel, and tablet detergents in
the market that have been designed for household dishwashers.
Detergent should be put into the compartment prior to starting the
machine. Keep your detergents in cool, dry places out of reach of
your children. Do not fill detergent into the detergent compartment
more than required; otherwise it may etch your glasses as well as
leaving undissolved detergent in the dishwasher. Should you need
more information concerning the detergent to use, contact detergent
manufacturers directly.

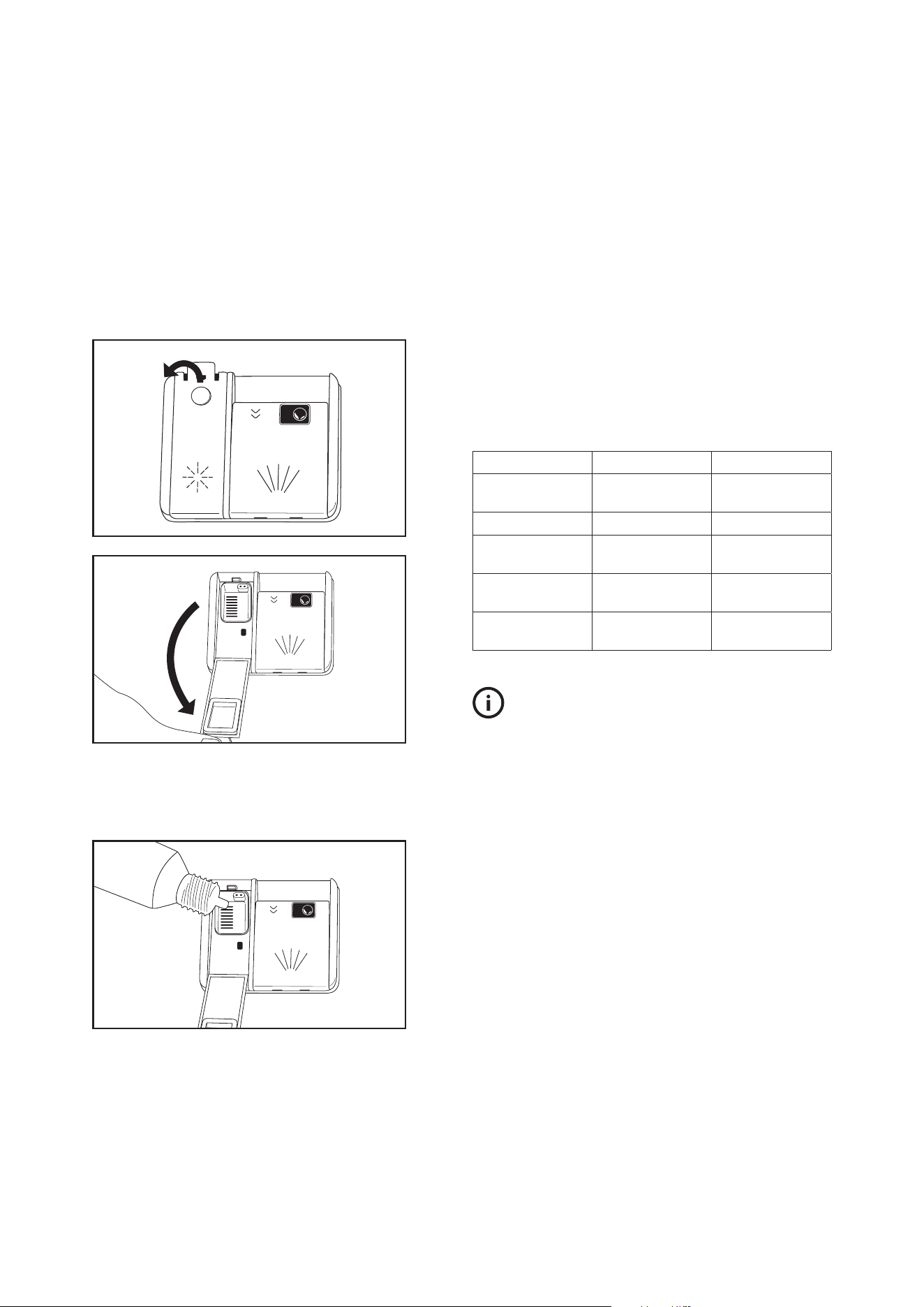

Filling the detergent compartment

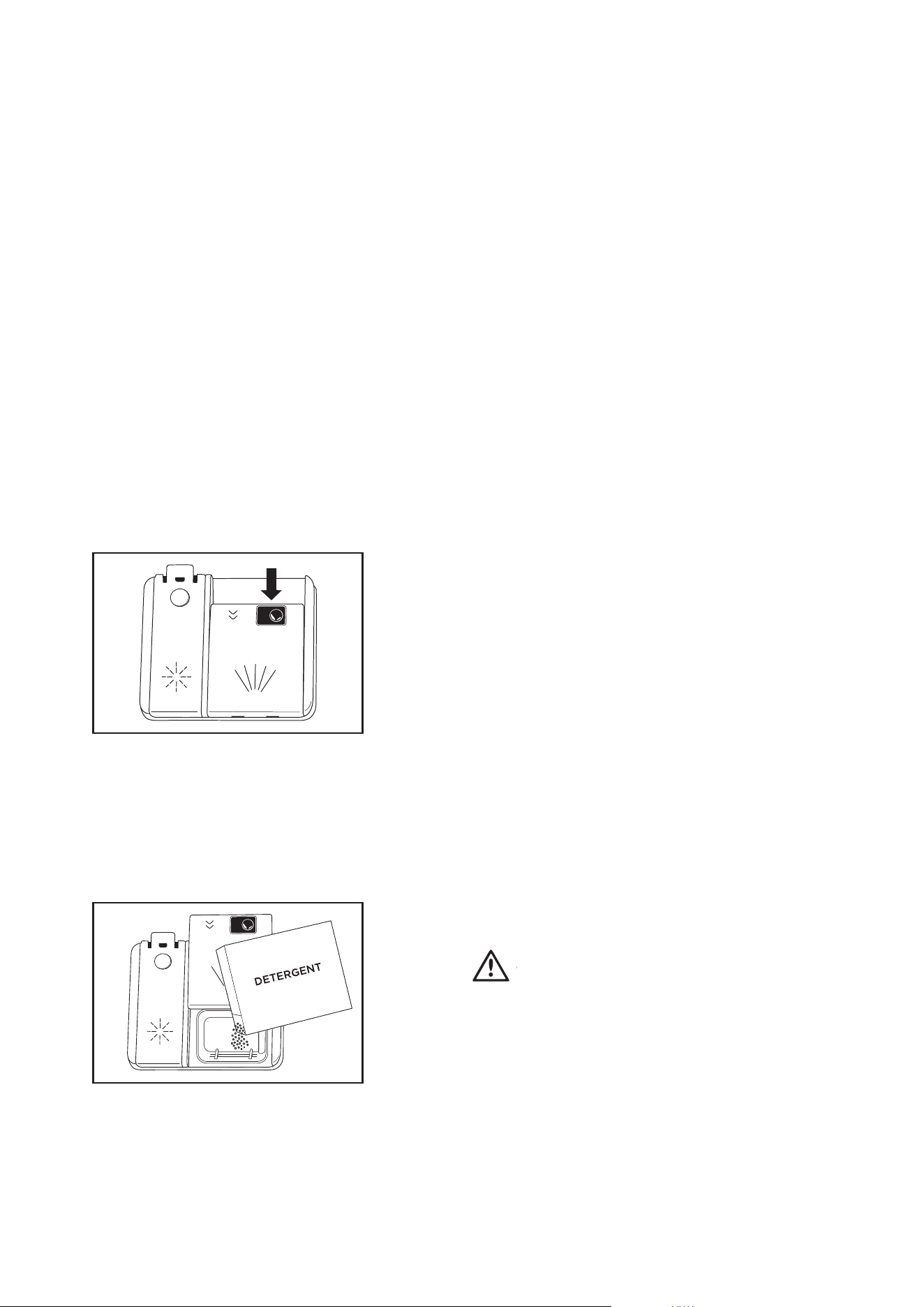

Push the latch to open the detergent container as shown in the image.
The Detergent pod has level lines inside. It is possible to measure the
right detergent amount using these lines.
The detergent pod can take a maximum of 40cm
3
detergent.
Open the dishwasher detergent pod and pour 25cm
3
if your dishes
are heavily soiled or 15cm
3
if they are less soiled.
You may have to add more detergent into your machine, depending on
the degree of soil and the water hardness in your area.
If your dishes are from the previous day and there is dried food
waste on them, or if you have fully loaded the dishwasher, pour 5cm
3
detergent onto the base of the door and start your machine.
PREPARING THE MACHINE FOR USE
12PREPARING THE MACHINE FOR USE
PREPARING THE MACHINE FOR USE
When you STOP using combined detergents
• Fill the rinse aid compartments.
• Select a suitable rinse aid setting.
Filling with rinse aid and setting
To fill the rinse aid compartment, open the rinse-aid compartment
cap.
Fill the compartment with rinse aid until MAX level
and then close the cap.
Be careful not to overfill the rinse aid compartment
and wipe up any spills.
RINSE-AID
In order to set rinse aid level, follow below steps:
Push the program button and hold it down.
Turn on the machine.
Hold down the program button until the LEDs flash once.
The machine will display the last setting.
Set the level by pushing the program button.
Switch off the machine to save the setting.
The factory setting is “4”.
If the dishes are not drying properly or are spotted, increase the rinse-
aid level. If blue stains form on your dishes, decrease the rinse-aid
level.
Level Brightener Dose Indicator
1 Rinse-aid not
dispensed
Wash LED is on.
2 1 dose is dispensed Rinse LED is on.
3 2 doses are
dispensed
Dry LED is on.
4 3 doses are
dispensed
End LED is on.
5 4 doses are
dispensed
Wash and End LEDs
are on.
TIPS & INFORMATION
TIPS AND INFORMATION
Only use rinse aid suitable for automatic dishwashers.
As rinse aid residues left as a result of overflowing will create
extremely high amounts of foam and reduce the washing
performance, remove the excess amount of rinse aid by wiping it with
a cloth. Remove all excess rinse aid if spilt while filling.
13LOADING YOUR DISHWASHER
LOADING YOUR DISHWASHER
Correctly loaded dishes will result in the best energy consumption,
washing and drying performance. There are two separate baskets for
you to load your dishes into your machine. You can load into the lower
basket round and deep items as pots with long handles, pot lids,
plates, salad plates, and cutlery sets.
The upper basket has been designed for tea plates, dessert plates,
salad bowls, cups and glasses. When placing long-stem glasses and
goblets, lean them against the basket edge, rack or glass support
wire and not against other items. Do not lean long glasses against
one another if they are unsupported, they may break. It is more
appropriate to locate the thin narrow parts into the middle sections of
baskets. You can place spoons among the other cutlery sets in order
to prevent them from sticking to one another. You are recommended
to use the cutlery grid in order to obtain the best result. To avoid any
possible injuries, always place such long-handle and sharp-pointed
items such as serving forks, bread knives etc. with their sharp points
facing down or horizontally on the baskets.
TIPS & INFORMATION
TIPS AND INFORMATION
Ensure the position of the dishware does not prevent the upper or
lower spray arm from turning.
Upper Basket
Height adjustment

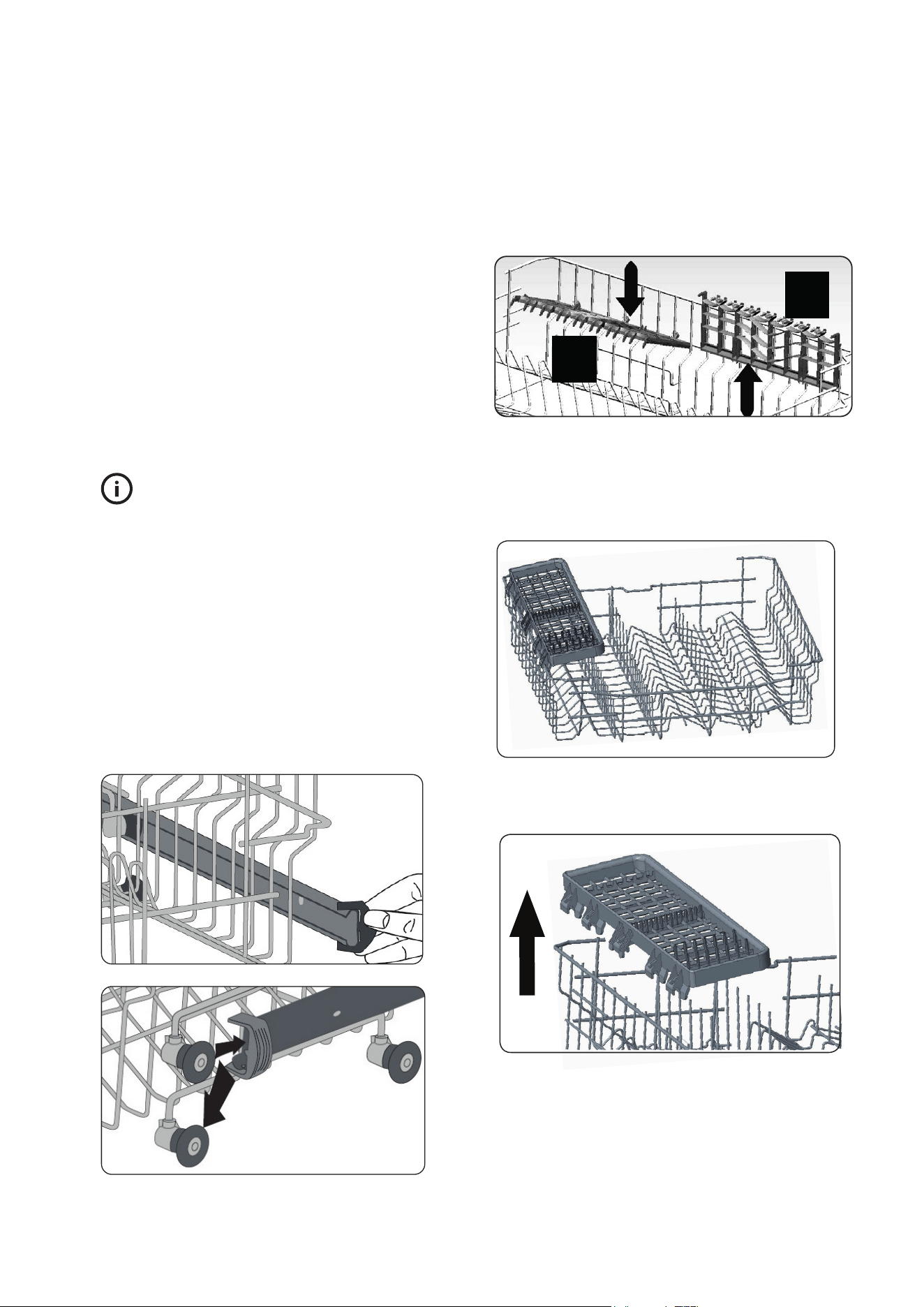

Turn the Rail Stop Clips, at the ends of the rails, to the sides to open
them (as shown in the image below), then pull out and remove the
basket. Change the position of the wheels, then reinstall the basket
to the rail, making sure to close the Rail Stop Clips. When the upper
basket is in the higher position, large items such as pans can be
placed on the lower basket.
Top basket
Fixed Rack
Upper basket racks have two positions: open (a) and closed (b).
You can place cups on the racks to be washed. You can also
place long forks, knives and spoons on the racks laterally.
a
b
Upper Basket Knife Holder
(varies by model)
Thanks to the knife holder in the upper baskets, it is possible to
store kitchen utensils such as bread knives and ladles. You can
wash it easily.
When you do not want to use it, you can remove the
upper basket knife shelf by pulling it upwards.
14
LOADING YOUR DISHWASHER

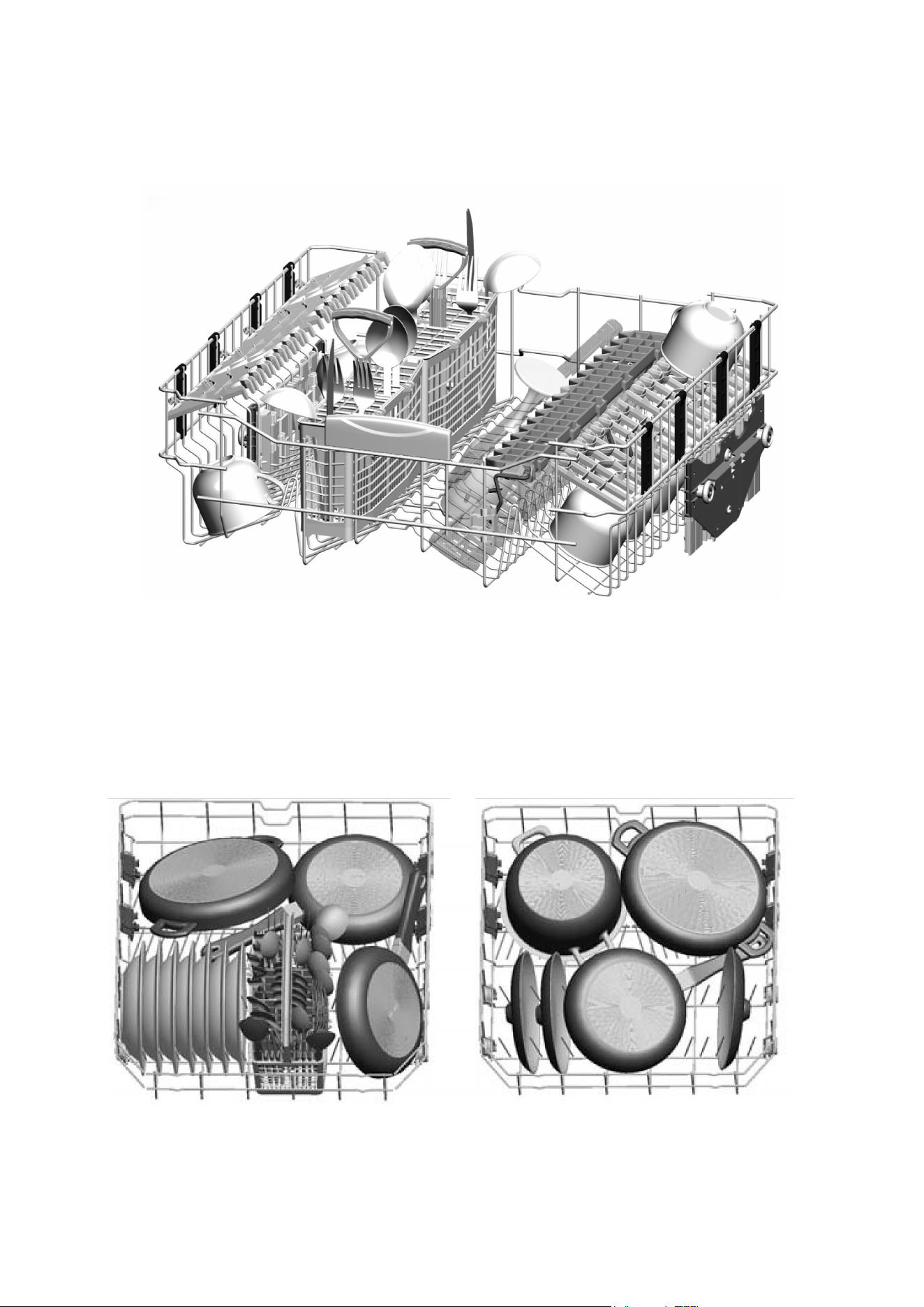

Alternative basket loads
Lower Basket
Alternative modular basket position
LOADING YOUR DISHWASHER
15
LOADING YOUR DISHWASHER
TIPS & INFORMATION
TIPS AND INFORMATION

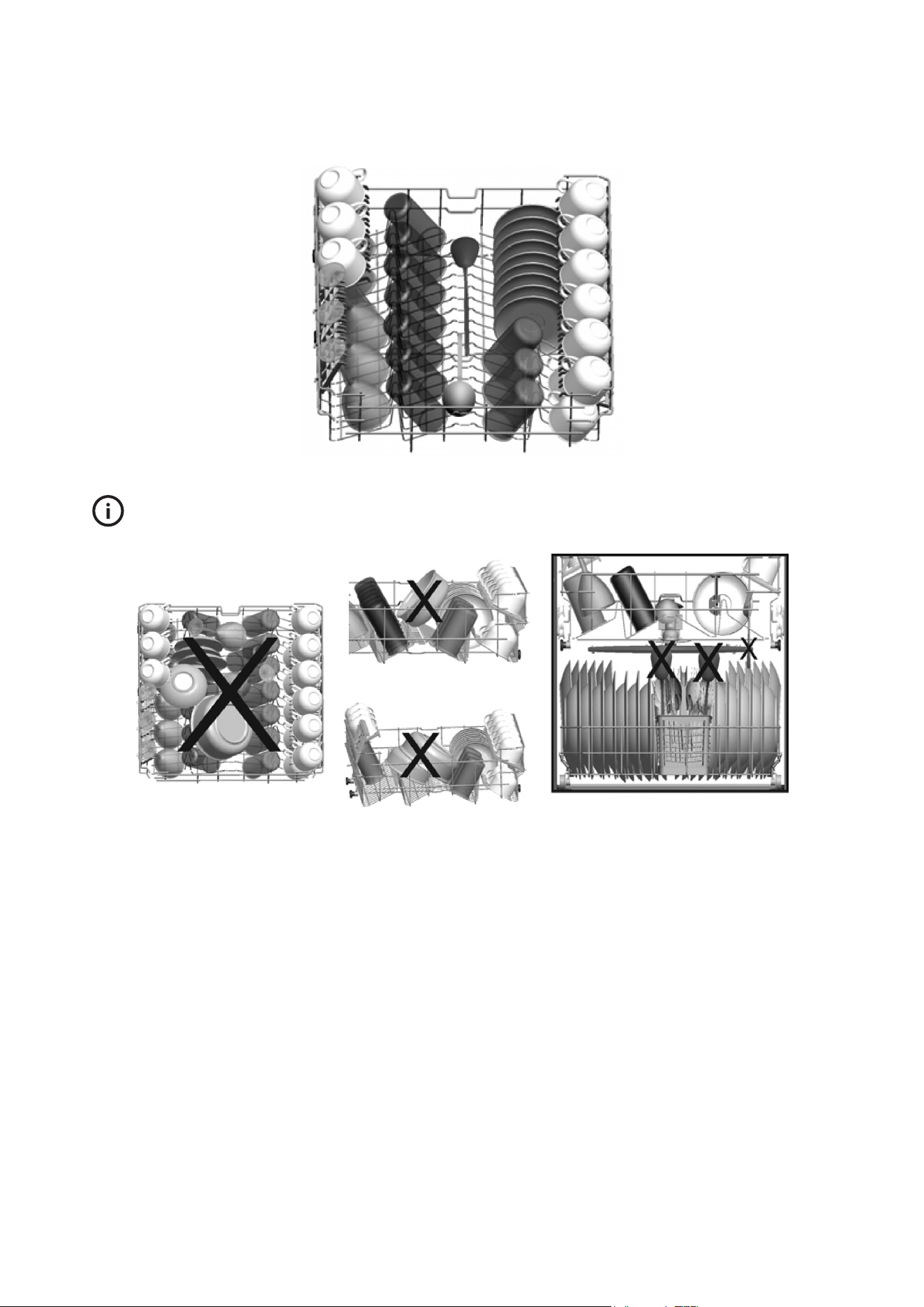

Examples of incorrect loading
Top Basket
LOADING YOUR DISHWASHER
16
LOADING
PROGRAM DESCRIPTIONS
Program items
NOTE: PROGRAM DURATION MAY CHANGE ACCORDING TO THE AMOUNT OF DISHES, TAP WATER, AMBIENT TEMPERATURE AND
SELECTED ADDITIONAL FUNCTIONS.
• Only use powder detergent in short programs.
• Short programs do not include a drying step.
• To assist drying, we recommend partially opening the door after the program has finished.
Information for test laboratories
For all the necessary information for performance testing, send an email to dishwasher@standardtest info
In your mail please provide the model number and PNC number that is on the rating plate on the appliance door.
PROGRAM DESCRIPTIONS
MAINTENANCE AND CLEANING
NAME OF PROGRAM FAST 30’ DELICATE 40°C ECO* TIMESAVE SENSORWASH
TYPE OF FOOD
SOILS
Suitable for
lightly soiled
dishes and
quick wash.
Suitable for
lightly soiled
delicate
dishes.
Standard program for
normally soiled daily
using dishes with
reduced energy and
water consumptions.
Suitable for
normally soiled
daily dishes
with faster
program.
Auto program
for normally and
heavily soiled
dishes.
PROGRAM
TIME (MINS)
30 74 220 50 185 - 204
17
MAINTENANCE AND CLEANING
Cleaning your dishwasher is important to maintain the machine’s
service life
Oil and limescale may build up in your Dishwasher over time. If
this occurs:
Fill the detergent compartment
but do not load any dishes. Select a program which runs at high
temperature and run the Dishwasher empty. If this does not
clean your Dishwasher sufficiently, use a cleaning agent
designed for use with dishwashers.
To extend the life of your dishwasher, clean the appliance
regularly on each month.
Wipe the door seals regularly with a damp cloth to remove any
accumulated residue or foreign objects.
Filters
Clean the filters and spray arms at least once a week. If any food
waste remains or foreign objects on the coarse and fine filters,
remove them and clean them thoroughly with water.

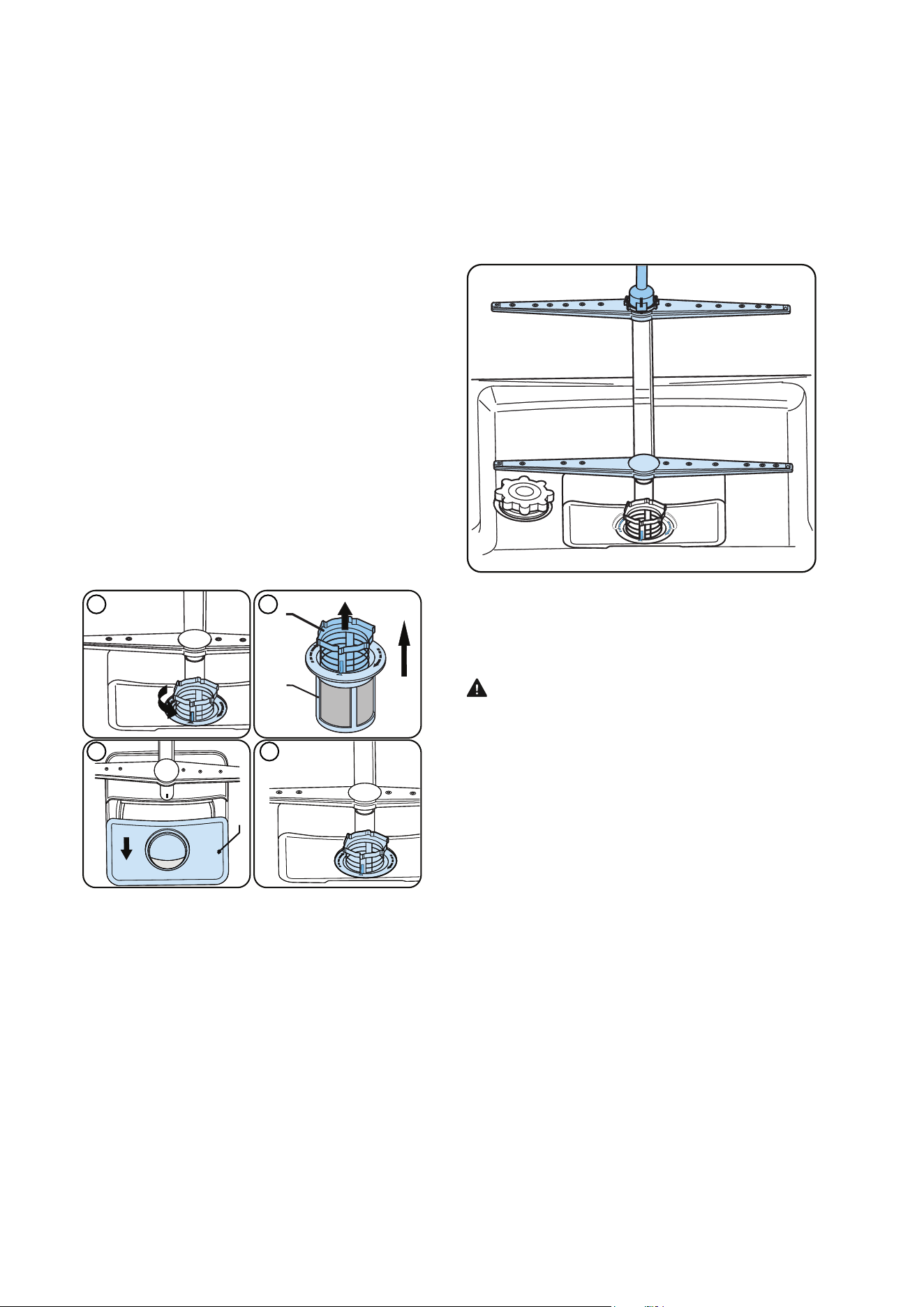

a) Micro Filter b) Coarse Filter
c) Metal Filter
To remove and clean the filter combination, turn it counter
clockwise and remove it by lifting it upwards (1).Pull the coarse
filter out of the micro filter (2).Then pull and remove the metal
filter (3).Rinse the filter with lots of water until it is free of
residue. Reassemble the filters. Replace the filter insert, and
rotate it clockwise (4).
• Never use your dishwasher without a filter.
• Incorrect fitting of the filter will reduce the washing
effectiveness.
• Clean filters are necessary for proper running of the
machine.
3 4
1 2
a
c
b
Spray arms
Make sure that the spray holes are not clogged and that no
food waste or foreign object is stuck to the spray arms. If there
is any clogging,remove the spray arms and clean them under
water. To remove the upper spray arm undo the nut holding it in
position by turning it clockwise and pulling it downwards. Make
sure that the nut is properly tightened when refitting the upper
spray arm.
Drain Pump
Large food residues or foreign objects which were not captured
by the filters may block the waste water pump. The rinsing water
will then be above the filter.
Warning Risk of cuts!
When cleaning the waste water pump, ensure that you do not
injure yourself on pieces of broken glass or pointed implements.
In this case:
1. irst always disconnect the appliance from the power supply.
2. Take out baskets.
3. Remove the filters.
4. Scoop out water, use a sponge if required.
5. Check the area and remove any foreign objects.
6. Install filters.
7. Re-insert baskets.
MAINTENANCE AND CLEANING
18
FAILURE CODES AND WHAT TO DO IN CASE OF FAILURE

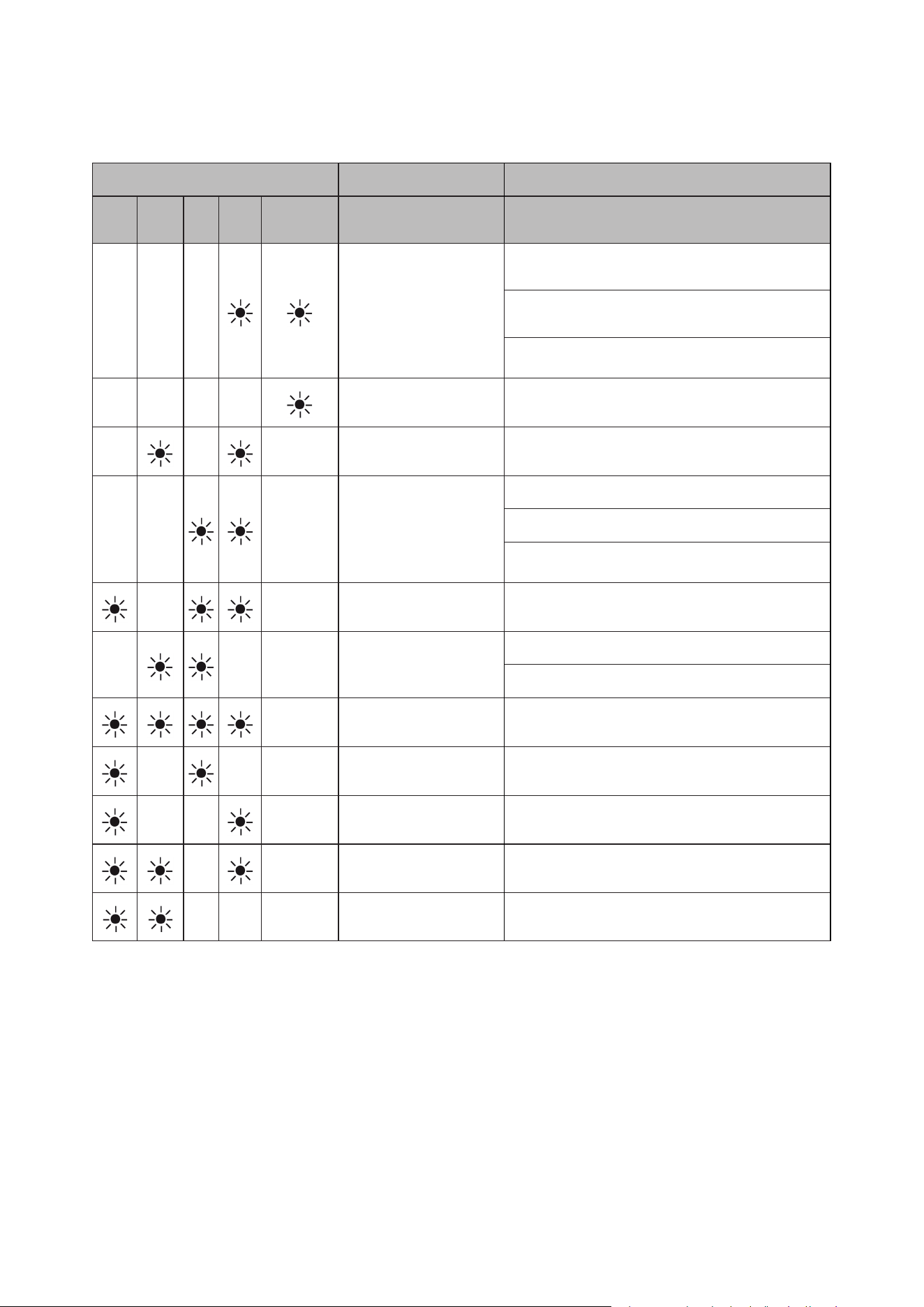

TROUBLE CODE POSSIBLE FAULT WHAT TO DO
End
Start/
Pause
Water inlet system failure
Make sure the water inlet tap is open and that water is
flowing.
Separate the inlet hose from the tap and clean the filter
of the hose.
Contact for service if the error continues.
Pressure system failure
Contact for service.
Continuous water inlet
Close for tap and contact the service
Inability to discharge
water
Water discharge hose and filters may be clogged.
Cancel the program.
If the error continues, contact for service.
Faulty heater
Contact for service.
Overflow
Unplug the machine and close the tap.
Contact for service.
Faulty electronic card Contact for service.
Overheating Contact for service.
Faulty heater sensor Contact for service.
High voltage failure Contact for service.
Low voltage failure Contact for service.
The installation and repairing procedures should always carried out by the Authorised Service Agent in order to avoid possible risks.
The manufacturer shall not be held liable for damages that may arise from procedures carried out by unauthorised persons. Repairs
may be carried out by technicians only. If a component has to be replaced, ensure that only original spare parts are used.
Improper repairs or use of non-original spare parts may cause considerable damage and put the user at considerable risk.
Contact information for your customer service can be found on the back of this document.
Function-relevant genuine spare parts according to the corresponding Ecodesign order can be obtained from Customer Service for
a period of at least 10 years from the date on which your appliance was placed on the market within the European Economic Area.
Wash
Rinse
Dry
19
TROUBLESHOOTING
Call an authorised service centre if the problem still persists after the
controls or in case of any malfunction not described above
PROBLEM SOLUTION
If one of program monitor lights is on and
start/pause light is flashing
• Your machine’s door is open, shut the door.
If the program won’t start
• Check if the plug is connected.
• Check your indoor fuses.
• Be sure that the water inlet tap is turned on.
• Be sure that you have closed the machine door.
• Be sure that you switched off the machine by pressing the Power On/Off button.
• Be sure that the water inlet filter and the machine filters are not clogged.
• First time use: Check if the drain spigot’s membrane has been removed or
spigot blocked.
• Check if the delay start has been selected – reset.
If detergent residues are left in the detergent
compartment
• Detergent has been added when the detergent compartment was wet.
• A large dish in the lower basket has blocked the dispenser door.
If water is left inside the machine at the end
of the program
• The water drain hose is clogged or twisted.
• The filters are clogged.
• The program is not finished yet.
If the machine stops during a wash operation
• Power failure.
• Water inlet failure.
• Program can be on standby mode.
If shaking and hitting noises are heard during
a wash operation
• Dishes placed incorrectly.
• Spray arm hitting the dishes.
If there are partial food wastes left on the
dishes
• Dishes placed incorrectly into the machine, sprayed water did not reach related places.
• Basket over loaded.
• Dishes leaning against one another.
• Very small amount of detergent added.
• An unsuitable, rather weak wash program selected.
• Spray arm clogged with food wastes.
• Filters clogged.
• Filters incorrectly fitted.
• Water drain pump clogged.
If there are whitish stains on the dishes
• A very small amount of detergent is being used.
• Rinse aid dosage setting at a very low level.
If the dishes won’t dry up
• A program without a dry operation selected.
• Rinse aid dosage set too low.
• Dishes unloaded too fast.
If there are rust stains on the dishes
• Stainless-steel quality of the dishes washed is insufficient.
• Unhealthy mains grounding.
FAILURE CODES AND WHAT TO DO IN CASE OF FAILURE
This document sets out the terms and conditions of the product
warranties for Westinghouse Appliances. It is an important
document. Please keep it with your proof of purchase documents
in a safe place for future reference should there be a manufacturing
defect in your Appliance. This warranty is in addition to other rights
you may have under the Australian Consumer Law.
1. In this warranty:
(a) ‘ACL’ or ‘Australian Consumer Law’ means Schedule 2 to the
Competition and Consumer Act 2010;
(b) ‘Appliance’ means any Electrolux product purchased by you and
accompanied by this document;
(c) ‘ASC’ means Electrolux’s authorised serviced centres;
(d) ‘Westinghouse’ is the brand controlled by Electrolux Home Products
Pty Ltd of 163 O’Riordan Street, Mascot NSW 2020, ABN 51 004
762 341 in respect of Appliances purchased in Australia and Electrolux
(NZ) Limited (collectively “Electrolux”) of 3-5 Niall Burgess Road, Mount
Wellington, in respect of Appliances purchased in New Zealand;
(e) ‘WarrantyPeriod’meanstheperiodspeciedinclause3ofthis
warranty;
(f) ‘you’ means the purchaser of the Appliance not having purchased
the Appliance for re-sale, and ‘your’ has a corresponding meaning.
2. Application: This warranty only applies to new Appliances, purchased
and used in Australia or New Zealand and is in addition to (and does not
exclude, restrict, or modify in any way) other rights and remedies under
a law to which the Appliances or services relate, including any non-
excludable statutory guarantees in Australia and New Zealand.
3. Warranty Period: Subject to these terms and conditions, this warranty
continues for in Australia for a period of 24 months and in New Zealand
for a period of 24 months, following the date of original purchase of the
Appliance.
4. Repair or replace warranty: During the Warranty Period, Electrolux
or its ASC will, at no extra charge if your Appliance is readily accessible
for service, without special equipment and subject to these terms and
conditions, repair or replace any parts which it considers to be defective.
Electrolux may, in its absolute discretion, choose whether the remedy
oeredforavalidwarrantyclaimisrepairorreplacement.Electroluxorits
ASC may use refurbished parts to repair your Appliance. You agree that
any replaced Appliances or parts become the property of Electrolux.
5. Travel and transportation costs: Subject to clause 7, Electrolux will
bear the reasonable cost of transportation, travel and delivery of the
Appliance to and from Electrolux or its ASC. Travel and transportation will
be arranged by Electrolux as part of any valid warranty claim.
6. Proof of purchase is required before you can make a claim under this
warranty.
7. Exclusions: You may not make a claim under this warranty unless the
defect claimed is due to faulty or defective parts or workmanship. This
warranty does not cover:
(a) lightglobes,batteries,ltersorsimilarperishableparts;
(b) parts and Appliances not supplied by Electrolux;
(c) cosmeticdamagewhichdoesnotaecttheoperationofthe
Appliance;
(d) damage to the Appliance caused by:
(i) negligence or accident;
(ii) misuse or abuse, including failure to properly maintain or service;
(iii) improper, negligent or faulty servicing or repair works done by
anyone other than an Electrolux authorised repairer or ASC;
(iv) normal wear and tear;
(v) power surges, electrical storm damage or incorrect power supply;
(vi) incomplete or improper installation;
(vii) incorrect, improper or inappropriate operation;
(viii) insect or vermin infestation;
(ix) failure to comply with any additional instructions supplied with
the Appliance;
In addition, Electrolux is not liable under this warranty if:
(a) the Appliance has been, or Electrolux reasonably believes that the
Appliance has been, used for purposes other than those for which
the Appliance was intended, including where the Appliance has
been used for any non-domestic purpose;
(b) theApplianceismodiedwithoutauthorityfromElectroluxinwriting;
(c) the Appliance’s serial number or warranty seal has been removed
or defaced
8. How to claim under this warranty: To enquire about claiming under
this warranty, please follow these steps:
(a) carefully check the operating instructions, user manual and the terms
of this warranty;
(b) have the model and serial number of the Appliance available;
(c) have the proof of purchase (e.g. an invoice) available;
(d) telephone the numbers shown below.
9. Australia: For Appliances and services provided by Electrolux in
Australia: Electrolux goods come with guarantees that cannot be
excluded under the Australian Consumer Law. You are entitled to a
replacement or refund for a major failure and for compensation for any
other reasonably foreseeable loss or damage. You are also entitled to
have the Appliance repaired or replaced if the Appliance fails to be of
acceptable quality and the failure does not amount to a major failure.
‘Acceptable quality’ and ‘major failure’ have the same meaning as
referred to in the ACL.
10. New Zealand: For Appliances and services provided by Electrolux
in New Zealand, the Appliances come with a guarantee by Electrolux
pursuant to the provisions of the Consumer Guarantees Act, the Sale
of Goods Act and the Fair Trading Act. Where the Appliance was
purchased in New Zealand for commercial purposes the Consumer
Guarantee Act does not apply.
11.Condentiality: You accept that if you make a warranty claim, Electrolux
and its agents including ASC may exchange information in relation to you
to enable Electrolux to meet its obligations under this warranty.
Warranty
FOR SALES IN AUSTRALIA AND NEW ZEALAND
APPLIANCE: WESTINGHOUSE DISHWASHERS
WDish_Warr_Jul19
Important Notice
Before calling for service, please ensure that the steps listed in clause 8 above have been followed.
AUSTRALIA
FOR SERVICE
ortondtheaddressofyournearest
authorised service centre in Australia
PLEASE CALL 13 13 49
For the cost of a local call
FOR SPARE PARTS
ortondtheaddressofyournearest
spare parts centre in Australia
PLEASE CALL 13 13 50
For the cost of a local call
NEW ZEALAND
FOR SERVICE
ortondtheaddressofyournearest
authorised service centre in New Zealand
PLEASE CALL 0800 10 66 10
FOR SPARE PARTS
ortondtheaddressofyournearest
spare parts centre in New Zealand
PLEASE CALL 0800 10 66 20
20
Westinghouse are trademarks of Westinghouse Electric Corporation.
Used under license. All Rights Reserved.
© 2017 Electrolux Home Products Pty Ltd.
ABN 51 004 762 341
For more information on all Westinghouse appliances, or for dimension and
installation information, call into your retailer, phone or email our customer
care team or visit our website:
AUSTRALIA
service:
spare parts:
13 13 49
13 13 50
email:
web:
NEW ZEALAND
Customer Care:
Spare Parts:
Emai:
Web:
westinghouse.com.au
0800 436 245
0800 106 620
westinghouse.co.nz
