User Manual
Auto-Empty Robot Vacuum and Mop
Read this manual carefully before use and keep it for future reference.
1
EN
Usage Restrictions
Safety Information
This product can be used by children aged 8 years and above and persons
with physical, sensory, intellectual deficiencies, or limited experience or
knowledge under the supervision of a parent or guardian to ensure safe
operation and to avoid any risks. Cleaning and maintenance shall not be
done by children without supervision.
Children shall not play with this product. Ensure children and pets are kept at
a safe distance from the robot while it is operating.
This product is for floor cleaning in a home environment only. Do not use it
outdoors, on non-floor surfaces, or in a commercial or industrial setting.
Do not use the robot in an area suspended above ground level without a
protective barrier.
Do not use the robot at an ambient temperature above 40° C or below 0° C or
on a floor with liquids or sticky substances.
Pick up any cables from the floor before using the robot to prevent it from
dragging them while cleaning.
Remove fragile or small items from the floor to prevent the robot from
bumping into and damaging them.
Keep hair, fingers, and other body parts away from the suction opening of
the robot.
Keep the brush cleaning tool out of reach of children.
Content
User Manual
Benutzerhandbuch
Manuel d'utilisation
Manuale utente
Manual de usuario
Руководство пользователя
Instrukcja obsługi
1
22
44
66
88
110
133
155
175
دليل مستخدم
EN
DE
FR
IT
ES
RU
PL
HE
SA
שמתשמל ךירדמ
1
EN
Usage Restrictions
Safety Information
This product can be used by children aged 8 years and above and persons
with physical, sensory, intellectual deficiencies, or limited experience or
knowledge under the supervision of a parent or guardian to ensure safe
operation and to avoid any risks. Cleaning and maintenance shall not be
done by children without supervision.
Children shall not play with this product. Ensure children and pets are kept at
a safe distance from the robot while it is operating.
This product is for floor cleaning in a home environment only. Do not use it
outdoors, on non-floor surfaces, or in a commercial or industrial setting.
Do not use the robot in an area suspended above ground level without a
protective barrier.
Do not use the robot at an ambient temperature above 40° C or below 0° C or
on a floor with liquids or sticky substances.
Pick up any cables from the floor before using the robot to prevent it from
dragging them while cleaning.
Remove fragile or small items from the floor to prevent the robot from
bumping into and damaging them.
Keep hair, fingers, and other body parts away from the suction opening of
the robot.
Keep the brush cleaning tool out of reach of children.
Content
User Manual
Benutzerhandbuch
Manuel d'utilisation
Manuale utente
Manual de usuario
Руководство пользователя
Instrukcja obsługi
1
22
44
66
88
110
133
155
175
دليل مستخدم
EN
DE
FR
IT
ES
RU
PL
HE
SA
שמתשמל ךירדמ
2 3
ENEN
Hereby, Dreame Trading（Tianjin）Co., Ltd. declares that the radio equipment type RLSD5 is in compliance
with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following
internet address: www.dreame-technology.com
Batteries and
Charging
Batteries and
Charging
Do not use any third-party battery or auto-empty base. Use only with RCS2
supply unit.
Do not attempt to disassemble, repair, or modify the battery or auto-empty
base on your own.
Do not place the auto-empty base near a heat source.
Do not use a wet cloth or wet hands to wipe or clean the base's charging
contacts.
Do not place children, pets, or any item on top of the robot regardless of
whether it is stationary or moving.
Do not use the robot to clean any burning objects.
Do not vacuum hard or sharp objects.
Make sure the robot is turned off and the auto-empty base is unplugged
before cleaning or performing maintenance.
Do not wipe any part of the product using a wet cloth or liquids.
Please use this product in accordance with the instructions in the User
Manual. Users are responsible for any loss or damage that arise from
improper use of this product.
Usage Restrictions
Safety Information Safety Information
Do not improperly dispose of old batteries. Unneeded batteries should be
discarded at an appropriate recycling facility.
If the power cord becomes damaged or broken, stop using it immediately
and contact after-sales service.
Make sure the robot is turned off when being transported and kept in its
original packaging if possible.
If the robot will not be used for an extended period, fully charge it, then turn
it off and store in a cool, dry place. Recharge the robot at least once every 3
months to avoid over-discharging the battery.
This product contains batteries that can only be replaced by qualified
technicians or after-sales service.
2 3
ENEN
Hereby, Dreame Trading（Tianjin）Co., Ltd. declares that the radio equipment type RLSD5 is in compliance
with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following
internet address: www.dreame-technology.com
Batteries and
Charging
Batteries and
Charging
Do not use any third-party battery or auto-empty base. Use only with RCS2
supply unit.
Do not attempt to disassemble, repair, or modify the battery or auto-empty
base on your own.
Do not place the auto-empty base near a heat source.
Do not use a wet cloth or wet hands to wipe or clean the base's charging
contacts.
Do not place children, pets, or any item on top of the robot regardless of
whether it is stationary or moving.
Do not use the robot to clean any burning objects.
Do not vacuum hard or sharp objects.
Make sure the robot is turned off and the auto-empty base is unplugged
before cleaning or performing maintenance.
Do not wipe any part of the product using a wet cloth or liquids.
Please use this product in accordance with the instructions in the User
Manual. Users are responsible for any loss or damage that arise from
improper use of this product.
Usage Restrictions
Safety Information Safety Information
Do not improperly dispose of old batteries. Unneeded batteries should be
discarded at an appropriate recycling facility.
If the power cord becomes damaged or broken, stop using it immediately
and contact after-sales service.
Make sure the robot is turned off when being transported and kept in its
original packaging if possible.
If the robot will not be used for an extended period, fully charge it, then turn
it off and store in a cool, dry place. Recharge the robot at least once every 3
months to avoid over-discharging the battery.
This product contains batteries that can only be replaced by qualified
technicians or after-sales service.
4 5
ENEN
Robot
Product Overview
Spot Clean Button
• Press briey to begin Spot Clean Mode
Power/Clean Button
• Press and hold for 3 seconds
• Press to begin cleaning after the robot is powered on
Status Indicator
• White: Cleaning or cleanup is completed
• Blinking Orange: Error
Dock Button
• Press to send robot back to the base
Cover

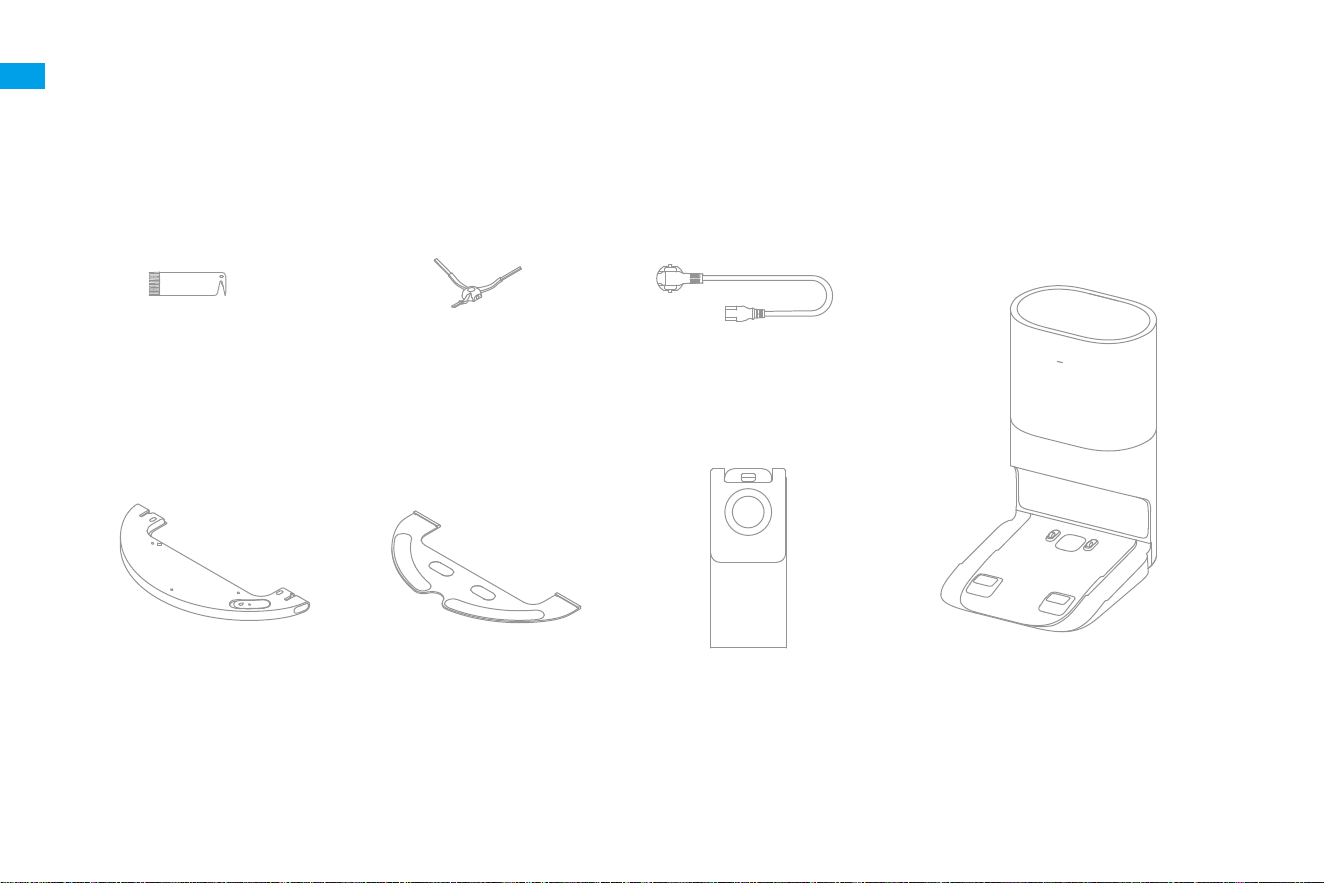

Accessories
Product Overview
Note: The illustrations in this manual are for reference only. Please refer to the actual product.
Water Tank
Side BrushCleaning Tool Power Cord
Mop Pad Dust Collection Bag Auto-Empty Base
4 5
ENEN
Robot
Product Overview
Spot Clean Button
• Press briey to begin Spot Clean Mode
Power/Clean Button
• Press and hold for 3 seconds
• Press to begin cleaning after the robot is powered on
Status Indicator
• White: Cleaning or cleanup is completed
• Blinking Orange: Error
Dock Button
• Press to send robot back to the base
Cover
Accessories
Product Overview
Note: The illustrations in this manual are for reference only. Please refer to the actual product.
Water Tank
Side BrushCleaning Tool Power Cord
Mop Pad Dust Collection Bag Auto-Empty Base
6 7
ENEN
Auto-Empty Base Auto-Empty Base (Open the upper cover)
Auto-Empty Base (Bottom)
Auto-Empty Base (Back)
Product Overview
Upper Cover
Status Indicator
White: The base is plugged in
Breathing White: Robot is charging
Blinking Orange: Dust collection
bag is full/Dust collection bag not
installed/Error
Dust Bag Slot
Air Duct Cover
Mounting Screw
Filter
Signaling Area
Charging Contacts
Dust Intake
Cord Storage Slot
Power Cord Socket
Reset Button
• Press and hold for 3
seconds to restore the
robot to factory settings
Wi-Fi Indicator
Cleaning Tool
Air Outlet/Speaker
Robot
Robot Sensors
Product Overview
LDS Laser Sensor
Collision Buer
High Precision 3D
Edge Sensor
Cli Sensor
Main Wheels
Cli Sensor
Cli Sensor
Main Wheels
Main Brush
Charging Contacts
Brush Guard Clips
Dust Intake
Omnidirectional Wheel
Side Brush
Charging Contacts
（3D ObstacleAvoidanceSensor）
6 7
ENEN
Auto-Empty Base Auto-Empty Base (Open the upper cover)
Auto-Empty Base (Bottom)
Auto-Empty Base (Back)
Product Overview
Upper Cover
Status Indicator
White: The base is plugged in
Breathing White: Robot is charging
Blinking Orange: Dust collection
bag is full/Dust collection bag not
installed/Error
Dust Bag Slot
Air Duct Cover
Mounting Screw
Filter
Signaling Area
Charging Contacts
Dust Intake
Cord Storage Slot
Power Cord Socket
Reset Button
• Press and hold for 3
seconds to restore the
robot to factory settings
Wi-Fi Indicator
Cleaning Tool
Air Outlet/Speaker
Robot
Robot Sensors
Product Overview
LDS Laser Sensor
Collision Buer
High Precision 3D
Edge Sensor
Cli Sensor
Main Wheels
Cli Sensor
Cli Sensor
Main Wheels
Main Brush
Charging Contacts
Brush Guard Clips
Dust Intake
Omnidirectional Wheel
Side Brush
Charging Contacts
（3D ObstacleAvoidanceSensor）
8 9
ENEN
Dust Bin
Mopping Module
Dust Collection Bag
Product Overview
Water Tank
Water Inlet
Attaching Area
Mop Pad Fixing Strap
Water Tank Release Clip
Mop Pad
Filter
Dust Bag Handle
Dust Intake
Bin Cover
Bin Clip
Note: Due to the factory setting, a new dust collection bag has been installed
inside already.

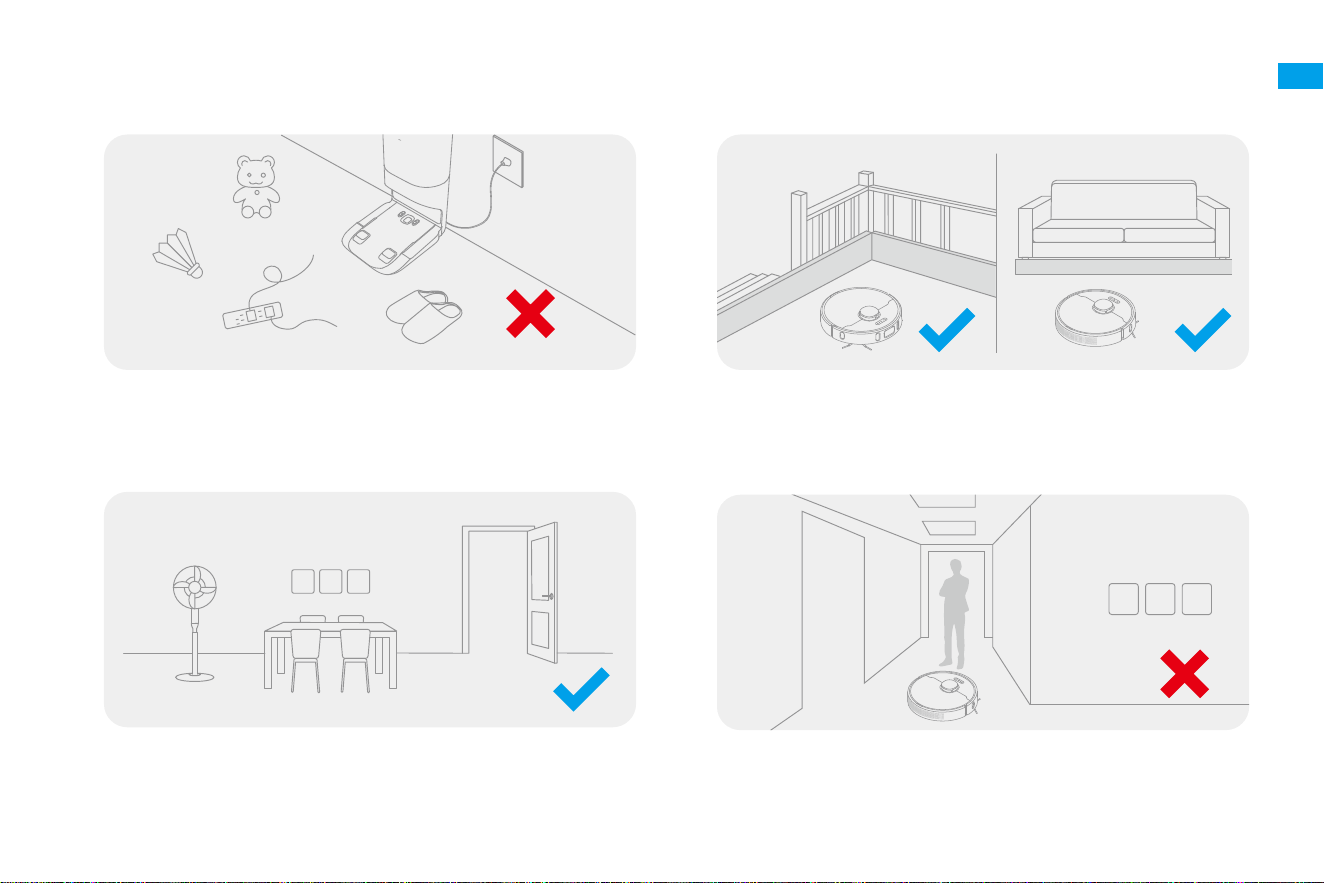

Clearing Home Environment
To improve the working eciency of your robot, put away any loose cords ,
rags, slippers, toys, etc.
Open the door of the room to be cleaned, and put the furniture in its
proper place to make more space.
To prevent the robot from not recognizing the area that needs to be
cleaned, do not stand in the front of the robot, threshold, hallway, or
narrow places.
Before cleaning, place a physical barrier at the edge of the stairs and
sofa to ensure safe and smooth operation of the robot.
8 9
ENEN
Dust Bin
Mopping Module
Dust Collection Bag
Product Overview
Water Tank
Water Inlet
Attaching Area
Mop Pad Fixing Strap
Water Tank Release Clip
Mop Pad
Filter
Dust Bag Handle
Dust Intake
Bin Cover
Bin Clip
Note: Due to the factory setting, a new dust collection bag has been installed
inside already.
Clearing Home Environment
To improve the working eciency of your robot, put away any loose cords ,
rags, slippers, toys, etc.
Open the door of the room to be cleaned, and put the furniture in its
proper place to make more space.
To prevent the robot from not recognizing the area that needs to be
cleaned, do not stand in the front of the robot, threshold, hallway, or
narrow places.
Before cleaning, place a physical barrier at the edge of the stairs and
sofa to ensure safe and smooth operation of the robot.
10 11
ENEN
> 1.5 m
> 0.3 m
> 0.5 m
> 0.5 m

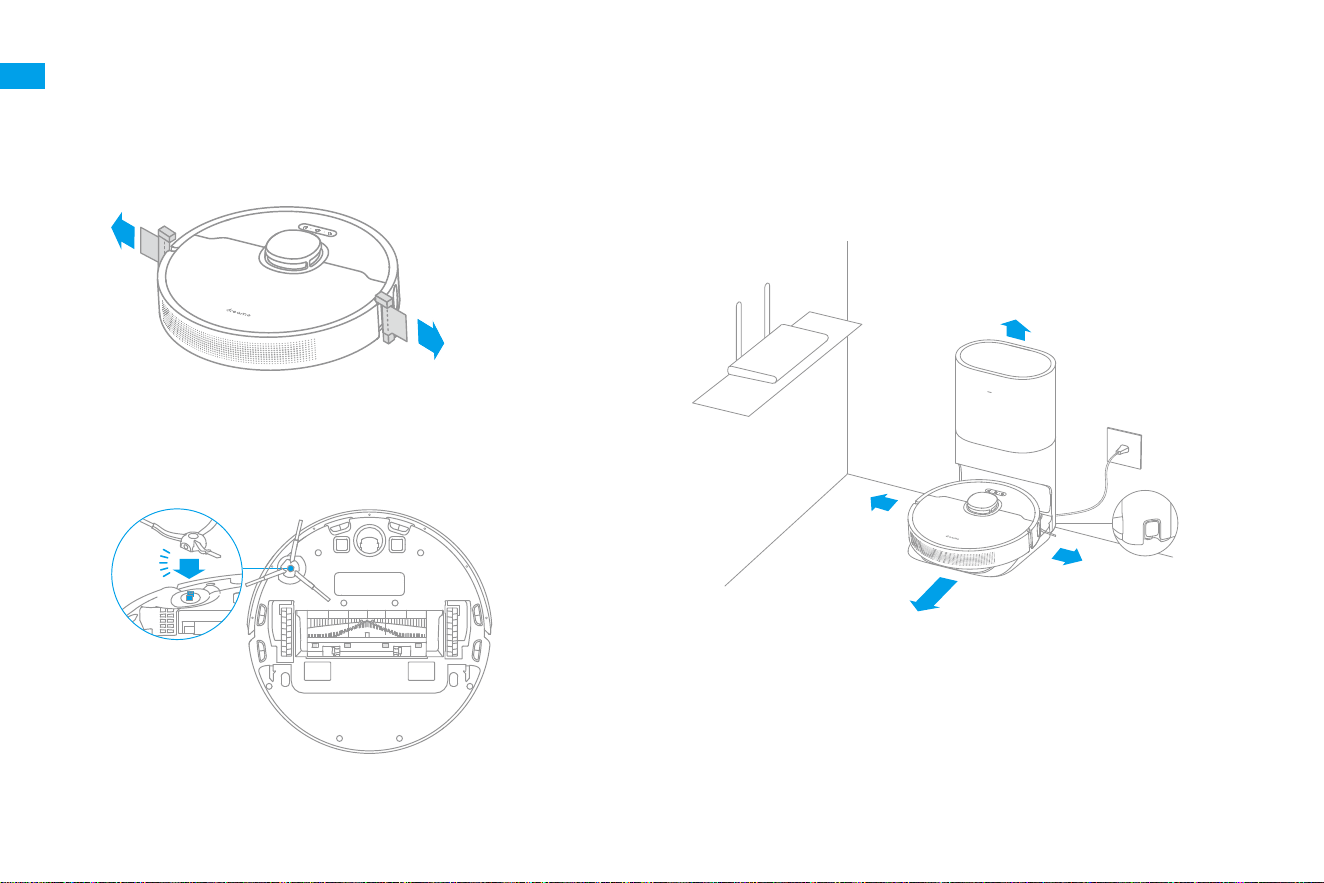

1. Remove the protective matter 3. Connect to a power outlet and start charging
2. Install the side brush
Click
Place the base within
the best Wi-Fi range
Put away the power cord
into the cord storage slot
Preparation Before Use
Note:
• Keep the immediate area 1.5m in front of the base and 0.5m to its both sides
clear of objects.
• Make sure that no objects might block the signaling area.
Note: Install the side brush until it clicks into place.
Place the base on level ground against the wall and connect it to a power
outlet. Place the robot onto the base to charge. The robot will turn on
automatically and begin charging. It is recommended to fully charge your
robot before rst-time use.
About the Auto-Empty Base
It is recommended that the robot set out from the base before cleaning. This
ensures that the robot returns to base smoothly. Do not move the base while
the robot is cleaning.
After the robot completes the cleaning task and automatically returns to the
base, the base will start auto-empty. More settings can be operated on the APP.
Open the Mi Home/Xiaomi Home app, and tap " " in the upper right.
Then tap "
" in the top right corner, scan the QR code, add "Dreame Bot
Z10 Pro", and follow the prompts to nish the connection.
This product works with the Mi Home/Xiaomi Home app.* Use the Mi
Home/Xiaomi Home app to control your device and interact with other
smart devices.

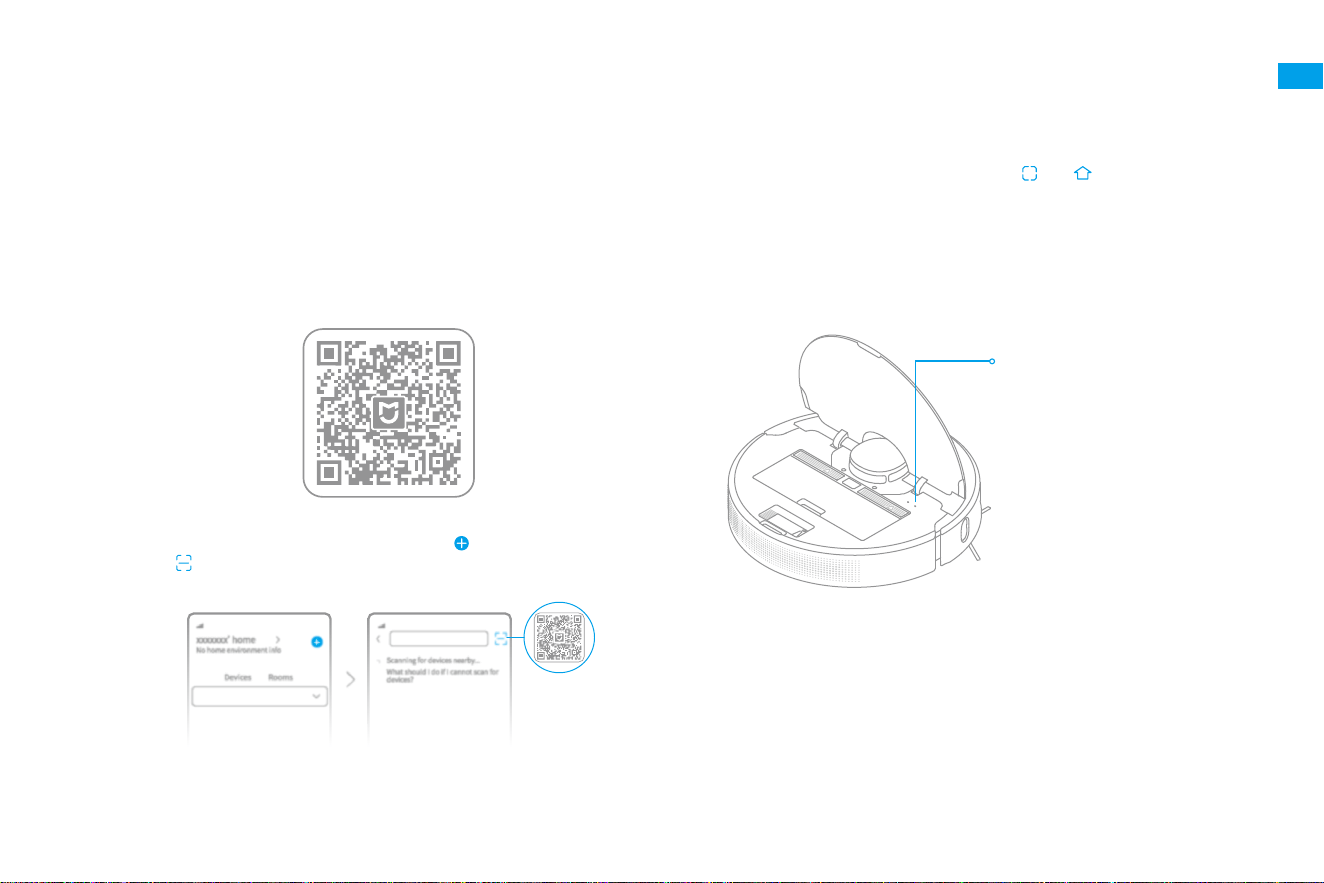

Connecting with Mi Home/
Xiaomi Home App
1.Download the Mi Home/Xiaomi Home App
Scan the QR code to download and install the app. You will be directed to the
connection setup page if the app has been installed already. Alternatively,
search “Mi Home/Xiaomi Home” in the app store to download and install it.
2.Add Device
Note:
• Only 2.4GHz Wi-Fi is supported.
• The version of the app might have been updated, please follow the instructions
based on the latest app version.
3. Reset Wi-Fi
Simultaneously press and hold the buttons and until you hear a voice
say, “Waiting for the network conguration.” Once the Wi-Fi indicator is
blinking slowly, the Wi-Fi has been successfully reset.
Note: If your robot cannot connect to the app successfully, reset the Wi-Fi and
add the device again.
Wi-Fi Indicator
·Blinking slowly: To be connected
·Blinking quickly: Connecting
·On: Wi-Fi connected
10 11
ENEN
> 1.5 m
> 0.3 m
> 0.5 m
> 0.5 m
1. Remove the protective matter 3. Connect to a power outlet and start charging
2. Install the side brush
Click
Place the base within
the best Wi-Fi range
Put away the power cord
into the cord storage slot
Preparation Before Use
Note:
• Keep the immediate area 1.5m in front of the base and 0.5m to its both sides
clear of objects.
• Make sure that no objects might block the signaling area.
Note: Install the side brush until it clicks into place.
Place the base on level ground against the wall and connect it to a power
outlet. Place the robot onto the base to charge. The robot will turn on
automatically and begin charging. It is recommended to fully charge your
robot before rst-time use.
About the Auto-Empty Base
It is recommended that the robot set out from the base before cleaning. This
ensures that the robot returns to base smoothly. Do not move the base while
the robot is cleaning.
After the robot completes the cleaning task and automatically returns to the
base, the base will start auto-empty. More settings can be operated on the APP.
Open the Mi Home/Xiaomi Home app, and tap " " in the upper right.
Then tap "
" in the top right corner, scan the QR code, add "Dreame Bot
Z10 Pro", and follow the prompts to nish the connection.
This product works with the Mi Home/Xiaomi Home app.* Use the Mi
Home/Xiaomi Home app to control your device and interact with other
smart devices.
Connecting with Mi Home/
Xiaomi Home App
1.Download the Mi Home/Xiaomi Home App
Scan the QR code to download and install the app. You will be directed to the
connection setup page if the app has been installed already. Alternatively,
search “Mi Home/Xiaomi Home” in the app store to download and install it.
2.Add Device
Note:
• Only 2.4GHz Wi-Fi is supported.
• The version of the app might have been updated, please follow the instructions
based on the latest app version.
3. Reset Wi-Fi
Simultaneously press and hold the buttons and until you hear a voice
say, “Waiting for the network conguration.” Once the Wi-Fi indicator is
blinking slowly, the Wi-Fi has been successfully reset.
Note: If your robot cannot connect to the app successfully, reset the Wi-Fi and
add the device again.
Wi-Fi Indicator
·Blinking slowly: To be connected
·Blinking quickly: Connecting
·On: Wi-Fi connected
12 13
ENEN
1. Turn On/O
3. Cleaning Mode
How to Use
Press and hold the button for 3 seconds to turn on the robot. Once the
power indicator turns solid white, the robot is on standby. To turn o the
robot, press and hold the button
for 3 seconds when the robot is not
moving.
Dreame Bot Z10 Pro has four cleaning modes: Quiet, Standard, Strong, and
Turbo. The default mode is Standard. You can specify the cleaning mode in
the Mi Home/Xiaomi Home app.
2. Start Cleaning
Press the button briey to turn on the robot. Upon activation, the robot
will accurately map out a route, methodically clean along the edges and
walls, then nish by cleaning each room in an S-shaped pattern to ensure
a thorough job.
5. Spot Clean Mode
When the robot is paused or in Standby Mode, press and hold the button for
3 seconds to start Spot Clean Mode. In this mode, it will clean a square-shaped
area of 1.5×1.5 meters directly around the robot. When the spot cleaning is
done, the robot will automatically return to its original location and power o.
Note: Activating Spot Clean Mode will end the current cleaning task of the robot.
6. Additional App Functions
You can enable more functions via Mi Home/Xiaomi Home app such as
selected room cleaning, zone cleaning, forbidden area/virtual no-go
zones, etc.
Note:
• Follow the instructions on the app interface to use more functions.
• The version of the app might have been updated; please follow the instructions
based in the current app version.
4. Pause/Sleep Mode
Pause: Press any button briey to pause the robot during cleaning.
Sleep Mode: The robot will automatically enter Sleep Mode after 10
minutes of inactivity, then the power indicator and charging indicator will
go o. To wake up the robot, press any button.
Note:
• The robot will turn o automatically if left in Sleep Mode for more than 12 hours.
• When the robot is paused, placing it onto the base will end the current cleaning
task.
7. Use the Mopping Function
How to Use
It is recommended that all oors are vacuumed at least three times before
the rst mopping session to achieve a better cleaning eect.
1) Dampen the mop pad and wring out excess water. Paste the mop pad on
the attaching area of the water tank, and x the pad on the water tank with
xing straps.
3) Align the mopping module as indicated by the arrow, then slide it into the
back of the robot until it clicks into place. Press the button
or use the Mi
Home/Xiaomi Home app to start cleaning.
2) Open the water tank lid, ll the tank with water, then securely close the lid.
4) Press the two side clips inwards and slide the water tank backwards to
separate it from the robot.
Note:
• It is not recommended to use the mopping function on carpets.
• Use the app to adjust the water ow as required.
Note: Do not use detergent or disinfectant.
Note: When the robot is charging or not in use, remove the mopping module,
pour out all the remaining water in the tank, and clean the mop pad to prevent
mildew or odors.
Click
Click
12 13
ENEN
1. Turn On/O
3. Cleaning Mode
How to Use
Press and hold the button for 3 seconds to turn on the robot. Once the
power indicator turns solid white, the robot is on standby. To turn o the
robot, press and hold the button
for 3 seconds when the robot is not
moving.
Dreame Bot Z10 Pro has four cleaning modes: Quiet, Standard, Strong, and
Turbo. The default mode is Standard. You can specify the cleaning mode in
the Mi Home/Xiaomi Home app.
2. Start Cleaning
Press the button briey to turn on the robot. Upon activation, the robot
will accurately map out a route, methodically clean along the edges and
walls, then nish by cleaning each room in an S-shaped pattern to ensure
a thorough job.
5. Spot Clean Mode
When the robot is paused or in Standby Mode, press and hold the button for
3 seconds to start Spot Clean Mode. In this mode, it will clean a square-shaped
area of 1.5×1.5 meters directly around the robot. When the spot cleaning is
done, the robot will automatically return to its original location and power o.
Note: Activating Spot Clean Mode will end the current cleaning task of the robot.
6. Additional App Functions
You can enable more functions via Mi Home/Xiaomi Home app such as
selected room cleaning, zone cleaning, forbidden area/virtual no-go
zones, etc.
Note:
• Follow the instructions on the app interface to use more functions.
• The version of the app might have been updated; please follow the instructions
based in the current app version.
4. Pause/Sleep Mode
Pause: Press any button briey to pause the robot during cleaning.
Sleep Mode: The robot will automatically enter Sleep Mode after 10
minutes of inactivity, then the power indicator and charging indicator will
go o. To wake up the robot, press any button.
Note:
• The robot will turn o automatically if left in Sleep Mode for more than 12 hours.
• When the robot is paused, placing it onto the base will end the current cleaning
task.

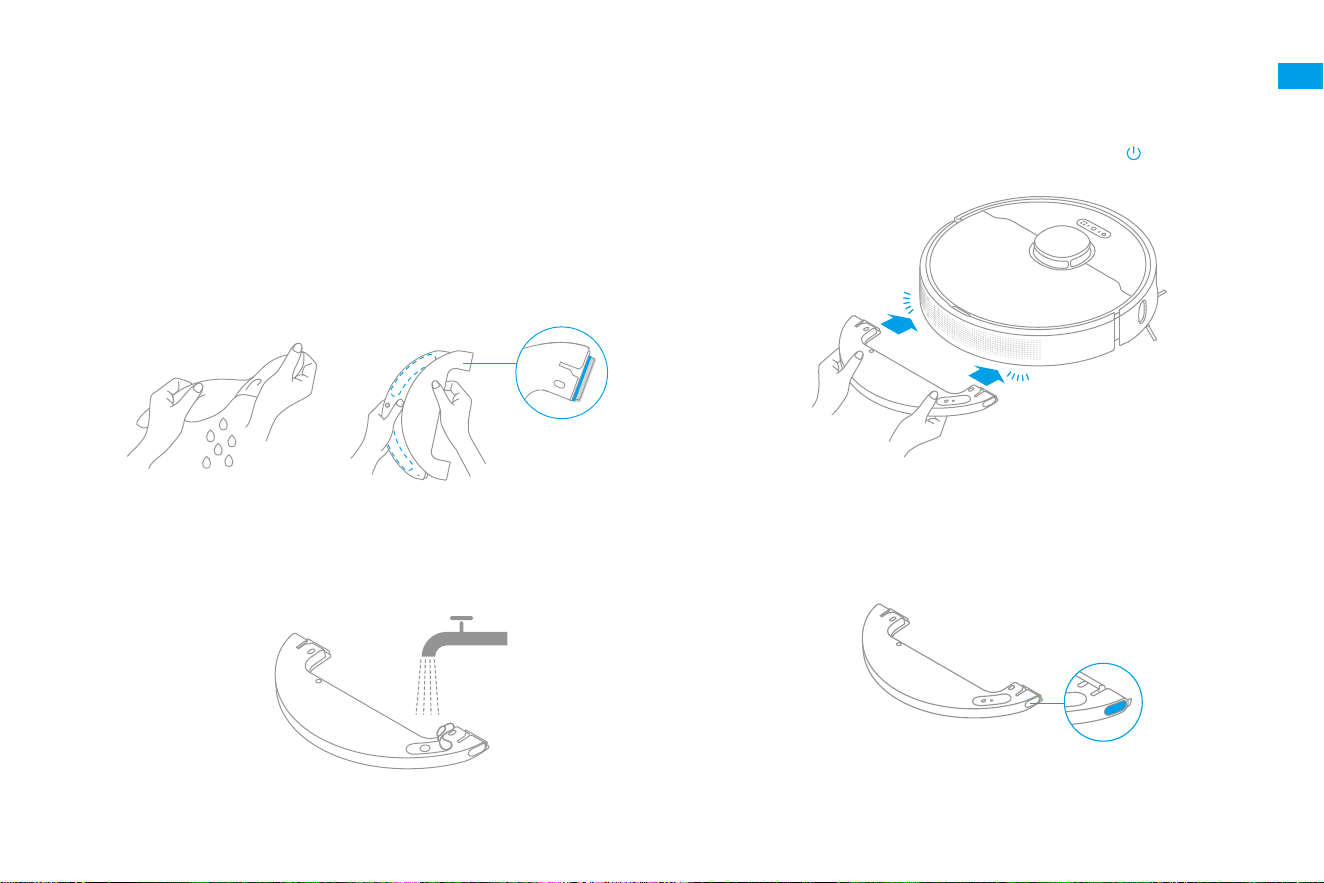

7. Use the Mopping Function
How to Use
It is recommended that all oors are vacuumed at least three times before
the rst mopping session to achieve a better cleaning eect.
1) Dampen the mop pad and wring out excess water. Paste the mop pad on
the attaching area of the water tank, and x the pad on the water tank with
xing straps.
3) Align the mopping module as indicated by the arrow, then slide it into the
back of the robot until it clicks into place. Press the button
or use the Mi
Home/Xiaomi Home app to start cleaning.
2) Open the water tank lid, ll the tank with water, then securely close the lid.
4) Press the two side clips inwards and slide the water tank backwards to
separate it from the robot.
Note:
• It is not recommended to use the mopping function on carpets.
• Use the app to adjust the water ow as required.
Note: Do not use detergent or disinfectant.
Note: When the robot is charging or not in use, remove the mopping module,
pour out all the remaining water in the tank, and clean the mop pad to prevent
mildew or odors.
Click
Click
14 15
ENEN

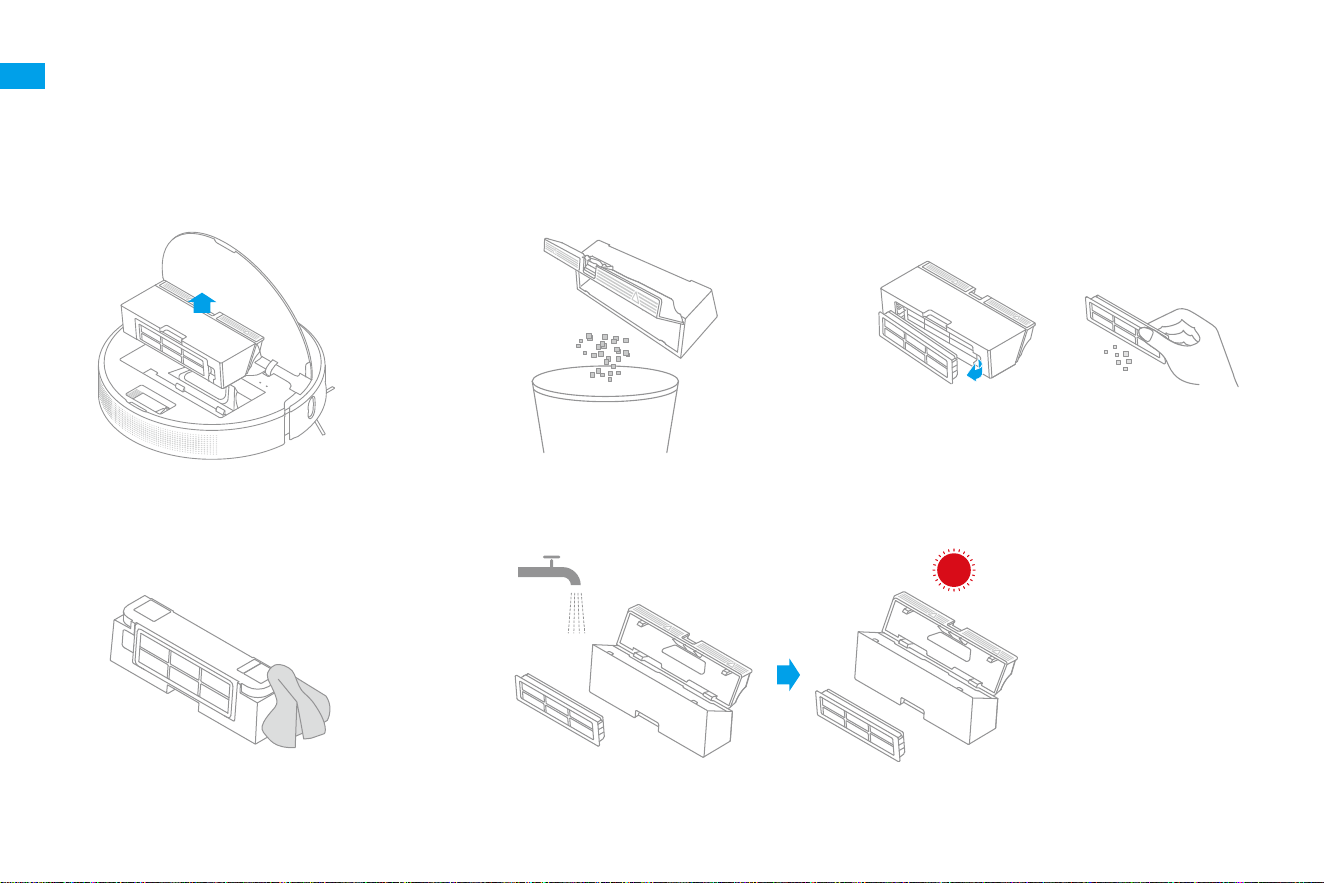

Clean the Dust Bin
Routine Maintenance
1. Open the robot cover, then press the dust
bin clip to remove the dust bin.
2. Open the bin cover and empty the
bin as shown in the diagram.
3. Remove the lter and tap its basket gently.
5. Rinse the dust bin and lter with water until they are clean. Thoroughly dry the lter before re-
installing.
4. Clean the dust intake.
Note: Do not attempt to clean the lter with a
brush or nger.
Note:
• Rinse the lter with clean water only.Do not use detergent.
• Before using, keep it in a well-ventilated or cool place.

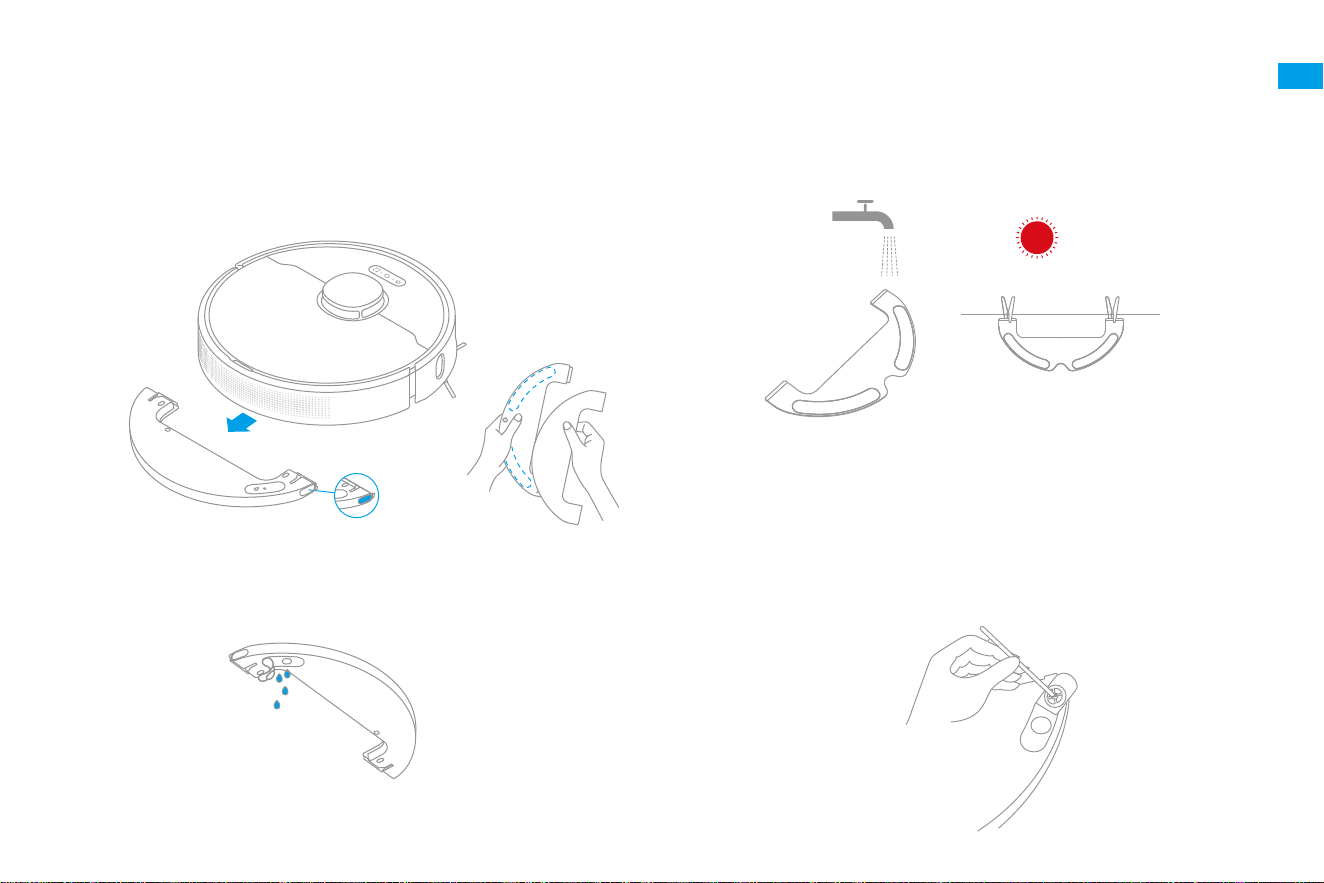

Clean the Mopping Module
Routine Maintenance
1. Press the two release clips on the side of the water tank, remove the
mopping module, and pull the mop pad o the mopping module.
3. Clean the mop pad with water only and leave to air dry before re-installing.
2. Pour out the water in the tank. Clean with only water and leave out to air
dry before re-installing.
4. If slow water ow occurs, or the volume is not well-distributed, clean the air
hole in the cover of the water tank.
Note: Do not expose the tank to the sun directly.
Note:
• Remove the pad from the mopping module before cleaning it, and make sure
dirty water does not ow back into the water outlet to avoid clogging.
• For optimal performance, it is recommended to replace the mop pad every 3-6
months.
14 15
ENEN
Clean the Dust Bin
Routine Maintenance
1. Open the robot cover, then press the dust
bin clip to remove the dust bin.
2. Open the bin cover and empty the
bin as shown in the diagram.
3. Remove the lter and tap its basket gently.
5. Rinse the dust bin and lter with water until they are clean. Thoroughly dry the lter before re-
installing.
4. Clean the dust intake.
Note: Do not attempt to clean the lter with a
brush or nger.
Note:
• Rinse the lter with clean water only.Do not use detergent.
• Before using, keep it in a well-ventilated or cool place.
Clean the Mopping Module
Routine Maintenance
1. Press the two release clips on the side of the water tank, remove the
mopping module, and pull the mop pad o the mopping module.
3. Clean the mop pad with water only and leave to air dry before re-installing.
2. Pour out the water in the tank. Clean with only water and leave out to air
dry before re-installing.
4. If slow water ow occurs, or the volume is not well-distributed, clean the air
hole in the cover of the water tank.
Note: Do not expose the tank to the sun directly.
Note:
• Remove the pad from the mopping module before cleaning it, and make sure
dirty water does not ow back into the water outlet to avoid clogging.
• For optimal performance, it is recommended to replace the mop pad every 3-6
months.
16 17
ENEN
Clean the Main Brush Clean the Side Brush
Clean the Main Wheel/Omnidirectional Wheel
Routine Maintenance
Press the brush guard clips inwards to remove the brush guard and lift the
brush out of the robot.
Pull out the side brushes and use the cleaning tool to remove any hair
tangled on the brush.
Pull out the brush covers as shown in the diagram. Use the included cleaning
tool to remove any hairs tangled in the brush.
Note: When there is hair tightly tangled in the main brush, do not pull out the
hair excessively to avoid damaging the main brush.
Note: Use a tool such as a small screwdriver to separate axle and tire.
Clean the LDS Laser Sensor/Edge Sensor
Clean the Charging Contact
Clean the Charging
Contacts and Dust Intake
Clean the High Precision 3D
Clean the Cli Sensor
Routine Maintenance
Note: Wet cloths can damage sensitive elements within the robot and base. Please use dry rags for cleaning.
16 17
ENEN
Clean the Main Brush Clean the Side Brush
Clean the Main Wheel/Omnidirectional Wheel
Routine Maintenance
Press the brush guard clips inwards to remove the brush guard and lift the
brush out of the robot.
Pull out the side brushes and use the cleaning tool to remove any hair
tangled on the brush.
Pull out the brush covers as shown in the diagram. Use the included cleaning
tool to remove any hairs tangled in the brush.
Note: When there is hair tightly tangled in the main brush, do not pull out the
hair excessively to avoid damaging the main brush.
Note: Use a tool such as a small screwdriver to separate axle and tire.
Clean the LDS Laser Sensor/Edge Sensor
Clean the Charging Contact
Clean the Charging
Contacts and Dust Intake
Clean the High Precision 3D
Clean the Cli Sensor
Routine Maintenance
Note: Wet cloths can damage sensitive elements within the robot and base. Please use dry rags for cleaning.
18 19
ENEN
Replace the Dust Collection Bag
Routine Maintenance
According to the status indicator (blinking orange) and app prompts, replace it with a new one when the dust collection bag is full. It is recommended to replace
the bag every 6-8 weeks.
1. Discard the dust collection bag 3. Install a new dust collection bag
2. Clean the lter
4. Close the upper cover of auto-empty baseNote: When taking out the dust collection bag, close the dust bag handle to
avoid dust leaking out.
Note:
• Install the lter in place after cleaning to prevent dust from falling into the air duct.
• Rinse the lter with water until it is clean. Thoroughly dry the lter before re-installing.
Note: Do not close the base forcelly, if the upper cover of base cannot be
closed and the dust collection bag is not installed.
Clean the Air Duct
Robot Restarting
Battery
Routine Maintenance
If the air duct is blocked, please clean it according to the following steps.
If the robot stops responding or cannot be turned o, press and hold down
the button
for 10 seconds to forcefully turn it o. Then press and hold the
button
for 3 seconds to turn the robot on.
The robot contains a high-performance lithium-ion battery pack. Please
ensure that it remains well-charged for daily use to maintain optimal
battery performance. If the robot is not used for an extended period of
time, turn it o and put it away. To prevent damage from over-discharging,
the robot should be recharged at least once every three months.
1. Unscrew mounting screws on the air duct cover and remove the cover plate.
2. Check whether the air duct is blocked by foreign objects. If any, clean them.
3. Reinstall the air duct cover as shown in the diagram.
18 19
ENEN
Replace the Dust Collection Bag
Routine Maintenance
According to the status indicator (blinking orange) and app prompts, replace it with a new one when the dust collection bag is full. It is recommended to replace
the bag every 6-8 weeks.
1. Discard the dust collection bag 3. Install a new dust collection bag
2. Clean the lter
4. Close the upper cover of auto-empty baseNote: When taking out the dust collection bag, close the dust bag handle to
avoid dust leaking out.
Note:
• Install the lter in place after cleaning to prevent dust from falling into the air duct.
• Rinse the lter with water until it is clean. Thoroughly dry the lter before re-installing.
Note: Do not close the base forcelly, if the upper cover of base cannot be
closed and the dust collection bag is not installed.
Clean the Air Duct
Robot Restarting
Battery
Routine Maintenance
If the air duct is blocked, please clean it according to the following steps.
If the robot stops responding or cannot be turned o, press and hold down
the button
for 10 seconds to forcefully turn it o. Then press and hold the
button
for 3 seconds to turn the robot on.
The robot contains a high-performance lithium-ion battery pack. Please
ensure that it remains well-charged for daily use to maintain optimal
battery performance. If the robot is not used for an extended period of
time, turn it o and put it away. To prevent damage from over-discharging,
the robot should be recharged at least once every three months.
1. Unscrew mounting screws on the air duct cover and remove the cover plate.
2. Check whether the air duct is blocked by foreign objects. If any, clean them.
3. Reinstall the air duct cover as shown in the diagram.
20 21
ENEN
The following table lists possible causes and solutions in terms of dierent light status. For more support,
please refer to the section "FAQ" in this manual.
Status Indicator
Light Status Possible Cause Solution
O
No power supply Check and ensure that the power supply for the base is normal.
The robot in the DND period
The robot with full charge in sleep mode
/
White The robot not on the base /
Breathing White The robot is charging /
Blinking Orange Error
Check whether a dust collection bag is installed. If not, install one.
Check whether the dust collection bag is installed in place.
Check whether the upper cover is closed. If not, close the upper cover tightly.
Check whether the bag is full. If so, replace it.
Remove debris around the dust intake of the robot and base.
Unplug the power cord of base, and check whether there are any foreign objects
that block the air duct cover. If any, clean them.
Check whether the special dust bin is used.
Check whether the dust bin of robot is installed.
For other errors, contact qualied technicians or after-sales service.
FAQ
Problem Type Solution
Robot does not turn on
The battery level is low. Recharge the robot on the base, then try it again.
The ambient temperature is too low (below 0° C) or too high (above 40° C). The operating temperature of the robot is
0° C to 40° C.
Robot cannot recharge
The base is not receiving power. Please conrm that both ends of the power cord are plugged in correctly.
Poor contact. Clean charging contacts of the base and robot.
Robot cannot return to the base
There are too many obstructions around the base. Place the base in a more open area.
Please clean the signaling area of the base.
Moving the robot may cause it to re-position itself or re-map its surroundings. If the robot is too far from the base, it
might not be able to automatically return on its own, in which case you need to manually place the robot onto the base.
Robot is malfunctioning Turn o the robot and then reactivate it.
Robot is making a strange noise
A foreign object may be caught in the main brush, side brush, or one of the main wheels. Stop the robot and remove
any debris.
Robot no longer cleans e-
ciently or leaves dust behind
The dust bin is full. Please clean the dust bin and dust intake.
The lter is blocked. Please clean it.
A foreign object is caught in the main brush. Please clean it.
20 21
ENEN
The following table lists possible causes and solutions in terms of dierent light status. For more support,
please refer to the section "FAQ" in this manual.
Status Indicator
Light Status Possible Cause Solution
O
No power supply Check and ensure that the power supply for the base is normal.
The robot in the DND period
The robot with full charge in sleep mode
/
White The robot not on the base /
Breathing White The robot is charging /
Blinking Orange Error
Check whether a dust collection bag is installed. If not, install one.
Check whether the dust collection bag is installed in place.
Check whether the upper cover is closed. If not, close the upper cover tightly.
Check whether the bag is full. If so, replace it.
Remove debris around the dust intake of the robot and base.
Unplug the power cord of base, and check whether there are any foreign objects
that block the air duct cover. If any, clean them.
Check whether the special dust bin is used.
Check whether the dust bin of robot is installed.
For other errors, contact qualied technicians or after-sales service.
FAQ
Problem Type Solution
Robot does not turn on
The battery level is low. Recharge the robot on the base, then try it again.
The ambient temperature is too low (below 0° C) or too high (above 40° C). The operating temperature of the robot is
0° C to 40° C.
Robot cannot recharge
The base is not receiving power. Please conrm that both ends of the power cord are plugged in correctly.
Poor contact. Clean charging contacts of the base and robot.
Robot cannot return to the base
There are too many obstructions around the base. Place the base in a more open area.
Please clean the signaling area of the base.
Moving the robot may cause it to re-position itself or re-map its surroundings. If the robot is too far from the base, it
might not be able to automatically return on its own, in which case you need to manually place the robot onto the base.
Robot is malfunctioning Turn o the robot and then reactivate it.
Robot is making a strange noise
A foreign object may be caught in the main brush, side brush, or one of the main wheels. Stop the robot and remove
any debris.
Robot no longer cleans e-
ciently or leaves dust behind
The dust bin is full. Please clean the dust bin and dust intake.
The lter is blocked. Please clean it.
A foreign object is caught in the main brush. Please clean it.
22 23
ENEN
FAQ
Problem Type Solution
Robot cannot connect to Wi-Fi
There is something wrong with the Wi-Fi connection. Reset the Wi-Fi and download the latest version of the Mi Home/
Xiaomi Home app, then try reconnecting.
Location permission is not open. Please ensure the location permission on the Mi Home/Xiaomi Home app is
enabled.
Wi-Fi signal is weak. Make sure the robot is in an area with good Wi-Fi coverage.
5GHz Wi-Fi is not supported. Please ensure your robot connects to 2.4GHz Wi-Fi.
The username or password of Wi-Fi is incorrect. Please enter the correct username and password.
Robot does not perform
scheduled cleaning
The robothaslowbattery.Scheduledcleaningwillnotstartunlesstherobothasbeenrechargedintime.
Does leaving the robot on the
base consume power if it is
already fully charged?
Leaving the robot on the base after it's fully charged consumes very little electricity and helps maintain optimal
battery performance.
No water comes out of the
mopping module, or only a
little bit comes out
Check whether there is water inside the water tank.
Clean the mop if it becomes dirty.
Make sure the mop pad is installed correctly according to the user manual.
Clean the blowhole on the top of the water tank.
Robot doesn't resume cleaning
after charging
Make sure the robot is not set to Do Not Disturb mode (DND), which will prevent it from resuming cleaning.
The robot does not resume cleaning when it is manually recharged or placed onto the base.
FAQ
Problem Type Solution
Robot returns to the base without
performing auto-empty tasks
If you manually press the dock button to recharge the robot, or move it back to the base, and if the cleaning
area is less than 3 square meters, the robot will not perform tasks. DND mode prevents prevents the robot
from performing auto-empty tasks.
The dust collection bag is full
Check whether the dust collection bag is full. If so, replace it with a new one. It is recommended to replace
the bag every 6-8 weeks. If not, check whether the dust intake or air duct at the bottom of the base is
blocked. Remove any blockage before use.
The auto-empty duration can be
unacceptably long sometimes
When the robot has been performing auto-empty tasks for a period of time, or when the air duct does not
function smoothly, the auto-empty duration will be extended to prevent blockage.
The upper cover of base fails to be closed Check whether a dust collection bag is installed. If not, install one.
22 23
ENEN
FAQ
Problem Type Solution
Robot cannot connect to Wi-Fi
There is something wrong with the Wi-Fi connection. Reset the Wi-Fi and download the latest version of the Mi Home/
Xiaomi Home app, then try reconnecting.
Location permission is not open. Please ensure the location permission on the Mi Home/Xiaomi Home app is
enabled.
Wi-Fi signal is weak. Make sure the robot is in an area with good Wi-Fi coverage.
5GHz Wi-Fi is not supported. Please ensure your robot connects to 2.4GHz Wi-Fi.
The username or password of Wi-Fi is incorrect. Please enter the correct username and password.
Robot does not perform
scheduled cleaning
The robothaslowbattery.Scheduledcleaningwillnotstartunlesstherobothasbeenrechargedintime.
Does leaving the robot on the
base consume power if it is
already fully charged?
Leaving the robot on the base after it's fully charged consumes very little electricity and helps maintain optimal
battery performance.
No water comes out of the
mopping module, or only a
little bit comes out
Check whether there is water inside the water tank.
Clean the mop if it becomes dirty.
Make sure the mop pad is installed correctly according to the user manual.
Clean the blowhole on the top of the water tank.
Robot doesn't resume cleaning
after charging
Make sure the robot is not set to Do Not Disturb mode (DND), which will prevent it from resuming cleaning.
The robot does not resume cleaning when it is manually recharged or placed onto the base.
FAQ
Problem Type Solution
Robot returns to the base without
performing auto-empty tasks
If you manually press the dock button to recharge the robot, or move it back to the base, and if the cleaning
area is less than 3 square meters, the robot will not perform tasks. DND mode prevents prevents the robot
from performing auto-empty tasks.
The dust collection bag is full
Check whether the dust collection bag is full. If so, replace it with a new one. It is recommended to replace
the bag every 6-8 weeks. If not, check whether the dust intake or air duct at the bottom of the base is
blocked. Remove any blockage before use.
The auto-empty duration can be
unacceptably long sometimes
When the robot has been performing auto-empty tasks for a period of time, or when the air duct does not
function smoothly, the auto-empty duration will be extended to prevent blockage.
The upper cover of base fails to be closed Check whether a dust collection bag is installed. If not, install one.
24 25
ENEN
Specications
Model RLSD5
Battery
5200mAh
(Battery Nominal Capacity)
Wireless
Connectivity
Wi-Fi IEEE 802.11b/g/n 2.4 GHz
Charging Time Approx. 6 hours
Rated Voltage 14.4 V
Rated Power 46 W
Operation
Frequency
2400-2483.5 MHz
Maximum
Output Power
＜ 20 dBm
Model RCS2
Rated Input 220-240 V~ 50-60 Hz
Rated Output 19.8 V
1 A
Rated Power 600 W
Robot Auto-Empty Base
All products bearing this symbol are waste electrical and electronic equipment (WEEE as in directive 2012/19/EU) which should not be mixed
with unsorted household waste. Instead, you should protect human health and the environment by handing over your waste equipment to a
designated collection point for the recycling of waste electrical and electronic equipment, appointed by the government or local authorities.
Correct disposal and recycling will help prevent potential negative consequences to the environment and human health. Please contact the
installer or local authorities for more information about the location as well as terms and conditions of such collection points.
Undernormaluseofcondition,thisequipmentshouldbekeptaseparation
distanceofatleast20cmbetweentheantennaandthebodyoftheuser.
WEEE Information
24 25
ENEN
Specications
Model RLSD5
Battery
5200mAh
(Battery Nominal Capacity)
Wireless
Connectivity
Wi-Fi IEEE 802.11b/g/n 2.4 GHz
Charging Time Approx. 6 hours
Rated Voltage 14.4 V
Rated Power 46 W
Operation
Frequency
2400-2483.5 MHz
Maximum
Output Power
＜ 20 dBm
Model RCS2
Rated Input 220-240 V~ 50-60 Hz
Rated Output 19.8 V
1 A
Rated Power 600 W
Robot Auto-Empty Base
All products bearing this symbol are waste electrical and electronic equipment (WEEE as in directive 2012/19/EU) which should not be mixed
with unsorted household waste. Instead, you should protect human health and the environment by handing over your waste equipment to a
designated collection point for the recycling of waste electrical and electronic equipment, appointed by the government or local authorities.
Correct disposal and recycling will help prevent potential negative consequences to the environment and human health. Please contact the
installer or local authorities for more information about the location as well as terms and conditions of such collection points.
Undernormaluseofcondition,thisequipmentshouldbekeptaseparation
distanceofatleast20cmbetweentheantennaandthebodyoftheuser.
WEEE Information
For more information, please visit www.dreame-technology.com
Manufactured by: Dreame Trading (Tianjin) Co., Ltd.
Made in China RLSD5-EU-R00
User Manual
Auto-Empty Robot Vacuum and Mop
Read this manual carefully before use and keep it for future reference.
