Baridi 2-4 Place Settings Mini Portable Tabletop Dishwasher, 5
Wash Functions
Model No: DH224
Thank you for purchasing a Baridi product from the Dellonda range. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
DH224 Issue 1 02/11/23
2
• ELECTRICAL SAFETY
• WARNING! It is the user’s responsibility to check the following:
• Check all electrical equipment and appliances to ensure that they are safe before using. Inspect power supply leads,
plugs and all electrical connections for wear and damage. Dellonda recommend that an RCD (Residual Current Device)
is used with all electrical products.
• Electrical safety information. It is important that the following information is read and understood:
• Ensure that the insulation on all cables and on the appliance is safe before connecting it to the power supply.
• Regularly inspect power supply cables and plugs for wear or damage and check all connections to ensure that they are
secure.
• IMPORTANT: Ensure that the voltage rating on the appliance suits the power supply to be used and that the plug is
tted with the correct fuse.
• DO NOT pull or carry the appliance by the power cable.
• DO NOT pull the plug from the socket by the cable.
• DO NOT use worn or damaged cables, plugs or connectors. Ensure that any faulty item is repaired or is replaced
immediately by a qualied electrician.
• If the cable or plug is damaged during use, switch off the electricity supply and remove from use.
• Ensure that repairs are carried out by a qualied electrician.
• GENERAL SAFETY
• WARNING! When using the counter top dishwasher, follow the precautions listed below.
• This appliance is intended to be used in household and similar application such as:
- staff kitchen areas in shops, ofces and other working environments;
- farm houses;
- by clients in hotels, motels and other residential type environments;
- bed and breakfast type environments.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the hazards involved.
• Children shall not play with the appliance. Cleaning and user maintenance shall not be done by children without
supervision. Packaging material could be dangerous for children!
• This appliance is for indoor household use only.
To protect against the risk of electrical shock, do not immerse the unit, power cord or plug in the water or in any other liquid.
• Please unplug before cleaning and performing maintenance on the appliance.
• Use a soft cloth moistened with mild soap, and then use a dry cloth to wipe it again.
• DO NOT abuse, sit on, or stand on the door or dish rack of the dishwasher.
• DO NOT open the door when the machine is washing or drying.
• DO NOT operate your dishwasher unless all enclosure panels are properly in place.
• When loading items to be washed:
1.) Locate sharp items so that they are not likely to damage the door seal;
2.) WARNING! Knives and other utensils with sharp points must be loaded in the basket with their points facing down or
placed in a horizontal position.
• Check that the detergent powder compartment is empty after completion of the wash cycle.
• DO NOT wash plastic items unless they are marked “dishwasher safe” or the equivalent.
• For plastic items, check the manufacturer’s recommendations.
• Use only detergent and rinse agents recommended for use in an automatic dishwasher.
• Never use soap, laundry detergent, or hand washing detergent in your dishwasher.
• The door should not be left open, since this could increase the risk of tripping.
• If the supply cable is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualied
person in order to avoid a hazard.
• During installation, the power supply cable must not be excessively or dangerously bent or attened.
Important Information
Please read these instructions carefully and note any safe operational requirements, warnings & cautions. Use the product correctly and with care for
the purpose for which it is intended. Failure to do so may cause damage and/or personal injury and will invalidate the warranty. Keep these instructions
safe for future use.
Refer to
instructions
Indoor use
only
3
• DO NOT tamper with the controls.
• The appliance needs to be connected to the main water supply using new hose sets. Old sets should not be reused.
• The maximum number of place settings to be washed is 4.
• The maximum permissible inlet water pressure is 1 MPa.
• The minimum permissible inlet water pressure is 0.04MPa.
• DO NOT place the machine outside or in cold conditions under 0°C.
• Use salt and detergent which is designed for dishwashers
• Ensure the machine is positioned in a stable. dry, non-slip environment.
• DO NOT place and use the machine within 150mm of a gas stove or other heating source.
• DO NOT splash water onto the machine.
• DO NOT block the side air outlet.
• DO NOT tilt or move the machine when washing.
• Check and clean the machine regularly to maintain best performance.
• Fix the drain hose to avoid leakages.
• DO NOT forcibly pull the power cord, drain hose, press cutlery tray to avoid any damage.
• DO NOT use the machine when your hands are wet to avoid electric shock.
• Keep chemical materials such as salt and detergent out of reach of children.

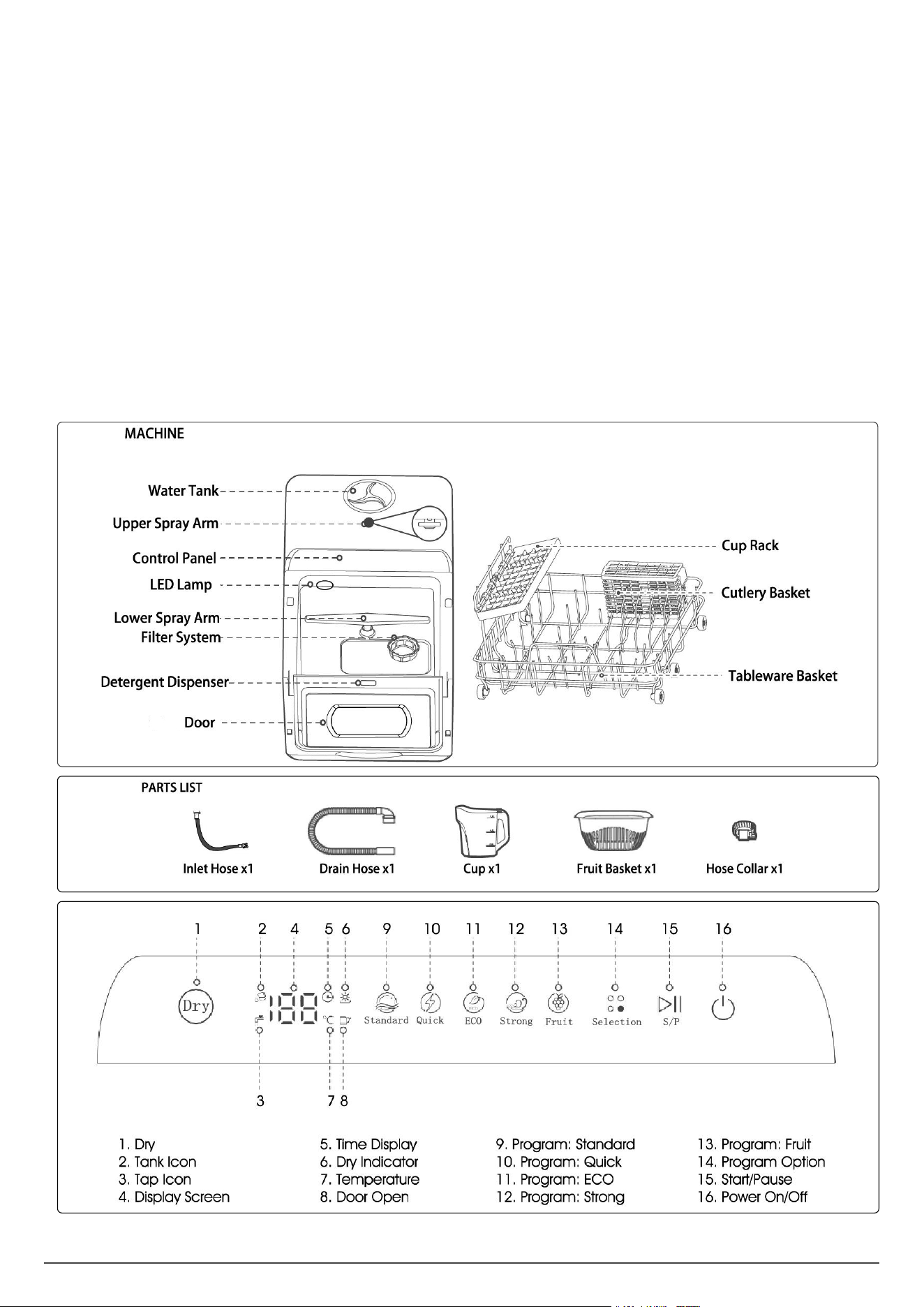

• OVERVIEW
ILLUSTRATION PURPOSES ONLY
• INSTALLATION
4

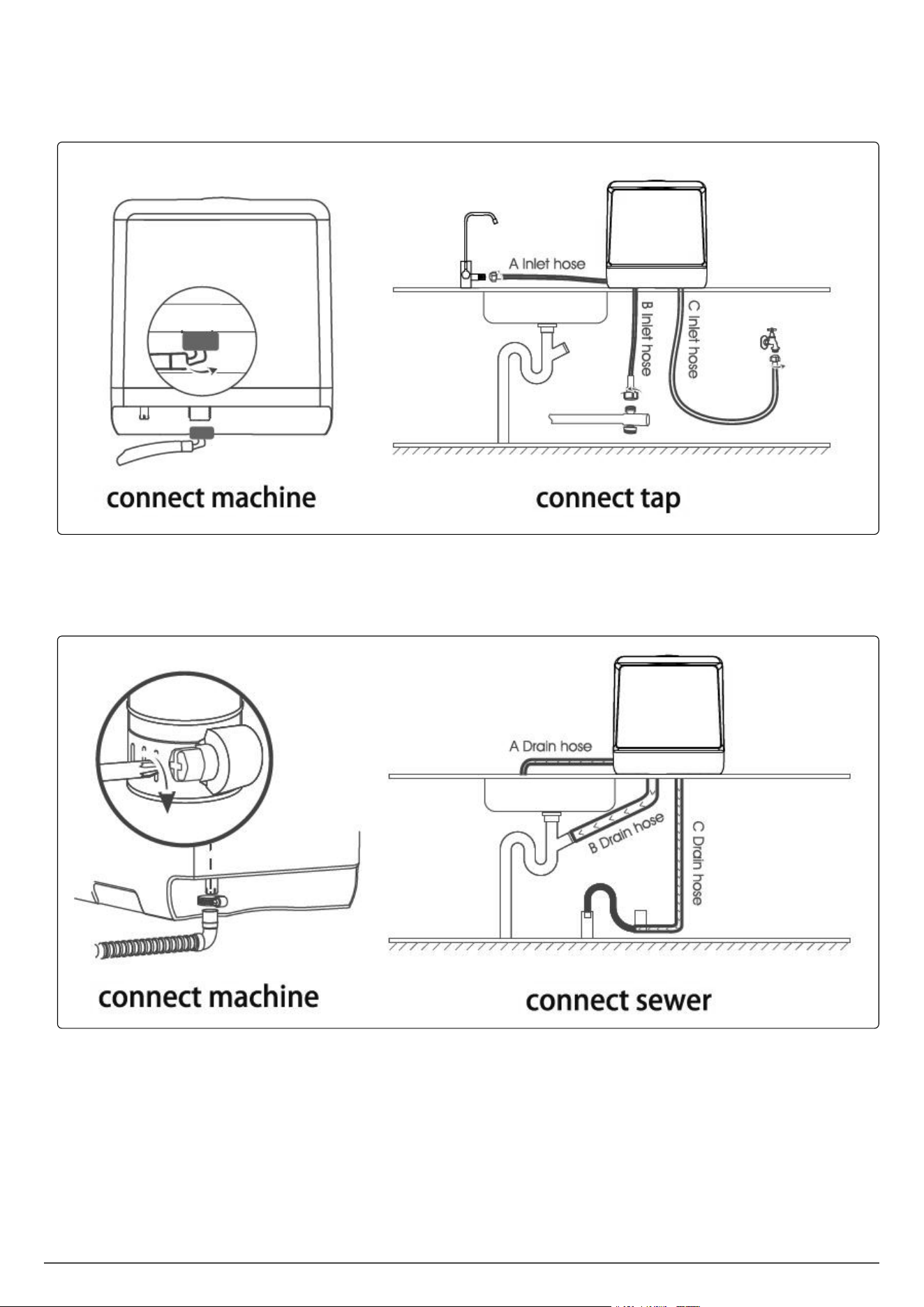

• INLET HOSE INSTALLATION
• Connect Machine. Insert inlet hose elbow into the water inlet at the rear of the machine and tighten the screw.
• Connect Tap. Use option A, B or C as shown below.
• DRAIN HOSE INSTALLATION
• Connect Machine. Insert drain hose elbow to the water outlet behind machine and tighten the collar.
• Connect Sewer. Use option A, B or C as shown below.
• TABLEWARE LOADING
• Remove large food residue from tableware before loading the machine.
• In order to fully clean tableware, please tilt tableware internally or put stained face down.
• CLEANING PROGRAM: ECO
• Under ECO washing Program, add a detergent tablet, then start washing. When 18 minutes are left before washing
nish, pause washing, open the door and add 2ml rinse aid, then close the door to continue the washing till the
programme has nished.
• OPERATION

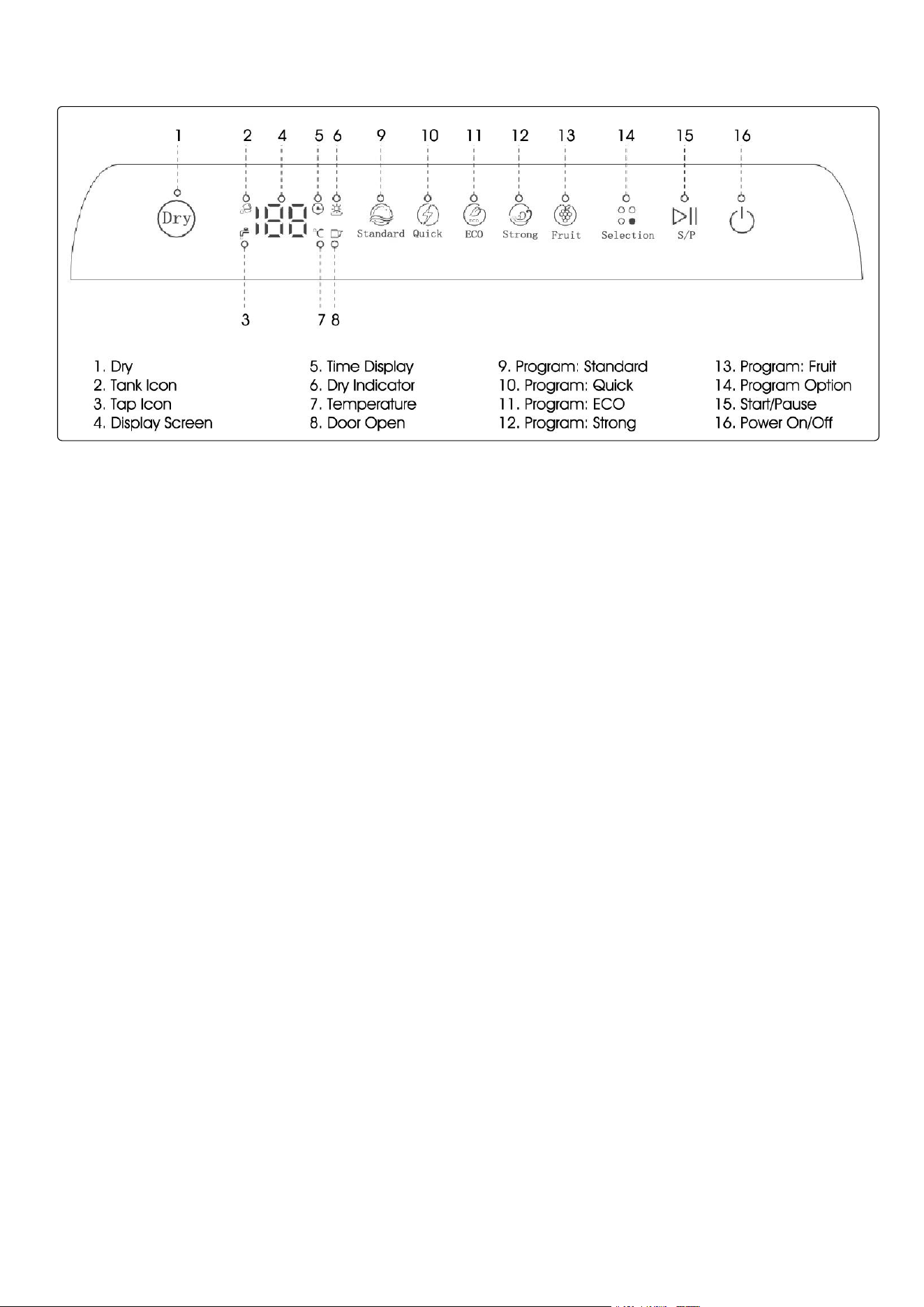

• Refer to the control panel diagram below.
• POWER ON/OFF
• Plug in the machine. Touch "POWER" to turn on.
• During washing program running, touch "POWER" for 3 seconds to force the machine to turn off.
• ADD DETERGENT
• Open the door, add moderate detergent powder, or 1 detergent tablet into the machine.
• Close the door.
• DO NOT use detergent when using the 'fruit washing' setting.
• PROGRAM SELECTION
• Touch the programme icon you wish to use.
• RUN PROGRAM
• Touch "START/PAUSE" to run the selected program.
• The machine will check water supply automatically.
NOTES:
• If the "TAP" or "TANK" indicators turn red, you need to open the tap or ll the tank with water.
• The machine will automatically go into standby mode if there is no water supply.
• Touch "START/PAUSE" to pause the machine to add tableware during washing.
• Touch "POWER" for 3 seconds to end the program. The machine will drain.
• Touch "DRY" to add 73 minutes of air circulation. Only use this setting if placing wet dishes in the dishwasher.
• WASH
• The machine has two water supply modes - tap and tank.
• If tank is full, the machine will switch into tank mode automatically;
• Fill 3 cups of water into tank. The machine will sound an alarm if the tank is full, and the "TANK" symbol will become
white.
• FUNCTIONS
6
PROGRAM PROGRAM
EXECUTION
TIME DETERGENT TEMP DRYING TIME STORAGE (IF
SELECTED)
Standard Hot water
washing
Cold water
rinsing
Cold water
rinsing
Hot water
washing
69 mins 8g Washing 55
o
C
Rinsing 68
o
C
60 mins Circulating
fresh air 73
minutes
Quick Hot water
washing
Cold water
rinsing
Hot water
rinsing
29 mins 8g Washing 50
o
C
Rinsing 62
o
C
60 mins Circulating
fresh air 73
minutes
Strong Hot water
washing
Hot water
rinsing
Cold water
rinsing
Hot water
rinsing
89 mins 12g Washing 55
o
C
Rinsing 55
o
C
Rinsing 75
o
C
60 mins Circulating
fresh air 73
minutes
ECO Hot water
washing
Cold water
rinsing
Hot water
rinsing
59 mins 8g Washing 55
o
C
Rinsing 68
o
C
60 mins Circulating
fresh air 73
minutes
Fruit Cold water
rinsing
Cold water
rinsing
19 mins / / / /
Dry / / / / 60 mins Circulating
fresh air 73
minutes
• CLEANING & MAINTENANCE
• FILTER CLEANING
• Disassemble. Rotate anticlockwise to disassemble the lter set, which includes three parts - lter mesh, main lter and
ne lter.
• Clean. Use water to ush and brush each of the lter parts.
• Assemble. After cleaning, rotated clockwise to close the lter set.
• SPRAY-ARMS CLEANING
• Disassemble. Open the door, take out the
basket, then pull out top and bottom spray
arms.
• Clean. Use water to ush and brush each
spray arm. Use suitable tools to clean if
needed.
• Assemble. After cleaning, turn each arm to
ensure they can move smoothly.
• TROUBLESHOOTING
• FAULT CODES
7
Code Fault Solution
E2 Draining 1. Check the drain pipe is straight with no bends.
2. Power o and check if anything is blocking the lter or drain pipe.
3. Ensure all pipes are clear from blockages.
E3 Overowing Tilt the machine to 30~45
degrees. Let the water ow out from the base of the
machine before restarting the machine. If there is still a fault, contact Dellonda
E4 Temperature Restart machine. If there is still a fault, contact Dellonda.
ES Message
E6 Heating
E7 Pressure
• TROUBLESHOOTING TABLE
Problem Cause Solution
Tableware is not
clean.
Incorrect tableware loading. Ensure there is a gap between tableware.
Spray arm trapped. Ensure nothing is trapping the spray arm.
Blocked spray arm. Clean the spray arm.
Blocked lter. Clean the lter set.
Incorrect lter installation. Correctly assemble the lter set.
Incorrect program selection. Select appropriate washing program.
No detergent. Add detergent (block/powder/liquid).
Machine does not
start.
Water shortage. Add water till the indicator light o.
Door not fully closed. Check that nothing is preventing the door
from closing.
Cannot select
program.
Program already running. Stop the current cycle before selecting the
desired program.
Tableware is not
dry.
Inappropriate program. Select appropriate program.
Incorrect tableware loading. Ensure tableware is tilted and spread out to
enable airow.
Wooden tableware. Wooden tableware may require hand drying.
Discolouration of
plastic tableware.
Washing temperature too high. Select a program with a lower temperature.
Detergent left. Trapped spray arm. Ensure the spray arm can move smoothly.
Poor quality detergent. Use a quality detergent.
Foam left in the
machine.
Using incorrect detergent. 1. Use detergent designed for dishwashers.
2. Open the machine and wipe out foam by
hand.
3. Fill the machine with 2-3L of water and
select any program. After 1-2min the foam
will be drained. Repeat if necessary.
Abnormal sound in
the machine.
Spray arm knocking tableware. Ensure tableware is loaded correctly.
The tableware is moving slightly. Ensure tableware is secure before washing.
Water drops
left inside of the
machine.
Drying time is not long enough. Use the "DRY" program after washing.
8
Dellonda Limited, Sole UK Distributor of Baridi
Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757575 suppor[email protected] www.dellonda.co.uk
Environment Protection, Waste Electrical and Waste Electronic Equipment
Regulations (WEEE)
Recycle unwanted packaging materials. When this product is no longer required, or has reached the end of its
useful life, please dispose of in an environmentally friendly way. Drain any uids (if applicable) into approved
containers, in accordance with local waste regulations. Please note that this product contains one or more
batteries. It is our policy to continually improve products and we reserve the right to alter data, specications
and parts without prior notice. No liability is accepted for incorrect use of this product. Guarantee is 12 months
from purchase date, proof of which is required for any claim.
Product Information Sheet. Dishwashers
SUPPLIER_NAME_OR_TRADEMARK Dellonda EU Ltd.
DELEGATED_ACT EU/2019/2017
MODEL_IDENTIFIER DH224
ADDRESS
Farney Street, Carrickmacross, Co. Monaghan, A81 PK68 Ireland
PHONE_NUMBER 01284 757 500
EMAIL_ADDRESS [email protected]
Parameter
Verification tolerances
46
Rated capacity 2.0 42
43
EEI 61.0 F
Cleaning performance index 1.21 1.10
38.400 4.2
Programme duration (h:min) 2.02 Freestanding
Off-mode (W) 0.49 NA
Delay start (W) (if applicable) NA NA
Minimum duration of guarantee (years) 1
Suppliers website https://www.dellonda.co.uk/
Standby (W) (if applicable)
Design type
Airborne acoustical noise emissions (dB(a)
re 1 pW
Airborne acoustical noise emission class
60
Mini Portable Tabletop 5L Dishwasher with 2-4 Place Settings, 5 Wash Functions
Energy consumption in kWh [per cycle],
based on eco programme using cold water
fill.
Water consumption in litres [per cycle],
based on the eco programme
D
Standby mode (W)
Height
Width
Depth
Energy efficiency class
Drying performance index
