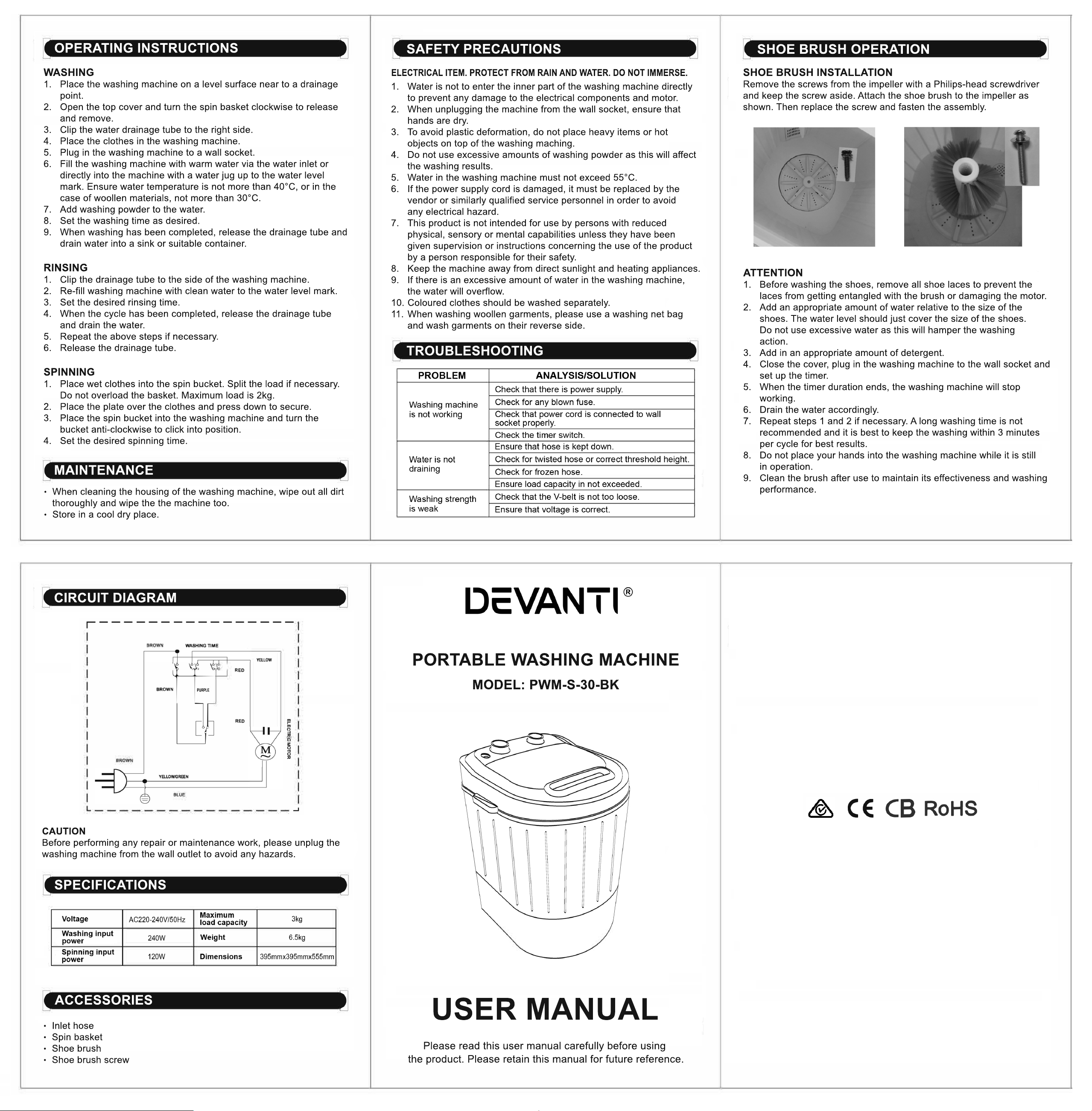

PORTABLE WASHING MACHINE
MODEL: PWM-S-30-BK
Please read this user manual carefully before using
the product. Please retain this manual for future reference.
USER MANUAL
CIRCUIT DIAGRAM
MAINTENANCE
WASHING
1. Place the washing machine on a level surface near to a drainage
point.
2. Open the top cover and turn the spin basket clockwise to release
and remove.
3. Clip the water drainage tube to the right side.
4.4. Place the clothes in the washing machine.
5. Plug in the washing machine to a wall socket.
6. Fill the washing machine with warm water via the water inlet or
directly into the machine with a water jug up to the water level
mark. Ensure water temperature is not more than 40°C, or in the
case of woollen materials, not more than 30°C.
7. Add washing powder to the water.
8.8. Set the washing time as desired.
9. When washing has been completed, release the drainage tube and
drain water into a sink or suitable container.
RINSING
1. Clip the drainage tube to the side of the washing machine.
2. Re-fill washing machine with clean water to the water level mark.
3. Set the desired rinsing time.
4.4. When the cycle has been completed, release the drainage tube
and drain the water.
5. Repeat the above steps if necessary.
6. Release the drainage tube.
SPINNING
1. Place wet clothes into the spin bucket. Split the load if necessary.
Do not overload the basket. Maximum load is 2kg.
2.2. Place the plate over the clothes and press down to secure.
3. Place the spin bucket into the washing machine and turn the
bucket anti-clockwise to click into position.
4. Set the desired spinning time.
1. Water is not to enter the inner part of the washing machine directly
to prevent any damage to the electrical components and motor.
2. When unplugging the machine from the wall socket, ensure that
hands are dry.
3. To avoid plastic deformation, do not place heavy items or hot
objects on top of the washing maching.
4.4. Do not use excessive amounts of washing powder as this will affect
the washing results.
5. Water in the washing machine must not exceed 55°C.
6. If the power supply cord is damaged, it must be replaced by the
vendor or similarly qualified service personnel in order to avoid
any electrical hazard.
7. This product is not intended for use by persons with reduced
physical, sensory or mental capabilities unless they have been
given supervision or instructions concerning the use of the product
by a person responsible for their safety.
8. Keep the machine away from direct sunlight and heating appliances.
9. If there is an excessive amount of water in the washing machine,
the water will overflow.
10. Coloured clothes should be washed separately.
111. When washing woollen garments, please use a washing net bag
and wash garments on their reverse side.
SHOE BRUSH INSTALLATION
Remove the screws from the impeller with a Philips-head screwdriver
and keep the screw aside. Attach the shoe brush to the impeller as
shown. Then replace the screw and fasten the assembly.
· When cleaning the housing of the washing machine, wipe out all dirt
thoroughly and wipe the the machine too.
· Store in a cool dry place.
ATTENTION
1. Before washing the shoes, remove all shoe laces to prevent the
laces from getting entangled with the brush or damaging the motor.
2. Add an appropriate amount of water relative to the size of the
shoes. The water level should just cover the size of the shoes.
Do not use excessive water as this will hamper the washing
action.
3. Add in an appropriate amount of detergent.
4. Close the cover, plug in the washing machine to the wall socket and
set up the timer.
5. When the timer duration ends, the washing machine will stop
working.
6. Drain the water accordingly.
7.7. Repeat steps 1 and 2 if necessary. A long washing time is not
recommended and it is best to keep the washing within 3 minutes
per cycle for best results.
8. Do not place your hands into the washing machine while it is still
in operation.
9. Clean the brush after use to maintain its effectiveness and washing
performance.
OPERATING INSTRUCTIONS
SAFETY PRECAUTIONS
TROUBLESHOOTING
SHOE BRUSH OPERATION
SPECIFICATIONS
ACCESSORIES
· Inlet hose
· Spin basket
· Shoe brush
· Shoe brush screw
CAUTION
Before performing any repair or maintenance work, please unplug the
washing machine from the wall outlet to avoid any hazards.
ELECTRICAL ITEM. PROTECT FROM RAIN AND WATER. DO NOT IMMERSE.
