We sincerely thank you for your purchase. We believe you will
soon fi nd ample evidence that you can really rely on our
products. To make the use of the appliance easier, we attach
these comprehensive instruction manual.
The instructions should aid you in getting familiar with your new
appliance. Please, read them carefully before using the appliance
for the first time.
In any case, please make sure the appliance was supplied to you
undamaged. Should you identify and transport damage, contact
your sales representative or the regional warehouse from where
the product was delivered. You will fi nd the telephone number on
the receipt or delivery report.
We wish you a lot of pleasure with your new household
appliance.
The appliance for household use for heating food and beverages
using electromagnetic energy, for indoor use only.
These instructions are intended for the user.
They describe the cooker and how to use it. They also apply
to different types of appliances, therefore you may find some
descriptions of functions that may not apply to your appliance.
We reserve the right to any changes and errors in the instructions
for use.
Dear Customer
Instructions for Use
2
Important safety instructions
Never touch the surfaces of heating or cooking appliances. They
will become hot during operation. Keep children at a safe
distance. There is a risk of burning!
Microwave energy & High voltage! Do not remove the cover.
WARNING! The appliance and its accessible parts become
hot during use. Care should be taken to avoid touching heating
elements. Children less than 8 years of age shall be kept away
unless continuously supervised. Children should be supervised to
ensure that they do not play with the appliance.
This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance in
a safe way and understand the hazards involved. Children shall
not play with the appliance. Cleaning and maintenance shall not
be made by children unless they are older than 8 and supervised.
Keep the appliance and its cord out of reach of children less than
8 years.
• WARNING: When the appliance is operated in the combination
mode, children should only use the oven under adult
supervision due to the temperatures generated; (Only for the
model with grill function).
• WARNING: If the door or door seals are damaged, the oven
must not be operated until it has been repaired by a competent
person.
3
• WARNING: It is hazardous for anyone other than a competent
person to carry out any service or repair operation that involves
the removal of a cover which gives protection against exposure
to microwave energy;
• WARNING: liquids and other foods must not be heated in sealed
containers since they are liable to explode.
• Children should be supervised to ensure that they do not play
with the appliance.
•
Don't remove oven's feet, do not block air events of the oven.
•
Only use utensils that are suitable for use in microwave ovens.
• When heating food in plastic or paper containers, keep an eye
on the oven due to the possibility of ignition;
• If smoke is observed, switch off or unplug the appliance and
keep the door closed in order to stifle any flames;
• Microwave heating of beverages can result in delayed eruptive
boiling, therefore care must be taken when handling the
container;
• The contents of feeding bottles and baby food jars shall
be stirred or shaken and the temperature checked before
consumption, in order to avoid burns;
• Eggs in their shell and whole hard-boiled eggs should not be
heated in microwave ovens since they may explode, even after
microwave heating has ended;
• When cleaning surfaces of door, door seal, cavity of the oven,
use only mild, nonabrasive soaps, or detergents applied with a
sponge or soft cloth.
• The oven should be cleaned regularly and any food deposits
removed;
• Failure to maintain the oven in a clean condition could lead to
deterioration of the surface that could adversely affect the life of
the appliance and possibly result in a hazardous situation;
• If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons in
order to avoid a hazard.
•
Do not let the cord hang over the edge of the table or worktop.
• Never connect this appliance to an external timer switch or
remote control system in order to avoid a hazardous situation.
• Never replace the light bulb inside the oven. It must always be
replaced by Hisense service.
• Do not clean the appliance with steam cleaners, high-pressure
cleaners, sharp objects, abrasive cleaning agents, and abrasive
sponges and stain removers.
4
Listed below are, as with all appliances, certain rules to follow and safeguards to assure top
performance from this oven:
1. Always have the glass tray, roller arms, coupling and roller
track in place when operating the oven.
2. Do not use the oven for any reason other than food preparation, such as for drying clothes,
paper, or any other nonfood items, or for sterilizing purposes.
3. Do not operate the oven when empty. This could damage the oven.
4. Do not use the oven cavity for any type of storage, such a papers, cookbooks, etc.
5. Do not cook any food surrounded by a membrane,such as egg yolks, potatoes, chicken livers,
etc without first being pierced several times with a fork.
6. Do not insert any object into the openings on the outer case.
7. Do not at any time remove parts from the oven such as the feet, coupling, screws, etc.
8. Do not cook food directly on the glass tray. Place food in/on proper cooking utensil before
placing in the oven.
IMPORTANT-COOKWARE NOT TO USE IN YOUR MICROWAVE OVEN
- Do not use metal pans or dishes with metal handles.
- Do not use anything with metal trim.
- Do not use paper covered wire twist-ties on plastic bags.
- Do not use melamine dishes as they contain a material which will absorb microwave energy. This
may cause the dishes to crack or char and will slow down the cooking speed.
- Do not use Centura Tableware. The glaze is not suitable for microwave use. Corelle Livingware
closed handle cups should not be used.
- Do not cook in a container with a restricted opening, such as a pop bottle or sealed oil bottle, as
they may explode if heated in a microwave oven.
- Do not use conventional meat or candy thermometers.
- There are the thermometers available specifically for microwave cooking. These may be used.
9. Microwave utensils should be used only in accordance with manufacturer's instructions.
10. Do not attempt to deep-fry foods in this oven.
11. Please remember that a microwave oven only heats the liquid in a container rather than the
container itself.Therefore, even though the lid of a container is not hot to the touch when removed
from the oven, please remember that the food/liquid inside will be releasing the same amount of
steam and/or spitting when the lid is removed as in conventional cooking.
12 Always test the temperature of cooked food yourself especially if you are heating or cooking
food/liquid for babies. It is advisable never to consume food/liquid straight from the oven but allow
it to stand for a few minutes and stir food/liquid to distribute heat evenly.
13 Food containing a mixture of fat and water, e.g.stock,should stand for 30-60 seconds in the
oven after it has been turned
off. This is to allow the mixture to settle and to prevent bubbling when a spoon is placed in the
food/liquid or a stock cube is added.
14. When preparing/cooking food/liquid and remember that there are certain foods, e.g. Christmas
puddings, jam and mincemeat, which heat up very quickly. When heating or cooking foods with a
high fat or sugar content do not use plastic containers.
15. Cooking utensil may become hot because of heat transferred from the heated food. This is
especially true if plastic wrap has been covering the top and handles of the utensil. Potholders
may be needed to handle the utensil.
16. To reduce the risk of fire in the oven cavity:
a) Do not overcook food. Carefully attend microwave oven if paper, plastic, or other combustible
materials are placed inside the oven to facilitate cooking.
b) Remove wire twist-ties from bags before placing bag in oven.
c) If materials inside the oven should ignite, keep oven door closed, turn the oven off at the wall
switch, or shut off power at the fuse or circuit breaker panel.
Safety instructions for
general use
5

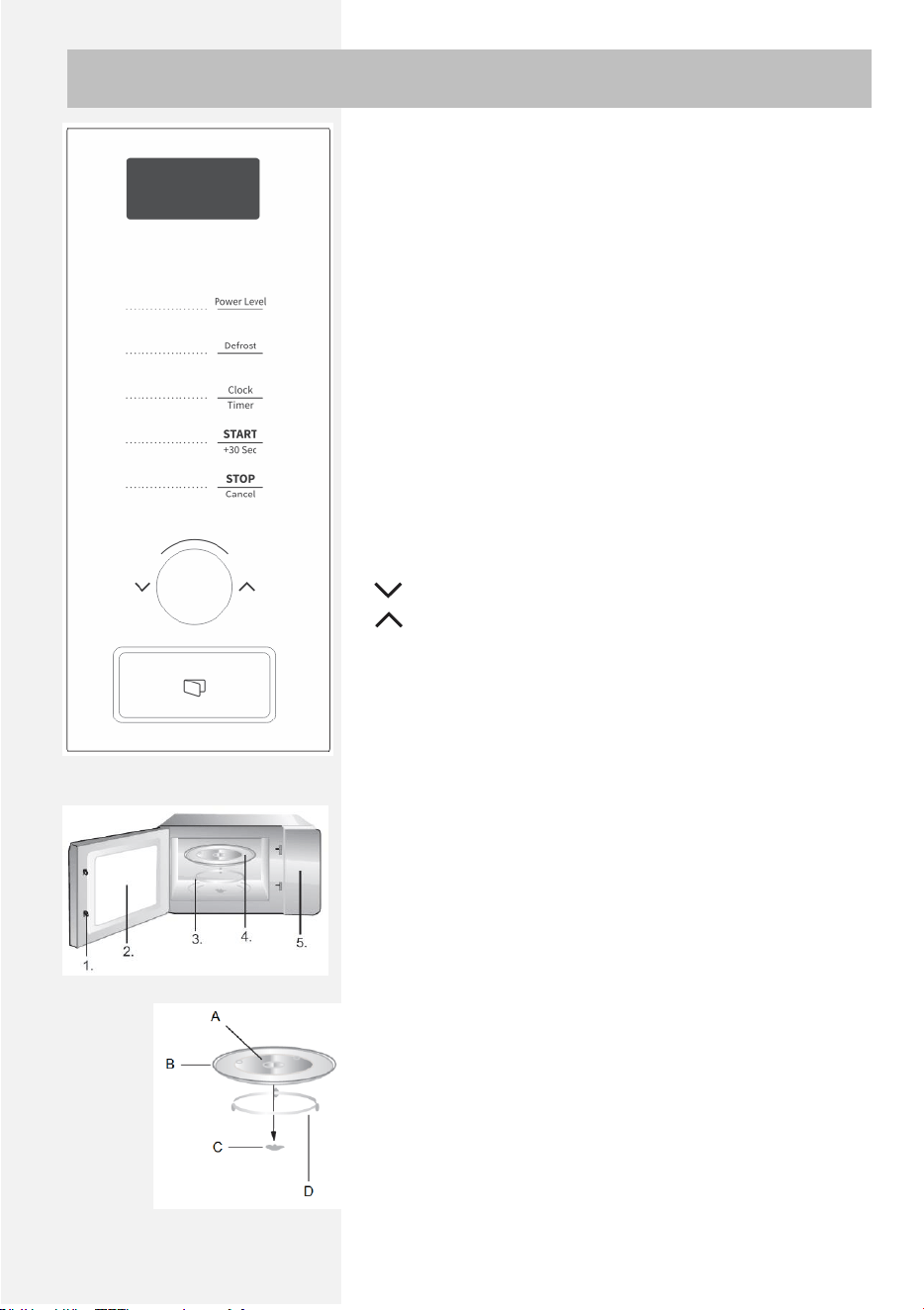

1. Door Safety Lock System
2. Oven Window
3. Roller Ring
4. Glass Tray
5. Control Panel
CONTROL PANEL
DISPLAY
Power Level (microwave power level)
Defrost (Weight or Time defrost)
Clock / Timer (setting the clock or countdown timer)
START / +30 Sec (Quick start, start the programm, extend
the programm)
STOP / Cancel (to stop or cancel the program/setting)
Knob
decrease time/weight, access to the timer
increase time/weight, access to the automenu
BUTTON FOR DOOR OPENING
A-glass tray; B-hub (under); C-turntable shaft; D-turntable ring
a. Never place the glass tray upside down. The glass tray
should never be blocked.
b. Both glass tray and turntable ring assembly must be always
used during cooking.
c. Food and containers of food must be always placed on the
glass tray for cooking.
d. If glass tray or turntable ring assembly is damaged or
broken, contact your nearest authorized service center.
6
This microwave oven uses modern electronic control to adjust
cooking parameters to meet your needs better for cooking.
1. Clock Setting
When the microwave oven is electrified,the oven will display
"0:00", buzzer will ring once.
1) Press "Clock/Timer" twice, the hour figure flash;
2) Turn "knob" to adjust the hour figures, the input time should
be within 0-23.
3) Press "Clock/Timer", the minute figures will flash.
4) Turn "knob" to adjust the minute figures, the input time
should be within 0-59.
5) Press "knob" to finish clock setting. ":" will flash.
Note:
1) If the clock is not set, it would not function when powered.
2) During the process of clock setting, if no operation within 1
minute, the oven will go back to the previous status
automatically.
2. Microwave Cooking
1) Press the "Power Level" key once, and "P100" displays.
2) Press “Power Level” repeatedly or turn "knob" to select the
microwave power "P100", "P80", "P50", "P30", "P10" will be
display in order.
3) Press "Start/+30 Sec" to confirm.
4)Turn "knob" to adjust the cooking time. (The time setting
should be 0:05- 95:00.)
5) Press "Start/+30 Sec" to start cooking.
Microwave Power Chart
Microwave Power
100%
80%
50%
30%
10%
Microwave Power
800W
640W
400W
240W
80W
Display
P100
P80
P50
P30
P10
3. Speedy Cooking
1) In waiting state, press “Start/+30 Sec" key to cook with
100% power level for 30 seconds. Each press on the same key
can increase 30 seconds. The maximum cooking time
is 95 minutes.
2) During the microwave, grill and combination cooking and
time defrost process, press "START" to increase the cooking
time.
3) In waiting state, turn "knob” left to choose the cooking time
directly. After choosing the time, press "Start/+30 Sec" to start
cooking. The microwave power is 100%.
Note: Under the states of auto menu and weight defrost,
cooking time cannot be increased by pressing "Start/+30 Sec".
Operation instructions
7
4. Defrost By Weight
1) Press "Defrost" once, the screen will display "dEF1".
2) Turn "knob" to select the food weight. The range of weight is
100-2000g.
3) Press "Start/+30 Sec" key to start defrosting.
5. Defrost By Time
1) Press "Defrost" twice, the screen will display "dEF2".
2) Turn "knob" to select the cooking time.
3) Press "Start/+30 Sec" key to start defrosting.
6. Multi-Stage Cooking
Two stages can be maximumly set. If one stage is defrosting, it
should be put in the first stage. The buzzer will ring once after
each stage and the next stage will begin.
Note: Auto menu cannot be set as one of the multi-stage.
Example: if you want to defrost the food for 5 minutes, then to
cook with 80% microwave power for 7 minutes.
The steps are:
1) Press "Defrost" twice, the screen will display "dEF2".
2) Turn "knob" to adjust the defrost time of 5 minutes.
3) Press "Power Level" once.
4) Turn "knob" to choose 80% microwave power till "P80"
displays.
5) Press "Start/+30 Sec" to confirm.
6) Turn "knob" to adjust the cooking time of 7 minutes.
7) Press "Start/+30 Sec" to start cooking.
7. Kitchen Timer
1) Press "Clock/Timer", display will display 00:00
2) Turn "knob" to enter the timer time. The maximum cooking
time is 95 minutes.
3) Press "Start/+30 Sec" to confirm setting.
4) When the timer time elapses, the buzzer will ring 5 times. If
the clock has been set (24-hour system), LED will display the
current time.
Note: The kitchen time is different from 24-hour system.
Kitchen Timer is a timer.
8. Auto Menu
1) In standby mode, turn "knob " right to choose the menu from
"A-1" to "A-8";
2) Press "Start/+30 Sec to confirm the menu you choose;
3) Turn "knob" to choose the food weight;
4) Press "Start/+30 Sec" to start cooking;
5) After cooking finishes, the buzzer sounds five times.
Operation instructions
8
Menu
Weight
Display
A1
Auto Reheat
200g
200
400g
400
600g
600
A2
Vegetable
200g
200
300g
300
400g
400
A3
Fish
250g
250
350g
350
450g
450
A4
Meat
250g
250
350g
350
450g
450
A5
Pasta
50 g (with water 450 ml)
50
100 g (with water 800 ml)
100
A6
Potato
200g
200
400g
400
600g
600
A7
Pizza
200g
200
400g
400
A8
Soup
200 ml
200
400 ml
400
9. Childlock function
To activate the lock: In standby mode, press "Stop/Cancel" for
3 seconds, there will be a long "beep" denoting entering the
childlock mode. The screen will display curreng time if clock
has been set. Otherwise, the screen will display " ".
To deactivate the lock: In locked mode, press "Stop/Cancel" for
3 seconds, there will be a long "beep" denoting that the lock is
released.
10. Inquiring function
1) When ,
press "Power Level", the current power will be displayed for 2-3
seconds.
2) During cooking state, press "Clock/Timer" to check the
current time. It will be displayedfor 2-3 seconds.
11. Specification
(1) The buzzer will sound once when turning the knob at the
beginning;
(2) " " must be pressed to continue cooking if the door is
opened during cooking;
(3) Once the cooking programme has been set , " " is not
pressed in 1 minute. The current time will be displayed. The
setting will be cancelled.
(4) The buzzer sounds once by efficient press, inefficient press
will be no responce.
(5) The buzzer will sound five times to remind you when
cooking is finished.
Operation instructions
9
Care of your microwave oven
1. Turn the oven off and remove the power plug from
the wall socket before cleaning.
2. Keep the inside of the oven clean. When food
splatters of spilled liquids adhere to oven walls,wipe
with a damp cloth. The use of harsh detergent or
abrasives is not recommended.
3. The outside oven surface should be cleaned with a
damp
colth. To prevent damage to the operating parts inside
the oven, water should not be allowed to seep into the
ventilation openings.
4. Do not allow the Control Panel to become wet. Clean
with a soft, damp cloth, Do not use detergents,
abrasives or sprayon cleaners on the control panel.
5. If steam accumulates inside or around the outside of
the oven door, wipe with a soft cloth.This may occur
when the microwave oven is operated under high
humidity conditions and in no way indicates malfunction
of the unit.
6. It is occasionally necessary to remove the glass tray
for cleaning. Wash the tray in warm sudsy water or in a
dishwasher.
7. The roller ring and oven cavity floor should be
cleaned regularly to avoid excessive noise. Simply wipe
the bottom surface of the oven with mild detergent,
water or window cleaner and dry. The roller ring may
be washed in mild sudsy water or dish washer. Cooking
vapours collect during repeated use but in no way
affect the bottom surface or roller ring wheels. When
removing the roller ring from cavity floor for cleaning,
be sure to replace it in the proper position.
8. Remove odors from your oven by combining a cup of
water with the juice and skin of one lemon in a deep
microwaveable bowl. Microwave for 5 minutes, wipe
thoroughly and dry with a soft cloth.
Do not throw away the appliance with the normal
household waste at the end of its life, but hand it in at
an official collection point for recycling. By doing this,
you help to preserve the
environment.
Environment
10
Installation instructions
1. Make sure all the packing materials are removed
from the
inside of the door.
2. Inspect the oven after unpacking for any visual
damage such
as:
- Misaligned Door
- Damaged Door
- Dents or Holes in Door Window and Screen
- Dents in Cavity
If any of the above are visible, DO NOT use the oven.
3. This Microwave Oven weighs app.14 kg and must be
placed on a horizontal surface strong enough to support
this weight.
4. The oven must be placed away from high
temperature and
steam.
5. DO NOT place anything on top of the oven.
6. DO NOT remove the turn -table drive shaft.
7. As with any appliance, close supervision is
necessary when
used by children.
8. Make sure that the AC outlet is easily accessible so
that the
plug can be removed quickly in an emergency.
Otherwise, it
should be possible to disconnect the device using a
switch from the circuit. In this case, the existing
provisions of the electrical safety standards are
considered. The product has to be correctly installed on
earthed socket with a single-phase AC (230 V/50 Hz).
WARNING! THIS APPLIANCE MUST BE EARTHED!
9. This oven requires 1.4 kVA for its input. A
consultation with
a service engineer is suggested when installing the
oven.
CAUTION: This oven is protected internally by a 250
V,10
Amp Fuse.
Installation
11

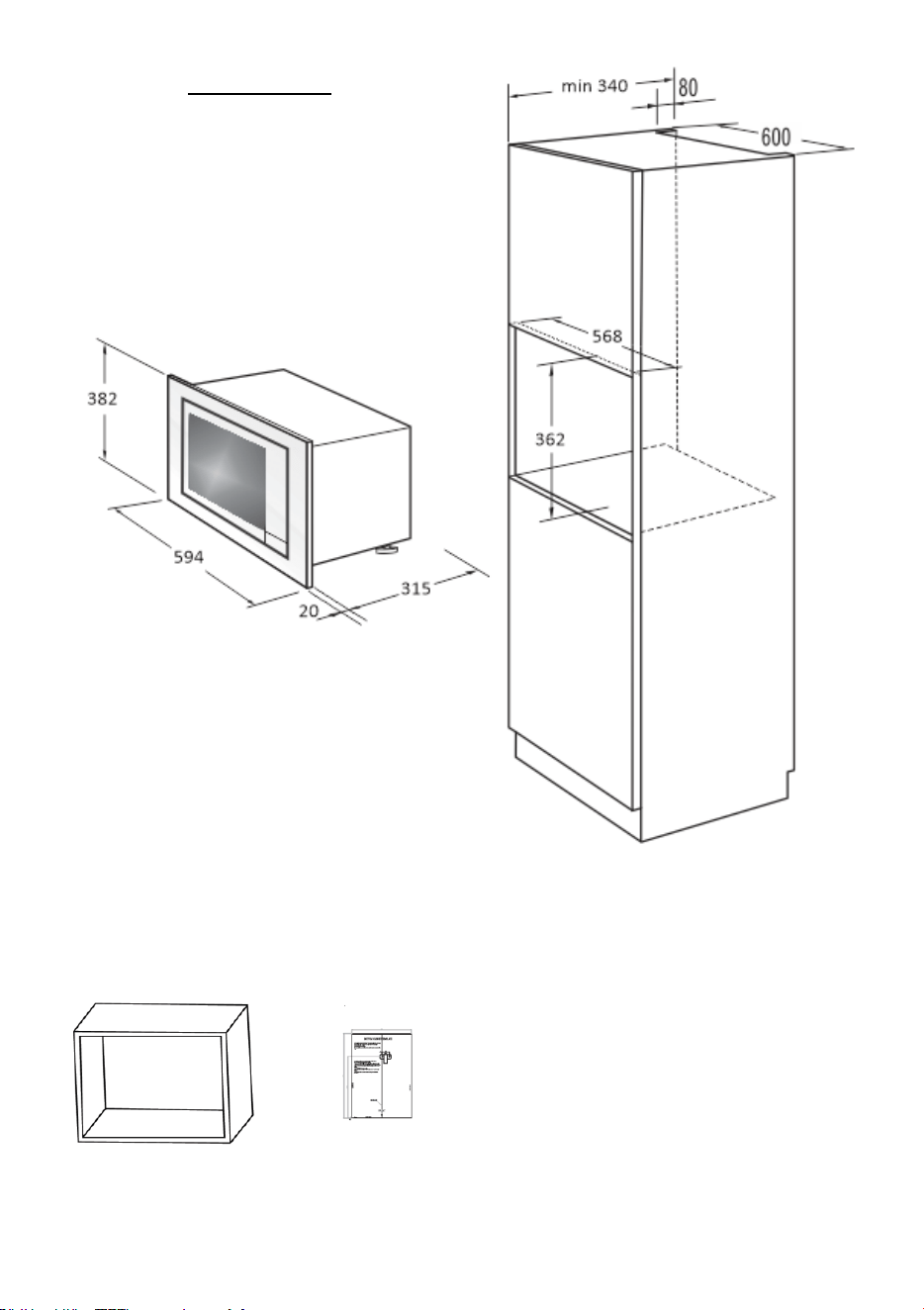

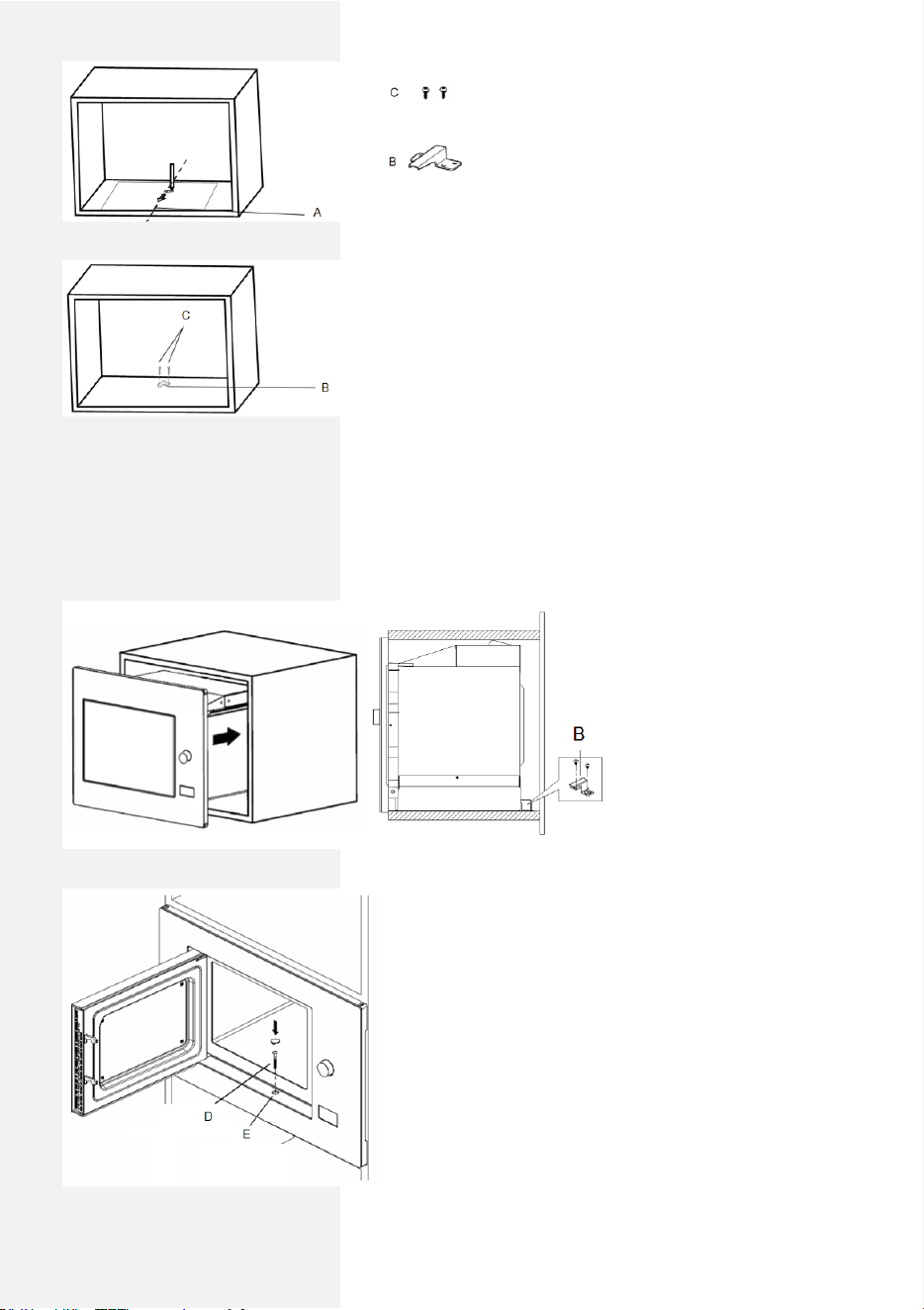

1. Put the template on the bottom of the cabinet.
Built-in cabinet
Prepare the cabinet
12
2. Make the marks on the bottom of the cabinet
according to marks "a" on the template.
A center line
B bracket
C screws A
3. Remove the bottom cabinet template and fix
the bracket with screw A.
4. Install the oven into the cabinet
- Make sure the back of the oven is locked with bracket.
- Do not cut the power cord.
5. Open the door, fix the oven to the cabinet with screw
(D), at the installation hole.
Then fix the Trim-kit plastic cover to the installation
hole (E).
Install the oven
13
Power consumption
230V~50Hz,1250W
Output power
800W
Grill heater
/
Operating frequency
2450MHz
Outside Dimensions
595mm(W)x388mm(H)x345mm(D)
Oven Capacity
20 litres
Uncrated Weight
Approx. 15 kg
Noise level
Lc < 58 dB (A)
Turntable diameter
245 mm
This appliance is marked according to the
European directive 2012/19/EU on Waste
Electrical and Electronic Equipment (WEEE).
This guideline is the frame of a European-
wide validity of return and recycling on
Waste Electrical and Electronic Equipment.
Microwave oven may cause interference to your radio, TV,
or similar equipment. When interference occurs, it may be
eliminated or reduced by the following procedures.
a) Clean the door and sealing surface of the oven.
b) Place the radio, TV, etc. as far away from your microwave
oven as possible.
c) Use a properly installed antenna for your radio, TV, etc. to
get a strong signal reception.
WE RESERVE THE RIGHT TO MAKE ANY CHANGES THAT
DO NOT AFFECT THE FUNCTIONALITY OF THE APPLIANCE.
Specifications
Radio interference
14
Before you call for service
1. If the oven will not perform at all, the information on the
display does not appear or the display disappeared:
a) Check to ensure that the oven is plugged in securely. If it is
not, remove the plug from the outlet, wait 10 seconds and plug
it in again securely.
b) Check the premises for a blown circuit fuse or a tripped main
circuit breaker. If these seem to be operating properly, test the
outlet with another appliance.
2. If the microwave power will not function:
a) Check to see whether the timer is set.
b) Check to make sure that the door is securely closed to
engage the safety interlocks. Otherwise, the microwave energy
will not flow into the oven.
If none of the above rectify the situation, then contact the
nearest authorized service agent.
The appliance for household use for heating food and
beverages using electromagnetic energy, for indoor use
only.
Problem
Possible cause
Solution
Oven can not be started.
Power cord not pluged in.
Unplug. Then plug again after 10 sec.
Broken fuse.
Replace fuse or reset.
Problem with electrical
supply.
Test electrical supply with other
electrical appliances.
Oven does not heat.
Door are not closed.
Close the door.
Glass turntable makes
noise while oven is
operating.
Dirty wheels and oven
bottom.
Read »Care of your microwave« and
clean the ovens dirty parts.
The appliance for household use for heating food and
beverages using electromagnetic energy, for indoor use only.
Guarantee & service
If you need information or if you have a problem, please
contact the Hisense Customer Care Centre in your country
you find its phone number in the worldwide guarantee leaflet).
If there is no Customer Care Centre in your country, go to your
local Hisense dealer or contact the Service department of
Hisense domestic appliances.
For personal use only!
WISHES YOU A LOT OF PLEASURE WHILE USING YOUR
APPLIANCE
HB20MOBX5UK (11-20)
