ESSENTIALS FOR LIFE
User
Manual
MODEL: SBIMG25X
V 1.0 | 1224
Integrated 25ltr
Microwave & Grill
Stainless Steel
Welcome Congratulations on purchasing
your new microwave!
The Sôlt brand is now also proudly
distributed within the UK.
Please refer to the warranty card at the rear of this manual
for information regarding your product’s parts and labour
warranty, or visit us online at
wwwwww..solt.house
At Sôlt Brand, we are customer obsessed and our Support
Team are there to ensure you get the most out of your
appliance. Should you want to learn more about your
cooker's features, and importantly taking care of your
appliance when cleaning, our Support Team are here to
help.
You can use our online job booking service anytime, by
visiting www.appliancesupport.co.uk/solt or by emailing
It is important that you read through the following use and
care manual thoroughly to familiarise yourself with the
installation and operation requirements of your appliance to
ensure optimum performance.
Again, thank you for choosing an Sôlt appliance and we look
forward to being of service to you.
Kind Regards,
The Solt Team
Sôlt
—
Online Job Booking.
www.appliancesupport.co.uk/solt
_
Instagram.
/solt.house
—
Facebook.
/solt.appliances
2
Household use only
SAVE THESE INSTRUCTIONS
.IMPORTANT SAFEGUARDS… 。……………… … ..
WARNING: If the door or door seals are damaged, the
oven must not be operated until it has been repaired by a
trained person.
WARNING: It is hazardous for anyone other than a trained
person to carry out any service or repair operation, which
involves the removal of any cover, which gives protection
against exposure to microwave energy. WARNING: Liquids or
other food must not be heated in sealed containers since
they are liable to explode.
1. Only use utensils that are suitable for use in microwave
ovens.
2. Metallic containers for food and beverages are not
allowed during microwave cooking.
3. When heating food in plastic or paper containers, keep an
eye on the oven due to the possibility of ignition.
4. The microwave oven is intended for heating food and
beverages. Drying of food or clothing and heating of
warming pads, slippers, sponges, damp cloth and
similar may lead to risk of injury, ignition or fire.
5. If smoke is observed, switch off or unplug the appliance
and keep the door closed in order to stifle any flames
microwave heating of beverages can result in delayed
eruptive boiling, therefore care has to be taken when
handling the container.
6. The contents of feeding bottles and baby food jars are to
be stirred or shaken and the temperature is to be
checked before consumption, in order to avoid burns.
7. Eggs in their shell and whole hard- boiled eggs shall
not be heated in microwave ovens since they may
explode, even after microwave heating has ended.
8. Failure to maintain the oven in a clean condition could
lead to deterioration of the surface that could
3
adversely affect the life of the appliance and possibly
result in a hazardous situation.
9. The appliance must not be placed in a cabinet.
10. Care should be taken not to displace the turntable
when removing containers from the appliance.
11. The appliance shall not be cleaned with a steam
cleaner.
12. The appliance must not be installed equal or higher
than 900 mm above the floor. Minimum height of free
space necessary above the top surface of the oven:
See the installation drawing.
Warning: When the appliance is operated in the
combination mode, children should only use the oven
under adult supervision due to the temperatures
generated.
CAUTION: HOT SURFACE
13. If the supply cord is damaged, it must be replaced by
the manufacturer or its service agent or a similarly
qualified person in order to avoid a hazard.
14. This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved.
15. Children shall not play with the appliance.
16. Cleaning and user maintenance shall not be made by
children without supervision.
17. Do not directly put the glass plate into cold water after
use. It needs to place the glass plate for at least 20
minutes, and then put it into the water to avoid
cracking.
18. Group 2 Class B appliance
Group 2 ISM equipment: group 2 contains all ISM
4
equipment in which radio-frequency energy is
intentionally generated and/or used in the form of
electromagnetic radiation for the treatment of material,
and EDM and arc welding equipment.
Class B equipment is equipment suitable for use in
domestic establishments and in establishments
directly connected to a low voltage power supply
network which supplies buildings used for domestic
purposes.
19.
20.
21.
The plug must be remained easily accessible after
installation of the appliance.
This appliance must not be placed in a cabinet with a
door.
This product internal light source LED light on < 60lm
.
After
plug in or the appliance end the work, the product
automatically falls into standby mode, and the product
indicates the information of time standby power＜
0.8W.
23. During use the appliances becomes hot. Care should be
taken to avoid touching heating elements inside the
oven.
WARNING: Accessible parts may become hot during use.
Young children should be kept away. WARNING: The
appliance and its accessible parts become hot during
use.
24. Care should be taken to avoid touching heating
elements.
25. Children less than 8 years of age shall be kept away
unless continuously supervised.
26. Do not use harsh abrasive cleaners or sharp metal
scrapers to clean the oven door glass since they can
scratch the surface, which may result in shattering of the
glass.
27. The appliance must not be installed behind a
decorative door in order to avoid overheating. This
appliance can be used by children aged from 8 years
5
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and
knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved. Children
shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without
details indicating the correct installation of the shelves.
.INSTALLATION……………
…… ……………………… ……..… …
a) Put the microwave oven into built-in cabinet and push it
forward to the end. (Fig.1)
Fig.1
b) Push the microwave oven till to the end. (Fig.2)
6
Fig.2
c) Move the product in parallel in the kitchen cabinet
according to the direction of the arrow in the figure, and
keep it centered. (Fig.3)
7
Fig.3
d) Use the screws of parts packing to secure the
microwave oven in the cabinet. (Fig.4)
A
A
Fig.4
8
A
A
Fig.4
Cabinet details:
Product size: (W)595x(H)385x(D)367.5(mm)
Opening size: (D)560±2 x (E)360±2 x (F)550±2 (mm) as
shown in Fig.5 “D”,“E”,“F”.
G (The thickness of board): 20mm
I (The thickness of board):20mm
H (The deepness of wrong layer): 20mm
9
H
(
2
0
m
m
)
I
(
2
0
m
m
)
G( 2 0 mm)
4 0 0 mm
6 0 0 mm
7
2
m
m
2
7
2
m
m
1
0
0
m
m
e x ha u s t por t
i n t a k e
F
(
5
5
0
m
m
)
5
0
m
m
5
6
0
m
m
D( 5 6 0 mm)
E ( 3 6 0 mm)
Fig.5
…………………… …………
.CLEANING MICROWAVE
OVEN CARE
The oven should be cleaned regularly and any food
deposits removed.
a. Remove the power cord from the wall outlet before
cleaning. After cooling products. Don't immerse the
appliance in water or other fluids when cleaning.
b. Failure to maintain the oven in a clean condition could
10
lead to deterioration of the surface that could
adversely affect the life of the appliance and possibly
result in a hazardous situation.
c. Never use hard detergent, gasoline, abrasive powder or
metal brush to clean any part of the appliance.
d. Do not remove the waveguide cover.
e. When the microwave oven has been used for a long
time, there may be some strange odors exist in oven,
following 3 methods can get rid of them:
1) Place several lemon slices in a cup, then heat with
high micro power for 2-3 min.
2) Place a cup of red tea in oven, then heat with high
micro power.
3) Put some orange peel into oven, and then heat
them with high micro power for 1 minute.
f. When the product is not used, it should be placed in
dry and ventilated areas as well as possible.
Details how to clean surfaces in contact with food:
After use wipe the waveguide cover with a damp cloth,
followed by dry cloth to remove any food splashes and
grease. Built -up grease may overheat and begin to cause
smoke or catch fire.
TIPS FOR CLEANING
Details for cleaning door seals, cavity and adjacent
parts:
Exterior:
Wipe the enclosure with a dampened soft cloth
Door:
11
Using a dampened soft cloth, wipe clean the door and
window
Wipe the door seals and adjacent parts to remove any
spill or spatter
Wipe the control panel with a slightly dampened soft
cloth
Interior walls:
Wipe clean the interior surfaces with a dampened soft
cloth
Wipe clean the waveguide cover to remove any food
splashed
Turntable / Rotation ring / Rotation axis:
Wash with mild soap water
Rinse with clean water and allow drying thoroughly
.PRODUCT INSTRUCTION……
…………… .. .......
⑧
①
③
④
⑤
⑥
②
⑦
1) Door lock
Microwave oven door must be properly closed in order for it
to operate.
12
2) Viewing window
Allow user to see the cooking status
3) Rotating axis
The glass turntable sits on the axis; the motor underneath it
drives the turntable to rotate
4) Rotating ring
The glass turntable sits on its wheels; it supports the
turntable and helps it to balance when rotating
5) Turntable
The food sits on the turntable, its rotation during operation
helps to cook food evenly
- Place the rotating ring first
- Fit the turntable onto the rotating axis and make sure that it
is geared in properly
6) Control panel
See below in details (the control panel is subject to change
without prior notice)
7) Waveguide cover
It is inside the air fryer oven, next to the wall of control
panel.
Never remove the waveguide cover.
8) Grill rack
Use to place the roasting food.
13

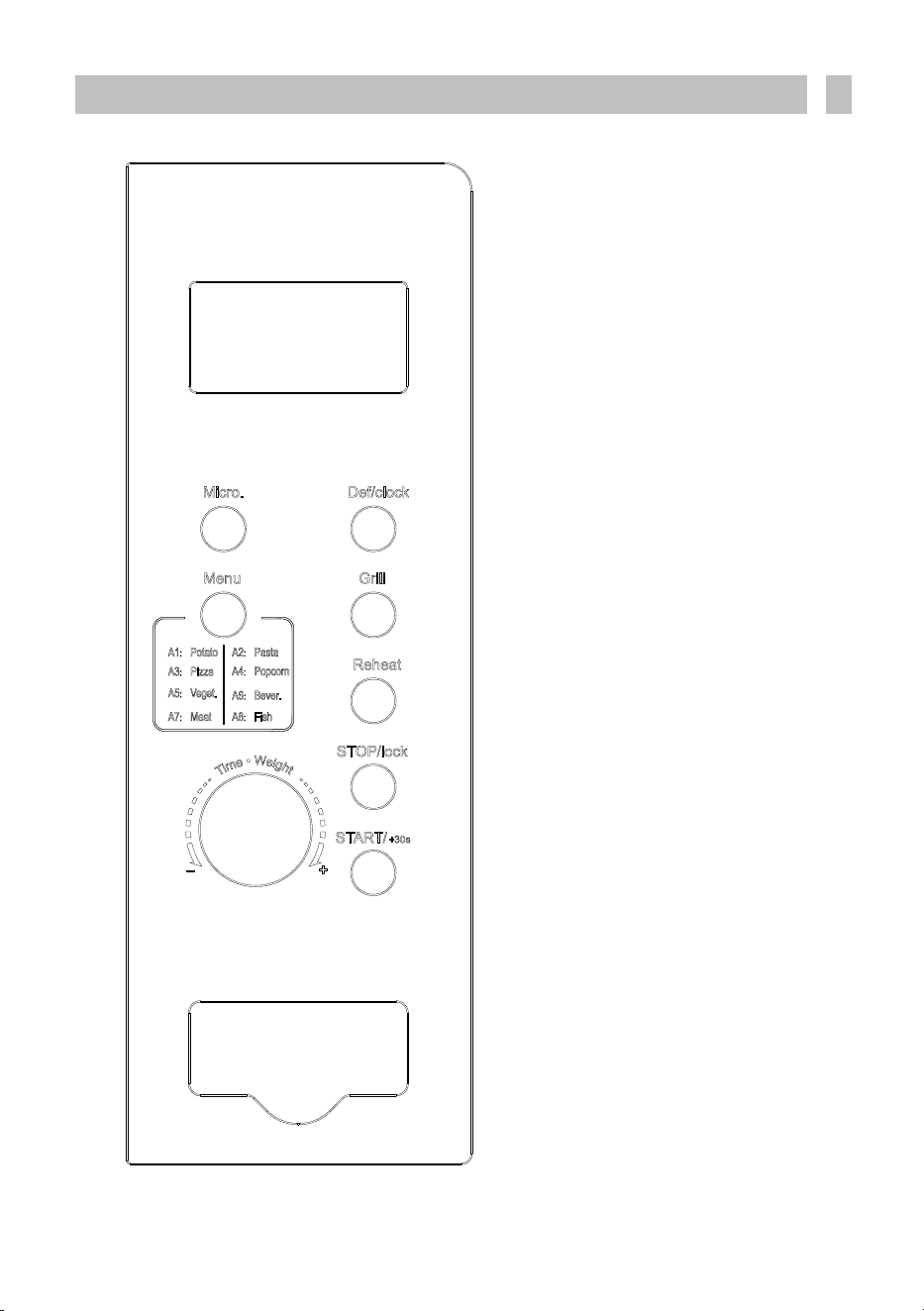

.OPERATION OF CONTROL
PANEL…。。。。。。。。
14
1. BEFORE COOKING
The display lit up when plugged in power supply, then
enter the standby state and display shows 1:00.
2. MICROWAVE FUNCTION
There are five microwave power levels, 100P, 80P, 50P, 30P
and 10P, respectively. Press the “Micro.” button
continuously and select the desired microwave power. Turn the
knob to increase or decrease cooking time, the time range
can be selected is from 0:10 to 60:00. After select the time,
press “START/+30s” button to start work. An buzzing sound
to notify completion of the operation.
HIGH
100% power
output
(Applicable for quick and
thorough cooking)
M.High
80% power
output
(Applicable for medium
express cooking)
Med
50% power
output
(Applicable for steaming
food)
M.Low
30% power
output
(Applicable for defrosting
food)
LOW
10% power
output
(Applicable for keeping
warm)
a. The max time which can be set is 60 minutes
b. Never operate the oven empty.
c. At the maximum microwave power, the oven will
automatically lower the power after a certain time of
cooking to lengthen the service life.
d. If you turn the food during operation, press the
15
START/+30s button once and the preset cooking
procedure will continue.
e. If you intend to remove the food before the preset
time, you must press STOP/LOCK button once to
clear the preset procedure to avoid unintended
operation of next time use.
3. DEFROST/CLOCK 3.1
DEFROST
There are two defrost mode, dEF1 and dEF2, respectively. dEF1
for defrost by weight and dEF2 for defrost by time. Press
this button to select defrost by weight or by time, and the
display screen will display "dEF1" or "dEF2". Turn the knob to
select food weight or defrost time. The optional weight range
of dEF1 is from 100 to 1500g, and the optional time
range of dEF2 is from 0:10 to 60:00. After selecting the
defrost weight or time, press the “START/+30s”
button start to work. An buzzing sound to notify completion
of the operation. The dEF1 defrost mode by weight will have a
beeping sound to prompt the food to be turned over during
defrosting.
Below is some food defrosting time advice:
dEF1 For defrosting, the weight range from 100 to 1500g.
dEF2 For defrosting, the time range from 0:10 to 60:00.
16
a. It is necessary to turn over the food during operation to
obtain uniform effect.
b. Usually defrosting will need longer time than that of
cooking the food.
c. If the food can be cut by knife, the defrosting process
can be considered completed.
d. Microwave penetrates around 4cm into most food
e. Defrosted food should be consumed as soon as possible, it is
not advised to put back to fridge and freeze again.
3.2 CLOCK (24-hour clock)
In standby mode, press and hold down the
“DEFROST/CLOCK” button for more than 3 seconds to
enter the clock setting interface. At the same time, the
display screen blinks in hours. The hour time can be set by
turning the knob. After setting the hour, press the
"START/+30s" button for a short time to confirm and switch to
the setting minute mode. The minutes can be set by
turning the knob. After setting minutes, press the
"START/+30s" button again to confirm and exit the setting
mode.
4. AUTO COOKING
There are eight automatic menus A.1~A.8, potato, pasta,
pizza, popcorn, vegetable, beverage, meat and fish
respectively. Press the “Menu” button continuously to
select the desired menu, the display screen corresponds to A.1
~ A.8. Turn the knob to select the weight of the menu.
17
After selecting the cooking weight, press “START/+30s”
button to start work. An buzzing sound to notify completion of
the operation.
Display Kind Method
A.1 Potato
The optional weights are 250g, 500g and
750g
A.2 Pasta
The optional weights are 50g, 100g and
150g
A.3 Pizza The optional weights are 200g and 400g
A.4 Popcorn The optional weight is 100g
A.5 Vegetable
The optional weights are 200g, 400g and
600g
A.6 Beverage
The optional weights are 1 cup, 2 cups or 3
cups, each one about 250ml.
A.7 Meat
The optional weights are 200g, 400g and
600g
A.8 Fish
The optional weight are 200g, 400g and
600g
a. The temperature of food before cooking would be 20-25
℃
.
Higher or lower temperature of the food before cooking would
require increase or decrease of cooking time.
b. The temperature, weight and shape of food will largely
influence the cooking effect. If any deviation has been
found to the factor noted on above menu, you can adjust
the cooking time for best result.
5. Grill FUNCTION
18
There are three modes of Grill: G., C-1 and C-2. They are
grill, combination 1 of grill and microwave cooking and
combination 2 of grill and microwave cooking. Press the
"Grill" button continuously, select the desired mode and the
display screen will corresponding display “G.”, “C-1” or “C-2”.
Turn the knob to select the cooking time, and the time range
that can be regulated is from 0:10 to 60:00. After selecting
the cooking time, press the “START/+30s” button to start
the work. An buzzing sound to notify completion of the
operation.
G.
Grill, the heat element will be energized during
operation time. Which is applicable for rolling thin
meats or pork, sausage, chicken wing as good
brown color can be obtained
C-1
Combination of grill and microwave cooking. 30%
microwave and 70% grill.
C-2
Combination of grill and microwave cooking. 55%
microwave and 45% grill.
In the mode of grill, all of the oven parts, as well as the rack
and cooking containers, may become very hot. Use caution
when removing any item from the oven. Use heavy
potholders or oven mitts to PREVENT BURNS.
6. REHEAT
Reheat function is mainly to facilitate users to heat food
according to the weight of food, press the “Reheat” button
continuously, select the appropriate weight of food, the
19
optional weights are 200g, 400g, 600g, 800g and 1000g.
After selecting the weight, press the “START/+30s” button to
start work. An buzzing sound to notify completion of the
operation.
7. STOP
In the process of cooking settings, can press “STOP” button to
cancel the settings and return to standby state. In the
process of microwave oven working, can press “STOP”
button to pause. In the paused state, can press “STOP”
button again to cancel the function and return to standby
state.
8. START/+30s
After setting the cooking time or food weight, press the
“START/+30s” button to start the microwave oven
immediately. In working state, can press “START/+30s”
button to increase time, press one time to increase 30
seconds, but the menu mode and weight defrosting mode
cannot adjust time. In paused state, can press
“START/+30s” button to continue the microwave oven
before cooking mode.
9. EXPRESS
In standby mode, after the food is put in and the door is
closed, press the "START/+30s" button to quickly start the
microwave. The default working time is 30 seconds. In the
20
process of working, press the "START/+30s" button once for
30 seconds. An buzzing sound to notify completion of the
operation.
10. CHILD LOCK FUNCTION
Use this feature to lock the control panel when you are
cleaning or so that children cannot use the oven
unsupervised. All the buttons are rendered inoperable in this
mode.
1) Set lock: In standby mode, press and hold down the
"STOP/LOCK" button for more than 3 seconds, the child
lock function is activated, and all buttons of the microwave
oven cannot be operated.
2) Cancel lock: In the child lock state, press and hold down
the "STOP/LOCK" button for more than 3 seconds to cancel the
child lock function.
21
.UTENSILS GUIDELINE…。………………………
.
It is strongly recommended to use the containers which are
suitable and safe for microwave cooking. Generally
speaking, the containers which are made of heat-resistant
ceramic, glass or plastic are suitable for microwave
cooking. Never use the metal containers for microwave
cooking and combination cooking as spark is likely to occur. You
can take the reference of below table.
Material of
container
Microwave Grill Combi Notes
Heat-resistant
ceramic
Yes Yes Yes
Never use the
ceramics which are
decorated with
metal rim or glazed.
Recommend using
ceramic,
heat-resistant glass,
and plastic containers
that can withstand
temperatures above
120℃.
Heat-resistant
plastic
Yes No No
Can not be used for
long time microwave
cooking
Heat-resistant
glass
Yes Yes Yes
Plastic film Yes No No
It should not be used
when cooking meat
or chops as the
over-temperature may
do damage to the
film
Grill rack No Yes Yes
The grill rack can
only be used in grill
and combination
mode.
22
Metal container No No No
It should not be used
in microwave oven.
Microwave can not
penetrate through
metal.
lacquer No No No
Poor heat-resistant.
Can not be used for
High-temperature
cooking
Bamboo wood
and paper
No No No
Poor heat-resistant.
Can not be used for
High-temperature
cooking
COOKING TIPS……
…
The following factors may affect the cooking result: Food
arrangement
Place thicker areas towards outside of dish, the thinner
part towards the centre and spread it evenly. Do not
overlap if possible.
Cooking time length
Start cooking with a short time setting, evaluate it after it
times out and extend it according to the actual need. Over
cooking may result in smoke and burns.
Cooking food evenly
Food such as chicken, hamburger or steak should be
turned once during cooking.
Depending on the type of food, if applicable, stir it from
outside to centre of dish once or twice during cooking. Allow
standing time
After cooking times out, leave the food in the oven for an
adequate length of time, this allows it to complete its
cooking cycle and cooling it down in a gradual manner.
Whether the food is done
23
Color and hardness of food help to determine if it is done,
these include:
- Steam coming out from all parts of food, not just the
edge
- Joints of poultry can be moved easily
- Pork or poultry shows no signs of blood
- Fish is opaque and can be sliced easily with a fork
Browning dish
When using a browning dish or self-heating container,
always place a heat-resistant insulator such as a porcelain
plate under it to prevent damage to the turntable and
rotating ring.
Microwave safe plastic wrap
When cooking food with high fat content, do not allow the
plastic wrap come into contact with food as it may melt
Microwave safe plastic cookware
Some microwave safe plastic cookware might not be
suitable for cooking foods with high fat and sugar content.
Also, the preheating time specified in the dish instruction
manual must not be exceeded.
.MAINTENANCE…
。…… ………………… ……
SERVICING
Please check the following before calling for services.
1. Place one cup of water (approx.150ml) in a glass
measure in the oven and close the door securely.
Oven lamp should go off if the door is closed properly.
Let the oven work for 1 min.
2. Does the oven lamp light?
3. Does the cooling fan work?
(Put your hand over the rear ventilation openings.)
24
4. Does the turntable rotate?
(The turntable can rotate clockwise or counter
clockwise. This is quite normal.)
5. Is the water inside the oven hot?
If “NO” is the answer to any of the above questions,
please check your wall socket and the fuse in your meter
box.
If both the wall socket and the fuse are functioning
properly, CONTACT YOUR NEAREST SERVICE CENTER
APPROVED.
SERVICING SAFEGUARDS Caution:
MICROWAVE RADIATION
1. The high voltage capacitor remains charge after
disconnection; short the negative terminal of H. V
capacitor to the oven chassis (use a screwdriver) to
discharge before touching.
2. During servicing below listed parts are liable to be
removed and give access to potentials above 250V to
earth.
● Magnetron
● High voltage transformer
● High voltage capacitor
● High voltage diode
● High voltage fuse
3. The following conditions may cause undue
microwave exposure during servicing.
● Improper fitting of magnetron;
● Improper matching of door interlock, door hinge
and door;
● Improper fitting of switch support;
● Door, door seal or enclosure has been damaged.
Product support
If you still require further assistance, call one of our service experts on 01759 48 78 26. To help give us fast
and efficient service, please have the following information ready:
Model Ref
Serial Number
Date of purchase
You can find these on
the
rating plate - a
small information panel
(usually a sticker or metal
plate) on
the
rear of your
appliance
This will be shown on
your receipt
Help and assistance
If you require any technical guidance or find that your tumble dryer is not operating as intended, a simple
solution can often be found in
the
Troubleshooting section of these instructions.
25
Declaration of conformance to
product standards
This appliance conforms to all relavant standards
applicable to domestic appliances sold in the UK
Disposal
This appliance/fitting is marked
according to the European directive
2012/19/EU on Waste Electrical
and Electronic Equipment (WEEE).
By ensuring this product is disposed of
correctly, you will help prevent potential
negative consequences for the environment
and human health, which could otherwise be
caused by inappropriate waste handling of
this product.
The symbol on the product, or on the
documents accompanying the product, the
crossed out wheelie bin symbol, indicates
that this appliance/tting may not be treated
as household waste. Instead it shall be
handed over to the applicable collection point
for the recycling of electrical and electronic
equipment.
Disposal must be carried out in accordance
with local environmental regulations for waste
disposal.
For more detailed information about
treatment, recovery and recycling of this
product, please contact your local authority,
your household waste disposal service or the
retailer where you purchased the product.
26
16
T. 01759 48 78 26
E. admin@appliancesupport.co.uk
Online. www.appliancesupport.co.uk/solt
ESSENTIALS FOR LIFE
Solt Service:
www.solt.house
