MSE1717SM
User manual
Microwave oven
EN 2
AEG_EN240_UKCA_17LSOLO_SBI_BASE_AJ26UICTO.indd 1AEG_EN240_UKCA_17LSOLO_SBI_BASE_AJ26UICTO.indd 1 10/01/2024 12:54:1110/01/2024 12:54:11
2
www.aeg.com
CONTENTS
1. SAFETY INFORMATION ............................................................................................................3
2. INSTALLATION ............................................................................................................................7
3. PRODUCT DESCRIPTION ....................................................................................................... 11
4. OPERATION .............................................................................................................................13
5. HINTS AND TIPS ....................................................................................................................... 14
6. TROUBLESHOOTING ..............................................................................................................16
7. TECHNICAL INFORMATION....................................................................................................17
8. ENERGY EFFICIENCY .............................................................................................................17
9. ENVIRONMENT CONCERNS .................................................................................................. 17
WE’RE THINKING OF YOU
Thank you for choosing this AEG product. We have created it to give you impeccable
performance for many years, with innovative technologies that help make life simpler –
features you might not nd on ordinary appliances. Please spend a few minutes reading to
get the very best from it.
Visit our website for:
Get usage advice, brochures, trouble shooter, service information:
www.aeg.com
Register your product for better service:
www.registeraeg.com
Buy Accessories, Consumables and Original spare parts for your appliance:
www.aeg.com/shop
CUSTOMER CARE AND SERVICE
We recommend the use of original spare parts.
When contacting Service, ensure that you have the following data available.
The information can be found on the rating plate. Model, PNC, Serial Number.
Subject to change without notice.
Warning/Caution-Safety information
General information and tips
Environmental information
AEG_EN240_UKCA_17LSOLO_SBI_BASE_AJ26UICTO.indd 2AEG_EN240_UKCA_17LSOLO_SBI_BASE_AJ26UICTO.indd 2 10/01/2024 12:54:1410/01/2024 12:54:14
3
ENGLISH
1. SAFETY INFORMATION
This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the
hazards involved. Children should be supervised to ensure
that they do not play with the appliance. Cleaning and user
maintenance shall not be made by children unless they
are aged from 8 years and above and supervised.
This appliance is not intended for use at altitudes above
2000m.
IMPORTANT! IMPORTANT SAFETY
INSTRUCTIONS: READ CAREFULLY AND KEEP
FOR FUTURE REFERENCE.
WARNING!
Do not use the appliance without the turntable and
turntable support. Do not use the appliance when
empty.
WARNING!
If the door or door seals are damaged, the oven
must not be operated until it has been repaired by a
competent person.
WARNING!
It is hazardous for anyone other than a competent
person to carry out any service or repair operation
that involves the removal of a cover which gives
protection against exposure to microwave energy.
WARNING!
Liquids and other foods must not be heated in
sealed containers since they are liable to explode.
AEG_EN240_UKCA_17LSOLO_SBI_BASE_AJ26UICTO.indd 3AEG_EN240_UKCA_17LSOLO_SBI_BASE_AJ26UICTO.indd 3 10/01/2024 12:54:1410/01/2024 12:54:14
4
www.aeg.com
This appliance is intended to be used in household
and similar applications such as: sta kitchen areas in
shops, oces and other working environments; farm
houses; by clients in hotels, motels and other residential
environments; bed and breakfast type environments.
Only use microwave-safe containers and utensils.
Metallic containers for food and beverages are not allowed
during microwave cooking.
Do not leave the oven unattended when using disposable
plastic, paper or other combustible food containers.
The microwave oven is intended for heating food and
beverages. Drying of food or clothing and heating of
warming pads, slippers, sponges, damp cloth and similar
may lead to risk of injury, ignition or re.
If food being heated begins to smoke, DO NOT OPEN
THE DOOR. Turn o and unplug the oven and wait until
the food has stopped smoking. Opening the door while
food is smoking may cause a re.
Microwave heating of beverages can result in delayed
eruptive boiling, therefore care has to be taken when
handling the container.
The contents of feeding bottles and baby food jars shall
be stirred or shaken and the temperature checked before
consumption, in order to avoid burns.
Do not cook eggs in their shells and whole hard boiled
eggs should not be heated in microwave ovens since they
may explode even after microwave cooking has ended.
AEG_EN240_UKCA_17LSOLO_SBI_BASE_AJ26UICTO.indd 4AEG_EN240_UKCA_17LSOLO_SBI_BASE_AJ26UICTO.indd 4 10/01/2024 12:54:1410/01/2024 12:54:14
5
ENGLISH
1.1 Care and cleaning
Door:
To remove all trace of dirt, regularly clean both sides of
the door, the door seals and sealing surfaces with a soft,
damp cloth. Do not use harsh abrasive cleaners or sharp
metal scrapers to clean the oven door glass since they
can scratch the surface, which may result in shattering of
the glass.
Oven interior:
For cleaning, wipe any splatters or spills with a soft
damp cloth or sponge after each use while the oven is
still warm. For heavier spills, use a mild soap and wipe
several times with a damp cloth until all residues are
removed. Do not remove the waveguide cover. Make
sure that mild soap or water does not penetrate the small
vents in the walls which may cause damage to the oven.
Do not use spray type cleaners on the oven interior.
Clean the waveguide cover, the oven cavity, the turntable
and turntable support after use. These must be dry and
free from grease. Built-up grease may overheat and begin
to smoke or catch re.
Oven exterior:
The outside of your oven can be cleaned easily with mild
soap and water. Make sure the soap is wiped o with a
moist cloth, and dry the exterior with a soft towel.
Control panel:
Open the door before cleaning to de-activate the control
panel. Care should be taken when cleaning the control
panel. Using a cloth dampened with water only, gently
wipe the panel until it becomes clean. Avoid using
excessive amounts of water. Do not use any sort of
chemical or abrasive cleaner.
AEG_EN240_UKCA_17LSOLO_SBI_BASE_AJ26UICTO.indd 5AEG_EN240_UKCA_17LSOLO_SBI_BASE_AJ26UICTO.indd 5 10/01/2024 12:54:1410/01/2024 12:54:14
6
www.aeg.com
Turntable and turntable support:
Remove the turntable and turntable support from the
oven. Wash the turntable and turntable support in mild
soapy water. Dry with a soft cloth. Both the turntable and
the turntable support are dishwasher safe.
IMPORTANT!
Clean the oven at regular intervals and remove any
food deposits. Failure to maintain the oven in a
clean condition could lead to a deterioration of the
surface that could adversely aect the life of the
appliance and possibly result in a hazardous
situation.
Care should be taken not to displace the turntable
when removing containers from the appliance.
IMPORTANT!
A steam cleaner should not be used.
The microwave oven is intended to be used built-in.
The appliance must not be placed in a cabinet.
The appliance and its accessible parts become hot during
use.
WARNING!
Children should be kept away to prevent them
burning themselves.
IMPORTANT!
Do not use commercial oven cleaners, steam
cleaners, abrasive, harsh cleaners, any that contain
sodium hydroxide or scouring pads on any part of
your microwave oven.
AEG_EN240_UKCA_17LSOLO_SBI_BASE_AJ26UICTO.indd 6AEG_EN240_UKCA_17LSOLO_SBI_BASE_AJ26UICTO.indd 6 10/01/2024 12:54:1410/01/2024 12:54:14
7
ENGLISH
2. INSTALLATION

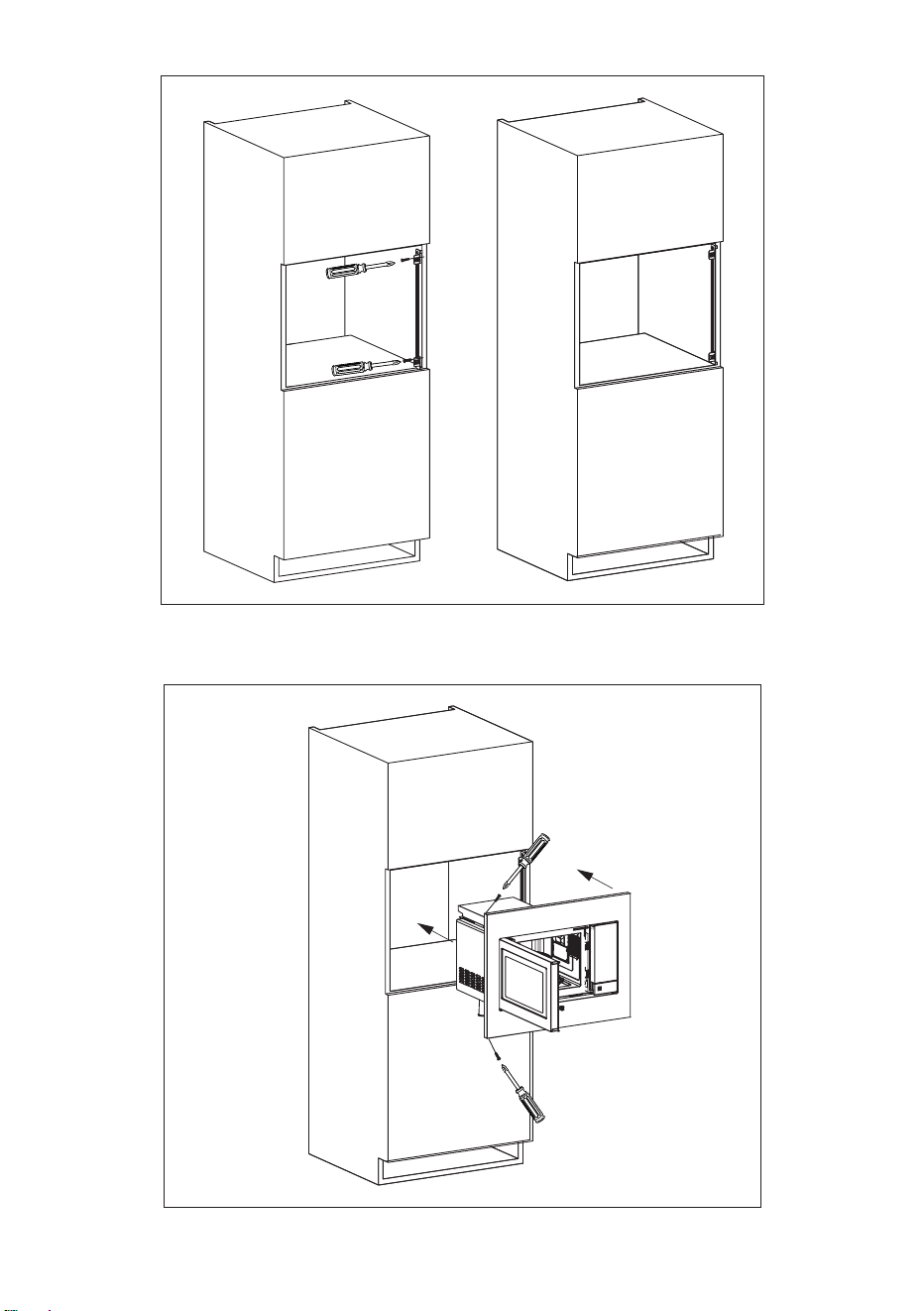

2.1 Installing the appliance
1. Remove all packaging and check
carefully for any signs of damage.
2. Fit the xing bracket to the right hand
side of the kitchen cupboard using
the installation sheet and two screws
supplied.
3. Fit the appliance into the kitchen
cupboard slowly and without force until
it clips into the brackets. Ensure the
appliance is stable and centralised.
4.
Fix the oven on the left hand side using
the two screws supplied.
5.
The front frame of the appliance should
seal against the front opening of the
cupboard.
IMPORTANT!
Do not install this appliance in kitchen
cupboards without the specied
45mm rear chimney. Inadequate
ventilation could adversely aect the
performance and life of the appliance.
Do not install this appliance in kitchen
cupboards that are adjacent to sourc-
es of heat and steam such as hobs
and cook tops. Such sources could
adversely aect the performance and
life of the appliance.
4,5
5,5
595
390
min.
380
292
352
452
45
min.560
min.
300
380
45
560
350
600
AEG_EN240_UKCA_17LSOLO_SBI_BASE_AJ26UICTO.indd 7AEG_EN240_UKCA_17LSOLO_SBI_BASE_AJ26UICTO.indd 7 10/01/2024 12:54:1410/01/2024 12:54:14
8
www.aeg.com
AEG_EN240_UKCA_17LSOLO_SBI_BASE_AJ26UICTO.indd 8AEG_EN240_UKCA_17LSOLO_SBI_BASE_AJ26UICTO.indd 8 10/01/2024 12:54:1510/01/2024 12:54:15
9
ENGLISH
2.2 Connecting the appliance
to the power supply
• The electrical outlet should be readily
accessible so that the unit can be
unplugged easily in an emergency.
Or it should be possible to isolate the
oven from the supply by incorporating a
switch in the xed wiring in accordance
with the wiring rules.
• The power supply cord may only be
replaced by an electrician.
• If the supply cord is damaged it must
be replaced by the manufacturer, its
service agent or similarly qualied
persons in order to avoid a hazard.
• The socket should not be positioned
behind the cupboard.
• The best position is above the
cupboard, see (A).
• Connect the appliance to a single
phase 230-240 V/50 Hz alternating
current via a correctly installed earth
socket.
• If the appliance is to be operated in
a non-European country, the supply
voltage, current type and frequency
of the appliance indicated on the
rating plate must correspond with the
specication of your power supply. The
rating plate can be found on the inside
face of the control panel.
• Before installing, tie a piece of string
to the power supply cord to facilitate
connection to point (A) when the
appliance is being installed.
• When inserting the appliance into the
high-sided cupboard, DO NOT crush
the power supply cord.
• Do not immerse the power supply cord
or plug in water or any other liquid.
• Do not allow the power supply cord
to run over any hot or sharp surfaces,
such as the hot air vent area at the top
rear of the oven.
(A)
AEG_EN240_UKCA_17LSOLO_SBI_BASE_AJ26UICTO.indd 9AEG_EN240_UKCA_17LSOLO_SBI_BASE_AJ26UICTO.indd 9 10/01/2024 12:54:1510/01/2024 12:54:15
10
www.aeg.com
Do not use the microwave oven to heat oil
for deep frying. The temperature cannot
be controlled and the oil may catch re. To
make popcorn, only use special microwave
popcorn makers.
Individuals with PACEMAKERS should
check with their doctor or the manufacturer
of the pacemaker for precautions regarding
microwave ovens.
Never spill or insert any objects into the
door lock openings or ventilation openings.
In the event of a spill, turn o and
unplug the oven immediately and call an
authorised ELECTROLUX service agent.
Never modify the oven in any way.
Only use the turntable and the turntable
support designed for this oven. Do not
operate the oven without the turntable.
To prevent the turntable from breaking:
• Before cleaning the turntable with
water, leave the turntable to cool.
• Do not put hot foods or hot utensils on a
cold turntable.
• Do not put cold foods or cold utensils
on a hot turntable.
Neither the manufacturer nor the dealer
can accept any liability for damage to
the oven or personal injury resulting from
failure to observe the correct electrical
connection procedure. Water vapour or
drops may occasionally form on the oven
walls or around the door seals and sealing
surfaces. This is a normal occurrence and
is not an indication of microwave leakage
or a malfunction.
Concerning the lamp(s) inside this product
and spare part lamps sold separately:
These lamps are intended to withstand
extreme physical conditions in household
appliances, such as temperature, vibration,
humidity, or are intended to signal
information about the operational status
of the appliance. They are not intended to
be used in other applications and are not
suitable for household room illumination.
2.3 Additional advice
AEG_EN240_UKCA_17LSOLO_SBI_BASE_AJ26UICTO.indd 10AEG_EN240_UKCA_17LSOLO_SBI_BASE_AJ26UICTO.indd 10 10/01/2024 12:54:1510/01/2024 12:54:15
11
ENGLISH
Check to make sure the following
accessories are provided:
Turntable
Turntable support
• Place the turntable support on the oor
of the cavity.
•
Then place the turntable on the
turntable support.
•
To avoid turntable damage, ensure
dishes or containers are lifted clear of
the turntable rim when removing them
from the oven.
When you order accessories, please
mention two items: part name and
model name to your dealer or an
authorised ELECTROLUX service
agent.
3.1 Microwave oven
Front trim
Oven light
Control panel
Door open button
Waveguide cover
(do not remove)
Oven cavity
Door seals and sealing
surfaces
1
2
3
4
5
6
7
3.2 Accessories
1
2
1
2
3. PRODUCT DESCRIPTION
WARNING!
Do not operate the microwave oven without these
parts tted.
1
3
4
67 5
2
AEG_EN240_UKCA_17LSOLO_SBI_BASE_AJ26UICTO.indd 11AEG_EN240_UKCA_17LSOLO_SBI_BASE_AJ26UICTO.indd 11 10/01/2024 12:54:1610/01/2024 12:54:16
12
www.aeg.com
3.3 Control panel
Power / Action Selector
Timer Knob
Door open button
1
2
3
3
2
1
AEG_EN240_UKCA_17LSOLO_SBI_BASE_AJ26UICTO.indd 12AEG_EN240_UKCA_17LSOLO_SBI_BASE_AJ26UICTO.indd 12 10/01/2024 12:54:1610/01/2024 12:54:16
13
ENGLISH
4. OPERATION
4.1 Microwave cooking
Microwave cooking allows you to
customize the cooking power and time.
Maximum cooking time is 30 minutes.
Example: To cook for 5 minutes on
medium high.
1.
Open the oven door and place the food
inside. Close the door.
2.
Rotate the power / action selector to
medium high.
3.
Rotate the timer knob to enter the
cooking time and start cooking.
As soon as the timer knob is
rotated the oven will start cooking.
When selecting time for less than 2
minutes, turn timer past 2 minutes
and then return to the correct time.
Power levels that are too high or
cooking times that are too long may
overheat foods resulting in a re.
CAUTION: Always return the timer
back to the zero position when food
is removed from the oven or when
the oven is not in use. To stop the
oven during cooking push the door
release button.
Power
Output
Description Icon
100 % High
88 % Medium High
73 % Medium
52 % Medium Low
42 % Defrost
20 % Low
AEG_EN240_UKCA_17LSOLO_SBI_BASE_AJ26UICTO.indd 13AEG_EN240_UKCA_17LSOLO_SBI_BASE_AJ26UICTO.indd 13 10/01/2024 12:54:1610/01/2024 12:54:16
14
www.aeg.com
5. HINTS AND TIPS
5.1 Microwave safe cookware
Cookware Microwave
safe
Comments
Aluminium foil/
containers
3 / 7
Small pieces of aluminium foil can be used to shield
food from overheating. Keep foil at least 2 cm from the
oven walls, as arcing may occur. Foil containers are not
recommended unless specied by the manufacturer.
Follow instructions carefully.
China and ceramics
3 / 7
Porcelain, pottery, glazed earthenware and bone china
are usually suitable, except for those with metallic
decoration.
Glassware
e.g. Pyrex ®
3
Care should be taken if using ne glassware as it can
break or crack if heated suddenly.
Metal
7
It is not recommended to use metal cookware when
using microwave power as it will arc, which can lead to
re.
Plastic/polystyrene
e.g. fast food
containers
3
Care must be taken as some containers warp, melt or
discolour at high temperatures.
Freezer/roasting
bags
3
Must be pierced to let steam escape. Ensure bags are
suitable for microwave use. Do not use plastic or metal
ties, as they may melt or catch re due to the metal
arcing.
Paper-plates, cups
and kitchen paper
3
Only use for warming or to absorb moisture. Care must
be taken as overheating may cause re.
Straw and wooden
containers
3
Always attend the oven when using these materials as
overheating may cause re.
Recycled paper and
newspaper
7
May contain extracts of metal which will cause arcing
and may lead to re.
AEG_EN240_UKCA_17LSOLO_SBI_BASE_AJ26UICTO.indd 14AEG_EN240_UKCA_17LSOLO_SBI_BASE_AJ26UICTO.indd 14 10/01/2024 12:54:1710/01/2024 12:54:17
15
ENGLISH
Microwave cooking advice
Composition Foods high in fat or sugar (e.g. Christmas pudding, mince pies) require less
heating time. Care should be taken as overheating can lead to re.
Size For even cooking make all the pieces the same size.
Temperature of
food
The initial temperature of food aects the amount of cooking time needed.
Cut into foods with llings (e.g. jam doughnuts) to release heat or steam.
Arrange Place the thickest parts of food towards the outside of the dish (e.g. chicken
drumsticks).
Cover Use vented microwave cling lm or a suitable lid.
Pierce Foods with a shell, skin or membrane must be pierced in several places before
cooking or reheating as steam will build up and may cause food to explode
(e.g. potatoes, sh, chicken, sausages).
IMPORTANT! Eggs should not be heated using microwave power as
they may explode, even after cooking has ended (e.g. poached, hard
boiled).
Stir, turn and
rearrange
For even cooking it is essential to stir, turn and rearrange food during cooking.
Always stir and rearrange from the outside towards the centre.
Stand Standing time is necessary after cooking to enable the heat to disperse equally
throughout the food.
Shield Warm areas can be shielded with small pieces of foil, which reect microwaves
(e.g. legs and wings on a chicken).
5.2 Microwave cooking advice
Use pot holders or oven gloves when removing food from the oven to prevent burns.
Always open containers, popcorn makers, oven cooking bags, etc., away from the
face and hands to avoid steam burns.
Always stand back from the oven door when opening to avoid burns from escaping
steam and heat. Slice stued baked foods after heating to release steam and avoid
burns.
AEG_EN240_UKCA_17LSOLO_SBI_BASE_AJ26UICTO.indd 15AEG_EN240_UKCA_17LSOLO_SBI_BASE_AJ26UICTO.indd 15 10/01/2024 12:54:1710/01/2024 12:54:17
16
www.aeg.com
6. TROUBLESHOOTING
Problem Check if . . .
The microwave appliance
is not working
properly?
• The fuses in the fuse box are working.
• There has not been a power outage.
• If the fuses continue to blow, please contact a qualied electrician.
The microwave mode is
not working?
• The door is properly closed.
• The door seals and their surfaces are clean.
The turntable is not
turning?
• The turntable support is correctly connected to the drive.
• The ovenware does not extend beyond the turntable.
• Food does not extend beyond the edge of the turntable preventing
it from rotating.
• There is nothing in the well beneath the turntable.
The microwave will not
switch o?
• Isolate the appliance from the fuse box.
• Call an authorised ELECTROLUX service agent.
The interior light is not
working?
• Call your authorised ELECTROLUX service agent. The
interior light can be exchanged only by a trained authorised
ELECTROLUX service agent.
The food is taking longer
to heat through and cook
than before?
• Set a longer cooking time (double quantity = nearly double time) or
• If the food is colder than usual, rotate or turn from time to time or
• Set a higher power setting.
AEG_EN240_UKCA_17LSOLO_SBI_BASE_AJ26UICTO.indd 16AEG_EN240_UKCA_17LSOLO_SBI_BASE_AJ26UICTO.indd 16 10/01/2024 12:54:1710/01/2024 12:54:17
17
ENGLISH
7. TECHNICAL INFORMATION
1)
This Product fulls the requirement of the European standard EN55011.
In conformity with this standard, this product is classied as group 2 class B equipment.
Group 2 means that the equipment intentionally generates radio-frequency energy in the
form of electromagnetic radiation for the heat treatment of food.
Class B equipment means that the equipment is suitable to be used in domestic
establishments.
2)
Internal capacity is calculated by measuring maximum width, depth and height.
Actual capacity for holding food is less.
AC Line Voltage 230-240 V, 50 Hz, single phase
AC Power required: Microwave 1.2 kW
Output power: Microwave 700 W (IEC 60705)
Microwave Frequency 2450 MHz
1)
(Group 2/Class B)
Outside Dimensions: MSE1717SM 595 mm (W) x 390 mm (H) x 312 mm (D)
Cavity Dimensions 315 mm (W) x 198 mm (H) x 294 mm (D)
2)
Oven Capacity 17 litres
2)
Turntable ø 245 mm, glass
Weight approx. 12.7 kg
8. ENERGY EFFICIENCY
Power consumption in standby with display on 0.8 W
Power consumption in standby with display o 0.5 W
Maximum time needed for the equipment to automatically reach the applicable low
power mode
5 min
Product information for power consumption and maximum time
to reach applicable low power mode
Recycle materials with the symbol . Put
the packaging in applicable containers to
recycle it.
Help protect the environment and human
health and recycle waste electrical and
electronic appliances.
Do not dispose of appliances
marked with the symbol with
household waste. Return the
product to your local recycling
facility or contact your municipal
oce.
9. ENVIRONMENT CONCERNS
AEG_EN240_UKCA_17LSOLO_SBI_BASE_AJ26UICTO.indd 17AEG_EN240_UKCA_17LSOLO_SBI_BASE_AJ26UICTO.indd 17 10/01/2024 12:54:1710/01/2024 12:54:17
18
www.aeg.com
AEG_EN240_UKCA_17LSOLO_SBI_BASE_AJ26UICTO.indd 18AEG_EN240_UKCA_17LSOLO_SBI_BASE_AJ26UICTO.indd 18 10/01/2024 12:54:1710/01/2024 12:54:17
19
ENGLISH
AEG_EN240_UKCA_17LSOLO_SBI_BASE_AJ26UICTO.indd 19AEG_EN240_UKCA_17LSOLO_SBI_BASE_AJ26UICTO.indd 19 10/01/2024 12:54:1710/01/2024 12:54:17
TINS-B566URR0
AEG_EN240_UKCA_17LSOLO_SBI_BASE_AJ26UICTO.indd 20AEG_EN240_UKCA_17LSOLO_SBI_BASE_AJ26UICTO.indd 20 10/01/2024 12:54:1810/01/2024 12:54:18
