21”60V Brushless Mower
Read all safety rules and instructions carefully before operating this tool.
Owner’s Manual
TOLL-FREE HELPLINE: 1-855-345-3934
www.GreenWorksTools.com
MO60L00
2
Contents .............................................................................................................................. 2
Product specications .......................................................................................................... 2
Safety information ................................................................................................................ 3
Symbols ............................................................................................................................... 9

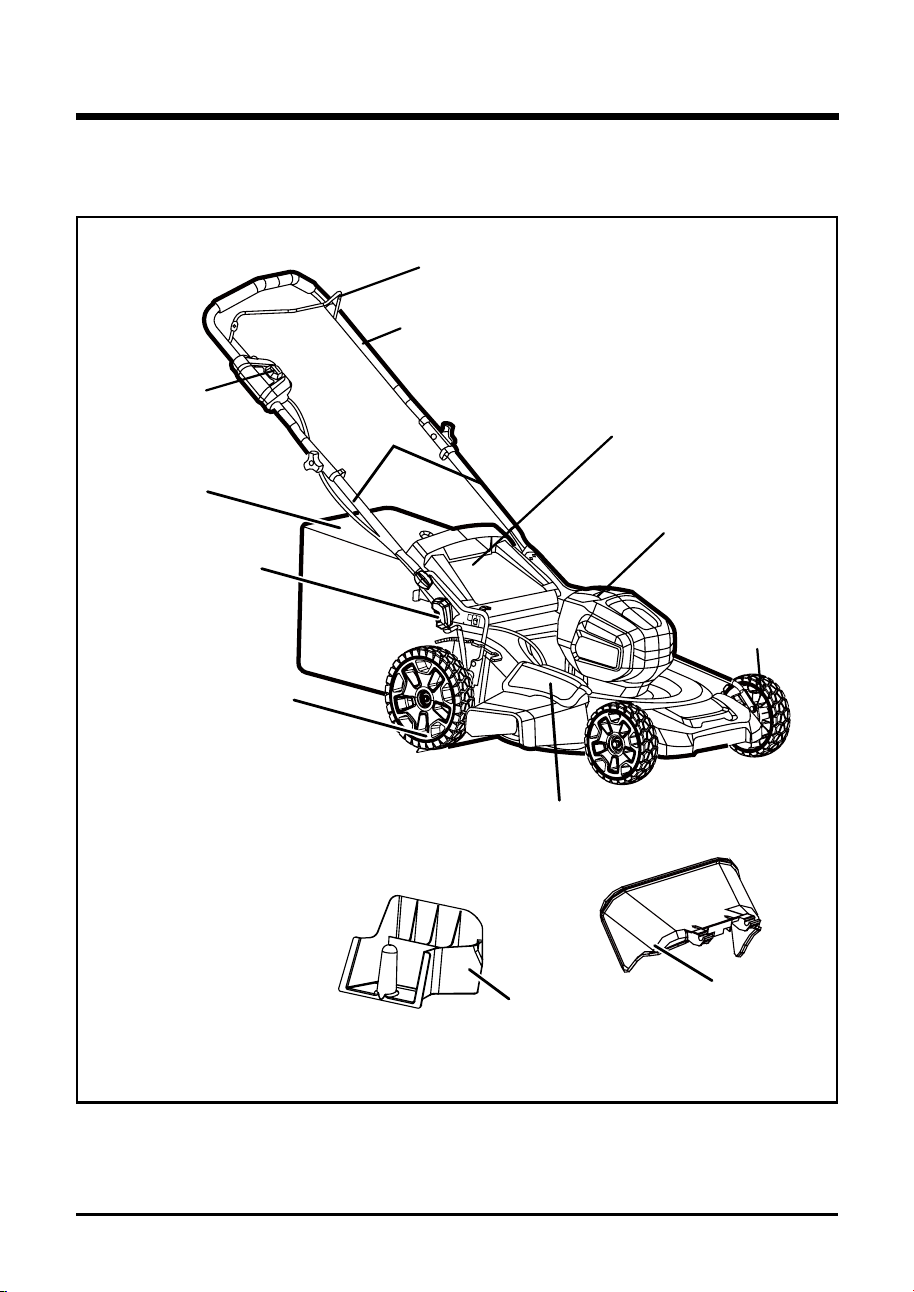

Know your lawn mower .......................................................................................................11
Assembly ........................................................................................................................... 12
Operation ........................................................................................................................... 20
Maintenance ...................................................................................................................... 25
Environmentally safe battery disposal ............................................................................... 29
Troubleshooting ................................................................................................................. 30
Warranty ............................................................................................................................ 31

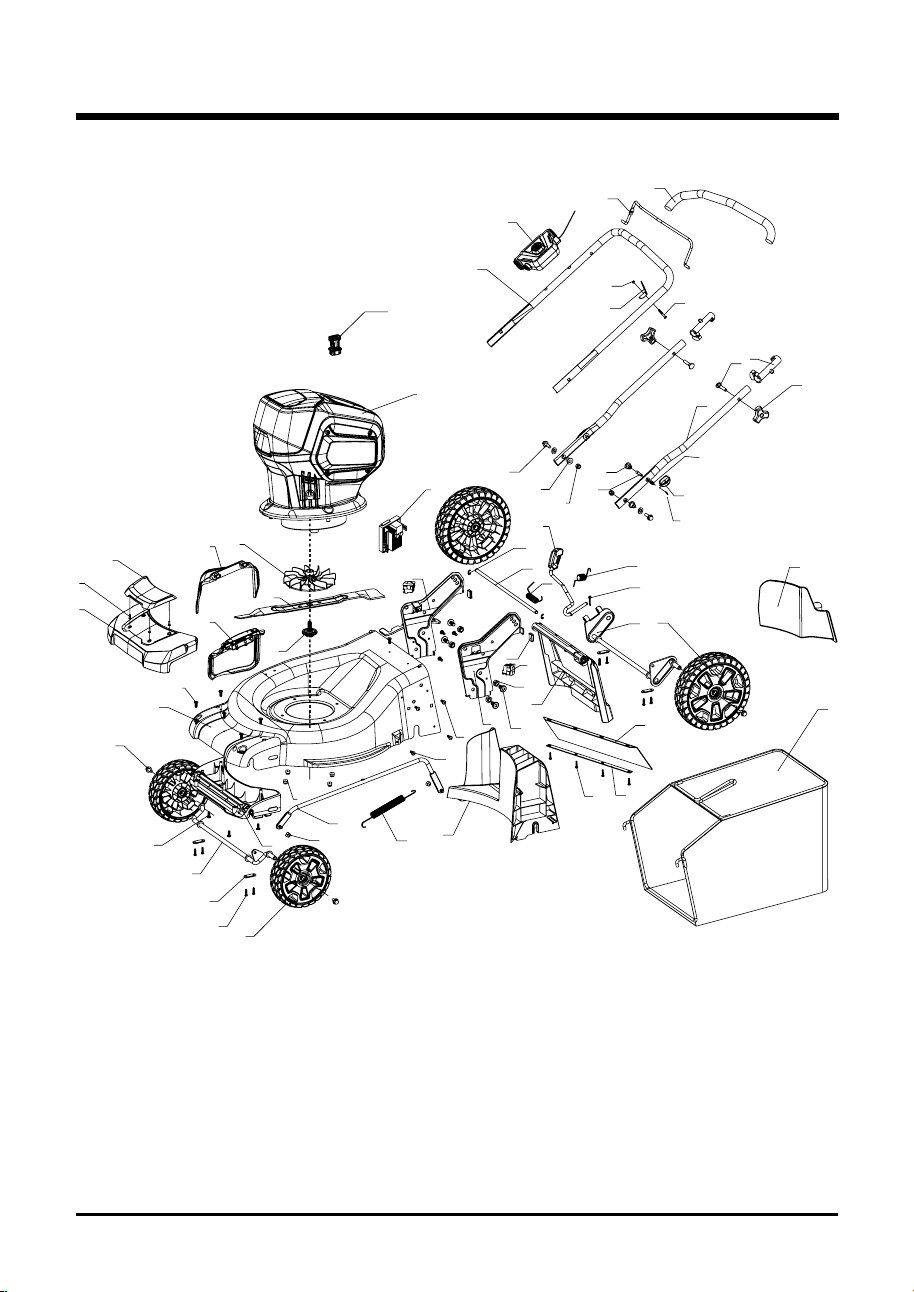

Exploded View ................................................................................................................... 32
Parts List............................................................................................................................ 33
PRODUCT SPECIFICATIONS
60V LITHIUM-ION CORDLESS MOWER
Battery type ............................................................................................ 60V Lithium-ion
No-load speed ....................................................................................... 2800/3200 RPM
Deck size ....................................................................................................... 21” (53 cm)
Height adjustments ................................................................1 3/8 - 3 3/4” (3.5 - 9.5 cm)
Functions ......................................................... 3-in-1: Mulch, side discharge or rear bag
Unit weight (without battery) ...................................................................57.7 lbs (26.2 Kg)
CONTENTS
3
SAFETY INFORMATION
GENERAL SAFETY RULES
READ ALL INSTRUCTIONS CAREFULLY
WARNING
This symbol indicates important safety instructions. If these instructions are not followed, it could
endanger the personal safety and/or property of the operator and others. Read and understand
all instructions in this manual before attempting to operate the mower. Failure to comply with
these instructions may result in personal injury.
DANGER
This mower was built to be operated according to the rules for safe operation that are contained
in this manual. As with any type of power equipment, carelessness or error on the part of the
operator can result in serious injury. This mower is capable of amputating body parts and
throwing objects. Failure to observe the following safety rules could result in serious injury or
death.
WARNING
Basic safety precautions should always be followed when using electric lawn mowers, in order to
reduce the risk of re, electric shock, and personal injury.
WARNING
Use of this mower should be restricted to individuals who have read and understoood and will
follow the warnings and instructions that are printed in this manual and on the mower.
WARNING
– For safe operation, read and understand the instruction manual.
– To reduce the risk of electric shock, do not expose to water or operate on wet ground.
– Replace damaged parts immediately.
– Remove the battery pack before servicing or removing blade.
– Do not reach under blade guard.

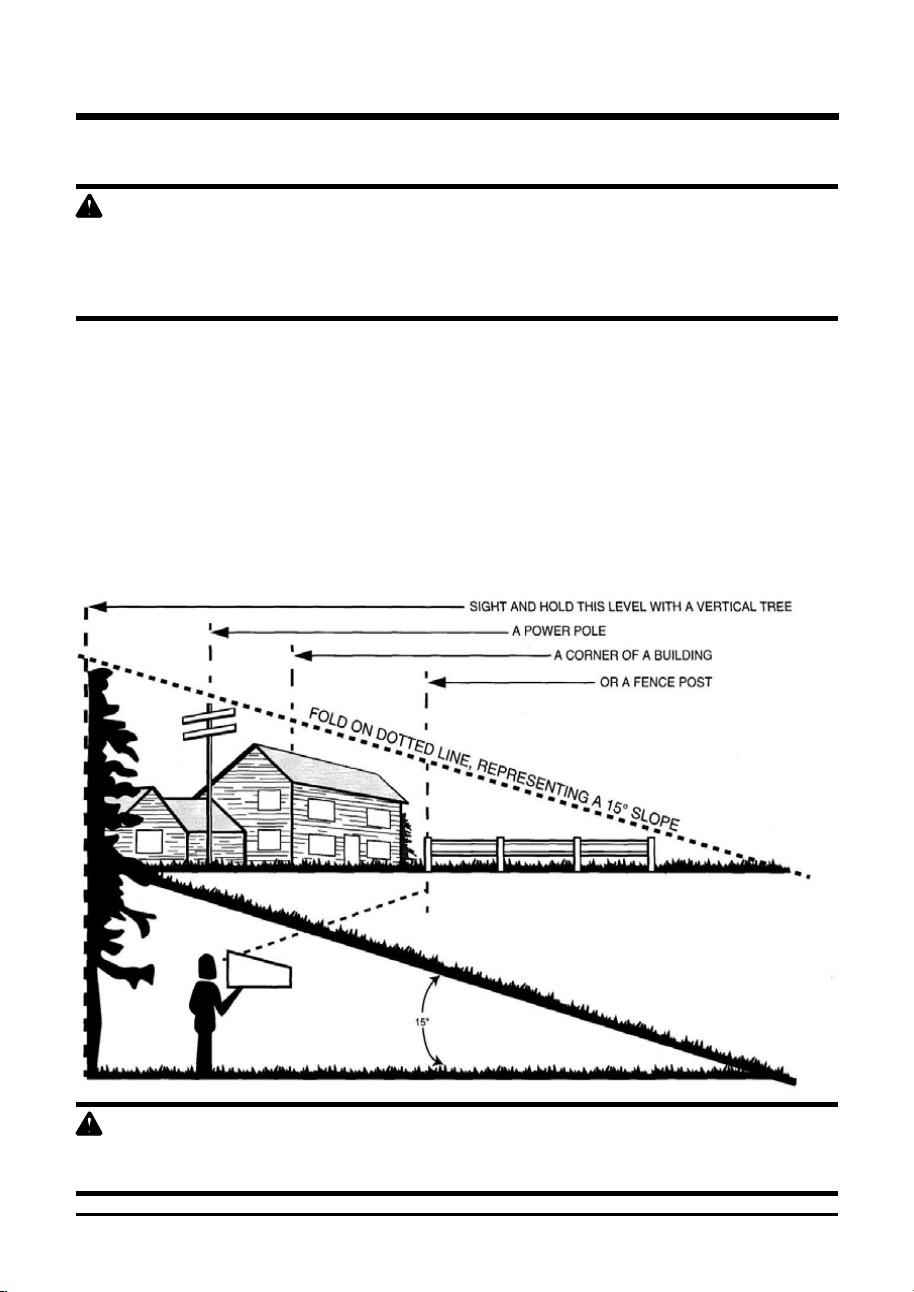

– Do not operate on inclines greater than 15°.
– Do not operate within 100 ft. of people or animals. Do not mow when children or
others are around.
– Keep safety devices (guards, shields, switches etc.) in place and working.
– Look down and behind before and while moving backwards.
– Remove objects that could be thrown by the blade.
– To reduce the risk of eye injury, always wear eye protection.
– To reduce the risk of injury, inspect catcher assembly frequently and replace with
recommended replacement if there are signs of wear or deterioration.
– To reduce risk of injury to persons, remove battery pack when not in use.
– Meet CPSC blade safety requirements.
– Do not recharge batteries in a conned or unvented area.
4
SAFETY INFORMATION
– Do not smoke, strike a match, or cause a spark in the vicinity of the battery during
charging.
– Store indoors, and do not expose to rain or water, avoid direct sunshine.
– Double insulation - When servicing, use only identical replacement parts.
– For use only with Greenworks LB60A01 battery and Greenworks CH60A00 charger.
See instruction manual for additional battery packs.
• Carefully read all instructions on the mower and in the manual before attempting to assemble and
operate the mower. Keep this manual in a safe place for future reference, and consult it regularly.
• Become familiar with all controls and their proper operation. Know how to stop the mower and
how to disengage the power in an emergency.
• In order to avoid contact with the blade or injury caused by a thrown object, stay in the operating
zone behind the handles, and keep children and bystanders at least 100’ (30 m) away from the
mower while it is in operation. Stop the motor immediately if someone enters the mowing area.
• Thoroughly inspect the area where the mower is to be used. Remove all stones, sticks, wire,
bones, toys, and other objects that could be tripped over or thrown by the blade. Thrown
objects can cause serious personal injury.
• Plan your mowing pattern in such a way as to avoid discharging material toward roads,
sidewalks, bystanders, etc. Do not discharge material against a wall or obstruction. Doing so
may cause the discharged material to ricochet back toward the operator.
• Always wear proper eye protection that complies with ANSI Z87.1 in order to protect your
eyes while operating or performing any adjustment or repair. Thrown objects that ricochet can
cause serious eye injury.
• Always wear a face mask or a dust mask when operating the mower in a dusty environment.
• Dress properly. Do not wear loose clothing or jewelry that can get caught in moving parts. The
wearing of protective gloves and safety footwear is recommended.
• Many injuries occur as a result of the mower being pulled over the operator’s foot during a
fall caused by slipping or tripping. Do not operate this mower in bare feet, or while wearing
sandals or lightweight (e.g., canvas) shoes. Do not hold on to the mower if you are falling.
Release the handle immediately.
• Never pull the mower back toward you while you are walking. If you must back the mower
away from a wall or an obstruction, rst look down and behind in order to avoid tripping, and
then follow these steps:
• Step back from the mower in order to fully extend your arms.
• Be sure that you are well balanced.
• Pull the mower back slowly.
• Do not use the mower for any job except that for which it is intended. Do not force the mower.
• Do not operate the mower while under the inuence of alcohol or drugs.
• Stay Alert: Do not operate the mower when you are tired. Pay attention to what you are doing.
Use common sense.
• Do not put hands or feet near rotating parts or under the cutting deck. Contact with the blade
can amputate hands and feet.
• Do not attempt to adjust the wheels or the cutting height while the motor is running.
• Avoid dangerous environments. Do not operate the mower in the rain or in wet or damp grass.
5
SAFETY INFORMATION
• Mow only in daylight or in good articial light. Do not rush a mowing job.
• Stop the blade when crossing gravel driveways, walkways, or roads.
• If the mower starts to vibrate excessively, stop the motor and check for the cause immediately.
Vibration is generally a warning of trouble.
• Stop the motor and wait until the blade comes to a complete stop before removing the grass
catcher or unclogging the chute. The cutting blade will continue to rotate for a few seconds
after the motor is shut off. Do not place any part of your body in the blade area until you are
sure that the blade has stopped rotating.
• Never operate mower without a proper trail shield, discharge cover, grass catcher, switch
control, or other safety device in place and in working order. Do not operate the mower with
damaged safety devices. Doing so can result in injury.
• Don’t force the lawn mower. It will do the job better and safer at the rate for which it was
designed.
• Always store your lawn mower indoors. When not in use, the lawn mower should be stored
indoors in a dry and locked place, out of reach of children.
• Maintain your lawn mower. Keep cutting edges sharp and clean to ensure the best
performance and safe operation.
• If lawn mower strikes a foreign objects follow these steps:
• Stop lawn mower, release the bail lever.
• Remove the battery.
• Inspect for damage.
• Repair any damage before restarting and operating the lawn mower.
• Do not charge lawn mower in rain or in wet location.
• Remove or disconnect battery before servicing, cleaning or removing material from lawn mower.
• Inspect lawn mover cord periodically and if damaged , have it repaired by an authorized
service facility
.
• Use identical replacement blades only
• Do not open or mutilate the battery . Mutilated batteries can release corrosive electrolytes
which can cause damage to the eyes or skin. It may be toxic if swallowed.
• When using, keep out of water, direct sunlight and do not expose to rain.
• Store indoors, and do not expose to rain or water, avoid direct sunshine.
CHILD SAFETY
Tragic accidents can occur if the operator is not aware of the presence of children.
• Keep children out of the mowing area and under the watchful care of a responsible adult.
• Do not allow children under the age of 14 to operate this mower. Children who are 14 years
of age and older must read and understand the operating instructions and safety rules in this
manual, and must be trained and supervised by a parent.
• Stay alert, and turn the mower off if a child or any other person enters the mowing area.
6
SAFETY INFORMATION
• Look behind and down for small children before and while moving backwards.
• Use extreme care when approaching blind corners, doorways, shrubs, trees, or other objects
that may obscure your view of a child who may run into the path of the mower.
BATTERY & CHARGER
CAUTION
Use only greenworks approved replacement batteries, other batteries may cause injury or
damage to the mower. Use only with GREENWORKS battery LB60A01.
BATTERY SAFETY RULES
• Battery tools do not have to be plugged into an electrical outlet; therefore, they are always in
operating condition. Be aware of possible hazards when not using your battery tool or when
changing accessories. Following this rule will reduce the risk of electric shock, re, or serious
personal injury.
• Do not place battery tools or their batteries near fire or heat. This will reduce the risk of
explosion and possibly injury.
• Do not crush, drop or damage battery pack. Do not use a battery pack or charger that has
been dropped or received a sharp blow. A damaged battery is subject to explosion. Properly
dispose of a dropped or damaged battery immediately.
• Batteries can explode in the presence of a source of ignition, such as a pilot light. To reduce
the risk of serious personal injury, never use any cordless product in the presence of open
flame. An exploded battery can propel debris and chemicals. If exposed, flush with water
immediately.Do not charge battery tool in a damp or wet location. Following this rule will
reduce the risk of electric shock.
• For best results, your battery tool should be charged in a location where the temperature is
more than 42.8°F but less than 104°F. To reduce the risk of serious personal injury, do not
store outside or in vehicles.
• Under extreme usage or temperature conditions, battery leakage may occur. If liquid comes
in contact with your skin, wash immediately with soap and water. If liquid gets into your eyes,
ush them with clean water for at least 10 minutes, then seek immediate medical attention.
Following this rule will reduce the risk of serious personal injury.
• When battery pack is not in use, keep it away from other metal objects like: paper clips, coins,
keys, nails, screws, or other small metal objects that can make a connection from one terminal
to another. Shorting the battery terminals together may cause sparks, burns, or a re.
• Always remove battery pack from your tool when you are assembling parts, making
adjustments, cleaning, or when not in use. Removing battery pack will prevent accidental
starting that could cause serious personal injury.
• Always remove battery pack before storing the device. When battery becomes fully charged,
unplug the charger from the power supply and remove the battery pack from the charger.
• Always wear eye protection with side shields marked to comply with ANSI Z87.1, along with
hearing protection. Failure to do so could result in objects being thrown into your eyes and
other possible serious injuries.
77
SAFETY INFORMATION
• Keep battery pack dry, clean, and free from oil and grease. Always use a clean cloth when
cleaning. Never use brake fluids, gasoline, petroleum-based products, or any solvents to
clean battery pack.
PROPER BATTERY CARE
Off-season storage
To obtain the longest possible battery life, we suggest the following:
• Remove the battery pack from the charger once it is fully charged and ready for use.
For battery pack storage longer than 30 days:
• Store the battery pack where the temperature is below 80°F and away from moisture.
• Store battery packs in a 30% - 50% charged condition.
• Every two months of storage, charge the pack as normal.
CHARGER SAFETY RULES
• Charge the mower battery in a dry area that is protected from the weather. Do not expose the
mower or the charger to rain. Do not charge the battery in a wet location. Operate the battery
charger in temperatures between 42.8°F and 104°F. In order to reduce the risk of electric
shock, use only the charger that is provided by the manufacturer to charge the battery.
• DO NOT MISUSE THE CHARGE CORD. Never carry the charger by the cord. Do not
disconnect the charger from the outlet or from the mower by pulling the charger cord.
• Do not use a damaged charger. Replace the charger cords or the charger immediately.
• Keep the mower and the charger away from water, heat sources (radiators, heaters, stoves,
etc.), ames, and chemicals.
• Make sure the battery pack is secured in the charger before beginning operation.
• The battery pack will become slightly warm to the touch while charging. This is normal and
does not indicate a problem.
• Do not place the charger and battery pack in an area of extreme heat or cold. They will work
best at normal room temperature.
• When batteries become fully charged, unplug the charger from the power supply and remove
the battery pack.
SAVE THESE INSTRUCTIONS
88
SAFETY INFORMATION
WARNING
When transporting or servicing unit, always remove the battery.
WARNING(PROPOSITION 65)
Some dust created by power sanding, sawing, grinding, drilling and other construction activities
contains chemicals known to the state of California to cause cancer, birth defects or other
reproductive harm. Some examples of these chemicals are:
• Lead from lead-based paints,
• Crystalline silica from bricks and cement and other masonry products,
• Arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies depending on how often you do this type of work. To
reduce your exposure to these chemical: work in a well ventilated area, and work with approved
safety equipment, such as those dust masks that are specially designed to lter out microscopic
particles.
SERVICE
Servicing requires extreme care and knowledge and should be performed only by a qualified
service technician. For service we suggest you return the product to your nearest AUTHORIZED
SERVICE CENTER for repair. When servicing, use only identical replacement parts.
9
Some of the following symbols may be used on this product. Please study them and learn their
meaning. Proper interpretation of these symbols will allow you to operate the product better and safer.

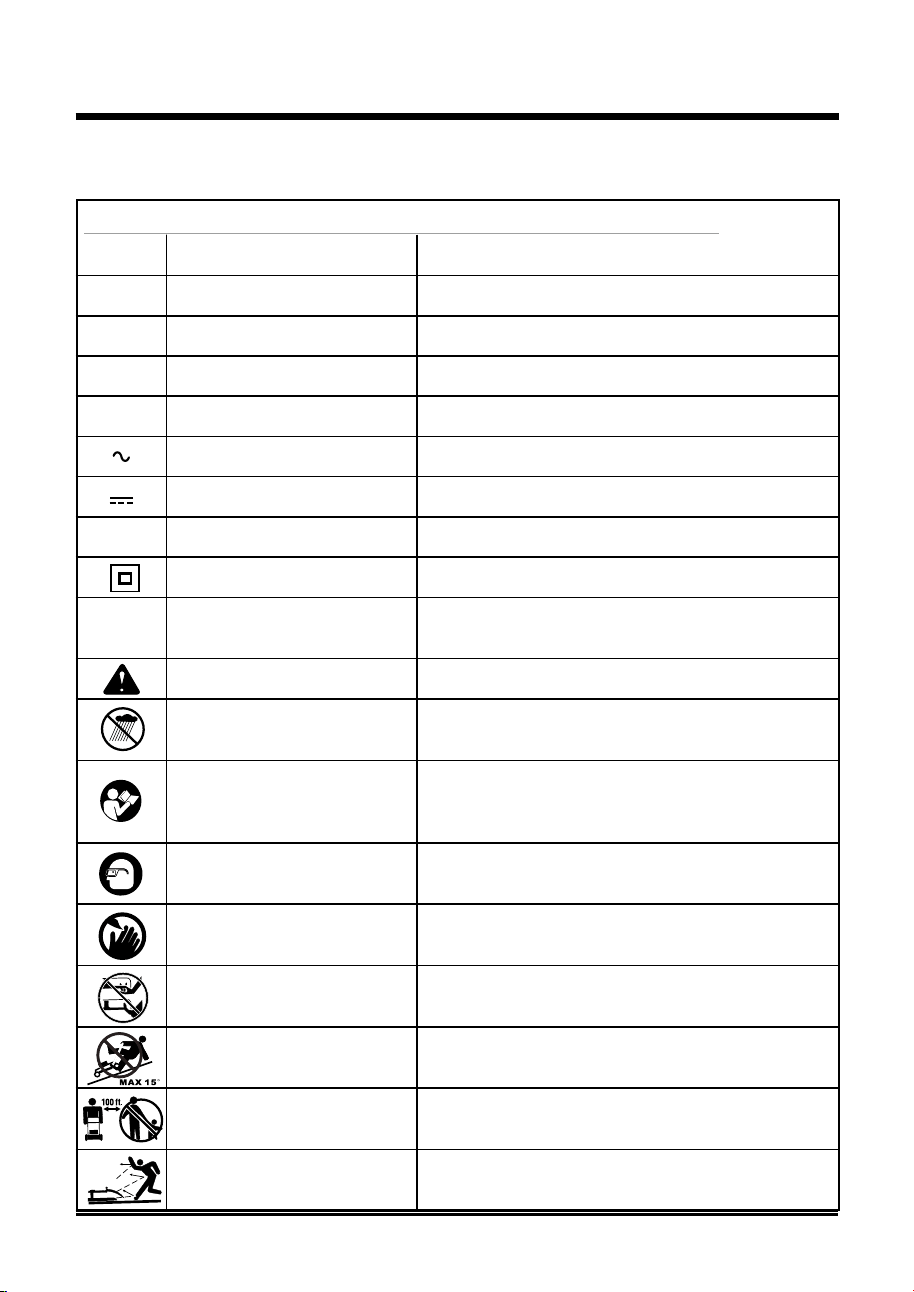

SYMBOLS
9
n
o
SYMBOL NAME DESIGNATION/EXPLANATION
V Volts Voltage
A Amperes Current
Hz Hertz Frequency (cycles per second)
W Watts Power
min Minutes Time
Alternating Current Type of current
Direct Current Type or a characteristic of current
No Load Speed Rational speed, at no load
Class II Construction Double-insulated construction
/min Per Minute Revolutions, strokes, surface speed, orbits etc.,
per minute
Safety Alert Precautions that involve your safety.
Wet Conditions Alert Do not expose to rain or use in damp locations
Read The Operator’s Manual To reduce the risk of injury user must read and
understand operator’s manual before using this
product.
Eye Protection Always wear safety glasses with side shields that
are marked to comply with ANSI Z87.1.
Keep Hands and Feet Away Keep hands and feet away from blade and cutting
area.
No Reach Do not reach hands or feet under mower deck.
No Slope Do not operate on inclines greater than 15º. Mow
across the face of slopes, never up and down.
Keep Bystanders Away Keep all bystanders at least 100 ft. away.
Ricochet Pay attention that bystanders are not injured through
foreign objects thrown from the mower.
10
SYMBOLS
SAVE THESE INSTRUCTIONS
The following signal words and meanings are intended to explain the levels of risk associated
with this product.
DANGER Indicates an imminently hazardous situation, which, if not
avoided, will result in death or serious injury.
WARNING Indicates a potentially hazardous situation, which, if not avoided,
could result in death or serious injury.
CAUTION Indicates a potentially hazardous situation, which, if not avoided,
may result in minor or moderate injury.
CAUTION (Without Safety Alert Symbol) Indicates a situation that may
result in property damage.
SYMBOL SIGNAL MEANING
SERVICE
Servicing requires extreme care and knowledge and should be performed only by a qualied
service technician. For service we suggest you return the product to your nearest AUTHORIZED
SERVICE CENTER for repair. When servicing, use only identical replacement parts.
WARNING
To avoid serious personal injury, do not attempt to use this product until you have read this Owner’s
Manual thoroughly and understand it completely. If you do not understand the warnings and
instructions in this Owner’s Manual, do not use this product. Call the Toll-free Helpline (1-855-345-
3934) for assistance.
WARNING
The operation of any power tool can result in foreign objects being thrown into your eyes,
which can result in severe eye damage. Before beginning power tool operation, always
wear safety goggles or safety glasses with side shields and, when needed, a full face
shield. We recommend Wide Vision Safety Mask for use over eyeglasses or standard
safety glasses with side shields. Always use eye protection which is marked to comply
with ANSI Z87.1.
11
KNOW YOUR LAWN MOWER
Fig. 1
Height
adjustment
lever
Bail lever
Grass
catcher
bag
Lower
handle
Side discharge
chute
Front wheel
Rear wheel
Read this operator's manual and safety rules before operating your lawn mower. Compare the
illustration in Figure 1 to your lawn mower in order to familiarize yourself with the location of
various controls and adjustments. Save this manual for future reference.
Upper
handle
Safety
lock-out
button
Battery door
Side discharge cover
Mulching
plug
Rear chute
cover
12
ASSEMBLY INSTRUCTIONS

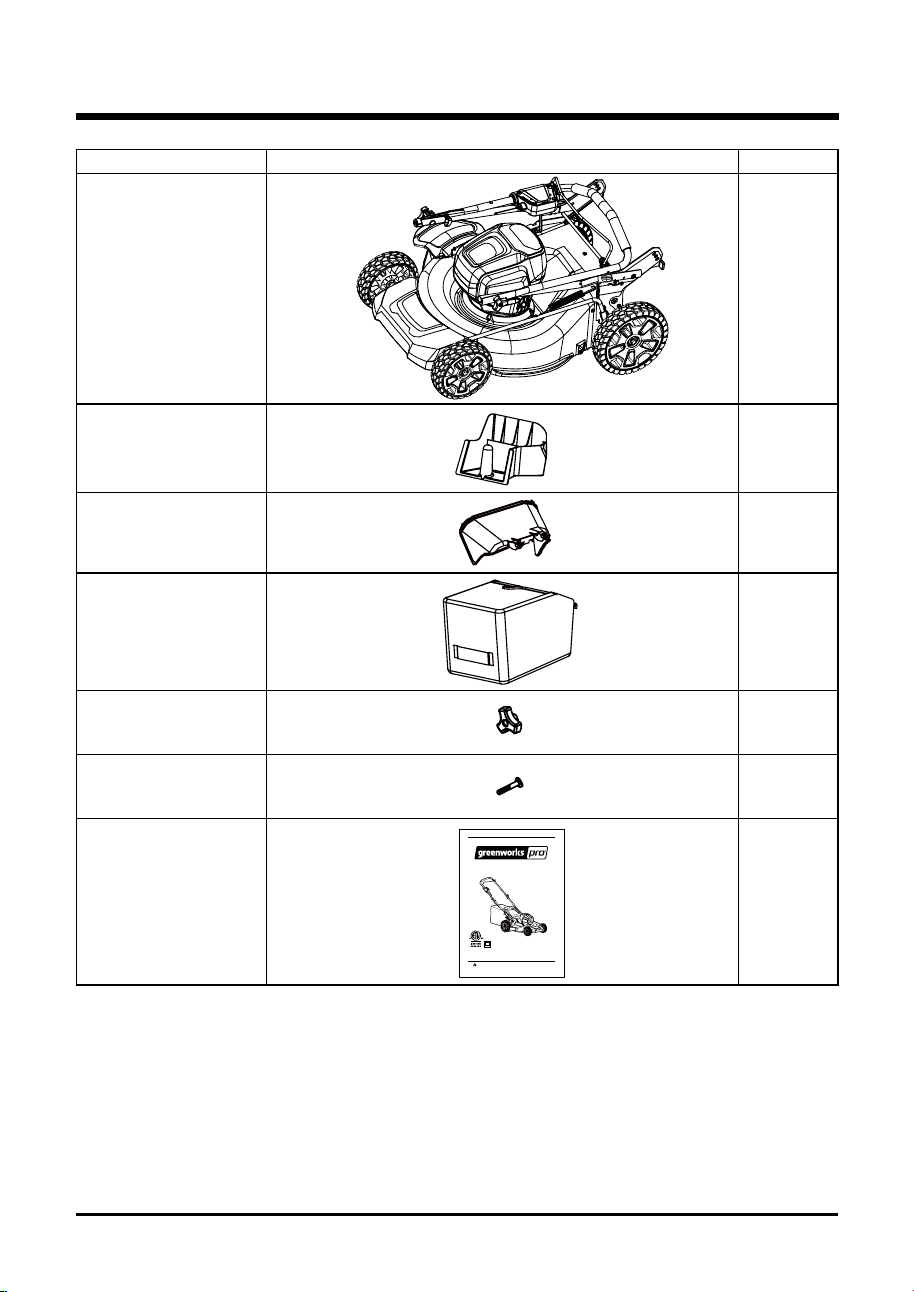

PART NAME FIGURE PART NO.
Lawn Mower
1
Mulching Plug
1
Side Discharge Chute
1
Grass Catcher Bag
1
Handle Knob
2
Handle Bolt
2
Owner’s Manual
1
60V Lithium-Ion Cordless Mower
Read all safety rules and instructions carefully before operating this tool.
Owner’s Manual
TOLL-FREE HELPLINE: 1-855-345-3934
www.GreenWorksTools.com
MO60L00
13
UNPACKING
• Carefully remove the product and any accessories from the box. Make sure that all items
listed in the packing list are included.
• Inspect the product carefully to make sure no breakage or damage occurred during shipping.
• Do not discard the packing material until you have carefully inspected and operated the
product.
• If any parts are damaged or missing, please call (1-855-345-3934) for assistance.
WARNING
If any parts are damaged or missing do not operate this product until the parts are replaced.
Using a product with damaged or missing parts could result in serious personal injury.
WARNING
Do not attempt to modify this product or create accessories not recommended for use with this
product. Any such alteration or modication is misuse and could result in a hazardous condition
leading to possible serious personal injury.
WARNING
Do not insert battery until assembly is complete and you are ready to mow. Failure to comply
could result in accidental starting and possible serious personal injury.
WARNING
To prevent accidental starting that could cause serious personal injury, always remove the battery
pack from the product when assembling parts.
WARNING
Never operate the mower without the proper safety devices in place and working. Never operate
the mower with damaged safety devices. Operation of this product with damaged or missing
parts could result in serious personal injury.
ASSEMBLY INSTRUCTIONS
UNFOLDING AND ADJUSTING LOWER HANDLE (See Figure 2)
WARNING
Folding or unfolding the handle improperly can damage the cables, causing an unsafe operating
condition.
• Do not damage the cables when folding or unfolding the handle.
• If a cable is damaged, contact an Authorized Service Dealer.
• Pull and rotate the handle knobs (1) 90° on both sides to loosen the lower handles (2) on both
sides.
• Move the lower handles to the operating position. You may raise or lower the handle to a
position comfortable for you. There are 3 positions (3) for you to choose. Release the handle
knobs to lock the lower handle into position.
Note: Ensure both sides are set at the same position for proper assembly.
ASSEMBLY INSTRUCTIONS
Fig. 2
14
(2) Lower handle
(1) Handle knob
(3) 3 positions
Locked position Unlocked position
15
ASSEMBLY INSTRUCTIONS

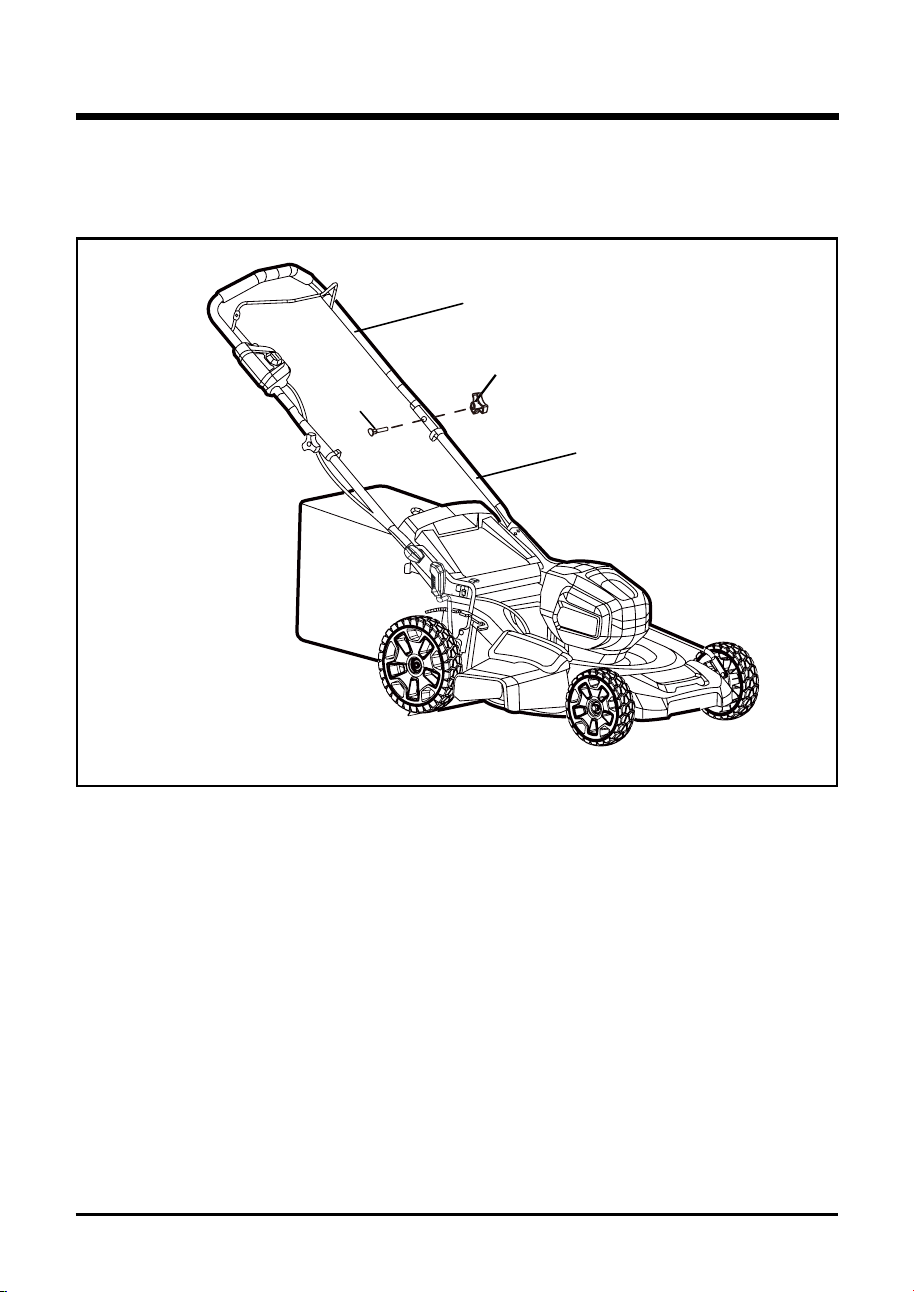

INSTALLING THE UPPER HANDLE (See Figure 3)
• Align the mounting holes on the upper handle (1) and the lower handle (2). Insert the carriage
bolts (3) and use the knobs (4) to tighten them. Repeat the operation on the other side.
Fig. 3
(4) Knob
(3) Bolt
(1) Upper handle
(2) Lower handle
16

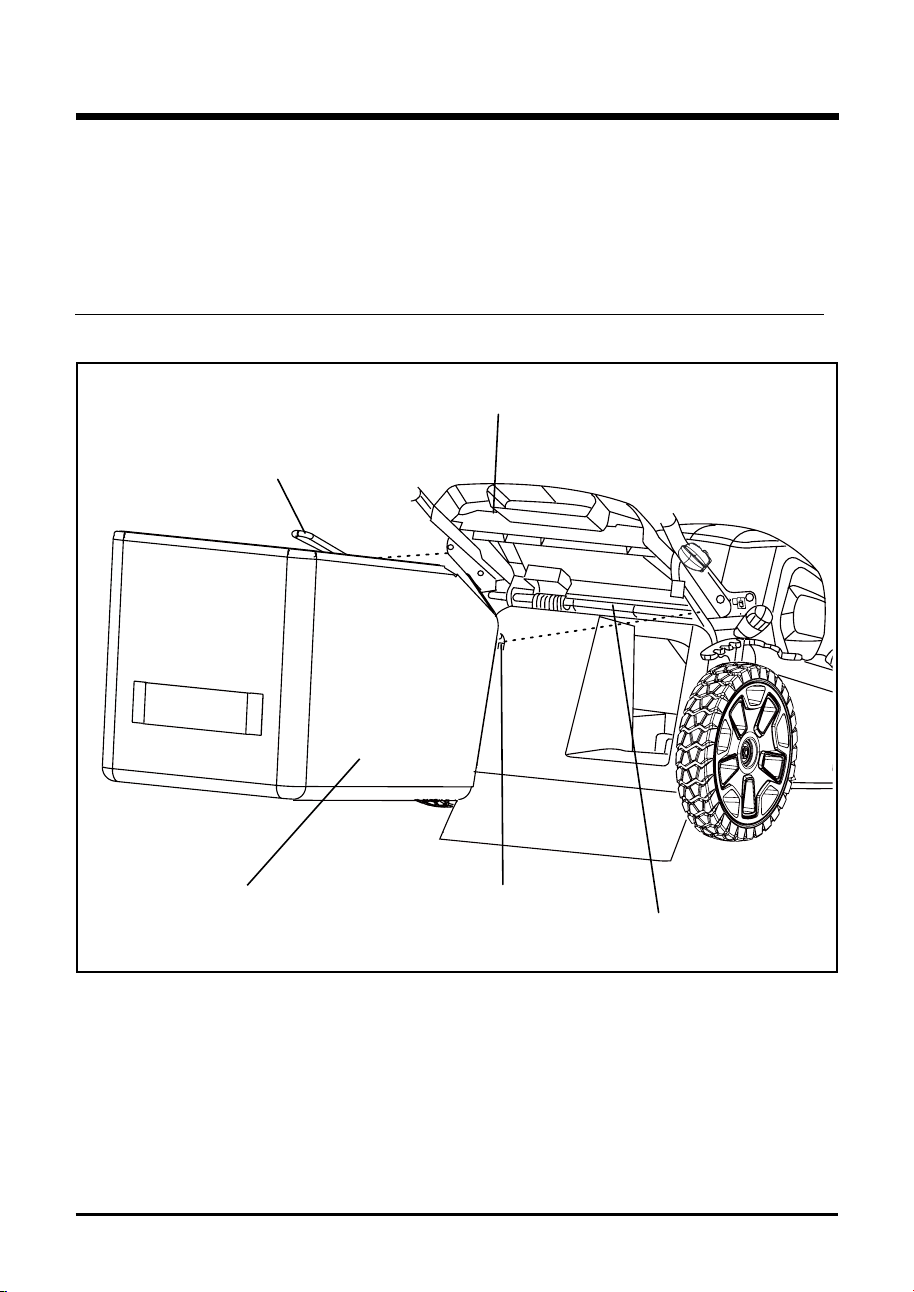

INSTALLING THE GRASS CATCHER BAG (See Figure 4)
• Lift the rear discharge door (1).
• Lift the grass catcher by its handle (2) and place under the rear discharge door so that the
hooks (3) on the grass catcher (4) are seated on the door rod (5).
• Release the rear discharge door. When installed correctly, the hooks on the grass catcher will
extend through the openings on the rear discharge door.
NOTE: When using the grass catcher, do not install either the side discharge deector or the mulching plug.
ASSEMBLY INSTRUCTIONS
Fig. 4
(1) Rear discharge door
(5) Door rod
(2) Handle
(3) Hooks
(4) Grass Catcher

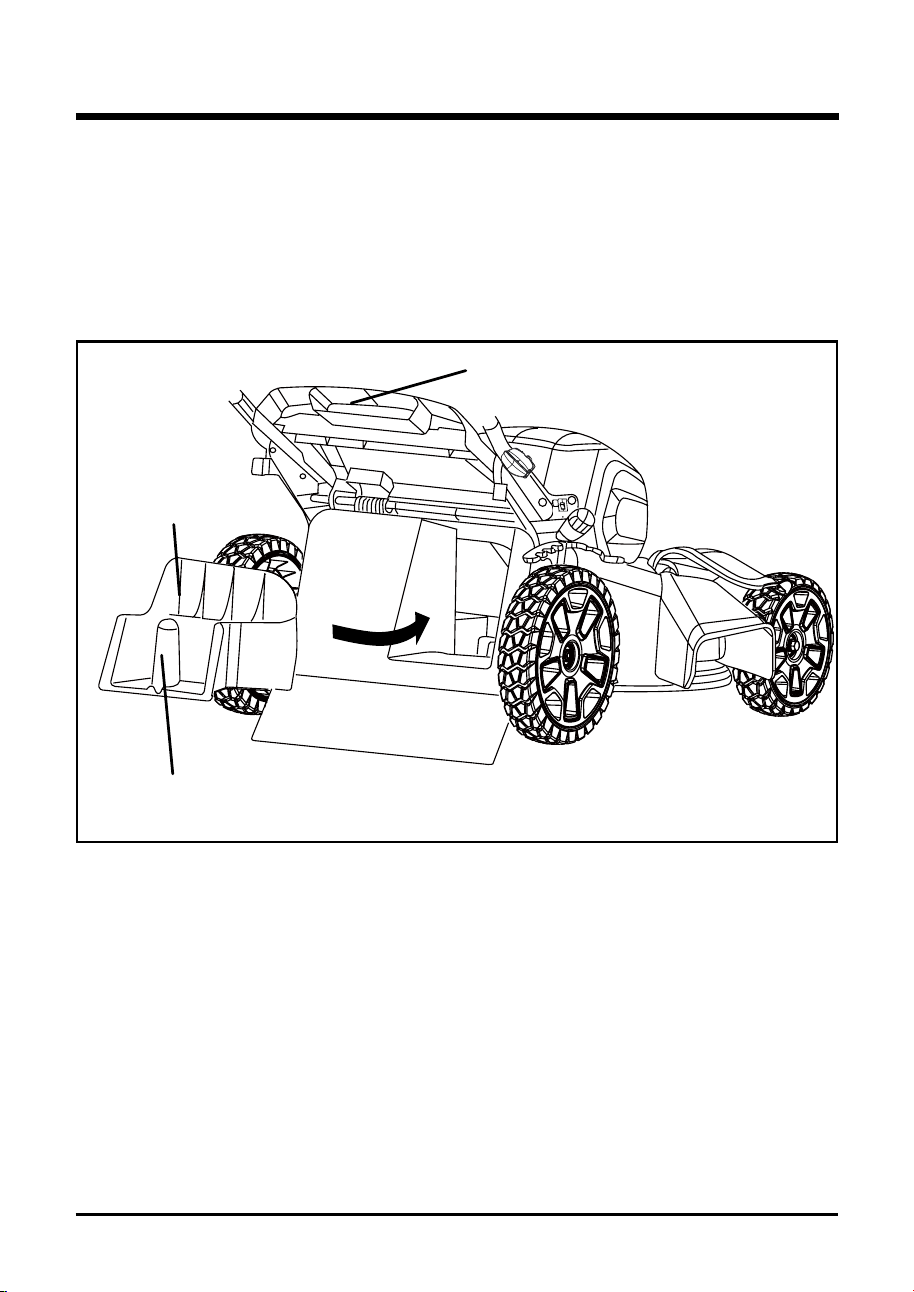

Fig. 5
(3) Mulching plug
(1) Rear discharge door
(2) Handle
17
INSTALLING / REMOVING THE MULCHING PLUG (See Figure 5)
• To remove the mulching plug, lift the rear discharge door (1).
• Grasp the handle (2) of the mulching plug. Using this handle, lift and pull the mulch plug out.
• The mulching plug (3) is inserted at an angle, so it requires some force to remove it.
• The mulching plug must be removed in order to install the grass catcher bag.
• The mulching plug must be re-installed when the grass catcher bag is removed.
ASSEMBLY INSTRUCTIONS

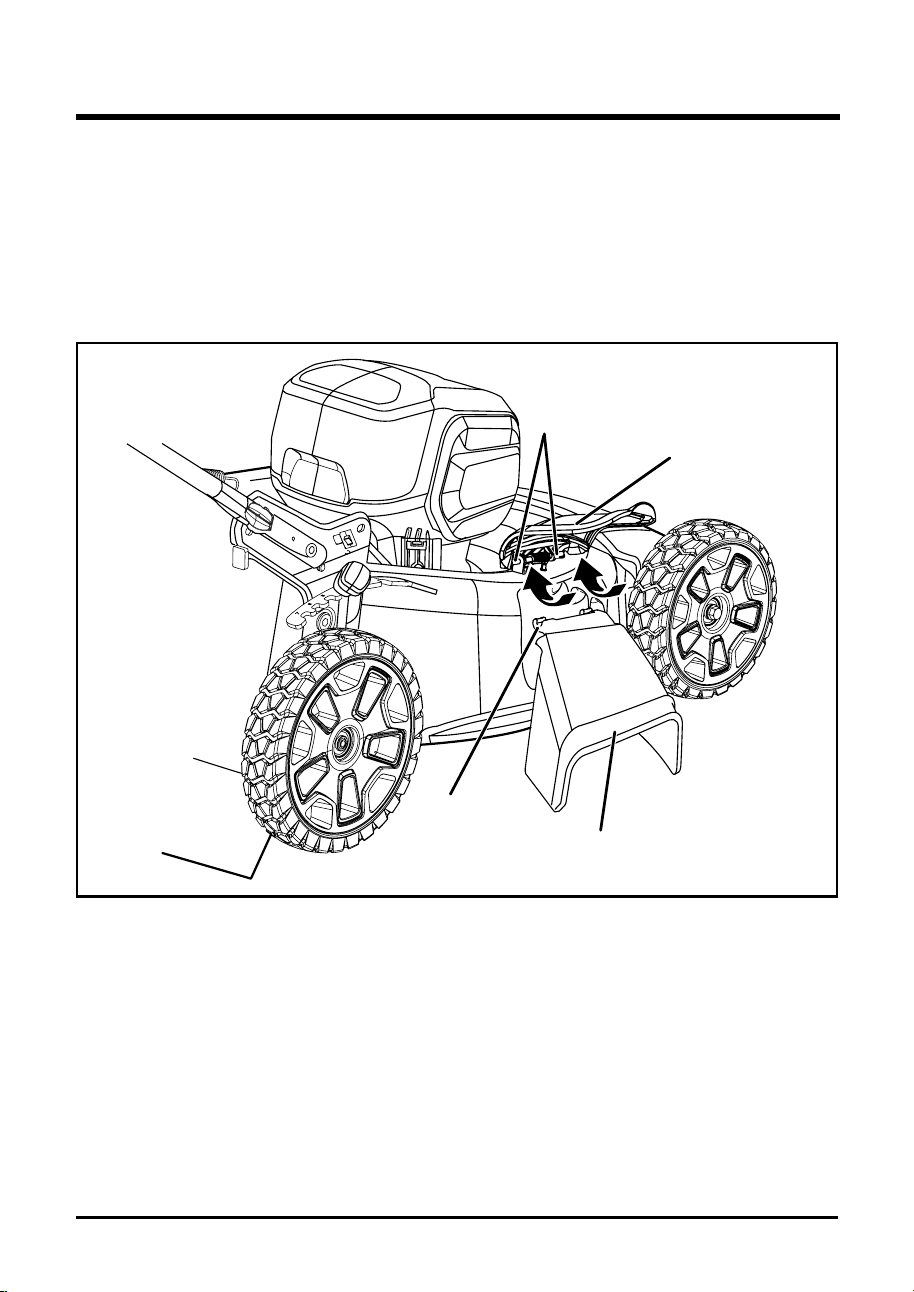

INSTALLING SIDE DISCHARGE CHUTE (See Figure 6)
• Lift the side discharge cover (1).
• Align the grooves (2) on the side discharge chute (3) with the pins (4) on the underside of the
discharge cover.
• Lower the discharge chute until the hooks on the mower deck are secured in the openings of
the discharge chute.
• Release the side discharge cover.
ASSEMBLY INSTRUCTIONS
Fig. 6
(3) Side discharge chute
(2) Groove
18
(1) Side discharge cover
(4) Pins
ASSEMBLY INSTRUCTIONS
19
TO INSTALL BATTERY PACK (See Figure 7)
• Lift and hold up the battery door (1).
• Align the battery (2) with the mower’s battery port.
• Make sure the battery release button (3) snaps in place and that battery is fully seated and
secure in the mower before beginning operation.
• Insert the safety key (4). If the machine is not going to be used immediately, do not insert the
safety key.
• Close the door.

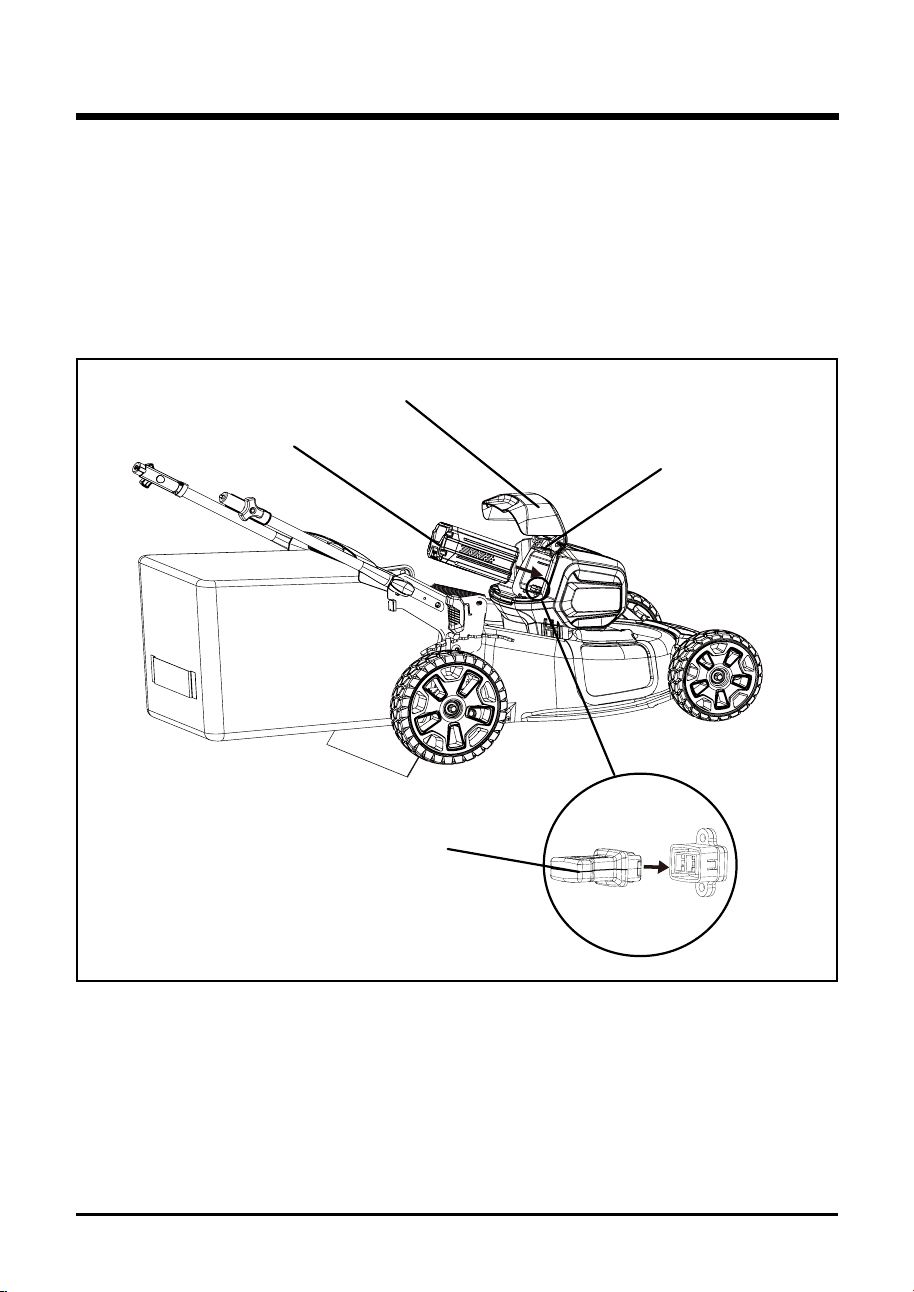

Fig. 7
(1) Battery door
(2) Battery pack
(3) Battery release button
TO REMOVE BATTERY PACK (See Figure 7)
• Release the bail lever to stop the mower.
• Open the battery door.
• Remove the safety key.
• Press the battery release button on the mower. This will cause the battery to raise out of the
tool slightly.
• Remove battery from the mower.
(4) Safety key

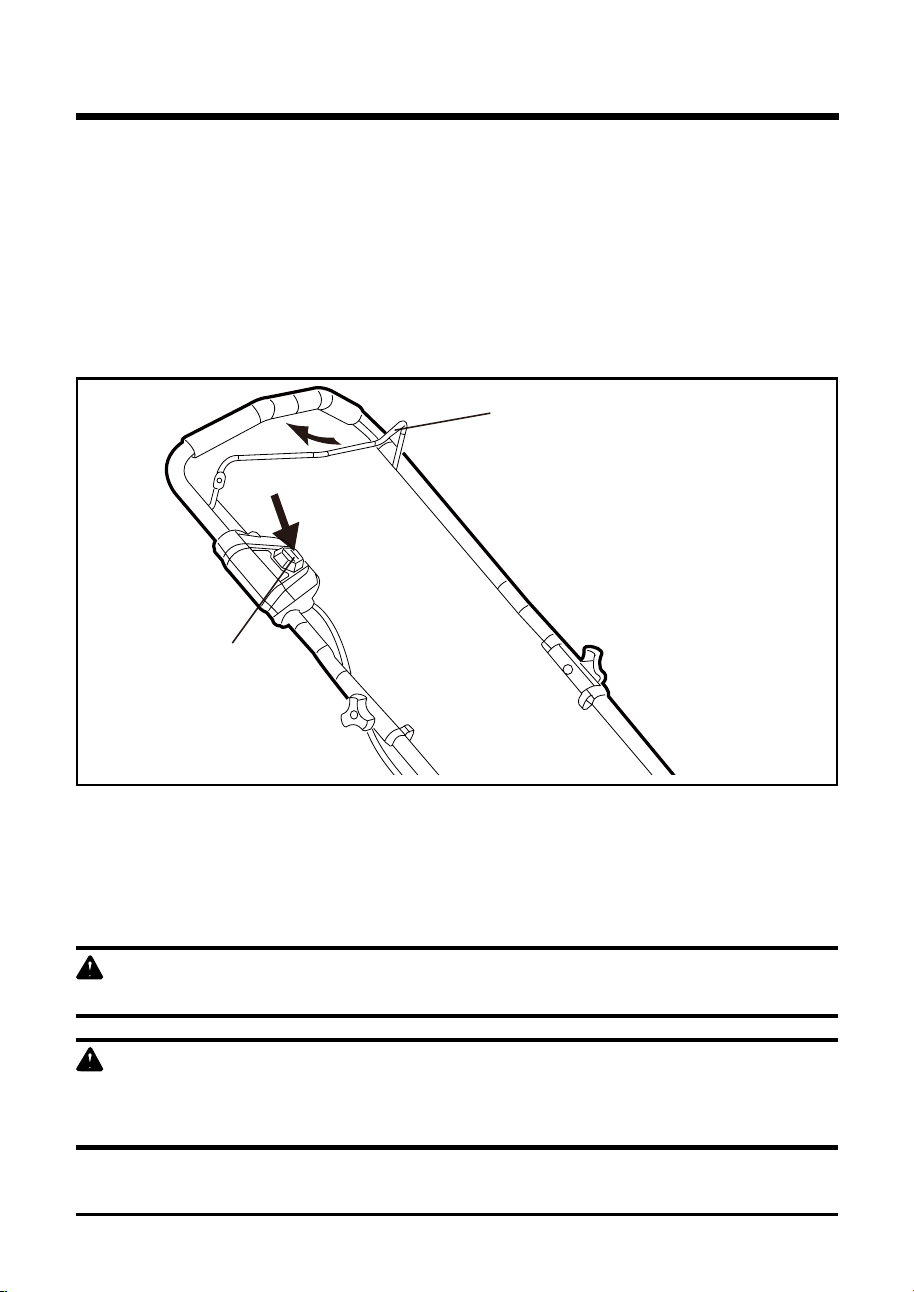

STARTING/STOPPING THE MOWER (See Figure 8)
To start the motor:
• Open the battery door.
• Insert the battery.
• Press and hold the safety lock-out button (1).
• Pull the bail lever (2) upward to the handle to start the mower and release the button.
To stop the motor:
Release the bail lever.
Soft-Start
This LI-ION mower is equipped with a “soft-start” feature. When initially starting up, the mower will
take approx. 3 seconds to get up to full speed. If the mower does not initially start: Remove the
battery and check under the mower deck to ensure there is nothing obstructing the blade and that
the blade can spin freely by hand. Even a small amount of grass blocking the mower blade will
prevent the mower blade from accelerating and engaging.
CAUTION
Do not attempt to override the operation of the safety lock-out button or bail lever.
WARNING
The operation of any mower can result in foreign objects being thrown into the eyes, which can
cause severe eye damage. Always wear safety glasses while operating the mower and while
performing any adjustments or repairs.
INSPECT THE CUTTING AREA. Remove all stones, sticks, wire, bones, and other debris that
might be thrown by the rotating blades.
20
OPERATING YOUR LAWN MOWER

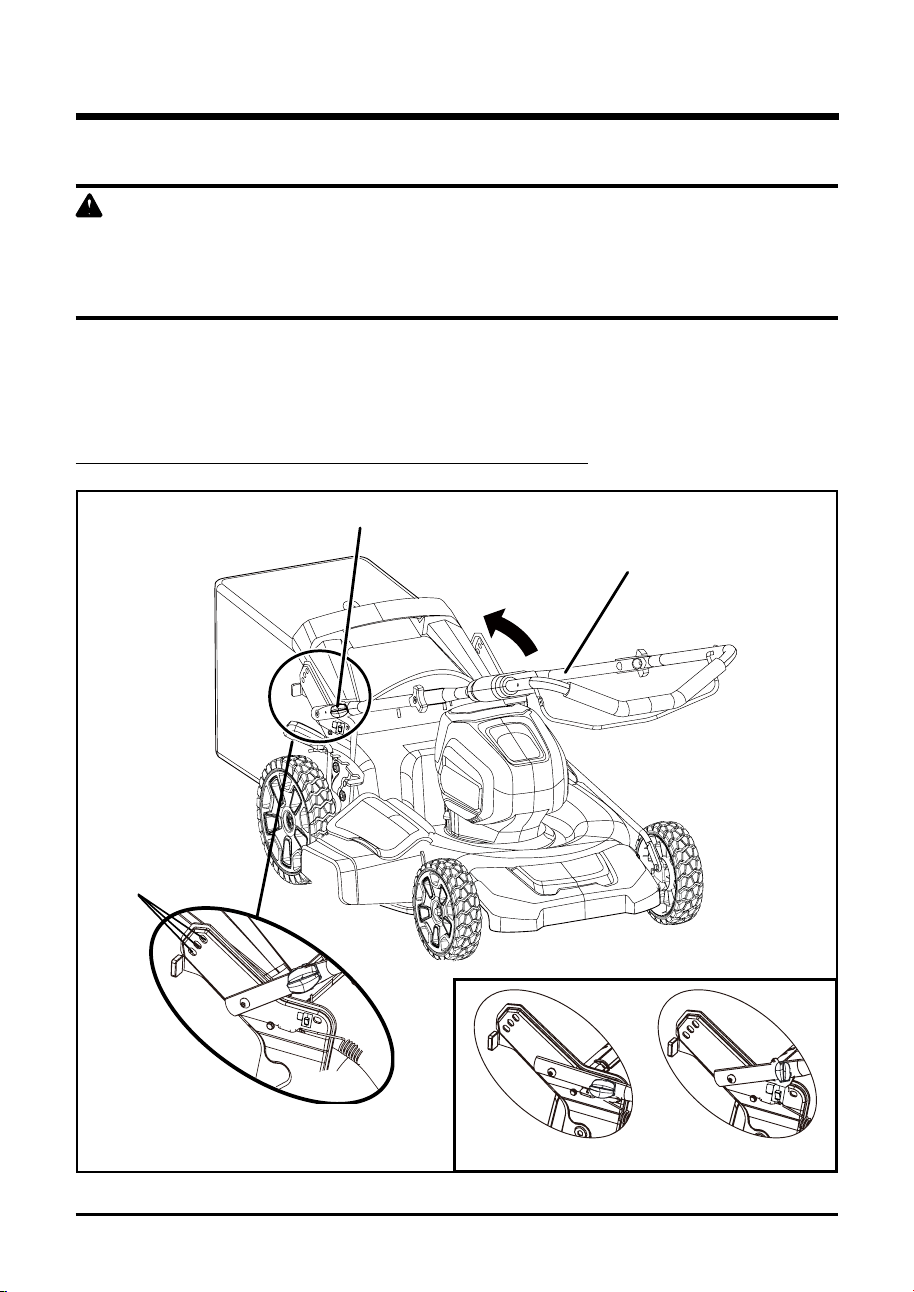

Fig. 8
(2) Bail Lever
(1) Lock Out Button
21
CUTTING HEIGHT ADJUSTMENT (See Figure 9)
When shipped, the wheels on the mower are set to a low-cutting position. Before using the
mower for the rst time, raise the cutting position to the height best suited for your lawn. The
average lawn should be between 1 1/2" to 2" (3.8 to 5 cm) during cool months and between 2"
and 3 1/2" (5 cm to 8.3 cm) during hot months.
To adjust the blade height:
• To raise the blade height, grasp the height adjustment lever (1) and move it toward the back of
the mower.
• To lower the blade height, grasp the height adjustment lever (1) and move it toward the front of
the mower.
OPERATING YOUR LAWN MOWER

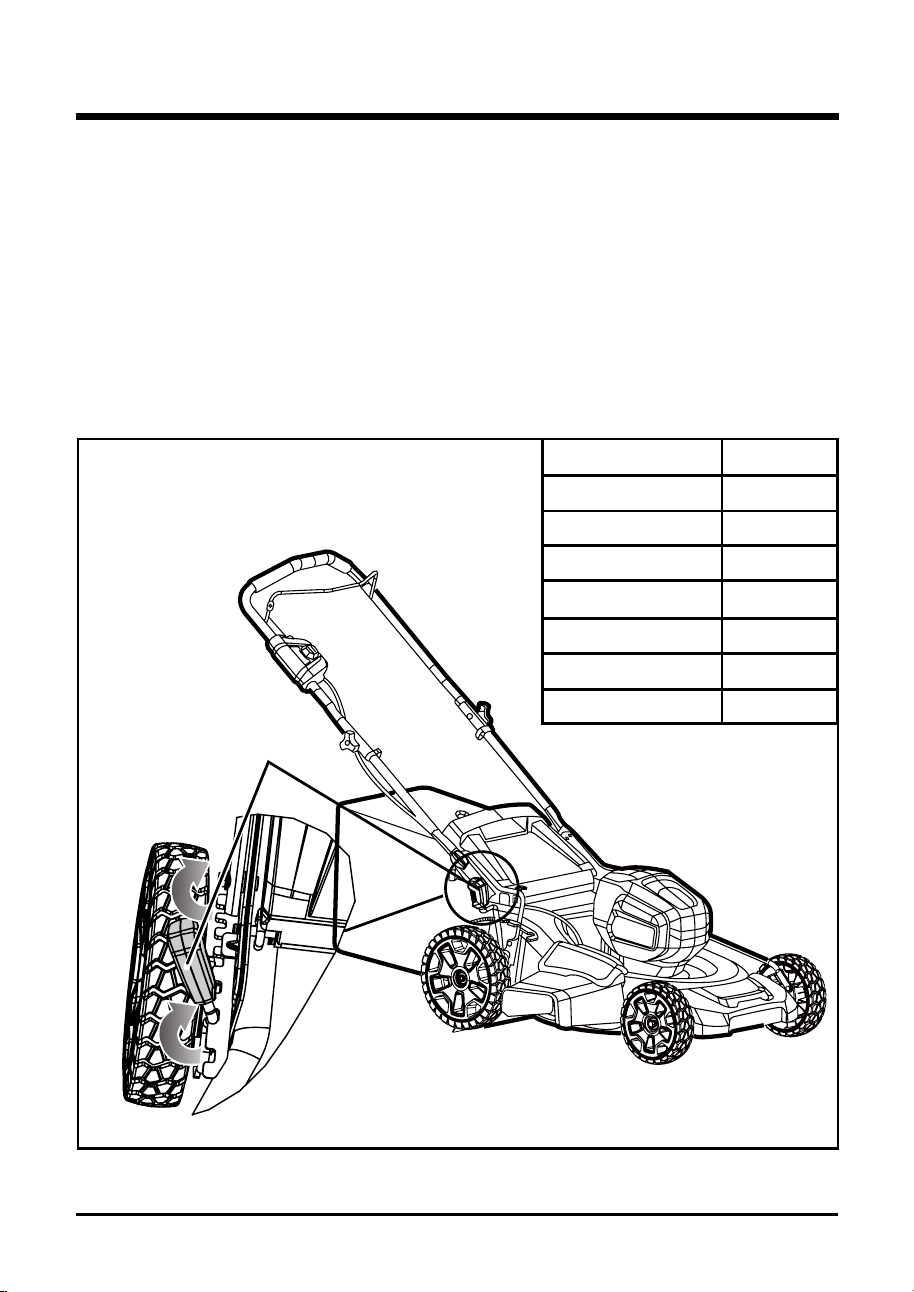

Fig. 9
(1) Height adjustment lever
Height Adjustments
1st setting
2nd setting
3th setting
4th setting
5th setting
6th setting
7th setting
1 3/8 - 3 3/4"
1 3/8"
1 7/8"
2 1/8"
2 5/8"
3"
3 3/8"
3 3/4"
22
SLOPE GAUGE (See Figure 10)
WARNING
Slopes are a major factor related to accidents involving slips and falls, which can result in severe
injury. Operating the mower on a slope requires extra caution. If you feel uneasy on a slope,
do not mow it. For your safety, use the slope gauge that is included as part of this manual to
measure slopes before operating this unit on a sloped or hilly area.
• Mow across the face of a slope, and never up and down. Exercise extreme caution when
changing direction on a slope.
• Watch for holes, ruts, rocks, hidden objects, or bumps that may cause a slip or a trip. Tall
grass can hide obstacles.
• Always be sure of your footing. If you feel like you are losing your balance, release the blade/
motor control handle immediately. The blade will stop rotating within 3 seconds.
• Do not mow near drop-offs, ditches, or embankments, because you could lose your footing or
balance.
• Do not mow a slope that has an angle of greater than 15°, as determined using the slope gauge.
• Do not mow wet or damp grass. Unstable footing can cause slipping.
WARNING
Do not mow a slope that has an angle of greater than 15° (a rise of approximately 2 1/2 feet [0.75 m]
every 10 feet [3 m]). Mow across the face of a slope, and never up and down.
OPERATING YOUR LAWN MOWER
Fig. 10
23
OPERATING YOUR LAWN MOWER
MOWING TIPS
NOTE: A sharp blade will greatly enhance the performance of the mower, especially when cutting high grass.
Be sure to check the blade and to sharpen it at least once per year, as described in the Maintenance section.
• Verify that the lawn is free of stones, sticks, wires, and other objects that could damage
the blades or the motor. These objects could be accidentally thrown by the mower in any
direction, and could cause serious personal injury to the operator and to others. In order to
prevent electric shock, do not operate the mower in damp or wet conditions.
• Do not mow in circles. Travel back and forth across the lawn.
• When cutting thick grass, reduce walking speed in order to allow for a more effective cut and
a proper discharge of the clippings.
• For a healthy lawn, always cut off one-third or less of the total length of the grass. The
average lawn should be approximately 1 1/2 to 2” (3.8 to 5 cm) long during cool months, and
between 2" to 3 1/4" (5 cm to 8.3 cm) long during hot months. If there is growth, the lawn
should be cut in the fall.
MULCHING TIPS
NOTE: INSPECT THE AREA WHERE THE MOWER IS TO BE USED, AND REMOVE ALL STONES,
STICKS, WIRE, BONES, AND OTHER DEBRIS THAT MIGHT BE THROWN BY THE ROTATING BLADE.
• Release the bail lever to turn the mower OFF when crossing any graveled area (stones can be
thrown by the blade).
• Set mower to the highest cutting height when mowing on uneven ground or in tall weeds.
• For effective mulching, do not cut wet grass, because it tends to stick to the underside of
the deck, preventing proper mulching of grass clippings. New or thick grass may require a
narrower cut. The ground speed should be adjusted to the condition of the lawn. If mowing
has been delayed and the grass has been allowed to grow longer than 4" (10 cm), mow the
lawn twice in order to reduce the grass height to a maximum of 3 1/4” (8.3 cm).
• Walk at a steady pace. Overlap the cutting rows. Do not let the grass get too tall. If the grass
gets too long, start at the highest cutting position and work down to the desired cutting height.
WARNING
If you strike a foreign object, stop the motor and remove the battery. Thoroughly inspect the mower
for any damage. Repair any damage before operating the mower. Excessive vibration of the mower
during operation is an indication of damage. Thoroughly inspect the mower and repair any damage
before operating the mower.
24
OPERATING YOUR LAWN MOWER

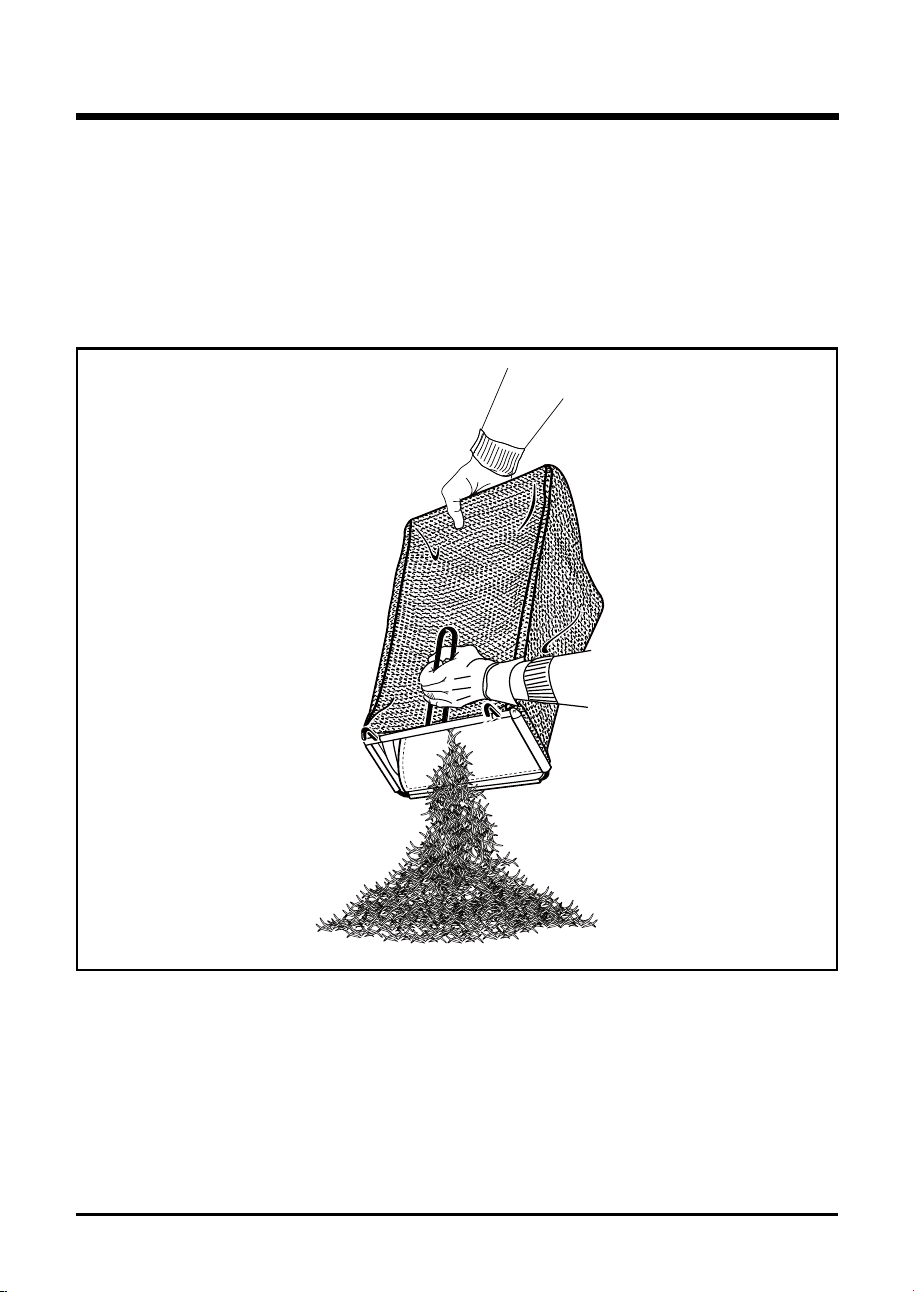

EMPTYING THE GRASS CATCHER BAG (See Figure 11)
• Stop mower, allow blades to completely stop, and remove the battery.
• Lift the rear discharge cover.
• Lift the grass catcher bag by its handle to remove from mower.
• Empty grass clippings.
• Lift the rear discharge cover and reinstall the grass catcher bag as described earlier in this
manual.
Fig. 11
25
MAINTENANCE
REPLACING THE CUTTING BLADE (See Figure 12-13)
WARNING
Always protect your hands by wearing heavy gloves and/or wrapping the cutting edges with rags
or other materials when performing any maintenance on the blades. ALWAYS remove the battery
when servicing or transporting the mower.
Use only a GREENWORKS replacement blade (Item#: 2908902; Item#:2903402).
Item#:2908902 is an optional heavy duty blade which provides better bagging and mulching
performance, but draws more power and reduces the runtime of the battery.
General blade(Item#:2903402) is equipped in the mower. It is more efcient in energy saving.
But mower running time is longer.
• REMOVE BATTERY.
• While wearing leather padded gloves, wedge a block of wood between the blade and the
mower deck in order to prevent the blade from turning when the bolt (1) is being removed.
• Using an adjustable wrench or 27 mm socket, loosen the bolt (1) and remove the blade (2).
Turn the bolt “COUNTERCLOCKWISE” to loosen it and “CLOCKWISE” to tighten it.
• Remove the bolt (1) and the blade (2).
• To re-install the blade, position the blade with the cutting edges toward the ground. Assemble
the bolt as shown. Using a 27 mm socket or wrench, turn the blade nut "CLOCKWISE” in
order to secure the blade.
NOTE: Be sure to replace the parts in the exact order in which they were removed. When installing the cutting
blade, verify that it is installed with the curved ends pointing toward the mower deck, and not toward the
ground. Refer to the schematic drawing on page 32 of this manual.

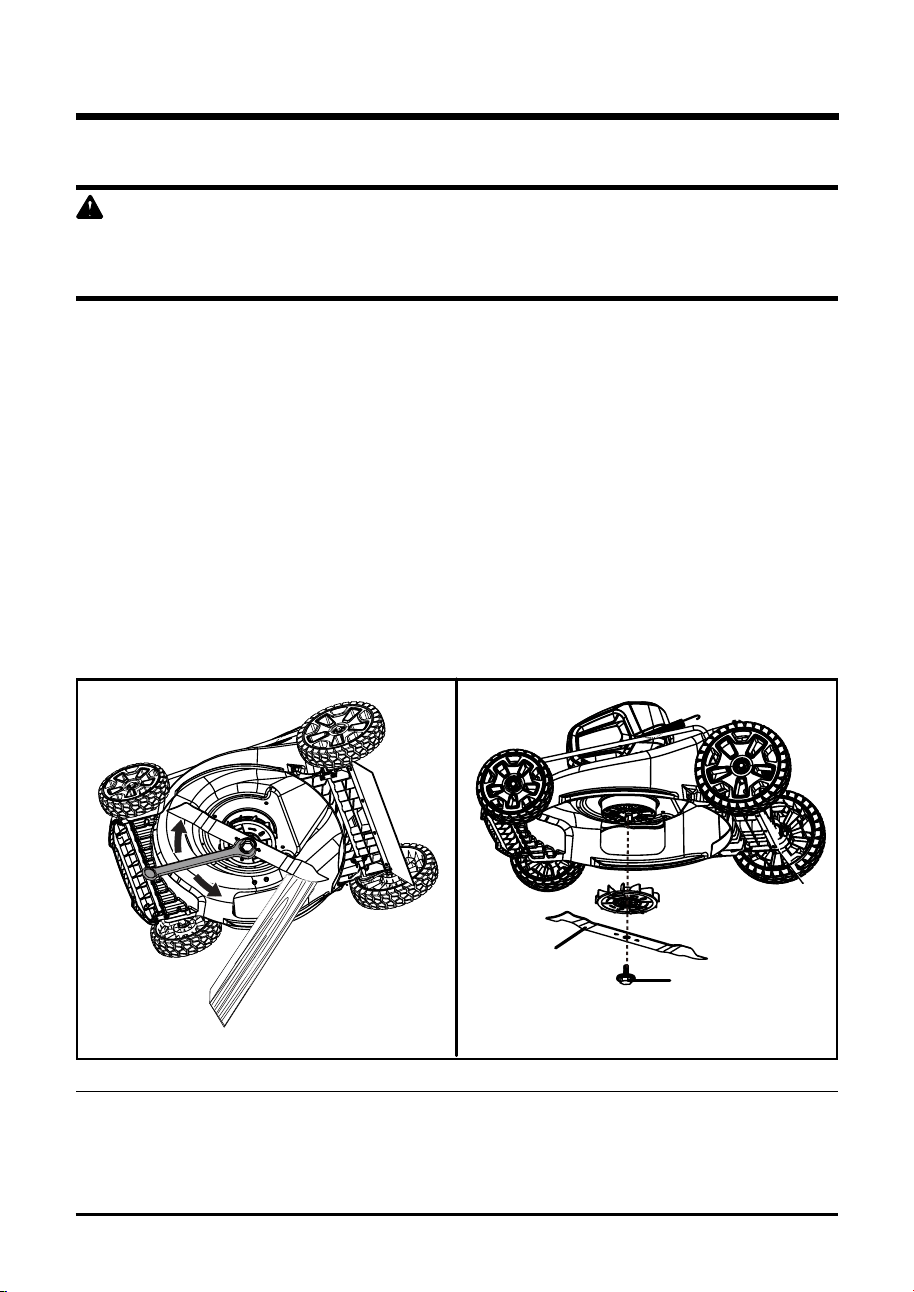

Fig. 13Fig. 12
(1) Bolt
(2) Blade
26
MAINTENANCE
CLEANING THE MOWER
WARNING
In order to reduce the risk of electric shock, do not expose the mower to water. The underside of
the mower deck should be cleaned after each use, because grass clippings, leaves, dirt, and other
debris will accumulate, which will cause rust and corrosion.
Remove any build-up of grass and leaves on or around the motor cover (do not use water).
Occasionally wipe the mower clean with a dry cloth. If debris builds up on the underside of the
mower during use, stop the motor, disconnect it from the battery, and then tilt the mower on its
side, and scrape it clean using an appropriate tool.
STORING THE MOWER
The following steps should be taken in order to prepare the lawn mower for storage.
• Clean the mower as described in the previous section.
• Inspect the blade, and replace it or sharpen it, if required (refer to the Maintenance section).
• Store the mower in a dry, clean location. Do not store it next to corrosive materials, such as
fertilizer or rock salt.
• Store the mower indoors, in a cool, dry place, out of the reach of children. Do not cover the
lawn mower with a solid plastic sheet. Plastic coverings trap moisture around the mower,
which causes rust and corrosion.
• Remove the battery and store it in a cool dry location, if possible. Charge the battery every
two months when not in use in order to increase its life.
• Remove the battery and store in a secure location out of the reach of children.
WARNING
This battery must be charged every 3 months while in storage to maintain maximum capacity.
MAINTENANCE

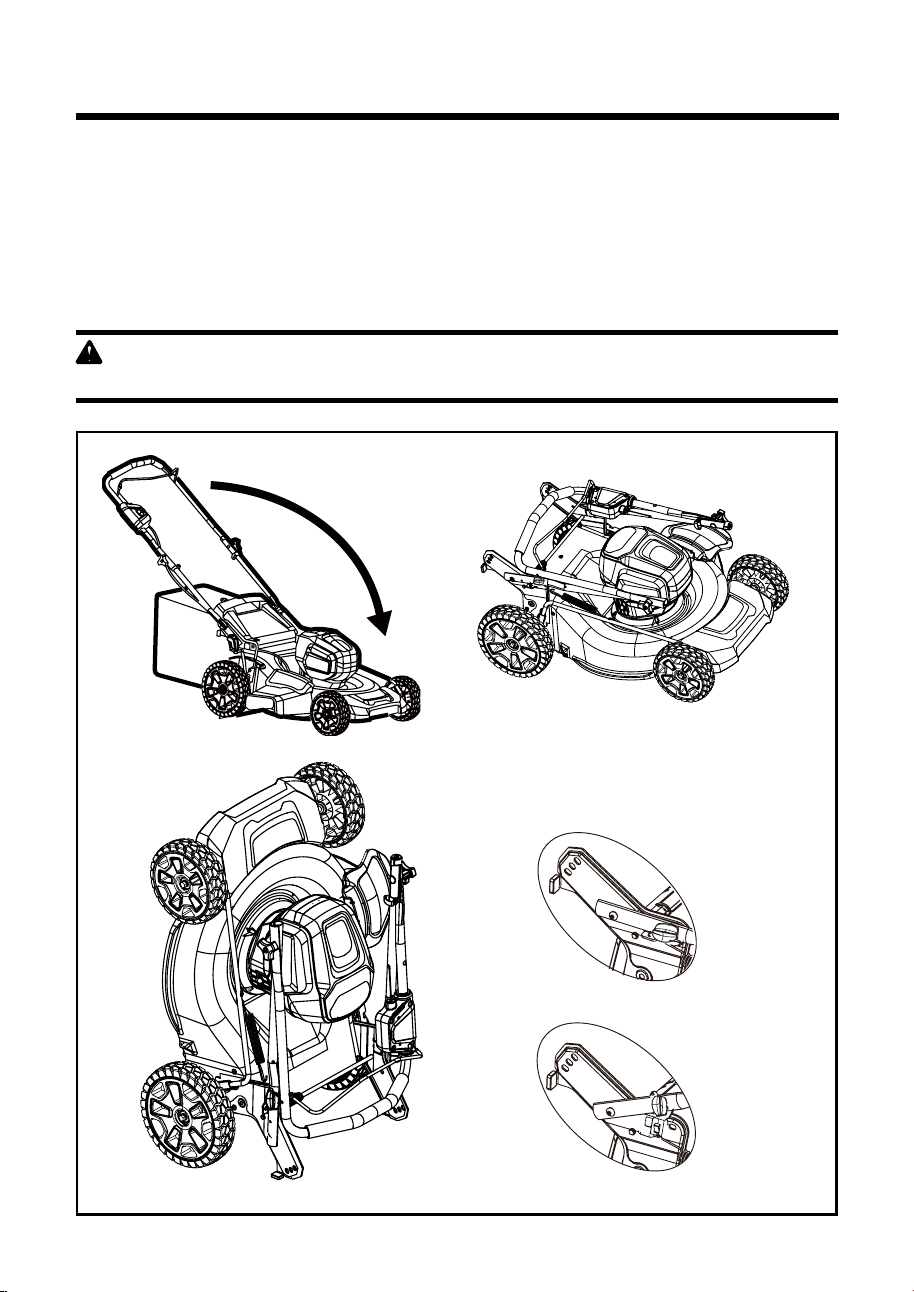

VERTICAL STORAGE FUNCTION (See Figure 14)
• Remove the battery from the mower.
• Remove the grass catcher bag.
• Rotate the handle knobs to the unlocked position.
• Lower the handle assembly and rotate the handle knobs to the locked position.
• Lift the mower by the front end to the vertical position.
WARNING
Always remove the battery from the mower before placing the unit in the vertical storage position.
27
Locked
position
Unlocked
position
Fig. 14
MAINTENANCE
• When servicing the mower, use only identical replacement parts that are available from the
manufacturer. In order to obtain replacement parts, call the toll-free helpline, at 1-855-345-
3934. The use of parts that do not meet the original equipment specications may lead to
improper performance, and may compromise safety.
• Before cleaning, repairing, or inspecting; verify that the blade and all moving parts have come
to a complete stop. Remove the battery when making any adjustments or when any of the four
wheels must be lifted off the ground.
• Follow the instructions for lubricating and changing accessories.
• Keep the handles dry, clean, and free of oil and grease.
• In order to reduce the risk of re, keep the motor free of grass, leaves, and debris build-up.
• Check the blade and motor mounting bolts for proper tightness frequently. Visually inspect
blade for damage (e.g., bent, cracked, or worn).
• For best and safest performance, maintain the mower with care. Keep the mower blade sharp
and clean. Mower blades are sharp, and can cut. Wrap the blades or wear gloves, and use
extra caution when servicing.
• Keep all nuts, bolts, and screws tight in order to be sure that the equipment is in safe working
condition.
• Never tamper with safety devices. Check them regularly for proper operation.
• After striking a foreign object, stop the motor. Thoroughly inspect the mower for any damage.
Repair any damage before operating the mower.
• The grass catcher components, discharge cover, and trail shield are subject to wear and
damage, which could expose moving parts or allow objects to be thrown. As a safety
precaution, check these components frequently, and immediately replace any parts that show
signs of wear, or that are cracked or broken. Use original equipment manufacturer's (OEM)
parts only, as listed in this manual.
• When it is not in use, store the mower indoors in a dry area, and out of the reach of children.
WARNING
Always remove battery when servicing or transporting the mower.
28
29
ENVIRONMENTALLY SAFE BATTERY DISPOSAL
The following toxic and corrosive materials are in the batteries used in this hedge trimmer battery
pack: Lithium-Ion, a toxic material.
WARNING
All toxic materials must be disposed of in a specified manner to prevent contamination of the
environment. Before disposing of damaged or worn out Lithium-Ion battery packs, contact your
local waste disposal agency, or the local Environmental Protection Agency for information and
specific instructions. Take the batteries to a local recycling and/or disposal center, certified for
lithium-ion disposal.
WARNING
If the battery pack cracks or breaks, with or without leaks, do not recharge or use the battery.
Dispose of it and replace with a new battery pack. DO NOT ATTEMPT TO REPAIR IT!
To avoid injury and risk of explosion, or electric shock, and to avoid damage to the environment:
• Cover the battery's terminals with heavy-duty adhesive tape.
• DO NOT attempt to remove or destroy any of the battery pack components.
• DO NOT attempt to open the battery pack.
• If a leak develops, the released electrolytes are corrosive and toxic. DO NOT get the
solution in the eyes or on skin, and do not swallow it.
• DO NOT place these batteries in your regular household trash.
• DO NOT incinerate.
• DO NOT place them where they will become part of any waste landll or municipal solid
waste stream.
• Take them to a certied recycling or disposal center.
30
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE SOLUTION
The mower does
not start.
The battery is not charged. Charge the battery.
The switch is defective.
Replace the switch (call the tollfree helpline,
at 1-855-345-3934.
Grass jammed between the
deck and blade.
Remove battery; check under deck for jams.
The battery is not fully inserted
in the mower.
Check the connection between the battery
and the mower. Make sure the battery clicks
into place.
Battery may require service or
replacement.
Call toll free helpline, at 1-855-345-3934 or
replace battery.
The mower
cuts the grass
unevenly.
The lawn is rough or uneven. Check the mowing area.
The cutting height is not set
properly.
Move the wheels to a higher setting.
The mower
does not mulch
properly.
Wet grass clippings are
sticking to the underside of the
deck.
Wait until the grass dries before mowing.
The mulching plug is missing.
Install the mulching plug.
The mower is
hard to push.
The grass is too tall, or the
cutting height is too low.
Raise the cutting height.
The rear of the grass catcher
bag is dragging in thick grass.
Empty the grass clippings from the grass
catcher bag.
The mower is
excessively noisy
and vibrates.
The motor shaft is bent.
Stop the motor, and inspect for damage.
The blade is unbalanced.
Repair before restarting. If vibration persists,
call the toll free helpline 1-855-345-3934.
31
LIMITED WARRANTY
GREENWORKS™ hereby warranties this product, to the original purchaser with proof of
purchase, 4 year consumer warranty, 1 year commercial warranty against defects in materials,
parts or workmanship. GREENWORKS™, at its own discretion will repair or replace any and all
parts found to be defective, through normal use, free of charge to the customer. This warranty is
valid only for units which have been used for personal use that have not been hired or rented for
industrial/commercial use, and that have been maintained in accordance with the instructions in
the owners’ manual supplied with the product from new.
ITEMS NOT COVERED BY WARRANTY:
1. Any part that has become inoperative due to misuse, abuse, neglect, accident, improper
maintenance, or alteration.
2. The unit, if it has not been operated and/or maintained in accordance with the owner's
manual.
3. Normal wear, except as noted below.
4. Routine maintenance items such as lubricating or sharpening.
5. Normal deterioration of the exterior nish due to use or exposure.
GREENWORKS HELPLINE (1-855-345-3934):
Warranty service is available by calling our toll-free helpline at 1-855-345-3934.
TRANSPORTATION CHARGES:
Transportation charges for the movement of any power equipment unit or attachment are the
responsibility of the purchaser. It is the purchaser’s responsibility to pay transportation charges
for any part submitted for replacement under this warranty unless such return is requested in
writing by GREENWORKS.
32
EXPLODED VIEW
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
28
29
30
31
32
33
34
35
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
27
66
33
PARTS LIST
ITEM NO. PART NO. DESCRIPTION QTY
1 311051560 Motor assembly 1
2 361011560 60V PCB 1
3 341191179-1 Fan 1
4 341241179 Side discharge chute 1
5 341331179J Bumper cover 1
6 3220504 Screw 4
7 341061179C Bumper main body 1
8 311081179A Side discharge cover assembly 1
9 333041179 21” Blade 1
10 341261179 Blade bolt 1
11 3220951 Screw 5
12 333011179D 21” Deck 1
13 32202390 Bolt 4
14 32204113 Screw 4
15 311021179 Front wheel axle 1
16 33307470A Axle press plate 4
17 32204113 Screw 8
18 341281179A 8” Wheel assembly 2
19 341021179A Front panel 1
20 3220343 Nut 2
21 333011546 Height adjustment link bar 1
22 32243563 Nut 4
23 332011179 Height adjustment tension spring 1
24 341011179B Rear bafe 1
25 3220551 Screw 4
26 3220951 Screw 11
27 333041519 Height adjustment bracket (left) 1
28 3221637 Bolt 4
29 341251179 Rear cover 1
30 32910131 Nut 4
31 312011560 Mechanical vertical switch assembly 2
32 342031179 Rubber plug 2
33 333031560 Height adjustment bracket (right) 1
34
PARTS LIST
ITEM NO. PART NO. DESCRIPTION QTY
34 3290506 Clip washer 2
35 332021179 Rear cover axle 1
36 332111179 Torsinal spring (rear cover) 1
37 33401222 Torsinal spring 1
38 3290135 Cotter pin 1
39 311011179 Rear wheel axle 1
40 342011179 Rear shield 1
41 3220505-1 Screw 4
42 332041179 Press board (rear shield) 1
43 341271179A 10” Wheel assembly 2
44 332061179 Pin 2
45 341151546 Knob 2
46 332051179 Spring 2
47 332071179A Limit column 2
48 332081179A Block 2
49 311301560 Height adjustment bar assembly 1
50 32201467 Nut 2
51 332101179A Washer 2
52 322031179 Bolt 2
53 333121179A Lower handle 2
54 341291179 Knob 2
55 341031555 Isolation steeve 2
56 322041179 Stud 2
57 32208250 Screw 1
58 33323250-1 Limit piece 1
59 3220439 Nut 1
60 333111179A Upper handle 1
61 311071179 Switch box assembly 1
62 333061179D Bail lever 1
63 342021179 Sponge 1
64 312011179G Grass catcher bag assembly 1
65 341351179B Mulching plug 1
66 311051479 Key assembly 1
TOLL-FREE HELPLINE: 1-855-345-3934
Rev: 00 (04-24-17) Printed in China on 100% Recycled Paper
Greenworks Tools
PO Box 1238
Mooresville, NC 28115
