IN-R100SS-30
Table of Contents
Safety Information
Safety Information....................................
Warranty Information...............................
2
3
Specifications............................................ 4
5
Parts Included...........................................
4
Preparation: What to do before
installation.................................................
1. Read This Manual & Gahter Tools & Parts...........
2. Measure, Mark & Cut the Installation Area..........
3. Check Electrical Connection...........
4. Check Ducting & Install Adapter..................
5. Find a Helper...........................................................
Before installing your range hood, read the entire instruction
manual. Installers, leave this manual with the homeowner.
How to Use Your Range Hood...............
5. Mount the Hood to the Cabinet
7. Replace the Bottom Cover
Be Careful with Electrical Connections
Basic Maintenance Instructions..............
1. Maintaining the Stainless Steel Grease Baffle
Filter..................................
2. Replacing the Lighting.............
3. Cleaning Your Range Hood..................................
Troubleshooting Tips..............................
Contact Hauslane.....................................

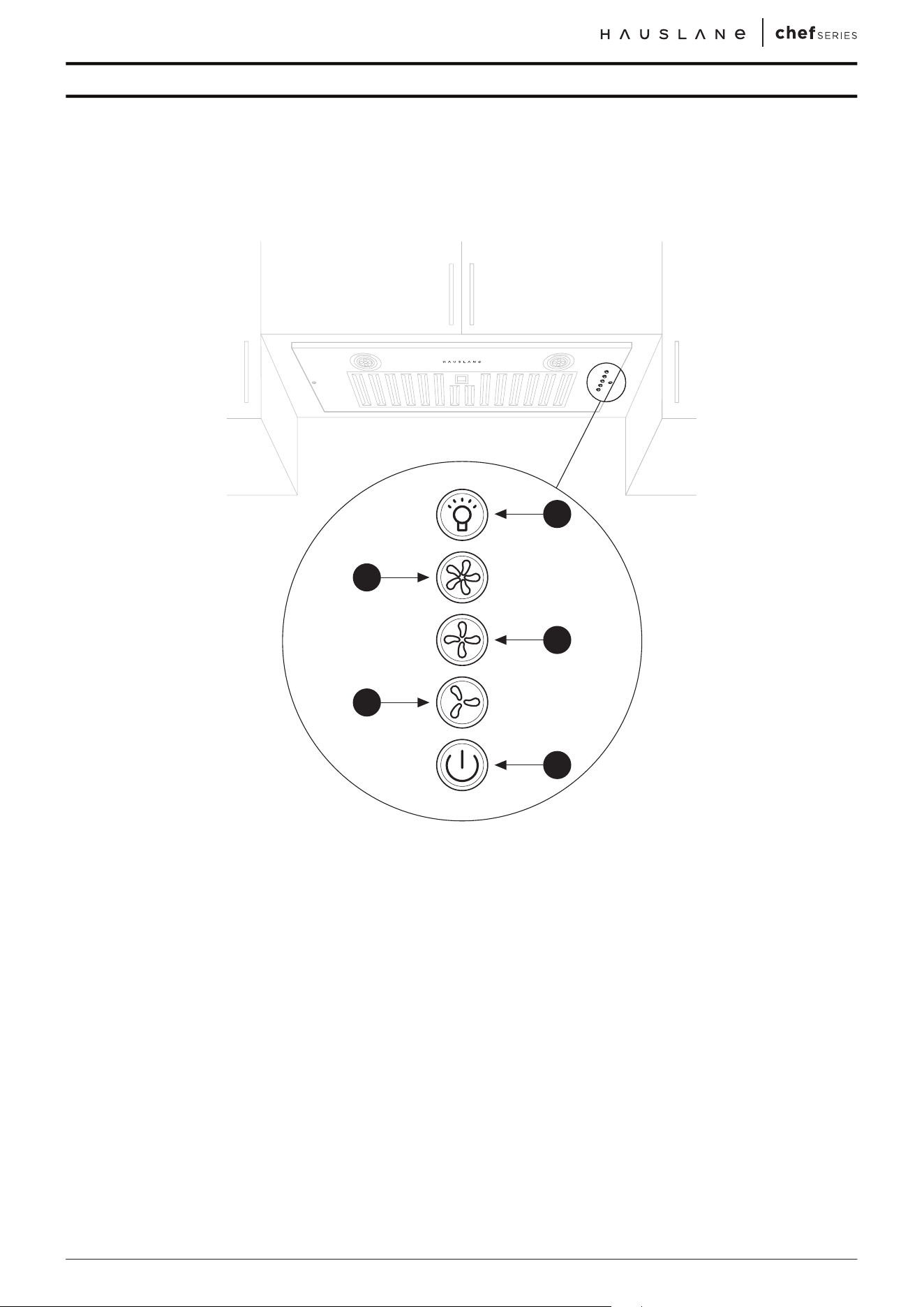

1.Using the Front Control Panel................................
6
11
10
9
8
8
9
9
9
How to Install Your Range Hood............ 7
6
6
6
6
6
7
7
7
7
7
7
7
Use this range hood only in the manner intended by the
manufacturer. If you have the questions, contact Hauslane
at 1-800-929-0168 or email at [email protected].
Before servicing or cleaning, switch power off at service
panel and lock service panel to prevent power from being
switched on accidentally. When the service disconnecting
means cannot be locked, securely fasten a prominent
warning device, such as a tag, to the service panel.
Installation work and electrical wiring must be done by
qualified personnel in accordance with all applicable codes
and standards, including fire-rated construction codes and
standards.
Sufficient air is needed for proper combustion and exhaust-
ing of gases through the flue (chimney) of fuel-burning
equipment to prevent back drafting. Follow the heating
equipment manufacturer's guidelines and safety standards
such as those published by the National Fire Protection
Association (NFPA), and the American Society for Heating,
Refrigeration and Air Conditioning Engineers (ASHRAE),
and the local code authorities.
When cutting or drilling into wall or ceiling, do not damage
electrical wiring and other hidden utilities.
Ducted fans must always be vented to the outdoors.
Do not use this unit with any solid-state speed control
device.
To reduce the risk of fire, use only steel ductwork.
1.
2.
3.
4.
5.
6.
7.
8.
This unit must be grounded.9.
1.
2.
3.
4.
Never leave surface units unattended at high settings.
Boil overs cause smoking and greasy spillovers that
may ignite. Heat oils slowly on low or medium settings.
Always turn hood ON when cooking at high heat or
when cooking flaming foods.
Clean ventilating fans frequently. Grease should not be
allowed to accumulate on fan or filter.
Use proper pan size. Always use cookware appropriate
for the size of the surface element.
WARNING
SUITABLE FOR USE IN HOUSEHOLD COOKING AREA ONLY.
TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK, OR
INJURY, OBSERVE THE FOLLOWING:
TO REDUCE THE RISK OF A RANGE TOP GREASE
FIRE:
R100 USER MANUAL 2
1.
2.
3.
4.
SMOTHER FLAMES with a close-fitting lid, cookie sheet
or metal tray, then turn off the burner. BE CAREFUL TO
PREVENT BURNS. IF THE FLAMES DO NOT GO OUT
IMMEDIATELY, EVACUATE AND CALL THE FIRE
DEPARTMENT.
NEVER PICK UP A FLAMING PAN as you may be
burned.
DO NOT USE WATER, including wet dishcloths or
towels. This could cause a violent steam explosion.
Use an extinguisher ONLY if:
A. You own a Class ABC extinguisher and you know
how to operate it.
B. The fire is small and contained.
C. The fire department has been called.
WARNING
TO REDUCE THE RISK OF INJURY TO PERSONS IN THE
EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE
FOLLOWING*:
Tools Needed...........................................

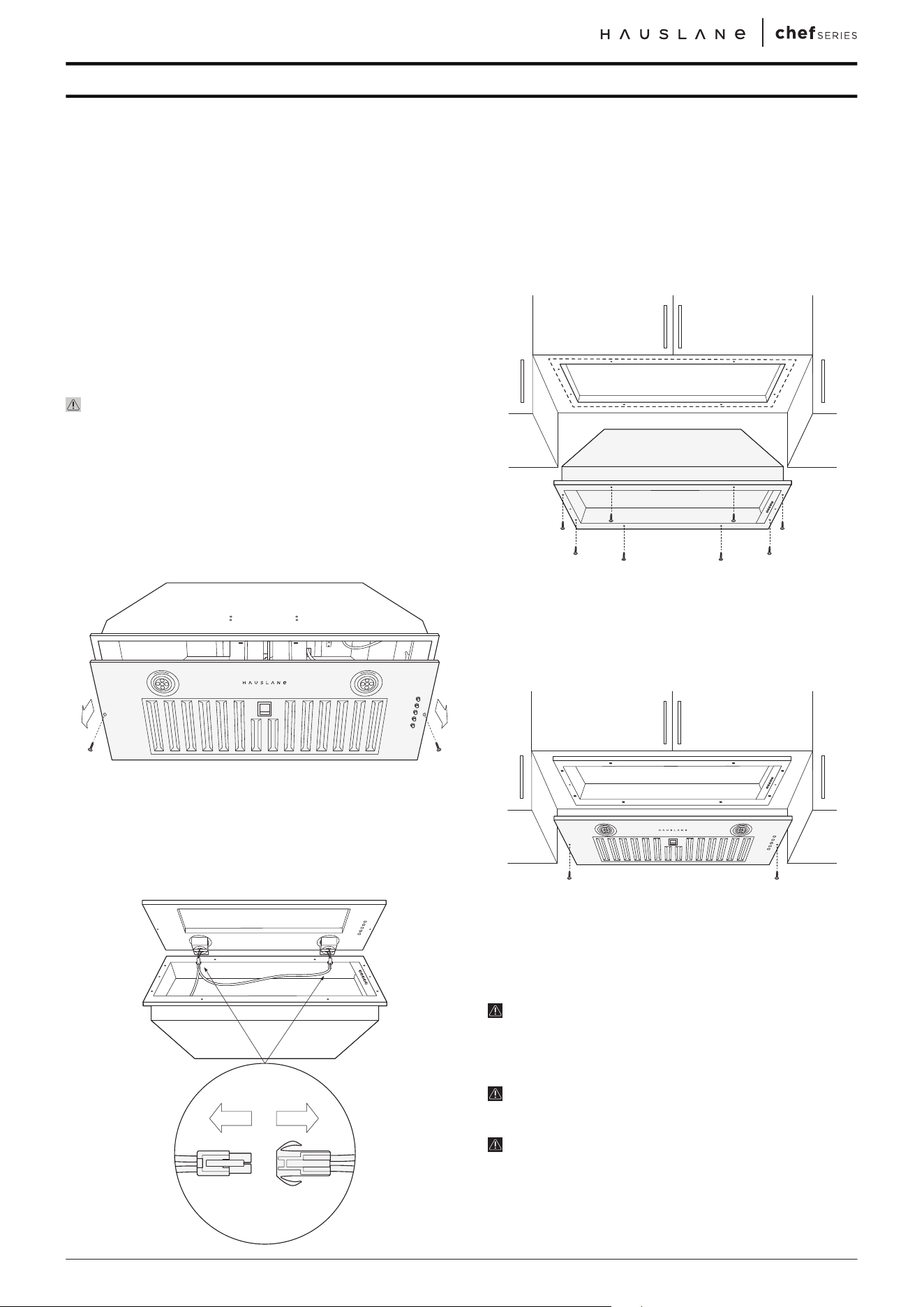

1. Carefully Remove Packaging
2. Test the Unit & Ensure You Are Satisfied With It
3. Uninstall Bottom Cover
4. Disconnect the Wiring
This range hood is warranted to the original purchaser to be
free of defects in material and workmanship for two (2) years
from the date of purchase.
Our obligation shall be limited to the repair or replacement of
a unit (at our discretion) that may prove, by our sole examina-
tion, to be defective under normal use and service during the
warranty period. We may issue credit in the amount of the
invoice value of the defective product (or a percentage of it
according to use) in lieu of repair or replacement. Any failure
of this product that is not traceable to a defect in material or
workmanship is not covered by this warranty. These non-war-
rantable items include, but are not limited to:
A thorough inspection must be made before installation and
any damage must be promptly reported. We will not be liable
for failures or damage that could have been discovered or
avoided by proper inspection and testing prior to installation.
Incidental repairs that would involve a minimum of time and
effort on behalf of the purchaser will not be considered
warranty work and no compensation will be deemed forth
coming.
This warranty is non-transferable and shall be voided if the
unit is removed from its initial installation or if it is not installed
following the instructions.
Under no circumstance shall we be held liable for
personal injury or property damage resulting from
improper installation or use of this product. We will not
be held liable for inconvenience caused by loss of use of
this product, costs incurred for labor or materials, removal
and installation of replacement units, or any other
incidental or consequential damages. Costs relating to
obtaining access for repair or replacement are the
responsibility of the user.
This warranty does not extend to commercial and
institutional installation or use.
Warranty Information
Any defects or damage to light bulbs
Change in color or finish due to chemical usage
Improper installation not in accordance with the instructions
Dents, bumps, and scratches incurred during shipping,
handling, or installation
Damage caused by failure to follow care and cleaning
guidelines, including damage caused by the use of abrasive
cleaners
Alterations made to the unit by the purchaser or installer
Damage caused by accidental impact, fire, flood, freezing,
and normal wear
Bends and warping caused by forced connections,
over-tightened fittings, and inadequate support during
installation
Warranty Claim Procedure
Description of the range hood
Proof of sale
Details regarding the defect
Name(s) and address(es) of the owner and installer
If a claimable defect occurs, please contact our customer
service team at 1-800-929-0168 (8 a.m. - 5 p.m., PST,
Monday - Friday). or email us at [email protected]
Before you make your claim call, please ensure that you
have:
Claims must be filled out in writing and returned within six
(6) months of the appearance of a defect. Failure to
comply with this stipulation will make this warranty null
and void. We reserve the right to a thirty-day (30) delay
following the receipt of a claim in which to inspect the
product. We assume no responsibility for labor costs,
removing or replacing a previously installed product,
transportation, or the return of a product.
1.
2.
3.
For general ventilating use only. Do not use to exhaust
hazardous or explosive materials and vapors.
To avoid damage and noisy and/or unbalanced impellers,
keep drywall/construction dust, etc. off power unit.
Mount your range hood so that the bottom of the hood is
24" to 30" above the cooking surface. The minimum hood
distance above cooktop must not be less than 24"; any
installation less than 24" may cause overheating and cause
damage to the range hood, HAUSLANE does not warrant
this improper installation.
4.
5.
6.
7.
8.
Two to three installers are recommended because of
the larger size and weight of this hood.
To reduce the risk of fire and to properly exhaust air, be
sure to duct air outside. Do not exhaust air into spaces
within walls and ceiling or into attics, crawl space or
garages.
Because of the high exhausting capacity of this hood,
you should make sure enough air is entering the house
to replace exhausted air by opening a window close to
or in the kitchen.
Use with approved cord-connection kit only.
Please read product specification label on range hood
for further information and requirements.
CAUTION
R100 USER MANUAL 3
D. You can fight the fire with your back to an exit.
*Based on "Kitchen Fire Safety Tips" published by NFPA.
Tools Needed
R100 USER MANUAL 4

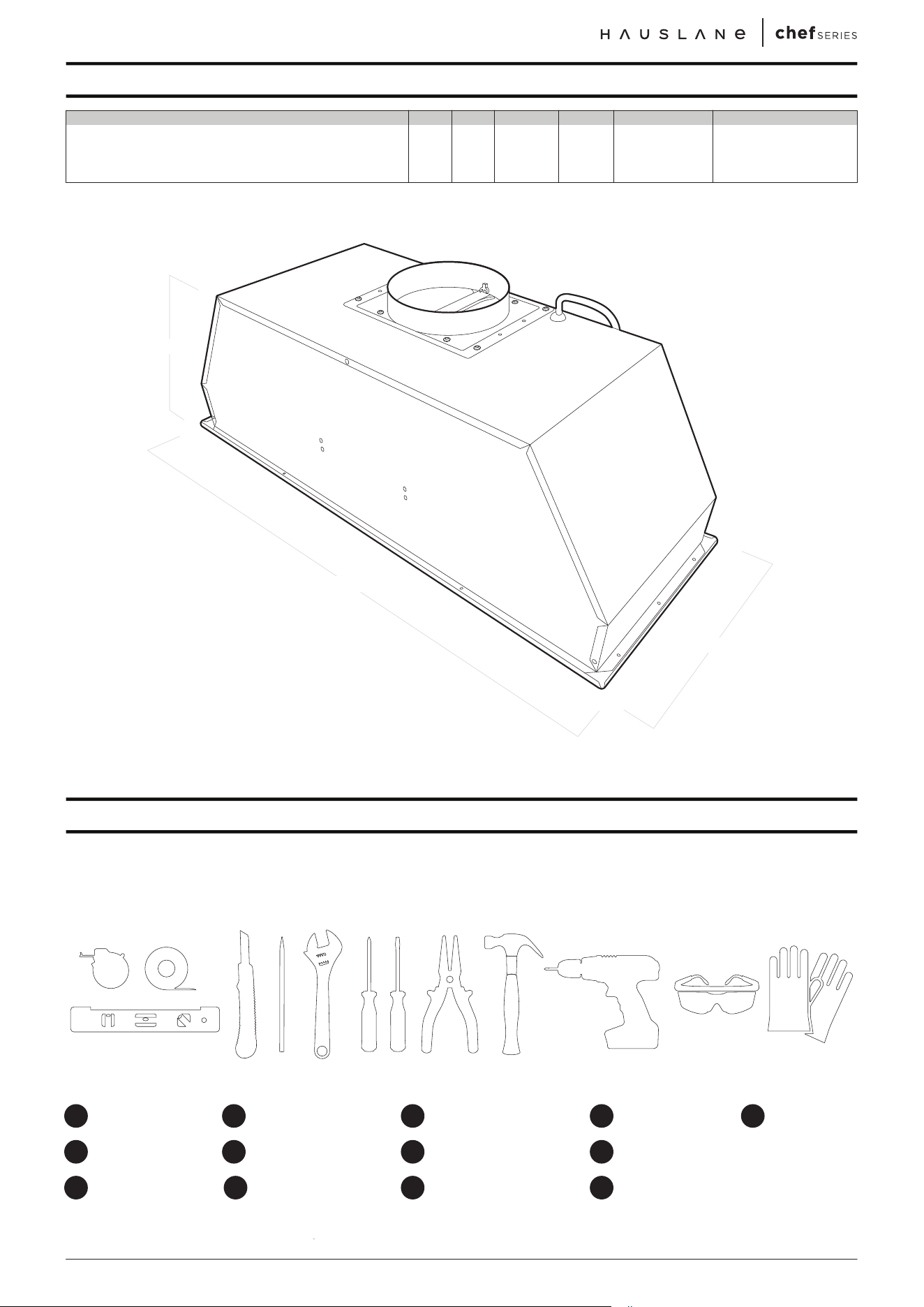

Specifications
Volts Hertz Fan CFM Speeds Light Wattage Stainless Steel Grade
IN-R100SS-30
12029.5” W
11.
25” D 10.43” H 60
600
3 4302W x 2
Before you begin the installation process, gather the following tools:
3
2
1
Tape
Measuring Tape
Level
Philips Screwdriver
Flathead Screwdriver
Needle Nose Pliers
9
8
7
Hammer
Electric Drill
Safety Goggles
12
11
10
Sefety Gloves
13
5
4 Utility Knife
Pencil
6
Adjustable Wrench
1 2
3
4 5 6 7 8 9 10
11
12
13
11.
25”
29.5”
10.43”
R100 USER MANUAL 5

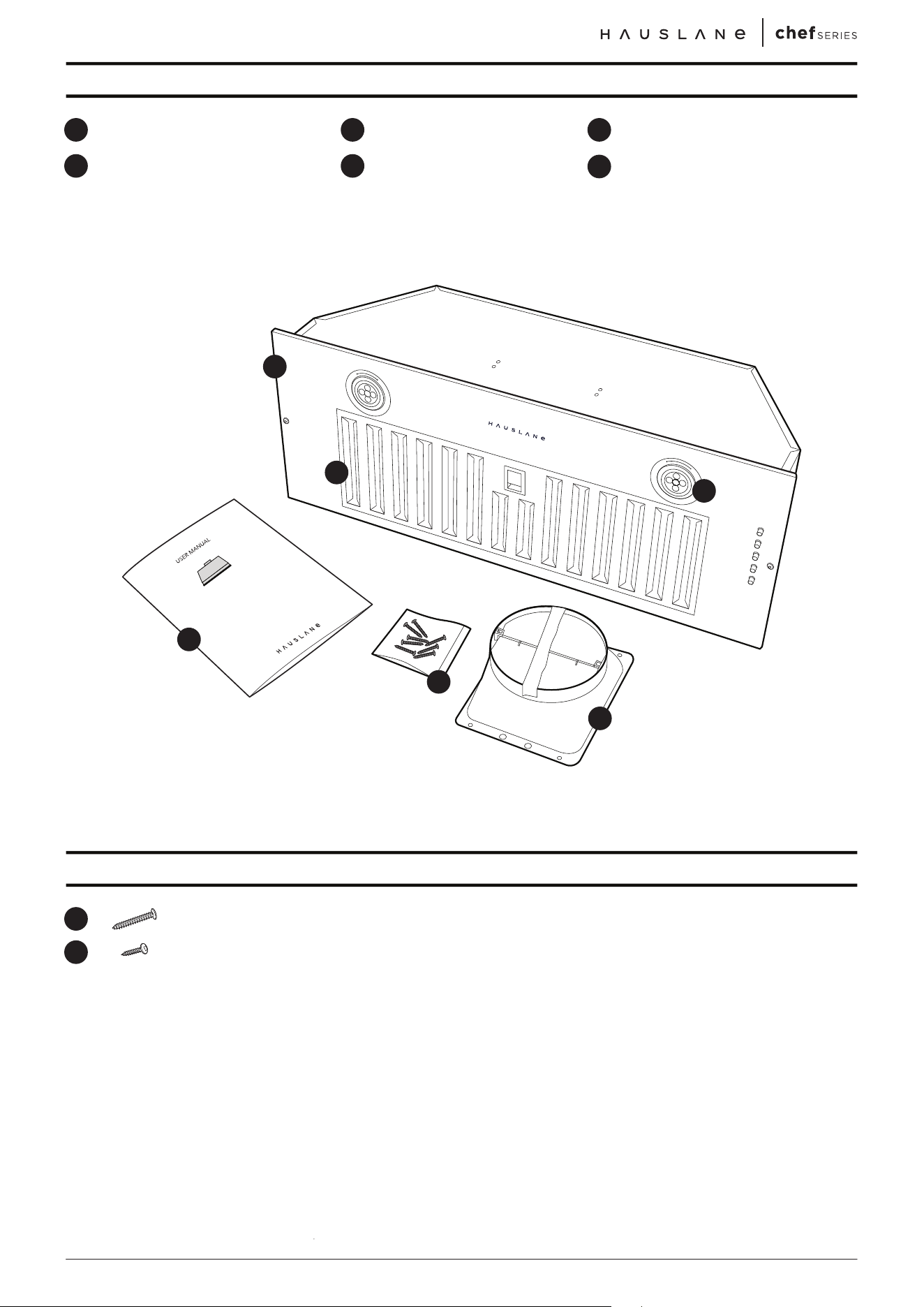

Package Contents
Baffle Filter (Preinstalled)3
4
1
(2) LED Light (Preinstalled)
Range Hood
2 Vertical Round Outlet Adapter
5 Bag of Screws
6 User Manual
Parts Included
2
1
2 x Front panel mounting screws (preinstalled on the unit)
6 x AA Hood mounting screws
LOCK
OPEN
LOCK
OPEN
2
4
3
1
5
6
R100 USER MANUAL 6
Before installing your range hood, carefully follow these steps:
1. Read This Manual
Read through all the steps. If you fail to read the instructions
carefully, we will not be responsible for damages incurred on
your part. If you’re not confident in your abilities to install the
range hood properly, we recommend hiring a certified
technician to complete the installation. While reading through
the manual, ensure you have the necessary tools and parts
according to the previous page. If you want the non-ducted
function by using a charcoal filter then skip step 4.

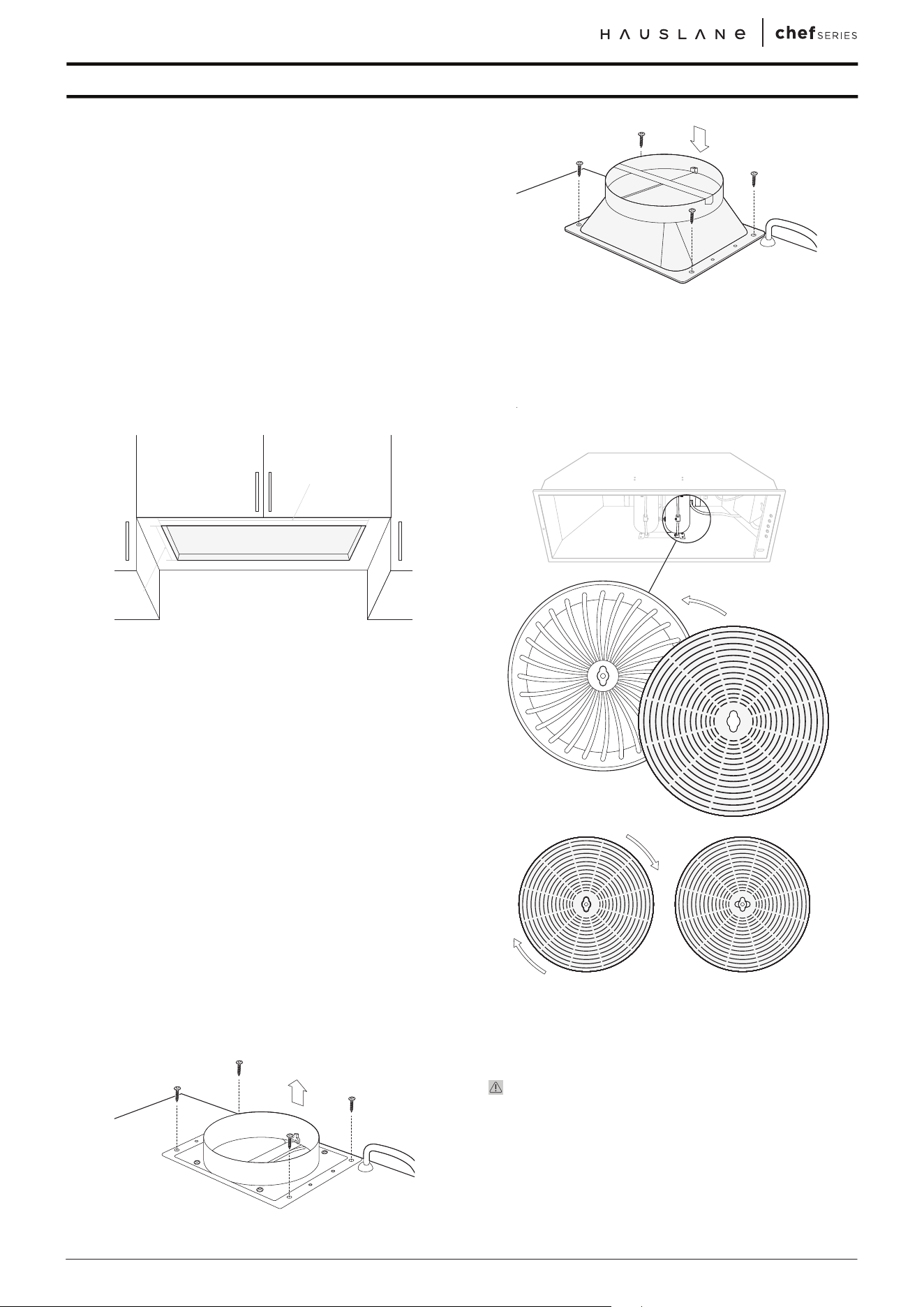

2. Measure, Mark, and Cut the Installation Area
Cut a rectangular hole in the bottom of the cabinet with
dimensions 28.4” x 10.75”. Ensure there is room for the front
and back mounting screws of the range hood. If not, you may
need to build wood blocking in order to secure the mounting
screws.
3. Check Electrical Connection
Check the position of the power outlet and consider where
the power cable will run. A hole may have to be made in the
wall unit to accommodate it.
Electrical wiring should be done by a qualified person in
accordance with all applicable codes and standards. Turn off
electrical power at service entrance before wiring. If the
supply cord is damaged, it must be replaced by the manufac-
turer, a service agent or similarly qualified persons. Don’t use
the plug or an extension cord other than the ones initially
supplied with the hood.
4. Check Ducting & Install Adapter
Ensure there is a hole for the exhaust in order to connect the
range hood to exhaust ducting. Use an outlet exhaust duct
with minimum indispensable length and minimum possible
bends with a maximum bend angle of 90 degrees. Use
certified material according to the state in which you are
located. Avoid any drastic changes in duct cross-section.
Recommended diameter is 6”. Next, install the adapter over
the lip and insert 8 screws (BB) to securely fasten the adapter.
Preparation: What to Do Before Installation
5. Find a Helper
Two or more people are recommended to install this
range hood due to its size and weight.
IMPORTANT: Exhaust air must not be discharged into a
flue which is used for appliances burning gas or other
fuels.
If the instructions for installation for the gas range specify a
greater distance than 650mm, you will need to take this
into account.
Always fulfill all regulations concerning the discharge of
exhaust air.
5. Install Charcol Filter (Non-Ducted Only)
To install the charcoal filter, first remove the bottom
cover. Push the middle of the charcoal filter against the
middle of the grill and turn the filter clockwise to fix into
position.
29.5”
29.5”
When you’ve completed all the preparation steps, you’re
ready to install your range hood.
How to Install Your Range Hood
R100 USER MANUAL 7
1. Carefully Remove Packaging
Open the box and flip it upside down, then lift the box up to
carefully unbox the range hood. Remove any packaging,
including the plastic wrap and protective plastic film, from the
hood. You can use stainless steel cleaner to wipe down the
surface if desired. Keep all packaging materials until you are
satisfied with our product.
2. Test the Unit and Ensure You Are Satisfied With It
Check your range hood for damaged or missing parts. Plug it
in to an outlet to ensure the fan and lights work. If anything is
damaged or missing, contact the seller to get the issues
solved. Don’t throw away packaging until you’re sure you are
fully satisfied with the product.
IMPORTANT: ower the range hood and test all functions
before proceeding with the installation. If the range hood is
not working properly, please contact us at 1-800-929-0168.
3. Uninstall Bottom Cover
To uninstall the bottom cover, turn the unit upside down and
remove the baffle filter from the range hood by pushing the
filter knob outward. Then, remove the bottom cover by
unscrewing the two screws as shown.
4. Disconnect the Wiring
Inside the range hood, locate the two areas where the wires
are connected, as shown in the image. Carefully disconnect
these pieces as shown.
5. Mount the Hood to the Cabinet
Next, lift the range hood into position in the opening of
the cabinet. Secure it in place, using screws in the
mounting holes as shown. The bottom of the range hood
should align flush with the bottom of the cabinet. For best
results, use a screw in every mounting hole on all four
sides of the range hood. If it is not possible to insert
screws on the left and right sides, it is sufficient to secure
the range hood using the front and back mounting holes.
6. Replace the Bottom Cover
Then, screw back the bottom cover by carefully inserting
the two screws that you removed earlier. Reinsert the
baffle filter.
Be Careful with Electrical Connections.
Then, screw back the bottom cover by carefully inserting
the two screws that you removed earlier. Reinsert the
baffle filter.
WARNING: Electrical wiring must be done by a
qualified person(s) in accordance with all applicable
codes and standards. Turn off electrical power at service
entrance before wiring.
WARNING: Do not use the plug and an extension cord
other than the ones initially supplied with the hood.
WARNING: The ground connection of this hood is
compulsory. Do not remove ground prong of the plug.
R100 USER MANUAL 8
Now that your range hood is installed, it’s time to learn how to use it. It is very simple to use and is operated entirely using
the front control panel.
Using the Front Control Panel
Use the simple front control panel to turn the lights and fan on or off.
1- On/Off 2- Low Speed 3- Medium Speed 4- High Speed 5- Light
How to Use Your Range Hood
5
3
1
4
2
Maintaining the Stainless Steel Grease Baffle Filter
Clean the grease filters frequently—we suggest cleaning every
2 months, or more frequently for heavy use.
DO DONT
Your range hood requires some easy routine maintenance to
keep it running efficiently.
Basic Maintenance Instructions
1.
2.
3.
4.
To remove the baffle filters, push down on the latch, tilt the
filter, and lift out.
Wash the baffle filter in the dishwasher or by hand using a
warm detergent solution, taking care not to bend the
stainless steel filter.
Let the baffle filters dry completely.
Reinstall the baffle filter and ensure that the latch is visible
from the outside.
Cleaning Your Range Hood
This range hood will look great and function correctly for a long time with proper care. Here are a few do's and dont's when
caring for your range hood.
WARNING: Failure to maintain basic standards of care and cleaning will increase the risk of fire.
Clean the range hood with warm, soapy cloth or a
stainless-steel polish.
Clean the hood in line with the grain of the stainless steel.
Don’t use cleaners or cloths that are corrosive or abrasive.
Don’t use detergents with ingredients like chloride, iodide,
or fluoride.
Don’t leave dirt or soap residue on the hood. This can
damage the surface. Wash the hood’s surface and rinse
immediately with clean water.
After cleaning with soap, rinse with clean water and wipe with
a clean, dry cloth.
Don’t let particles, especially construction particles (from
sanding, etc.) enter the hood. Cover the hood during room
renovations.
Check the ducts and vents regularly to make sure they are not
clogged.
Don’t use flammable agents near the stove, as these can
cause explosions.
R100 USER MANUAL 9
1.
2.
Switch off power and wait for 5 minutes to ensure
bulbs have cooled down.
Wearing gloves, remove the bulb by pulling sideways.
This range hood requires two LED or halogen lightbulbs.

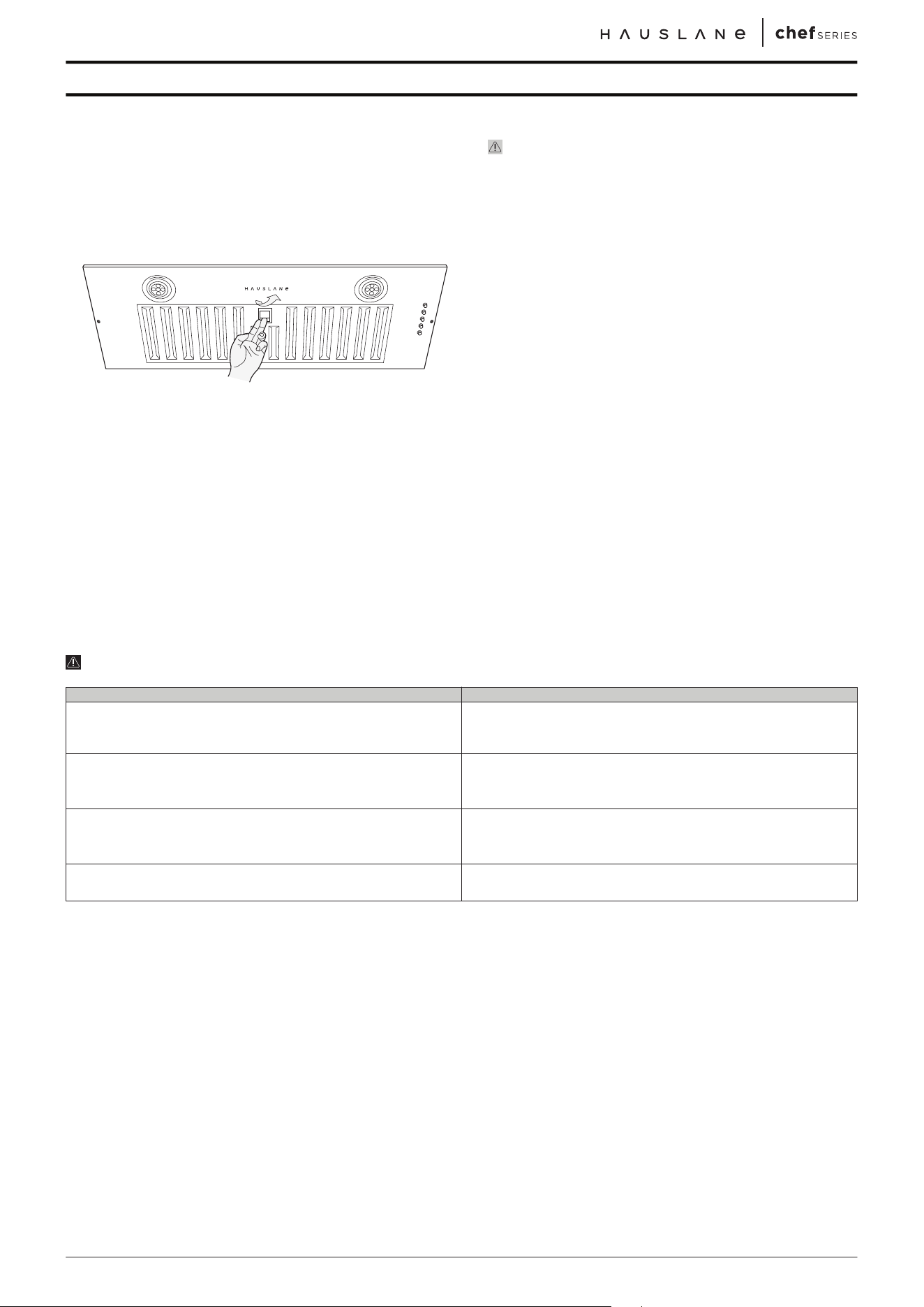

Replacing the Lighting
CAUTION: Always switch off the electrical supply
before replacing LED lamps.
Troubleshooting Tips
WARNING: Please turn off the power circuit or power breaker panel before troubleshooting this range hood. Failure to do
so can cause death or serious injury.
Problem Solution
My range hood won’t work. 1. Make sure the power supply and wiring are connected
securely.
2. Double-check to see that the power breaker is on and
the power supply is live.
3. Check to see that the control panel cables are connect-
ed correctly to the switchboards.
My range hood vibrates while the fan is operating. 1. Check to ensure the hood is firmly secured to the
cabinet/wall. Tighten or add screws if necessary.
2. Confirm that the motor is firmly in place and secured
safely. If it is not, tighten it.
3. If those steps haven’t resolved the issue, your fan may
be damaged. If it is damaged, you may need to replace it.
The fan is operating weakly. 1. Double-check to ensure the duct size is correct.
2. Clean ducts or filters if they’re dirty. Also, check to make
sure the mesh enclosure on the hood is receiving proper
air ventilation.
3. If possible, check to see that the damper is functioning
properly regarding the opening.
The light is not working. 1. Check to see if lightbulb is loose and needs to be
tightened.
2. If tightening doesn’t fix the problem, replace bulb with a
new one and see if that solves the issue.
3. If replacement and/or tightening does not solve, you
may need to replace the lighting service system on the
hood.
Still experiencing problems after following these steps? Contact a technician to assist. Contact us at 1-800-929-0168 or
The vent hood is not working efficiently. 1. The minimum distance between the cooking area and
the appliance should be 24" or 30" maximum. Check to
see if this is correct.
2. Make sure that the duct is not susceptible to easy wind
opening.
3. Make sure the fan speed is at the appropriate rate. The
heavier the cooking, the greater the speed of the hood
should be set.
4. Closing the windows and doors in the room will allow
the vent to work much better.
5. As noted during the installation process, all ductwork
must be done correctly. You may need to reduce the
length of ductwork or reduce elbows.
6. Make sure all joinery in ductwork is sealed and secured
properly.
The fan is not working properly even though the lights are
working.
1. Double-check that the fan is not jammed /that it isn’t
scraping any of the surfaces of the hood.
2. If this doesn’t work, you may need to replace the motor
as it may be defective.
R100 USER MANUAL 10
R100 USER MANUAL 11
Extended Warranties
If you are interested in an extended warranty, sign up on our website at www.hauslane.com
Parts and Accessories
If you need replacement parts or accessories, visit www.hauslane.com
Contact Us
We’d be happy to answer your questions or resolve any issues you may have.
Phone: 1-800-929-0168
Find Us and Connect with Us
Contact Hauslane
