LG Electronics LG F4T209SSE Steam Washing Machine 9kg 1400 rpm Speed 12 Quick Wash Soil Level A Rated

Owner’s Manual English - Transcript

• Page 1 - English - : OWNERS MANUAL WASHING MACHINE Before beginning installation read these instructions carefully This will simplify installation and ensure that the product is installed correctly and safely Leave these instructions near the product after installation for future reference ENGLISH F4T209WSE F4T209SSE Rev00050423 wwwlgcom Copyright 2023 LG Electronics Inc All Rights Reserved
• Page 2 - English - : TABLE OF CONTENTS This manual may contain images or content that may be different from the model you purchased This manual is subject to revision by the manufacturer CARING FOR THE ENVIRONMENT Environmental and Economical Tips 3 SAFETY INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE USE5 WARNING5 INSTALLATION Parts and Specifications 10 Installation Place Requirements 13 Levelling the Appliance 14 Connecting the Water Supply Hose15 Installing the Drain Hose 16 OPERATION Operation Overview18 Preparing the Wash Load 20 Adding Detergents and Softeners 20 Control Panel 23 Programme Table 24 Extra Options and Functions 29 Auxiliary Functions31 MAINTENANCE Cleaning After Every Wash33 Cleaning the Appliance Periodically 34 TROUBLESHOOTING Before Calling for Service37 APPENDIX Technical Data 43
• Page 3 - English - : CARING FOR THE ENVIRONMENT ENGLISH CARING FOR THE ENVIRONMENT Environmental and Economical Tips Energy and water consumption Water consumption and energy usage can be affected by the weight of the load To make the best use of your appliance load the maximum amount of dry clothes for the particular programme Evenly loading laundry up to the capacity indicated by the manufacturer for the respective programmes will contribute to energy and water savings The most efficient programmes in terms of energy consumption are generally those that perform at lower temperatures and longer duration Noise and remaining moisture content are influenced by the spinning speed the higher the spinning speed in the spinning phase the higher the noise and the lower the remaining moisture content For washing smaller amounts of clothes the automatic load recognition system will help reduce the amount of water and energy usage Use the Speed programme for small lightly soiled loads for energy and water savings Cold water laundry detergents can be as effective at lower temperatures about 20 Using 20 settings will use less energy than 30 or higher temperatures Detergent Detergent should be chosen according to type colour soiling of the fabric and the washing temperature And it should be used according to the instruction of the detergent manufacturer Use only detergents that are suitable for Drum front load type washers Use less detergent on smaller loads
• Page 4 - English - : CARING FOR THE ENVIRONMENT Selecting Extra Options and Functions Select the water temperature suitable for the type of load you are washing Follow the garment fabric care labels for best results The Pre Wash option is recommended for washing a heavily soiled load Disposal of the Packaging Material The packaging materials are designed to protect the appliance from unexpected damage during transportation After installing the appliance dispose of the packaging waste according to recycling symbols of material types Put the packaging waste in relevant containers to recycle it Disposal of Your Old Appliance This crossedout wheeled bin symbol indicates that waste electrical and electronic products WEEE should be disposed of separately from the municipal waste stream Old electrical products can contain hazardous substances so correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health Your old appliance may contain reusable parts that could be used to repair other products and other valuable materials that can be recycled to conserve limited resources You can take your appliance either to the shop where you purchased the product or contact your local government waste office for details of your nearest authorised WEEE collection point For the most up to date information for your country please see wwwlgcomglobalrecycling
• Page 5 - English - : SAFETY INSTRUCTIONS ENGLISH SAFETY INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE USE The following safety guidelines are intended to prevent unforeseen risks or damage from unsafe or incorrect operation of the appliance The guidelines are separated into WARNING and CAUTION as described below Safety Messages WARNING WARNING To reduce the risk of explosion fire death electric shock injury or scalding to persons when using this product follow basic precautions including the following Technical Safety This appliance can be used by children aged from 8 years and above and persons with reduced physical sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved Children shall not play with the This symbol is displayed to indicate matters and operations that can cause risk Read the part with this symbol carefully and follow the instructions in order to avoid risk WARNING This indicates that the failure to follow the instructions can cause serious injury or death CAUTION This indicates that the failure to follow the instructions can cause the minor injury or damage to the product
• Page 6 - English - : SAFETY INSTRUCTIONS appliance Cleaning and user maintenance shall not be made by children without supervision Children of less than 3 years should be kept away unless continuously supervised If the power cord is damaged it must be replaced by the manufacturer its service agent or similarly qualified persons in order to avoid a hazard Ventilation openings must not be obstructed by a carpet This appliance is intended to be used in household only Use a new hose or hoseset supplied with the appliance Reusing old hoses can cause a water leak and subsequent property damage The water pressure must be between 50 kPa and 800 kPa Maximum Capacity The maximum capacity in some cycles for dry clothes to be washed is kg The recommended maximum capacity for each washing programme may differ To get good wash results please refer to Programme Table in OPERATION chapter for further details Installation This appliance should only be transported by two or more people holding the appliance securely Do not install the appliance in a damp and dusty place Do not install or store the appliance in any outdoor area or any area that is subject to weathering conditions such as direct sunlight wind rain or temperatures below freezing Make sure the power plug is completely pushed into the power outlet Do not plug the appliance into multiple outlet sockets power boards or an extension power cable
• Page 7 - English - : SAFETY INSTRUCTIONS ENGLISH Do not modify the power plug provided with the appliance If it does not fit the power outlet have a proper outlet installed by a qualified electrician This appliance is equipped with a power cord having an equipment earthing grounding conductor earthing pin and a grounding power plug The power plug must be plugged into an appropriate outlet socket that is installed and earthed grounded in accordance with all local codes and ordinances Improper connection of the equipmentgrounding conductor can result in risk of electric shock Check with a qualified electrician or service personnel if you are in doubt as to whether the appliance is properly grounded Operation Never attempt to operate the appliance if it is damaged malfunctioning partially disassembled or has missing or broken parts including a damaged cord or plug Do not apply any sharp objects to the control panel in order to operate the appliance Do not attempt to separate any panels or disassemble the appliance Do not repair or replace any part of the appliance All repairs and servicing must be performed by qualified service personnel unless specifically recommended in this Owners Manual Use only authorized factory parts Do not push down the door excessively when the appliance door is open Do not put animals such as pets into the appliance Do not wash any items that are specified by the manufacturer as not washable on the care label Keep the area underneath and around the appliance free of combustible materials such as lint paper rags chemicals etc Do not leave the appliance door open Children may hang on the door or crawl inside the appliance causing damage or injury
• Page 8 - English - : SAFETY INSTRUCTIONS Do not put in wash or dry articles that have been cleaned in washed in soaked in or spotted with combustible or explosive substances such as waxes wax removers oil paint gasoline degreasers drycleaning solvents kerosene petrol spot removers turpentine vegetable oil cooking oil acetone alcohol etc Improper use can cause fire or explosion Do not use or store flammable or combustible substances ether benzene alcohol chemical LPG combustible spray gasoline thinner petroleum insecticide air freshener cosmetics etc near the appliance Never reach into the appliance while it is operating Wait until the drum has completely stopped Do not touch the door during a high temperature programme In case of a water leak from the appliance or flood disconnect the power plug and contact the LG Electronics customer information centre Turn off water taps to relieve pressure on hoses and valves and to minimize leakage if a break or rupture should occur Check the condition of the fill hoses they should be replaced after 5 years If there is a gas leakage isobutane propane natural gas etc within the home do not touch the appliance or power plug and ventilate the area immediately If the drain hose or inlet hose is frozen during winter use it only after thawing Keep all washing detergents softener and bleach away from children Do not touch the power plug or the appliance controls with wet hands Do not bend the power cable excessively or place a heavy object on it Avoid touching any water that is drained from the appliance during the wash Make sure that drainage is working properly If water is not drained properly your floor may get flooded
• Page 9 - English - : SAFETY INSTRUCTIONS ENGLISH When the air temperature is high and the water temperature is low condensation may occur and thus wet the floor Wipe off dirt or dust on the contacts of the power plug Maintenance Disconnect the appliance from the power supply before cleaning the appliance Setting the controls to the OFF or stand by position does not disconnect this appliance from the power supply Securely plug the power plug in the outlet socket after completely removing any moisture and dust Do not spray water inside or outside the appliance to clean it Never unplug the appliance by pulling on the power cable Always grip the power plug firmly and pull straight out from the outlet socket Only qualified service personnel from LG Electronics service centre should disassemble repair or modify the appliance Contact an LG Electronics customer information centre if you move and install the appliance in a different location Disposal Before discarding an old appliance unplug it Cut off the cable directly behind the appliance to prevent misuse Dispose of all packaging materials such as plastic bags and styrofoam away from children The packaging materials can cause suffocation Cut off the power cord and remove the door before disposing of this appliance to avoid the danger of children or small animals getting trapped inside

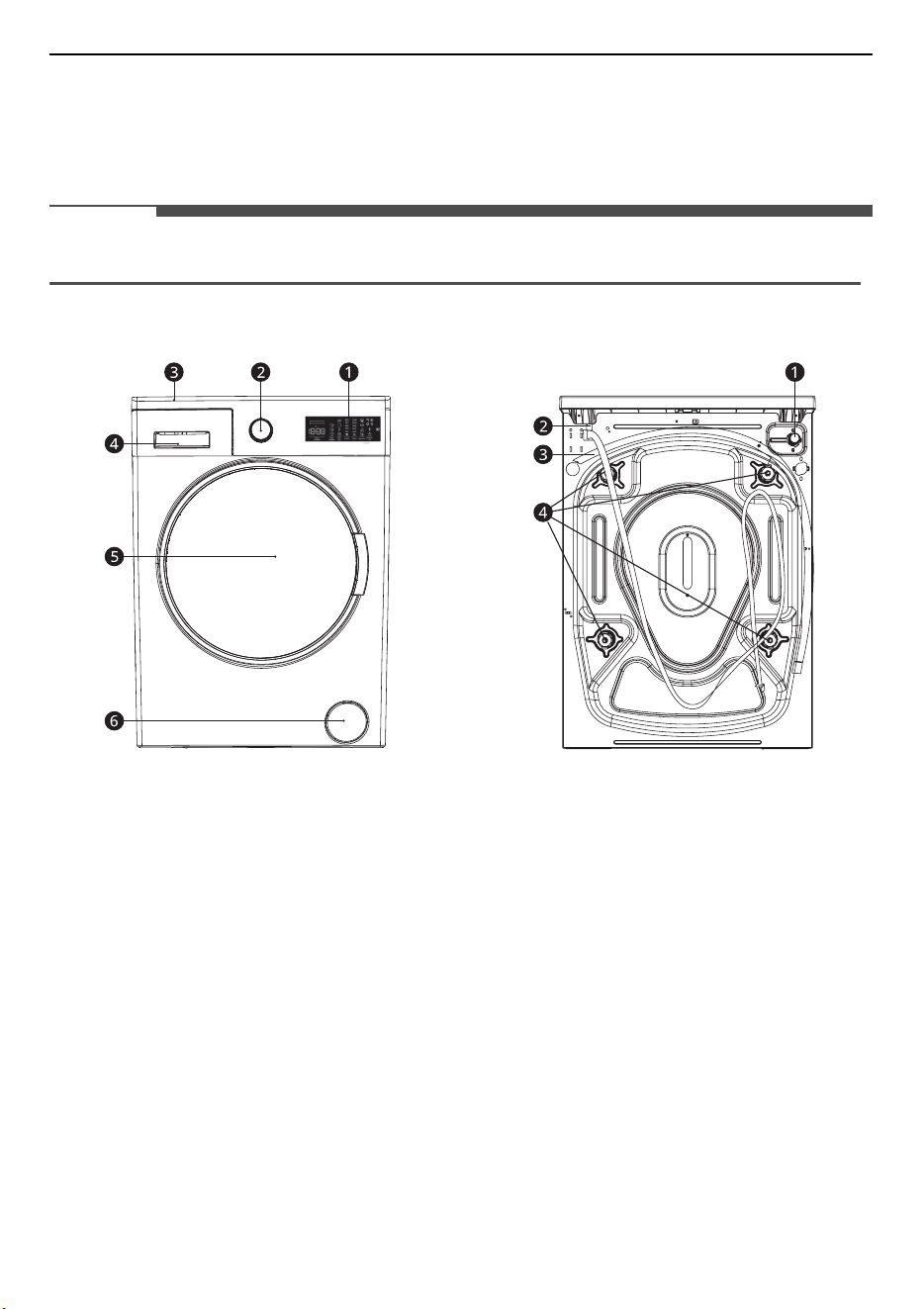

• Page 10 - English - : INSTALLATION INSTALLATION Parts and Specifications NOTE Appearance and specifications may change without notice to improve the quality of the appliance Front View a Control Panel b Programme Knob c Top Plate d Detergent Dispenser Drawer e Drum f Pump Filter Cover Rear View a Water Inlet Valve b Power Cable c Drain Hose d Transit Bolts
• Page 11 - English - : INSTALLATION ENGLISH Specifications Dimensionmm Model F4T209WSE F4T209SSE Power Supply 220240 V 50 Hz Product Weight 740 kg W 600 D 580 D 1055 H850D615 W D D D H
• Page 12: INSTALLATION Accessories Cold Supply Hose Elbow Bracket for Securing Drain Hose Caps for Covering Transit Bolt Holes
• Page 13 - English - : INSTALLATION ENGLISH Installation Place Requirements Before installing the appliance check the following information to make sure that the appliance should be installed in a correct place Installation Location This appliance must be installed on firm flooring to minimize vibration during the spin cycle Concrete flooring is best being far less prone to vibration during the spin cycle than wooden floorboards or a carpeted surface If it is impossible to avoid positioning the appliance next to a gas cooker or coal burning stove an insulation 850 X 600 mm covered with aluminum foil on the side facing the cooker or stove must be inserted between the two appliances Ensure that when the appliance is installed it is easily accessible for an engineer in the event of a breakdown When installing the appliance adjust all four feet using spanner to ensure the appliance is stable Ensure that there is enough room for full opening of the appliance door To ensure sufficient clearance for water inlet hoses drain hose and airflow allow minimum clearances of at least 20 mm at the sides and 100 mm behind the appliance Be sure to allow for wall door or floor moldings that may increase the required clearances WARNING This appliance must only be used for domestic household purposes and should not be used in mobile applications Ventilation Make sure that air circulation around the appliance should not be impeded by carpets rugs etc Ambient Temperature Do not install the appliance in rooms where freezing temperatures may occur Frozen hoses may burst under pressure The reliability of the electronic control unit may be impaired at temperatures below freezing point If the appliance is delivered in winter and temperatures are below freezing place the appliance at room temperature for a few hours before putting it into operation Electrical Connection Do not use an extension cord or double adapter Always unplug the appliance and turn off the water supply after use Connect the appliance to an earthed socket in accordance with current wiring regulations The appliance must be positioned so that the plug is easily accessible Power outlet must be within 1 meter of either side of the appliance Index Clearance mm A A C B C B C Index Clearance mm

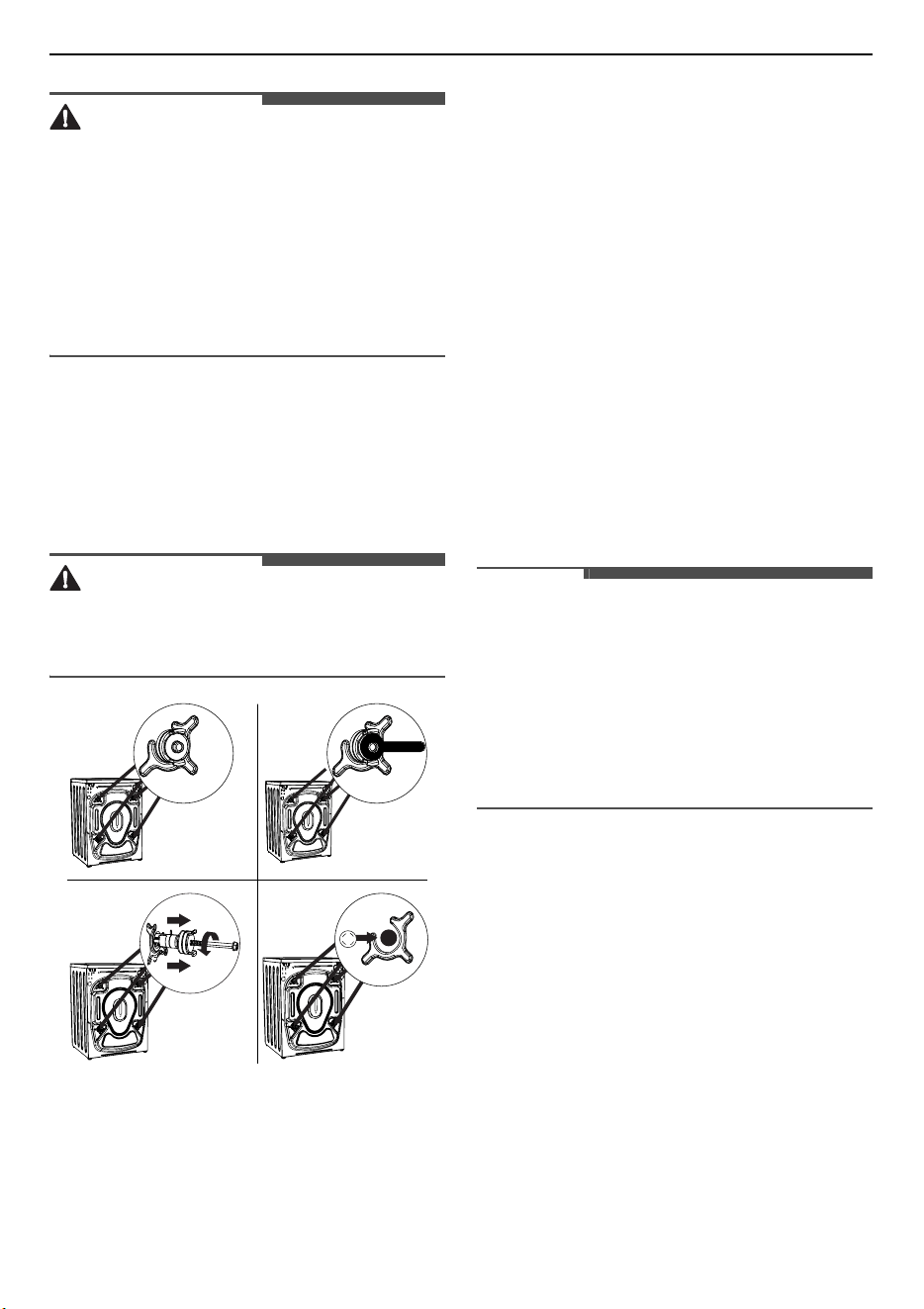

• Page 14 - English - : INSTALLATION WARNING Repairs to the appliance must only be carried out by qualified personnel Repairs carried out by inexperienced persons may cause injury or serious malfunctioning Contact your local authorised LG repairer The power plug must be plugged into an appropriate outlet socket that is installed and groundedearthed in accordance with all local codes and ordinances Levelling the Appliance Removing the Transit Bolt Assemblies CAUTION To prevent the appliance from severe vibration and breakage remove transit bolts and retainers Remove the 4 transit bolts and rubber spacers from the rear of the appliance Loosen the transit bolts by turning them anticlockwise with an appropriate spanner Remove the transit bolts with a straight pull Fit the plastic blanking caps supplied in the accessories bag into the gaps left by the removal of the transit bolts The transit bolts should be stored for future use Checking the Level When pushing down the edges of the top plate diagonally the appliance should not move up and down at all check both directions If the appliance rocks when pushing the top plate of the appliance diagonally adjust the feet again Check whether the appliance is perfectly level after installation NOTE Timber or suspended type flooring may contribute to excessive vibration and unbalance Reinforcement or bracing of the timber floor may need to be considered to stop or reduce excessive noise and vibration Never try to level any uneven floor by putting pieces of wood cardboard or similar materials under the appliance Adjusting and Levelling the Feet When installing the appliance the appliance should be aligned and perfectly level If the appliance is not aligned and level properly the appliance may be damaged or may not operate properly Loosen the plastic locking nut Do not insert pieces of wood etc under the feet XX X

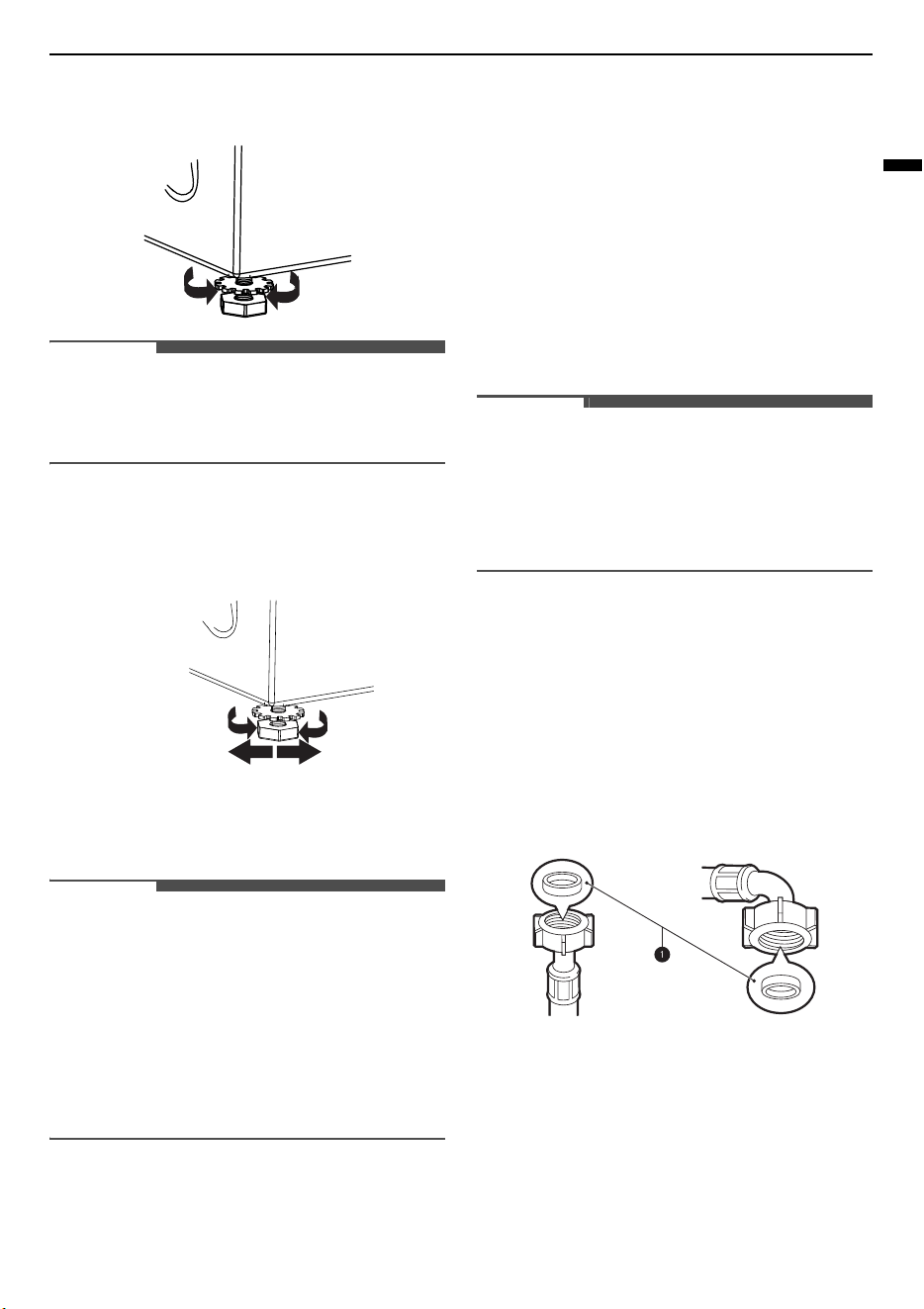

• Page 15 - English - : INSTALLATION ENGLISH Make sure that all four feet are stable and resting on the floor NOTE Do not install the appliance on a plinth stand or elevated surface unless it is manufactured by LG Electronics for use with this model To increase the height of the appliance turn the feet clockwise To decrease the height of the appliance turn the feet anticlockwise Check if all lock nuts at the bottom of the appliance are secured properly NOTE Proper placement and levelling of the appliance will ensure long regular and reliable operation The appliance must be 100 horizontal and stand firmly in position on a hard flat floor It must not Seesaw across corners under the load Do not let the feet of the appliance get wet Failure to do so may cause vibration or noise Connecting the Water Supply Hose Note for Connection Water pressure must be between 50 kPa and 800 kPa 0580 kgfcm² If the water pressure is more than 800 kPa a decompression device should be installed Periodically check the condition of the water supply hose and replace the water supply hose if necessary NOTE Do not overtighten the water supply hose or use mechanical devices to tighten onto the inlet valves No further backflow protection required for connection to the water inlet Checking the Rubber Seal Two rubber seals a are supplied with the water supply hose They are used to prevent water leaks Connection to taps is sufficiently tight Do not use mechanical devices such as multi grips to tighten the water supply hose Ensure that the curved end of the water supply hose is connected to the appliance Connecting the Hose to the Water Tap Connecting ScrewType Hose to Tap with Thread Screw the supply hose connector onto the water supply tap Hand tighten only with the aid of a soft

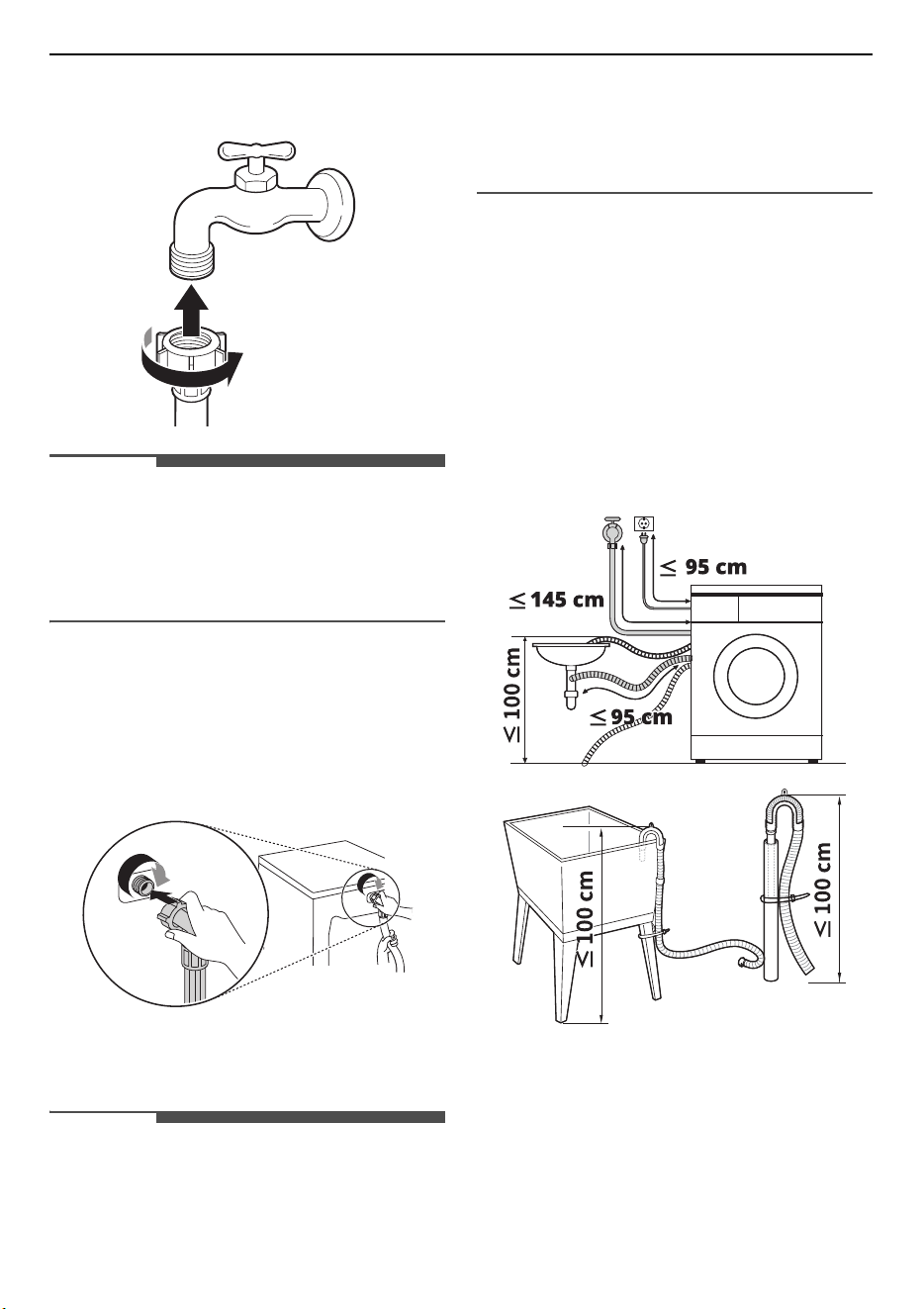

• Page 16 - English - : INSTALLATION cloth Do not overtighten the supply hose with any mechanical device NOTE After connecting the water inlet hose to the water tap turn on the water tap to flush out foreign substances dirt sand sawdust and etc in the water lines Let the water drain into a bucket and check the water temperature Connecting the Hose to the Appliance Screw the supply hose to the water inlet valve on the back of the appliance Do not connect the hose to the hot water supply for models with one water inlet Connect to the cold water supply only NOTE After completing connection if water leaks from the hose repeat the same steps Use the most conventional type of tap for the water supply In case that the tap is square or too big remove the guide plate before inserting the tap into the adaptor Make sure that the hose should not be kinked or trapped Installing the Drain Hose Installing the Drain Hose with the Elbow Bracket The drain hose should not be placed higher than 100 cm above the floor Water in the appliance may not drain or may drain slowly Securing the drain hose correctly will protect the floor from damage due to water leakage If the drain hose is too long do not force it back into the appliance This will cause abnormal noise
• Page 17: INSTALLATION ENGLISH When installing the drain hose to a sink secure it tightly with string
• Page 18 - English - : OPERATION OPERATION Operation Overview Using the Appliance Before the first wash select the Cotton wash programme and add a half amount of the detergent Start the appliance without clothes This will remove possible residues and water from the drum that may have been left during manufacturing Sort clothes and load items Sort clothes by fabric type soil level colour and load size as needed Open the door and load items into the appliance CAUTION Before closing the door ensure that all clothes and items are inside the tub and not overhanging on the rubber door seal where they will become caught when the door is closed Failing to do so will cause damage to the door seal and the clothes CAUTION Remove items from the flexible door seal gasket to prevent clothing and door seal damage Add cleaning products or detergent and softener Add the proper amount of detergent to the detergent dispenser If desired add bleach or fabric softener to the appropriate areas of the dispenser Plug your machine into the mains supply and then turn on the water supply Choose the desired cycle Turn the cycle selector knob until the desired cycle is selected Now select a wash temperature and spin speed Pay attention to the fabric care label of your clothes Begin a programme Press the StartPause button to begin the programme The appliance will agitate briefly without water to measure the weight of the load

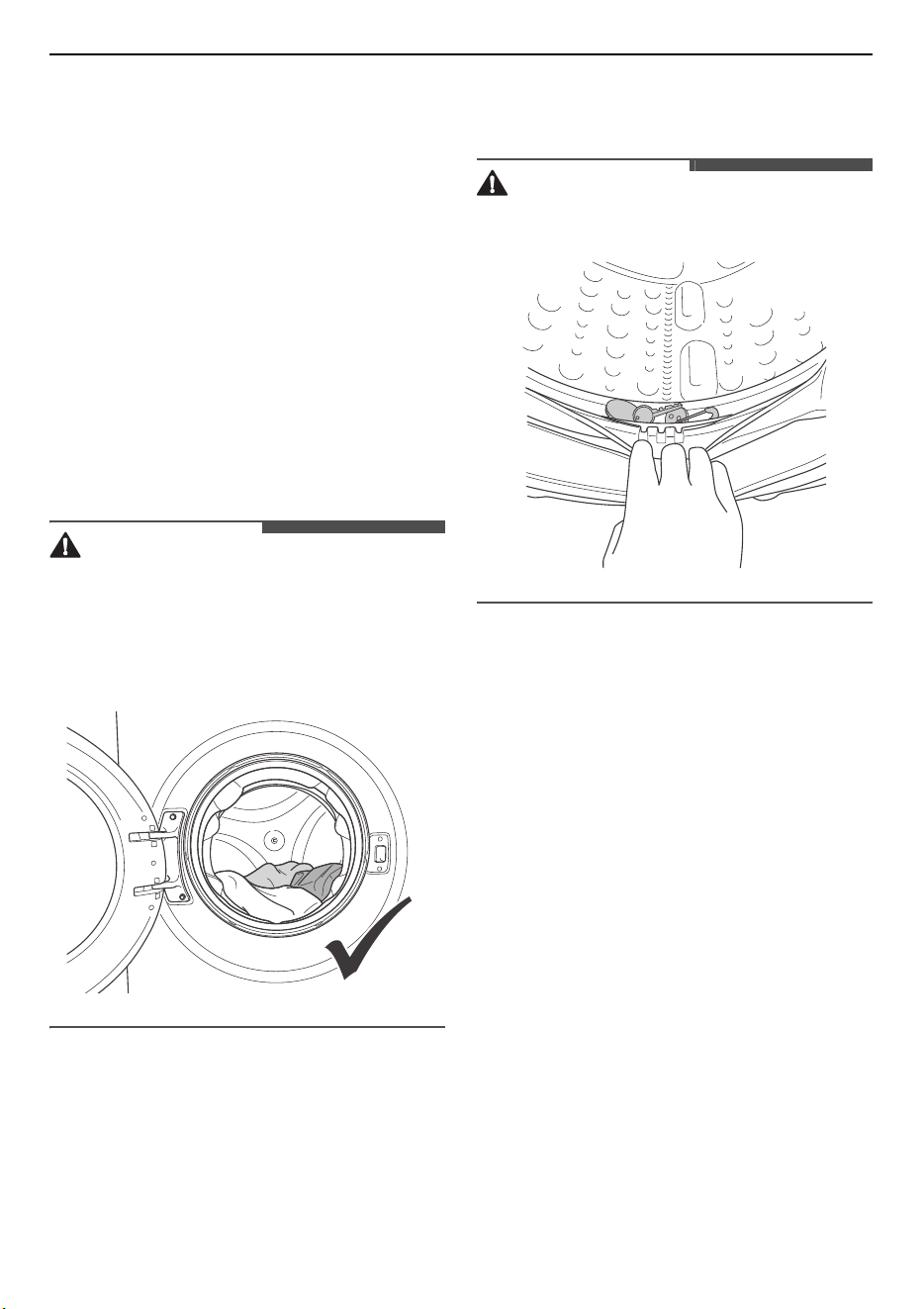

• Page 19 - English - : OPERATION ENGLISH End of programme When the programme is finished ENd will appear on the electronic display NOTE Your machine features a halfload detection system If you put less than half the maximum load of laundry into your machine it will automatically set the halfload function regardless of the programme you selected This means that the selected programme will take less time to complete and will use less water and energy If you want to pausecancel a running program or add laundry Press the button to pause or restart the selected program When you want to add laundry you can use this function LED lights up when the programme starts and the door is unlocked You can open the loading door and add laundry LED lights up when the programme starts and the door is locked The step where you can add laundry has passed Off If you want to cancel a running program turn the program knob to Off position Your machine will stop washing process and the program will be cancelled To drain the water in the machine turn the program knob to any program positionYour machine will drain the water and cancel the program

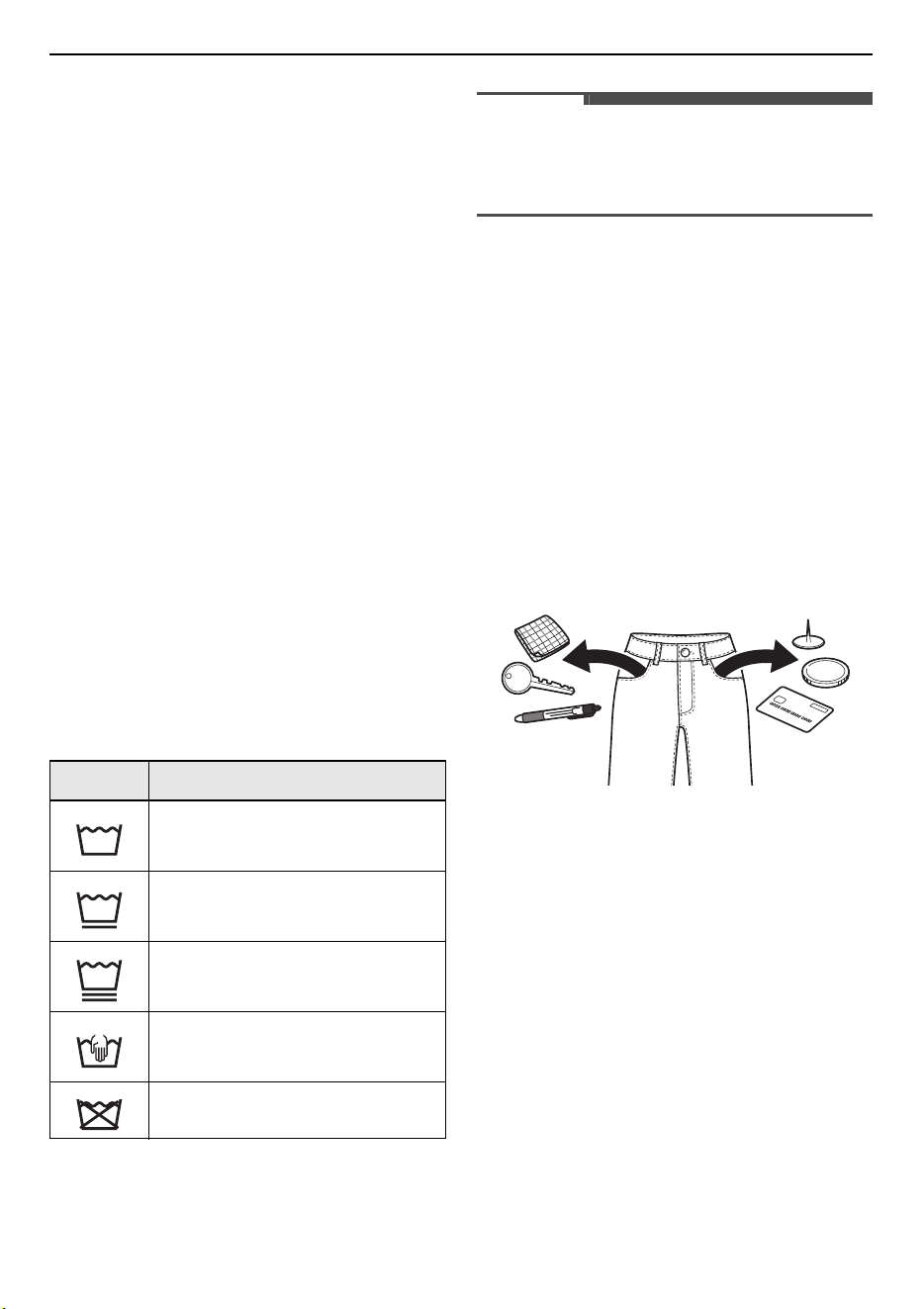

• Page 20 - English - : OPERATION Preparing the Wash Load Sort the wash load for best washing results and then prepare the clothes according to the symbols on their care labels Sorting the Clothes Soil level Heavy Normal Light Separate clothes according to soil level If possible do not wash heavily soiled items with lightly soiled ones Colour White Lights Darks Wash dark or dyed clothes separately from whites or light colours Mixing dyed clothes with light clothes can result in dye transfer or discolouration of lighter clothes Lint Lint producers Collectors Wash separately lint producing fabrics from lint collecting fabrics Lint producers can result in pilling and linting on the lint collectors Checking the Clothes Care Label The symbols tell you about the fabric content of your garment and how it should be washed Symbols on the Care Labels NOTE The dashes under the symbol give you information about the type of fabric and the maximum allowance of mechanical stress Checking the Clothes before Loading To help distribute the load evenly during spinning combine large and small items in a load Do not wash single small items Add 12 similar items to the load to prevent an outofbalance load Check all pockets to make sure that they are empty Items such as nails hair clips matches pens coins and keys can damage both your appliance and clothes Wash delicates stockings underwired bras in a wash net Close zippers hooks and strings to make sure that these items do not snag on other clothes Pretreat dirt and stains by brushing a small amount of detergent dissolved water onto stains to help lift dirt Adding Detergents and Softeners Detergent Dosage Detergent should be used according to the instruction of the detergent manufacturer and selected according to type colour soiling of the fabric and the washing temperature Use only Symbol Wash Fabric type Normal Wash Cotton Mixed Fabrics Easy Care Synthetic Mixed Fabrics Special Delicate Wash Delicates Hand Wash Only Wool Silk Do not wash

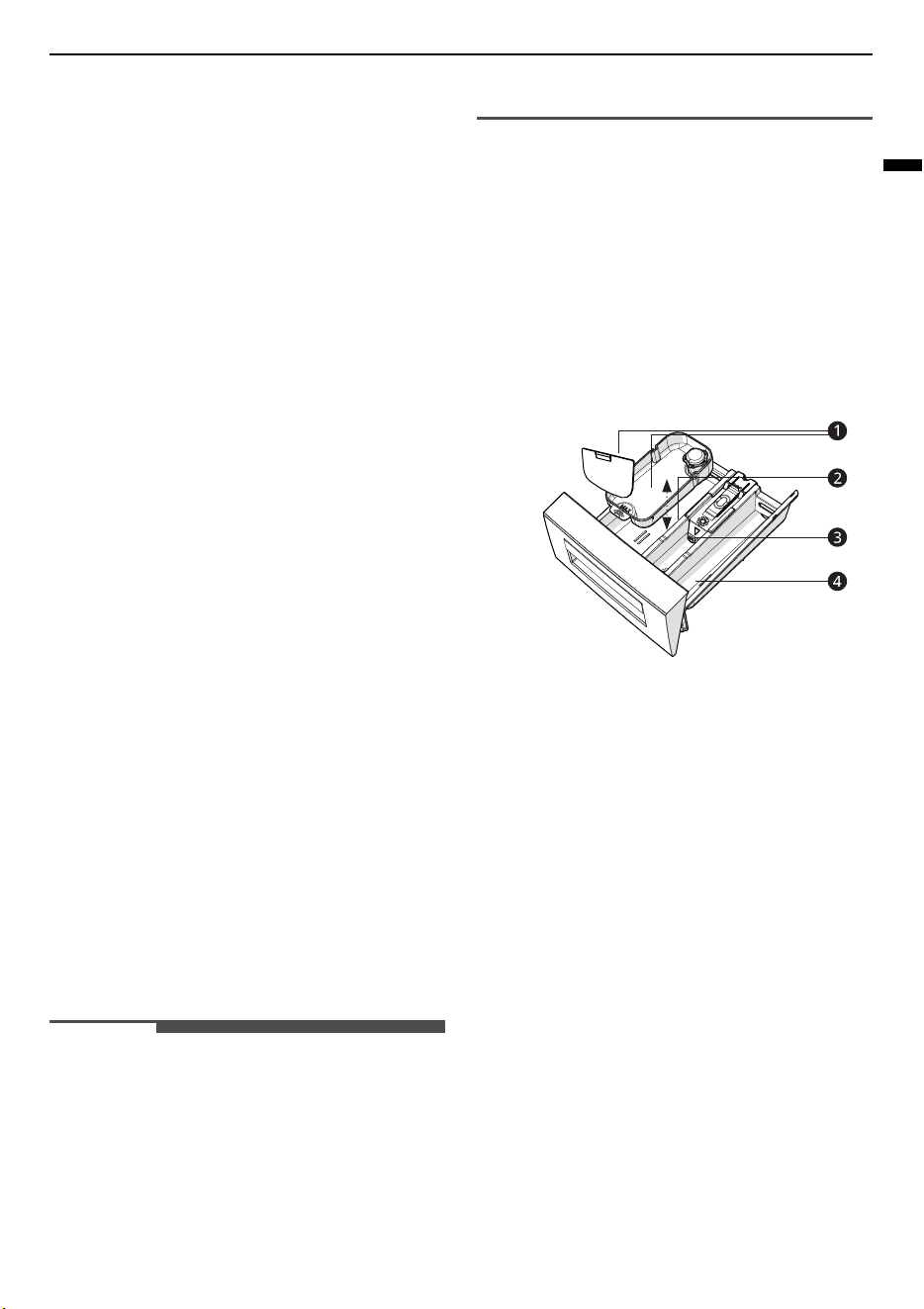

• Page 21 - English - : OPERATION ENGLISH detergents that are suitable for Drum front load type washers If too many suds occur reduce the detergent amount If too much detergent is used too many suds can occur and this will result in poor washing results or cause heavy load to the motor If you wish to use liquid detergent follow the guidelines provided by the detergent manufacturer You can pour liquid detergent directly into the main detergent drawer if you are starting the wash cycle immediately Do not use liquid detergent if you are using the Delay function or if you have selected Pre Wash option as the liquid will dispense immediately and may harden in the drawer or the tub Detergent usage may need to be adjusted for water temperature water hardness size and soil level of the load For best results avoid overdosing the detergent Failing to do so will cause oversudsing Refer to the label of the clothes before adding the detergent and choosing the water temperature Use only suitable detergents for the respective type of clothing Liquid detergent is often designed for special applications eg for coloured fabric wool delicate or dark clothes Powdered detergent is suitable for all types of fabric For better washing results of white and pale garments use powdered detergent with bleach Detergent is flushed from the dispenser at the beginning of the wash cycle NOTE Do not let the detergent harden Doing so may lead to blockages poor rinse performance or odour Full load According to manufacturers recommendation Part load 12 of the normal amount Minimum load 13 of full load Using the Dispenser To add detergent dosage to the dispenser Open the dispenser drawer Add the detergent and softener into the appropriate compartments a Liquid Detergent Attachments b Main wash detergent compartment c Liquid fabric softener compartment d Prewash detergent compartment Gently close the detergent dispenser drawer before starting the cycle Slamming the drawer closed may result in the detergent overflowing into another compartment or dispensing into the drum earlier than programmed Be careful not to get a hand caught in the drawer while closing It is normal for a small amount of water to remain in the dispenser compartments at the end of the cycle Fabric Softener Compartment This compartment holds liquid fabric softener which is automatically dispensed during the final
• Page 22 - English - : OPERATION rinse cycle Either powdered or liquid fabric softener may be used Pour fabric softener to the maximum fill line Pouring excessive fabric softener over the maximum fill line can cause it to dispense too early which may stain the clothes NOTE Do not pour fabric softener directly onto the clothes in the wash drum doing so will cause dark staining on the clothes that will be difficult to remove Do not leave the fabric softener in the detergent drawer for more than 1 day Fabric softener may harden Softener may remain in the dispenser if it is too thick The softener should be diluted if the consistency is too thick so that it can flow easily Do not open the drawer when water is being supplied during the wash Solvents benzene etc must never be used Adding Water Softener A water softener such as antilimescale can be used to cut down on the use of detergent in areas with high water hardness level First add detergent and then the water softener Dispense according to the amount specified on the packaging

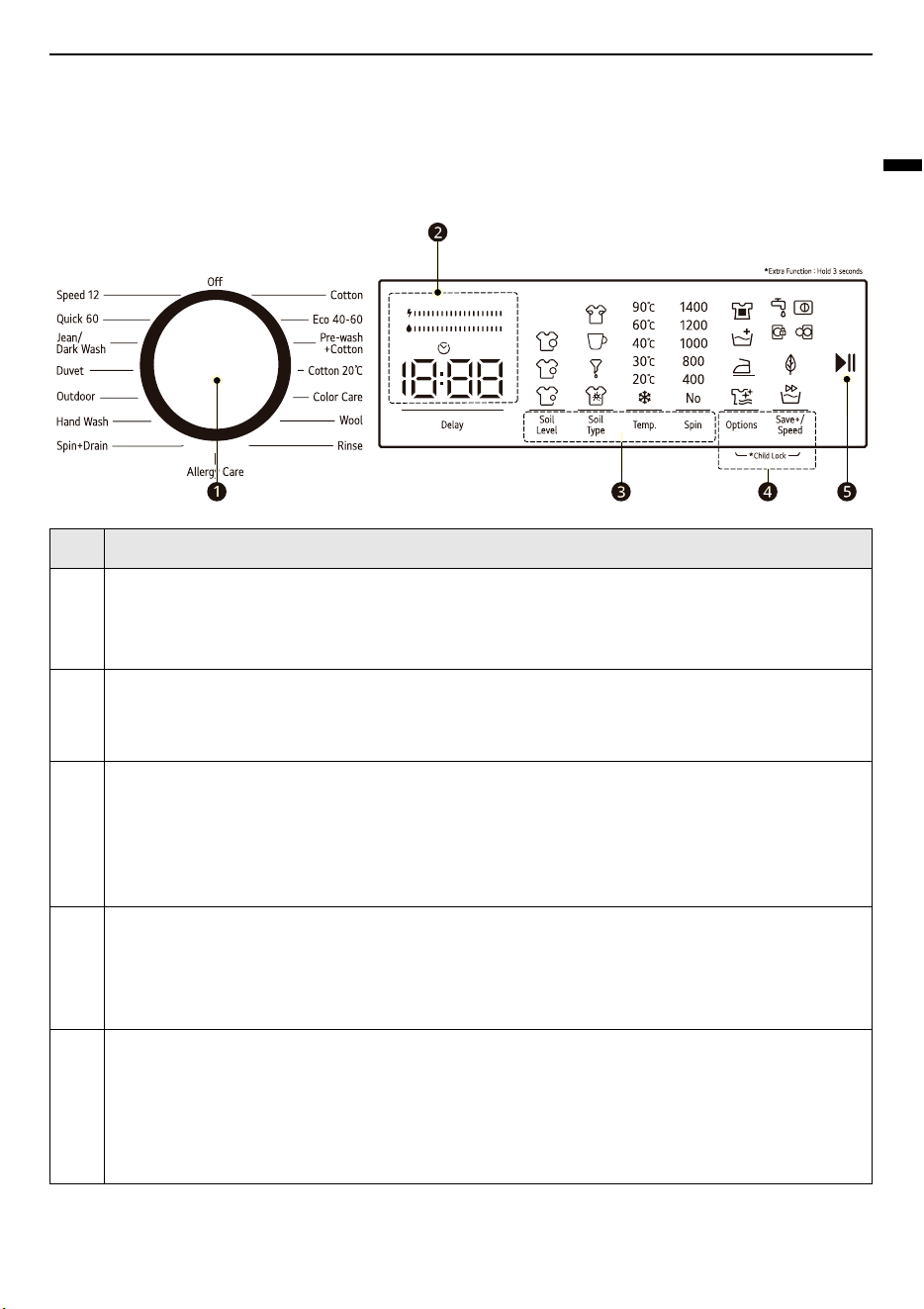

• Page 23 - English - : OPERATION ENGLISH Control Panel The actual control panel may differ from model to model Control Panel Features Description a Programme Knob Programmes are available according to the clothes type The lamp will light up to indicate the selected programme b Display The display shows the settings estimated remaining time options and status messages When the appliance is turned on the default settings in the display will illuminate c Customizing Washing Programme Buttons Use these buttons to adjust the water temperature or spin speed settings for the selected programme The current settings are shown in the display Press the button for that option to select other settings d Extra Options and Functions To use the extra functions press and hold the corresponding button for 3 seconds The corresponding symbol lights up in the display This allows you to select an additional programmes and will light when selected e StartPause Button This button is used to start the wash cycle or pause the wash cycle If a temporary stop of the wash cycle is needed press this button If you switch your machine to the standby mode the StartPause led on the electronic display will blink
• Page 24 - English - : OPERATION Programme Table Washing Programme Cotton 60 C 60 C to 90 C Max Load 9 kg Description Very dirty cotton and flax textiles Underwear linen tablecloth towel max 40 kg bedclothes etc Eco 4060 40 C 40 C to 60 C Max Load 9 kg Description Dirty cotton and flax textiles Underwear linen tablecloth towel max 40 kg bedclothes etc PreWash Cotton 60 C Cold 30 C to 60 C Max Load 9 kg Description Dirty cotton and flax textiles Underwear linen tablecloth towel max 40 kg bedclothes etc Cotton 20 C 20 C Cold to 20 C Max Load 45 kg Description Less dirty cotton and linen textiles Underwear bedsheet tablecloth towel max 20 kg bedcloth etc Color Care 40 C Cold 30 C to 40 C Max Load 9 kg Description Less dirty cotton and linen textiles Underwear bedsheet tablecloth towel max 40 kg bedcloth etc Wool 30 C Cold 30 C Max Load 25 kg Description Woollen laundries with machine wash labels Rinse Cold Max Load 9 kg Description Provides an additional rinse to any type of laundry after the washing cycle Allergy Care 60 C Cold 30 C to 60 C Max Load 4 kg Description Baby laundry
• Page 25 - English - : OPERATION ENGLISH NOTE Select the appropriate water temperature for chosen wash programme Always follow garment manufacturers care label or instructions when washing to avoid damage to clothes Select the proper wash temperature and spin speed for the desired programmes Actual water temperature may differ from the declared cycle temperature Neutral detergent is recommended Spin Drain Cold Max Load 9 kg Description You can use this program for any type of laundry if you want an additional spin step after the washing cycle You can use the drain program to drain the water accumulated inside the machine adding or removing laundry To enable the drain program turn the program knob to the spindrain program After you select spin cancelled using the auxiliary function the program will start to run Hand Wash 30 C Cold 30 C Max Load 25 kg Description Laundry recommended for hand wash or sensitive laundry Outdoor 40 C Cold 30 C to 40 C Max Load 35 kg Description Very dirty or syntheticmixed textiles Nylon socks shirts blouses syntheticincluding trousers etc Duvet 40 C Cold 30 C to 40 C Description For washing a fibre duvet with a machine washable label max 25 kg Jean Dark Wash 30 C Cold 30 C Max Load 35 kg Description Black and dark items made of cotton mixed fibre or jeans Wash inside out Jeans often contains excess dye and may run during the first few washes Wash light and dark coloured items separately Quick 60 60 C Cold 30 C to 60 C Max Load 4 kg Description Dirty cotton coloured and linen textiles washed at 60C in 60 minutes Speed 12 30 C Cold 30 C Max Load 2 kg Description In a short time of 12 minutes Lightly soiled cotton colored and linen textiles your can wash
• Page 26 - English - : OPERATION Extra Options 1 This option is automatically inserted in the programme and can not be deselected NOTE The LED lights up when the option are selected The LED blinks when the option will not be enable Programme Soil Level Soil Type Save mode Speed mode Cotton Eco 4060 1 PreWash Cotton Cotton 20 C 1 Color Care Wool Rinse Allergy Care Spin Drain Hand Wash Outdoor Duvet Jean Dark Wash Quick 60 Speed 12 1 Programme Pre Wash Extra Rinse Easy Ironing AntiAllergy Cotton Eco 4060
• Page 27 - English - : OPERATION ENGLISH Selectable Maximum Spin Speed PreWash Cotton 1 Cotton 20 C Color Care Wool Rinse Allergy Care 1 Spin Drain Hand Wash Outdoor Duvet Jean Dark Wash Quick 60 Speed 12 Programme Spin Speed Default Available Cotton 1400 rpm All Eco 4060 1400 rpm All PreWash Cotton 1400 rpm All Cotton 20 C 1400 rpm All Color Care 1400 rpm All Wool 800 rpm Up to 800 rpm Rinse 1400 rpm Allergy Care 800 rpm Up to 800 rpm Programme Pre Wash Extra Rinse Easy Ironing AntiAllergy
• Page 28 - English - : OPERATION NOTE Actual maximum spin speed may vary depending on the load conditions The values above are rounded to the nearest hundred Spin Drain 1400 rpm All Hand Wash 800 rpm Up to 800 rpm Outdoor 1200 rpm Up to 1200 rpm Duvet 800 rpm Up to 800 rpm Jean Dark Wash 800 rpm Up to 800 rpm Quick 60 1400 rpm All Speed 12 800 rpm Up to 800 rpm Programme Spin Speed Default Available
• Page 29 - English - : OPERATION ENGLISH Extra Options and Functions You can use the extra options and functions to customize the programmes Customizing a Washing Programme Each programme has default settings that are selected automatically After selecting a washing programme you may also customize the settings as your own Select the Soil Level by pressing button a You can wash your laundries in shorter or longer durations at lower or higher temperatures by selecting a soiling level depending on the soiling level on your laundries NOTE Soiling levels are automatically set in some programs You can make changes at your discretion If there are no changes in the level when you touch the button it means there is no soiling level selection in the program you have selected Select the Soil Type by pressing button b WARNING Do not let the stains on your laundries to get dry and stuck in order for the auxiliary function dedicated for soiling level selection to fully perform its functions Clean the solids beforehand Press on the newly formed stains on your laundries with a piece of cloth before starting to wash them in your product Do not scrub NOTE Before starting your machine you can switch between stain types Once you have started the machine you cannot cancel or change the selected stain type You can cancel the washing program of your machine and select the correct stain type and restart the program 1R Soil Type Description Sweat stain This additional function will add a cold rinse before the selected programme This will soak the laundry with cold water to clean the sweat stains before the selected washing programme starts Coffee stain This additional function will add new washing steps for selected program This will prolong the washing duration and apply a washing algortihm to remove the stain Oil stain This additional function will add a cold rinse before the selected programme and will add new washing steps for selected program This will soak the laundry with the cold water before the selected washing program and apply a washing algortihm to clean the oil stain Mix This additional function will add a warm rinse before the selected programme and will add new washing steps for selected washing program This will soak the laundry with warm water to soften the mix stains before the selected washing programme starts
• Page 30 - English - : OPERATION NOTE If the desired results could not be achieved with the set stain selection at the end of washing you may have selected the wrong type restart the washing cycle with the correct stain selection to remove the stain Select the water temperature by pressing button c You can press the washing water temperature setting button to decrease the washing water temperature gradually between the maximum water temperature of the selected program and cold water wash Select the spin speed by pressing button d You can use the speed setting button to set the spin speed for your laundry When you select a new program the selected programs maximum spin speed will be displayed on the spin speed display You can press the spin speed setting button to decrease the spin speed gradually between the selected programs maximum spin speed and the spin cancelled option Run the customized programme by pressing on the StartPause button If you switch your machine to the standby mode the StartPause led on the electronic display will blink Delay You can set this function so that the appliance starts automatically and finishes after a specified time interval Select a washing programme Press the Delay button as necessary Press the StartPause button NOTE After selecting the delay function you can select other functions without touching the Start Pause button and then you can touch the Start Pause button to enable time delay To cancel the delay function If you did not press the StartPause button keep touching the Delay button until the electronic display shows the duration of the program you have selected Once you see the program time on the electronic display this means that the delay has been cancelled If you have pressed the StartPause button to start the machine you just need to touch the delay button once will go off on the electronic display press StartPause button to start the washing cycle EnergyWater Efficiency Bar EnergyWater Efficiency Bar is an efficiency indicator comprising 2 bars The energywater efficiency bar shows the amount of energy and water consumption The bigger the bar is the more energy or water consumption you will have The energywater efficiency bar might extend or shorten depending on the selected programs duration temperature setting spin speed and other auxiliary functions
• Page 31 - English - : OPERATION ENGLISH Child Lock The Child Lock function allows you to lock the buttons so that the wash cycle you have chosen cannot be changed unintentionally To activate child lock Press and hold the Options and Save Speed button simultaneously for at least 3 seconds CL will flash on the electronic display for 2 seconds when the child lock is activated NOTE If the child lock function is active and a programme is running when the programme dial is turned to the Off position and another programme is selected the previously selected programme continues from where it was left To deactivate the child lock Press and hold the Options and Save Speed button simultaneously for atleast 3 seconds until the CL symbol onthe electronic display disappears NOTE Door remains unlocked in case when child lock is active and electricity is cut off Auxiliary Functions Position of the Symbol Pre Wash You can use this auxiliary function to perform pre wash before the main wash cycle for your highly soiled laundry When you use this function you need to add detergent into the prewash dispenser of the detergent drawer To enable the prewash auxiliary function press the Options button until the prewash symbol a turns on If the prewash symbol a is constantly on in the electronic display it means that the auxiliary function is selected NOTE When you want to select the prewash auxiliary function if prewash symbol a does not appear on the display this means that this feature is not available in the selected washing program Extra Rinse You can use this auxiliary function for extra rinsing on your laundry To enable the extra rinse function keep pressing the Options button until the extra rinse symbol b turns on If the extra rinse symbol b is constantly on in the electronic display it means that the auxiliary function is selected NOTE When you want to select the extra rinse auxiliary function if extra rinse symbol b does not appear on the display this means that this feature is not available in the selected washing program Easy Ironing This function allows you to have less creased clothes after washing To enable the easy ironing auxiliary function press the Options button until the easy ironing symbol c turns on If the easy ironing symbol c is constantly on in the electronic display it means that the auxiliary function is selected NOTE When you want to select the easy ironing auxiliary function if easy iron symbol c does not appear on the display this means that this feature is not available in the selected washing program 1R
• Page 32 - English - : OPERATION AntiAllergy You can use this auxiliary function to add another rinse cycle for your laundry Your machine will use hot water in all rinsing steps It is recommended for sensitive skin clothing baby clothes and underclothes To enable the antiallergy auxiliary function keep pressing the Options until the anti allergy function symbol d turns on If the anti allergy symbol d is constantly on in the electronic display it means that the auxiliary function is selected NOTE When you want to select the antiallergy auxiliary function if antiallergy symbol d does not appear on the display this means that this feature is not available in the selected washing program Save mode If you select this auxiliary function your machine will slightly extend the duration of the washing program However it will use less energy and water for the washing cycle To enable this function you can touch the Save Speed button on the display panel to turn on the eco washing symbol e Speed mode If you select this auxiliary function your machine will shorten the duration of the washing program It is recommended to load the machine with half or less than half of the capacity of the selected washing program To enable this function you can touch the Save Speed button on the display panel to turn on the quick wash symbol f NOTE If you load the machine with half or less than half of the laundry capacity of the selected washing program the machine will detect it thanks to the half load detection system and this way it will wash your laundry with less energy and less water in a shorter time When your machine detects half load quick wash symbol f will automatically turn on in the display panel
• Page 33 - English - : MAINTENANCE ENGLISH MAINTENANCE WARNING Unplug the appliance before cleaning to avoid the risk of electric shock Failure to follow this warning may result in serious injury fire electric shock or death Never use harsh chemicals abrasive cleaners or solvents to clean the appliance They may damage the finish Cleaning After Every Wash What to Clean Always remove items from the washing machine as soon as the cycle is complete Leaving damp items in the washing machine can cause wrinkling colour transfer and odour After the wash cycle is finished wipe the door and door seal to remove any moisture Leave the door slightly open to dry the drum Wipe the appliance with a dry cloth to remove any moisture WARNING Leave the door open to dry inside of the appliance only if the children are supervised at home Cleaning the Exterior and Drum Proper care of your appliance can extend the service life Exterior Immediately wipe off any spills Wipe with a damp cloth and then again with a dry cloth ensuring there is no moisture in cabinet joints or crevices Do not press on the surface or the display with sharp objects Door Wash with a damp cloth on the outside and inside and then dry with a soft cloth Drum Do not leave metallic objects such as needles paper clips coins etc in your machine These objects lead to the formation of rust stains in the drum To clean such rust stains use a nonchlorine cleaning agent and follow the instructions of manufacturer of the cleaning agent Never use wire wool or similar hard objects for cleaning rust stains WARNING Do not attempt to separate any panels or disassemble the appliance Do not apply any sharp objects to the control panel in order to operate the appliance
• Page 34 - English - : MAINTENANCE Cleaning the Appliance Periodically Cleaning the Water Inlet Filter WARNING The filters at the water inlet valve may become clogged due to water quality or lack of required maintenance and may break down This may cause a water leak Any such breakdowns are out of the scope of the warranty The water inlet filter collects lime or any sediment that may be in water that is supplied to the appliance Clean the inlet filter every 2 months or so or more often if the water is very hard or contains traces of limescale Turn off the water supply taps to the appliance if the appliance is to be left for a certain period of time eg holiday especially if there is no floor drain gully in the immediate vicinity Turn off the power and the water tap and then unscrew the water inlet hose To remove the water inlet filter from the water inlet valve use a pair of longnosed pliers to gently pull on the plastic bar in the filter A second water inlet filter is located in the tap end of the water inlet hose To remove the second water inlet filter use a pair of longnosed pliers to gently pull on the plastic bar in the filter Clean the filter thoroughly with a soft brush and wash with soapy water and rinse thoroughly Reinsert the filter by gently pushing it back into place Cleaning the Drain Pump Filter The drain filter collects threads and small objects that may have been accidentally left in the clothes Make sure that the filter is clean every 2 months to ensure smooth running of your appliance Allow the water to cool before cleaning the drain pump filter To clean the pump filter You may use the washing powder spade supplied with your machine or liquid detergent level plate to open the pump cover Lodge the end of the powder spade or liquid detergent level plate in the opening of the cover and gently press backwards The cover will open Before opening the filter cover place a container under the filter cover to collect any water left in the machine

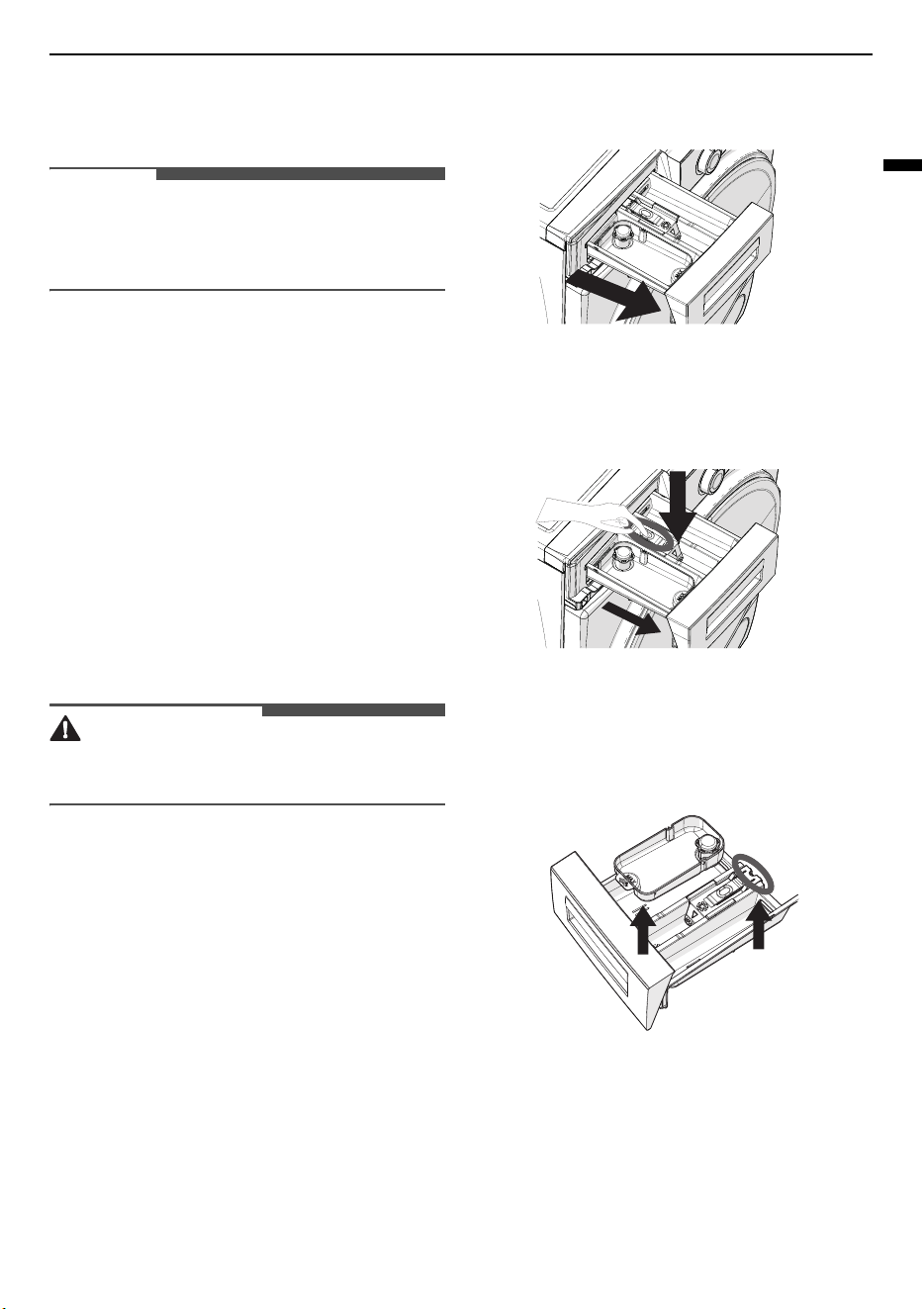

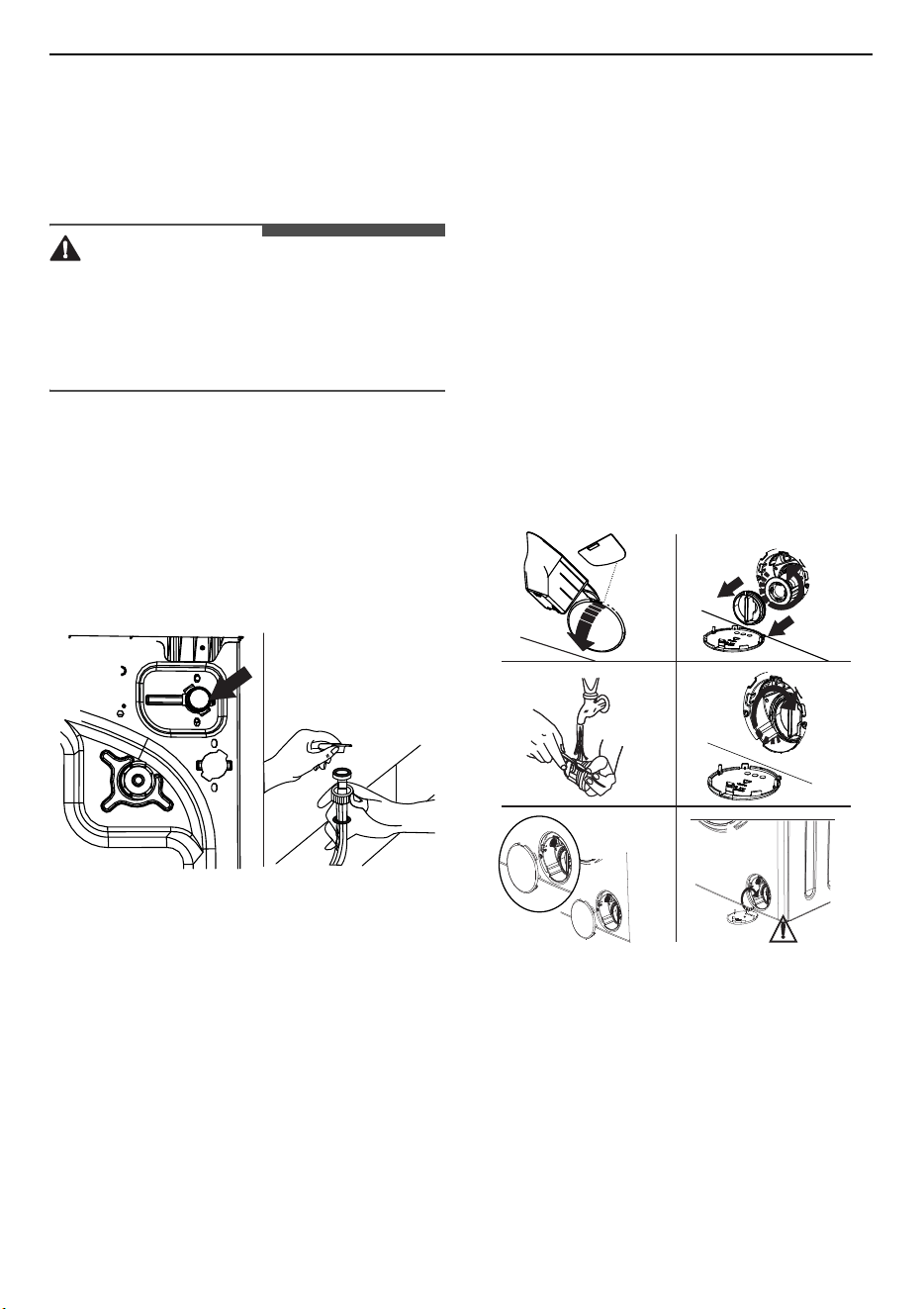

• Page 35 - English - : MAINTENANCE ENGLISH Loosen the filter by turning anticlockwise and remove by pulling Wait for the water to drain NOTE Depending on the amount of water inside the machine you may have to empty the water collection container a few times Remove any foreign materials from the filter with a soft brush After cleaning refit the filter by inserting it and turning clockwise When closing the pump cover ensure that the mountings inside the cover meet the holes on the front panel side Close the filter cover CAUTION Be careful when draining as the water may be hot Cleaning the Dispenser Drawer Detergent and fabric softener can build up in the dispenser drawer Liquid detergents can remain under the dispenser drawer and not dispense completely Remove the drawer and inserts and check for buildup of cleaning products every 2 months Pull the drawer forwards until it is fully extended Press the region shown below inside the detergent drawer you have pulled all the way back and continue pulling and remove the detergent drawer from its place Remove the detergent drawer and disassemble the flush stopper Clean thoroughly to completely remove any softener residue Refit the flush stopper after cleaning and check that it is seated properly Rinse with a brush and lots of water Collect the residues inside the detergent drawer slot so that they dont fall inside your machine Wipe any moisture with a dry towel or cloth after cleaning
• Page 36: MAINTENANCE Reassemble the components of the drawer to the proper compartments and insert the detergent dispenser drawer
• Page 37 - English - : TROUBLESHOOTING ENGLISH TROUBLESHOOTING Operation of your appliance can lead to errors and malfunctions The following tables contain possible causes and notes for resolving an error message or malfunction It is recommended to read the tables carefully below in order to save your time and money that may cost for calling to LG Electronics service centre Before Calling for Service Your appliance is equipped with an automatic errormonitoring system to detect and diagnose problems at an early stage If the appliance does not function properly or does not function at all check the following tables before calling to LG Electronics service centre Error Messages Noises You Might Hear Symptoms Possible Cause amp Solution EO1 The door of the appliance is not shut properly Shut the door properly until you hear a click If the appliance persists to indicate fault turn off your machine unplug it and contact the nearest authorised service agent immediately EOz The water pressure or the water level inside the appliance may be low Check the tap is fully turned on Mains water may be cutoff If the problem still continues your machine will stop after a while automatically Unplug the machine turn off your tap and contact the nearest authorised service agent EO3 The pump is faulty or pump filter is clogged or electrical connection of the pump is faulty Clean the pump filter If the problem persists contact the nearest authorised service agent EO4 The appliance has excessive amount of water The appliance will discharge water by itself Once the water has drained turn off the appliance and unplug it Turn off the tap and contact the nearest authorised service agent Symptoms Possible Cause amp Solution Rattling and clanking noise Foreign objects such as keys coins or safety pins may be in the drum Stop the appliance check the drum for foreign objects If the noise continues after the appliance is restarted call for service
• Page 38 - English - : TROUBLESHOOTING Operation Thumping sound Heavy clothes may produce a thumping sound This is usually normal If the sound continues the appliance is probably out of balance Stop and redistribute the clothes The clothes may be out of balance Pause the programme and redistribute the clothes after the door unlocks Vibrating noise Package materials are not removed Remove package materials The clothes may be unevenly distributed in the drum Pause the programme and redistribute the clothes after the door unlocks Not all levelling feet are resting firmly and evenly on the floor See the Levelling the Appliance instruction to adjust the levelling of the appliance Floor not rigid enough Check if the floor is sold and does not flex See the Installation Place Requirements to select the proper location Symptoms Possible Cause amp Solution Water is leaking House drain pipes are clogged Unclog waste pipes Contact plumber if necessary Leakage is caused by improper installation of drain hose or clogged drain hose Clean and straighten the drain hose Check and clean the drain filter regularly Drain pump filter cap is not fitted correctly Refit the drain pump filter Appliance does not operate Appliance is unplugged Make sure that the cord is plugged securely into a working outlet Water supply is turned off Turn the water supply tap completely Controls are not set properly Make sure that the programme is correctly set Close the door and press the StartPause button Symptoms Possible Cause amp Solution
• Page 39 - English - : TROUBLESHOOTING ENGLISH Appliance does not operate Door is open Close the door and make sure that nothing is caught under the door preventing it from closing completely Circuit breakerfuse is trippedblown Check house circuit breakersfuses Replace fuses or reset breaker The appliance should be on a dedicated branch circuit The appliance will resume the programme where it stopped once power is restored StartPause was not pressed after a programme was set Press the StartPause button Extremely low water pressure Check another tap in the house to make sure that household water pressure is adequate Appliance is heating the water or making steam The drum may stop operating temporarily during certain cycles while water is safely heated to a set temperature Appliance stops for a few minutes and then restarts A motor protection device has been activated to prevent overheating of the motor This is normal If the motor protection device is activated the appliance will stop for a few minutes and then start again Buttons may not function properly The Child Lock option is activated Deactivate the Child Lock option if necessary Door does not open The door cannot be opened for safety reasons once the appliance starts This is normal You can safely open the door after H turns off Appliance is not filling properly Inlet filter clogged Make sure the inlet filters on the fill valves are not clogged Inlet hoses may be kinked Check that inlet hoses are not kinked or clogged Insufficient water supply Make sure that both hot and cold water taps are turned on all the way Hot and cold supply hoses are reversed Check supply hose connections Appliance does not drain water Kinked drain hose Ensure that the drain hose is not kinked Drain located higher than 1 m above the floor Make sure that the drain hose is no higher than 1 m above the bottom of the appliance Symptoms Possible Cause amp Solution
• Page 40 - English - : TROUBLESHOOTING Performance Detergent is not dispensed completely or not dispensed at all Too much detergent is used Follow the guidelines provided by the detergent manufacturer Drain Pump Filter may be blocked Clean the Drain filter Cycle time is longer than usual The load is too small Add more items to allow the appliance to balance the loads Heavy articles are mixed with lighter items Always try to wash articles with similar weight in order to allow the appliance to evenly distribute the weight of the load for spinning The load is out of balance Manually redistribute the load if articles have become tangled Cycle end is delayed Unbalance is detected or suds removing programme is on This is normal The time remaining shown on the display is only an estimated duration Actual time may vary Symptoms Possible Cause amp Solution Poor stain removal Previously set stains Articles that have been previously washed may have stains which have been set These stains may be difficult to remove and may require hand washing or pretreating to aid in stain removal Staining Bleach or softener is dispensed too soon Dispenser compartment is overfilled It makes bleach or softer dispensed rapidly Always measure bleach or softener to prevent overfilling Close the detergent dispenser slowly Bleach or softener was added directly to the clothes in the drum Always use the detergent dispenser to ensure that bleach or softener is properly dispensed at the right time in the programme Clothes were not properly sorted Always wash dark colours separately from light colours and whites to prevent discoloration Never wash heavily soiled items with lightly soiled items Wrinkling Appliance is not unloaded promptly Always remove items from the appliance as soon as the programme is complete Symptoms Possible Cause amp Solution
• Page 41 - English - : TROUBLESHOOTING ENGLISH Odour Performing an Emergency Water Evacuation and Opening the Locked Door When the appliance is running any power cut or when the programme is not yet complete the door will remain locked Unplug the appliance Drain the water following the instructions given in the quotCleaning the Drain Pump Filterquot Wrinkling Appliance is overloaded The appliance can be fully loaded but the drum should not be tightly packed with items The door of the appliance should be closed easily Hot and cold water supply hoses are reversed Hot water rinse can set wrinkles in garments Check the supply hose connections Spin speed may be too high Set the spin speed to suit the garment type Symptoms Possible Cause amp Solution Musty or mildewy odour in appliance Odours can occur if the drain hose is not properly installed causing siphoning water flowing back inside of the appliance When installing the drain hose make sure that it does not get kinked or blocked If the detergent dispenser is not cleaned regularly odours can occur from mold or foreign substances Remove and clean the detergent dispenser especially the top and bottom of the dispensers opening Symptoms Possible Cause amp Solution

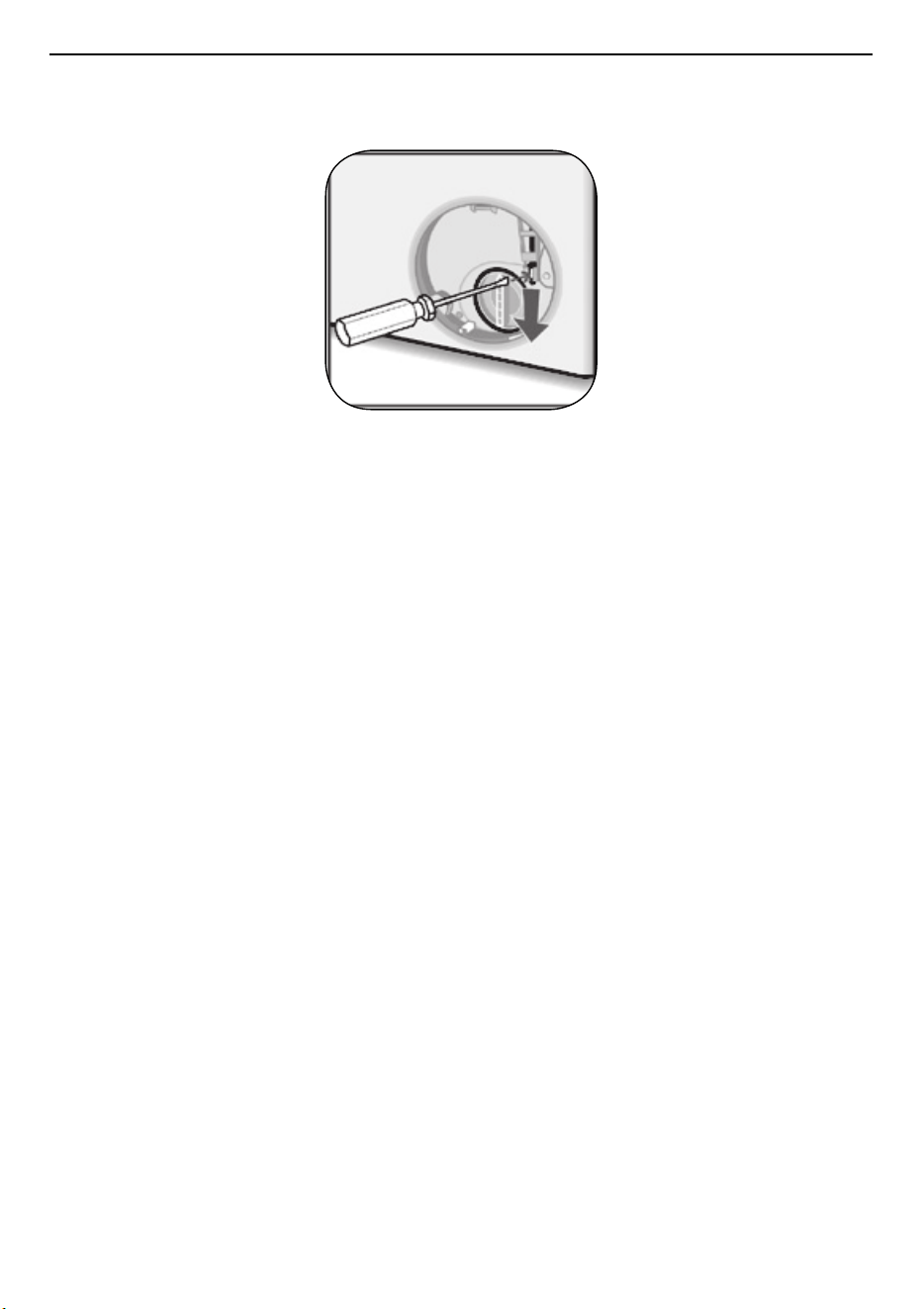

• Page 42 - English - : TROUBLESHOOTING Pull down the emergency door opening mechanism with the help of a tool and open the door at the same time Move the emergency opening handle to the open position after being closed again if the door remains locked Customer Care and Service Contact an LG Electronics customer information centre To find an LG Electronics authorised service personnel visit our website at wwwlgcom and follow the instructions found there Selfrepair is not recommended as it could further damage the device and void the guarantee Spare parts referenced in Regulation 20192023 are available for a minimum duration of 10 years
• Page 43 - English - : APPENDIX ENGLISH APPENDIX Technical Data Consumption Data Unit Description Common Programmes 1 It is able to clean normally soiled cotton laundry declared to be washable at 40 C or 60 C together in the same cycle and that this programme is used to assess the compliance with the EU ecodesign legislation EU 20192023 NOTE The values for the common programs with the exception of the Eco 4060 cycle are indicative only Scan the QR code on the energy label supplied with the appliance which provides a web link to the information related to the performance of the appliance in the EU EPREL database Keep the energy label for reference together with the owners manual and all other documents supplied with the appliance kg Laundry load hmm Programme duration kWh Energy consumption C Maximum temperature inside the treated textile Litres Water consumption rpm Maximum spin speed Remaining moisture at the end of spinning phase The higher is the spin speed the higher is the noise and the lower is the remaining moisture Programme kg hmm kWh C Litres rpm Cotton 90 C 9 315 2300 81 76 1330 530 Cotton 60 C 9 225 0950 56 39 1330 530 Cotton 20 C 45 059 0100 17 33 1330 530 Quick 60 4 100 0740 54 30 1330 530 Outdoor 35 150 0710 44 49 1200 280 Eco 4060 Full 1 9 348 0962 38 56 1330 525 Eco 4060 Half 1 45 245 0342 26 31 1330 525 Eco 4060 Quarter 1 25 215 0193 23 22 1330 525
• Page 44 - English - : APPENDIX NOTE The model name can be found on the rating label of the appliance open the door which is just around the opening to the drum To find the same information in EPREL visit httpsepreleceuropaeu and search using the model name Valid from 1st March 2021 Note for customers Regulation EU 20192023 valid from 1st March 2021 is related to the Energy Efficiency classes by Regulation EU 20192014 The test results depend on water pressure water hardness water inlet temperature room temperature type and amount of load degree of soiling utilized detergent fluctuations in the main electricity supply and chosen additional options
