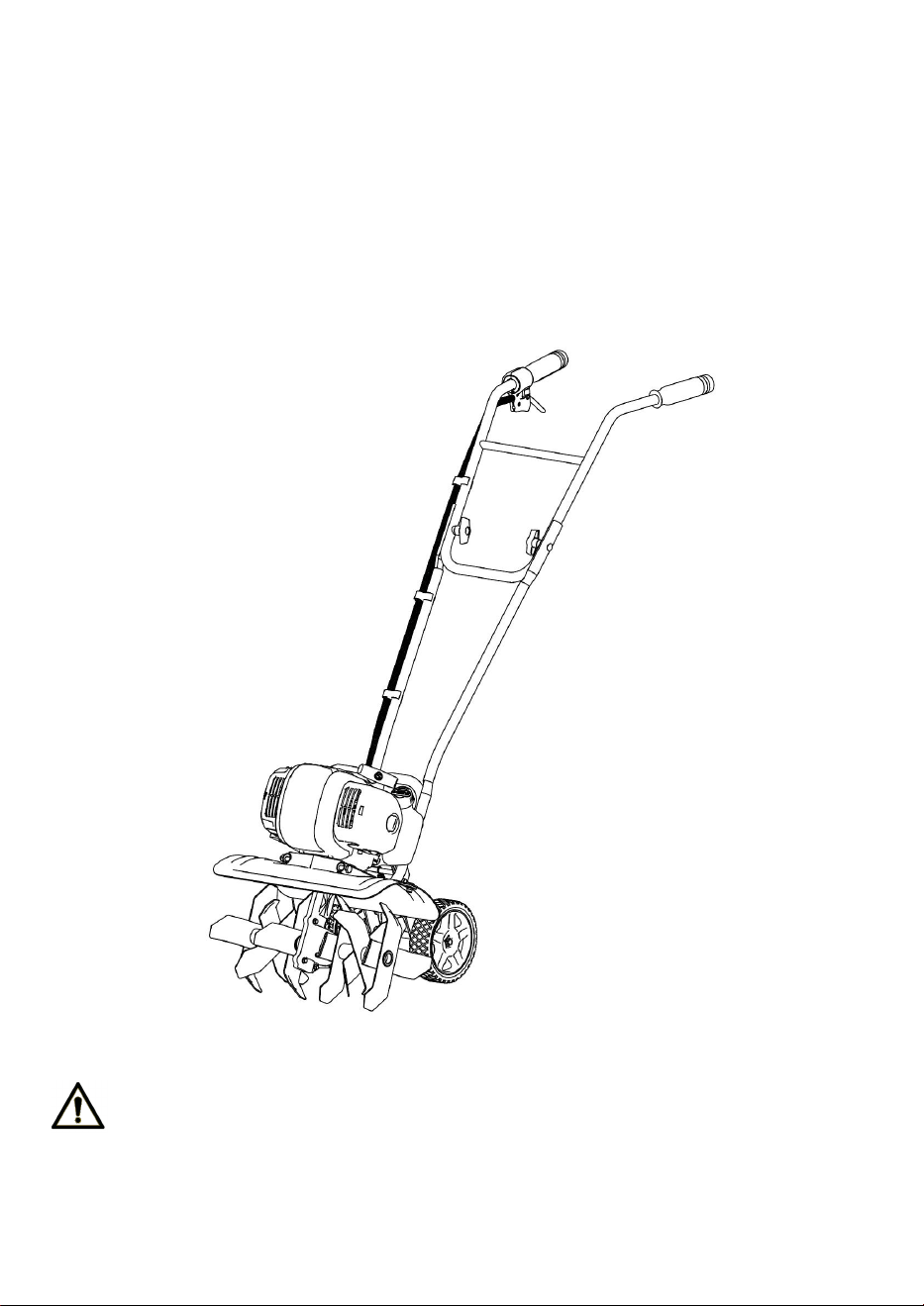

OPERATOR’S MANUAL
53CC CULTIVATOR
WB53CULT
CAUTION: To reduce the risk of injury, the user must read
and understand the Operator’s Manual before using this product.
Follow all its safety rules and operating instructions. Save these
instructions for future reference.
●SAFETY &INTERNATIONAL SYMBOLS●
This operator's manual describes safety and international symbols
and pictographs that may appear on this product. Read the operator's
manual for complete safety,assembly, operating and maintenance
and repair information.
Caution/Warning.
WARNING-To reduce the risk of injury, user must read
instruction manual.
Keep hands and feet away from sharp rotating parts-
danger of injury! When cleaning, repairing, or inspecting,
make certain the working tool and all moving parts have
stopped.
Risk of flying objects or debris.
Be aware of that there is a risk of flying objects and/or
debris when using the machine keep bystanders away.
Wear eye protection.
Use hearing protection.
Avoid power lines, use in dry conditions.
Do not expose to rain.

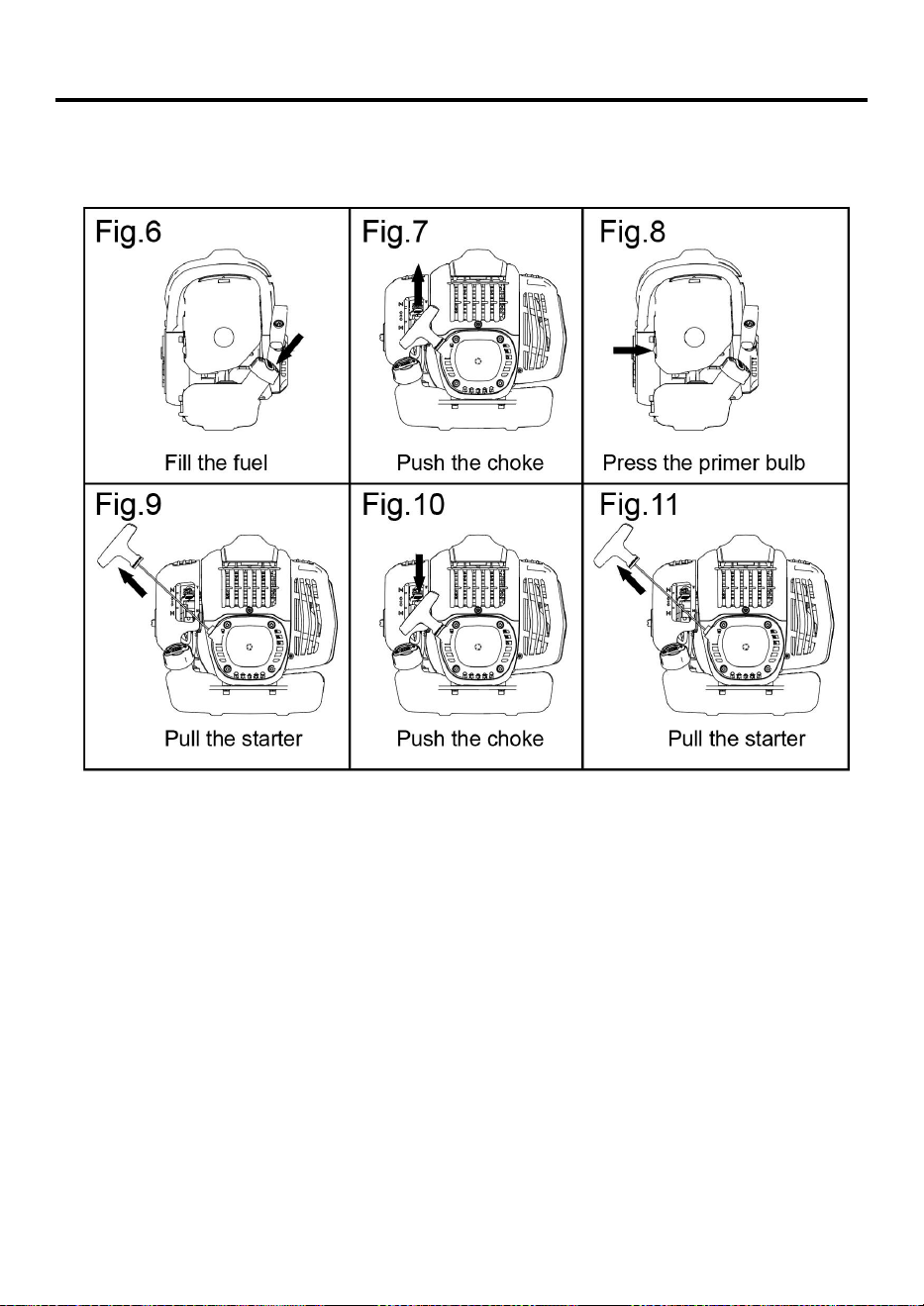

Push primer bulb, fully and slowly, 7 times.
2
●SAFETY &INTERNATIONAL SYMBOLS●
Carry unit with carry handle.
Keep bystanders a minimum of 15m (50ft.) away while
operating unit.
Indicates danger, warning. Precautions that involve your
safety.
DO NOT USE E85 OR E15 FUEL IN THIS UNIT. It has
been proven that fuel containing greater than 10%ethanol
will likely damage this engine and void the warranty.
Always use clean, fresh unleaded fuel.
Refer to operator's manual for the proper type of oil.
Hot surface. Do not touch a hot muffler or cylinder. You
may get burned. These parts get extremely hot from
operation. They remain hot for a short time after the unit is
turned off.
Do not smoke in the work area, around the product and in
the vicinity of flammable materials!
Warning! Petrol is very flammable. Avoid smoking, flame or
sparks near petrol.
3
●SAFETY &INTERNATIONAL SYMBOLS●

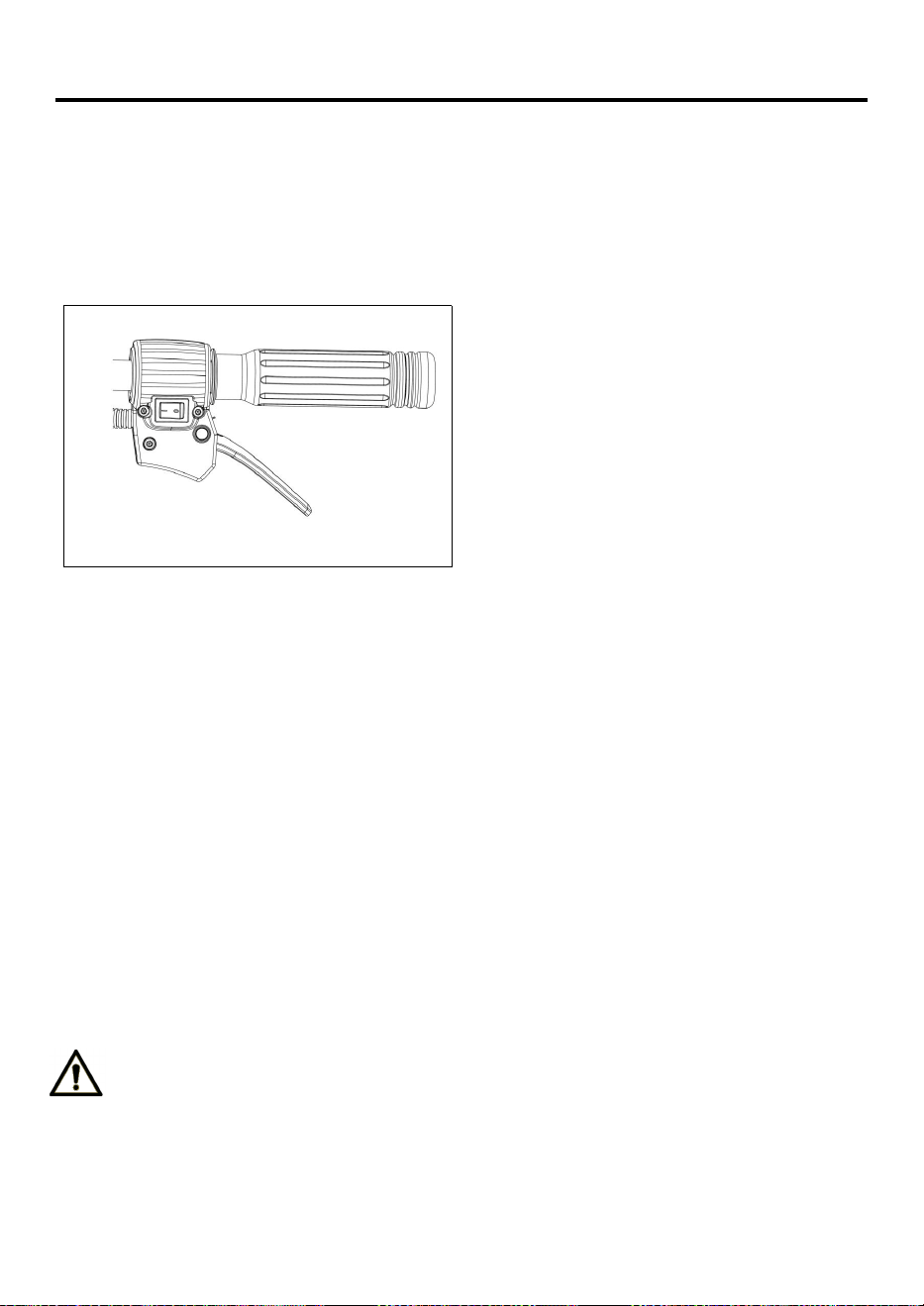

ON/OFF STOP CONTROL: ON / START / RUN
ON/OFF STOP CONTROL: OFF or STOP
Warning! All operator’s should be trained before operating
the machine.
Warning! Keep bystanders away.
Warning! Look behind you when operating the machine in
reverse.
Warning! Do not operate over buried lines.
Warning! Shut off the engine and disconnect the spark plug
and read the Operator’s Manual before performing
maintenance.
4
Table of Contents
Safety information.............................................................................6
Pre-Assembly..................................................................................15
Specifications...........................................................................15
Hardware Included...................................................................15
Other Items Included................................................................15
Package Contents....................................................................16
Assembly.........................................................................................17
Operation........................................................................................20
Maintenance....................................................................................26
Storage............................................................................................32
Troubleshooting..............................................................................34
5
Safety Information
WARNING: Always wear the appropriate Personal Protective
Equipment (PPE) when operating this machine.
DANGER: Signals an EXTREME hazard. Failure to obey a
safety DANGER symbol WILL result in serious injury or death to
yourself or to others.
WARNING: Crude oil, gasoline, diesel fuel and other petroleum
products can expose you to chemicals including toluene and
benzene, which are known to the State of California to cause cancer
and birth defects or other reproductive harm. These exposures can
occur in and around oilfields, refineries, chemical plants, transport
and storage operations such as pipelines, marine terminals, tank
trucks and other facilities and equipment. For more information go to:
www.P65Warnings.ca.gov/petroleum.
WARNING: Signals a SERIOUS hazard. Failure to obey a safety
WARNING symbol CAN result in serious injury to yourself or to
others.
CAUTION: Signals a MODERATE hazard. Failure to obey a
safety CAUTION symbol MAY result in property damage or injury to
yourself or to others.
CALIFORNIA PROPOSITION 65
WARNING: This product contains a chemical known to the state
of California to cause cancer, birth defects or other reproductive
harm.
WARNING: ENGINE EXHAUST, SOME OF ITS
CONSTITUENTS AND CERTAIN FINISHED COMPONENTS
CONTAIN OR EMIT CHEMICALS KNOWN TO THE STATE OF
CALIFORNIA TO CAUSE CANCER AND BIRTH DEFECTS OR
OTHER REPRODUCTIVE HARM.WASH HANDS AFTER
HANDLING.
6
Safety Information(continued)
Read the operator's manual and follow all warnings and safety
instructions. Failure to do so can result in serious injury to the
operator and/or bystanders.
INTENDED USE
This engine gasoline powered cultivator is intended for loosening and
working up the soil in a garden and for tilling coarse soil
for mixing in fertilizer, peat and compost in domestic areas. This
product may not be used to till extremely dry or wet soil.
This product is intended for private domestic use only, not for any
commercial trade use. It must not be used for any purposes other
than those described.
GENERAL SAFETY RULES
● Read, understand, and follow all instructions on the machine and
in the manual(s ). Be thoroughly familiar with the controls and the
proper use of the machine before starting.
● Use this equipment for its intended purpose only.
● Familiarize yourself with all of the safety and operating decals on
this equipment and on any of its attachments or accessories.
● Do not put hands or feet near or under rotating parts.
● Only allow responsible individuals who are familiar with the
instructions to operate the machine. Do not allow children to operate
this machine. Do not allow adults to operate the machine without
proper instruction.
● Thoroughly inspect the area where the machine is to be used and
remove all foreign objects.Your equipment can propel small objects
at high speed causing injury or property damage. Stay away from
breakable objects, such as house windows, automobiles,
greenhouses, etc.
● Wear appropriate clothing such as a long-sleeved shirt or jacket.
Also wear long trousers or slacks. Do not wear shorts.
7
Safety Information(continued)
Never wear sandals, sneakers or open shoes, and never operate the
machine with bare feet.
● Do not wear loose clothing or jewelry. They can get caught in
moving parts. Always keep hands, feet, hair and loose clothing away
from any moving parts on engine and machine.
● Always wear safety goggles or safety glasses with side shields
when operating the machine to protect your eyes from foreign
objects which can be thrown from the unit.Always wear a protective
hearing device.
● Always wear work gloves and sturdy footwear. Wear footwear that
will improve footing on slippery surfaces. Leather work shoes or short
boots work well for most people.These will protect the operator's
ankles and shins from small sticks, splinters, and other debris.
● It is advisable to wear protective headgear to prevent the possibility
of being struck by small flying particles, or being struck by low
hanging branches, twigs, or other objects which may be unnoticed by
the operator.
● Do not operate the machine without proper guards or other safety
protective devices in place.
● See manufacturer's instructions for proper operation and
installation of accessories. Only use accessories approved by the
manufacturer.
● Operate only in daylight or good artificial light.
● Do not operate product when fatigued or under the influence of
alcohol, drugs or other medication which can cause drowsiness or
affect your ability to operate this machine safely.
● Never operate machine in wet grass. Always be sure of your
footing; keep a firm hold on the handle and walk; never run.
● Watch for traffic when operating cultivator near, or when crossing
roads.
8
Safety Information(continued)
● If the equipment should start to vibrate abnormally, stop the engine
(motor)and press and hold the On/Off switch in the off position till the
engine stops. The switch will return to the on position automatically.
● Check immediately for cause. Vibration is generally a warning of
trouble. If the noise or vibrations of the machine increase, stop
immediately and perform an inspection.
● Never leave the machine unattended when the engine is running.
Press and hold the On/Off switch in the of position till the engine
stops. The switch will return to the on position automatically. The
OFF switch will come back to the ON position automatically.
● Regularly inspect the machine. Make sure parts are not bent,
damaged or loose.
● Temperature of muffler and nearby areas may exceed 150°F
(65°C). Allow muffler and engine areas to cool before touching.
Never pick up or carry the machine while the engine is running.
● Prolonged exposure to noise and vibration from gasoline
engine-powered equipment should be avoided. Take intermittent
breaks and/or wear ear protection from engine noise as well as
heavy work gloves to reduce vibration in the hands.
● Do not transport the machine from one place to another with the
engine running
● Keep all screws, nuts and bolts tight.
● When moving the packaged machine, always do so with a partner.
● Check local regulations for age restrictions on use of this machine.
PRODUCT-SPECIFIC SAFETY RULES
● Do not cultivate above underground utilities,including water lines,
gas lines, electric cables, or pipes. Do not operate the machine on
terrain/soil with large rocks and foreign objects which can damage
the equipment.
● After striking a foreign object, stop the engine. Press and hold the
On/Off switch in the off position till the engine stops.The switch will
9
Safety Information(continued)
return to the on position automatically. Inspect the machine for
damage. If damaged, repair before starting and operating the
machine
● The tines of the cultivator should not rotate when the engine is
idling. If it does rotate when engine is idling, contact us toll free at 1-
844-786-7335.
● If an object becomes lodged in the tines,press and hold the On/ Off
switch in the off position till the engine stops. The switch will return to
the on position automatically. Allow to cool before attempting to
remove the foreign object.
● The clutch will transfer maximum power after about two hours of
normal operation. During this break-in period clutch slippage may
occur. The clutch should be kept free of oil or other moisture for
efficient operation.
ENGINE SAFETY PRECAUTIONS
If your product comes with a separate engine manual, be sure to
read and follow all safety and warning precautions outlined there, in
addition to any in this manual.
Preventing Carbon Monoxide Poisoning
● Always start and run engine outdoors. Do not start or run engine in
an enclosed area,even if doors or windows are open.
● Never try to ventilate engine exhaust indoors. Carbon monoxide
can reach dangerous levels very quickly.
● Never run engine outdoors where exhaust fumes may be pulled
into a building.
● Never run engine outdoors in a poorly ventilated area where the
exhaust fumes may be trapped and not easily taken away.
(Examples include: in a large hole or areas where hills surround your
working area.)
10
Safety Information(continued)
● Never run engine in an enclosed or partially enclosed area.
(Examples include: buildings that are enclosed on one or more sides,
under tents, car ports or basements.)
● Always run the engine with the exhaust and muffler pointed in the
direction away from the operator.
● Never point the exhaust muffler towards anyone. People should
always be many feet away from the operation of the engine and its
attachments.
● Do not change the engine governor settings or over-speed the
engine.
GASOLINE FIRES AND HANDLING FUEL SAFELY
● Use extra care in handling gasoline and other fuels. They are
flammable and vapors are explosive.
● When storing extra fuel be sure that it is in an appropriate container
and away from any fire hazards.
● Prevent fire and explosion caused by static electric discharge.
Use only nonmetal, portable fuel containers approved by the
Underwriter's Laboratory (U.L.) or the American Society for Testing
&Materials (ASTM).
● Always fill fuel tank outside in a well ventilated area. Never fill your
fuel tank with fuel indoors.(Examples include:basement, garage, barn,
shed, house, porch, etc.) Never fill tank near appliances with pilot
lights,heaters, or other ignition sources. If the fuel has to be drained,
this should be done outdoors.
The drained fuel should be stored in a container specifically designed
for fuel storage or it should be disposed of carefully.
● Never remove the fuel cap or add fuel with the engine running.
Stop engine and allow to cool before filling.
● Never drain fuel from engine in an enclosed area.
● Always wipe up excess (spilled)fuel from engine before starting.
11
Safety Information(continued)
● Clean up spilled fuel immediately. If fuel is spilled, do not start the
engine but move product and fuel container from area.
Clean up spilled fuel and allow to evaporate and dry after wiping and
before starting.
● Allow fuel fumes/vapors to escape from the area before starting
engine.
● Test the fuel cap for proper installation before starting and using
engine.
● Always run the engine with fuel cap properly installed on the engine.
Never smoke while refilling engine fuel tank.
● Do not store engine with fuel in fuel tank indoors.Fuel and fuel
vapors are highly explosive.
● Never siphon fuel by
mouth to drain fuel tank.
● Always have an adul
t fill the fuel tank and never allow children to fill
the fuel tank
● Never allow an adult or anyone under the influence of drugs or
alcohol to fill the fuel tank.
● When storing gasoline or equipment with fuel in the tank, store
away from furnaces, stoves, water heaters or other appliances that
have a pilot l ight or other ignition source because they can ignite
gasoline vapors.
WARNING: ENGINES GIVE
OFF CARBON MONOXIDE, AN
ODORLESS,COLORLESS, POISONOUS G
AS. CARBON
MONOXIDE MAY BE PRESENT EVEN IF YOU DO NOT SMELL OR
SEE ANY ENGINE E XHAUST .BREATHING CARBON MONOXIDE
CAN
CAUSE NAUSEA,FAINTING OR DEATH,IN ADDITION TO
DROWSINESS,DIZZINESS AND CONFUSION.IF YOU
EXPERIENCE ANY OF THESE SYMPTOMS,SEEK FRESH AIR
AND MEDICAL ATTENTION IMMEDIATELY.
12
Safety Information(continued)
BURNS AND FIRES
The muffler, muffler guard and other parts of the engine become
extremely hot during the operation of the engine.These parts remain
extremely hot after the engine has stopped.
PREVENTION OF BURNS AND FIRES
● Never remove the muffler guard from the engine.
● Never touch the muffler guard because it is extremely hot and will
cause severe burns.
● Never touch parts of the engine that become hot after operation.
● Always keep materials and debris away from muffler guard and
other hot parts of the engine to avoid fires.
CHILDREN AND BYSTANDERS
Tragic accidents can occur if the operator is not alert to the presence
of children and/or bystanders. Never assume that others will remain
where you last saw them.
● Keep the area of operation clear of all persons, especially small
children and pets. Keep children under the watchful care of a
responsible adult.
● Be alert and turn machine off if children enter the area.
● Before and while moving backwards, look behind and down for
small children.
● Never allow children to operate the machine.
● Use extra care when approaching blind corners,shrubs,trees, or
other objects that may obscure vision
WARNING: HOT GASES ARE A NORMAL BY-PRODUCT OF A
FUNCTIONING INTERNAL COMBUSTION ENGINE. FOLLOW ALL
SAFETY INSTRUCTIONS TO PREVENT BURNS AND FIRES.
13
Safety Information(continued)
SERVICE
● Always stop the engine whenever you leave the equipment,before
cleaning, repairing or inspecting the unit. Engine should be turned off
and cool. Never make adjustments or repairs with the engine
(motor)running.
● Always wear eye protection when you make adjustments or repairs.
● Keep all nuts and bolts tight and keep equipment in good condition.
● Never tamper with safety devices. Check their proper operation
regularly.
● When servicing or repairing the machine,do not tip the machine
over or up unless specifically instructed to do so in this manual.
Service and repair procedures can be done with the machine in an
upright position. Some procedures will be easier if the machine is
lifted on a raised platform or working surface.
● To reduce fire hazard,keep machine free of grass,leaves or other
debris build-up. Clean up oil or fuel spillage. Allow machine to cool
before storing.
● Stop and inspect the equipment if you strike an object. Repair, if
necessary, before restarting.
● Clean and replace safety and instruction decals as necessary.
● Inspect machine before storage. When not in use, press and hold
the On/Off switch in the off position till the engine stops.
The switch will return to the on position automatically. And store
indoors in a dry place locked or otherwise inaccessible to children.
●Use only original equipment parts for the manufacturer including all
nuts and bolts.
SAVE THESE INSTRUCTIONS
14
Pre-Assembly
SPECIFICATIONS
HARDWARE INCLUDED
NOTE:Hardware not shown to actual size.
Part
Description
Quantity
AA
Saddle Bolt
4
BB
Middle handle bar
2
CC
Curved washer
4
DD
Knob nut
4
EE
Cable clip
4
OTHER ITEMS INCLUDED
-Operator's Manual
-Emission Statement
Model
WB53CULT
Engine displacement
53CC
Max.engine power
1900 W
Blade speed
306 RPM
Blade cutting width
14.96 in.(380 mm)
Blade cutting depth
7.87 in.(200 mm Max.)
Fuel tank capacity
32.38 oz.(920 ml)
Weight approx.
33 Ibs.(15 Kg)
15
Pre-Assembly(continued)

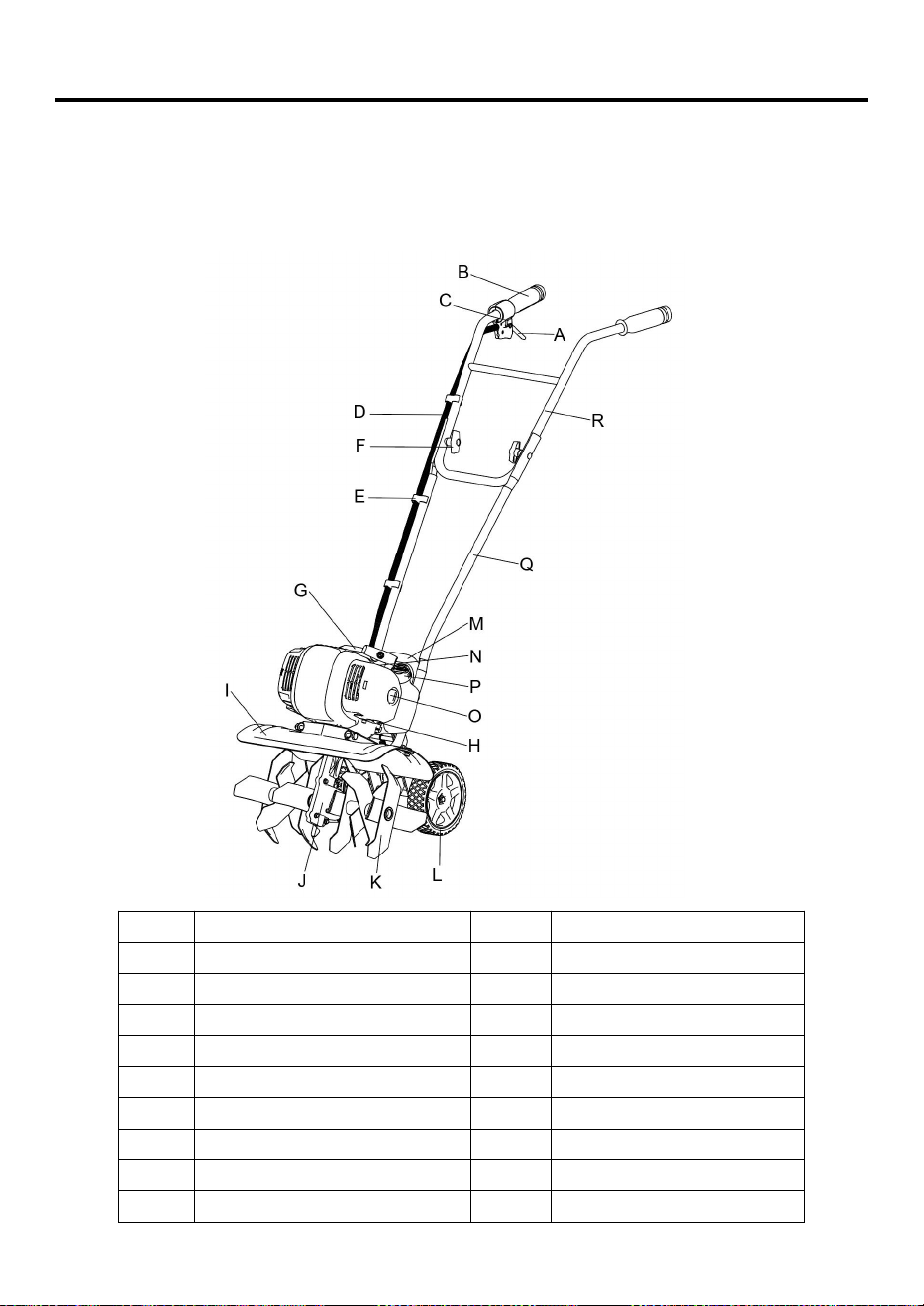

PACKAGE CONTENTS
As a cultivator:
● Loosening and working up the soil in a garden and for tiling coarse
soil for mixing in fertilizer,peat and compost in domestic areas.
Part
Description
Part
Description
A
Throttle lever
J
Gearbox
B
Handle (left &right
K
Blades
C
On/off switch
L
Wheel
D
Cable
M
Lower handle bar
E
Cable clip
N
Choke lever
F
Knob
O
Air filter knob
G
Starter grip and rope
P
Fuel cap
H
Primer bulb
Q
Middle handle bar
l
Guard
R
Upper handle bar
16
Assembly
This product requires assembly. Carefully remove the product and
any accessories from the box. Make sure that all items listed in the
packing list are included. Inspect the product carefully to make sure
no breakage or damage occurred during shipping.
Do not discard the packing material until you have carefully inspected
and satisfactorily operated the product.
WARNING:The equipment and packaging material are not toys.
Do not let children play with plastic bags, foils, or small parts. These
items can be wallowed and pose a suffocation risk!
INSTALLING THE HANDLE BAR
The product must be fully assembled before operation! Do not use a
product that is only partly assembled or assembled with damaged
parts.
Follow the assembly instructions step-by-step and use the pictures
provided as a visual guide to easily assemble the product!
Never start the engine before it is completely assembled!

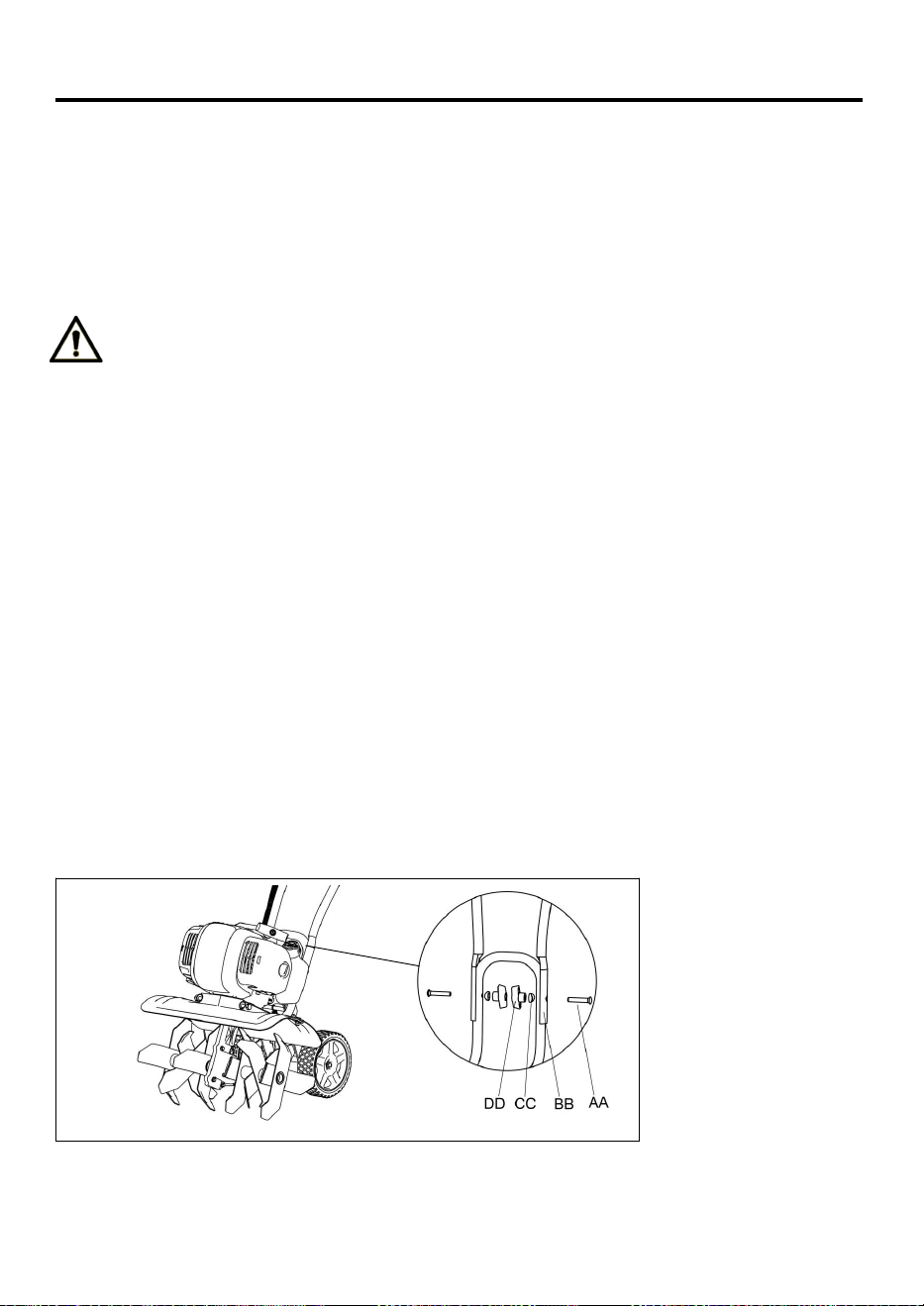

1.Set up the cultivator on flat and firm ground to ensure safe and
sturdy operating.
2.Align the holes in the middle handle bar(BB) with the holes in the
lower handle bar(M)and secure the connection with the Saddle Bolt
(AA), Knob nut(DD),and Curved washer(CC)(Fig.1).
Fig.1
17
Assembly(continued)

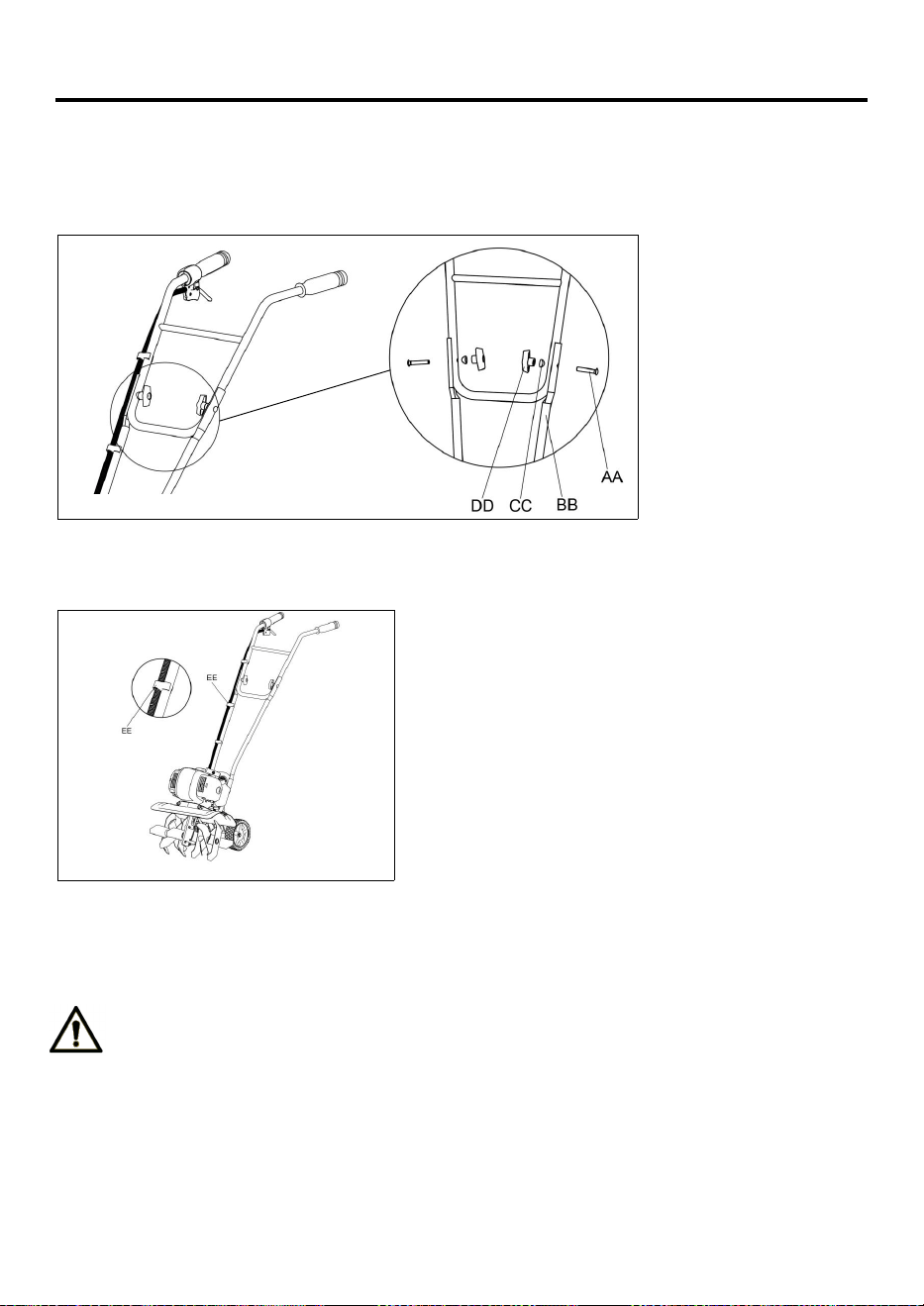

3.Align the holes in the upper handle bar (R)with the holes in the
middle handle bar (BB)and secure the connection with the Saddle
Bolt(AA), Knob nut(DD),and Curved washer(CC)(Fig.2).
Fig.2
4.Secure the cables with the cable clips (EE)(Fig.3).
Fig.3
FUELING THE UNIT
WARNING:Gasoline is extremely flammable. Ignited vapors may
explode. Always stop the engine and allow it to cool before filling the
fuel tank. Do not smoke while filling the tank. Keep sparks and open
flames at a distance from the area.
Remove the fuel cap slowly to avoid injury from fuel spray. Never
operate the unit without the fuel cap securely in place.
18
Assembly(continued)
Add fuel in a clean, well-ventilated outdoor area. Wipe up any spilled
fuel immediately. Avoid creating a source of ignition for spilled fuel.
Do not start the engine until fuel vapors dissipate.
WARNING:Gasoline and its vapors are highly flammable and
explosive. To prevent serious injury and property damage, handle it
with care. Keep away from ignition sources and open flames, handle
outdoors only.
Pour fuel outdoors where there are no sparks or flames. Slowly
remove the fuel cap after stopping the engine. Do not smoke while
fueling. Wipe spilled fuel from the unit. Move at least 3 m(10 ft) away
from the fueling source before starting the engine.
WARNING: Always wear heavy, long pants, boots, gloves, and a
long-sleeve shirt. Do not wear loose clothing, jewelry, short pants,
sandals, or go barefoot. Secure hair so it is above shoulder level.

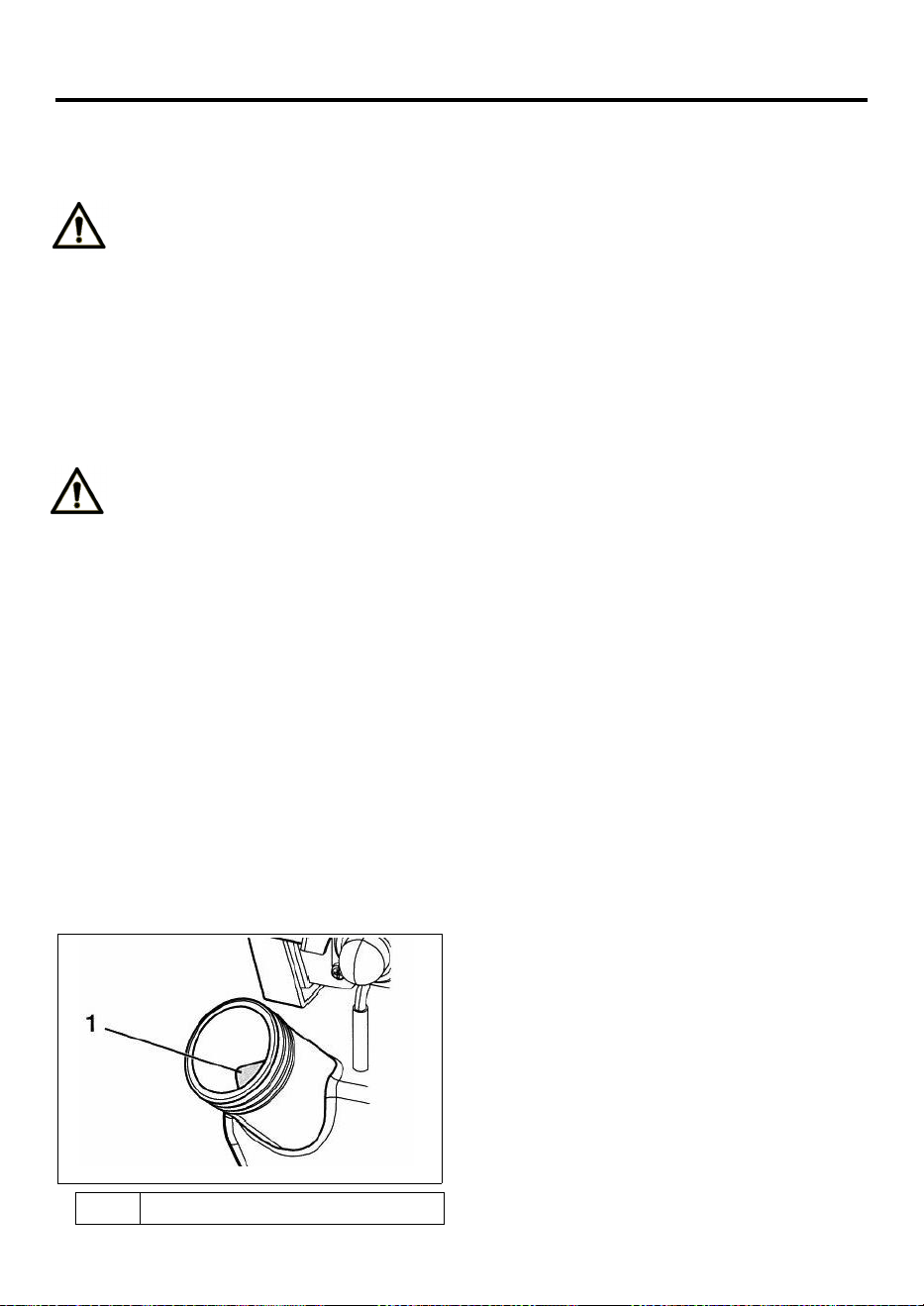

1.Position the unit with the fuel cap facing up.
2.Slowly remove the fuel cap.
3.Place the fuel container spout into the fuel tank fill hole and fill the
tank.Stop adding fuel when you see that the level reaches the base
of the tank spout (Fig.4).
4.Wipe up any fuel that may have spilled.
5.Reinstall the fuel cap.
6.Move the unit at least 3 m(10 ft)from the fuel container and the
fueling site before starting the engine.
Fig.4
1
Base of the tank spout
19
Operation
WARNING: Do not allow familiarity with this product to make you
careless. Remember that a careless fraction of a second is sufficient
to inflict serious injury.
WARNING: Always wear eye protection along with hearing
protection. Failure to do so could result in objects being thrown into
your eyes and other possible serious injuries.
WARNING: Do not use any attachments or accessories not
recommended by the manufacturer of this product. The use of
attachments or accessories not recommended can result in serious
injury.
WARNING: Operation of this equipment could create sparks that
can start fires around dry vegetation. A spark arrestor mat be
required. The operator should contact local fire agencies for laws or
regulations relating to fire prevention requirements.
USING THE RIGHT FUEL
The use of old fuel is the most common cause of performance
problems. Use only fresh, clean unleaded gasoline.
Recommended fuels Use only a mixture of unleaded petrol and
special 2-stroke engine oil. Mix the fuel mixture as indicated in the
fuel mixing table. (Fuel/Oil 50:1).
Important: Do not use a fuel mixture which has been stored for
longer than 90 days.
Important: Never use 2-stroke oil with a recommended mixing ratio
of 100:1. The manufacturer’s warranty will be voided in case of
engine damage due to inadequate lubrication.
Important: Only use containers designed and approved for the
purpose to transport and store fuel. Pour the correct quantities of
petrol and 2-stroke oil into the mixing bottle (see scale printed on the
bottle). Then shake the bottle well.
20
Operation(continued)
Never use oil for 4-cycle engine use or water-cooled 2-cycle engines.
It can cause spark plug fouling, exhaust port blocking or piston ring
sticking. Mixed fuels, which have been left unused for a period of one
month or more may clog the carburetor or result in the engine failing
to operate properly. Put unused fuel into an airtight container and
keep it in the dark and cool room.
Mix a regular grade gasoline (leaded or unleaded, alcohol-free) and a
quality-proven motor oil for air-cooled 2 cycle engines.
RECOMMENDED MIXING RATIO GASOLINE 50: OIL 1
WARNING! Always shut off engine before fueling. Never add
fuel to a machine with a running or hot engine.
WARNING! Never smoke while refueling and avoid inhaling
petrol fumes.
WARNING! Be careful when opening the fuel tank as pressure
may have formed inside.
Before refueling:
• Shake the fuel mixture container well.
• Place the unit on a flat stable surface, with the fuel tank cap facing
upwards.
• Clean the fuel tank cap and the surrounding area to avoid any dirt
from entering the tank during refilling.
• Carefully open the fuel tank cap to allow any pressure inside to
decrease gradually.
• Unscrew the mixture container cap.
• Use a funnel to refill and avoid over-filling the tank.
• Pour the fuel carefully to avoid spilling.
• Screw the tank cap on firmly by hand. Draining fuel
• Hold a collection container beneath the fuel drain bolt.
• Unscrew the tank cap and remove it.
21
Operation(continued)
• Allow the fuel to run out completely.
• Press the priming bulb and let its fuel runs out.
• Screw the tank cap on firmly by hand.
WARNING: Always close the fuel tank cap firmly.
WARNING: Avoid accidentally starting the unit. To avoid serious
injury, the operator and the unit must be in a stable position when
pulling the starter rope.
WARNING: Do not operate the unit inside a closed environment,
such as a room or building; breathing carbon monoxide from exhaust
fumes can kill.
WARNING: Inspect unit before each use. Replace damaged
parts. Check for fuel leaks. Make sure all fasteners are in place and
secure. Replace cutting attachments parts that are cracked, chipped,
or damages in any way. Make sure the cutting attachment is properly
installed and securely fastened. Make sure the cutting attachment
shield is properly attached and in the position recommended by the
manufacturer.
CAUTION: Clear the area to be cut before each use. Remove all
objects such as rocks, broken glass, nails, wire, or string which can
be thrown or become entangled in the cutting attachment. Clear the
area of children, bystanders, and pets outside a 50ft(15m) radius:
there is still a risk of injury from thrown objects outside the 50ft(15m)
zone. Bystanders should be encouraged to wear eye protection. If
you are approached to, stop the engine and cutting attachment. In
the case of blades units, there is the added risk if injury to bystanders
from being struck with the moving blade.
22
Operation(continued)
WARNING: In some countries regulations define at what time of
the day on what special days products are allowed to be used and
what restrictions apply! Ask your community for detailed information
and observe the regulations in order to preserve a peaceful
neighborhood and avoid committing administrative offences.

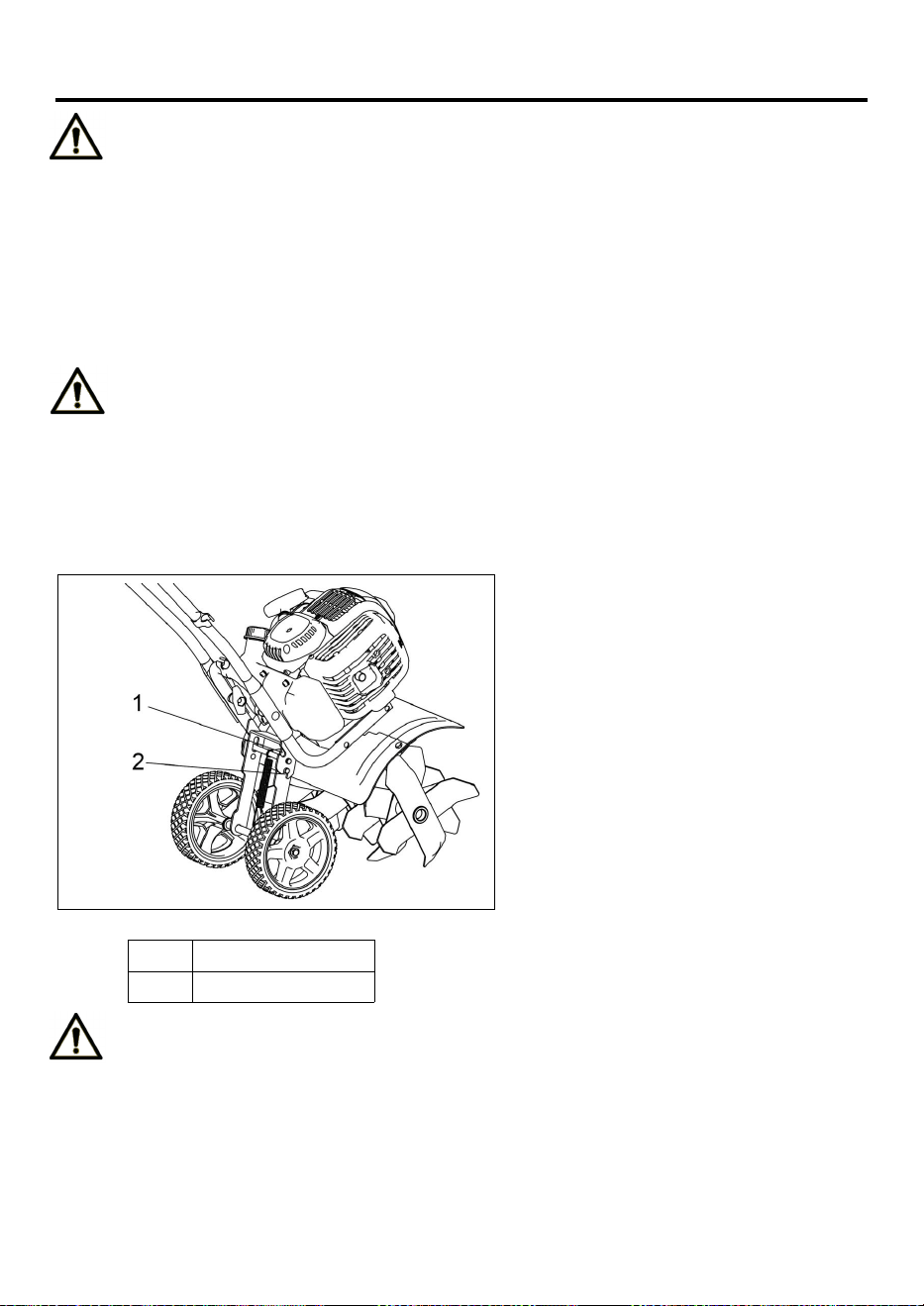

WHEEL ADJUSTMENT
WARNING: Always wear safety glasses, ear protection and work
gloves during operation. Avoid wearing loose clothing and
accessories. The wheels can be adjusted to two position. Pull on the
wheels and move it to required position, let go of the wheels and
make sure it locks in positions(Fig.5).
Fig.5
1
Working
2
Transport
WARNING: The wheels can be adjusted in two different
positions. Always ensure the wheels are securely locked!
Do not attempt to use the product with the wheels in any other
position or unlocked!
23
Operation(continued)
STARTING INSTRUCTIONS
1.Fill the fuel tank.Stop adding the fuel when you see that the level
reaches the base of the tank spout.(Fig.6)
2.Push the choke lever to start position(close the choke) (Fig.7).
3.Slowly press and release the primer bulb 7 times (Fig.8).
4.Pull the starter rope with a controlled and steady motion five times
until engine starts or attempts to start (Fig.9).
5.Pull down the throttle lever to run position (Fig.10).
6.Then Pull the starter rope again, the engine started (Fig.11).
IF..the unit fails to start. Squeeze the throttle control, and pull the
starter rope until the engine starts.
IF THE ENGINE IS HOT….....................begin the starting procedure
with step1-5-6.
24
Operation(continued)
STOPPING INSTRUCTIONS
1.Release the throttle lever and allow the engine to idle.
2.Press and hold the On/Off switch in the Off (o)position until the
engine comes to a complete stop (Fig.12).
Make sure the cutting attachment has stopped before the unit is set
down.
NOTE: The OFF switch will come back to the ON position
automatically.
HOLDING THE UNIT
Stand in the operating position (hold the machine in front of your
body). Stand up straight. Do not bend over.
Keep feet apart and firmly planted.
Hold the handle with two hands.Keep the arms straight.
Do not over reach;
Keep all parts of you
r body away from the rotating cutting
attachment and hot surfaces.
WARNING: Do not operate the machine with a damaged or
excessively worn cutting device.
Fig.12
25
Operation(continued)
CLEARING JAMS
If the blades get jammed by a wire or other obstruction and cannot
move,follow these important safety rules:
Never reach for, or try to remove jammed material while the
engine is running.
ALWAYS switch the unit off and wait for blades to stop before
clearing a jam.
ALWAYS inspect the blades after clearing a jam to make sure all
jammed material has been cleared, and to make sure blades are
not damaged.
Maintenance
When servicing, use only identical replacement parts.
Use of any other parts could create a hazard or cause product
damage.
NOTICE:Users are not allowed to set the carburetor or ignition.If
further assistance is required, take the unit to a qualified service
dealer.
WARNING: To avoid serious injury,always stop the engine and
allow it to cool before cleaning or maintaining the unit.
Never perform cleaning or maintenance while the unit is
running.
Disconnect the spark plug wire to prevent the unit from starting accid
entally.
WARNING: Wear protective clothing and observe all safety
instructions to prevent serious injury.
26
Maintenance(continued)
CLEANING
Use a small brush to clean the outside of the unit. Do not use String
detergents. Household cleaners that contain aromatic oils such as
pine and lemon, and solvents such as kerosene can damage plastic.
Wipe off any moisture with a soft cloth. Correct and regular cleaning
is not only important for the safe use of this product, but also extends
its life span.
LUBRICATION
For a long lifespan,make sure that the cutting blades are cleaned and
lubricated at regular intervals in order to ensure the best possible
performance. Routinely apply a thin film of lubricating oil.

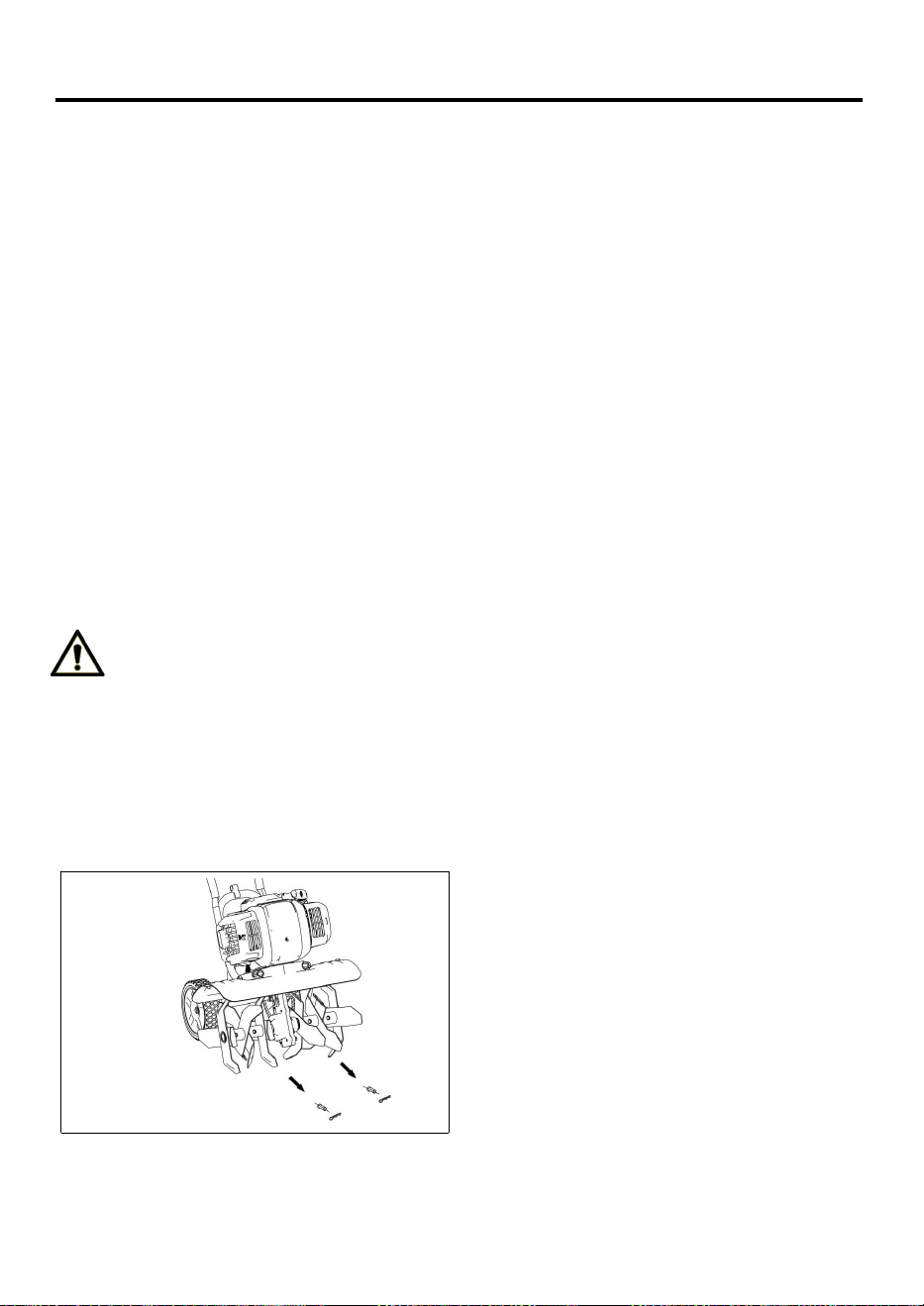

REPLACING THE BLADES
WARNING: To avoid serious injury,always stop the engine and
allow it to cool before replacing the blades.
To replace the blades, take off the pin.
Take off the broken blades and replace the new blades according to
the original position (Fig.13).
Re-insert the pin to secure the blades.
Fig.13
27
Maintenance(continued)
MAINTENANCE SCHEDULE
WARNING:When the engine idles,user should check the cutting
attachment stops while turning routinely.
WARNING:To prevent any danger or defects,user should check
and maintain every part of the machine before use and after dropping
or other impacts.
Perform these required maintenance procedures at the frequency
stated in the table.These procedures should also be a part of any
seasonal tune-up.
NOTE: Some maintenance procedures may require special tools or
skills.If you are unsure about these procedures,take the unit to a
qualified service dealer.
NOTE: Maintenance,replacement,or repair of the emission control
devices and system may be performed by a qualified service dealer.
NOTE: Please read the California/EPA statement that came with the
unit for a complete listing of terms and coverage for the emissions
control devices, such as the spark arrestor, muffler, carburetor, etc.
FREQUENCY
MAINTENANCE REQUIRED
Every USING TIME
·Clean the air filter.
Refer to Maintaining the Air Filter.
Every 20 hours
·lubricating the gear.
Every 30 hours
·Have the rocker arm clearance checked by a
qualified service dealer

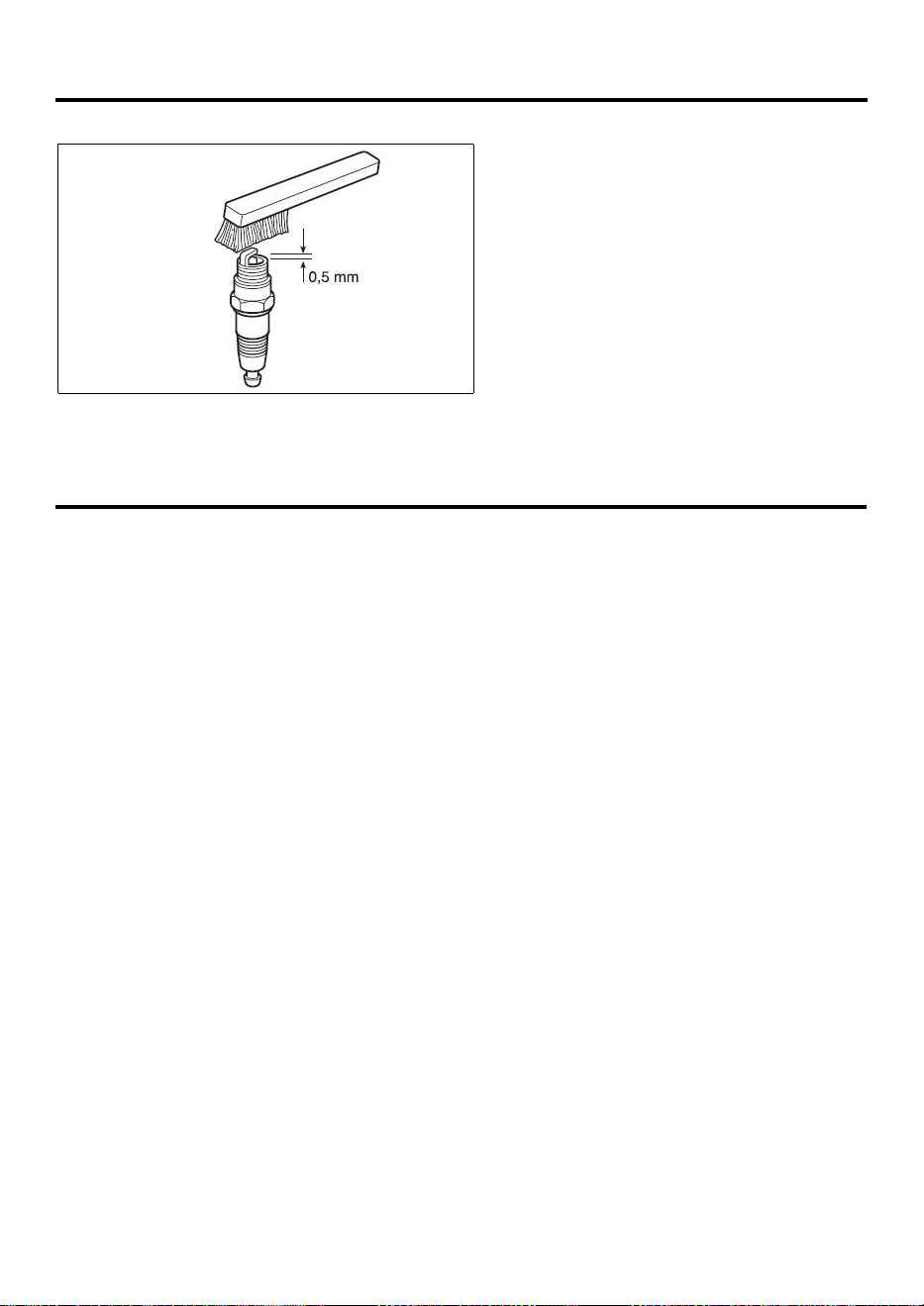

·Check the spark plug condition and gap. Refer
to Maintaining the Spark Pluq.
NOTE: If the engine frequently work under dusty or other severe
circumstances, increase the cleaning frequency.
28
Maintenance(continued)
REMARKS
·The maintenance interval is only a recommendation for machines in
ordinary operating condition.
·If there are any abnormal signs from the machine,
please do the proper inspection and maintenance immediately.
All other repairs or maintenance should be done by a qualified
service center.

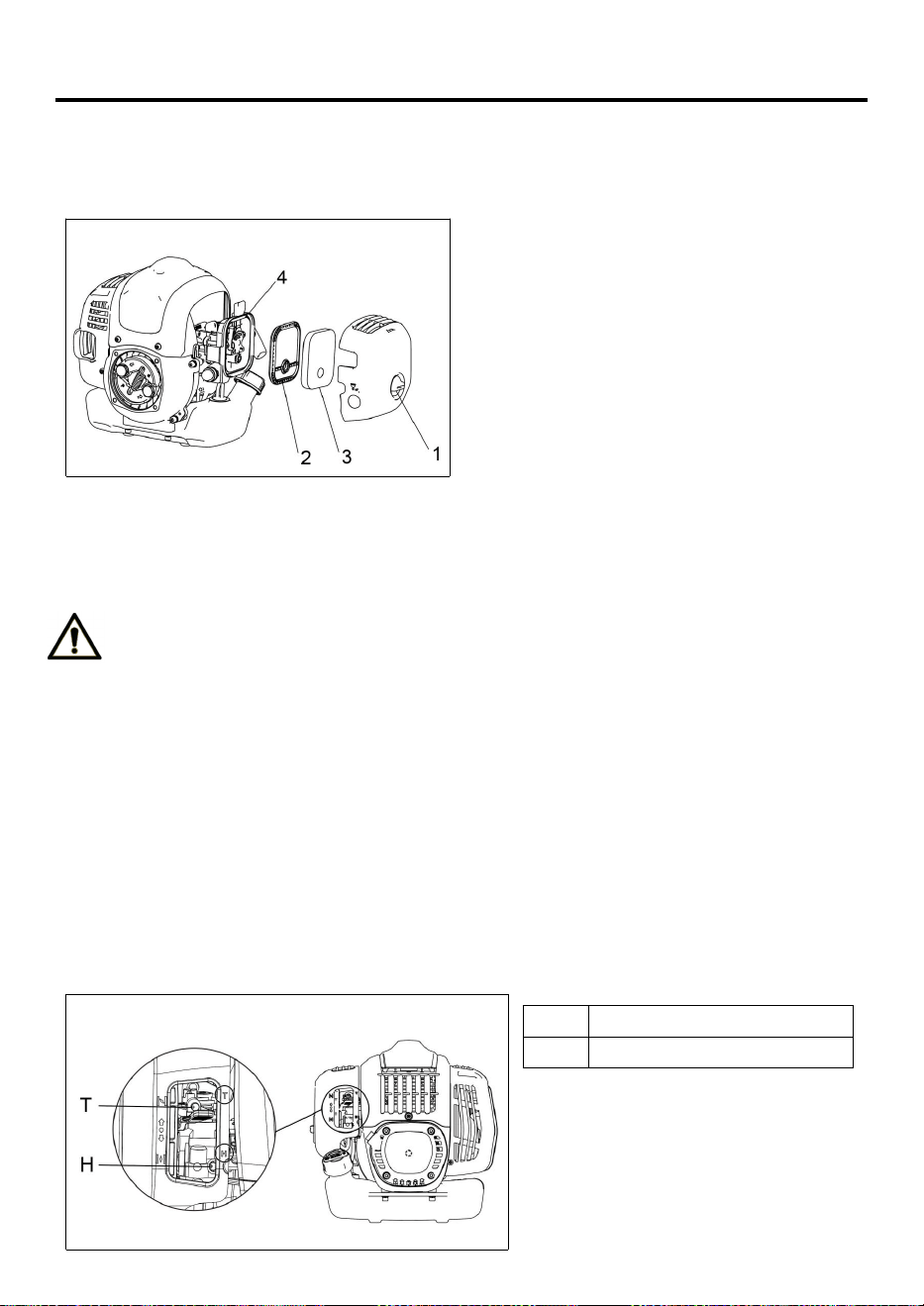

MAINTAINING THE AIR FILTER
Failure to maintain the air filter can result in poor performance or can
cause permanent damage to the engine. Engine failure due to
improper air filter maintenance is not covered by the product warranty.
Cleaning the Air Filter
1.Unscrew the air filter knob(1) completely(Fig.14).
Remove the air filter cover from the air filter housing(Fig.14).
2.Remove the air filter from the air filter housing.
3.Wash the air filter(2+3) in special detergent or Alcohol.
Rinse the air filter thoroughly and allow it to dry.
4.Reinstall the air filter in the air filter housing(4) (Fig.14).
NOTICE:Operating the unit without the air filter and air filter cover will
VOID the warranty.
29
Maintenance(continued)
5.Insert the tab on the air filter cover into the hole in the air filter
housing. Push the air filter cover back onto the air filter housing.
Tighten the air filter knob to secure the air filter cover (Fig.14),
NOTICE:Do not over tighten as this may strip the air filter knob.
ADJUSTING THE IDLE SPEED
WARNING:The cutting blades will move when adjusting the idle
speed. Wear all protective clothing and keep all bystanders, children,
and pets at least 50 ft.away.
Make adjustments with the unit supported by hand so that the cutting
blades does not contact the ground or any object.
Keep all parts of your body away from the cutting blades and muffler.
Failure to follow these instructions could result in serious injury.
If the engine will not idle properly:
1.Start the engine.Refer to STARTING INSTRUCTIONS.
2.Release the throttle control and let the engine idle.
T
ldle speed screw
H
High speed screw
Fig.14
Fig.15
30
Maintenance(continued)
If the engine stops, increase the idle speed.Use a small
screwdriver to turn the idle speed screw clockwise, 1/8 of a turn at
a time, until the engine idles smoothly (Fig.15).
If the cutting blades spin when the engine idles,
reduce the idle speed. Turn the idle speed screw counterclockwise,
1/8 of a turn at a time, until the cutting head stops moving.
WARNING:The cutting attachment should never turn at idle.
Turn the idle speed screw counterclockwise to reduce the idle RPM a
nd stop the cutting attachment,or contact us at 1-844-786-
7335 for adjustment and discontinue use until the repair is made.Seri
ous injury could result from the cutting attachment turning at idle.
NEVER ADJUST THE HIGH SPPED SCREW BY YOURSELF!!!
MAINTAINING THE SPARK PLUG
1.Stop the engine and allow it to cool.
Grasp the spark plug boot firmly and pull it from the spark plug.
2.Glean around the spark plug.
Remove the spark plug from the cylinder head with a 5/8-inch socket,
turning counterclockwise.
CAUTION:Do not remove the spark plug when the engine is hot.
CAUTION:Do not sandblast, scrape or clean spark plug electrodes.
Grit in the engine could damage the cylinder.
3.Inspect the spark plug. If the spark plug is cracked, fouled or dirty,
replace it with replacement part refer to PART or an equivalent
spark plug.
4.Install the spark plug in the cylinder head. Tighten the spark plug
with a 5/8-inch socket, turning it clockwise until snug.
Notice: if using a torque wrench, torque to 20N-m.Do not over tighten.
31
Maintenance(continued)
5.Reattach the spark plug boot.
Fig.16
Storage
STORAGE
Never store a fueled unit where fumes may reach an open
flame or spark.
Allow the engine to cool before storing.
Lock up the unit to prevent unauthorized use or damage.
Store the unit in a dry, well-ventilated area.
Store the unit out of the reach of children.
Store the unit after cleaning the cutting blade.
Short-term Storage (1-2 weeks)
Store the unit in a horizontal position.
Long-term Storage
1.Remove the fuel cap, tip the unit and drain the fuel into an
approved container. Reinstall the fuel cap.
2.Start the engine and allow it to run until it stalls. This ensures
that all fuel has been drained from the carburetor.
3.Allow the engine to cool. Remove the spark plug and put 5
drops of any high quality motor oil into the cylinder. Pull the
starter rope slowly to distribute the oil. Reinstall the spark plug.
32
Storage (continued)
4.Thoroughly clean the unit and inspect it for any loose or damaged
parts.Repair or replace damaged parts and tighten loose screws,
nuts or bolts.
5.Store the unit in a horizontal position.
Preparing the Unit for Use after Long-term Storage
1.Remove the spark plug.
Tip the unit and drain all of the oil from the cylinder into an approved
container. Reinstall the spark plug.
2.Change the oil.Refer to Changing the Oil.
NOTICE:
Do not use fuel that has been stored for more than 30 days. Dispose
of old fuel and oil according to federal, state and local regulations.
TRANSPORTATION
CAUTION:Protect the product from any heavy impact or strong vibra
tions which may occur during transportation in vehicles.
Transport the unit in a horizontal position. If not possible,
transport the unit vertically with the engine at the top.
Secure the unit to prevent damage during transport.
Secure the unit to prevent it from slipping or falling over.
33
Troubleshooting
PROBLEM
SOLUTION
THE ENGINE WILL NOT START.
The fuel tank is empty
Fill the fuel tank with fresh fuel.
The primer bulb was not pressed
enough
Press the primer bulb 7 times.
The fuel is old (over 30 days)
Drain the fuel tank and add fresh fuel
The spark plug is fouled.
Replace the spark plug
THE ENGINE WILL NOT IDLE.
The air filter is dirty
Clean or replace the air filter
The fuel is old (over 30 days)
Drain the fuel tank and add fresh fuel.
ldle speed screw needs adjustment
Turn idle speed screw clockwise to
increase idle speed
THE ENGINE EMITS TOO MUCH
SMOKE.
Too much oil in crankcase.
Drain engine oil and refill with correct
amount of engine lubricant.
THE ENGINE WILL NOT
ACCELERATE.
The fuel is old (over 30 days)
Drain the fuel tank and add fresh fuel.
The cutting blades is bound with any
objects
Stop the engine and clean the cutting
blades.
The air filter is dirty
Clean or replace the air filter.
THE ENGINE LACKS POWER OR
STALLS
The fuel is old (over 30 days).
Drain the fuel tank and add fresh fuel.
The air filter is dirty.
Clean or replace the air filter
The spark plug is fouled.
Replace the spark plug.
UNSATISFACTORY CUTTING
PERFORMANCE.
Cutting blade is dull/damaged.
Replace or contact a qualified service dealer
Cutting material exceeds capacity
Only cut material according to the capacity
of the unit
EXCESSIVE VIBRATION/NOISE OR
EXHAUST.
Bolts/Nuts are loose
Tighten
Gas/oil is incorrect.
Empty unused fuel and oil.Refill with fresh
fuel and oil
If further assistance is required,take the unit to a qualified
service dealer.
34
NOTES
35
MANUFACTURER’S LIMITED WARRANTY
The limited warranty set forth below is given by Badger with respect to new merchandise purchased and used
in the United States, its possessions and territories .
Badger warrants this product against defects in material and workmanship for a period of three (3) years
commencing on the date of original purchase and will, at its option, repair or replace, free of charge, any part
found to be defective in material or workmanship. This limited warranty shall only apply if thi
s product has been
operated and maintained in accordance with the Operator’s Manual furnished with the product, and has not been
subject to misuse, abuse, commercial use, neglect, accident, improper maintenance, alteration, vandalism,
theft, fire, water or damage because of other peril or natural disaster. Damage resulting from the installation or
use of any accessory or attachment not approved by Badger for use with the product(s) covered by this
manual will void your warranty as to any resulting damage. This warranty is limited to n
inety (90) days from the
date of original retail purchase for any Badger product that is used for rental or commercial purposes, or any
other income-producing purpose.
HOW TO OBTAIN SERVICE: Warranty service is available, WITH PROOF OF PURCHASE THROUGH YOUR
LOCAL AUTHORIZED SERVICE DEALER. To locate the dealer in your area, call 1-844-786-7335. No product
returned directly to the factory will be accepted unless prior written permission has been extended by the
Customer Service Department of Badger.
This limited warranty does not provide coverage in the following cases:
A. Tune-ups - Spark Plugs, Carburetor Adjustments, Filters
B. Wear items - Bump Knobs, Outer Spools, Cutting Line, Inner Reels, Starter Pulley, Starter Ropes, Drive Belts,
Saw Chains, Guide Bars, Cultivator Tines, Blades.
C. Badger does not extend any warranty for products sold or exported outside of the United States of America,
its possessions and territories, except those sold through Badger’s authorized channels of export distribution.
Badger reserves the right to change or improve the design of any Badger Product without assuming any
obligation to modify any product previously manufactured.
No implied warranty, including any implied warranty of merchantability or fitness for a particular purpose,
applies after the applicable period of express written warranty above as to the parts as identified. No
other express warranty or guaranty, whether written or oral, except as mentioned above, given by any
person or entity, including a dealer or retailer, with respect to any product shall bind Badger. During
the period of the Warranty, the exclusive remedy is repair or replacement of the product as set forth
above. (Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may
not apply to you.)
The provisions as set forth in this Warranty provide the sole and exclusive remedy arising from the sales.
Badger shall not be liable for incidental or consequential loss or damages including, without
limitation, expenses incurred for substitute or replacement lawn care services, for transportation or for
related expenses, or for rental expenses to temporarily replace a warranted product. (Some states do not
allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.)
In no event shall recovery of any kind be greater than the amount of the purchase price of the product sold.
Alteration of the safety features of the product shall voi
d this Warranty. You assume the risk and liability for loss,
damage, or injury to you and your property and/or to others and their property arising out of the use or misuse or
inability to use the product.
This limited warranty shall not extend to anyone other than the original purchaser, original lessee or the person
for whom it was purchased as a gift.
How State Law Relates to this Warranty: This
warranty gives you specific legal rights, and you may also have
other rights which vary from state to state.
To locate your nea
rest service dealer, dial 1-844-786-7335 in the United States.
