PETROL ROTAVATOR/TILLER
HYT150
Instruction Manual
Introduction
Thank You For Purchasing Your HYUNDAI Product
We work very hard to give all of our customers the best possible service. If you have any
problems, before leaving negative feedback, please contact us to give us a chance to resolve
the issue. We would be delighted if you left us positive feedback! Thank you for purchasing this
product.
Important!
This manual has been produced by Hyundai Power Products and should be kept with the
product. Please read and understand these instructions before you use your product. Failure to
do this may result in personal injury or damage to the product.
The safety precautions and warnings are to ensure your safety and protect you from harm or
damage to the product.
The information contained in this manual was accurate at the time of production, however
HYUNDAI Power Products may make modifications to the product without notification.
WARNING : READ THE INSTRUCTION BOOKLET THOROUGHLY BEFORE
USING THE MACHINE. Keep for future reference and pass it on if the machine is
loaned or sold to another user.
!
2
www.hyundaipowerproducts.co.uk
01646 687 880 [email protected].uk
Contents
3
www.hyundaipowerproducts.co.uk
01646 687 880 [email protected].uk
Safety Information.....................4-18
Understand Your Machine...............................4
Intended Use....................................................5
Personal Safety................................................6
Inspect Your Machine......................................7
Work Area........................................................8
Electrical Safety...............................................9
Batteries...........................................................9
During Use................................................10-11
Engine Safety.................................................12
Carbon Monoxide..........................................13
Fuel Safety................................................14-15
Vibrations........................................................16
Noise..............................................................16
Personal Protective Equipment......................17
Symbols On The Machine..............................18
Features.........................................19
Unboxing........................................20
Assembly..................................21-25
Assembly Safety.............................................21
Attaching The Handlebar...............................22
Attaching The Cable Clips..............................23
Attaching The Drag Bar.................................23
Attaching The Blades.....................................24
Attaching The Mud Guard..............................25
Preparation...............................26-27
Clutch Operation............................................28
Lifting front Wheel..........................................28
Handlebar Height Adjustment........................29
Tilling Depth Adjustment................................29
Technical Data..............................43
Our YouTube Channel....................................48
Warranty.........................................................48
Manual Updates.............................................48
Returning Your Product..................................48
Leaving A Review...........................................48
Ordering Spare Parts......................................48
Contact Us.....................................51
Adding Oil......................................................26
Checking Oil Level.........................................26
Adding Fuel....................................................27
Operation..................................28-29
Starting...........................................................30
Stopping.........................................................31
Starting / Stopping..................30-31
Maintenance.............................32-42
Maintenance Safety........................................32
Checking Your Machine.................................32
Maintenance Schedule...................................33
Air Filter Service.............................................34
Spark Plug Service.........................................35
Draining The Oil.............................................36
Adding Gearbox Oil.......................................36
Draining Gearbox Oil......................................37
Cleaning.........................................................38
Transportation................................................39
Storage......................................................40-41
Troubleshooting.............................................42
Specifications.................................................43
Spare Parts.....................................................43
Recycling And Disposal................44
Declaration Of Conformity...........45
Notes.........................................46-47
Useful Information........................48
Our Product Range.......................49
Product Information......................50
Information.....................................................50
Service Record...............................................50
Safety Information
Understand Your Machine
• WARNING! You must read these instructions carefully before operating the machine. Make
sure that you are familiar with the controls and properly operate the machine. You must learn how
to stop the machine quickly. If you do not follow the warnings and instructions, it may result in fire
and/or serious injury. Make sure to save all warnings and instructions for future reference.
• Read this manual and labels affixed to the machine to understand its limitations and potential
hazards.
• Be thoroughly familiar with the controls and their proper operation. Know how to stop the
machine and disengage the controls quickly.
• If the unit is to be used by someone other than original purchaser, or is to be loaned, rented, or
sold, always provide this manual and any needed safety training before operation. The user can
prevent and is responsible for accidents or injuries that may occur to themselves, to other
people, or to property.
• Do not force the machine beyond its limits. Use the correct machine for your application.
• Know how to stop the machine quickly in case of emergency. Understand the use of all
controls.
• ALL MAINTENANCE other than that listed in this manual, should be carried out by
professionally trained and certified personnel.
!
4
www.hyundaipowerproducts.co.uk
01646 687 880 [email protected].uk
Safety Information
The HYT150 is a petrol cultivator/ tiller from Hyundai. The HYT150 has a tilling width of 560mm
and is powered by a 150cc OHV 4-stroke petrol engine.
This machine is a garden tool and precisely a pedestrian controlled cultivator/tiller. The
operator is able to operate the machine and use the main controls, always staying behind the
handle at a safe distance from the rotating tines.
The machine is manufactured according to the latest safety requirements. Every precaution is
only effective when it is followed exactly.
Intended Use
The basic version of the equipment is a cultivator/tiller intended for private use, i.e. for use in
home and gardening environments. It is designed to prepare the ground for flowers and
vegetables.
User Types
This machine is intended for use by consumers, i.e. non professional operators. The machine is
intended for “DIY” and domestic use only.
Improper Use
Any other usage not in keeping with the above mentioned ones may be hazardous and harm
persons and/or damage things. Examples of improper use may include, but are not limited to:
- transporting people, children or animals on the machine
- letting yourself be transported by the machine
- using the machine to tow or push loads
- use of the machine by more than one person
Intended Use
5
www.hyundaipowerproducts.co.uk
01646 687 880 [email protected].uk
Safety Information
Personal Safety
!
• WARNING! Never allow children or people unfamiliar with these instructions to use the
product. Local regulations can restrict the minimum age of the operator.
• Keep children, pets, and other people not using the unit away from the work area. Be alert and
shut off the unit if anyone enters work area. Keep children under the watchful care of a
responsible adult.
• Stay alert, watch what you are doing and use common sense when operating the machine.
Never operate the machine when unwell or tired, or if you have taken alcohol, medicine, drugs or
any substances which may slow your reflexes and compromise judgment. A moment of
inattention while operating the machine may result in serious personal injury.
• Appropriate Personal Protective Equipment (PPE), MUST be worn at all times when operating
or repairing the machine. Always wear anti-slip and resistant work footwear and long trousers
while using the machine. Do not use the machine when barefoot, wearing sandals or similar
lightweight footwear. Do not wear chains, bracelets or clothing that is loose fitting or hanging
ties or cords. Tie long hair back. Always wear protective earplugs. Loose clothes, jewellery, or
long hair can be caught in moving parts. Protect eyes, face, and head from objects that may be
thrown from the unit. Always wear safety goggles or safety glasses with side shields when
operating.
• Always keep hands and feet away from all moving parts during operation. Moving parts can cut
or crush body parts. Always keep hands and feet away from all pinch points.
• Do not touch parts that might be hot from operation. Allow parts to cool before attempting to
maintain, adjust, or service.
• Do not overreach. Keep proper footing and balance at all times. This enables better control of
the machine in unexpected situations. Extending your body too far can result in a loss of balance
and you may fall which will result in injury.
• Never place any part of your body where it would be in danger if movement should occur
during assembly, installation, and operation, maintenance, repairing or moving.
• Start the machine carefully according to instructions and with feet away from the moving parts.
• Do not place your hands or feet near or under rotating parts. Keep away from any discharge
openings.
• Keep in mind that the operator or user is responsible for accidents, hazards or unexpected
events involving the machine that occur to other people or their property. It is the responsibility of
the user to assess the potential risk of the area where work is being carried out. The operator or
user must take all necessary precautions to ensure their own safety and that of others, especially
on slopes or rough, slippery and unstable ground.
6
www.hyundaipowerproducts.co.uk
01646 687 880 [email protected].uk
Safety Information
Inspect Your Machine
• Check your machine before starting it. Keep guards in place and in working order. Make
sure all nuts, bolts, etc., are securely tightened.
• You must check the general condition of the machine before use.
• Never operate the machine when it is in need of repair or is in poor mechanical condition.
Replace damaged, missing, or failed parts before using it. Check for fuel leaks. Keep the machine
in safe working condition.
• Do not use the machine if the engine’s switch does not turn off the engine when running. Any
petrol powered machine that can’t be controlled with the engine switch is dangerous and must
be replaced.
• Regularly check to see that keys and adjusting wrenches are removed from the machine area
before starting it. A wrench or a key that is left attached to a rotating part of the machine may
result in personal injury.
• If the machine should start to vibrate abnormally, stop the engine and check immediately for the
cause. Vibration is generally a warning sign of trouble.
• Avoid accidental starting. Be sure the engine’s switch is off before transporting the machine or
performing any maintenance or service on the unit. Transporting or performing maintenance or
service on a machine with its switch on invites accidents.
• Do not tamper with or disable safety systems.
• Only use manufacturer-recommended attachments.
• Before using, always visually inspect to see that the tools are not worn out or damaged.
Replace worn out or damaged elements and bolts in set to preserve balance.
• Keep all nuts, bolts and screws tight to ensure the equipment is in safe working condition.
• Keep the machine in good operating condition. Operating the machine in poor or questionable
condition could result in serious injury.
• Be sure all safety devices are in working order and warning labels are in place. These items are
installed for your safety.
!
7
www.hyundaipowerproducts.co.uk
01646 687 880 [email protected].uk
Safety Information
Work Area
• Make sure you thoroughly inspect the entire work area and remove all objects and anything that
could be thrown by the machine or could damage the engine or machine (branches, stones, wire,
toys, etc). Attempting to clear the work area whilst using the machine will reduce your
concentration and creates a trip hazard. Any liquid spilled on the floor may result in you slipping.
• You must only work in daylight or with good artificial light in good visibility conditions. Keep
people, children and animals away from the working area.
• Operate on flat, level ground.
• DO NOT work on wet ground. If there has been heavy rain on the working site, wait until the
ground has dried up.
• You must pay special attention when approaching obstacles that could compromise visibility.
• Exercise extreme caution when changing direction on slopes. When changing direction, you
need to be careful that the wheels do not hit any obstacles (such as roots, branches, stones, etc)
that can cause the machine to slide sideways or make you lose control of it. Avoid driving on
slopes steeper than 15%. Make sure on slopes you have a steady foothold.
• Find and locate all fixed objects in the ground, such as sprinkler systems, poles, water valves,
bases for washing lines etc. Make sure that you check for hidden electrical cables or similar on
the surface of the lawn. ALWAYS run the machine around these objects. NEVER intentionally run
the machine over foreign objects.
• Never park the machine in a place with unstable ground which could give way.
• You must be careful near ravines, ditches or embankments.
• Exercise extreme caution when operating on or crossing gravel drives, walks, or roads. Stay
alert for hidden hazards or traffic.
• Pay the utmost attention when working on frozen ground as the machine may tend to skid.
• Do not work in the rain or when there is a thunderstorm or lightning risk. If there is bad weather
conditions, do not use the machine.
!
8
www.hyundaipowerproducts.co.uk
01646 687 880 [email protected].uk
Safety Information
Electrical Safety (Where Applicable)
!
ELECTRICITY CAN KILL - NEVER WORK ON LIVE/ENERGISED EQUIPMENT.
DANGER!
• Prior to carrying out any maintenance work you MUST identify electrical isolation methods and
isolate all electrical supplies.
• Prior to use and with all electrical supplies isolated, you MUST check all electrical cables, plugs
and connectors for the following;
- Are intact and have no signs of damage, to include but not limited to bare wires, chaffing, cuts
and loose wiring.
- If there are any signs of damage, the damaged item MUST be taken out of service until the
damage has been repaired by an electrically competent person.
- All trailing cables should be routed so as not to cause any kind of trip hazard.
- NEVER work on or near electricity with wet hands, wet clothing and wet gloves.
Batteries (Where Present)
Batteries present a risk if they become damaged by the possible leaking of electrolyte. This
electrolyte is an acid and can cause serious burn injuries. Care should be taken when working on
or near them. NOTE the electrolyte may be in a liquid or gel form.
Should you come in to contact with electrolyte you should;
• Remove all clothing contaminated with
electrolyte. If you cannot remove then saturate them in water.
• Get medical assistance as soon as possible.
You must advise the medical staff of the type of acid.
• Lead/acid battery = dilute sulphuric acid.
• Nickel/cadmium = potassium hydroxide alkali electrolyte.
• Use fresh running water to wash off excess electrolyte, continue this until medical assistance
arrives. Make sure that you do not wash the electrolyte to another part of your body or face.
• If electrolyte comes in to contact with eyes the electrolyte needs to be immediately washed
away with large amounts of water. Make sure that you do not wash the electrolyte to another part
of your face or body.
• Gasses from charging batteries are highly flammable and great care should be taken to charge
in well ventilated areas.
!
• There is an explosion risk if the battery terminals are short circuited, when
connecting/disconnecting ALWAYS exercise great care so that the terminals or battery
leads are NOT allowed to touch and cause a spark. ALWAYS use suitable insulated tools.
9
www.hyundaipowerproducts.co.uk
01646 687 880 [email protected].uk
Safety Information
During Use
• Always hold the unit with both hands when operating. Keep a firm grip on the handlebars.
Be aware that the machine may unexpectedly bounce upward or jump forward if the machine
should strike buried obstacles such as large rocks or roots.
• Do not operate the machine in confined areas where there may be a risk of crushing the
operator between the machine and another object.
• Walk, never run with the machine. Be very careful when pulling the machine toward you. You
must look behind you to make sure there are no obstacles before and during operations. Do not
allow the machine to pull you along.
• WARNING! If something breaks or an accident happens whilst working, you must turn off the
engine immediately and move the machine away to prevent further damage. If an accident
happens with injuries or third parties are injured, carry out the first aid measures most suitable
for the situation immediately and contact the medical authorities for any necessary health care.
Carefully remove any debris that might cause damage or harm persons or animals should it not
be seen.
• Keep a firm hold on the handlebars, they may tend to lift during clutch engagement.
• Do not carry passengers.
• Never operate the machine at a fast pace.
• The excessive speed of movement or the absence of maintenance have a significant influence
on noise emissions and vibrations. It is necessary to take preventive steps to eliminate possible
damage due to high levels of noise and stress from vibration. You must maintain the machine
well, wear ear protection and take breaks from working.
• After striking a foreign object, stop the engine immediately, remove the spark plug cap and
inspect the machine thoroughly for damage. Repair the damage before continuing.
• Always disengage the levers, turn off the engine, and remove the spark plug, when the unit is
left unattended.
• Never attempt to make any adjustments, while the engine is running.
• When the rotor is clogged with mud, pebble etc, immediately stop the engine and clean the
rotor in a safe place. Be sure to wear heavy gloves when cleaning the rotor.
• Adjust rotating depth according to the condition of the ground. Hoe hard ground in progressive
stages.
• Do not use the tiller with a rotor with diameter over 260mm.
!
10
www.hyundaipowerproducts.co.uk
01646 687 880 [email protected].uk
Safety Information
• Objects hit by the rotating tines can be thrown from the tiller with great force and may cause
severe injury.
• Never attempt to move the machine in any way other than intended for normal use while the
engine is running.
• Always turn off the engine and ensure that all moving parts have come to a complete stop
before making any repairs, adjustments, or inspections.
• Before leaving the machine to clear blockages, check, clean, refuel or after striking foreign
object, stop the engine and make sure that the blades have come to a complete stop.
• You must disengage the blade, switch off the engine and unplug the spark plug cable (making
sure that all moving parts are stationary):
- Before refuelling.
- Before adjusting the cutting height.
- After striking a foreign object, you must inspect the machine for damage and make repairs
before using it again.
- Before checking or working on the machine.
- Before clearing blockages.
- When transporting the machine.
- Whenever you leave the machine unattended.
11
www.hyundaipowerproducts.co.uk
01646 687 880 [email protected].uk
Safety Information
Engine Safety
• This machine is equipped with an internal combustion engine. Do not use on, or near,
forest-covered or brush-covered land unless the exhaust system is equipped with a spark
arrester meeting applicable local, state, or federal laws.
• A spark arrester, if used, must be maintained in effective working order by the operator.
• Never start or run the engine inside a closed area. The exhaust fumes are dangerous,
containing carbon monoxide, an odorless and deadly gas. Operate this unit only in a
well-ventilated outdoor area. (See carbon monoxide safety).
• Do not tamper with the engine in an effort to get it to run at higher speeds. The maximum
engine speed is preset by the manufacturer and is within safety limits.
• Keep a fire extinguisher on hand when operating this machine in dry areas as a precautionary
measure.
• Never leave the operating position when the engine is running.
• The engine parts get very hot when running, do not touch. Danger of burns.
• Follow the instructions to ignite the engine carefully whilst keeping feet away from moving
parts.
• Never incline the machine during ignition. Ignite the machine on a flat surface without obstacles
or high grass.
• Do not over-rev the engine or change the engine settings.
• Never pick up or carry the machine while the engine is running.
• Stop the engine whenever you leave the machine, or before refuelling, when cleaning or while
maintaining.
• Reduce the throttle setting during engine shut down and, if the engine is provided with a
shut-off valve, turn the fuel off at the conclusion of working.
• Do not tilt the machine when starting the engine.
!
12
www.hyundaipowerproducts.co.uk
01646 687 880 [email protected].uk
Safety Information
Carbon Monoxide
!
CARBON MONOXIDE IS A COLOURLESS, ODOURLESS GAS. INHALING THIS GAS CAN
CAUSE DEATH OR SERIOUS LONG-TERM HEALTH PROBLEMS SUCH AS BRAIN DAMAGE.
Never operate the engine in a confined space where dangerous carbon monoxide fumes can
develop. All ignition operations have to be effected in an open or well-ventilated area. Always
remember that exhaust fumes are toxic.
The symptoms of carbon monoxide poisoning can include but are not limited to the following;
Headaches, dizziness, nausea, breathlessness, collapsing or loss of consciousness.
Carbon monoxide poisoning symptoms are similar to flu, food poisoning, viral infections and
simply tiredness. It is quite common for people to mistake this very dangerous poisoning for
something else.
To avoid carbon monoxide poisoning DO NOT use Petrol/Diesel powered equipment inside any
of the following; Home, garage, tent, camper van, mobile home, caravan or boat. DO NOT use
in an enclosed area or moving vehicle. This is not exhaustive and if you are in any doubt contact
your dealer.
If you think you have or someone around you has been affected by carbon monoxide poisoning;
Get them fresh air immediately, by leaving the affected area or by opening doors and windows. If
safe and practical to do so make sure that the machine is turned off. DO NOT enter a room you
suspect of having carbon monoxide present – instead call the emergency services.
Contact a Doctor immediately or go to Hospital – let them know that you suspect carbon
monoxide poisoning.
!
Engine exhaust fumes contain Carbon Monoxide. This is a poisonous gas and can kill in
minutes. NEVER use inside a building or in an area with poor ventilation. NEVER use inside
a confined space, such as but not limited to a house, garage, vehicle, boat or tent. ONLY
use outside and far away from windows, doors and vents.
DANGER!
13
www.hyundaipowerproducts.co.uk
01646 687 880 [email protected].uk
Safety Information
Spilled Fuel
• If you have spilled fuel, make sure you do not attempt to ignite the engine but move the
machine away from the area of spilled fuel and avoid creating any source of ignition until the fuel
has evaporated and fuel vapours have dissipated.
• When fuel is spilled on yourself or your clothes, wash your skin and change clothes
immediately.
• ALWAYS clean up spills promptly using absorbent granules and a lidded bin.
Fuel Safety
!
CAUTION! ALL FUELS ARE HIGHLY FLAMMABLE AND PETROL VAPOUR IS
EXPLOSIVE. TAKE EXTREME CARE WHEN HANDLING FUEL. KEEP FUEL OUT OF
REACH OF CHILDREN.
General Safety
• Do not smoke each time fuel is handled.
• ALWAYS avoid inhaling fumes.
• ALWAYS carry fuel in the correct and clearly marked container.
• ALWAYS wear correct, suitable and fit for purpose Personal Protective Equipment (PPE),
suggested items are but not limited to safety gloves and overalls.
• To avoid sparking or arcing, keep grounded conductive objects – such as tools – away from
exposed, live electrical parts and connections. These events could ignite fumes or vapors.
• Do not operate the machine with known leaks in the fuel system.
• Fire hazard - keep fuel away from all sources of ignition for example heaters, lamps, sparks
from grinding or welding.
• DO NOT carry out hot work on tanks that have contained fuel.
• ALWAYS keep the work area tidy.
• ALWAYS dispose of waste fuels correctly.
• Serious personal injury can occur when petrol is spilled on yourself or your clothes. Rinse your
skin and change your clothes immediately.
General Safety
14
www.hyundaipowerproducts.co.uk
01646 687 880 [email protected].uk
Safety Information
• ALWAYS fuel and de-fuel in a well ventilated area outside of buildings. Use a funnel to add fuel,
only outdoors. Do not smoke during this and each time fuel is handled.
• Add fuel before igniting the engine, never remove the fuel tank cap or add fuel whilst the engine
is running or when it is hot.
• When de-fueling ALWAYS use a proper fuel retriever.
• Never overfill the fuel tank. Engine heat can cause fuel to expand, never fill the tank to more
than 1/2” below the bottom of the filler neck. This will provide space for fuel expansion.
• When refilling or draining the fuel tank, use an approved fuel storage container while in a clean,
well-ventilated outdoor area. While adding fuel or operating the unit, do not smoke, and stay
away from sparks, open flames, or other sources of ignition near the area of operation.
• Always stop the engine and allow it to cool before filling the fuel tank. Never remove the cap of
the fuel tank or add fuel while the engine is running or when the engine is hot.
• Loosen the fuel tank cap slowly to relieve any pressure in the tank.
• ALWAYS keep the handles dry, clean and free of oil and fuel.
• After fueling, ensure to tighten the cap securely.
• Never use the lock-function when filling with fuel.
Fueling / De-Fueling
• Store fuel in containers specifically designed and approved for fuel storage.
• Store fuel in a cool, well-ventilated area, safely away from sparks, open flames, or other
sources of ignition.
• Never store fuel – or a machine with fuel in the tank – inside a building where fumes may reach
a spark, open flame, or any other source of ignition (such as a water heater, furnace, or clothes
dryer). Allow the engine to cool before storing in any enclosure.
• Replace all fuel tank and container caps securely and wipe up spilled fuel. Never operate the
unit without the fuel cap securely in place.
Storage
15
www.hyundaipowerproducts.co.uk
01646 687 880 [email protected].uk
Safety Information
• Prolonged use of hand held (operated) machines will cause the user to feel the effects of/from
vibrations. These vibrations can lead to white finger (Raynaud’s phenomenon) or carpal tunnel
syndrome. This condition reduces the ability of the hand to feel and regulate temperature,
causing numbness and heat sensations and may cause nerve damage and circulatory tissue
death.
• Not all factors that lead to white finger disease are known, but cold weather, smoking and other
diseases that affect blood vessels and blood circulation as well as large and long-lasting impact
of shocks are considered factors in the formation of white finger. Note the following to reduce the
risk of white finger and carpal tunnel syndrome;
• Wear gloves and keep your hands warm.
• Take regular breaks.
• All of the above precautions may help reduce the risk of white finger disease but not rule out
the carpal tunnel syndrome. Long-term and regular users are therefore recommended to observe
the condition of your hands and fingers. Seek medical attention immediately if any of the above
symptoms should occur.
Vibrations (Where Applicable)
!
• The operating noise of the machine can damage your hearing. When wearing protection such
as earplugs or ear defenders to protect your hearing. Long-term and regular users are advised to
have hearing checked regularly. Be especially vigilant and cautious when wearing ear protection
because your ability to hear alarm warnings will be reduced.
• Noise emissions for this equipment is unavoidable. Carry out noisy work at approved times and
for certain periods. Limit the working time to a minimum. For your personal protection and
protection of people working nearby it is also advisable for them to wear hearing protection.
• See Certificate of Conformity section for Outdoor Noise declaration of conformity.
Noise (Where Applicable)
!
16
www.hyundaipowerproducts.co.uk
01646 687 880 [email protected].uk
Safety Information

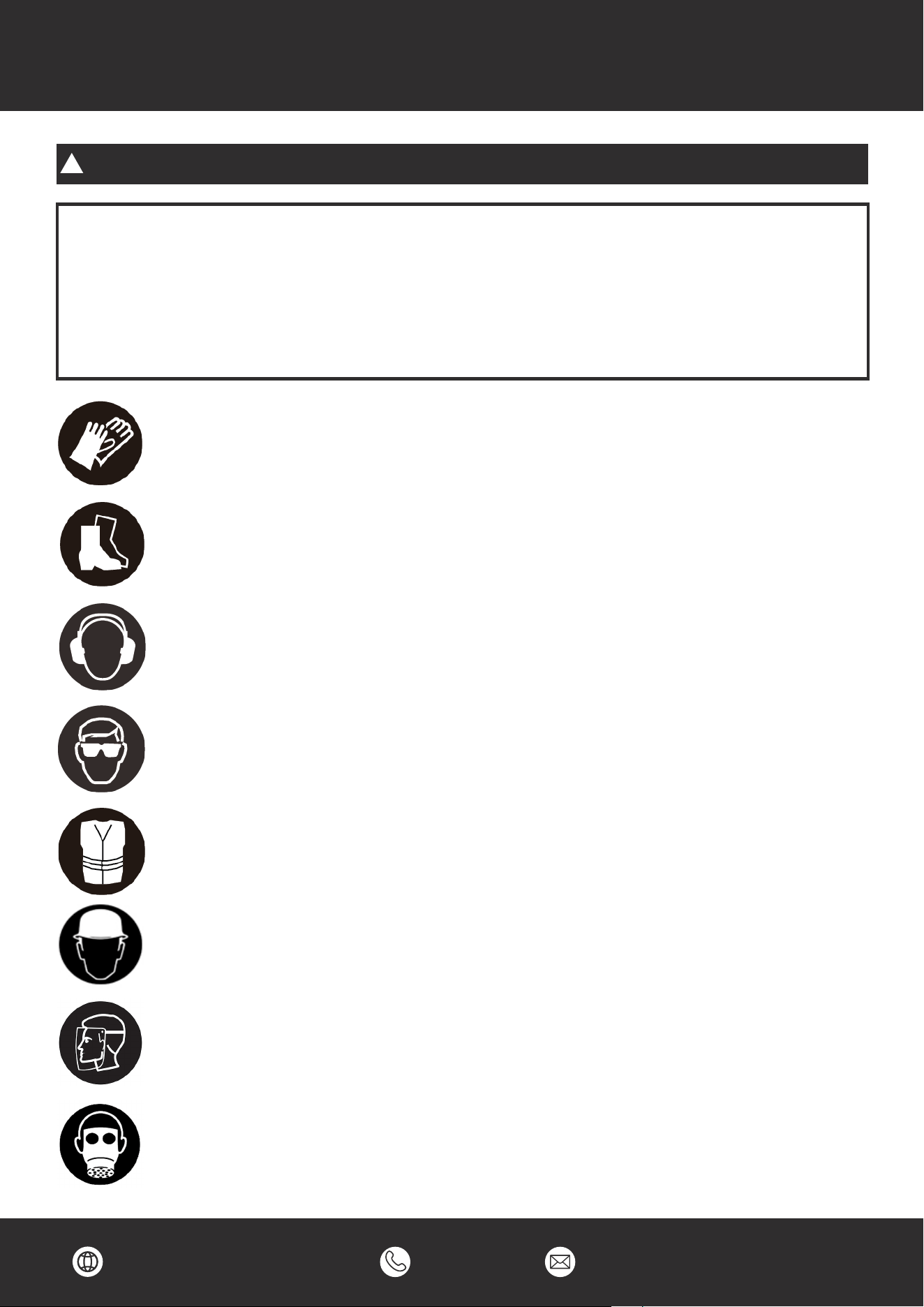

Personal Protective Equipment
!
HAND PROTECTION MUST BE WORN
Protective electrically non-conductive gloves are highly recommended when working.
HEARING PROTECTION MUST BE WORN
Suitable safety hearing protection is recommended.
EYE PROTECTION MUST BE WORN
Always wear safety glasses/goggles and/or face shields. Everyday eyeglasses have
only impact resistant lenses; they are not safety glasses/goggles.
FOOT PROTECTION MUST BE WORN
Non-skid heavy duty footwear are highly recommended when working.
PROTECTIVE CLOTHING MUST BE WORN
Do not wear loose clothing, gloves, scarfs, neckties or jewellery
(rings, wrist watches), which can be caught in moving parts.
HEAD PROTECTION MUST BE WORN
Wear a safety helmet with a safety visor.
FACE SHIELD MUST BE WORN
Wear a face shield to protect your face.
RESPIRATOR MUST BE WORN
Wear a respirator.
Appropriate Personal Protective Equipment (PPE), MUST be worn at all times when
operating or repairing the machine. No protective equipment can ensure 100%
protection.
When selecting PPE, make sure it’s CE marked and it suits the user in terms of size, fit, etc. If
more than one item of PPE is worn at the same time, make sure they can be used together, e.g.
wearing safety glasses may disturb the seal of a respirator, causing air leaks.
17
www.hyundaipowerproducts.co.uk
01646 687 880 [email protected].uk
Safety Information

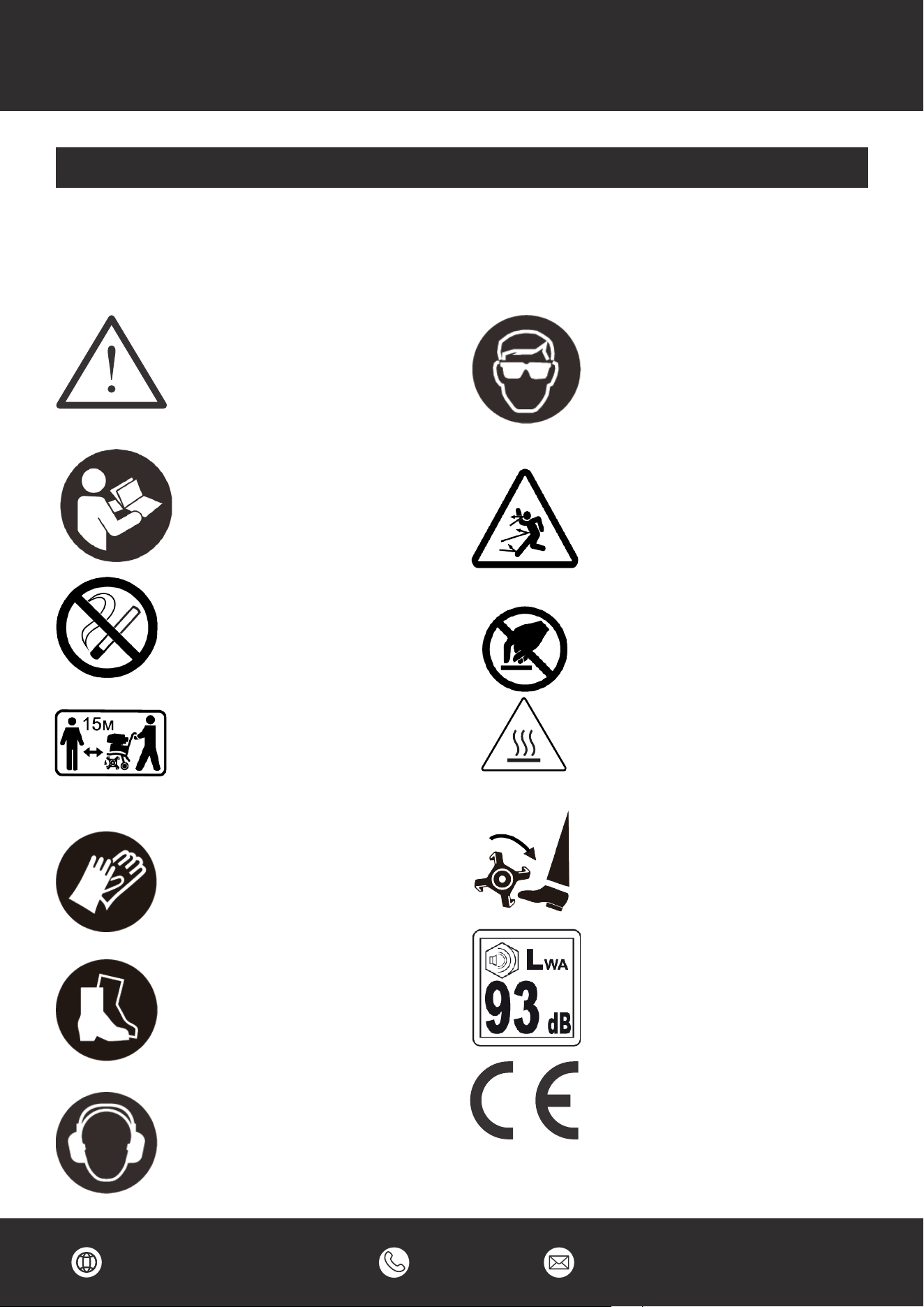

Symbols On The Machine
We have provided safety messages in this manual and on the machine. This information alerts
you to potential hazards that could hurt you or others. Please read these messages carefully.
However, we may not have listed all of the possible hazards, you must also use your own
judgment.
IMPORTANT
Please read this instruction
manual carefully, especially the
safety warnings marked with the
symbol.
INSTRUCTION MANUAL
Read and understand operator’s
manual before using the machine.
Failure to follow instructions could
result in death or serious injury.
DO NOT SMOKE
No open flame; open ignition
source and smoking prohibited.
DANGER AREA
Keep bystanders away,
especially children and pets at
least 15m away.
HAND PROTECTION
Protective gloves are highly
recommended when working.
FOOT PROTECTION
Non-skid heavy duty footwear are
highly recommended when
working.
HEARING PROTECTION
Suitable safety hearing protection
is recommended.
EYE PROTECTION
Always wear safety glasses/
goggles and/or face shields.
Everyday eyeglasses only have
impact resistant lenses; they are
not safety glasses/goggles.
CE SYMBOL
This product complies with the
applicable European directives
and an evaluation method of
conformity for these directives
was done.
DANGER OF THROWN OBJECTS
If approached by bystanders, stop
the machine immediately.
CAUTION! HOT SURFACE
Hot temperature, do not touch.
WARNING
Keep feet away from sharp
rotating blades.
NOISE MARKING
Single value noise marking
(maximum declared A-Weighted
sound power level in decibels).
18
www.hyundaipowerproducts.co.uk
01646 687 880 [email protected].uk
HYT150 Features
Features
This diagram is illustrative only and is intended to help you better understand the operating
instructions. Actual product may vary. Subject to change.
19
www.hyundaipowerproducts.co.uk
01646 687 880 [email protected].uk

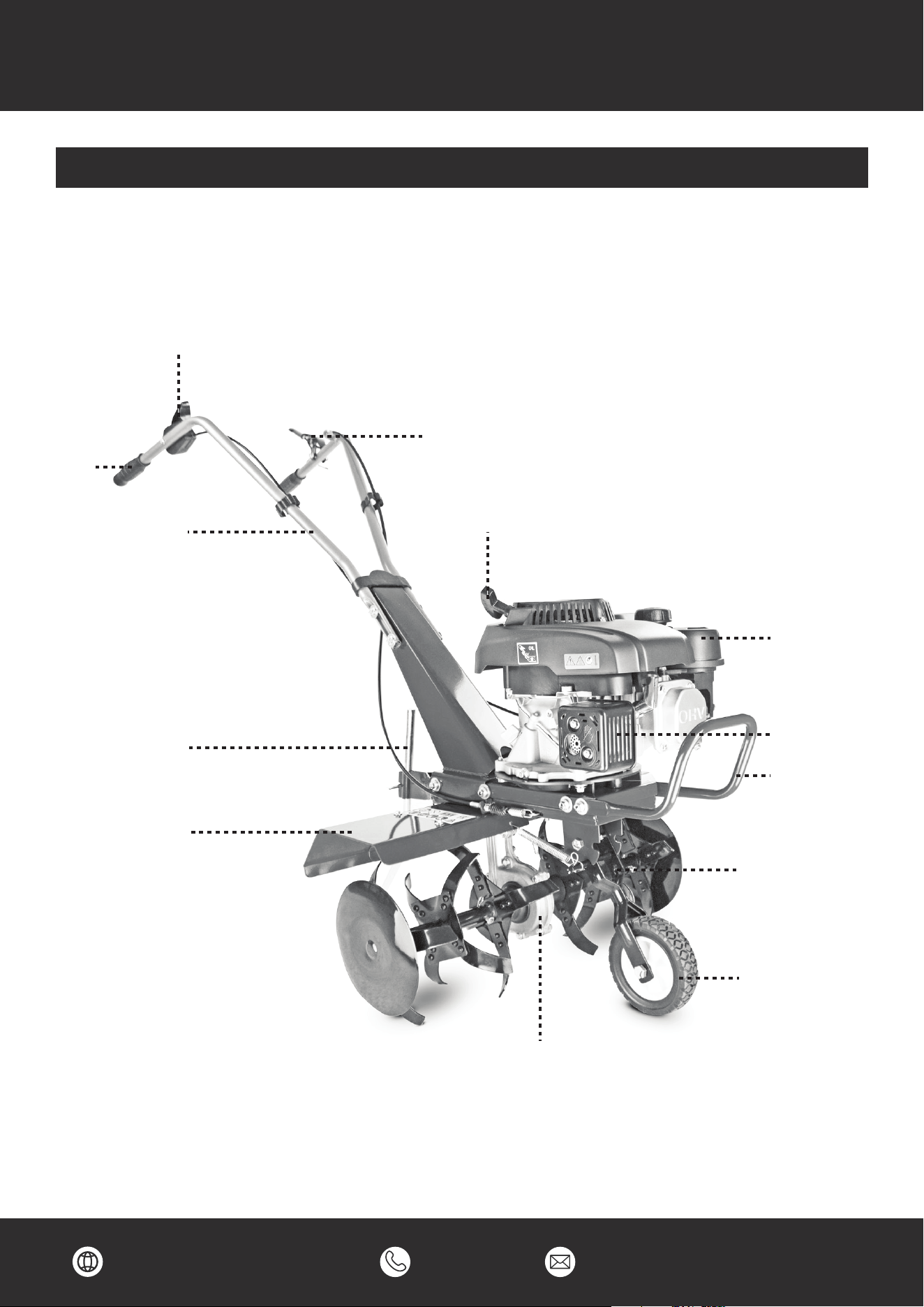

Emergency Stop Lever
Engine Speed
Adjustment
Hand
Grip
Handlebar
Depth Bar
Mud Fender
Gear Box
Front Wheel
Blade
Assembly
Front
Handle
Exhaust
Air Filter
Recoil Starter Cord
Unboxing
Unboxing Safety
!
In The Box
• Main assembly plus handles
• Handle assembly bolts
• Cable clips
• Mud guard extension assembly
• Blade extensions
• Drag bar
• Handle bar support
• Drag bar connecting pin
• User Manual
WARNING! Unboxing and assembling the machine should be done on a flat, stable surface
with enough room. Disposal of the packaging should be done in accordance with the local
regulations in force.
WARNING! Some of the packaging material may be harmful to children. Keep out of reach of
children.
Carefully remove the product from the packaging and examine it for any sign of damage caused
during shipping. Lay the contents out and check them. If any part is damaged or missing, you
must not use the machine. Contact HYUNDAI Power Products immediately. You must keep the
packaging material in case the machine needs to be returned or repaired.
Ensure that you have all the accessories and tools you need for assembly and operation
including the suitable personal protective equipment.
20
www.hyundaipowerproducts.co.uk
01646 687 880 [email protected].uk
Assembly
CAUTION - This guide is meant to serve as a quick reference for operating your HYUNDAI
machine. We always advise reading the manual in full before operation.
CAUTION - For OUTDOOR use ONLY. Petrol machines produce carbon monoxide –
poisonous, colourless and odourless gas that can cause serious injury or death. Petrol is highly
flammable, always handle with extreme care and in a well ventilated area.
NOTE - Images may vary depending on model.
NOTE - The machine can be supplied with some parts already assembled. Prior to assembly,
check all items have been received.
NOTE - This machine is shipped without fuel and oil and MUST be filled before use. Failure to
do so may cause damage to the engine that will not be covered by warranty.
Assembly Safety
!
!
!
!
!
!
We recommend that you fill out the information on page 50. If you need to contact an
authorised dealer or customer service for information on servicing, you may need to
provide this information.
There is also a service record so you can keep track of your machine service dates.
21
www.hyundaipowerproducts.co.uk
01646 687 880 [email protected].uk

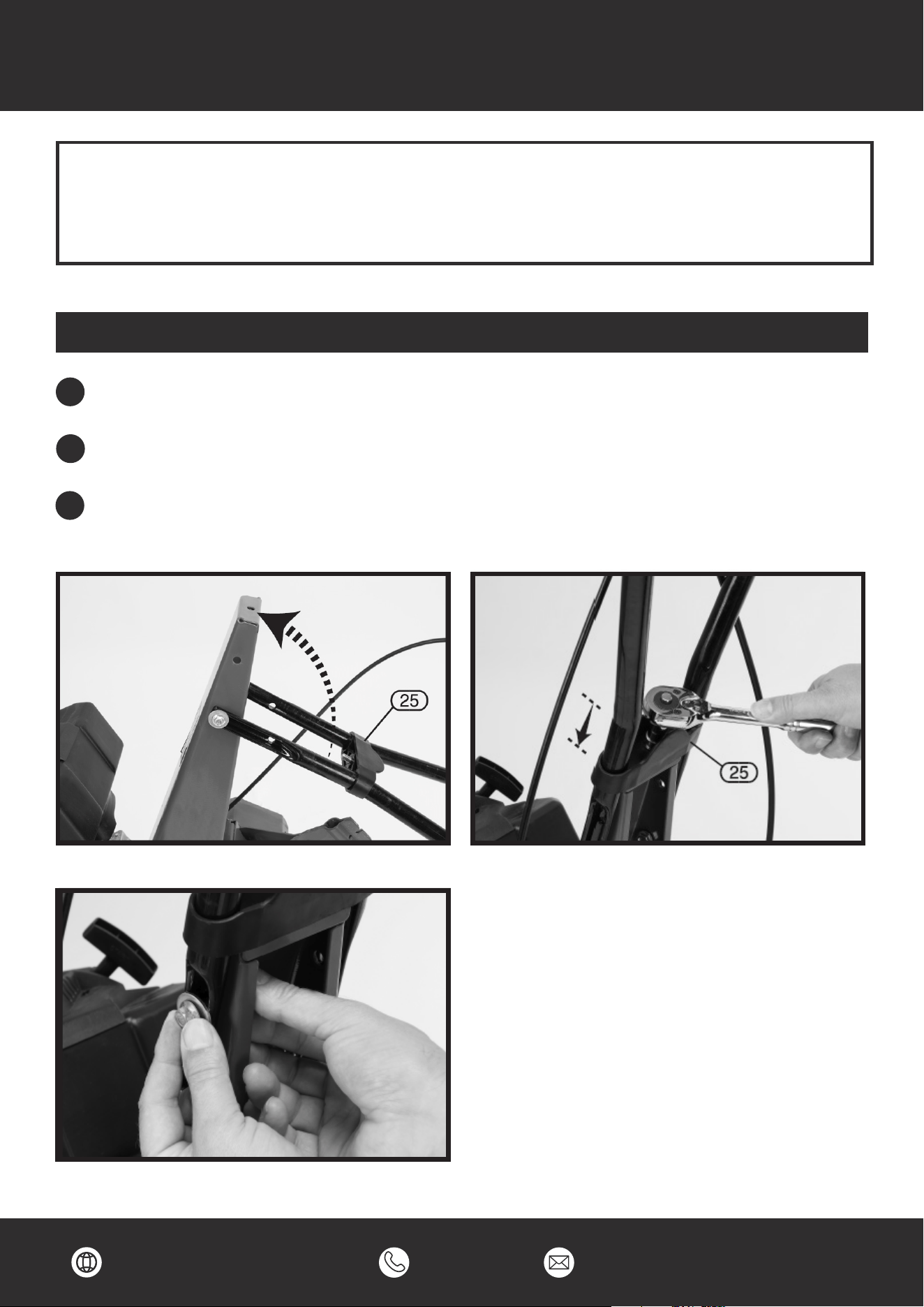

Slide the handle bracket (25) onto the ends of the handles. Attach the handle bars to the
handle bar support with bolts only finger tight to the lower position. See image 1.
Step 1 : Attach The Handlebar
1
Unboxing & Assembly Video:
Go to youtube.com and type in Hyundai HYT150 unboxing & assembly.
YOU MUST read and understand the instruction manual first.
Assembly
Swing the handles up, and slide the bracket (25) down onto the handle support. Insert
centre bolt and tighten. See image 2.
2
Insert the bolts through the upper holes. Tighten all bolts. See image 3.
3
Image 1 Image 2
Image 3
22
www.hyundaipowerproducts.co.uk
01646 687 880 [email protected].uk
Assembly

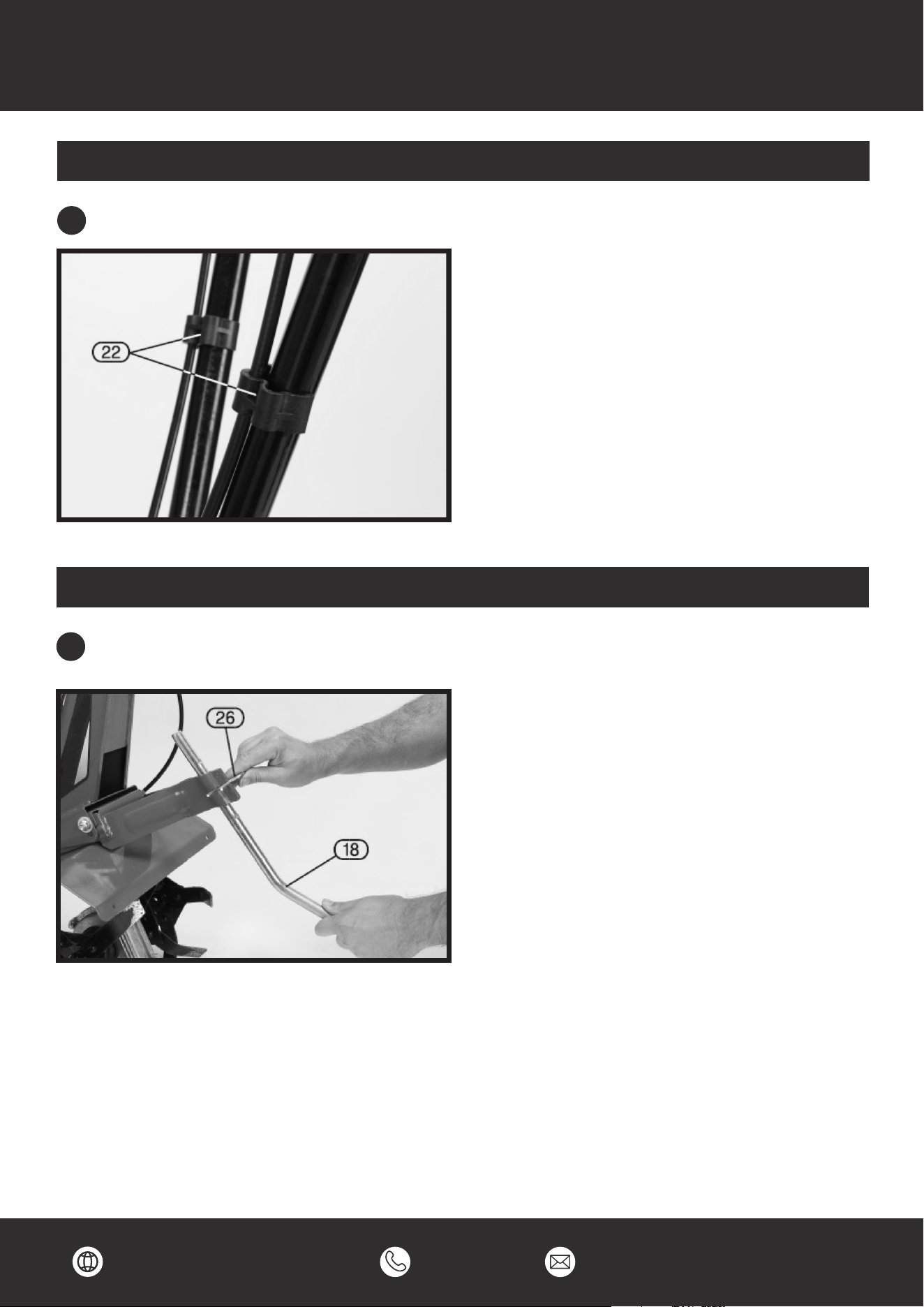

Attach the cables onto the handles using the clips (22) provided.
Step 2 : Attach The Cable Clips
1
Attach the drag bar (18) to the drag bar holder, choose a suitable height and then lock the
drag bar with the large R shaped-pin (26).
Step 3 : Attach The Drag Bar
1
23
www.hyundaipowerproducts.co.uk
01646 687 880 [email protected].uk
Assembly

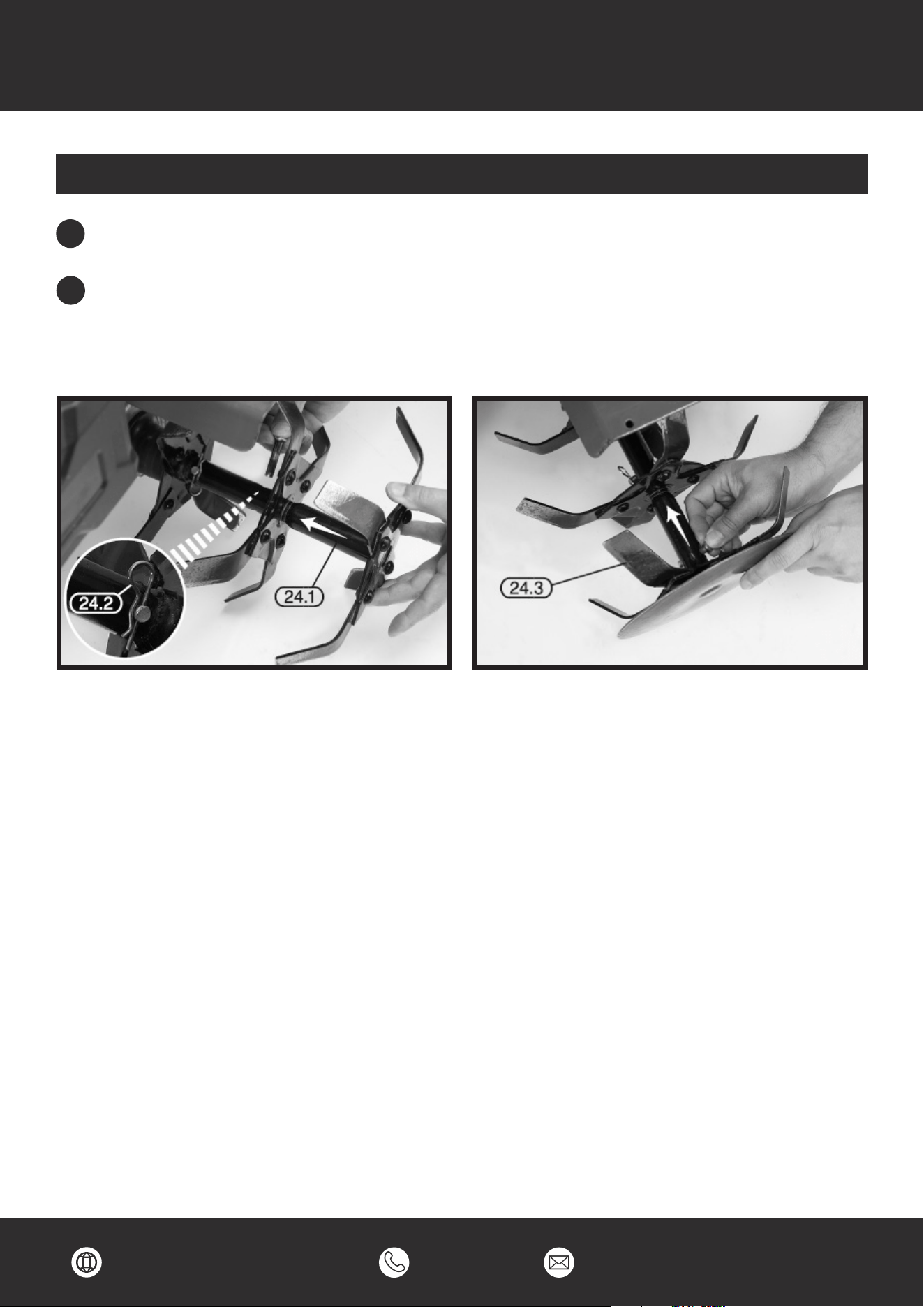

Slide a blade (24.1) onto the end of the other blades shaft insert and secure with a R-type
locking pin (24.2).
Step 4 : Attach The Blades
1
Slide the outer blade (24.3) into the outer blade hole, insert pin and secure with another
R-type locking pin. Attach the blade to the opposite side of the rotavator shaft
using the same method.
2
Image 1 Image 2
24
www.hyundaipowerproducts.co.uk
01646 687 880 [email protected].uk

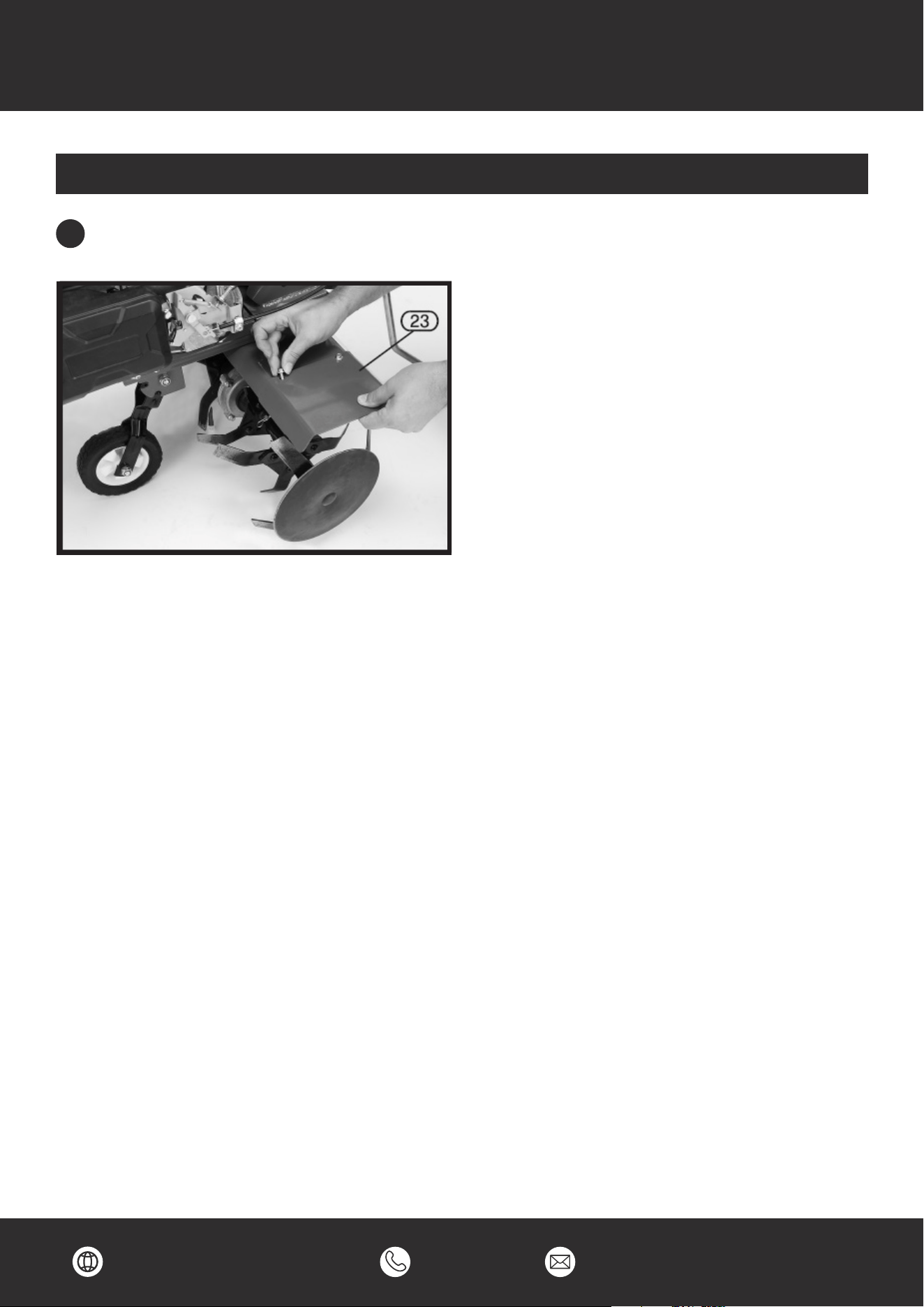

Attach the mud guard (23) to both sides with the nuts and bolts supplied and tighten.
Step 5 : Attach The Mud Guard
1
Assembly
25
www.hyundaipowerproducts.co.uk
01646 687 880 [email protected].uk
Preparation
Oil Type : SAE 30 or 15w40 Engine Oil
Oil Capacity : 0.4L
Adding Oil
NOTE - The machine is delivered without oil in the engine. All machines are tested and inspected
so there may be some residual oil left in the machine so please fill with caution.

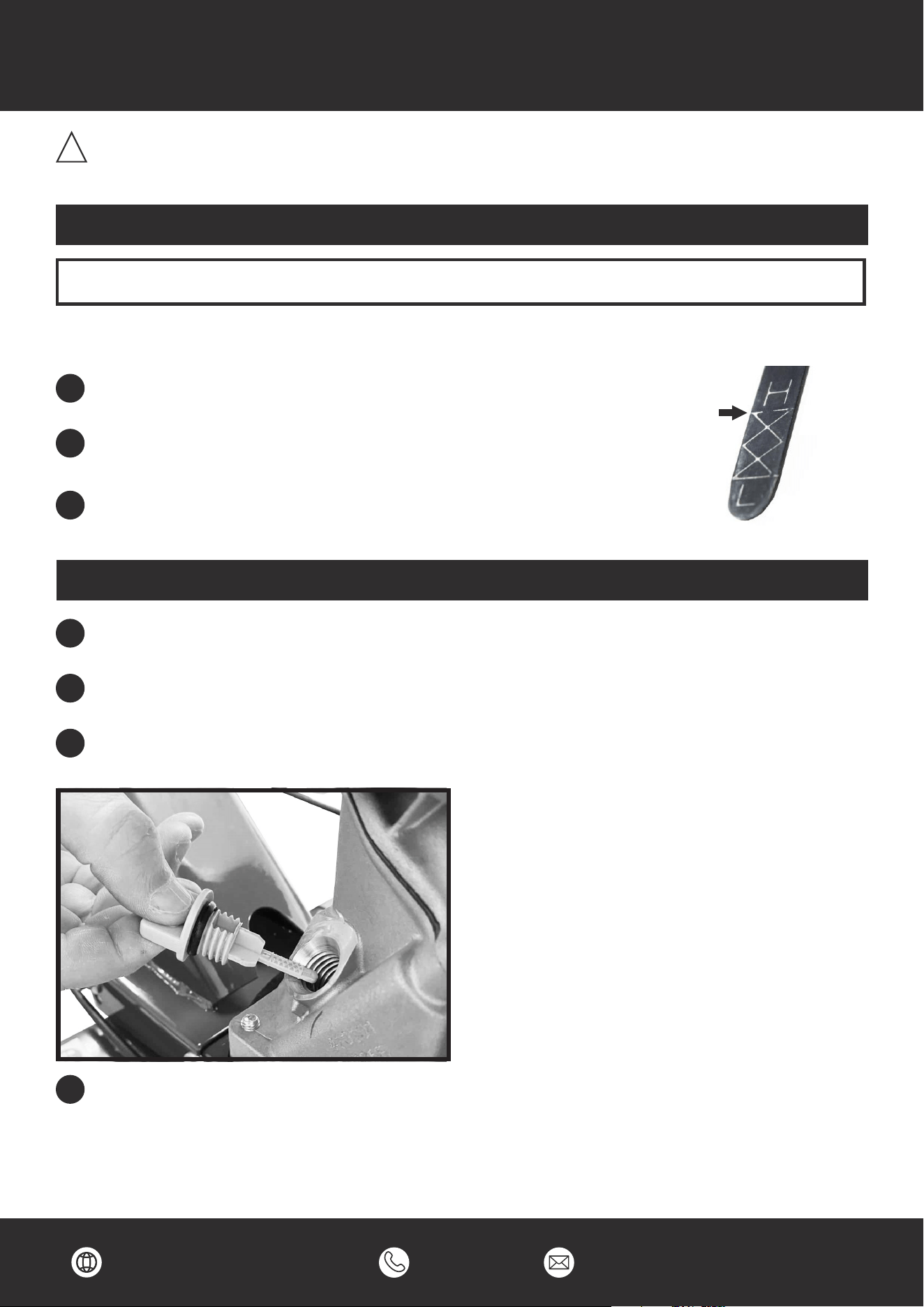

Remove the oil filler cap.
1
Fill with fresh SAE 30 or 15W40 engine oil to the upper mark on the
dipstick. DO NOT overfill.
2
Once the correct amount of oil has been added, refit the dipstick securely.
3
Checking Oil Level
Remove the oil filler cap and wipe the dipstick clean.
1
Refit the dipstick without screwing it down. Remove the dipstick and check the oil level. It
should be to the middle of the dipstick.
2
If the oil level is too low, add SAE 30 or 15W40 engine oil to the upper mark on the dipstick.
DO NOT overfill. The oil level should not be above the upper mark on the dipstick.
3
Once the correct amount of oil has been added, refit the dipstick securely.
4
CAUTION - Do not make any adjustment to the machine without stopping the engine first.
Running the engine with low oil level will cause serious engine damage.
!
26
www.hyundaipowerproducts.co.uk
01646 687 880 [email protected].uk
Preparation
Fuel Type : Fresh Straight Unleaded Petrol
Fuel Capacity : 0.8L

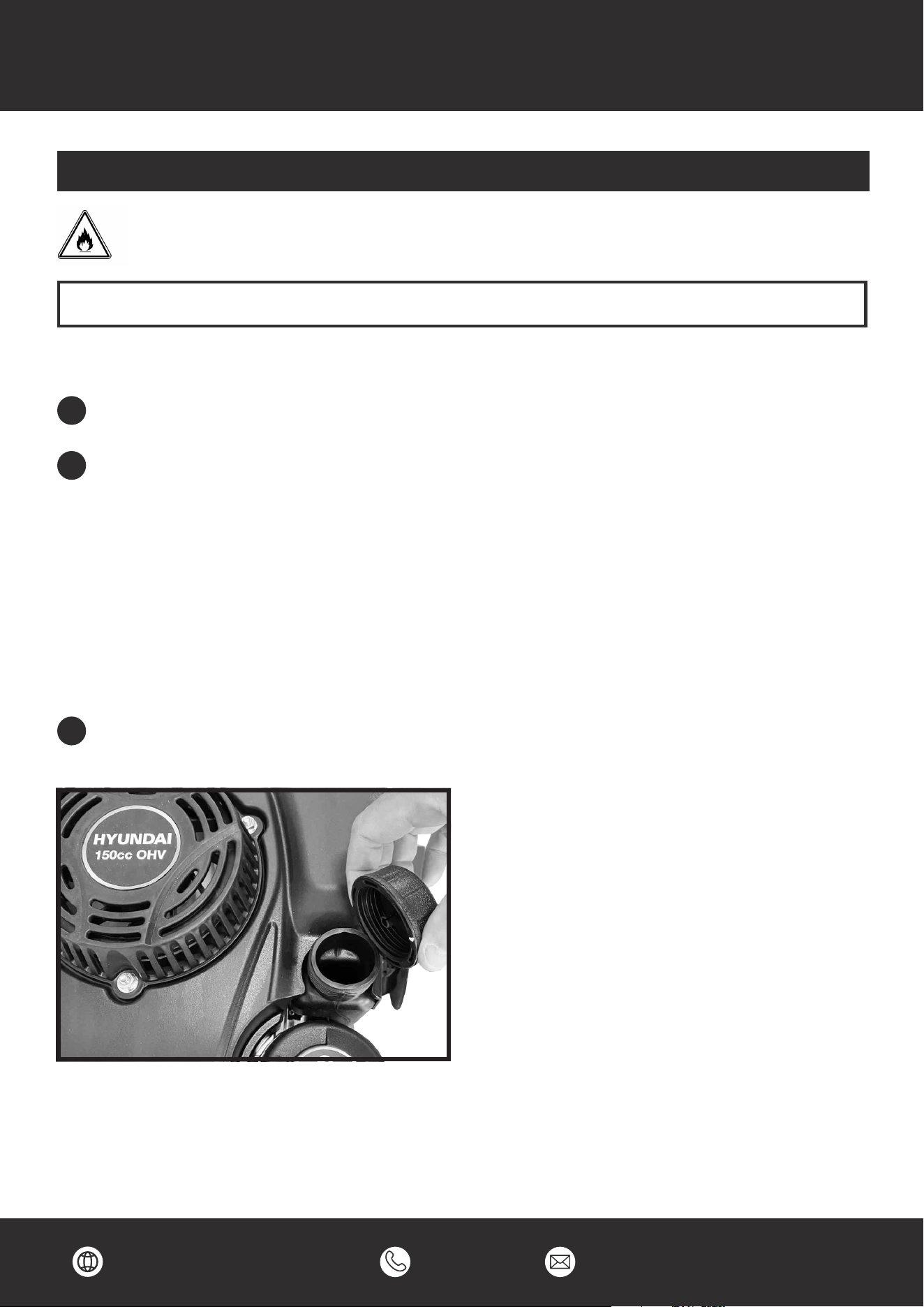

Adding Fuel
NOTE - The machine is delivered without petrol. All machines are tested and inspected so there
may be some residual petrol left in the machine so please fill with caution.
Remove the fuel tank cap.
1
Fill the fuel tank with fresh straight unleaded petrol. Allow a 25mm gap from the top of the tank,
then refit the cap securely. DO NOT mix petrol with oil and clean up any spills immediately.
NOTE - DO NOT overfill. The fuel tank only needs to contain enough fuel to complete the days
work. If you run out of fuel, refilling must only be done once the engine has cooled down. Fuel
stored within the machine for 28 days or more can go stale and should be drained before further
use.
NOTE - Make sure not to drip petrol onto the plastic parts to prevent damaging them and remove
all traces of spilt petrol immediately. The warranty will not cover damage to plastic parts caused
by petrol.
2
Refit the fuel filler cap securely and clean up any fuel spilt before starting the engine.
3
Make sure you read the fuel safety before handling fuel.
27
www.hyundaipowerproducts.co.uk
01646 687 880 [email protected].uk
Operation

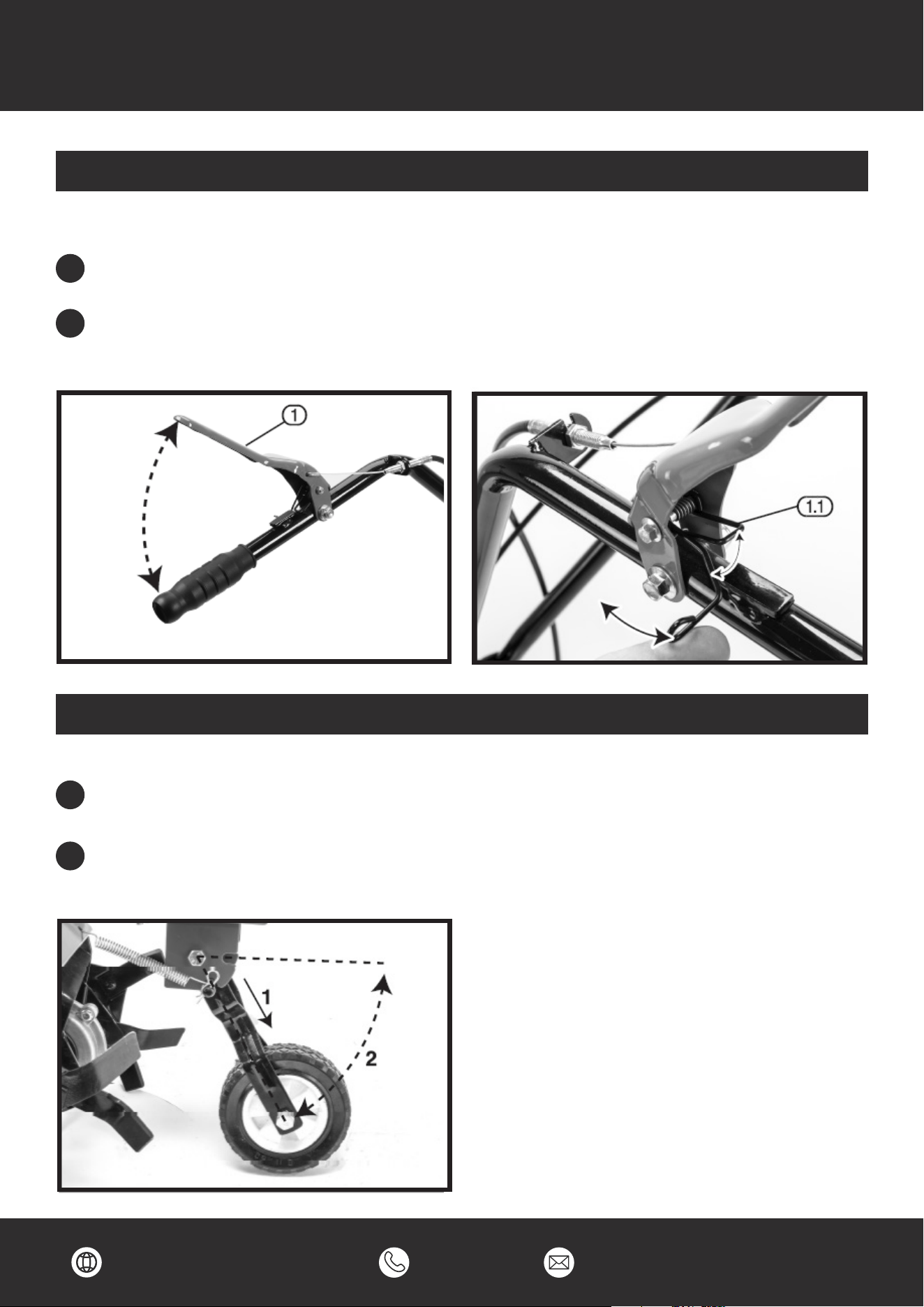

Clutch Operation
The clutch engages and disengages the power from the engine to the transmission.
The clutch lever (1) has a safety clip (1.1) which needs to be released before the clutch lever
can be depressed.
1
Squeeze the clutch lever, and the rotovating blades will rotate, release the clutch and they
will stop.
2
Image 1 Image 2
Lifting Front Wheel
When the tiller is in location ready to be used, lift the front wheel to the raised location.
Pull the front wheel bracket out of the location notch, swing the bracket down (the spring will
pull the bracket back into the notch). The tiller can stand with no other support.
1
With the wheel in the lower position the tiller can be wheeled into position, lift the handlebars
up and ground the front wheel. When the tiller is positioned and ready to use, then the front
wheel can be lifted into the raised position.
2
28
www.hyundaipowerproducts.co.uk
01646 687 880 [email protected].uk
Operation

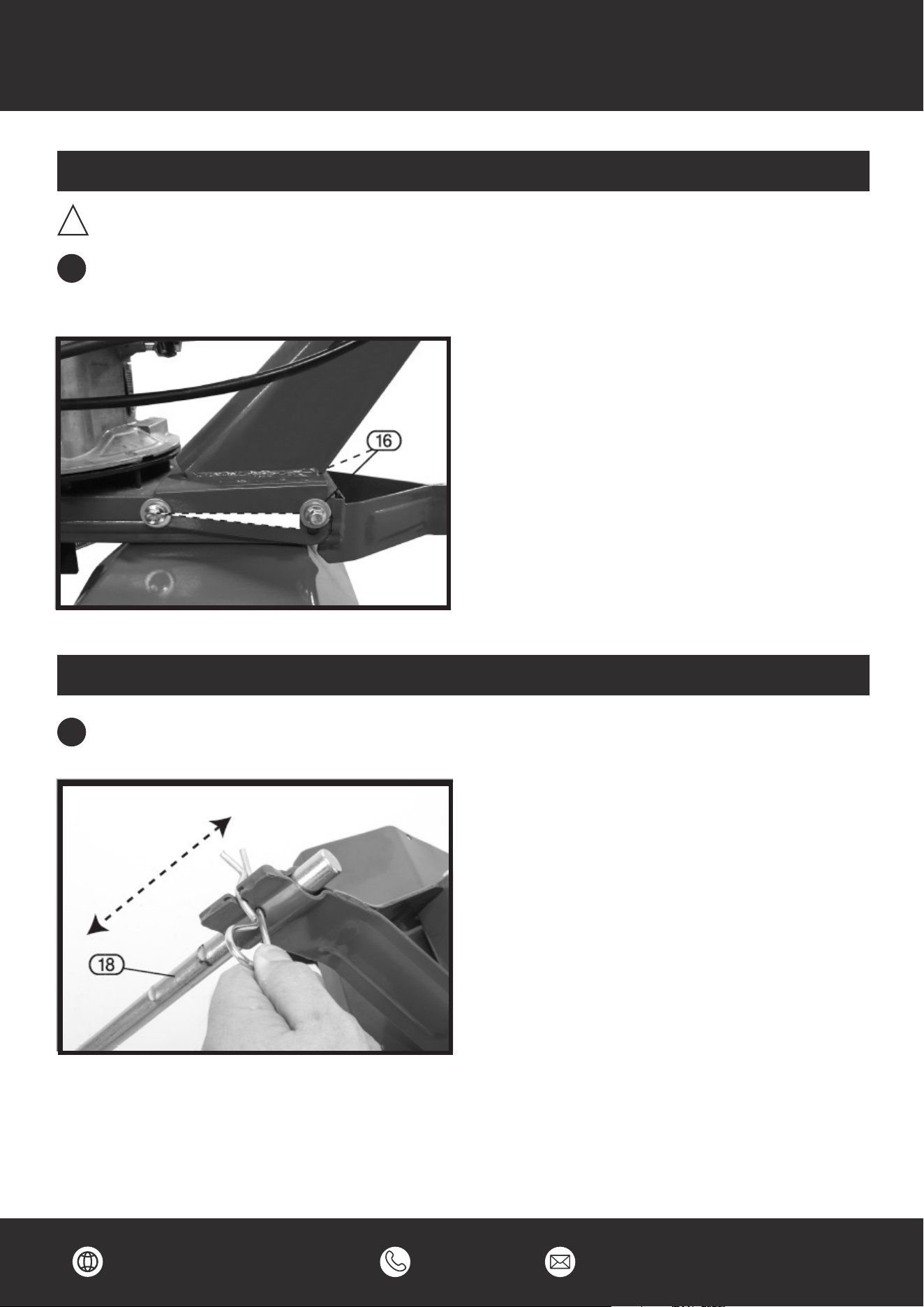

Handlebar Height Adjustment
CAUTION! Before adjusting the handlebar, place the tiller on firm level ground.
To adjust the tiller height, loosen the adjuster bolts (16) either side, select the appropriate
height and tighten the bolt. Adjust the handlebar height to a comfortable position (usually
waist height is recommended).
1
Tilling Depth Adjustment
First attach the drag bar (18) into the drag bar holder, slide through to the required height and
then lock the bar with the R-type locking pin.
1
29
www.hyundaipowerproducts.co.uk
01646 687 880 [email protected].uk
!
30
www.hyundaipowerproducts.co.uk
01646 687 880 [email protected].uk

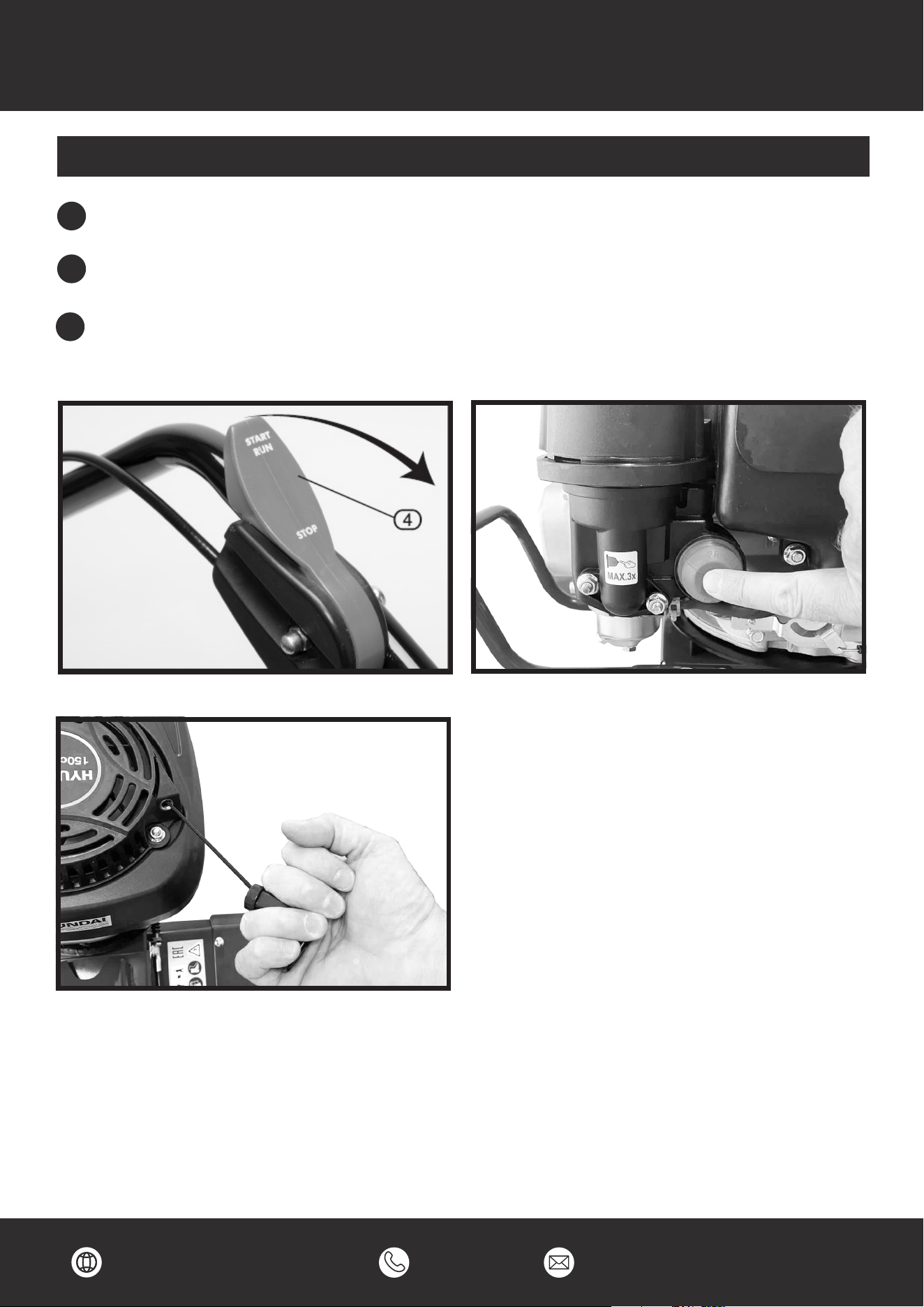

Starting / Stopping
Starting
Pull the engine lever up slightly to ‘START RUN’ position (4). See image 1.
1
Press the primer bulb three times to prime the motor. See image 2.
2
Pull the starter grip lightly until resistance is felt then pull rapidly. See image 3.
3
Image 1 Image 2
Image 3

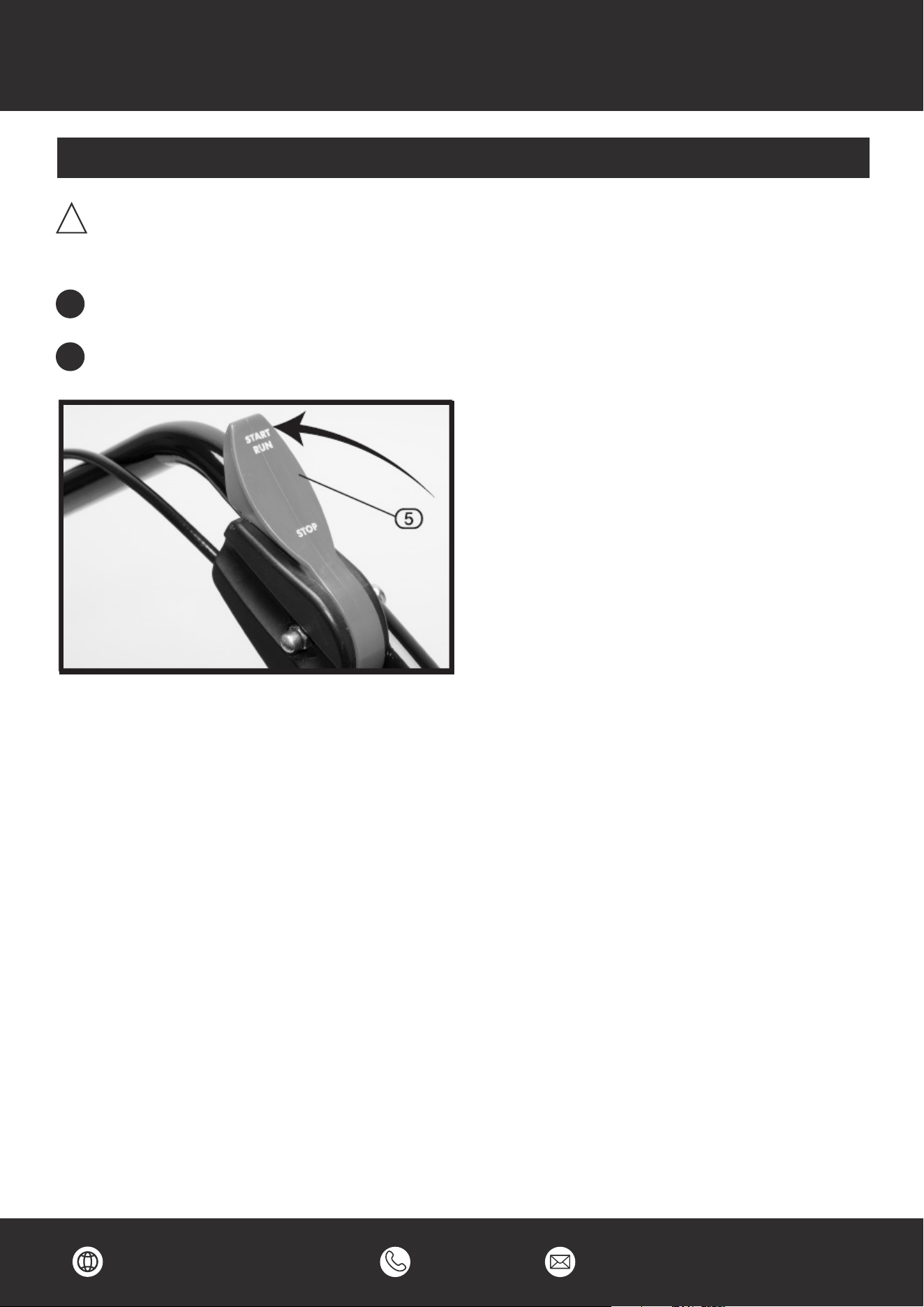

Stopping
Starting / Stopping
CAUTION - The engine and exhaust will remain hot for a while after use. Ensure the engine
and exhaust has cooled before carrying out any maintenance, refuelling or storage.
!
Disengage the clutch.
1
Push the engine switch/choke lever (5) to ‘STOP’ position.
2
31
www.hyundaipowerproducts.co.uk
01646 687 880 [email protected].uk
Maintenance
Maintenance Safety
!
IMPORTANT - Routine and accurate maintenance is essential for maintaining original
machine safety and performance levels.
WARNING - Before cleaning or doing maintenance work, you need to stop the engine,
disconnect the spark plug cable and read the relevant instructions. You need to wear proper
clothing and protective gloves whenever your hands are at risk.
If there are worn or damaged parts, never use the machine. Faulty or worn-out parts must be
replaced and not repaired. You must only use original spare parts. The use of non-original and/or
incorrectly fitted parts will jeopardize the safety of the machine. This may also cause accidents or
personal injuries for which the manufacturer is under no circumstance liable or responsible.
Any maintenance operations or adjustments not explained in this manual must be carried out
by your Dealer or a specialised Service Centre with the necessary knowledge and equipment to
ensure that the work is done correctly maintaining the machine’s original safety level. Any
operations performed in unauthorised centres or by unqualified persons will invalidate the
Warranty and all obligations and responsibilities of the Manufacturer.
Be very careful during adjustment of the machine to prevent entrapment of the fingers
between moving parts and fixed parts of the machine.
!
!
!
!
!
Checking Your Machine
When checking your machine, we recommend you:
• Check for worn or damaged parts
• Make sure all nuts, screws and bolts are tight
• Make sure all warning stickers are in place and not damaged
• Check for oil / fuel leaks
32
www.hyundaipowerproducts.co.uk
01646 687 880 [email protected].uk
Maintenance Schedule
Maintenance
Routine and accurate maintenance is essential for maintaining original machine safety and
performance levels.
It is recommended that the following maintenance schedule is followed.
Item Every use Every 3
months or
15 hours
Every 6
months or
50 hours
Every 12
months or
100 hours
Every 24
months or
300 hours
Air filter Check
Clean
X
X*
Spark plug Check / Adjust
Replace
X
X
Carburettor Clean X
Engine oil Check
Change
X
X
Cutting blades
(tines)
Check X
Clutch Check
Adjust
X
Drive belt Replace as
required
Gear box oil Check level X
Fill as
required
Mechanical
connections
Check / Tighten X
Fuel tank Examine X
Fuel pipes Examine
Replace as required
As required
Contact dealer
Each time, replace as required
* Clean more in dirty and dusty environments.
NOTE - Where necessary, all corrective actions should be carried out by suitably qualified
persons.
!
CAUTION! For your own safety, turn the tiller off before any maintenance.
!
If the engine still cannot be started, take your machine to an authorized dealer.
33
www.hyundaipowerproducts.co.uk
01646 687 880 [email protected].uk
Maintenance

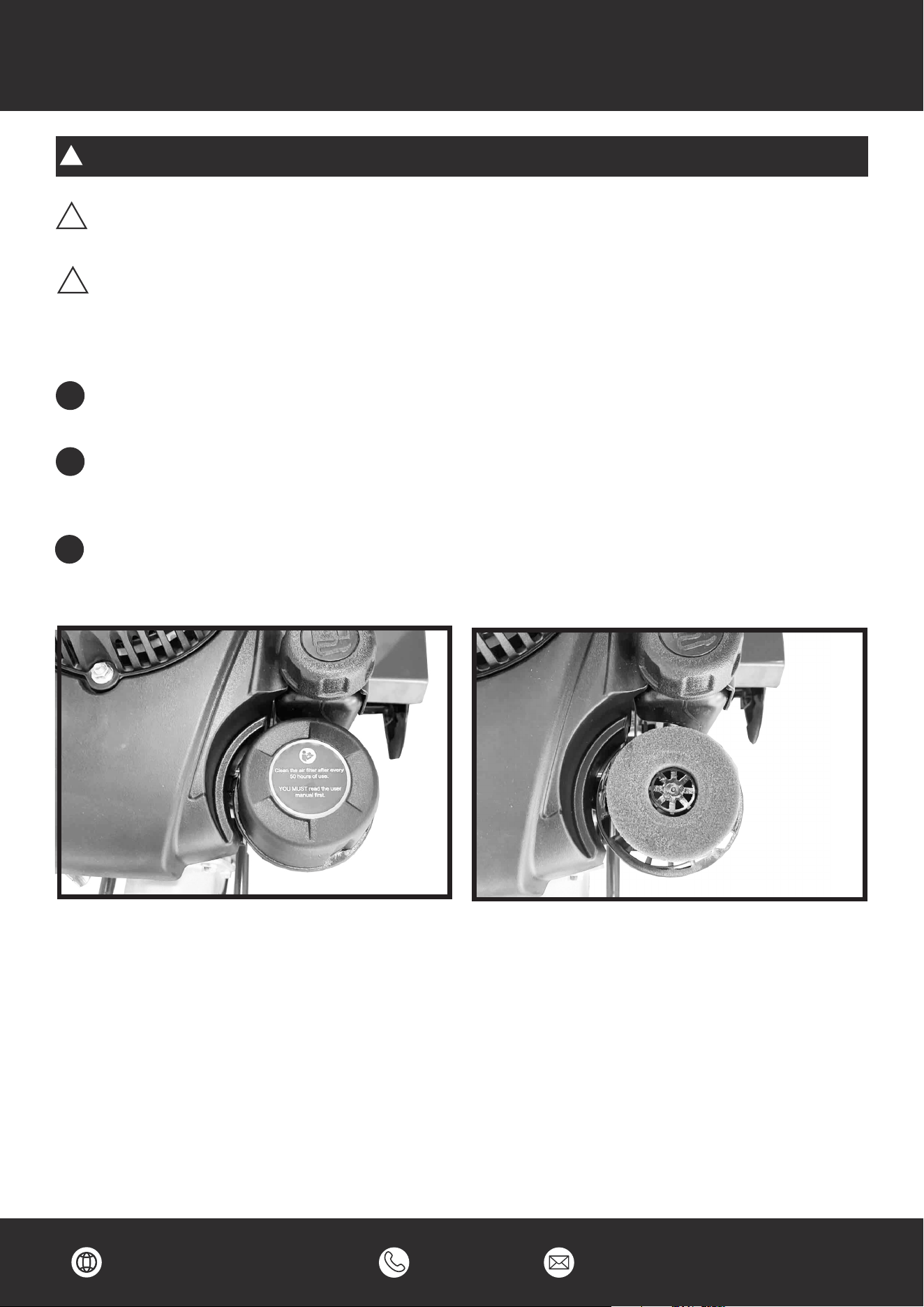

Air Filter Service
!
WARNING! Never use petrol or low flash point solvents to clean the air cleaner element. This
could result in a fire or explosion.
!
CAUTION - A dirty air filter will restrict the air flow to the carburettor, which will reduce engine
efficiency. When using the machine in very dusty areas you must clean or replace the air filter
more often. Never operate the machine without the air filter being fitted it can cause damage to
the engine which is not covered by warranty.
!
Remove the wing nut and the air cleaner cover. Remove the elements and separate them.
Carefully check the elements for holes and tears, and replace it if damaged.
1
Foam element: Clean in warm soapy water and allow to dry thoroughly or clean in high flash
point solvent and allow to dry. Dip the element in clean engine oil and squeeze out all the
excess. The engine will smoke during initial start up if too much oil is left in the foam.
2
Paper element: Tap the element lightly several times on a hard surface to remove excess dirt
or blow compressed air through the filter from the inside out. Never try to brush the dirt off,
doing so will force dirt into the fibers.
3
34
www.hyundaipowerproducts.co.uk
01646 687 880 [email protected].uk
Maintenance

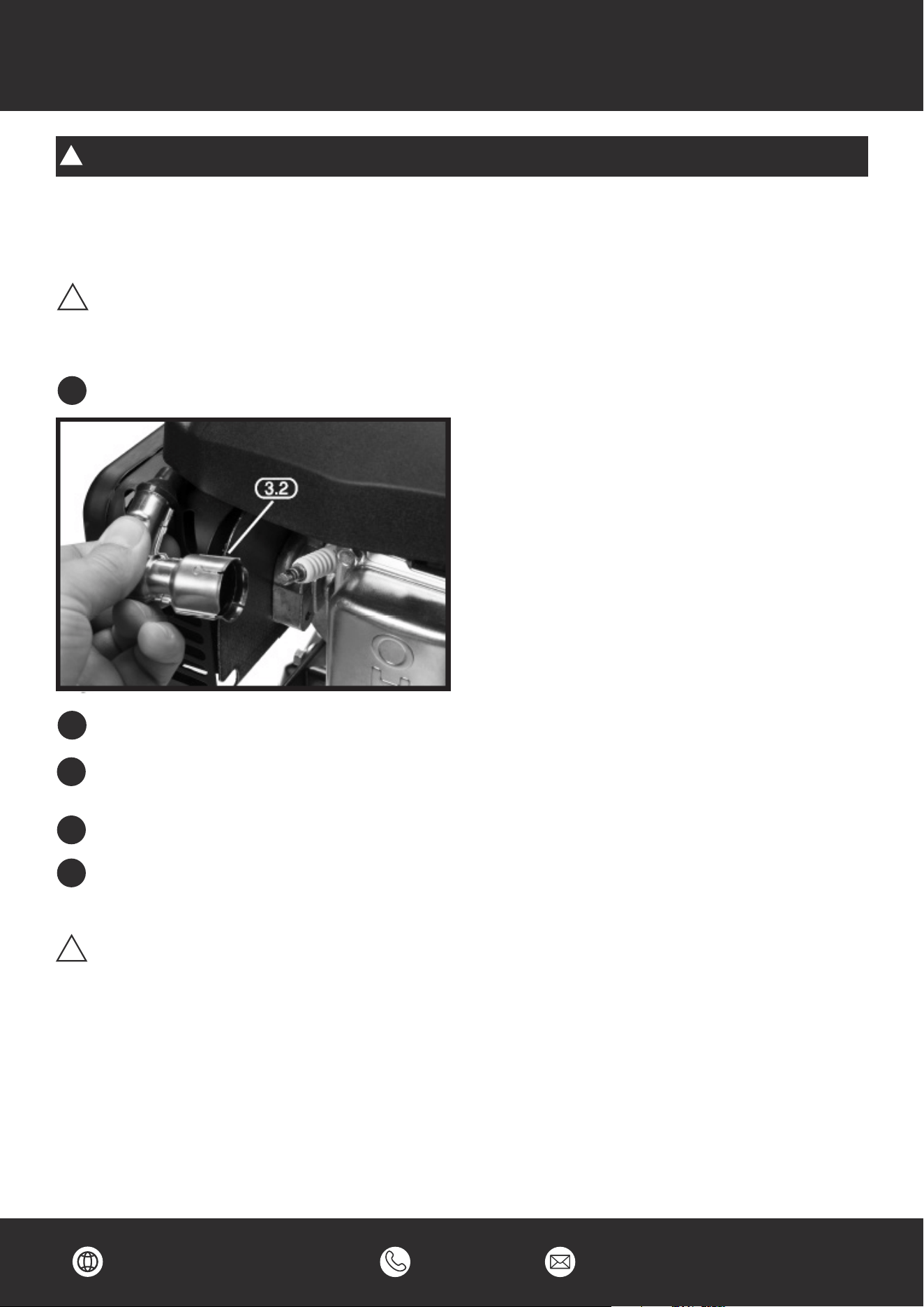

Spark Plug Service
!
Recommended spark plug: BPR5ES (NGK) / F7RTC (LG).
To ensure proper engine operation, the spark plug must be properly gapped and free of
deposits.
WARNING!
If the engine has been running, the exhaust will be very hot. Be careful not to touch the exhaust.
!
Remove the spark plug cap (3.2).
1
Visually inspect the spark plug. Discard it if the insulator is cracked or chipped.
2
Measure the plug gap with a feeler gauge. The gap should be 0.7-0.8mm. Correct as
necessary by bending the side electrode.
3
Attach the plug asher, thread the plug in by hand to prevent cross-threading.
4
When mounting a new spark plug, you should screw 1/2 more thread with the wrench after
the washer is compressed. If you are mounting an old one, you should only screw 1/8-1/4
more thread.
5
CAUTION!
The spark plug must be securely tightened. An improperly tightened plug can become very hot
and possibly damage the engine. Never use a spark plug with an improper heat range.
!
35
www.hyundaipowerproducts.co.uk
01646 687 880 [email protected].uk
Maintenance
Draining The Oil
!
NOTE - Please dispose used motor oil in a manner that is compatible with the environment.
The oil can be discharged at a specialised servicing centre, or by using a syringe to suction the
oil out through the filler spout, bearing in mind you may need to repeat the operation several
times in order to completely empty the tank. Do not throw it in the bin or pour on the ground.
Drain the oil while engine is still warm to assure rapid and complete drainage.
!
Remove the oil filler cap and drain the oil.
1
Refill with the recommended oil and check the level. Wash your hands with soap and water
after touching used oil.
2

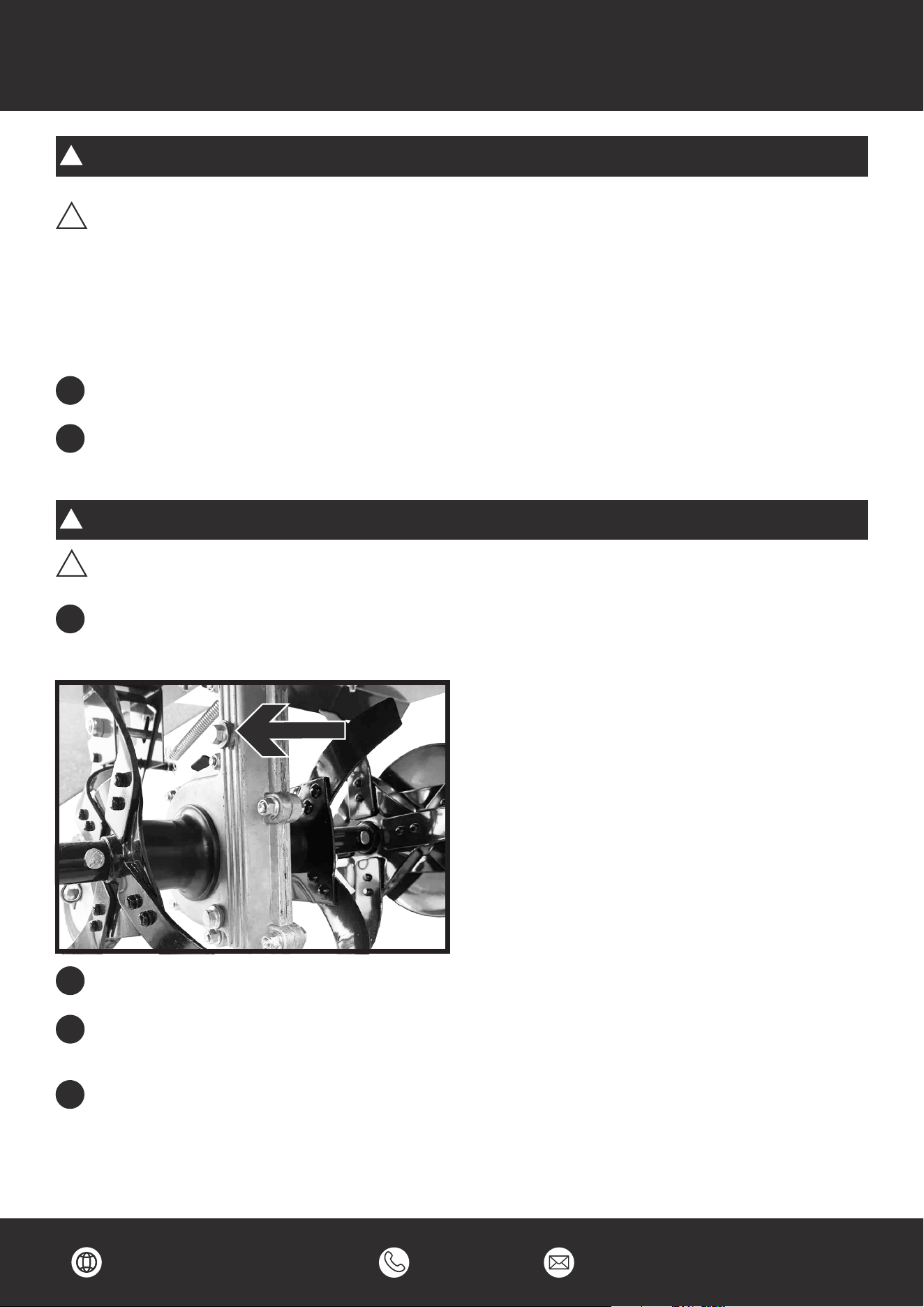

Adding Gearbox Oil
!
Remove rotovating blades (see attaching blades section).
Unscrew the gearbox oil filler bolt with a hexagon spanner, and remove it.
1
Use gearbox oil SAE 85W-90. Carefully pour in gearbox oil (approx.200ml). Avoid spilling.
3
Re-tighten the gearbox oil filling bolt.
4
36
www.hyundaipowerproducts.co.uk
01646 687 880 [email protected].uk
Ensure gearbox oil drain bolt is securely in position.
2
NOTE - The gearbox is pre-filled with oil.
!
Maintenance

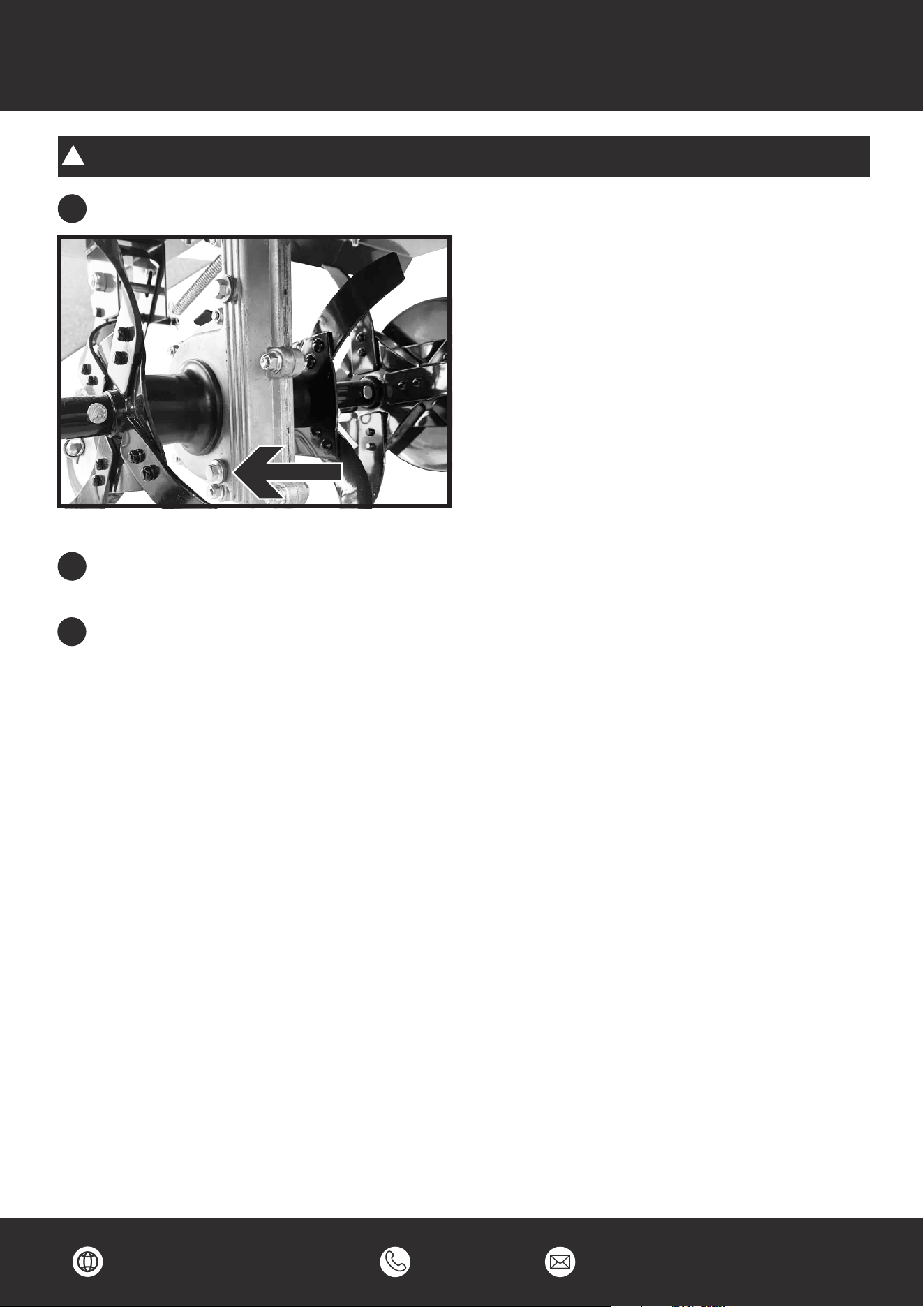

Draining Gearbox Oil
!
Hold a collection container beneath the gearbox oil drain bolt.
1
Unscrew the gearbox oil drain bolt and remove.
2
Allow the gearbox oil to run out completely.
3
37
www.hyundaipowerproducts.co.uk
01646 687 880 [email protected].uk
Maintenance
CAUTION - DO NOT use a hose pipe or pressure washer to clean the engine. Water can
damage the engine or contaminate the fuel system.
NOTE Engine must be switched off and spark plug lead disconnected.
!
!
• You must remove grass and mud from the machine to prevent it from drying. This will cause
problems the next time the machine is used.
• Wipe the machine down with a damp cloth.
• For larger build ups of debris, use a scraper or similar product.
• Dry the machine completely to prevent rust from forming.
• Make sure not to drip petrol onto the plastic parts to prevent damaging them and remove all
traces of spilt petrol immediately. The warranty will not cover damage to plastic parts caused by
petrol.
• Use a light silicone spray on exposed metal parts to protect the metal.
• Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from
various types of commercial solvents and may be damaged by their use.
• If not cleaned and maintained correctly or regularly, the machine will not perform at its best.
Cleaning
38
www.hyundaipowerproducts.co.uk
01646 687 880 [email protected].uk
Maintenance

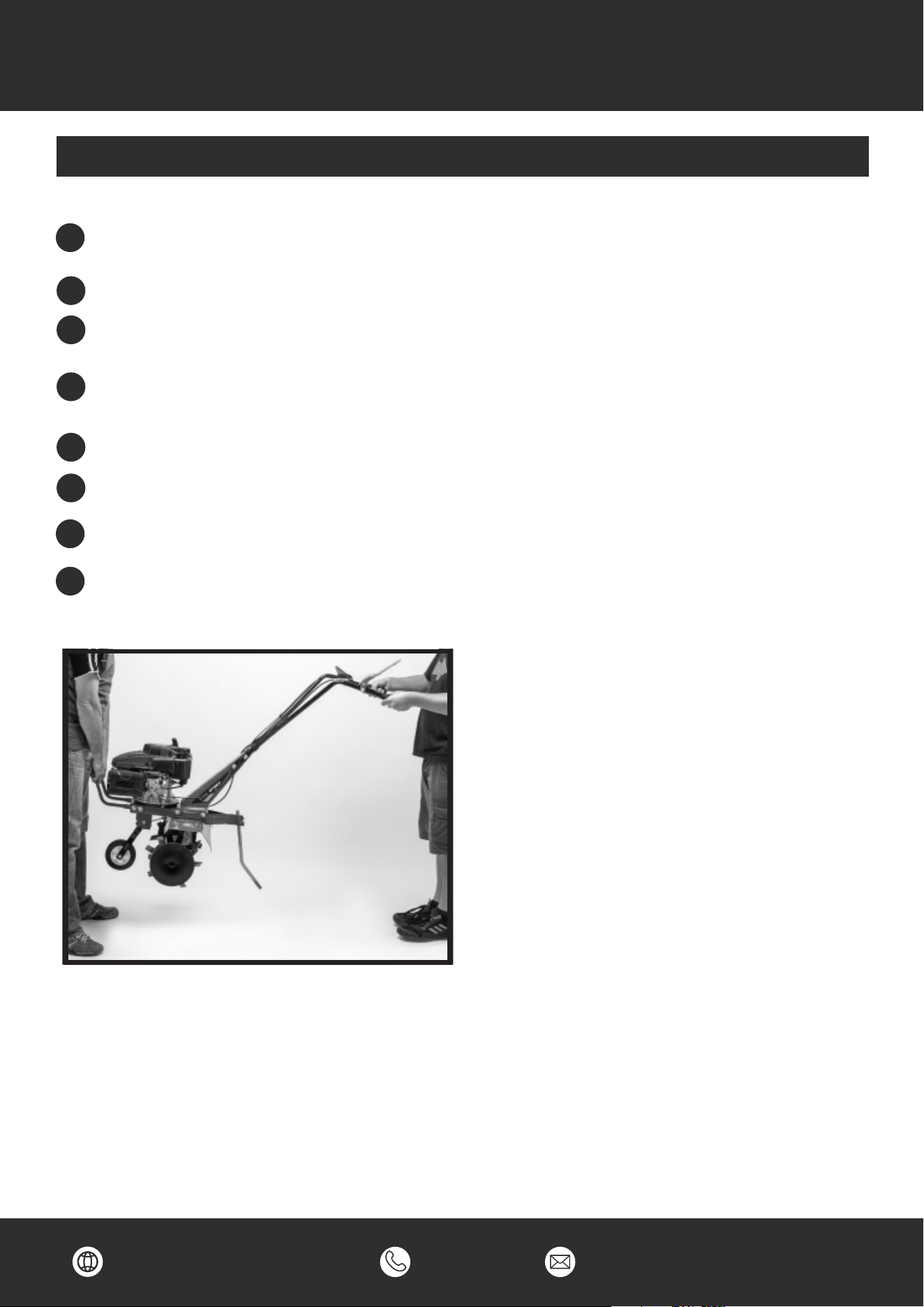

Whenever the machine is to be handled, lifted, transported or tilted, you must:
Transportation
Wear sturdy work gloves.
2
Hold the machine at the points that offer a safe grip, taking into account the weight and
relative distribution of the same.
3
Use an appropriate number of people for the weight of the machine and the characteristics of
the vehicle or the place where it must be placed or collected.
4
You must make sure that machine movements to not cause petrol leaks, damage or injuries.
5
During transport, make sure to fasten the machine securely with cables or straps.
6
The machine must be transported on a flat surface.
7
Care must be taken when handling and lifting. Dropping the machine will have an effect on
the accuracy and may also result in personal injury. Be sure to transport the tiller from one
place to another by two people, if a carrier is not available.
When transporting the tiller, turn the fuel valve OFF and keep the tiller level to prevent fuel
spillage. Fuel vapour or spilled fuel may be easily ignited.
1
8
39
www.hyundaipowerproducts.co.uk
01646 687 880 [email protected].uk
Maintenance
Short Term
After use, please follow the below steps before storing your machine.
Storage
Allow the engine to fully cool down.
1
Clean the machine. See the ‘Cleaning’ section.
2
Store the machine following the guidelines above.
3
Where To Store
!
Store in a cool, dry place away from sources of ignition and varying changes in temperature.
Store on a flat and level surface with all wheels on the ground.
DO NOT stack other items on top of the machine when in storage.
Store the machine in a safe place, out of the reach of children or anyone who is not familiar
with operation.
To reduce fire hazards, keep the engine, silencer, and petrol storage area free of grass,
leaves, or excessive grease. Do not leave containers full of cut grass inside storage areas.
DO NOT store the machine with fuel in the tank in an area where the fuel vapours could reach
an open flame, a strong heat source or a spark.
DO NOT store a machine that has not been given time to fully cool down. Engine must be
cooled down fully before storage.
Do not place the tiller with the handlebars on the ground. It will cause the oil entering the
cylinder or fuel spillage.
!
!
!
!
!
!
If storing the machine for a period of 30 days or more, you must follow proper storage and
winterisation guidelines to avoid any possible issues with the machine. Incorrect storage can lead
to possible fueling or engine issues that will not be covered by the warranty.
!
40
www.hyundaipowerproducts.co.uk
01646 687 880 [email protected].uk
Maintenance

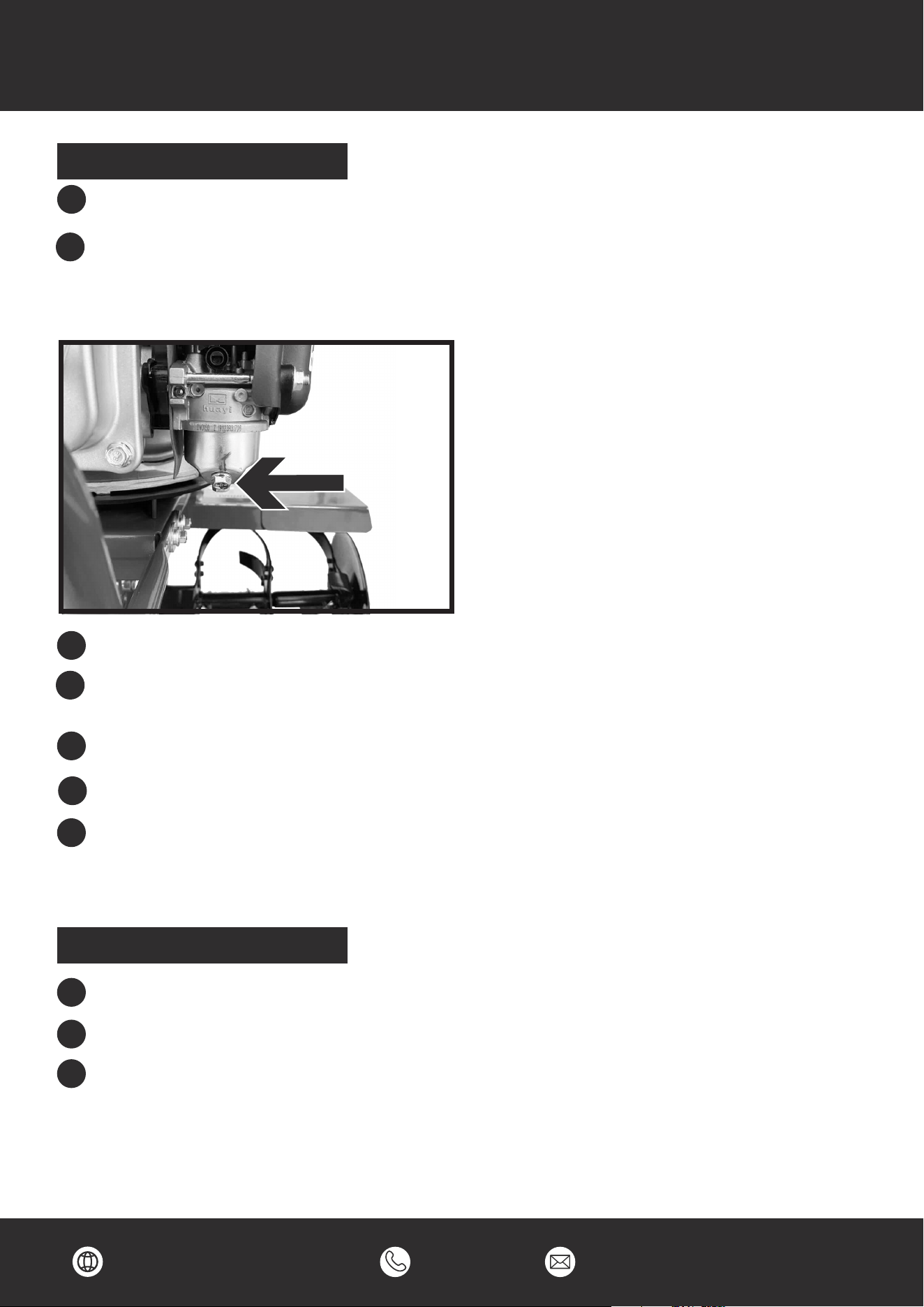

Long Term
Allow the engine to fully cool down.
1
2
Follow the cleaning instructions in the ‘Cleaning’ section.
3
Follow the maintenance section and check, service or replace serviceable items if required.
Visually inspect the machine and replace or repair any worn parts.
4
Remove the spark plug and pour 1 teaspoon of fresh engine oil down the cylinder bore. Cover
the spark plug hole with a lint free clean cloth, ensuring no dirt or debris falls into the cylinder
chamber and gently pull the recoil starter handle to coat the cylinder bore with the fresh oil.
Refit the spark plug.
7
Preparation To Re-Use
Check oil level before using.
1
Check spark plug is inserted correctly.
2
Fill engine with fresh unleaded petrol that has not been stored for periods of more than 30 days.
3
Drain the fuel.
The fuel can be drained through the carburettor by removing the float bowl drain plug.
Ensure you use a suitable fuel container to drain the petrol into. (This is a slow process, it is
advisable to run the fuel level down as low as possible before draining).
Make sure all moving parts are lubricated with a light silicone based spray or grease.
Drain and replace with new engine oil.
5
6
41
www.hyundaipowerproducts.co.uk
01646 687 880 [email protected].uk
Maintenance
42
www.hyundaipowerproducts.co.uk
01646 687 880 [email protected].uk
NOTE - Where necessary, all corrective actions should be carried out by suitably qualified
person.
!
CAUTION! For your own safety, turn the tiller off before any maintenance.
!
Problem Possible Cause Possible Solution
Engine cannot be
started
1. Not enough fuel
2. Fuel valve is OFF
3. Engine switch is OFF
4. Carburettor is blocked
5. No spark from the spark plug
1. Check fuel level in fuel tank
2. Open the fuel valve
3. Turn the engine switch ON
4. Loosen the drain knob with the
fuel valve ON. Fuel can flow out
freely and then re-tighten drain
knob
5. Remove and clean the spark
plug
Clutch not working 1. Engine speed is low
2. Belt too long
3. Spring failure
4. Bearing inside gearbox
failure
1. Open throttle, increase engine
speed
2. Replace
3. Replace
4. Replace
Sliding 1. Spring/belt failure 1. Replace
Abnormal noise from
gears
1. Loose bearing
2. Drive shaft deformed
3. Gears wear out
1. Replace
2. Replace
3. Replace
Oil leakage 1. O type sealing failure
2. Loose bolts
1. Replace
2. Tighten
If the engine still cannot be started, take your machine to an authorized dealer.
Troubleshooting
Technical Data
Specifications
Model HYT150
Engine Type HYUNDAI IC150V 4-stroke OHV
Engine Size 150cc
Rated power 2.7kW
Engine Speed 3000rpm
Fuel Tank Capacity 0.8L
Fuel Type Unleaded Petrol
Oil Tank Capacity 0.4L
Oil Type SAE30 or 15w40 engine oil
Tilling Width 560mm
Tilling Depth 130mm
Sound Pressure Level 69.16dB(A)
Sound Power Level 93dB(A)
Vibration Value Left handlebar 11.06m/s ²
Right handlebar 7.72m/s ²
Net Weight 29.5kg
Dimensions (L x W x H) 1350mm x 605mm x 1100mm
43
www.hyundaipowerproducts.co.uk
01646 687 880 [email protected].uk
Spare Parts
Part Part Number
Blade HYT150BLADE
Recoil HYTI50RECOIL
Front Wheel HYT150WHEEL
Only use original spare parts: The use of non-original and/or incorrectly fitted parts will jeopardize
the safety of the machine, may cause accidents or personal injuries for which the Manufacturer is
under no circumstance liable or responsible.
44
www.hyundaipowerproducts.co.uk
01646 687 880 [email protected].uk
Recycling And Disposal
We do not offer a takeback scheme for the recovery of Waste Electrical Electronic
Equipment (WEEE) & Batteries. Instead the responsibility to dispose of WEEE and/or
Batteries is passed onto you by us.
So when it becomes necessary to dispose of your machine you must take it to your
local Civic Amenity Site. For further information please contact your local Authority
for disposal advice.
You MUST make sure that all unused oil and fuel is disposed of correctly either beforehand
or at your local Civic Amenity Site.
• Under NO circumstances must any fuel or oil be put down any drains.
• Certain products contain WEEE waste which should not be disposed of in your domestic waste.
• You MUST recycle WEEE in accordance with your local authority or recycling centre.
• Certain products contain batteries which should not be disposed of in your domestic waste.
• You MUST recycle batteries in accordance with your local authority or recycling centre.
• Unwanted packaging and materials should be stored and taken to a recycling centre so it can
be disposed of in a manner which is compatible with the environment.
We are a Member of the VALPAK National Compliance Scheme and our registration number is
RM08660. For further information about disposal please contact your Local Authority.
You can also get more advice and guidance about recycling at the following website
http://www.recycle-more.co.uk
Should you pass this product on to another user either sold or loaned, you MUST pass on this
user manual. This will make sure that all other users can use and maintain this machine safely.
1. Environmental protection should be a priority of considerable importance when using the
machine, for the benefit of both social coexistence and the environment in which we live. Try not
to cause any disturbance to the surrounding area.
2. You must comply with local regulations and provisions for the disposal of packaging, oils,
petrol, filters, damaged parts or any elements which have a strong impact on the environment.
This waste must not be disposed of as normal waste. It needs to be separated and taken to
specified waste disposal centres where the material will be recycled.
3. You must comply with local regulations for the disposal of waste materials after mowing.
4. When disposing, do not pollute the environment with the machine, but hand it over to a
disposal centre, in accordance with the local laws in force.
Recycling And Disposal
Environmental Protection
45
www.hyundaipowerproducts.co.uk
01646 687 880 [email protected].uk
Declaration Of Conformity
EC Declaration of Conformity
We hereby declare that the machine detailed in this declaration complies to all the relevant
provisions of the following EC directives.
• 2006/42/EC The Machinery Directive
• 2014/30/EU Annex ll Electromagnetic Compatibility Directive
• 2016/1628/EC The Emission of Gaseous and Particulate Pollutants from internal Combustion
engines
• 2000/14/EC Noise Emissions in the Environment by Equipment for use Outdoors.
And is in conformity with the applicable requirements of the following documents:
• EN ISO 3744:1995
• EN ISO 11094:1991
• EN ISO 5395-1:2013
• EN ISO 5395-2: 2013
• EN ISO 14982:2009
Declaration for 2000/14/EC Noise Emissions in the Environment by Equipment for use Outdoors.
Notified Body for EC Directive 2000/14/EC TÜV Rheinland (Shanghai) Co., Ltd.
Product Details
Brand: Hyundai
Model: HYT150
Description: Petrol rotovator
Name and address of technical documentation holder and EU distributor:
Genpower Ltd, Isaac Way, Pembroke Dock, Pembrokeshire, SA72 4RW, UK.
Signed by: Roland Llewellin, Managing Director
Date: 04/03/2020
Model Type Cutting Width Measured
Sound Power
Guaranteed
Sound Power
Engine Speed
(rpm)
HYT150 Petrol
rotovator
560mm 91.31dB(A) 93dB(A) 2790
48
www.hyundaipowerproducts.co.uk
01646 687 880 [email protected].uk
Useful Information
Check Out Our YouTube Channel
Our videos on YouTube include:
• Unboxing
• Assembly of your machine
• How to service your machine
• Products in use
• ‘How To’ videos
• Product features
Go to www.hyundaisupport.co.uk or search ‘Hyundai Power Products’ in YouTube.
Warranty
Proof of purchase will be required before you make a warranty claim.
Full warranty terms and conditions can be found on the HYUNDAI POWER PRODUCTS website:
www.hyundaipowerproducts.co.uk
Manual Updates
Our manuals are constantly being reviewed and updated. Should you find an error, omission or
something unclear, please contact us for assistance.
We reserve the right to make any modifications without prior notice whenever necessary.
Our latest manuals are also placed online.
All our manuals can be downloaded at: www.hyundaipowerproducts.co.uk
Returning Your Product
If you are returning your product, please contact the dealer for their returns policy.
Leaving A Review
We work very hard to give all of our customers the best possible service. If you have any
problems, before leaving negative feedback, please contact us to give us a chance to resolve the
issue. We would be delighted if you left us positive feedback!
To leave a review, please go to: uk.trustpilot.com/review/hyundaipowerequipment.co.uk
Ordering Spare Parts
Only use original spare parts: The use of non-original and/or incorrectly fitted parts will jeopardise
the safety of the machine, may cause accidents or personal injuries for which the manufacturer is
under no circumstance liable or responsible.
49
www.hyundaipowerproducts.co.uk
01646 687 880 [email protected].uk
Our Product Range
Generators
Leisure Inverter, Petrol, Diesel And Built-In
Motorhome Generators
Pressure Washers
Petrol, Diesel And Electric Pressure Washers
Water Pumps
Submersible, Clean And Dirty Water And
Professional Chemical Water Pumps
Lawnmowers
Petrol, Cordless, Electric, Roller, Self Propelled,
Electric Start And Robotic Lawnmowers
Grass Trimmers And Brush Cutters
Petrol, Cordless, Electric And Wheeled Grass
Trimmers And Brush Cutters
Chainsaws
Petrol, Cordless And Electric Chainsaws
Hedge Trimmers
Petrol And Cordless Hedge Trimmers
Leaf Blowers
Petrol, Electric, Cordless, Backpack And 3 -in-1
Leaf Blowers
Log Splitters
Horizontal, Vertical, Petrol And Electric Log
Splitters
Wood Chippers
Petrol And Electric Start Wood Chippers
Tillers
Petrol Garden Tiller And Cultivator
Earth Augers And Trenchers
Petrol Earth Augers And Heavy Duty Trenchers
Compactor Plates
Petrol Compactor Plates
Cement Mixers
Portable Electric Cement Mixers
If you would like more information on any of
these products, please contact our sales team
on 01646 687880 or visit our website
www.hyundaipowerproducts.co.uk
Mini Dumpers
4-Wheel Drive Mini Dumpers And Tracked
Dumpers
Yard Sweeper
Self Propelled Yard Sweeper Power Brush
Scarifiers
Petrol Lawn Scarifier And Aerator
Stump Grinders
Petrol 4-Stroke Stump Grinders
Welders And Plasma Cutters
MIG, TIG, MMA, ARC Welders And Plasma Cutters
Power Tools And Tool Chests
Electric And Cordless Power Tools And Filled Tool
Chests
Vacuum Cleaners
Wet And Dry Vacuum Cleaners
Engines
Petrol And Electric Start Engines
Battery Chargers / Starters
6V, 12V, 24V Battery Chargers, Jump Starters And
Hydraulic Floor Jack
Air Compressors
Home, Domestic, DIY And Professional Use Air
Compressors
Lighting Towers
Mobile Lighting Towers With Diesel Generators
Portable Power Stations
Camping Power Packs And Solar Chargers
And More
We Are Constantly Expanding Our Range With
New Products
Product Information
Date Of Purchase: ........................................................................................................................
Dealer Name:.................................................................................................................................
Dealer Phone:................................................................................................................................
Model Number:.............................................................................................................................
Serial Number:..............................................................................................................................
As soon as you have purchased the machine, we recommend that you fill out the
following. If you need to contact an authorised dealer or customer service for
information on servicing, you may need to provide the following information.
The model number and serial number can be found on the grey specification sticker on
your machine.
1st Service
Date Of Service..............................
Next Service Due...........................
2nd Service
Date Of Service..............................
Next Service Due...........................
3rd Service
Date Of Service..............................
Next Service Due...........................
4th Service
Date Of Service..............................
Next Service Due...........................
Information
Service Record
50
www.hyundaipowerproducts.co.uk
01646 687 880 [email protected].uk
Need Help? Talk To Our Experts
Our friendly aftersales team will be more than happy to help you.
Phone
Call our team on 01646 687880, open Monday-Friday 8.30am-5pm.
Email
Online Live Chat
Go to www.hyundaipowerproducts.co.uk
Live chat is open Monday-Friday from 8.30am-5pm.
Post
Genpower Limited, Isaac Way, Pembroke Dock, Pembrokeshire, SA72 4RW, UK.
Contact Us
51
www.hyundaipowerproducts.co.uk
01646 687 880 [email protected].uk
Importer:
GENPOWER LTD
Isaac Way, London Road,
Pembroke Dock, UNITED KINGDOM, SA72 4RW
T: +44 (0) 1646 687 880 F: +44 (0) 1646 686 198
www.hyundaipowerproducts.co.uk
Imported/Distributed by Genpower Ltd for The United Kingdom & Ireland
Licensed by Hyundai Corporation, Korea
