Instruction Manual
PETROL WOOD CHIPPER
HYCH6560
WARNING: Read the instructions carefully before use.
2
CONTENTS
PAGE NO.S
1
SAFETY
3 - 8
2
PART LOCATIONS
9
3
ASSEMBLY
10 – 13
4
FUEL & OIL
14 – 15
5
STARTING PROCEDURE
15 – 17
6
STOPPING PROCEDURE
17 - 18
7
OPERATING INSTRUCTIONS
18 – 22
8
MAINTENANCE
23 – 26
9
STORAGE
27
10
TRANSPORT
27
11

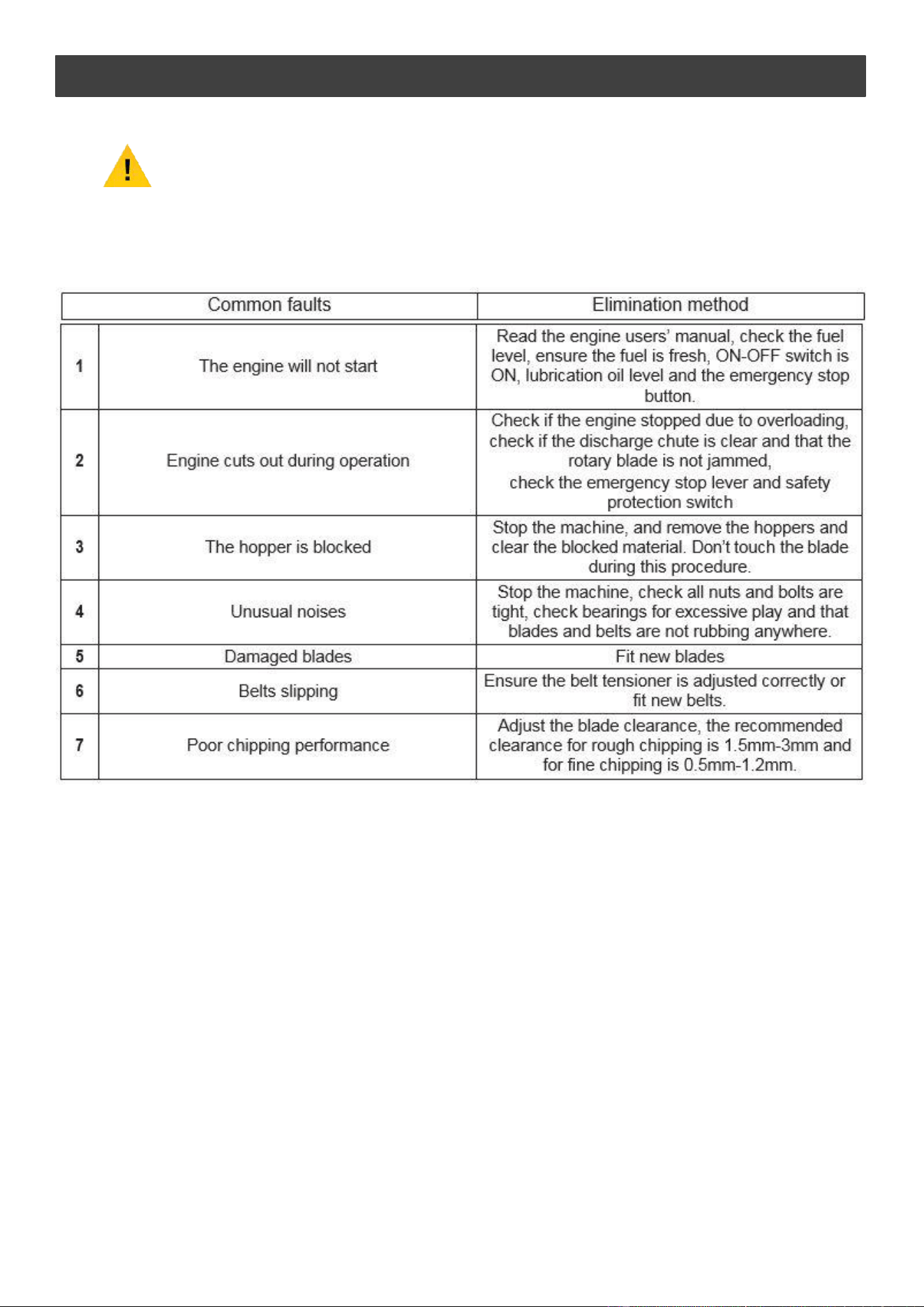

TROUBLESHOOTING
28 - 29
12
SPECIFICATION
30
13
DECLARATION OF CONFORMITY
31
14
RECYCLING & PRODUCT DISPOSAL
32
15
CONTACT DETAILS
33
16
WARRANTY
33
17
MAUAL UPDATES
33
INDEX
3
1.1 General Safety Notes.
1.2 The operator of the machine is responsible for, and has a duty of care in making sure
that the machine is operated safely and in accordance with the instructions in this
user manual. Keep the manual safe and pass it on if the machine is loaned or sold to
another user.
1.3 Please note the following safety points.
1.4 The machine should never be left it in a condition which would allow an untrained or
unauthorised person/s to operate this machine.
1.5 All due care and diligence should be taken by the operator for the safety of and with
regard to those around whilst using the machine.

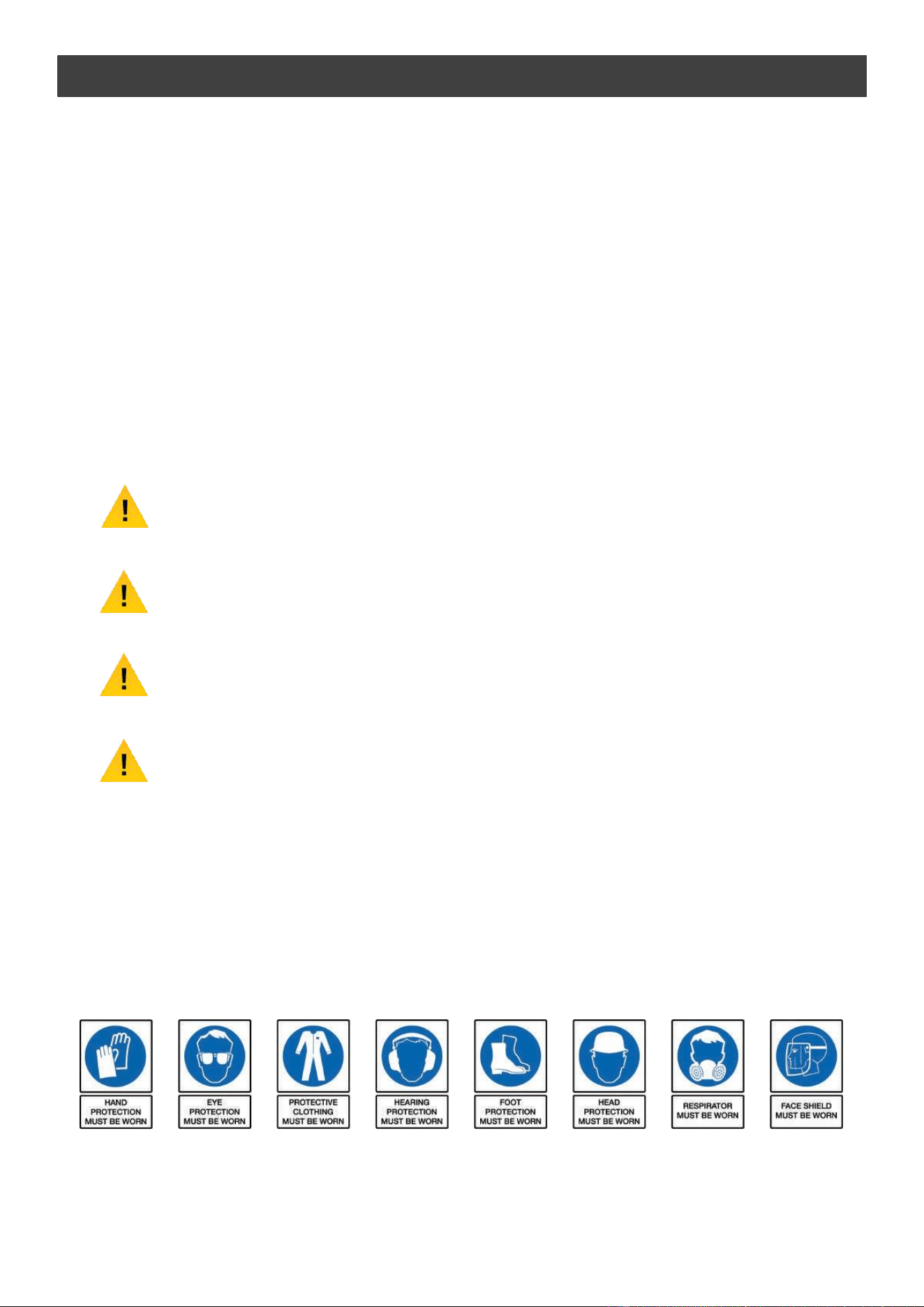

1.6 Some or all of the following - warning signs, symbols and/or PPE pictograms may
appear throughout this manual. You MUST adhere to their warnings. Failure to do
so may result in personal injury to yourself or those around you.
DANGER
Indicates a hazard, which if not avoided, could result in serious injury or death.
WARNING
Indicates a hazard, which if not avoided, could result in serious injury.
CAUTION
Indicates a hazard, which if not avoided, might result in minor or moderate injury.
NOTE
Indicates a situation that could easily result in equipment damage.
1.7 READ and keep the manual safe and pass it on if the machine is loaned or sold to
another user.
1.8 You MUST fully understand all instructions to ensure you use and operate the
machine safely.
1.9 Appropriate Personal Protective Equipment (PPE), MUST be worn at all times
when operating or repairing the machine.
1. SAFETY
4
1.10 Carbon Monoxide (where applicable).
1.11 Carbon monoxide is a colourless and odourless gas. Inhaling this gas can cause
death as well as serious long term health problems such as brain damage.
1.12 The symptoms of carbon monoxide poisoning can include but are not limited to the
following;
Headaches, dizziness, nausea, breathlessness, collapsing or loss of consciousness.
1.13 Carbon monoxide poisoning symptoms are similar to flue, food poisoning, viral
infections and simply tiredness. It is quite common for people to mistake this very
dangerous poisoning for something else.
1.14 To avoid carbon monoxide poisoning DO NOT use Petrol/Diesel powered equipment
inside any of the following; Home, garage, tent, camper van, mobile home, caravan
or boat. This is not exhaustive and if you are in any doubt contact your dealer.
1.15 If you think you have or someone around you has been affected by carbon monoxide
poisoning;
1.16 Get them fresh air immediately, by leaving the affected area or by opening doors and
windows. If safe and practical to do so make sure that the machine is turned off.
DO NOT enter a room you suspect of having carbon monoxide present – instead call
the emergency services.
1.17 Contact a Doctor immediately or go to Hospital – let them know that you suspect
carbon monoxide poisoning.
1.18 DO NOT use in an enclosed area or moving vehicle.
5

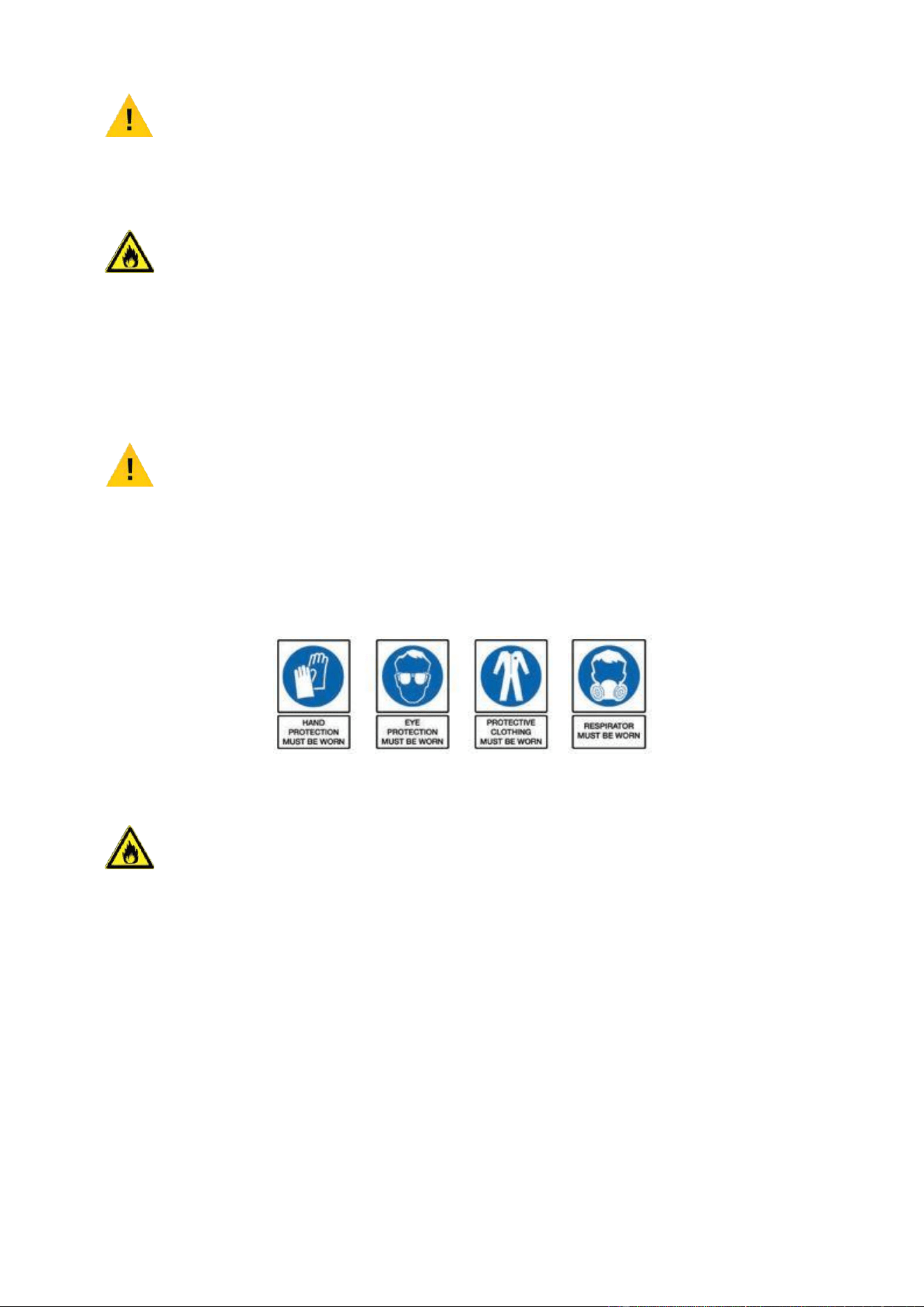

1.20 General Fuel Safety (where applicable).
CAUTION
ALL FUELS ARE FLAMMABLE
1.21 Fire Hazard – keep fuel away from all sources of ignition for example, heaters,
lamps, direct sunlight and sparks from grinding or welding.
1.22 DO NOT carry out hot work on tanks that have contained fuel.
1.23 ALWAYS keep the work area clean and tidy.
1.24 ALWAYS clean up spills promptly using absorbent granules and a lidded bin.
1.25 ALWAYS dispose of waste fuel correctly.
1.30 Fueling/De-Fueling (where applicable).
CAUTION
ALL FUELS ARE FLAMMABLE
1.31 ALWAYS fuel and defuel in a well-ventilated area outside of buildings.
1.32 ALWAYS wear correct, suitable and fit for purpose Personal Protective Equipment
(PPE), suggested items are but not limited to safety gloves, overalls, eye
protection and a respirator.
1.33 When fueling/de-fueling ALWAYS avoid inhaling fumes.
1.34 When de-fueling, ALWAYS use a proper fuel retriever.
1.35 ALWAYS carry fuel in the correct and clearly marked container.
1.40 Electrical Safety (where applicable).
1.41 Electricity can kill – NEVER work on LIVE/ENERGISED equipment.
1.42 Prior to carrying out any maintenance work you MUST identify electrical isolation
methods and isolate all electrical supplies.
1.43 Prior to use and with all electrical supplies isolated, you MUST check all electrical
cables, plugs and connectors for the following;
1.44 Are intact and have no signs of damage, to include but not limited to bare wires,
chaffing, cuts and loose wiring.
1.45 If there are any signs of damage, the damaged item MUST be taken out of service
until the damage has been repaired by an electrically competent person.
6
1.46 All trailing cables should be routed so as not to cause any kind of trip hazard.
1.47 NEVER work on or near electricity with wet hands, wet clothing and wet gloves.
1.50 Batteries (where present).
1.51 Batteries present a risk if they become damaged by the possible leaking of
electrolyte. This electrolyte is an acid and can cause serious burn injuries. Care
should be taken when working on or near them. NOTE the electrolyte may be in
a liquid or gel form.
1.52 Should you come in to contact with electrolyte you should;
1.53 Remove all clothing contaminated with electrolyte. If you cannot remove then
saturate them in water.
1.54 Get medical assistance as soon as possible. You must advise the medical staff of
the type of acid.
1.55 Lead/acid battery = dilute sulphuric acid.
1.56 Nickel/cadmium = potassium hydroxide alkali electrolyte.
1.57 Use fresh running water to wash off excess electrolyte, continue this until medical
assistance arrives. Make sure that you do not was the electrolyte to another part of
your body or face.
1.58 If electrolyte comes in to contact with Eyes the electrolyte needs to be immediately
washed away with large amounts of water. Make sure that you do not wash the
electrolyte to another part of your face or body.
1.59 Gasses from charging batteries are highly flammable and great care should be taken
to charge in well ventilated areas.
1.59.1 There is an explosion risk if the battery terminals are short circuited, when
connecting/disconnecting ALWAYS exercise great care so that the terminals or
battery leads are NOT allowed to touch and cause a spark. ALWAYS use suitable
insulated tools.
1.60 Vibrations (where applicable).
1.61 Prolonged use of hand held (operated) machines will cause the user to feel the
effects of/from vibrations. These vibrations can lead to white finger (Raynaud’s
phenomenon) or carpal tunnel syndrome. This condition reduces the ability of the
hand to feel and regulate temperature, causing numbness and heat sensations and
may cause never damage and circulatory tissue death.
1.62 Not all factors that lead to white finger disease are known, but cold weather, smoking
and other diseases that affect blood vessels and blood circulation as well as large
and long-lasting impact of shocks are considered factors in the formation of white
finger. Note the following to reduce the risk of white finger and carpal tunnel
syndrome;
1.63 Wear gloves and keep your hands warm.
1.64 Take regular breaks.
7
1.65 All of the above precautions may help reduce the risk of white finger disease but not
rule out the carpal tunnel syndrome. Long-term and regular users are therefore
recommended to observe the condition of your hands and fingers. Seek medical
attention immediately if any of the above symptoms should occur.
1.70 Noise (where applicable).
1.71 The operating noise of the machine can damage your hearing. Wear hearing
protection such as earplugs or ear defenders to protect your hearing. Long-term
and regular users are advised to have hearing checked regularly. Be especially
vigilant and cautious when hearing ear protection because your ability to hear alarm
warnings will be reduced.
1.72 Noise emissions for this equipment is unavoidable. Carry out noisy work at approved
times and for certain periods. Limit the working time to a minimum. For your personal
protection and protection of people working nearby it is also advisable for them to
wear hearing protection.
1.73 See Certificate of Conformity section for Outdoor Noise declaration of
conformity.
1.80 General Machine Safety.
1.81 Read the owner’s manual carefully to understand how to operate this machine
properly.
1.82 You should NEVER use the machine when;
1.83 Wearing loose clothing, barefoot or sandals.
1.84 Under the influence of drink or drugs or as a result of having taken medication for
cold or flu, or any other times when a possibility exists that your judgement might be
impaired or that you might not be able to operate the machine properly and in a safe
manner.
1.85 Suffering from exhaustion or lack of sleep.
1.86 When the ground is slippery or when other conditions exist which might make it not
possible to maintain a steady posture.
1.87 At night, at times of heavy fog, or at any other times when your field of vision might
be limited and it would be difficult to gain a clear view of the area.
1.88 During rain storms, lighting storms, at times of strong or gale force winds, or at
any other times when the weather conditions might make it unsafe to use this
product.
1.89 NEVER run the engine indoors. The exhaust gasses contain harmful carbon
monoxide.
1.90 When using this machine for the first time and before actual work, you MUST learn
how to handle the machine from an experienced or skilled person.
MACHINE SPECIFIC SAFETY
8
1.91 Limit the amount of time using the machine continuously to somewhere around 10
minutes per session and take 10 to 20 minutes of rest between sessions. Also try to
keep the total amount of work in a single day limited to 2 hours or less.
1.92 NEVER allow children or anyone unable to fully understand the directions given in
this manual to operate this product.
1.93 Make sure you keep this manual handy so you may refer to it whenever questions
arise and ensure you pass this manual on if the machine is loaned or sold.
1.94 Correct Personal Protective Equipment (PPE) MUST be worn at all times when
operating or repairing this machine. This should include but is not limited to;
1.95 DO NOT use this machine inside a confined space such as but not limited to a
vehicle, house, garage, container, boat or building. Only use outside in a well
ventilate area.
1.96 For air cooling a minimum of 1m is required all around the machine.
Maximum ambient temperature 40 degrees Celsius.
1.97 Fire risk- Fuel can expand and overflow in a hot environment or moving vehicle.
Explosion risk- LPG/ Petrol can leak and the vapour is heavier than air.
1.98 NEVER store in confined spaces especially in a boat where the vapour/has will
accumulate in the hull and create a high risk of explosion.
1.99 Carbon monoxide poisoning risk- Never run an engine in a confined space or poorly
ventilated area. Keep machine away from windows to prevent fumes entering the
internal space.
1.99.1 Carbon monoxide is produced by the engine and contained in the exhaust fumes.
You cannot see it or smell it and it can kill you in minutes.
NEVER use inside a confined space with an exhaust extension. If the exhaust
extension fails the escaping exhaust gases could kill you.
9

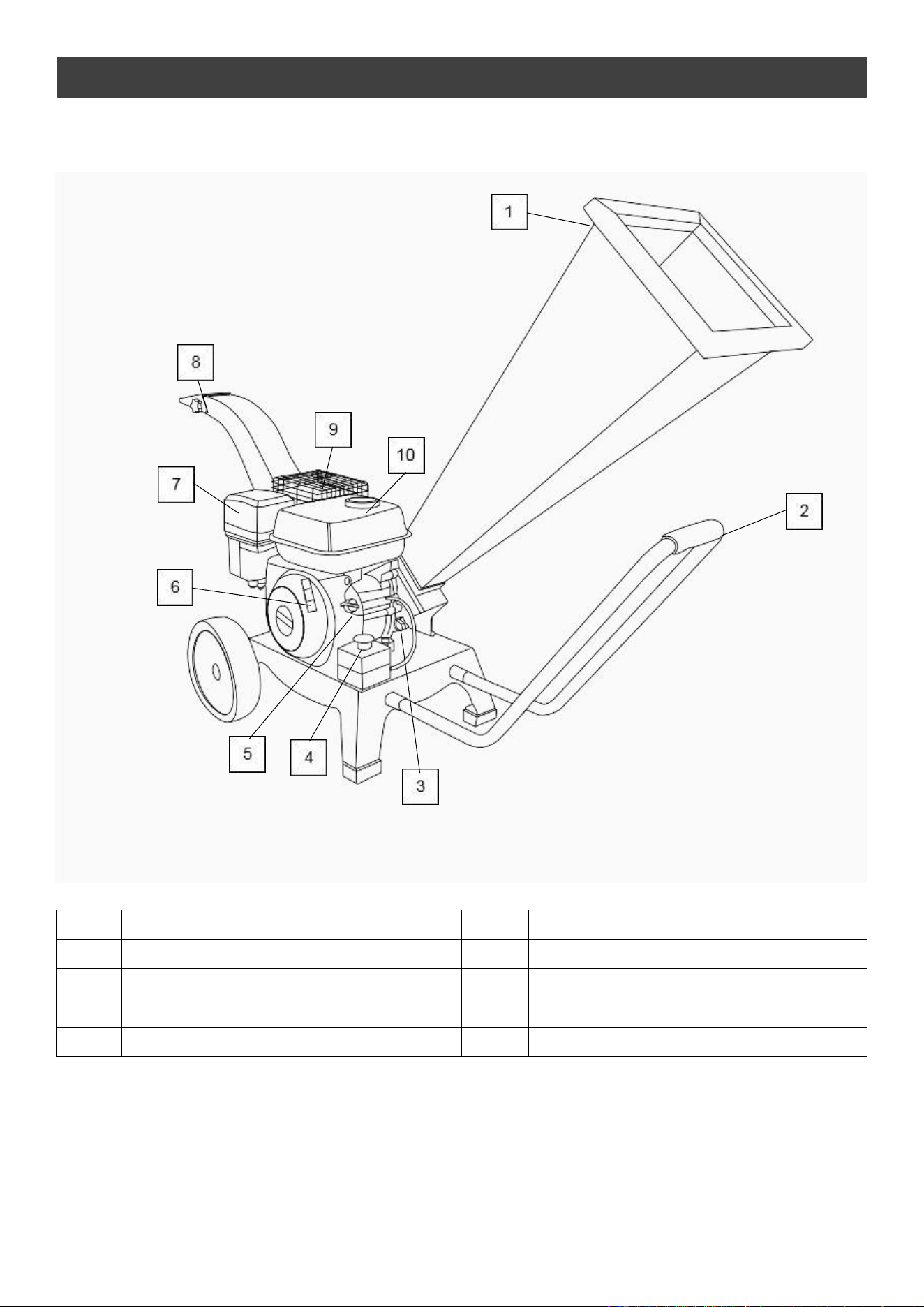

1
Feed Hopper
6
Recoil Start Handle
2
Handle
7
Air Filter
3
Oil Filler / Dipstick
8
Discharge Chute
4
Emergency Stop
9
Exhaust
5
Ignition Switch
10
Fuel Filler Cap
2. PART LOCATIONS
10
NOTE
Due to the weight of this machine, we recommend that you have assistance when
assembling this machine.
Check all parts are supplied and in good condition before assembly.

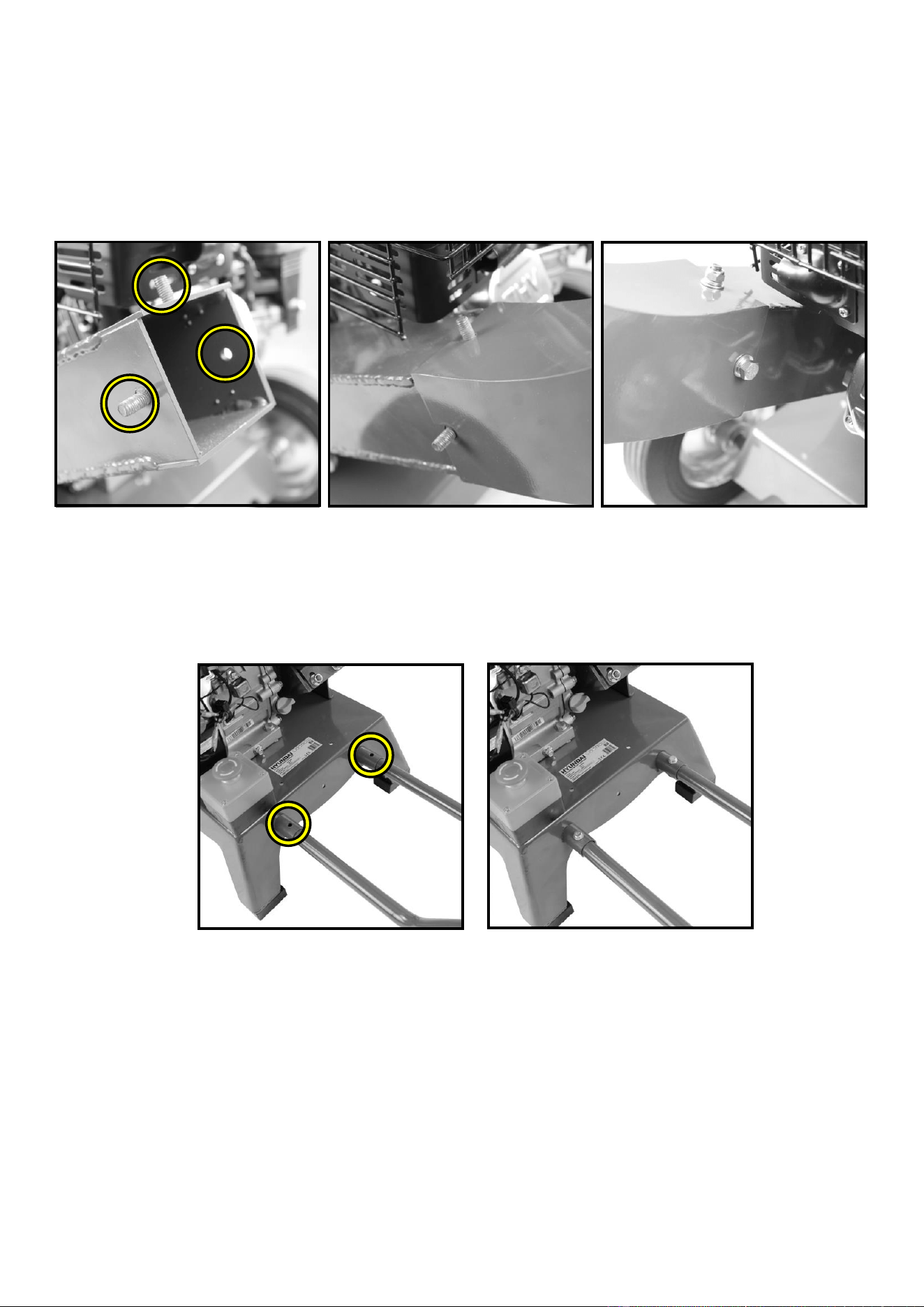

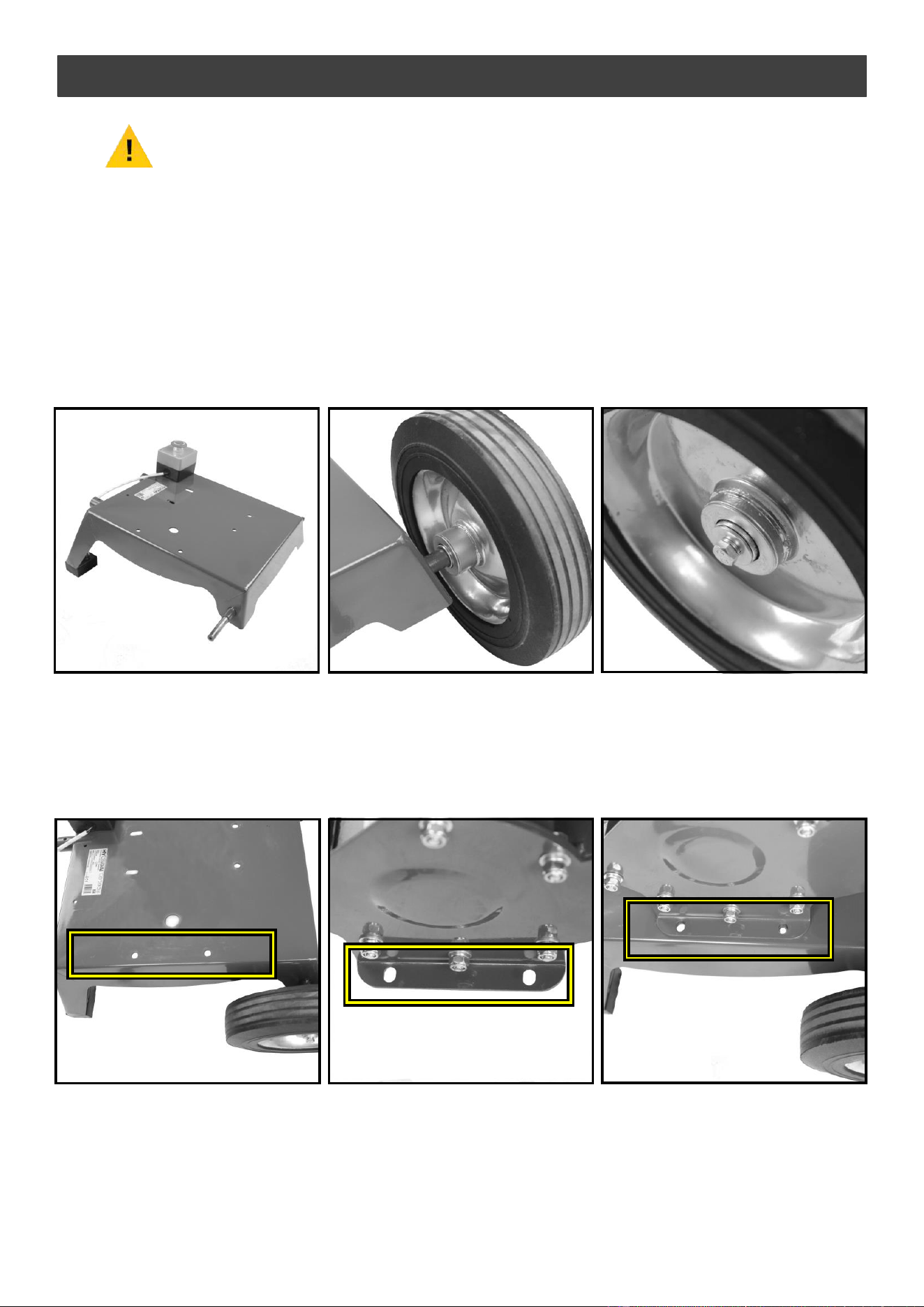

3.0 Place the main chassis on a solid work surface.
3.1 Slide the wheels on to the axle.
3.2 Place a flat washer over the axle and up against the wheel face, then secure in place
with a spring washer and 10mm bolt.
3.3 Align the two mounting points on the side of the main chassis with the two
mounting points on the tab on the side of the engine and then place the engine on to
the chassis ensuring these mounting points line up.
3. ASSEMBLY
11

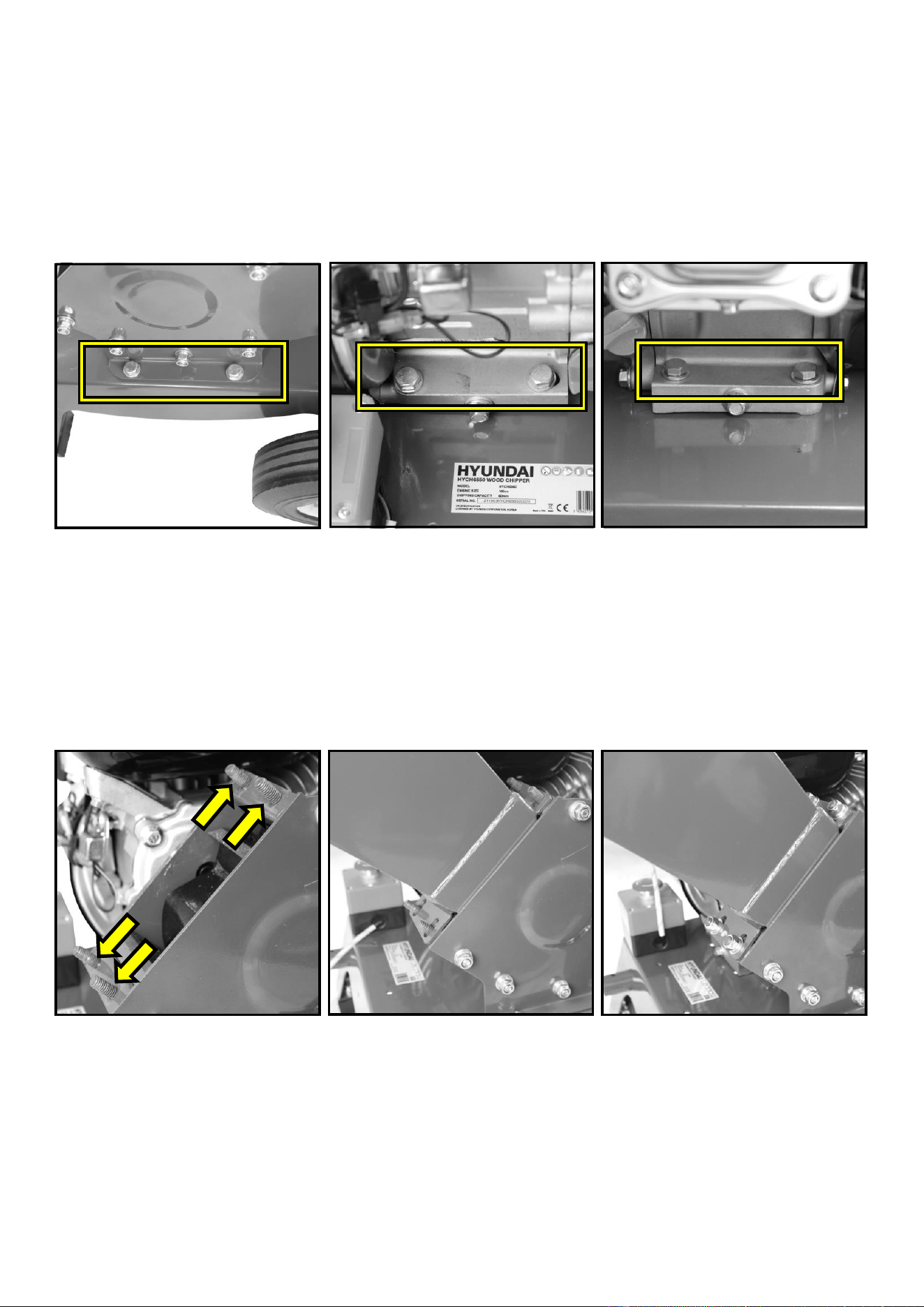

3.4 Put flat washers on the two shorter 13mm bolts and pass these through the aligned
mounting holes, loosely secure underneath with a flat washer, spring washer and
13mm nut.
3.5 Complete the same process with the four remaining longer 13mm bolts to the two
mounting positions at the front and rear of the engine.
3.6 Once all 6 mounting bolts are in place, ensure the engine is sitting square on the
chassis and then tighten securely.
3.7 Locate the four feed hopper mounting studs on the engine assembly above and
below the cutting blade.
3.8 Mount the feed hopper on to the studs ensuring the feed hopper is the correct way
up.
3.9 Secure in place with four flat washers, spring washers and 13mm nuts.
12
3.10 Locate the rear discharge chute mounting point at the back of the machine.
3.11 Slide the two cut outs on the discharge chute over the two studs and loosely secure
in place with a flat washer, spring washer and 13mm nuts.
3.12 Place a spring washer and flat washer on to the 13mm bolt and screw in to the
locating hole on the side of the rear discharge chute.
Then tighten all the nuts securely.
3.13 Slide the front handle into the mounting point at the front of the machine until
the holes in the handle, line up with the holes in the mounting point.
3.14 Secure in place with the 10mm bolts.
13

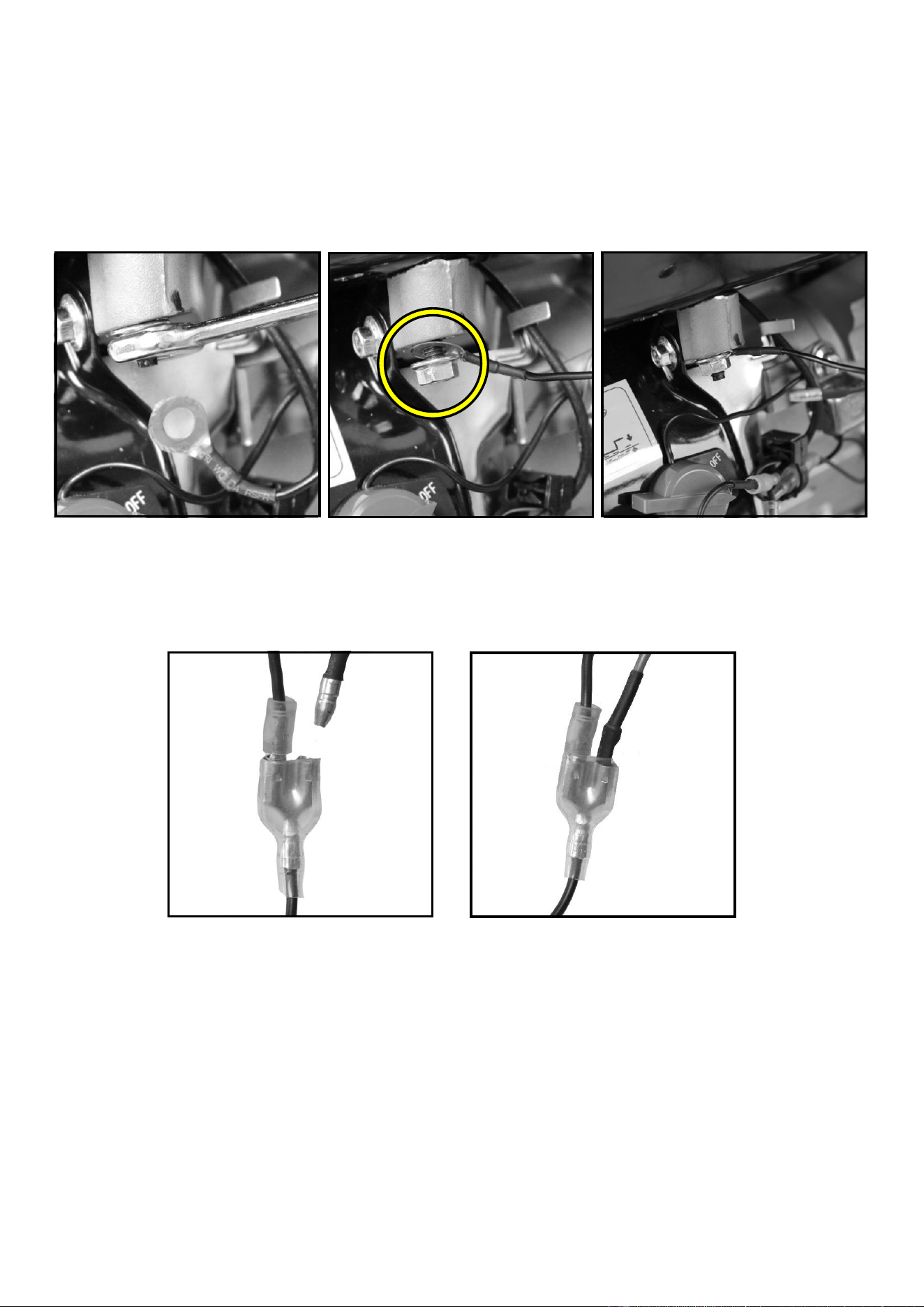

3.15 Connect the emergency stop button to the engine.
3.16 Connect the earth ring of the emergency stop button to a suitable location on the
engine or frame.
This will require removing a nut from a non-critical component, sliding the ring on to
the thread and reinstalling the nut.
This must be bare metal and not painted otherwise the emergency stop button will
not operate correctly.
3.17 Connect the bullet connector of the emergency stop button to the spare port on the
ignition wires located by the engine ignition switch.
3.18 Push the bullet connector firmly in to place.
14
4.0
4.1
4.2
4.3
CAUTION
This machine is shipped WITHOUT Oil and Fuel and will require filling BEFORE use.
Failure to do so will result in engine damage that will not be covered by the warranty.
Recommended Oil: SAE 30 or 15W40 Engine Oil
Oil Capacity: 600ml
Recommended Fuel: Straight Unleaded Petrol
Fuel Tank Capacity: 3.6Litres
CAUTION
FOR OUTDOOR USE ONLY.
This machine produces carbon monoxide – a poisonous, colourless and odourless
gas that can cause death or serious injury.
Petrol is highly flammable, always handle with extreme care and in a well-ventilated
area.
ALWAYS remove the spark plug HT lead from the spark plug when fuelling or
de-fuelling the machine, checking or changing parts.

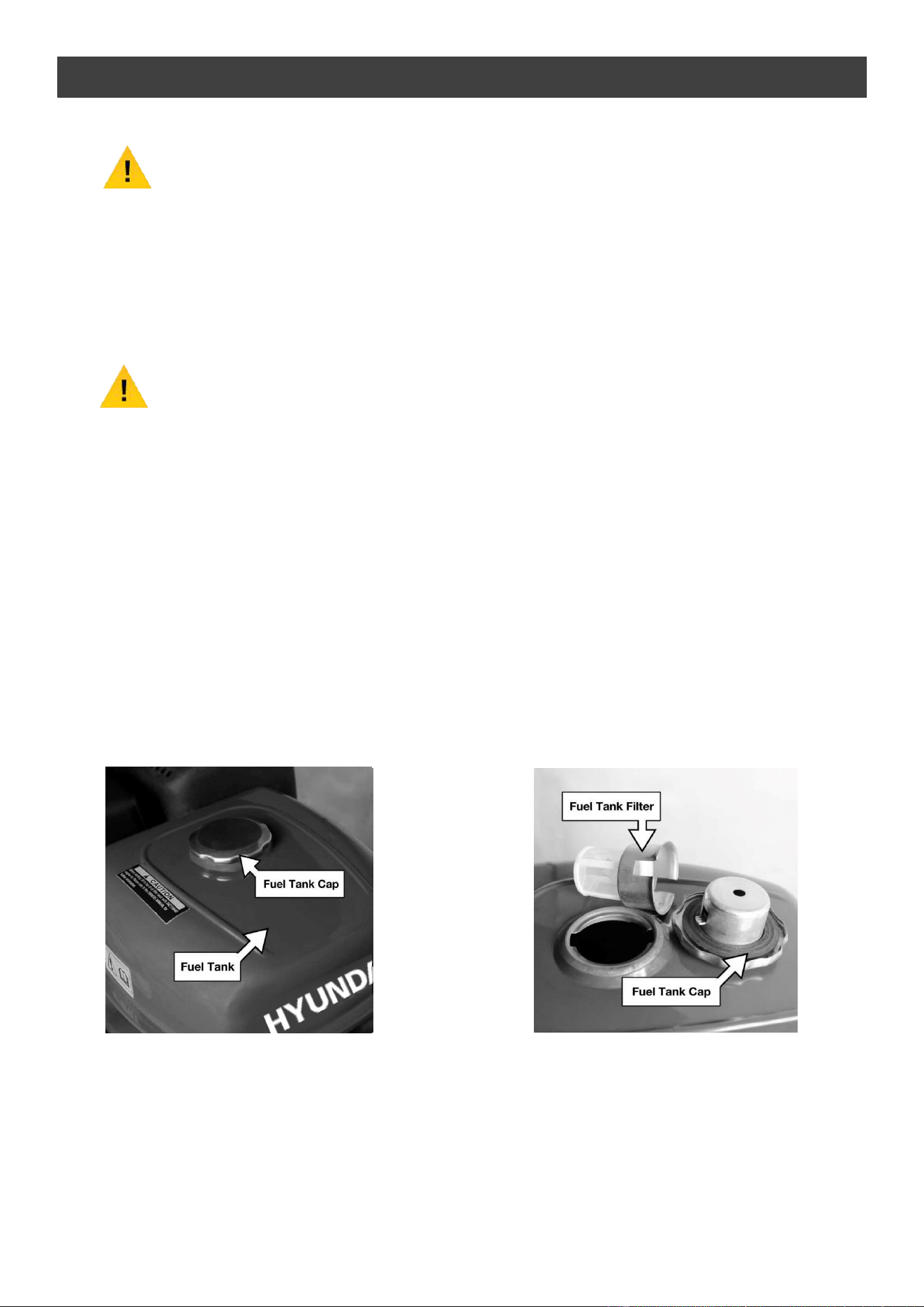

Unscrew the fuel filler cap and carefully add fresh unleaded petrol.
DO NOT overfill.
Allow a 25mm gap at the top of the fuel tank.
Fuel tank capacity is 3.6l.
Once full, replace and secure the fuel filler cap.
4.4
4.5

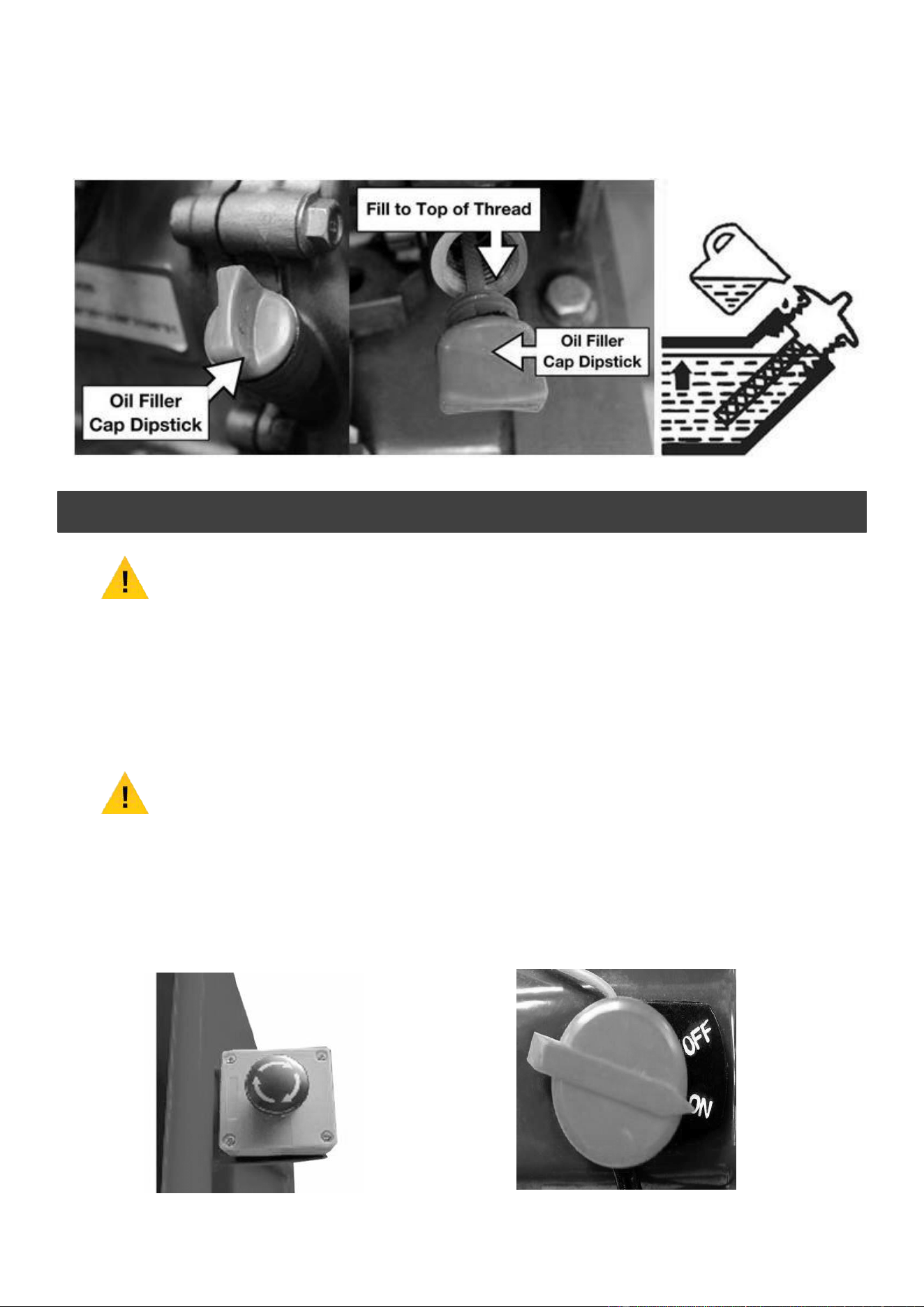

Place the machine on a flat level surface and remove the oil filler cap/dipstick and
slowly fill with oil.
Use approx. 600ml of SAE30 or 15W40 engine oil.
4. FUEL & OIL
15
4.6 Stop occasionally to check the oil level.
DO NOT overfill.
4.7 Refit the oil filler/dipstick and tighten securely.
5.0
5.1
CAUTION
This machine is shipped WITHOUT Oil and Fuel and will require filling BEFORE use.
Failure to do so will result in engine damage that will not be covered by the warranty.
Recommended Oil: SAE30 or 15W40 Engine Oil
Oil Capacity: 600ml
Recommended Fuel: Straight Unleaded Petrol
Fuel Tank Capacity: 3.6Litres
NOTE
Before starting, ensure the machine is clear of materials and all non-essential
persons.
Check the Emergency Stop button is not in the stop (down) position.
Turn the ignition switch to the ON position.
5. STARTING PROCEDURE
16

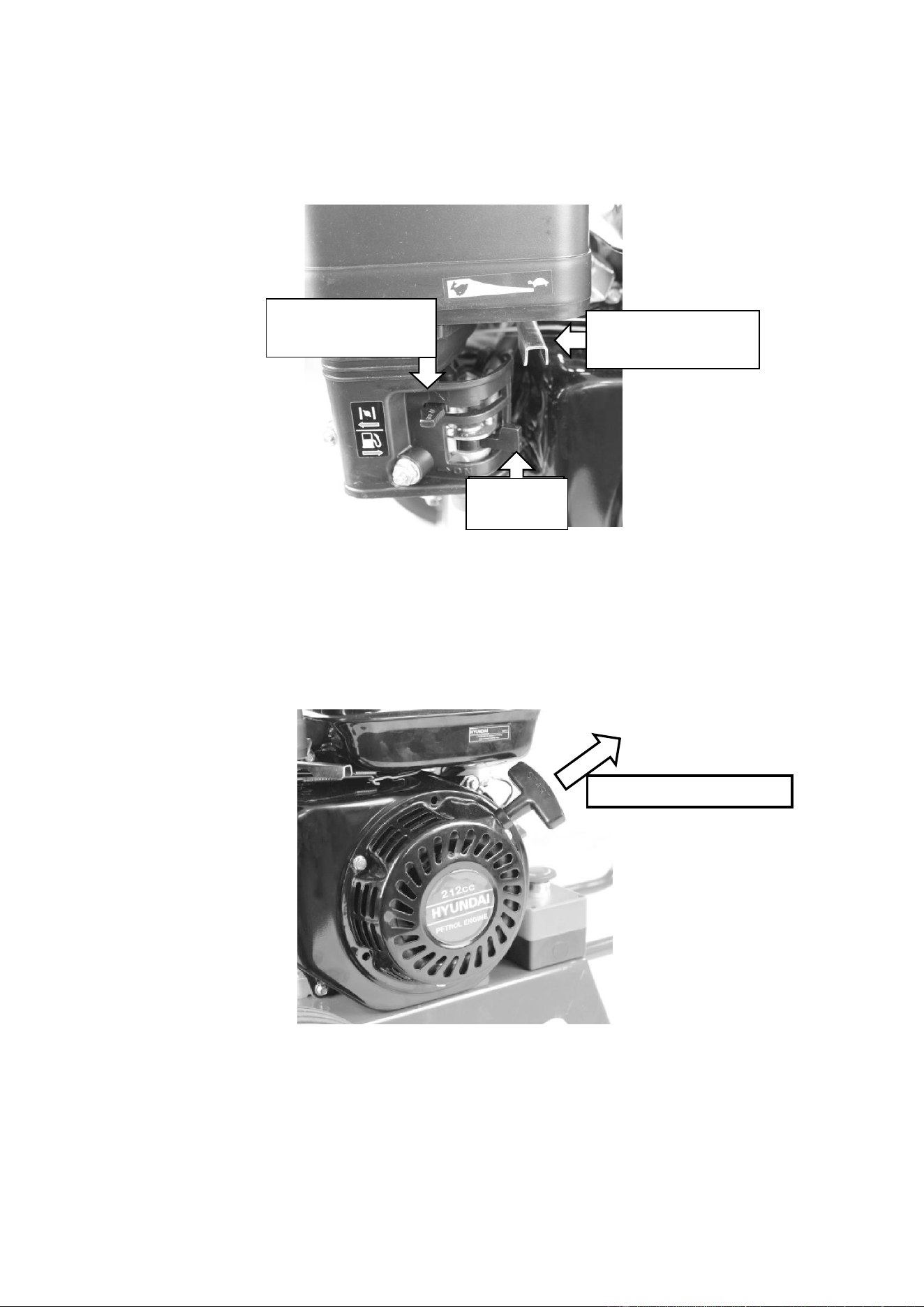

5.2 FOR COLD START: Move the choke lever left, to the START position.
5.3 Move the fuel tap to the ON position.
5.4 Move the throttle lever left to the MIDDLE position.
5.5 FOR WARM START: Use half choke if warm and no choke if hot.
5.6 Place one hand on the machine and using your other hand, pull the recoil start
handle until you begin to feel resistance.
5.7 Once you feel resistance, pull the handle swiftly.
5.8 Repeat until the engine starts.
DO NOT let go of the recoil handle, instead return the handle slowly.
5.9 Once the engine has started, reduce the choke by slowly moving the lever right
to the RUN position.
5.10 If the engine falters, move the choke between the START/RUN and adjust until
the engine runs smoothly.
Pull in This Direction
Fuel Tap
On
Throttle Lever in
MIDDLE Position
(left) Position
Choke in START
(left) Position
17

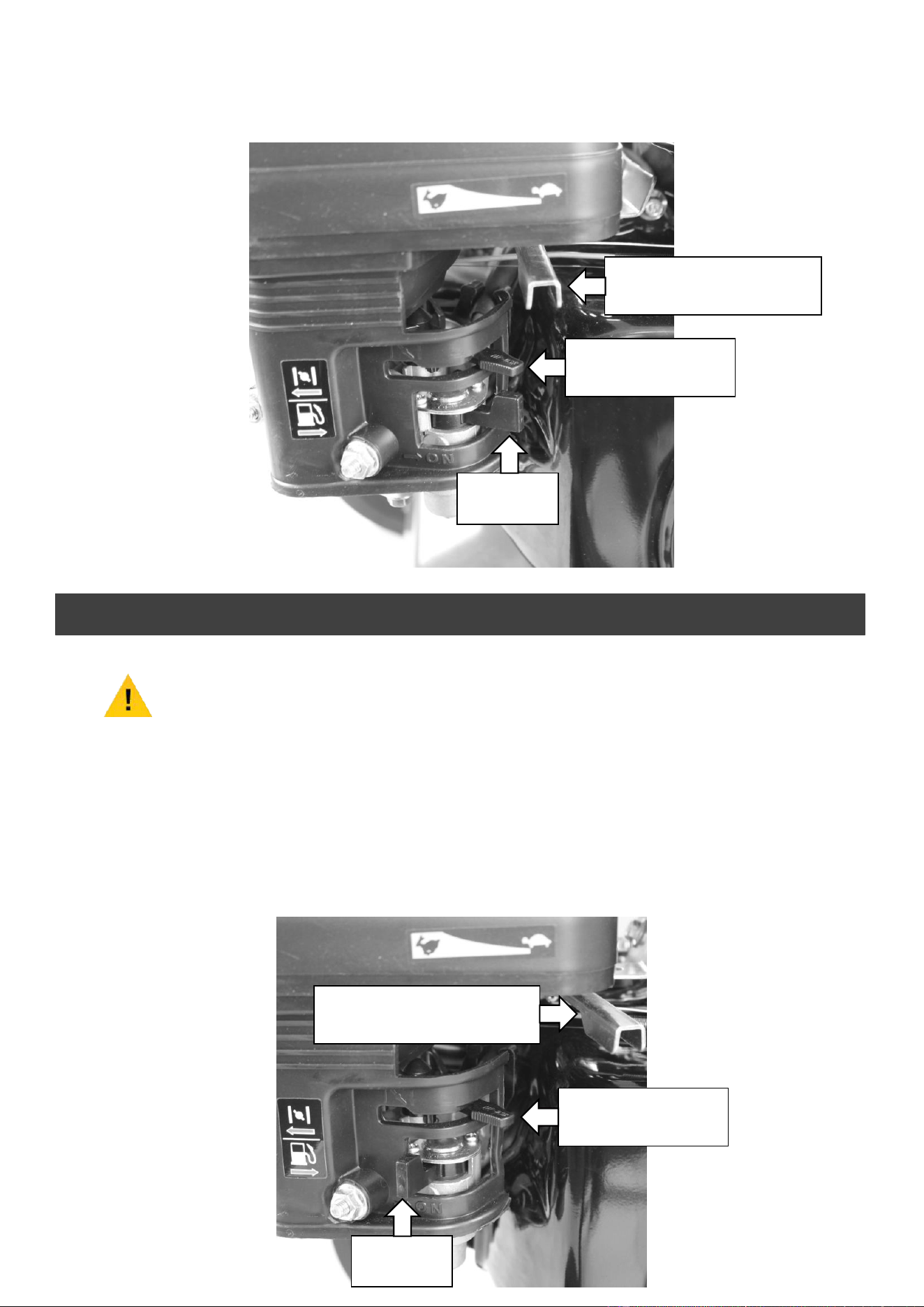

5.11 Once the engine has warmed up, move the throttle lever to the left to accelerate
the engine to the desired working speed.
CAUTION
You MUST allow the cutting head to come to a complete stop and switch the
engine OFF before carrying out any maintenance on the machine.
6.0 Before stopping the machine, allow the engine to cool down by moving the throttle
lever to the SLOW position and allowing the engine to idle under no load for 30
seconds.
6.1 Turn the power switch to the OFF position.
6.2 Turn the fuel tap left, to the OFF position.
6. STOPPING PROCEDURE
Throttle Lever in FAST
(left) Position
Fuel Tap
On
Choke in RUN
(right) Position
Throttle Lever in SLOW
(right) Position
Choke in RUN
(right) Position
Fuel Tap
OFF
18
6. STOPPING PROCEDURE

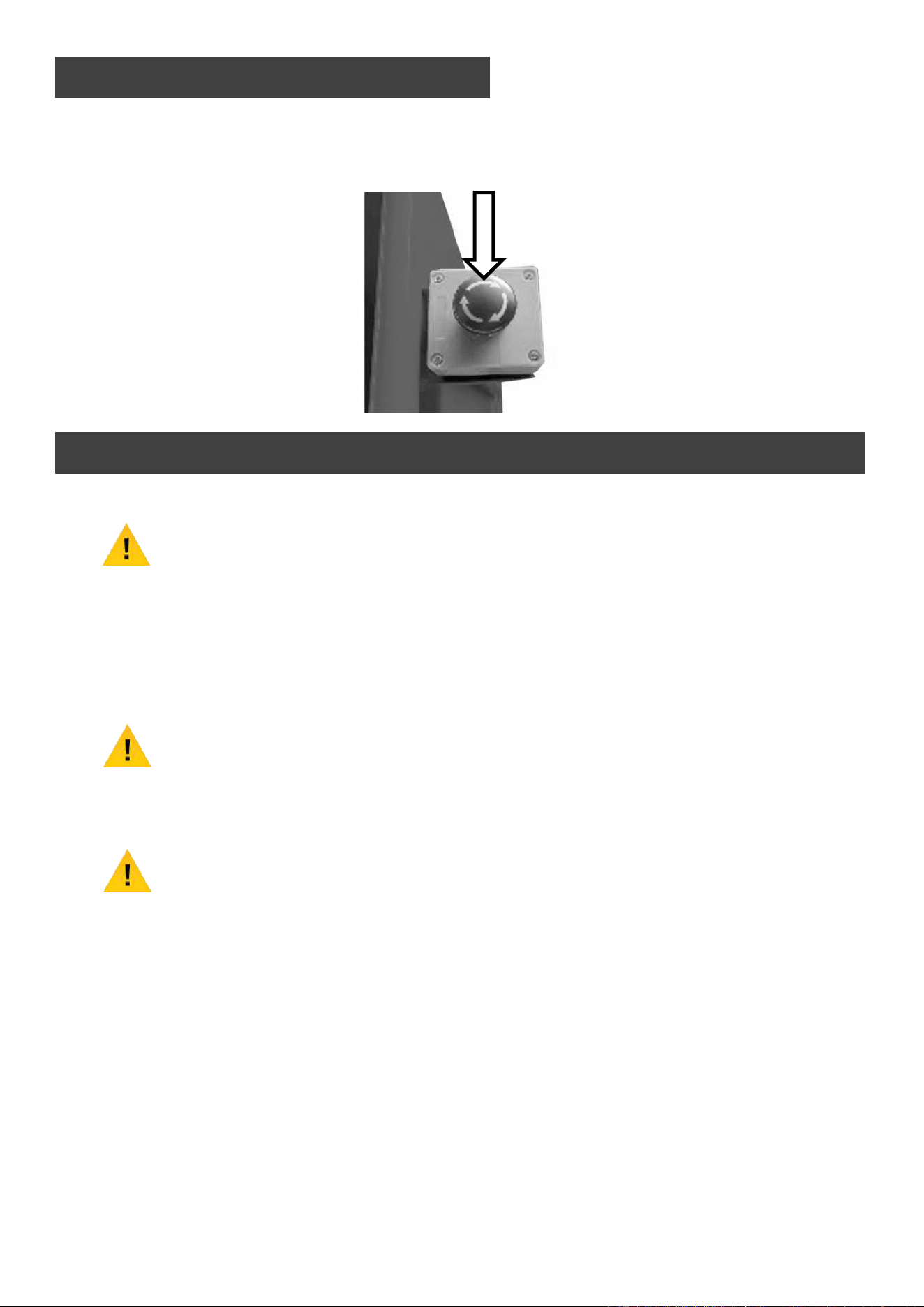

6.3 To STOP the machine in an emergency, press the emergency stop switch DOWN.
WARNING
You MUST STOP using the machine if any of the following occur.
The engine speed changes with no control.
In case of misfire or unusual noise.
In case of high vibration.
If the belts are slipping.
In rain or stormy weather.
CAUTION
If you are not familiar with this type of machine you should seek advice and
guidance from your dealer.
DO NOT attempt to lift or move the machine with the engine running.
CAUTION
FOR OUTDOOR USE ONLY
This machine produces carbon monoxide – a poisonous, colourless gas that can
cause death or serious injury.
Petrol is highly flammable, always handle with extreme care and in a well-ventilated
area.
ALWAYS remove the spark plug HT lead from the spark plug when checking
the machine, refueling or changing parts.
7.0 Position the machine on flat, level ground and in such a way so it cannot move
during operation.
7.1 DO NOT overload the machine.
Use the correct machine for your application.
The correct machine will do the job better and safer at a rate for which it was
designed.
EMERGENCY STOP
7. OPERATING INSTRUCTIONS
19
7.2 DO NOT change the engine governor settings or increase the maximum engine
speed.
The governor controls the maximum safe operating speed of the engine.
7.3 DO NOT run the engine at a high speed when you are not using it.
7.4 DO NOT put hands or feet near rotating parts.
7.5 The machine has rotating cutting knives capable of amputating hands and feet and
throwing objects.
AT ALL TIMES you MUST keep hands and feet clear of all openings while the
machine is running.
Failure to observe these safety instructions could result in serious injury or death.
7.6 Avoid contact with fuel, oil, exhaust fumes and hot surfaces.
7.7 DO NOT touch or allow clothing or other flammable materials to come in to contact
with the engine or exhaust.
These parts get extremely hot and will remain hot for a time after operation.
7.8 Allow the engine to cool before making any adjustments or maintenance.
7.9 If the machine should start to make unusual noises or vibrations, immediately shut
off the engine, disconnect the spark plug HT lead and check for the cause.
Usually noise or vibration is generally a warning of trouble.
You MUST find the source of the problem and fix it before reusing the machine.
7.10 Use only attachments and accessories approved by the manufacturer.
Failure to do so can result in personal injury and may invalidate any warranty.
7.11 Maintain the machine and check for misalignment or binding of moving parts, broken
parts and any other condition that may affect the machines operation.
If damaged, have the machine repaired before reuse.
7.12 Keep the engine, exhaust and muffler free from grass, leaves, wood chippings,
excessive grease or carbon build up to reduce the risk of fire.
7.13 NEVER pour or squirt the machine with water or any other liquid.
Keep handles dry, clean and free from debris.
7.14 DO NOT allow persons unfamiliar with the machine or these instructions to operate
it. This machine can be extremely dangerous in the hands of untrained users.
7.15 Thoroughly inspect the area to be worked, keep the working area clean and free of
debris to prevent tripping. Operate on flat level ground.
7.16 NEVER place any part of your body where it could be in danger if movement should
occur during assembly, installation, operation, maintenance, repair or moving.
7.17 Keep all bystanders, children and pets at least 25m away.
If you are approached, stop the machine immediately.
7.18 The operator or user is responsible for preventing accidents or hazards occurring
to other people, their property and themselves.
7.19 Start the engine carefully according to the instructions.
7.20 Before starting the wood chipper, make sure the feed hopper and cutting housing are
empty and free of all debris.
20
7.21
7.22
7.23
7.24
7.25
7.26
7.27
7.28
7.29
7.30
7.31
7.32
7.33
7.34
7.35
7.36
7.37
NEVER place your hands, feet or any part of your body in the chipper hopper,
discharge opening, or near or under any moving part while the machine is running.
Keep area of discharge clear of people, animals, buildings, glass or anything else
that will obstruct clear discharge, causing possible injury or damage.
Wind can also change discharge direction, so be aware.
NEVER allow the an accumulation of processed material to build up in the discharge
hopper area as this will prevent proper discharge and can result in kickback from the
chipper hopper.
Keep your face and body back from the chipper hopper and discharge chute to avoid
accidental bounce back of any material.
NEVER reach with your hands, into the feed hopper past the rubber flap while the
machine is operating.
NEVER attempt to unclog the feed hopper discharge chute while the engine is
running.
Immediately shut off the engine, allow the cutting disc to come to a complete stop.
Remove the spark plug HT lead cap.
Remove the clogged material.
Inspect for damage and check for any loose parts for repair or replacement.
DO NOT tilt the machine while the engine is running.
ALWAYS stop the engine before moving the machine.
ALWAYS make sure that the engine is switched off and that the cutting disc and
engine are at a complete standstill and the spark plug HT lead cap has been
removed, before opening the cutting disc housing.
You MUST keep all combustible materials and substances away from the engine
when it is hot.
NEVER cover the machine while the exhaust is still hot.
Feed only clean materials into the machine. Foreign matter like soil, sand, gravel, grit
stones, metal etc. will damage the sharp edge of the cutting knives.
Root balls and dead wood will also dull the blades quickly.
Avoid feeding any flax or roots into the machine, the stringy materials can wrap
themselves around the rotor shaft and work their way into the bearings.
DO NOT force branches into the machine.
Allow the machine to automatically feed through.
NEVER operate the machine on slopes. Only use on level ground- risk of tipping
over if used on a slope.
DO NOT alter or adjust any part of the wood chipper or its engine that is sealed by
the manufacturer.
Only a qualified service technician may adjust parts that may increase or decrease
governed engine speed.
This wood chipper is for off road use only.
NEVER attempt to tow the machine on public highways, roads or thoroughfares.
NEVER operate this machine without the feed hopper or discharge chute properly
attached to the machine.
21
7.38 Move the machine at least 3m away from the refueling point before starting the
engine.
7.39 ALWAYS check the oil level of the engine before use.
7.40 Inspect the machine and check that all nuts and bolts are tight and well connected to
ensure the safety and reliability of this machine prior to use.
7.41 Inspect the air pressure in the tyres prior to use and pay attention to sharp objects
when moving the machine to prevent the tyres from being pierced.
Using the Machine
7.42 The wood chipper can process a wide variety of dry or green organic materials such
as branches, pruning, stalks, vines, leaves and vegetable matter.
7.43 The maximum branch diameter is: 60mm
7.44 Maximum diameters depend upon the type and hardness of the wood.
7.45 Rotate the wood as you feed it into the machine as this will improve performance.
7.46 Feed limbs and branches butt end first, leaving the bushy head on.
This helps the limb to go down the feed hopper and reduces the spinning and
bouncing of small pieces back up the feed hopper.
Some branches may require pre-cutting so that the branch will ‘self-feed’ more
efficiently.
7.47 It is advisable to process freshly cut materials as wooden branched gets very hard
and springy when dried out and become more awkward to handle by making the
knives blunt more quickly.
7.48 When operating the machine, keep a wooden stick handy approximately 30mm
diameter and 600mm long.
The stick will be useful to push in short, brushy and very leafy materials and keep the
feed hopper clear.
7.49 DO NOT force material into the machine.
If it does not chip well, the chipper knives may need sharpening or replacing or the
gap between the knives and wear plate needs adjusting.
7.50 DO NOT overload the machine by feeding too much material into the hopper at one
time.
7.51 If you hear the engine speed decreasing, immediately stop feeding material into the
machine.
DO NOT resume feeding material into the machine until the engine has returned to
normal speed.
7.52 The wood chipper can clog up with soft, wet or fibrous materials.
However, if you feed soft materials intermittently with branches, there should be no
problem as the wood chipper tends to clear out any residue left in the machine.
7.53 If any stringy material becomes wrapped around the rotor shaft.
Turn off the engine power switch and wait until the cutting disc has come to a
complete stop.
Remove the spark plug HT lead cap.
You can then remove it before it works its way into the bearing.
Take care of the sharp blades.
22
7.54
7.55
7.56
7.57
Should the wood chipper stall through overloading or clogging, turn the ignition
switch to the off position and wait until the cutting disc has completely stopped.
Remove the spark plug HT lead cap.
Open the housing cover to clear and remove all the materials from the housing.
Lock the housing cover, reinstall the spark plug HT lead cap and start the machine
again.
To remove blockages, DO NOT under any circumstances use your hands.
STOP and disable the machine then undo the chutes.
Remove the feed and discharge chutes by undoing the securing bolts.
Carefully rotate the blades in both directions until the machine is free of
materials which have become stuck.
As the discharge materials pile up, move the chipper or the material to keep the
outlet free.
DO NOT position the deflector horizontally as it will reduce the airflow, impeding
discharge and cause a blockage.
To reduce stress on the engine when wood chipping is not being performed, set the
throttle control lever to its SLOW position.
Lowering the engine speed to idle will help extend the life of the engine, as well as
conserve fuel and reduce the noise level of the machine.
DO NOT feed wood into the exit shoot.
7.58
23

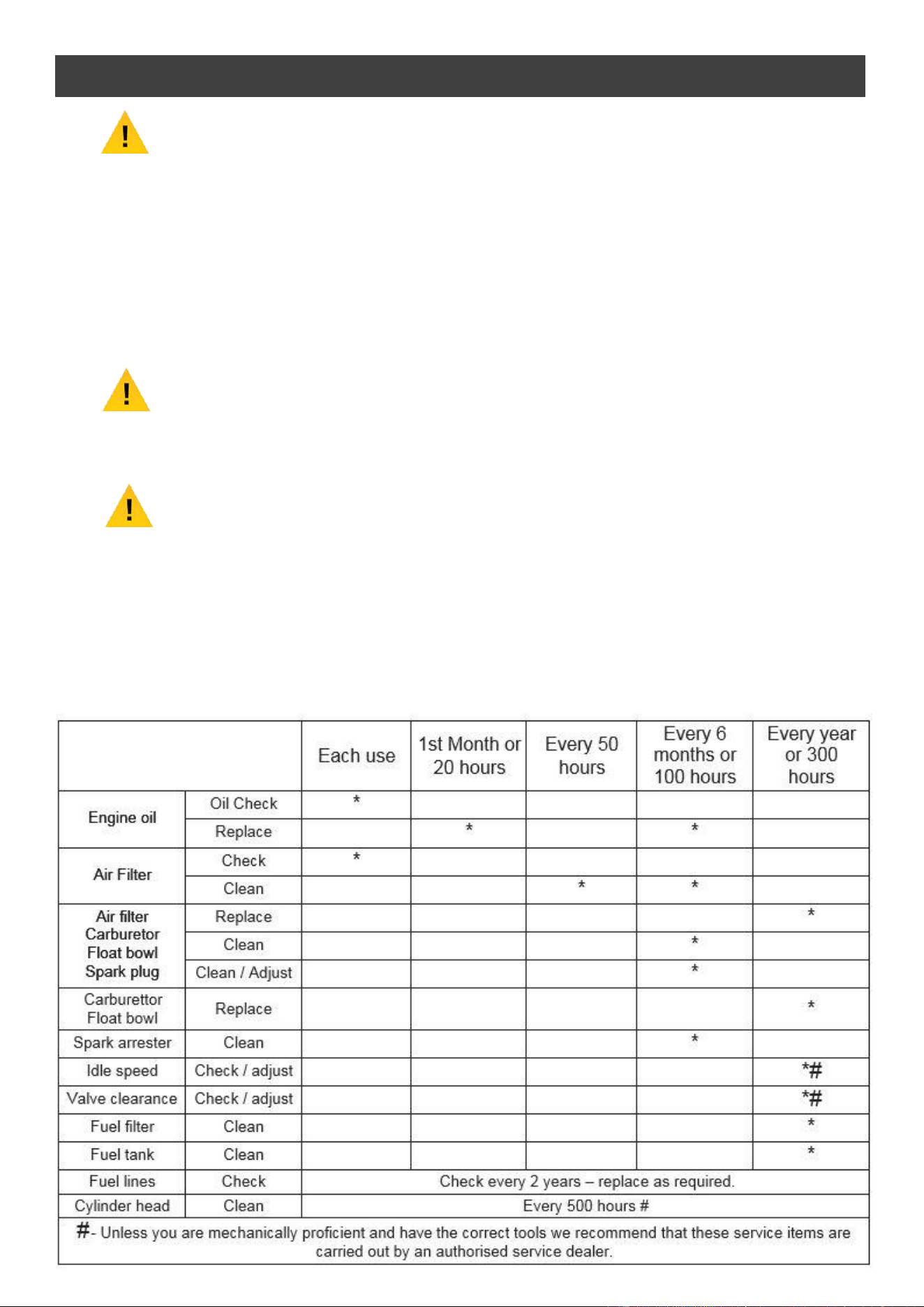

WARNING
ALWAYS stop the engine and disconnect the spark plug HT lead cap BEFORE
doing any repairs or maintenance.
NEVER touch a rotating blade.
Check and maintain the oil and fuel level daily.
Frequently check the wood chipper and make sure that all deposits are removed
from the feed hopper and discharge chute.
At regular intervals, check the tightness of all nuts, bolts and screws.
If the blade hits and obstacle, check for damage and if the machine vibrates badly,
STOP the machine and take it to a service dealer.
CAUTION
ALWAYS refuel and defuel in a well-ventilated area with the engine off and cool.
Whilst carrying out any maintenance, you must wear the appropriate Personal
Protective Equipment (PPE).
CAUTION
NEVER use a pressure washer or hose to clean the wood chipper.
Water can penetrate areas of the unit and cause damage to spindles, pulleys,
bearings or the engine.
The use of pressure washers or hose pipes will result in a shortened life and reduce
serviceability.
Shut down the engine, wait for all moving parts to come to a complete stop, remove
the spark plug HT lead cap and wait for the engine to cool BEFORE performing any
maintenance.
8. MAINTENANCE
24
8.0 NEVER let the engine run without an air filter being installed.
8.1 A dirty air filter element decreases engine performance, increases fuel consumption
and makes it difficult to start.
8.2 You MUST make sure that the housing is free of dust and debris.
DO NOT allow any dust or debris to enter the carburetor.
8.3 Remove the air filter housing by unscrewing the nut in an anticlockwise direction.
8.4 Carefully remove the cover and remove the air filter element.
8.5 Replace the air filter if there are any signs of damage or wear.
8.6 Otherwise, remove the air filter and tap the debris from the element.
Use a low pressure airline to blow the remaining dust from the air filter by blowing
from the inside to the out.
8.7 Wash the foam filter element in a mild detergent solution and allow to dry.
Once dry, soak the foam element in engine oil and remove the excess.
8.8 Reinstall the air filter.
AIR FILTER
25
8.9
8.10
8.11
8.12
8.13
8.14
8.15
8.16
8.17

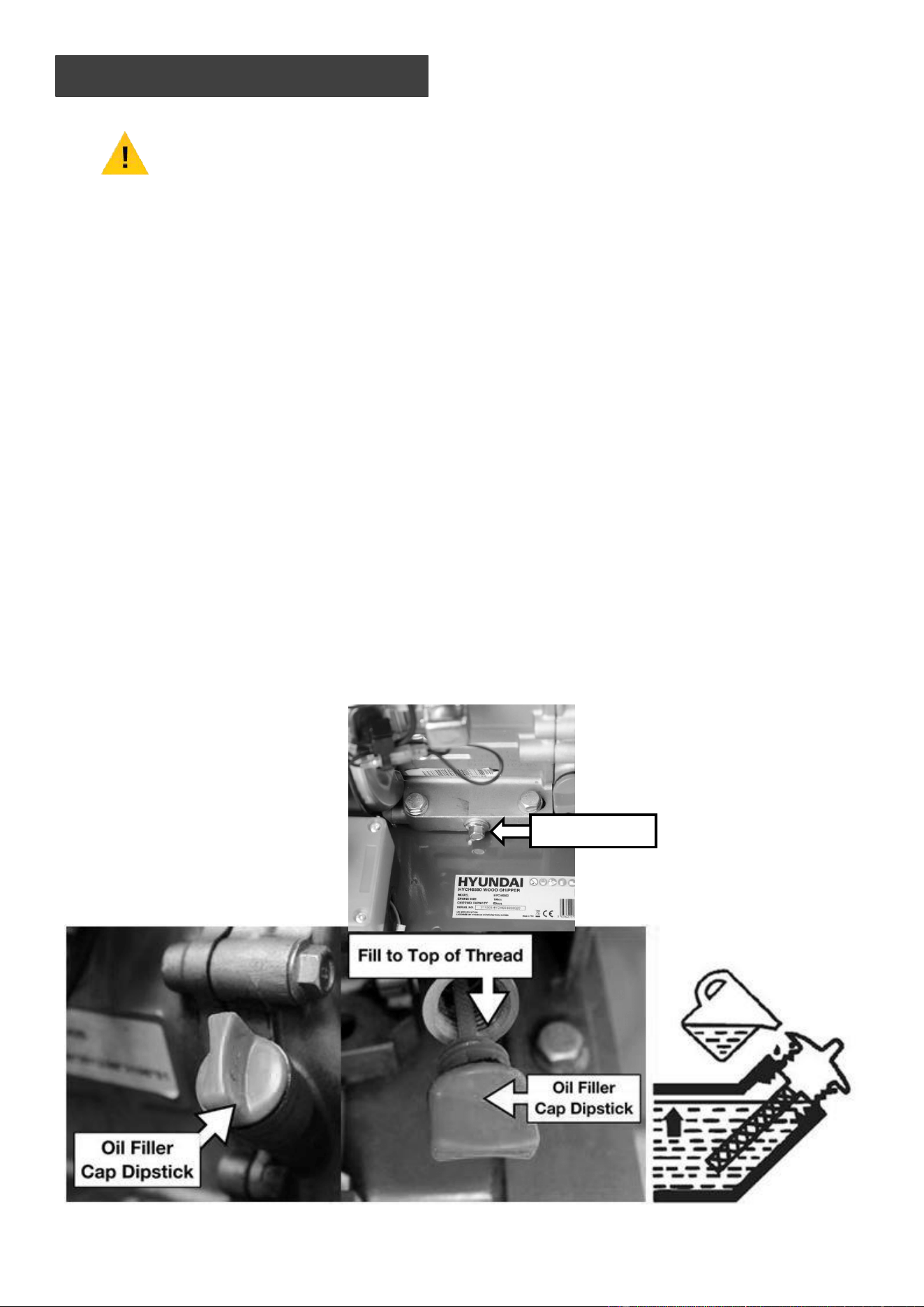

CAUTION
Risk of burn injury from HOT engine oil.
Allow the oil to cool to WARM before changing the oil.
Warm engine oil will drain more effectively.
Engine Oil: SAE 30 or 15W40 Engine Oil.
Oil Capacity: 600ml
Drain the engine oil while the engine is warm. Warm oil drains more effectively.
Remove the oil filler/dipstick and place a suitable container under the drain plug.
Unscrew the drain plug and allow the oil to drain, tilt the machine slightly to ensure
all the oil has drained, you may require assistance.
Once all the oil has drained, check the drain plug washer and replace is damaged.
Reinstall the drain plug by hand to avoid cross threading and then tighten with a
spanner.
With the machine on flat, level ground, fill the engine with oil to the upper edge of
the oil filler/dipstick.
Fill slowly, stopping occasionally to check the oil level.
DO NOT OVERFILL.
Screw the oil filler/dipstick in securely.
Wipe up any spilt oil.
ENGINE OIL
Drain Plug
26

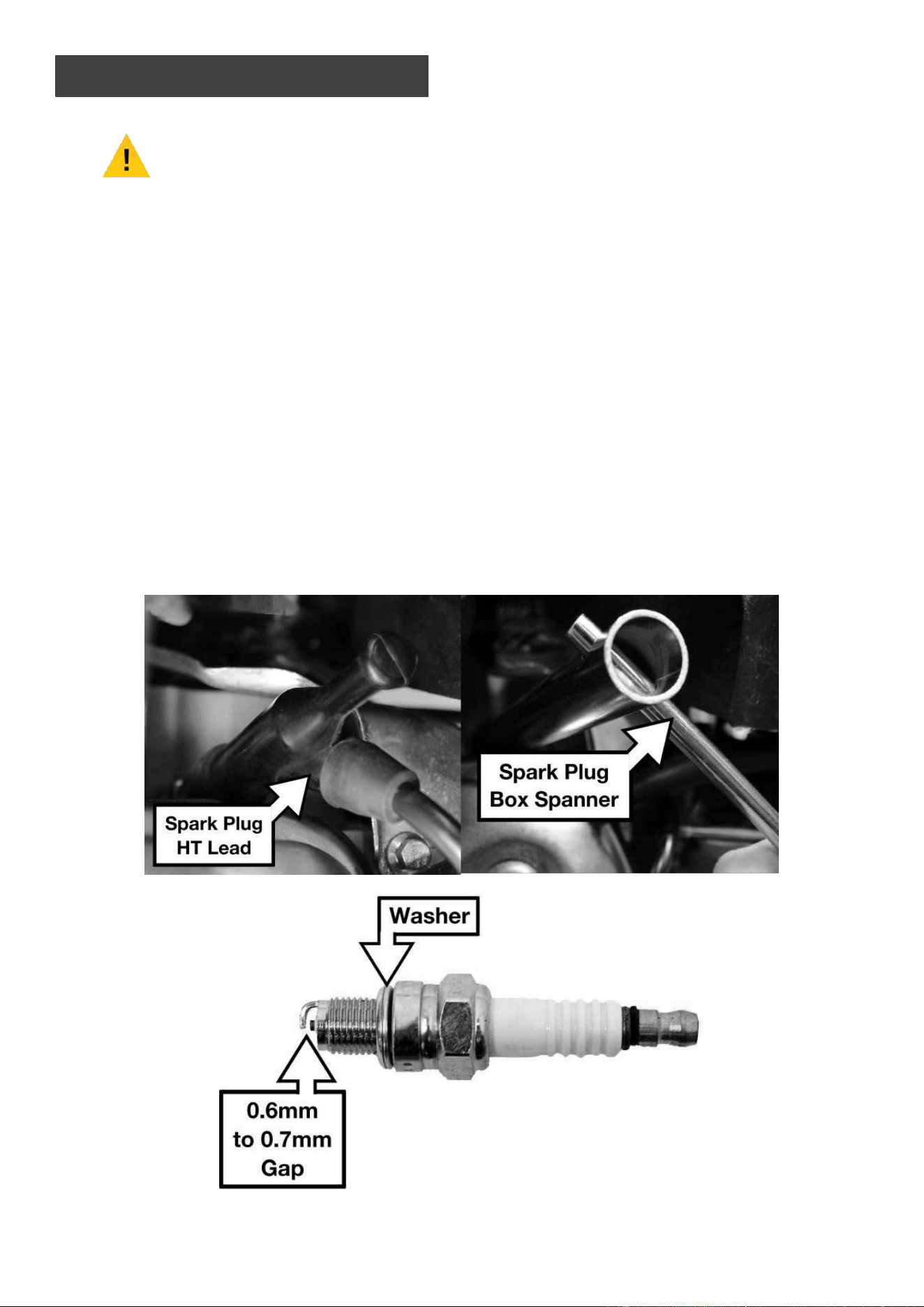

CAUTION
The spark plug MUST be tightened correctly otherwise the engine will overheat
causing damage.
8.18 To ensure the engine runs correctly, the spark plug gap of 0.6 – 0.7mm must be
maintained and the spark plug must be free of carbon deposits.
8.19 The remove the spark plug, remove the spark plug HT lead cap and undo the spark
plug in an anticlockwise direction.
8.20 Once the plug has been removed, check for visual damage, electrode wear and
carbon deposits.
Replace a damaged or badly worn spark plug.
Clean off any carbon deposits with a soft wire brush.
8.21 Check the spark plug gap with a feeler gauge and adjust the electrode to the correct
gap of 0.6 – 0.7mm.
8.22 Check the spark plug washer for signs of damage and replace if required.
8.23 Replace the spark plug by hand to make sure if doesn’t cross thread, tighten the
plug to a torque of 12/15Nm.
SPARK PLUG
27
NOTE
Improper storage of this machine may cause starting difficulties and may cause
permanent damage and will not be covered by the warranty.
9.0 Perform the general maintenance from the maintenance section of this manual.
9.1 Clean the exterior of the machine.
DO NOT use a pressure washer or hose pipe as this could penetrate the engine
with water and cause irreparable damage.
9.2 Remove all the fuel from the petrol tank by using either a syphon or by gently tilting
the machine (ask for assistance) to drain the fuel in to a suitable container.
9.3 Turn OFF the fuel tap.
9.4 After all the fuel has been removed from the engine, start the engine and allow it to
run at idle until the engine stops of its own accord.
This allows all the fuel in the fuel lines and carburetor to have been drained.
9.5 Allow the engine to cool completely.
9.6 Remove the spark plug and pour 1 teaspoon of fresh engine oil into the combustion
chamber.
9.7 Place a clean, lint free cloth over the spark plug hole and gently pull the recoil
starter handle 4 to 5 times.
This coats the internal components with a fresh layer of oil.
9.8 Remove the cloth and replace the spark plug by hand to make sure it doesn’t cross
thread.
Then tighten the spark plug to a torque of 12/15Nm.
9.9 Store the machine in a cool dry place away from any sources of ignition.
9.10 Do not stack other items on top of the machine.
10.0 ALWAYS transport the machine with the fuel tank empty and drain the oil.
10.1 Ensure the machine is secured safely and not obstructing vision.
10.2 ALWAYS ask for assistance when lifting the machine in and out of vehicles.
10.3 NEVER transport the machine with the engine running.
9. STORAGE
10. TRANSPORT
28

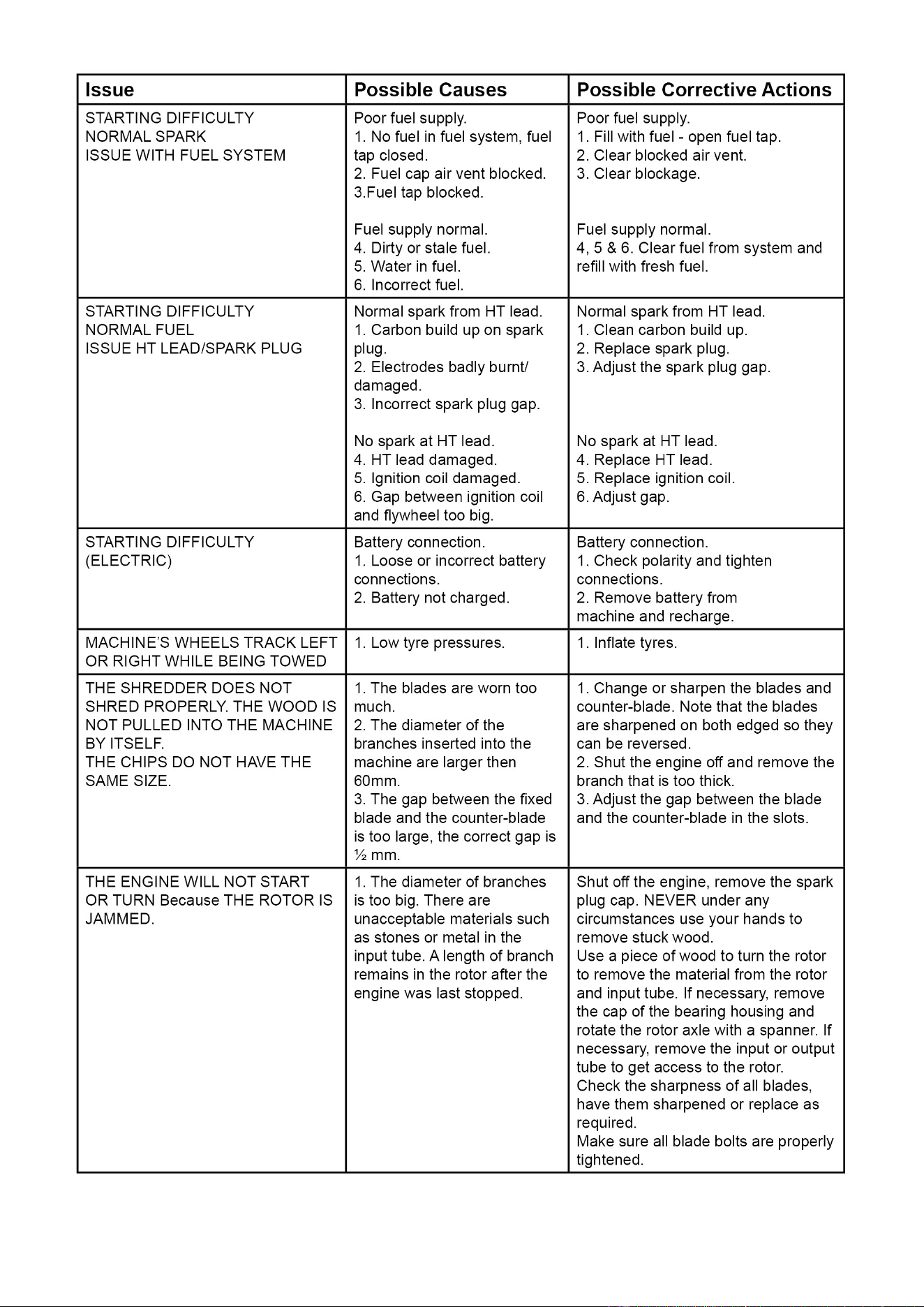

CAUTION
If troubleshooting does not solve the problem, contact the dealer or the manufacturer
directly.
Use ONLY original parts approved by the manufacturer, otherwise a hazard risk
arises.
11. TROUBLESHOOTING
29
30
Model
HYCH6560
Maximum Chipping Capacity
60mm
Throat Size
25cm x 25cm
Starting Method
Recoil
Engine Type
4 Stroke OHV Single Cylinder Euro 5
Engine Size
212cc
Maximum Output
7HP
Max Blade Speed
2880rpm
Fuel Tank Capacity
3.6L
Fuel Type
Unleaded Petrol
Oil Capacity
0.6L
Oil Type
SAE30 or 15W40
Net Weight
45Kg
Assembled Dimensions (LxWxH)
1600 x 525 x 1030mm
12. SPECIFICATION
31
13.0 Genpower Ltd confirms that this Hyundai product conforms to the following
CE Directives:
2006/42/EC Machinery Directive
2004/108/EC EMC Directive
2000/14/EC Amended by 2005/88/EC Noise Emissions Directive
97/68/EC_2010/26/EC NRMM Emissions Directive
EC DECLARATION OF CONFORMITY
The undersigned. As authorised by: Genpower Ltd
Declares that the following equipment manufactured under licensed by Hyundai Corporation, Korea
Conforms to the Directive:-
2000/14/EC (as amended)
Of the European Parliament and of the council on the approximation of the laws of the Member
States relating to the noise emission in the environment by equipment for the use outdoors.
Equipment Category:
Product Name/Model:
Type/Serial No:
Net installed power:
The technical documentation is kept by:
Power Equipment
HYCH6560
Wood Chipper
HYCH6560 7hp
Roland Llewellin, Genpower Ltd
Isaac Way, Pembroke Dock,
Pembrokeshire, SA72 4RW.
The conformity assessment procedure followed was in accordance with annex V of the Directive.
Notified Body: Nationaux de Certification Technique
217 Rue Des Reculetes
73123 Paris
France
Certificate No. N.1818.N.1706081.MD.001
Measured Sound Power Level: 106.9 dBA
Guaranteed Sound Power Level: 108.0 dBA
A copy of this certificate has been submitted to the European Commission and the EU Member State United Kingdom.
Place of Declaration: Pembroke Dock, SA73 4RW
Date: 25/02/2019
Signed by: Roland Llewellin
Position in Company: Managing Director
Name and address of manufacturer or Authorised representative:
Genpower Ltd
Isaac Way, Pembroke Dock,
Pembrokeshire, SA72 4RW
13. DECLARATION OF CONFORMITY
32
14.0 We do not offer a take back scheme for the recovery of Waste Electrical Electronic
Equipment (WEEE) & Batteries instead the responsibility to dispose of WEEE and
or Batteries passed onto you by us. So when it becomes necessary to dispose of
your machine you must take it to your local Civic Amenity Site. For further
information, please contact your Local Authority for disposal advice.
14.1 You MUST make sure that all unused oil and fuel is disposed of correctly either
beforehand or at your local Civic Amenity Site. Under NO circumstances must any
oil and fuel be put down the drains.
14.2 Waste Electrical Electronic Equipment (WEEE) recycling.
14.3 Certain products contain WEEE waste which should not be disposed of in your
domestic waste.
14.4 You MUST recycle WEEE in accordance with your local authority or recycling center.
14.5 Battery recycling, certain products contain batteries which should not be disposed of
in your domestic waste.
14.6 You MUST recycle batteries in accordance with your local authority or recycling
center.
14.7 Unwanted packaging materials should be sorted and taken to a recycling center so it
can be disposed of in a manner which is compatible with the environment.
14.8 This symbol means that you should ‘Reduce – Reuse – Recycle’.
14.9 We are members of the VALPAK National Compliance scheme and our registration
number is RM08660.
14.10 For further information about disposal please contact your Local Authority.
14.11 You can also get more advice and guidance about recycling at the following website
http://www.recycle-more.co.uk
14.12 Should you pass this product on to another user either sold or loaned you MUST
pass on this user manual. This will make sure that all other users can use and
maintain the machine safely.
14. RECYCLING & PRODUCT DISPOSAL
33
15.0 POSTAL ADDRESS:
15.1 TELEPHONE:
15.2 E-MAIL:
15.3 WEBSITE:
Genpower Limited
Isaac Way,
London Road,
Pembroke Dock,
Pembrokeshire,
SA72 4RW. UK.
01646 687 880
aftersales@hyundaipowerproducts.co.uk
www.hyundaipowerproducts.co.uk
16.0
Proof of purchase will be required before you make a warranty claim.
Full warranty terms and conditions can be found on the HYUNDAI POWER
PRODUCTS website:
www.hyundaipowerproducts.co.uk
17.0 Our manuals are constantly being reviewed and updated.
Should you find an error, omission or something you find unclear, please contact
your dealer for assistance.
17.1 All our manuals are placed online.
17.2 We reserve the right to make any modifications without prior notice whenever
necessary.
15. CONTACT DETAILS
16. WARRANTY
17. MANUAL UPDATES
34
35
For Inquiries, Please Contact:
GENPOWER LTD
Isaac Way, London Road,
Pembroke Dock, UK, SA72 4RW.
T: +44 (0) 1646 687 880
E: info@hyundaipowerproducts.co.uk
www.hyundaipowerproducts.co.uk
Imported / Distributed by Genpower Ltd for
the United Kingdom & Ireland
Licensed by Hyundai Corporation Holdings, Korea
