Instruction Manual
TILLER
HYT1500E
WARNING: Read the instructions carefully before use.
www.hyundaipowerproducts.co.uk
2
Contents
Introduction……..……………………………3
Safety Information…..………………….4-14
Understand Your Machine.…..…………...4
Personal Safety...…….……………………4-5
Inspect Your Machine…………………......5
Work Area…….……………………………....6
During Use…….……………………………....7
Batteries…….…………………………………8
Electricity…….……………………………..8-9
Double Insulated Devices…......…….........9
Vibrations….…………………………..........10
Noise…….……………………………..........10
Residual Risks…………………....................10
Intended Use………………………............11
Personal Protective Equipment…...........12
Symbols On The Machine………………..13
Unboxing…………………………...............14

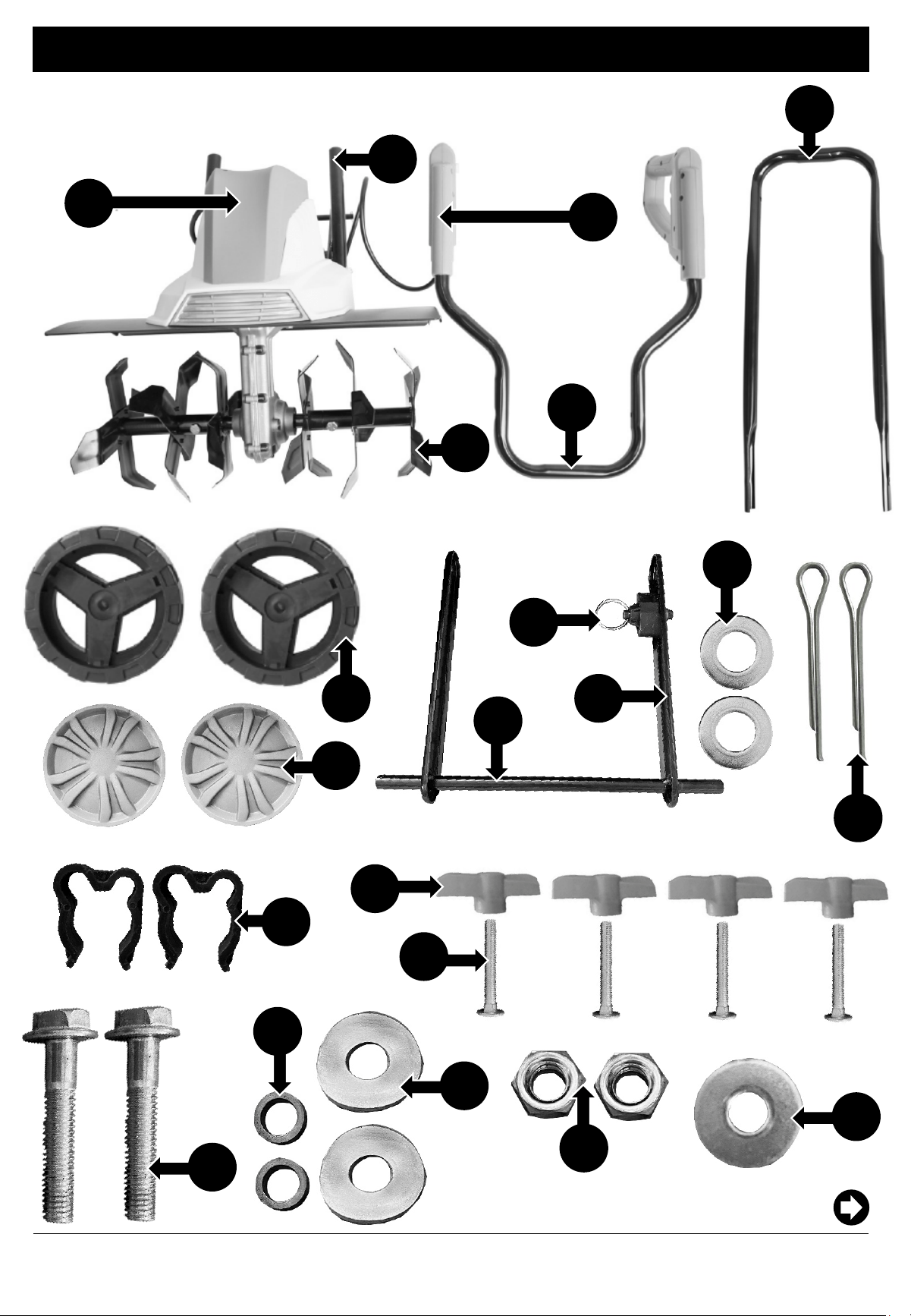

In The Box………………………............15-16
Features…………………………...........17-18
Assembly……..…………………….......19-27
Assembly Overview……………………….19
Assemble The Wheels………….……..19-20
Attach the Wheels……………………21-23
Attach The Middle Bar……………...……24
Attach The Upper Bar………………….…25
Attach Cable Clips……………………….26
Cable Holder On Handle…………….….27
Operation……...………………………..28-30
Before Starting…………………………..….28
Starting……..………………………….……..28
Stopping……..………………………………29
Tilling Instructions……………...……………30
Maintenance & Care………………….31-37
General Maintenance……………………31
Cleaning…...………………………………..31
Replacing Tine Blades………………...32-33
Draining / Filling Transmission Oil…….34-35
Storage………………………….………...…36
Troubleshooting…………………………….37
Specifications……………………...............38
Recycling And Disposal..………………...39
Declaration Of Conformity…..…………..40
Useful Information…..……………………..41
Our YouTube Channel…..………………..41
Manual Updates….……………………….41
Returning Your Product….……………….41
Leaving A Review….……………………...41
Ordering Spare Parts.……………………..41
Contact Us…..……………………………....42
Product Record…..………………………...43
www.hyundaipowerproducts.co.uk
3
Introduction
Thank You For Purchasing Your HYUNDAI Product
We work very hard to give all of our customers the best possible service. If you
have any problems, before leaving negative feedback, please contact us to give
us a chance to resolve the issue. We would be delighted if you left us positive
feedback! Thank you for purchasing this product.
Important!
This manual has been produced by Hyundai Power Products and should be kept
with the product. Please read and understand these instructions before you use
your product. Failure to do this may result in personal injury or damage to the
product.
The safety precautions and warnings are to ensure your safety and protect you
from harm or damage to the product.
The information contained in this manual was accurate at the time of production,
however HYUNDAI Power Products may make modifications to the product
without notification.
WARNING: READ THE INSTRUCTION BOOKLET THOROUGHLY BEFORE USING
THE MACHINE. Keep for future reference and pass it on if the machine is
loaned or sold to another user.
!
www.hyundaipowerproducts.co.uk
4
Safety Information
Understand Your Machine
• WARNING! You must read these instructions carefully before operating the
machine. Make sure that you are familiar with the controls and properly operate
the machine. You must learn how to stop the machine quickly. If you do not follow
the warnings and instructions, it may result in fire and/or serious injury. Make sure to
save all warnings and instructions for future reference.
• Read this manual and labels affixed to the machine to understand its limitations
and potential hazards.
• Be thoroughly familiar with the controls and their proper operation. Know how to
stop the machine and disengage the controls quickly.
• If the unit is to be used by someone other than original purchaser, or is to be
loaned, rented, or sold, always provide this manual and any needed safety
training before operation. The user can prevent and is responsible for accidents or
injuries that may occur to themselves, to other people, or to property.
• Do not force the machine beyond its limits. Use the correct machine for your
application.
• Know how to stop the machine quickly in case of emergency. Understand the
use of all controls.
• ALL MAINTENANCE other than that listed in this manual, should be carried out by
professionally trained and certified personnel.
• When using this machine for the first time and before actual work, you MUST
learn how to handle the machine from an experienced or skilled person.
Personal Safety
• WARNING! Never allow children or people unfamiliar with these instructions to
use the product. Local regulations can restrict the minimum age of the operator.
• Keep children, pets, and other people not using the unit away from the work
area (at least 15m). Be alert and shut off the unit if anyone enters work area. Keep
children under the watchful care of a responsible adult.
• Stay alert, watch what you are doing and use common sense when operating
the machine. Never operate the machine when unwell or tired, or if you have
taken alcohol, medicine, drugs or any substances which may slow your reflexes
and compromise judgment. A moment of inattention while operating the machine
may result in serious personal injury.
• Appropriate Personal Protective Equipment (PPE), MUST be worn at all times
when operating or repairing the machine. Always wear anti-slip and resistant work
footwear and long trousers while using the machine. Do not use the machine
when barefoot, wearing sandals or similar lightweight footwear. Do not wear
chains, bracelets or clothing that is loose fitting or hanging ties or cords. Tie long
hair back. Always wear protective earplugs. Loose clothes, jewellery, or long hair
can be caught in moving parts. Protect eyes, face, and head from objects that
may be thrown from the unit. Always wear safety goggles or safety glasses with
side shields when operating.
•Always keep hands and feet away from all moving parts during operation.
Moving parts can cut or crush body parts. Always keep hands and feet away from
all pinch points.
!
!
www.hyundaipowerproducts.co.uk
5
Safety Information
Personal Safety (Continued)
• Do not touch parts that might be hot from operation. Allow parts to cool before
attempting to maintain, adjust, or service.
• Do not overreach. Keep proper footing and balance at all times. This enables
better control of the machine in unexpected situations. Extending your body too
far can result in a loss of balance and you may fall which will result in injury.
• Never place any part of your body where it would be in danger if movement
should occur during assembly, installation, and operation, maintenance, repairing
or moving.
• Keep in mind that the operator or user is responsible for accidents, hazards or
unexpected events involving the machine that occur to other people or their
property. It is the responsibility of the user to assess the potential risk of the area
where work is being carried out. The operator or user must take all necessary
precautions to ensure their own safety and that of others, especially on slopes or
rough, slippery and unstable ground.
• This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning use
of the appliance by a person responsible for their safety.
Inspect Your Machine
• Check your machine before starting it. Keep guards in place and in working
order. Make sure all nuts, bolts, etc., are securely tightened.
• You must check the general condition of the machine before use.
• Never operate the machine when it is in need of repair or is in poor mechanical
condition. Replace damaged, missing, or failed parts before using it. Check for fuel
leaks. Keep the machine in safe working condition.
• Do not use the machine if the machine’s switch does not turn off the machine
when running. Any machine that can’t be controlled with the switch is dangerous
and must be replaced.
• Regularly check to see that keys and adjusting wrenches are removed from the
machine area before starting it. A wrench or a key that is left attached to a
rotating part of the machine may result in personal injury.
• If the machine should start to vibrate abnormally, stop the machine and check
immediately for the cause. Vibration is generally a warning sign of trouble.
• Avoid accidental starting. Be sure the switch is off before transporting the
machine or performing any maintenance or service on the unit. Transporting or
performing maintenance or service on a machine with its switch on invites
accidents.
• Do not tamper with or disable safety systems.
• Only use manufacturer-recommended attachments.
• Before using, always visually inspect to see that the tools are not worn out or
damaged. Replace worn out or damaged elements and bolts in set to preserve
balance.
!
!
www.hyundaipowerproducts.co.uk
6
Safety Information
Work Area
• You must only work in daylight or with good artificial light in good visibility
conditions. Do not work at night, at times of heavy fog, or at any other times when
your field of vision might be limited and it would be difficult to gain a clear view of
the area.
• Keep people, children and animals away from the working area.
• Operate on flat, level ground.
• DO NOT work on wet ground. If there has been heavy rain on the working site,
wait until the ground has dried up.
• Never park the machine in a place with unstable ground which could give way.
• You must be careful near ravines, ditches or embankments.
• Exercise extreme caution when operating on or crossing gravel drives, walks, or
roads. Stay alert for hidden hazards or traffic.
• Do not work in the rain, when there is a thunderstorm or lightning risk, at times of
strong or gale force winds, or at any other times when the weather conditions
might make it unsafe to use this product. If there is bad weather conditions, do not
use the machine.
• Make sure you thoroughly inspect the entire work area and remove all objects
and anything that could be thrown by the machine or could damage the
machine (branches, stones, wire, toys, etc). Attempting to clear the work area
whilst using the machine will reduce your concentration and creates a trip hazard.
Any liquid spilled on the floor may result in you slipping.
• Find and locate all fixed objects in the ground, such as sprinkler systems, poles,
water valves, bases for washing lines etc. Make sure that you check for hidden
electrical cables or similar on the surface of the lawn. ALWAYS run the machine
around these objects. NEVER run the machine over foreign objects.
• DO NOT operate power tools in explosive atmospheres, such as in the presence
of flammable liquids, gases or dust. Power tools may create sparks, which may
ignite the dust or fumes.
• This machine is only for outdoor use.
• Do not operate the tiller near underground electrical cables, telephone lines,
hoses or pipes.
!
Inspect Your Machine (Continued)
• Keep the machine in good operating condition. Operating the machine in poor
or questionable condition could result in serious injury.
• Be sure all safety devices are in working order and warning labels are in place.
These items are installed for your safety.
!
www.hyundaipowerproducts.co.uk
7
Safety Information
During Use
• Do not operate the machine in confined areas where there may be a risk of
crushing the operator between the machine and another object.
• Never attempt to make any adjustments, while the machine is running.
• You must switch off the machine:
- Before checking or working on the machine.
- When transporting the machine.
- Whenever you leave the machine unattended.
- If the machine starts to vibrate abnormally.
• WARNING! If something breaks or an accident happens whilst working, you must
turn off the machine immediately and move the machine away to prevent further
damage. If an accident happens with injuries or third parties are injured, carry out
the first aid measures most suitable for the situation immediately and contact the
medical authorities for any necessary health care. Carefully remove any debris
that might cause damage or harm persons or animals should it not be seen.
• After striking a foreign object, stop the machine immediately and inspect the
machine thoroughly for damage. Repair the damage before continuing.
• Keep extension cord away from cutting elements.
• Never operate the machine with damaged guards or without the guard in
place.
• Keep hands and feet away from the cutting means at all times especially when
switching on the motor.
• Take care against injury from the blade fitted for trimming the filament line
length. After extending new cutter line, always return the trimmer to its normal
operating position before switching on.
• Never operate the machine without the defective guards or shields, or without
safety devices, or if the cord is damaged or worn.
• Be cautious when pulling the machine towards you.
• Do not use the tiller on slopes more than 15°. Always work along the slope and
not up and down it. Always maintain a solid footing.
• Only remove dirt and plants from the machine once the machine has been
unplugged and stopped rotating.
• Always guide the tiller at walking pace with both hands on the handle.
• Always keep your hands and feet away from the rotating parts. There is danger
of serious injury.
• If the tiller vibrates or emits unusual noises when switched on, disconnect the
plug from the socket and do not use.
• Do not tilt the machine when starting.
• Make sure you always remain a safe distance away from the tine blades.
• Move the tiller to the work area before starting the motor.
• Switch the motor off before moving the tiller from one area to another. Wait for
the moving parts to come to a complete stop. Do not let the tines touch the
ground whilst you are moving the tiller, this could damage the machine.
• Never pass the Tiller over the extension cord. Make sure the cord is always in a
safe position behind you.
!
www.hyundaipowerproducts.co.uk
8
Safety Information
Batteries (Where Present)
Batteries present a risk if they become damaged by the possible leaking of
electrolyte. This electrolyte is an acid and can cause serious burn injuries. Care
should be taken when working on or near them. NOTE: the electrolyte may be in a
liquid or gel form.
Should you come in to contact with electrolyte you should;
• Remove all clothing contaminated with electrolyte. If you cannot remove then
saturate them in water.
• Get medical assistance as soon as possible.
You must advise the medical staff of the type of acid.
• Lead/acid battery = dilute sulphuric acid.
• Nickel/cadmium = potassium hydroxide alkali electrolyte.
• Use fresh running water to wash off excess electrolyte, continue this until medical
assistance arrives. Make sure that you do not wash the electrolyte to another part
of your body or face.
• If electrolyte comes in to contact with eyes the electrolyte needs to be
immediately washed away with large amounts of water. Make sure that you do
not wash the electrolyte to another part of your face or body.
• Gasses from charging batteries are highly flammable and great care should be
taken to charge in well ventilated areas.
• There is an explosion risk if the battery terminals are short circuited,
when connecting/disconnecting ALWAYS exercise great care so that
the terminals or battery leads are NOT allowed to touch and cause a
spark. ALWAYS use suitable insulated tools.
Electricity (Where Applicable)
DANGER : ELECTRICITY CAN KILL – NEVER WORK ON LIVE / ENERGISED EQUIPMENT.
!
!
• Prior to carrying out any maintenance work you MUST identify electrical
. isolation methods and isolate all electrical supplies.
• Prior to use and with all electrical supplies isolated, you MUST check all
electrical cables, plugs and connectors for the following;
- Are intact and have no signs of damage, to include but not limited to bare wires,
chaffing, cuts and loose wiring.
- If there are any signs of damage, the damaged item MUST be taken out of
service until the damage has been repaired by an electrically competent person.
- All trailing cables should be routed so as not to cause any kind of trip hazard.
- NEVER work on or near electricity with wet hands, wet clothing and wet gloves.
www.hyundaipowerproducts.co.uk
9
Safety Information
Electricity (Continued)
• Power tools plug must match the outlet. Never modify the plug in any way. DO
NOT use any adapter plugs with earthed (grounded) power tools. Unmodified
plugs and matching outlets will reduce risk of electric shock.
• DO NOT expose this power tool to rain or wet conditions. Water entering a power
tool will increase the risk of electric shock. DO NOT abuse the power cord. Never
use the cord for carrying, pulling or unplugging the power tool. Keep the cord
away from heat, oil and sharp edges or moving parts. Damaged or entangled
cords increase the risk of electric shock. When operating a power tool, use an
extension cord suitable for outdoor use. Use of a cord suitable for outdoor use
reduces the risk of electric shock.
• IMPORTANT: Make sure that the electric circuit is fused, and that the power,
voltage and frequency of the motor is supported by your mains supply. Also, make
sure that your power supply is earthed. Connect your machine to earth. Never
open the ON/OFF switchbox. However, if it should become necessary to do so,
contact a qualified electrician. Make sure that you will never touch live contacts,
specifically when you plug or unplug your machine. This machine and its power
cord must never get into contact with water.
• Avoid body contact with earthed or grounded surfaces such as pipes, radiators,
ranges and refrigerators. There is an increased risk of electric shock if your body is
earthed or grounded.
• To prevent electric shock, use only with an extension cord suitable for outdoor
use. For additional protection, the installation of a residual current device (RCD)
having a rated residual operating current not exceeding 30mA is advisable.
• Before use, check that the extension cord is in good condition. When using an
extension cord, make sure to use one heavy enough to carry the current your
product will draw. An undersized cord will cause a drop in line voltage resulting in
loss of power and overheating.
• Do not allow any part of the machine to make contact with water while it is in
operation. If the appliance becomes wet while turned off, wipe dry before starting.
Do not touch the appliance or its plug with wet hands or while standing in water.
Wearing rubber boots offers some protection.
• Before use, check the supply and extension cord for signs of damage or aging. If
the cord becomes damaged during use, disconnect the cord from the supply
immediately. If the supply cord is damaged, it must be replaced by the
manufacturer or a qualified person in order to avoid a hazard.
!
Double-Insulated Appliances
In a double-insulated appliance, two systems of insulation are provided instead of
grounding. No grounding means that it is already provided on a double-insulated
appliance. Servicing a double-insulated appliance requires extreme care and
knowledge of the system, and should be performed only by qualified service
personnel. Replacement parts for a double-insulated appliance must be identical
to the parts they replace.
!
www.hyundaipowerproducts.co.uk
10
Safety Information
Vibrations (Where Applicable)
• Prolonged use of hand held (operated) machines will cause the user to feel the effects
of/from vibrations. These vibrations can lead to white finger (Raynaud’s phenomenon) or
carpal tunnel syndrome. This condition reduces the ability of the hand to feel and regulate
temperature, causing numbness and heat sensations and may cause nerve damage and
circulatory tissue death.
• Not all factors that lead to white finger disease are known, but cold weather, smoking
and other diseases that affect blood vessels and blood circulation as well as large and
long-lasting impact of shocks are considered factors in the formation of white finger. Note
the following to reduce the risk of white finger and carpal tunnel syndrome;
• Wear gloves and keep your hands warm.
• Take regular breaks.
• All of the above precautions may help reduce the risk of white finger disease but not rule
out the carpal tunnel syndrome. Long-term and regular users are therefore recommended
to observe the condition of your hands and fingers. Seek medical attention immediately if
any of the above symptoms should occur.
Noise (Where Applicable)
• The operating noise of the machine can damage your hearing. When wearing
protection such as ear plugs or ear defenders to protect your hearing. Long-term and
regular users are advised to have hearing checked regularly. Be especially vigilant and
cautious when wearing ear protection because your ability to hear alarm warnings will be
reduced.
• Noise emissions for this equipment is unavoidable. Carry out noisy work at approved
times and for certain periods. Limit the working time to a minimum. For your personal
protection and protection of people working nearby it is also advisable for them to wear
hearing protection.
• See Certificate of Conformity section for Outdoor Noise declaration of .
. conformity.
!
!
Residual Risks
Even when tool is used as prescribed it is not possible to eliminate all residual risk
factors. The following hazards may arise in connection with the tool’s construction
and design:
1. Damage to lungs if an effective dust mask is not worn.
2. Damage to hearing if effective hearing protection is not worn.
Health defects resulting from vibration emission if the power tool is being used over
longer period of time or not adequately managed and properly maintained.
WARNING! This machine produces an electromagnetic field during operation.
This field may under some circumstances interfere with active or passive medical
implants. To reduce the risk of serious or fatal injury, we recommend persons with
medical implants to consult their physician and the medical implant manufacturer
before operating this machine.
!
!
www.hyundaipowerproducts.co.uk
11
Safety Information
Intended Use
The HYT1500E is an electric tiller from HYUNDAI. The HYT1500E has a working width
of 450mm and a working depth of 220mm. It is powered by a 1500W HYUNDAI
motor.
This machine is a garden tool and precisely a pedestrian controlled tiller. The
machine is manufactured according to the latest safety requirements. Every
precaution is only effective when it is followed exactly.
Intended Use
This machine was designed and manufactured for breaking up compacted soil,
controlled by a pedestrian operator.
User Types
This machine is intended for use by consumers, i.e. non professional operators. The
machine is intended for “DIY” and domestic use only.
Improper Use
Any other usage not in keeping with the above mentioned ones may be
hazardous and harm persons and/or damage things. Examples of improper use
may include, but are not limited to:
- Transporting people, children or animals on the machine
- Using the machine to tow or push loads
- Using the machine on any unsuitable surfaces
!
www.hyundaipowerproducts.co.uk
12
Safety Information

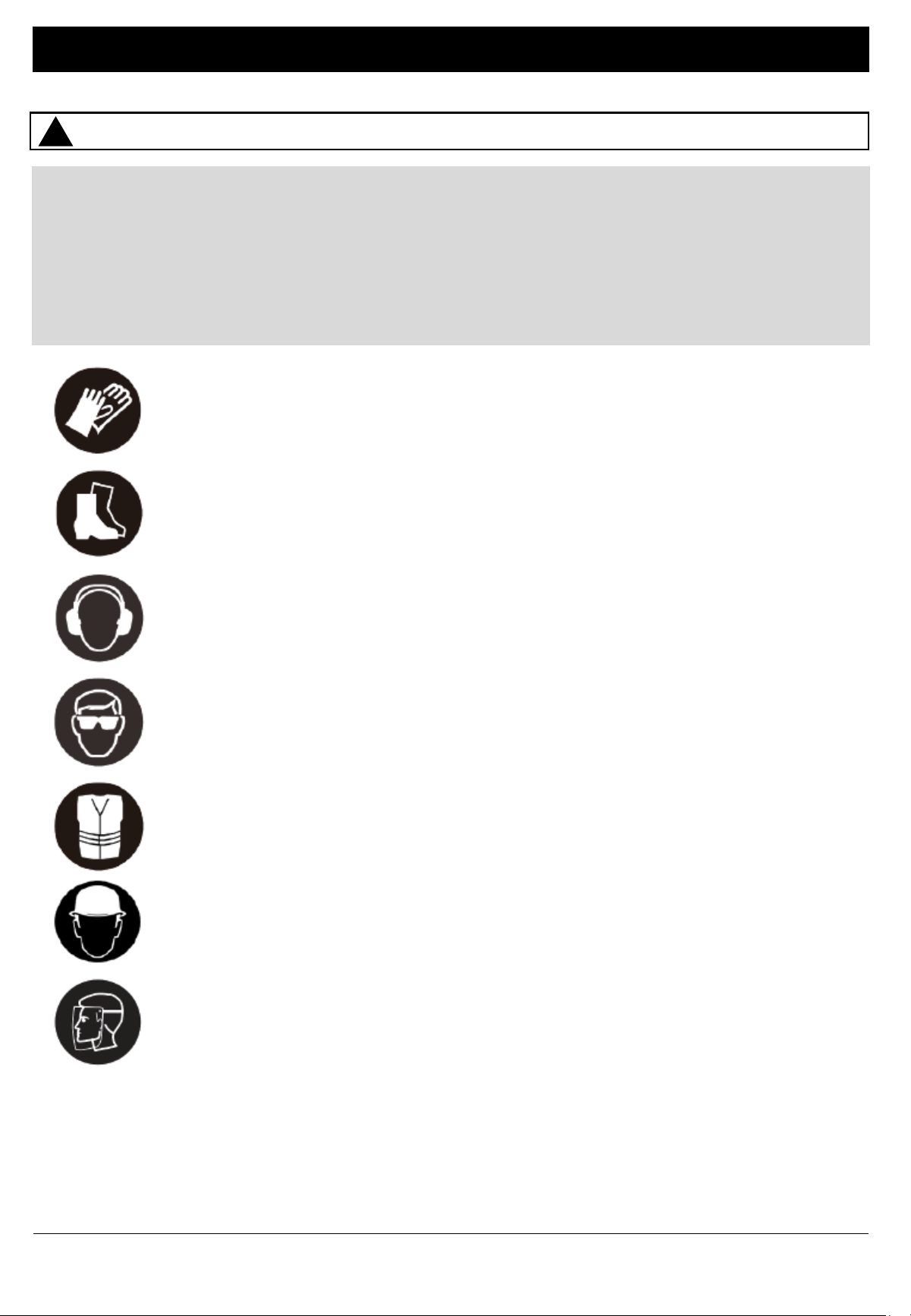

Personal Protective Equipment
Appropriate Personal Protective Equipment (PPE), MUST be worn at all times when
operating or repairing the machine. No protective equipment can ensure 100%
protection.
When selecting PPE, make sure it’s CE marked and it suits the user in terms of size,
fit, etc. If more than one item of PPE is worn at the same time, make sure they can
be used together, e.g. wearing safety glasses may disturb the seal of a respirator,
causing air leaks.
!
Hand Protection Must Be Worn
Protective electrically non-conductive gloves are highly
recommended when working.
Foot Protection Must Be Worn
Non-skid heavy duty footwear are highly recommended when
working.
Hearing Protection Must Be Worn
Suitable safety hearing protection is recommended.
Eye Protection Must Be Worn
Always wear safety glasses/goggles and/or face shields. Everyday
eyeglasses have only impact resistant lenses; they are not safety
glasses/goggles.
Protective Clothing Must Be Worn
Do not wear loose clothing, gloves, scarfs, neckties or jewellery (rings,
wrist watches), which can be caught in moving parts.
Head Protection Must Be Worn
Wear a safety helmet with a safety visor.
Face Shield Must Be Worn
Wear a face shield to protect your face.
www.hyundaipowerproducts.co.uk
13
Safety Information

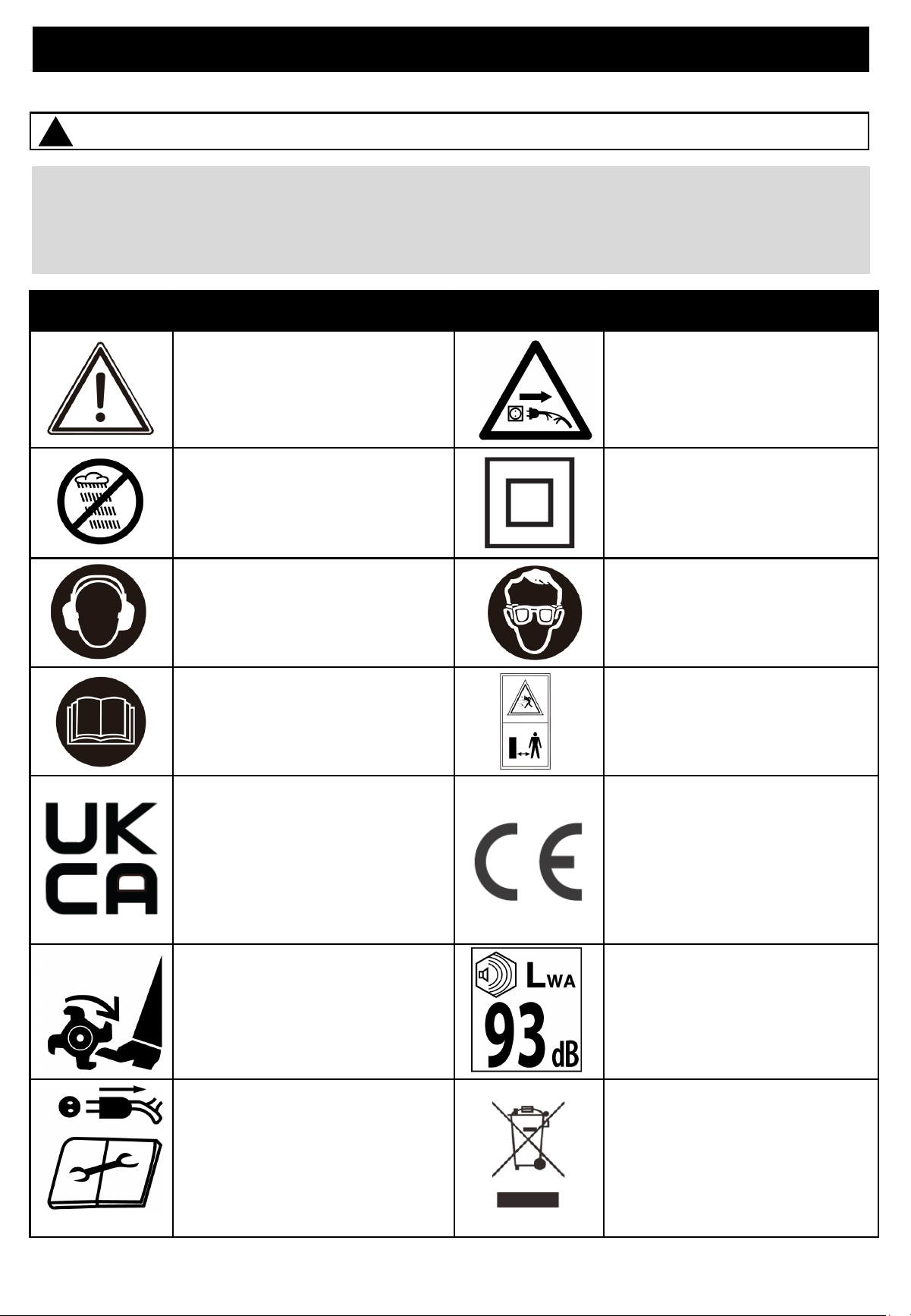

Symbols On The Machine
We have provided safety messages in this manual and on the machine. This
information alerts you to potential hazards that could hurt you or others. Please
read these messages carefully. However, we may not have listed all of the possible
hazards, you must also use your own judgement.
!
Symbol Description Symbol Description
Safety alert – Indicates a
precaution, a warning or
a danger.
Disconnect the mains
plug if the cord becomes
damaged or entangled.
Do not expose to rain. Protection class II.
Wear hearing protection. Wear eye protection.
Read operator’s manual. Keep bystanders at a
safe distance away from
the work area.
The UKCA (UK Conformity
Assessed) marking is a UK
product marking that is
required for goods being
placed on the market in
Great Britain (England,
Wales and Scotland).
This product complies
with the European
directives and an
evaluation method of
conformity for these
directives was done.
Do not touch rotating
parts. There is a serious risk
of injury.
Guaranteed sound
power level.
Switch off and unplug the
device before cleaning
or performing
maintenance on it.
This product should not
be disposed of in
domestic waste. Please
contact your local
recycling centre for
disposal service.
www.hyundaipowerproducts.co.uk
14
Unboxing
WARNING : Unboxing and assembling the machine should be done on a flat,
surface with enough room. Disposal of the packaging should be done in
accordance with the local regulations in force.
!
WARNING : Some of the packaging material may be harmful to children. Keep
out of reach of children.
1. Carefully remove the product from the packaging and examine it for any sign of
damage caused during shipping.
2. Lay the contents out and check them. If any part is damaged or missing, you
must not use the machine. Contact HYUNDAI POWER PRODUCTS immediately.
3. You must keep the packaging material in case the machine needs to be
returned or repaired.
4. Ensure that you have all the accessories and tools you need for assembly and
operation including the suitable personal protective equipment.
!
www.hyundaipowerproducts.co.uk
15
In The Box
*Not To Scale
Descriptions on next page
C
A
B
E
D
K
L
M
F
G
H1
I
J
S
R
Q
P
O
N
W
H
www.hyundaipowerproducts.co.uk
16
In The Box
A
B
C
D
F
G
H
I
J
K
O
Cable Clips
These keep the cable secure and
tight to the machine.
4 x Wing Nuts
These secure the bars together.
You can loosen them to fold the
handlebar down for storage.
4 x Bolts
These secure the bars together.
Upper Bar
This connects to the middle bar.
2 x Bolts To Attach Wheel Axle To
Machine
These secure the wheel axle onto
the lower bars.
2 x Spacers
These slot onto the bolts (O).
2 x Washers
These are part of attaching the
wheel axle onto the lower bars.
2 x Nuts
Use these to secure the wheel
axle onto the lower bars.
1 x Washer
This is part of attaching the wheel
axle to the right-hand lower bar
(if stood behind the handlebars).
Wheel Height Adjuster Pin
Use this pin to select a position for
the wheels (transport positon or
working position).
E
L
M
N
P
Q
R
S
Main Unit
This is the main part of the
machine.
Lower Bars
The lowers bars connect to the
main unit.
Handle Bars
You must hold these with both
hands when in use.
Middle Bar
The middle bar connects to the
lowers bars.
Tine Blades
2 x Wheels
These attach onto the wheel axle.
2 x Wheel Covers
These slot onto the wheels after
you have attached them onto the
wheel axle.
Wheel Axle
Assemble the wheels onto this.
Wheel Axle Bracket
This attaches to the lower bars.
There is a wheel height adjuster
pin which allows you to choose
from two positions. You can
choose from the working position
(the wheels are up from the
ground and the transport position
(the wheels are on the ground).
2 x Washers For The Wheels
These are part of the wheel
assembly.
2 x Split Pins
These are part of the wheel
assembly.
W
H1
F
L
B
www.hyundaipowerproducts.co.uk
17

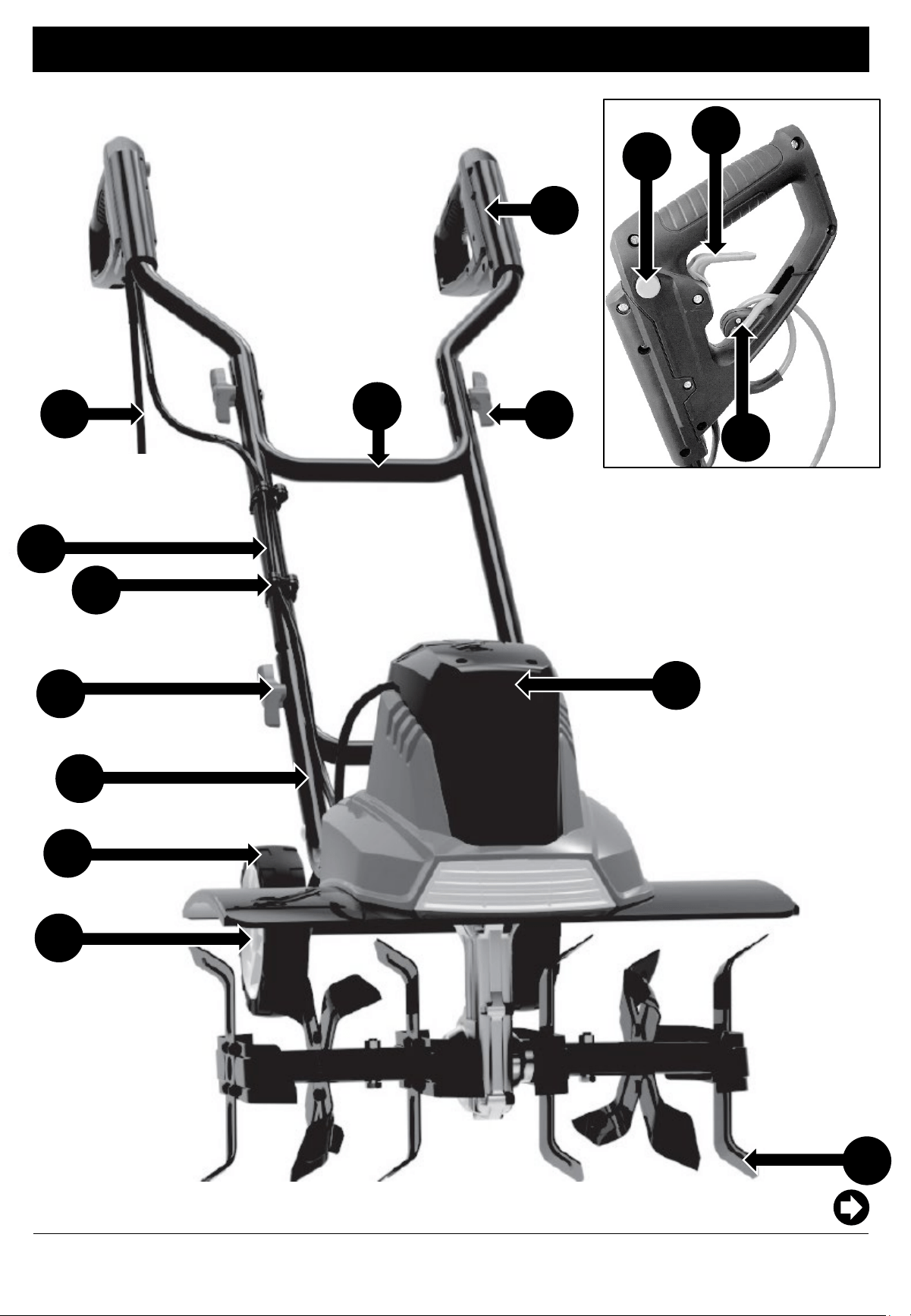

Features
Descriptions on next page
C
L
A
E
K
D
G
N
T
V
U
Y
www.hyundaipowerproducts.co.uk
18
Features
A
B
C
D
F
G
K
E
L
N
Main Unit
This is the main part of the machine.
Lower Bars
The lowers bars connect to the main unit.
Handle Bars
You must hold these with both hands when in use.
Middle Bar
The middle bar connects to the lowers bars.
Tine Blades
2 x Wheels
These attach onto the wheel axle.
2 x Wheel Covers
These slot onto the wheels after you have attached them onto the wheel axle.
Cable Clips
These keep the cable secure and tight to the machine.
4 x Wing Nuts
These secure the bars together. You can loosen them to fold the handlebar
down for storage.
Upper Bar
This connects to the middle bar.
Trigger
This is used for starting and stopping the machine.
Cable Holder
This holds the cable in place while in use and prevents strain on the cable.
Safety Release Button
This prevents the trigger from accidentally being pressed.
Power Cable
T
U
V
Y
www.hyundaipowerproducts.co.uk
19
Assembly

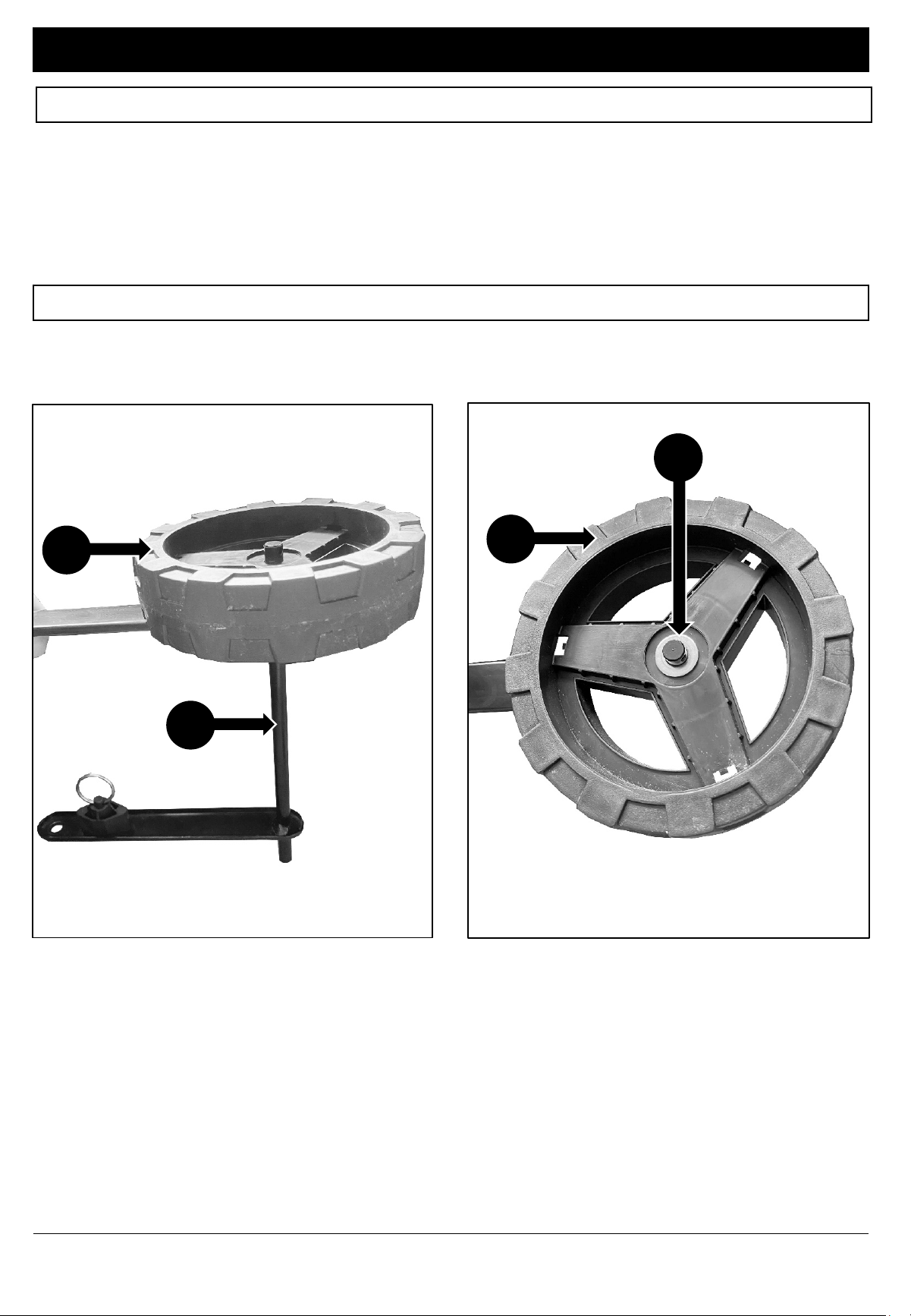

STEP 1 : Assemble The Wheels
1. Place the wheel (F) on the axle (H).
2. Place a washer (I) over the axle on top of the wheel.
Assembly Overview
There are 6 steps to the assembly:
STEP 1. Assemble The Wheels
STEP 2. Attach The Wheels
STEP 3. Attach The Middle Bar
STEP 4. Attach The Upper Bar
STEP 5. Attach The Cable Clips
STEP 6. Cable Holder On Handle
F
H
F
I
www.hyundaipowerproducts.co.uk
20
Assembly

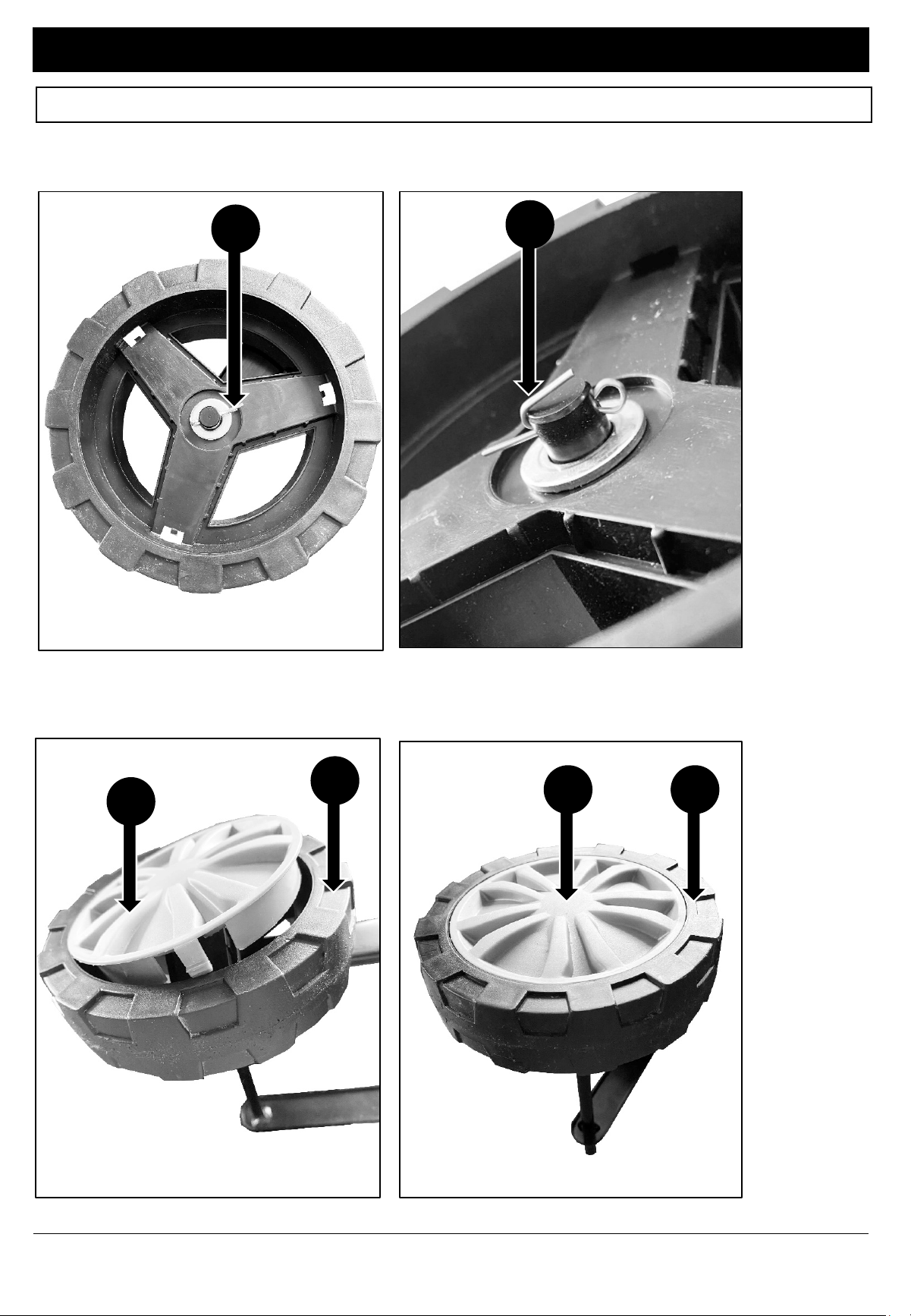

5. Place a split pin (J) through the axle hole. You must spread the split pin after
inserting it. This will stop the wheel from falling off.
STEP 1 : Assemble The Wheels (Continued)
6. Fit a wheel cover (G) onto the wheel (F) and clip it into place. You must line up
the tabs on the wheel cover into the slots on the wheel.
7. Do this for both wheels.
J
J
G
F
G F
www.hyundaipowerproducts.co.uk
21
Assembly

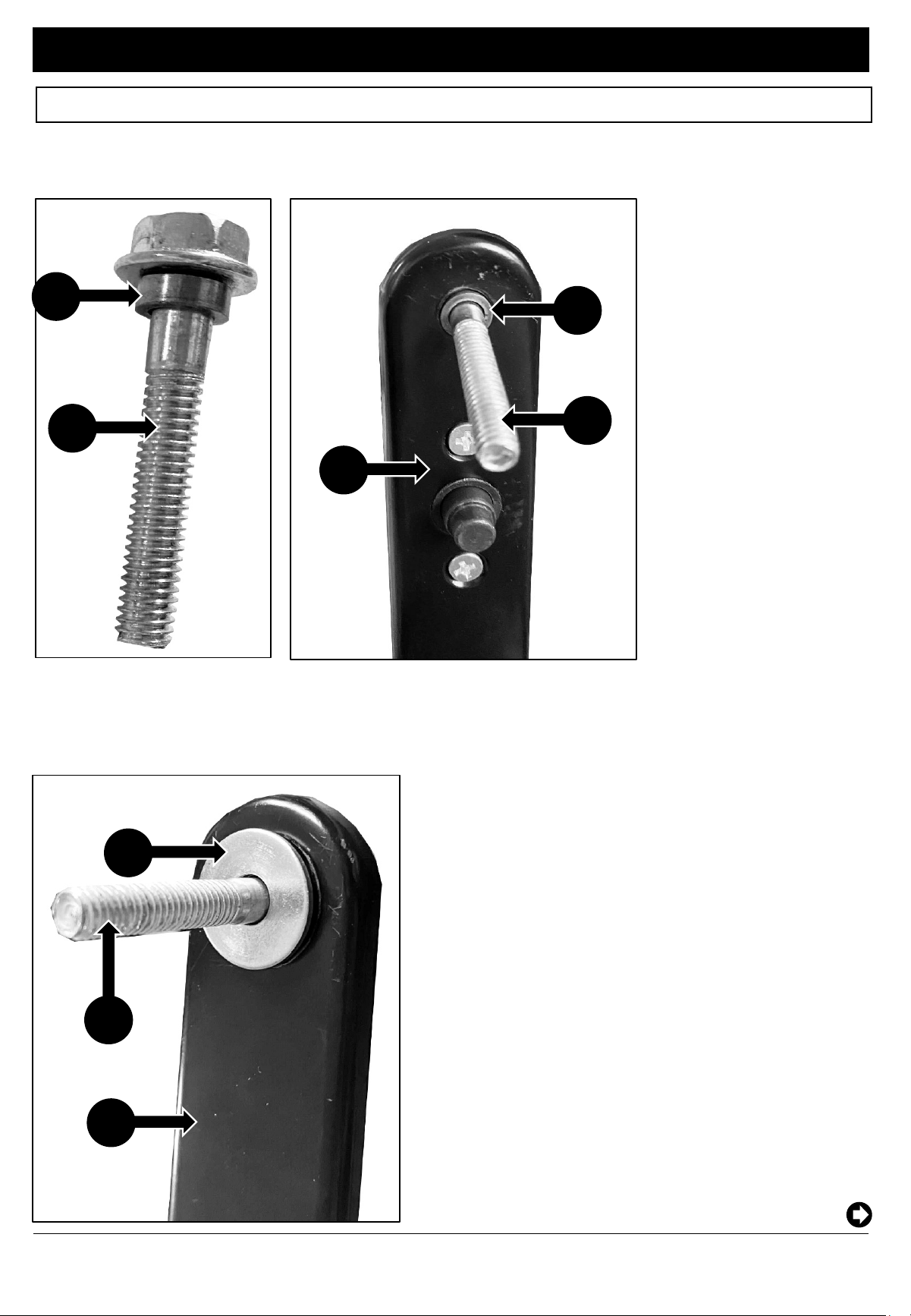

1. Place the spacer (P) onto the bolt (O). Then insert the bolt through the hole on the
wheel axle bracket (H1). Make sure the washer fits inside the hole as shown.
STEP 2 : Attach The Wheels
P
O
H
P
O
Continued on next page
2. Right-hand side (opposite the wheel height adjuster pin) – Place the washer (S)
onto the bolt (O) before inserting the bolt through the hole on the lower handlebar.
Left-hand side (next to the wheel height adjuster pin) – There is no need to add a
washer to this side. Push the bolt through the hole on the lower handlebar.
S
O
H
www.hyundaipowerproducts.co.uk
22
Assembly
3. Place the washer (Q) on the bolt (O).
4. Place the nut (R) onto the bolt and tighten. Make sure it is on the correct way.
5. Repeat this for both sides.
NOTE – There is an extra washer to add onto the right-hand handlebar but you do
not need it for the left–hand handlebar.
STEP 2 : Attach The Wheels (Continued)
Q
R
Continued on next page
O
B
STEP 2 : Attach The Wheels (Continued)
Assembly
www.hyundaipowerproducts.co.uk
23
F
W

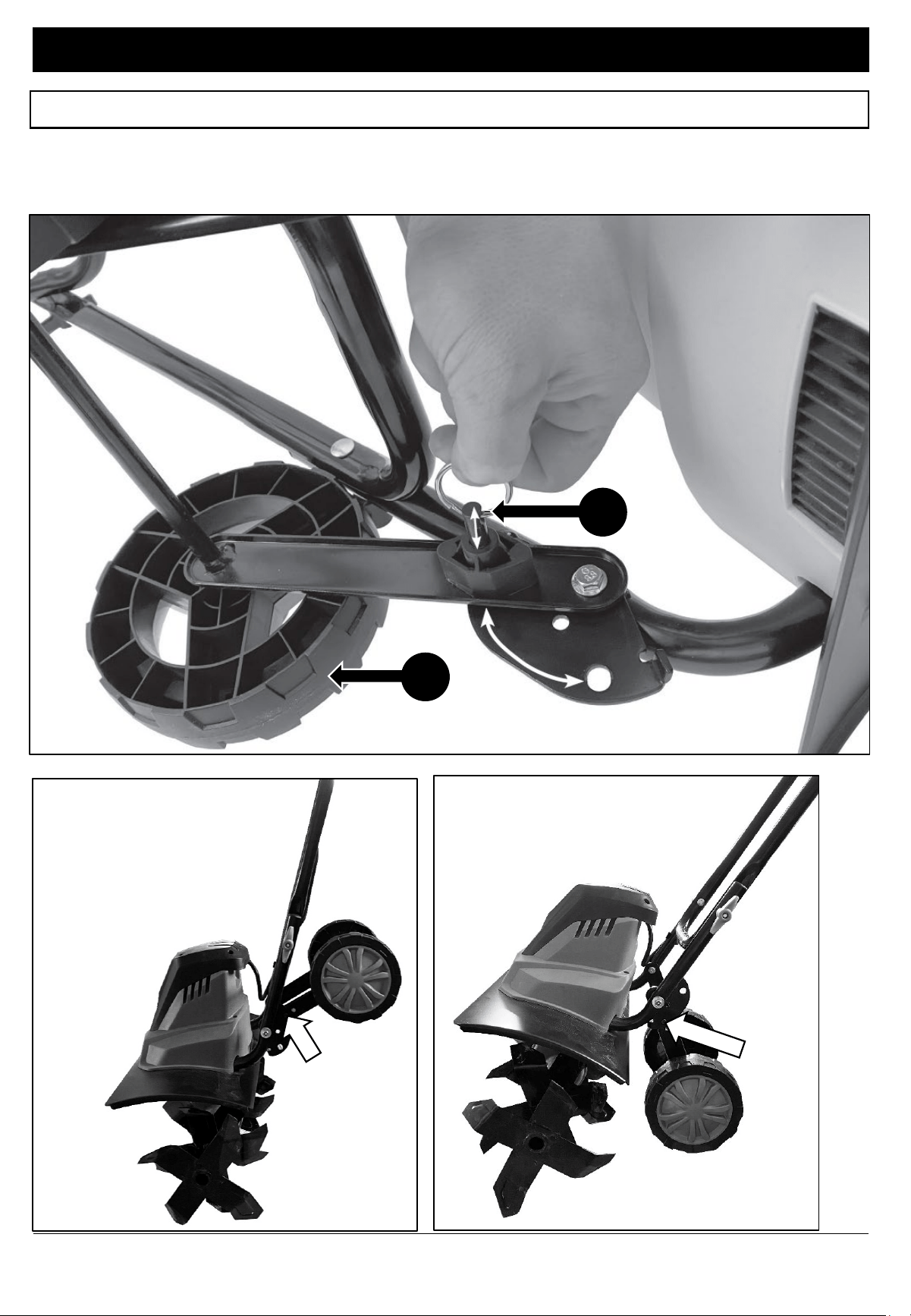

Working Position
Put the wheels in this
position when
working. It will keep
them out of the way.
Transport Position
Put the wheels in this
position when
transporting the
machine.
Insert pin
in upper
hole.
Insert
pin in
lower
hole.
You can choose from 2 different positions for the wheels. Pull out the pin (W) and
insert it into the upper hole for the working position and lower hole for the transport
position.
www.hyundaipowerproducts.co.uk
24
Assembly

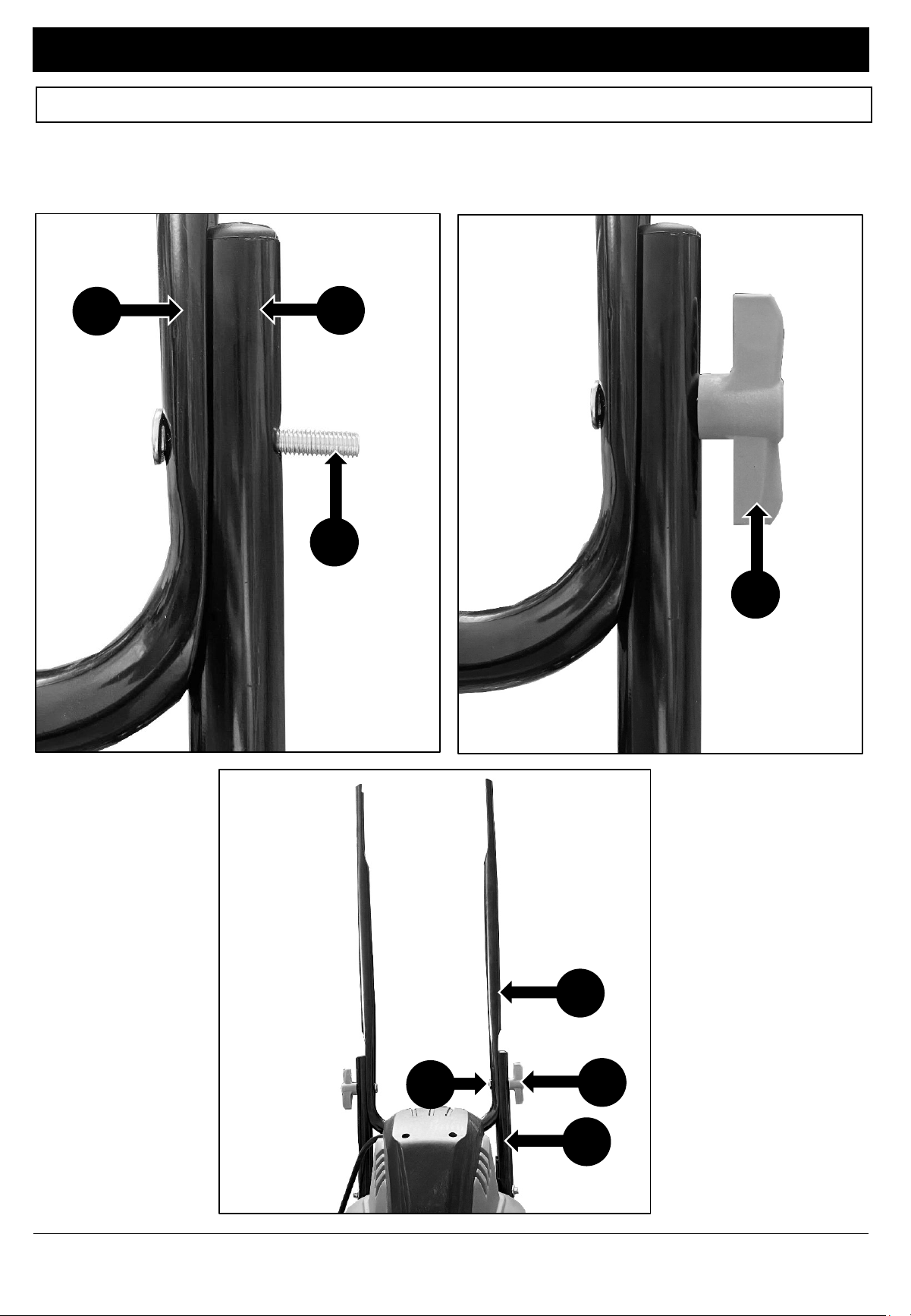

1. Connect the middle bar (D) to the lower bars (B) using the wing nut (L) and
bolt (M).
STEP 3 : Attach The Middle Bar
M
B
D
L
L
B
D
M
www.hyundaipowerproducts.co.uk
25
Assembly
STEP 4 : Attach The Upper Bar
1. Connect the upper bar (N) to the middle bar (D) using the wing nut (L) and bolt
(M).
M
D
N
L
Make sure
the upper
bar is
attached
the correct
way as
shown in
this image.

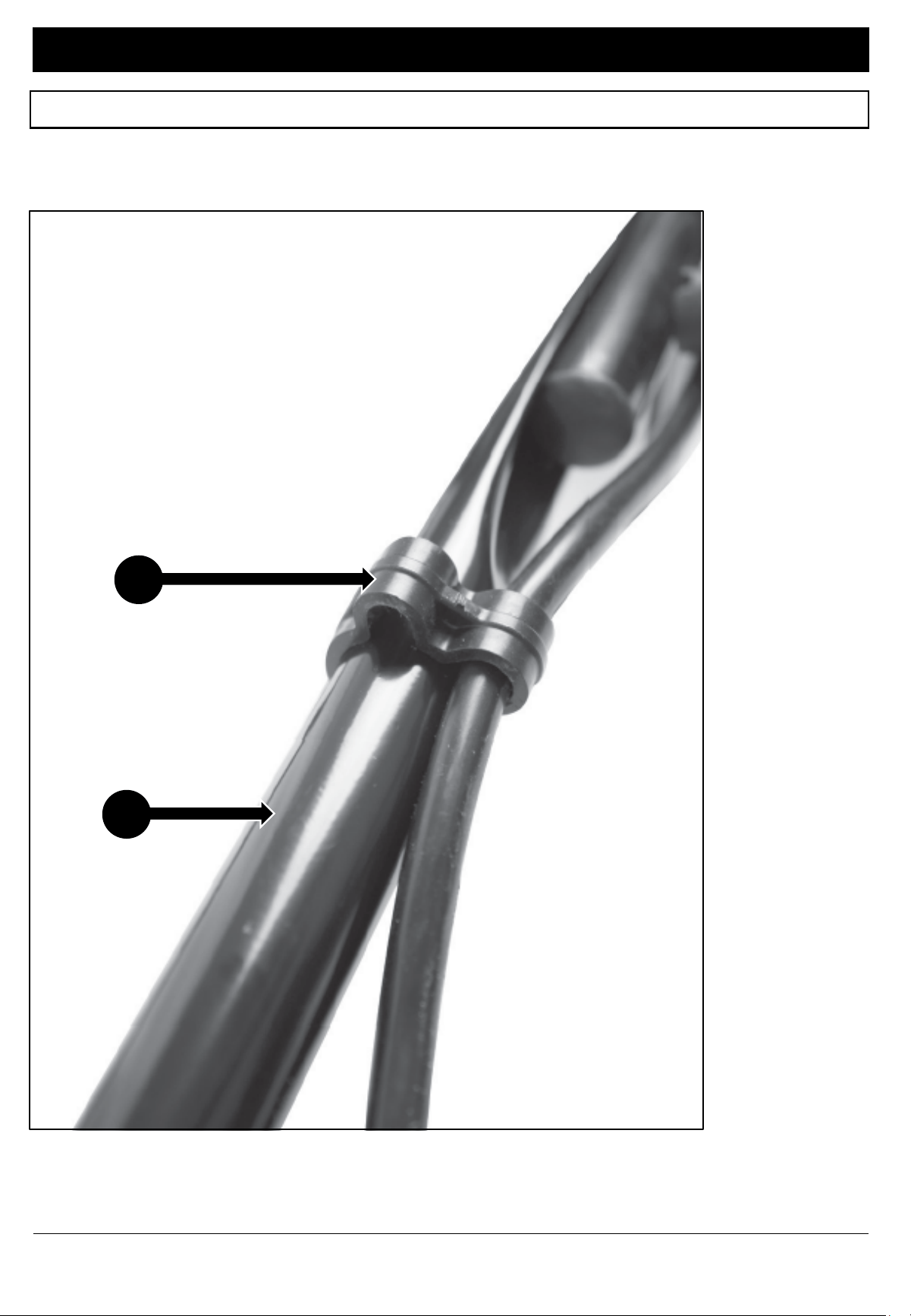

1. Attach the cable onto the right-hand handlebar (D) using the cable clips (K)
provided. This will keep the cable secure and tight to the machine.
STEP 5 : Attach The Cable Clips
Assembly
www.hyundaipowerproducts.co.uk
26
K
D
www.hyundaipowerproducts.co.uk
27
Assembly

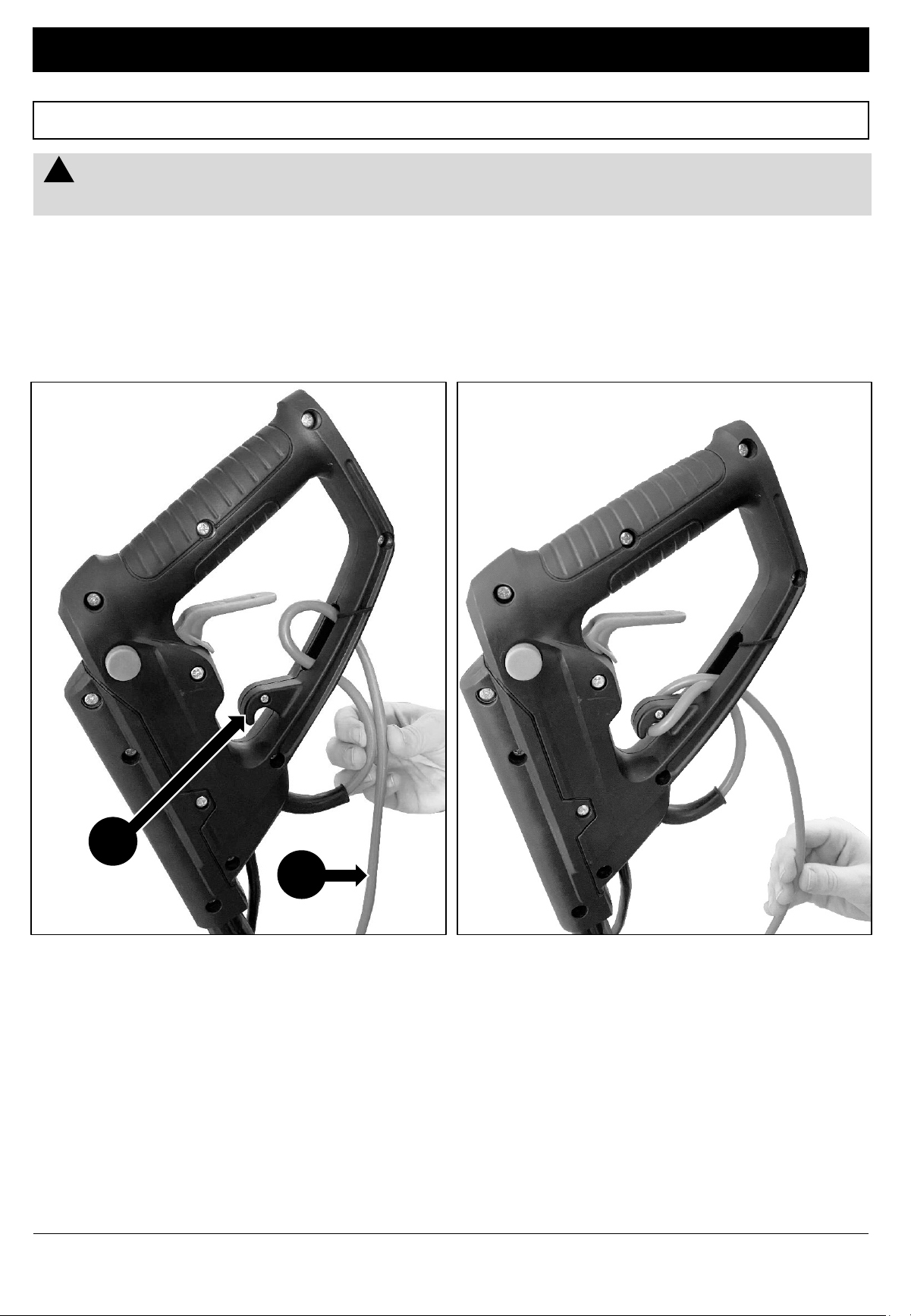

STEP 6 : Cable Holder On Handle
This holds the cable in place while in use and prevents strain on the cable.
1. Make a small loop in the power cable (Y).
2. Put the loop through the hole in the handle and on to the hook (U).
3. Slowly pull the loop to remove slack.
!
Make sure the machine is disconnected from power before you do this. If the
machine is plugged in, you may accidentally press the trigger.
Y
U
www.hyundaipowerproducts.co.uk
28
Operation

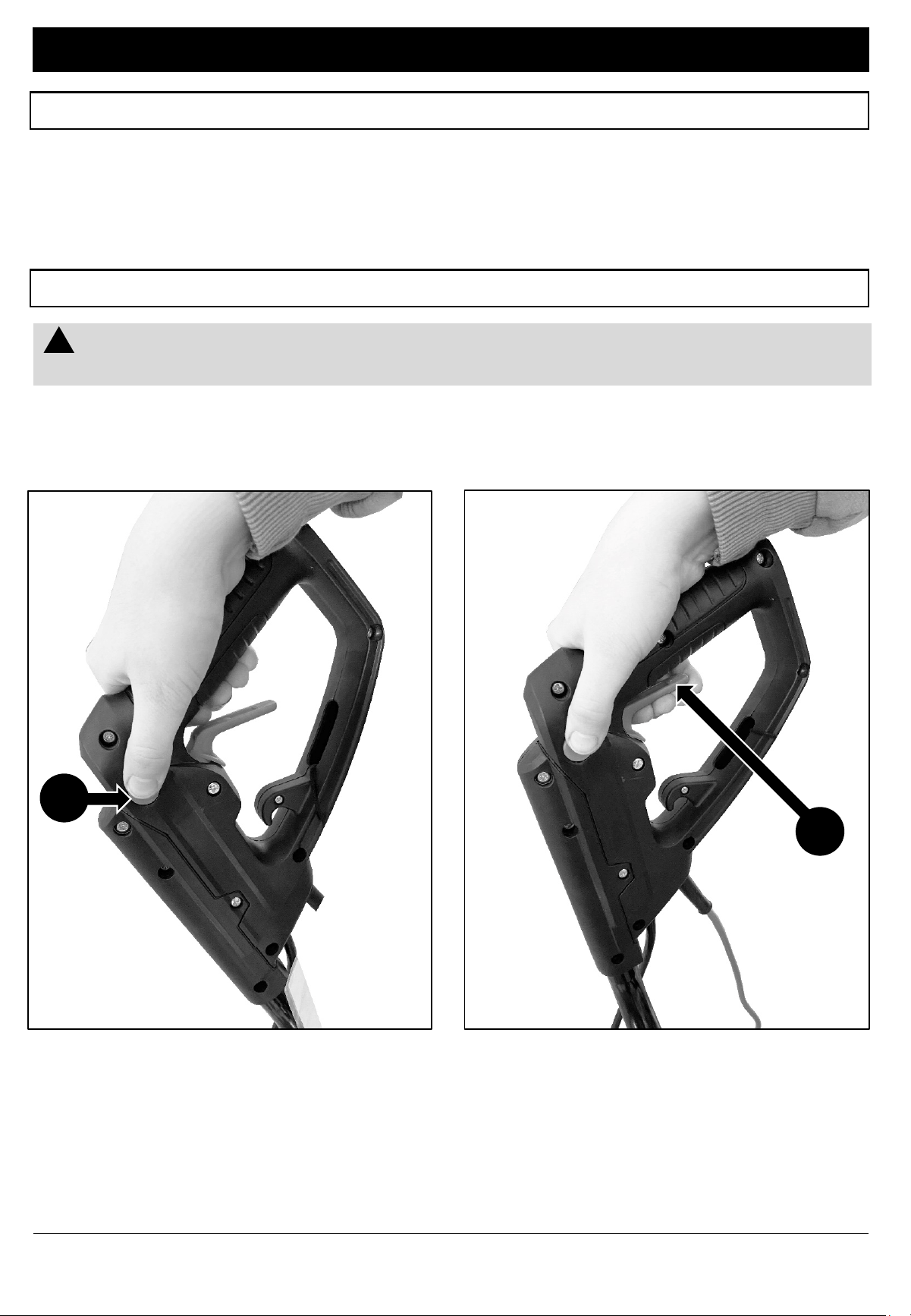

Starting

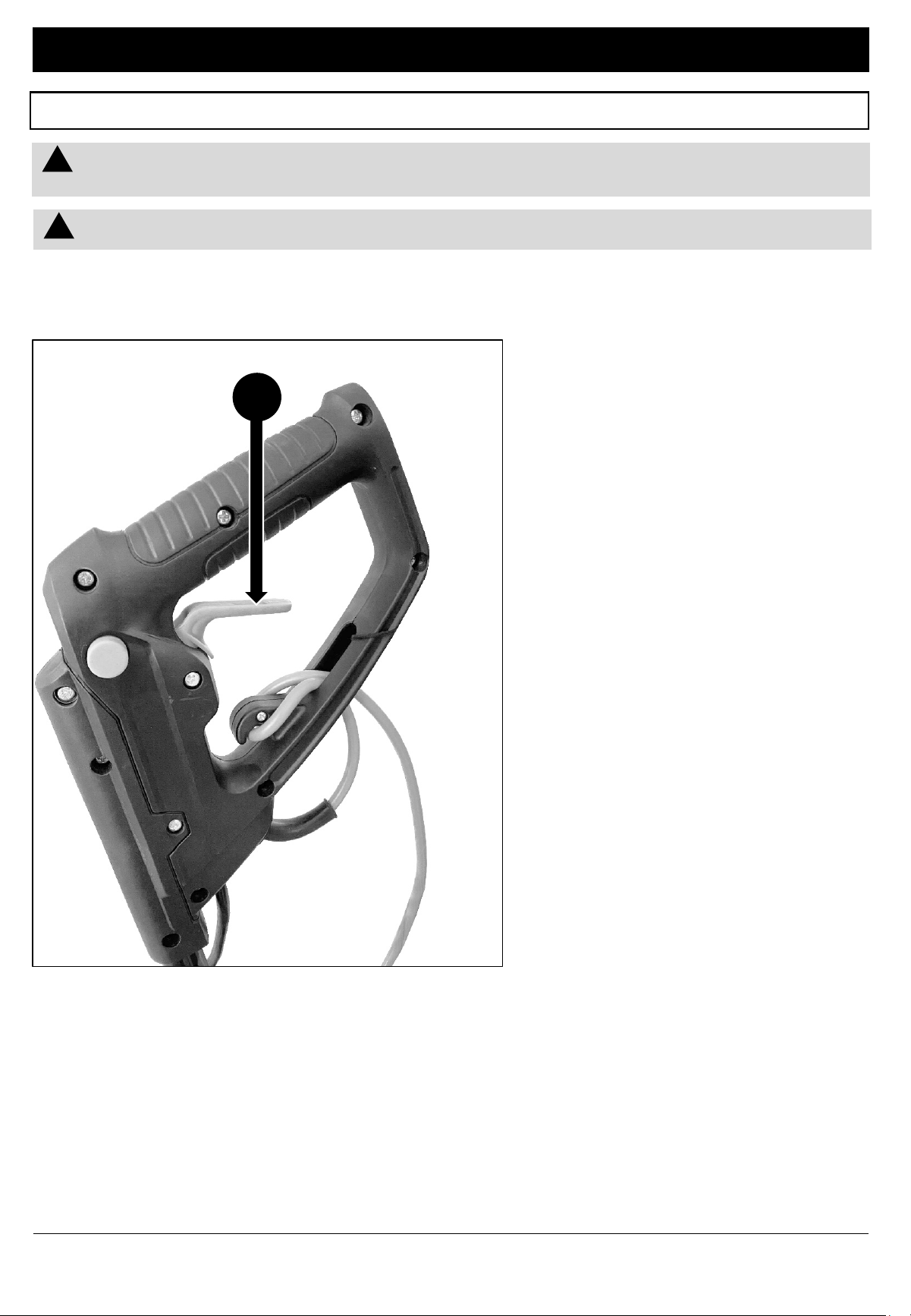

1. To prevent accidental starting, the tiller has a trigger safety button (V). This must
be pressed before the trigger (T) can be pressed.
2. Once the trigger (T) is pressed, you can let go of the safety release button (V).
!
YOU MUST read and understand the full safety instruction manual before starting
the machine.
Before Starting
1. Check the condition of the cable, if damaged do not use.
2. Ensure that no objects or branches are trapped into the machine.
3. Ensure the work area is tidy and free of any obstacles.
4. Never operate the machine if it is damaged in any way.
V
T
www.hyundaipowerproducts.co.uk
29
Operation
!
WARNING : Moving elements may continue to rotate for a moment after the
motor is switched off.
!
WARNING : Always switch off machine before leaving it.
Stopping
1. Release the trigger (T) and the machine will stop.
2. Unplug from the mains supply.
T
www.hyundaipowerproducts.co.uk
30
Operation
Tilling Instructions
1. Dig out old roots, plants and twigs before tilling as these could damage your
machine or bend the blades.
2. Start the tiller, following the instructions in this manual.
3. The tiller should be used in a controlled forward direction. Moving more slowly
will increase the depth and working of the soil, conversely moving more quickly
will limit the agitation of the soil surface. Do not overwork the soil. We

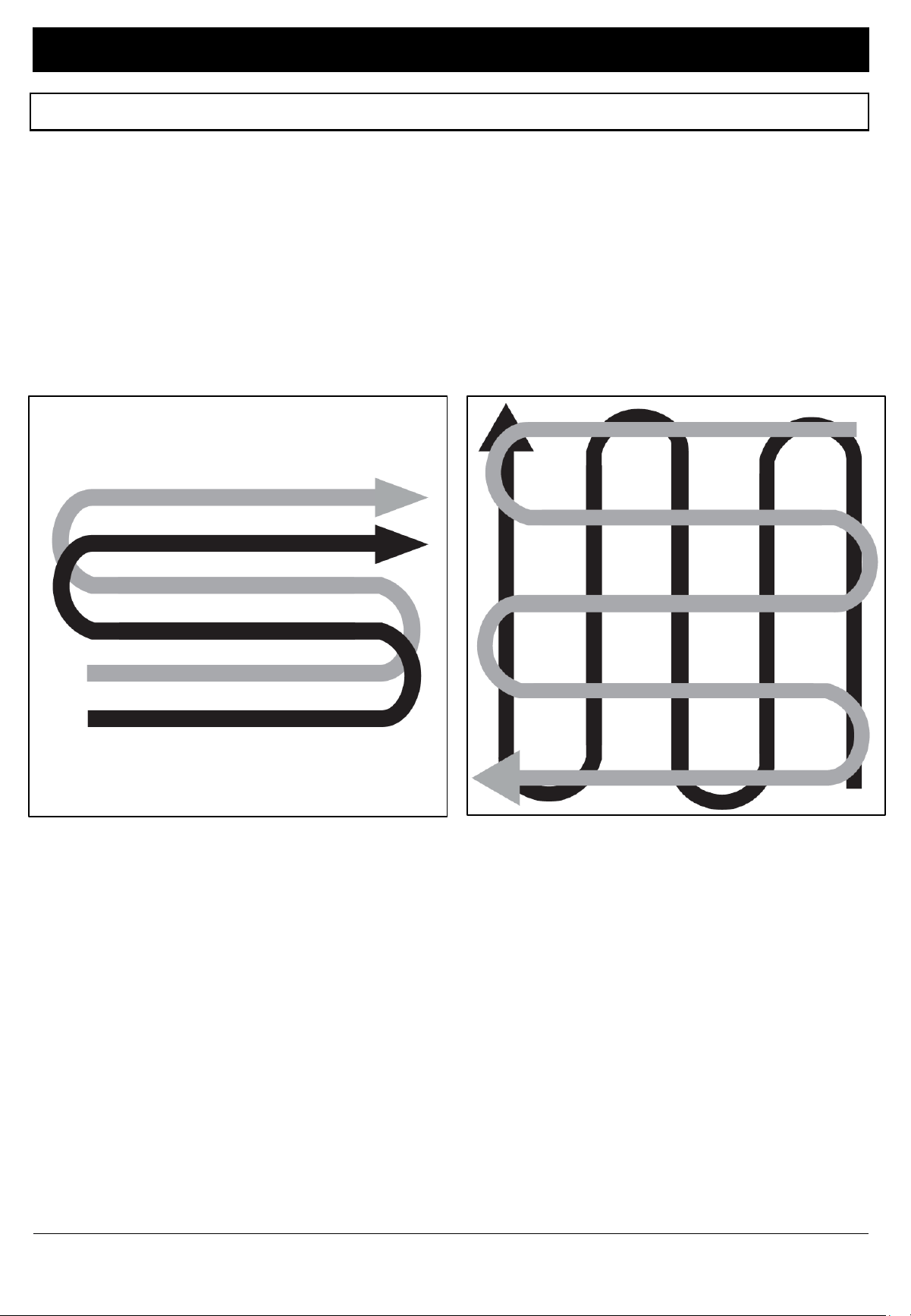

recommend using one of the following tilling patterns:
4. After work, turn the tiller off and disconnect from the power supply.
5. Remove any dirt or plants from the machine and clean the tine blades. Make
sure you wear gloves to protect your hands.
You can use the tiller to cultivate gardens and flower beds, break up soil and
prepare seed beds.
www.hyundaipowerproducts.co.uk
31
Maintenance & Care
General Maintenance
WARNING : Turn OFF the machine, allow all moving parts to come to a
complete stop, and disconnect the power cord before maintaining the machine.
You need to wear proper clothing and protective gloves whenever your hands are
at risk.
• Keep all nuts, bolts and screws tight to be sure the machine is in a safe working
condition.
• Replace worn or damaged parts for safety. Only use manufacturer-
recommended parts and accessories.
!
Cleaning
Always remove the electric plug from the mains supply before any cleaning is
undertaken.
• Remove any grass and mud after each use to prevent it from drying. Use a
clean cloth to remove dirt, grease, etc.
• When cleaning the tine blades, always wear gloves to protect your hands.
• DO NOT use any water on any part of the main machine.
• Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to
damage from various types of commercial solvents and may be damaged by
their use.
• Always ensure that ventilation openings are kept clear of debris.
!

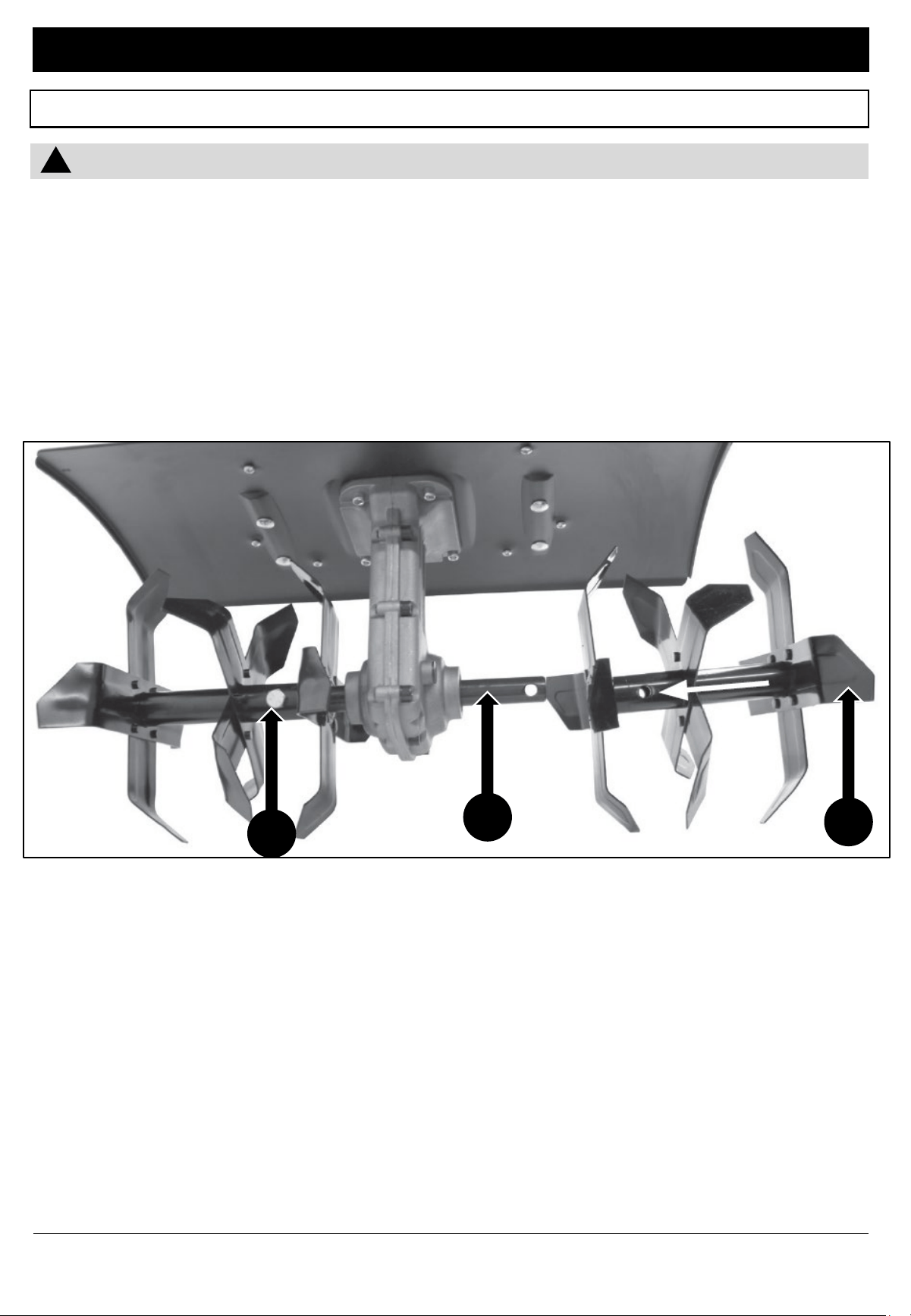

Replacing Tine Blades
Maintenance & Care
www.hyundaipowerproducts.co.uk
32
Worn tine blades can cause poor performance and could cause the machine to
overload. You should check the tines before each use and replace them with new
ones if necessary.
Always wear gloves when working on the tine blades.
!
1. To remove the tine blades, remove the 2 x M8x40 bolts (Z1) and nuts (Z2) with a
suitable spanner (not included).
2. To replace the tine blades, push the tine blades (E) onto the drive shaft (Z). The
hole on the tine blades must be towards the drive shaft. Make sure that the holes
of the tine blades (E) and the drive shaft (Z) are aligned.
Z
E
Z1

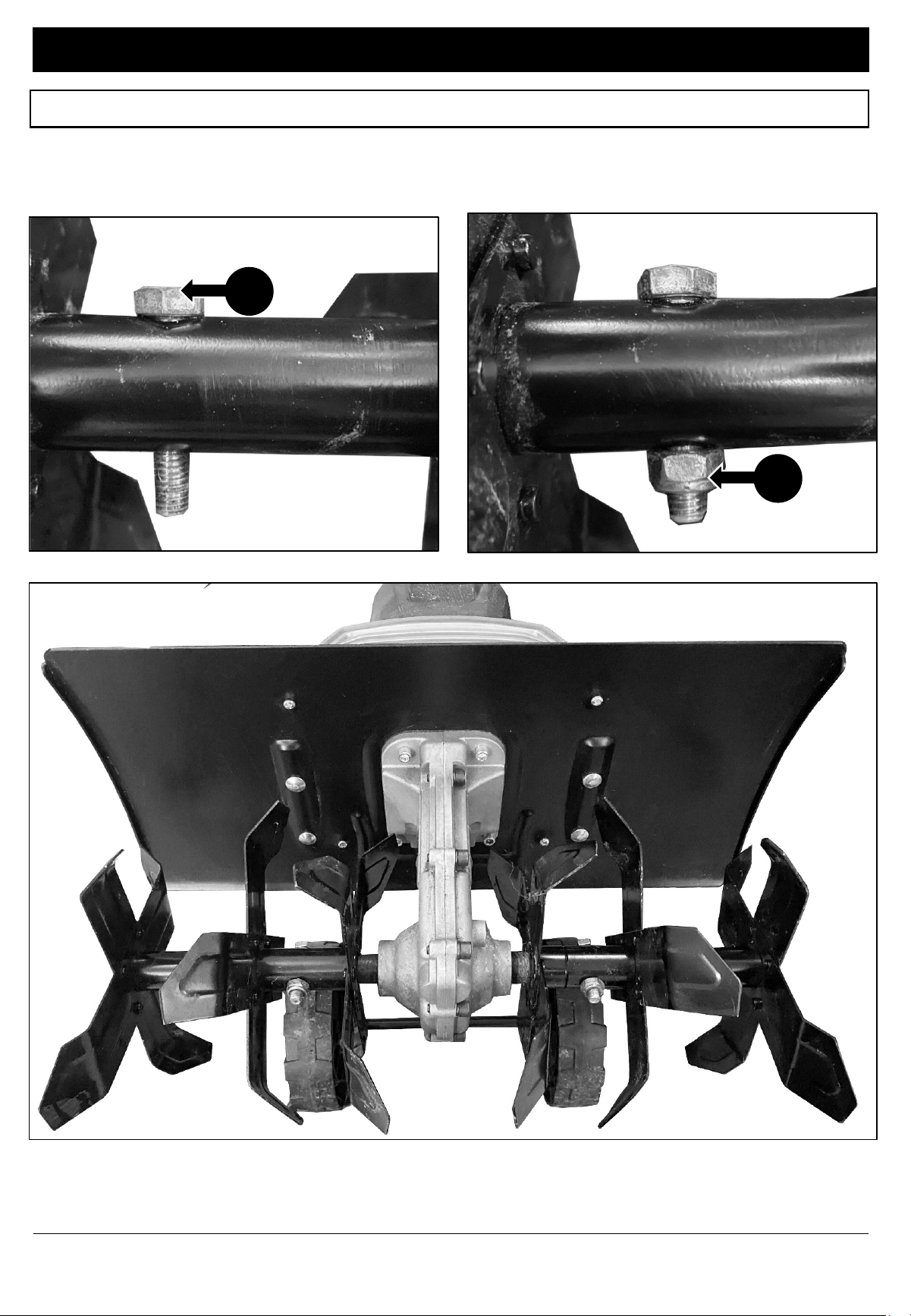

Replacing Tine Blades (Continued)
Maintenance & Care
www.hyundaipowerproducts.co.uk
33
4. To uninstall, do this in reverse order.
3. Push through the bolt (Z1) and fix it with the nut (Z2) and tighten. Make sure the
nut is on the correct way. Do this with both tine blades.
Z1
Z2

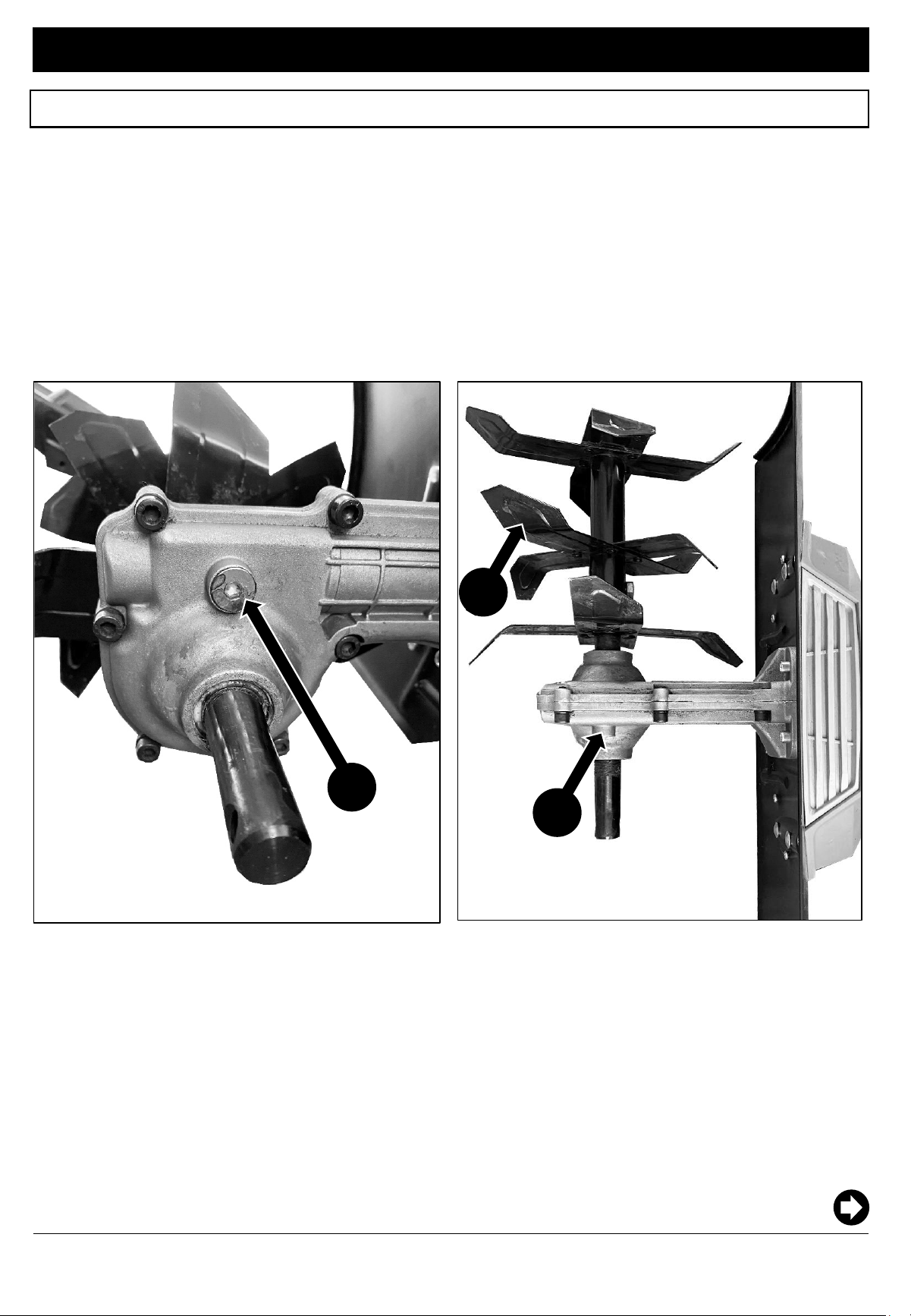

Draining / Filling Transmission Oil
1. To allow easier access to the oil drain/refill plug (X), you can remove the tine
blades (E) as shown in the ‘Replacing Tine Blades’ section. The oil drain/refill plug
(X) is on the right side of the machine (if you are standing in front of the machine).
2. Lay the machine on its right side so the plug is facing down towards the ground.
3. Before removing the oil drain/refill plug (X), you must clean the transmission and
remove any dirt or debris.
4. To unscrew the oil drain/refill plug (X), use a 8mm hex key (not included).
5. Drain the oil from the transmission into a suitable container. You must dispose of
the oil correctly.
Maintenance & Care
www.hyundaipowerproducts.co.uk
34
X
X
Continued on next page
E
Draining / Filling Transmission Oil
6. Once the oil has drained, turn the machine on its left side so the plug (X) is facing
upwards. This will allow you to fill the transmission with oil without it spilling out.
7. Fill with high quality SAE30 or 15W40 oil (not included). Approximately 60ml of oil
will fill the machine from empty.
8. Reinstall the oil drain/refill plug and make sure that it is secure.
Maintenance & Care
www.hyundaipowerproducts.co.uk
35
X
www.hyundaipowerproducts.co.uk
36
Maintenance & Care
Storage
Keep the machine stored in a dry, level area away from damp, moisture and
rain fall. Allow the machine to cool down before storing.
• Make sure the machine is clean and dry before storing.
• Make sure the machine is stored away from direct sunlight. Store indoors or in a
safe, locked protected area during severe weather and winter months.
• Ensure the machine is stored in a position, where any persons cannot step on to
attempt to reach items up high, due to risk of movement.
• DO NOT store the machine near an ignition source, such as a wood stove, gas
or electric heater, or an appliance or heater with a pilot light.
• Store the machine out of reach of children or anyone who is not familiar with
operation.
• DO NOT stack other items on top of the machine when in storage.
!

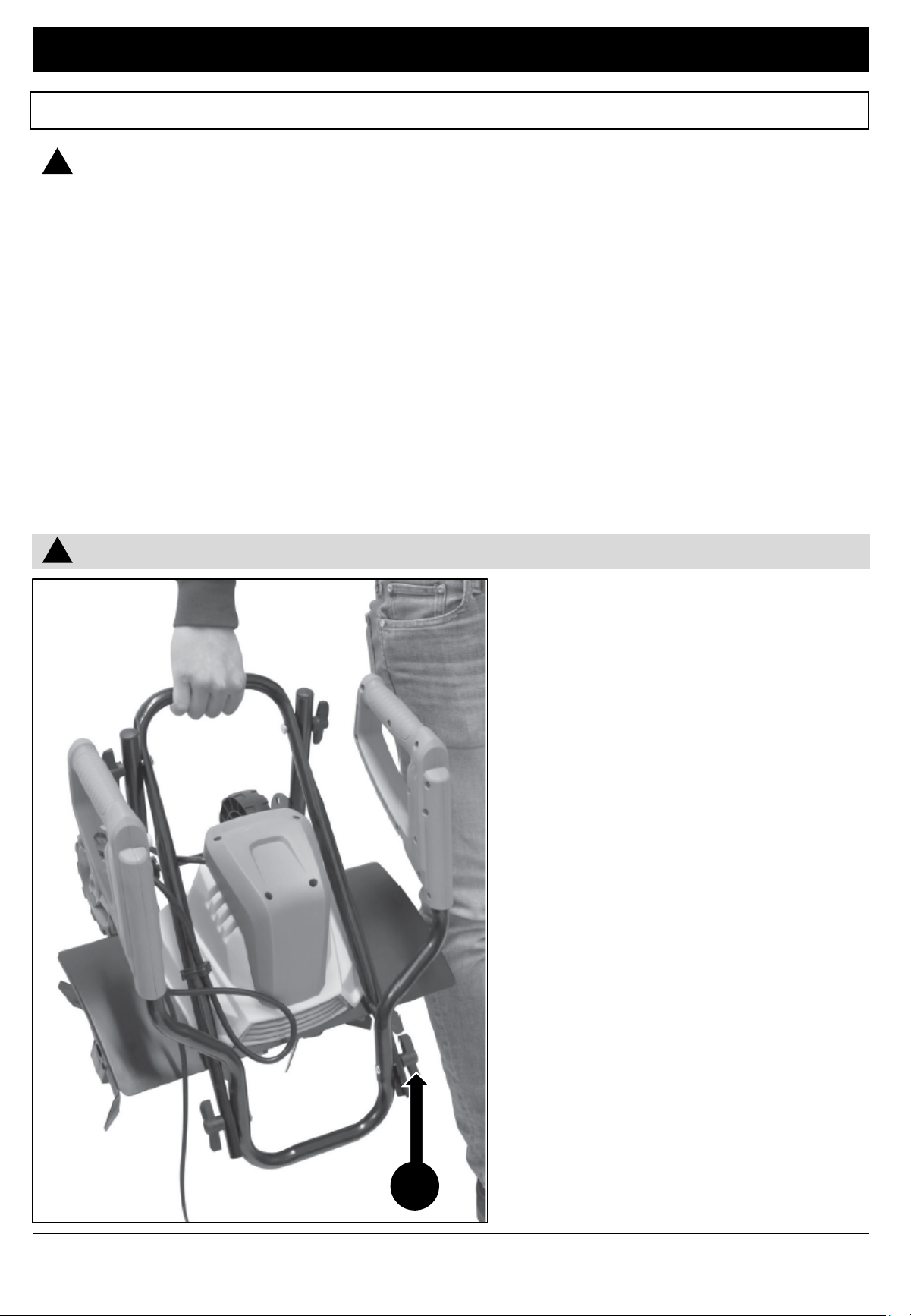

L
To fold the handles:
1. Open the wing nuts (L) until you can fold the handles forward. Be careful not to
trap the cable in the folded handles.
CAUTION: Be careful not to trap your fingers.
!
www.hyundaipowerproducts.co.uk
37
Maintenance & Care
Troubleshooting
Problem Possible Cause Possible Solution
Machine will not start. Fuse in mains plug blown
/ faulty
Check fuse in mains plug
and replace is necessary.
Internal wiring fault. Contact your service
dealer.
Blade roller blocked. If necessary, adjust
working depth. Clean
housing so that the roller
can run freely.
Cable defective. Contact your service
dealer.
Motor performance
drops.
Tine blades badly worn. Replace tine blades.
Carbon brushes worn out. Contact your service
dealer.
Motor is running, roller is
not rotating.
Gearing defective. Contact your service
dealer.
NOTE : All corrective actions should be carried out by suitably qualified
person/s.
!
www.hyundaipowerproducts.co.uk
38
Technical Data
Specification
Model HYT1500E
Voltage 230V
Frequency 50Hz
Input Power 1500W
Working Width 450mm
Working Depth 220mm
LpA Sound Pressure Level 80.4dB(A)
KpA Uncertainty 3dB(A)
LwA Sound Power Level 91.57dB(A)
KwA Uncertainty 1.28dB(A)
Vibration Left Hand
0.968m/s
2
Vibration Right Hand
0.947m/s
2
Protection Class II
Protection Type IPX4
Net Weight 10.1kg
www.hyundaipowerproducts.co.uk
39
Recycling & Disposal
Recycling & Disposal
We do not offer a takeback scheme for the recovery of Waste Electrical Electronic
Equipment (WEEE) & Batteries. Instead the responsibility to dispose of WEEE and/or
Batteries is passed onto you by us.
So when it becomes necessary to dispose of your machine you must take it to your
local Civic Amenity Site. For further information please contact your local Authority
for disposal advice.
You MUST make sure that all unused oil and fuel is disposed of correctly either
beforehand or at your local Civic Amenity Site.
• Under NO circumstances must any fuel or oil be put down any drains.
• Certain products contain WEEE waste which should not be disposed of in your
domestic waste.
• You MUST recycle WEEE in accordance with your local authority or recycling
centre.
• Certain products contain batteries which should not be disposed of in your
domestic waste.
• You MUST recycle batteries in accordance with your local authority or recycling
centre.
• Unwanted packaging and materials should be stored and taken to a recycling
centre so it can be disposed of in a manner which is compatible with the
environment.
We are a Member of the VALPAK National Compliance Scheme and our
registration number is RM08660. For further information about disposal please
contact your Local Authority.
You can also get more advice and guidance about recycling at the following
website http://www.recycle-more.co.uk
Should you pass this product on to another user either sold or loaned, you MUST
pass on this user manual. This will make sure that all other users can use and
maintain this machine safely.
1. Environmental protection should be a priority of considerable importance when
using the machine, for the benefit of both social coexistence and the environment
in which we live. Try not to cause any disturbance to the surrounding area.
2. You must comply with local regulations and provisions for the disposal of
packaging, oils, fuel, filters, damaged parts or any elements which have a strong
impact on the environment. This waste must not be disposed of as normal waste. It
needs to be separated and taken to specified waste disposal centres where the
material will be recycled.
3. You must comply with local regulations for the disposal of waste materials after
mowing.
4. When disposing, do not pollute the environment with the machine, but hand it
over to a disposal centre, in accordance with the local laws in force.
Environmental Protection
www.hyundaipowerproducts.co.uk
40
EU Declaration Of Conformity
Importer and Authorised Representative
Genpower Ltd
Isaac Way, Pembroke Dock, SA72 4RW
Country of Origin: China
Description: 1500W Tiller
SKU Code: HYT1500E
Date of Issue: 16/03/2021
Regulations and Directives of Compliance
• 2006/42/EC The Machine Directive
• 2014/30/EU EMC Directive
• 2000/14/EC Noise Emissions
• 2011/65/EU RoHS
Statement of Declaration
We the importer and authorised representative of the product described confirm
conformity within the provisions of applicable regulations and directives listed
within this document.
Signed on Behalf of Genpower Ltd
Place of Issue: Genpower Ltd
Signatory Name: Roland Llewellin
Position: Managing Director
……………………………………
www.hyundaipowerproducts.co.uk
41
Useful Information
Check Out Our YouTube Channel
Our videos on YouTube include:
• Unboxing
• Assembly of your machine
• How to service your machine
• Products in use
• ‘How To’ videos
• Product features
Go to YouTube and search ‘Hyundai Power Products’.
Manual Updates
Our manuals are constantly being reviewed and updated. Should you find an
error, omission or something unclear, please contact us for assistance. We reserve
the right to make any modifications without prior notice whenever necessary.
Our latest manuals are also placed online. All our manuals can be downloaded at:
www.hyundaipowerproducts.co.uk
Returning Your Product
If you are returning your product, please contact the dealer for their returns policy.
Leaving A Review
We work very hard to give all of our customers the best possible service. If you have
any problems, before leaving negative feedback, please contact us to give us a
chance to resolve the issue. We would be delighted if you left us positive
feedback! To leave a review, please go to:
uk.trustpilot.com/review/hyundaipowerequipment.co.uk
Ordering Spare Parts
You can find the spare part you are looking for at power-spares.co.uk
Warranty
Proof of purchase will be required before you make a warranty claim. Full warranty
terms and conditions can be found on the HYUNDAI POWER PRODUCTS website:
www.hyundaipowerproducts.co.uk
www.hyundaipowerproducts.co.uk
42
Product Record
Information
As soon as you have purchased the machine, we recommend that you fill out the
following. If you need to contact an authorised dealer or customer service for
information on servicing, you may need to provide the following information.
Date Of Purchase:……………………………………………………………………………….....
Dealer Name:………………………………………………………………………………………..
Dealer Phone:…………………………………………………………………………………….....
Model Number:…………………………………………………………………………………......
Serial / Batch Number:…………………………………………………………………………….
www.hyundaipowerproducts.co.uk
43
Contact Us
Need Help? Talk To Our Experts
Our friendly aftersales team will be more than happy to help you.
Phone
Call our team on 01646 687 880
Email
Online Live Chat
Go to www.hyundaipowerproducts.co.uk
Post
Genpower Ltd, Isaac Way, Pembroke Dock, Pembrokeshire, SA72 4RW.
Hyundai Support Website
Go to hyundaisupport.co.uk
Importer:
GENPOWER LTD
Isaac Way, London Road,
Pembroke Dock, UK, SA72 4RW.
T: +44 (0) 1646 687 880
www.hyundaipowerproducts.co.uk
Imported / Distributed by Genpower Ltd for the United Kingdom & Ireland
Licensed by Hyundai Corporation, Korea
