16" PEDESTAL FAN
MODEL 1PAFP16
OWNER’S MANUAL
2
SAFETY & PRECAUTIONS
SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
CAUTION
Read Rules for Safe Operation and Instructions Carefully.
WARNING
1. Do not leave the fan running unattended.
2. Keep electrical appliances out of reach from children.
Do not let them use the appliances without supervision.
3. This appliance has a polarized plug (one blade is wider than
the other). To reduce the risk of electric shock, this plug is
intended to t in a polarized outlet only one way. If the plug
does not t fully in the outlet, reverse the plug. If it still does
not t, contact a qualied electrician. Do not attempt to
defeat this safety feature.
4. If the supply cord is damaged, it must be replaced by
manufacturer or its service agent or a similarly qualied
person in order to avoid a hazard.
5. This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not
play with the appliance.
6. When the fan was assembled, the rotor blade guard shall not
be taken o anymore
• Prior cleaning unplug the fan.
• The rotor guard shall not be dissembled/opened to clean
the rotor blades.
• Wipe the fan enclosure and rotor blade guard with a
slightly damp cloth.
3
(Continued)
SAFETY INSTRUCTIONS
7. To reduce the risk of re or electric shock, do not use this fan
with any solid-state speed control device.
8. This product employs overload protection (fuse). A blown
fuse indicates an overload or short-circuit situation. If the
fuse blows, unplug the product from the outlet. Replace the
fuse as per the user servicing instructions (follow product
marking for proper fuse rating) and check the product. If
the replacement fuse blows, a short-circuit may be present
and the product should be discarded or returned to an
authorized service facility for examination and/or repair.
9. Do not operate any fan with a damaged cord or plug. Discard
fan or return to an authorized service facility for examination
and/or repair.
10. Do not run cord under carpeting. Do not cover cord with
throw rugs, runners, or similar coverings. Do not route cord
under furniture or appliances. Arrange cord away from trac
area and where it will not be tripped over.
RULES FOR SAFE OPERATION
1. Never insert ngers, pencils, or any other object through the
grille when fan is running.
2. Disconnect fan when moving from one location to another.
3. Be sure fan is on a stable surface when operating to avoid
overturning.
4. DO NOT use fan in window, rain may create electrical hazard.
5. Household use only.
4
SAFETY & PRECAUTIONS
INSTALLATION

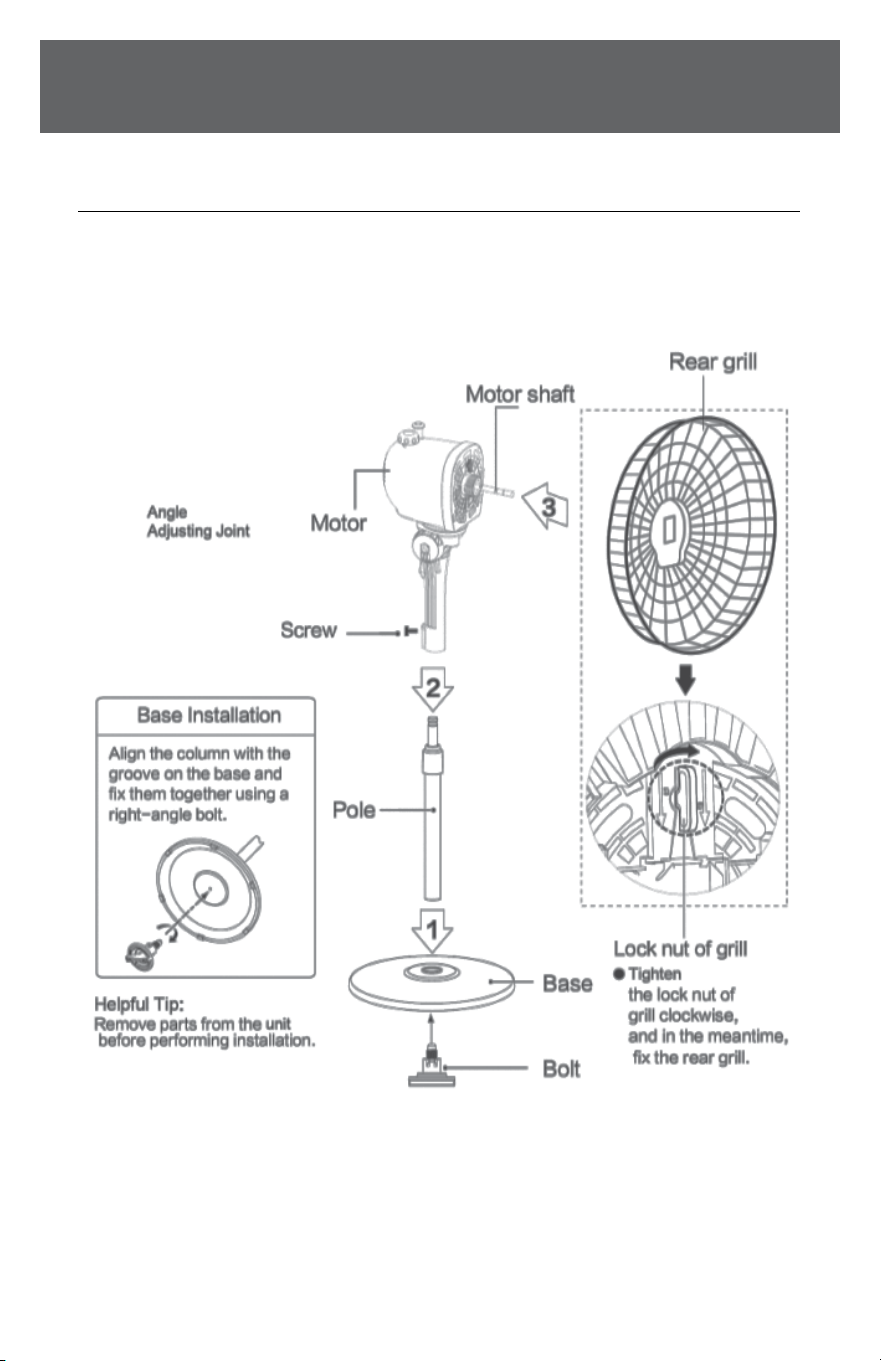

INSTALLATION INSTRUCTIONS
Name of components
5
(Continued)
INSTALLATION
6
SAFETY & PRECAUTIONS
(Continued)
INSTALLATION

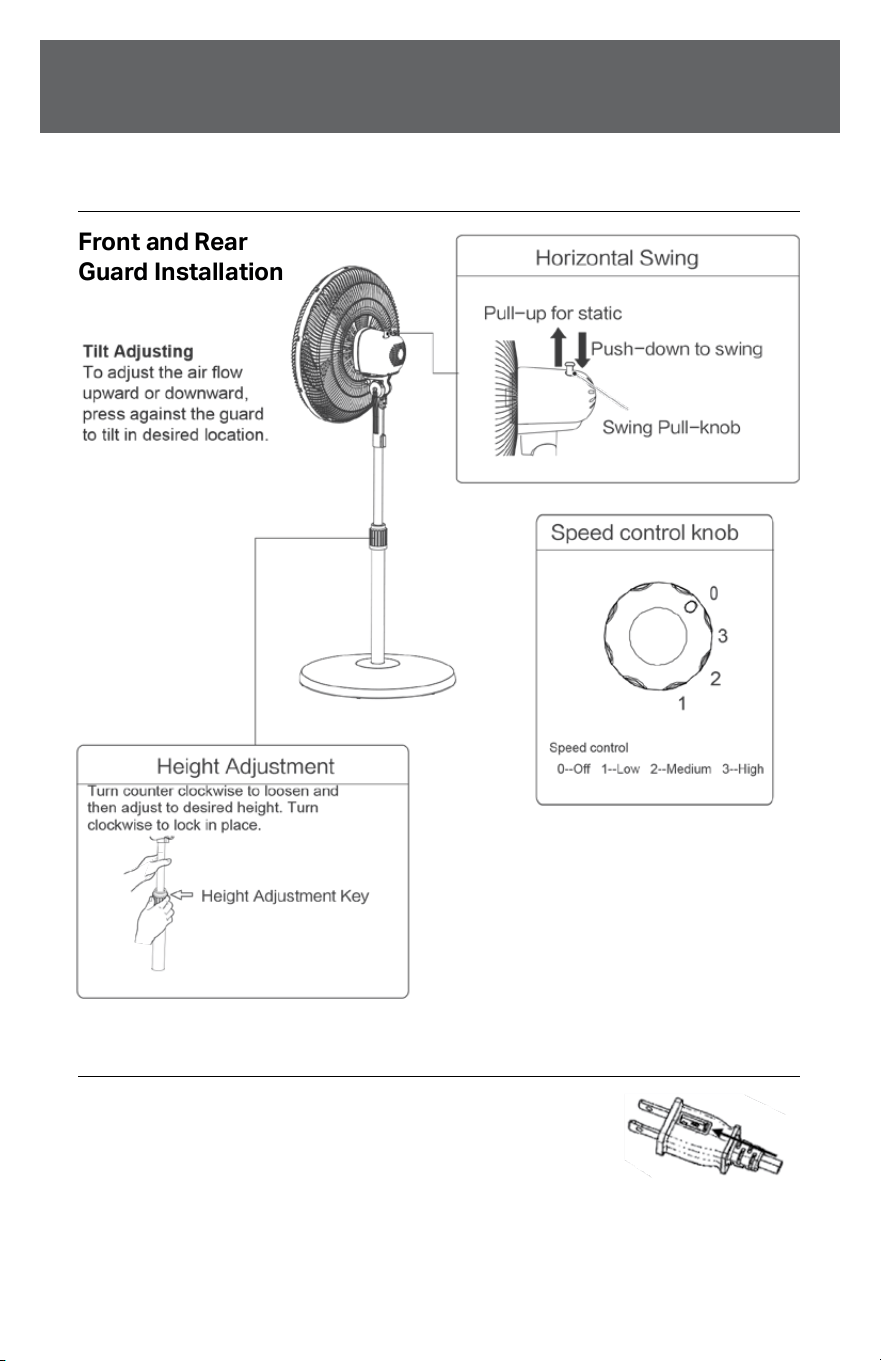

INSTRUCTIONS FOR USE

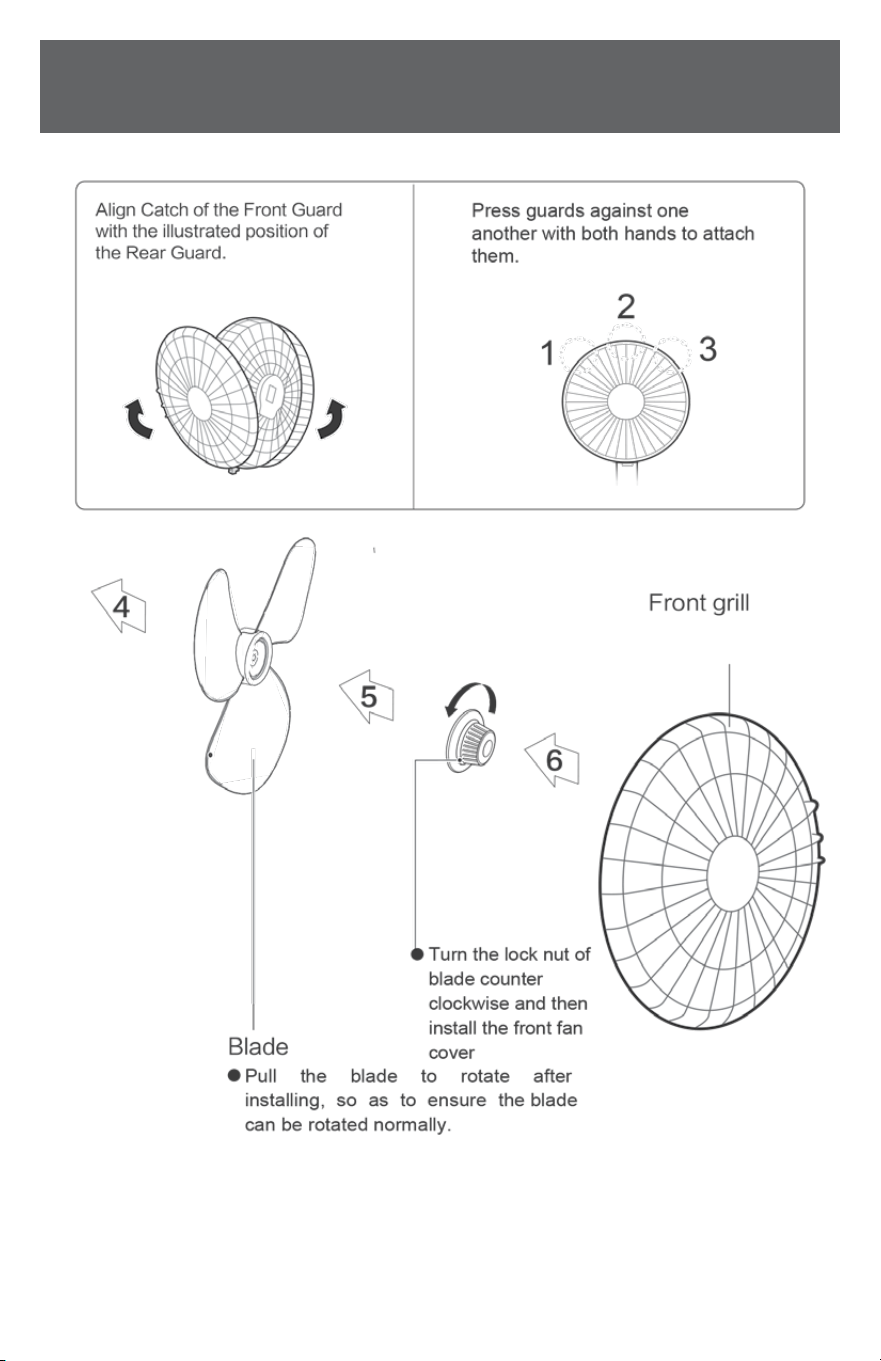

Front and Rear
Guard Installation
USER SERVICING INSTRUCTIONS
1. Grasp plug and remove from the receptacle
or other outlet device. Do not unplug by
pulling on cord.
2. Open fuse cover. Slide the fuse cover on top of the
attachment plug towards the blades.
A clicking noise will sound
when adjusting the tilt,
this is normal.
7
MAINTENANCE
3. Remove fuse carefully. Insert the tip of your tool into the fuse
slot (close with the terminal), then pry the fuse out slowly,
but not forcefully. If it feels tight, you can try several times to
pry the fuse out little by little. When one side of the fuse has
been pry, then you can get the fuse out entirely.
4. Risk of re. Replace fuse only with 2.5 Amp, 125 Volt fuse.
5. Close fuse cover. Slide the fuse access cover on top of the
attachment plug closed.
6. Risk of re. Do not replace attachment plug, as thus contains
a safety device (fuse) that should not be removed. Discard
the product if the attachment plug is damaged.
NOTICE: When you replace the fuse, please don’t operate suddenly
or overexert, or else the product will be damaged or cause an accident.
If it feels hard to replace the fuse, please make sure you have it inserted
the right way.
CARE & MAINTENANCE
1. Be sure to unplug from the electrical supply before cleaning.
2. To ensure adequate air circulation to the fan motor, keep the
vents at the rear of the motor housing free of dust, debris,
and etc. You can use a vacuum cleaner to clean these vents
after the unit has been disconnected from the outlet. Do not
disassemble the motor housing to clean.
3. Plastic parts should be cleaned with mild soap and a damp
cloth or sponge. Thoroughly remove soap lm with clean
water. Do not use any abrasive detergent or solvents to avoid
scratching the surface. Do not use the following cleaner:
gasoline, thinner, bending.
4. Be sure to not get water or other liquids inside of the
motor housing.
5. Be sure to let the unit fully dry before resuming operation.
844-4PA-AIRE | 844-472-2473 | support@perfectaire.us
CANADA SUPPORT 877-997-2473 | supportcanada@perfectaire.us
www.perfectaire.us
5401 Dansher Road
Countryside, IL 60525
Printed in China | 0822_M989
For your records, staple your sales receipt
to this manual and record the following:
Date of Purchase: ____________________________________
Place of Purchase: ___________________________________
NOTE: Proof of purchase is required for all warranty claims.
NOTE: As a result of continual improvements, the design and
specications of the product within may dier slightly to the
unit illustrated on the packaging.
