30" OSCILLATING
HIGH VELOCITY PEDESTAL FAN
MODEL 1PAFP30
OWNER’S MANUAL
2
SAFETY & PRECAUTIONS
CONTINUEDCONTINUED
RULES FOR SAFE OPERATION
READ AND SAVE THESE INSTRUCTIONS
CAUTION
Read and follow all instructions before
operating fan.
Do not use fan if any part is damaged or missing.
WARNING
• Toreducetheriskofreorelectricalshock,
do not expose to water or rain.
• Toreducetheriskofreorelectricalshock,
do not use this fan with any solid state speed
control device.
• Automatically operated device - To reduce
theriskofinjury,disconnectfrompower
supply before servicing.
• Ifthepowersupplycordisdamaged,
contact your local service center or a
qualiedelectriciantoinstallanappropriate
replacement cord to prevent any injury
or damage.
• The appliance does not apply to be used in
locationswherespecialconditionsprevail,
such as the presence of a corrosive or
explosiveatmosphere(dust,vapororgas).
• This appliance is not intended for use by
persons(includingchildren)withreduced
physical,sensoryormentalcapabilities,or
lackofexperienceandknowledge,unlessthey
have been given supervision or instruction
concerning use of the appliance by a person
responsible for their safety.
• Children should be supervised to ensure
that they do not play with the appliance.
RULES FOR SAFE OPERATION:
1
Neverinsertngersoranyotherobjects
through the grill guard when fan is in operation.
2
Disconnect the fan from its power source
when moving from one location to another.
3
Disconnect the fan from its power source
when removing guards for cleaning.
4
Besurefanisonastable,atsurfacewhen
in operation.
5
Do not use fan in windows. Rain and moisture
may create electrical hazard.
6
Close supervision is necessary when this fan
isusednearchildren,theelderlyandpets.
7
Donotplacethefannearanopename,
cookingorheatingappliance,orhotsurface.
8
This fan should not be operated outside.
CAUTION
Do not alter the fan’s assembly.
WARNING
Be sure that both front and rear
guard screws are completely tightened in locking
position before operation.
READ AND SAVE THESE INSTRUCTIONS
CAUTION: Read and follow all instructions before operating fan.
Do not use fan if any part is damaged or missing.
WA
RNING:
-
To reduce the risk of fire or electrical shock, do not expose to water or rain.
- To reduce the risk of fire or electrical shock, do not use this fan with any solid state
speed control device.
- Automatically operated device - To reduce the risk of injury, disconnect from power
supply before servicing.
- If the power supply cord is damaged, contact your local service centre or a qualified
electrician to install an appropriate replacement cord to prevent any injury or damage.
- The appliance does not apply to be used in locations where special conditions prevail,
such as the presence of a corrosive or explosive atmosphere ( dust, vapour or gas ).
- This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety.
- Children should be supervised to ensure that they do not play with the appliance.
RULES FOR SAFE OPERATIO
N:
1. Never insert fingers
or any other objects through the grill guard when fan is in
operation.
2. Disconnect the fan from its power source when moving from one location to another.
3. Disconnect the fan from its power source when removing guards for cleaning.
4. Be sure fan is on a stable, flat surface when in operation.
5. Do not use fan in windows. Rain and moisture may create electrical hazard.
6. Close supervision is necessary when this fan is used near children, the elderly and
pets.
OWNER'S MANUAL
SPEED CONTROL:
Sel
ect air speed by setting switch to either HIGH(2) - LOW(1) - OFF(0).
It is normal for the motor to feel warm to touch after continuous operation.
This fan features a thermostat that will automatically shut off should it overheat for any
reason. If this happens, immediately unplug the fan from the outlet.
CLEANING
WARNING: Unplug
from electrical supply source before cleaning.
1. Use soft damp cloth to clean, then wipe with dry cloth.
2. Do not use a cleaning solution that is harmful to paints or plastics.
3. Do not bend the blades.
IMPORTANT: Surges in electrical power or excessive heat may cause the fan to turn off.
Wait approximately 15 minutes for the fan to resume operation.
RATING
FO-75S1fOL(2H) / 1PAFP30:
120V~ 60Hz, 1.8A, 220W
7. Do not place the fan near an open flame, cooking or heating appliance, or hot surface.
8. This fan should not be operated outside.
CA
UTION: Do not alter the fan's assembly.
WAR
NING: Be sure that both front and rear guard screws are completely tightened in
locking position before operation.
ASSEM
BLY INSTRUCTIONS:
30” OSCILLATING PEDESTAL FAN
Model:
FO-75S1fOL(2H)
Item: 1PAFP30
420x200mm 80克双胶纸黑色印刷
1
2 3

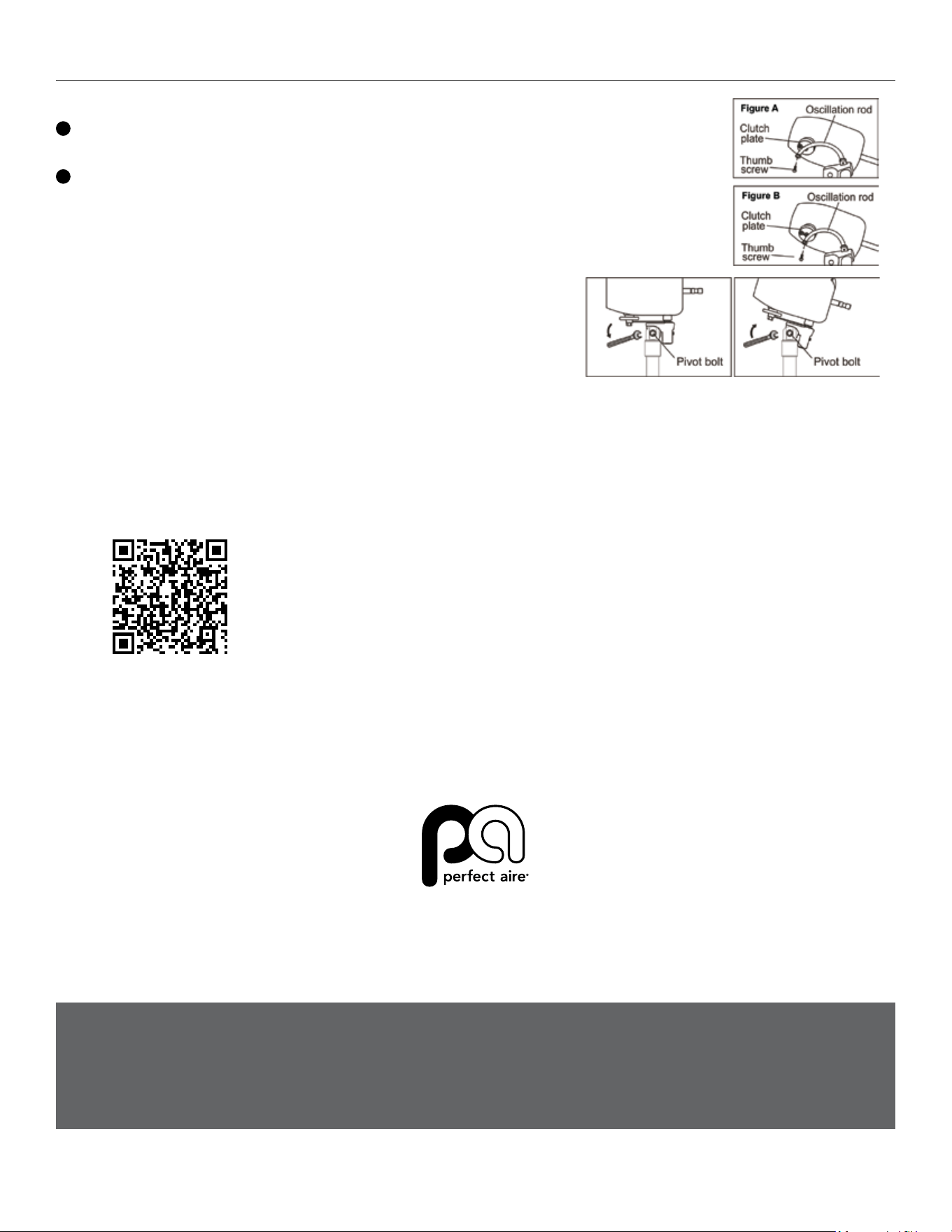

1. To oscillate the fan, loosen the thumb screw on the
oscillation rod and move to the end of the clutch plate.
Tighten the screw to lock the position. (See Figure A.)
2. To stop the oscillation, loosen the thumb screw on the
oscillation rod and move to the center of the clutch plate.
Tighten the screw again to lock the position.
(See Figure B.)
SETTING OSCILLATING MODE
OPERATING INSTRUCTIONS
TO ADJUST AIRFLOW UPWARD
OR DOWNWARD
Loose pivot bolt for adjusting the
desired tilt angle of fan head, and
fix it again.
RATING:
120V~60Hz,1.8A,220W
CLEANING
WARNING
Unplug from electrical
supply source before cleaning.
1
Usesoftdampclothtoclean,
then wipe with dry cloth.
2
Do not use a cleaning solution
that is harmful to paints or plastics.
3
Do not bend the blades.
IMPORTANT: Surges in electrical power
or excessive heat may cause the fan to
turno.Waitapproximately15minutes
for the fan to resume operation.
Machine will need more frequent cleaning
if being used in an environment with high
particle pollution.

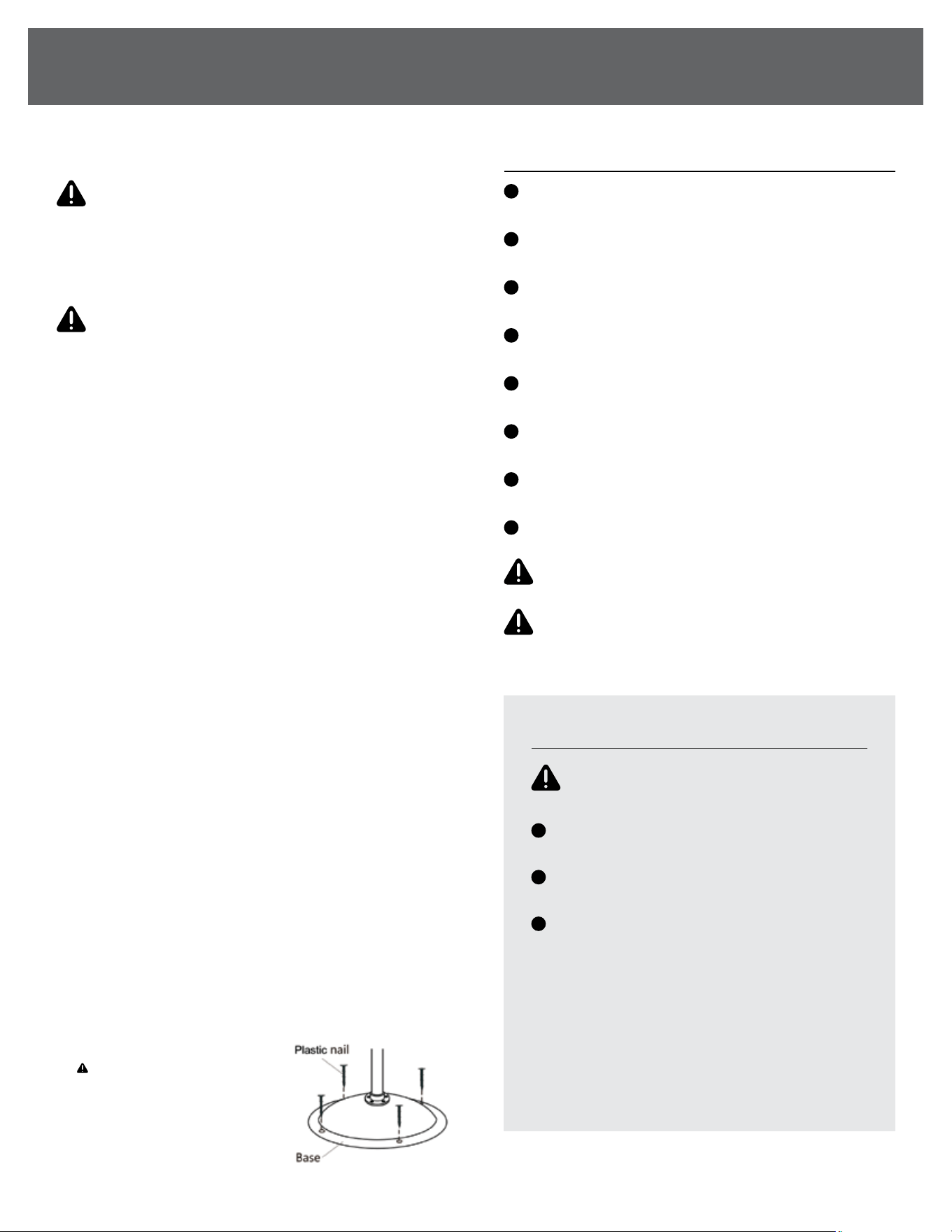

Plastic nails may be slightly larger than
holes in base, this is normal and ensures a
secure t. We recommend using a rubber
mallet to install the plastic nails.
WARNING Only use to grass or
ground of being similar to rugby court
and football eld, moreover must
instatll the plastic nails to make sure
the base is xed on the ground during
use to ensure the product stability.
3
READ AND SAVE THESE INSTRUCTIONS
CAUTION: Read and follow all instructions before operating fan.
Do not use fan if any part is damaged or missing.
WA
RNING:
-
To reduce the risk of fire or electrical shock, do not expose to water or rain.
- To reduce the risk of fire or electrical shock, do not use this fan with any solid state
speed control device.
- Automatically operated device - To reduce the risk of injury, disconnect from power
supply before servicing.
- If the power supply cord is damaged, contact your local service centre or a qualified
electrician to install an appropriate replacement cord to prevent any injury or damage.
- The appliance does not apply to be used in locations where special conditions prevail,
such as the presence of a corrosive or explosive atmosphere ( dust, vapour or gas ).
- This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety.
- Children should be supervised to ensure that they do not play with the appliance.
RULES FOR SAFE OPERATIO
N:
1. Never insert fingers
or any other objects through the grill guard when fan is in
operation.
2. Disconnect the fan from its power source when moving from one location to another.
3. Disconnect the fan from its power source when removing guards for cleaning.
4. Be sure fan is on a stable, flat surface when in operation.
5. Do not use fan in windows. Rain and moisture may create electrical hazard.
6. Close supervision is necessary when this fan is used near children, the elderly and
pets.
OWNER'S MANUAL
SPEED CONTROL:
Sel
ect air speed b
y setting switch to either HIGH(2) - LOW(1) - OFF(0).
It is normal for the motor to feel warm to touch after continuous operation.
This fan features a thermostat that will automatically shut off should it overheat for any
reason. If this happens, immediately unplug the fan from the outlet.
CLEANING
WARNING: Unplug
from ele
c
trical sup
ply source before cleaning.
1. Use soft damp cloth to clean, then wipe with dry cloth.
2. Do not use a cleaning solution that is harmful to paints or plastics.
3. Do not bend the blades.
IMPORTANT: Surges in electrical power or excessive heat may cause the fan to turn off.
Wait approximately 15 minutes for the fan to resume operation.
RATING
FO-75S1fOL(2H) / 1PAFP30:
120V~
60Hz, 1.8A, 220W
7. Do not place the fan near an open flame, cooking or heating appliance, or hot surface.
8. This fan should not be operated outside.
CA
UTION: Do not alter the fan's assembly.
WAR
NING: Be sure that both front and rear guard screws are completely tightened in
locking position before operation.
ASSEM
BLY INSTRUCTIONS:
30” OSCILLATING PEDESTAL FAN
Model:
FO-75S1fOL(2H)
Item: 1PAFP30
420x200mm 80克双胶纸黑色印刷
1
2 3
1. To oscillate the fan, loosen the thumb screw on the
oscillation rod and move to the end of the clutch plate.
Tighten the screw to lock the position. (See Figure A.)
2. To stop the oscillation, loosen the thumb screw on the
oscillation rod and move to the center of the clutch plate.
Tighten the screw again to lock the position.
(See Figure B.)
SETTING OSCILLATING MODE
OPERATING INSTRUCTIONS
TO ADJUST AIRFLOW UPWARD
OR DOWNWARD
Loose pivot bolt for adjusting the
desired tilt angle of fan head, and
fix it again.
1
2
3
4
5
Oscillation
Screw
Position
Screw
Clutch Plate
Flange
Bolts and
Washers
ASSEMBLY, OPERATING & CLEANING INSTRUCTIONS

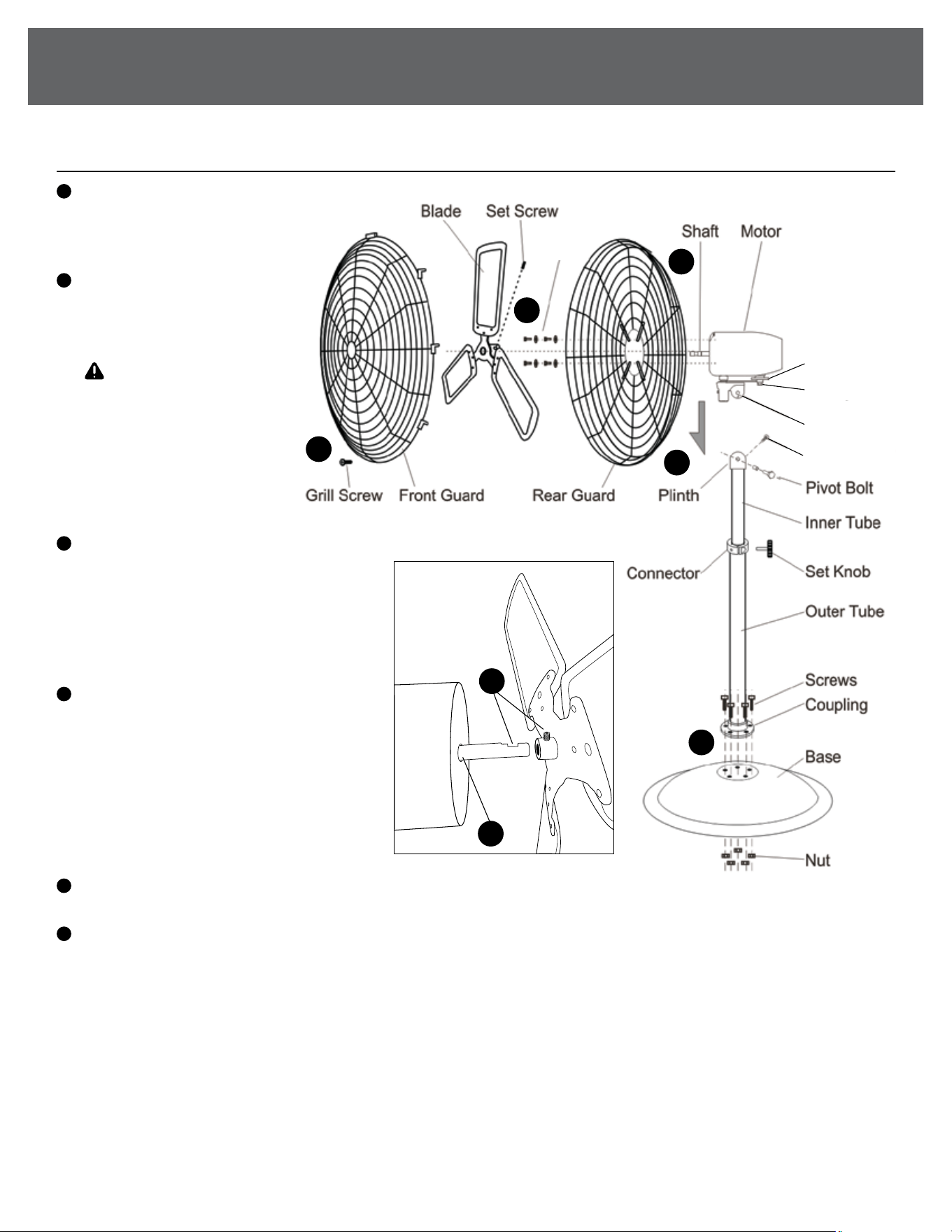

ASSEMBLY INSTRUCTIONS:
1
Withascrewdriverandadjustable
wrench,attachtheoutertube
to the base using supplied
(5)screwsand(5)nuts.
2
Withtheadjustablewrench,
attachthemotorangeto
the outer tube plinth using
the pivot bolt.
WARNING: Fan motor
isextremelyheavy,we
highly recommend two
adults to assemble -
one adult to hold the
motor steady while one
adult tightens the pivot
bolt and the position screw.
3
Slide the rear guard onto the shaft
the of the motor and secure with the
pre-drilled bolts on the front of the
motor. Be sure the small hole for the
grill screw is positioned on the bottom
of the rear guard before securing it
to the motor.
4
Slidethefanbladeontotheshaft,
the set screw needs to be facing
inwardandtightenedontheat
indent of the shaft. Tighten the set
screw with included Allen wrench.
Please be vigilant that the fan blade
is secured correctly and tightly to
prevent safety hazards and
operational failure.
5
Connectthefrontguardandrearguard,fastentheclipsrunningalong
the boarder of the front guard to secure them together.
6
Install the grill screw to secure the front and back guards together.
4
3
844-4PA-AIRE|844-472-2473| support@perfectaire.us
CANADA SUPPORT877-997-2473| supportcanada@perfectaire.us
www.perfectaire.us
5401DansherRoad
Countryside,IL60525
Printed in China |0822_M989
OPERATING INSTRUCTIONS
SETTING OSCILLATING MODE
1
Tooscillatethefan,loosenthethumbscrewontheoscillationrodandmoveto
theendoftheclutchplate.Tightenthescrewtolocktheposition.(SeeFigureA.)
2
Tostoptheoscillation,loosenthethumbscrewontheoscillationrodandmove
to the center of the clutch plate. Tighten the screw again to lock the position.
(SeeFigureB.)
TO ADJUST AIRFLOW UPWARD OR DOWNWARD
Loosen the pivot bolt and position screw for adjusting the
desired tilt angle of the fan head.
SPEED CONTROL:
SelectairspeedbysettingswitchtoeitherHIGH(2)-LOW(1)
-OFF(0).Itisnormalforthemotortofeelwarmtotouchaftercontinuousoperation.Thisfanfeaturesa
thermostatthatwillautomaticallyshutoshoulditoverheatforanyreason.Ifthishappens,immediately
unplug the fan from the outlet.
READ AND SAVE THESE INSTRUCTIONS
CAUTION: Read and follow all instructions before operating fan.
Do not use fan if any part is damaged or missing.
WA
RNING:
-
To reduce the risk of fire or electrical shock, do not expose to water or rain.
- To reduce the risk of fire or electrical shock, do not use this fan with any solid state
speed control device.
- Automatically operated device - To reduce the risk of injury, disconnect from power
supply before servicing.
- If the power supply cord is damaged, contact your local service centre or a qualified
electrician to install an appropriate replacement cord to prevent any injury or damage.
- The appliance does not apply to be used in locations where special conditions prevail,
such as the presence of a corrosive or explosive atmosphere ( dust, vapour or gas ).
- This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety.
- Children should be supervised to ensure that they do not play with the appliance.
RULES FOR SAFE OPERATIO
N:
1. Never insert fingers
or any other objects through the grill guard when fan is in
operation.
2. Disconnect the fan from its power source when moving from one location to another.
3. Disconnect the fan from its power source when removing guards for cleaning.
4. Be sure fan is on a stable, flat surface when in operation.
5. Do not use fan in windows. Rain and moisture may create electrical hazard.
6. Close supervision is necessary when this fan is used near children, the elderly and
pets.
OWNER'S MANUAL
SPEED CONTROL:
Sel
ect air speed by setting switch to either HIGH(2) - LOW(1) - OFF(0).
It is normal for the motor to feel warm to touch after continuous operation.
This fan features a thermostat that will automatically shut off should it overheat for any
reason. If this happens, immediately unplug the fan from the outlet.
CLEANING
WARNING: Unplug
from electrical supply source before cleaning.
1. Use soft damp cloth to clean, then wipe with dry cloth.
2. Do not use a cleaning solution that is harmful to paints or plastics.
3. Do not bend the blades.
IMPORTANT: Surges in electrical power or excessive heat may cause the fan to turn off.
Wait approximately 15 minutes for the fan to resume operation.
RATING
FO-75S1fOL(2H) / 1PAFP30:
120V~ 60Hz, 1.8A, 220W
7. Do not place the fan near an open flame, cooking or heating appliance, or hot surface.
8. This fan should not be operated outside.
CA
UTION: Do not alter the fan's assembly.
WAR
NING: Be sure that both front and rear guard screws are completely tightened in
locking position before operation.
ASSEM
BLY INSTRUCTIONS:
30” OSCILLATING PEDESTAL FAN
Model:
FO-75S1fOL(2H)
Item: 1PAFP30
420x200mm 80克双胶纸黑色印刷
1
2 3
1. To oscillate the fan, loosen the thumb screw on the
oscillation rod and move to the end of the clutch plate.
Tighten the screw to lock the position. (See Figure A.)
2. To stop the oscillation, loosen the thumb screw on the
oscillation rod and move to the center of the clutch plate.
Tighten the screw again to lock the position.
(See Figure B.)
SETTING OSCILLATING MODE
OPERATING INSTRUCTIONS
TO ADJUST AIRFLOW UPWARD
OR DOWNWARD
Loose pivot bolt for adjusting the
desired tilt angle of fan head, and
fix it again.
READ AND SAVE THESE INSTRUCTIONS
CAUTION: Read and follow all instructions before operating fan.
Do not use fan if any part is damaged or missing.
WA
RNING:
-
To reduce the risk of fire or electrical shock, do not expose to water or rain.
- To reduce the risk of fire or electrical shock, do not use this fan with any solid state
speed control device.
- Automatically operated device - To reduce the risk of injury, disconnect from power
supply before servicing.
- If the power supply cord is damaged, contact your local service centre or a qualified
electrician to install an appropriate replacement cord to prevent any injury or damage.
- The appliance does not apply to be used in locations where special conditions prevail,
such as the presence of a corrosive or explosive atmosphere ( dust, vapour or gas ).
- This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety.
- Children should be supervised to ensure that they do not play with the appliance.
RULES FOR SAFE OPERATIO
N:
1. Never insert fingers
or any other objects through the grill guard when fan is in
operation.
2. Disconnect the fan from its power source when moving from one location to another.
3. Disconnect the fan from its power source when removing guards for cleaning.
4. Be sure fan is on a stable, flat surface when in operation.
5. Do not use fan in windows. Rain and moisture may create electrical hazard.
6. Close supervision is necessary when this fan is used near children, the elderly and
pets.
OWNER'S MANUAL
SPEED CONTROL:
Sel
ect air speed by setting switch to either HIGH(2) - LOW(1) - OFF(0).
It is normal for the motor to feel warm to touch after continuous operation.
This fan features a thermostat that will automatically shut off should it overheat for any
reason. If this happens, immediately unplug the fan from the outlet.
CLEANING
WARNING: Unplug
from electrical supply source before cleaning.
1. Use soft damp cloth to clean, then wipe with dry cloth.
2. Do not use a cleaning solution that is harmful to paints or plastics.
3. Do not bend the blades.
IMPORTANT: Surges in electrical power or excessive heat may cause the fan to turn off.
Wait approximately 15 minutes for the fan to resume operation.
RATING
FO-75S1fOL(2H) / 1PAFP30:
120V~ 60Hz, 1.8A, 220W
7. Do not place the fan near an open flame, cooking or heating appliance, or hot surface.
8. This fan should not be operated outside.
CA
UTION: Do not alter the fan's assembly.
WAR
NING: Be sure that both front and rear guard screws are completely tightened in
locking position before operation.
ASSEM
BLY INSTRUCTIONS:
30” OSCILLATING PEDESTAL FAN
Model:
FO-75S1fOL(2H)
Item: 1PAFP30
420x200mm 80克双胶纸黑色印刷
1
2 3
1. To oscillate the fan, loosen the thumb screw on the
oscillation rod and move to the end of the clutch plate.
Tighten the screw to lock the position. (See Figure A.)
2. To stop the oscillation, loosen the thumb screw on the
oscillation rod and move to the center of the clutch plate.
Tighten the screw again to lock the position.
(See Figure B.)
SETTING OSCILLATING MODE
OPERATING INSTRUCTIONS
TO ADJUST AIRFLOW UPWARD
OR DOWNWARD
Loose pivot bolt for adjusting the
desired tilt angle of fan head, and
fix it again.
THANK YOU FOR YOUR PURCHASE!
As a small business, reviews are everything!
We’dlovetohearhowyouareenjoyingyourPerfectAireproduct!
Pleasetakeaminutetotellus(andothers)aboutyourexperience.
Thanks (again!)
SCAN CODE TO
LEAVE A REVIEW
