15"/19"/22"/24" LED-LCD TV
NS-15E720A12/NS-19E720A12/NS-22E730A12/NS-24E730A12
User Guide
ii
www.insigniaproducts.com
Contents
CHILD SAFETY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Important safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Cautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Installing the stand or wall-mount bracket . . . . . . . . . . . . . . . . . . . . . . . .6
Installing the stand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Installing a wall-mount bracket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
TV components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Package contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Front . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Side controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Jacks and ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Making connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
What connection should I use? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Connecting power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Connecting a cable or satellite box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Connecting an antenna or cable TV (no box) . . . . . . . . . . . . . . . . . . . . . 17
Connecting a DVD or Blu-ray player . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Connecting a VCR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Connecting a camcorder or game console . . . . . . . . . . . . . . . . . . . . . . . 22
Connecting a computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Connecting a USB flash drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Connecting headphones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Connecting a basic home theater system . . . . . . . . . . . . . . . . . . . . . . . . 25
Connecting a home theater system with multiple devices . . . . . . . . 26
Using the remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Installing remote control batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Aiming the remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Turning on your TV for the first time . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Understanding the basics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Turning your TV on or off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Selecting the video input source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
On-screen menu overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Navigating the menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Selecting a channel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Adjusting the volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Viewing channel information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Viewing system information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Adjusting the picture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Adjusting the TV picture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Adjusting the computer image . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
iii
Contents
www.insigniaproducts.com
Adjusting the sound . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Adjusting sound settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Playing TV audio only . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Changing channel settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Automatically scanning for channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Hiding channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Setting up a favorite channel list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Viewing a favorite channel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Adding or changing a channel label . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Checking the digital signal strength . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Turning Auto Zoom on or off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Setting parental controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Setting or changing the password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Locking control buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Blocking unrated TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Setting parental control levels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Downloading rating information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Using closed captioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Turning closed captioning on or off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Selecting the analog closed captioning mode . . . . . . . . . . . . . . . . . . . 45
Customizing digital closed captioning styles . . . . . . . . . . . . . . . . . . . . . 45
Adjusting time settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Setting the clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Setting the sleep timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Adjusting menu settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Selecting the menu language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Turning Auto Input Sensing on or off . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Labeling an input source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Restoring settings to the defaults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Using INlink . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Turning INlink on or off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Turning Device Auto Power Off on or off . . . . . . . . . . . . . . . . . . . . . . . . . 51
Turning TV Auto Power On on or off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Turning Audio Receiver on or off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Displaying a list of INlink-compatible (HDMI CEC) devices . . . . . . . . 53
Waking INlink-compatible (HDMI CEC) devices . . . . . . . . . . . . . . . . . . . 54
Opening an INlink-compatible device’s root menu . . . . . . . . . . . . . . . 54
Using a USB flash drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Switching to USB mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Browsing photos . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Viewing favorite photos . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Viewing photos in a slideshow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Customizing slideshow settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Maintaining . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Cleaning the TV cabinet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Cleaning the TV screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Video and audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
iv
Contents
www.insigniaproducts.com
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Programming universal remote controls . . . . . . . . . . . . . . . . . . . . . . . . 63
Programming a different universal remote control . . . . . . . . . . . . . . . 63
Common universal remote control codes . . . . . . . . . . . . . . . . . . . . . . . . 63
Legal notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Two-year limited warranty - Insignia Televisions . . . . . . . . . . . . . . . . . 65
US and Canada Markets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
1
www.insigniaproducts.com
As you enjoy your new product, keep these
safety tips in mind
The issue
The home theater entertainment experience is a growing trend, and larger TVs are popular
purchases. However, TVs are not always supported on the proper stands or installed
according to the manufacturer’s recommendations. We and the consumer electronics
industry are committed to making home entertainment enjoyable and safe.
TVs that are inappropriately placed on dressers, bookcases, shelves, desks, speakers, chests, or
carts may fall over and cause injury.
Tune into safety
•
One size of TV stand does not fit all. Use only a TV stand
rated for the weight of your TV.
•
Carefully read and understand all enclosed instructions
for proper use of this product.
•
Don’t let children climb on or play with entertainment
system furniture and TVs.
•
Don’t place TVs on furniture that can easily be used as
steps, such as a crate or chest of drawers.
•
Remember that children can become excited while
watching a program, especially on a “larger-than-life” TV.
Make sure that you place or install the TV where it cannot
be pushed, pulled over, or knocked down.
•
Make sure that you route all cords and cables so that they
cannot be pulled or grabbed by curious children.
Wall mounting
If you decide to wall mount your TV, always remember:
•
One size of wall mount does not fit all. Use only a wall mount rated for the weight of
your TV and that has been recommended by this TV manufacturer, listed in this
manual, or otherwise listed by an independent laboratory as suitable for your TV.
•
Follow all instructions supplied by the TV and wall mount manufacturers.
•
If you have any doubts about your ability to safely wall mount your TV, get help from a
professional installer.
•
Make sure that the wall where you are mounting the TV is
appropriate. Some wall mounts are not designed to be
mounted to walls backed with steel studs or cinder blocks. If
you are unsure, ask a professional installer.
•
TVs can be heavy. At least two people are required for safe wall mount installation.
f

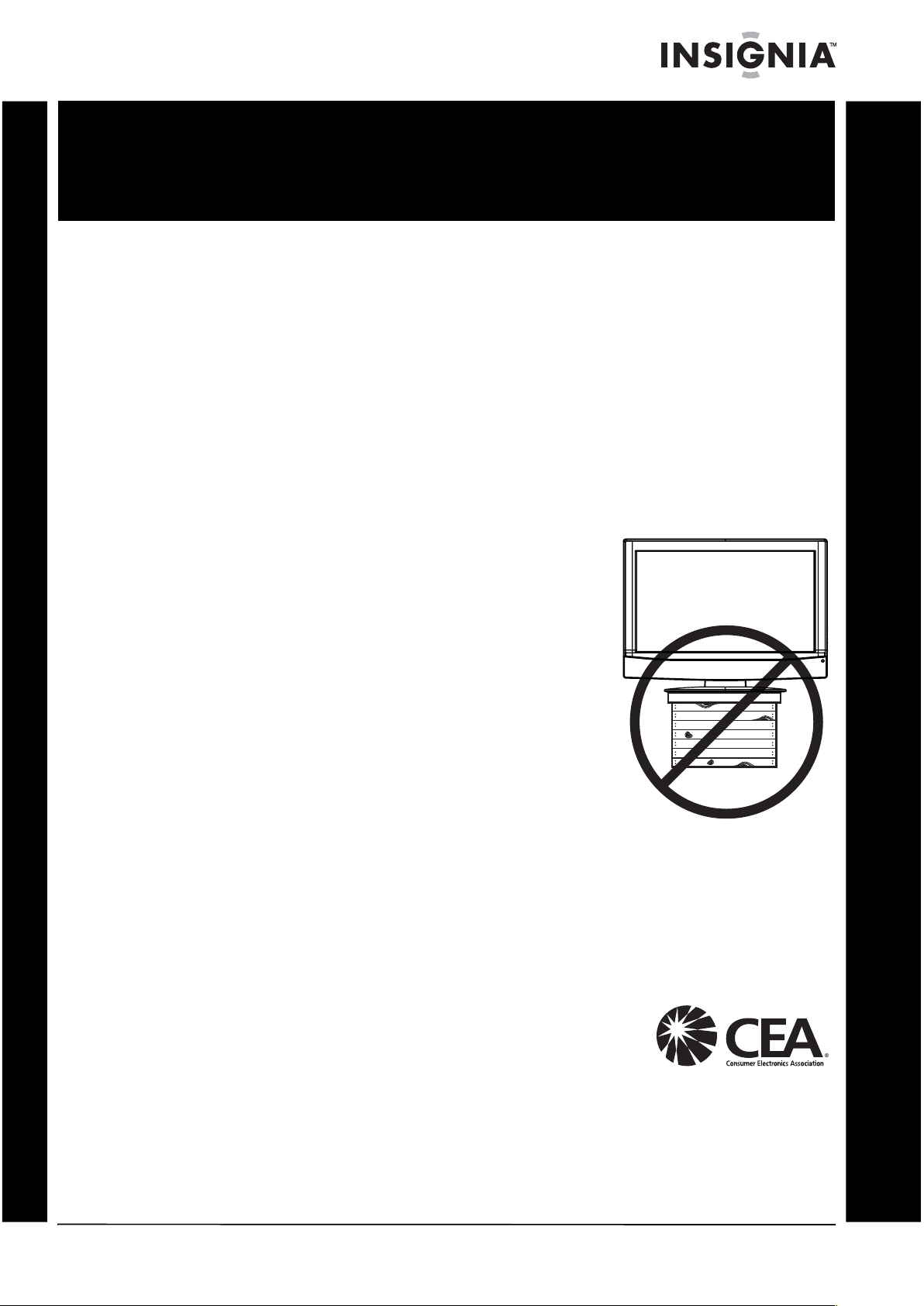

CHILD SAFETY
It makes a difference how and where you use
your flat panel display
2
NS-15E720A12/NS-19E720A12/NS-22E730A12/NS-24E730A12
www.insigniaproducts.com
Important safety
instructions
1 Read these instructions.
2 Keep these instructions.
3 Heed all warnings.
4 Follow all instructions.
5 Do not use this apparatus near water.
6 Clean only with a dry cloth.
7 Do not block any ventilation openings. Install in
accordance with the manufacturer's
instructions.
8 Do not install near any heat sources such as
radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce
heat.
9 Do not defeat the safety purpose of the
polarized or grounding-type plug. A polarized
plug has two blades with one wider than the
other. A grounding type plug has two blades
and a third grounding prong. The wide blade or
the third prong are provided for your safety. If
the provided plug does not fit into your outlet,
consult an electrician for replacement of the
obsolete outlet.
10 Protect the power cord from being walked on or
pinched particularly at plugs, convenience
receptacles, and the point where they exit from
the apparatus.
11 Only use attachments/accessories specified by
the manufacturer.
12 Use only with a cart, stand, tripod,
bracket, or table specified by the
manufacturer, or sold with the
apparatus. When a cart is used, use
caution when moving the
cart/apparatus combination to avoid injury from
tip-over.
13 Unplug this apparatus during lightning storms
or when unused for long periods of time.
14 Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has
been damaged in any way, such as
power-supply cord or plug is damaged, liquid
has been spilled or objects have fallen into the
apparatus, the apparatus has been exposed to
rain or moisture, does not operate normally, or
has been dropped.
15 The wall plug is the disconnecting device. The
plug must remain readily operable.
16 An apparatus with three-prong, grounding-type
plug is a Class I apparatus. A Class I apparatus
needs to be grounded to prevent possible
electric shock. Make sure that you connect the
Class I apparatus to a grounding-type,
three-prong outlet.
17 Remote control batteries should not be exposed
to excessive heat such as sunshine, fire, or the
like.
18 The apparatus should not be exposed to
dripping or splashing, and no objects filled with
liquids, such as vases, should be placed on the
apparatus.
Warnings
Electric shock hazard
To reduce the risk of fire or electric shock, do not
remove any cover or expose the device to rain or
moisture. No user-serviceable parts are inside. Refer
servicing to qualified service technicians.
Lightning
For added protection for your device receiver
during a lightning storm, or when it is left
unattended and unused for long periods of time,
unplug it from the power outlet and disconnect any
antenna or cable system. This helps prevent
property damage and personal injury from
lightning and power line surges.
Power lines
An outside antenna system should not be located in
the vicinity of overhead power lines or other
electric light or power circuits, or where it can fall
into such power lines or circuits. When installing an
outside antenna system, extreme care should be
taken to keep from touching such power lines or
circuits as contact with them might be fatal.
Handling the LCD panel
• Your TV’s screen is made of glass. Do not drop
your TV or hit, jolt, or press hard against the LCD
panel. If the screen breaks, be careful of broken
glass.
• If the LCD panel is broken, make absolutely sure
that you do not touch the liquid in the panel. This
may cause skin inflammation.
• If the liquid gets in your mouth, immediately
gargle, rinse, and consult with your doctor. Also, if
the liquid gets in your eyes or touches your skin,
consult with your doctor after rinsing for at least
15 minutes or longer in clean water.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
This symbol indicates that dangerous
voltage constituting a risk of electric
shock is present within your TV. This
label is located on the back of your TV.
This symbol indicates that there are
important operating and maintenance
instructions in the literature
accompanying your TV.
3
www.insigniaproducts.com
Replacement parts
When replacement parts are required, make sure
that the service technician uses replacement parts
specified by the manufacturer that have the same
characteristics as the original part. Unauthorized
substitutions may result in fire, electric shock,
personal injury, or other hazards.
Safety check
After completing any service or repair to this device,
ask the service technician to perform routine safety
checks to determine that your TV is in correct
operating condition.
Power source
Operate your TV only from the type of power source
indicated on the marking label. If you are not sure
of the type of power supplied to your home, consult
an electrician or your local power company.
Cautions
Damage requiring service
Unplug this TV from the power outlet and refer
servicing to qualified service personnel under the
following conditions:
• When the power supply cord or plug is damaged
or frayed.
• If liquid has been spilled or objects have fallen
into your TV.
• If your TV has been exposed to rain or water.
• If your TV does not operate normally by following
the operating instructions. Adjust only those
controls that are covered by the operating
instructions because incorrect adjustment of
other controls may result in damage and will
often require extensive work by a qualified
technician to restore your TV to its normal
operation.
• If your TV has been dropped or damaged in any
way.
• When your TV exhibits a distinct change in
performance.
Outdoor antenna grounding
If an outside antenna or cable system is connected
to your TV, make sure that the antenna or cable
system is grounded to provide some protection
against voltage surges and built-up static charges.
Article 810 of the National Electrical Code,
ANSI/NFPA No. 70, provides information with
respect to correct grounding of the mast and
supporting structure, grounding of the lead-in wire
to an antenna discharge unit, size of grounding
conductors, location of the antenna-discharge unit,
connection to grounding electrodes, and
requirements for the grounding electrode.
Note to CATV system installer
Article 820 of the National Electrical Code,
ANSI/NFPA No. 40 provides guidance for correct
grounding. Specifically, it states that the cable
ground must be connected to the grounding
system of the building as close to the point of cable
entry as practical.
Condensation
Moisture will form on the TV if the TV is brought
from cool surroundings into a warm room or if the
temperature of the room rises suddenly. When this
happens, the TV's performance may be impaired. To
prevent this, let the TV stand in its new
surroundings for about an hour before switching it
on, or make sure that the room temperature rises
gradually.
Condensation may also form during the summer if
the TV is exposed to the breeze from an air
conditioner. In such cases, change the location of
the TV.
Mobile telephone warning
To avoid interference with your TV picture and
sound, operating problems, or even damage, keep
your cordless and cellular telephones away from
the TV.
Antenna lead-in wire
Grounding clamp
Antenna discharge unit
Grounding conductors
Ground clamps
Power service grounding electrode system
Electric service equipment
2
1
3
4
5
6
7
1
2
3
4
5
6
7
4
NS-15E720A12/NS-19E720A12/NS-22E730A12/NS-24E730A12
www.insigniaproducts.com
End of life directives
Your TV contains tin-lead solder and a fluorescent
lamp containing a small amount of mercury.
Disposal of these materials may be regulated for
environmental reasons. Your TV also contains
material that can be recycled and reused. For
disposal or recycling information, contact your local
authorities.
Non-active pixels
The LCD panel contains almost 3 million thin film
transistors, which provide exceptionally sharp video
quality. Occasionally, a few non-active pixels may
appear on the screen as a fixed blue, green, or red
point. These non-active pixels do not adversely
affect the performance of your TV, and are not
considered defects.
5
Insignia 15"/19"/22"/24" LED-LCD TV
www.insigniaproducts.com
Insignia 15"/19"/22"/24" LED-LCD TV
Introduction
Congratulations on your purchase of a high-quality
Insignia product. Your NS-15E720A12,
NS-19E720A12, NS-22E730A12, or NS-24E730A12
represents the state of the art in LED-LCD TV design
and is designed for reliable and trouble-free
performance.
SRS TruSurround HD:
At Insignia, providing you with superior audio
quality is just as important as exceptional picture
quality. That's why we added SRS TruSurround HD,
which provides you with a theater-like
surround-sound experience, with the clearer dialog
and the enhanced bass sounds that movie viewers
and gamers crave.
INlink:
Enjoy the benefit of having HDMI CEC compatible
products plug and play! No setup is needed! CEC
technology lets different components discover and
communicate with each other. (See page 50 for
instructions on how to use INlink.)
6
NS-15E720A12/NS-19E720A12/NS-22E730A12/NS-24E730A12 Insignia 15"/19"/22"/24" LED-LCD TV
www.insigniaproducts.com
Installing the stand or
wall-mount bracket
Installing the stand

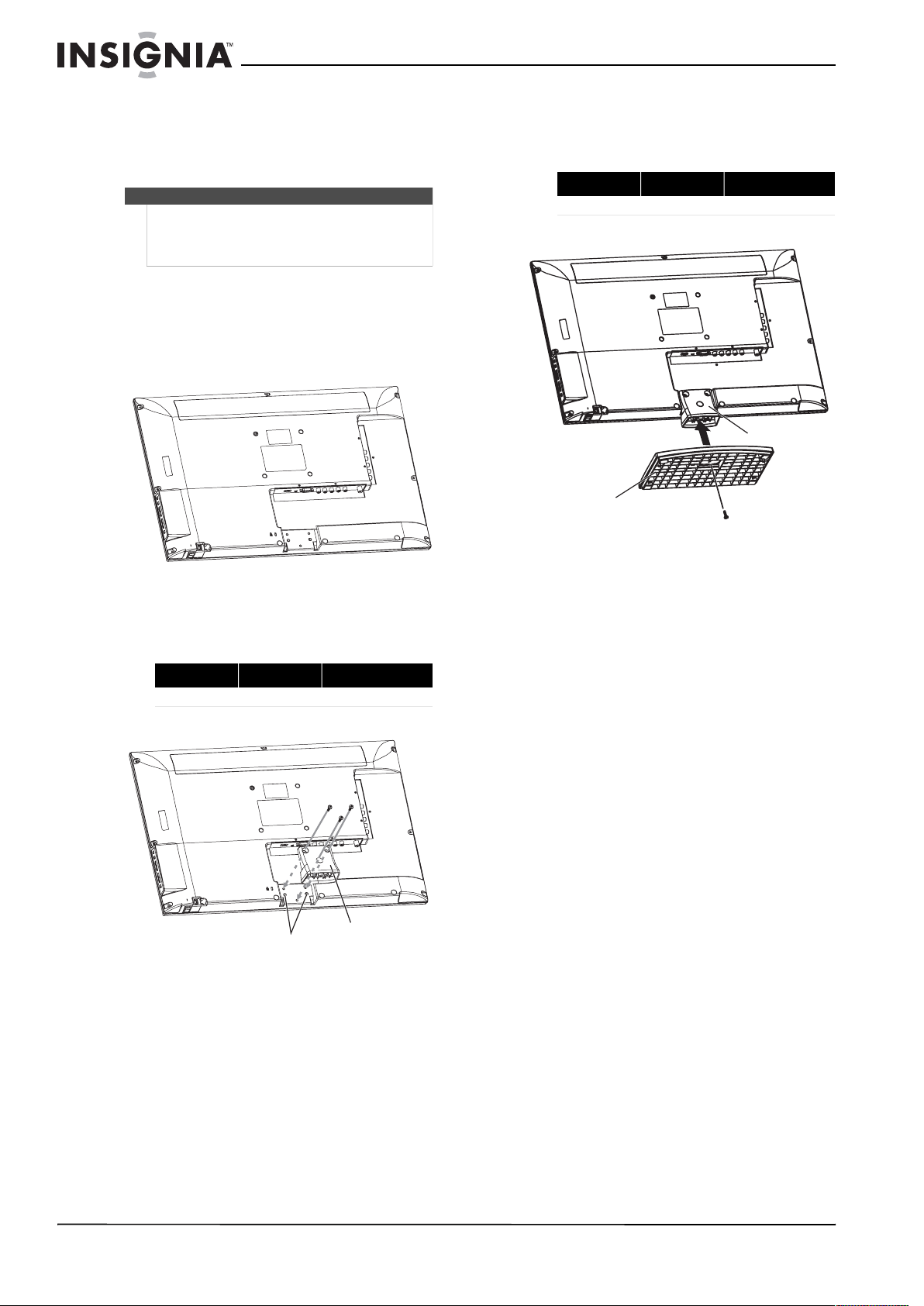

To install the stand:
1 Carefully place your TV screen face-down on a
cushioned, clean surface to protect the screen
from damages and scratches.
2 Align the locators on the stand column with the
locating grooves on the TV back and secure the
stand column to your TV with the three
provided screws.
3 Make sure that the wide portion of the stand
base faces the front of your TV, align the base to
the stand column, then secure the base to the
column with the provided screw.
Notes
If you plan to wall-mount your TV, do not install the
stand.
Store the stand and stand screws in case you decide
to use the stand in the future.
Model Screw type Screw length
All models M4 type 14 mm
Stand column
Locating grooves
Model Screw type Screw length
All models M4 type 14 mm
Stand column
Stand base
7
Insignia 15"/19"/22"/24" LED-LCD TV
www.insigniaproducts.com
Installing a wall-mount bracket
To attach your TV to a wall-mount bracket:
1 Carefully place your TV screen face-down on a
cushioned, clean surface to protect the screen
from damages and scratches.
2 Remove the three screws that secure the stand
column to your TV, then remove the column.
3 Attach the wall-mount bracket to your TV using
the mounting holes on the back of your TV. See
the instructions that came with the wall-mount
bracket for information about how to correctly
hang your TV.
NS-15E720A12 (15-inch)
NS-19E720A12 (19-inch)
NS-22E730A12 (22-inch)
NS-24E730A12 (24-inch)
Warning
This TV is intended to be supported by a UL Listed
wall mount bracket with suitable weight/load. (See
“Miscellaneous” on page 62.)
Note
The length of the wall-mount screws vary depending
on the wall-mount bracket you purchased. See the
instructions that came with the wall-mount bracket
for screw lengths.
3.94 in. (100 mm)
3.94 in. (100 mm)
Wall mount brackets
3.94 in. (100 mm)
3.94 in. (100 mm)
Wall mount brackets
3.94 in. (100 mm)
3.94 in. (100 mm)
Wall mount brackets
3.94 in. (100 mm)
3.94 in. (100 mm)
Wall mount brackets
8
NS-15E720A12/NS-19E720A12/NS-22E730A12/NS-24E730A12 Insignia 15"/19"/22"/24" LED-LCD TV
www.insigniaproducts.com
TV components
Package contents
Remote control and batteries (2 AAA)
Stand and stand column with screws
Component video cable
Audio cable
Cleaning cloth
Quick Setup Guide
Front
Side controls
# Item Description
Remote control sensor Receives signals from the remote control. Do not block.
Power indicator
Lights blue when your TV is turned on.
Lights red when your TV is in standby mode.
Turns off when the power cord is unplugged.
1
2
# Item Description
MENU
Press to open the on-screen menu. For more
information, see “Navigating the menus” on page 30.
INPUT
Press to open the INPUT SOURCE list, then press
or
to select a video input source.
In menu mode, press to confirm selections.
VOL+/VOL– Press to increase or decrease the volume.
CH /CH
Press to go to the next or previous channel in the
channel list. For more information, see “Selecting a
channel” on page 31.
(power)
Press to turn your TV on or off (standby mode). When
your TV is off, power still flows through it. To
disconnect power, unplug the power cord.
MENU
INPUT
VOL
CH
1
2
3
4
5
9
Insignia 15"/19"/22"/24" LED-LCD TV
www.insigniaproducts.com

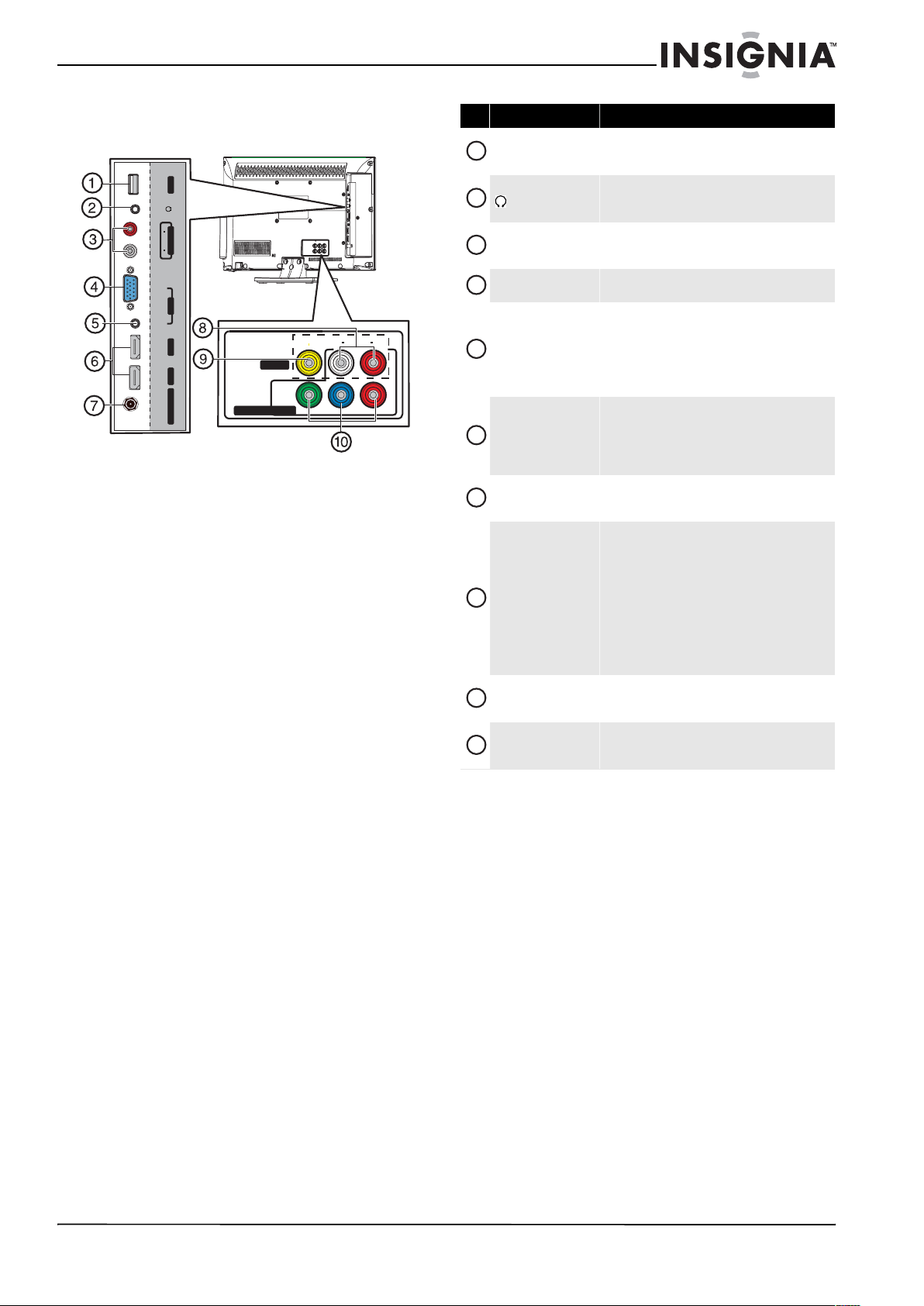

Jacks and ports
15-inch and 19-inch models
AU DIO
L RVIDEO
AV IN
COMPONENT IN
Y P
B
P
R
USB
VGAAUDIO
HDMI 1HDMI 2
ANT/CABLE IN
AUDIOL R
AUDIO OUTPC IN
AR C
# Item Description
USB
Connect a USB flash drive to this jack. For more
information, see “Connecting a USB flash drive” on
page 24.
(headphone)
Connect headphones to this jack. For more
information, see “Connecting headphones” on
page 25.
L/R AUDIO OUT
Connect an external sound system to these jacks. For
more information, see “Using analog audio output” on
page 26.
PC IN VGA
Connect the video (VGA) for a computer to this jack.
For more information, see “Using VGA” on page 23.
PC IN AUDIO
Connect the audio for a computer to this jack. For more
information, see “Using VGA” on page 23.
OR
Connect the audio for a DVI device to this jack. For
more information, see “Using DVI (same as HDMI but
requires a sound connection)” on page 14 or 18.
HDMI 1/HDMI 2 ARC
Connect HDMI devices to these jacks. An HDMI cable
carries both video and sound. You do not need to make
an audio connection for an HDMI device.
For more information, see “Using HDMI (best)” on
page 13, 17, or 24.
ANT/CABLE IN
Connect an antenna or cable TV to this jack. For more
information, see “Connecting an antenna or cable TV
(no box)” on page 17.
L/R AUDIO
The component video jacks (COMPONENT IN Y/P
B
/P
R
)
share these audio jacks with the composite video jack
(AV IN VIDEO).
Connect the audio for a component video device to
these jacks. For more information, see “Using
component video (better)” on page 15 or 19.
OR
Connect the audio for a composite video device to
these jacks. For more information, see “Using
composite video (good)” on page 16 or 20.
AV IN VIDEO
Connect the video for a composite video device to this
jack. For more information, see “Using composite
video (good)” on page 16 or 20.
COMPONENT IN Y/P
B
/P
R
Connect the video for a component video device to
these jacks. For more information, see “Using
component video (better)” on page 15 or 19.
1
2
3
4
5
6
7
8
9
10
10
NS-15E720A12/NS-19E720A12/NS-22E730A12/NS-24E730A12 Insignia 15"/19"/22"/24" LED-LCD TV
www.insigniaproducts.com
22-inch and 24-inch models
VG AAU DI O
HDM I 1
DI GITA L
OU TPU T
AU DI O
L R
CO MPONE N T INPC IN
ANT/C A BLE I N
Y PB PR
USBHDMI 2
AUDIO
L R
AUDIO OUT
AUDIO
L R
AV IN
VIDEO
ARC
# Item Description
USB
Connect a USB flash drive to this jack. For more
information, see “Connecting a USB flash drive” on
page 24.
(headphone)
Connect headphones to this jack. For more
information, see “Connecting headphones” on
page 25.
HDMI 2 ARC
Connect an HDMI device to this jacks. An HDMI cable
carries both video and sound. You do not need to make
an audio connection for an HDMI device. There is
another HDMI jack on the back of your TV.
For more information, see “Using HDMI (best)” on
page 13, 17, or 24.
AV IN L/R AUDIO
Connect the audio for a composite video device to
these jacks. For more information, see “Using
composite video (good)” on page 16 or 20.
AV IN VIDEO
Connect the video for a composite video device to this
jack. For more information, see “Using composite
video (good)” on page 16 or 20.
AUDIO OUT
Connect an external sound system to these jacks. For
more information, see “Using analog audio output” on
page 26.
DIGITAL OUTPUT
Connect an audio amplifier to this jack. For more
information, see “Using digital audio output (22-inch
and 24-inch only)” on page 25.
HDMI 1
Connect an HDMI device to this jack. An HDMI cable
carries both video and sound. You do not need to make
an audio connection for an HDMI device. There is
another HDMI jack on the side of your TV.
For more information, see “Using HDMI (best)” on
page 13, 17, or 24.
PC AUDIO IN
Connect the audio for a computer to this jack. For more
information, see “Using VGA” on page 23.
OR
Connect the audio for a DVI device to this jack. For
more information, see “Using DVI (same as HDMI but
requires a sound connection)” on page 14 or 18.
PC IN VGA
Connect the video (VGA) for a computer to this jack.
For more information, see “Using VGA” on page 23.
COMPONENT IN Y/P
B
/P
R
Connect the video for a component video device to
these jacks. For more information, see “Using
component video (better)” on page 15 or 19.
COMPONENT IN L/R
AUDIO
Connect the audio for a component video device to
these jacks. For more information, see “Using
component video (better)” on page 15 or 19.
ANT/CABLE IN
Connect an antenna or cable TV to this jack. For more
information, see “Connecting an antenna or cable TV
(no box)” on page 17.
1
2
3
4
5
6
7
8
9
10
11
12
13
11
Insignia 15"/19"/22"/24" LED-LCD TV
www.insigniaproducts.com

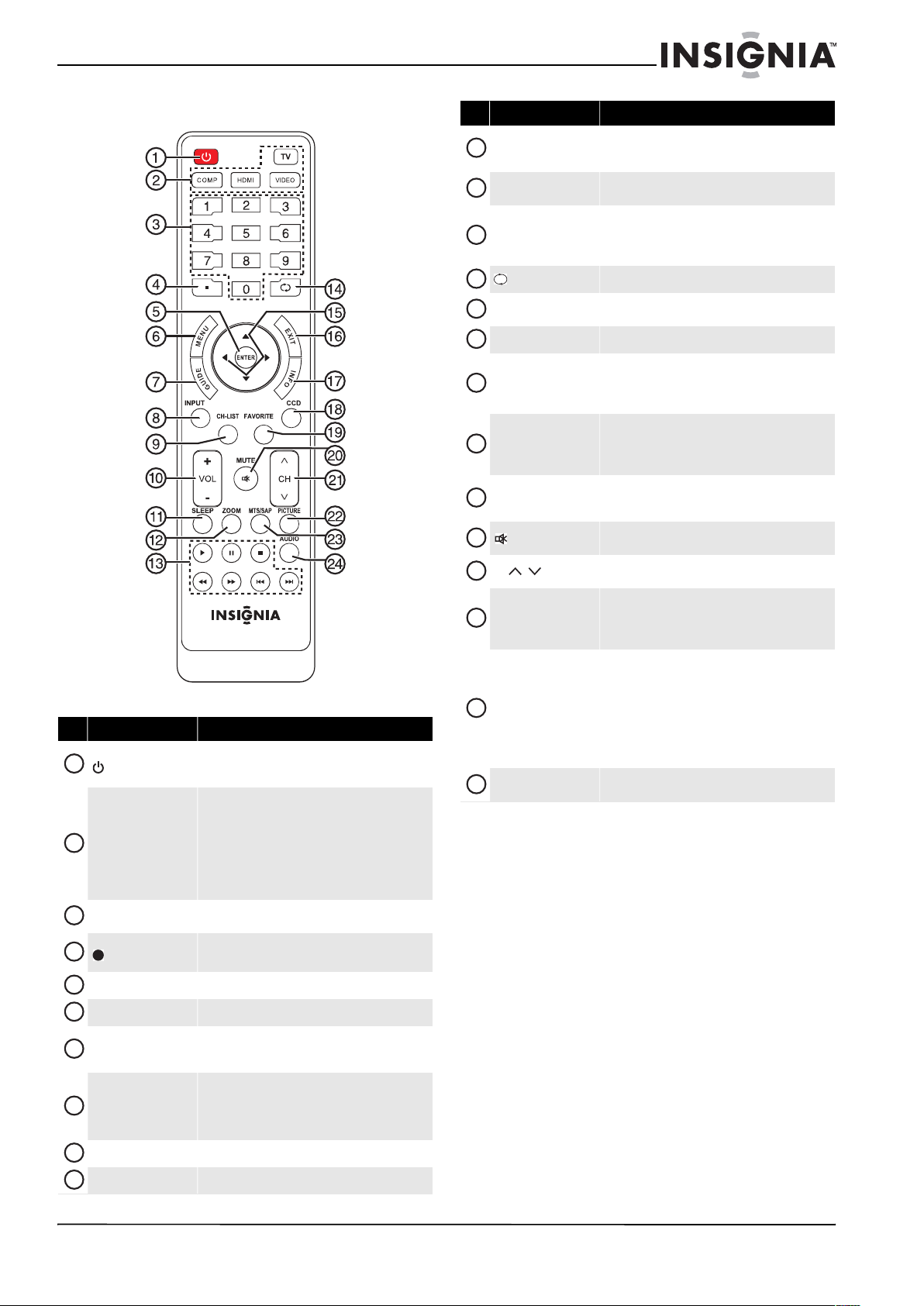

Remote control
# Button Description
(power)
Press to turn your TV on or off (Standby mode). When
your TV is off, power still flows through it. To
disconnect power, unplug the power cord.
Video input
TV—Press to select your TV as the input source.
COMP—Press to select the device connected to the
COMPONENT video jacks.
HDMI—Press one or more times to select the device
connected to the HDMI 1 or HDMI 2 jack.
VIDEO—Press to select the device connected to the
AV IN-VIDEO jack.
Numbers
Press to enter channel numbers and the parental
control password.
Press to enter a digital sub-channel number. For more
information, see “Selecting a channel” on page 31.
ENTER Press to confirm selections or changes.
MENU Press to open the on-screen menu.
GUIDE
Press to display the program guide. For more
information, see “Viewing channel information” on
page 31.
INPUT
Press to open the INPUT SOURCE list, then press
or
to cycle through the available input sources. For
more information, see “Selecting the video input
source” on page 29.
CH-LIST Press to open the channel list.
VOL+/–
Press to increase or decrease the volume.
1
2
3
4
5
6
7
8
9
10
SLEEP
Press to set the sleep timer. You can select Off, 5, 10,
15, 30, 60, 90, 120, 180, or 240 minutes. For more
information, see “Setting the sleep timer” on page 47.
ZOOM
Press to select the aspect ratio. For more information,
see “Adjusting the TV picture” on page 32.
Media control
Press these buttons to control the playback from an
HDMI-CEC compatible device. For more information
about HDMI-CEC compatible devices, see “Using
INlink” on page 50.
/RECALL
In TV mode, press to return to the previous channel.
Press to move up, down, left, or right in on-screen
menus.
EXIT
Press to close the on-screen menu.
INFO
Press to display TV status information, such as the
channel number, channel name (if available), or signal
source. For more information, see “Viewing channel
information” on page 31.
CCD
Press to turn closed captioning on or off. You can select
CC Off, CC On, or CC on When Mute. For more
information, see “Turning closed captioning on or off”
on page 44.
FAVORITE
Press to open the Favorite Channel list. For more
information, see “Setting up a favorite channel list” on
page 36 and “Viewing a favorite channel” on page 37.
/MUTE
Press to mute the sound. Press again to restore the
sound.
CH /
Press to change TV channels. For more information,
see “Selecting a channel” on page 31.
Press to select the picture mode. You can select Vivid,
Standard, Energy Savings, Theater, or Custom.
For more information, see “Adjusting the TV picture”
on page 32.
MTS/SAP
Press to select the audio mode for an analog program.
You can select:
• MONO—Select this option if there is noise
or static on weak stereo broadcasts.
• STEREO—Select this option for programs
broadcast in stereo.
• SAP—Select this option to listen to a
secondary audio program, if available.
AUDIO
Press to adjust sound mode. For more information, see
“Adjusting sound settings” on page 34.
# Button Description
11
12
13
14
15
16
17
18
19
20
21
22
23
24
12
NS-15E720A12/NS-19E720A12/NS-22E730A12/NS-24E730A12 Insignia 15"/19"/22"/24" LED-LCD TV
www.insigniaproducts.com
Making connections
What connection should I use?
Your TV has several connection types for
connecting devices to your TV.
For the best video quality, you should connect a
device to the best available connection.
Use the following tables to identify cables:
You can use the HDMI jack on your TV to connect a
DVI device to your TV. You need to attach an
HDMI-to-DVI adapter to the end of the HDMI cable
that connects to the DVI device.

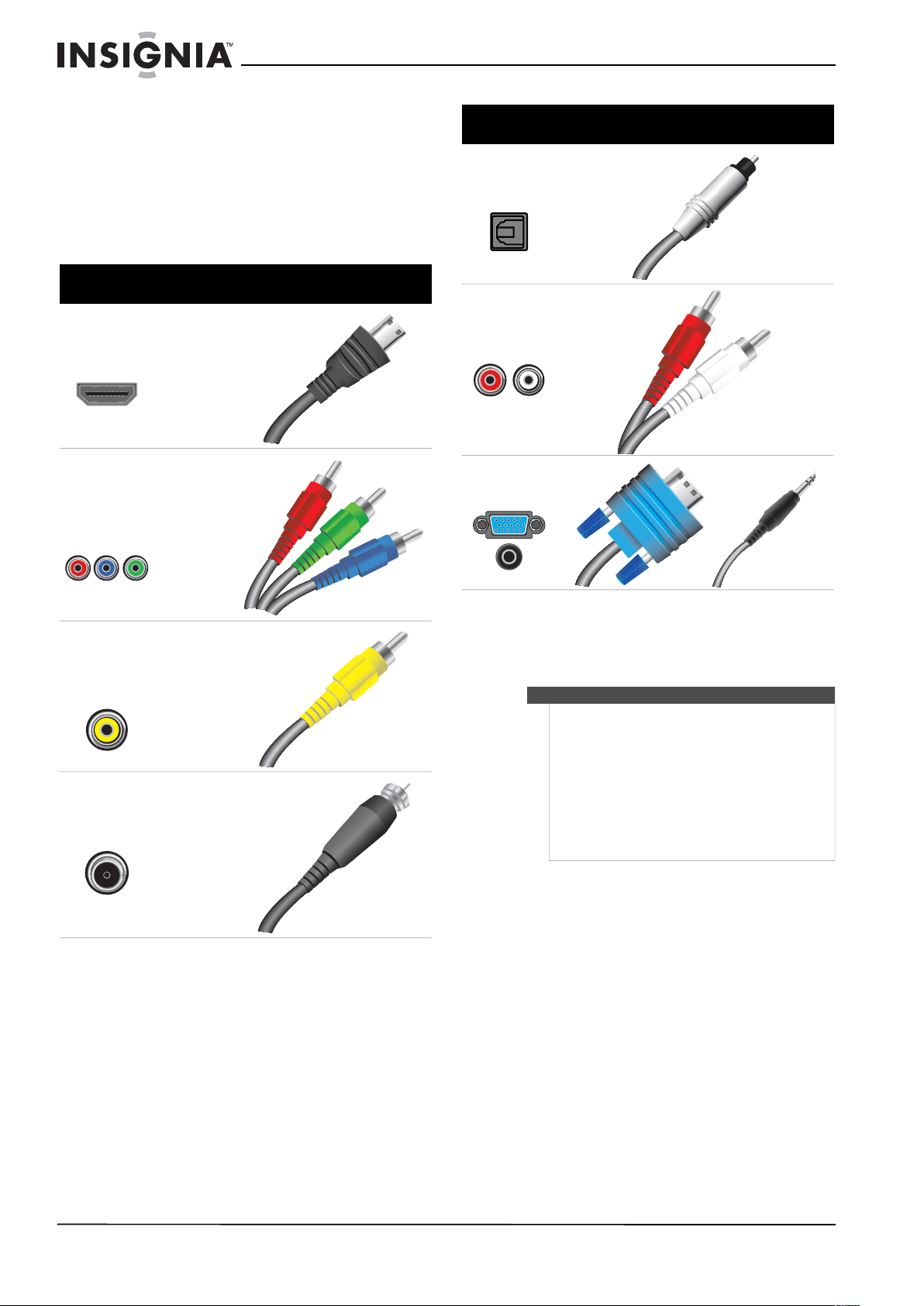

Connection type
and jack
Video quality Cable connector
HDMI
video/audio
Best (use this
if your devices
have HDMI)
Component
video (requires
an audio
connection)
Better than
composite or
coaxial
Composite video
(requires an
audio
connection)
Better than
coaxial
Coaxial
video/audio
Good
Connection type
and jack
Cable connectors
Digital optical
audio (SPDIF)
Analog audio
VGA (computer)
video and audio
Cautions
• Check the jacks for position and type before
making any connections.
• Loose connections can result in image or color
problems. Make sure that all connections are
tight and secure.
• The external audio/video equipment shown
may be different from your equipment. If you
have questions, refer to the documentation that
came with your equipment.
• Always unplug the power cord when
connecting external equipment.
13
Insignia 15"/19"/22"/24" LED-LCD TV
www.insigniaproducts.com
Connecting power
To connect the power:
• Plug the AC power cord into a power outlet.
Connecting a cable or satellite box
Many cable or satellite TV boxes have more than
one connection type. To get the best video, you
should use the best connection type available. For
more information, see “What connection should I
use?” on page 12.

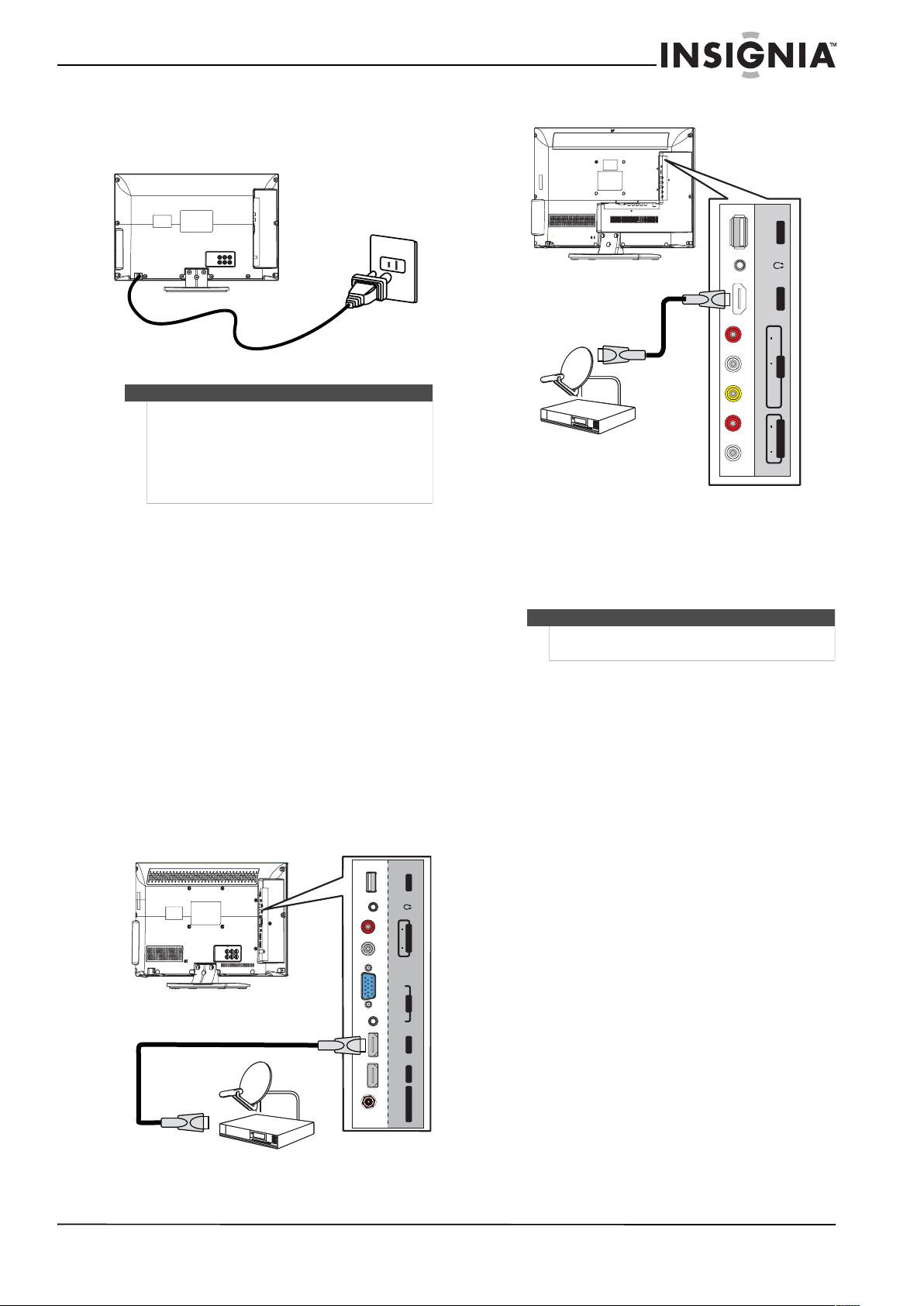

Using HDMI (best)
To connect a cable or satellite box using HDMI:
1 Make sure that your TV’s power cord is
unplugged, and all connected equipment is
turned off.
2 Connect the incoming cable from the cable wall
jack to the cable-in jack on the cable or satellite
box.
3 Connect an HDMI cable (not included) to one of
the HDMI jacks on your TV and to the HDMI jack
on the cable or satellite box.
15-inch and 19-inch models
22-inch and 24-inch models
4 Plug your TV’s power cord into a power outlet,
turn on your TV, then turn on the cable or
satellite box.
5 Go through the Setup Wizard on page 28.
Cautions
• Your TV should only be operated from the
power source indicated on the label.
• Always unplug the AC power cord from the
power outlet when you will not be using your
TV for an extended period of time.
• The AC power cord is permanently attached to
the back of your TV. Do not try to pull it out.
USB
VGAAUDIO
HDMI 1HDMI 2
ANT/CABLE IN
AUDIOL R
AUDIO OUTPC IN
AR C
HDMI cable
Cable or satellite box
Note
An HDMI cable carries both audio and video. You do
not need to use any audio cables.
USBHDMI 2
AUDIOL R
AUDIO OUT
AUDIOL R
AV IN
VIDEO
ARC
HDMI cable
Cable or satellite box
You can also use the HDMI 1
jack on the back of your TV.
14
NS-15E720A12/NS-19E720A12/NS-22E730A12/NS-24E730A12 Insignia 15"/19"/22"/24" LED-LCD TV
www.insigniaproducts.com

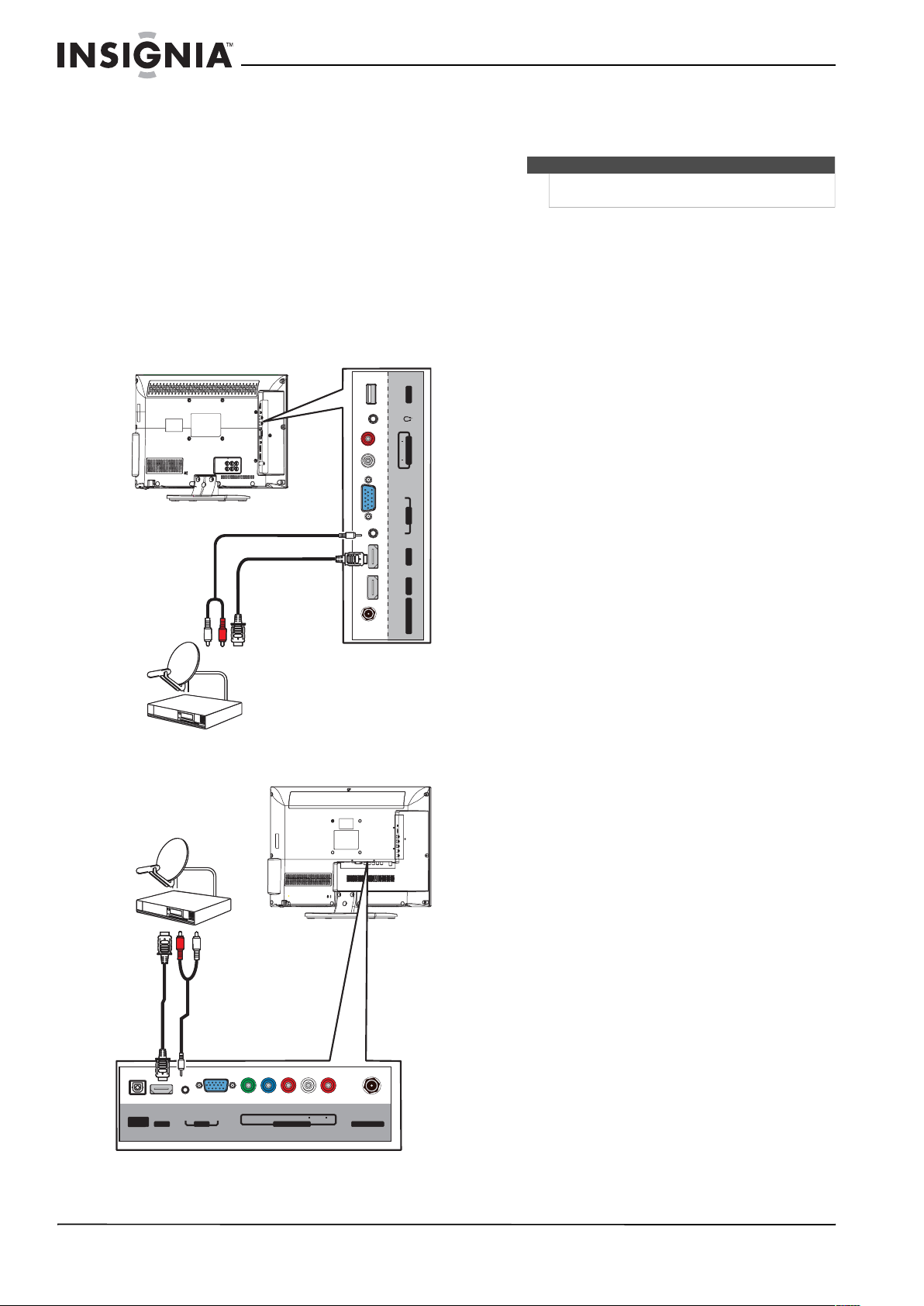

Using DVI (same as HDMI but requires a sound
connection)
To connect a cable or satellite box using DVI:
1 Make sure that your TV’s power cord is
unplugged, and all connected equipment is
turned off.
2 Connect the incoming cable from the cable wall
jack to the cable-in jack on the cable box.
3 Connect an HDMI-DVI adapter (not included) to
one end of an HDMI cable (not included).
4 Connect the HDMI-DVI adapter to an HDMI jack
on your TV and to the DVI OUT jack on the cable
or satellite box.
15-inch and 19-inch models
22-inch and 24-inch models
5 Connect a 3.5 mm audio cable (not included) to
the PC AUDIO IN jack on your TV and to the
AUDIO OUT jack on the cable or satellite box.
6 Plug your TV’s power cord into a power outlet,
turn on your TV, then turn on the cable or
satellite box.
7 Go through the Setup Wizard on page 28.
USB
VGAAUDIO
HDMI 1HDMI 2
ANT/CABLE IN
AUDIOL R
AUDIO OUTPC IN
AR C
Cable or satellite box
HDMI cable with
HDMI-DVI adapter
3.5 mm audio cable
VG AA UD IO
HDM I 1
DI GITA L
OU TPU T
AU DI OL R
CO MP ON ENT INPC I N
ANT/C A BLE I N
Y PB P R
Cable or satellite box
HDMI cable with
HDMI-DVI adapter
3.5 mm audio cable
Note
When you connect the audio using the PC AUDIO IN
jack, the audio output is analog.
15
Insignia 15"/19"/22"/24" LED-LCD TV
www.insigniaproducts.com

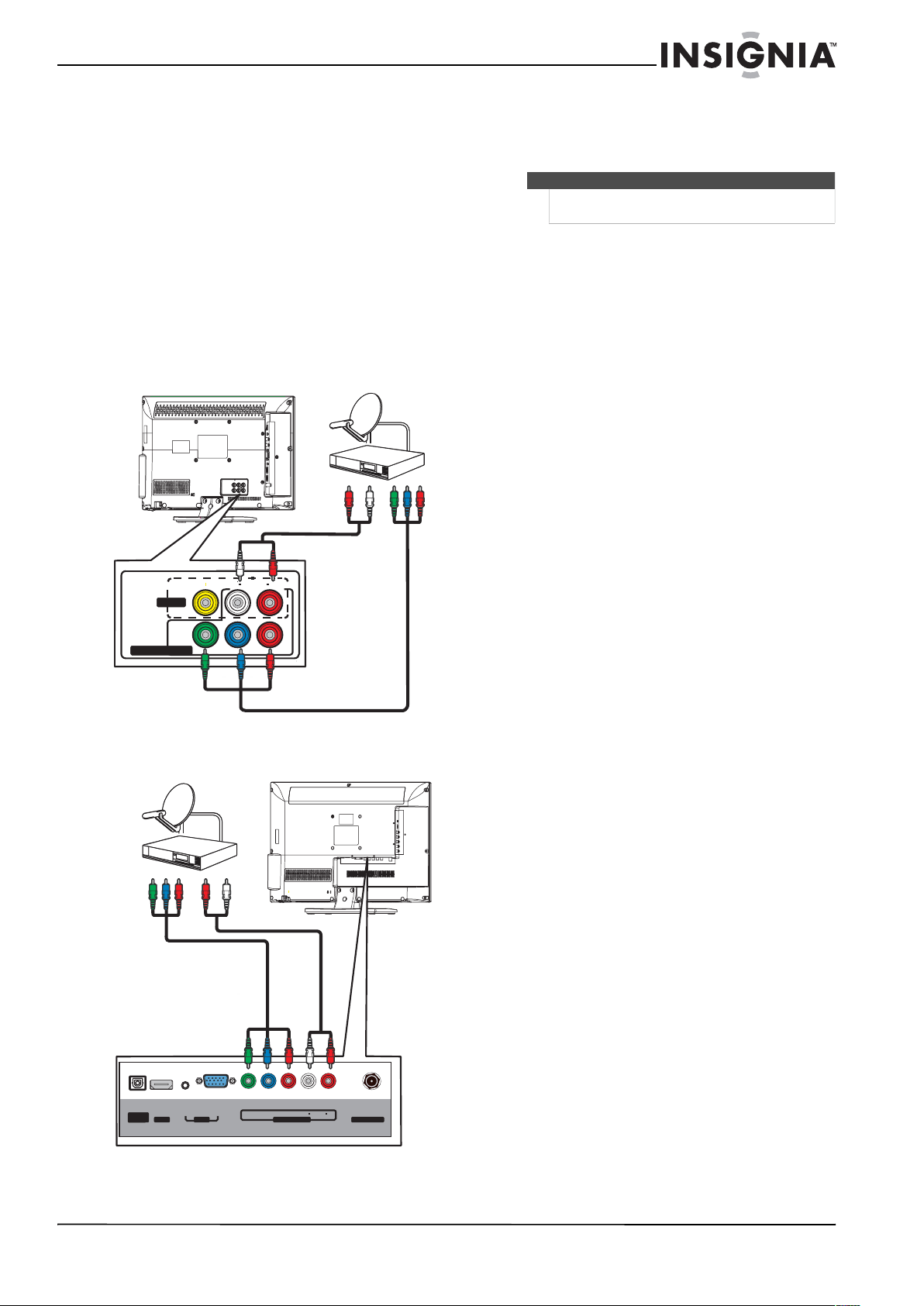

Using component video (better)
To connect a cable or satellite box using
component video:
1 Make sure that your TV’s power cord is
unplugged, and all connected equipment is
turned off.
2 Connect the incoming cable from the cable wall
jack to the cable-in jack on the cable box.
3 Connect a component video cable (included) to
the COMPONENT IN Y/P
B
/P
R
video jacks and
the L/R AUDIO jacks next to the
COMPONENT IN Y/P
B
/P
R
on your TV and the
component video and audio out jacks on the
cable or satellite box.
15-inch and 19-inch models
22-inch and 24-inch models
4 Connect an audio cable (included) to the
AUDIO L/R next to the COMPONENT IN jacks
on your TV and to the audio out jacks on the
cable or satellite TV box.
5 Plug your TV’s power cord into a power outlet,
turn on your TV, then turn on the cable or
satellite box.
6 Go through the Setup Wizard on page 28.
AUDIO
L RVIDEO
AV IN
COMPONENT IN
Y P
B
P
R
Audio cable
Cable or satellite box
Cables are often
color-coded to
match color-coded
jacks.
VG AA UD IO
HDM I 1
DI GITA L
OU TPU T
AU DI OL R
CO MP ON ENT INPC I N
ANT/C A BLE I N
Y PB P R
Audio cable
C
a
bl
e or sate
ll
ite
b
ox
Component video cable
Cables are often color-coded
to match color-coded jacks.
Note
When you connect the audio using the AUDIO L/R
audio jacks, the audio output is analog.
16
NS-15E720A12/NS-19E720A12/NS-22E730A12/NS-24E730A12 Insignia 15"/19"/22"/24" LED-LCD TV
www.insigniaproducts.com

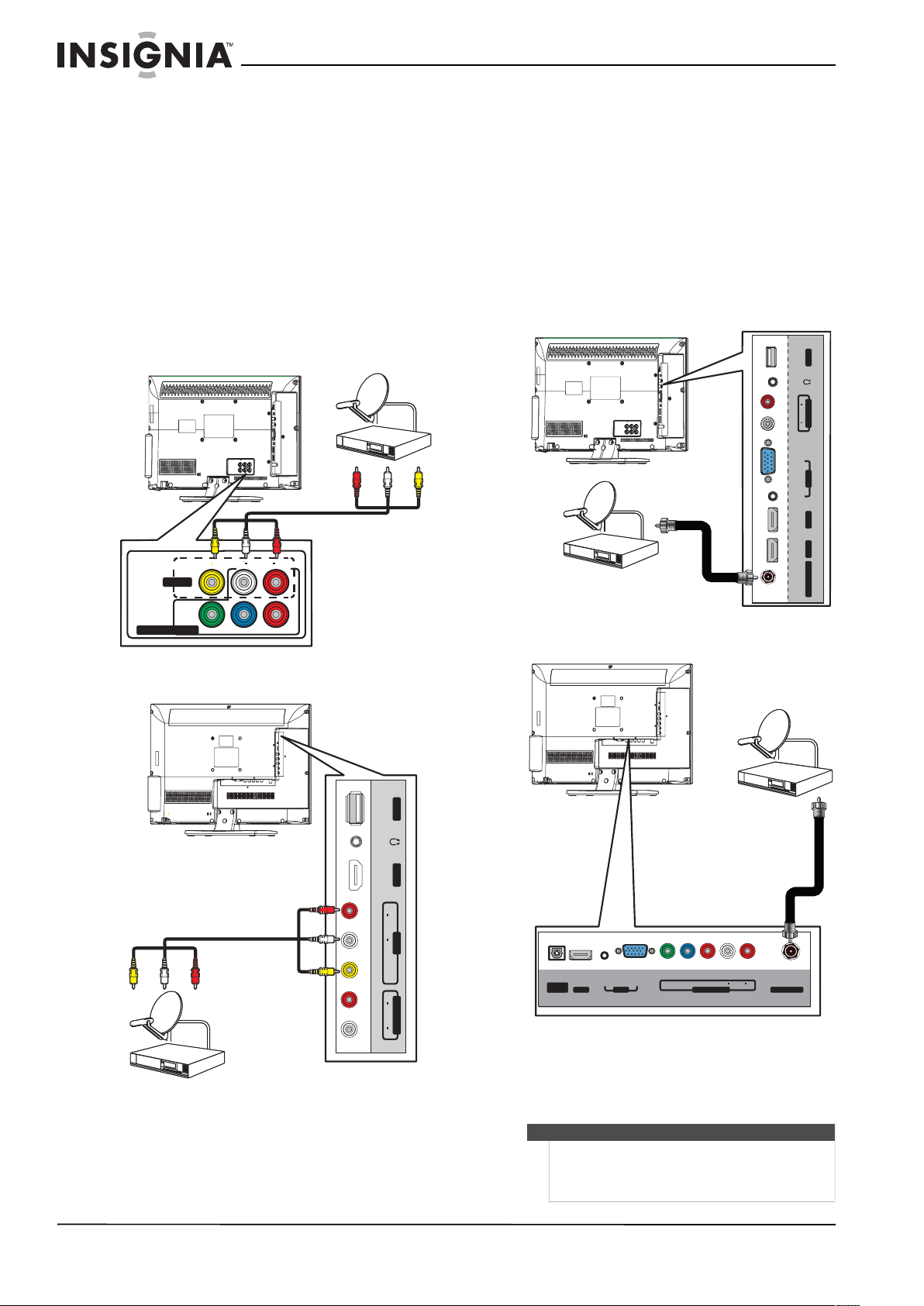

Using composite video (good)
To connect a cable or satellite box using
composite video:
1 Make sure that your TV’s power cord is
unplugged, and all connected equipment is
turned off.
2 Connect the incoming cable from the cable wall
jack to the cable-in jack on the cable box.
3 Connect an A/V cable (not included) to the
AV IN VIDEO jack and AUDIO L/R jacks next to
the AV IN VIDEO jack on your TV and to the
composite video and audio out jacks on the
cable or satellite box.
15-inch and 19-inch models
22-inch and 24-inch models
4 Plug your TV’s power cord into a power outlet,
turn on your TV, then turn on the cable or
satellite box.
5 Go through the Setup Wizard on page 28.
Using coaxial (good)
To connect a cable or satellite box using coaxial:
1 Make sure that your TV’s power cord is
unplugged, and all connected equipment is
turned off.
2 Connect the incoming cable from the cable wall
jack to the cable-in jack on the cable or satellite
box.
3 Connect a coaxial cable (not included) to the
ANT/CABLE IN jack on your TV and to the
coaxial out jack on the cable or satellite box.
15-inch and 19-inch models
22-inch and 24-inch models
4 Plug your TV’s power cord into a power outlet,
turn on your TV, then turn on the cable or
satellite box.
5 Go through the Setup Wizard on page 28.
AUDIO
L RVIDEO
AV IN
COMPONENT IN
Y P
B
P
R
Cable or satellite box
A/V cable
Cables are often
color-coded to
match color-coded
jacks.
USBHDMI 2
AUDIO
L R
AUDIO OUT
AUDIO
L R
AV IN
VIDEO
ARC
Cable or satellite box
A/V cable
Cables are often
color-coded to
match color-coded
jacks.
Notes
• Use a coaxial cable to eliminate interference and
noise from radio waves.
• Do not bundle the coaxial cable with the power
cord or other cables.
USB
VGAAUDIO
HDMI 1HDMI 2
ANT/CABLE IN
AUDIO
L R
AUDIO OUTPC IN
AR C
Cable or satellite box
Coaxial cable
VG AAU DI O
HDM I 1
DIGITAL
OU TPU T
AU DI O
L R
CO MP ONEN T INPC I N
ANT/C A BLE IN
Y PB PR
Cable or satellite box
Coaxial cable
17
Insignia 15"/19"/22"/24" LED-LCD TV
www.insigniaproducts.com

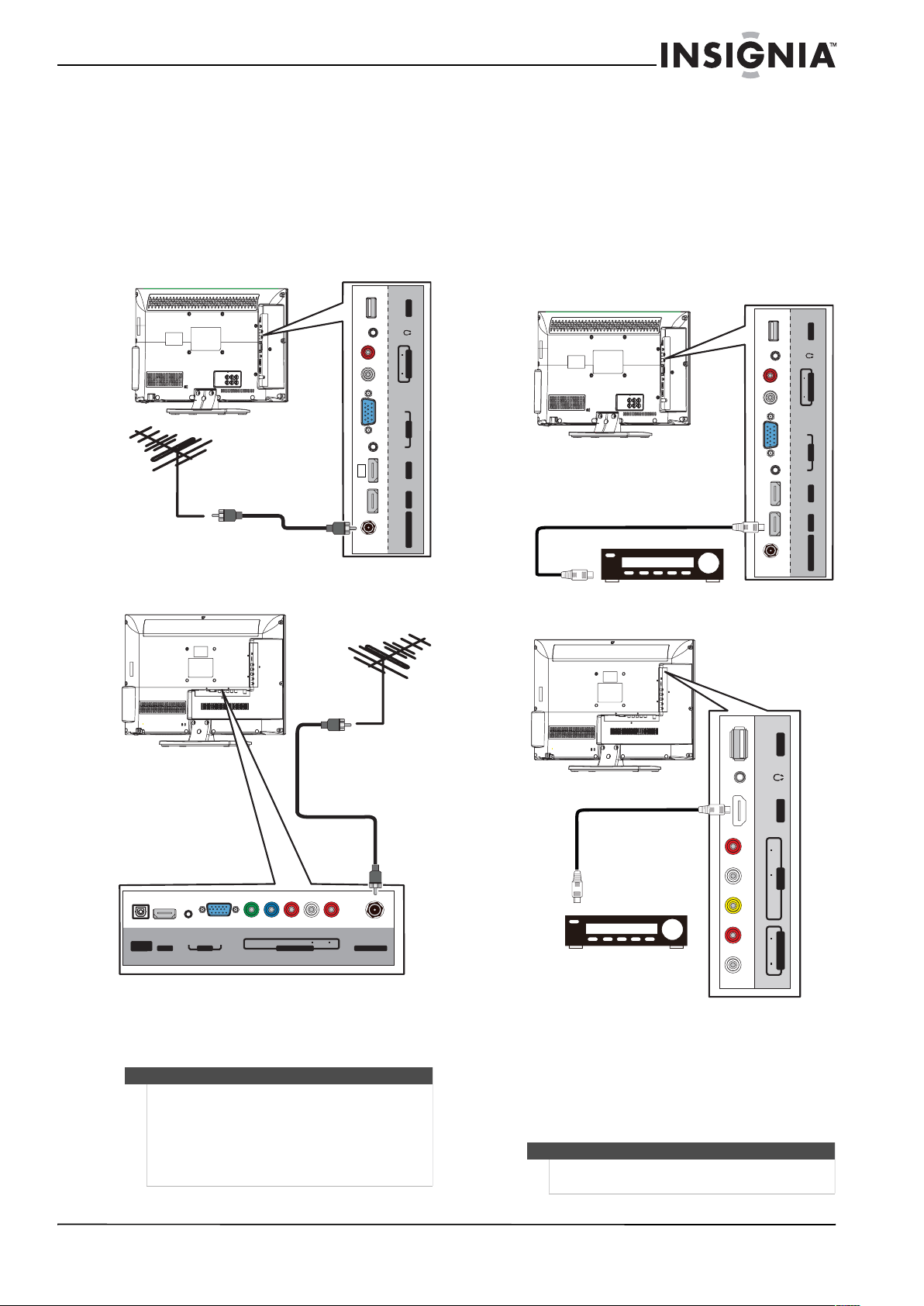

Connecting an antenna or cable TV (no box)
To connect an antenna or cable TV (no box):
1 Make sure that your TV’s power cord is
unplugged, and all connected equipment is
turned off.
2 Connect a coaxial cable to the ANT/CABLE IN
jack on your TV and to the antenna or cable TV
wall jack.
15-inch and 19-inch models
22-inch and 24-inch models
3 Plug your TV’s power cord into a power outlet,
then turn on your TV.
4 Go through the Setup Wizard on page 28.
Connecting a DVD or Blu-ray player
Using HDMI (best)
To connect a DVD or Blu-ray player using HDMI:
1 Make sure that your TV’s power cord is
unplugged and the DVD or Blu-ray player is
turned off.
2 Connect an HDMI cable (not included) to an
HDMI jack on your TV and to the HDMI OUT
jack on the DVD or Blu-ray player.
15-inch and 19-inch models
22-inch and 24-inch models
3 Plug your TV’s power cord into a power outlet,
turn on your TV, then turn on the DVD or Blu-ray
player.
4 Press INPUT to open the INPUT SOURCE list.
5 Press
or
to highlight HDMI 1 or HDMI 2,
then press ENTER.
Notes
• Use a coaxial cable to eliminate interference and
noise from radio waves.
• Do not bundle the coaxial cable with the power
cord or other cables.
• If the antenna is not installed correctly, contact
qualified service personnel to correct the
problem.
USB
VGAAUDIO
HDMI 1HDMI 2ANT/CABLE IN
AUDIOL R
AUDIO OUTPC IN
AR C
Coaxial cable
VG AAU DI O
HDM I 1
DI GITAL
OU TPU T
AU DI OL R
CO MP ONENT INPC I N
ANT/C AB LE IN
Y PB PR
Coaxial cable
Note
You can also press HDMI repeatedly to select the
DVD or Blu-ray player.
USB
VGAAUDIO
HDMI 1HDMI 2
ANT/CABLE IN
AUDIO
L R
AUDIO OUTPC IN
AR C
DVD or Blu-ray player
USBHDMI 2
AUDIOL R
AUDIO OUT
AUDIOL R
AV IN
VIDEO
ARC
DVD or Blu-ray player
18
NS-15E720A12/NS-19E720A12/NS-22E730A12/NS-24E730A12 Insignia 15"/19"/22"/24" LED-LCD TV
www.insigniaproducts.com
Using DVI (same as HDMI but requires a sound
connection)
To connect a DVD or Blu-ray player using DVI:
1 Make sure that your TV’s power cord is
unplugged and the DVD or Blu-ray player is
turned off.
2 Connect an HDMI-DVI adapter (not included) to
one end of an HDMI cable (not included).
3 Connect the HDMI-DVI adapter to an HDMI jack
on your TV and to the DVI OUT jack on the DVD
or Blu-ray player.
15-inch and 19-inch models
22-inch and 24-inch models
4 Connect a 3.5 mm audio cable (not included) to
the PC IN AUDIO jack on your TV and to the
AUDIO OUT jack on the DVD or Blu-ray player.
5 Plug your TV’s power cord into a power outlet,
turn on your TV, then turn on the DVD or Blu-ray
player.
6 Press INPUT to open the INPUT SOURCE list.
7 Press
or
to select HDMI 1 or HDMI 2, then
press ENTER.
Note
When you connect the audio using the PC IN AUDIO
jack, the audio output is analog.
USB
VGAAUDIO
HDMI 1HDMI 2
ANT/CABLE IN
AUDIO
L R
AUDIO OUTPC IN
AR C
DVD or Blu-ray player
HDMI cable with
HDMI-DVI adapter
3.5 mm audio cable
VG AAU D IO
HDM I 1
DI GI TAL
OU TPU T
AU DIOL R
CO MP ONENT INPC I N
ANT/C AB LE IN
Y PB PR
DVD or Blu-ray player
HDMI cable with
HDMI-DVI adapter
3.5 mm audio cable
Note
You can also press HDMI repeatedly to select the
HDMI 1 or HDMI 2.
19
Insignia 15"/19"/22"/24" LED-LCD TV
www.insigniaproducts.com

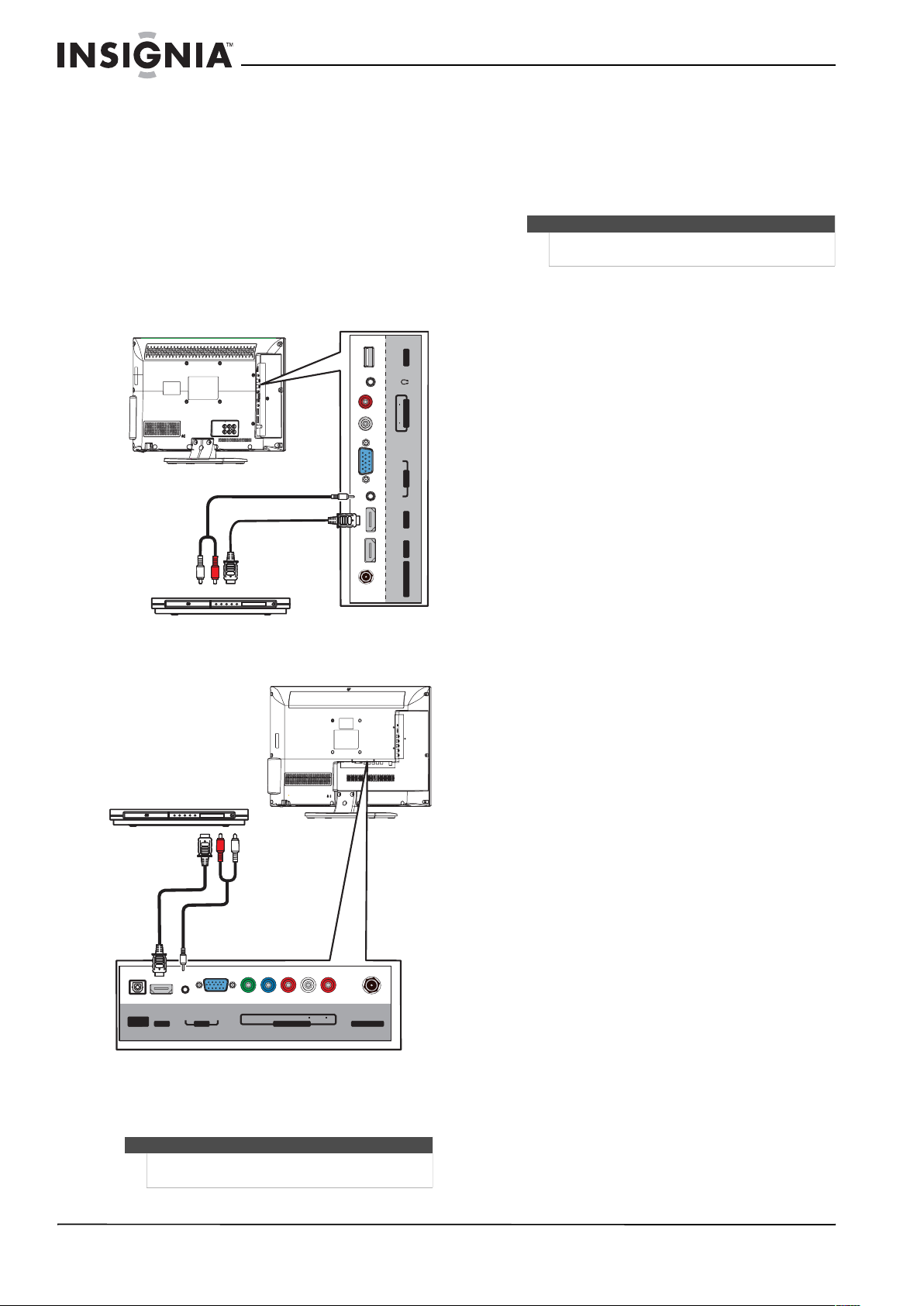

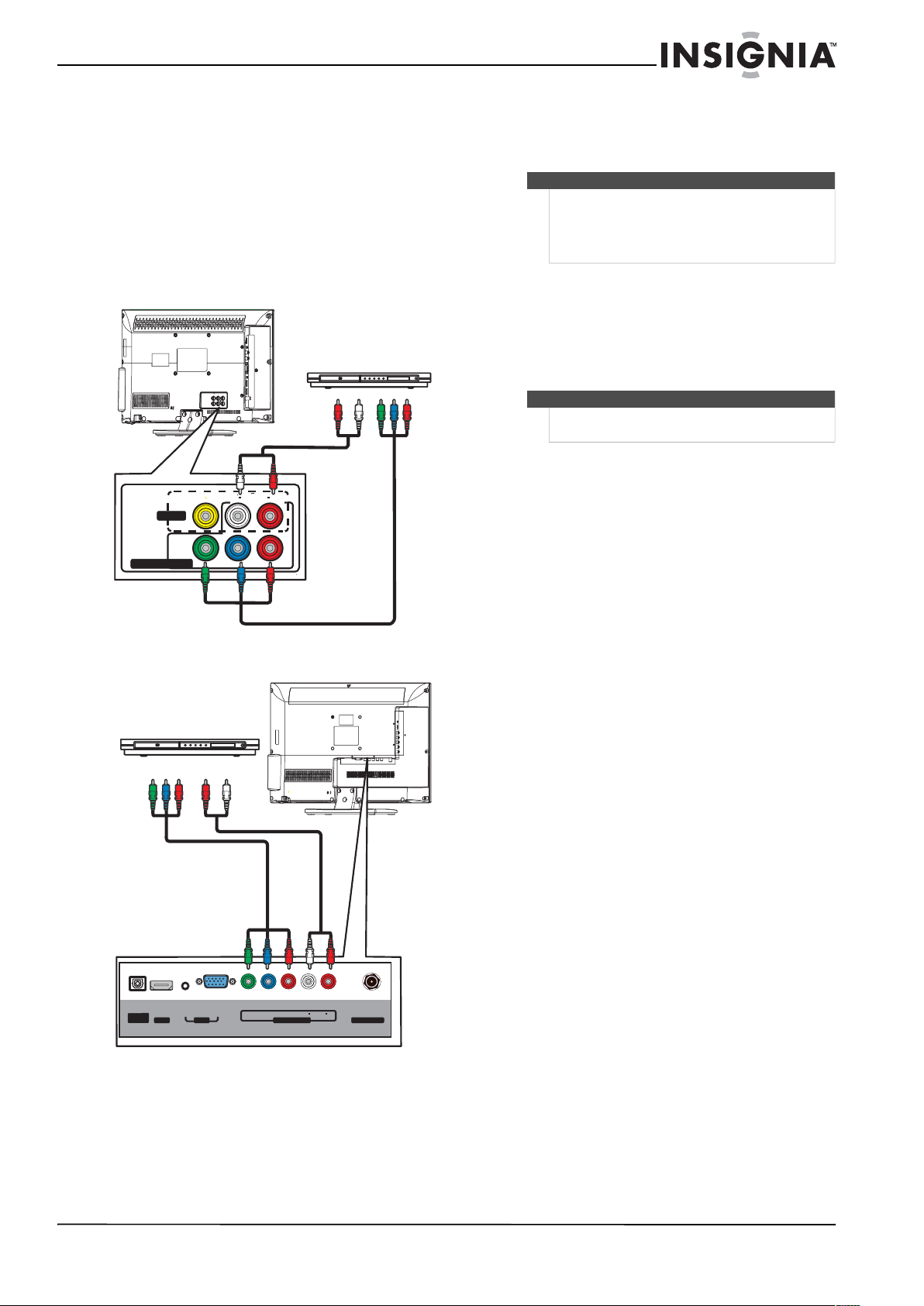

Using component video (better)
To connect a DVD or Blu-ray player using
component video:
1 Make sure that your TV’s power cord is
unplugged and the DVD or Blu-ray player is
turned off.
2 Connect a component video cable (provided) to
the COMPONENT IN Y/P
B
/P
R
jacks on your TV
and to the COMPONENT OUT jacks on the
component video device.
15-inch and 19-inch models
22-inch and 24-inch models
3 Connect an audio cable to the AUDIO L/R jacks
next to the COMPONENT IN jacks on your TV
and to the L/R AUDIO OUT jacks on the
component video device.
4 Plug your TV’s power cord into a power outlet,
turn on your TV, then turn on the DVD or Blu-ray
player.
5 Press INPUT to open the INPUT SOURCE list.
6 Press
or
to select Component, then press
ENTER.
AUDIO
L RVIDEO
AV IN
COMPONENT IN
Y P
B
P
R
Component video cable
Audio cable
Cables are often color-coded to
match color-coded jacks.
DVD or Blu-ray player
VG AA UD IO
HDM I 1
DI GITA L
OU TPU T
AU DI O
L R
CO MP ON ENT INPC I N ANT/C A BLE I N
Y PB P R
Component video cable
Audio cable
Cables are often color-coded to
match color-coded jacks.
DVD or Blu-ray player
Notes
On the 15-inch and 19-inch models, the
COMPONENT IN jacks share the audio jacks with the
AV IN VIDEO jack.
When you connect the audio using the AUDIO L/ R
jacks, the audio output is analog.
Note
You can also press COMP to select the component
DVD or Blu-ray player.
20
NS-15E720A12/NS-19E720A12/NS-22E730A12/NS-24E730A12 Insignia 15"/19"/22"/24" LED-LCD TV
www.insigniaproducts.com

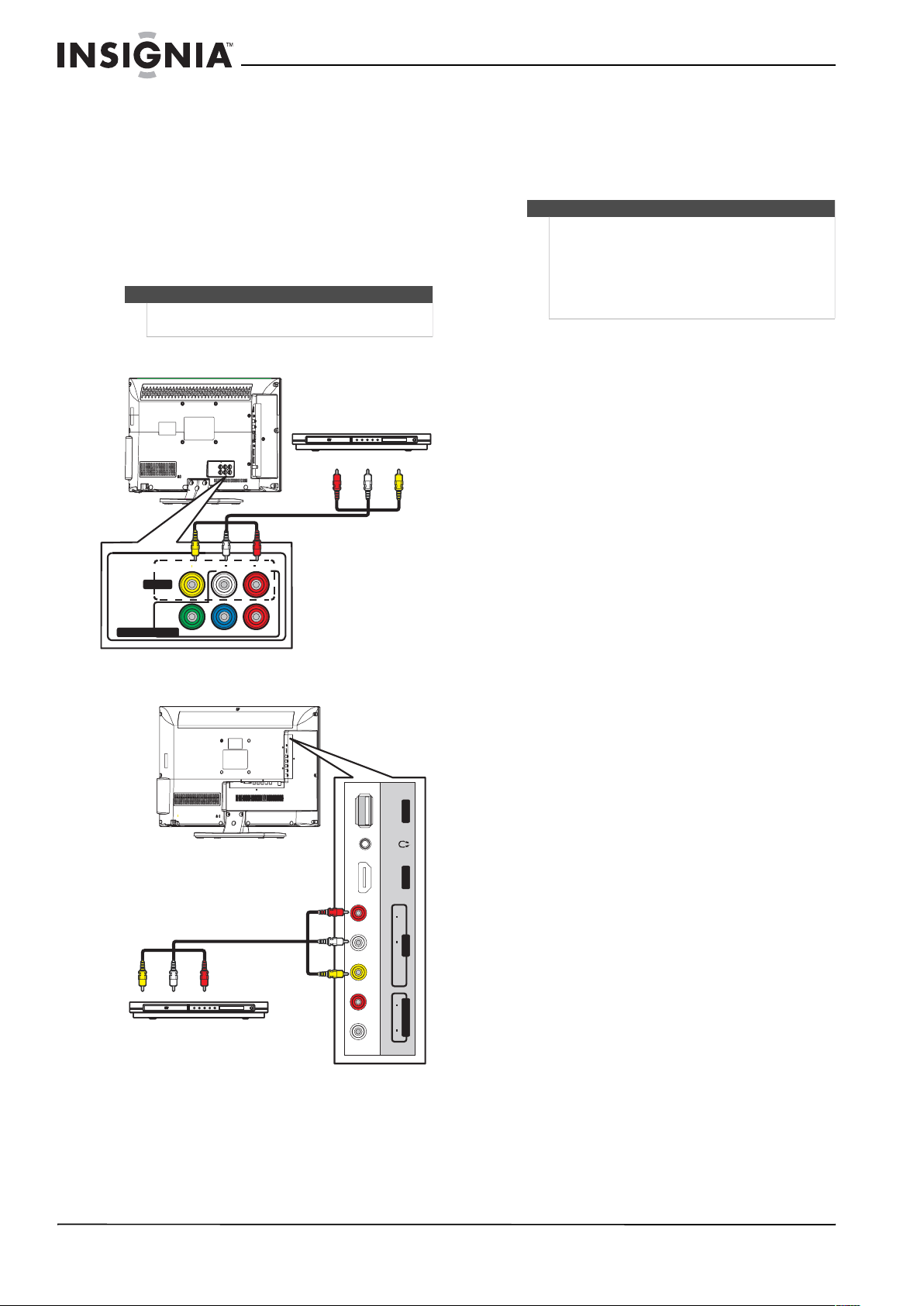

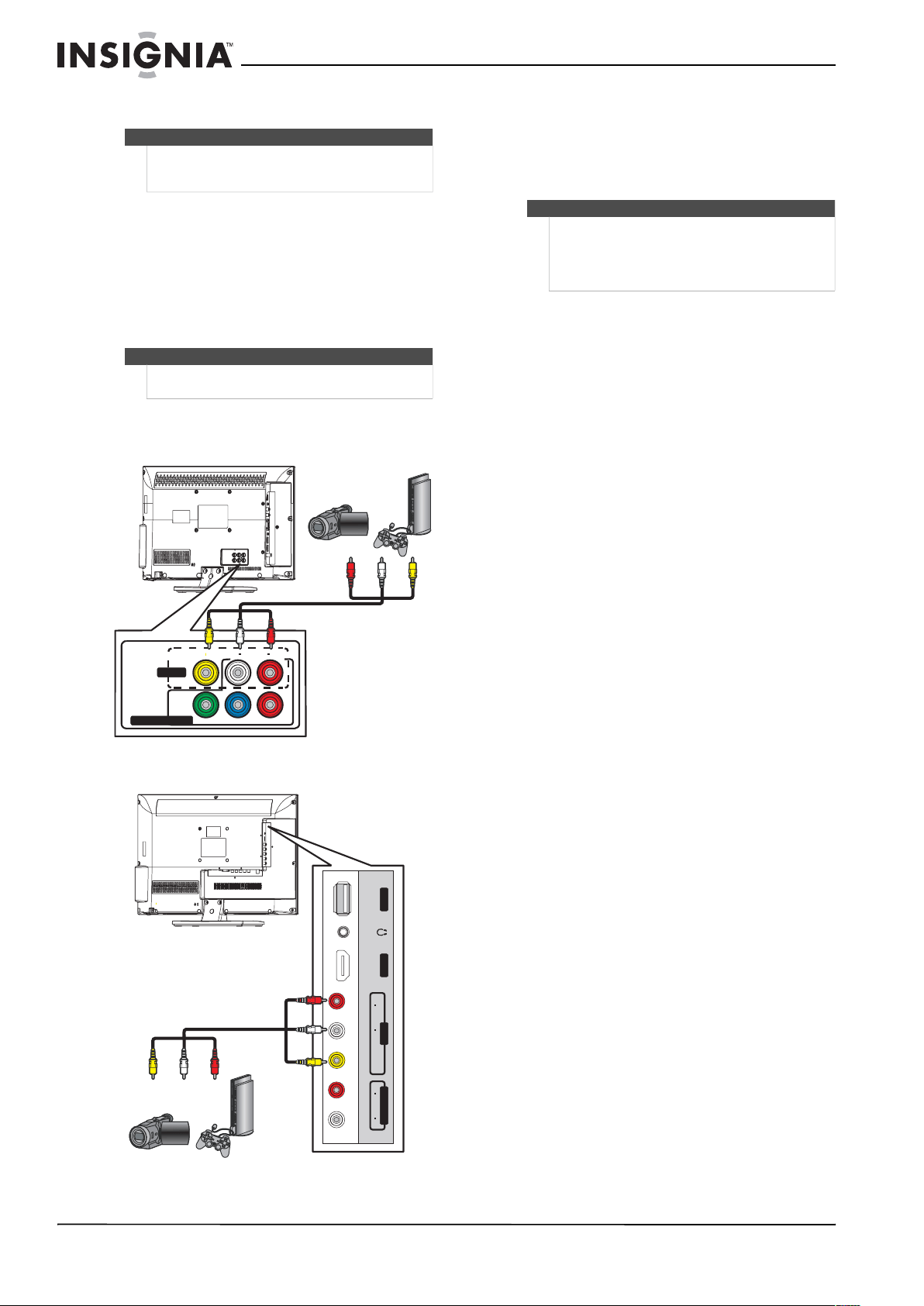

Using composite video (good)
To connect a DVD or Blu-ray player using
composite video:
1 Make sure that your TV’s power cord is
unplugged and the DVD or Blu-ray player is
turned off.
2 Connect an AV cable (not provided) to the
AV IN VIDEO jack and AUDIO L/R jacks next to
the AV IN VIDEO jack on your TV and to the AV
OUT jacks on the DVD or Blu-ray player.
15-inch and 19-inch models
22-inch and 24-inch models
3 Plug your TV’s power cord into a power outlet,
turn on your TV, then turn on the DVD or Blu-ray
player.
4 Press INPUT to open the INPUT SOURCE list.
5 Press
or
to select AV, then press ENTER.
Note
When you connect the audio using the AUDIO L/R
audio jacks, the audio output is analog.
AUDIO
L RVIDEO
AV IN
COMPONENT IN
Y P
B
P
R
DVD or Blu-ray player
Cables are often color-coded to
match color-coded jacks.
Connect yellow to yellow, red to
red, and white to white.
AV cable
USBHDMI 2
AUDIO
L R
AUDIO OUT
AUDIO
L R
AV IN
VIDEO
ARC
DVD or Blu-ray player
Cables are often color-coded to
match color-coded jacks.
Connect yellow to yellow, red to
red, and white to white.
AV cable
Notes
• You can also press VIDEO to select the DVD or
Blu-ray player.
• On the 15-inch and 19-inch models, the
AV IN VIDEO jack share the audio jacks with the
COMPONENT IN jacks.
• When you connect the audio using the
AUDIO L/ R jacks, the audio output is analog.
21
Insignia 15"/19"/22"/24" LED-LCD TV
www.insigniaproducts.com

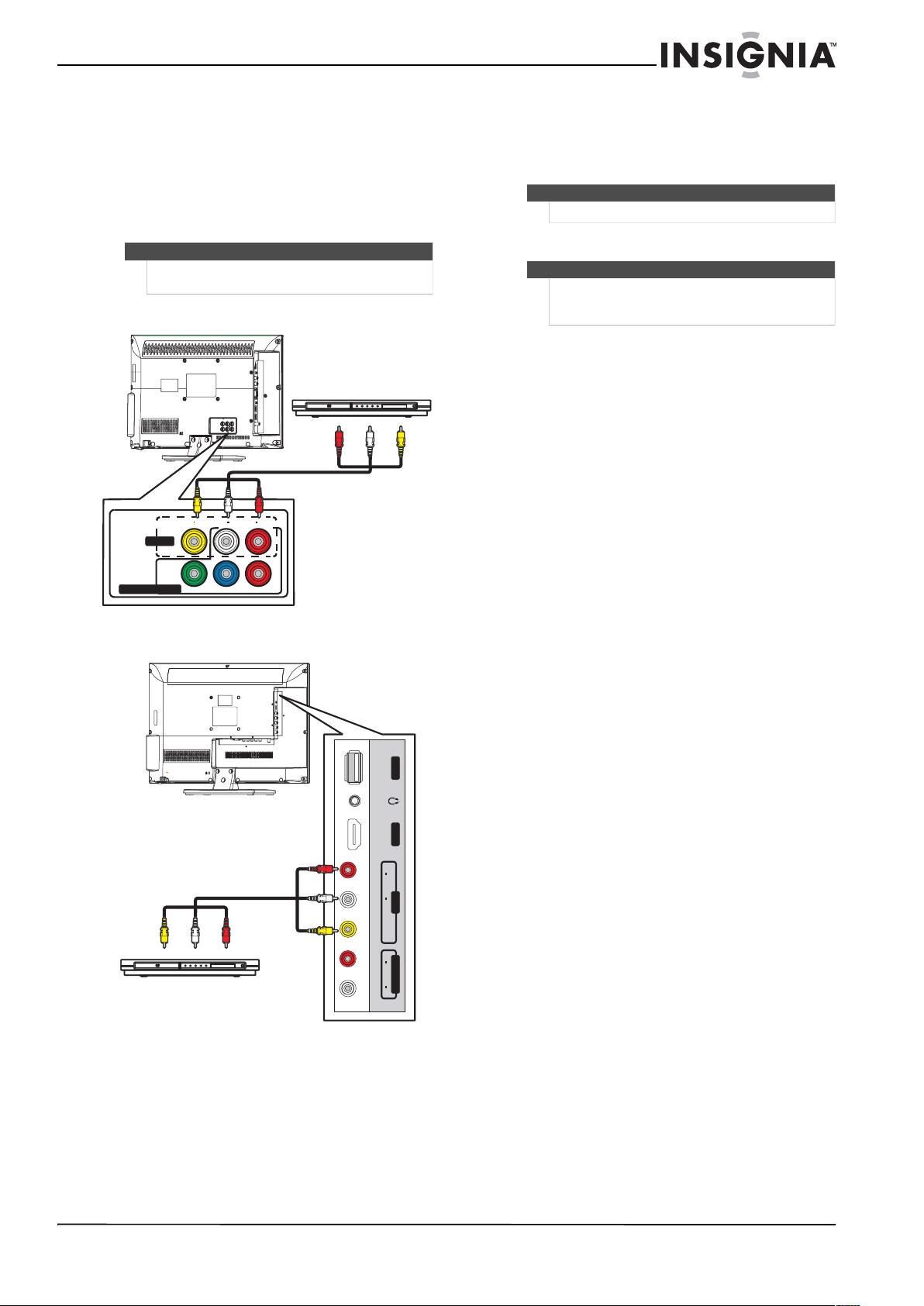

Connecting a VCR
To connect a VCR:
1 Make sure that your TV’s power cord is
unplugged and the VCR is turned off.
2 Connect an AV cable (not provided) to the
AV IN-VIDEO and L/R (audio in) jacks on your
TV and to the AV OUT jacks on the VCR.
15-inch and 19-inch models
22-inch and 24-inch models
3 Plug your TV’s power cord into a power outlet,
turn on your TV, then turn on the VCR.
4 Press INPUT to open the INPUT SOURCE list.
5 Press
or
to select AV, then press ENTER.
6 Insert a videotape, then press PLAY on the VCR.
Note
When you connect the audio using the AUDIO L/R
jacks, the audio output is analog.
AUDIO
L RVIDEO
AV IN
COMPONENT IN
Y P
B
P
R
VCR
Cables are often color-coded to
match color-coded jacks.
Connect yellow to yellow, red to
red, and white to white.
AV cable
USBHDMI 2
AUDIO
L R
AUDIO OUT
AUDIO
L R
AV IN
VIDEO
ARC
VCR
Cables are often color-coded to
match color-coded jacks.
Connect yellow to yellow, red to
red, and white to white.
AV cable
Note
You can also press VIDEO to select the VCR.
Note
On the 15-inch and 19-inch models, the AV IN VIDEO
jack shares the AUDIO L/R jacks with the
COMPONENT IN video jacks.
22
NS-15E720A12/NS-19E720A12/NS-22E730A12/NS-24E730A12 Insignia 15"/19"/22"/24" LED-LCD TV
www.insigniaproducts.com
Connecting a camcorder or game console
To connect a camcorder or game console:
1 Make sure that your TV’s power cord is
unplugged and the camcorder or game console
is turned off.
2 Connect an AV cable (not provided) to the
AV IN VIDEO jack and AUDIO L/R jacks next to
the AV IN VIDEO on your TV and to the AV OUT
jacks on the camcorder or game console.
15-inch and 19-inch models
22-inch and 24-inch models
3 Plug your TV’s power cord into a power outlet,
turn on your TV, then turn on the camcorder or
game console.
4 Press INPUT to open the INPUT SOURCE list.
5 Press
or
to select AV, then press ENTER.
Note
If your camcorder or game console has an HDMI
connection, we recommend that you use the HDMI
connection to get the best quality possible.
Note
When you connect the audio using the L and R audio
jacks, the audio output is analog.
AUDIOL RVIDEO
AV IN
COMPONENT IN
Y P
B
P
R
Cables are often color-coded to
match color-coded jacks.
Connect yellow to yellow, red to
red, and white to white.
Camcorder or
game console
AV cable
USBHDMI 2
AUDIO
L R
AUDIO OUT
AUDIO
L R
AV IN
VIDEO
ARC
Cables are often color-coded to
match color-coded jacks.
Connect yellow to yellow, red to
red, and white to white.
Camcorder or
game console
AV cable
Notes
• You can also press VIDEO to select the
camcorder or game console.
• On the 15-inch and 19-inch models, the
AV IN VIDEO jack shares the AUDIO L/R jacks
with the COMPONENT IN video jacks.
23
Insignia 15"/19"/22"/24" LED-LCD TV
www.insigniaproducts.com

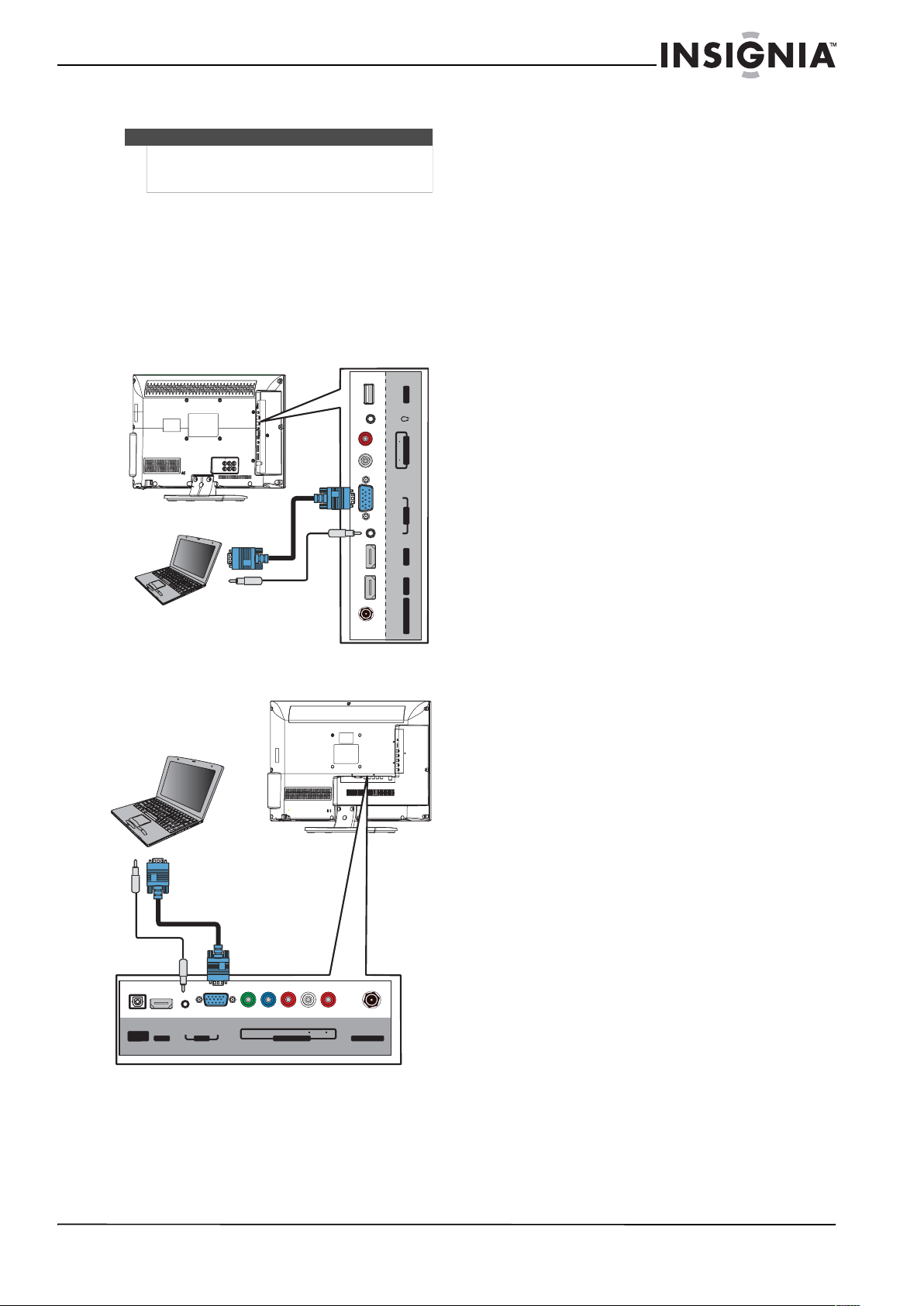

Connecting a computer
Using VGA
To connect a computer using VGA:
1 Make sure that your TV’s power cord is
unplugged and the computer is turned off.
2 Connect a VGA cable (not provided) to the
PC IN VGA jack on your TV and to the VGA jack
on the computer.
15-inch and 19-inch models
22-inch and 24-inch models
3 Connect an audio cable with stereo mini plug to
the PC IN AUDIO jack on your TV and to the
LINE OUT or AUDIO OUT jack on the computer.
4 Plug your TV’s power cord into a power outlet,
turn on your TV, then turn on the computer.
5 Press INPUT to open the INPUT SOURCE list.
6 Press
or
to select VGA, then press ENTER.
7 Adjust the display properties on the computer if
necessary.
Tip
Some computers have an HDMI jack. You can use an
HDMI cable to connect the computer for a better
picture.
USB
VGAAUDIO
HDMI 1HDMI 2
ANT/CABLE IN
AUDIO
L R
AUDIO OUTPC IN
AR C
VGA cable
Audio cable with
stereo mini plug
VG AAU DI O
HDM I 1
DI GITAL
OU TPU T
AU DI OL R
CO MP ONENT INPC I N
ANT/C A BLE IN
Y PB PR
VGA cable
Audio cable with
stereo mini plug
24
NS-15E720A12/NS-19E720A12/NS-22E730A12/NS-24E730A12 Insignia 15"/19"/22"/24" LED-LCD TV
www.insigniaproducts.com

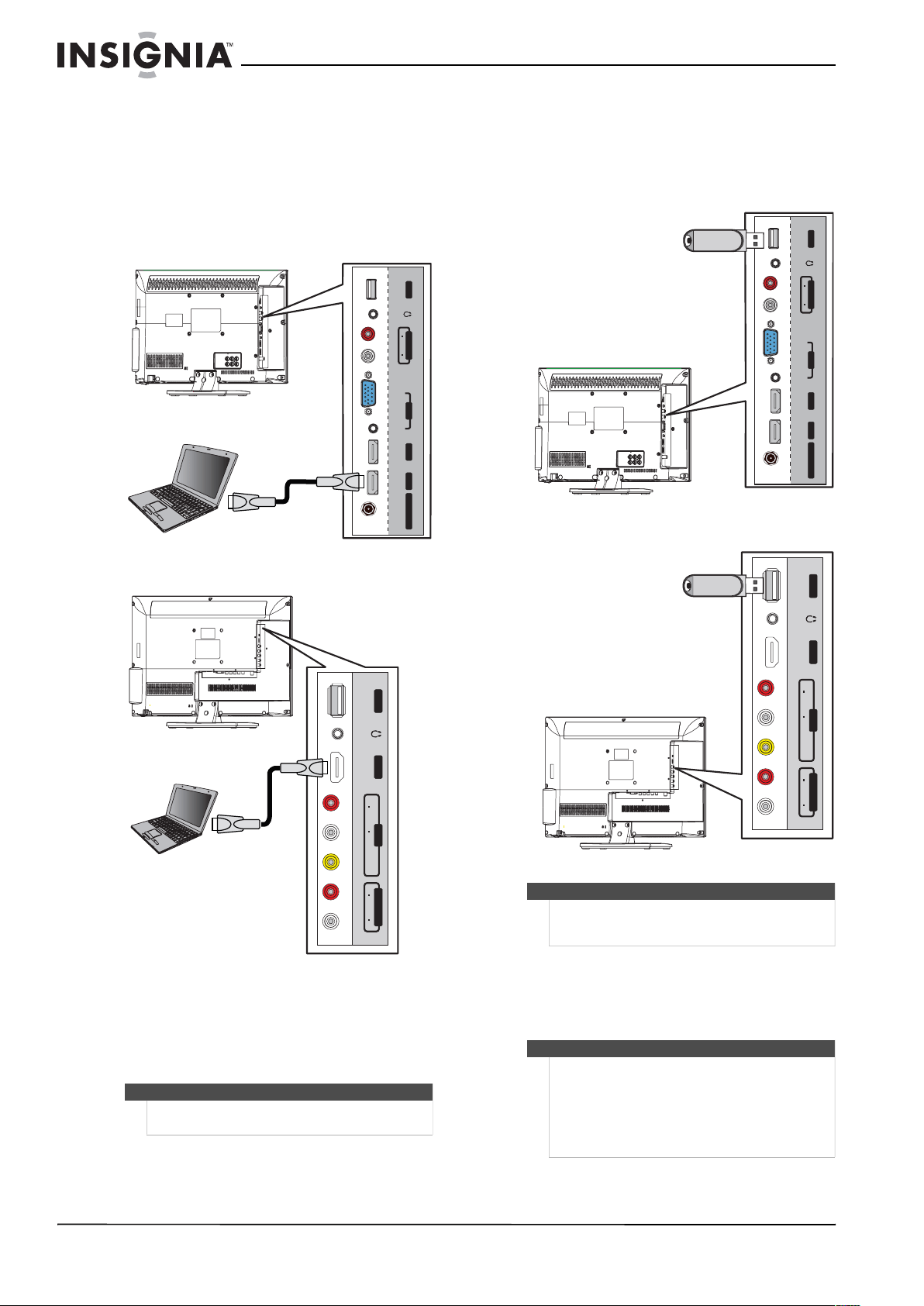

Using HDMI
To connect a computer using HDMI:
1 Make sure that your TV’s power cord is
unplugged and the computer is turned off.
2 Connect an HDMI cable (not included) to an
HDMI jack on your TV and to the HDMI OUT
jack on the computer.
15-inch and 19-inch models
22-inch and 24-inch models
3 Plug your TV’s power cord into a power outlet,
turn on your TV, then turn on the computer.
4 Press INPUT to open the INPUT SOURCE list.
5 Press
or
to highlight HDMI 1 or HDMI 2,
then press ENTER.
Connecting a USB flash drive
To connect a USB flash drive:
• Plug a USB flash drive into the USB port on
your TV.
15-inch and 19-inch models
22-inch and 24-inch models
To play from a USB flash drive:
1 Turn on your TV, then press INPUT to open the
INPUT SOURCE list.
2 Press
or
to select USB, then press ENTER.
Note
You can also press HDMI repeatedly to select HDMI 1
or HDMI 2.
USB
VGAAUDIO
HDMI 1HDMI 2
ANT/CABLE IN
AUDIO
L R
AUDIO OUTPC IN
AR C
HDMI cable
USBHDMI 2
AUDIOL R
AUDIO OUT
AUDIOL R
AV IN
VIDEO
ARC
HDMI cable
Caution
Do not remove the USB flash drive or turn off the TV
while using the USB flash drive. You may lose data or
damage the USB flash drive.
Notes
• Never remove the USB flash drive or turn off
your TV while viewing JPEG pictures.
• The JPEG picture viewer only supports JPEG
format images (with “.jpg” file extensions) and
not all JPEG files are compatible with your TV.
For more information, see “Using a USB flash drive”
on page 55.
USB
VGAAUDIO
HDMI 1HDMI 2
ANT/CABLE IN
AUDIO
L R
AUDIO OUTPC IN
AR C
USB flash
drive
USBHDMI 2
AUDIO
L R
AUDIO OUT
AUDIO
L R
AV IN
VIDEO
ARC
USB flash
drive
25
Insignia 15"/19"/22"/24" LED-LCD TV
www.insigniaproducts.com

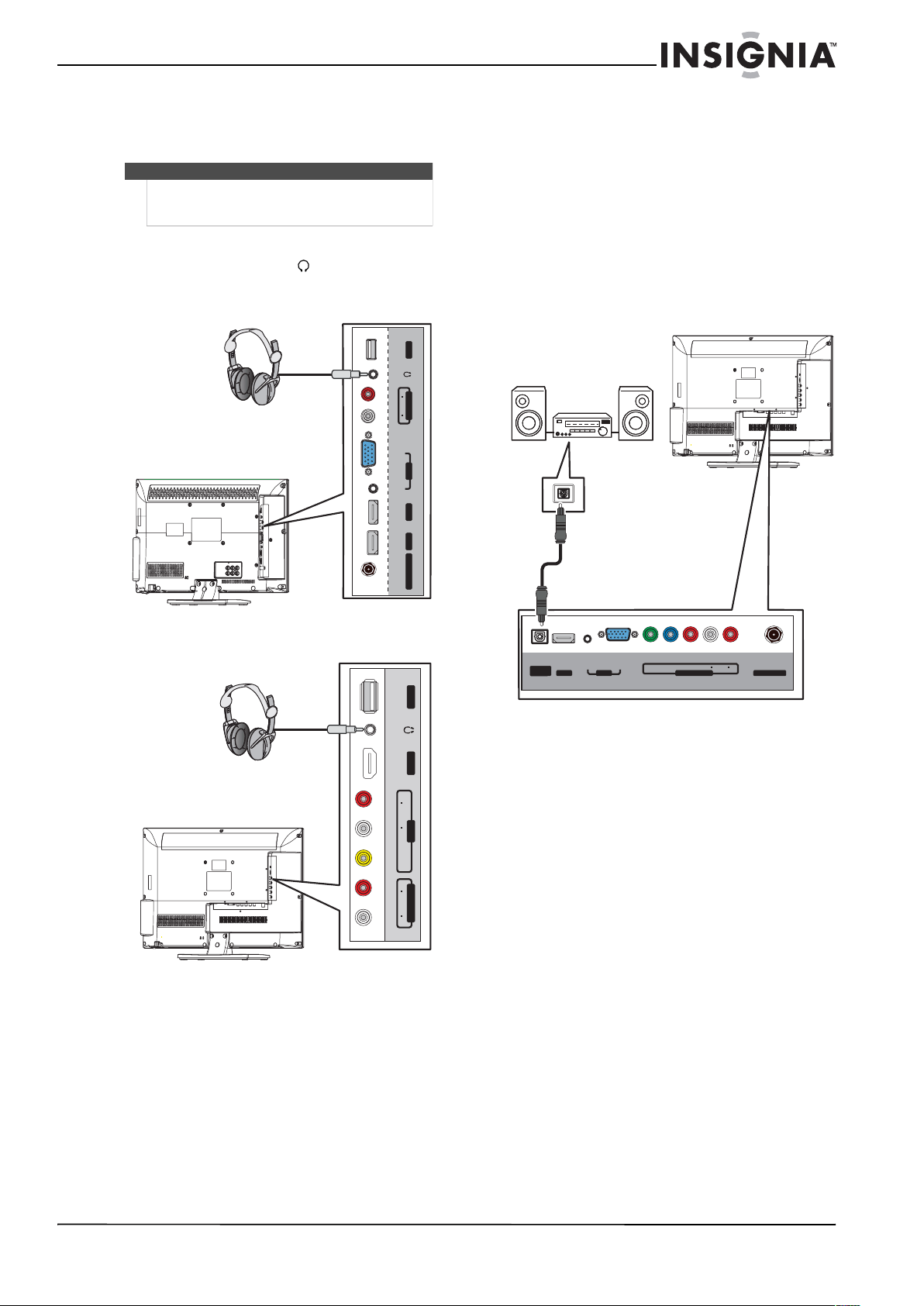

Connecting headphones
The TV speakers are muted when headphones are
attached.
To connect headphones:
• Connect headphones to the (headphone) jack
on your TV.
15-inch and 19-inch models
22-inch and 24-inch models
Connecting a basic home theater system
Using digital audio output (22-inch and 24-inch only)
To connect a basic home theater system using
digital audio output:
1 Make sure that your TV’s power cord is
unplugged and the home theater system is
turned off.
2 Connect a digital optical audio cable to the
DIGITAL OUTPUT jack on your TV and to the
digital optical audio jack on the digital home
theater system.
22-inch and 24-inch models
Warning
Loud noise can damage your hearing. When using
headphones, use the lowest volume setting on your
headphones that still lets you hear the sound.
USB
VGAAUDIO
HDMI 1HDMI 2
ANT/CABLE IN
AUDIO
L R
AUDIO OUTPC IN
AR C
USBHDMI 2
AUDIO
L R
AUDIO OUT
AUDIO
L R
AV IN
VIDEO
ARC
VG AAU DI O
HDM I 1
DI GI TAL
OU TPU T
AU DIO
L R
CO MP ONENT INPC I N
ANT/C AB LE IN
Y PB PR
Digital audio cable
Home theater system
26
NS-15E720A12/NS-19E720A12/NS-22E730A12/NS-24E730A12 Insignia 15"/19"/22"/24" LED-LCD TV
www.insigniaproducts.com

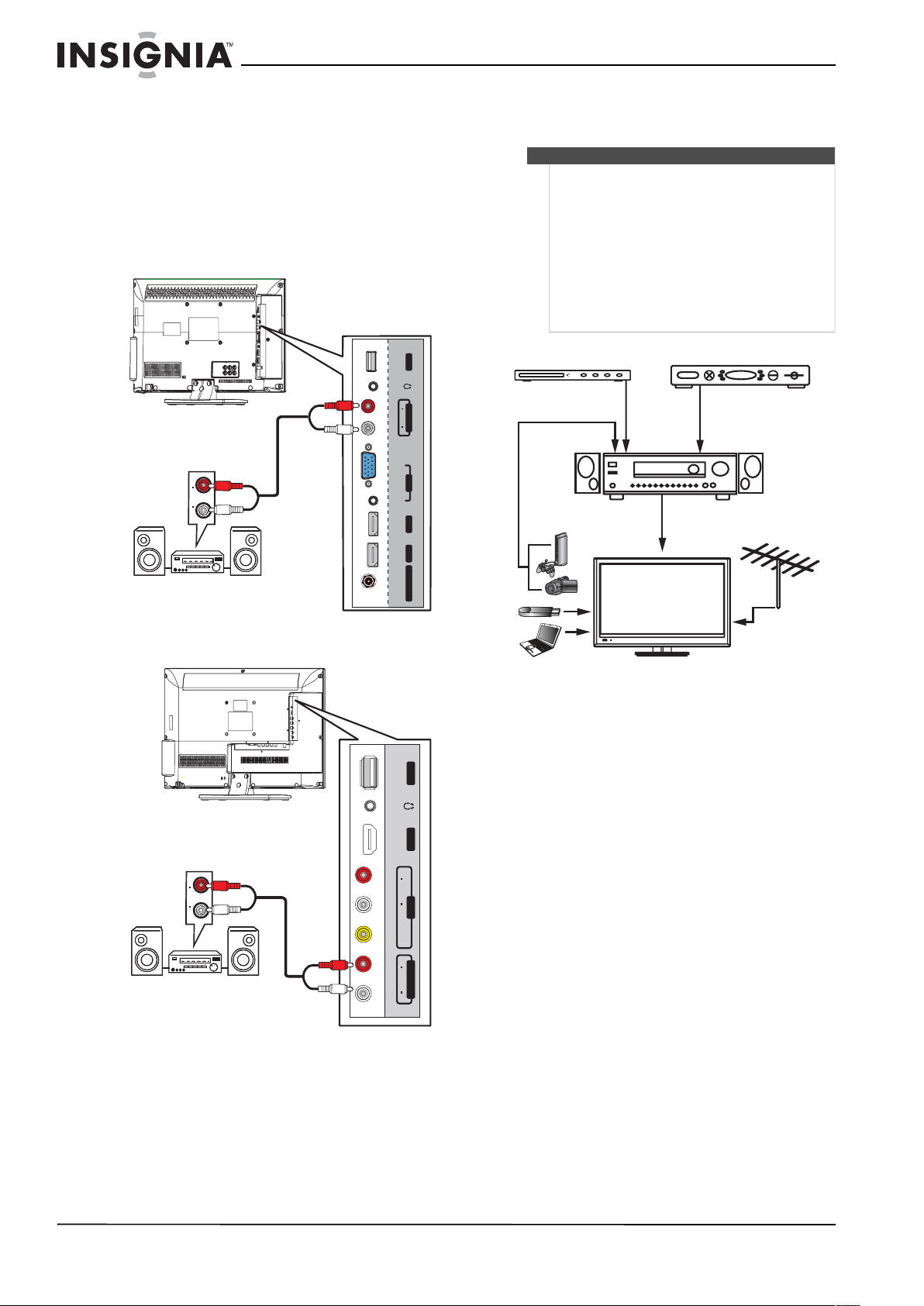

Using analog audio output
To connect a basic home theater system using
analog audio output:
1 Make sure that your TV’s power cord is
unplugged and the home system is turned off.
2 Connect an audio cable to the L/R AUDIO OUT
jack on your TV and to the AUDIO IN jacks on
the home theater system.
15-inch and 19-inch models
22-inch and 24-inch models
Connecting a home theater system with
multiple devices
The connections you make depend on the video
and audio jacks available on your devices. Refer to
the documentation that came with your devices for
connection information.
Just remember to use the best connection types
available for the best picture and sound. For
information about connection types, see “What
connection should I use?” on page 12.
USB
VGAAUDIO
HDMI 1HDMI 2
ANT/CABLE IN
AUDIO
L R
AUDIO OUTPC IN
ARC
AUDIO
L R
Home theater system
Analog audio
cable
USBHDMI 2
AUDIO
L R
AUDIO OUT
AUDIO
L R
AV IN
VIDEO
AR C
AUDIOL R
Home theater system
Analog audio
cable
Notes
When connecting an AV receiver with the ARC
function, we recommend that you connect the
AV receiver’s HDMI OUT jack to your TV’s
HDMI2 (ARC) jack by using an HDMI-ARC compliant
cable.
In the following situations, the HDMI cable will route
Dolby Digital audio to the AV receiver, so you do not
need to connect a separate digital audio cable:
• Have a game console connected to one of your
TV’s HDMI jacks.
• When you watch a program through an antenna
or cable TV connected to the ANT/CABLE IN jack.
Blu-ray player/DVD player/VCR Cable or satellite TV box
AV receiver
Game console or camera
USB flash drive
Computer
Antenna or cable TV
connected directly to
the wall jack
27
Insignia 15"/19"/22"/24" LED-LCD TV
www.insigniaproducts.com

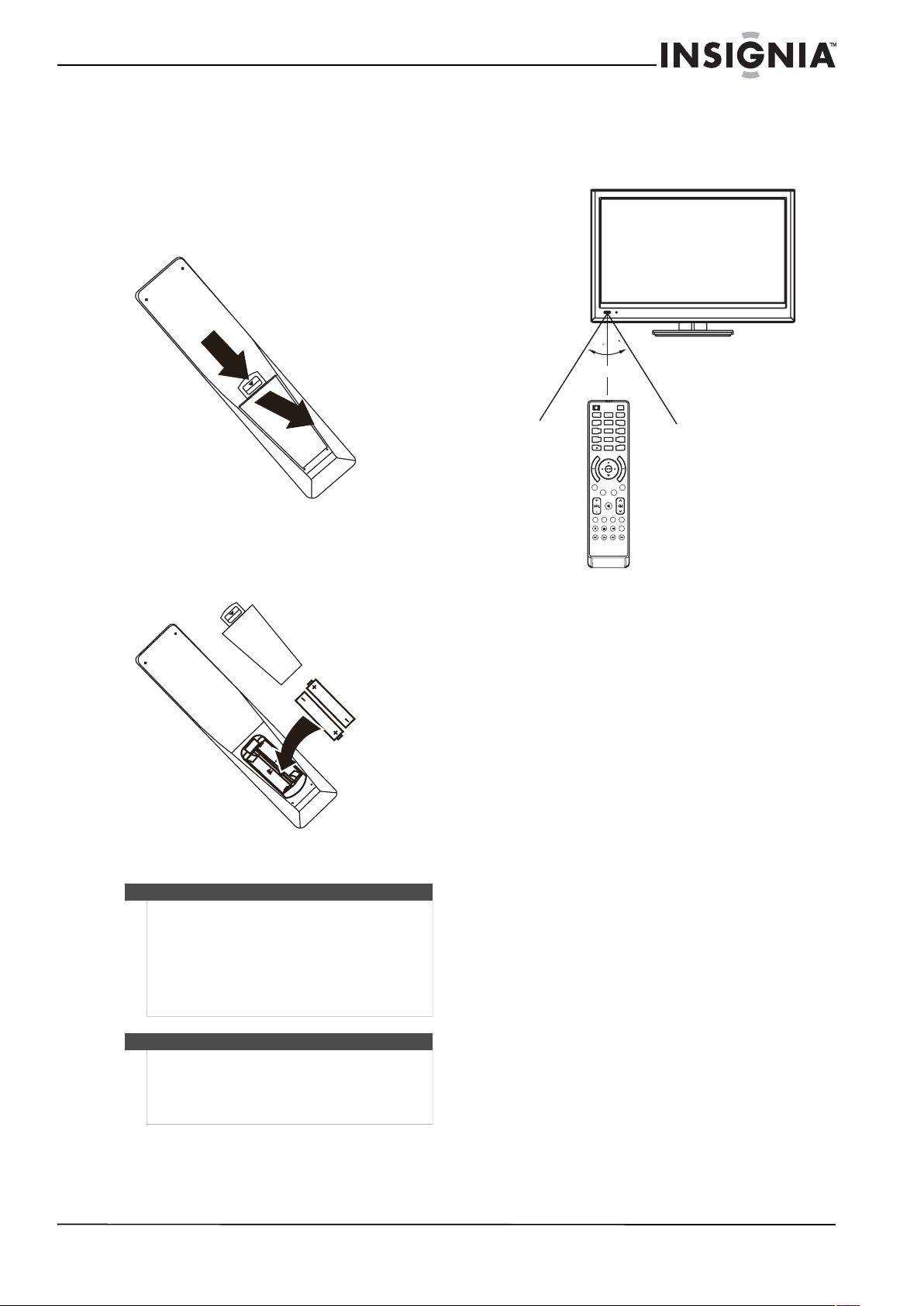

Using the remote control
Installing remote control batteries
To install the remote control batteries:
1 While pressing the release latch on the back of
the remote control, lift the battery cover off the
remote control.
2 Insert two AAA batteries into the battery
compartment. Make sure that you match the +
and – symbols on the batteries with the + and –
symbols in the battery compartment.
3 Replace the battery cover.
Aiming the remote control
To aim the remote control:
• Point the remote control towards the remote
sensor on the front of your TV.
Cautions
• Batteries should not be exposed to excessive
heat, such as sunshine, heat registers, or fire.
• Battery chemicals can cause a rash. If the
batteries leak, clean the battery compartment
with a cloth. If chemicals touch your skin, wash
immediately.
• Make sure that batteries are disposed of
correctly. Do not burn or incinerate.
Cautions
• Do not mix batteries of different types.
• Do not mix old and new batteries.
• If the remote control is not going to be used for
an extended period of time, remove the
batteries.
3
0
3
0
16.5 ft. (5 m)
28
NS-15E720A12/NS-19E720A12/NS-22E730A12/NS-24E730A12 Insignia 15"/19"/22"/24" LED-LCD TV
www.insigniaproducts.com
Turning on your TV for the
first time
The first time you turn on your TV, the Setup Wizard
opens. The Setup Wizard guides you through
setting up basic settings including the menu
language, time setting, picture mode, TV signal
source, and the channel list.
To set up your TV:
1 Make sure that you have:
• Installed the remote control batteries. (See
page 27 for details).
• Connected an antenna, cable TV, or satellite
TV. (See page 13 or 17 for details.)
• Connected the power cord. (See page 13 for
details.)
2 Press (power) to turn on your TV. The Choose
Your Menu Language screen opens.
3 Press
or
to highlight the language you
want, then press ENTER. The Choose Your Time
Setting screen opens.
4 Press
or
to highlight Mode, then press
or
to select Manual (to set the date and
time manually) or Auto (to set the date and time
automatically from a TV signal source based on
the time zone you select).
5 Press
or
to highlight Time Zone, then press
or
to select your time zone. You can select
Eastern, Central, Mountain, Pacific, Alaska,
Hawaii, Newfoundland, or Atlantic.
6 Press
or
to highlight Daylight Savings,
then press
or
to select On (if your viewing
area observes Daylight Savings Time) or Off (if
your viewing area does not observe Daylight
Savings Time).
7 If you selected Manual for Mode, set the date
by pressing
or
to highlight Year, Month, or
Day, then pressing
or
to adjust the setting.
8 If you selected Manual for Mode, set the time
by pressing
or
to highlight Time, then
pressing
or
to select the hour, minute, or
AM/PM field. Press
or
to adjust the setting.
9 Press ENTER. The Choose Your Picture Mode
screen opens.
10 Press
or
to highlight Home Mode or Retail
Mode, then press ENTER.
If you selected Retail Mode, a message appears
asking “Are you sure you want retail mode? In
this mode, ENERGY STAR savings are not
realized.” Select Yes to continue, or select No to
change your selection.
The Choose Your TV Source screen opens.
Note
If you select Auto, the displayed time will be
incorrect until your TV gets the correct time from a
TV signal source.
or or
English
Choose our Menu anguage
Move
OK
E NT ER
ME NU
E XIT
ExitPrevious
Select
Set menu language to English, or
Fran ais
ç
Espa
ñ
ol
Fran ais
ç
Espa
ñ
ol
Move
OK
E NT E R
ME NU
E XIT
ExitPrevious
Se
lect
Choose Your Time Setting
Mode Auto
Time Zone Atlantic
Daylight Savings On
Year
Month October
Day
Time AM
If automatic options are automatically set by TV source
Move
OK
E NT ER
ME NU E XIT
ExitPrevious
Select
Choose Your Picture Mode
Reduces total power consumption
Home Mode
Retail Mode
Analog Channels
Digital Channels
Choose Your TV Source
Antenna
Cable
Cable Satellite Box
Scan for Channels
Move
OK
E NT ER
ME NU
E XIT
ExitPrevious
Select
Select Antenna if using an antenna for standard or HD TV
29
Insignia 15"/19"/22"/24" LED-LCD TV
www.insigniaproducts.com
11 Press
or
to highlight Antenna, Cable, or
Cable/Satellite Box (if your cable TV uses a box,
select Cable/Satellite Box), then press ENTER.
If you chose Antenna or Cable, your TV
automatically starts scanning for channels
available in your viewing area. If you chose
Cable/Satellite box, your TV does not need to
scan for channels.
During auto channel search, your TV searches
for digital channels first. When the digital
channel search is complete, a message appears
asking if you want to search for analog channels.
Select Yes to continue searching for analog
channels, or select No to stop searching for
channels.
12 To watch TV, press INPUT, press
or
to
highlight the video input source for your TV in
the INPUT SOURCE list, then press ENTER.
• If your TV is connected to an antenna, cable TV
(no box), or cable or satellite TV box using a
coaxial cable, select TV.
• If your TV is connected to a cable or satellite
box using an HDMI cable or HDMI cable with a
DVI adapter, select HDMI1 or HDMI2.
• If your TV is connected to a cable or satellite
box using a component video cable, select
Component.
• If your TV is connected to a cable or satellite
box using a composite video cable, select AV.
Understanding the basics
Turning your TV on or off
To turn your TV on or off:
1 Make sure that the power cord is connected to a
power outlet.
2 Press (power) to turn on your TV. The power
indicator LED turns blue.
3 Press (power) again to turn off your TV. Your
TV enters standby mode and the power
indicator LED turns red.
Selecting the video input source
To select the video input source:
1 Turn on your TV, then press INPUT. The INPUT
SOURCE list opens.
You can also press a direct input button to select
the video input source.
• Press TV to select TV (if your TV is connected to
an antenna, cable TV (no box), or cable or satellite
TV using a coaxial cable).
• Press VIDEO to select AV IN VIDEO.
• Press COMP to select COMPONENT IN.
• Press HDMI once to select HDMI1. Press twice to
select HDMI2.
Note
You can press EXIT to stop the auto channel search,
but you will need to run the auto channel search
again to create a channel list.
Warning
When your TV is in standby mode, it is still receiving
power. To completely disconnect power, unplug the
power cord.
Note
If your TV does not receive an input signal for several
minutes, it automatically goes into standby mode.
Note
If the Auto Input Sensing feature is turned on
(default setting), the device connected to the video
jack must be turned on to select it in the Input Source
list.
For more information, see “Turning Auto Input
Sensing on or off” on page 48.
Note
If your TV is connected to an antenna, cable TV
(no box), or cable or satellite box using a coaxial
cable, select TV to watch TV.
If your TV is connected to a cable or satellite box
using a different video connection, select the
matching video input source to watch TV.
TV
HDMI1
HDMI2
USB
INPUT SOURCE
AV
VGA
Component
30
NS-15E720A12/NS-19E720A12/NS-22E730A12/NS-24E730A12 Insignia 15"/19"/22"/24" LED-LCD TV
www.insigniaproducts.com

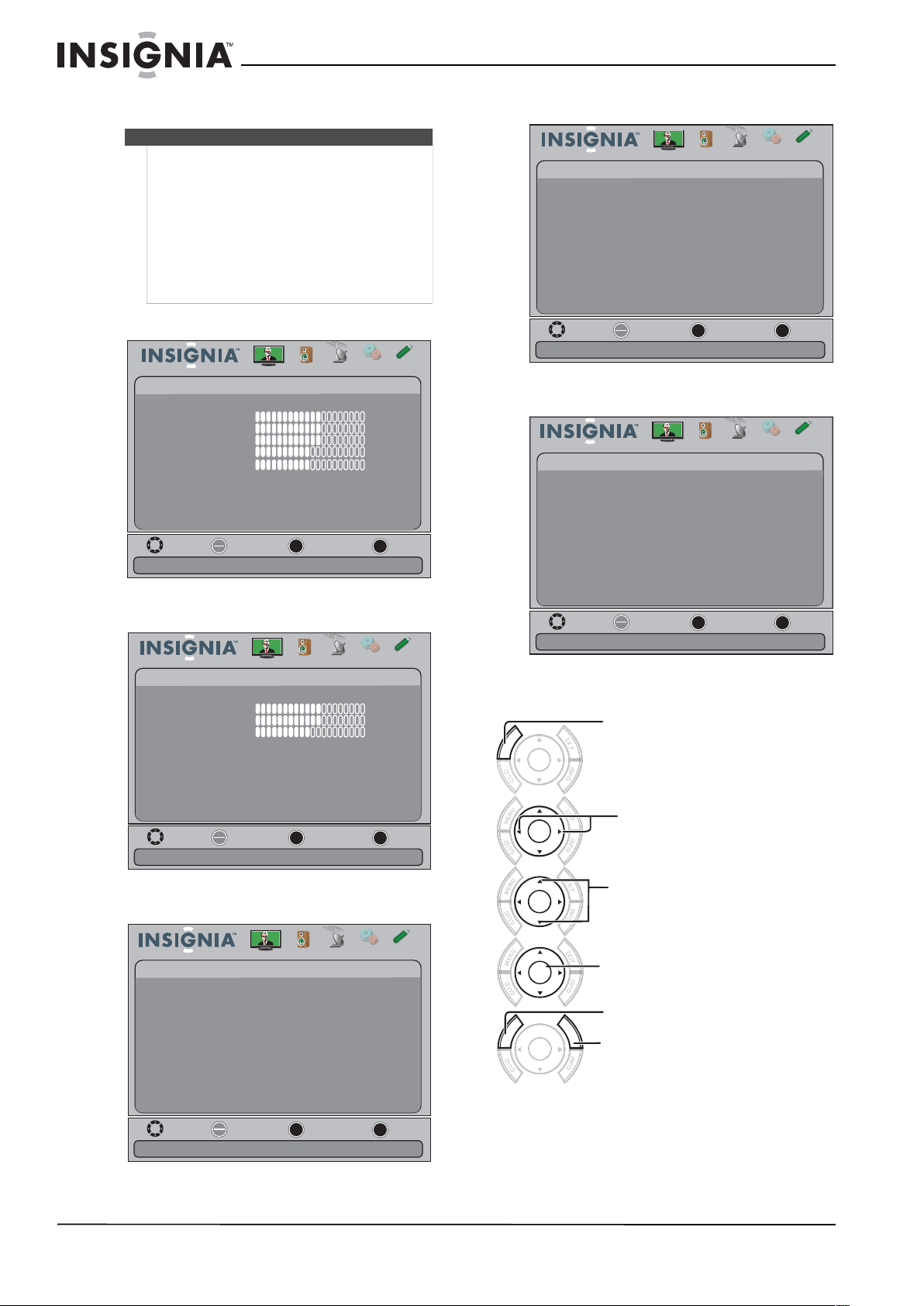

On-screen menu overview
Picture menu (TV mode)
Audio menu (TV mode)
Channels menu (TV mode)
Settings menu (TV mode)
USB menu (USB mode)
Navigating the menus
Notes
• Depending on the signal source selected, you
may see different options on your screen. The
following menus are shown in TV mode (except
the USB menu).
• Menu items that are not selectable are grayed
out.
• Menus in this manual are described in TV mode,
unless otherwise indicated.
• The screens shown in this manual are for
explanation purposes and may vary from the
actual screens on your TV.
Move
OK
E NT E R
ME NU EXIT
ExitPrevious
Select
Adjust settings to affect picture quality
Picture Audio
Channels Settings USB
Mode
Brightness
Contrast
Color
Tint
Custom
60
Sharpness
Advanced Video
R es et Pic ture S ettings
60
60
0
50
Move
OK
E N TE R
ME NU
E XIT
ExitPrevious
S elect
Adjust settings to affect sound quality
Picture Audio
Channels Settings
USB
Audio
SRS TruSurround HD
Treble
Bass
Balance
Digital Audio/SPDIF
O
60
Audio Language
MTS/SAP
R es et A udio Settings
60
0
RAW
English
Mono
Move
OK
E NTE R
ME NU
E XIT
ExitPrevious
Sel ec t
Adjust channel options
Picture Channels Settings
USB
Channels
Auto Channel Search
Add/Skip Channels
Favorites
Channel Labels
Channel Strength
Audio Only
Auto Zoom
Audio
PBS-HD
O
On
Move
OK
E NT ER
ME NU
E XIT
ExitPrevious
Selec t
Set various TV options
Picture Channels
USB
Settings
Parental Controls
Closed Caption
Time
Menu Settings
Auto Input Sensing O
Input Labels
INlink
Audio
Computer Settings
System Info
Reset to Default
Settings
Move
OK
E NT ER
ME NU
E X IT
ExitPrevious
Selec t
View files from a USB device that is connected to the TV
Picture Channels Settings
USB
USB
Photos
Audio
EN TER
G
U
I
D
E
M
E
N
U
E
X
I
T
I
N
F
O
E
NTE
R
E
X
I
T
I
N
F
O
EN TER
G
U
I
D
E
M
E
N
U
E
X
I
T
I
N
F
O
G
U
I
D
E
M
E
N
U
E
X
I
T
I
N
F
O
ENTER
G
U
I
D
E
M
E
N
U
E
X
I
T
I
N
F
O
G
U
I
D
E
M
E
N
U
E
X
I
T
I
N
F
O
EN TER
G
U
I
D
E
M
E
N
U
E
X
I
T
I
N
F
O
G
U
I
D
E
M
E
N
U
E
X
I
T
I
N
F
O
EN TER
G
U
I
D
E
M
E
N
U
E
X
I
T
I
N
F
O
G
U
I
D
E
I
N
F
O
E
NT E
R
G
U
I
D
E
Press MENU to open the on-screen menu.
Press the right or left arrow to move the cursor on
the screen or to adjust a selected item.
Press the up or down arrow to select menu options.
Press ENTER to confirm a selection or enter a sub-menu.
Press MENU to return to the previous menu.
Press EXIT to close the menu.
31

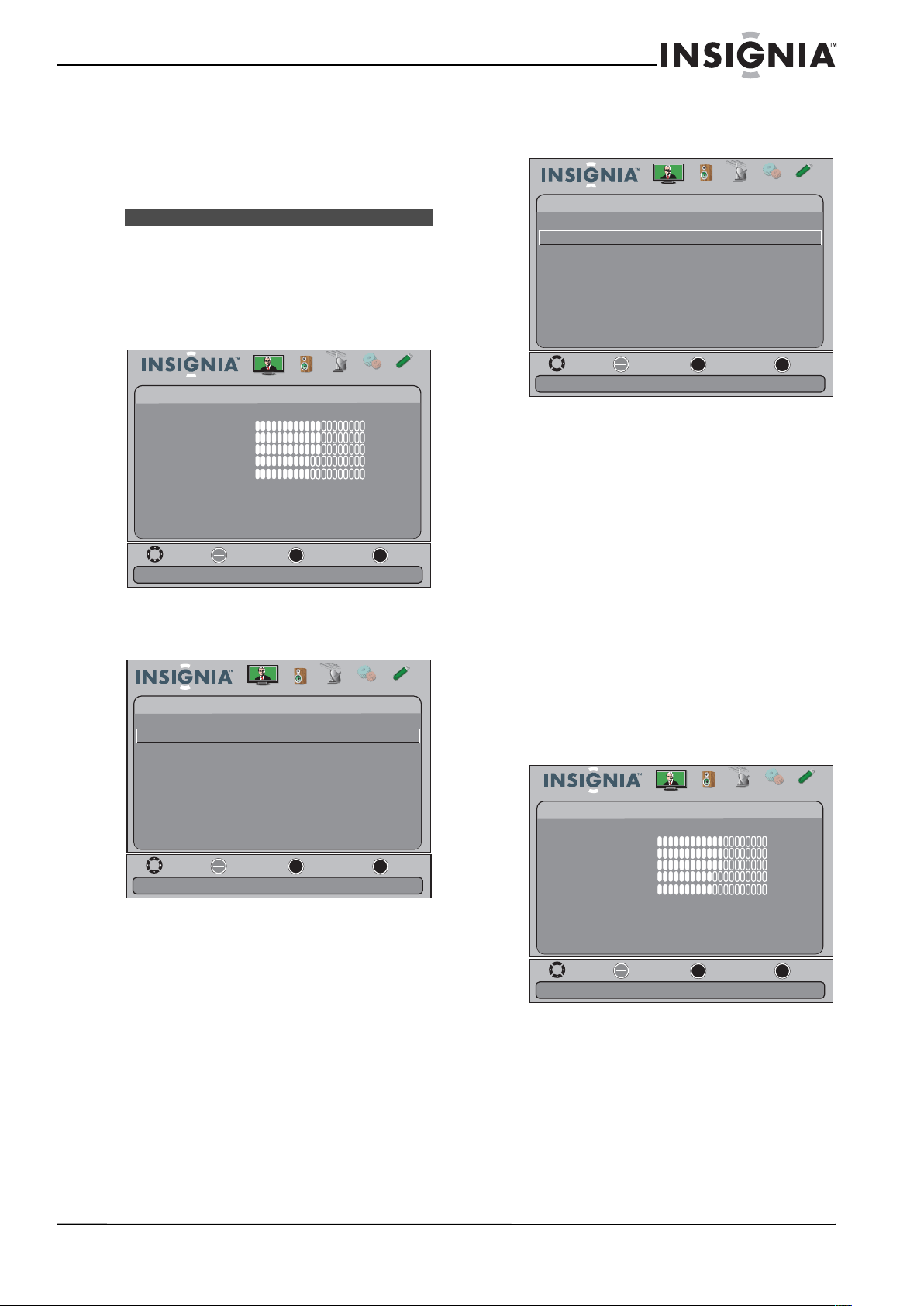

Insignia 15"/19"/22"/24" LED-LCD TV
www.insigniaproducts.com
Selecting a channel
To select a channel:
• Press CH or CH to go to the next or previous
channel on the memorized channel list.
• Press the number buttons to enter the channel
number you want, then wait for the channel to
change or press ENTER to immediately change
the channel.
• To select a digital sub-channel, press the number
buttons to select the main digital channel, press
(dot), then press the number button for the
sub-channel. Wait for the channel to change, or
press ENTER to immediately change the channel.
For example, to tune to channel 5.1, press 5,
(dot), then 1.
• Press RECALL to go to the last viewed channel.
• Press CH-LIST to open the channel list, press
or
to highlight a channel, then press ENTER.
Hidden channels are grayed and cannot be
selected. See “Hiding channels” on page 36.
• Press FAVORITE to open the favorite channel list,
press
or
to highlight a channel, then press
ENTER.
Adjusting the volume
To adjust the volume:
• Press VOL + or VOL – to increase or decrease the
volume.
• Press MUTE to turn off the sound. Press MUTE
again to turn the sound back on.
Viewing channel information
To view channel information:
• Press INFO to view an information banner. The
information banner shows the current program
information such as channel number, video input
source, and resolution.
• Digital channel information—Displays the
channel number, station name, channel label,
broadcast program name, TV rating, signal
type, audio information, resolution, CC mode,
current time, and current program start and
end times.
• Analog channel information—Displays
channel number, channel label (if preset),
signal type, audio information, and resolution.
• Press GUIDE to show the digital program guide,
which may show a list of available programs,
program times, and program summaries,
depending on the information provided by the
broadcaster.
Viewing system information
To view system information:
1 Press MENU. The on-screen menu opens.
2 Press
or
to highlight Settings, then press
or ENTER. The Settings menu opens.
3 Press
or
to highlight System Info, then
press ENTER. A screen opens that displays your
TV’s Model Name and Firmware Version.
4 Press MENU to return to the previous menu, or
press EXIT to close the menu.
Note
Button presses must be within three seconds of each
other.
Note
If a list has more than one page, press
or
to
scroll through the pages.
Move
OK
E NT E R
ME NU EXIT
Exit
Previous
Select
Adjust settings to affect picture quality
Picture Audio
Channels Settings USB
Mode
Brightness
Contrast
Color
Tint
Custom
60
Sharpness
Advanced Video
R es et Pic ture S ettings
60
60
0
50
Move
OK
E NT ER
ME NU
E XIT
ExitPrevious
Select
Display information about your TV
Picture Channels Settings USB
Settings
Parental Controls
Closed Caption
Time
Menu Settings
Auto Input Sensing O
Input Labels
INlink
Audio
Computer Settings
System Info
Reset to Default
32
NS-15E720A12/NS-19E720A12/NS-22E730A12/NS-24E730A12 Insignia 15"/19"/22"/24" LED-LCD TV
www.insigniaproducts.com

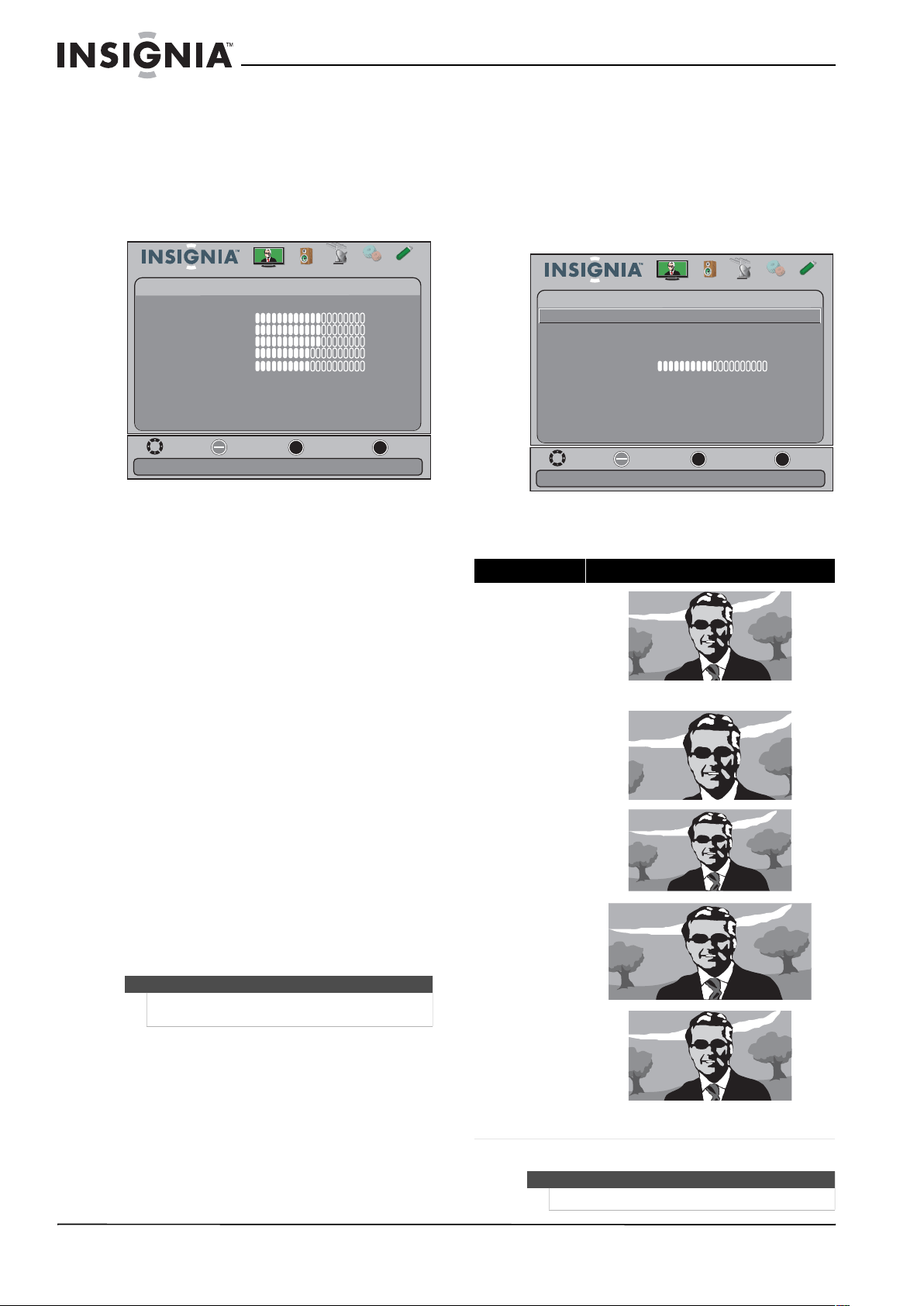

Adjusting the picture
Adjusting the TV picture
To adjust the TV picture:
1 Press MENU. The on-screen menu opens with
the Picture menu displayed.
2 Press
or ENTER to access the menu.
3 Press
or
to highlight an option, then press
ENTER to access the option. You can select:
• Mode—Selects the picture mode. You can
select:
• Vivid—(a bright and vivid picture).
Significantly increases the contrast,
brightness, and sharpness. This selection is
good for video games, animation, and in
bright light environments.
• Standard—(a standard picture).
Moderately increase the contrast,
brightness, and sharpness. This selection is
good for standard TV broadcasts.
• Theater—(a finely detailed picture).
Adjusts the brightness and contrast and
lowers the sharpness for a more realistic
picture. This selection is good for watching
the highest quality video such as Blu-ray
Discs, DVDs, and HDTV.
• Energy Savings—(the backlight
brightness is decreased). Your TV has a
backlight that provides light for displaying
a picture. By reducing the amount of light,
your TV uses less energy.
• Custom—(customized picture). Lets you
manually adjust picture settings such as
brightness, contrast, and sharpness.
• Brightness—Adjusts the brightness of the
dark areas of the picture.
• Contrast—Adjusts the brightness of the light
areas of the picture.
• Color—Adjusts the color intensity of the
picture. A low setting may make the color look
faded. A high setting may make the color look
artificial.
• Tint—Adjusts the color balance of the picture.
Use this control to make skin tones look more
natural.
• Sharpness—Adjusts the color detail of
images. If you set this control too high, dark
images may appear with light or white edges.
• Advanced Video—Opens the
Picture-Advanced Video menu where you can
adjust additional video options.
• Aspect Ratio—Selects the aspect ratio of
the picture.
Note
You can also press PICTURE to select the picture
mode.
Move
OK
E NT E R
ME NU EXIT
Exit
Previous
Select
Adjust settings to affect picture quality
Picture Audio
Channels Settings USB
Mode
Brightness
Contrast
Color
Tint
Custom
60
Sharpness
Advanced Video
R es et Pic ture S ettings
60
60
0
50
Aspect ratio option Example
Normal:
Displays the original
aspect ratio. If the
original aspect ratio is
4:3, the TV image
appears with vertical
black bars on the left
and right of the image.
Zoom:
Expands the image to fill
the screen. The top and
bottom of the image
may be cropped.
Wide:
Use this option to view
content recorded in a
16:9 (wide-screen)
aspect ratio.
Cinema:
Stretches the image at
the edges, but keeps a
clear image in the
center.
Auto:
Automatically adjusts
the image based on the
screen size and the TV
program.
Note: Auto is only
available when Auto
Zoom in the CHANNELS
menu is set to On.
Note
You can also press ZOOM to select the aspect ratio.
Move
OK
E NTE R
ME NU EX IT
Exit
Previous
S elec t
Adjust how the picture fills the screen
Audio Channels Settings
USB
Picture-Advanced Video
Aspect Ratio
Overscan
Color Temperature
Noise Reduction
Backlight
Auto
Advanced Contrast
30
On
Normal
Middle
33

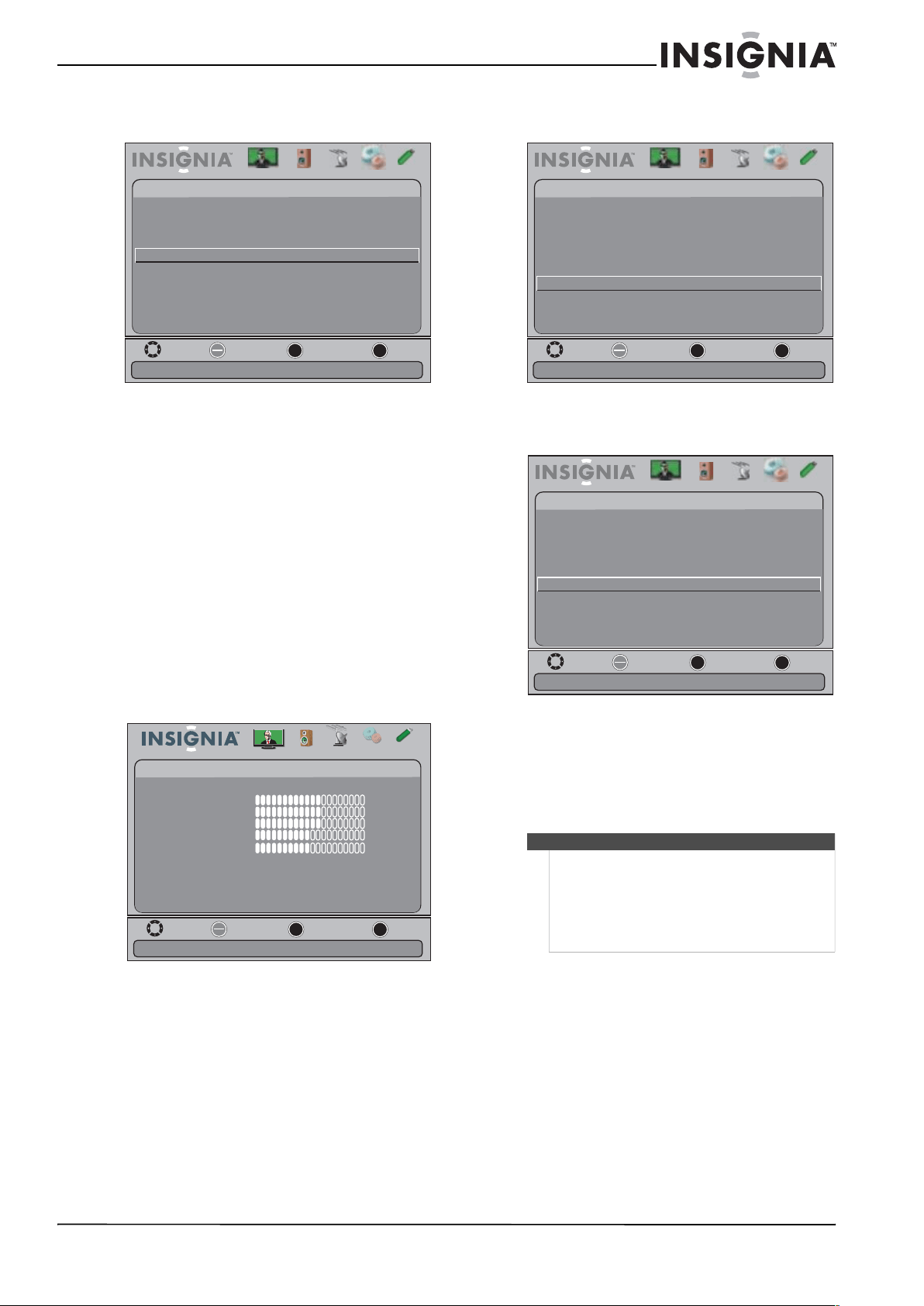

Insignia 15"/19"/22"/24" LED-LCD TV
www.insigniaproducts.com
• Overscan—Adjusts the picture’s
reproduction rate. You can select On or
Off.
• Color Temperature—Selects the color
temperature. You can select Cool (to
enhance the blues), Normal, or Warm (to
enhance the reds).
• Noise Reduction—Selects the noise
reduction mode to reduce picture noise
(snow). You can select Low, Middle, High,
or Off.
• Backlight—Sets the overall brilliance of
the screen. When Dynamic Contrast Ratio
is turned on, you cannot change the
backlight setting.
• Advanced Contrast—Selects from:
• Adaptive Contrast—Automatically
adjusts picture detail and brightness.
You can select On or Off.
• Dynamic Contrast Ratio—Enhances
the contrast ratio between light and
dark areas of the picture. You can select
On or Off. When this option is turned
on, you cannot change the backlight
option.
• Reset Picture Settings—Resets all picture
settings to factory mode.
4 Press
or
to adjust the option, or press
or
to select a setting.
5 Press MENU to return to the previous menu, or
press EXIT to close the menu.
Adjusting the computer image
To adjust the computer image:
1 Make sure that your TV is in VGA mode. For
more information, see “Selecting the video
input source” on page 29.
2 Press MENU. The on-screen menu opens.
3 Press
or
to highlight Settings, then press
or ENTER. The Settings menu opens.
4 Press
or
to highlight Computer Settings,
then press ENTER. The Settings-Computer
Settings menu opens.
5 Press
or
to highlight an option, then press
ENTER to access the option. You can select:
• Auto Adjust—Automatically adjusts the
image settings such as position and phase.
• H. Position—Moves the image right or left.
• V. Position—Moves the image up or down.
• Clock—Adjusts the sample frequency.
• Phase—Adjusts the focus of stable images.
• Reset Computer Settings—Resets all
computer settings to factory mode.
6 Press
or
to adjust the option, or press
or
to select a setting.
7 Press MENU to return to the previous menu, or
press EXIT to close the menu.
Move
OK
E NT E R
ME NU
E XIT
ExitPrevious
Select
Adjust settings to affect picture quality
Picture Audio Channels Settings USB
Mode
Brightness
Contrast
Color
Tint
Custom
60
Sharpness
Advanced Video
R es et Pic ture S ettings
60
60
0
50
Move
OK
E NT ER
ME NU
E XIT
ExitPrevious
S elec t
Set options for when a computer is connected to the TV
Channels Settings
USB
Settings
Parental Controls
Closed Caption
Time
Menu Settings
Auto Input Sensing
Antenna
Input Labels
INlink
Audio
PBS-HD
O
On
Computer Settings
System Info
Reset to Default
Move
O K
E NT E R
ME NU
E XIT
ExitPrevious
S elec t
Adjust to the PC signal timing automatically when ON
Channels Settings
USB
Settings-Computer Settings
Auto Adjust
H. Position
V. Position
Clock
Phase
Audio
R es et C omputer S ettings
60
60
50
50
34

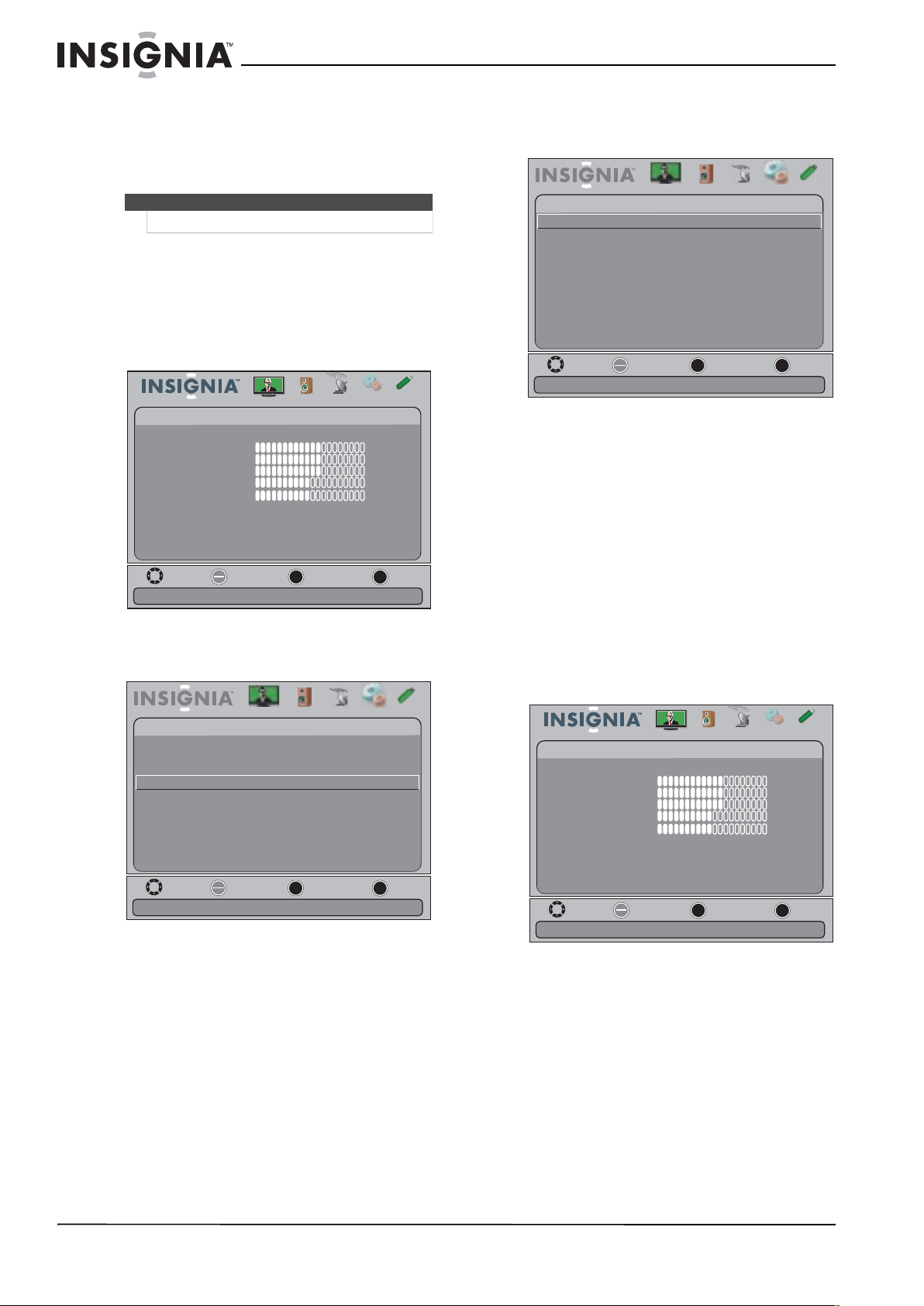

NS-15E720A12/NS-19E720A12/NS-22E730A12/NS-24E730A12 Insignia 15"/19"/22"/24" LED-LCD TV
www.insigniaproducts.com
Adjusting the sound
Adjusting sound settings
To adjust sound settings:
1 Press MENU. The on-screen menu opens.
2 Press
or
to highlight Audio, then press
or
ENTER. The Audio menu opens.
3 Press
or
to highlight an option, then press
ENTER to access the option. You can select:
• SRS TruSurround HD—Provides an
impressive, feature-rich surround sound
experience from two speakers, complete with
rich bass, high frequency detail, and clear
dialog.
• Treble—Adjusts the high sounds.
• Bass—Adjusts the low sounds.
• Balance—Adjusts the balance between the
left and right audio channels.
• Digital Audio/SPDIF—Sends digital audio to
an external audio system. You can select PCM
(to output audio in 2-channel stereo), or RAW
(to pass through the original digital audio
sound).
• Audio Language—(Digital channels only)
Selects an alternate audio language, if
available.
• MTS/SAP—(Analog channels only) Selects the
audio mode. You can select:
• MONO—Select this option if there is noise
or static on weak stereo broadcasts.
• STEREO—Select this option for programs
broadcast in stereo.
• SAP—Select this option to listen to a
secondary audio program, if available.
• Reset Audio Settings— Resets all audio
settings to factory defaults.
4 Press
or
to adjust the option, or press
or
to select a setting.
5 Press MENU to return to the previous menu, or
press EXIT to close the menu.
Playing TV audio only
You can turn off the picture on your TV and listen to
the program audio only.
To play TV audio only:
1 Press MENU. The on-screen menu opens.
2 Press
or
to highlight Channels, then press
or ENTER. The Channels menu opens.
3 Press
or
to highlight Audio Only, then
press ENTER.
Note
You can quickly adjust SRS, Treble, or Balance or
reset audio settings by using the AUDIO and
or
buttons on the remote control. Press AUDIO
repeatedly to toggle between the SRS, Bass, Treble,
Balance, and Reset Audio Settings screens, then
press
or
to adjust the option.
Move
OK
E NT E R
ME NU EXIT
Exit
Previous
Select
Adjust settings to affect picture quality
Picture Audio
Channels Settings USB
Mode
Brightness
Contrast
Color
Tint
Custom
60
Sharpness
Advanced Video
R es et Pic ture S ettings
60
60
0
50
Move
OK
E NT E R
ME NU
E XIT
ExitPrevious
S elect
SRS provides the ultimate home theater sound solution
Picture Audio
Channels Settings USB
Audio
SRS TruSurround HD
Treble
Bass
Balance
Digital Audio/SPDIF
O
60
Audio Language
MTS/SAP
R es et A udio S ettings
60
0
RAW
English
Mono
Note
You can also press MTS/SAP one or more times to
select the audio mode.
Move
OK
E NT E R
ME NU
E XIT
ExitPrevious
Select
Adjust settings to affect picture quality
Picture Audio
Channels Settings USB
Mode
Brightness
Contrast
Color
Tint
Custom
60
Sharpness
Advanced Video
R es et Pic ture S ettings
60
60
0
50
Move
OK
E NTE R
ME NU
E XIT
ExitPrevious
Select
Play the audio with the picture turned off
Channels
Settings
USB
Channels
Auto Channel Search
Add/Skip Channels
Favorites
Channel Labels
Channel Strength
Audio Only
Auto Zoom
Audio
PBS-HD
O
On
35

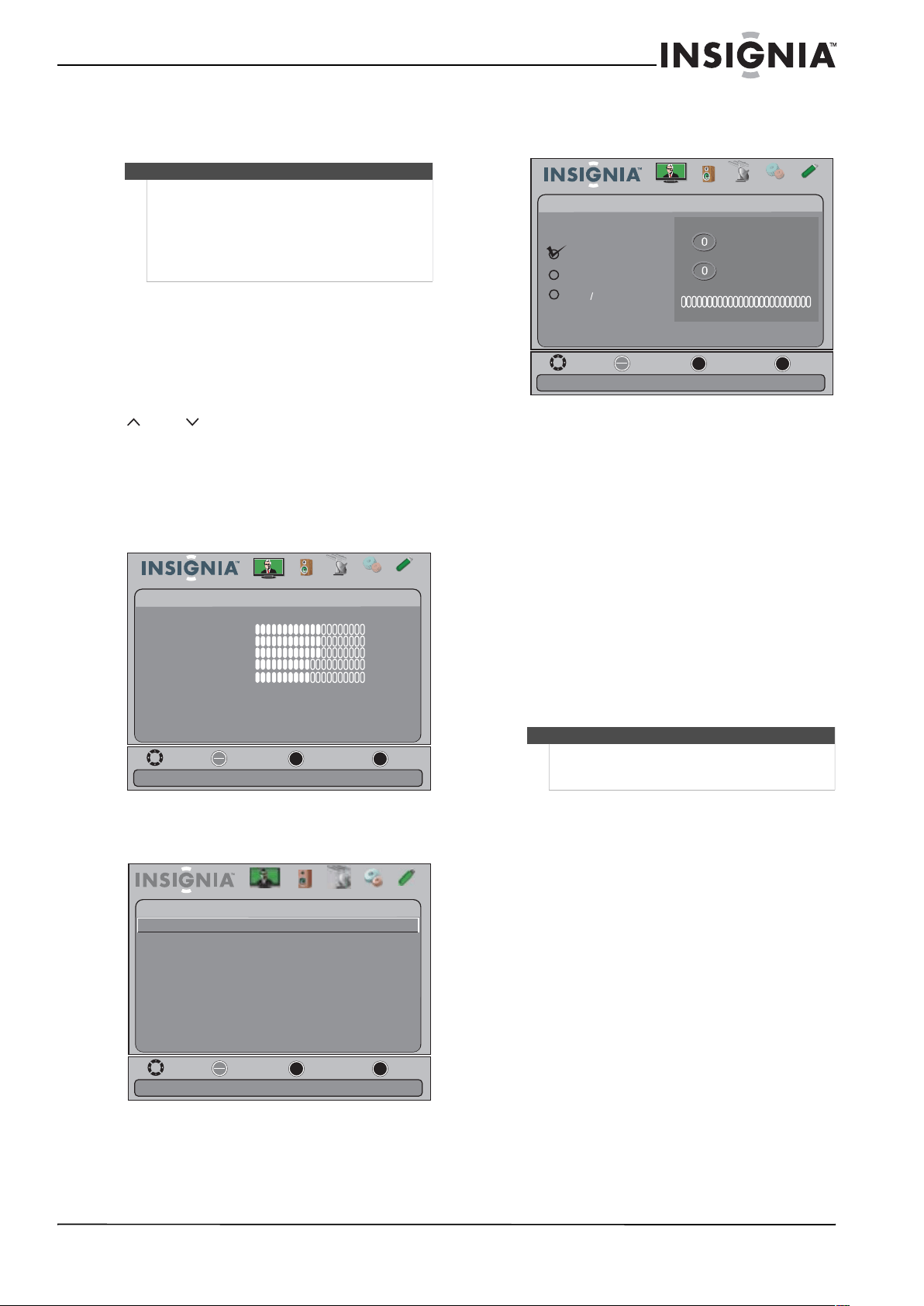

Insignia 15"/19"/22"/24" LED-LCD TV
www.insigniaproducts.com
4 Press
or
to select On.
5 Press MENU to return to the previous menu, or
press EXIT to close the menu.
Changing channel settings
Automatically scanning for channels
When you scan for channels, your TV searches for
channels with signals and stores the channel
information in the channel list. When you press
CH or CH , your TV goes to the next or
previous channel in the channel list.
If the TV signal source changes, for example you
change from an outdoor antenna to cable TV (no
box), you need to scan for channels.
To automatically scan for channels:
1 Press MENU. The on-screen menu opens.
2 Press
or
to highlight Channels, then press
or ENTER. The Channels menu opens.
3 Press
or
to highlight Auto Channel Search,
then press ENTER. The Channels-Auto Channel
Search screen opens.
4 Press
or
to highlight Antenna, Cable, or
Cable/Satellite Box, then press ENTER.
• If you are using an antenna for a standard or
HDTV signal, select Antenna.
• If your cable is connected directly to the TV
(using no tuner box), select Cable.
• If your cable is connected to your TV through a
tuner box, select Cable/Satellite Box.
If you selected Antenna or Cable, your TV
searches automatically for available channels in
your area and stores the channel information in
the channel list. This may take several minutes.
While searching, the TV displays a progress
report.
Or,
If you selected Cable/Satellite Box, the channel
search is not necessary.
Notes
• After you close the menu, the picture will turn
off in about 10 seconds.
• Audio Only works only when the input source is
TV, and your TV is receiving a broadcast signal.
• To exit audio only mode, press any button.
When you exit audio only mode, the Audio
Only option is automatically reset to Off.
Move
OK
E NT E R
ME NU
E XIT
ExitPrevious
Select
Adjust settings to affect picture quality
Picture Audio
Channels Settings USB
Mode
Brightness
Contrast
Color
Tint
Custom
60
Sharpness
Advanced Video
R es et Pic ture S ettings
60
60
0
50
Move
OK
E NT E R
ME NU
E XIT
ExitPrevious
S elec t
Automatically search for channels, press ENTER key to submenu
Channels
Settings
USB
Channels
Auto Channel Search
Add/Skip Channels
Favorites
Channel Labels
Channel Strength
Audio Only
Auto Zoom
Audio
PBS-HD
O
On
Note
You can press EXIT to stop the auto channel search,
but you will need to run the auto channel search
again to create a channel list.
Move
OK
E NT ER
ME NU E XIT
Exit
Previous
S elec t
Select Antenna if using an antenna for standard or HD TV.
Channels
Settings USB
Channels-
Auto Channel Search
Audio
C hoos e your T V s ource
Antenna
Cable
Cable Satellite Box
Scan for Channels
Digital Channels
Analog Channels
36

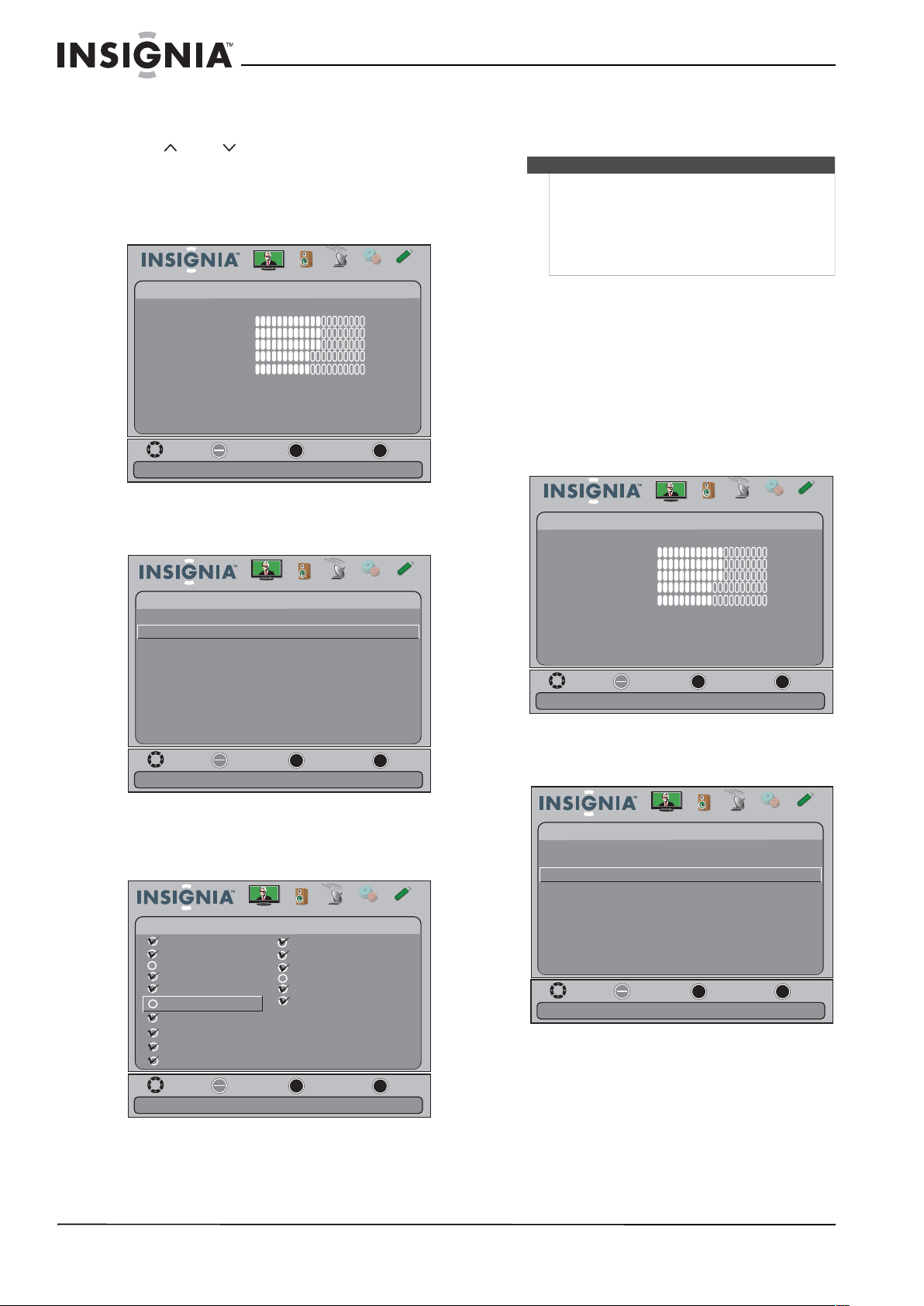

NS-15E720A12/NS-19E720A12/NS-22E730A12/NS-24E730A12 Insignia 15"/19"/22"/24" LED-LCD TV
www.insigniaproducts.com
Hiding channels
You can hide channels in the channel list. When you
press CH or CH , your TV skips the hidden
channels. You can still tune to a hidden channel by
pressing the number buttons for the channel.
To hide channels:
1 Press MENU. The on-screen menu opens.
2 Press
or
to highlight Channels, then press
or ENTER. The Channels menu opens.
3 Press
or
to highlight Add/Skip Channels,
then press ENTER. The Channels-Add/Skip
Channels screen opens.
4 Press
or
to highlight the channel you
want to hide, then press ENTER. The check mark
disappears.
5 Press MENU to return to the previous menu, or
press EXIT to close the menu.
Setting up a favorite channel list
You can create a favorite channel list so you can
quickly browse through your favorite channels by
pressing FAVORITE, then selecting a channel from
the favorite channel list.
To set up a favorite channel list:
1 Press MENU. The on-screen menu opens.
2 Press
or
to highlight Channels, then press
or ENTER. The Channels menu opens.
Move
OK
E NT E R
ME NU
E XIT
ExitPrevious
Select
Adjust settings to affect picture quality
Picture Audio Channels Settings USB
Mode
Brightness
Contrast
Color
Tint
Custom
60
Sharpness
Advanced Video
R es et Pic ture S ettings
60
60
0
50
Move
OK
E NTE R
ME NU E XIT
Exit
Previous
S elec t
Manually add and skip channels in your program list
Picture Channels Settings USB
Channels
Auto Channel Search
Add/Skip Channels
Favorites
Channel Labels
Channel Strength
Audio Only
Auto Zoom
Audio
PBS-HD
O
On
Move
OK
E NT E R
ME NU
E XIT
ExitPrevious
Select
Manually add and skip channels in your program list
Picture Channels Settings USB
Channels-
Add/Skip Channels
Audio
1.1 - CH1
2.0
2.2 PBS-HD
6.0
7.0
21.0
23.0
24.0
25.0
69.0
12.0
14.0
69.1 - TBT -DT
1.2 Sencore
2.1 WGBH-SD
19.0
Notes
• A channel with a check mark is not hidden. A
channel with no check mark is hidden.
• If the list has more than one page, press
or
to scroll through the pages.
• When you press CH-LIST, hidden channels are
grayed in the channel list and cannot be
selected.
Move
OK
E NT E R
ME NU EXIT
Exit
Previous
Select
Adjust settings to affect picture quality
Picture Audio
Channels Settings USB
Mode
Brightness
Contrast
Color
Tint
Custom
60
Sharpness
Advanced Video
R es et Pic ture S ettings
60
60
0
50
Picture Channels Settings USB
Channels
Auto Channel Search
Add/Skip Channels
Favorites
Channel Labels
Channel Strength
Audio
PBS-HD
Audio Only
Auto Zoom
O
On
OK
Move
ExitPrevious
S elec t
ME NU
E XIT
E NTE R
Add channels to create a favorite list
37
Insignia 15"/19"/22"/24" LED-LCD TV
www.insigniaproducts.com
3 Press
or
to highlight Favorites, then press
ENTER. The Channels-Favorites screen opens.
4 Press
or
to highlight the channel you
want to add to the favorites list, then press
ENTER. A check mark appears next to the
channel.
5 Press MENU to return to the previous menu, or
press EXIT to close the menu.
Viewing a favorite channel
To view a favorite channel:
1 Press FAVORITE. The favorite channel list opens.
2 Press
or
to highlight a channel, then press
ENTER.
Adding or changing a channel label
If a channel is not already labeled, you can label the
channel to make it easier to identify. You can also
relabel a channel that is already labeled.
To add or change a channel label:
1 Press MENU. The on-screen menu opens.
2 Press
or
to highlight Channels, then press
or ENTER. The Channels menu opens.
3 Press
or
to highlight Channel Labels, then
press ENTER. The Channels-Channel Labels
screen opens with the channel number field
highlighted.
4 Press
or
to select the channel you want to
label, then press
to move to the channel label
field.
5 Press
or
to select a character, then press
or
to move to the previous or next character
position. Repeat this step to enter additional
characters. You can enter as many as 11
characters.
Notes
• To remove a channel from the favorites list,
highlight the channel, then press ENTER. The
check mark disappears and the channel is
removed from the list.
• If the list has more than one page, press
or
to scroll through the pages.
Move
OK
E NT E R
ME NU
E XIT
ExitPrevious
Selec t
Picture Channels Settings USB
Channels-
Favorites
Audio
1.1 - CH1
2.0
2.2 PBS-HD
6.0
7.0
21.0
23.0
24.0
25.0
69.0
12.0
14.0
69.1 - TBT -DT
1.2 Sencore
2.1 WGBH-SD
19.0
Add channels to create a favorite list
Move
OK
E NT E R
ME NU EXIT
ExitPrevious
Select
Adjust settings to affect picture quality
Picture Audio Channels Settings USB
Mode
Brightness
Contrast
Color
Tint
Custom
60
Sharpness
Advanced Video
R es et Pic ture S ettings
60
60
0
50
Move
OK
E NT ER
ME NU E XIT
ExitPrevious
Select
Create labels for channels, up to 11 characters
Picture Channels Settings USB
Channels
Auto Channel Search
Add/Skip Channels
Favorites
Channel Labels
Channel Strength
Audio Only
Auto Zoom
Audio
PBS-HD
O
On
Move
OK
E NTE R
ME NU E XIT
Exit
Previous
Select
Picture Channels Settings USB
Channels-
Channel Labels
Audio
Create labels for channels, up to 11 characters
CH 2.1
WGBH-SD
Move
OK
E NTE R
ME N U E XIT
ExitPrevious
Select
Picture Channels Settings USB
Channels-
Channel Labels
Audio
CH 2.1
Create labels for channels, up to 11 characters
WGBH-SD
38

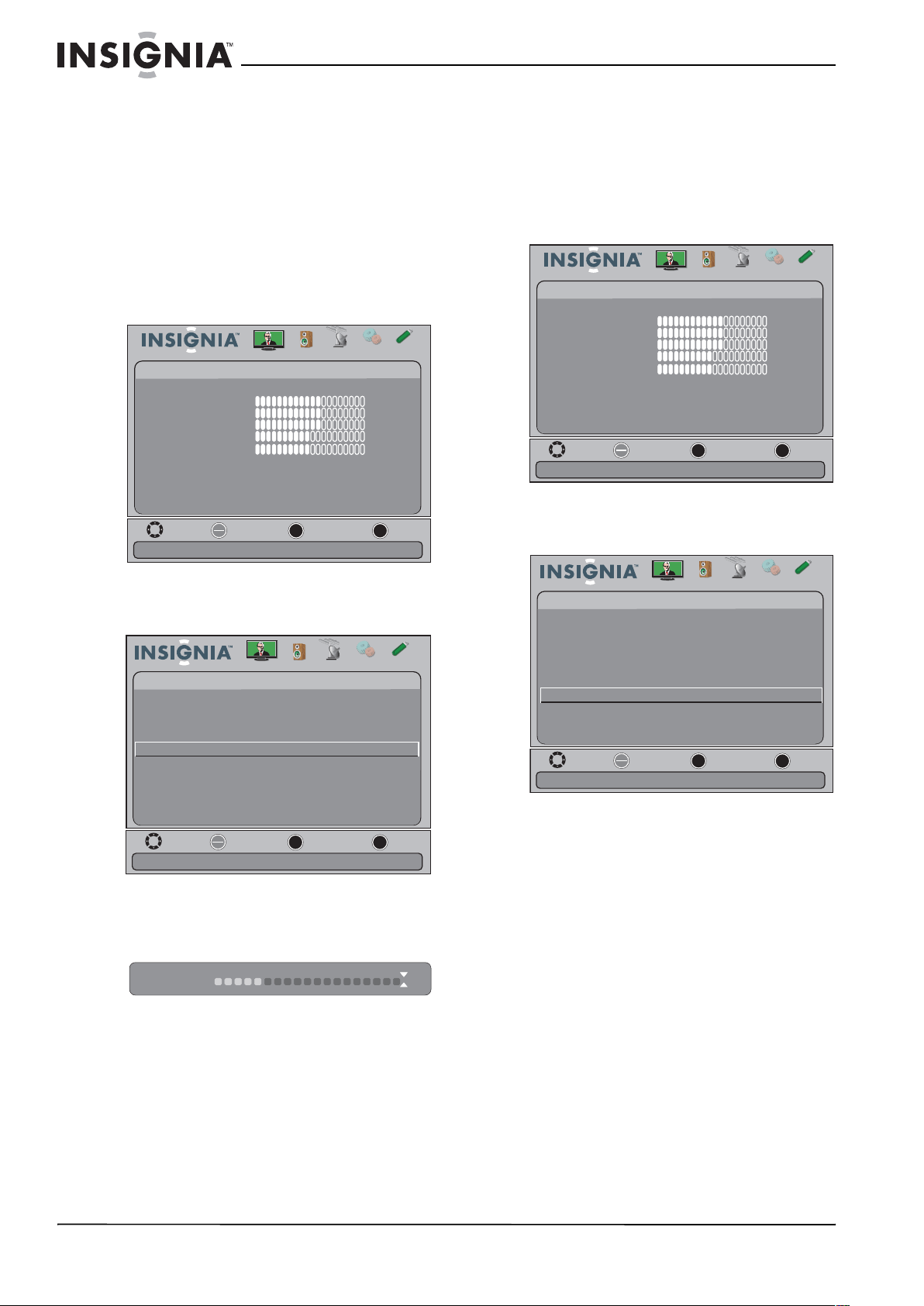

NS-15E720A12/NS-19E720A12/NS-22E730A12/NS-24E730A12 Insignia 15"/19"/22"/24" LED-LCD TV
www.insigniaproducts.com
6 When you have completed the label, press
MENU.
7 Press EXIT to close the menu.
Checking the digital signal strength
You can check the digital signal strength to
determine if you need to adjust your antenna or
digital cable input. The higher the signal strength,
the less likely you are to experience picture
degradation.
To check the digital signal strength:
1 Press MENU. The on-screen menu opens.
2 Press
or
to highlight Channels, then press
or ENTER. The Channels menu opens.
3 Press
or
to highlight Channel Strength,
then press ENTER. The signal strength meter is
displayed.
4 Press MENU to return to the previous menu, or
press EXIT to close the menu.
Turning Auto Zoom on or off
When Auto Zoom is turned on and Auto aspect
ratio is selected, your TV automatically adjusts the
aspect ratio based on the screen size and the aspect
ratio of the TV program.
To turn Auto Zoom on or off:
1 Press MENU. The on-screen menu opens.
2 Press
or
to highlight Channels, then press
or ENTER. The Channels menu opens.
3 Press
or
to highlight Auto Zoom, then
press ENTER.
4 Press
or
to select On or Off.
5 Press MENU to return to the previous menu, or
press EXIT to close the menu.
Move
OK
E NT E R
ME NU
E XIT
ExitPrevious
Select
Adjust settings to affect picture quality
Picture Audio
Channels Settings USB
Mode
Brightness
Contrast
Color
Tint
Custom
60
Sharpness
Advanced Video
R es et Pic ture S ettings
60
60
0
50
Move
OK
E NT ER
ME NU E XIT
ExitPrevious
Select
Display signal strength of selected digital channels
Picture Channels Settings USB
Channels
Auto Channel Search
Add/Skip Channels
Favorites
Channel Labels
Channel Strength
Audio Only
Auto Zoom
Audio
PBS-HD
O
On
Channel Strength
CH 2.1
0 100
Now 100%
Peak 100%
Move
OK
E NT E R
ME NU
E XIT
ExitPrevious
Select
Adjust settings to affect picture quality
Picture Audio Channels Settings USB
Mode
Brightness
Contrast
Color
Tint
Custom
60
Sharpness
Advanced Video
R es et Pic ture S ettings
60
60
0
50
Move
OK
E NTE R
ME NU E XIT
ExitPrevious
Sel ec t
Automatically adjust aspect ratio based on TV size and TV
program
Channels Settings
USB
Channels
Auto Channel Search
Add/Skip Channels
Favorites
Channel Labels
Channel Strength
Audio Only
Auto Zoom
Audio
PBS-HD
O
On
39

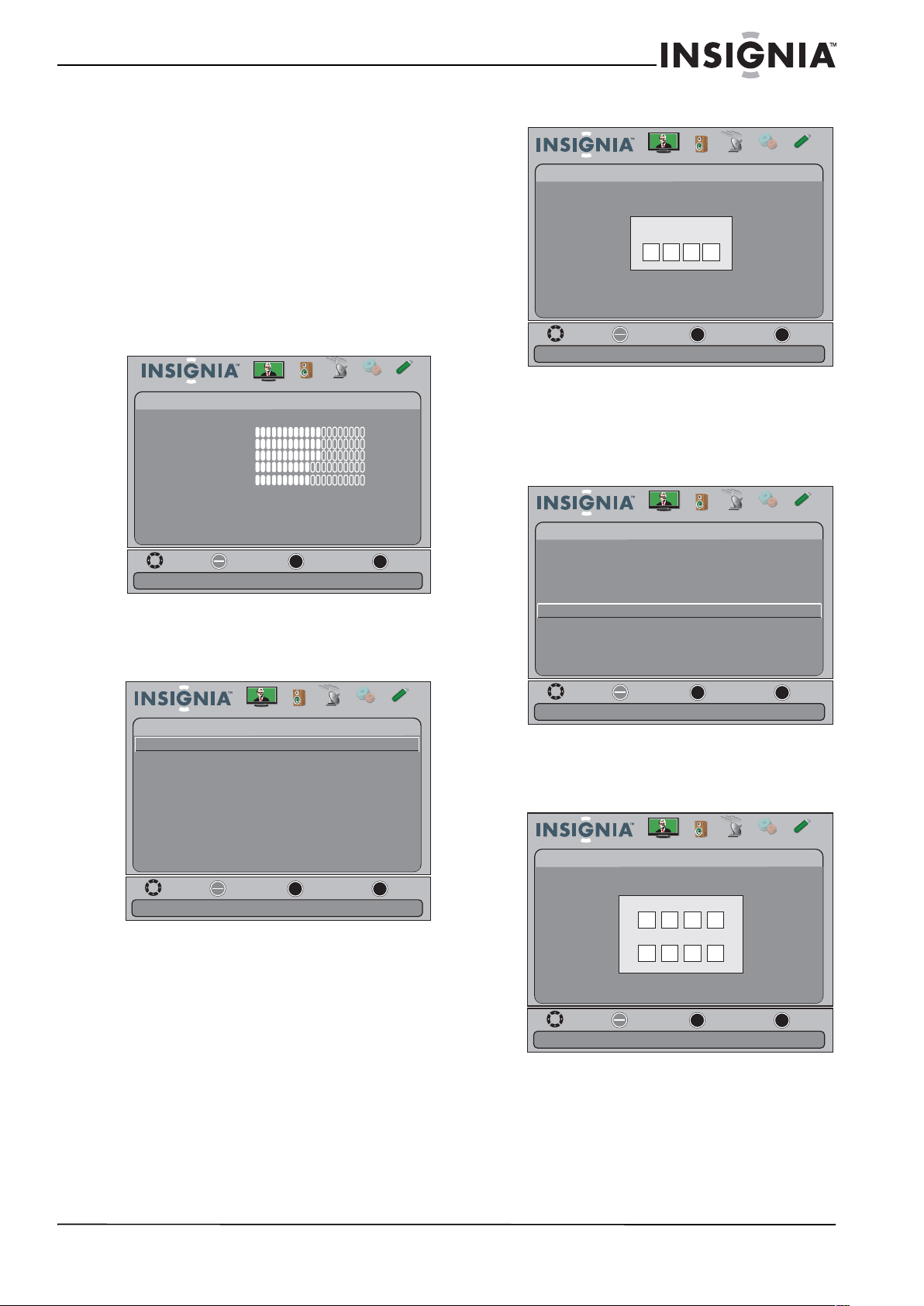

Insignia 15"/19"/22"/24" LED-LCD TV
www.insigniaproducts.com
Setting parental controls
Setting or changing the password
Parental controls let you prevent your children from
watching inappropriate material on TV. When set,
parental controls read the rating of the program
(with some exceptions, such as news and sports)
and deny access to programs that exceed the
ratings level you select. To watch programs that
exceed the selected rating, you must enter a
password.
To set or change the password:
1 Press MENU. The on-screen menu opens.
2 Press
or
to highlight Settings, then press
or ENTER. The Settings menu opens with
Parental Controls highlighted.
3 Press ENTER. The Enter Password screen opens.
4 Press the number buttons to enter the four-digit
password. The default password is 0000. You
should change the password to a number you
can remember. The Parental Controls menu
opens.
5 Press
or
to highlight Change Password,
then press ENTER. The Settings-Parental
Controls-Change Password screen opens.
Move
OK
E NT E R
ME NU EXIT
Exit
Previous
Select
Adjust settings to affect picture quality
Picture Audio
Channels Settings USB
Mode
Brightness
Contrast
Color
Tint
Custom
60
Sharpness
Advanced Video
R es et Pic ture S ettings
60
60
0
50
Move
OK
E NT E R
ME NU E XIT
ExitPrevious
Select
Set TV parental controls
Picture Channels Settings USB
Settings
Parental Controls
Closed Caption
Time
Menu Settings
Auto Input Sensing O
Input Labels
INlink
Audio
Computer Settings
System Info
Reset to Default
Move
OK
E NT E R
ME NU
E XIT
ExitPrevious
Select
Picture Channels Settings USB
Settings-
Parental Controls
Audio
Enter your 4-digit password. Default is 0000. Please change your
Enter Password
-
password.
Move
OK
E NT ER
ME NU
E XIT
ExitPrevious
Select
Picture Channels Settings USB
Button Lock
Block Unrated TV
USA Parental Locks
Canadian Parental Locks
RRT5
Audio
Reset RRT5
Change Password
Enter a new 4-digit password then re-enter it to confirm
Settings-
Parental Controls
O
O
Move
OK
E NT ER
ME NU E XI T
Exit
Previous
Select
Picture Channels Settings USB
Settings-
Parental Controls-Change Password
Audio
Enter a new 4-digit password then re-enter it to confirm
Enter New Password
-
C onfirm New P as s word
40
NS-15E720A12/NS-19E720A12/NS-22E730A12/NS-24E730A12 Insignia 15"/19"/22"/24" LED-LCD TV
www.insigniaproducts.com
6 Press the number buttons to enter a password,
then enter the password again. “Password
successfully changed” is displayed.
7 Press MENU to return to the previous menu, or
press EXIT to close the menu.
Locking control buttons
When the button lock is turned On, the buttons on
the side of your TV are locked and you can only
operate your TV using the remote control.
To lock control buttons:
1 Press MENU. The on-screen menu opens.
2 Press
or
to highlight Settings, then press
or ENTER. The Settings menu opens with
Parental Controls highlighted.
3 Press ENTER. The Enter Password screen opens.
4 Press the number buttons to enter the four-digit
password. The Settings-Parental Controls menu
opens with Button Lock highlighted.
5 Press ENTER.
6 Press
or
to select On (locks the buttons) or
Off (unlocks the buttons).
7 Press MENU to return to the previous menu, or
press EXIT to close the menu.
Note
If you forget your password, enter 9999.
Move
OK
E NT E R
ME NU
E XIT
ExitPrevious
Select
Adjust settings to affect picture quality
Picture Audio Channels Settings USB
Mode
Brightness
Contrast
Color
Tint
Custom
60
Sharpness
Advanced Video
R es et Pic ture S ettings
60
60
0
50
Move
OK
E NT E R
ME NU
E XIT
ExitPrevious
Select
Set TV parental controls
Picture Channels Settings USB
Settings
Parental Controls
Closed Caption
Time
Menu Settings
Auto Input Sensing O
Input Labels
INlink
Audio
Computer Settings
System Info
Reset to Default
Move
OK
E NT E R
ME NU
E XIT
ExitPrevious
Select
Picture Channels Settings USB
Settings-
Parental Controls
Audio
Enter your 4-digit password. Default is 0000. Please change your
Enter Password
-
password.
Move
OK
E NT ER
ME NU E XIT
Exit
Previous
Select
Picture Channels Settings USB
Button Lock
Block Unrated TV
USA Parental Locks
Canadian Parental Locks
RRT5
Audio
Reset RRT5
Change Password
Lock or unlock the buttons on the TV
Settings-
Parental Controls
O
O
41
Insignia 15"/19"/22"/24" LED-LCD TV
www.insigniaproducts.com
Blocking unrated TV
To block unrated TV:
1 Press MENU. The on-screen menu opens.
2 Press
or
to highlight Settings, then press
or ENTER. The Settings menu opens with
Parental Controls highlighted.
3 Press ENTER. The Enter Password screen opens.
4 Press the number buttons to enter the four-digit
password. The Settings-Parental Controls menu
opens.
5 Press
or
to highlight Block Unrated TV,
then press ENTER.
6 Press
or
to select On (to block unrated TV)
or Off (to unblock unrated TV).
7 Press MENU to return to the previous menu, or
press EXIT to close the menu.
Move
OK
E NT E R
ME NU EXIT
Exit
Previous
Select
Adjust settings to affect picture quality
Picture Audio
Channels Settings USB
Mode
Brightness
Contrast
Color
Tint
Custom
60
Sharpness
Advanced Video
R es et Pic ture S ettings
60
60
0
50
Move
OK
E NT E R
ME NU
E XIT
ExitPrevious
Select
Set TV parental controls
Picture Channels Settings USB
Settings
Parental Controls
Closed Caption
Time
Menu Settings
Auto Input Sensing O
Input Labels
INlink
Audio
Computer Settings
System Info
Reset to Default
Move
OK
E NT E R
ME NU E XIT
Exit
Previous
Select
Picture Channels Settings USB
Settings-
Parental Controls
Audio
Enter your 4-digit password. Default is 0000. Please change your
Enter Password
-
password.
Move
O K
E NTE R
ME NU
E XIT
ExitPrevious
Select
Picture Channels Settings USB
Button Lock
Block Unrated TV
USA Parental Locks
Canadian Parental Locks
RRT5
Audio
Reset RRT5
Change Password
Block TV programs that do not have a rating
Settings-
Parental Controls
On
O
42

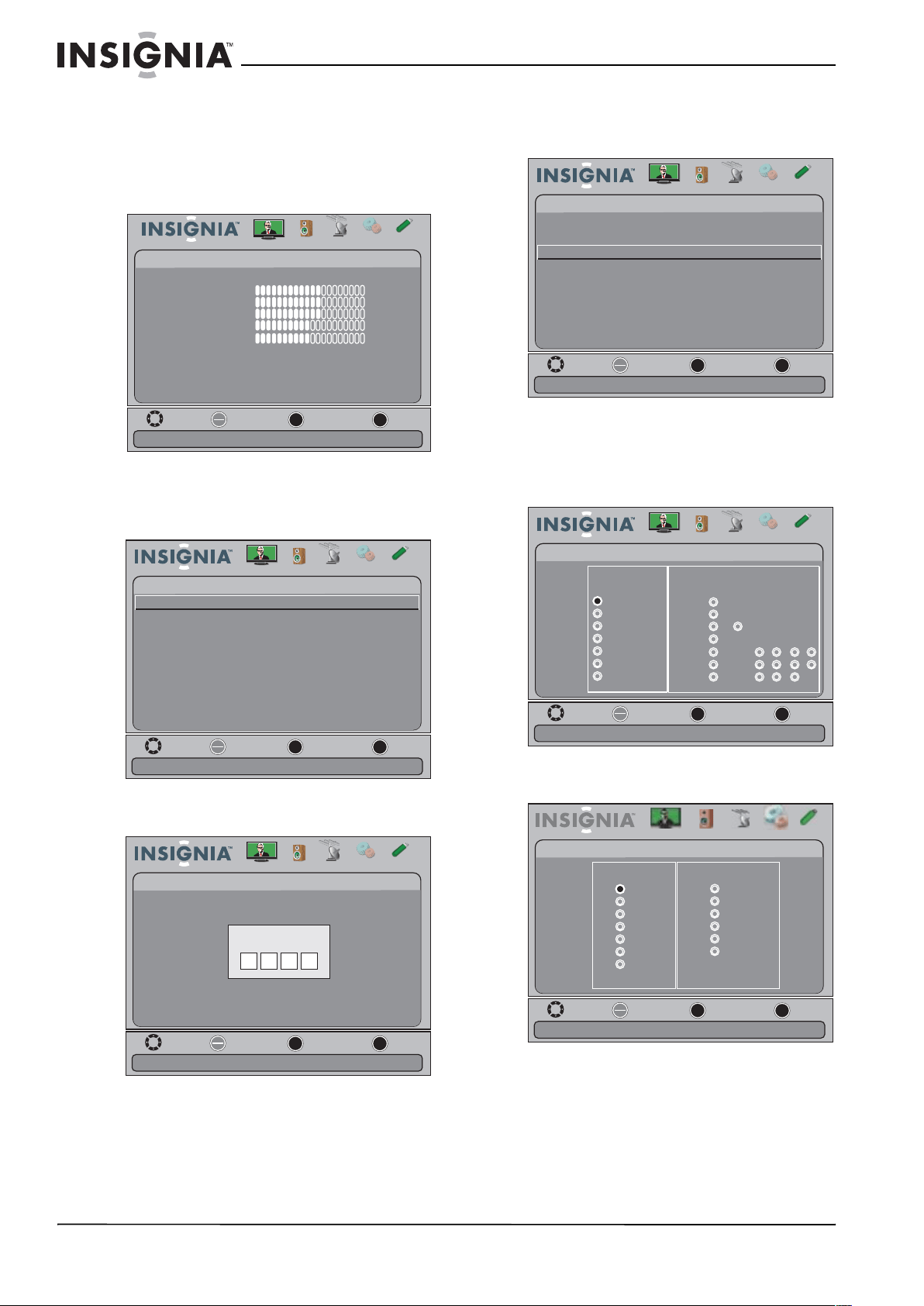

NS-15E720A12/NS-19E720A12/NS-22E730A12/NS-24E730A12 Insignia 15"/19"/22"/24" LED-LCD TV
www.insigniaproducts.com
Setting parental control levels
You can set parental controls for the U.S. and
Canada.
To set parental control levels:
1 Press MENU. The on-screen menu opens.
2 Press
or
to highlight Settings, then press
or ENTER. The Settings menu opens with
Parental Controls highlighted.
3 Press ENTER. The Enter Password screen opens.
4 Press the number buttons to enter the four-digit
password. The Settings-Parental Controls menu
opens.
5 Press
or
to highlight USA Parental Locks,
then press ENTER. (To set Canadian ratings,
select Canadian Parental Locks.)
USA Parental Locks
Canadian Parental Locks
6 Press
or
to highlight:
• Movie Ratings or TV Ratings for USA ratings.
• English Rating or French Rating for Canadian
ratings.
Move
OK
E NT E R
ME NU EXIT
ExitPrevious
Select
Adjust settings to affect picture quality
Picture Audio Channels Settings USB
Mode
Brightness
Contrast
Color
Tint
Custom
60
Sharpness
Advanced Video
R es et Pic ture S ettings
60
60
0
50
Move
OK
E NT E R
ME NU E XIT
Exit
Previous
Select
Set TV parental controls
Picture Channels Settings USB
Settings
Parental Controls
Closed Caption
Time
Menu Settings
Auto Input Sensing O
Input Labels
INlink
Audio
Computer Settings
System Info
Reset to Default
Move
OK
E NT E R
ME NU E XIT
ExitPrevious
Select
Picture Channels Settings USB
Settings-
Parental Controls
Audio
Enter your 4-digit password. Default is 0000. Please change your
Enter Password
-
password.
Move
OK
E NTE R
ME NU
E XIT
ExitPrevious
Select
Picture Channels Settings USB
Button Lock
Block Unrated TV
USA Parental Locks
Canadian Parental Locks
RRT5
Audio
Reset RRT5
Change Password
Restrict movie and TV programs by US Ratings
Settings-
Parental Controls
On
On
Move
OK
E NT E R
ME NU E XIT
ExitPrevious
Select
Picture Channels Settings USB
S ettings -
P arental C ontrols -US A P arental L oc ks
Audio
Movie
G
PG
PG-13
R
NC-17
X
TV Ratings
None
TV -Y
TV -Y7
TV -G
TV -PG
TV -14
TV -MA
All FV L S V D
None
Change the OK/Enter button read “Lock/Unlock”
USA
Parental
Locks
Ratings
Move
OK
E NT E R
ME NU
E XIT
ExitPrevious
S elec t
Picture Channels Settings USB
S ettings -
P arental C ontrols -C anadian P arental L oc ks
Audio
C
C8+
G
PG
14+
18+
E
Change the OK/Enter button read “Lock/Unlock”
Canadian
Parental
Locks
Canadian E nglish C anadian French
E
G
8 ans+
13 ans+
16 ans+
18 ans+
43
Insignia 15"/19"/22"/24" LED-LCD TV
www.insigniaproducts.com
7 Press
or
to select the rating. If a rating has
sub-ratings, press
or
to highlight a
sub-rating.
8 Press ENTER to confirm. A lock symbol appears
when a rating is blocked.
9 Press MENU to return to the previous menu, or
press EXIT to close the menu.
Some of the age-based TV Parental Guidelines
ratings also have content-based ratings.
Downloading rating information
You can download rating information to use when
setting parental controls.
To download rating information:
1 Press MENU. The on-screen menu opens.
2 Press
or
to highlight Settings, then press
or ENTER. The Settings menu opens with
Parental Controls highlighted.
Note
When you block a rating, that rating and all higher
ratings are blocked.
U.S. TV ratings
NONE Not rated
TV-Y All children
TV-Y7 Suitable for children 7 and older
TV-G General audiences
TV-PG Parental guidance suggested
TV-14 Parental guidance strongly suggested
TV-MA Mature audiences only
U.S. TV content ratings
All All ratings are blocked
FV Fantasy violence
L Strong language
S Sexual situations
V Violence
D Suggestive dialog
U.S. movie (MPAA) ratings
None Movie not rated
G General audiences
PG Parental guidance suggested
PG-13 Suitable for children 13 and older
R Parental guidance suggested for
children under 17
NC-17 Not suitable for children under 17
X Adults only
Canadian English ratings
E Exempt programming
C Suitable for all children
C8+ Suitable for children 8 and older
G General audiences
PG Parental guidance suggested
14+ Suitable for children 14 and older
18+ Adult only
Canadian French ratings
E Exempt programming
G General audiences
8ans+ Suitable for children 8 and older
13ans+ Suitable for children 13 and older
16ans+ Suitable for children 16 and older
18ans+ Adult only
Move
OK
E NT E R
ME NU
E XIT
ExitPrevious
Select
Adjust settings to affect picture quality
Picture Audio Channels Settings USB
Mode
Brightness
Contrast
Color
Tint
Custom
60
Sharpness
Advanced Video
R es et Pic ture S ettings
60
60
0
50
Move
OK
E NT E R
ME NU
E XIT
ExitPrevious
Select
Set TV parental controls
Picture Channels Settings USB
Settings
Parental Controls
Closed Caption
Time
Menu Settings
Auto Input Sensing O
Input Labels
INlink
Audio
Computer Settings
System Info
Reset to Default
44
NS-15E720A12/NS-19E720A12/NS-22E730A12/NS-24E730A12 Insignia 15"/19"/22"/24" LED-LCD TV
www.insigniaproducts.com
3 Press ENTER. The Enter Password screen opens.
4 Press the number buttons to enter the four-digit
password. The Settings-Parental Controls menu
opens.
5 Press
or
to highlight RRT5, then press
ENTER.
If the program is broadcast with RRT5 rating
information, the information is downloaded
automatically and can be used for parental
controls.
6 To reset RRT5 information to factory mode,
press
or
to highlight Reset RRT5, then
press ENTER.
7 Select Yes (to reset the information) or No (to
keep the information), then press ENTER.
8 Press MENU to return to the previous menu, or
press EXIT to close the menu.
Using closed captioning
Turning closed captioning on or off
To turn closed captioning on or off:
1 Press MENU. The on-screen menu opens.
2 Press
or
to highlight Settings, then press
or ENTER. The Settings menu opens.
3 Press
or
to highlight Closed Caption, then
press ENTER. The Settings-Closed Caption menu
opens.
4 Press
or
to highlight CC Mode, then press
ENTER. A menu opens.
Move
OK
E NT E R
ME NU
E XIT
ExitPrevious
Select
Picture Channels Settings USB
Settings-
Parental Controls
Audio
Enter your 4-digit password. Default is 0000. Please change your
Enter Password
-
password.
Move
OK
E NT E R
ME NU E XIT
ExitPrevious
Select
Picture Channels Settings USB
Button Lock
Block Unrated TV
USA Parental Locks
Canadian Parental Locks
RRT5
Audio
Reset RRT5
Change Password
Settings-
Parental Controls
On
On
Display an advanced V-Chip ratings table for digital channels
Move
OK
E NT E R
ME NU EXIT
Exit
Previous
Select
Adjust settings to affect picture quality
Picture Audio
Channels Settings USB
Mode
Brightness
Contrast
Color
Tint
Custom
60
Sharpness
Advanced Video
R es et Pic ture S ettings
60
60
0
50
Move
O K
E N TE R
ME NU E X IT
Exit
Previous
Select
Adjust Closed Captioning settings
Picture Channels Settings USB
Settings
Parental Controls
Closed Caption
Time
Menu Settings
Auto Input Sensing O
Input Labels
INlink
Audio
Computer Settings
System Info
Reset to Default
Move
OK
E NT E R
ME NU
E XIT
ExitPrevious
Select
Adjust Closed Captioning settings
Picture Channels Settings USB
Settings-
Closed Caption
CC Mode
Analog Caption
Audio
Digital Caption
Digital CC Settings
CC O
CC1
CS1
45
Insignia 15"/19"/22"/24" LED-LCD TV
www.insigniaproducts.com
5 Press
or
to select CC Off (turns off closed
captioning), CC On (turns on closed captioning),
or CC On When Mute (turns on closed
captioning when the sound is muted).
6 Press MENU to return to the previous menu, or
press EXIT to close the menu.
Selecting the analog closed captioning mode
To select the analog closed captioning mode:
1 Press MENU. The on-screen menu opens.
2 Press
or
to highlight Settings, then press
or ENTER. The Settings menu opens.
3 Press
or
to highlight Closed Caption, then
press ENTER. The Settings-Closed Caption menu
opens.
4 Press
or
to highlight Analog Caption, then
press ENTER. A menu opens.
5 Press
or
to select an analog caption setting.
You can select:
• CC1 through CC4—Closed captioning
appears in a small banner across the bottom
of the screen. CC1 is usually the “printed”
version of the audio. CC2 through CC4 display
content provided by the broadcaster.
• Text1 through Text4—Closed captioning
covers half or all of the screen. Text1 through
Text4 display content provided by the
broadcaster.
6 Press MENU to return to the previous menu, or
press EXIT to close the menu.
Customizing digital closed captioning styles
To customize digital closed captioning styles:
1 Press MENU. The on-screen menu opens.
Note
You can also press CCD to turn closed captioning on
or off.
Move
OK
E NT E R
ME NU EXIT
ExitPrevious
Select
Adjust settings to affect picture quality
Picture Audio Channels Settings USB
Mode
Brightness
Contrast
Color
Tint
Custom
60
Sharpness
Advanced Video
R es et Pic ture S ettings
60
60
0
50
Move
OK
E NT E R
ME NU
E XI T
ExitPrevious
Select
Adjust Closed Captioning settings
Picture Channels Settings USB
Settings
Parental Controls
Closed Caption
Time
Menu Settings
Auto Input Sensing O
Input Labels
INlink
Audio
Computer Settings
System Info
Reset to Default
Move
OK
E NT E R
ME NU E XIT
Exit
Previous
Select
Set Closed Caption for standard (analog) programs
Picture Channels Settings USB
Settings -
Closed Caption
CC Mode
Analog Caption
Audio
Digital Caption
Digital CC Settings
CC O
CC1
CS1
Move
OK
E NT E R
ME NU EXIT
ExitPrevious
Select
Adjust settings to affect picture quality
Picture Audio Channels Settings USB
Mode
Brightness
Contrast
Color
Tint
Custom
60
Sharpness
Advanced Video
R es et Pic ture S ettings
60
60
0
50
46
NS-15E720A12/NS-19E720A12/NS-22E730A12/NS-24E730A12 Insignia 15"/19"/22"/24" LED-LCD TV
www.insigniaproducts.com
2 Press
or
to highlight Settings, then press
or ENTER. The Settings menu opens.
3 Press
or
to highlight Closed Caption, then
press ENTER. The Settings-Closed Caption menu
opens.
4 Press
or
to highlight Digital Caption, then
press ENTER. A menu opens.
5 Press
or
to highlight a digital caption
setting, then press ENTER. You can select CS1
through CS6 or CC1 through CC4.
6 Press
or
to highlight Digital CC Settings,
then press ENTER. The Digital CC Settings menu
opens with Style highlighted.
7 Press ENTER, press
or
to select Custom,
then press ENTER.
8 Press
or
to highlight an option, then press
ENTER. You can select:
• Size—Selects the font size.
• Font—Selects the font style.
• Text Color—Selects the color for the words.
• Text Opacity—Selects the opacity level for
the words.
• Background Color—Selects the color for the
background.
• Background Opacity—Selects the opacity
level for the background.
• Edge Effect—Selects the edge style.
• Edge Color—Selects the edge color.
9 Press MENU to return to the previous menu, or
press EXIT to close the menu.
Adjusting time settings
Setting the clock
To set the clock:
1 Press MENU. The on-screen menu opens.
2 Press
or
to highlight Settings, then press
or ENTER. The Settings menu opens.
Move
OK
E NT E R
ME NU
E XI T
ExitPrevious
Select
Adjust Closed Captioning settings
Picture Channels Settings USB
Settings
Parental Controls
Closed Caption
Time
Menu Settings
Auto Input Sensing O
Input Labels
INlink
Audio
Computer Settings
System Info
Reset to Default
Move
OK
E N TE R
ME NU
E XIT
ExitPrevious
Select
Set Closed Caption for digital programs
Picture Channels USB
Settings -
Closed Caption
CC Mode
Analog Caption
Audio
Digital Caption
Digital CC Settings
CC O
CC1
CS1
Settings
Move
OK
E N TE R
ME NU E XI T
ExitPrevious
Select
Set the look of digital CC. Automatic uses broadcaster’s style
Picture Channels Settings USB
S ettings -
C los ed C aption-Digital C C S ettings
Style
Size
Audio
Font
Text Color
Text Opacity
Background Color
Edge Eect
Edge Color
Custom
Black
Small
None
Solid
Black
Solid
White
Default
Background Opacity
Move
OK
E NT E R
ME NU
E XIT
ExitPrevious
Select
Adjust settings to affect picture quality
Picture Audio
Channels Settings USB
Mode
Brightness
Contrast
Color
Tint
Custom
60
Sharpness
Advanced Video
R es et Pic ture S ettings
60
60
0
50
Move
OK
E NTE R
ME NU
E XIT
ExitPrevious
Select
Set Date/Time and Sleep Timer
Picture Channels Settings USB
Settings
Parental Controls
Closed Caption
Time
Menu Settings
Auto Input Sensing O
Input Labels
INlink
Audio
Computer Settings
System Info
Reset to Default
47
Insignia 15"/19"/22"/24" LED-LCD TV
www.insigniaproducts.com
3 Press
or
to highlight Time, then press
ENTER. The Settings-Time menu opens.
4 Press
or
to highlight Date/Time, then press
ENTER. The Settings-Time-Date/Time menu
opens.
5 Press
or
to highlight Mode, then press
ENTER. A menu opens.
6 Press
or
to highlight Manual (to set the
options manually) or Auto (the options are
automatically set by the TV signal source).
7 Press ENTER to close the menu.
8 Press
or
to highlight Time Zone, then press
ENTER. A menu opens.
9 Press
or
to select your time zone, then press
ENTER. You can select Eastern, Central,
Mountain, Pacific, Alaska, Hawaii,
Newfoundland, or Atlantic.
10 If your viewing area observes daylight savings
time and you selected Auto for Mode:
• Press
or
to highlight Daylight Savings,
then press ENTER.
• Press
or
to select On or Off, then press
ENTER to close the menu.
11 If you selected Manual for Mode:
• Press
or
to highlight Year, Month, or Day,
then press
or
to adjust the setting.
• Press
or
to highlight Time, press
or
to
select the hour, minute, or AM/PM field, then
press
or
to adjust the setting.
12 Press MENU to return to the previous menu, or
press EXIT to close the menu.
Setting the sleep timer
You can specify the amount of time before your TV
automatically turns off.
To set the sleep timer:
1 Press MENU. The on-screen menu opens.
2 Press
or
to highlight Settings, then press
or ENTER. The Settings menu opens.
3 Press
or
to highlight Time, then press
ENTER. The Settings-Time menu opens.
4 Press
or
to highlight Sleep Timer, then
press ENTER. A menu opens.
Move
OK
E NT ER
ME NU
E XIT
ExitPrevious
Select
Adjust the date and time to get the correct program times
Picture Channels Settings USB
Settings-
Time
Date/Time
Sleep Timer
Audio
O
Move
OK
E NT ER
ME NU
E XIT
ExitPrevious
Select
If automatic, options are automatically set by TV source
Picture Channels USB
Settings
-T ime-Date/Time
Mode
Time Zone
Audio
Auto
Daylight Savings
Year
Month
Day
Time
Atlantic
O
2011
July
28
10: 26 AM
Settings
Move
OK
E NT E R
ME NU EXIT
ExitPrevious
Select
Adjust settings to affect picture quality
Picture Audio Channels Settings USB
Mode
Brightness
Contrast
Color
Tint
Custom
60
Sharpness
Advanced Video
R es et Pic ture S ettings
60
60
0
50
Move
OK
E NTE R
ME NU E XIT
ExitPrevious
Select
Set Date/Time and Sleep Timer
Picture Channels Settings USB
Settings
Parental Controls
Closed Caption
Time
Menu Settings
Auto Input Sensing O
Input Labels
INlink
Audio
Computer Settings
System Info
Reset to Default
Move
OK
E N TE R
ME NU E X IT
ExitPrevious
Select
Set a time for the TV to turn off automatically
Picture Channels Settings USB
Settings
-T ime
Date/Time
Sleep Timer
Audio
O
48
NS-15E720A12/NS-19E720A12/NS-22E730A12/NS-24E730A12 Insignia 15"/19"/22"/24" LED-LCD TV
www.insigniaproducts.com
5 Press
or
to select the amount of time before
your TV turns off automatically. To turn off the
sleep timer, select Off.
6 Press MENU to return to the previous menu, or
press EXIT to close the menu.
Adjusting menu settings
Selecting the menu language
To select the menu language:
1 Press MENU. The on-screen menu opens.
2 Press
or
to highlight Settings, then press
or ENTER. The Settings menu opens.
3 Press
or
to highlight Menu Settings, then
press ENTER. The Settings-Menu Settings menu
opens.
4 Press ENTER. A language menu opens.
5 Press
or
to highlight English, Français, or
Español, then press ENTER to close the menu.
6 Press MENU to return to the previous menu, or
press EXIT to close the menu.
Turning Auto Input Sensing on or off
When the Auto Input Sensing feature is turned on,
your TV automatically detects which video jacks
have devices connected to them. Your TV uses this
information to determine what options you can
select on the INPUT SOURCE list when you press
INPUT.
To turn Input Sensor on or off:
1 Press MENU. The on-screen menu opens.
Note
You can also press SLEEP to set the sleep timer.
Move
OK
E NT E R
ME NU EXIT
ExitPrevious
Select
Adjust settings to affect picture quality
Picture Audio Channels Settings USB
Mode
Brightness
Contrast
Color
Tint
Custom
60
Sharpness
Advanced Video
R es et Pic ture S ettings
60
60
0
50
Move
OK
E NT ER
ME NU E XIT
ExitPrevious
Select
Adjust TV Menu options
Picture Channels Settings USB
Settings
Parental Controls
Closed Caption
Time
Menu Settings
Auto Input Sensing O
Input Labels
INlink
Audio
Computer Settings
System Info
Reset to Default
Move
OK
E NT E R
ME NU E XIT
Exit
Previous
Select
Picture Channels Settings USB
Settings-
Menu Settings
Menu Language
Audio
English
Set menu language to English, Fran ais or Español ç
Move
OK
E NT E R
ME NU
E XIT
ExitPrevious
Select
Adjust settings to affect picture quality
Picture Audio
Channels Settings USB
Mode
Brightness
Contrast
Color
Tint
Custom
60
Sharpness
Advanced Video
R es et Pic ture S ettings
60
60
0
50
49
Insignia 15"/19"/22"/24" LED-LCD TV
www.insigniaproducts.com
2 Press
or
to highlight Settings, then press
or ENTER. The Settings menu opens.
3 Press
or
to highlight Auto Input Sensing,
then press ENTER. A menu opens.
4 Press
or
to select On (to activate Auto Input
Sensing) or Off (to deactivate Auto Input
Sensing).
5 Press MENU to return to the previous menu, or
press EXIT to close the menu.
Labeling an input source
You can add a label to an input source to make it
easier to identify.
To label an input source:
1 Press MENU. The on-screen menu opens.
2 Press
or
to highlight Settings, then press
or ENTER. The Settings menu opens.
3 Press
or
to highlight Input Labels, then
press ENTER. The Settings-Input Labels screen
opens with the input source field highlighted.
4 Press
or
to select the input source you want
to label, then press
to move to the custom
label field.
5 Press
or
to select a character, then press
or
to move to the previous or next character
position. Repeat this step to enter additional
characters. You can enter as many as 10
characters.
6 When you have completed the label, press
ENTER.
7 Press MENU to return to the previous menu or
press EXIT to close the menu. The next time you
press INPUT, your label will appear in the INPUT
SOURCE list.
Move
O K
E NTE R
ME NU
E XIT
ExitPrevious
Select
Picture Channels Settings USB
Settings
Parental Controls
Closed Caption
Time
Menu Settings
Auto Input Sensing O
Input Labels
INlink
Audio
Computer Settings
System Info
Reset to Default
View only the active video devices connected to the TV when
you press INPUT
Move
OK
E NT E R
ME NU
E XIT
ExitPrevious
Select
Adjust settings to affect picture quality
Picture Audio Channels Settings USB
Mode
Brightness
Contrast
Color
Tint
Custom
60
Sharpness
Advanced Video
R es et Pic ture S ettings
60
60
0
50
Move
O K
E NT E R
ME NU
E XIT
ExitPrevious
Select
Create labels for the devices connected to your TV
Picture Channels Settings USB
Settings
Parental Controls
Closed Caption
Time
Menu Settings
Auto Input Sensing O
Input Labels
INlink
Audio
Computer Settings
System Info
Reset to Default
Move
OK
E NT E R
ME NU
E XIT
ExitPrevious
Select
Create your own label name
Picture Channels Settings USB
Settings-
Input Labels
Audio
TV
TV
50
NS-15E720A12/NS-19E720A12/NS-22E730A12/NS-24E730A12 Insignia 15"/19"/22"/24" LED-LCD TV
www.insigniaproducts.com
Restoring settings to the defaults
When you restore default settings, all the settings
you have customized (except the password and
parental rating) are reset.
To restore settings to the defaults:
1 Press MENU. The on-screen menu opens.
2 Press
or
to highlight Settings, then press
or ENTER. The Settings menu opens.
3 Press
or
to highlight Reset to Default, then
press ENTER. A menu opens.
4 Press
or
to highlight Power on in Vivid
Mode, then press ENTER.
5 Press
or
to highlight On (when you turn on
your TV, it will be in Vivid picture mode) or Off
(when you turn on your TV, it will be in the
picture mode it was in before you reset to
defaults), then press ENTER.
6 Press
or
to highlight Reset to Default, then
press ENTER.
7 Press
or
to select Yes (to reset) or No (to not
reset), then press ENTER.
8 Press MENU to return to the previous menu, or
press EXIT to close the menu.
Using INlink
INlink lets you control HDMI CEC-compatible
devices connected to the HDMI jacks on your TV
using the remote control that came with your TV.
To use INlink, you must set the INlink Control
option on the SETTINGS-INlink menu to On.
Turning INlink on or off
To turn INlink on or off:
1 Press MENU. The on-screen menu opens.
2 Press
or
to highlight Settings, then press
or ENTER. The Settings menu opens.
Move
OK
E NT E R
ME NU
E XIT
ExitPrevious
Select
Adjust settings to affect picture quality
Picture Audio Channels Settings USB
Mode
Brightness
Contrast
Color
Tint
Custom
60
Sharpness
Advanced Video
R es et Pic ture S ettings
60
60
0
50
Move
OK
E NT ER
ME NU
E XIT
ExitPrevious
Select
Change power on options or reset TV to factory default
Picture Channels Settings USB
Settings
Parental Controls
Closed Caption
Time
Menu Settings
Auto Input Sensing O
Input Labels
INlink
Audio
Computer Settings
System Info
Reset to Default
Notes
• HDMI cables must be used to connect HDMI
CEC-compatible devices to your TV.
• The connected device’s HDMI CEC feature must
be turned on.
• If you connect an HDMI device that is not HDMI
CEC-compatible, all the INlink Control features
do not work.
• Depending on the connected HDMI device, the
INlink Control feature may not work.
Move
OK
E NT E R
ME NU EXIT
Exit
Previous
Select
Adjust settings to affect picture quality
Picture Audio
Channels Settings USB
Mode
Brightness
Contrast
Color
Tint
Custom
60
Sharpness
Advanced Video
R es et Pic ture S ettings
60
60
0
50
Move
OK
E NT E R
ME NU E XIT
Exit
Previous
Select
Allow the TV to automatically control CEC devices connected to
Picture Channels Settings USB
Settings
Parental Controls
Closed Caption
Time
Menu Settings
Auto Input Sensing O
Input Labels
INlink
Audio
Computer Settings
System Info
Reset to Default
the TV via HDMI
51
Insignia 15"/19"/22"/24" LED-LCD TV
www.insigniaproducts.com
3 Press
or
to highlight INlink, then press
ENTER. The Settings-INlink menu opens.
4 Press
or
to highlight INlink Control, then
press ENTER. A menu opens.
5 Press
or
to highlight On (to turn on the
INlink Control feature) or Off (to turn off the
INlink Control feature).
6 Press MENU to return to the previous menu, or
press EXIT to close the menu.
Turning Device Auto Power Off on or off
When INlink is turned on, Device Auto Power Off
turns off HDMI CEC devices when you turn off your
TV.
To turn Device Auto Power Off on or off:
1 Press MENU. The on-screen menu opens.
2 Press
or
to highlight Settings, then press
or ENTER. The Settings menu opens.
3 Press
or
to highlight INlink, then press
ENTER. The Settings-INlink menu opens.
4 Press
or
to highlight Device Auto Power
Off, then press ENTER. A menu opens.
5 Press
or
to select On (turns off the
connected devices when you turn off your TV)
or Off (does not turn off the connected devices
when you turn off your TV).
6 Press MENU to return to the previous menu, or
press EXIT to close the menu.
Move
OK
E NTE R
ME NU E XIT
Exit
Previous
Select
Picture Channels Settings USB
Settings
-INlink
INlink Control
Audio
Device Auto Power O
TV Auto Power On
Audio Receiver
O
O
O
Allow the TV to automatically control CEC devices connected to
INlink Device Lists
Connect
Root Menu
O
the TV via HDMI
Move
OK
E NT E R
ME NU
E XIT
ExitPrevious
Select
Adjust settings to affect picture quality
Picture Audio
Channels Settings USB
Mode
Brightness
Contrast
Color
Tint
Custom
60
Sharpness
Advanced Video
R es et Pic ture S ettings
60
60
0
50
Move
OK
E NT E R
ME NU
E XIT
ExitPrevious
Select
Allow the TV to automatically control CEC devices connected to
Picture Channels Settings USB
Settings
Parental Controls
Closed Caption
Time
Menu Settings
Auto Input Sensing O
Input Labels
INlink
Audio
Computer Settings
System Info
Reset to Default
the TV via HDMI
Move
OK
E NT ER
ME NU E XIT
Exit
Previous
Select
Picture Channels Settings USB
Settings
-INlink
INlink Control
Audio
Device Auto Power O
TV Auto Power On
On
O
O
Automatically turn off HDMI CEC devices when the TV is turned
Audio Receiver
INlink Device Lists
Connect
Root Menu
O
off and INlink is set to On.
52
NS-15E720A12/NS-19E720A12/NS-22E730A12/NS-24E730A12 Insignia 15"/19"/22"/24" LED-LCD TV
www.insigniaproducts.com
Turning TV Auto Power On on or off
When INlink is turned on and you turn on a DVD or
Blu-ray player that is HDMI CEC-compatible, TV
Auto Power On turns on your TV automatically.
To turn TV Auto Power On on or off:
1 Press MENU. The on-screen menu opens.
2 Press
or
to highlight Settings, then press
or ENTER. The Settings menu opens.
3 Press
or
to highlight INlink, then press
ENTER. The Settings-INlink menu opens.
4 Press
or
to highlight TV Auto Power On,
then press ENTER. A menu opens.
5 Press
or
to select On (turns on your TV
when you turn on the connected device) or Off
(does not turn on your TV when you turn on the
connected device).
6 Press MENU to return to the previous menu, or
press EXIT to close the menu.
Turning Audio Receiver on or off
When INlink is turned on and you have connected
an audio receiver to your TV, turning on Audio
Receiver lets you use your TV’s remote control to
control the volume on the audio receiver.
To turn Audio Receiver on or off:
1 Press MENU. The on-screen menu opens.
2 Press
or
to highlight Settings, then press
or ENTER. The Settings menu opens.
Move
OK
E NT E R
ME NU
E XIT
ExitPrevious
Select
Adjust settings to affect picture quality
Picture Audio Channels Settings USB
Mode
Brightness
Contrast
Color
Tint
Custom
60
Sharpness
Advanced Video
R es et Pic ture S ettings
60
60
0
50
Move
OK
E NT E R
ME NU E XIT
ExitPrevious
Select
Allow the TV to automatically control CEC devices connected to
Picture Channels Settings USB
Settings
Parental Controls
Closed Caption
Time
Menu Settings
Auto Input Sensing O
Input Labels
INlink
Audio
Computer Settings
System Info
Reset to Default
the TV via HDMI
Move
OK
E NT E R
ME NU
E XIT
ExitPrevious
S elec t
Picture Channels Settings USB
Settings
-INlink
INlink Control
Audio
Device Auto Power O
TV Auto Power On
On
On
On
Automatically turn on the TV when an HDMI CEC device is used
Audio Receiver
INlink Device Lists
Connect
Root Menu
O
Move
OK
E NT E R
ME NU EXIT
Exit
Previous
Select
Adjust settings to affect picture quality
Picture Audio
Channels Settings USB
Mode
Brightness
Contrast
Color
Tint
Custom
60
Sharpness
Advanced Video
R es et Pic ture S ettings
60
60
0
50
Move
OK
E NT E R
ME NU E XIT
Exit
Previous
Select
Allow the TV to automatically control CEC devices connected to
Picture Channels Settings USB
Settings
Parental Controls
Closed Caption
Time
Menu Settings
Auto Input Sensing O
Input Labels
INlink
Audio
Computer Settings
System Info
Reset to Default
the TV via HDMI
53
Insignia 15"/19"/22"/24" LED-LCD TV
www.insigniaproducts.com
3 Press
or
to highlight INlink, then press
ENTER. The Settings-INlink menu opens.
4 Press
or
to highlight Audio Receiver, then
press ENTER. A menu opens.
5 Press
or
to select On (your TV’s remote
control controls the connected audio receiver’s
volume) or Off (your TV’s remote control does
not control the connected audio receiver’s
volume).
6 Press MENU to return to the previous menu, or
press EXIT to close the menu.
Displaying a list of INlink-compatible (HDMI
CEC) devices
You can display a list of HDMI CEC devices that are
connected to your TV.
To display a list of INlink-compatible (HDMI CEC)
devices:
1 Press MENU. The on-screen menu opens.
2 Press
or
to highlight Settings, then press
or ENTER. The Settings menu opens.
3 Press
or
to highlight INlink, then press
ENTER. The Settings-INlink menu opens.
4 Press
or
to highlight INlink Device Lists,
then press ENTER. A list of the HDMI
CEC-compatible devices you have connected
appears.
5 Press MENU to return to the previous menu, or
press EXIT to close the menu.
Move
OK
E NTE R
ME NU E X IT
ExitPrevious
Select
Picture Channels Settings USB
Settings
-INlink
INlink Control
Audio
Device Auto Power O
TV Auto Power On
Audio Receiver
On
On
On
Receiver’s volume can be controlled by TV’s remote control
INlink Device Lists
Connect
Root Menu
On
Move
OK
E NT E R
ME NU EXIT
ExitPrevious
Select
Adjust settings to affect picture quality
Picture Audio Channels Settings USB
Mode
Brightness
Contrast
Color
Tint
Custom
60
Sharpness
Advanced Video
R es et Pic ture S ettings
60
60
0
50
Notes
HDMI cables must be used to connect HDMI
CEC-compatible devices to your TV.
The connected device’s HDMI CEC feature must be
turned on.
If you connect an HDMI device that is not HDMI
CEC-compatible, the INlink Control option does not
work.
Move
OK
E NT E R
ME NU
E XIT
ExitPrevious
Select
Allow the TV to automatically control CEC devices connected to
Picture Channels Settings USB
Settings
Parental Controls
Closed Caption
Time
Menu Settings
Auto Input Sensing O
Input Labels
INlink
Audio
Computer Settings
System Info
Reset to Default
the TV via HDMI
Move
OK
E NT E R
ME NU
E XIT
ExitPrevious
Select
Picture Channels Settings USB
Settings
-INlink
INlink Control
Audio
Device Auto Power O
TV Auto Power On
On
On
On
Go to device list to register new devices or remove devices from
Audio Receiver
INlink Device Lists
Connect
Root Menu
On
the list
54
NS-15E720A12/NS-19E720A12/NS-22E730A12/NS-24E730A12 Insignia 15"/19"/22"/24" LED-LCD TV
www.insigniaproducts.com
Waking INlink-compatible (HDMI CEC)
devices
When a connected INlink-compatible device is in
standby mode, use the Connect option to wake
(turn on) the device.
To wake INlink-compatible devices:
1 Press MENU. The on-screen menu opens.
2 Press
or
to highlight Settings, then press
or ENTER. The Settings menu opens.
3 Press
or
to highlight INlink, then press
ENTER. The Settings-INlink menu opens.
4 Press
or
to highlight Connect, then press
ENTER. The connected INlink-compatible
device in standby mode turns on.
5 Press MENU to return to the previous menu, or
press EXIT to close the menu.
Opening an INlink-compatible device’s root
menu
You can open an INlink-compatible device’s root
menu, then use your TV’s remote control to control
the device.
To open an INlink-compatible device’s root
menu:
1 Press MENU. The on-screen menu opens.
2 Press
or
to highlight Settings, then press
or ENTER. The Settings menu opens.
3 Press
or
to highlight INlink, then press
ENTER. The Settings-INlink menu opens.
Move
OK
E NT E R
ME NU EXIT
Exit
Previous
Select
Adjust settings to affect picture quality
Picture Audio
Channels Settings USB
Mode
Brightness
Contrast
Color
Tint
Custom
60
Sharpness
Advanced Video
R es et Pic ture S ettings
60
60
0
50
Move
OK
E NT E R
ME NU
E XIT
ExitPrevious
Select
Allow the TV to automatically control CEC devices connected to
Picture Channels Settings USB
Settings
Parental Controls
Closed Caption
Time
Menu Settings
Auto Input Sensing O
Input Labels
INlink
Audio
Computer Settings
System Info
Reset to Default
the TV via HDMI
Picture Channels Settings USB
Settings
-INlink
INlink Control
Audio
Device Auto Power O
TV Auto Power On
On
On
On
Audio Receiver
INlink Device Lists
Connect
On
Move
OK
E NT E R
ME NU E X IT
ExitPrevious
Select
Enable the HDMI CEC device to come out of Standby mode
Root Menu
when the TV is turned on.
Move
OK
E NT E R
ME NU EXIT
ExitPrevious
Select
Adjust settings to affect picture quality
Picture Audio Channels Settings USB
Mode
Brightness
Contrast
Color
Tint
Custom
60
Sharpness
Advanced Video
R es et Pic ture S ettings
60
60
0
50
Move
OK
E NT E R
ME NU E XIT
Exit
Previous
Select
Allow the TV to automatically control CEC devices connected to
Picture Channels Settings USB
Settings
Parental Controls
Closed Caption
Time
Menu Settings
Auto Input Sensing O
Input Labels
INlink
Audio
Computer Settings
System Info
Reset to Default
the TV via HDMI
Move
OK
E NT E R
ME NU
E XIT
ExitPrevious
Select
Picture Channels Settings USB
Settings
-INlink
INlink Control
Audio
Device Auto Power O
TV Auto Power On
On
On
On
Control the menu of the HDMI CEC device with the TV remote
Audio Receiver
INlink Device Lists
Connect
Root Menu
On
control
55
Insignia 15"/19"/22"/24" LED-LCD TV
www.insigniaproducts.com
4 Press
or
to highlight Root Menu, then press
ENTER. The device’s root menu opens, and you
can use the TV’s remote control to control the
device.
5 Press MENU to return to the previous menu, or
press EXIT to close the menu.
Using a USB flash drive
You can connect a USB flash drive to your TV to
view compatible JPEG pictures.
Switching to USB mode
To switch to USB mode:
1 Make sure that you have connected the USB
flash drive to the USB port on your TV.
2 Press INPUT. The INPUT SOURCE list opens.
3 Press
or
to highlight USB, then press
ENTER.
Browsing photos
To browse photos:
1 Switch to USB mode. See “Switching to USB
mode” on page 55
2 Press MENU. The USB menu opens.
3 Press
or ENTER to access the menu. Photos is
highlighted.
4 Press ENTER. The USB-photos menu opens
5 Press
or
to highlight Browse Photos, then
press ENTER. The screen displays folder names
and photo files stored on the USB flash drive in a
thumbnail index with the first photo or folder
highlighted. A control bar appears at the
bottom of the screen.
6 To navigate the thumbnail index screen, press:
•
or
to browse through the files and
folders.
• ENTER to view a highlighted photo full-screen
or open a highlighted folder.
• MENU to open the USB menu.
Notes
• Never remove the USB flash drive or turn off
your TV while viewing JPEG pictures.
• The JPEG picture viewer only supports JPEG
format images (with “.jpg” file extensions) and
not all JPEG files are compatible with your TV.
Note
To exit USB mode, press INPUT to open the INPUT
SOURCE list, then select another input source.
Move
O K
E NTE R
ME NU
E XIT
ExitPrevious
Select
View files from a USB device that is connected to the TV
Picture Channels Settings USB
USB
Photos
Audio
Move
OK
E NT E R
ME NU
E X IT
ExitPrevious
Select
View files from a USB device that is connected to the TV
Picture Channels Settings USB
USB
Photos
Audio
Move
OK
E NT ER
ME NU E X IT
Exit
Previous
Select
Find photos that are on the USB device
Picture Channels Settings USB
Photos
Browse Photos
Audio
Favorite Photos
View Slideshow
Settings
Photo Photo Photo Photo
Photo Photo Photo PhotoPhoto Photo
Photo Photo Photo PhotoPhoto Photo
Photo Photo Photo PhotoPhoto Photo
O K
E NTE R
ME NU E X IT
ExitPrevious
Se le ct
Move
Directory Date: 2010/12/14
Name: Picture 1
Picture 2
56
NS-15E720A12/NS-19E720A12/NS-22E730A12/NS-24E730A12 Insignia 15"/19"/22"/24" LED-LCD TV
www.insigniaproducts.com
• FAVORITE to add or remove a photo from the
favorite photo list. A heart appears on a photo
that has been added to the favorite photo list.
• EXIT to return to the USB menu.
When a photo is displayed full-screen, a control
bar appears at the bottom of the photo. The file
name, picture resolution, size, and date are
displayed on the bottom of the control bar. If
you do not press a button within 10 seconds,
the control bar closes. Press any button to open
the control bar again.
7 To navigate on the photo screen, press:
•
or
to go to the previous photo.
•
or
to go to the next photo.
• ENTER to rotate the photo clockwise.
• ZOOM one or more times to enlarge the
image by 2× or 4× or to select Fill (the photo is
displayed at it’s actual size). You can press
or
to pan the photo.
• EXIT to return to the thumbnail index.
• MENU to return to the USB menu.
Viewing favorite photos
After you created your favorite photo list, you can
browse among your favorite photos quickly.
To view favorite photos:
1 Switch to USB mode. See “Switching to USB
mode” on page 55
2 Press MENU. The USB menu opens.
3 Press
or ENTER to access the menu. Photos is
highlighted.
4 Press ENTER. The USB-photos menu opens.
5 Press
or
to highlight Favorite Photos, then
press ENTER. A thumbnail index of your favorite
photos opens with a control bar at the bottom
of the screen.
You select photos and navigate on the photo
screen in the same way you do when you are
browsing through photos. For more
information, see “Browsing photos” on page 55.
Name: 6081.jpg
OK
E NT ER
ME NU E XIT
ExitPrevious
Rotate
Move
Resolution: 800 x 600 Size: 163.2KB Date: 2010/12/16
ZO OM
Zoom
Move
O K
E NTE R
ME NU
E XIT
ExitPrevious
Select
View files from a USB device that is connected to the TV
Picture Channels Settings USB
USB
Photos
Audio
Move
OK
E NT E R
ME NU
E X IT
ExitPrevious
Select
View files from a USB device that is connected to the TV
Picture Channels Settings USB
USB
Photos
Audio
Move
OK
E NT E R
ME NU
E XIT
ExitPrevious
S elec t
View only the photos you selected as your favorites
Picture Channels Settings USB
Photos
Browse Photos
Audio
Favorite Photos
View Slideshow
Settings
Name: 6081.jpg
OK
E NTE R
ME NU
E XIT
Exit
Previous
Select
Move
Resolution: 800 x 600 Size: 163.2KB Date: 2010/12/16
57
Insignia 15"/19"/22"/24" LED-LCD TV
www.insigniaproducts.com
Viewing photos in a slideshow
You can view your photos in a slideshow.
To view photos in a slideshow:
1 Switch to USB mode. See “Switching to USB
mode” on page 55
2 Press MENU. The USB menu opens.
3 Press
or ENTER to access the menu. Photos is
highlighted.
4 Press ENTER. The USB-photos menu opens.
5 If you want to view all the photos on the USB
flash drive, press
or
to highlight Browse
Photos, press ENTER, then press MENU to
return to the USB-Photos menu.
OR
If you want to view your favorite photos only,
press
or
to highlight Favorite Photos, press
ENTER, then press MENU to return to the
USB-Photos menu.
6 Press
or
to highlight View Slideshow, then
press ENTER. A slideshow starts with the first
photo in the current folder.
When a photo is displayed full-screen, a control
bar appears at the bottom of the photo. The file
name, picture resolution, size, and date are
displayed on the bottom of the control bar. If
you do not press a button within 10 seconds,
the control bar closes. Press any button to open
the control bar again.
7 To control in the slideshow, press:
• ENTER to pause or start the slideshow.
• EXIT to exit the slideshow and return to
thumbnail index.
• MENU to go to the USB menu.
Move
O K
E NTE R
ME NU E XIT
ExitPrevious
Select
View files from a USB device that is connected to the TV
Picture Channels Settings USB
USB
Photos
Audio
Move
OK
E NT E R
ME NU E X IT
ExitPrevious
Select
View files from a USB device that is connected to the TV
Picture Channels Settings USB
USB
Photos
Audio
Move
OK
E NT E R
ME NU
E XIT
ExitPrevious
Selec t
View your photos in a slideshow
Picture Channels Settings USB
Photos
Browse Photos
Audio
Favorite Photos
View Slideshow
Settings
Name: 6081.jpg
Resolution: 800 x 600 Size: 163.2KB Date: 2010/12/16
O K
E NTE R
ME NU
E XIT
ExitPrevious
Pause
58
NS-15E720A12/NS-19E720A12/NS-22E730A12/NS-24E730A12 Insignia 15"/19"/22"/24" LED-LCD TV
www.insigniaproducts.com
Customizing slideshow settings
You can customize the slideshow settings,
including Repeat, Shuffle, Speed, and Transition.
To customize slideshow settings:
1 Switch to USB mode. See “Switching to USB
mode” on page 55
2 Press MENU. The USB menu opens.
3 Press
or ENTER to access the menu. Photos is
highlighted.
4 Press ENTER. The USB-photos menu opens.
5 Press
or
to highlight Settings, then press
ENTER. The USB-Photo-Settings menu opens.
6 Press
or
to highlight an option, then press
ENTER. You can select:
• Repeat—Repeats the slideshow when it
reaches the end. You can select On or Off.
• Shuffle—Displays the slideshow photos in
random order. You can select On or Off.
• Speed—Sets the amount of time a photo is
displayed before the slideshow moves to the
next photo. You can select 4 Sec, 6 Sec, or
8 Sec.
• Transition—Selects the way photos transition
when moving to the next file in the slideshow.
You can select:
• None—No transition effect.
• Fade to Black—Fades the screen to black
between photos.
• Vertical Wipe—Wipes the screen from top
to bottom between photos.
• Horizontal Wipe—Wipes the screen from
left to right between photos.
• Random—Randomly selects a transition
effect.
7 Press EXIT to close the menu.
Move
O K
E NTE R
ME NU
E XIT
ExitPrevious
Select
View files from a USB device that is connected to the TV
Picture Channels Settings USB
USB
Photos
Audio
Move
OK
E NT E R
ME NU
E X IT
ExitPrevious
Select
View files from a USB device that is connected to the TV
Picture Channels Settings USB
USB
Photos
Audio
Move
OK
E NTE R
ME NU E XIT
Exit
Previous
Select
Change slideshow settings
Picture Channels Settings USB
Photos
Browse Photos
Audio
Favorite Photos
View Slideshow
Settings
Move
OK
E NT E R
ME NU
E XIT
ExitPrevious
S elec t
Repeat the slideshow when it reaches the end
Picture Channels Settings USB
Photos-Settings
Repeat
Audio
Shue
Speed
Transition
O
O
4 sec
None
59
Insignia 15"/19"/22"/24" LED-LCD TV
www.insigniaproducts.com
Maintaining
• Do not use your TV in areas that are too hot or too
cold, because the cabinet may warp or the screen
may malfunction. Your TV works best in
temperatures that are comfortable to you.
• Storage temperatures are 32° to 122°F (0° to 50°C).
• Working temperatures are 41° to 104°F
(5° to 40°C).
• Do not place your TV in direct sunlight or near a
heat source.
Cleaning the TV cabinet
Clean the cabinet with a soft, lint-free cloth. If the
cabinet is especially dirty, moisten a soft, lint-free
cloth in a weak detergent solution, squeeze the
excess moisture from the cloth, then wipe the
screen or cabinet with the cloth. Use a clean cloth to
dry the screen or cabinet.
Cleaning the TV screen
Clean the screen with a soft, lint-free cloth.
Troubleshooting
Video and audio
Warning
Do not try to repair your TV yourself. Contact
authorized service personnel.
Problem Solution
Picture does not fill the
screen. There are black bars
around the picture.
• Change the aspect ratio. An increasing amount
of digital TV and movies are presented in wide
screen (16:9). See “Adjusting the TV picture” on
page 32.
No picture (screen is not lit)
and no sound.
• Press on the TV or the remote control.
• Make sure that the Audio Only option is set to
Off. See “Playing TV audio only” on page 34.
• Make sure that the video cables are connected
securely to your TV.
• Adjust the contrast and brightness. See
“Adjusting the TV picture” on page 32.
• Make sure that the power cord is plugged in.
• Make sure that the correct video input source is
selected. See “Selecting the video input source”
on page 29.
• Try another channel. The station may be
experiencing problems.
• Make sure that the incoming signal is
compatible.
• Make sure that the antenna or cable TV is
connected correctly and securely. See
“Connecting a cable or satellite box” on page 13
or “Connecting an antenna or cable TV (no box)”
on page 17.
• Check the closed caption settings. Some TEXT
modes can block the screen.
Dark, poor, or no picture
(screen is lit), but sound is
good.
• Try another channel. The station may be
experiencing problems.
• Make sure that the antenna or cable TV is
connected correctly and securely. See
“Connecting a cable or satellite box” on page 13
or “Connecting an antenna or cable TV (no box)”
on page 17.
• Adjust the brightness. See “Adjusting the TV
picture” on page 32.
• Make sure that the correct picture mode is
selected. See “Adjusting the TV picture” on
page 32.
• If you are using an antenna, the digital channel
signal may be low. To check the digital channel
signal strength, see “Checking the digital signal
strength” on page 38.
• If you are using an antenna and the signal
strength is low, adjust the antenna or use a
highly directional outdoor antenna or set-top
antenna with a built-in amplifier.
• Make sure that the video cables are connected
securely to your TV.
• The video cable(s) you are using may be bad. Try
a new set.
• Try another channel. The station may be
experiencing problems.
No color, dark picture, or
color is not correct.
• Try another channel. The station may be
experiencing problems.
• Adjust the color settings. See “Adjusting the TV
picture” on page 32.
• Make sure that the video cables are connected
correctly and securely to your TV.
• Make sure that the antenna or cable TV is
connected correctly and securely. See
“Connecting a cable or satellite box” on page 13
or “Connecting an antenna or cable TV (no box)”
on page 17.
• If you are using an antenna, the digital channel
signal may be low. To check the digital channel
signal strength, see “Checking the digital signal
strength” on page 38.
• If you are using an antenna and the signal
strength is low, adjust the antenna or use a
highly directional outdoor antenna or set-top
antenna with a built-in amplifier.
Only snow (noise) appears
on the screen.
• Try another channel. The station may be
experiencing problems.
• Make sure that the antenna or cable TV is
connected correctly and securely. See
“Connecting a cable or satellite box” on page 13
or “Connecting an antenna or cable TV (no box)”
on page 17.
• If you are using an antenna, the digital channel
signal may be low. To check the digital channel
signal strength, see “Checking the digital signal
strength” on page 38.
• If you are using an antenna and the signal
strength is low, adjust the antenna or use a
highly directional outdoor antenna or set-top
antenna with a built-in amplifier.
Problem Solution
60
NS-15E720A12/NS-19E720A12/NS-22E730A12/NS-24E730A12 Insignia 15"/19"/22"/24" LED-LCD TV
www.insigniaproducts.com
Remote control
General
Dotted lines or stripes
appear on the screen.
• Make sure that the antenna or cable TV is
connected correctly and securely. See
“Connecting a cable or satellite box” on page 13
or “Connecting an antenna or cable TV (no box)”
on page 17.
• If you are using an antenna, the digital channel
signal may be low. To check the digital channel
signal strength, see “Checking the digital signal
strength” on page 38.
• If you are using an antenna and the signal
strength is low, adjust the antenna or use a
highly directional outdoor antenna or set-top
antenna with a built-in amplifier.
• Make sure that the video cables are connected
securely to your TV.
• The video cable(s) you are using may be bad. Try
a new set.
• Other devices (for example, a surround sound
receiver, external speakers, fans, or hair dryers)
may be interfering with your TV. Try turning off
one device at a time to determine which device
is causing interference. Once you have
determined which device is causing
interference, move it further from the TV to
eliminate the interference.
Double images.
• Use a highly directional outdoor antenna, cable
TV, or satellite TV.
The picture has a few bright
or dark spots.
• A few bright or dark spots on an LCD screen is
normal. It does not affect the operation of
your TV.
Good picture, but no sound.
• Increase the volume.
• Make sure that the sound is not muted.
• Disconnect the headphones.
• Make sure that the correct audio mode is
selected.
• Make sure that the audio cables are connected
correctly and securely to your TV.
• Make sure that the antenna or cable TV is
connected correctly and securely. See
“Connecting a cable or satellite box” on page 13
or “Connecting an antenna or cable TV (no box)”
on page 17.
• If you are using an antenna, the digital channel
signal may be low. To check the digital channel
signal strength, see “Checking the digital signal
strength” on page 38.
• The audio cable(s) you are using may be bad. Try
a new set.
Poor picture
• Make sure that the room is not too bright. Light
reflecting off the screen can make the picture
difficult to see.
• If an S-VHS camera or a camcorder is connected
while another connected device is turned on,
the picture may be poor. Turn off one or more
devices.
Good sound but poor color
• Adjust the contrast, color, and brightness
settings. See “Adjusting the TV picture” on
page 32.
Audio noise
• Other devices (for example, a surround sound
receiver, external speakers, fans, or hair dryers)
may be interfering with your TV. Try turning off
one device at a time to determine which device
is causing interference. Once you have
determined which device is causing
interference, move it further from the TV to
eliminate the interference.
Problem Solution
No output from one of the
speakers
• Adjust the audio balance. See “Adjusting sound
settings” on page 34.
• Make sure that the audio cables are connected
correctly and securely to your TV.
After images appear
• Do not display a still image, such as a logo,
game, or computer image, for an extended
period of time. This can cause a permanent
after-image to be burned into the screen. This
type of damage is not covered by your warranty.
Problem Solution
Remote control does not
work.
• Make sure that the power cord is correctly
connected to your TV and a power outlet.
• Make sure that there are no obstructions
between the remote control and the remote
control sensor on the front of the TV.
• Point the remote control directly at the remote
control sensor on your TV. For the location of the
remote control sensor, see “Front” on page 8.
• The supplied batteries are wrapped tightly in
clear plastic. Make sure that you have removed
this plastic from the batteries.
• Make sure that the batteries are installed
correctly. See “Installing remote control
batteries” on page 27.
• Replace dead batteries with new batteries. See
“Installing remote control batteries” on page 27.
Trouble programming your
existing universal remote
control.
• See instructions and a table of common codes in
“Programming a different universal remote
control” on page 63.
• Codes are subject to change. For up-to-date
codes, go to
www.insigniaproducts.com/remotecodes
• Replace dead batteries with new batteries. See
“Installing remote control batteries” on page 27.
• Refer to the User Guide that accompanied your
universal remote control and contact the
manufacturer if problems persist.
Problem Solution
No power
• Make sure that the power cord is correctly
connected to your TV and a power outlet.
• Unplug the power cord, wait 60 seconds, then
plug the cord back in and turn on your TV.
• Other devices (for example, a surround sound
receiver, external speakers, fans, or hair dryers)
may be interfering with your TV. Try turning off
one device at a time to determine which device
is causing interference. Once you have
determined which device is causing
interference, move it further from the TV to
eliminate the interference.
“No signal” error
message is displayed
• Press INPUT and make sure that you have
selected the correct input for the device or
service you are trying to use.
• If you are using a cable or satellite box, use the
remote that came with that box to change
channels.
• Make sure that you have the correct input
selected to view channels from the cable or
satellite box.
Problem Solution
61
Insignia 15"/19"/22"/24" LED-LCD TV
www.insigniaproducts.com
Note: If the problem is not solved by using these troubleshooting
instructions, turn off your TV, then turn it on again.
Specifications
Specifications are subject to change without notice.
Warranty
Dimensions and weight
Screen
After Auto Channel
Search, there are no
channels
• Reception can vary by channel depending on the
broadcast power level of a given station. Contact
your cable or satellite TV provider.
• Make sure the antenna or cable/satellite TV is
connected securely to your TV.
• Try replacing the cable between the
antenna/cable or cable/satellite box and your
TV.
One or more channels
do not display.
• Make sure that the channels are not blocked. See
“Setting parental control levels” on page 42.
• Make sure that the channels are not hidden. The
channel may have been deleted from the
channel list. You can tune to the channel by
pressing the number buttons or you can add the
channel back to the channel list. See “Hiding
channels” on page 36.
• If you are using a cable or satellite box, use the
remote that came with that box to change
channels.
• Make sure that you have the correct input
selected to view channels from the cable or
satellite box.
• If you are using an antenna, the digital channel
signal may be low. To check the digital channel
signal strength, see “Checking the digital signal
strength” on page 38.
Password is lost.
• Enter 9999 to access parental controls, then set
a new password. See “Setting or changing the
password” on page 39.
Some settings cannot be
accessed.
• If a setting is grayed, the setting is not available
in the current video input mode.
TV cabinet creaks.
• When the TV is in use, the temperature rises
naturally and may cause the cabinet to expand
or contract which can cause a creaking noise.
This is not a malfunction.
Control buttons do not
work
• Make sure that the Button Lock option is set to
Off. See “Locking control buttons” on page 40.
• Unplug the power cord, wait a few seconds, then
plug the cord back in and turn on your TV.
TV keeps turning off
• Make sure that the sleep timer is not turned on.
See “Setting the sleep timer” on page 47.
Problem Solution
NS-15E720A12 NS-19E720A12 NS-22E730A12 NS-24E730A12
Parts: 2 years
Labor: 2 years
Parts: 2 years
Labor: 2 years
Parts: 2 years
Labor: 2 years
Parts: 2 years
Labor: 2 years
NS-15E720A12
Without stand:
15.16 × 10.39 × 1.69 in.
(385 × 255 × 43 mm)
3.31 lbs. (1.5 kg)
With stand:
15.16 × 11.34 × 5.43 in.
(385 × 288 × 138 mm)
3.75 lbs (1.7 kg)
NS-19E720A12
Without stand:
17.95 × 11.69 × 1.73 in.
(456 × 297 × 44 mm)
5.95 lbs. (2.7 kg)
With stand:
17.95 × 12.99 × 5.43 in.
(456 × 330 × 138 mm)
6.39 lbs (2.9 kg)
NS-22E730A12
Without stand:
20.51 × 13.31 × 1.89 in.
(521 × 338 × 48 mm)
7.5 lbs (3.4 kg)
With stand:
20.51 × 14.72 × 6.3 in.
(521 × 374 × 160 mm)
8.2 lbs (3.7 kg)
NS-24E730A12
Without stand:
22.95 × 15.04 × 1.77 in.
(583 × 382 × 45 mm)
9.92 lbs (4.5 kg)
With stand:
22.95 × 16.5 × 6.3 in.
(583 × 419 × 160 mm)
10.58 lbs (4.8 kg)
Screen size measured
diagonally
NS-15E720A12
: 15.6 in.
NS-19E720A12:
18.5 in.
NS-22E730A12:
21.5 in.
NS-24E730A12:
23.6 in.
Display type LCD (all models)
Panel 60 Hz vs.120 Hz 60Hz (all models)
Display resolution
NS-15E720A12
: 720p
NS-19E720A12:
720p
NS-22E730A12:
1080p
NS-24E730A12:
1080p
Panel resolution
NS-15E720A12
: 1366 (H) × 768 (V)
NS-19E720A12:
1366 (H) × 768 (V)
NS-22E730A12:
1920 (H) × 1080 (V)
NS-24E730A12:
1920 (H) × 1080 (V)
Aspect ratio 16:9 (all models)
Contrast ratio (typical)–panel
NS-15E720A12
: 600:1
NS-19E720A12:
1000:1
NS-22E730A12:
1000:1
NS-24E730A12:
1000:1
Dynamic contrast ratio–
list value
5000:1 (all models)
Brightness (center typical)
cd/m2
NS-15E720A12
: 220
NS-19E720A12:
250
NS-22E730A12:
250
NS-24E730A12:
280
Comb filter 3d y/c digital (all models)
Response time
NS-15E720A12
: 8 ms
NS-19E720A12:
5 ms
NS-22E730A12:
5 ms
NS-24E730A12:
5 ms
62
NS-15E720A12/NS-19E720A12/NS-22E730A12/NS-24E730A12 Insignia 15"/19"/22"/24" LED-LCD TV
www.insigniaproducts.com
Display resolutions/VGA scan rates
Tuner
Inputs
Outputs
Audio
Power
Miscellaneous
Horizontal viewing angle
NS-15E720A12
: 80
NS-19E720A12:
170
NS-22E730A12:
170
NS-24E730A12:
170
Vertical viewing angle
NS-15E720A12
: 45
NS-19E720A12:
160
NS-22E730A12:
160
NS-24E730A12:
160
HDMI 1.4
Suggested Resolutions (all
models)
1080p, 1080i, 720p, 480p, 480i
HDMI 1.3
Suggested Resolutions (all
models)
1080p, 1080i, 720p, 480p, 480i
Component video
Suggested Resolutions (all
models)
1080i, 720p, 480p, 480i
PC/VGA
Suggested scan rates:
NS-15E720A12:
640 × 480/60Hz, 800 × 600/60Hz,
1024 × 768/60Hz, 1366 × 768/60Hz
NS-19E720A12:
640 × 480/60Hz, 800 × 600/60Hz,
1024 × 768/60Hz, 1366 × 768/60Hz
NS-22E730A12:
640 × 480/60Hz, 800 × 600/60Hz,
1024 × 768/60Hz, 1280 × 1024/60Hz,
1920 × 1080/60Hz
NS-24E730A12:
640 × 480/60Hz, 800 × 600/60Hz,
1024 × 768/60Hz, 1280 × 1024/60Hz,
1920 × 1080/60Hz
Analog NTSC (all models)
Digital ATSC, 8-VSB, Clear-QAM (all models
HDMI/DVI NS-15E720A12: 2 (side)
NS-19E720A12: 2 (side)
NS-22E730A12: 1 (side) 1 (back)
NS-24E730A12: 1 (side) 1 (back)
(HDMI 2 with ARC for all models)
Component video 1 (back) (all models)
Composite video
NS-15E720A12
: 1 (back)
NS-19E720A12:
1 (back)
NS-22E730A12:
1 (side)
NS-24E730A12:
1 (side)
Shared audio (component
and composite)
NS-15E720A12
: yes
NS-19E720A12:
yes
NS-22E730A12:
no
NS-24E730A12:
no
S-Video No (all models)
PC/VGA
NS-15E720A12
: 1 (side)
NS-19E720A12:
1 (side)
NS-22E730A12:
1 (back)
NS-24E730A12:
1 (back)
3.5mm PC audio input
NS-15E720A12
: 1 (side)
NS-19E720A12:
1 (side)
NS-22E730A12:
1 (back)
NS-24E730A12:
1 (back)
USB 1 (side) (all models)
Support JPEG and firmware upgrade
Headphone 1 (side) (all models)
Video No (all models)
Analog audio 1 (side) all models
Digital audio
NS-15E720A12
: no
NS-19E720A12:
no
NS-22E730A12:
1 (back)
NS-24E730A12:
1 (back)
WiFi No (all models)
Ethernet No (all models)
Number of speakers 2
Watts per channel 3W
Simulated Surround Sound Yes - SRS TruSurround HD (all models)
Sound Leveler Yes (all models)
Power consumption
NS-15E720A12
:
On: 20 W
Standby: <1 W
NS-19E720A12:
On: 26 W
Standby: <1 W
NS-22E730A12:
On: 34 W
Standby: <1 W
NS-24E730A12:
On: 33 W
Standby: <1W
Power input 120V/60Hz (all models)
OSD languages English, French, Spanish (all models)
INlink Yes (all models)
ENERGY STAR qualified Yes (all models)
Internet connectable No (all models)
TV base screws M4 type 14 mm length (4) (all models)
V-Chip (version 2.0) Yes (all models)
Sleep timer Yes (all models)
Channel labeling Yes (all models)
VESA mount (mm)
(horizontal × vertical)
100 × 100 (all models)
Note
The length of the wall-mount screws vary depending
on the wall-mount bracket you purchased. See the
instructions that came with the wall-mount bracket
for screw lengths.
63
Insignia 15"/19"/22"/24" LED-LCD TV
www.insigniaproducts.com
Programming universal
remote controls
Programming a different universal remote
control
You can operate your Insignia TV with a new or
existing universal remote control.
To program a different universal remote control:
1 See the table below for common codes. If you
have problems programming your remote or
need a different remote control code, visit
www.insigniaproducts.com/remotecodes for
the latest remote control code information.
2 Follow your universal remote control’s
instructions to enter the TV code you found in
Step 1.
For additional help and information:
• Visit:
http://www.insigniaproducts.com/remotecodes
• Call technical support for the universal remote
control or cable/satellite company of the
remote/set-top box you are trying to program.
• Call the Insignia Customer Care Center
1-877-467-4289.
Common universal remote control codes
The following is a list of the most common remote
control codes. Codes for other remote controls are
available online at:
http://www.insigniaproducts.com/remotecodes
or check with your cable or satellite TV provide for
the remote control code.
Insignia TV codes for universal remote controls (for all
Insignia TVs manufactured after Jan. 1, 2007)
Tips
• If your universal remote control has a code
search feature, run a code search to identify a
code that matches your TV. See your universal
remote control’s instructions for details.
• If your universal remote control has a “Learn”
feature, you can manually program it using the
Insignia TV remote to “teach” the commands
one at a time. See your universal remote
control’s instructions for details.
Universal remote control makes and models
One for All 0054
Phillips 0198, 0490
RCA 135
Sony
068, 069, 078, 096, 100, 164, 168, 229,
026
Set-top box makes and models
Cablevision
068, 069, 078, 096, 100, 164, 168, 229,
026
Charter
2002, 1204, 1423, 1517, 0171, 1963,
0463, 1463, 0842, 1326, 167, 415, 424,
450, 456, 461, 507, 523, 567, 577, 586
Comcast
10171, 11204, 11326, 11463, 11517,
11641, 11780, 11785, 11892, 11963,
12002
Cox 1326, 1463
DirectTV
10171, 11204, 11326, 11517, 11564,
11641, 11963, 12002
Dish Network 720
Time Warner 400, 450, 461, 456, 10463, 1463, 0463
TiVo 0091
Verizon 0198, 0490
Tips
• The brand name is often visible on the front of
the universal remote control, and the model
number is often visible on the back.
• If your universal remote control isn’t listed on
the chart, refer to your universal remote
control’s instructions and try codes for the
brands Orion, Emerson, Memorex, Sansui,
Sylvania, or Zenith. You may need to try several
codes before finding a match.
64
NS-15E720A12/NS-19E720A12/NS-22E730A12/NS-24E730A12 Insignia 15"/19"/22"/24" LED-LCD TV
www.insigniaproducts.com
Legal notices
FCC Part 15
This device complies with Part 15 of the FCC Rules. Operation of
this product is subject to the following two conditions: (1) this
device may not cause harmful interference, and (2) this device
must accept any interference received, including interference
that may cause undesired operation.
This equipment has been tested and found to comply within the
limits for a class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and
receiver.
• Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician
for help.
FCC warning
Changes or modifications not expressly approved by the party
responsible for compliance with the FCC Rules could void the
user’s authority to operate this equipment.
Cables
Connections to this device must be made with shielded cables
with metallic RF/EMI connector hoods to maintain compliance
with FCC Rules and Regulations.
Canada ICES-003 statement
This Class B digital apparatus complies with Canadian ICES-003.
Standard Television Receiving Apparatus — Appareil de
réception télévision ordinaire, Canada BETS-7 / NTMR-7
Dolby License Notice and Trade ark Acknowledgement
Manufactured under license from Dolby
Laboratories. Dolby and the double-D symbol
are trademarks of Dolby Laboratories.
HDMI
HDMI, the HDMI logo, and
High-Definition Multimedia Interface are
trademarks or registered trademarks of
HDMI Licensing LLC.
Energy Star
To meet Energy Star requirements, keep TV settings at
the factory default settings.
SRS TruSurround HD
is a trademark of SRS Labs, Inc. TruSurround
HD technology is incorporated under license
from SRS Labs, Inc.
65
Insignia 15"/19"/22"/24" LED-LCD TV
www.insigniaproducts.com
Two-year limited warranty -
Insignia Televisions
US and Canada Markets
Definitions:
Insignia Products (“Insignia”) warrants to you, the original
purchaser of this new Insignia-branded television (“Product”),
that the Product shall be free of defects in the original
manufacturer of the material or workmanship for a period of two
(2) years from the date of your purchase of the Product
(“Warranty Period”). For this warranty to apply, your Product
must be purchased in the United States or Canada from a Best
Buy or Future Shop authorized dealer of Insignia brand products
only that are packaged with this warranty statement.
How long does the coverage last?
The Warranty Period lasts for 2 years (730 days) from the date
you purchased the Product. Your purchase date is printed on the
receipt you received with the Product.
What does this warranty cover?
During the Warranty Period, if the original manufacture of the
material or workmanship of the Product is determined to be
defective by an authorized Insignia repair center or store
personnel, Insignia will (at its sole option): (1) repair the Product
with new or rebuilt parts; or (2) replace the Product at no charge
with new or rebuilt comparable products or parts. Products and
parts replaced under this warranty become the property of
Insignia and are not returned to you. If service of Products or
parts are required after the Warranty Period expires, you must
pay all labor and parts charges. This warranty lasts as long as you
own your Insignia Product during the Warranty Period. Warranty
coverage terminates if you sell or otherwise transfer the Product.
How to obtain warranty service?
If you purchased the Product at a Best Buy or Future Shop retail
store location and your television Product has a screen size of
less than 37 inches, please take your original receipt and the
Product to any Best Buy or Future Shop store. Make sure that you
place the Product in its original packaging or packaging that
provides the same amount of protection as the original
packaging. If you purchased the Product from a Best Buy or
Future Shop online web site, mail your original receipt and the
Product to the address listed on the web site. Make sure that you
put the Product in its original packaging or packaging that
provides the same amount of protection as the original
packaging.
To obtain in-home warranty service for a television with a screen
37 inches or larger, in the United States call 1-888-BESTBUY,
Canada call 1-866-BESTBUY for Future Shop call 1-800-663-2275.
Call agents will diagnose and correct the issue over the phone or
will have an Insignia-approved repair technician dispatched to
your home.
Where is the warranty valid?
This warranty is valid only to the original purchaser of the
product in the United States and Canada at Best Buy or Future
Shop branded retail stores or websites.
What does the warranty not cover?
This warranty does not cover:
• Customer instruction/education
• Installation
• Set up adjustments
• Cosmetic damage
• Damage due to acts of God, such as power surges
• Accident(s)
• Misuse
• Abuse
• Negligence
• Commercial purposes/use, including but not limited to use
in a place of business or in communal areas of a multiple
dwelling condominium or apartment complex, or
otherwise used in a place of other than a private home.
• Modification of any part of the Product, including the
antenna
• Plasma display panel damaged by static (non-moving)
images applied for lengthy periods (burn-in).
• Damage due to incorrect operation or maintenance
• Connection to an incorrect voltage or power supply
• Attempted repair by any person not authorized by Insignia
to service the Product
• Products sold “as is” or “with all faults”
• Consumables, including but not limited to batteries (i.e. AA,
AAA, C etc.)
• Products where the factory applied serial number has been
altered or removed
• Loss or Theft of this product or any part of the product
• Failures or Damage caused by any contact including but
not limited to liquids, gels or pastes.
REPAIR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS
YOUR EXCLUSIVE REMEDY FOR BREACH OF WARRANTY. INSIGNIA
SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR
CONSEQUENTIAL DAMAGES FOR THE BREACH OF ANY EXPRESS
OR IMPLIED WARRANTY ON THIS PRODUCT, INCLUDING, BUT
NOT LIMITED TO, LOST DATA, LOSS OF USE OF YOUR PRODUCT,
LOST BUSINESS OR LOST PROFITS. INSIGNIA PRODUCTS MAKES
NO OTHER EXPRESS WARRANTIES WITH RESPECT TO THE
PRODUCT, ALL EXPRESS AND IMPLIED WARRANTIES FOR THE
PRODUCT, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED
WARRANTIES OF AND CONDITIONS OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN
DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE AND
NO WARRANTIES, WHETHER EXPRESS OR IMPLIED, WILL APPLY
AFTER THE WARRANTY PERIOD. SOME STATES, PROVINCES AND
JURISDICTIONS DO NOT ALLOW LIMITATIONS ON HOW LONG AN
IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT
APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL
RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY
FROM STATE TO STATE OR PROVINCE TO PROVINCE.
Contact Insignia:
For customer service please call 1-877-467-4289
www.insigniaproducts.com
Distributed by Best Buy Purchasing, LLC
7601 Penn Avenue South, Richfield, Minnesota, U.S.A.
55423-3645
© 2011 BBY Solutions, Inc.
All rights reserved. INSIGNIA is a trademark of BBY Solutions, Inc.
Registered in some countries. All other products and brand
names are trademarks of their respective owners.
www.insigniaproducts.com
US & Canada: 1 (877) 467-4289
Distributed by Best Buy Purchasing, LLC
7601 Penn Avenue South, Richfield, MN USA 55423-3645
© 2011 BBY Solutions, Inc.
All rights reserved. INSIGNIA is a trademark of BBY Solutions, Inc. Registered in some countries.
All other products and brand names are trademarks of their respective owners.
ENGLISH
10-1338
