This is a specially designed antenna for digital TV reception. It can
receive all the TV signals in your area in the VHF and UHF bands, as
well as FM radio signals. An ideal and easy-to-install solution for
home or portable TV reception.
PACKAGE CONTENTS
• Indoor HDTV antenna
• Quick Setup Guide
FEATURES
• Receive free local HDTV
broadcasts
• Adjustable VHF and xed UHF
antennas receive 1080i and
720p HDTV signals
• Integrated 4' coaxial cable for
simple connection to your TV
• Small size for convenience
SETTING UP AND USING YOUR ANTENNA

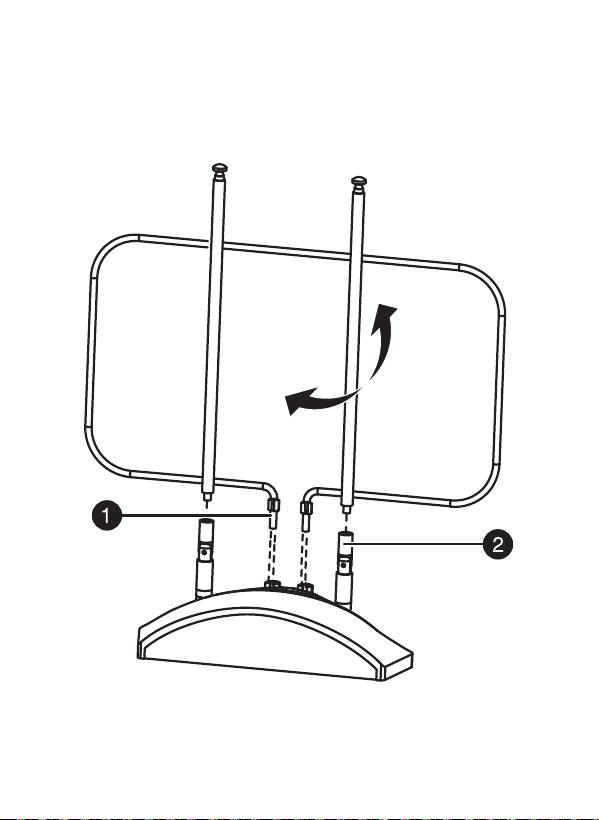

1 Squeeze the bottom of the UHF antenna and insert it into the
holes on the base.
2 Screw the VHF antennas into the base.
Before using your new product, please read these instructions to prevent any damage.
3 Connect the end of the coaxial cable to the coaxial jack on the
back of your TV, digital converter box, or set-top box.

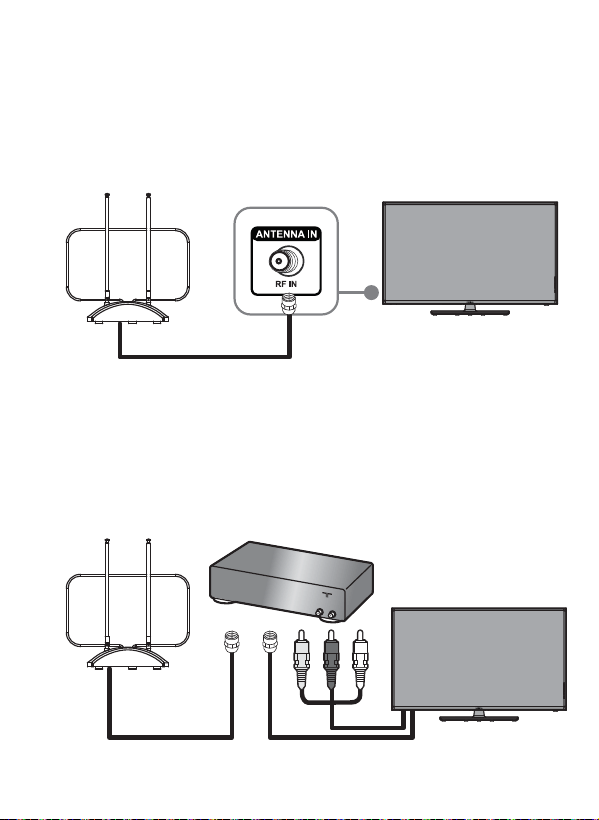

Connect to an HDTV
If you have an HDTV with a digital TV (ATSC) tuner, you can
connect the antenna directly to the HDTV. Older TVs may require
a separate digital TV tuner, or digital converter box.
OR
Connect to a TV through a digital converter or set-top box
Note: See the instructions for your digital converter box for connection
steps.
Antenna
HDTV
Coaxial cable
Digital converter box or set-top box
Coaxial cable
Coaxial cable or composite video/audio cable
Antenna
O
U
T
I
N
AN
T
E
N
NA
TV
QUICK SETUP GUIDE
Indoor HDTV
Antenna
NS-ANT314
