BAUMR-AG CHNSHPBMRA02K 320W 7500RPM Electric Chainsaw User Manual

User Manual

[Revision 3.0 March 2021]

READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY DAMAGE AND

MAY VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by this manual may vary in

appearance, assembly, inclusions, specifications, description, and packaging.

Chainsaw Sharpener

Safety

Safety messages are designed to alert you to possible dangers or hazards that could cause death, injury or

equipment or property damage if not understood or followed. Safety messages have the following symbols:

You WILL be KILLED or

SERIOUSLY INJURED if you do

not follow instructions.

You CAN be KILLED or

SERIOUSLY INJURED if you do

not follow instructions.

You CAN be INJURED if you do

not follow instructions or equipment

damage may occur.

It is vital that you read and understand this

user manual before using the product,

including safety warnings, and any assembly

and operating instructions. Keep the manual

for future reference.

Safety precautions and recommendations

detailed here must be fully understood and

followed to reduce the risk of injury, fire,

explosion, electrical hazard, and/or property

damage.

Safety information presented here is generic

in nature – some advice may not be

applicable to every product. The term

"equipment" refers to the product, be it

electrical mains powered, battery powered or

combustion engine powered.

• Before Use - If you are not familiar with the

safe operation/handling of the equipment or

are in any way unsure of any aspect of

suitability or correct use for your

application, you should complete training

conducted by a person or organization

qualified in safe use and operation of this

equipment, including fuel/electrical handling

and safety.

• Do NOT operate the equipment in

flammable or explosive environments, such

as in the presence of flammable liquids,

gases, or dust. The equipment may create

sparks or heat that may ignite flammable

substances.

• Keep clear of moving parts.

• Equipment may be a potential source of

electric shock or injury if misused.

• Do NOT operate the equipment if it is

damaged, malfunctioning or is in an

excessively worn state.

• Do NOT allow others to use the equipment

unless they have read this manual and are

adequately trained.

• Keep packaging away from children - risk

of suffocation! Operators must use the

equipment correctly. When using the

equipment, consider conditions and pay

due care to persons and property.

General Work Area Safety

• Work areas should be clean and well it.

• Do not operate the equipment if

bystanders, animals etc are within

operating range of the equipment or the

general work area.

• If devices are provided for connecting dust

extraction / collection facilities, ensure

these are connected and used properly.

Dust collection can reduce dust-related

hazards.

General Personal Safety

• Wear appropriate protective equipment

when operating, servicing, or when in the

operating area of the equipment to help

protect from eye and ear injury, poisoning,

burns, cutting and crush injuries. Protective

equipment such as safety goggles,

respirators, non-slip safety footwear, hard

hat, hearing protection etc should be used

for appropriate equipment / conditions.

Other people nearby should also wear

appropriate personal protective equipment.

Do not wear loose clothing or jewellery,

which can be caught in moving parts. Keep

hair and clothing away from the equipment.

• Stay alert and use common sense when

operating the equipment. Do not over-

reach. Always maintain secure footing and

balance.

• Do not use the equipment if tired or under

the influence of drugs, alcohol, or

medication.

• This equipment is not intended for use by

persons with reduced physical, sensory, or

mental capabilities.

General Fuel Safety

• Petrol/fuel/gasoline is extremely flammable

– keep clear of naked flames or other

ignition sources.

• Do not spill fuel. If you spill fuel, wipe it off

the equipment immediately – if fuel gets on

your clothing, change clothing.

• Do NOT smoke near fuel or when

refuelling.

• Always shut off the engine before

refuelling.

• Do NOT refuel a hot engine.

• Open the fuel cap carefully to allow any

pressure build-up in the tank to release

slowly.

• Always refuel in well ventilated areas.

• Always check for fuel leakage. If fuel

leakage is found, do not start, or run the

engine until all leaks are fixed.

General Carbon-Monoxide Safety

• Using a combustion engine indoors CAN

KILL IN MINUTES. Engine exhaust

contains carbon-monoxide – a poison you

cannot smell or see.

• Use combustion engines OUTSIDE only,

and far away from windows, doors, and

vents.

General Equipment Use and Care

• The equipment is designed for domestic

use only.

• Handle the equipment safely and carefully.

• Before use, inspect the equipment for

misalignment or binding of moving parts,

loose components, damage, or any other

condition that may affect its operation. If

damaged, have the equipment repaired by

an authorised service centre or technician

before use.

• Prevent unintentional starting of the

equipment - ensure equipment and power

switches are in the OFF position before

connecting or moving equipment. Do not

carry equipment with hands or fingers

touching any controls. Remove any tools or

other items that are not a part of the

equipment from it before starting or

switching on.

• Do not force the equipment. Use the

correct equipment for your application.

Equipment will perform better and be safer

when used within its design and usage

parameters.

• Use the equipment and accessories etc. in

accordance with these instructions,

considering working conditions and the

work to be performed. Using the equipment

for operations different from those intended

could result in hazardous situations.

• Always keep equipment components

(engines, hoses, handles, controls, frames,

housings, guards etc) and accessories

(cutting tools, nozzles, bits etc) properly

maintained. Keep the equipment clean and,

where applicable, properly lubricated.

• Store the equipment out of reach of

children or untrained persons. To avoid

burns or fire hazards, let the equipment

cool completely before transporting or

storing. Never place or store the equipment

near flammable materials, combustible

gases, or liquids etc.

• The equipment is not weather-proof, and

should not be stored in direct sunlight, at

high ambient temperatures or locations that

are damp or humid.

• Do not clean equipment with solvents,

flammable liquids, or harsh abrasives.

• For specific equipment safety use and care,

see Equipment Safety.

Chainsaw Sharpener

General Electrical Safety

• Inspect electrical equipment, extension

cords, power bars, and electrical fittings for

damage or wear before each use. Repair or

replace damaged equipment immediately.

• Ensure all power sources conform to

equipment voltage requirements and are

disconnected before connecting or

disconnecting equipment.

• When wiring electrically powered

equipment, follow all electrical and safety

codes.

• Wherever possible, use a residual current

device (RCD).

• High voltage / high current power lines may

be present. Use extreme caution to avoid

contact or interference with power lines.

Electrical shock can be fatal.

General Electrical Safety

• Electrically grounded equipment must have

an approved cord and plug and be

connected to a grounded electrical outlet.

• Do NOT bypass the ON/OFF switch and

operate equipment by connecting and

disconnecting the electrical cord.

• Do NOT use equipment that has exposed

wiring, damaged switches, covers or

guards.

• Do NOT use electrical equipment in wet

conditions or in damp locations.

• Do NOT use electrical cords to lift, move or

carry equipment.

• Do NOT coil or knot electrical cords, and

ensure electrical cords are not trip hazards.

General Service Information

• The equipment must be serviced or

repaired at authorised service centres by

qualified personnel only.

• Replacement parts must be original

equipment manufacturer (OEM) to ensure

equipment safety is maintained.

• Do NOT attempt any maintenance or repair

work not described in this manual.

• After use, the equipment and components

may still be hot – allow the equipment to

cool and disconnect spark plugs and/or

electrical power sources and/or batteries

from it before adjusting, changing

accessories, or performing repair or

maintenance.

• Do NOT adjust while the equipment is

running.

• Perform service-related activities in suitable

conditions, such as a workshop.

• Replace worn, damaged or missing

warning/safety labels immediately.

Chainsaw Sharpener Safety

Chainsaw sharpeners can be dangerous when used improperly. Please observe basic safety precautions to eliminate risk of fire, electric shock and

personal injuries.

• Familiarise yourself with the sharpener before use.

• Only use the sharpener for the application if which it is designed.

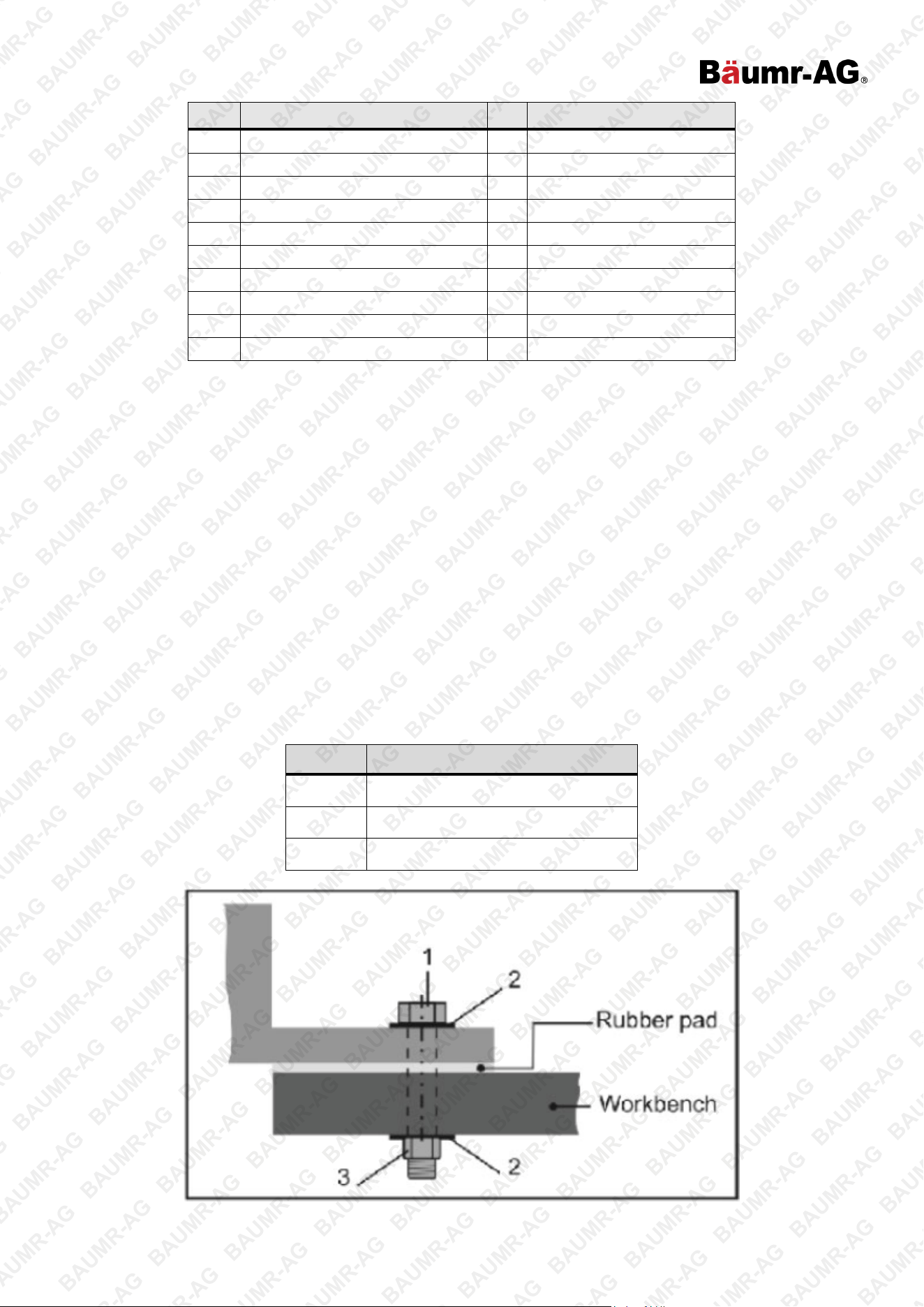

• Mount the sharpener on a non-skid and level ground.

• Ensure that you stand securely and maintain your balance at all times.

• Be attentive and be careful of what you do. One moment of carelessness when using the device can result in serious injuries.

• Do not use the device when you are tired or under the influence of drugs or alcohol.

• Wear suitable work clothes!

• Do not wear loose-fitting clothes or jewellery that can be caught in moving parts.

• Wear gloves and slip-proof shoes.

• Wear a hairnet if your hair is long.

• Wear protective clothing.

• Safety goggles.

• Ear protection (sound intensity level at workplace can exceed 78 dB (A)).

• Dust mask.

• Keep your workplace in an orderly condition.

• Take into consideration the environmental influences:

• Do not use the device in moist or wet conditions.

• Do not expose the chainsaw sharpener to rain.

• Only work with sufficient visibility conditions. Provide good illumination.

• Check the machine for possible damage:

• Before continuing to use the machine, the protective devices must be inspected to ensure that they work perfectly for their intended function.

• Check whether the movable parts function perfectly and whether the parts are damaged. All parts must be properly mounted and all conditions

met to ensure the flawless operation of the chainsaw sharpener.

• Unless otherwise, indicated in the operating instructions, damaged safety devices and parts must be properly repaired by an authorised

workshop.

• Damaged or illegible safety warning labels should be replaced immediately.

• Do not allow any tool key to be plugged in!

Before switching on, check always that wrenches and adjusting tools are removed.

• Store unused equipment in a dry, locked place out of reach of children.

• Never leave the machine unattended.

• Persons under the age of 18 must not operate the device.

• Do not allow other people, especially children, to touch the sharpener.

• Keep them away from your working area.

• Do not overload the machine!

Chainsaw Sharpener

• Only operate the machine with complete and correctly attached safety equipment.

• Do not use any grinding wheels which do not comply with the indicated characteristics of this instruction manual.

• Worn and defective grinding wheels (cracks, imbalance, chipping, etc.) must be replaced immediately.

• Switch the machine off and remove the mains plug from the socket when:

• Carrying out repairs.

• Maintenance and cleaning.

• Storage.

• Leaving the chainsaw sharpener (even in case of short-term interruptions).

• Maintain your chainsaw sharpener with care:

• Keep the sharpener free of oil and grease.

• By following maintenance instructions.

Electrical Safety

• Long and thin connection lines will result in a potential drop.

• Plugs and coupler outlets on connection cables must be made of rubber, non-rigid PVC or other thermoplastic material of the same mechanical

stability.

• The connector of the connection cable must be splash-proof.

• When running the connection line, make sure it is neither bent nor stretched.

• Never run the sharpener with a wet plug connection.

• Wind the cable completely when using a cable drum.

• Only use the cable as it was intended.

• Protect the cable against heat, oil and sharp edges.

• Do not use the cable to pull the plug from the socket.

• Protect yourself against electric shocks. Avoid touching earthed parts (e.g. pipes, heating apparatus, cooker, fridges etc.).

• Regularly check the extension cables and replace them if they are damaged.

• Do not use any defective connection cables.

• Do not set up any provisional electrical connections.

• Never bypass protective devices or deactivate them.

The electrical connection or repairs to electrical parts of the machine must be carried out by a certified electrician or by a representative of the

manufacturer.

Use only original spare parts, accessories and special accessory parts. Accidents can arise for the user through the use of other spare parts. The

manufacturer is not liable for any damage or injury resulting from such action.

Noise Levels

• Noise Power Level: LWA= 91dB (A)

• Sound Pressure: LPA= 78dB (A)

The values given are emission values, and do not simultaneously represent exact safe workplace values. Although there is a relationship between

emission and immersion levels, knowing if additional precautionary measures are necessary can be reliably deduced.

Factors which can influence the immersion level currently existing at the workplace include: the duration of the effects, the specific context and

environment of the work area, other noise sources, etc. (e.g. the number of machines and other adjacent processes). The permissible workplace

values can also vary from country to country. This information should however enable an improved assessment of the danger and risk to be carried

out.

Proper Use

The chainsaw sharpener is only intended to be used for non-commercial purposes. In the standard version with mounted grinding wheel (100 x 3.2

x 10mm), the chainsaw sharpener is only intended to sharpen chainsaws used in hobby applications (1/4, 3/8 hobby and 0.325 chainsaws).

• The device may not be used to sharpen other objects. Otherwise, there is a risk of injury.

• Use only grinding wheels suitable for the machine.

• The intended usage also includes compliance with the operating, servicing and repair conditions prescribed by the manufacturer and following

the safety instructions included in the instruction.

• The relevant accident prevention regulations for the operation as well as the other generally acknowledged occupational medicine and safety

rules must be complied with.

• Any other use is deemed not to be used as prescribed. The manufacturer is not liable for any type of damage resulting from this: the user bears

the sole risk.

• An arbitrary modification of the chainsaw sharpener voids the liability of the manufacturer for damages of all kinds resulting from them.

• The sharpener should not be used in a potentially explosive environment.

Residual Risk

Even if used properly, residual risks can exist even if you follow the relevant safety regulations.

Observing these instructions and taking proper care will reduce residual risk of personal injury.

• Avoid injury to your fingers and hands by steering clear of touching the running grinding wheel.

• Avoid risk of injury by flying sparks.

Chainsaw Sharpener

• Avoid inhalation of grinding dust.

• Do not use improper connecting wires as electric currents can be dangerous.

• Do not touch live parts of open electrical components.

• Watch out for impairment of hearing when working on the machine for longer periods of time without ear protection.

In addition, in spite of all the precautionary measures taken, non-obvious residual risks can still exist so be careful!

Chainsaw Sharpener

Safety Symbols

The product may have safety warning labels attached to it, explained below. Understand the symbols on your

product and their meanings. If any stickers become unreadable, unattached etc., replace them.

Flammable Material Hazard

Flammable liquids, gases, or

substances etc may present.

Avoid ignition sources and open

flames. Danger of fire.

Read User Manual

Read and fully understand

product safety warnings,

operation, procedures etc before

using the product.

Use Hand Protection

Wear appropriate hand protection

and take due care as the product

or use of the product may present

hand hazards.

Carbon-Monoxide Hazard

Do not use the product in

confined areas or without

adequate ventilation. Carbon-

monoxide poisoning can be fatal.

Electrocution / Electrical Shock

Hazard

High voltage or high current

electricity may be present or

required by the product. Take

due care when handling electrical

products, cables, plugs and

leads. Electrical shock can be

fatal.

Toxic Fumes / Dust Hazard

Using the product or by-products

from use may produce fumes,

smoke or particles that could be

harmful if inhaled. Wear

appropriate breathing protection

and have adequate ventilation.

Explosive Material Hazard

Combustible liquids, gases, or

substances etc may be present.

Avoid ignition sources and open

flames. Danger of explosion.

Cutting / Amputation Hazard

The product may have blades,

edges or mechanical devices that

can cause severe cut injury to

fingers, limbs etc. Take due care

when handling and using the

product.

Crush Hazard

The product may have blades,

edges or mechanical devices that

can cause severe crush injury to

fingers, limbs etc. Take due care

when handling and using the

product.

Single Operator Only

The product must be operated by

a single person only. More than

one person operating the product

may introduce additional hazards.

Use Face Protection

Wear appropriate full-face

protection and take due care as

the product or use of the product

may present face and eye

hazards.

Use Foot Protection

Wear appropriate foot protection

and take due care as the product

or use of the product may present

foot hazards.

Use Eye / Ear / Head Protection

Wear appropriate eye and / or

ear and / or head protection and

take due care as the product or

use of the product may present

eye, hearing, and head hazards.

Running Hazard

Do not run on or near the product

as doing so may present a fall

hazard.

Diving Hazard

Do not dive into the product as

doing so may present a neck /

head injury hazard.

Adult Supervision Required

Always supervise children and

other users of a product to

prevent drowning or injury.

Skin Penetration / Puncture

Hazard

The product may produce

pressure, emit liquids or objects

that can cause severe injury to

fingers, limbs, blood etc. Take

due care when handling and

using the product.

Hot Surface Hazard

Be aware that the product may

produce high temperatures and

hot surfaces that can cause burn

injuries.

Flying Debris Hazard

Be aware that the product or use

of the product may present

hazards produced by flying

debris. Wear appropriate clothing

and protective devices.

Moving Parts Hazard

Be aware that the product

contains or uses mechanical

devices that move or rotate.

Always wait for moving parts to

stop fully before handling the

product, adjusting, maintenance

etc.

Chainsaw Sharpener

Carbon-Monoxide Hazard

Do not use the product in

confined areas or without

adequate ventilation. Carbon-

monoxide poisoning can be fatal.

Pull Hazard

Be aware that the product

contains or uses mechanical

devices that can pull in objects

and can cause severe injury to

fingers, limbs etc. Take due care

when handling and using the

product.

Slope / Fall Injury Hazard

Be aware that using the product

on sloping surfaces or in slippery

conditions may present additional

dangers from falls and contact

with blades, moving parts, hot

surfaces etc.

"Slam Dunk" Warning

Do NOT attempt "slam dunk"

manoeuvres as this may result in

severe injury due to falling,

product breakage or collapse etc.

Electrocution / Electrical Shock

Hazard - Outdoor

High voltage or high current

electricity may be present or

required by the product. Do NOT

use in rain, damp, or wet

conditions. Electrical shock can

be fatal.

Electrocution / Electrical Shock

Hazard - Disconnect

High voltage or high current

electricity may be present or

required by the product. Always

disconnect the product from the

electrical supply before handling

the product, adjusting,

maintenance etc.

Power Line Electrocution

Hazard

High voltage / high current power

lines may be present. Use

extreme caution to avoid contact

or interference with power lines.

Electrical shock can be fatal.

"Kick-Back" Hazard

High level of "kick-back" hazard

that can cause the machine to

suddenly rotate towards operator.

Kick-back injury can be fatal.

Winch Operator Position

Hazard

Do NOT stand between winch

and load. Do NOT use winch to

move people.

Winch Lift Hazard

Do NOT LIFT load vertically. Use

machine to PULL only.

Cable Hazard

Ensure that load bearing cable is

not kinked or knotted.

Winch Cable Hazard

Ensure that there is a minimum

number of cable coils on

winching mechanism.

Winch Hook Hazard

Carry hook to load – do NOT

throw or run.

Flash / Blinding Hazard

Wear appropriate eye protection

for welding. Direct exposure to

weld arcs may cause permanent

eye injury.

Laser Hazard

Laser may be in use – do NOT

look directly at laser or allow

others to.

Chainsaw Sharpener

Table of Contents

Safety ............................................................................................................................................................. 2

Safety Symbols ........................................................................................................................................................... 6

Preface ........................................................................................................................................................... 9

Parts List ..................................................................................................................................................... 10

Preparation .................................................................................................................................................. 12

Assembling the Rotary Table ................................................................................................................................... 12

Mounting the Sharpener on a Workbench ................................................................................................................ 12

Commissioning ........................................................................................................................................... 13

Mains Connection ..................................................................................................................................................... 13

Information ................................................................................................................................................................ 13

Switching On ............................................................................................................................................................. 13

Switching Off ............................................................................................................................................................. 13

Working Instructions .................................................................................................................................. 14

Working with the Chainsaw Sharpener .................................................................................................................... 14

Grinding all Cutting Links .......................................................................................................................................... 14

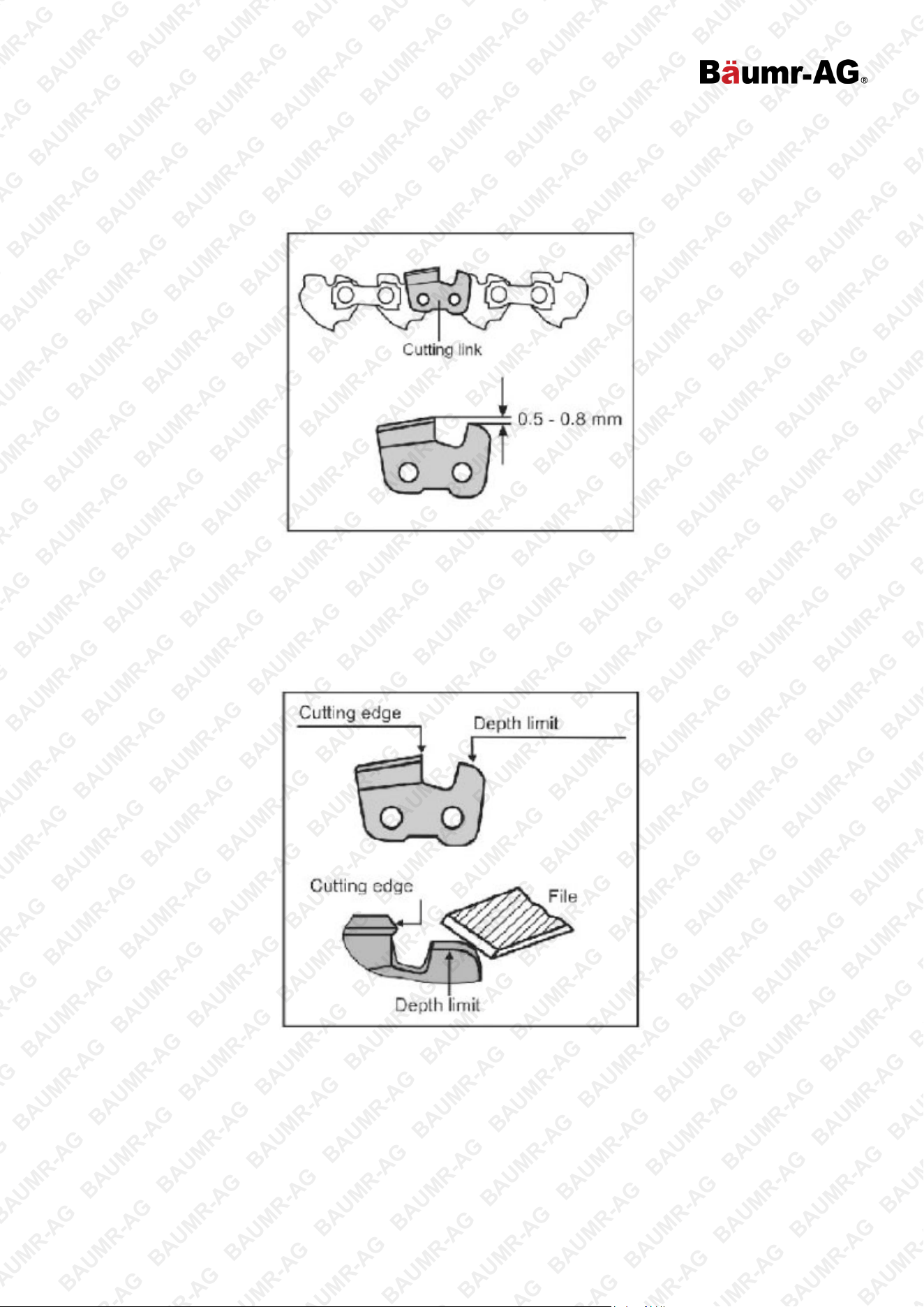

Setting the Depth Limit Distance .............................................................................................................................. 15

Maintenance and Care ................................................................................................................................ 16

Replacing the Grinding Wheel .................................................................................................................................. 16

Storage ........................................................................................................................................................ 16

Troubleshooting ......................................................................................................................................... 17

Specifications ............................................................................................................................................. 18

Chainsaw Sharpener

Preface

Thanks for buying the Chainsaw Sharpener, another high-quality machine from our company. To get the most

out of your purchase, please read the manual before use.

We ask you to please read this manual carefully beforehand in order to familiarise yourself with this product and

after reading, please store this instructional manual for future reference. Failure to follow the proper protocols

listed in the manual may cause personal injury to the operator or damage to equipment.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Chainsaw Sharpener

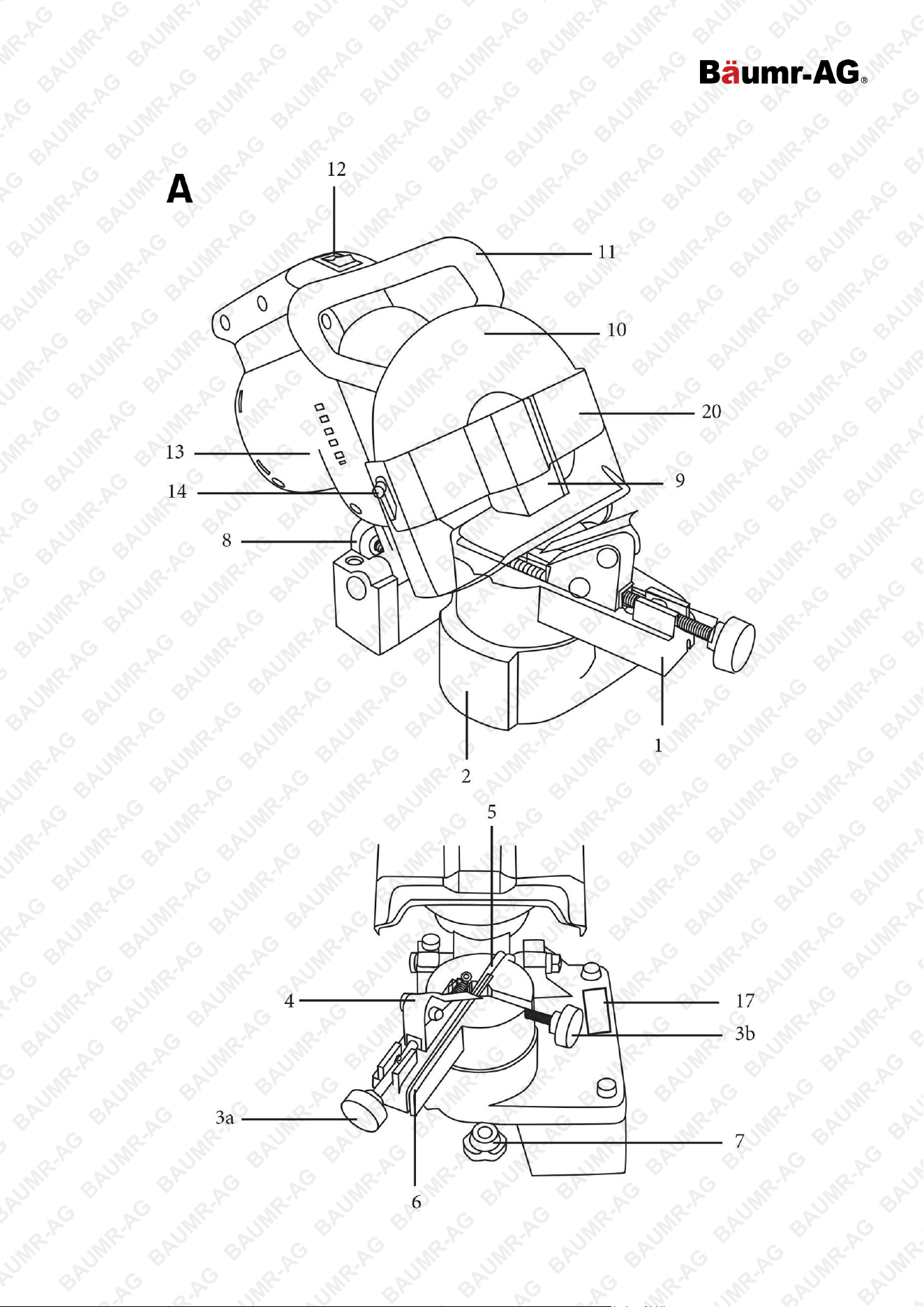

Parts List

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Chainsaw Sharpener

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Chainsaw Sharpener

No. Name No. Name

1 Rotary Table 11 Handle

2 Supporting Table 12 ON-OFF Switch

3a/3b Mounting Screw (with spring) 13 Grinding Head

4

Chainsaw Stop

14

Screw M4 x 6

5

Guide Plate

15

Self-Locking Nut M8

6

Guide Rail

16

Flange

7

Locking Nut

17

Safety Label

8

Setting Screw (for Grinding Depth)

18

Pair of Carbon Brushes

9 Grinding Wheel (100 x 3.2 x 10mm) 19 Grinding Wheel

10 Cover 20 Protective Cover

Preparation

Assembling the Rotary Table

1. Place the rotary table (1) onto the supporting table (2).

2. Thread the mounting nut (7) on the locking screw (Figure A).

Mounting the Sharpener on a Workbench

For secure handling, the device must be mounted along the edge of a workbench or table (Figure A). Use all

three fixing points if possible.

We recommend the additional placement of a rubber pad to reduce the noise and vibration (not included).

The small parts required for mounting are not included. Use the following for this purpose:

Position Description

1 Hexagonal Screw M8

2 Washer 8mm

3 Hexagon Nut M8, Self-locking

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Chainsaw Sharpener

Place the device at a location that meets the following conditions:

•

Secure against slipping

•

Free of vibrations

•

Even

•

Clean and dry

•

Free of tripping hazards

•

Adequate lighting

Commissioning

Mains Connection

Compare the voltage listed on the device type plate, e.g. 230V, with the mains voltage and connect the

chainsaw sharpener to the corresponding and properly grounded socket.

Information

Alternating current motor: Use a shockproof plug, mains voltage 230V with residual current circuit breaker and

10 A inert fuses.

Use a connection cable or extension cable respectively with a cross section of at least 1.5mm squared.

Switching On

DO NOT USE ANY DEVICE WHERE THE SWITCH CAN’T BE SWITCHED ON AND OFF. DAMAGED

SWITCHES MUST BE REPAIRED OR REPLACED IMMEDIATELY BY THE CUSTOMER SERVICE.

Press ‘I’ of the on-off switch.

Switching Off

To turn off the device, press ‘0’ of the on-off switch.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Chainsaw Sharpener

Working Instructions

Before commencing work, ensure the following: Is the workplace tidy? Has the chainsaw

sharpener been permanently mounted on a workbench?

Working with the Chainsaw Sharpener

The protective cover (20) must cover the grinding wheel as much as possible (Figure C).

For this, slacken both screws (14) and adjust the protective cover appropriately. Always keep your hands at a

safe distance from the rotating grinding wheel.

•

Only use the grinding wheel to sharpen hobby chainsaws (1/4, 3/8 hobby and 0.325 chainsaws). (An

optional grinding wheel 100 x 4.5 x 10mm, is available for professional cutting chainsaws).

•

Do not use any damaged grinding wheels especially ones that have changed their shape.

•

Start working only after the grinding wheel has reached maximum speed.

Ensure that you always comply with safety instructions.

BEFORE MAKING ANY SETTINGS TO THE DEVICE:

•

Switch off the device.

•

Wait for the shutdown of the grinding wheel.

•

Pull out main plug.

Grinding all Cutting Links

To grind the cutting edge of a cutting link, proceed as follows:

1. Setting the grinding angle: Loosen the locking nut (7) to turn the rotary plate to approx. 30 degrees and

retighten the locking nut (Figure A).

THE CUTTING EDGES OF THE CUTTING LINKS ARE NORMALLY AT AN ANGLE BETWEEN 30 AND

35 DEGREES.

2. Loosen the mounting screw (3b) and place the cutting chainsaw in the guide rail (6) between the guide

plates (5) (Figure A).

3. Fold the chainsaw stop (4) down and pull the chainsaw toward the back until the cutting link is against the

stop.

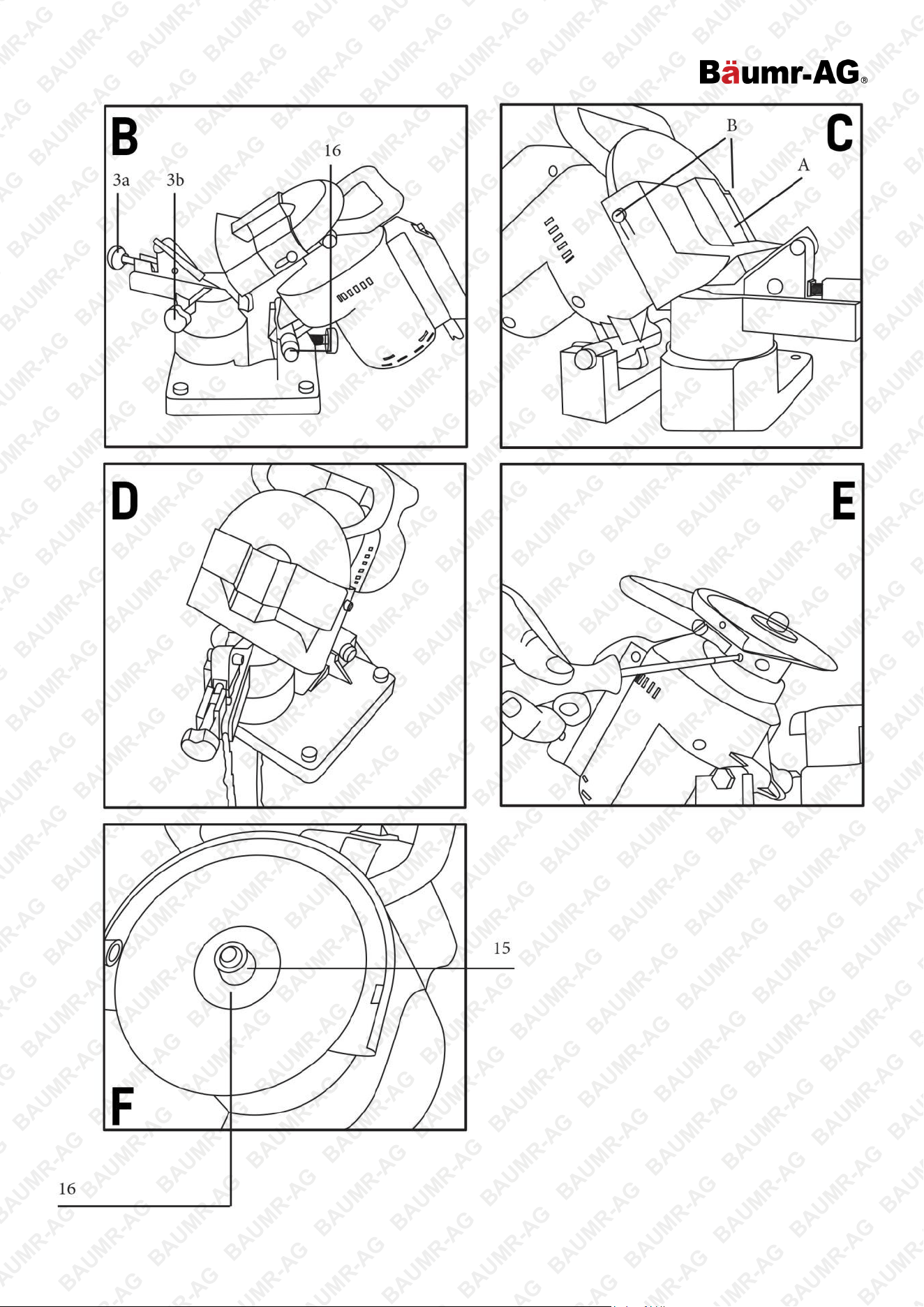

4. Pull the grinding head (13) against the cutting link in an exact alignment. Set the distance with the help of the

mounting screw (3a) so that the grinding wheel touches the cutting link. In addition, adjust the grinding depth

with the setting screw (8) (Figure B).

5. Securely tighten the mounting screw (3b) this will fix the chainsaw in place (Figure B).

TO AVOID DAMAGE TO THE CHAIN, GRIND AS BRIEFLY AS POSSIBLE AND DO NOT REMOVE

MORE MATERIAL THAN NECESSARY.

6. Carefully grind the cutting edge of the cutting link.

7. Grind every cutting edge by performing steps 5 and 6.

Mark the first cutting link by a chalk. This will help you avoid grinding cutting links twice.

8. Turn the rotary table to 30 degrees of the other side and grind the remaining cutting edges as described

above (Figure C).

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Chainsaw Sharpener

Setting the Depth Limit Distance

Once all the cutting edges of the cutting links have been sharpened, there will be a chance that your chainsaw

will be sharp but may not cut. For this reason, a depth limit distance of between 0.50 – 0.80 mm must always be

observed (distance between depth limit and cutting edge).

BE CAREFUL OF KICKBACK IF THE DEPTH LIMIT DISTANCE IS TOO OVEREXTENDED.

For this purpose, you must check the distance according to the specifications of your chainsaw and file it off with

a file if necessary.

Be sure to bevel the leading edge of your depth limiter so that you preserve the original shape of the cutting link.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Chainsaw Sharpener

Maintenance and Care

Before maintenance and cleaning:

•

Switch off the device.

•

Wait for the shutdown of the grinding wheel.

•

Pull out the main plug.

•

Do not use damaged grinding wheels or ones that have changed their shape.

•

Do not use any grinding wheel which does not comply with the indicated characteristics of this instruction

manual.

Replacing the Grinding Wheel

1. Loosen the screws (14) and remove the cover (10) (Figure A).

2. To lock the grinding wheel, insert a screwdriver or mandrel (4mm diameter) in the hole provided (Figure D).

3. Loosen the nut (15). Right-Hand thread.

4. Remove the nut, the front flange (16), the grinding wheel (9) and the rear flange (16) (Figure E). Clean the

flanges.

5. Reassembly can be done in the opposite sequence.

USE ONLY ORIGINAL PARTS. OTHER PARTS CAN RESULT IN UNEXPECTED DAMAGES AND INJURIES.

Note the following to keep your chainsaw sharpener functioning:

•

Clean and oil all moving parts regularly (except for the drive system).

•

Remove dust and dirt with a cloth or a brush.

•

Clean the vent slots after each use.

•

Do not use solvents for the synthetic parts (petrol, alcohol, etc.) as these can damage synthetic parts.

NEVER USE ANY TYPE OF GREASE ON THE SHARPENER! ONLY USE ENVIRONMENTALLY

ACCEPTABLE SPRAY OIL.

Storage

•

Pull out the main plug.

•

Store unused equipment in a dry, locked place out of reach of children.

•

Before extended storage, thoroughly clean the device to increase the service life of the device and to ensure

smooth operation.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Chainsaw Sharpener

Troubleshooting

Before each fault clearance:

•

Switch off the device.

•

Wait for the shutdown of the grinding wheel.

•

Pull out the main plug.

FAULT POSSIBLE CAUSE REMEDY

Chainsaw sharpener does not operate



No power



Defective extension cable



Defective main plug, motor or

switch



Check power supply, power

socket and fuse protection.



Check extension cable and

change the defective cable

immediately.



Have motor or switch checked by

an approved electrician or

replaced by original spare parts.

Chainsaw sharpener grinds with

interruptions



Defective extension cable



Internal fault



On/Off Button defective



Check extension cable and

change the defective cable

immediately



Take it to be repaired by an

authorised service centre



Take it to be repaired by an

authorised service centre

Grinding wheel becomes hot Grinding wheel is dull or defective Replace grinding wheel

Motor is humming and grinding wheel

has stopped

Grinding wheel is blocked Remove object

Unusual vibrations Grinding wheel is defective Replace grinding wheel

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Chainsaw Sharpener

Specifications

Operating Voltage 220-240V

Rated Power 220W

Max Power Output 320W @ 50% Duty Cycle

Maximum Motor RPM 7,500 RPM

Max Cutting Length 250mm

Vice Capacity 0.80" TO 0.50"

Maximum working angle 35 Degrees Left to Right

Grinding Disc Sizes 100mm x 3.2mm

Total Disc 4 pcs

Base Plate Material Plastic

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Some experts believe that the incorrect or prolonged use of almost any

product may cause serious injury or death. To help reduce your risk of

serious injury or death, refer to the information below. For more information,

see www.datastreamserver.com/safety



Consult all documentation, packaging,

and product labelling before use. Note

that some products feature

documentation available online. It is

recommended to print and retain the

documentation.



Before each use, check the product for

loose/broken/damaged/missing parts,
