TY328019
Kids Ride On Car
77 lbs is the maximum weight for 1 rider (combined)
Item
Specification
Age
3-8years old
Max Weight
Dimension
Speed
12V
Motor
Play Time
1-2 hours / recharge time 8 -12hours
High-speed:5.5-6KM/H Low-speed:2.6-3KM/H
Charger
Out Put DC12V
Batteries
12V
77 lbs.
45” x 30.5” x 26.5”
02 03
77 lbs is the maximum weight for 1 rider (combined)
Item
Specification
Age
3-8years old
Max Weight
Dimension
Speed
12V
Motor
Play Time
1-2 hours / recharge time 8 -12hours
High-speed:5.5-6KM/H Low-speed:2.6-3KM/H
Charger
Out Put DC12V
Batteries
12V
77 lbs.
45” x 30.5” x 26.5”
02 03

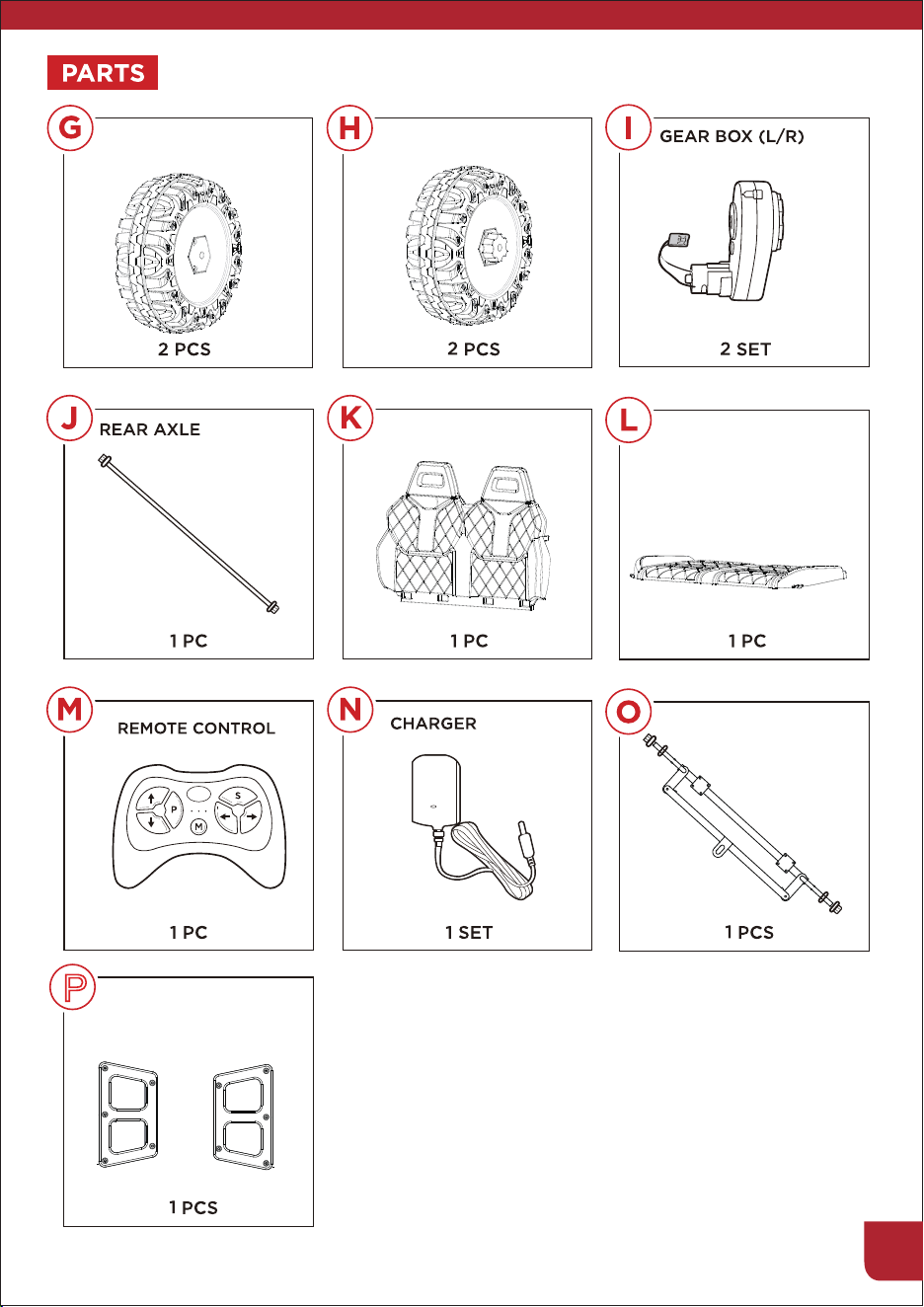

Flat head screw
M4*14
16
4
6
NUT M10
BACKSHAFT BASE（L/R）
REAR TAILSTOCK
4
77LBS
LBS
Flat head screw
M4*12
10
4
CHAIR
SEAT BACK
Driving wheel
front wheel
STEERING BRACKET
P
Left and right bracket
04 05
Flat head screw
M4*14
16
4
6
NUT M10
BACKSHAFT BASE（L/R）
REAR TAILSTOCK
4
77LBS
LBS
Flat head screw
M4*12
10
4
CHAIR
SEAT BACK
Driving wheel
front wheel
STEERING BRACKET
P
Left and right bracket
04 05
x10
1.Clip the steering bracket assembly into the body. Fix with screws.
2.Clip rear axle mount into the body. Screw in.（Distinguish between left and right）
LR
LR
x10
4
3.Clip the left and right brackets into the body and fix them with screws
P
L
R
I

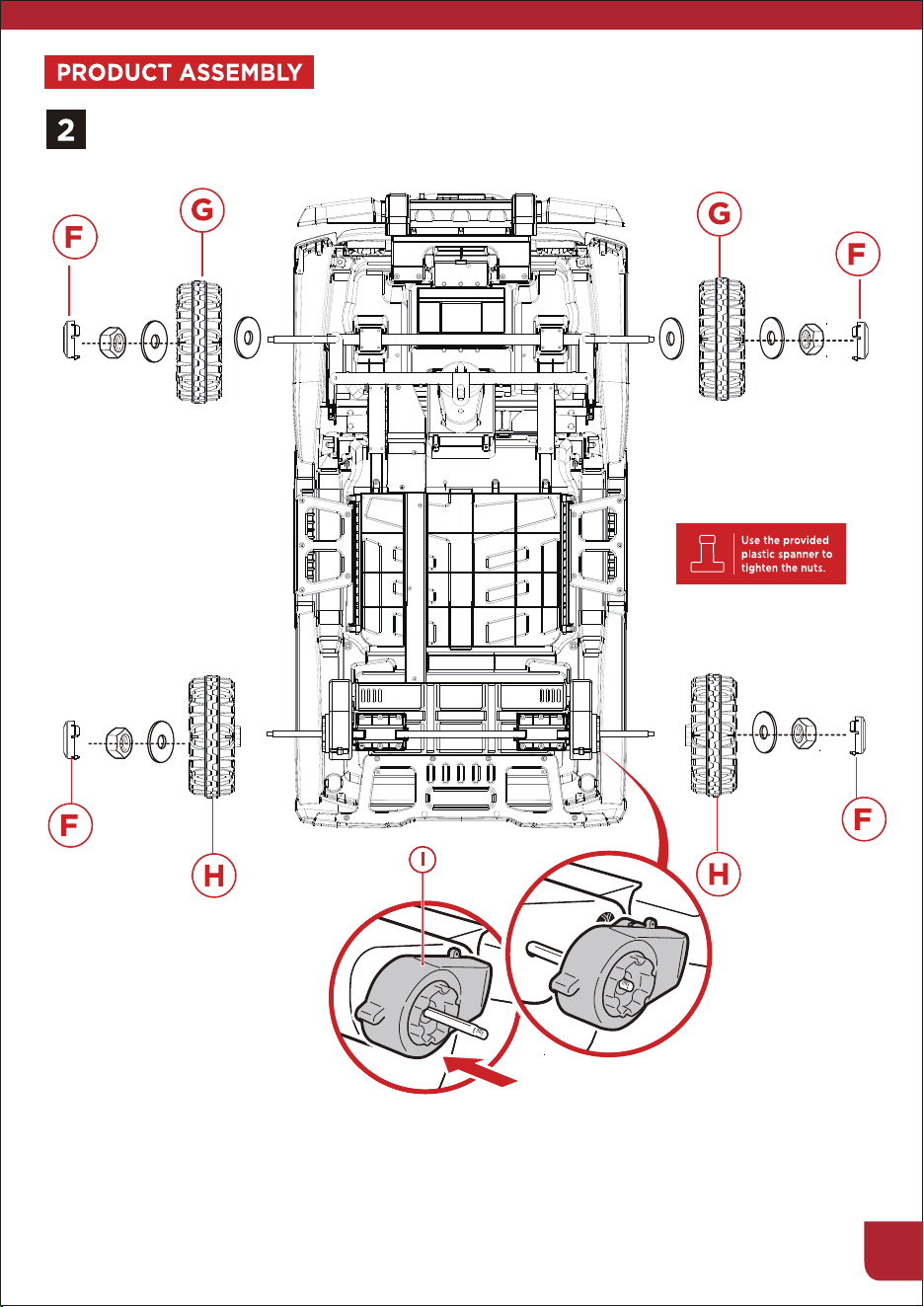

Put the gasket, front wheel, gasket and nut into the front axle in turn.
Fix the nut with the plate hand, and then fix the wheel cover on the wheel.
Put the rear wheel, gasket and nut into the rear axle in turn.
Fix the nut with a wrench, and then fix the wheel cover on the wheel.
Insert the rear axle into the rear axle mounting. Then insert the gearbox into the rear axle.
(pay attention to the left and right)
06 07
x10
1.Clip the steering bracket assembly into the body. Fix with screws.
2.Clip rear axle mount into the body. Screw in.（Distinguish between left and right）
LR
LR
x10
4
3.Clip the left and right brackets into the body and fix them with screws
P
L
R
I
Put the gasket, front wheel, gasket and nut into the front axle in turn.
Fix the nut with the plate hand, and then fix the wheel cover on the wheel.
Put the rear wheel, gasket and nut into the rear axle in turn.
Fix the nut with a wrench, and then fix the wheel cover on the wheel.
Insert the rear axle into the rear axle mounting. Then insert the gearbox into the rear axle.
(pay attention to the left and right)
06 07
x2
Clip the seat back into the body and fix it with screws (snap in place)
08 09
Clip rear tailstock into the body
x2
Clip the seat into the body and fix it with screws (snap in place)
x2
Clip the seat back into the body and fix it with screws (snap in place)
08 09
Clip rear tailstock into the body
x2
Clip the seat into the body and fix it with screws (snap in place)

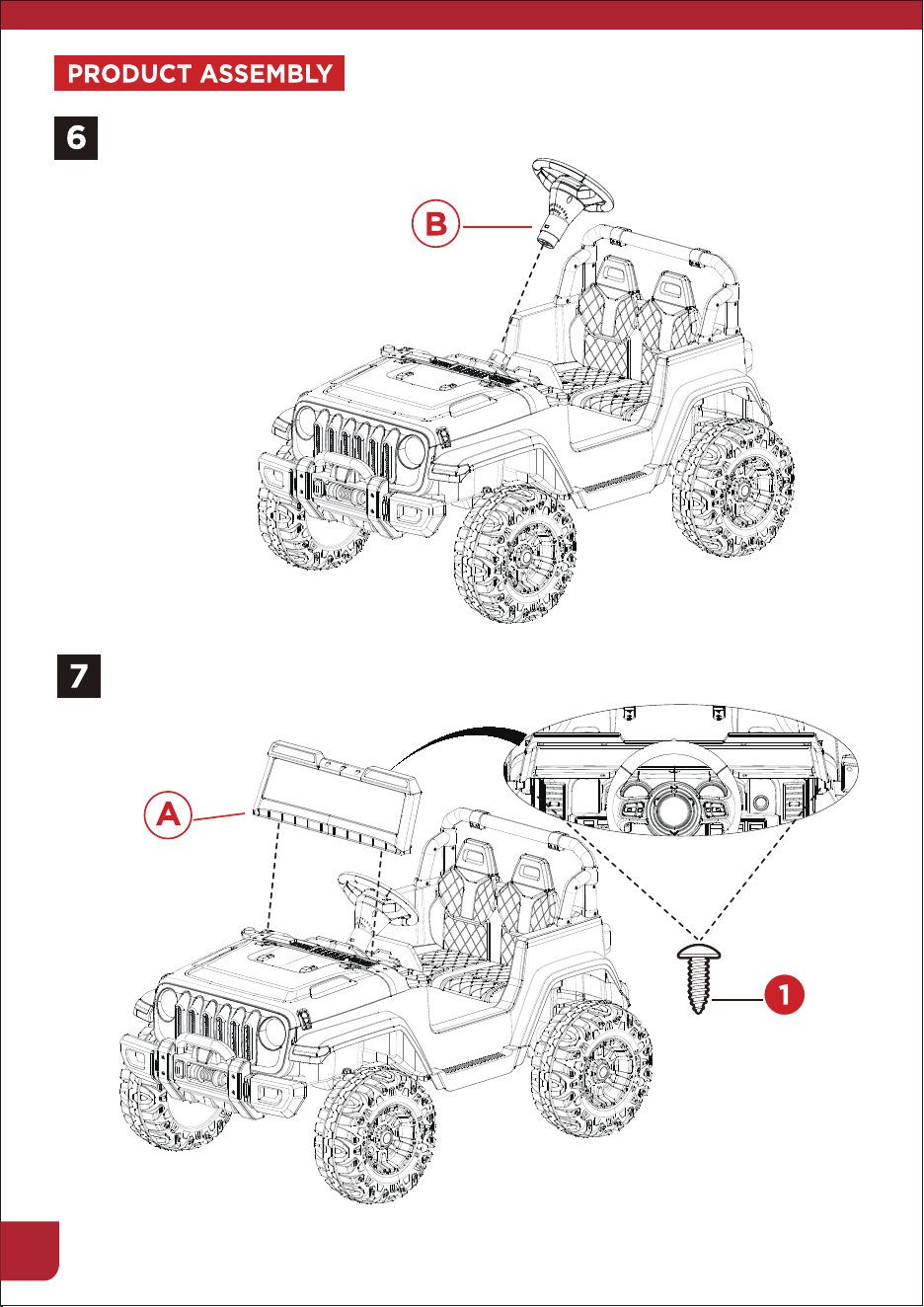

Clip the steering wheel into the body
Clip wind deflector into the body
x2
Clip rearview mirror into mirror base（L/R）

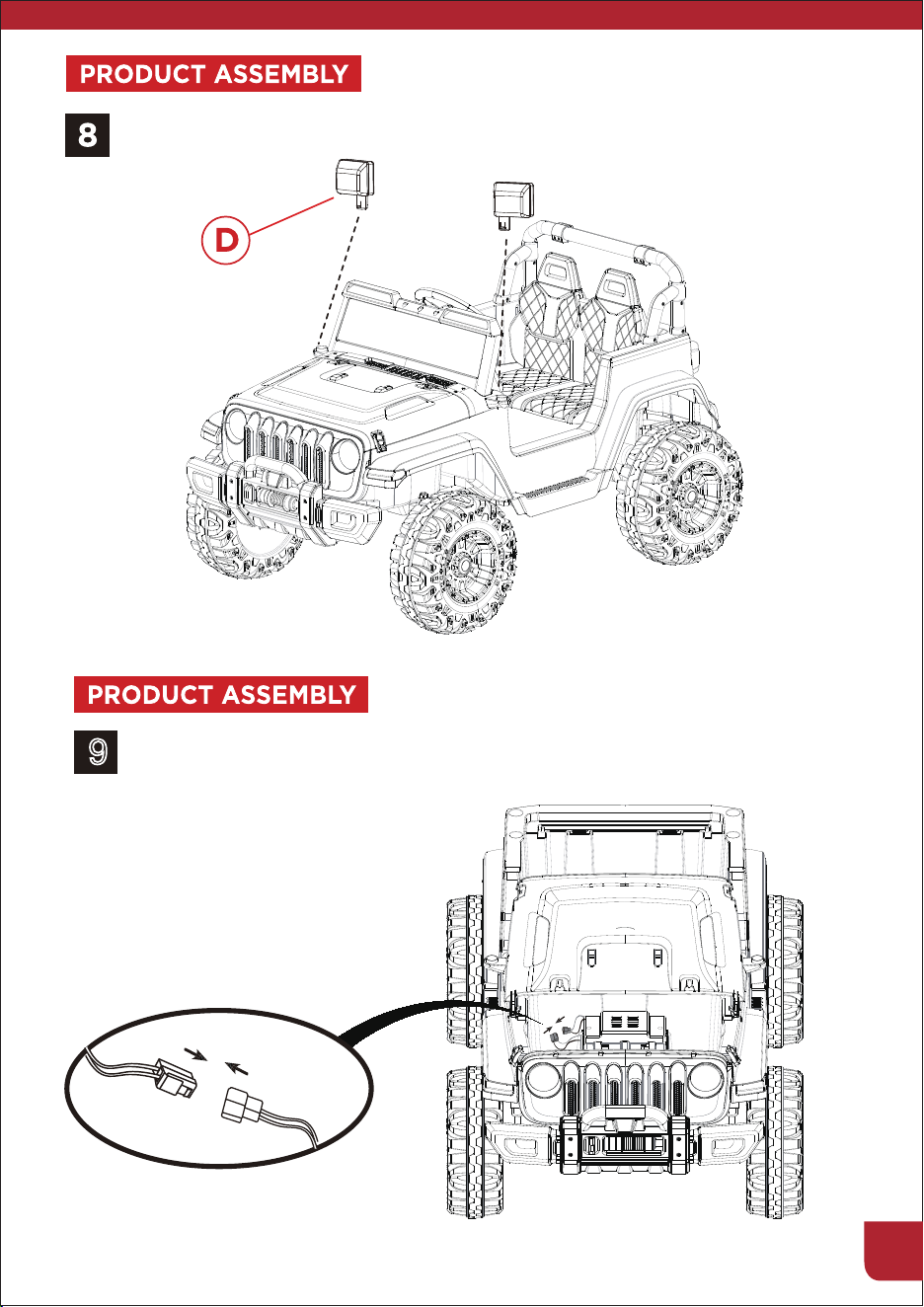

Pull out the hood retaining buckle.Open the hood and plug in the power cord
9
10 11
Clip the steering wheel into the body
Clip wind deflector into the body
x2
Clip rearview mirror into mirror base（L/R）
Pull out the hood retaining buckle.Open the hood and plug in the power cord
9
10 11
B
MODE
USB
/V-
/V+
/V-:
/V+:
Functional description
USB
MODE：Switching mode.1.Music.2.Radio.3.Bluetooth
:
Digital Electricity Display
Trigger the previous song, long press to decrease the volume
Trigger the next song, long press to increase the volume.
Trigger pause/playback;
In radio mode, press for 1 second to automatically search for stations.
FAST
SLOW
Power switch
Forward. Stop. Back
Fast and slow switch
Bluetooth function
Charging hole
Light bar switch
12 13
B
MODE
USB
/V-
/V+
/V-:
/V+:
Functional description
USB
MODE：Switching mode.1.Music.2.Radio.3.Bluetooth
:
Digital Electricity Display
Trigger the previous song, long press to decrease the volume
Trigger the next song, long press to increase the volume.
Trigger pause/playback;
In radio mode, press for 1 second to automatically search for stations.
FAST
SLOW
Power switch
Forward. Stop. Back
Fast and slow switch
Bluetooth function
Charging hole
Light bar switch
12 13

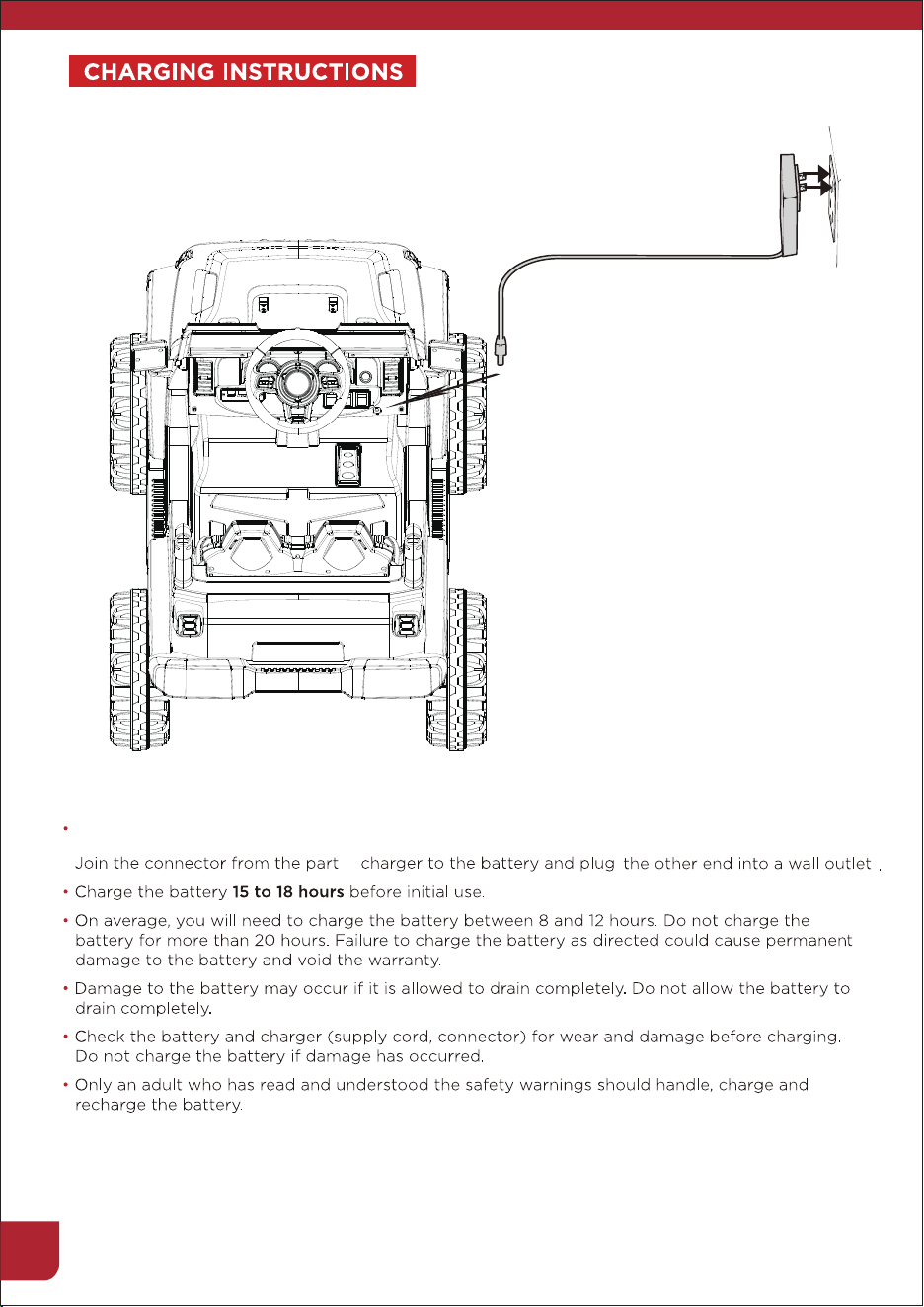

The charging hole is located under the instrument cluster
N

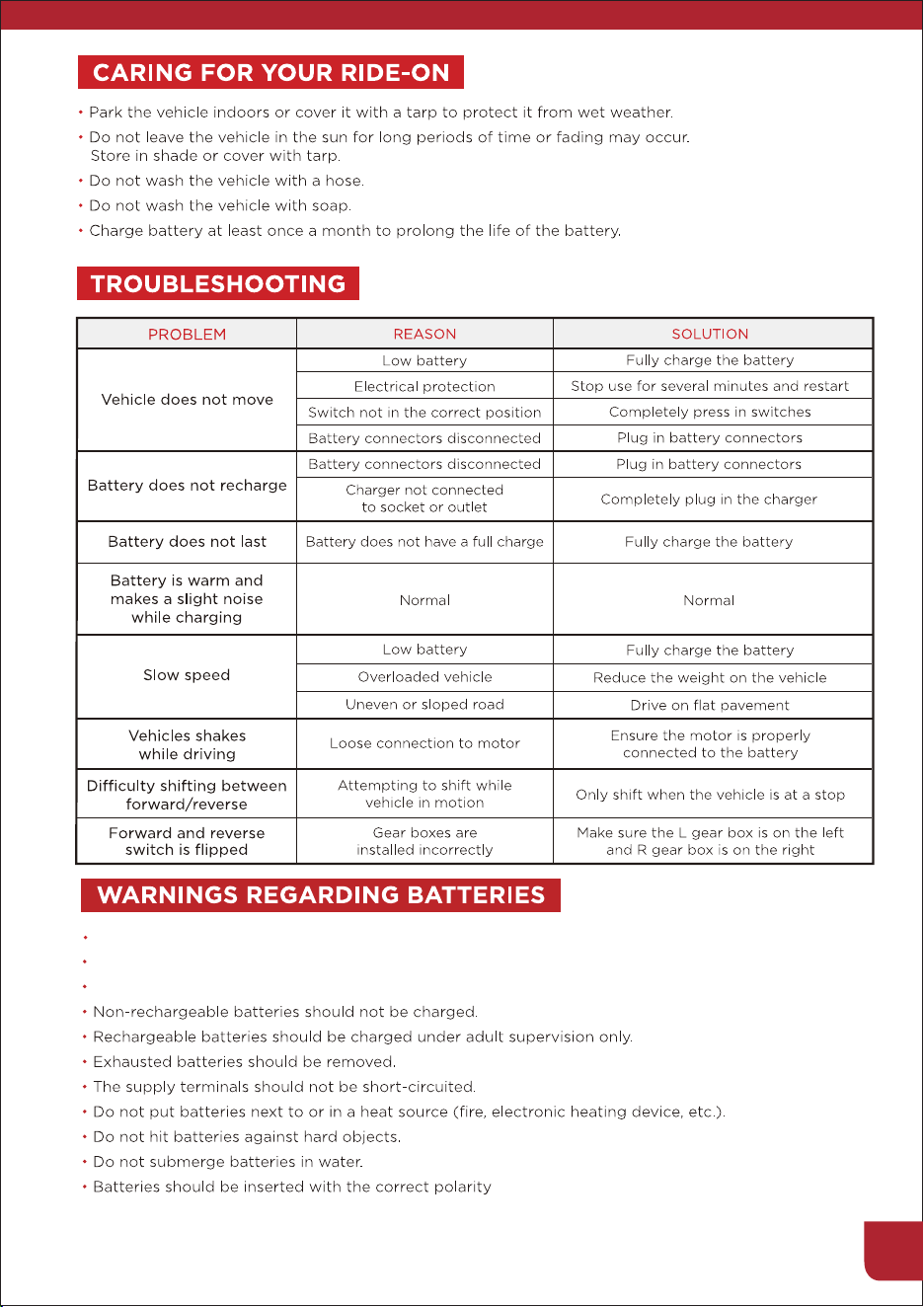

Do not mix old and new batteries.
Do not mix alkaline, standard (carbon-zinc), or rechargeable ba
tteries.
The battery on the vehicle is not replaceable.
14 15
The charging hole is located under the instrument cluster
N
Do not mix old and new batteries.
Do not mix alkaline, standard (carbon-zinc), or rechargeable ba
tteries.
The battery on the vehicle is not replaceable.
14 15
Protective equipment should be worn. Not to be used in traffic.
The toy should be used with caution since skill is required to avoid falls or collisions
causing injury to the user or third parties.
To reduce the risk of injury,adult supervision is required.Never use in roadways,near
motor vehicles,on or near steep inclines or steps,swimming pools or other bodies of
water;always wear shoes,and never allow more than one rider.
CHOKING HAZARD-Small parts.
Not for children under 3yrs.
To reduce the risk of injury, adult supervision is
required.Never use in roadways, near motor vehicles , on or
near steep inclines or steps,swimming poors or other bodies of
water; always wear shoes, and never allow more than one rider
ADULT ASSEMBLY REQUIRED
Not to be used in traffic.
16
Protective equipment should be worn. Not to be used in traffic.
The toy should be used with caution since skill is required to avoid falls or collisions
causing injury to the user or third parties.
To reduce the risk of injury,adult supervision is required.Never use in roadways,near
motor vehicles,on or near steep inclines or steps,swimming pools or other bodies of
water;always wear shoes,and never allow more than one rider.
CHOKING HAZARD-Small parts.
Not for children under 3yrs.
To reduce the risk of injury, adult supervision is
required.Never use in roadways, near motor vehicles , on or
near steep inclines or steps,swimming poors or other bodies of
water; always wear shoes, and never allow more than one rider
ADULT ASSEMBLY REQUIRED
Not to be used in traffic.
16
