1000KG FORKLIFT LIFTING HOIST
MODEL NO:FH01
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to
instruction
manual
Original Language Version
© Jack Sealey Limited
Wear protective
gloves
1. SAFETY
9 Ensure that the lifting hoist is in good working order. Take action for immediate repair. The use of unauthorised parts may be dangerous
and will invalidate the warranty.
9 Operate the lifting hoist in a suitable, well lit work area.
9 Keep work area clean and tidy and free from unrelated materials.
9 Ensure all non-essential persons keep a safe distance whilst lifting.
9 Always screw clamp frame to forks.
8 DO NOT use to lift personnel.
8 DO NOT carry loads over personnel.
8 DO NOT leave suspended loads unattended.
8 DO NOT use the lifting hoist if damaged.
8 DO NOT allow untrained persons to operate the lifting hoist.
8 DO NOT exceed the rated capacity of the lifting hoist.
8 DO NOT manually carry assembled hoist by the hook.
9 When not in use, store in a safe, dry, childproof area.
9 Before lifting the load ensure that the forks are in the lowest practical position, that there are no obstacles which may snag the load
whilst it is being lifted and that the area above the forks is clear.
9 To avoid injury, be fully aware of your own and other persons locations in relation to the lifting, and lowering, of the load.
9 Ensure the centre of gravity always remains inside the forks.
8 DO NOT harness the load at an angle or use any attachments not verified as fit for purpose.
8 DO NOT allow the load to swing during lifting/transporting.
8 DO NOT allow the load to drop suddenly. Lower load with care, ensuring that you are fully aware of the condition of the surface onto
which the load is to be placed.
8 DO NOT use this product to perform a task for which it is not designed.
8 DO NOT use whilst under the influence of drugs, alcohol or intoxicating medication.
8 DO NOT climb on the forks.
WARNING! Failure to heed safety and warning instructions may result in damage and/or personal injury and will invalidate the warranty.
2. INTRODUCTION
Manufactured from heavy-duty steel for added strength. Easily converts a forklift into a mobile crane. Fitted with opening hook for use
with multiple attachments. Safely secures to forklift using two heavy-duty thumb screws.
3. SPECIFICATION
Model No: ..............................................................FH01
Capacity: ...............................................................1000kg
Fork Opening: ........................................................250mm
Fork Size: ......................................................140 x 65mm
Overall Size: ...................................... 440 x 120 x 160mm
Wear safety
footwear
FH01 Issue: 3 (H,F) 22/05/23
4. ASSEMBLY
4.1. Check contents from list in fig.1. In the unlikely event of missing or damaged parts consult your Sealey stockist immediately.
4.2. Initial assembly with the fork lift truck primed for use as in fig.2, the forks pitched at 250mm centrally positioned and raised to a
convenient height.
4.3. Offer the lifting hoist frame (1) on to the forks and slide toward the main body of the fork lift as far as the apparatus to be lifted will allow.
4.4. Clamp the lifting hoist frame with the two tommy bar screws (4).
4.5. Remove the shackle-pin and loop the shackle (3) through the hook eye.
4.6. Offer the hook (2) and shackle up to the lifting hoist frame lug and insert the shackle pin. Tighten with a tommy bar or spanner
5. MAINTENANCE
5.1. Inspect items after each use for integrity, missing parts and damage.
5.2. Clean with dry or lightly oiled cloth and store indoors.
© Jack Sealey Limited
Original Language Version
FH01 Issue: 3 (H,F) 22/05/23
Sealey Group, Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757500 sales@sealey.co.uk www.sealey.co.uk
Note: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior
notice. Please note that other versions of this product are available. If you require documentation for alternative versions, please email or call
our technical team on technical@sealey.co.uk or 01284 757505.
Important: No Liability is accepted for incorrect use of this product.
Warranty: Guarantee is 12 months from purchase date, proof of which is required for any claim.
ENVIRONMENT PROTECTION
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be sorted,
taken to a recycling centre and disposed of in a manner which is compatible with the environment. When the product
becomes completely unserviceable and requires disposal, drain any fluids (if applicable) into approved containers and
dispose of the product and fluids according to local regulations.
REGISTER YOUR
PURCHASE HERE
1
250mm Fork Pitch

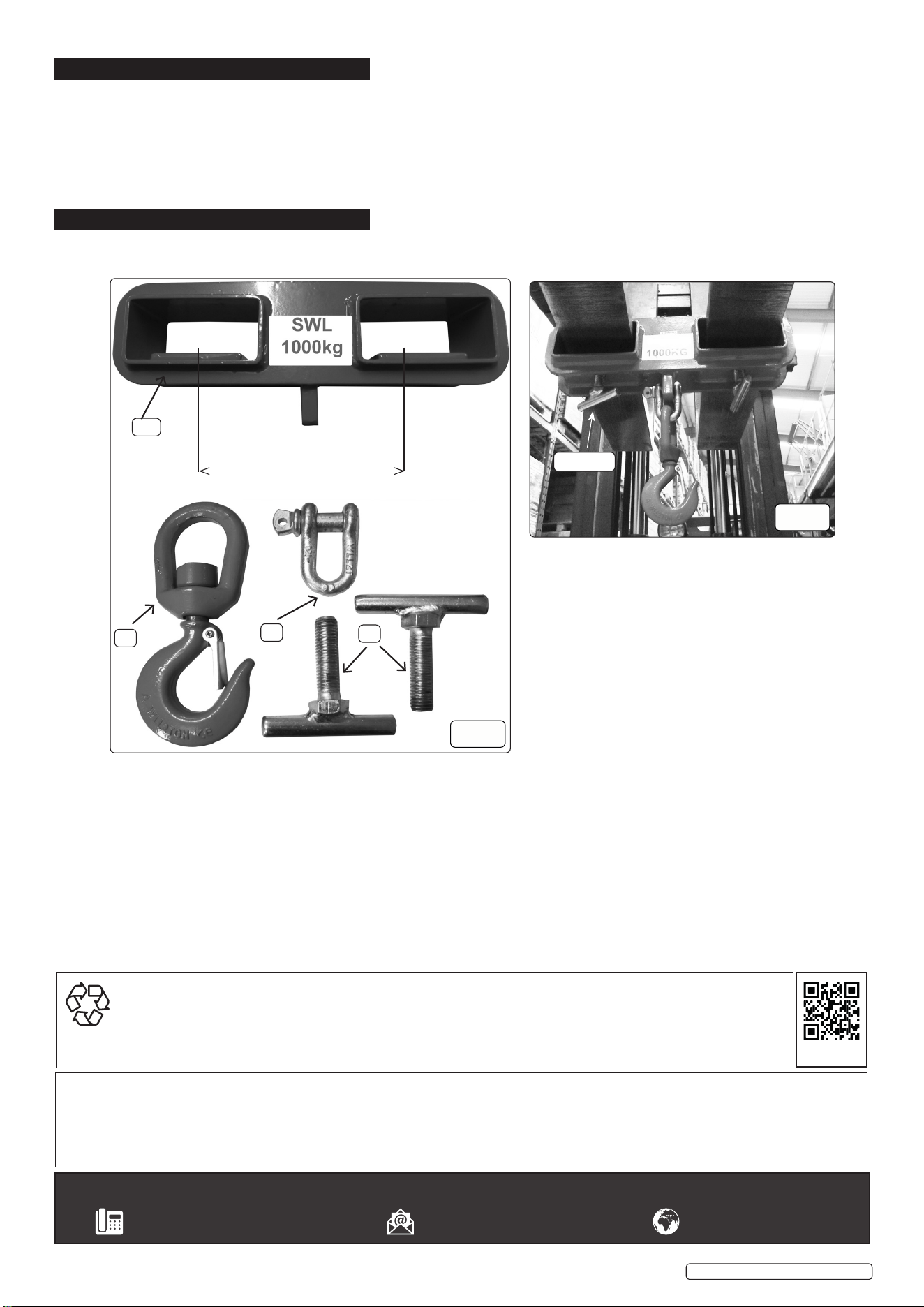

Item Description
