FORKLIFT DRUM CLAMP SINGLE 205L
MODEL NO:
DG02.V2
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to
instruction
manual
DG02.V2 Issue:3 10/05/23
Original Language Version
© Jack Sealey Limited
1. SAFETY
9 Forklift trucks should only be used by fully trained personnel.
8 DO NOT load more than one drum.
8 DO NOT use on drums with removable tops.
9 Ensure jaw mechanism is folded back onto main frame of the Drum Clamp when not in use (removed from forklift truck).
9 Fold back jaw mechanism onto main frame of the Drum Clamp if driving long distances whilst not carrying drums.
8 DO NOT overload the Drum Clamp - maximum capacity is 350kg.
8 DO NOT allow others to ride on the Drum Clamp when fitted to forklift.
9 Only use on firm, level, unobstructed surfaces which are capable of supporting the forklift, clamp and a fully loaded drum.
9 Whilst operating the forklift and Drum Clamp ensure a safe distance from other personnel.
9 This product should not be used for moving empty drums.
WARNING: Failure to comply with these instructions may result in loss of load, damage to forklift and Drum Clamp or other property
and/or personal injury.
2. INTRODUCTION
Lessmanualeortrequiredashydraulicramclampsdrum,thenraisesitothegroundforsimplemanoeuvringandrelocation.Cradle
isttedwithtwosmooth-rolling,heavy-dutywheelsandonecastorwithbrake.Suitablefor205Ldrums.
3. SPECIFICATION
Model No: ............................................................DG02.V2
Capacity: ..................................................................350kg
Drum size: ..................................................................205L
Fork opening: ......................................................623mm
4. OPERATION
g.2
g.1
g.3
DG02.V2 Issue:3 10/05/23
Original Language Version
© Jack Sealey Limited

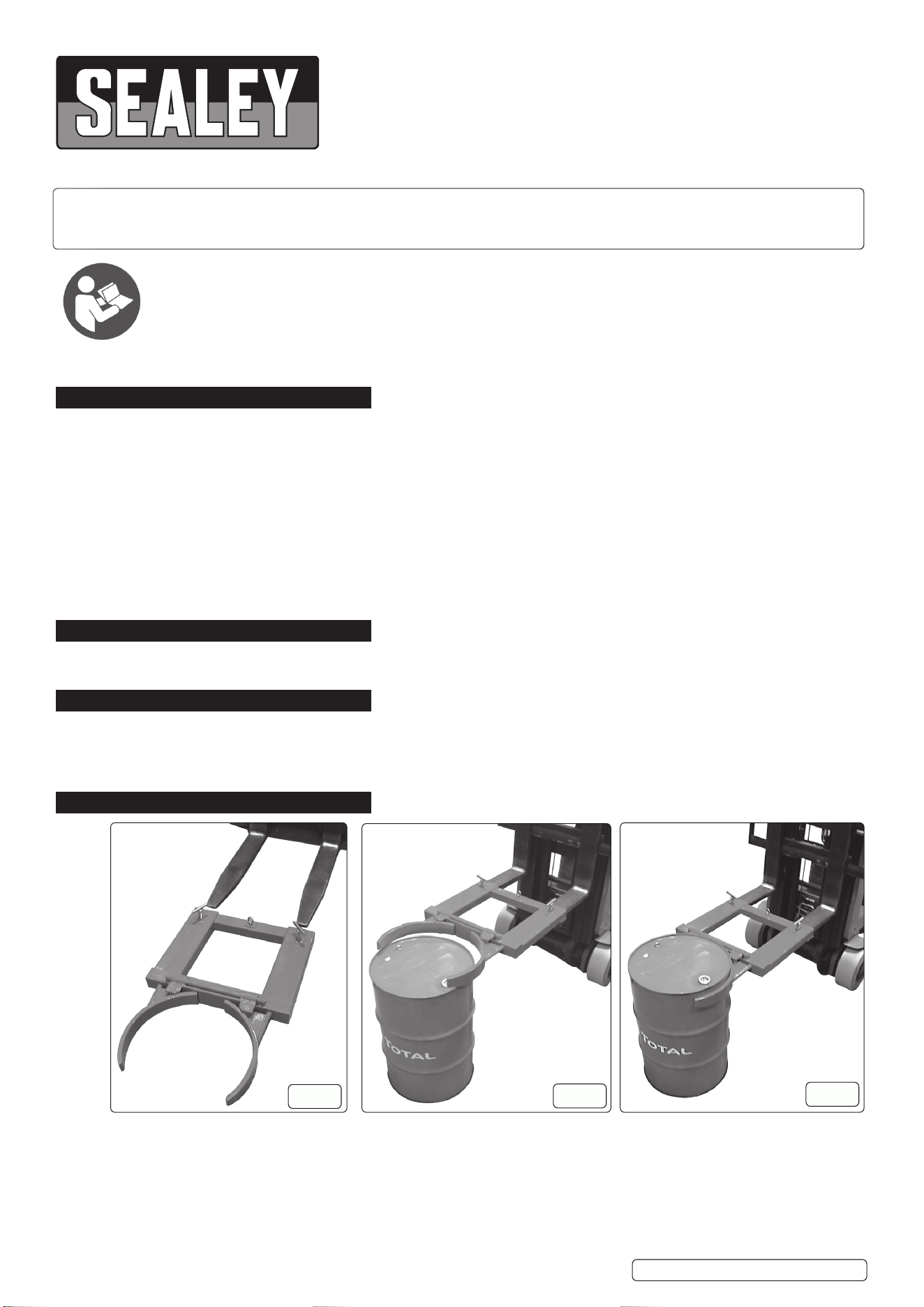

4.1. FITTING THE DRUM CLAMP ONTO A FORKLIFT TRUCK
4.1.1. Ensure the forklift truck’s forks are the correct distance apart to fit into the Drum Clamp.
4.1.2. Drive the forklift forwards enabling the forks to enter the 2 large slots in the Drum Clamp (fig.1) and continue forwards until the
forks are fully inserted in the Drum Clamp.
4.1.3. Tighten down fully the 2 large T-Bar tightening bolts.
4.1.4. If driving a long distance before picking up any drums fold back the operating jaw mechanism onto the main frame of the Drum Clamp. 4.2.
PICKING UP A DRUM USING THE DRUM CLAMP
4.1.5. If necessary fold out the jaw mechanism.
4.1.6. Drive the forklift slowly towards drum to be picked up, ensuring the Clamp jaws are just above the top of the drum (fig.2). When
jaws are above the drum, slowly lower forks and as the jaws are lifted by contact with the drum they will also start to widen out
around the drum.
4.1.7. Continue to lower the forks, the jaws will slide down over the drum. Lift the forks and the jaws will clamp around the drum just
under the top lip (fig.3).
4.1.8. Continue to raise the forks to lift the drum off the ground.

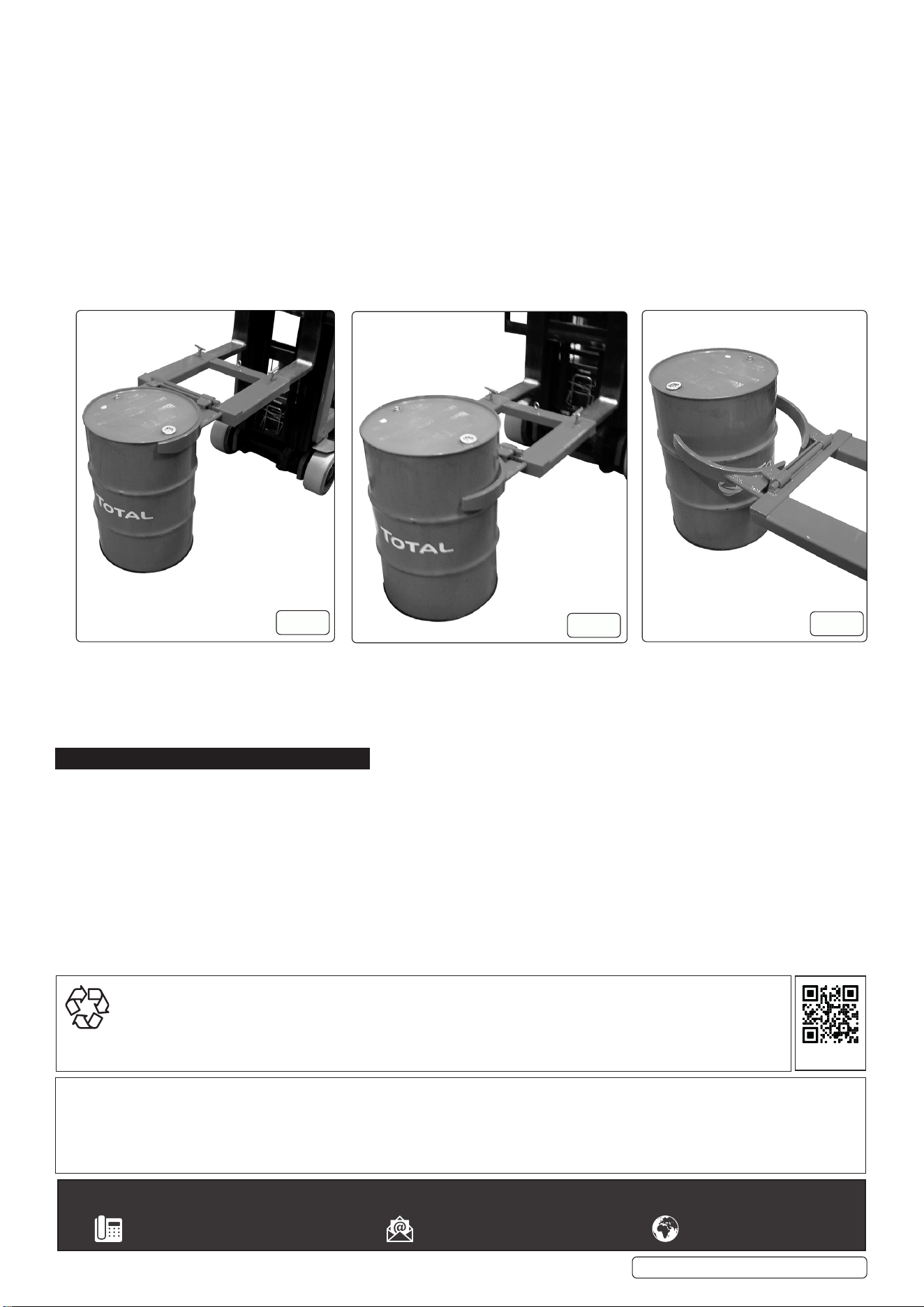

4.2. TO RELEASE DRUM FROM THE DRUM CLAMP
4.2.1. . Lower drum onto ground (fig.4) and continue to lower the forks slowly so clamp jaws slide down the sides of the drum.
4.2.2. As the clamp jaws reach the first lip around drum (fig.5), they will begin to lift and as they do this they will also start to widen.
Continue to slowly lower forks and as the clamp jaws widen more, also slowly reverse the forklift truck and the drum will be
released from the Drum Clamp (fig.6).
5.
MAINTENANCE
5.1. Store in a safe place with the jaw mechanism folded back onto the main frame so as not to cause an obstruction.
5.2. Occasionally lubricate the hinges.
g.4
g.5
g.6
Sealey Group, Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757500 sales@sealey.co.uk www.sealey.co.uk
ENVIRONMENT PROTECTION
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be sorted,
taken to a recycling centre and disposed of in a manner which is compatible with the environment. When the product
becomescompletelyunserviceableandrequiresdisposal,drainanyfluids(ifapplicable)intoapprovedcontainersand
dispose of the product and fluids according to local regulations.
REGISTER YOUR
PURCHASE HERE
Note: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior
notice. Pleasenotethatotherversionsofthisproductareavailable.Ifyourequiredocumentationforalternativeversions,pleaseemailorcall
our technical team on technical@sealey.co.uk or 01284 757505.
Important: No Liability is accepted for incorrect use of this product.
Warranty:Guaranteeis12monthsfrompurchasedate,proofofwhichisrequiredforanyclaim.
