550KG ENGINE STAND
MODEL NO: ES550.V4
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
1. SAFETY
WARNING! Ensure all Health and Safety, local authority, and general workshop practice regulations are strictly adhered to
when using this equipment.
9 Before using the stand ensure it is in good working order.
9 Replace or repair damaged parts. Use recommended parts only. Unauthorised parts may be dangerous and will invalidate the
warranty.
9 Keep the stand clean for best and safest performance.
9 Locate the stand in a suitable work area, keep area clean and tidy and free from unrelated materials. Ensure there is adequate
lighting.
9 Use on a firm, level surface capable of sustaining the stand and the load.
9 Maintain correct balance and footing. Ensure the floor is not slippery and wear non-slip shoes.
Ensure all non-essential persons keep a safe distance whilst the stand is in use.
9 Lock mounting plate in position with locking pin before fixing a load and ensure the load is centred and securely mounted on the
mounting plate.
9 When an engine is mounted, take the weight of the engine on the handle before removing the locking pin.
9 Ensure the stand and load are stable.
9 To move a loaded stand, steady the load and push from behind the main post of the stand so that the castor wheels are ahead of the
load.
8 DO NOT pull the unit backwards, or push from the side, as this may cause the stand to tip.
9 Ensure surface over which the stand is to travel is strong enough to take the stand and load and that it is not cracked, uneven or
obstructed.
8 DO NOT use unit if damaged.
8 DO NOT allow untrained persons to use the stand.
8 DO NOT exceed the rated capacity of 550kg.
▲ DANGER! DO NOT work under an engine mounted on the stand.
8 DO NOT use the stand for purposes other than those for which it is designed.
9 When not in use, store in a safe, dry, childproof location.
2. INTRODUCTION
Accepts a wide variety of engines and transmissions. The heads swivel 360° for accessibility to all parts of the engine. Fully
adjustable mounting arms. Swivel castors provide excellent manoeuvrability. Maximum Load Length: 700mm.
3. SPECIFICATION
Model No: ......................................................... ES550.V4
Capacity: .................................................................550kg
Width: ..................................................................1000mm
Depth: ....................................................................845mm
Height: ...................................................................930mm
Maximum load length ............................................700mm
ES550.V4 Issue 1 17/10/22
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY.
© Jack Sealey Limited Original Language Version
Refer to
instruction
manual
Wear safety
footwear
Wear protective
gloves
4. ASSEMBLY

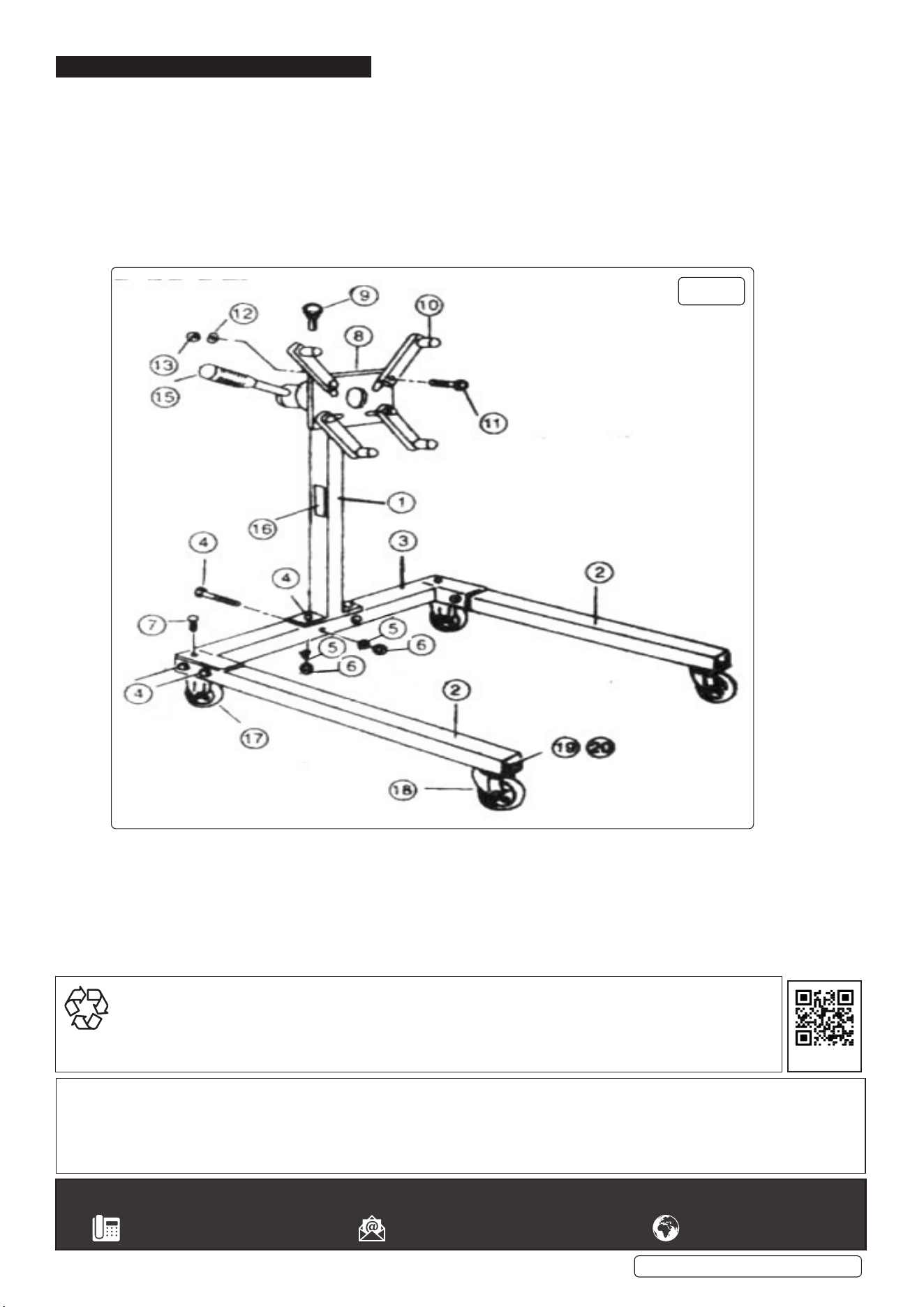

NOTE: The following numbers refer to (fig.1 and attached parts list)
4.1. Remove head mounting plate (8) from main post (1)
4.2. Loosely attach main post (1) to main post support (3) with bolts (4), washers (5) and nuts (6).
4.3. Attach front legs (2) into main post support (3) and loosely secure with bolt (7 & 4), washers (5) and nuts (6).
4.4. Fit Wheel swivel castors (18) to front legs (2) with nuts and bolts supplied.
4.5. Refit head mounting plate (8) to main post (1) and locate with locking pin (9).
4.6. Attach the four mounting arms (10) to head mounting plate (8) with bolts (11), washers (12) and nuts (13).
4.7. Insert handle (15) through hole in stem of mounting plate (8).
4.8. Apply weight evenly across the post support (3) and front legs (2), making sure that all four castor wheels are on level ground
and the frame is sitting square and true, then tighten all nuts and bolts. Remove weight and check that the unit is sitting correctly with all ..
four castors in contact with the ground.
g.1
© Jack Sealey Limited Original Language Version
ES550.V4 Issue 1 17/10/22
Sealey Group, Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757500 sales@sealey.co.uk www.sealey.co.uk
Note: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior
notice. Please note that other versions of this product are available. If you require documentation for alternative versions, please email or call
our technical team on technical@sealey.co.uk or 01284 757505.
Important: No Liability is accepted for incorrect use of this product.
Warranty: Guarantee is 12 months from purchase date, proof of which is required for any claim.
ENVIRONMENT PROTECTION
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be sorted,
taken to a recycling centre and disposed of in a manner which is compatible with the environment. When the product
becomes completely unserviceable and requires disposal, drain any fluids (if applicable) into approved containers and
dispose of the product and fluids according to local regulations.
