Jet-USA PRWELC550USAACAB 3500PSI Electric High Pressure User Manual

E&OE © Jet USA

User Manual

[Revision 15.0]

READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY DAMAGE

AND MAY VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by this manual may

vary in appearance, assembly, inclusions, specifications, description, and packaging.

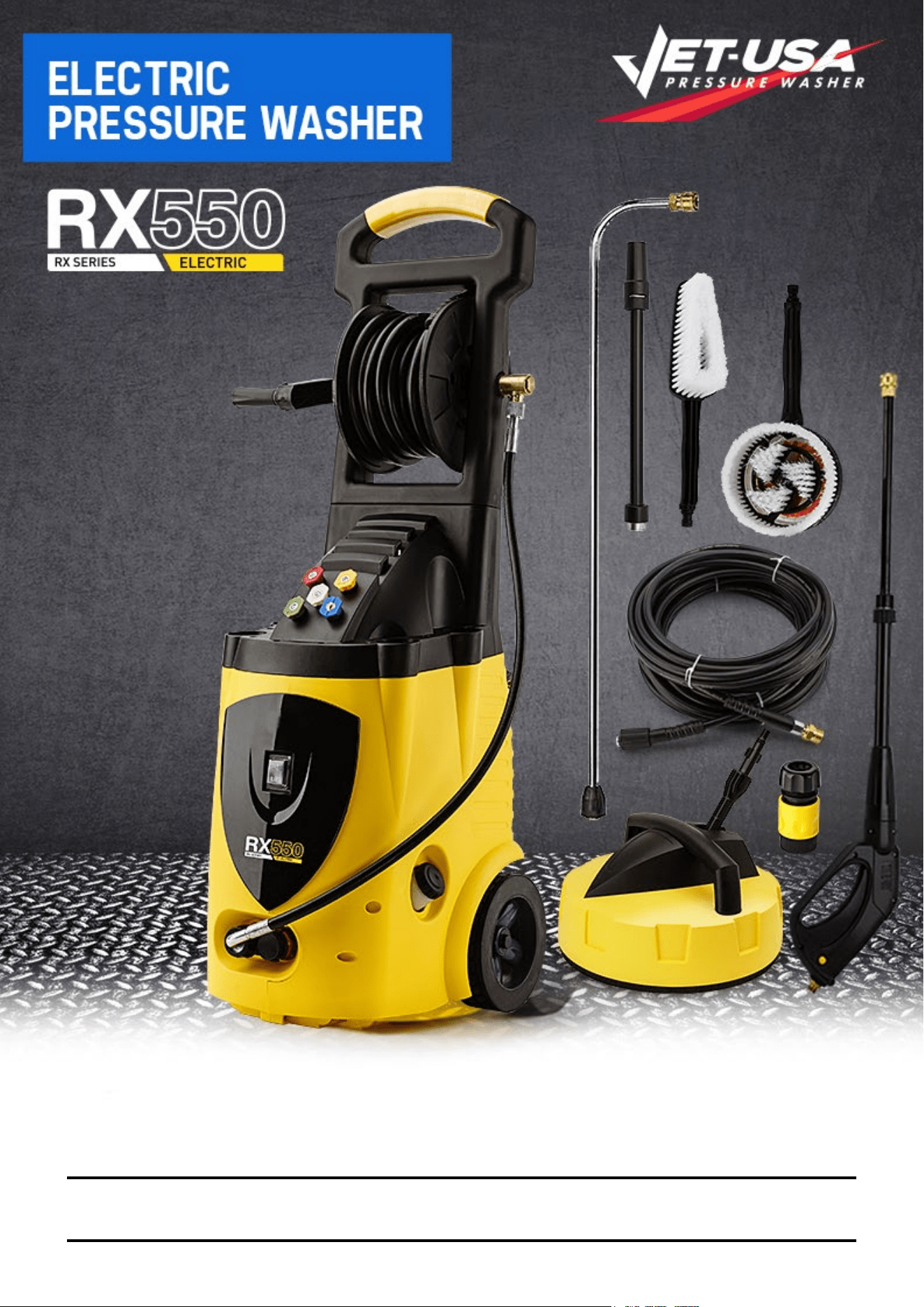

RX550 Electric Pressure Washer

E&OE © Jet USA 2

Table of Contents

Safety ................................................................................................................................................ 3

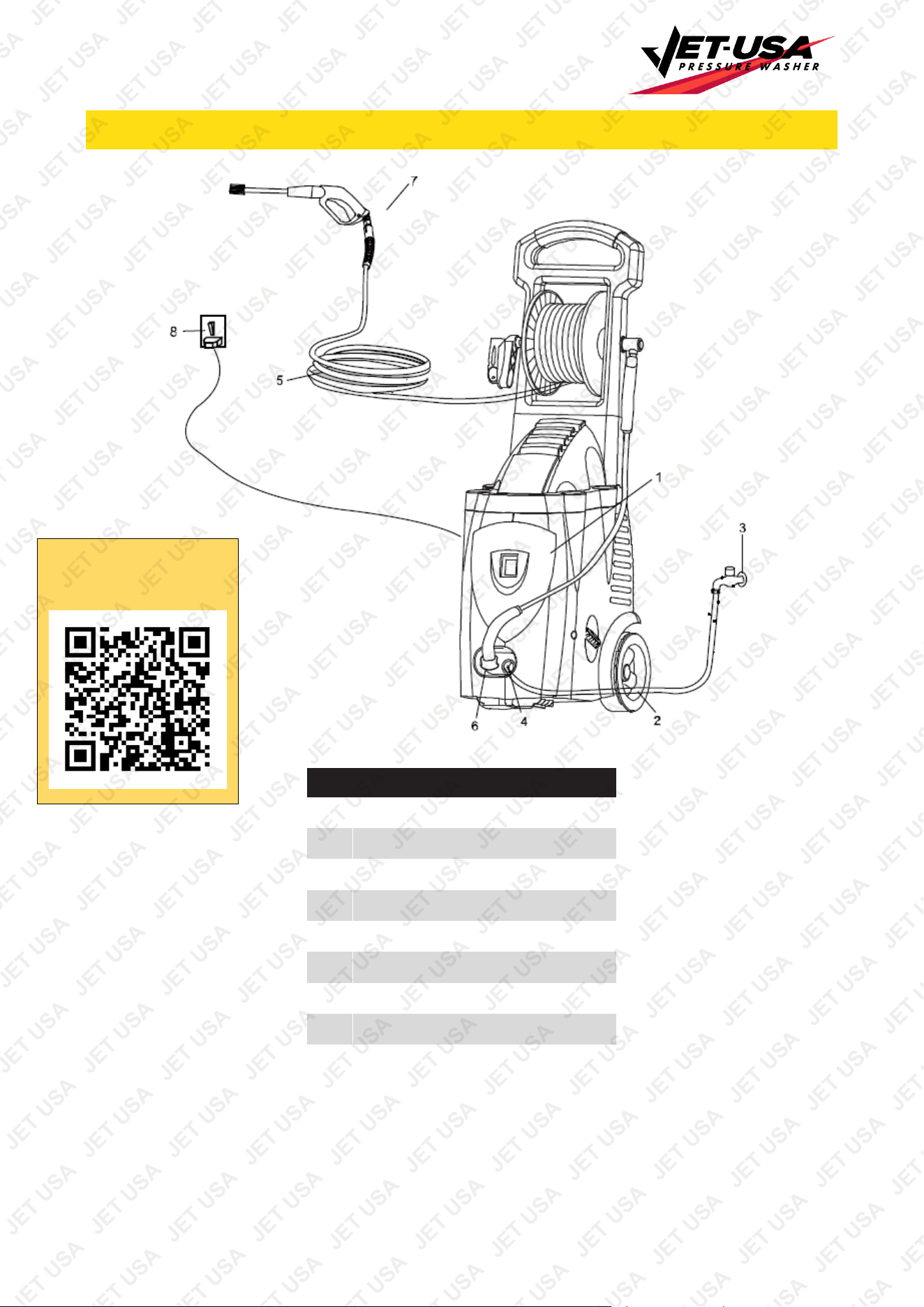

Pressure Washer Parts .................................................................................................................... 6

Getting Started ................................................................................................................................. 7

Automatic On/Off .......................................................................................................................................... 7

Bleeding the Gun ......................................................................................................................................... 7

Operating Instructions .................................................................................................................... 7

Shut Down .................................................................................................................................................... 7

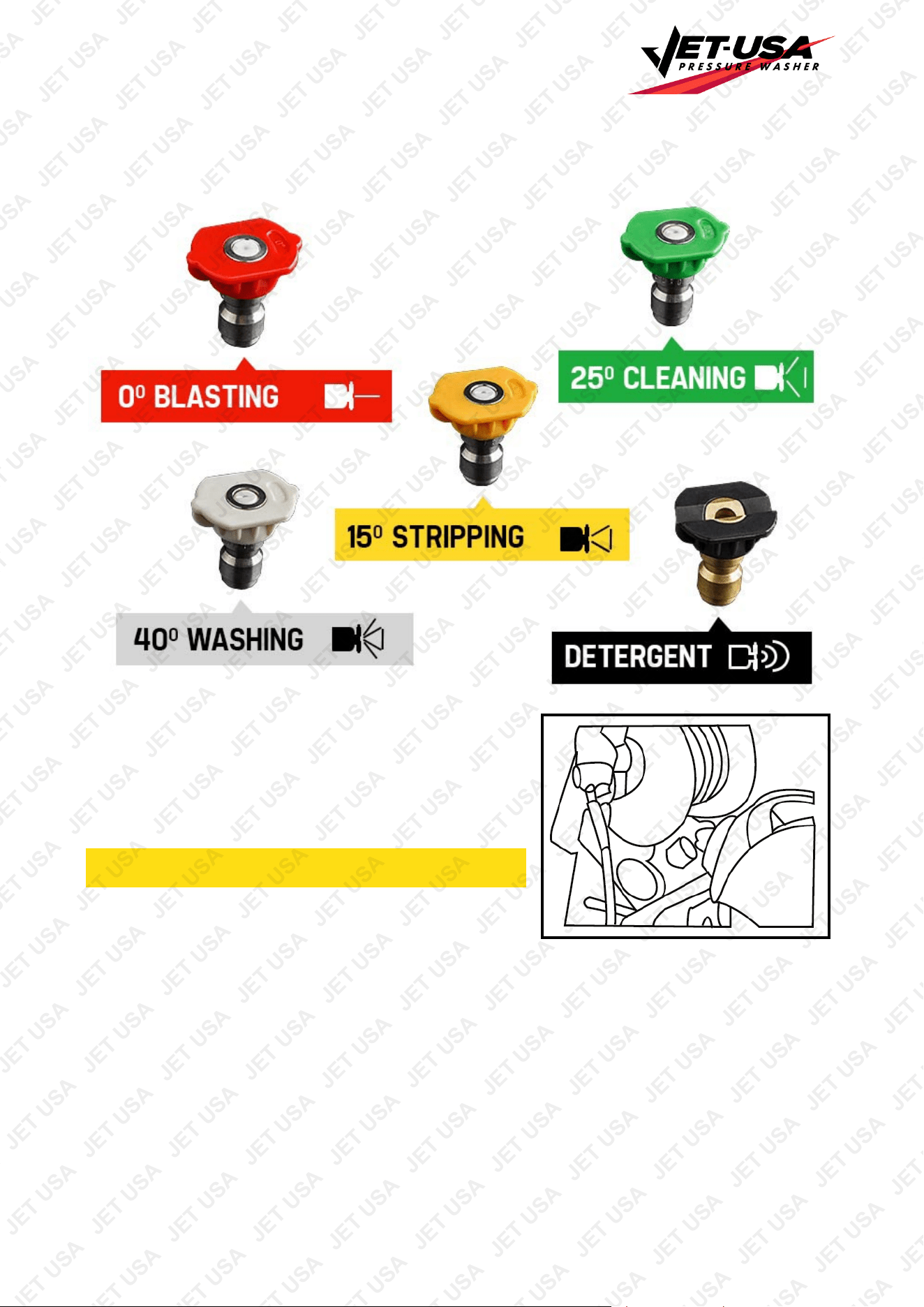

Nozzle Uses ................................................................................................................................................. 8

Using Detergent ........................................................................................................................................... 8

Maintenance ..................................................................................................................................... 8

Connections ................................................................................................................................................. 8

Nozzle .......................................................................................................................................................... 8

Hose Care .................................................................................................................................................... 9

Storage .............................................................................................................................................. 9

Troubleshooting ............................................................................................................................... 9

Specifications ................................................................................................................................. 11

JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA

RX550 Electric Pressure Washer

E&OE © Jet USA 3

Safety

Safety messages are designed to alert you to possible dangers or hazards that could cause death, injury or

equipment or property damage if not understood or followed. Safety messages have the following symbols:

You WILL be KILLED or

SERIOUSLY INJURED if you

do not follow instructions.

You CAN be KILLED or

SERIOUSLY INJURED if you

do not follow instructions.

You CAN be INJURED if you

do not follow instructions or

equipment damage may occur.

It is vital that you read and understand

this user manual before using the product,

including safety warnings, and any

assembly and operating instructions.

Keep the manual for future reference.

Safety precautions and recommendations

detailed here must be fully understood

and followed to reduce the risk of injury,

fire, explosion, electrical hazard, and/or

property damage.

Safety information presented here is

generic in nature – some advice may not

be applicable to every product. The term

"equipment" refers to the product, be it

electrical mains powered, battery

powered or combustion engine powered.

• Before Use - If you are not familiar with

the safe operation/handling of the

equipment or are in any way unsure of

any aspect of suitability or correct use

for your application, you should

complete training conducted by a

person or organization qualified in safe

use and operation of this equipment,

including fuel/electrical handling and

safety.

• Do NOT operate the equipment in

flammable or explosive environments,

such as in the presence of flammable

liquids, gases, or dust. The equipment

may create sparks or heat that may

ignite flammable substances.

• Keep clear of moving parts.

• Equipment may be a potential source of

electric shock or injury if misused.

• Do NOT operate the equipment if it is

damaged, malfunctioning or is in an

excessively worn state.

• Do NOT allow others to use the

equipment unless they have read this

manual and are adequately trained.

• Keep packaging away from children -

risk of suffocation! Operators must use

the equipment correctly. When using

the equipment, consider conditions and

pay due care to persons and property.

General Work Area Safety

•

Work areas should be clean and well it.

• Do not operate the equipment if

bystanders, animals etc are within

operating range of the equipment or the

general work area.

• If devices are provided for connecting

dust extraction / collection facilities,

ensure these are connected and used

properly. Dust collection can reduce

dust-related hazards.

General Personal Safety

•

Wear appropriate protective equipment

when operating, servicing, or when in

the operating area of the equipment to

help protect from eye and ear injury,

poisoning, burns, cutting and crush

injuries. Protective equipment such as

safety goggles, respirators, non-slip

safety footwear, hard hat, hearing

protection etc should be used for

appropriate equipment / conditions.

Other people nearby should also wear

appropriate personal protective

equipment. Do not wear loose clothing

or jewellery, which can be caught in

moving parts. Keep hair and clothing

away from the equipment.

• Stay alert and use common sense

when operating the equipment. Do not

over-reach. Always maintain secure

footing and balance.

• Do not use the equipment if tired or

under the influence of drugs, alcohol, or

medication.

• This equipment is not intended for use

by persons with reduced physical,

sensory, or mental capabilities.

General Fuel Safety

•

Petrol/fuel/gasoline is extremely

flammable – keep clear of naked

flames or other ignition sources.

• Do not spill fuel. If you spill fuel, wipe it

off the equipment immediately – if fuel

gets on your clothing, change clothing.

• Do NOT smoke near fuel or when

refuelling.

• Always shut off the engine before

refuelling.

• Do NOT refuel a hot engine.

• Open the fuel cap carefully to allow any

pressure build-up in the tank to release

slowly.

• Always refuel in well-ventilated areas.

• Always check for fuel leakage. If fuel

leakage is found, do not start, or run

the engine until all leaks are fixed.

General Carbon-Monoxide Safety

•

Using a combustion engine indoors

CAN KILL IN MINUTES. Engine

exhaust contains carbon-monoxide – a

poison you cannot smell or see.

• Use combustion engines OUTSIDE

only, and far away from windows,

doors, and vents.

General Equipment Use and Care

•

The equipment is designed for

domestic use only.

• Handle the equipment safely and

carefully.

• Before use, inspect the equipment for

misalignment or binding of moving

parts, loose components, damage, or

any other condition that may affect its

operation. If damaged, have the

equipment repaired by an authorised

service centre or technician before use.

• Prevent unintentional starting of the

equipment - ensure equipment and

power switches are in the OFF position

before connecting or moving

equipment. Do not carry equipment

with hands or fingers touching any

controls. Remove any tools or other

items that are not a part of the

equipment from it before starting or

switching on.

• Do not force the equipment. Use the

correct equipment for your application.

Equipment will perform better and be

safer when used within its design and

usage parameters.

• Use the equipment and accessories

etc. in accordance with these

instructions, considering working

conditions and the work to be

performed. Using the equipment for

operations different from those

intended could result in hazardous

situations.

• Always keep equipment components

(engines, hoses, handles, controls,

frames, housings, guards etc) and

accessories (cutting tools, nozzles, bits

etc) properly maintained. Keep the

equipment clean and, where applicable,

properly lubricated.

• Store the equipment out of reach of

children or untrained persons. To avoid

burns or fire hazards, let the equipment

cool completely before transporting or

storing. Never place or store the

equipment near flammable materials,

combustible gases, or liquids etc.

• The equipment is not weather-proof,

and should not be stored in direct

sunlight, at high ambient temperatures

or locations that are damp or humid.

• Do not clean equipment with solvents,

flammable liquids, or harsh abrasives.

• For specific equipment safety use and

care, see Equipment Safety.

JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA

RX550 Electric Pressure Washer

E&OE © Jet USA 4

General Electrical Safety

• Inspect electrical equipment, extension

c

ords, power bars, and electrical fittings

for damage or wear before each use.

Repair or replace damaged equipment

immediately.

• Ensure all power sources conform to

equipment voltage requirements and

are disconnected before connecting or

disconnecting equipment.

• When wiring electrically powered

equipment, follow all electrical and

safety codes.

• Always use a Residual Current Device

(RCD) (GFCI) / Earth Leakage Circuit

Breaker / Safety Switch when operating

this item (electrical items only).

• High voltage / high current power lines

may be present. Use extreme caution

to avoid contact or interference with

power lines. Electrical shock can be

fatal.

General Electrical Safety

• Electrically grounded equipment must

hav

e an approved cord and plug and

be connected to a grounded electrical

outlet.

• Do NOT bypass the ON/OFF switch

and operate equipment by connecting

and disconnecting the electrical cord.

• Do NOT use equipment that has

exposed wiring, damaged switches,

covers or guards.

• Do NOT use electrical equipment in wet

conditions or in damp locations.

• Do NOT use electrical cords to lift,

move or carry equipment.

• Do NOT coil or knot electrical cords,

and ensure electrical cords are not trip

hazards.

General Service Information

• The equipment must be serviced or

r

epaired at authorised service centres

by qualified personnel only.

• Replacement parts must be original

equipment manufacturer (OEM) to

ensure equipment safety is maintained.

• Do NOT attempt any maintenance or

repair work not described in this

manual.

• After use, the equipment and

components may still be hot – allow the

equipment to cool and disconnect spark

plugs and/or electrical power sources

and/or batteries from it before

adjusting, changing accessories, or

performing repair or maintenance.

• Do NOT adjust while the equipment is

running.

• Perform service-related activities in

suitable conditions, such as a

workshop.

• Replace worn, damaged or missing

warning/safety labels immediately.

We ask you to please read this manual carefully beforehand in order to familiarise yourself with this product

and after reading, please store this instructional manual for future reference. Failure to follow the proper

protocols listed in the manual may cause personal injury to the operator or damage to equipment.

The symbol is used throughout this manual to denote that failure to understand and follow the

associated warning or information may be consequential to your personal safety.

•

The machine is designed for very specific applications. Do not modify or use it for any application other

than for which it is designed.

•

Never operate when there is:

− A noticeable change in motor speed.

− A noticeable loss of pressure.

− Smoke or flames present.

− Excessive vibration.

− Rain or inclement weather.

•

The pressure washer is for outdoor use only.

•

Do not use in enclosed spaces.

•

All equipment must be placed on a firm, level and stable surface.

•

Keep the pressure washer clean and free of oil, mud and dirt.

•

Prior to starting the pressure washer in cold weather, be sure that ice has not formed in any part of the

equipment.

•

Wear safety goggles while operating.

•

Never directly spray the hose at people or animals.

•

Never allow children to operate the pressure washer at any time.

•

Disconnect the machine from the electrical supply when not in use, to prevent accidental starting, or prior

to detaching the high pressure hose.

•

To prevent accidental discharge, the spray gun should be secured by locking the trigger when not in use.

•

Do not run the pressure washer for more than two minutes without depressing the trigger or damage to

the pump may result.

JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA

RX550 Electric Pressure Washer

E&OE © Jet USA 5

•

Test the pressure washer on a small inconspicuous area first. Some surfaces can be damaged by high

water spray such as paint which can be removed with sufficient pressure.

Hose Safety

•

Use both hands to control the wand.

•

Do not touch the nozzle or water spray while operating. Water spray must never be directed towards any

electric wiring or directly towards the pressure washer.

•

Only approved hoses and nozzles should be used.

•

The trigger gun must not be jammed in position during operation.

•

Never tie knots or kink the high-pressure hose. Do not use damaged high-pressure hoses.

•

All hose connections must be properly sealed.

Thermal Relief Valve

A thermal relief valve is provided to protect the pump from overheating if the spray gun is closed for an

extended length of time or the nozzle becomes obstructed. However, it is only intended to be used as a

backup system and every effort should be made to ensure that you pull the spray gun trigger to allow water

flow so that there are no blockages in the system.

Safety Latch

To prevent accidental discharge of high-pressure water, the safety latch on the trigger should be engaged

whenever the pressure washer is not in use.

JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA

RX550 Electric Pressure Washer

E&OE © Jet USA 6

Pressure Washer Parts

No. Part

1. Pressure Cleaner

2 Water Supply Hose (Not Included)

3. Water Connection

4. Water Inlet

5. High Pressure Tube

6. Water Outlet

7. Spray Gun

8. Power Supply

Spare parts available

for purchase, scan QR

code below:

JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA

RX550 Electric Pressure Washer

E&OE © Jet USA 7

Getting Started

Automatic On/Off

The motor on this pressure washer does not run continuously. It only runs when the trigger of the spray gun

is squeezed. After following the start-up procedures in this manual, turn the pressure washer on and

squeeze the trigger for activation.

The pump on your pressure washer will often improve performance after a break-in period of several hours.

Bleeding the Gun

It is very important to bleed the gun before using the pressure washer. Squeeze the trigger to allow any air

that is trapped inside of the unit and hose to escape. Continue to squeeze the trigger until a steady stream of

water comes from the nozzle (this process may take several minutes).

Operating Instructions

This unit is to be connected t a cold-water source only. The motor runs only when the

trigger is squeezed. Using long extension leads can result in reduced power in some cases.

1. C

onnect the outlet hose to the washer and connect the spray gun to the outlet hose.

2. Connect the nozzle and nozzle extension.

3. Check that the gauze filter is clear of any blockage.

4. Connect the water supply hose.

5. Check that the hose has no kinks in it.

6. Turn on the water and check for leaks.

7. Depress the trigger to allow air to be expelled though the pump and hoses, then lock the trigger.

8. Connect the machine to the electrical supply and switch the machine ON.

9. Unlock the trigger and use the pressure washer.

Shut Down

1. Switch the machine OFF (place switch to the off position).

2. Unplug the unit from the power source.

3. Turn off the water supply.

4. Press the trigger of the gun to depressurise the system.

5. Disconnect the garden hose from the pressure washer.

6. Wipe all surfaces of the unit with a damp clean cloth.

7. Engage the gun safety lock.

Always switch the machine OFF before turning off the water supply. Serious damage could occur

to the motor if the unit is run without water.

Never disconnect the high-pressure discharge hose from the machine while the system is still

pressurised. To depressurise the unit, turn off the motor, turn off the water supply and squeeze the

trigger 2-3 times.

JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA

RX550 Electric Pressure Washer

E&OE © Jet USA 8

Nozzle Uses

The Electric Pressure Washer comes with five nozzle attachments for different uses. Please refer to the

image below and on the pressure washer itself to see which nozzle is applicable for your purpose.

Using Detergent

1. Add detergent to the container.

2. Connect detergent nozzle to trigger assembly.

3. Trigger gun to spray detergent.

Maintenance

Connections

The connections on the pressure washer hoses, gun and spray wand should be cleaned regularly and

lubricated with the manufacturer’s recommended grease to prevent leakage and damage to the O-rings.

Nozzle

Obstructions to the nozzle will cause the pump pressure to be too high. If the nozzle is obstructed, clean it

immediately.

A nozzle cleaner must only be used when the spray wand is disconnected from the gun or personal injury

could occur.

1. Turn off the pressure washer.

2. Separate the wand from the gun.

3. Clear the nozzle with a small rigid piece of wire such as a paper clip.

4. Flush the nozzle backwards with water.

5. Reconnect the wand to the gun.

JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA

RX550 Electric Pressure Washer

Restart the pressure washer and depress the trigger on the spray gun. If the nozzle is still partially blocked or

plugged, repeat above instructions 1-4.

If the previous procedure does not clear the nozzle, replace the nozzle.

Hose Care

•

To extend your hose life, you’ll want to drain the hose after use. Don’t rely on the nozzle to cut the water

when you are done. If you do, the water pressure builds up inside the hose and can burst it. The better

procedure for the hose upkeep is to turn off the water at the spigot and allow the hose to drain.

•

Another way to keep your hose in good shape for longer is to avoid dragging it by the spray trigger

assembly. This weakens the coupler connection and causes leaks.

•

Also, don’t just leave it in a pile when you are finished with it. Using the included hose reel prevents kinks

that create tears.

•

Finally, there is the issue of storing a hose over winter. If you live in a cold winter region, you’ll want to

bring the hose into the garage (or somewhere inside) to prevent freezing. Drain the entire hose first, then

coil it on a hose reel and carry it inside.

Storage

If you must store your pressure washer in a location where the temperature is below freezing, you can

minimise the chance of damage to your washer with the following instructions.

1. Stop the pressure washer and detach the supply hose and the high-pressure hose. Squeeze the trigger

of the discharge gun to drain all water from the wand and hose.

2. Restart the pressure washer and let it run briefly (about 5 seconds) until water no longer discharges from

the high pressure outlet.

Troubleshooting

Fault Probable Cause Repair

Pressure washer isn’t

working

Plug is not connected or electric socket is

faulty

Check plug and socket

Main voltage is insufficient and lower

than the minimum requirement

Check that the main voltage is

adequate

Thermal safety switch has tripped

Switch off the unit and let the

motor cool for a few minutes

Fluctuating Pressure

Pump is sucking air

Check that hoses and connections

are airtight

Valves are dirty, worn or stuck Clean and replace

Pump seals are worn out Clean and replace

Water leaking from the pump Seals are worn out Check and replace

The motor stops suddenly

Thermal safety switch has tripped due to

overheating

Check that the main voltage

corresponds to specifications

Switch off the unit and let it cool for

a few minutes

The pump doesn’t reach the

necessary pressure

Water inlet filter is clogged Clean the water inlet filter

Pump sucking air from connections or

hoses

Check that all supply connections

are tight

JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA

RX550 Electric Pressure Washer

Fault Probable Cause Repair

Suction/delivery valves are clogged or

worn out

Check that the water feeding hose

is not leaking

Unloaded valve is stuck Clear or replace valves

Lance nozzle is incorrect or worn out Check and replace

JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA

RX550 Electric Pressure Washer

Specifications

Electrical Requirements 240V / 50HZ

Motor 3200W (Peak) Induction

Maximum Pressure 3500PSI (241Bar)

Continuous Pressure 2500PSI (170Bar)

Rated Flow Rate 6.8L/min

Max. Flow Rate 8.5L/min

Hose Length 10m reel + 20m coiled

Detergent Bottle 1.0L

Maximum Water Temperature 50°C

Power Cable Length 5m

Dimension 1010 x 375x 365mm

Weight 27kg

Turbo Nozzle Connector Size Standard 1/4" BSP Quick Connect

JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA

RX550 Electric Pressure Washer

Some experts believe the incorrect or prolonged use of almost any product could cause serious

injury or death. For information that may reduce your risk of serious injury or death, consult the

points below and additionally, the information available at www.datastreamserver.com/safety

• Consult all documentation, packaging and product

labelling before use. Note that some products feature

online documentation which should be printed and

kept with the product.

• Check product for loose / broken / damaged /

missing parts, wear or leaks (if applicable) before

each use. Never use a product with loose / broken /

damaged / missing parts, wear or leaks (if

applicable).

• Products must be inspected and serviced (if

applicable) by a qualified specialist every 6 months

assuming average residential use by a person of

average weight and strength, above average

technical aptitude, on a property matching average

metropolitan specification. Intended use outside

these guidelines could indicate the product is not

suitable for intended use or may require more regular

inspection or servicing.

• Ensure all possible users of the product have

completed an industry recognized training course

before being given access to the product.

• The product has been supplied by a general merchandise retailer

that may not be familiar with your specific application or your

description of the application. Be sure to attain third-party

approval for your application from a qualified specialist before use

regardless of prior assurances by the retailer or its

representatives.

• This product is not intended for use where fail-safe operation is

required. As with any product (take an automobile, aircraft,

computer or ball point pen for example), there is always a small

chance of technical issues that needs to be repaired or may

require replacement of the product or a part. If the possibility of

such failure and the associated time it takes to rectify could in any

situation inconvenience the user, business or employee then the

product is not suitable for your requirements. This product is not

for use where incorrect operation or a failure of any kind, including

but not limited to a condition requiring product return,

replacement, service by a technician or replacement of parts

could cause a financial loss, loss of employee time or an

inconvenience requiring compensation.

• If this item has been purchased in error after considering the

points above, simply contact the retailer directly for details of their

returns policy, if required.

diagrams or images may be reproduced or transmitted in any form or by any means, electronic or

mechanical, including photocopying, scanning or recording, or any information storage and retrieval system,

without express permission or consent from the publisher.
