www.hychika.com [email protected]
Zhejiang Micade Industry and Trade Co., Ltd.
ADD: Jinheng 2nd Road, Jinyan Mountain Industrial Zone,
Wuyi County,Zhejiang China
After-sales email: [email protected]
- 01 -
-Better Tools for Better Life-
If any problems, please contact our after-sales email: [email protected]
Tech-data
Product Characteristics
(1)
(2)
(3)
Structure and parts name
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
Model
Voltage
Frequency
Power
Max capacity
Vacuum degree
Airflow
MWD192-1200W-20L
120V
60Hz
6 Peak HP
5 Gallon
2.5PSI
1.7m³/min
Vacuum cleaner for wet and dry
Jacks on the base, easy for depositing accessories
Blowing function, satisfy different requirements
Plastic tube
Waterproof switch
Top cover
Suction port
Wet&dry floor brush
Plastic hose
Handle
Plastic clip
Stainless steel tank
Base
Wheel
Sponge filter
HEPA filter
Paper bag
2 in 1 crevice nozzle
Floor nozzle
1
6
7
8
9
10
11
1615141312
2
3
4
5
- 02 -
-Better Tools for Better Life-
If any problems, please contact our after-sales email: [email protected]
Use the right accessories according to different situations.
Bristle for bookshelves, windows and bibulous brush for floor and carpet, tables, etc.
Crevice nozzle for crevice, corner, etc. Blowing mouth for blowing the dust away
in the crevice of the machine.
Safety Instruction
(1)
(2)
(3)
Check before operation that the local power supply is the same as the
specification on the rating label.
Do not use machine in the combustible and explosive place in case the motor spark causes fire.
Do not jam the air inlet mouth, in case temperature rises and damaging the motor.
- 03 -
-Better Tools for Better Life-
If any problems, please contact our after-sales email: [email protected]
(4)
●
●
(5)
(6)

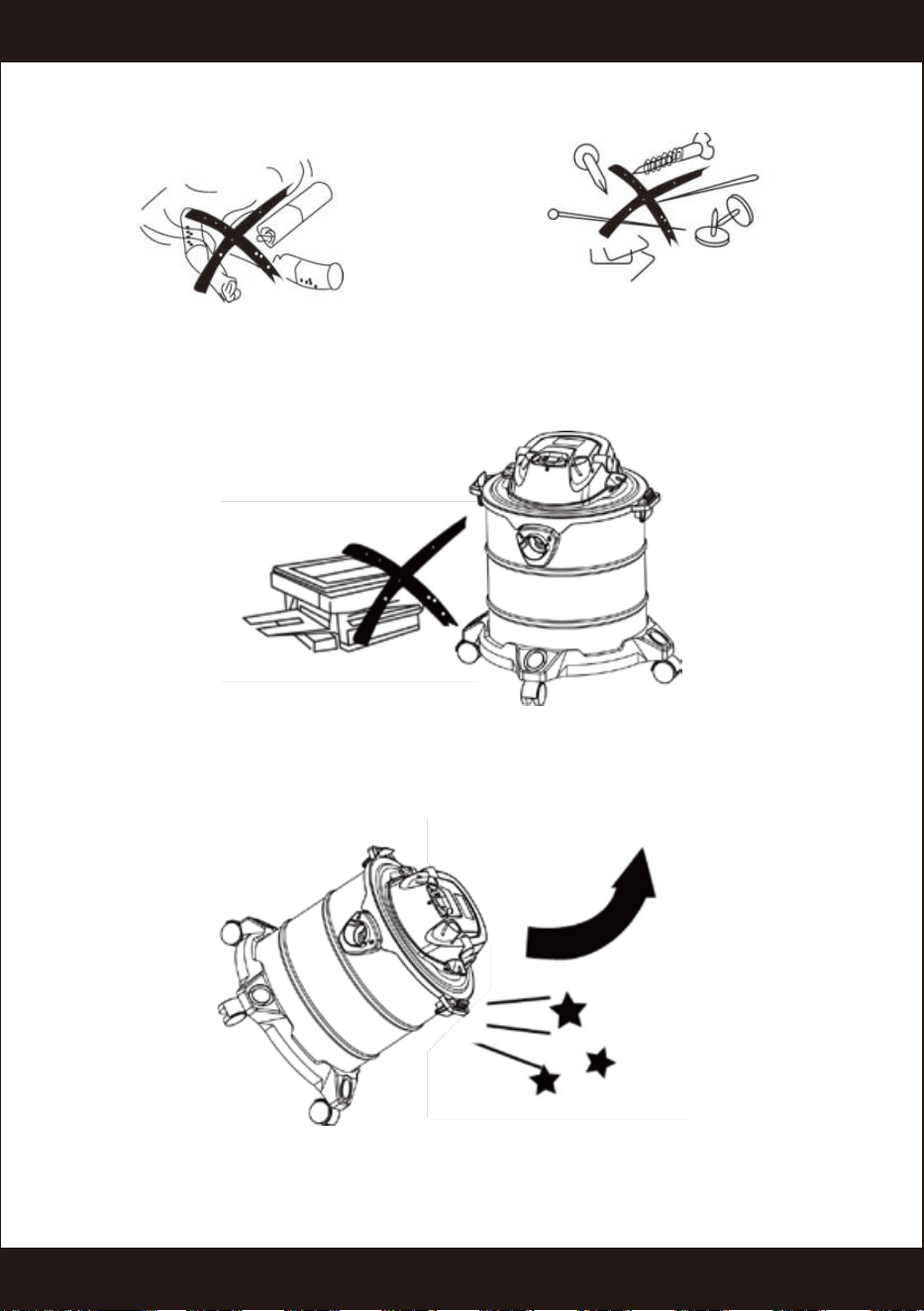

Do not collect combustible and explosive objects such as glowing cigarette, gasoline, etc.
Do not collect sharp objects.
Do not collect objects which can easily attach on the filter such as calcareousness powder, gesso and graphite powder.
Because those will block the ventilation damage motor.
Do not overturn the machine in case water goes into the motor and damages the motor.
Warning: If water is out from air outlet mouth, do not overturn the machine when being repaired in case water goes into
the motor and causes damage. Do not use this machine as pump in case of damaging the motor.
(7)
(8)
(9)
(10)
(11)
Operation Method
(1)
- 04 -
-Better Tools for Better Life-
If any problems, please contact our after-sales email: [email protected]
Press the connector button as
shown in the picture, and pull
the connector out when you want
to pull hose connector from machine.
Turn off the machine and remove the plug each time after using or when being repaired.

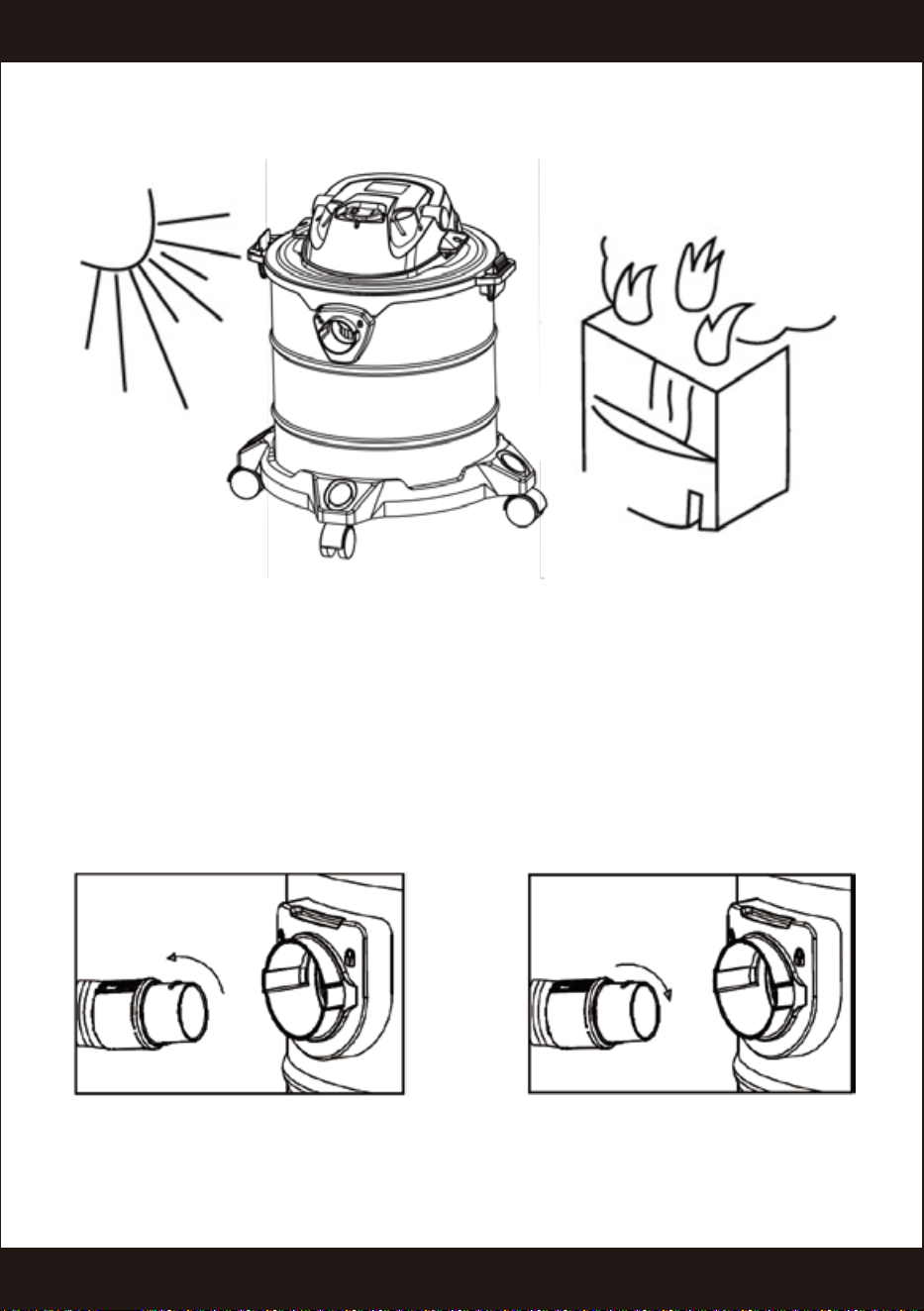

Keep machine away from strong sunlight and high temperature place in case plastic is distorted.
Do not wrest, tramp, or haul hose in case of making it damaged.
Do not immerse the barrel cap into the water or wash with water in case water goes into the electrophorus parts and
causing person injured.
The correct way should be: immerse the dishcloth firstly, and then dry it. Finally, wipe the dirty part gently.
The power cord must be replaced by the designated repairing center or professionals.
Connection
Insert the hose connector
into the air inlet mouth, as
shown in the picture;
make sure the connector is
tightly fastened.
- 05 -
-Better Tools for Better Life-
If any problems, please contact our after-sales email: [email protected]

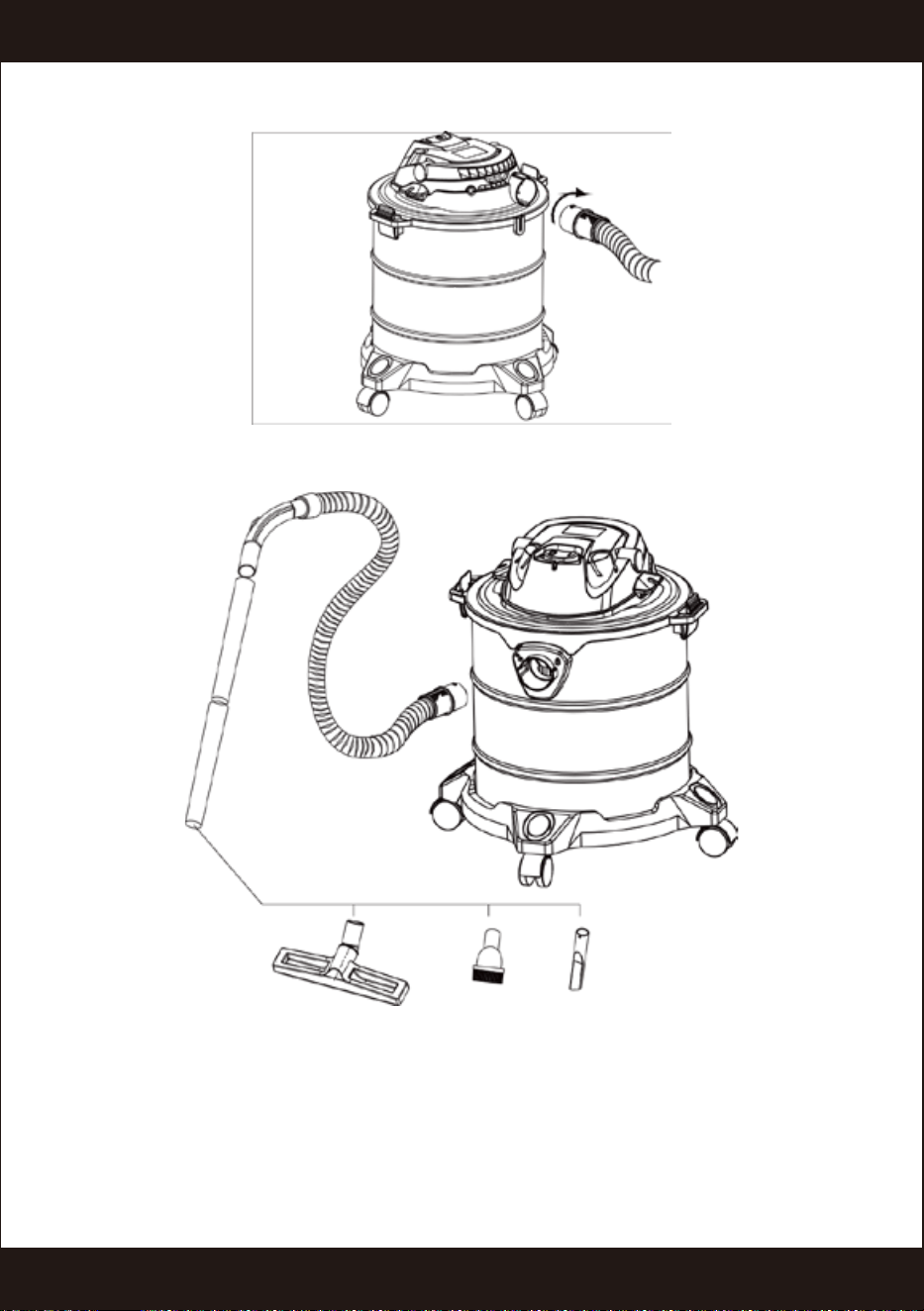

Insert hose connector into the blowing mouth as shown in the picture when you want to use its blowing function.
As shown in the picture, connect all the accessories for wet & dry cleaning.
- 06 -
-Better Tools for Better Life-
If any problems, please contact our after-sales email: [email protected]
Operation
1.
2.
Filters

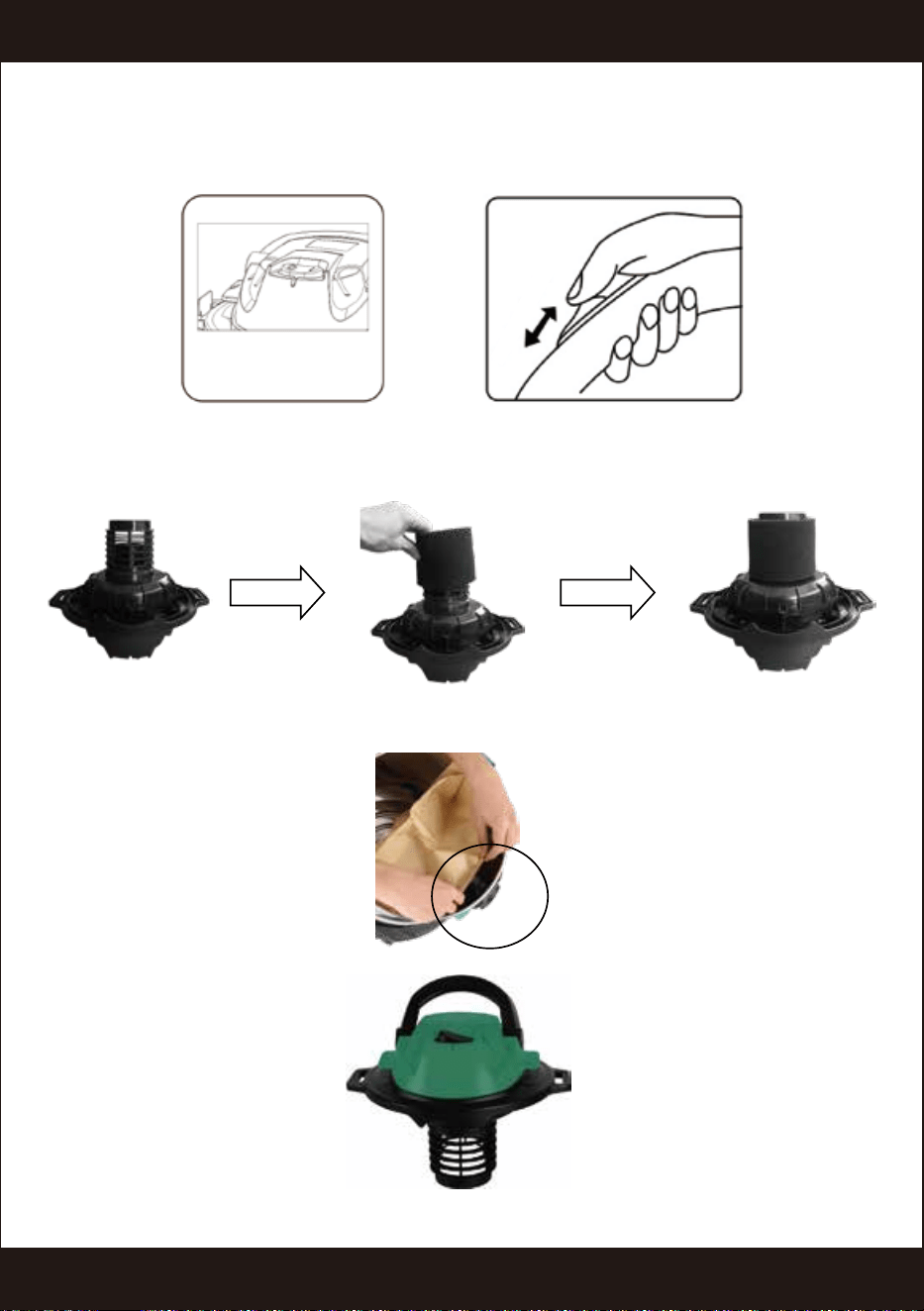

For cleaning liquid: Please fit the sponge filter on the water valve (below the motor base)
For cleaning dust: Please fit the paper bag onto the suction port, in case of any leakage of dust.
Protective device (Water valve)
Insert the plug into the supply socket.
Press switch button, the machine
begins to work.
You can adjust the airflow by pushing the
sliding block up and down.
“I”stands for turn on,
“0”stands for turn off
Stronger Weaker
3.
- 07 -
-Better Tools for Better Life-
If any problems, please contact our after-sales email: [email protected]
Special instruction concerning protective device.
(1)
The suction power will vanish at this moment. The machine will make some noise which indicates the motor is running at a
high speed.
Under this circumstance, you should cut off the electricity, and clean out the water. Then equip the machine and turn it on, it
will begin to work normally.
(2)
(3)
Maintenance
(1)
●
1)
2)
3)
(2)
●
1)
2)
3)
4)
When the water in the barrel is full, the device begins to work.
When the machine was overturned, the device will become to work. You should cut off the electricity and make it upright,
then turn on the machine.
When the device is working, the motor will be damaged and cause fire if you use the machine. Under this circumstance,
you should stop using and clean out the water, then you can begin to use it.
Barrel Cleaning
* After working or when the barrel is full of dust which causes suction decrease considerably, you should cut off the
electricity and clean the dust away from the barrel.
Unfasten the locking knob, lift up the top cover.
Take off the filter bag, clean the dust away in the dust barrel.
Install the filter bag back and place the top cover.

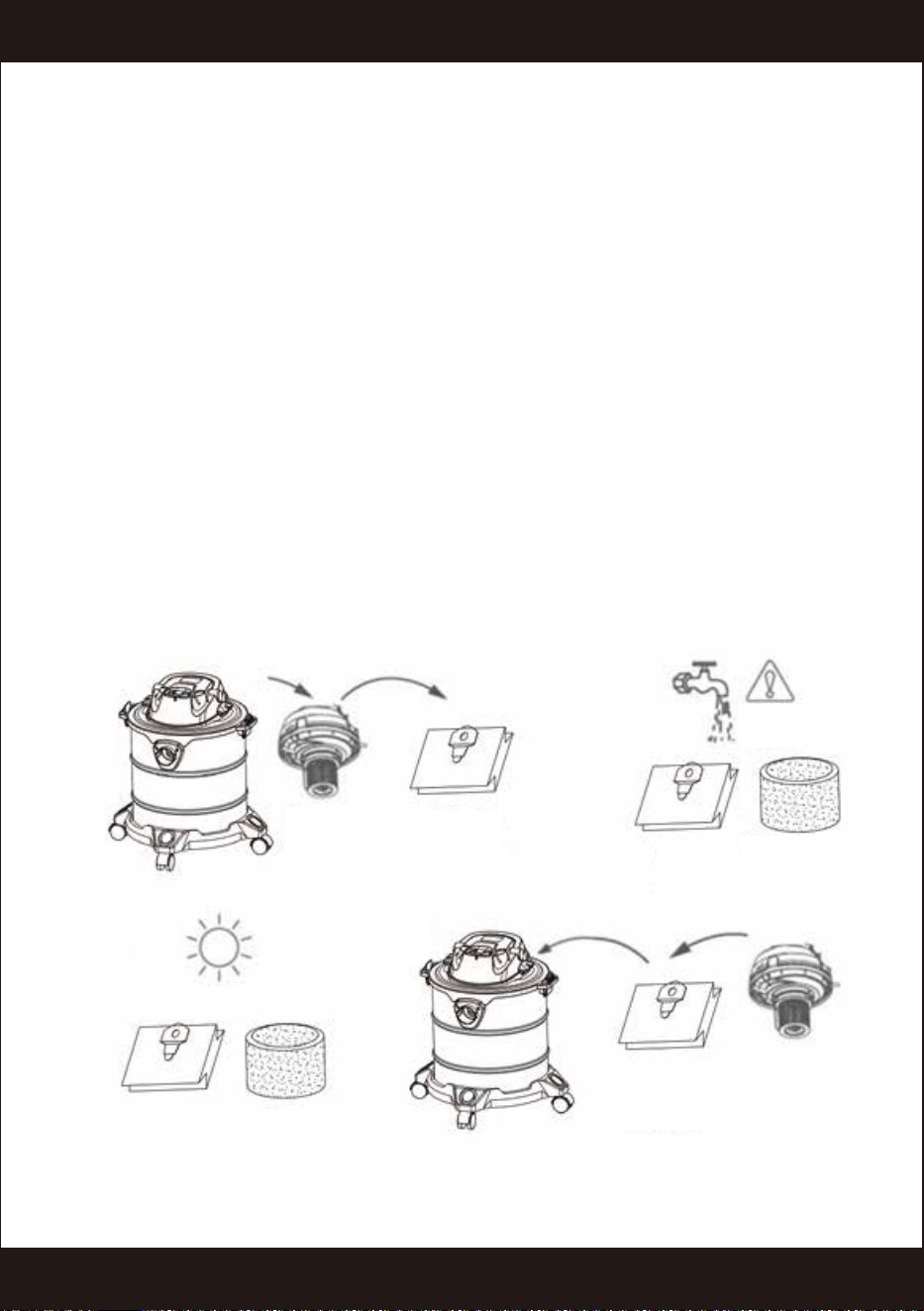

Filter cleaning
* Filter bag should be washed by clean and warm water when it is covered with dust. If necessary, you can use litmus
less scour to wash.
Take off the filters
Wash
Dry
Assemble filters
Sponge
Filter
24hr
3
1 2
4
40°C
max
Sponge
Filter
Cloth
Filter
Cloth
Filter
Cloth
Filter
