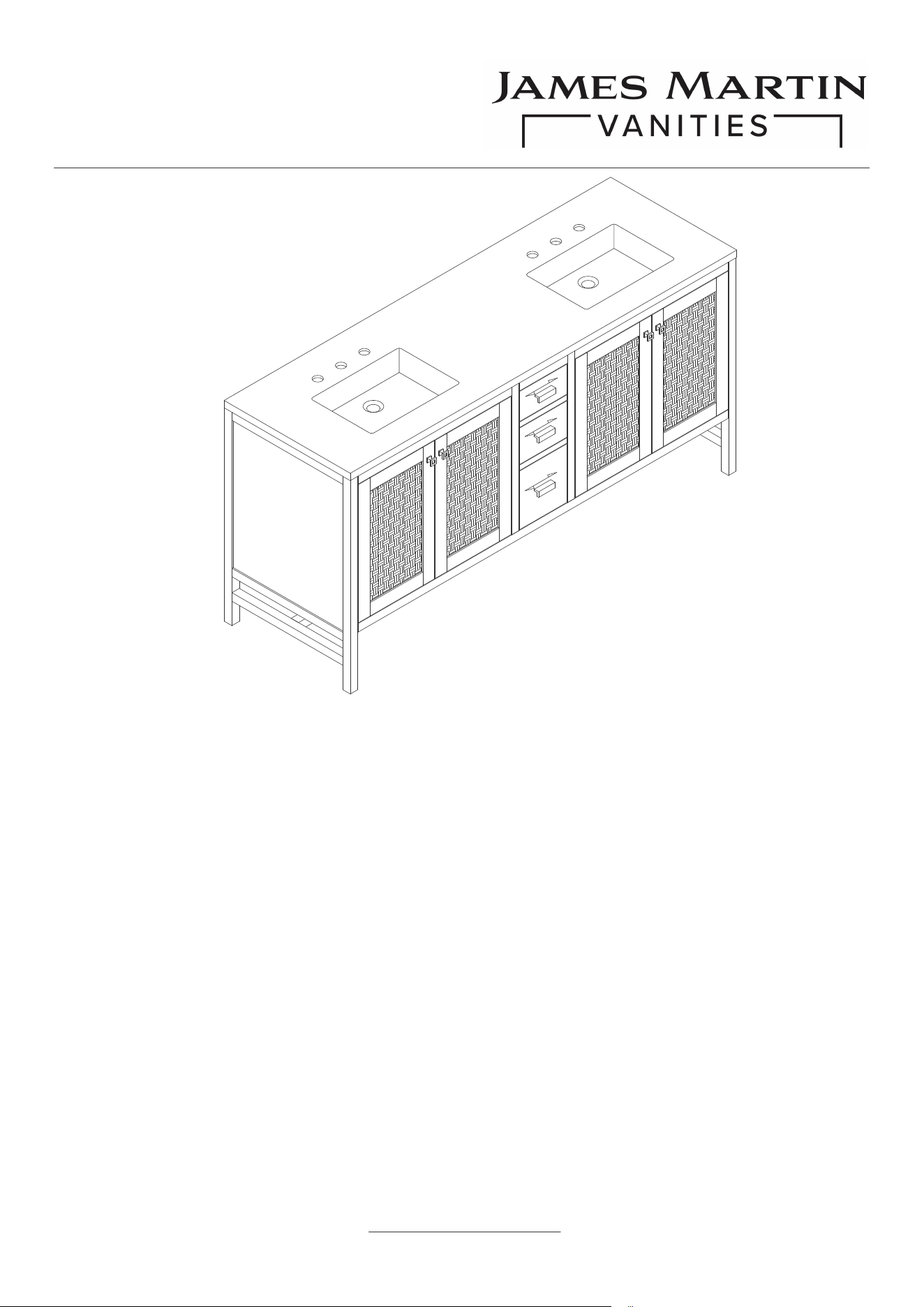

72" ADDISON VANITY
E444-V72-MCA
Features and Materials
Solids: Para Wood and Yellow Poplar
Veneers: Mango
Panels: MDF
Installation Type: Floor Standing
Number of Basins: Two, with Optional 3cm Top
Vanity Top Included: NO, Optional 3cm Tops Available with Sinks
Basins Included: NO
Overflow: Yes, Front Facing
Number of Doors: Four
Number of Drawers: Three
USB/Power Component:
YES (ETL501108
0)
Cord Length: 6'6"
Assembly Type: Yes, with Optional 3cm Top
Bamboo Storage Tray: YES
Door Panel: Reversible. One Side Finished in Mid-Century Acacia, One Side Natural
Cork (Pattern: Herringbone )
Drawer Box Material and Construction: 15mm Poplar/English
Fits Drain Hole Size: 1 3/4"
Full Extension, Soft Close Glides
European Soft Close Hinges
Aluminum Laminate Drawer Liners
Adjustable Levelers
Dimension
Width: 71-7/8"
Depth: 23-3/8"
Height: 34-1/2"
Rough-In Height: 21-1/2"
Version: 202404
72" ADDISON VANITY
E444-V72-MCA
Version: 202404
Front View
Knob
3 1/8" [78mm]
7/8" [21mm]
1"
[24mm]
Top View
10" [255mm] 3 1/8" [80mm]
12" [305mm]
14" [355mm]
7 3/8" [187mm]
27 1/2"
[699mm]
27 1/2"
[699mm]
4 3/4"
[120mm]
14" [355mm]
3 1/2" [88mm]
18 1/4" [464mm]
22 3/8"
[567mm]
71 7/8" [1825mm]
13 1/2" [343mm] 13 1/2" [343mm] 11 5/8" [296mm] 13 1/2" [343mm] 13 1/2" [343mm]
4 7/8"
[124mm]
5 7/8"
[150mm]
9 1/2"
[241mm]
3 7/8" [100mm]
Visit website for warranty and installation information
www.jamesmartinvanities.com
Diagrams are of cabinet only–James Martin Optional Countertops and sinks are not shown
Bamboo Drawer Organizer
3 1/2"
[90mm]
3 1/2"
[90mm]
15 5/8" [396mm] 8 3/8" [213mm]
8 3/8" [213mm]
15 1/2" [395mm]
27 1/4" [692mm]
11 3/4" [300mm]
27 1/4" [692mm]
2 1/2" [63mm]
1" [25mm]
1"
[25mm]
1" [24mm]
3/4"
[19mm]
3/4" [19mm]
All dimensions are nominal
Top view of electrical unit
14 7/8"
[376mm]
19 1/4"
[489mm]
2/3
34 1/2"
[876mm]
11 3/8" [288mm]
27 3/4" [706mm]
27 3/4" [706mm]
Back View
Side View 2Side View 1
23 3/8" [595mm]
34 1/2"
[876mm]
3 7/8" [100mm]
7 7/8" [200mm]
18 1/4" [464mm]
18 1/4" [464mm]
3 7/8"
[100mm]
15 1/4" [387mm]
4 1/2" [113mm]
24 3/8" [619mm]
Diagrams are of cabinet only–James Martin Optional Countertops and sinks are not shown
Visit website for warranty and installation information
www.jamesmartinvanities.com
21 1/2" [546mm]
21 1/2" [546mm]
Suggested rough-in
height 21.5 H x 9 W
Suggested rough-in
height 21.5 H x 9 W
24 3/8" [619mm]
All dimensions are nominal
16 1/2" [420mm]
Side view of electrical unit
Grommet opening
for power cord
32 1/2" [826mm]
17 3/8" [442mm]
3/3
72" ADDISON VANITY
E444-V72-MCA
Version: 202404
5 3/8" [137mm]
66 1/2" [1688mm]
