TIP:
For Innitely Adjustable Shelves please skip ahead to “Fine Tuning & Tips.”
TIP:
If you have a TV Mount, install it before securing the Top.
L
R
At this point you may install accessories (IR Repeater Kit, Power
Conditioner, Etc.) and place components.
TIP:
Leveler
1 Level Cabinet
2 Install Shelves
3 Place & Secure Top
Socket Screw 1.25”
303-520
(Wood Tops Only)
Socket Screw 1”
(Use with Shelf Peg)
300-455
Optional: Innitely Adjustable Shelf Kit (See Fine Tuning)
(PHK-2070)
Drop-In Nut
(Use with Shelf Pegs)
300-565
Socket Screw 3/4”
(Use with Shelf Peg)
300-465
Shelf Pegs “L”
300-840
Shelf Pegs “R”
300-830
L
L
R
R
You will need a Phillips head screwdriver to assemble your Chameleon Cabinet.
Rubber Pads
303-380
(Glass Tops Only)
chameleon
ASSEMBLY INSTRUCTIONS
TM
Hex Key 3/16’’
400-060
Hex Key 4mm
400-170
Congratulations on your purchase!
For any questions please call us at:
800.535.5659 / 860.313.0525 (9am-5pm EST)
Visit our website at: www.salamanderdesigns.com
© 2011 Salamander Designs Ltd. Doc No. 501-500 / v 8.11

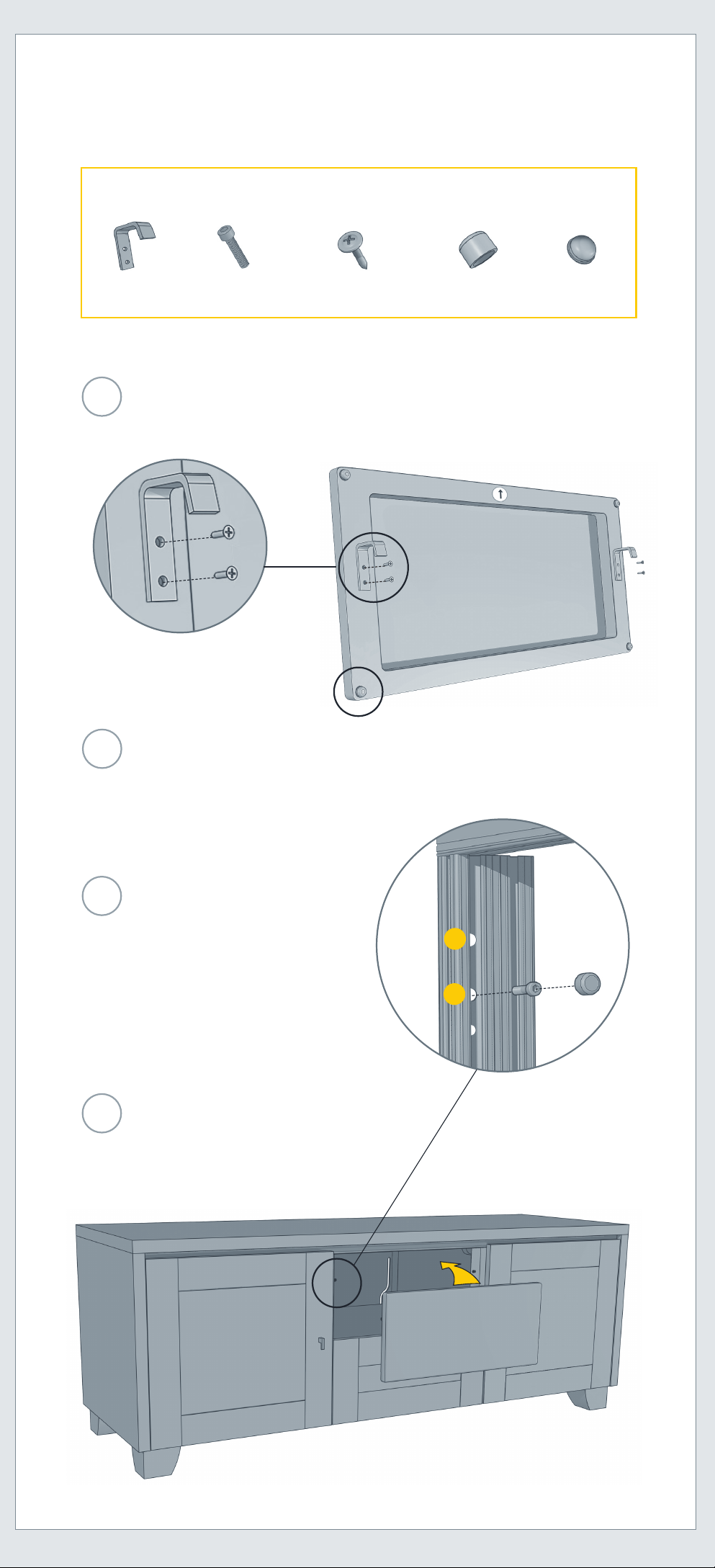

Chameleon Hardware
Assemble shelf pegs with
socket screws (300-455).
Afx shelf peg assembly
to post at desired position
and secure using hex key.

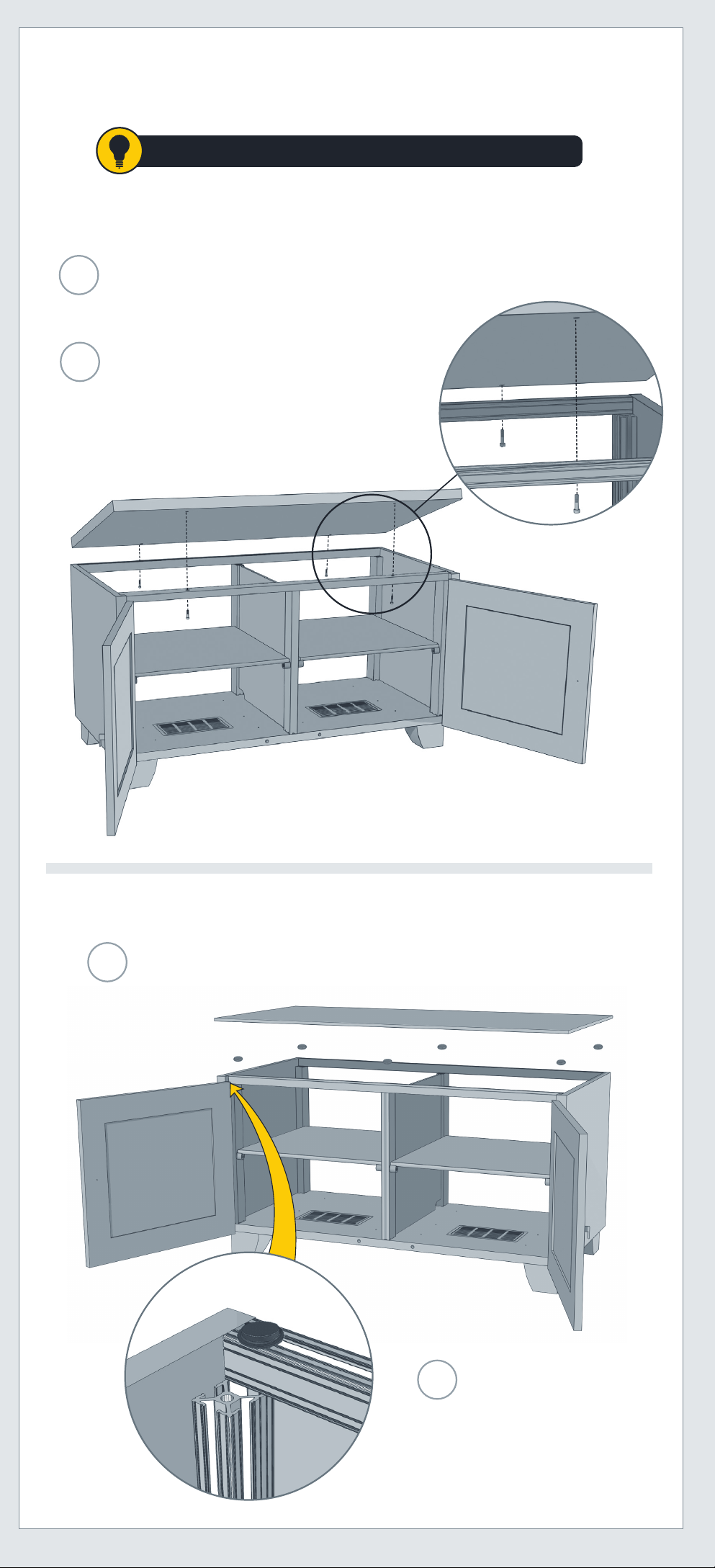

Remove plastic coating from shelves and place onto shelf pegs.
Place Rubber Pads (303-380) on the frame covering bolts as shown.

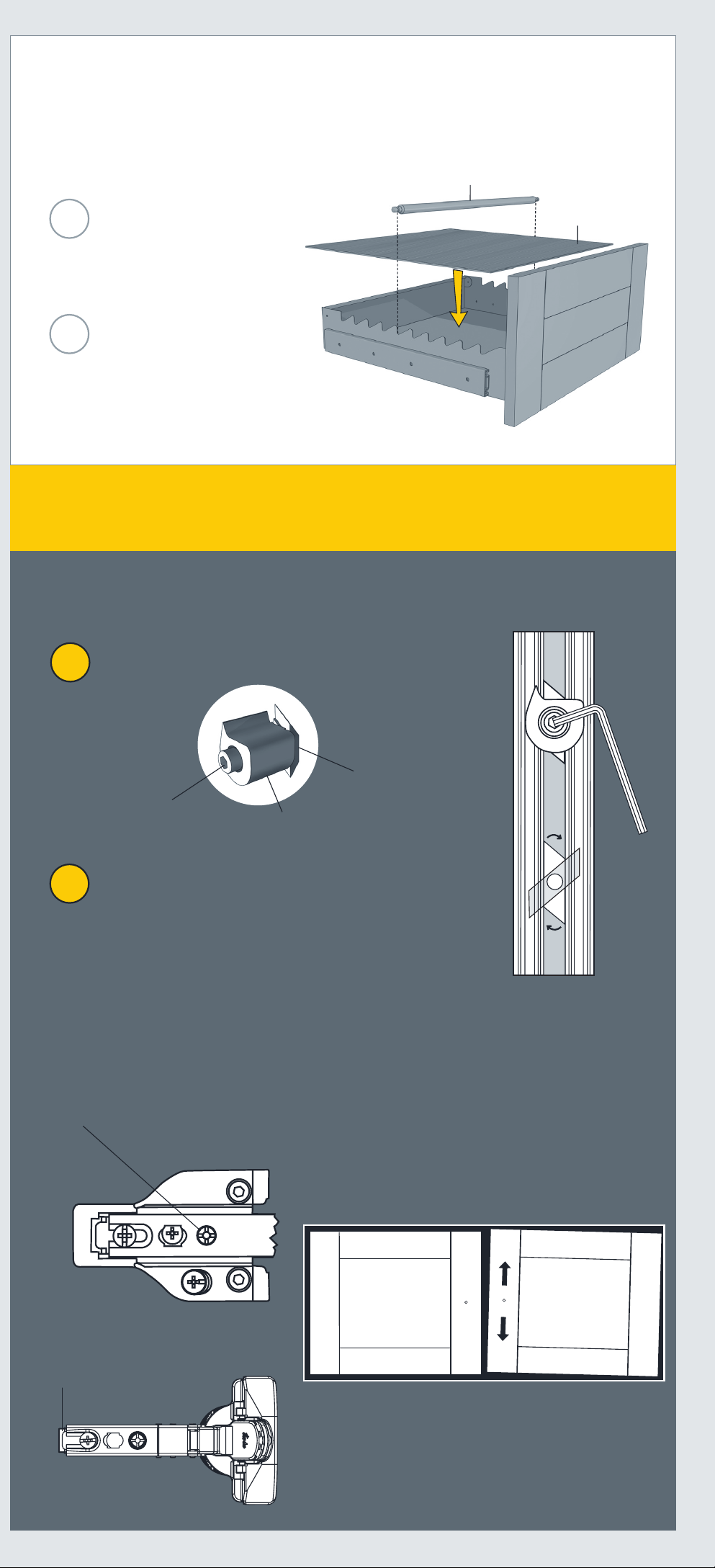

Glass Top
Place the glass top
squarely on the cabinet
with the
Salamander Logo
positioned to the back/left
corner.
Wood Top
Align wood top squarely to the cabinet
frame with the holes closest to edge of
top, positioned to the rear of cabinet.
Fasten top to the frame using screws (303-520).
C
B
A
A
B
A
B
LIMITED WARRANTY
For ve full years Salamander Designs Ltd will repair or replace, at our option, any product defective in materials
or craftsmanship. Salamander Designs Ltd. will not be responsible for any damage to or destruction of other
equipment consequential to our equipment failure. Defective product must be given Return Authorization and
is to be returned to the factory prepaid, in the original carton and packing material. Any damage incurred in a
shipment not in original packaging shall be the responsibility of the owner. Warranty repairs will be returned
prepaid within the continental U.S.A. only.

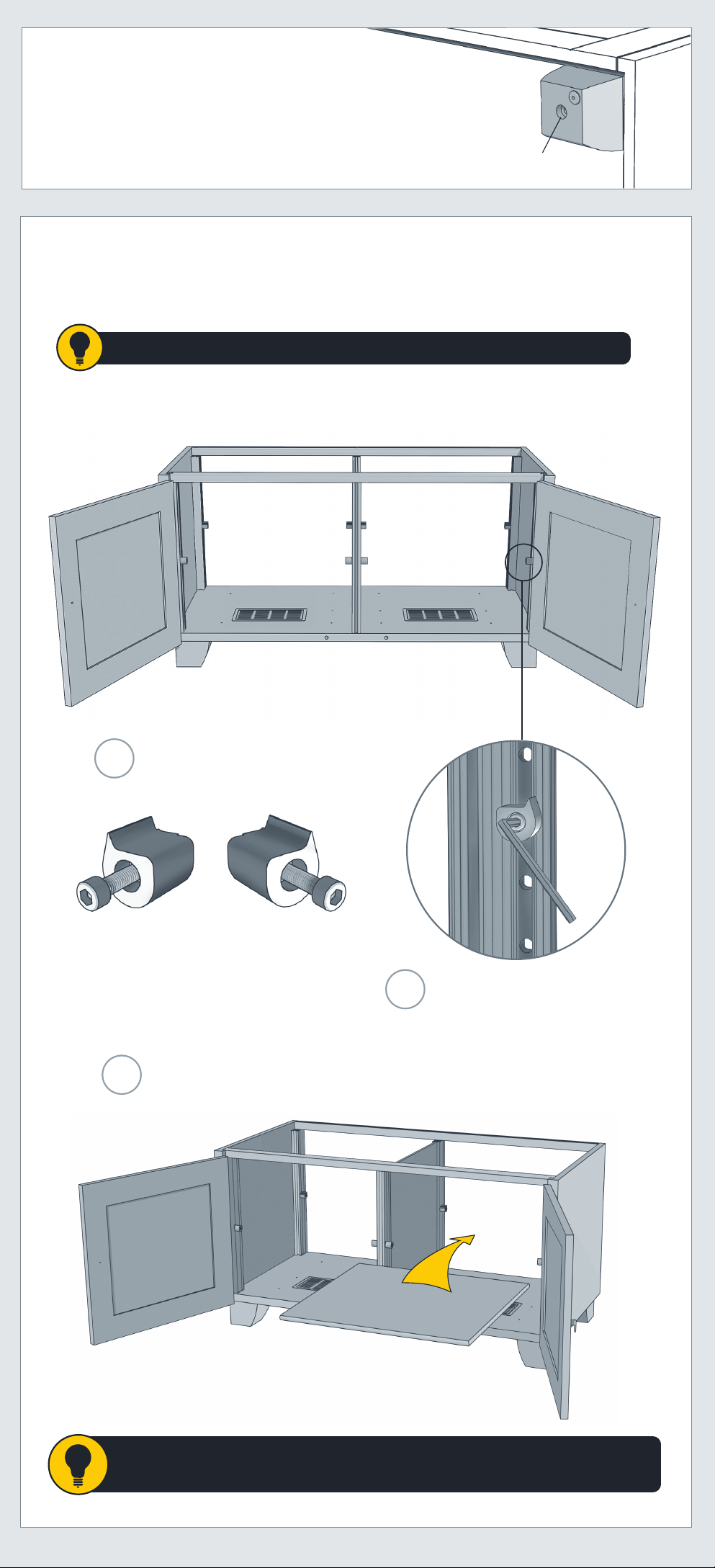

Prior to installing components, it is important to level
the cabinet with the oor. Verify that all of the feet are
properly adjusted to support the cabinet evenly.
