USER’S OPERATION MANUAL
Before operating this unit, please read this manual
thoroughly, and retain for future reference.
English
EN
HWF3S8514
12
21
22
38
40
7
1
6
37
0
1
2
3
5
46
45
4
44
47
50
4
1 6

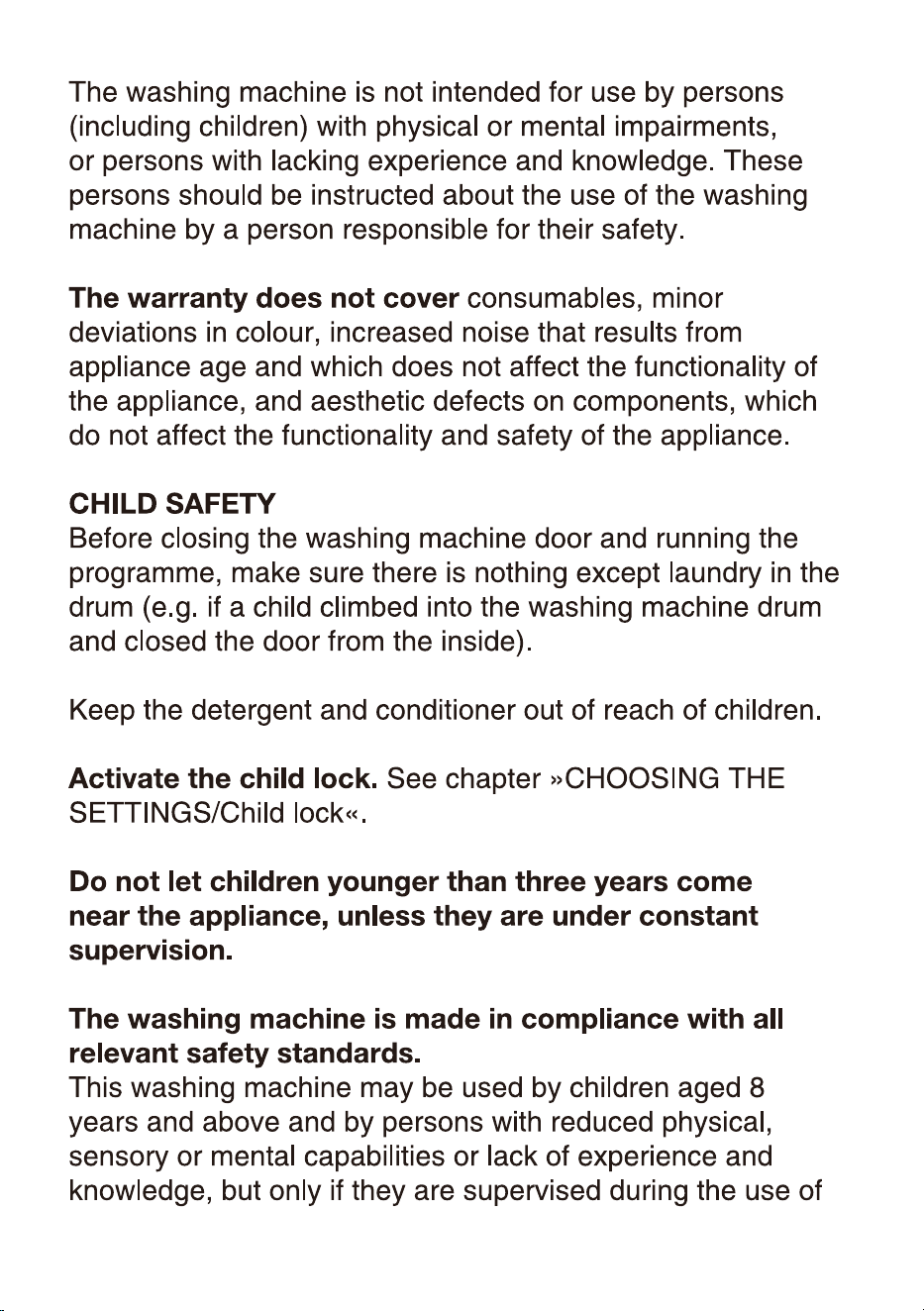

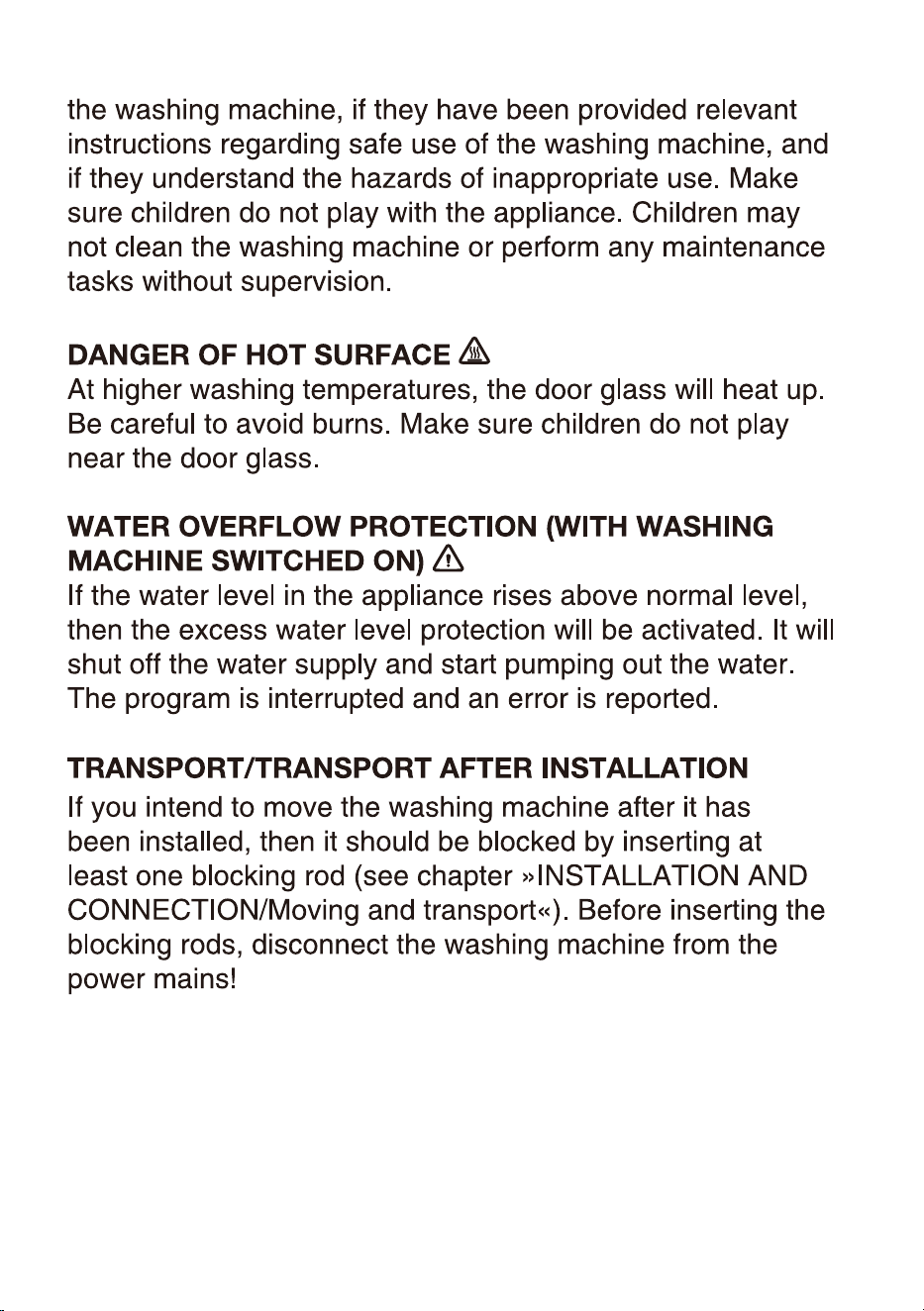

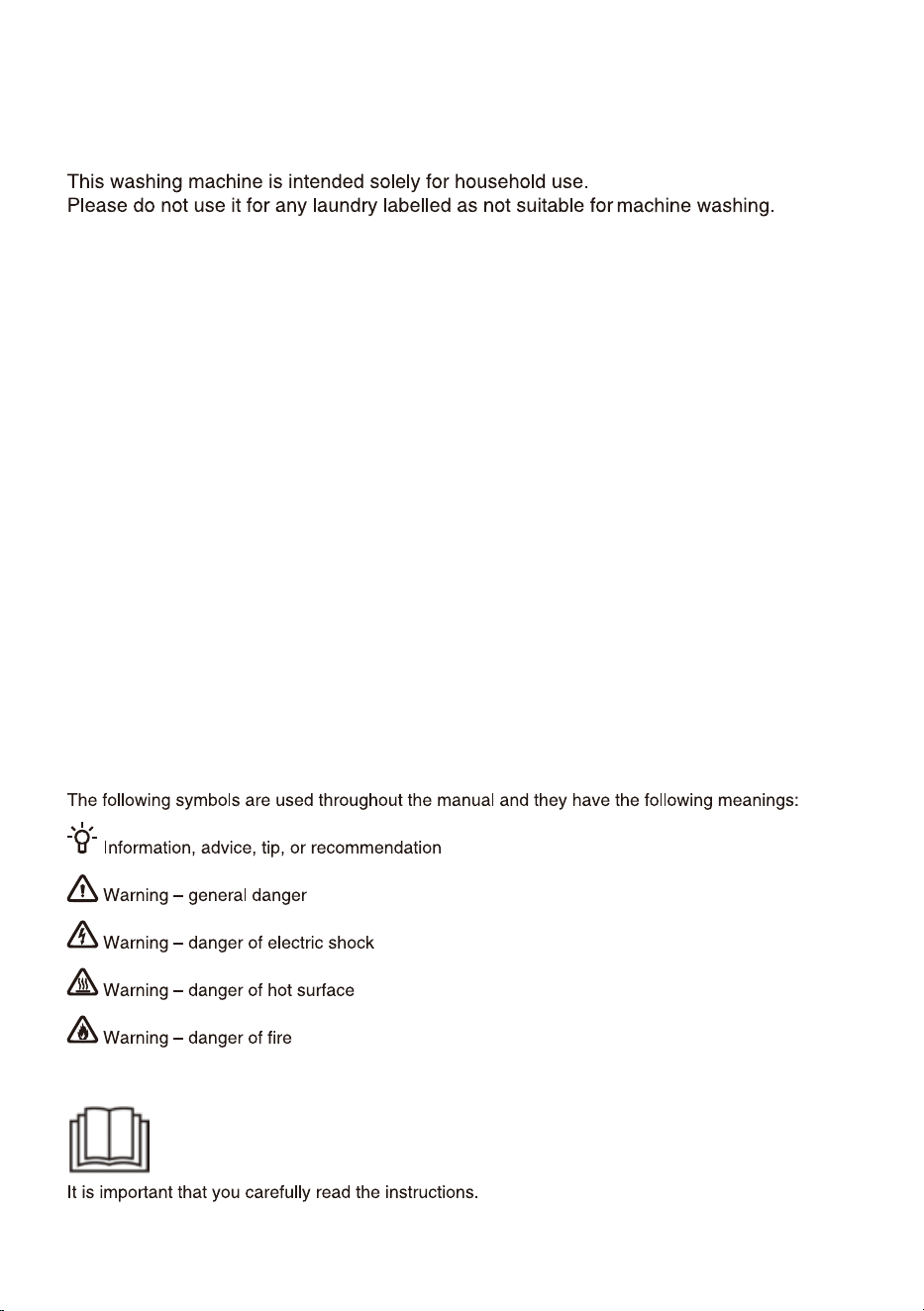

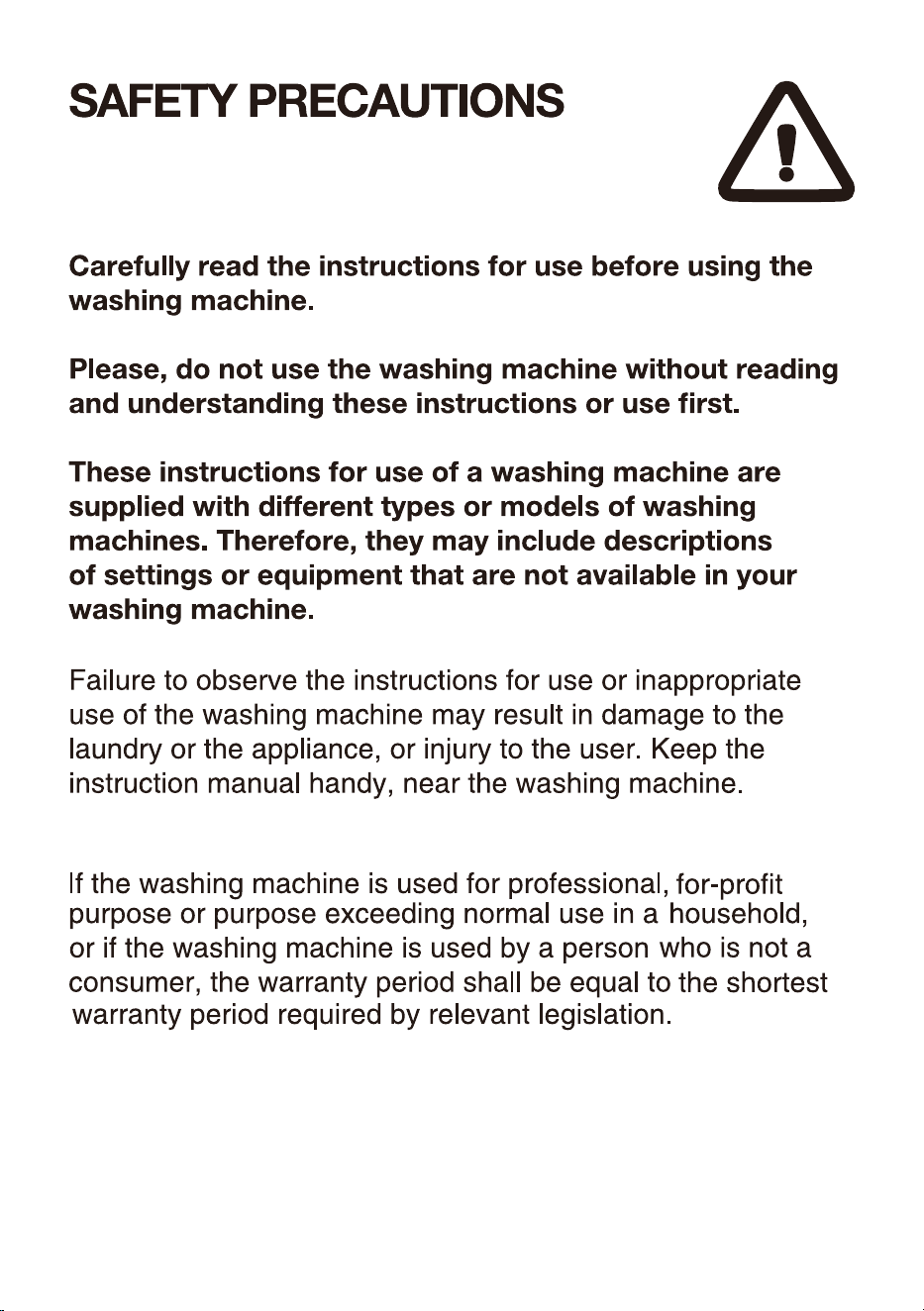

This appliance is intended to be used in household.

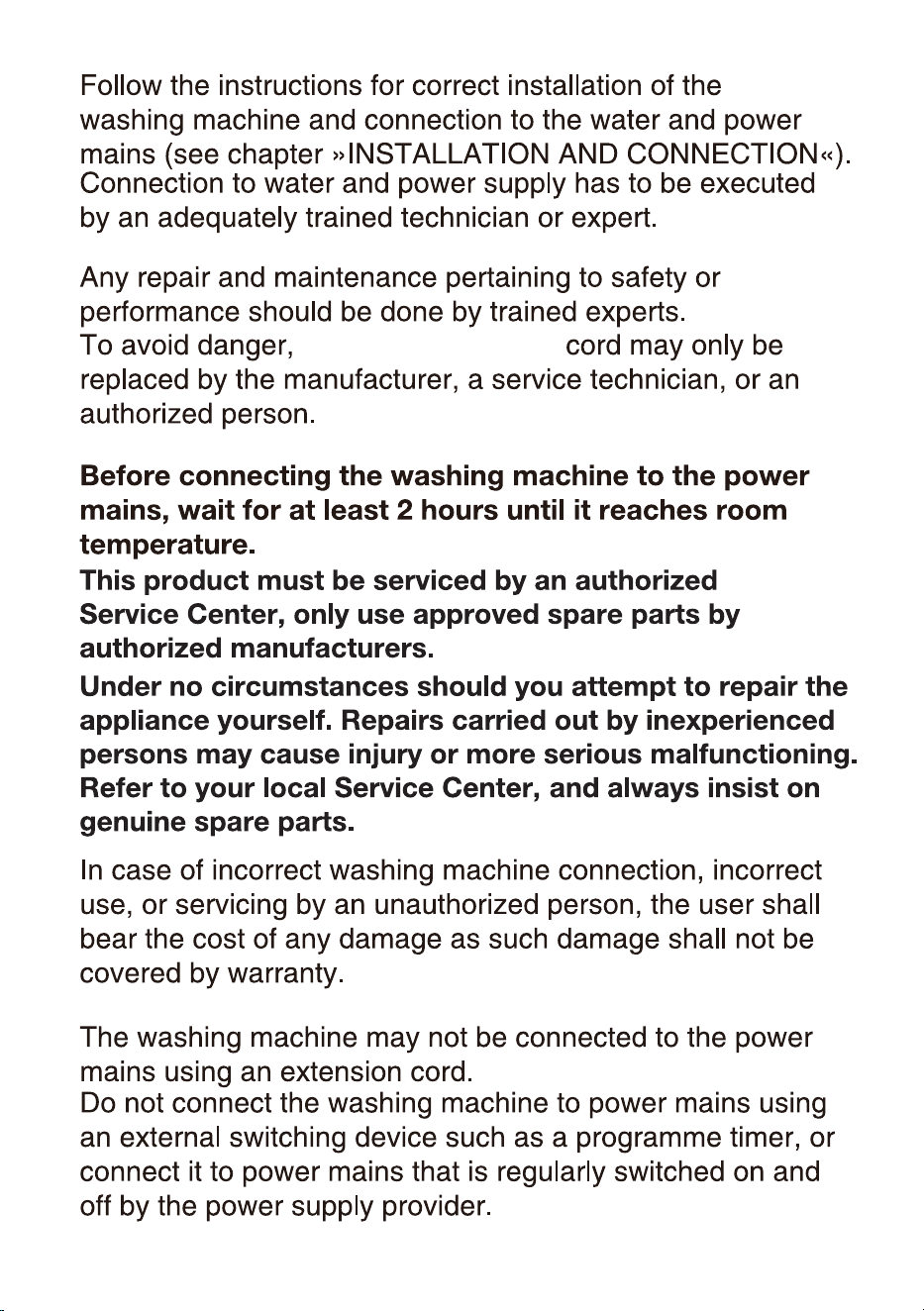

a damaged power

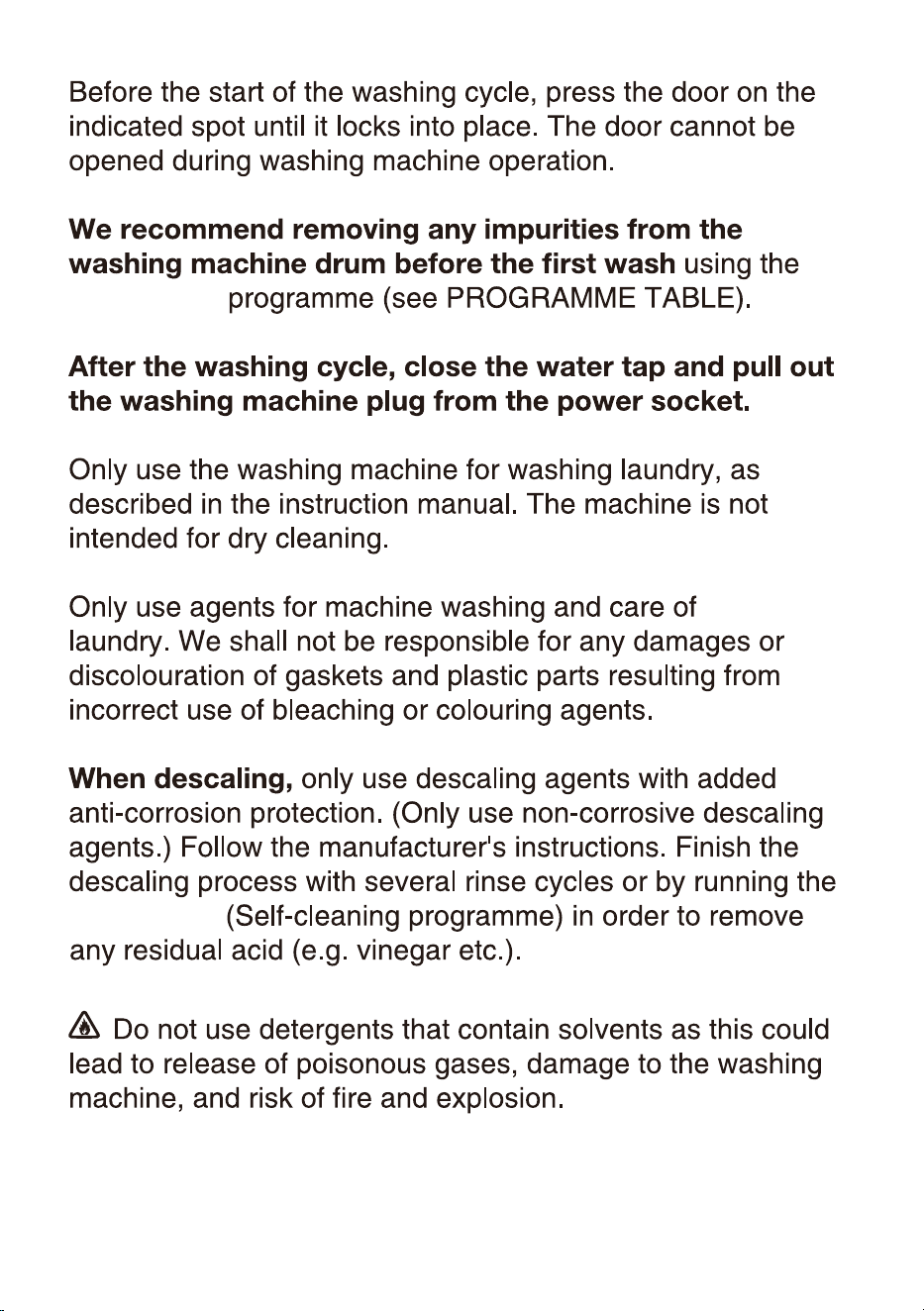

Drum clean
Drum clean
If the supply cord is damaged, it must be replaced by
the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.

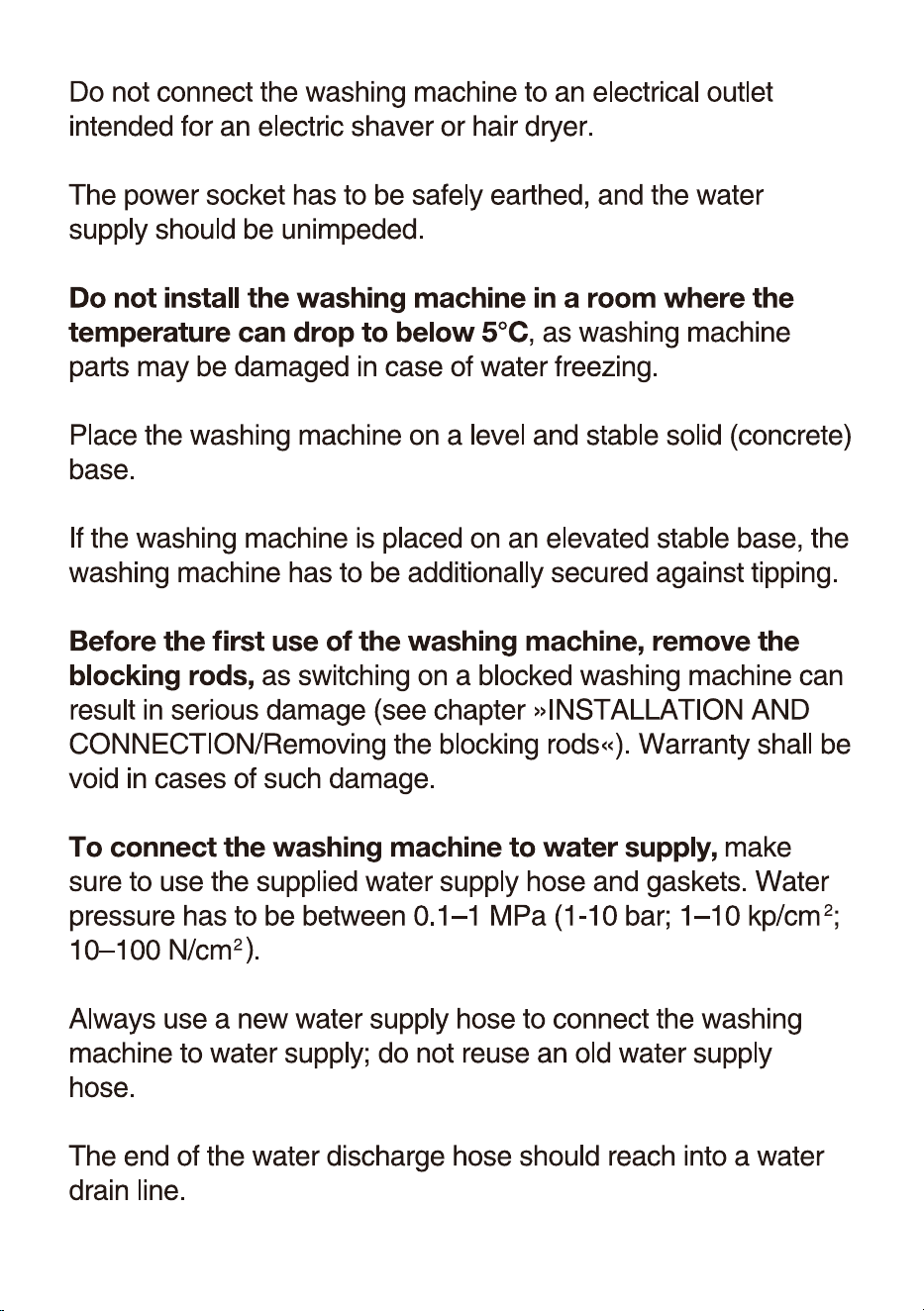

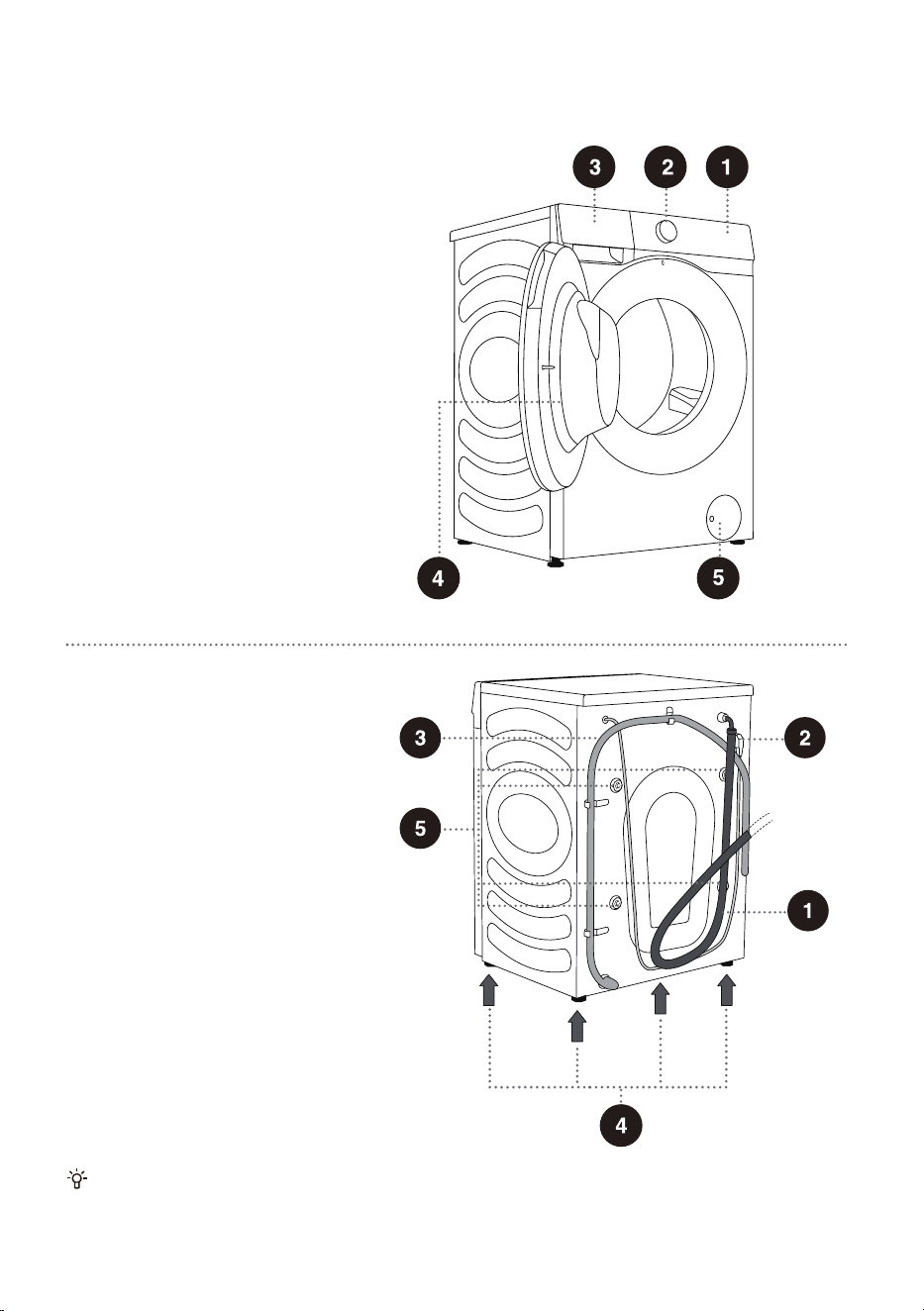

WASHING MACHINE DESCRIPTION
FRONT
1 Control unit
2 Programme selector knob
3 Detergent compartment
4 Door
5 Pump filter cover
BACK
The illustrations in this manual are for reference purpose only. As our products are subject to
continual improvement, the appearance, color and functional parts of your actual product may vary
from the illustrations.
1 Water supply hose
2 Power cord
3 Water discharge hose
4 Adjustable feet
5 Blocking rods/screws

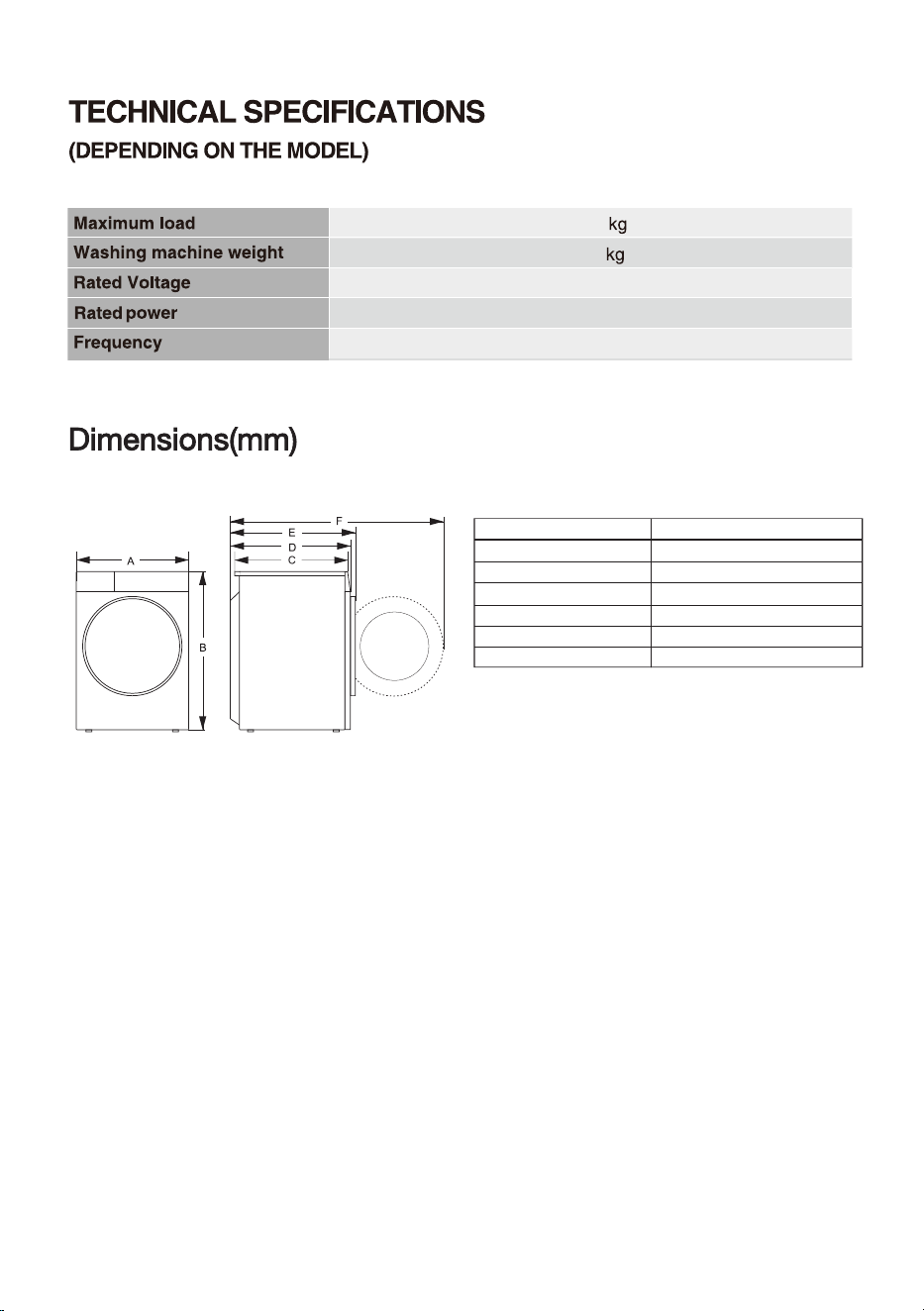

8.5
58
7_
)[
6008
45
480
510
540
020
"
#
$
%
&
'
%JNFOTJPONN
*OEFY

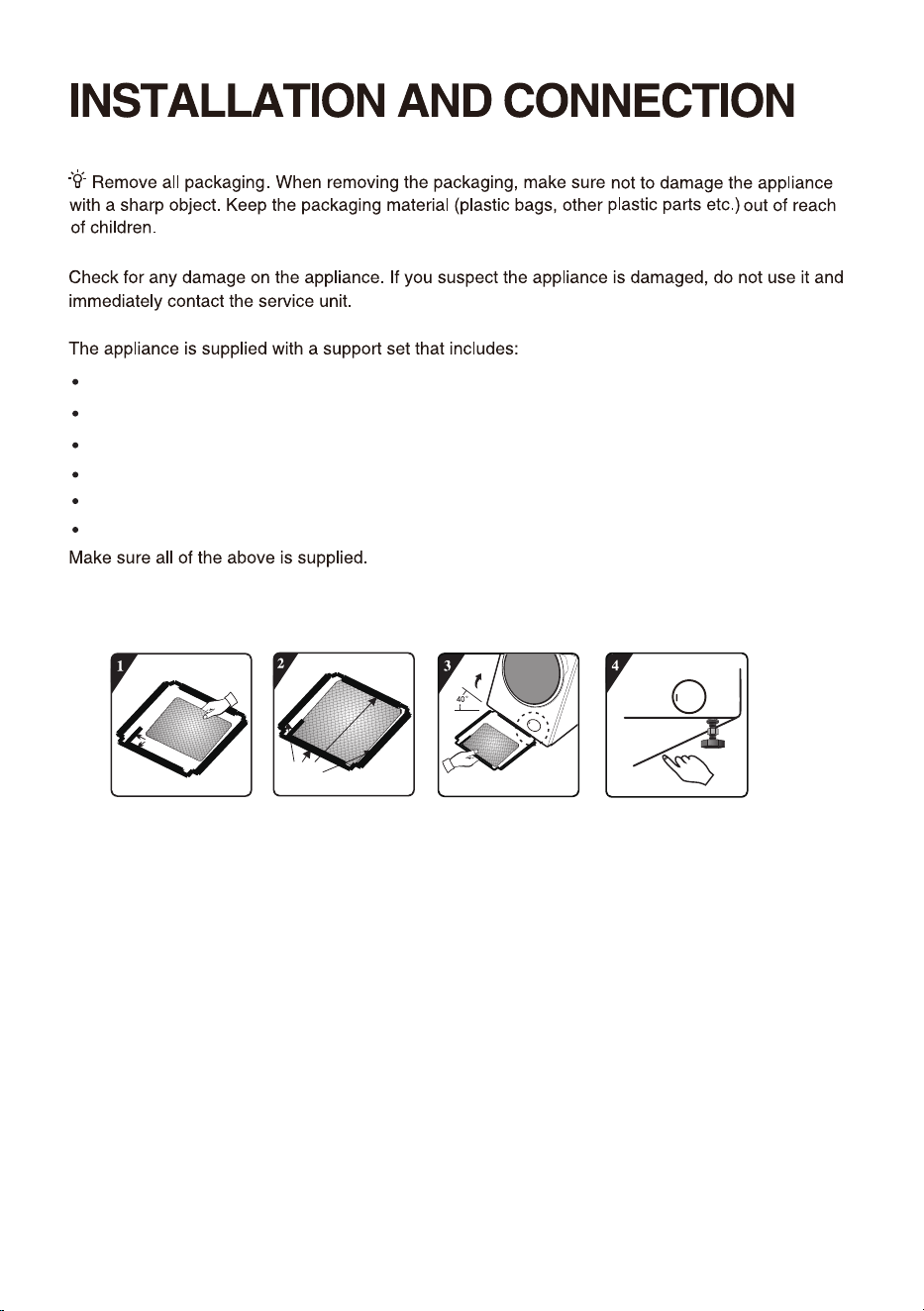

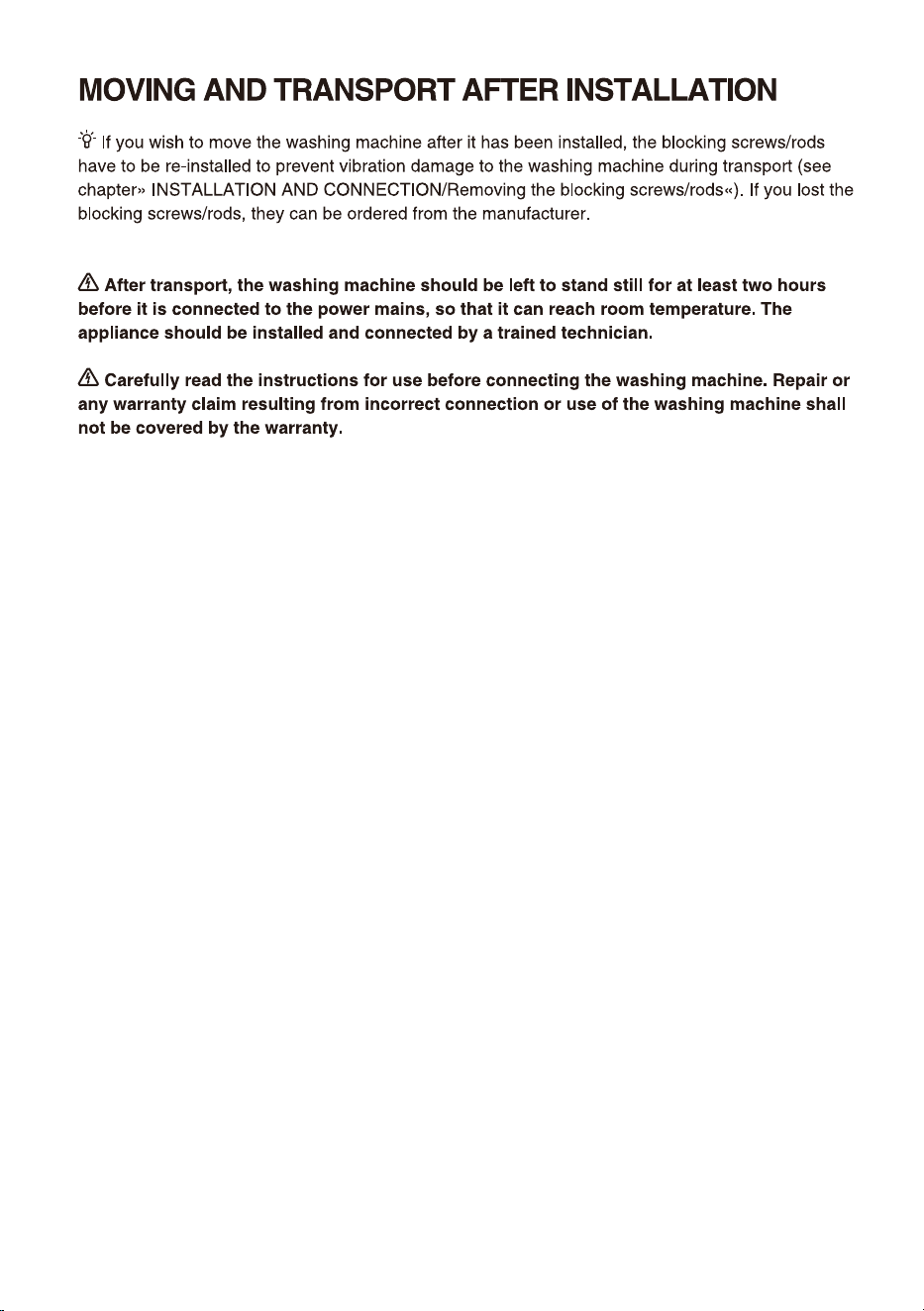

Instructions for use;
4 plastic plugs;
Supply hose;
Drain hose holder;
Wrench;
Noise reduction board.

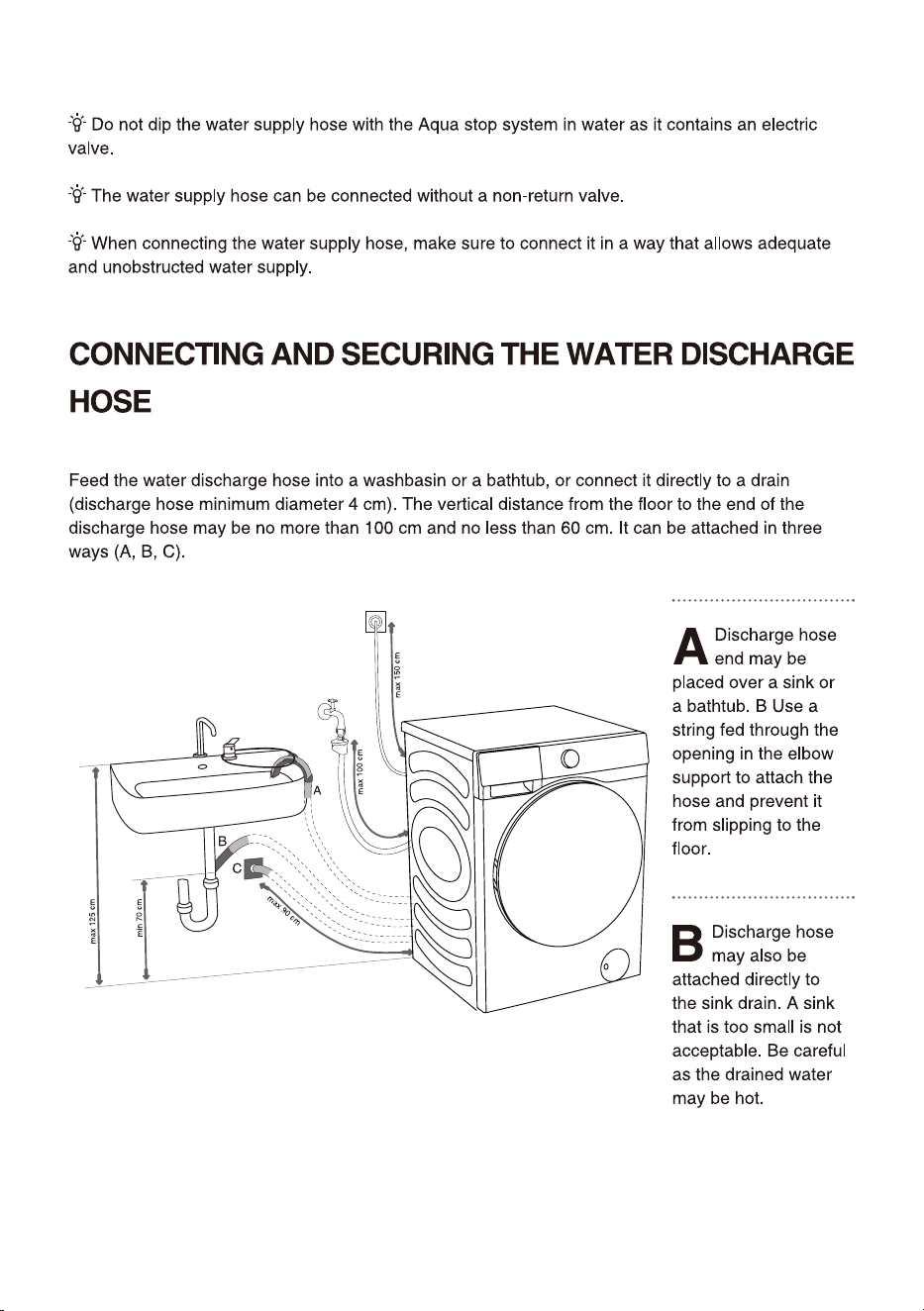

HOW TO INSTALL THE NOISE REDUCTION BOARD
3. Incline the machine to an angle of 40° and
let the side with right-angle notch face
towards front of the washing machine, as
shown in the figure. Insert the side with
oblique-angle notch between two foot
screws at back of the washing machine
completely in place. Then, install the noise
reduction board and ensure that it contacts
with bottom of the washing machine closely.
1.
Before installing the noise reduction board,
align and paste the acoustic absorption wool
with and along the right-angle impression on
the noise reduction board (this procedure is
unnecessary for some of the models without
acoustic absorption wool).
2. Remove surface paper on double sided
tape at four sides of the bottom plate.
4. Press the double sided tape on four sides
manually to secure the noise reduction board
to the machine body firmly.
Right-angle impression
Pump
Double sided tape

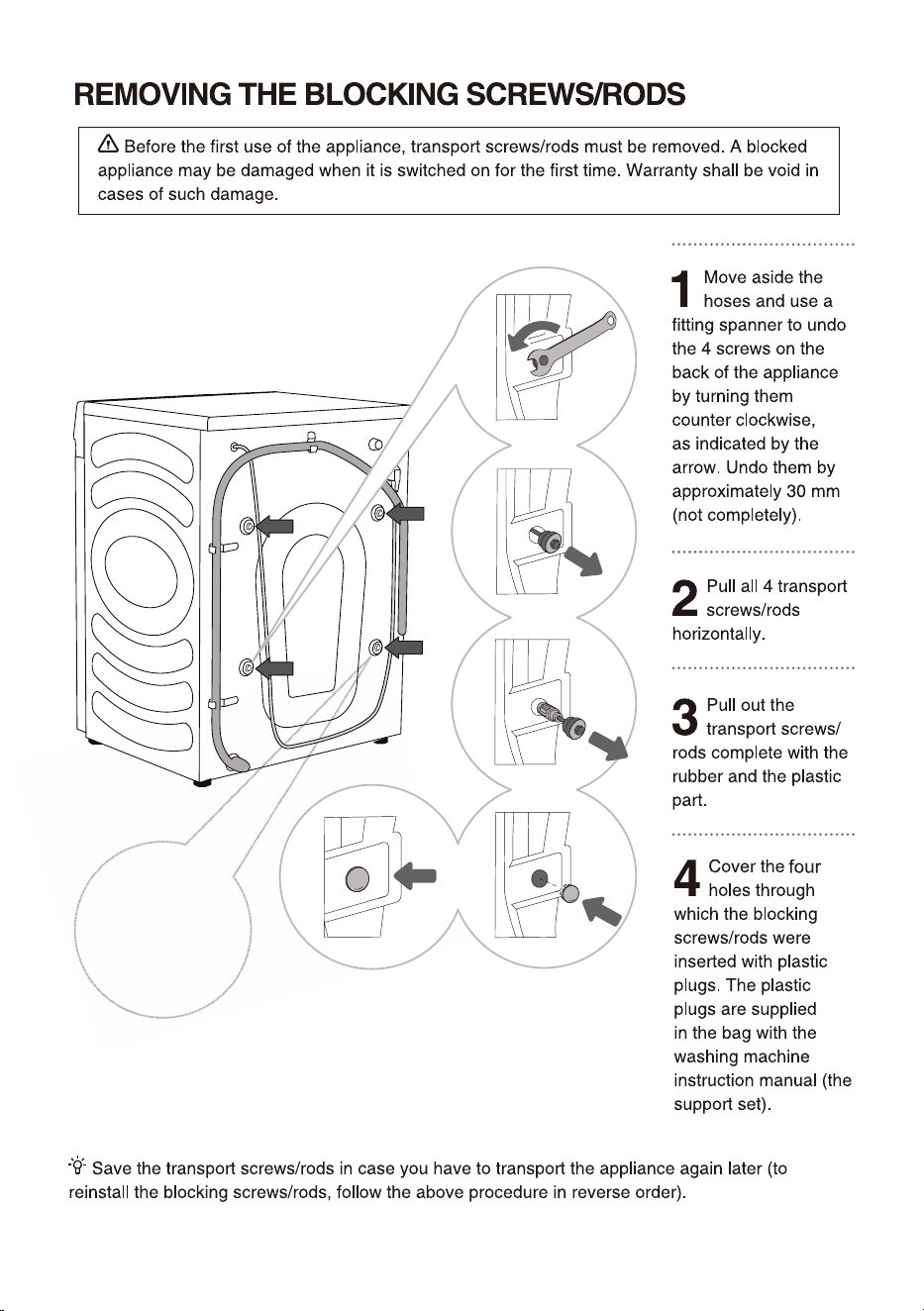

A power cord clip
is provided here,
which should also
be removed.

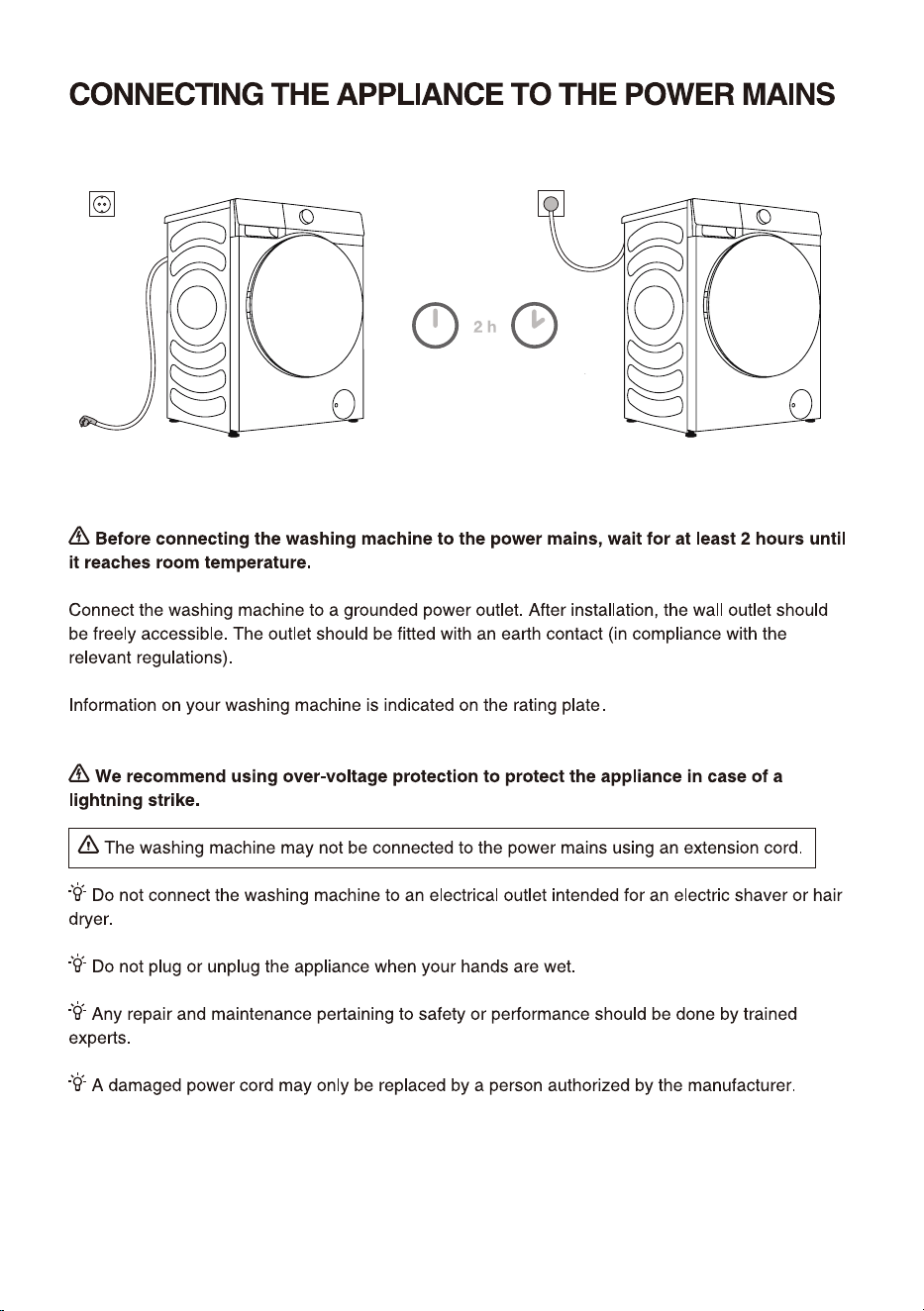

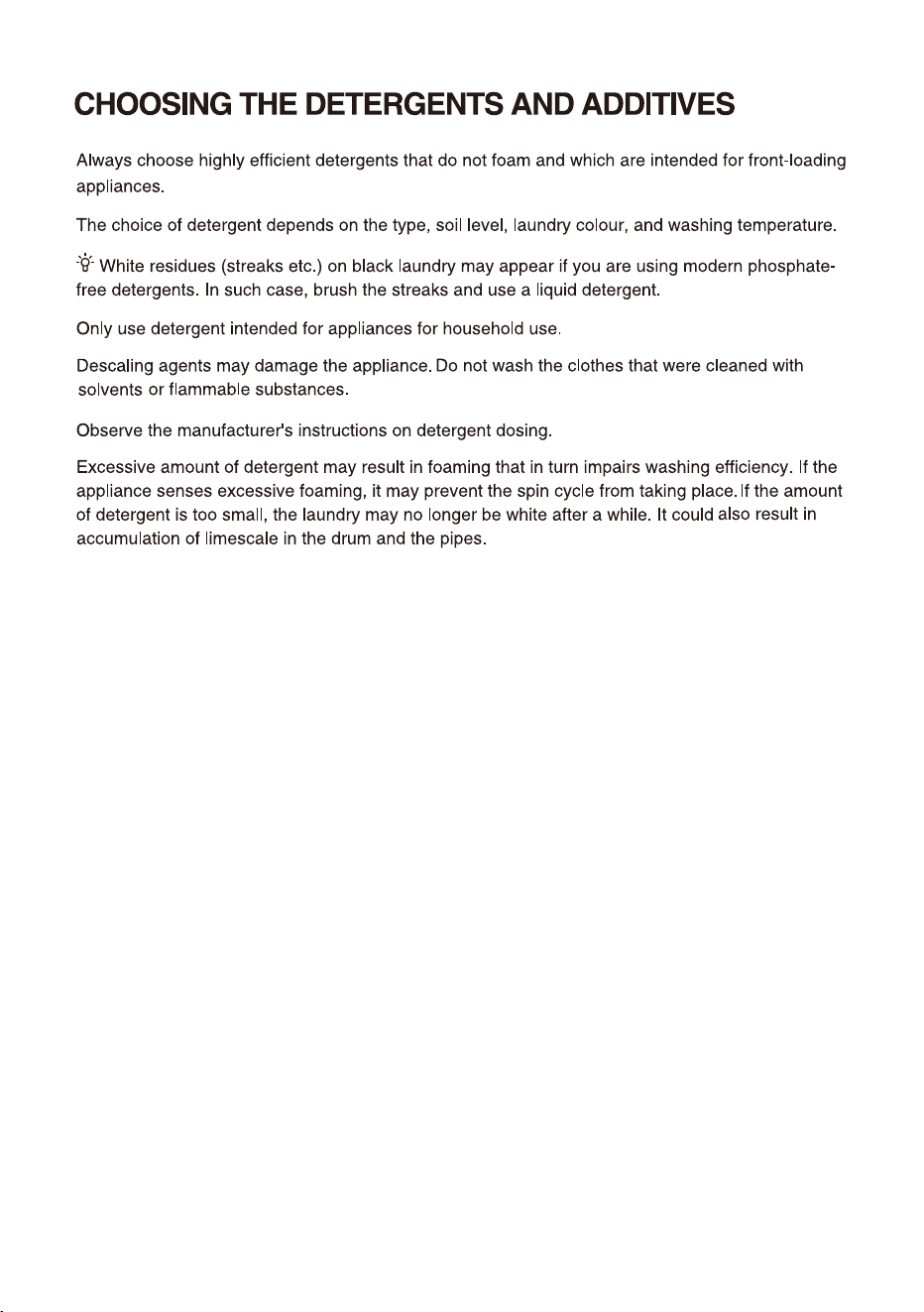

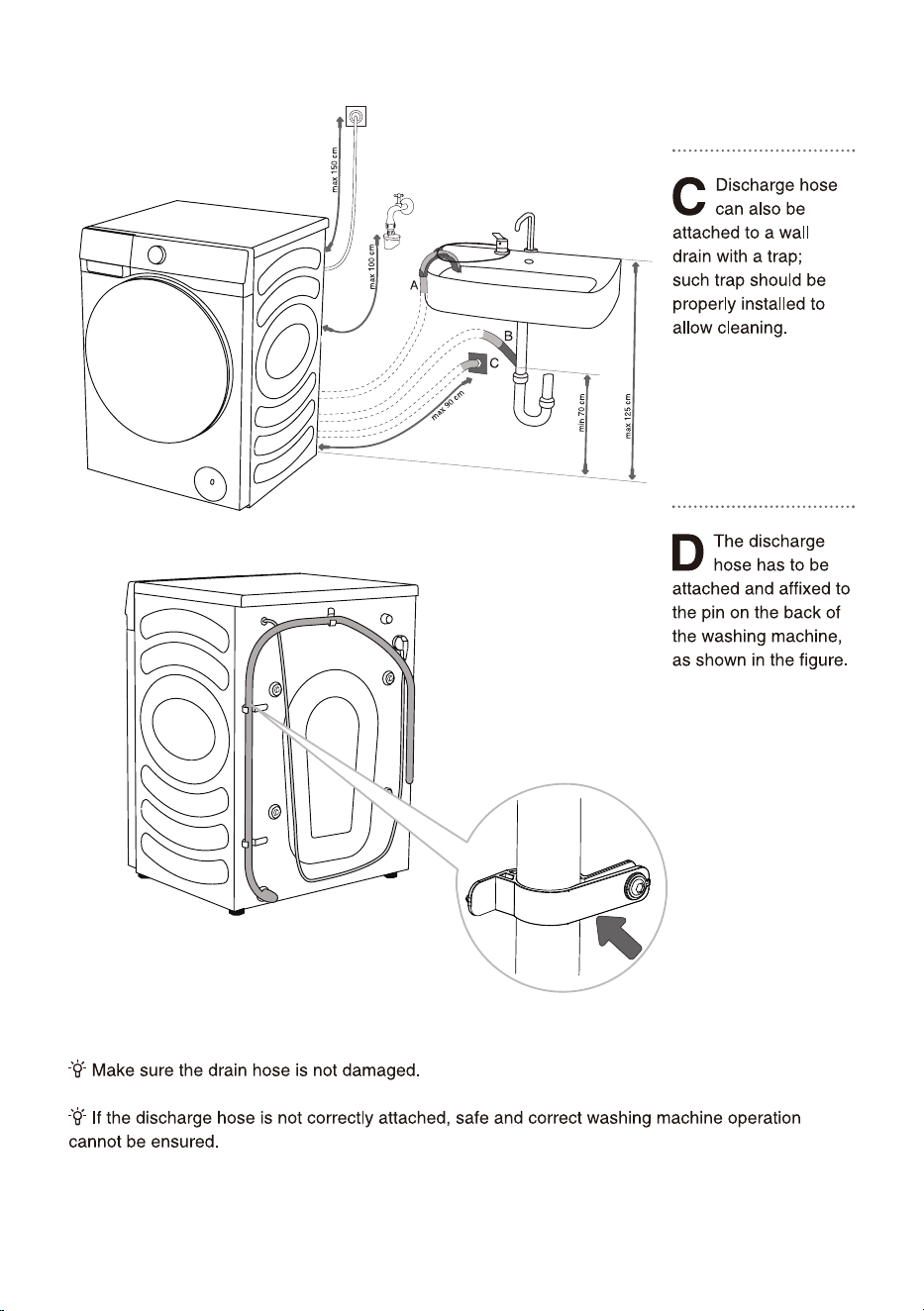

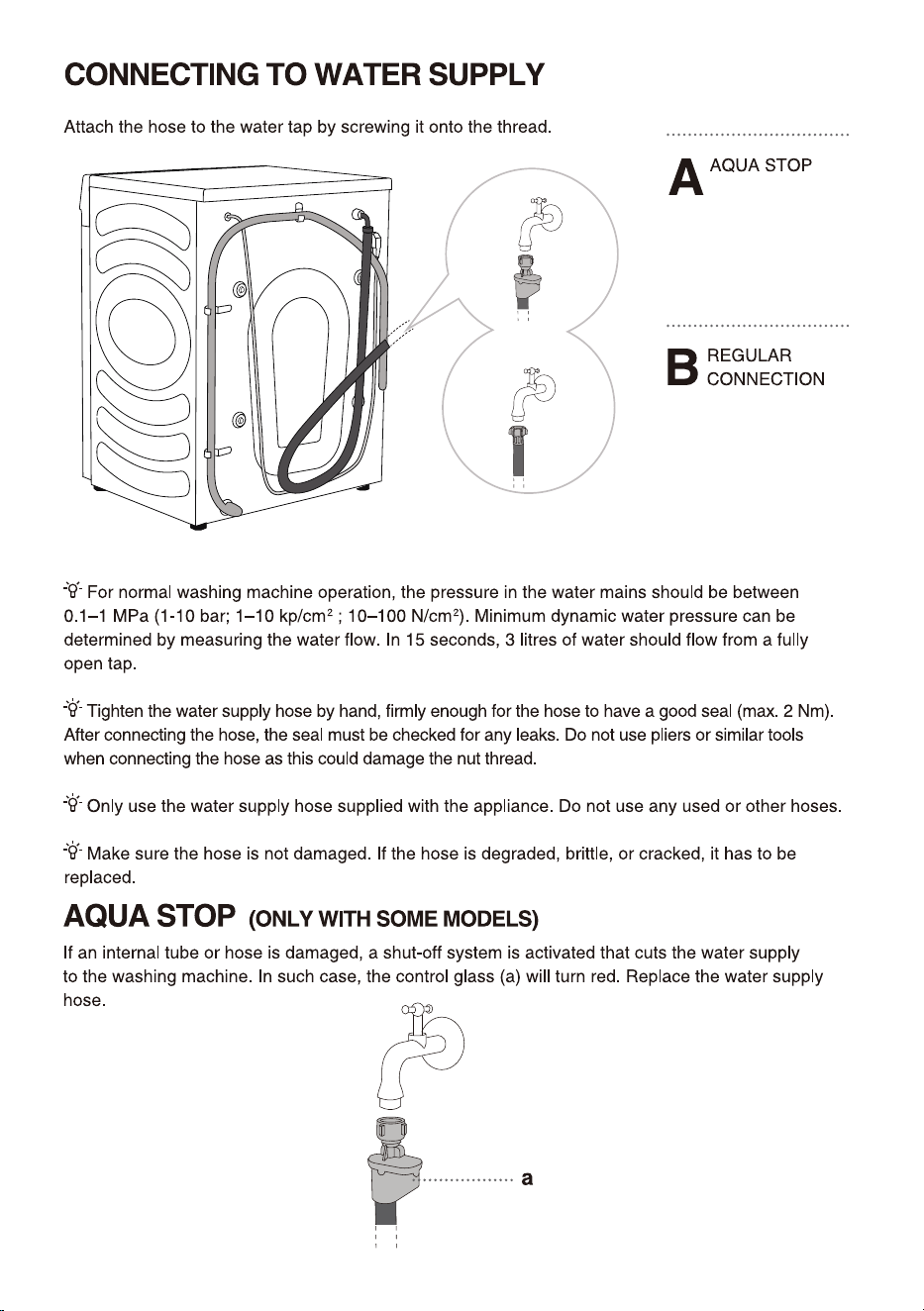

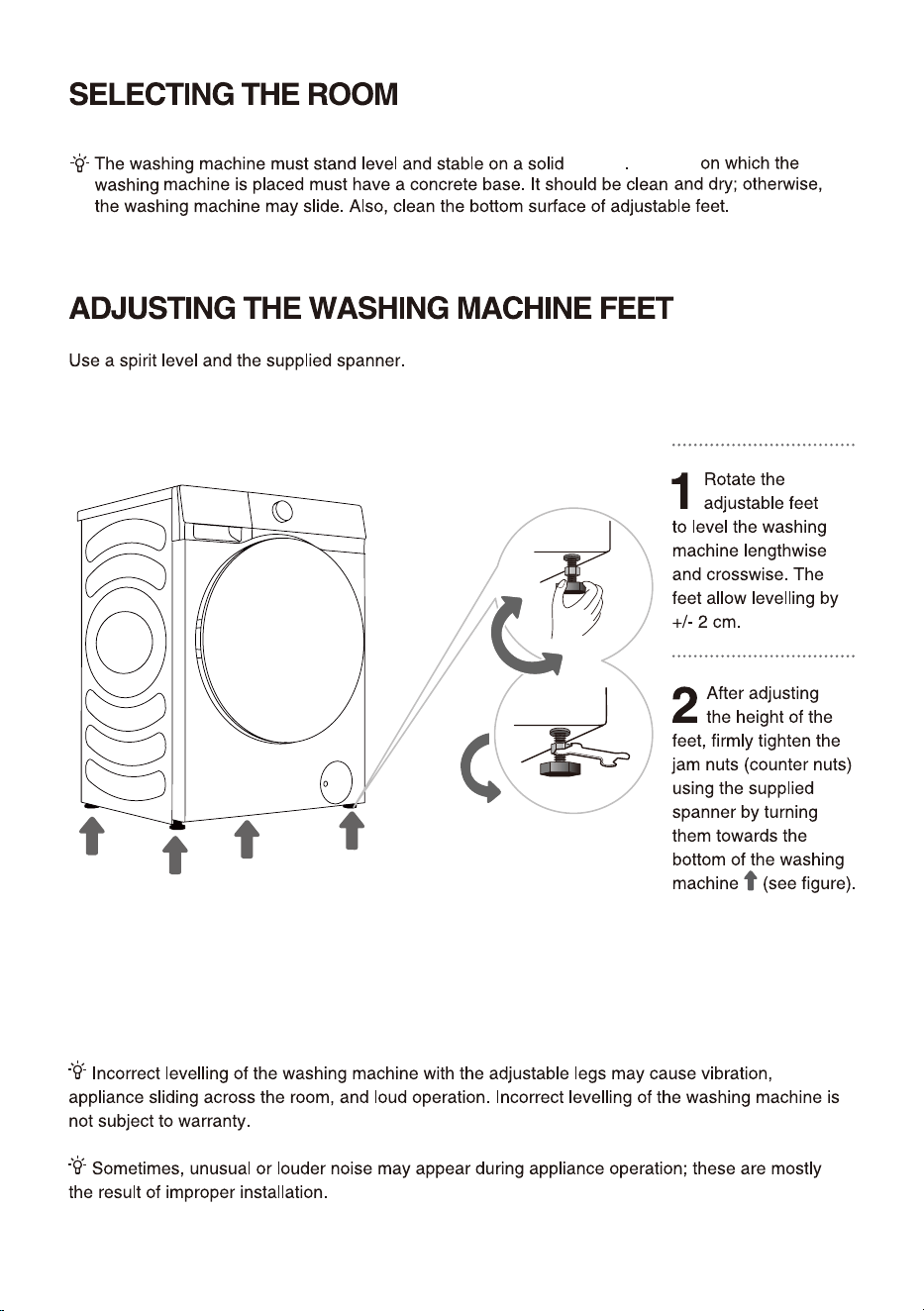

Pack all the packaging material (plastic bags, other plastic parts etc.).

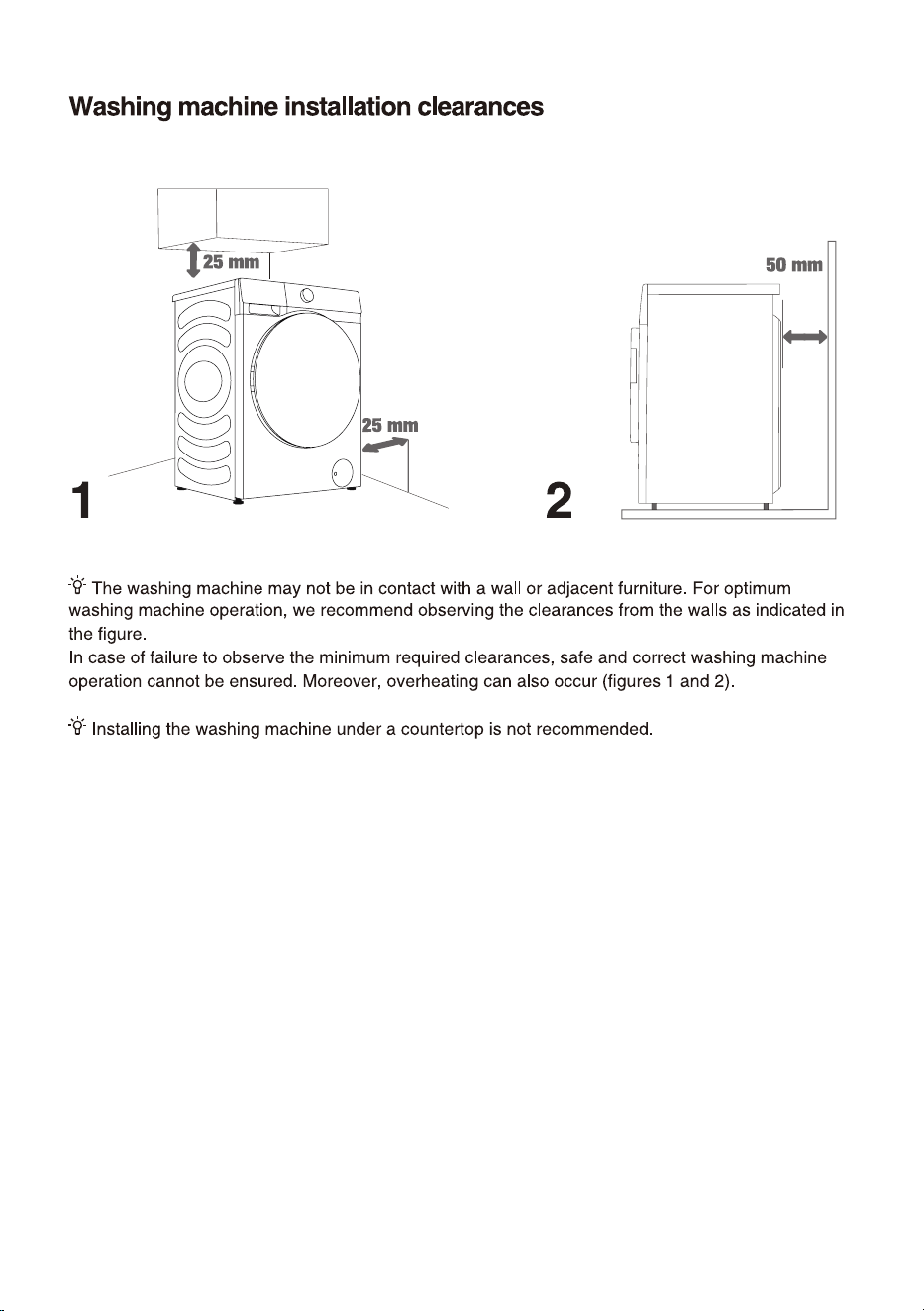

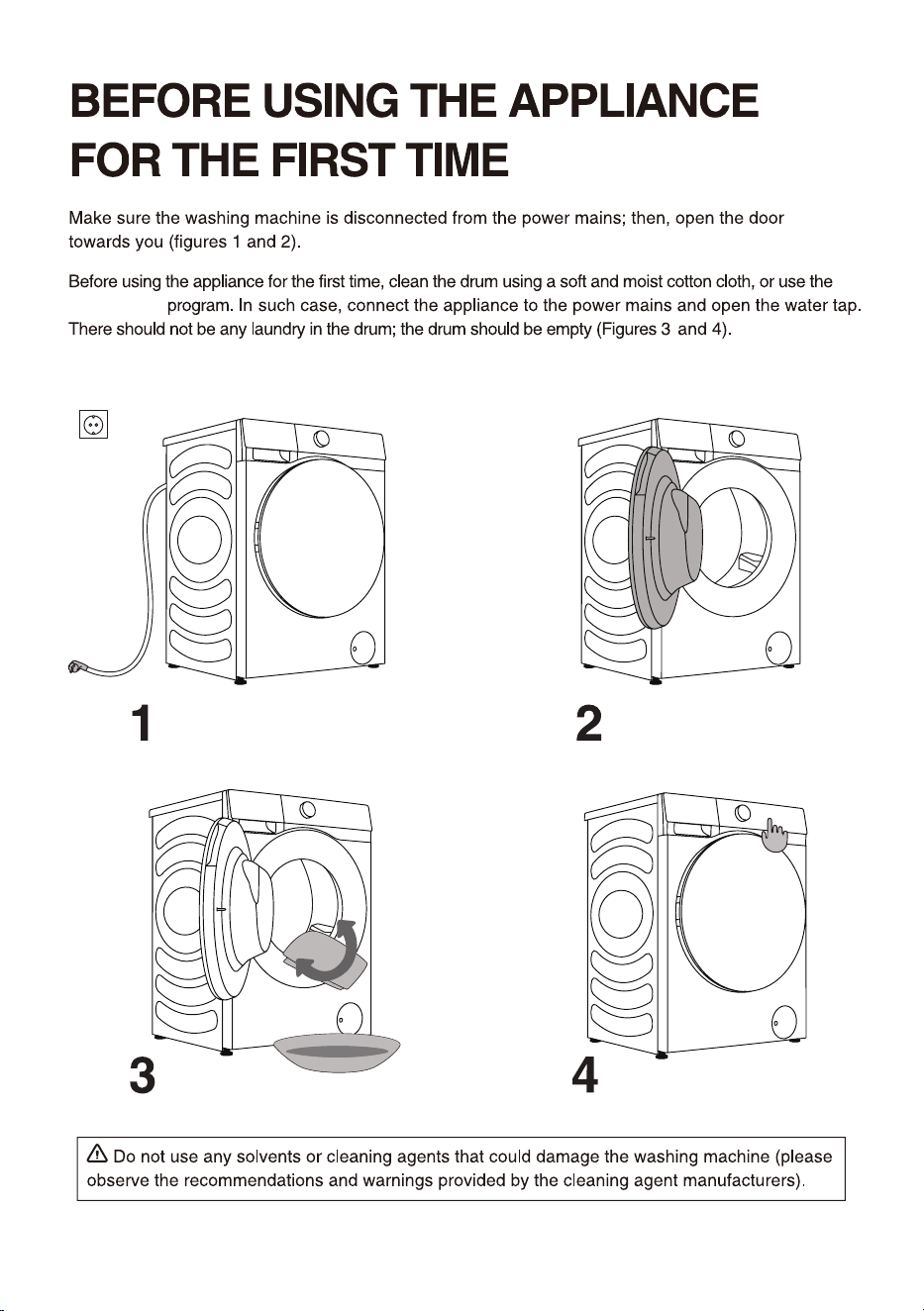

HSPVOE
(SPVOE

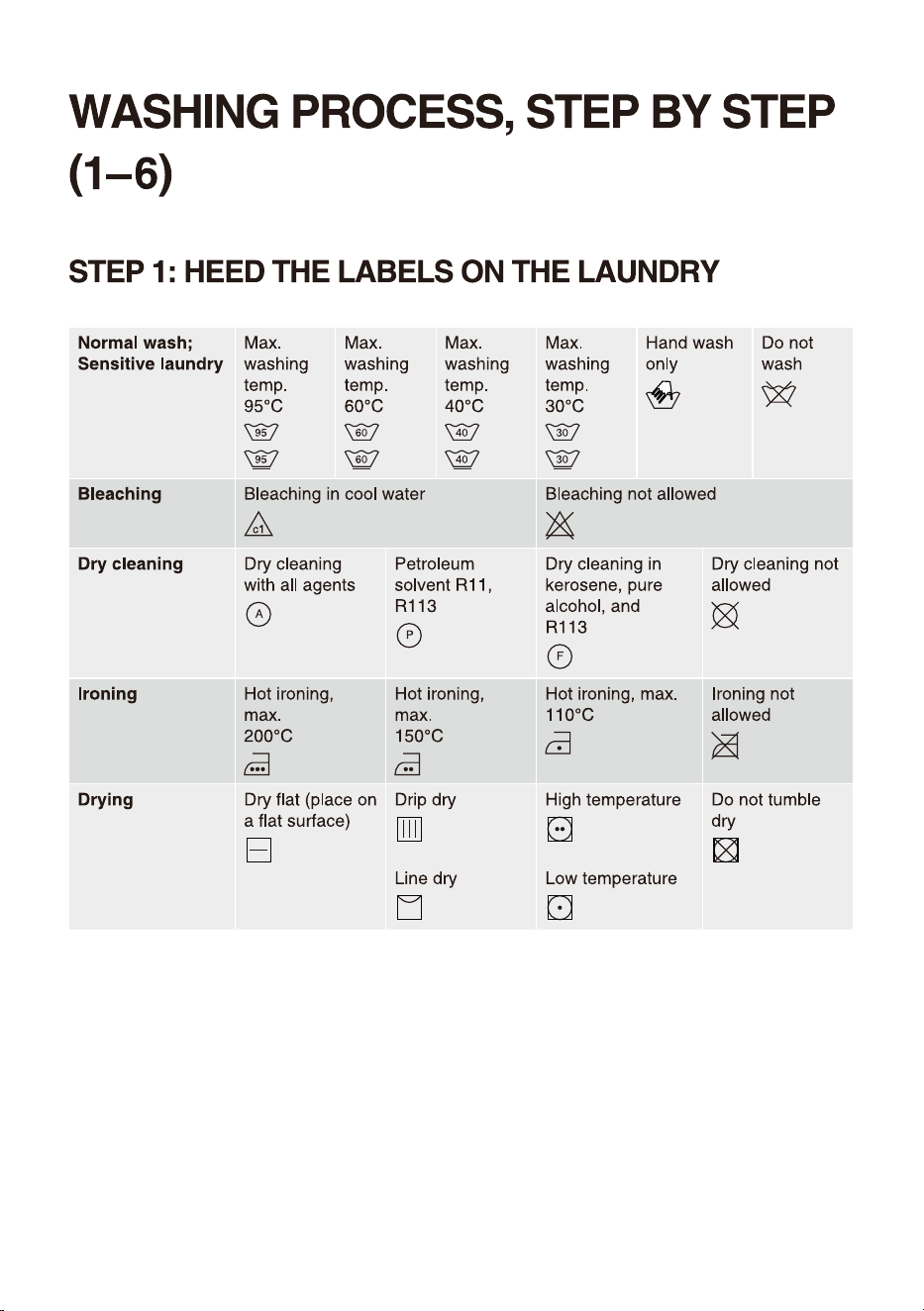

Drum Clean

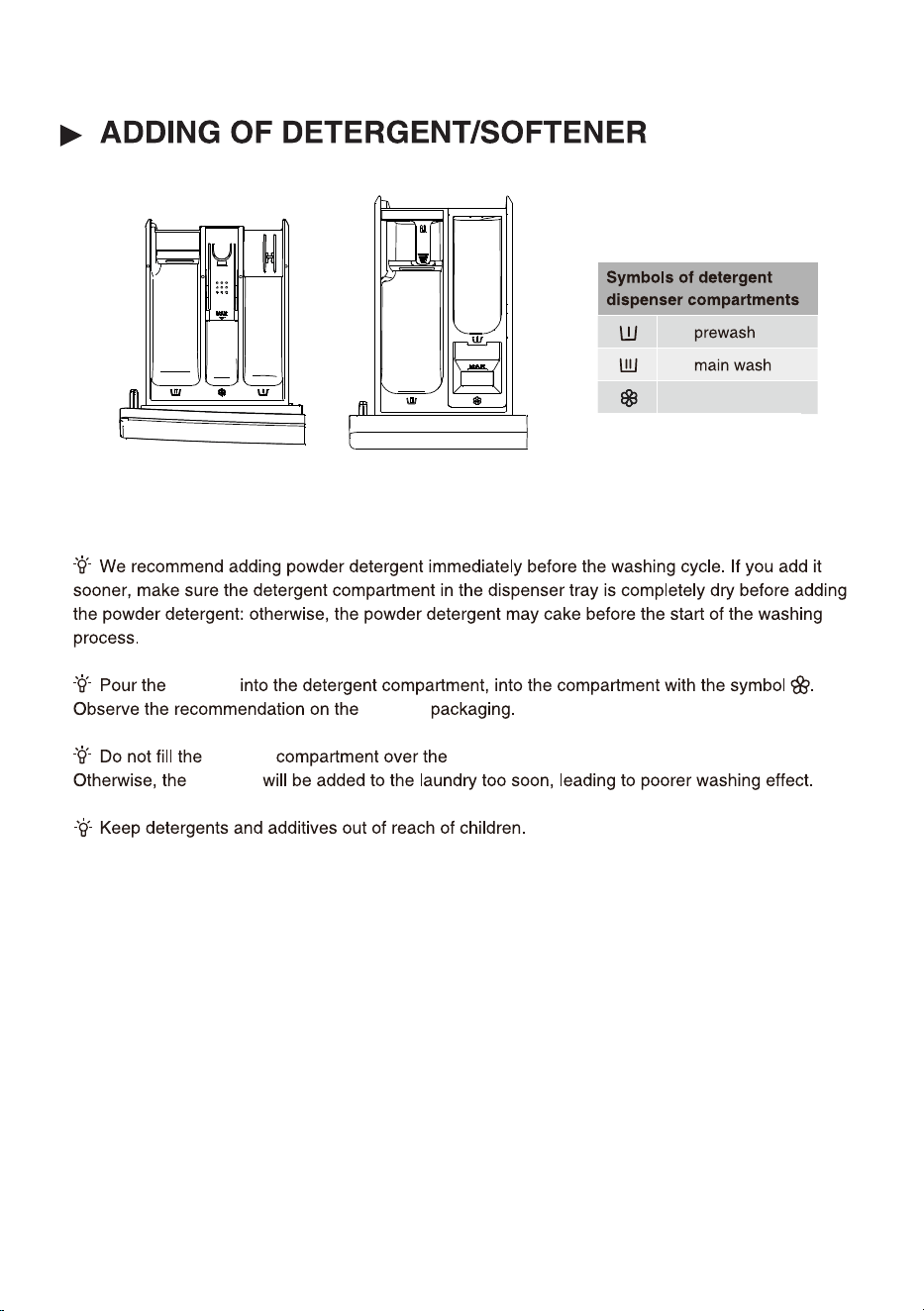

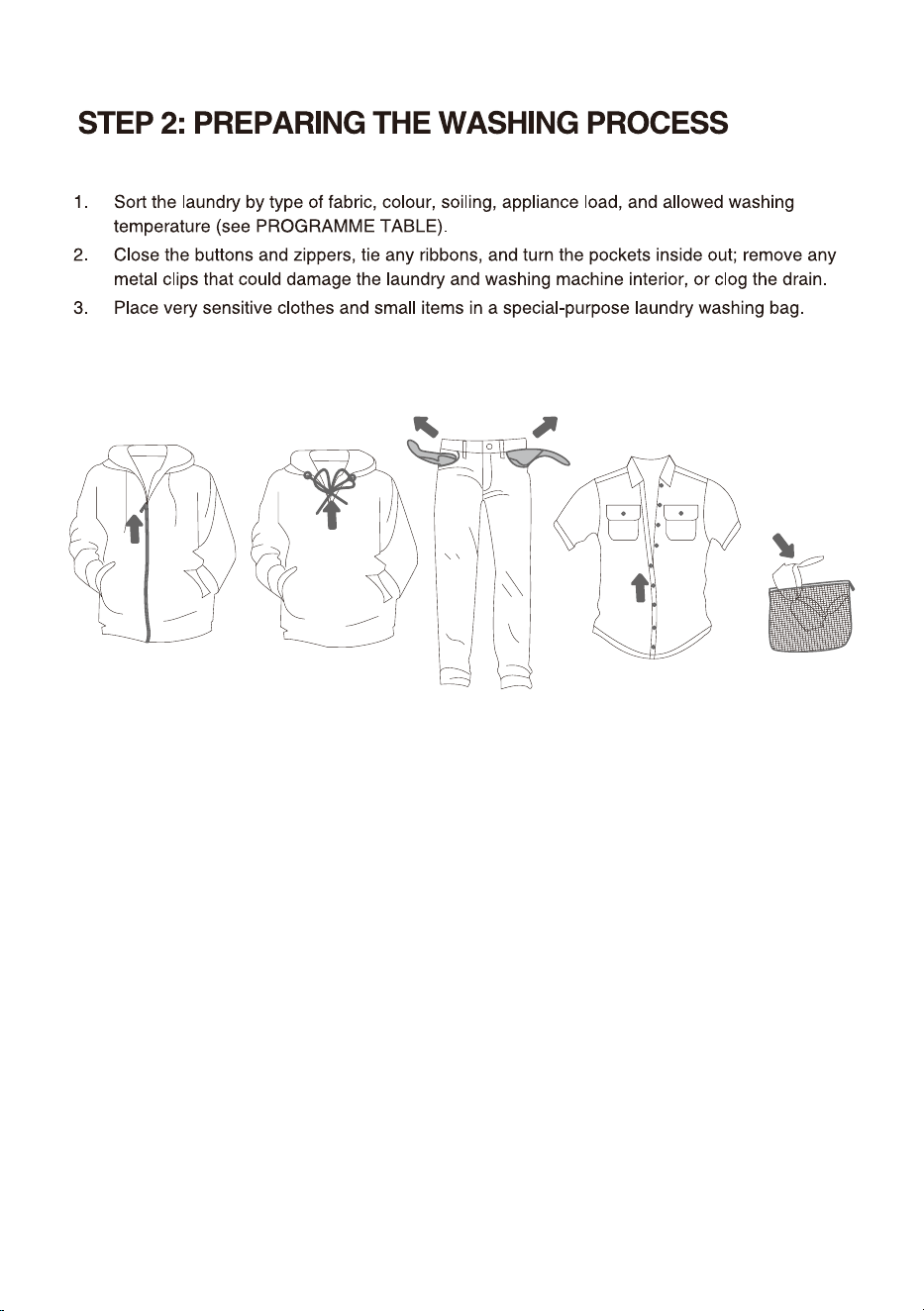

softener
softener
softener
softener
Max indicated level.
softener
Style ①
Style ②
（The detergent compartment style depends on the model）
5

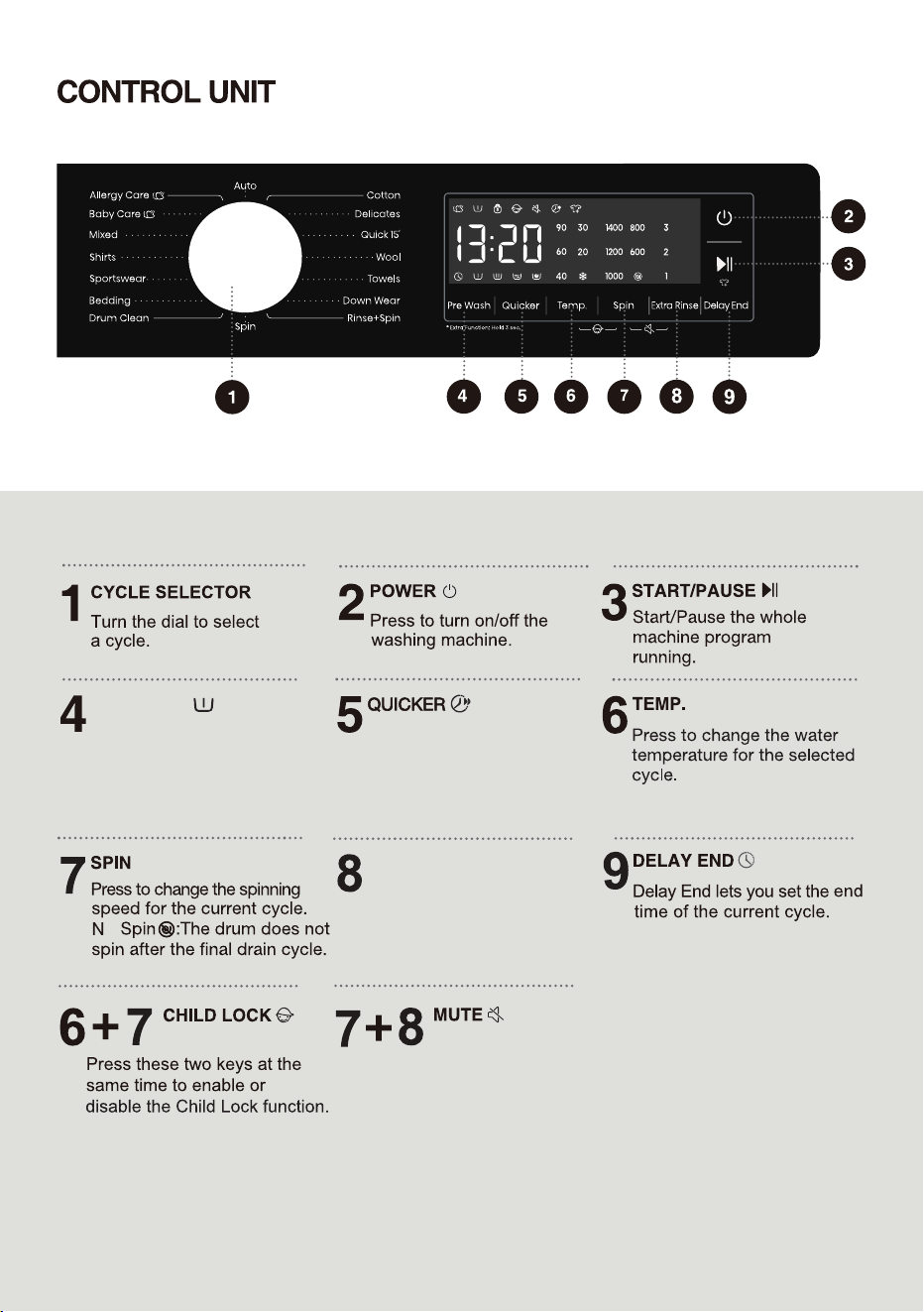

QSFTTUIFCVUUPO108&3
26
PRE WASH
o
Press these two keys at the
same time to switch off or
restore the acoustic signals.

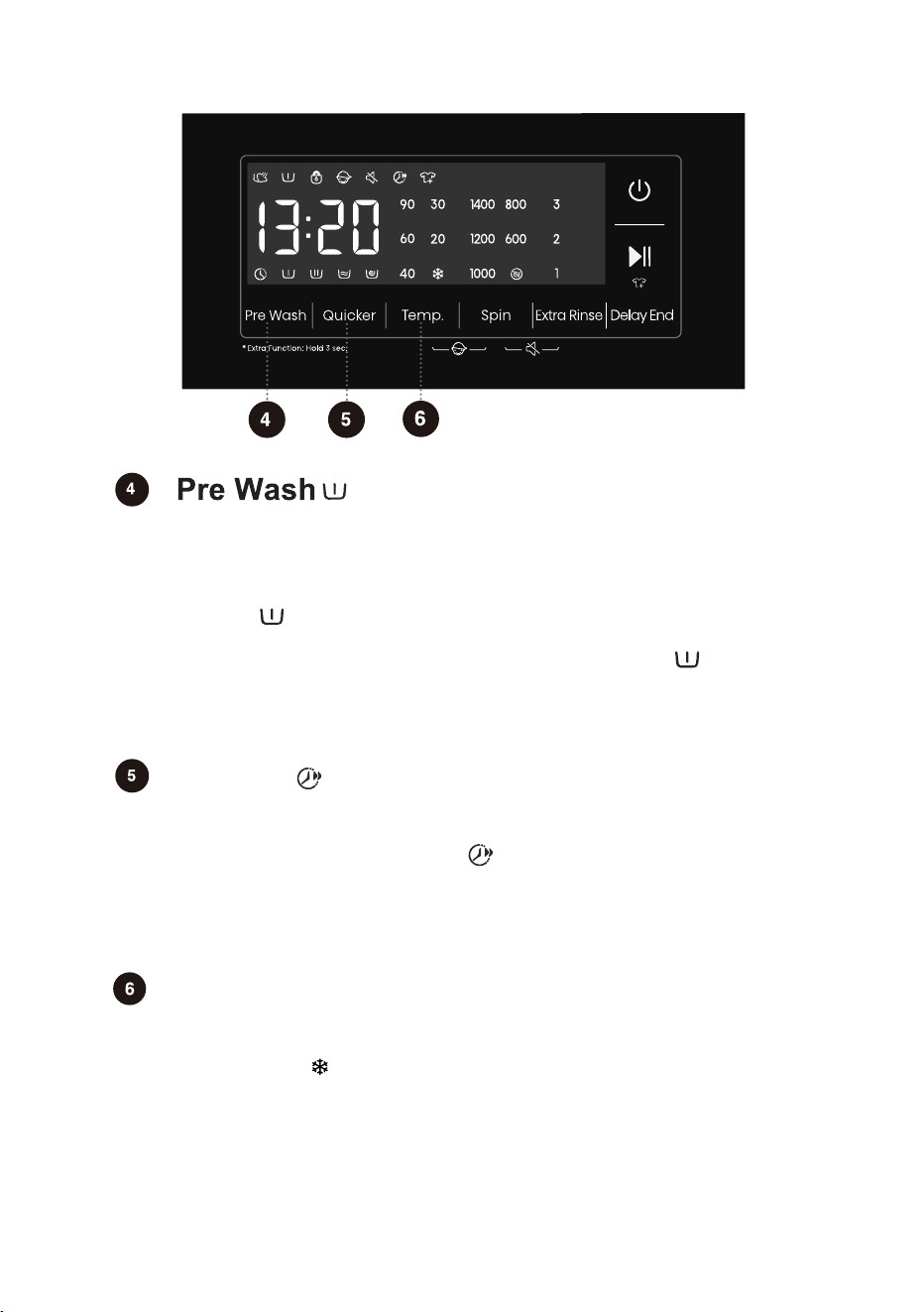

Press to add a Pre wash
program before the Main
Wash stage.
Press to shorten the
program time.
EXTRA RINSE
Press to change the rinse
count for current cycle.
27

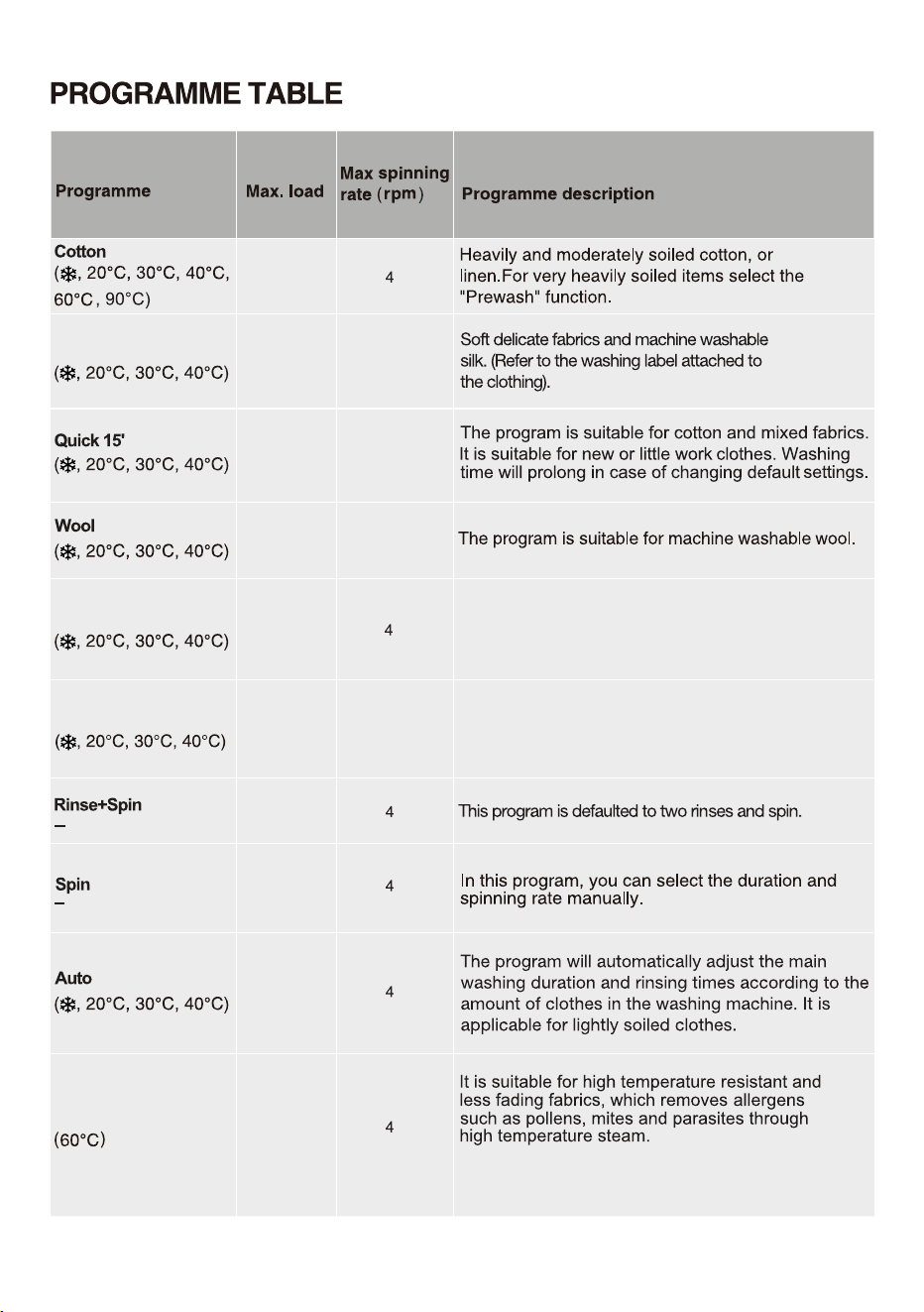

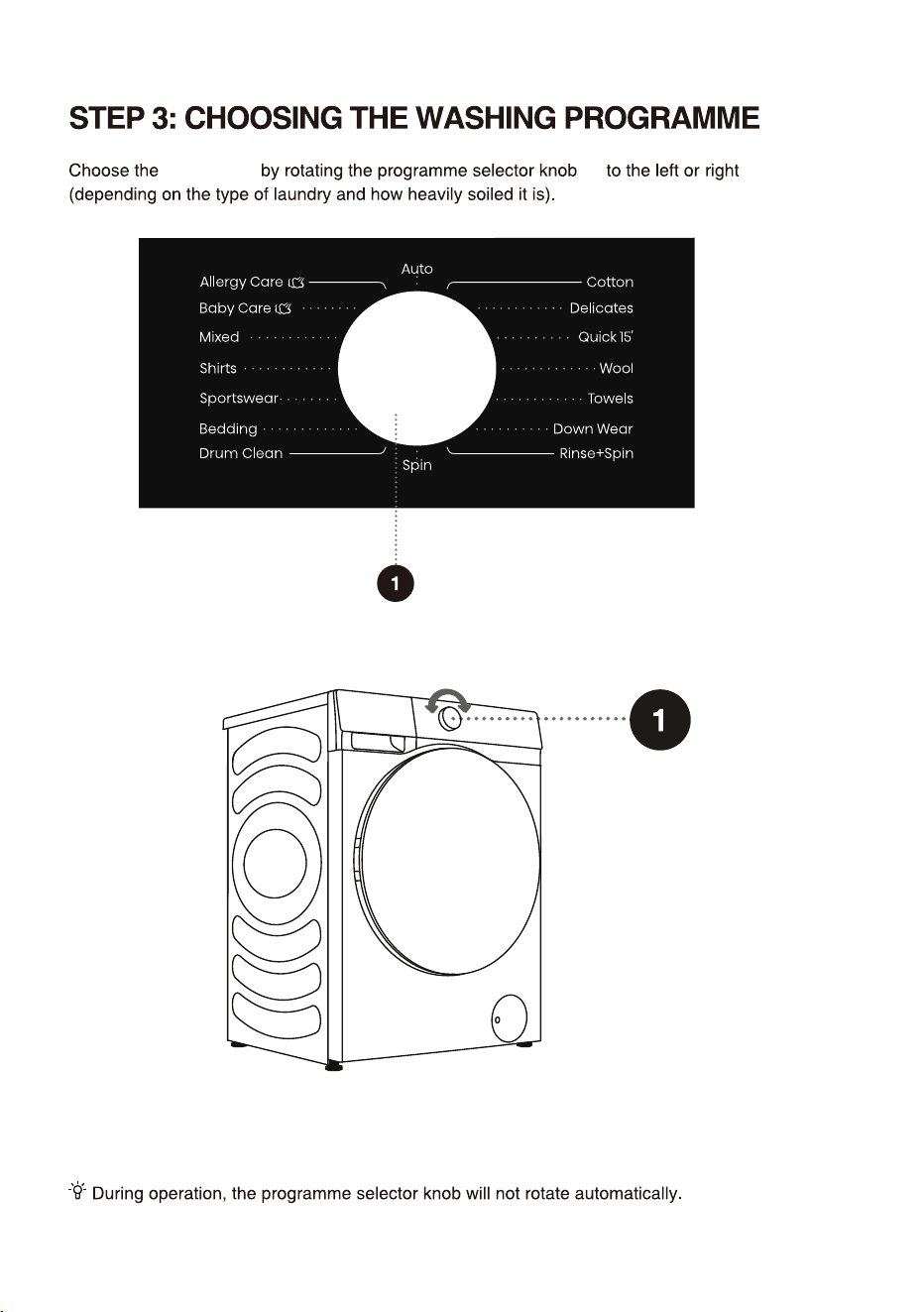

programme
See programme table.
（1）
28
5kg
8.5kg
2kg
1 00
2kg 600
1kg 800
1 00
1 00
1 00
1 00
Delicates
Down Wear
Towels
600
2kg
1 00
2kg
600
For low level of soil cotton items such as towels.
This program comes with the steam function
by default and it cannot be deactivated.
Allergy Care
This program is suitable for down wear.
2kg
8.5kg
8.5kg

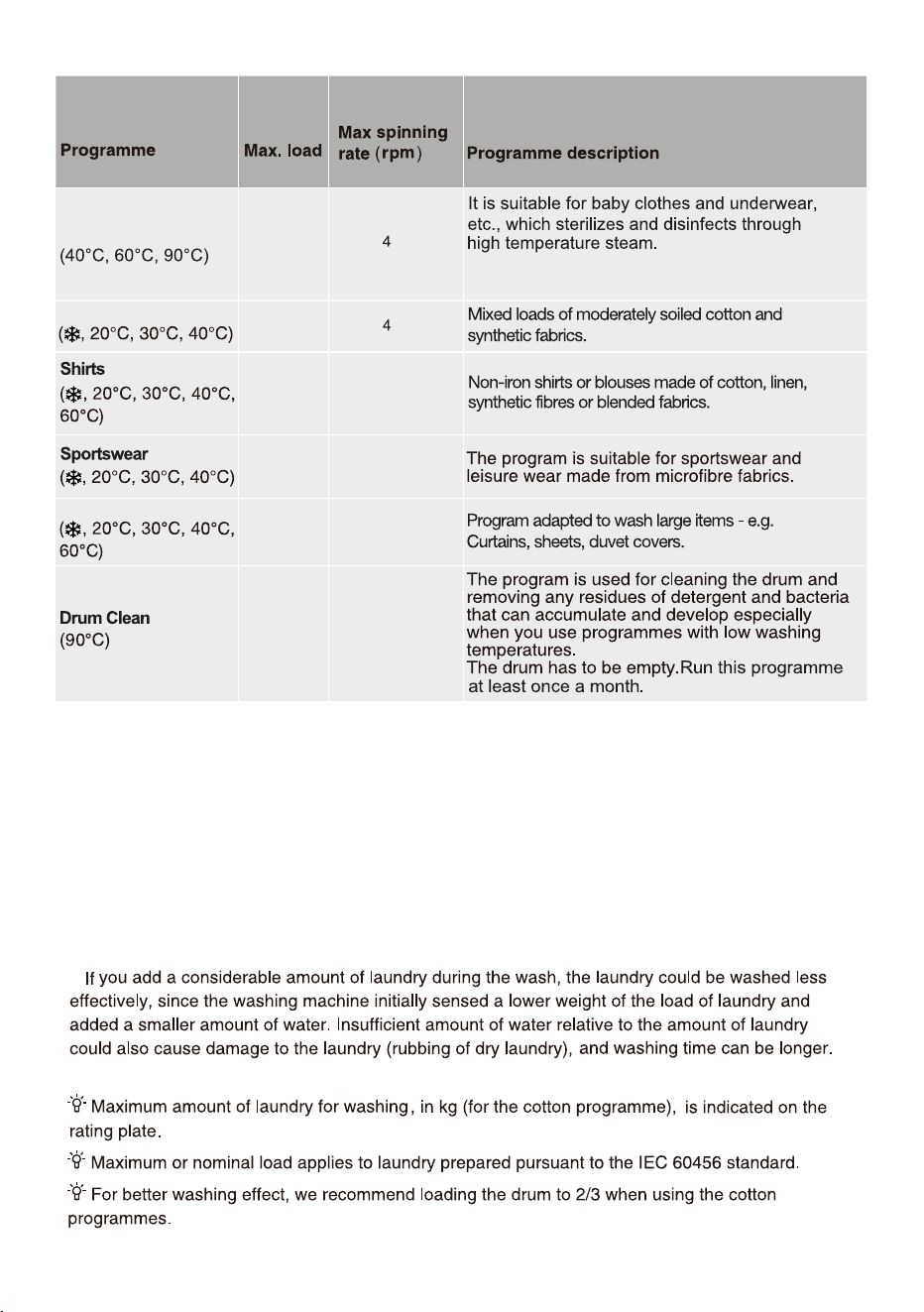

29
Mixed
Bedding
1000
8002kg
3kg
800
/
1 002kg
1400
2kg
1 004kg
This program comes with the steam function
by default and it cannot be deactivated.
Baby Care
Using Cotton 40℃, 1400rpm, extra rinse (press 3 times - light off) is recommended for a normally
soiled load of 8.5kg.
/05&
8BUFS5FNQFSBUVSF4FMFDUUIFBQQSPQSJBUFXBUFSUFNQFSBUVSFGPSDIPTFOXBTIQSPHSBNNF"MXBZT
GPMMPXHBSNFOUNBOVGBDUVSFShTDBSFMBCFMPSJOTUSVDUJPOTXIFOXBTIJOHUPBWPJEEBNBHFUPDMPUIFT
"DUVBMXBUFSUFNQFSBUVSFNBZEJG
GFSGSPNUIFEFDMBSFEDZDMFUFNQFSBUVS
F
5IF
washing effec
t
EFQFOEPOXBUFSQSFTTVSFXBUFSIBSEOFTTXBUFSJOMFU
UFNQFSBUVSFSPPNUFNQFSBUVSF
UZQFBOEBNPVOUPGMPBEEFHSFFPGTPJMJOHVUJMJ[
FEEFUFSHFOUGMVDUVBUJPOTJOUIFNBJOFMFDUSJDUZTVQQMZBOE
DIPTFOBEEJUJPOBMPQUJPOT
/aUVSBMOPOTVETJOHEFUFSHFOUJTSFDPNNFOEFE
30
31
Start/Pause
For starting a program, or suspending a running program.
If the machine door isn't closed or the door lock is not engaged, the washing machine
will not start, and an alarm will be displayed on the screen.
After a program is started, or when the pause state is selected, the set functions and
parameters cannot be changed. Press and hold the Power button to turn off the
machine, and then restart it to reset the parameter.
For powering on/off the washing machine.
When the washing machine is in standby, or after the screen displays the program
end interface, press and hold the Power key to enter the power-off state.
In standby mode, or in the program end interface or Wash retry reminder
interface, if no operation is performed in a time, the washing machine will shut
down automatically.
In power-off state, all displays and outputs will be off, and remote startup is not
supported.
Power
The additional settings and functions can only be set in the standby mode of the applicable
program, that is, before the program starts running, and cannot be selected after the
program runs.
32
When this function is selected,before the prewash is complete, the prewash flow
indicator " " blinks. After the prewash is complete, the prewash flow indicator
is off.
When this function is selected, the pre-wash function indicator " " is always
on from the beginning to the end of the program.
Press to Increase the "Pre Wash" function, press twice to cancel the function,
and cycle in sequence.
Select this function to add a Pre Wash program before the Main Wash stage.
Quicker
Temp.
Changing the temperature for the selected program.
Each program has a preset temperature that can be changed by pressing the
position TEMP. ( indicates cold wash).
The temperature is displayed on the display unit above the button.
After pressing this function key, the program time will be shortened by setting, and
press it again, the program time will be increased back to the original setting. After
the program is started, the indicator " " is always on.
When this function is selected, the main wash time or the number of rinsing times
will be reduced.
Weighing will be canceled after triggering this function, weighing will be resumed
if the function is canceled.
When selecting the Pre W
ash function, please add detergent to the prewash
compartment of the detergent dispenser.
33
Extra Rinse
Spin

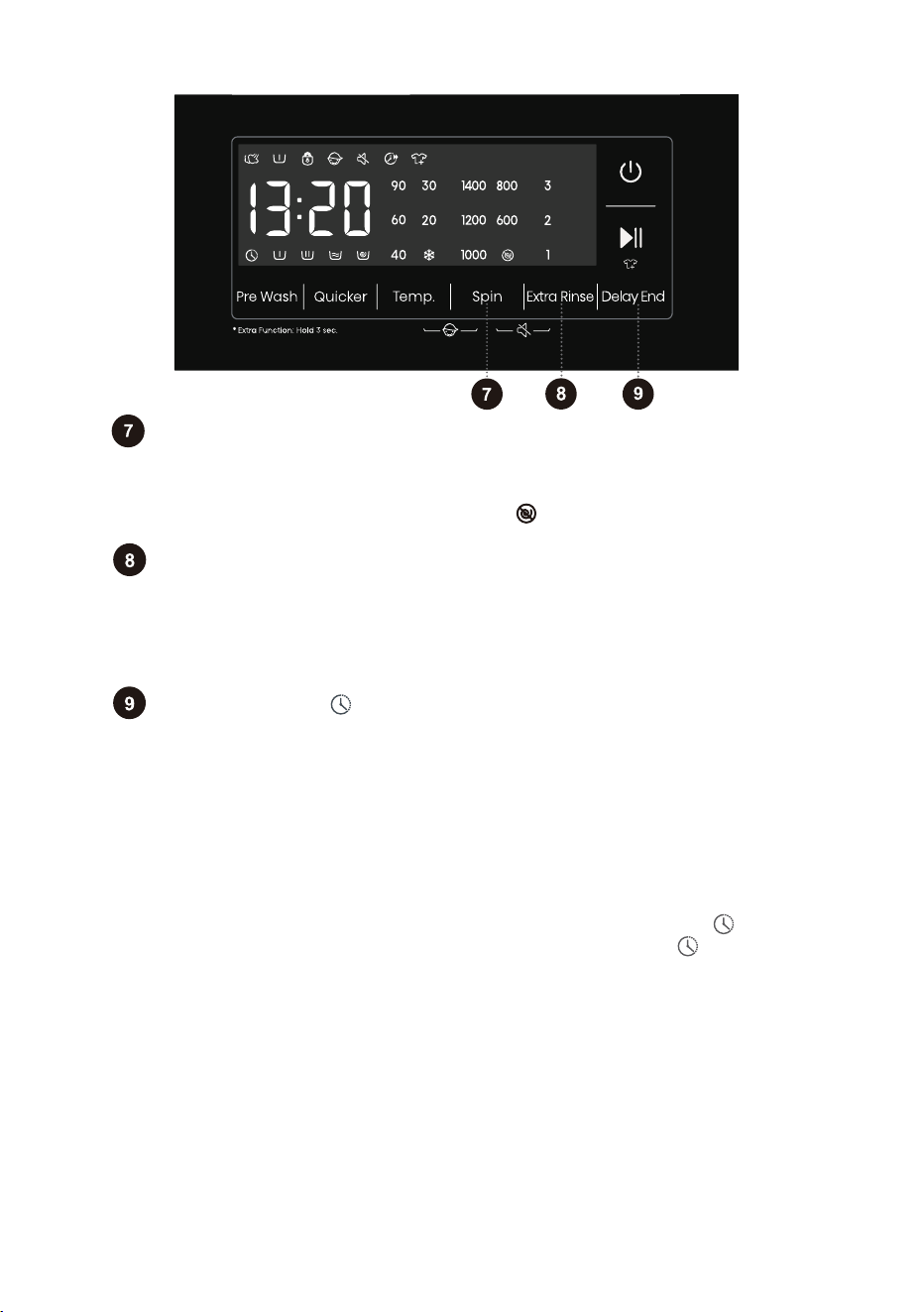

Use this to adjust the spinning rate. With preset or selected spinning rate,
the selected spinning rate will be lit on the display unit.
If you select draining without spinning, the " " will appear on the display unit.
Delay End
In the standby state, after Extra Rinse is selected, the number of Extra Rinse
is shown,which may be used a maximum of three times. In addition, the
default rinsing times plus the number of Extra Rinse cannot exceed five times.
After the program is started, the indicator is always on.
If the Delay End function was chosen before starting a program, it can be
canceled by pressing any other function key. Once the program has started, you
need to press and hold the Power button to turn off and restart the machine to
cancel the Delay End function.
When the Delay End function is being selected (set), the Clock icon " " is always
on; When the Delay End programme is running, the Clock icon " " flashes.
Use this feature to schedule washing at a convenient time.
Press this key to set the Delay End time.This key is only valid in standby mode.
After the Delay End function is selected, each time the Delay End key is pressed,
the time increases by 1h. The maximum selectable time range is 24 hours.
The Delay End time is the end time, that is, it includes the washing time, so the
Delay End time must be greater than the washing time. Based on your settings,
the start time of the cycle will be determined by the machine's internal logic.Press
to choose a preset unit of hours.
34

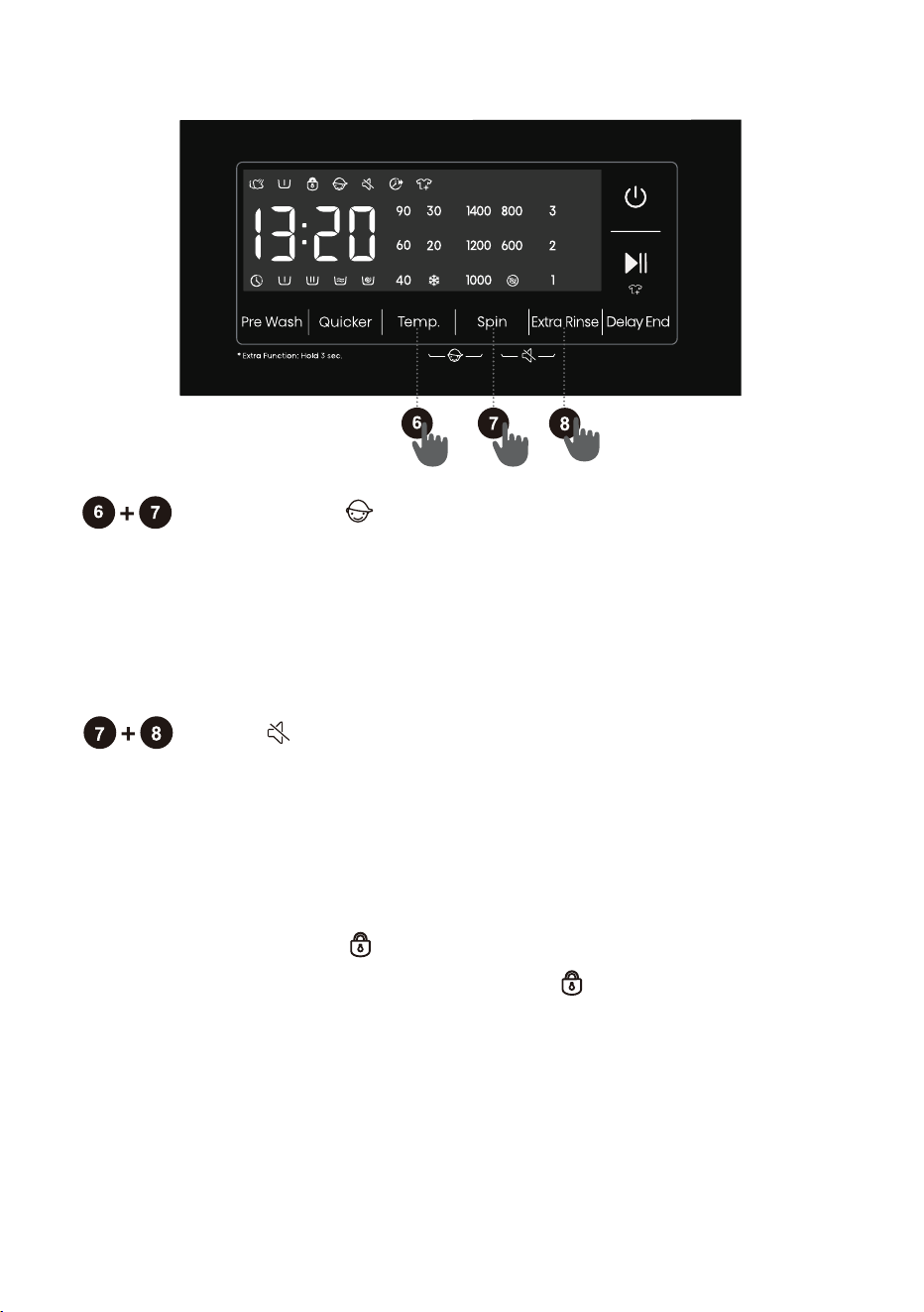

Child Lock
This is a safety feature. To activate it, simultaneously press the positions
Temp. and Spin, and hold them for at least 2 seconds, Child Lock icon
will light up, and then Child Lock is set up.Repeat the same operation,
the Child Lock will be released.
When the Child Lock is set, all function buttons will be shielded except
the power button.
After completing program, child lock will automatically unlock.
Mute
Use this to switch off or restore the acoustic signals.
When the machine is in the state of holding, pause or operation, press
"Spin+Extra Rinse" buttons for 2 seconds, The display will show mute
function icon. All the buzzing will be turned off except the alarms.
When the machine is in the mute state, press "Spin+Extra Rinse"
buttons for 2 seconds until mute function icon light off. All the buzzing
will be activated.
Door Lock
When the program has started
, door lock icon " " will lights up, door
lock will set up. Do not force the door open at this time to avoid injury.
When the machine is paused or after the program is end, if the unlocking
conditions are met, the door lock will be automatically released, door lock
icon will light off.
35

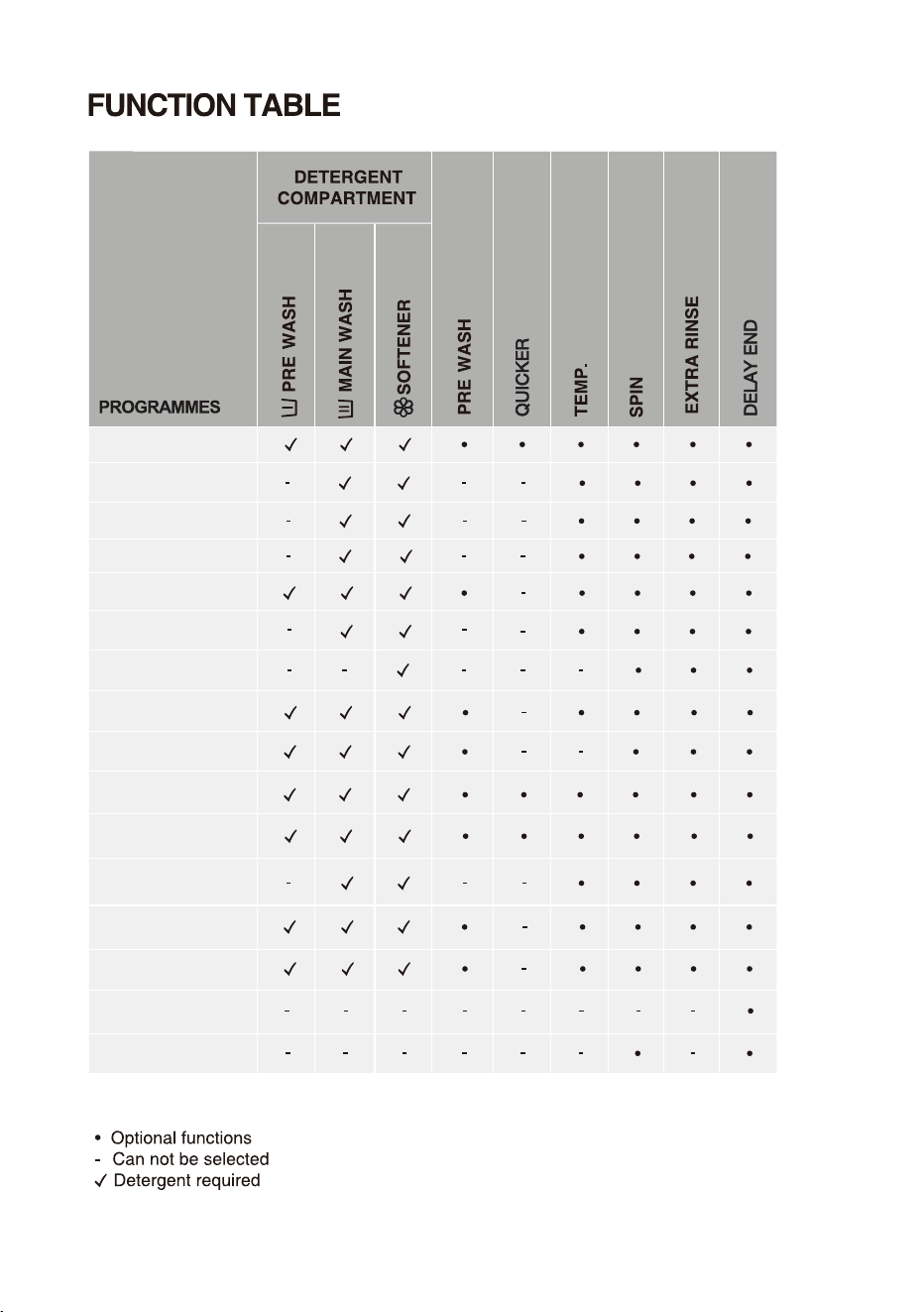

Delicates
Quick 15'
Cotton
Allergy Care
Baby Care
Sportswear
Mixed
Spin
Drum Clean
Rinse+Spin
Bedding
Shirts
Auto
Down Wear
Towels
Wool
36
" "
" "
" "

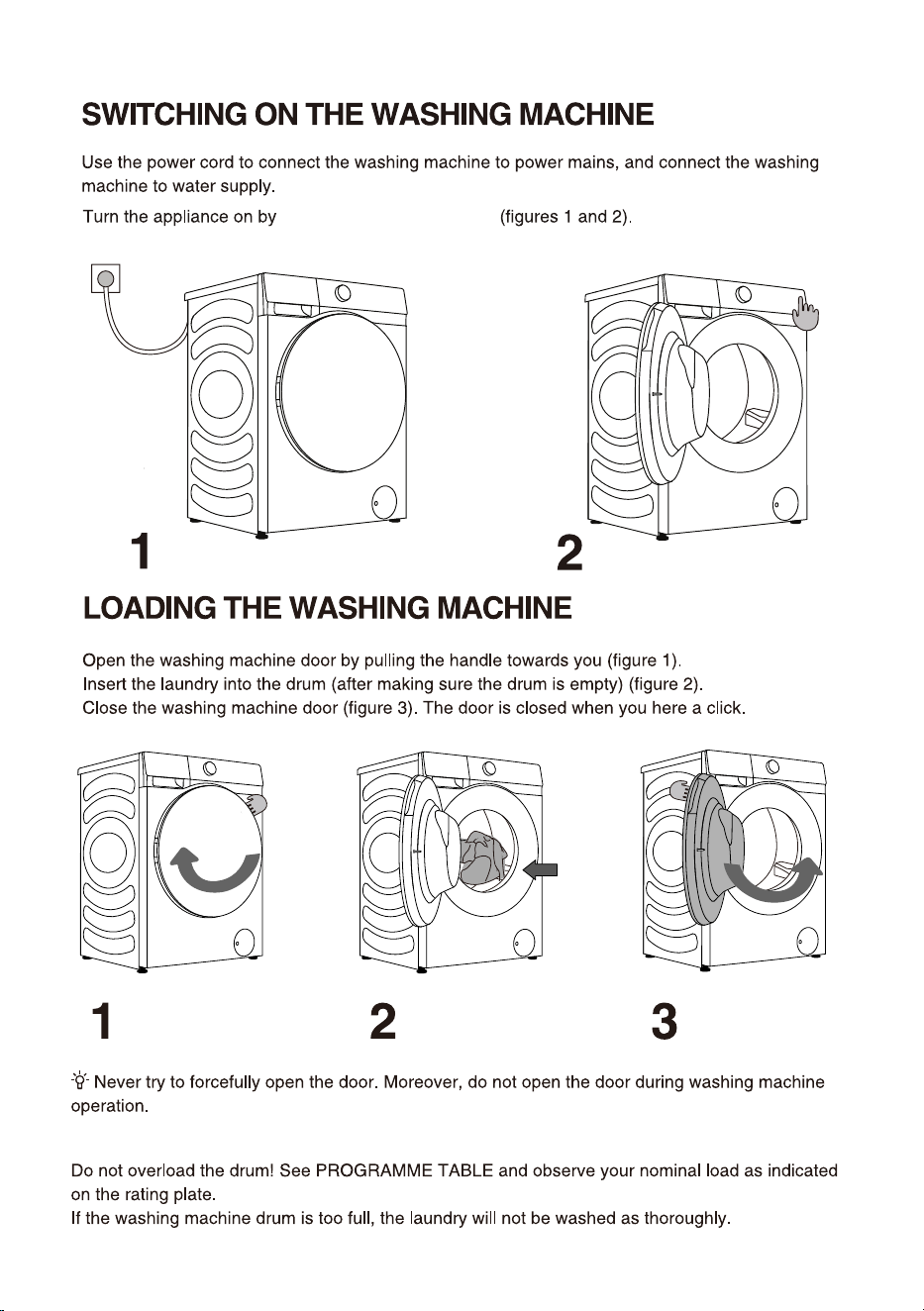

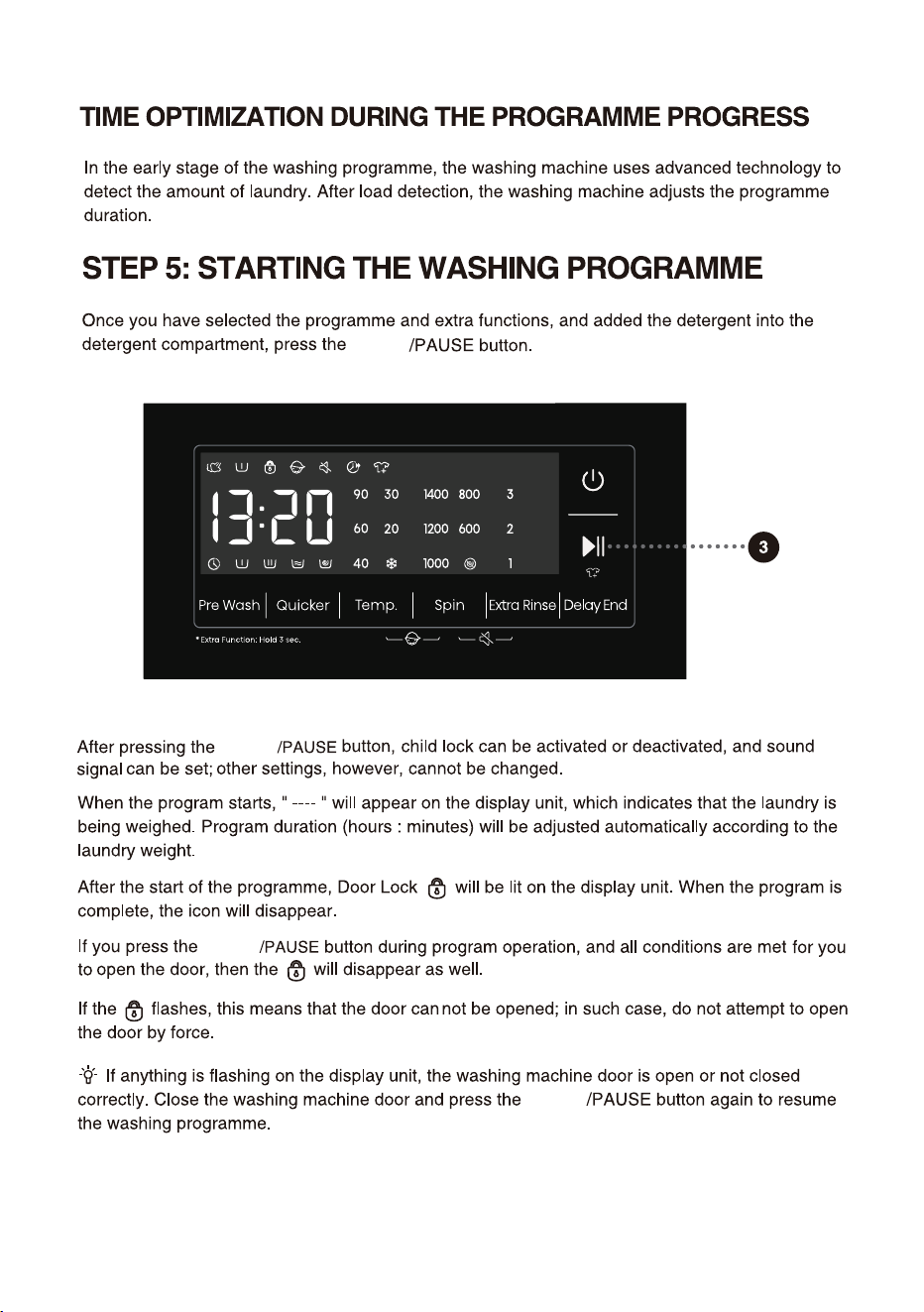

START
START
START
START
37

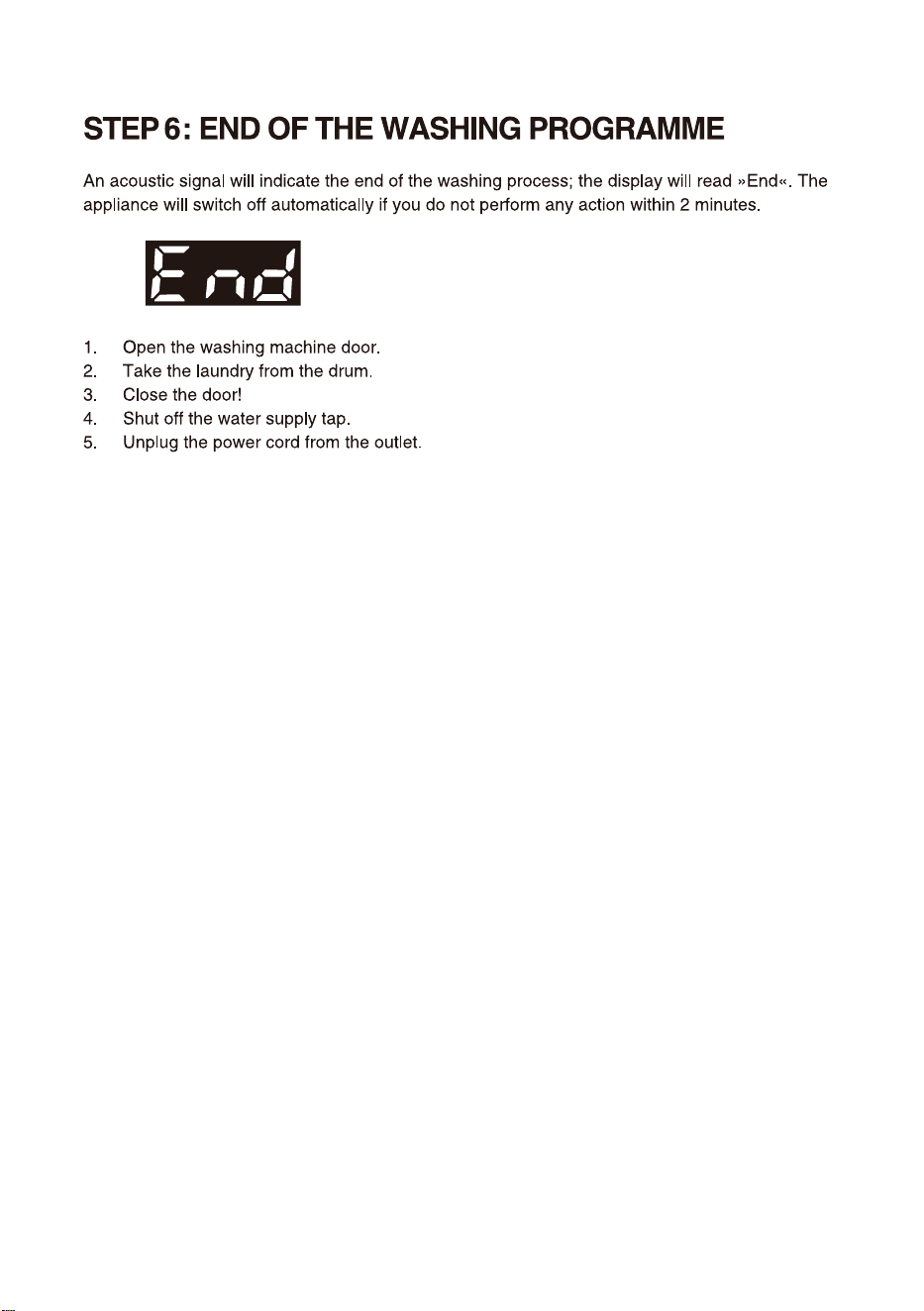

38
PAUSE
To stop and cancel a washing programme,
temporarily paused
I
2

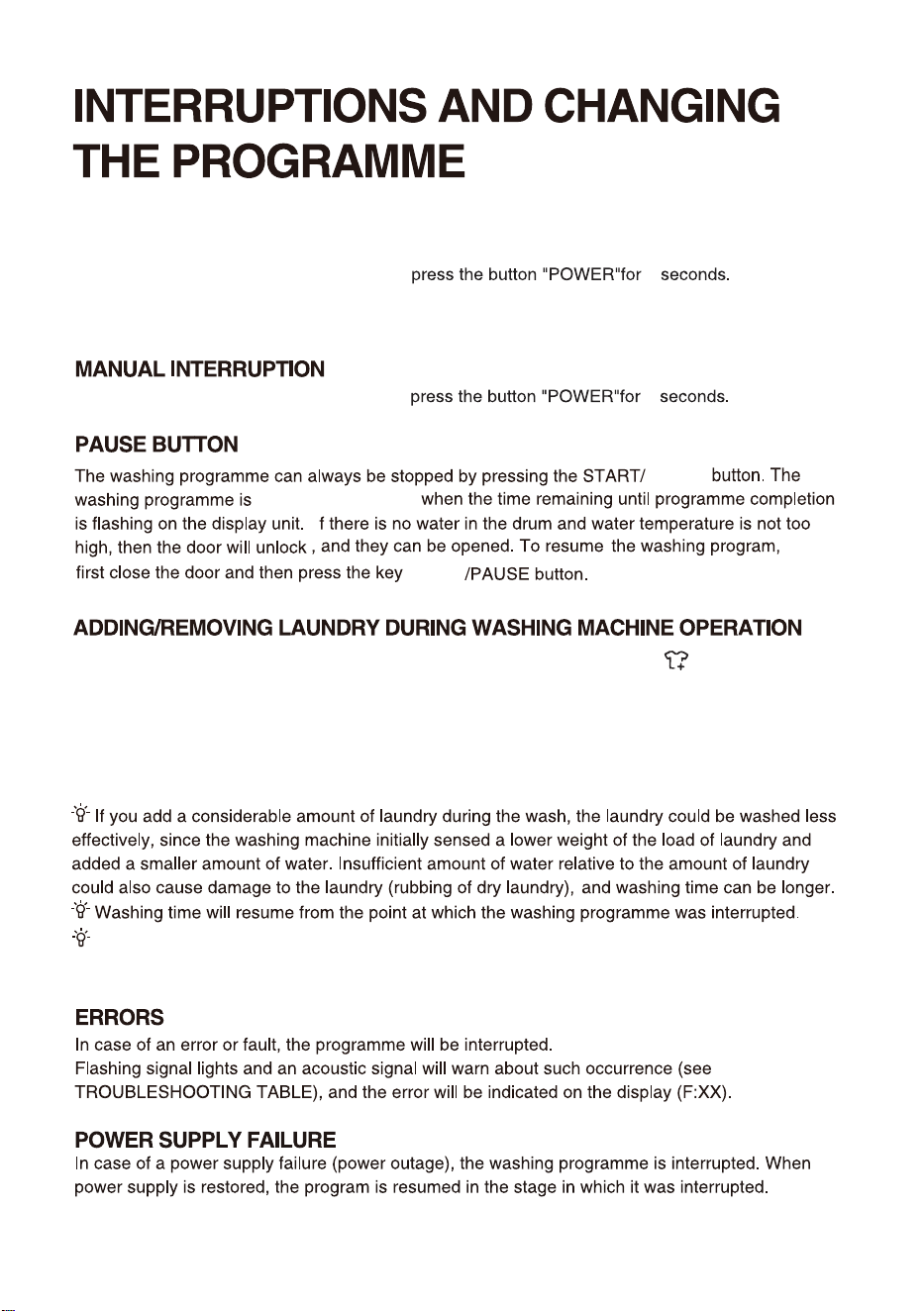

CHANGE OF WASHING PROGRAMME
To stop and cancel a washing programme,
2
To select a new programme, choose the programme by rotating the knob and select extra functions.
Press the start/pause button, without adding the detergent again.
START
During a pause, the time on the display will blink. If the "Add Clothes" icon " " lights up, it
indicates that the door can be opened. The door lock will automatically release, allowing you
to add clothes. If the "Add Clothes" icon isn't lit, pressing pause won't unlock the door, and it
cannot be opened.
After adding clothes midway, press start/pause button and the washing program will resume
running.
When the program is suspended in spin state and then restarted, it will run again from the initial
state of spin.
39
.

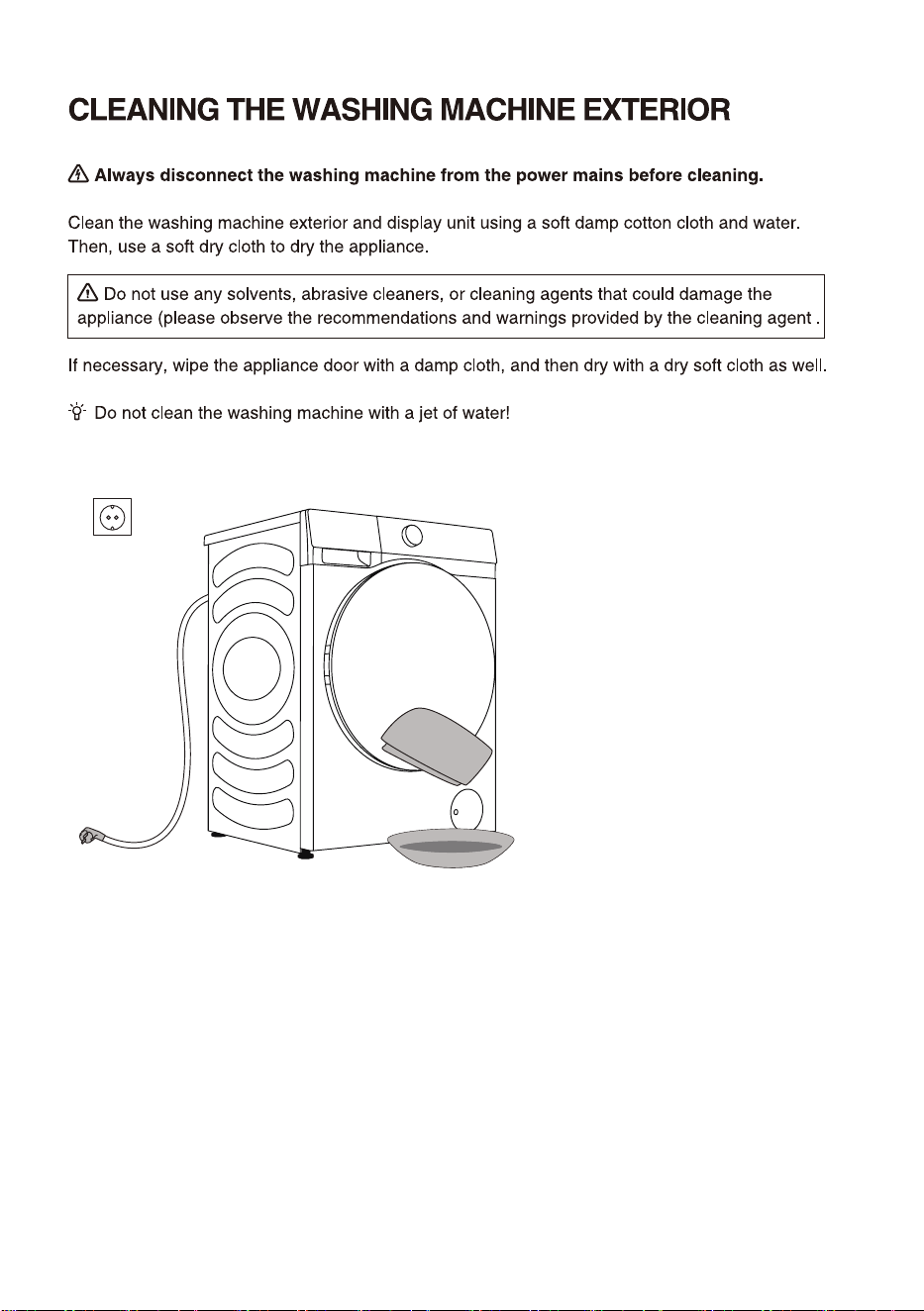

0

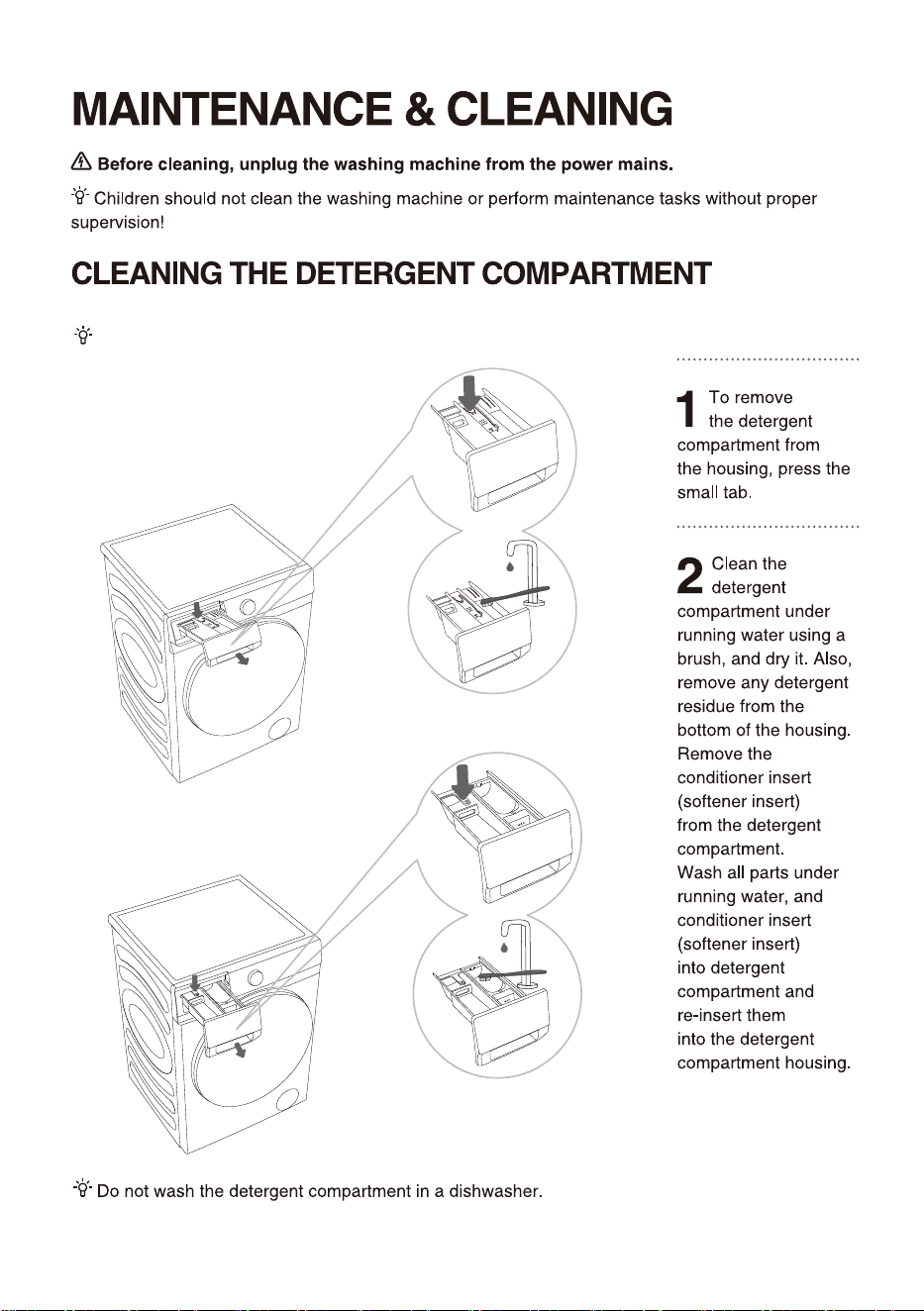

Clean the detergent compartment regularly.
Style ①
Style
②
1
1
2
3
3
4
5

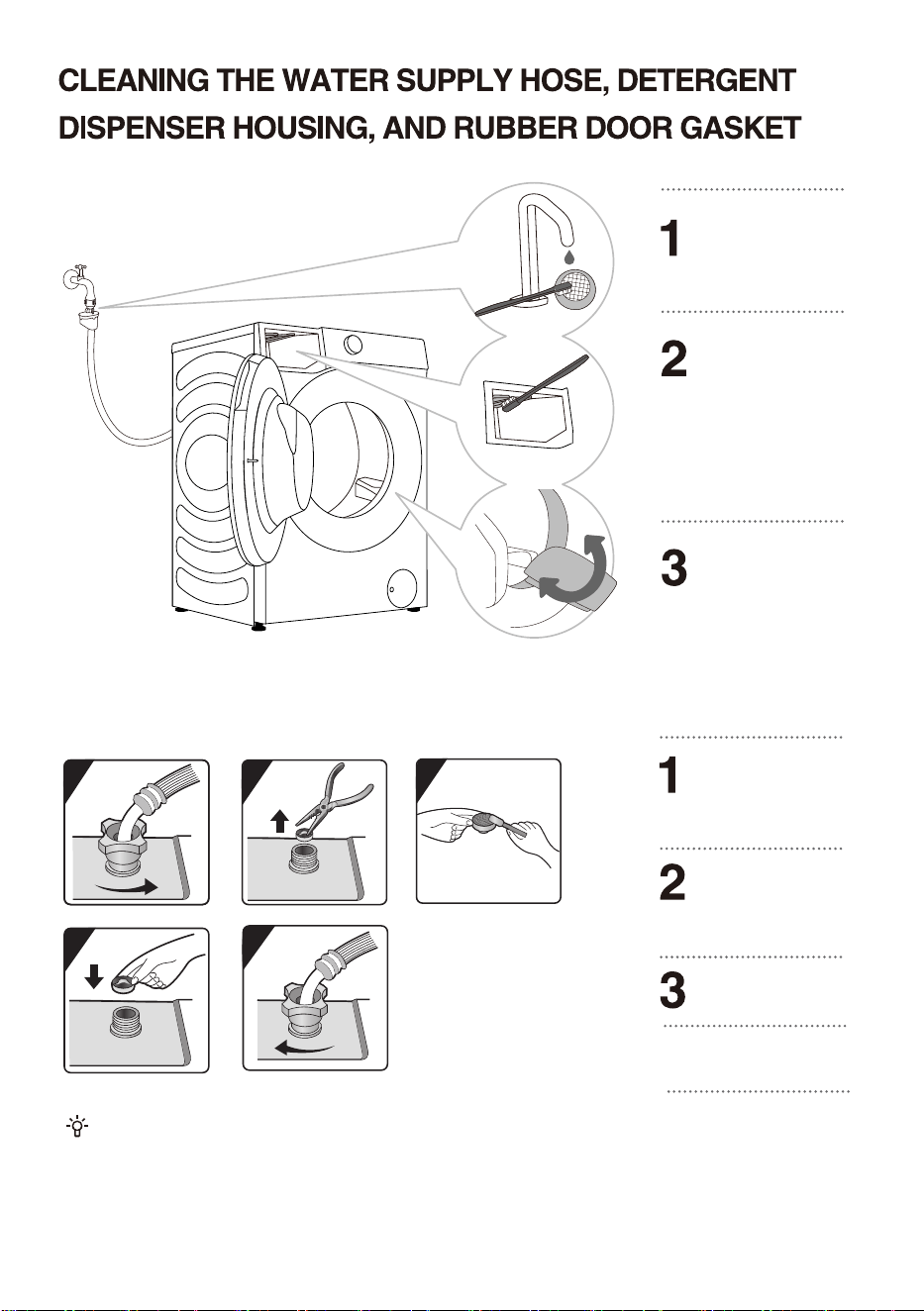

CLEANING THE WATER INLET FILTER REGULARLY
Pull off the mesh filter
f
rom the appliance
connection with universal
pliers.
Close the tap and
unscrew the inlet
hose on the rear of
the appliance.
Clean the internal
mesh filter.
4
Refit the mesh filter
again.
5
Screw the inlet hose
on. Turn on the tap
and ensure that the
connections are
completely water-ti
ght.
The water inlet filter collects lime or any sediment that may be in
water that is supplied to the appliance.
Clean the inlet filter every six months or so, or more often if the
water is very hard or contains traces of limescale.
After every wash,
wipe the rubber
door seal to extend its
useful life.
Clean the net filter
often under
running water.
Use a brush to
clean the entire
appliance rinsing
section, especially the
nozzles on the upper
side of the rinsing
chamber.
2

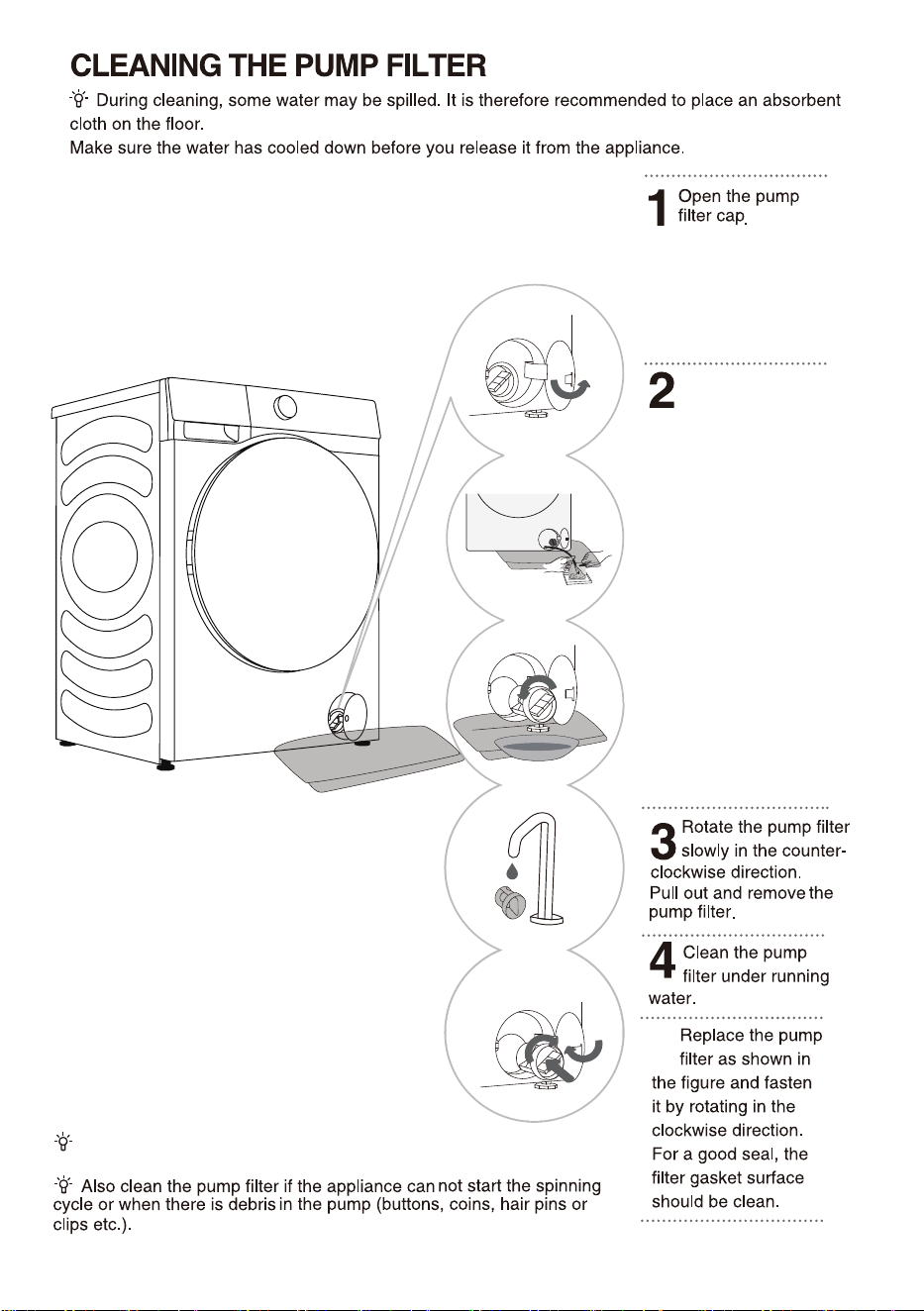

the filter door.
If the machine has
a
emergency drain pipe, pull
out emergency drain pipe
of machine. Put end of
emergency drain pipe into
a container.
If the machine doesn't have
a emergency drain pipe,
place a container under the
pump filter.
The style depends on the
model.
Rotate emergency drain
pipe plug and remove it
after it becomes loose Until
water runs off naturally.
Reinstall emergency drain
pipe plug.
5
Style1: Press the door cover
and automatically pop open.
Style2: Open the pump filter
cap using a suitable tool.
The style depends on the
model.
The pump filter must be timely cleaned, especially after
washing very fleecy, woolly, or very old laundry.
Place a towel under
3
4
5

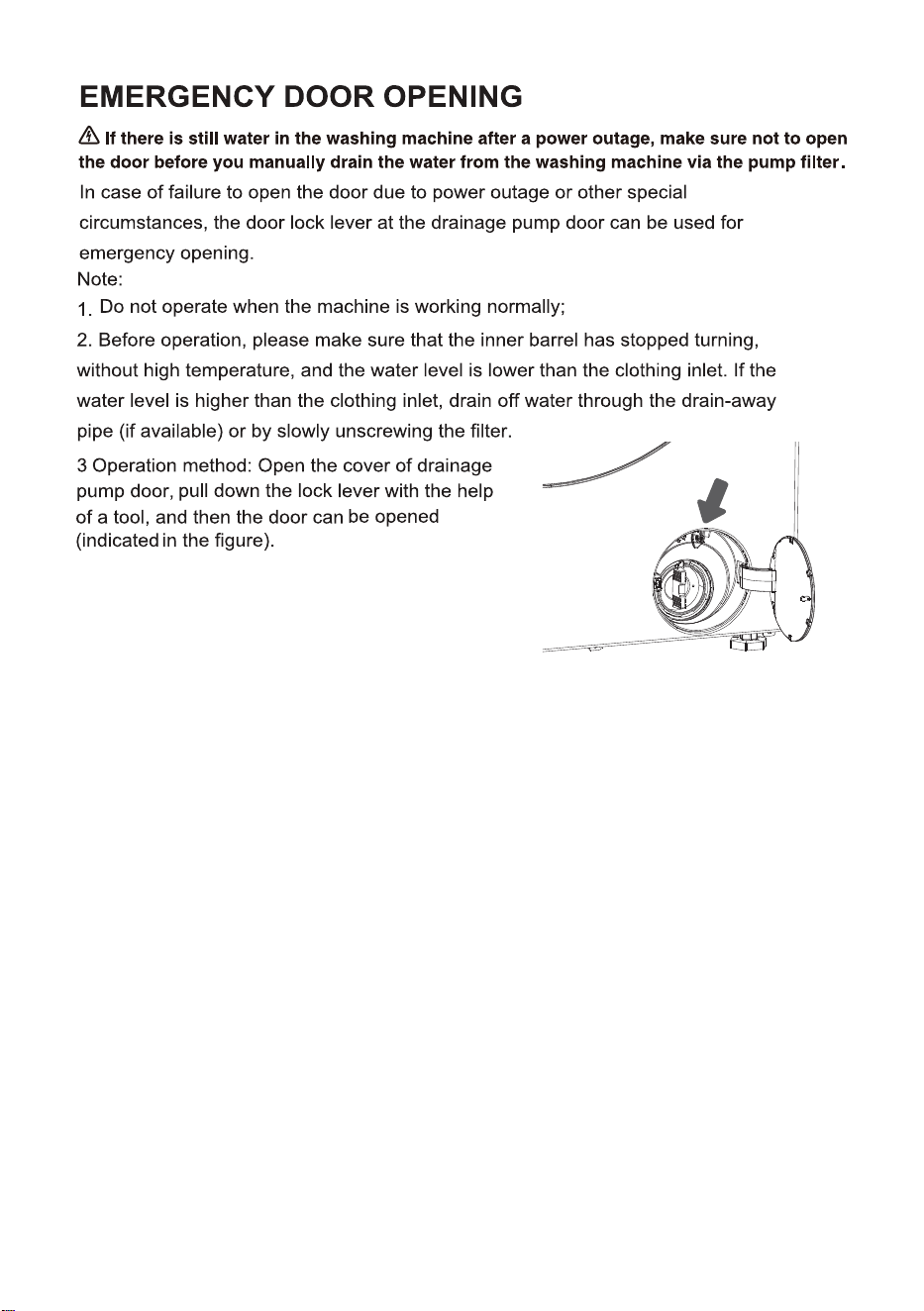

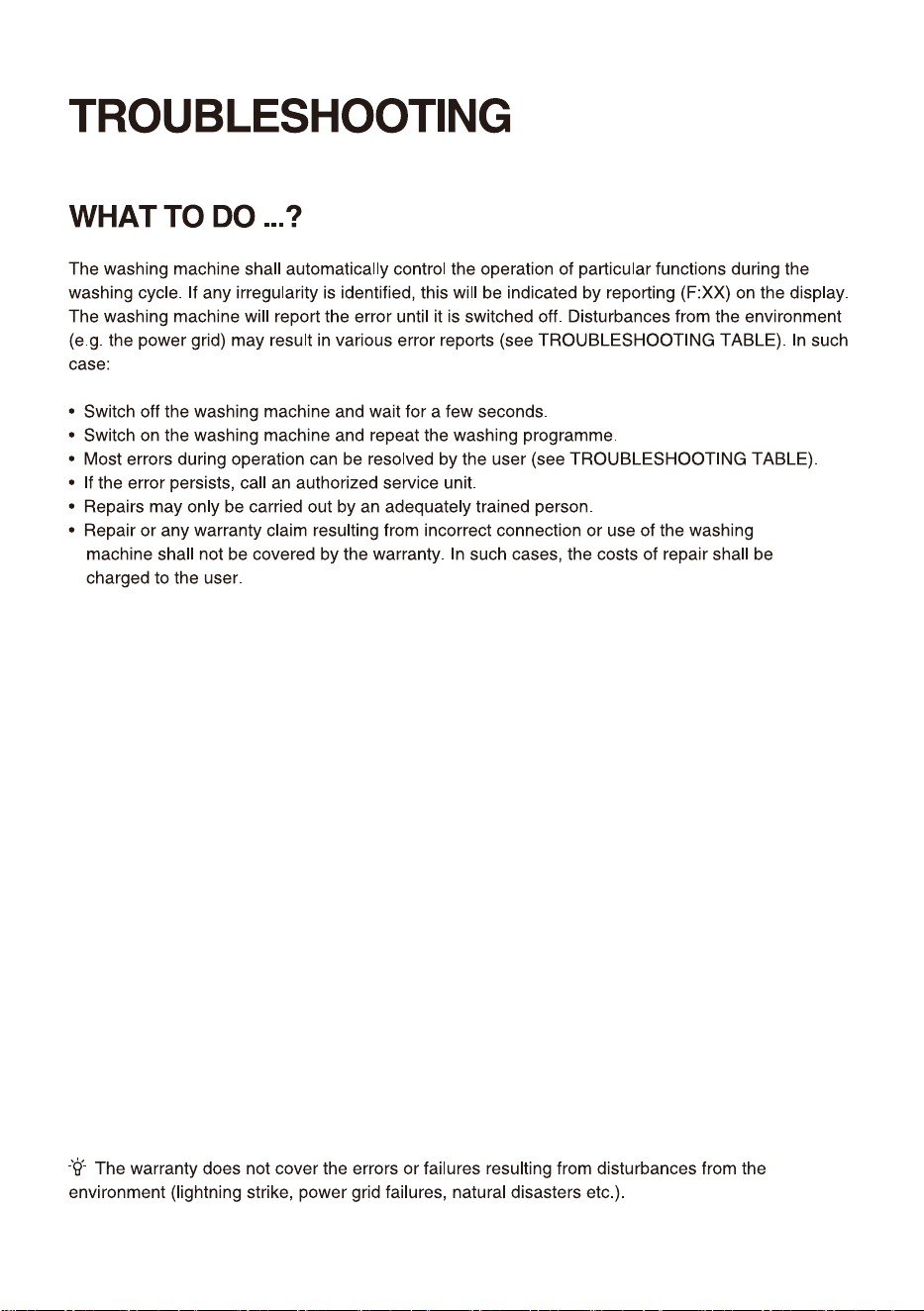

Problem/
error
Indication on the display
unit and problem
description
What to do?
F01
Water inflow fault
Check the following:
• Is the water supply tap open and is the
pressure too low?
• Is the water supply hose pinched?
Is the filter on the water supply hose clogged•
Is the hose frozen?•
F03
Drainage fault
Check the following:
• Is the hose pinched, does the water flow
through it?
Is the filter on the drain hose clogged•
Is the hose frozen?•
F04/F05/F06/
F07/F23
Electronic module fault
Press the"
"button again. If the error
reoccurs, call a service technician.
F24
Water level reaches
overflow level
"
Stop the programme by pressing the
"
button. Restart the programme.
If the appliance continues to pump water into
the tub, close the water tap and call a service
technician.
F13
Error while locking the
door
Door is closed, but it cannot be locked.
Switch off the washing machine. Switch it back
on and restart the washing programme.
If the error reoccurs, call a service technician.
F14
Error while locking the
door
Door is closed, but it cannot be unlocked.
Turn off the appliance, then turn it back on. If
the error reoccurs, call a service technician.
Unb Unb Unbalance alarm
Unbalance alarm shall be solved by the following
methods
Laundry winding1.
2
shutdown
, open the door, shake the
clothes and put them back into the washing
machine, then select the single dewatering
program to try again.
Too light-weighted laundry2.
Switch off the appliance;
for 2 seconds.
2
"Power"
try
Press the"
"button again
after exclusion.
Press the"
"button again
after exclusion.

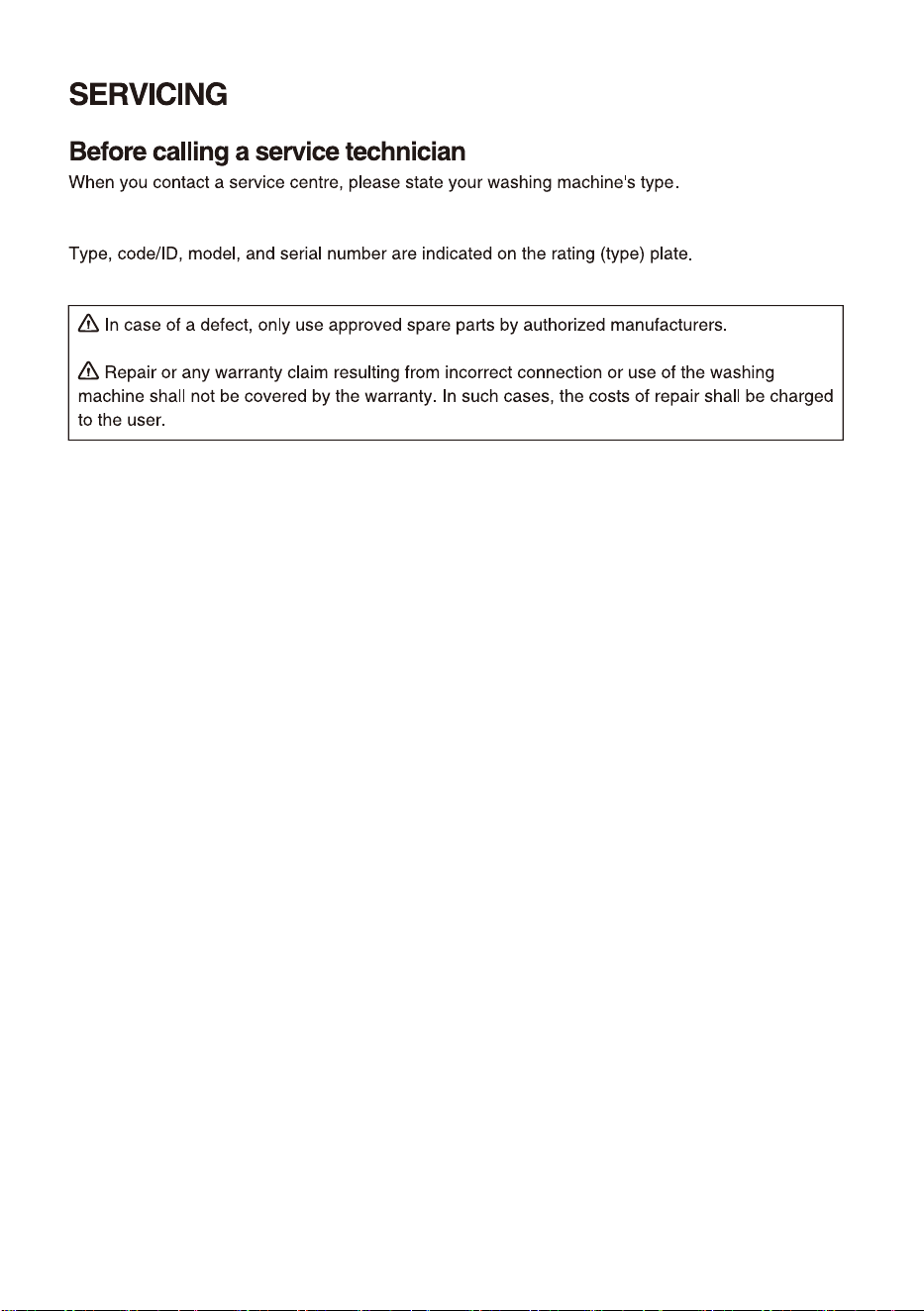

46
%SVN$MFBO
47
48
49
0

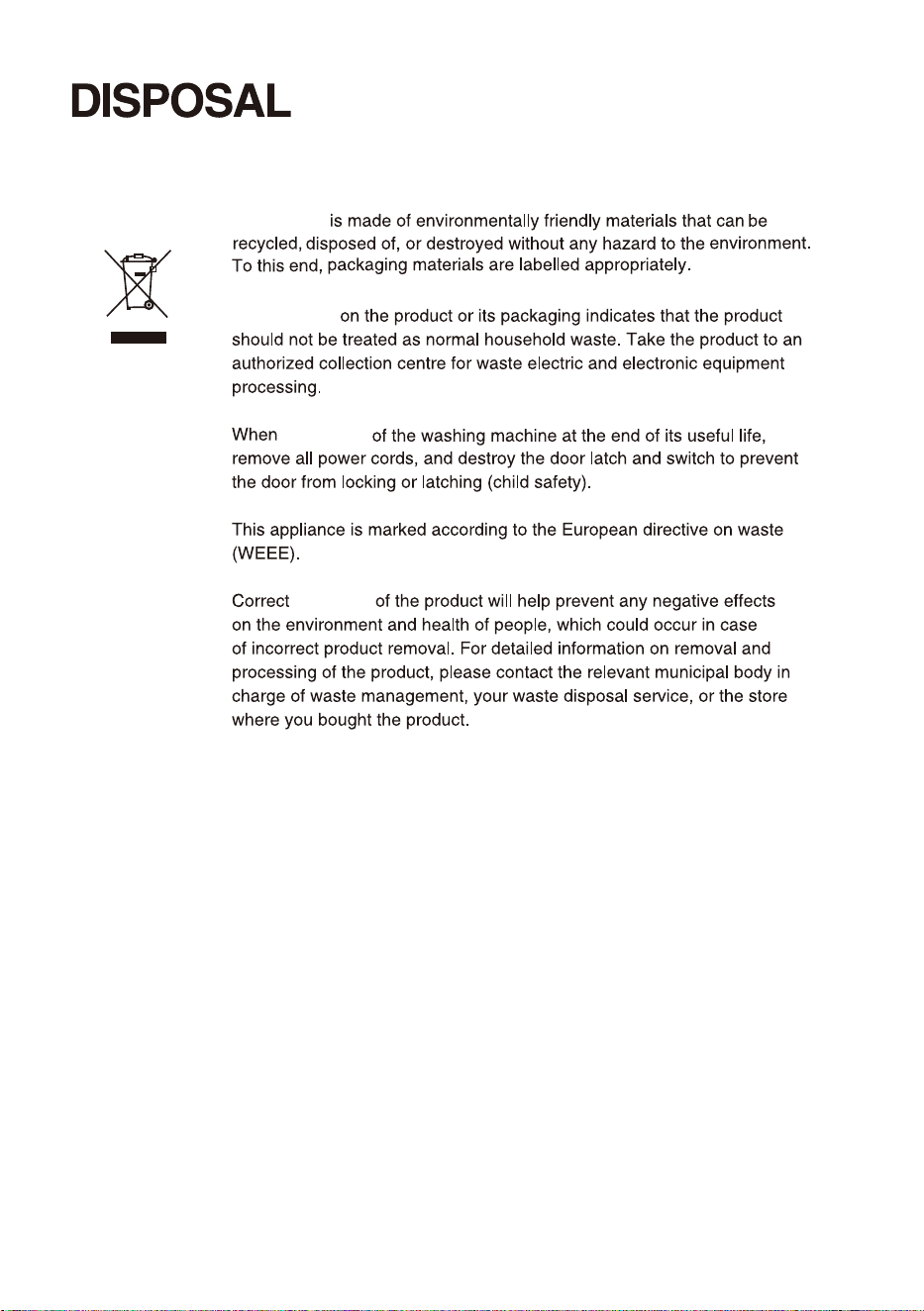

Packaging
The symbol
disposing
disposal
物料号：-X0806****
