USER’S OPERATION MANUAL
Before operating this unit, please read this manual
thoroughly, and retain for future reference.
WF3M841BWI
WF3M741BWI
English
EN
CONTENTS
SAFETY INSTRUCTIONS
SPECIFICATIONS
PRODUCT OVERVIEW
QUICK START GUIDE
PRODUCT INSTALLATION
OPERATION INSTRUCTIONS
CLEANING AND MAINTENANCE
TROUBLE SHOOTING
DISPOSAL AND RECYCLING
BUILT-IN INSTALLATION
02
06
07
08
11
15
31
35
36
38
Read all instructions and explanations before use.Follow the instructions carefully. Keep
the operation instructions handy for later use. if the appliance is sold or passed on then
ensure that the new owner always receives these operation instructions.
01
The product is intended only for home use and for textiles in household amounts suitable for
washing. This appliance is for indoor use only and not intended for built in use. Only use
according to these instructions. The appliance is not intended for commercial use.
Any other use is considered as improper use. The producer is not responsible for any damage
or injury that may result from it.
This appliance is intended to be used in household and similar applications such as:
- Staff kitchen areas in shops, offices and other working environments;
- Farm houses;
- By clients in hotels, motels and other residential type environments;
- Bed and breakfast type environments;
- Areas for communal use in blocks of flats or in launderettes.
DANGER
This symbol indicates that there are dangers to the life and health of persons
due to extremely flammable gas.
WARNING OF ELECTRICAL VOLTAGE
This symbol indicates that there is a danger to life and health of
persons due to voltage.
WARNING
The signal word indicates a hazard with a medium level of risk which, if not
avoided, may result in death or serious injury.
CAUTION
The signal word indicates a hazard with a low degree of risk which, if not
avoided, may result in minor or moderate injury.
NOTE
The signal word indicates important information (e.g. damage to
property), but not danger.
OBSERVE INSTRUCTIONS
This symbol indicates that a service technician should only operate and maintain
this appliance in accordance with the operating instructions.
Explanation of Symbols
Intended Use
SAFETY INSTRUCTIONS
02
Please read the following safety information thoroughly and follow it strictly to minimize the risk
of fire or explosion, electric shock and to prevent property damage, personal injury or loss of life.
Failing to follow these instructions shall void any warranty.
This appliance is not intended for use by persons (including children) with reduced
physical,sensory or mental capabilities, or lack of experience and knowledge, unless they have
been given supervision or instruction concerning use of the appliance by a person responsible
for their safety.
(OHFWULF6KRFN+D]DUG
• ,IWKHVXSSO\FRUGLVGDPDJHGLWPXVWEHUHSODFHGE\WKHPDQXIDFWXUHULWVVHUYLFHDJHQWRU
VLPLODUO\TXDOLILHGSHUVRQVLQRUGHUWRDYRLGDKD]DUG
• ,IWKHPDFKLQHLVGDPDJHGLWPXVWQRWEHRSHUDWHGXQOHVVUHSDLUHGE\WKHPDQXIDFWXUHULWV
VHUYLFHDJHQWRUVLPLODUO\TXDOLILHGSHUVRQV
• 5LVNRIHOHFWULFVKRFN
• 7KHDSSOLDQFHFDQEHXVHGE\FKLOGUHQDJHGIURP\HDUVDQGDERYHDQGSHUVRQVZLWKUHGXFHG
SK\VLFDOVHQVRU\RUPHQWDOFDSDELOLWLHVRUODFNRIH[SHULHQFHDQGNQRZOHGJHLIWKH\KDYHEHHQ
JLYHQVXSHUYLVLRQRULQVWUXFWLRQFRQFHUQLQJXVHRIWKHDSSOLDQFHLQDVDIHZD\DQGXQGHUVWDQG
WKHKD]DUGVLQYROYHG&KLOGUHQVKDOOQRWSOD\ZLWKWKHDSSOLDQFH&OHDQLQJDQGXVHUPDLQWHQDQFH
VKDOOQRWEHPDGHE\FKLOGUHQZLWKRXWVXSHUYLVLRQ
• &KLOGUHQVKRXOGEHVXSHUYLVHGWKDWWKH\GRQRWSOD\ZLWKWKHDSSOLDQFH
• &KLOGUHQ\HDUVDQGXQGHUVKDOOEHNHSWDZD\IURPWKHDSSOLDQFHRUFRQWLQXRXVO\VXSHUYLVHG
• $QLPDOVDQGFKLOGUHQPD\FOLPELQWRWKHPDFKLQH&KHFNWKHPDFKLQHEHIRUHHYHU\RSHUDWLRQ
• 'RQRWFOLPERUVLWRQWKHDSSOLDQFH
:$51,1*
• $OOZDVKLQJDQGDGGLWLRQDOVXEVWDQFHVDUHWREHNHSWLQDVDIHSODFHRXWRIWKHUHDFKRIFKLOGUHQ
• 'RQRWLQVWDOOWKHPDFKLQHRQDFDUSHWIORRU
• 7KHREVWUXFWLRQRIWKHRSHQLQJVE\DFDUSHWFDQGDPDJHWKHPDFKLQH
• .HHSWKHDSSOLDQFHFOHDUIURPKHDWLQJVRXUFHVDQGGLUHFWVXQOLJKWWRDYRLGSODVWLFDQGUXEEHU
SDUWVWRFRUURGH
• 'RQRWXVHWKHDSSOLDQFHLQKXPLGHQYLURQPHQWVRUURRPVFRQWDLQLQJH[SORVLYHRUFDXVWLFJDV,Q
FDVHRIZDWHUOHDNDJHRUZDWHUVSODVKHVOHWWKHDSSOLDQFHGU\LQWKHRSHQDLU
• 7KHDSSOLDQFHPXVWQRWEHLQVWDOOHGEHKLQGDORFNDEOHGRRUDVOLGLQJGRRURUDGRRUZLWKDKLQJH
RQWKHRSSRVLWHVLGHWRWKDWRIWKHPDFKLQH
• 'RQRWRSHUDWHWKHPDFKLQHLQURRPVZLWKDWHPSHUDWXUHRIEHORZ&7KLVFDQFDXVHGDPDJHV
WRSDUWVRILW,ILWLVXQDYRLGDEOHPDNHVXUHWRGUDLQWKHZDWHUFRPSOHWHO\IURPWKHDSSOLDQFHDIWHU
HYHU\XVHVHH³0DLQWHQDQFH&OHDQLQJRIGUDLQSXPSILOWHU´WRDYRLGGDPDJHVFDXVHGE\IURVW
• 1HYHUXVHIODPPDEOHVSUD\VRUVXEVWDQFHVLQWKHLPPHGLDWHSUR[LPLW\RIWKHDSSOLDQFH
,QVWDOODWLRQ/RFDWLRQDQG6XUURXQGLQJ
• 5HPRYHDOOSDFNDJLQJPDWHULDODQGWUDQVSRUWEROWVEHIRUHXVLQJWKHDSSOLDQFH2WKHUZLVH
VHULRXVGDPDJHPD\UHVXOW
• 7KLVDSSOLDQFHLVHTXLSSHGZLWKDVLQJOHLQOHWYDOYHDQGFDQEHFRQQHFWHGWRWKHFROGZDWHU
VXSSO\RQO\
• 0DLQVSOXJPXVWEHDFFHVVLEOHDIWHULQVWDOODWLRQ
• %HIRUHZDVKLQJFORWKHVIRUWKHILUVWWLPHWKHSURGXFWVKDOOEHRSHUDWHGRQFHWKURXJKRXWDOOWKH
SURFHGXUHVZLWKRXWDQ\FORWKHVLQVLGH
• %HIRUHXVLQJWKHPDFKLQHWKHSURGXFWVKDOOEHFDOLEUDWHG
• 'RQRWSXWDQ\H[FHVVLYHO\KHDY\REMHFWVRQWKHDSSOLDQFHOLNHZDWHUFRQWDLQHUVRUKHDWLQJ
GHYLFHV
,QVWDOODWLRQ
• 7KHQHZKRVHVHWVVXSSOLHGZLWKWKHDSSOLDQFHDUHWREHXVHGDQGWKDWROGKRVHVHWVVKRXOG
QRWEHUHXVHG
• 0D[,QOHWZDWHUSUHVVXUH03D0LQLQOHWZDWHUSUHVVXUH03D
6$)(7<,16758&7,216
• 0DNHVXUHWKHVXSSO\FDEOHLVQRWWUDSSHGE\WKHPDFKLQHRULWFDQJHWGDPDJHG
• &RQQHFWWKHSURGXFWWRDJURXQGHGRXWOHWSURWHFWHGE\DIXVHFRPSO\LQJZLWKWKHYDOXHVLQ
WKH7HFKQLFDOVSHFLILFDWLRQV´WDEOH7KHJURXQGLQJLQVWDOODWLRQKDVWREHPDGHE\DTXDOLILHG
HOHFWULFLDQ(QVXUHWKDWWKHPDFKLQHLVLQVWDOOHGLQDFFRUGDQFHZLWKWKHORFDOUHJXODWLRQV
• :DWHUDQGHOHFWULFDOFRQQHFWLRQVPXVWEHFDUULHGRXWE\DTXDOLILHGWHFKQLFLDQLQDFFRUGDQFH
ZLWKWKHPDQXIDFWXUHUVLQVWUXFWLRQVDQGORFDOVDIHW\UHJXODWLRQV
(OHFWULFDO&RQQHFWLRQ
• 'RQWXVHPXOWLSOHSOXJVRUH[WHQVLRQFRUGV
• 7KHDSSOLDQFHPXVWQRWKDYHDQH[WHUQDOVZLWFKLQJGHYLFHVXFKDVDWLPHURU
FRQQHFWHGWRDFLUFXLWWKDWLVUHJXODUO\VZLWFKHGRQDQGRII
• 'RQRWSXOOWKHSOXJRXWRIWKHPDLQVRXWOHWLIWKHUHLVIODPPDEOHJDVDURXQG
• 1HYHUSXOORXWSRZHUSOXJZLWKZHWKDQGV
• $OZD\VSXOODWWKHSOXJQRWDWWKHFDEOH
• $OZD\VXQSOXJWKHDSSOLDQFHLILWLVQRWEHLQJXVHG
:$51,1*
• &KHFNWKHFRQQHFWLRQVRIWKHZDWHULQOHWWXEHVWKHZDWHUWDSDQGWKHRXWOHWKRVHIRUSRVVLEOH
SUREOHPVGXHWRFKDQJHVRIZDWHUSUHVVXUH,IWKHFRQQHFWLRQVORRVHQRUOHDNFORVHWKHZDWHUWDS
DQGJHWLWUHSDLUHG
• 'RQRWXVHWKHDSSOLDQFHEHIRUHWKHSLSHVDQGKRVHVDUHLQVWDOOHGSURSHUO\E\TXDOLILHGSHUVRQV
• *ODVVGRRUPD\EHFRPHYHU\KRWGXULQJWKHRSHUDWLRQ.HHSFKLOGUHQDQGSHWVIDUDZD\IURPWKH
PDFKLQHZKLOHLWLVRSHUDWLQJ
• 7KHZDWHULQOHWDQGRXWOHWKRVHVKDYHWREHVDIHO\LQVWDOOHGDQGUHPDLQXQGDPDJHG
• 2WKHUZLVHZDWHUOHDNDJHFDQRFFXU
• 'RQRWUHPRYHWKHGUDLQSXPSILOWHUZKLOHWKHUHLVVWLOOZDWHULQWKHDSSOLDQFH%LJTXDQWLWLHVRI
ZDWHUFDQOHDNRXWDQGWKHUHLVDULVNRIVFDOGLQJGXHWRKRWZDWHU
:DWHU&RQQHFWLRQV
• 1HYHUXVHDQ\IODPPDEOHH[SORVLYHRUWR[LFVROYHQWV'RQRWXVHJDVROLQHDQGDOFRKROHWFDV
GHWHUJHQWV2QO\VHOHFWGHWHUJHQWVWKDWDUHVXLWDEOHIRUPDFKLQHZDVKLQJ
• 0DNHVXUHWKDWDOOSRFNHWVDUHHPSWLHG6KDUSDQGULJLGLWHPVVXFKDVFRLQVEURRFKHVQDLOV
VFUHZVVWRQHVHWFPD\FDXVHVHULRXVGDPDJHVWRWKLVPDFKLQH
• 5HPRYHDOOREMHFWVIURPSRFNHWVVXFKDVOLJKWHUVDQGPDWFKHVEHIRUHXVHWKHDSSOLDQFH
7KRURXJKO\ULQVHLWHPVWKDWKDYHEHHQZDVKHGE\KDQG
2SHUDWLRQDQG0DLQWHQDQFH
• ,WHPVWKDWKDYHEHHQVRLOHGZLWKVXEVWDQFHVVXFKDVFRRNLQJRLODFHWRQHDOFRKROSHWURO
NHURVHQHVSRWUHPRYHUVWXUSHQWLQHZD[DQGZD[UHPRYHUVVKRXOGEHZDVKHGLQKRWZLWKDQ
H[WUDDPRXQWRIGHWHUJHQWEHIRUHEHLQJGULHGLQWKHDSSOLDQFH
• ,WHPVFRQWDLQLQJIRDPUXEEHUODWH[IRDPVKRZHUFDSVZDWHUSURRIWH[WLOHVUXEEHUEDFNHG
DUWLFOHVDQGFORWKHVRUSLOORZVILWWHGZLWKIRDPUXEEHUSDGVVKRXOGQRWEHZDVKHGLQWKHPDFKLQH
• )DEULFVRIWHQHUVRUVLPLODUSURGXFWVVKRXOGEHXVHGDUHUHFRPPHQGHGLQWKHLULQVWUXFWLRQV
• 1HYHUWU\WRRSHQWKHGRRUIRUFHIXOO\
• 7KHGRRUZLOOXQORFNVKRUWO\DIWHUWKHHQGRIDF\FOH
• 3OHDVHGRQRWFORVHWKHGRRUZLWKH[FHVVLYHIRUFH,ILWLVIRXQGGLIILFXOWWRFORVHWKHGRRUSOHDVH
FKHFNLIWKHFORWKHVDUHSURSHUO\LQVHUWHGDQGGLVWULEXWHG
• $OZD\VXQSOXJWKHDSSOLDQFHDQGFORVHWKHZDWHUWDSEHIRUHFOHDQLQJDQGPDLQWHQDQFHDQGDIWHU
HDFKXVH
• 1HYHUSRXUZDWHURYHUWKHDSSOLDQFHIRUFOHDQLQJSXUSRVH5LVNRIHOHFWULFVKRFN
• 5HSDLUVVKDOORQO\EHFDUULHGRXWE\WKHPDQXIDFWXUHULWVVHUYLFHDJHQWRUVLPLODUO\TXDOLILHG
SHUVRQVLQRUGHUWRDYRLGDKD]DUG
• 7KHSURGXFHUZLOOQRWEHUHVSRQVLEOHIRUGDPDJHVFDXVHGE\WKHLQWHUYHQWLRQRIQRWDXWKRUL]HG
SHUVRQV
7UDQVSRUW
• %HIRUH7UDQVSRUW
-%ROWVVKDOOEHUHLQVWDOOHGWRWKHPDFKLQHE\DVSHFLDOL]HGSHUVRQ
-$FFXPXODWHGZDWHUVKDOOEHGUDLQHGRXWRIWKHPDFKLQH
• 7KLVDSSOLDQFHLVKHDY\7UDQVSRUWZLWKFDUH1HYHUKROGDQ\SURWUXGLQJSDUWRIWKHPDFKLQH
ZKHQOLIWLQJ7KHPDFKLQHGRRUFDQQRWEHXVHGDVDKDQGOH
06
Model
SPECIFICATIONS
A
B
C
Washing Capacity
Dimension
A
B
C
D
E
F
G
H
Weight
Rated Power
7.0/8.0kg
595mm
825mm
495mm
915mm
135mm
555mm
545mm
975mm
60kg
1950W
G
H
F
E
D
MAX.Current
Standard Water Pressure
Power Supply
220-240V~,50Hz
0.05MPa~1MPa
10A
WF3M841BWI
WF3M741BWI
352'8&729(59,(:
'RRU
'HWHUJHQWGLVSHQVHU
&RQWUROSDQHO
'UDLQKRVH
3RZHUVXSSO\FRUG
7KHSURGXFWSLFWXUHLVIRULOOXVWUDWLRQRQO\SOHDVHUHIHUWRUHDOSURGXFWDVUHIHUHQFH
$FFHVVRULHV
[&RYHU
FDSV
[6XSSO\KRVH
FROGZDWHU
[2ZQHU¶V
PDQXDO
$FRXVWLFVSRQJH
RSWLRQDO
127(
08
QUICK START GUIDE
• Before washing, please make sure the machine is installed properly.
• Your appliance was thoroughly checked before it left the factory. To remove any residual water
and to neutralize potential odors, it’s recommended to clean your appliance before first use. For
this reason, recommended to clean the inner drum by running the "Drum Clean" or other program
with the optional temperature of 90°C. Be careful not to put laundry and detergent in the machine.
CAUTION
It’s recommended to calibrate the machine, so that provide the best performance. The
appliance is able to detect the amount of laundry loaded. This function is optimizing the
product performance by minimizing energy and water consumption, saving you money and
time. For this reason it’s recommended to calibrate the appliance for best use.
1- Remove all accessories from the drum and close the door;
2- Insert the mains plug to the socket;
3- Switch on the washing machine and press “Spin” and “Delay”
simultaneously for 10 seconds until “t19” is displayed;
4- Press [ ] to start the appliance and wait till “****” is displayed.
Calibration

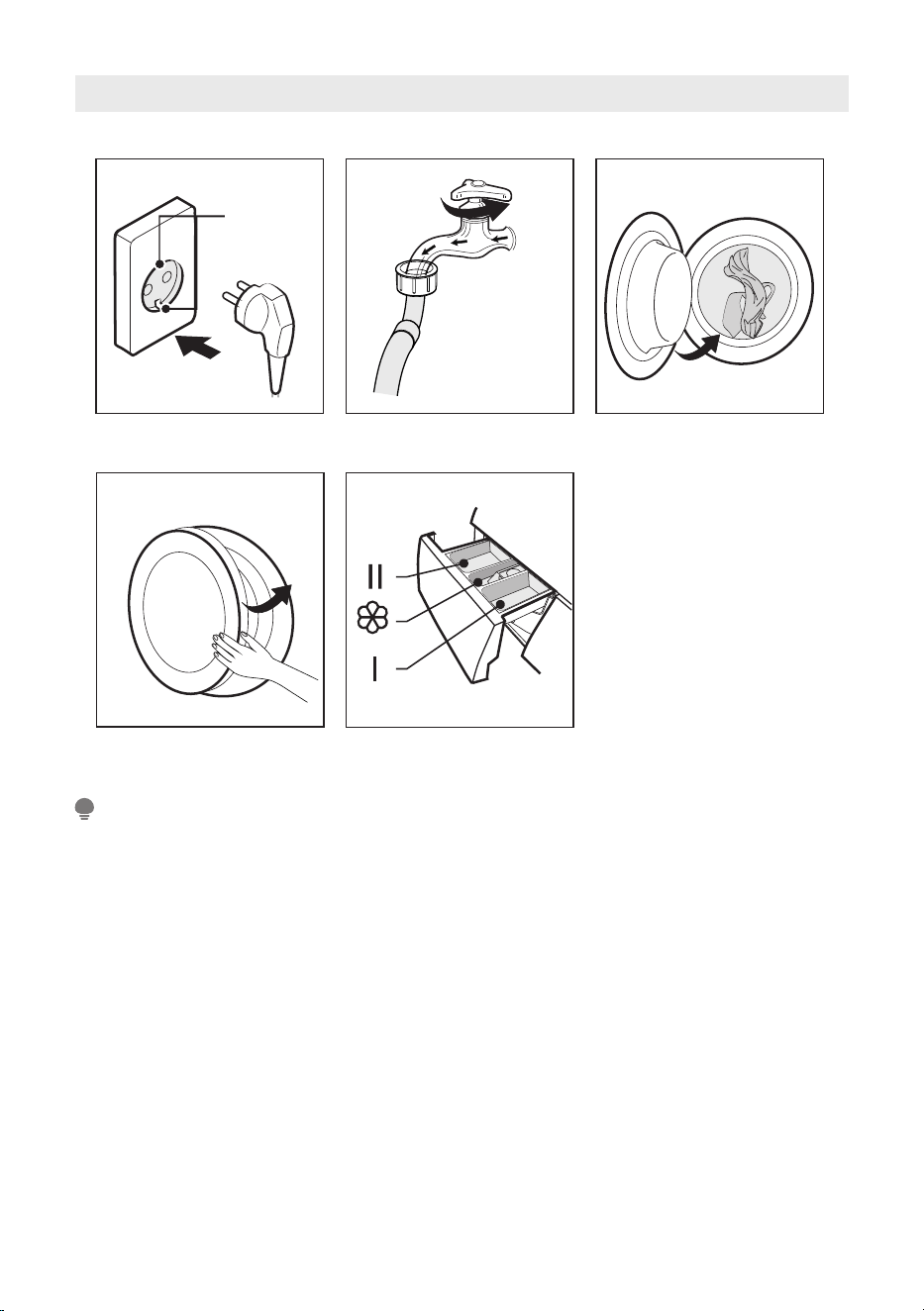

&ORVHGRRU
$GGGHWHUJHQW
0DLQ
ZDVK
3UHZDVK
6RIWHQHU
HDUWK
WHUPLQDO
%HIRUH:DVKLQJ
127(
'HWHUJHQWQHHGWREHDGGHGLQFRPSDUWPHQW,LIWKHSUHZDVKIXQFWLRQLVVHOHFWHG
3OXJLQ 2SHQWDS /RDG
$IWHU:DVKLQJ
%X]]HUEHHSDQG³(QG´RQGLVSOD\

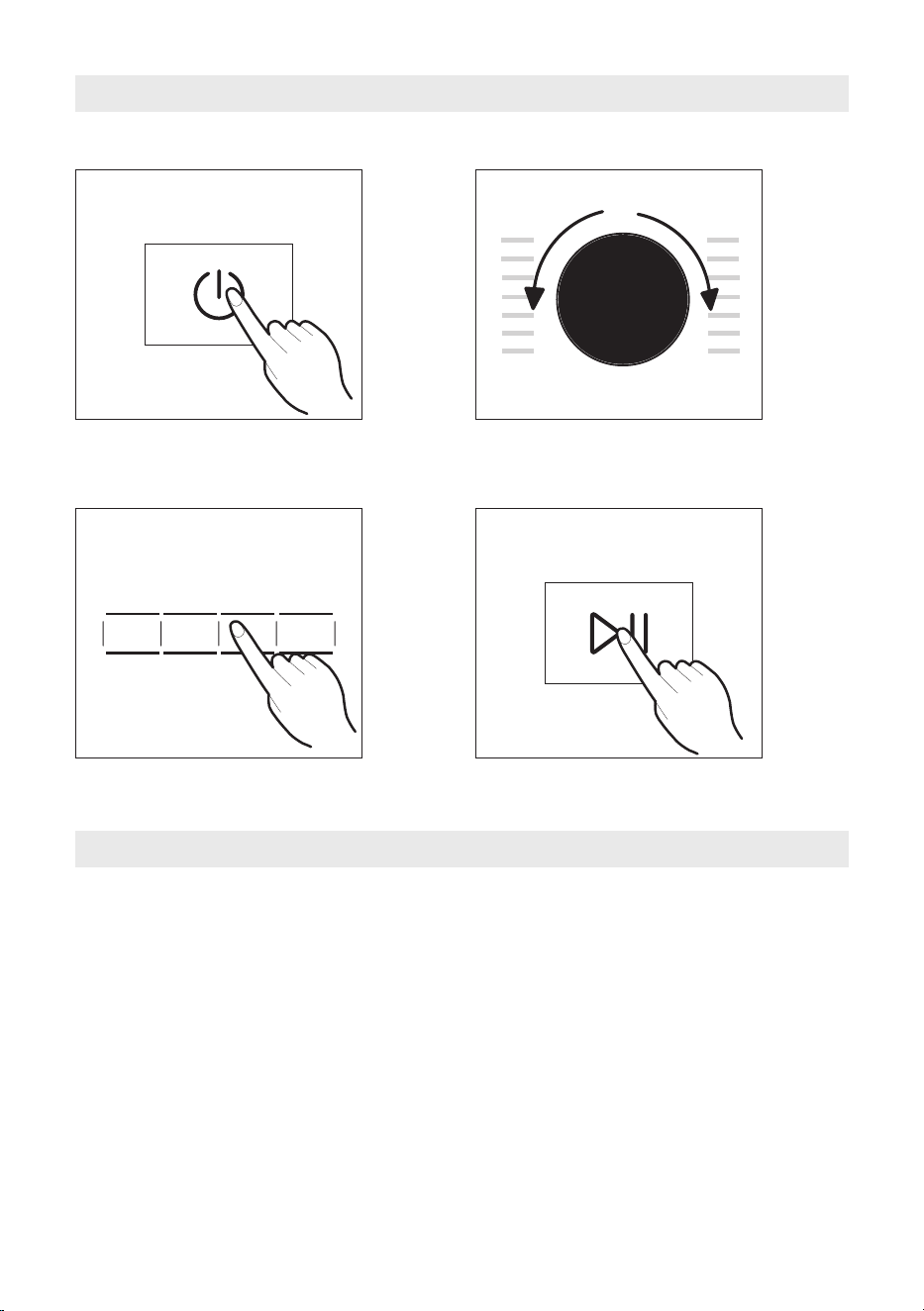

3RZHURQ
6HOHFWSURJUDPPH
6HOHFWIXQFWLRQRUUHPDLQ
GHIDXOWVHWWLQJV
:DVKLQJ
3UHVV6WDUW3DXVHWRVWDUW
WKHSURJUDP
352'8&7,167$//$7,21
%HIRUHLQVWDOOLQJWKHPDFKLQHWKHORFDWLRQFKDUDFWHUL]HGDVIROORZVVKDOOEHVHOHFWHG
5LJLGGU\DQGOHYHOVXUIDFH
$YRLGGLUHFWVXQOLJKW
6XIILFLHQWYHQWLODWLRQ
5RRPWHPSHUDWXUHLVDERYH&
.HHSIDUDZD\IURPWKHKHDWVRXUFHVVXFKDVFRDORUJDVEXUQLQJDSSOLDQFHV

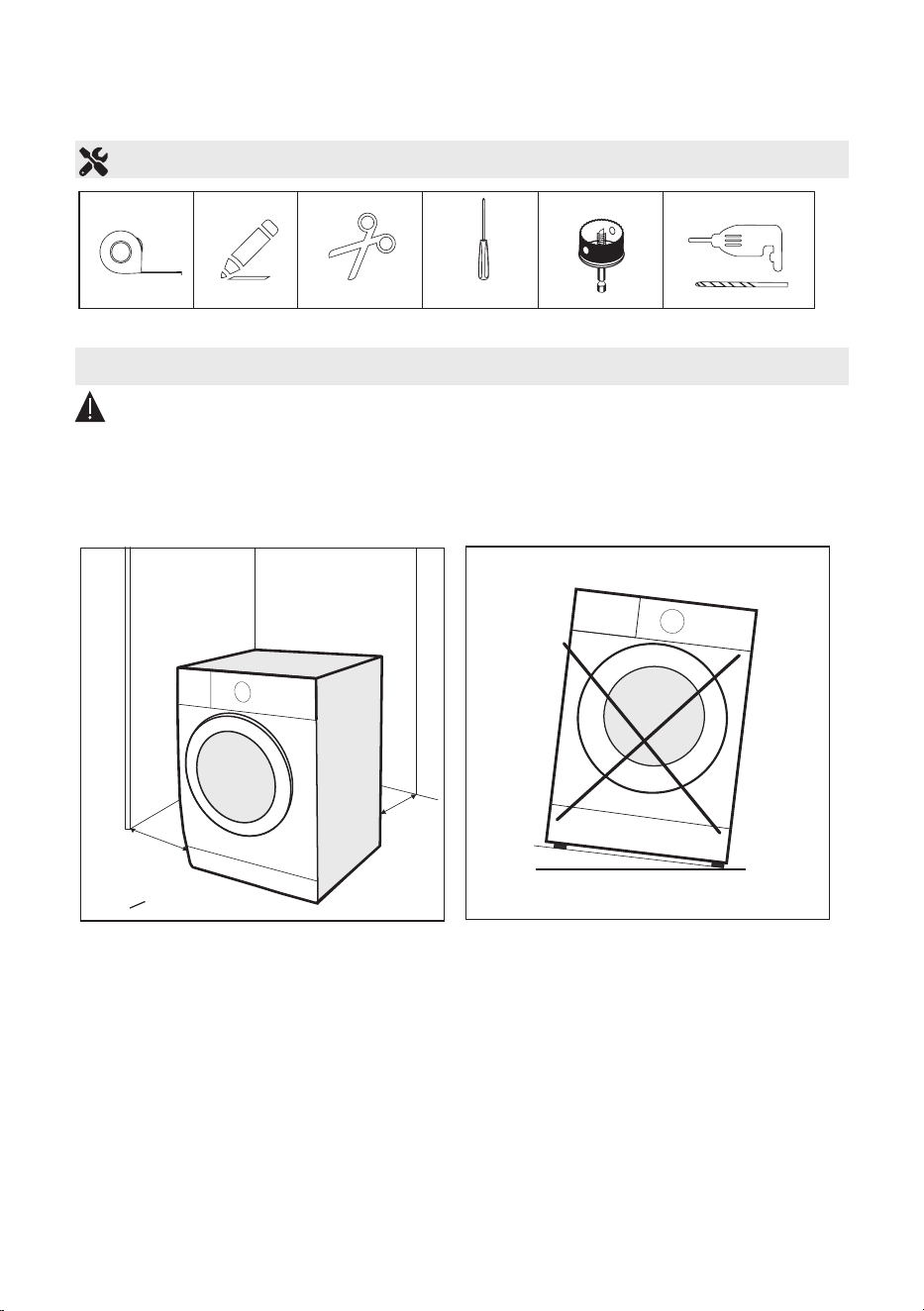

,QVWDOODWLRQ$UHD
Z
Z
:!PP
:$51,1*
6WDELOLW\LVLPSRUWDQWWRSUHYHQWWKHSURGXFWIURPZDQGHULQJ
0DNHVXUHWKHPDFKLQHLVVWDQGLQJOHYHOHGDQGVWDEOH
0DNHVXUHWKDWWKHSURGXFWGRHVQRWVWDQGRQWRWKHSRZHUFRUG
0DNHVXUHWRPDLQWDLQWKHPLQLPXPGLVWDQFHVIURPWKHZDOOVDVVKRZQLQWKHSLFWXUH
7RROV1HHGHG,I,QVWDOODWLRQ%\<RXUVHOIQRWLQFOXGH
• 3DFNDJLQJPDWHULDOHJ)LOPV6W\URIRDPFDQ
EHGDQJHURXVIRUFKLOGUHQ
• 7KHUHLVDULVNRIVXIIRFDWLRQ.HHSDOO
SDFNDJLQJZHOODZD\IURPFKLOGUHQ
5HPRYHWKHFDUGERDUGER[DQGVW\URIRDPSDFNLQJ
/LIWWKHPDFKLQHDQGUHPRYHWKHEDVHSDFNDJLQJ0DNHVXUHWKHVPDOOWULDQJOHIRDP
D LVUHPRYHGZLWKWKHERWWRPSDFNDJLQJWRJHWKHU,IQRWOD\WKHXQLWGRZQRQWKHVLGH
VXUIDFHDQGUHPRYHLWPDQXDOO\
5HPRYHWKHWDSHVHFXULQJWKHSRZHUVXSSO\FRUGDQGGUDLQKRVH
5HPRYHWKHLQOHWKRVHIURPWKHGUXP
/RRVHQWKH
WUDQVSRUWEROWVZLWKD
VSDQQHU
&ORVHWKHKROHV
XVLQJWKHFRYHUFDSV
5HPRYHWKHEROWV
LQFOXGLQJ WKH UXEEHU
SDUWVDQGNHHSWKHPIRU
IXWXUHXVH
D

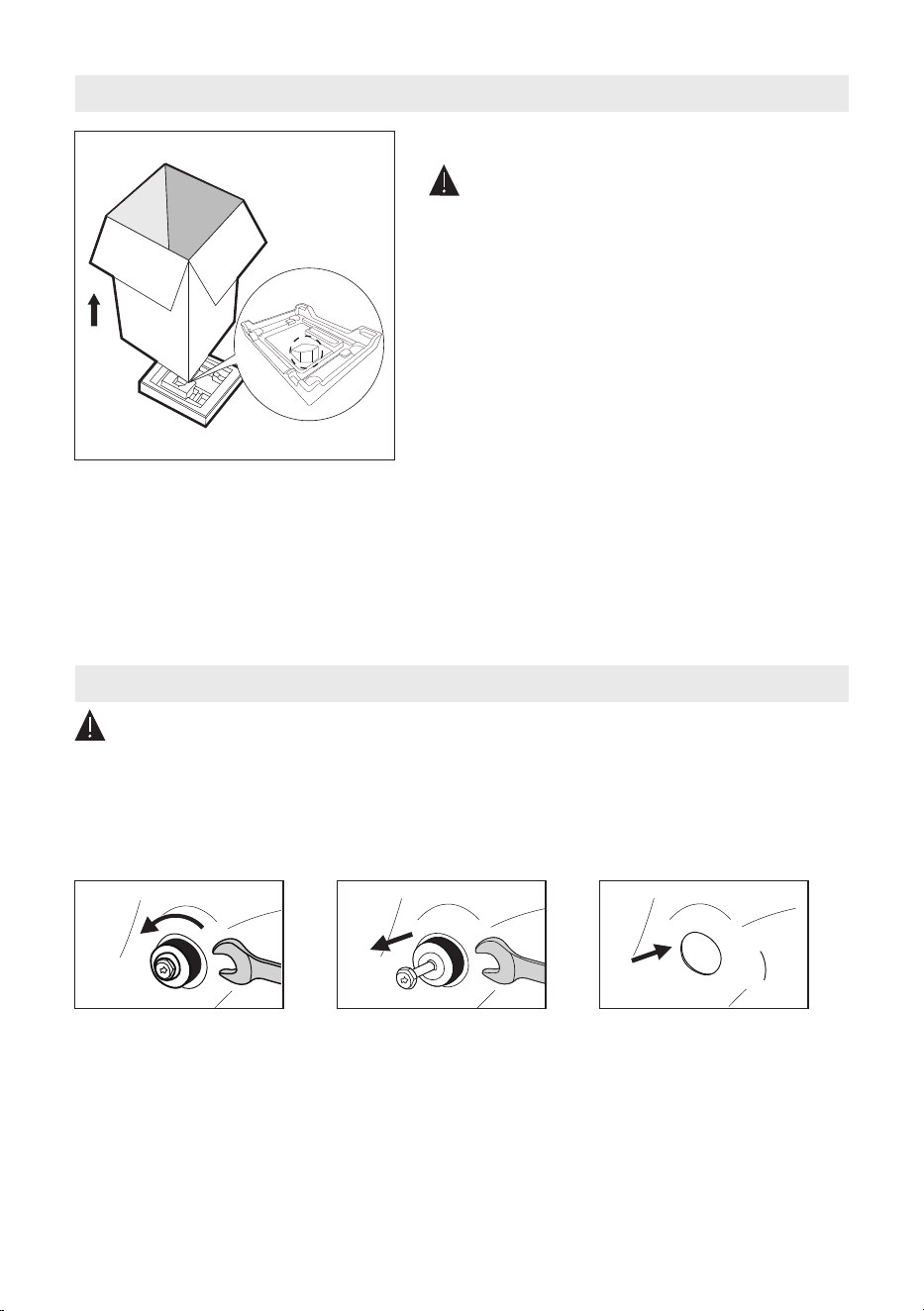

8QSDFNLQJWKH0DFKLQH
5HPRYH7UDQVSRUW%ROWV
:$51,1*
:$51,1*
<RXPXVWUHPRYHWKHWUDQVSRUWEROWVIURPWKHEDFNVLGHEHIRUHXVLQJWKHSURGXFW

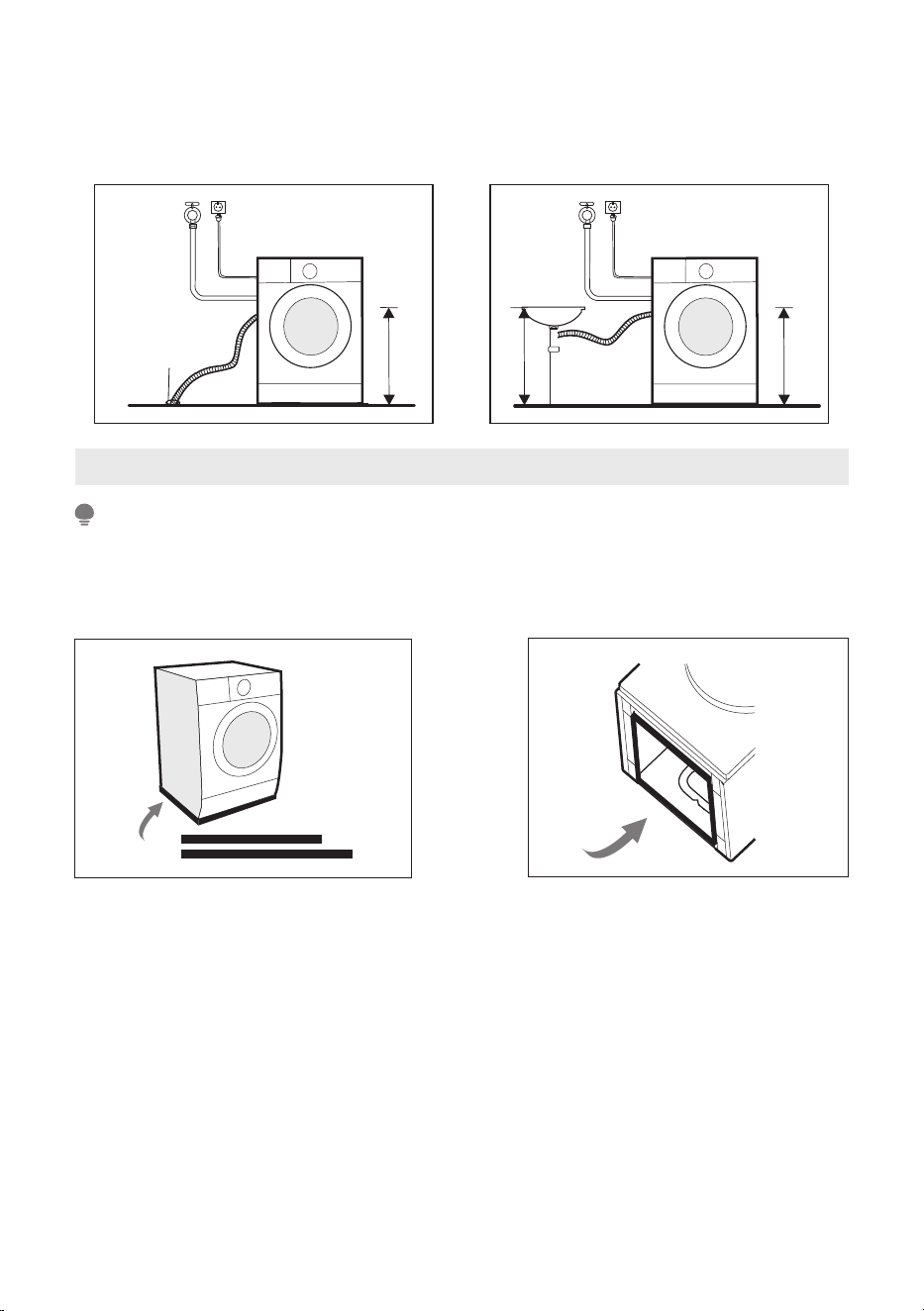

/HYHOOLQJWKH0DFKLQH
/RRVHQWKHORFNQXW
7XUQWKHIRRWXQWLOLWUHDFKHVWKHIORRU
$GMXVWWKHOHJVDQGORFNWKHQXWVZLWKDVSDQQHU0DNH
VXUHWKHPDFKLQHLVOHYHOXVLQJDVSLULWOHYHO
&RQQHFWWKH:DWHU6XSSO\+RVH
• 'RQRWNLQNFUXVKRUPRGLI\ZDWHULQOHWKRVH
&RQQHFWWKHZDWHU
VXSSO\KRVHWRWKHZDWHU
LQOHWYDOYHDQGDZDWHU
WDSZLWKFROGZDWHUDV
LQGLFDWHG
• &RQQHFWPDQXDOO\GRQRWXVHWRROV&KHFNLIWKHFRQQHFWLRQVDUHWLJKW
'RQRWNLQNRUSURWUDFWWKHGUDLQKRVH
3RVLWLRQGUDLQKRVHSURSHUO\RWKHUZLVHGDPDJHPLJKWUHVXOWLQZDWHUOHDNDJH
,WLVQRWDOORZHGWRUHPRYHWKHEXFNOHRIGUDLQSLSH
352'8&7,167$//$7,21
127(
'UDLQ+RVH
:$51,1*
7KHORFNQXWVRQDOOIRXUIHHWPXVWEHVFUHZHGWLJKWO\DJDLQVWWKHKRXVLQJ
:$51,1*
7RSUHYHQWOHDNDJHRUZDWHUGDPDJHIROORZWKHLQVWUXFWLRQVLQWKLVFKDSWHU
:$51,1*
127(
7KHUHDUHWZRZD\VWRSODFHWKHHQGRIGUDLQKRVH
&RQQHFWLWWRWKHEUDQFKGUDLQ
SLSHRIWKHWURXJK
0D[
F
P
0LQ
F
P
0D[
F
P
:DWHU
WURXJK
0D[
F
P
0LQ
F
P
3XWLWLQWRWKHZDWHUWURXJK
3OHDVHPDNHVXUHWRDVVHPEOHWKHDFRXVWLFVSRQJHVZKLFKFDQHIIHFWLYHO\UHGXFHWKHQRLVH
FDXVHGE\WKHPDFKLQHZKLOHZRUNLQJLQRUGHUWRSURYLGH\RXZLWKDPRUHSHDFHIXODQGTXLHW
OLYLQJHQYLURQPHQW
$FRXVWLF6SRQJH
[
[
*HWWKHPDFKLQHODLGRQWKHIORRUXVLQJVRPHVRIWPDWHULDOOLNHIRDPRUFORWKHVEHWZHHQ
WKHPDFKLQHDQGIORRUIRUDSURWHFWLRQ
6WLFNWKH[ORQJHUVSRQJHVWRWKHORQJHUERWWRPHGJHVRIPDFKLQHDQGWKH[VKRUWHU
VSRQJHVWRWKHVKRUWHUERWWRPHGJHV
0LQ
F
P
23(5$7,21,16758&7,216
• 7KHDPELHQWWHPSHUDWXUHRIWKHPDFKLQHVKRXOGEH&&,IXVHGXQGHU&WKHLQOHW
YDOYHDQGGUDLQLQJV\VWHPPD\EHGDPDJHG,IWKHPDFKLQHLVLQVWDOOHGXQGHUIUHH]LQJ
FRQGLWLRQVLWVKRXOGEHWUDQVIHUUHGWRQRUPDODPELHQWWHPSHUDWXUHWRHQVXUHWKHZDWHU
VXSSO\KRVHDQGGUDLQKRVHFDQXQIUHH]HEHIRUHXVH
• 3OHDVHFKHFN\RXUODXQGU\FDUHODEHOVDQGWKHGHWHUJHQWXVHLQVWUXFWLRQVEHIRUHZDVK8VH
QRQIRDPLQJRUOHVVIRDPLQJGHWHUJHQWVXLWDEOHIRUPDFKLQHSURSHUO\
7LHWRJHWKHUORQJWH[WLOH
VWULSVDQGEHOWVFORVH
]LSVDQGEXWWRQ
7DNHDOOLWHPVRXWRIWKH
SRFNHWV
3XWVPDOOLWHPVLQWRD
ODXQGU\EDJ
%HIRUH(DFK:DVKLQJ
6RUWODXQGU\DFFRUGLQJWR
FRORUDQGWH[WLOHW\SH
• 'RQRWZDVKDUWLFOHVWKDWKDYHEHHQFOHDQHGLQZDVKHGLQVRDNHGLQRUGDEEHGZLWK
FRPEXVWLEOHRUH[SORVLYHVXEVWDQFHVOLNHZD[RLOSDLQWJDVROLQHDOFRKRONHURVHQHDQGRWKHU
IODPPDEOHPDWHULDOV
• :DVKLQJVLQJOHFORWKHVLWHPVPD\HDVLO\FUHDWHELJHFFHQWULFLW\7KHUHIRUHLWLVVXJJHVWHGWRDGG
RQHRUWZRPRUHODXQGU\LWHPVWRWKHZDVKVRWKDWVSLQFDQEHGRQHVPRRWKO\
• 'RQRWZDVKVSLQZDWHUSURRIVHDWVPDWVRUFORWKLQJ
:$51,1*
• Detergent only need to be added in “compartment I ”after selecting pre-wash
Pre wash
I
I
I
Main wash
Softener
Release button to pull
out the dispenser
CAUTION
functio
n.
○ Means optional
Means must
Detergent Dispenser
16
Programme
Quick 15'
Power 45'
20 ℃
Jeans
Eco 40-60
Allergy Care
Rinse+Spin
Spin
Programme
Baby Care
Wool
Delicates
Mix
Synthetics
Sportswear
Cotton
Detergent Recommendation
Agglomerating or ropy detergent or additive can be diluted in some water before pouring it into
the detergent dispenser, to avoid its inlet to get blocked and thus cause a water overflow.
• Please choose the suitable type of detergent to get a maximum of washing performance and a
minimum of water and energy consumption.
• To achieve the best cleaning result a proper detergent dosing is important.
• Use a reduced detergent amount if the drum is not filled completely.
• Always adjust the amount of detergent to the water hardness, if your tap water is soft, use less
detergent.
• Dose according to how dirty your laundry is, less dirty clothes require less detergent.
• Highly concentrated (compact detergent) requires particularly accurate dosing.
Following symptoms are a sign of detergent overdosing:
- heavy foam formation
- poor washing and rinsing result
Following symptoms are a sign of detergent under dosing:
- laundry turns grey
- built-up of limescale deposits on the drum, the heating element and/or the laundry
•
Heavy-duty detergent
with bleaching agents
and optical brighteners
Colour detergent without
bleaching agent and optical
brighteners
Color or mild
detergent without
optical brighteners
Mild washing detergent
Special wool detergent
Cotton,Eco 40-60
Cotton, Eco 40-60,
Mix, 20°C
20°C,Synthetics
Synthetics
Wool
40/60
20 /30
20/30/
40/60
Washing
temp. °C
Wash cycles
Recommended washing
detergent
Type of laundry
and textile
White laundry made
from boil-proof cotton
or linen
Coloured laundry
made from cotton or
linen
Coloured laundry
made from easy
care fibres or
synthetic materials
Delicate textiles,
silk, viscose
Wool
Cold/20/
30/40
20/30/40
NOTE
OPERATION INSTRUCTIONS
17
Display
Start/Pause
Start or pause your program.
Program
Choose appropriate program according to the laundry type.
1
2
4
5
The display shows settings, estimated remaining time, options and status messages.
3
On/Off
Power on or off machine.
Control Panel
18
Option
Press buttons to change program parameters or select additional functions.
1
2
4
5
1
3
Display
OPERATION INSTRUCTIONS
19
A
C
E
Child Lock
Extra Rinse
D
Pre Wash
B
C
E
A D
Wash Time
Delay Time
spin
B
Door Lock
Error
End
Display
Model: WF3M841BWI
• The parameters in this table are only for user's reference. The actual parameters maybe
different with the parameters in above mentioned table.
Programmes
Programme
Load (kg) Default Time (h:min)
NOTE
20
Quick 15'
Power 45′
20℃
Jeans
Eco 40-60
Allergy Care
Rinse+Spin
Spin
Baby Care
Wool
Delicates
Mix
Synthetics
Sportswear
Cotton
8.0
8.0
8.0
2.0
2.0
4
.
0
8.0
4.0
8.0
8.0
8.0
8.0
4.0
4.0
2.0
0:15
0:45
1:01
1:35
3:38
1:48
0:20
0:12
2:01
1:07
0:50
1:20
3:18
0:47
3:39
2.5
Model: WF3M741BWI
• The parameters in this table are only for user's reference. The actual parameters maybe
different with the parameters in above mentioned table.
Programmes
Programme
Load (kg) Default Time (h:min)
NOTE
21
Quick 15'
Power 45′
20℃
Jeans
Eco 40-60
Allergy Care
Rinse+Spin
Spin
Baby Care
Wool
Delicates
Mix
Synthetics
Sportswear
Cotton
7.0
7.0
7.0
2.0
2.0
3.5
7.0
3.5
7.0
7.0
7.0
7.0
3.5
3.5
2.0
0:15
0:45
1:01
1:35
3:28
1:48
0:20
0:12
2:01
1:07
0:50
1:20
3:18
0:47
3:39
2.5
Programmes
22
• The above data is for reference only, and the data may change due to different actual
use conditions.
• The valves given for programmes other than the Eco 40-60 programme are indicative
only.
•
which complies with the regulation (EU) 2019/2023.
• Concerning to EN 60456:2016/A11:2020 With(EU) 2019/2014, (EU) 2019/2023,(EU)
2021/340, (EU) 2021/341,
The EU energy efficiency class is: A
Energy test program: Eco 40-60. Other as the default.
Half load for 8.0kg machine:4.0kg.
Quarter load for 8.0kg machine:2.0kg.
20°C is able to clean lightly soiled cotton laundry, at a nominal temperature of 20 °C,
Cycle
WF3M841BWI
Nominal capacity in kg
Temperature setting
℃
Cycle duration in
hours and minutes
Energy consumption in
kWh/operalling cycle
Water consumption in
liter/operalling cycle
Highest temperature
℃
1)
Residual moisture in
% /spin speed in
rpm
2)
Quick 15' 2.0
4.0
4.0
8.0
8.0
8.0
4.0
2.0
Cold
20
40
40
40
- -
- -
- -
0:15
1:01
1:48
1:20
3:39
3:38
2:48
2:48
0.030
0.183
0.569
0.754
1.498
0.759
0.425
0.199
31
44
44
71
71
62.0
43.0
36.0
Cold
20
40
40
40
33
28
25
70%/800
65%/1000
65%/1000
65%/1000
53%/1000
53.9%/1350
53.9%/1350
53.9%/1350
20
℃
Allergy Care
Mix
Cotton
Eco 40-60
3)
• The above data is for reference only, and the data may change due to different actual
use conditions.
• The valves given for programmes other than the Eco 40-60 programme are indicative
only.
•
which complies with the regulation (EU) 2019/2023.
• Concerning to EN 60456:2016/A11:2020 With(EU) 2019/2014, (EU) 2019/2023,(EU)
2021/340, (EU) 2021/341, The EU energy efficiency class is: A
Energy test program: Eco 40-60. Other as the default.
Half load for 7.0kg machine:3.5kg.
Quarter load for 7.0kg machine:2.0kg.
20°C is able to clean lightly soiled cotton laundry, at a nominal temperature of 20 °C,
Cycle
Nominal capacity in
kg
Temperature setting
℃
Cycle duration in
hours and minutes
Energy consumption
in kWh/operalling
cycle
Water consumption
in liter/operalling
cycle
Highest temperature
1)
℃
Residual moisture in
% /spin speed in
2)
rpm
Quick 15'
20 ℃
Steam Wash
Mixed
Cotton
O
3)
EC 40-60
2.0
3.5
3.5
7.0
7.0
7.0
3.5
2.0
Cold
20
40
40
40
--
--
--
0:15
1:01
1:48
1:20
3:39
3:28
2:42
2:42
0.030
0.177
0.540
0.696
1.392
0.675
0.375
0.188
Cold
20
40
40
40
34
30
24
31
41
41
65
65
57.0
41.0
32.0
70%/800
65%/1000
65%/1000
53%/1400
53.9%/1350
53.9%/1350
53.9%/1350
65%/1000
WF3M741BW
23
Programmes
24
1) The highest temperature reached by the laundry in the wash cycle for at least 5 minutes.
2) Residual moisture after the wash cycle in water content percent and the spin speed at
which this was achieved.
3) The Eco 40-60 programme is able to clean normally soiled cotton laundry declared to be
washable at 40°C or 60°C, together in the same cycle. This programme is used to assess
the compliance with the regulation (EU) 2019/2023.
The most efficient programmes in terms of energy consumption are generally those that
perform at lower temperatures and longer duration.
Loading the household washing machine up to the capacity indicated for the respective
programmes will contribute to energy and water savings.
Noise and remaining moisture content are influenced by the spinning speed: the higher
the spinning speed in the spinning phase, the higher the noise and the lower the
remaining moisture content.
• If there is any break in the power supply while the machine is operating, a special memory
stores the selected programme. The machine will continue the programme when the power
supply is re-established.
CAUTION
OPERATION INSTRUCTIONS
Programmes are available according to the laundry type.
25
Programmes
Quick 15'
Wool
Mix
Power 45'
Hard-wearing textiles, heat-resistant textiles made of cotton or linen.
Washing few and not very dirty clothes quickly.
Wash synthetic articles, for example: shirts, coats, blending. While
washing the knitting textiles, detergent quantity shall be reduced
due to its loose string construction and easily forming bubbles.
Washing the baby’s clothes, it can make the baby's wear cleaner.
and make the rinse performance better to protect the baby skin.
Specially for jeans.
Mixed load consisting of textiles made of cotton and synthetics.
Washing the activewear.
Extra short programme approx , suitable for lightly soiled washing as
a small amounts of laundry .
For delicate , washable textiles , e.g. made of silk , satin , synthetic
fibres or blended fabrics.
Hand or machine -washable wool or richwool textiles .Especially
gentle wash programme to prevent shrinkage , longer programme
pauses (textiles rest in wash liquor ).
Rinses and then spins the laundry, and then drains the water.
Able to clean lightly soiled cotton laundry, at a nominal temperature
of 20 °C.
Spins and drains the water.
Spin
Rinse+Spin
Baby Care
Sportswear
Synthetics
Jeans
Delicates
20 ℃
Cotton
Eco 40-60
Able to clean normally soiled cotton laundry declared to be washable
at 40 °C or 60 °C, together in the same cycle.
The Steam Wash can deeply penetrate the fiber, which effectively
eliminate bacterias and germs, preventing odors and protecting health.
Allergy Care
1400
OPERATION INSTRUCTIONS
Option
Default spin
speed (rpm)
Cycle
Default
Temp.(℃ )
Additional
functions
My cycle
800
800
1000
800
1400
1000
1000
1000
1000
600
800
1000
800
800
800
Cold
20
20
30
--
40
--
--
60
40
30
40
40
20
40
26
Quick 15'
Power 45′
20 ℃
Jeans
Eco 40-60
Allergy Care
Rinse+Spin
Spin
Baby Care
Wool
Delicates
Mix
Synthetics
Sportswear
Cotton
Delay
Extra
Rinse,
Delay,
Pre
Wash,
Extra
Rinse,
Delay,
Extra
Rinse,
Delay,
Pre
Wash,
Extra
Rinse,
Delay,
Delay,
Extra
Rinse,
Delay,
Delay,
Pre
Wash,
Extra
Rinse,
Delay,
Extra
Rinse,
Delay,
Extra
Rinse,
Delay,
Pre
Wash,
Extra
Rinse,
Delay,
Pre
Wash,
Extra
Rinse,
Delay,
Pre
Wash,
Extra
Rinse,
Delay,
Pre
Wash,
Extra
Rinse,
Delay,
•
• The table shows which cycle offers which options for adjustment. If an adjustment is not
possible for a cycle.
For the maximum spin speed, program time, and other details of the Eco 40-60
program, please refer to the content on the Product Fiche page.
NOTE
27
Delay
Set the Delay function:
1. Select a programme
2.Press the Delay button to choose the time(the delaying time is 0-24 h.)
3.Press [Start/Pause ] to commence the delay operation
Choose the Programme
Start
On/Off
Setting time
Delay
Cancel the Delay function:
Press the [Delay ] button until the display be 0h.It should be pressed before
starting the programme. If the programme already started, should press the
[On/Off ] button to reset the programme.
Pre Wash
The Prewash function can get an extra wash before main wash.
Pre
Wash
Extra Rinse
The laundry will undergo extra rinse once after you select it.
Extra
Rinse
Spin
Press the button to change the spin speed.
Spin
Temp .
When needed, the washing temperature can be adjusted by pressing the
temperature button in the following
steps: Cold - 20°C - 30°C - 40°C - 60°C - 90°C.
My Cycle
Memory the frequently used programmes
Press [ ] 3sec. to memory the running programme. The default is
Cotton.
Temp.
Delay
CAUTION
OPERATION INSTRUCTIONS
28
• Press the two button 3 sec. also to be released the function.
• The “Child Lock” will lock all buttons except [On/Off].
•
•
Cut off the power supply , the kid’s protection is to be released.
The child lock will remain effective when the power is resumed for some models.
Child Lock
To avoid mis operation by children.
Start/Pause
Press [Temp.] and [
Spin
]
3 sec. till buzzer beep.
On/Off
Temp.
Spin
Mute the buzzer
Temp.
On/Off
Start/Pause Press the [Temp.]button for 3sec.the buzzer is mute.
To act the buzzer function, press the button again for 3 seconds. The setting will be
kept until the next reset.
• After Muting the buzzer function, the sounds will not be activated any more.
CAUTION
Usage counter
2.Power on and within 10s, please press " Delay" and "Options" on control panel
simultaneously and continuously for around 5s until the device display shows digits--the value
can indicate the times of equipment usage.
3.Repeat step 1 again and customer can resume to normal operation.
1.Unplug the equipment for 10s and reconnect again.
NOTE
Product Fiche
29
b
Rated capacity( )(kg)
Dimensions in cm( ) ( )
Height
Width
Depth
b
Energy efficiency index( )
(EEI )
w
b
Energy efficiency class( )
b
Washing efficiency index( )
b
Rinsing effectiveness (g/kg)( )
Energy consumption in kWh per
cyele, based on the eco 40-60
programme. Actual energy
consumption will depend on how
the appliance is used.
Water consumption in litre per cycle,
based on the eco 40-60 programme.
Actual water consumption will depend
on how the appliance is used and on
the hardness of the water.
Maximum temperature inside the
b
treated textile ( )(℃)
Rated
capacity
Half
Quarter
Weighted remaining moisture
b
content ( )(%)
b
Spin speed( )(rpm)
b
Spin-drying efficiency class ( )
b
Programme duration( )(h:min)
Type
Airborne acoustical noise
b
emission class ( )(spinning phase)
Standby mode (W)(if applicable)
Networked standby (W)(if applicable)
Weblink to the supplier's website, where the information in point 9 of Annex ll to Commission Regulation
(EU)2019/2023(1) is found:
a
( )
b
( ) for the eco 40-60 programme.
c
( ) changes to this item shall not be considered relevant for the purposes of paragraph 4 of Article 4 of Regulation
(EU)2017/1369.
d
( ) it the product database automatically generates the definitive content of this cell, the supplier shall not enter
these data.
this item shall not be consider
ed relevant for the purposes of Article 2(6) of Regulation (EU) 2017/1369,
Supplier's name or trade mark( ) ( ):HISENSE
a
Model identifier( ): WF3M841BWI
General product parameters:
Parameter Value Parameter Value
Rated
capacity
Half
Quarter
Rated
capacity
Half
Quarter
8.0
51.9
1.031
0.472
33
28
25
1350
1350
1350
3:38
2:48
2:48
72
0.50
4.00
NO
N/A
N/A
A
d
( )
built-in
B
d
( )
53.9
48
5.0
A
d
( )
83
60
54
a
c,
a
c,
Airborne acoustical noise
a
emissions in the spinning phase( )
(dB(A) re l pW)
Off-mode (W) (if applicable)
Delay start (W) (if applicable)
Minimum duration of the guarantee offered by the supplier ( ) ( ):
This product has been designed to release silver
ions during the washing cycle
Additional information:
a
c,
b
Rated capacity( )(kg)
b
Energy efficiency index( )
(EEI )
w
b
Washing efficiency index( )
Maximum temperature inside the
b
treated textile ( )(℃)
b
Spin speed( )(rpm)
b
Programme duration( )(h:min)
a
( )
b
( ) for the eco 40-60 programme.
c
( ) changes to this item shall not be considered relevant for the purposes of paragraph 4 of Article 4 of Regulation
(EU)2017/1369.
d
( ) it the product database automatically generates the definitive content of this cell, the supplier shall not enter
these data.
this item shall not be considered relevant for the purposes of Article 2(6) of Regulation (EU) 2017/1369,
30
Dimensions in cm( )( )
Height
Width
Depth
Energy efficiency class( )
Rinsing effectiveness (g/kg)( )
Energy consumption in kWh per
cyele, based on the eco 40-60
programme. Actual energy
consumption will depend on how the
appliance is used.
Water consumption in litre per cycle,
based on the eco 40-60 programme.
Actual water consumption will depend on
how the appliance is used and on the
hardness of the water.
Rated
capacity
Half
Quarter
Weighted remaining moisture
b
b
b
content ( )(%)
b
Spin-drying efficiency class ( )
Type
Airborne acoustical noise
b
emission class ( )(spinning phase)
Standby mode (W)(if applicable)
Networked standby (W)(if applicable)
Weblink to the supplier's website, where the information in point 9 of Annex ll to Commission Regulation
(EU)2019/2023(1) is found:
General product parameters:
a
Model identifier( ): WF3M741BWI
Parameter Value Parameter
Value
Rated
capacity
Half
Quarter
Rated
capacity
Half
Quarter
7.0
51.5
1.031
0.444
34
30
24
1350
1350
1350
3:28
2:42
2:42
72
0.50
4.00
NO
N/A
N/A
A
d
( )
built-in
B
d
( )
53.9
45
5.0
A
d
( )
83
60
54
Airborne acoustical noise
a
emissions in the spinning phase( )
(dB(A) re l pW)
Off-mode (W) (if applicable)
Delay start (W) (if applicable)
Minimum duration of the guarantee offered by the supplier ( ) ( ):
This product has been designed to release silver
ions during the washing cycle
Additional information:
a
c,
Supplier's name or trade mark( ) ( ): HISENSE
a
c,
a
c,
CLEANING AND MAINTENANCE
• Always unplug the appliance and close the water tap before cleaning and maintenance.
• Keep any laundry away from the machine while cleaning the drum.
Cleaning and Care
Cleaning the Drum
Any rust stains left inside the drum by metal articles must be removed immediately using chlorine-
free detergents. Never use steel wool for cleaning the drum!
Cleaning the Cabinet
Proper maintenance on the machine can extend its working life.
The surface can be cleaned with diluted non-abrasive neutral
detergents when necessary. If there is any water overflow, use a
towel to wipe it off immediately. Never use sharp items to clean
the appliance.
• Never use abrasive or caustic agents. Such as formic acids or its diluted solvents or similar
substances, like alcohol or chemical products.
Cleaning the Door Seal and Glass
Wipe the glass and seal after each wash to
remove lint and stains. If lint builds up it can cause
leakages.
Remove any coins, buttons and other objects from
the seal after each wash.
Clean the door seal and glass every month to
ensure the normal operation of the appliance.
NOTE
WARNING
31
CAUTION
Cleaning the Inlet Filter
• Diminishing water flow is a sign that the filter needs to be cleaned.
1. Close the tap and remove
the water supply hose from it.
2. Clean the filter with a brush.
5. Reinstall the filter to the water inlet and reconnect the water supply hose.
6. Clean the Inlet filter every 3 months to ensure the normal operation of the appliance.
3. Unscrew the water supply
hose from the backside of the
machine.
Pull out the filter with long
nose pliers.
4. Use a brush to clean the
filter.
NOTE
32

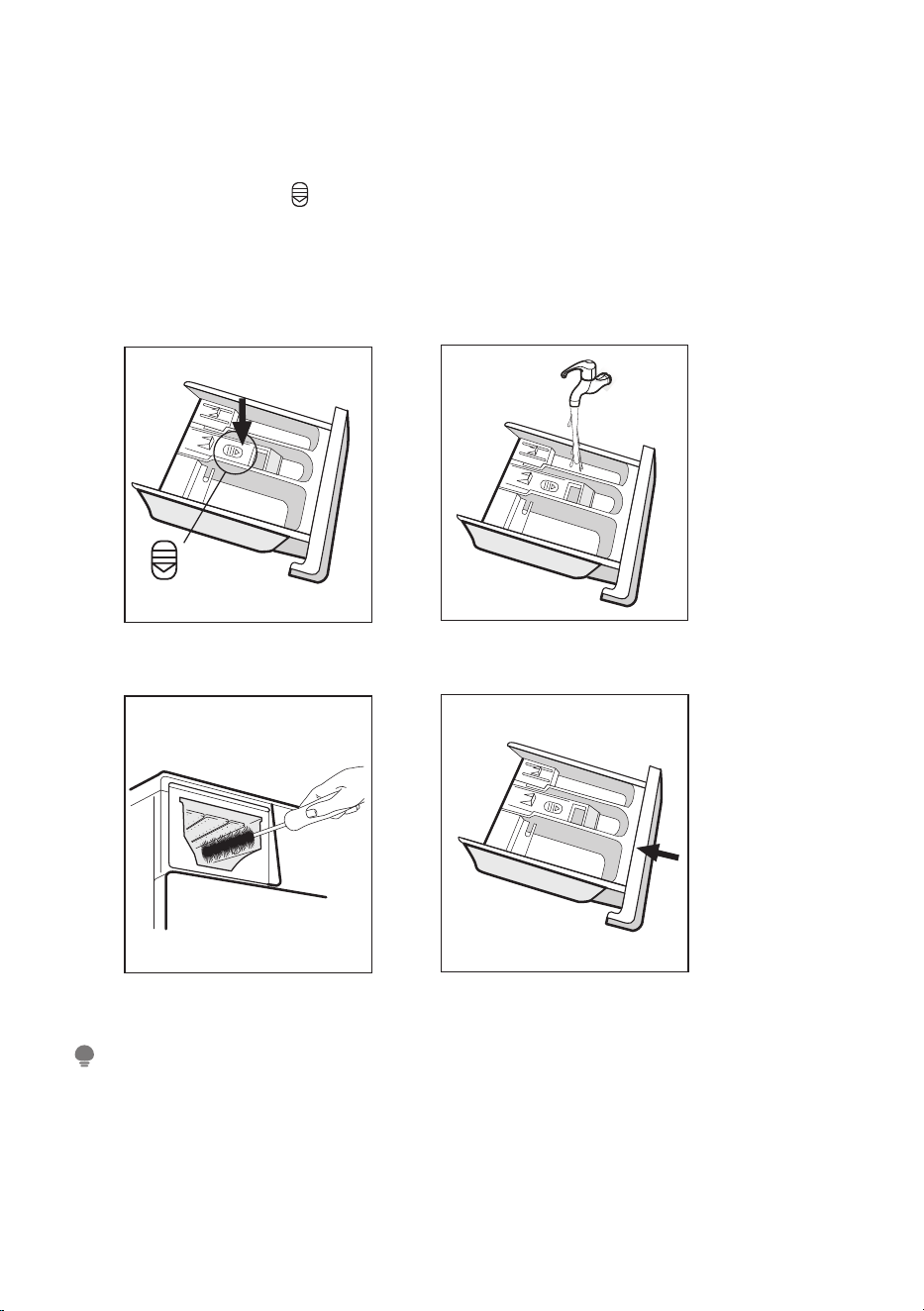

1. Press down the release [ ] on the softener cover and pull the dispenser drawer out
of the recess. Clean the inside of the recess with a brush.
2. Lift the softener cover off the dispenser drawer and wash both items with water.
3. Restore the softener cover and push the drawer back into the recess.
1. Press the release and
remove the dispenser
drawer
2. Clean the dispenser
drawer and the softener
cover under water
3. Clean the recess with
a soft brush
4. Insert the dispenser
drawer
• Do not use abrasive or caustic agents to clean plastic parts.
• Clean the detergent dispenser every 3 months to ensure the normal operation of the
appliance.
CLEANING AND MAINTENANCE
Cleaning the Detergent Dispenser
NOTE
33
34
Cleaning the Drain Pump Filter
•
•
• Unplug the machine to avoid electrical shock before washing.
• Drain pump filter can filter the yarns and small foreign matters from the washing.
• Clean the filter periodically to ensure the normal operation of washing machine.
• Clean the filter periodically every 3 months to ensure the normal operation
of the appliance.
1.After the power is dis-
connected, pull out the
Dam-Board.
2.Turn the filter down as
shown with the figure and
take out sundries matters.
3.Reinstall each part back
after sundries matters are
removed.
Dam-Board
WARNING
Be careful of the hot water!
Allow detergent solution to cool down.
CAUTION
• Make sure emergency drain hose cap and the emergency drain hose are reinstalled properly,
otherwise water may leak.
Description
Possible Cause
Solution
Check if the water pressure is
high enough.
Straighten the water pipe.
Clean the inlet valve filter.
Check the drain hose for
blockage.
Water injecting
problem during
wash cycle.
Overtime water
draining
Restart the appliance. If problem
persists, please contact the
customer service.
Others
Water overflow
Restart the appliance.
Close the door properly
and restart.
Door is not closed
properly.
Description
Possible Cause
Solution
Close the door properly
and restart.
Check the laundry.
Door is not closed
properly.Clothes are
stuck.
Safety protection is
activated.
Disconnect the power and
restart.
Water leakage
Connections are
not tight enough.
Check and fasten the water inlet
pipe.
Check and clean the outlet hose.
Clean and wipe the
detergent dispenser dry.
Abnormal noise
Check if the fixing bolts have
been removed. Make sure the
appliance is installed on a
solid and level floor.
Indicator or display
does not work
PC board or harness
have connection
problems.
Switch off the power and
check if the mains plug is
connected properly.
Appliance does
not start
Detergent residues in
the detergent
dispenser
Detergent is damp
and/or clotted.
Door can´t be
opened
Fixing bolts are still in
place.
Floor is not solid or level.
Error Codes
TROUBLE SHOOTING
Whenever there is a problem with the appliance, check if you can solve it following the tables
below. If the problem persists, please contact the customer service.
35
DISPOSAL AND RECYCLING
Important Instructions for Environment
Compliance with RoHS Directive
The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not
contain harmful and prohibited materials specified in the Directive.
Package Information
Packaging materials of the product are manufactured from recyclable materials in
accordance with our National Environment Regulations. Do not dispose of the
packaging materials together with the domestic or other wastes. Take them to the
packaging material collection points designated by the local authorities.
Compliance with the WEEE Directive and Disposing of the Waster Product:
This product complies with EU WEEE Directive (2012/19/EU). This product bears a
classification symbol for waster electrical and electronic equipment (WEEE).
This symbol indicates that this product shall not be disposed with
other household wastes at the end of its service life. Used device
must be returned to offcial collection point for recycling of
electrical electronic devices. To find these collection systems
please contact to your local authorities or retailer where the
product was purchased. Each household performs important role
in recovering and recycling of old appliance. Appropriate disposal
of used appliance helps prevent potential negative consequences
for the environment and human health.
36
• Improper repair will void the warranty and subsequent damages can't be
recognized!
• Never try to repair an appliance which is defective or presumed to
defective. You may put your own and future users' lives in danger.
Only authorised specialists are allowed to carry out this repair work.
Transport
IMPORTANT STEPS WHEN MOVING THE APPLIANCE
•
• Check if the door and the detergent dispenser are closed properly.
• Remove the water inlet pipe and the outlet hose from the house
installations.
• Important: Re-install the 4 transport bolts in the back of the appliance.
• This appliance is heavy. Transport with care. Never hold any protruding part of the
machine when lifting. The machine door can not be used as a handle.
Unplug the appliance and close the water inlet tap.
Cleaning the • Let the water drain completely from the appliance (see “ Drain
Pump Filter”)
Customer Service
37
Spare parts for your appliance are available for a minimum of 10 years following
EU COMMISSION REGULATION 2019/2023 ANNEX II Ecodesign requirements.
In case of questions, please contact our local customer service center.
WARNING
Risk of electric shock
Appendix
Self-tapping screws
(M5*12)
Hinges
Counter magnet Spacer
Fixed position
paper
Tool
Screw driver
Automatic driver Ruler Pencil
Install Steps
1
825mm
600mm
540mm
595mm
152.5mm
580mm
825mm
Overview
Preparation and assembly of the door
The door is open from right to leftThe door is open from left to right
(ST4*12) (ST4.8*15)
x4 x6 x4
BUILT-IN INSTALLATION
38

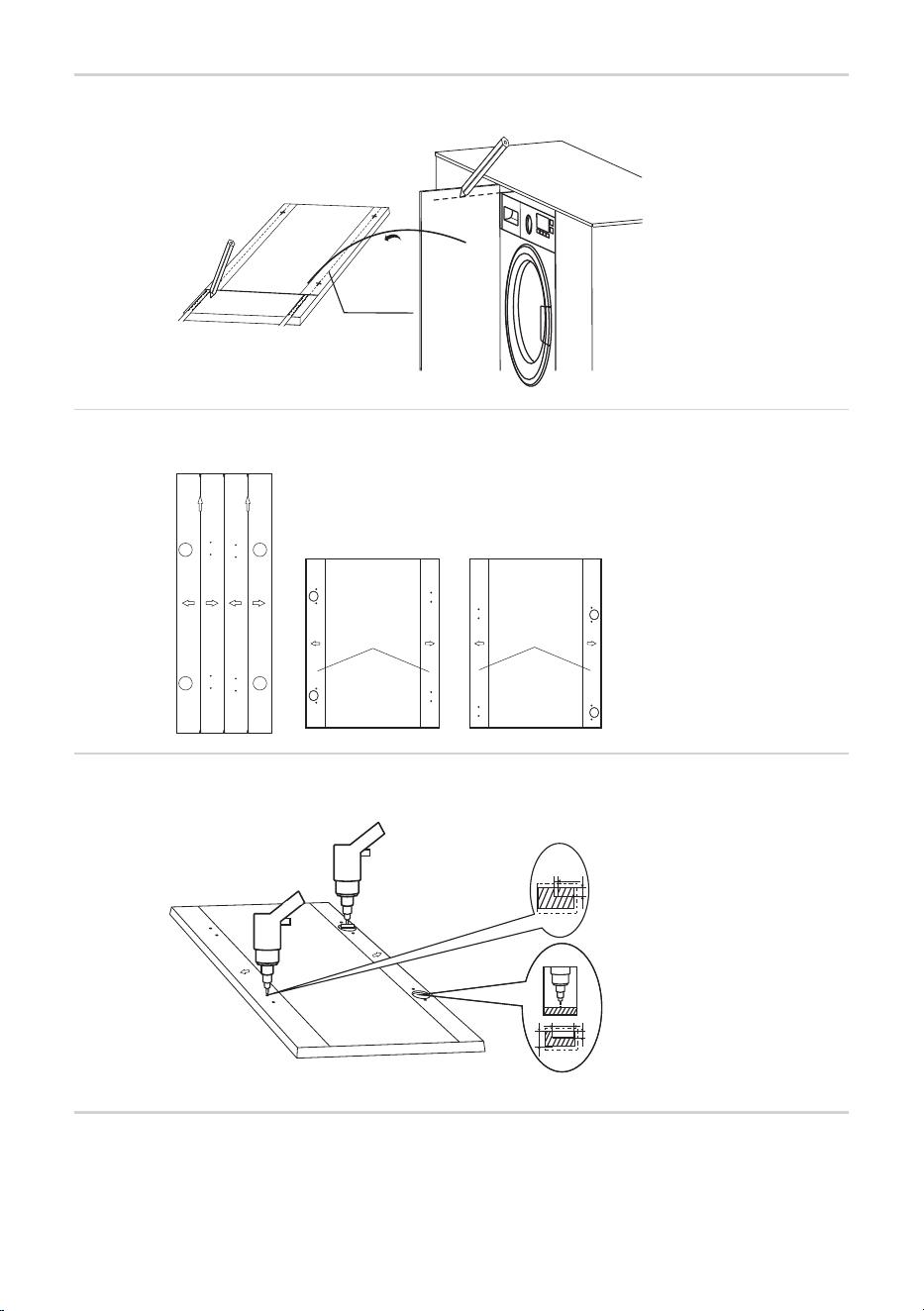

Position Paper
1: Make the mark on the door
Position Paper Position Paper
2: Fixed position paper on the door.
3: Drill hole on the door
Top Top
Left Open
Right Open
39
16-22mm
12mm
35mm
12mm
2mm
WARNING
4: Installation the hinges and spacer
5:Installation the counter magnet
6: Installation the door
• When installing the appliance into the kitchen ensure furniture ,if possible, the hoses are placed
in either of the two recesses on the back of the appliance. This will help to prevent the hoses
from becoming kinked or trapped.
40
1
2
Fix counter magnet
on the cabinet cover
Screw counter magnet
on the cabinet cover
