English
USER’S OPERATION MANUAL
Before operating this unit, please read this manual
thoroughly, and retain for future reference
WDQY8014*
WDQY8014EVJM*
WDQA8014EVJM*
WDQY9014EVJM*
WDQY901418VJM*
WDQA9014EVJM*
WDQY1014EVJM*
WDQA1014EVJM*
/ soak

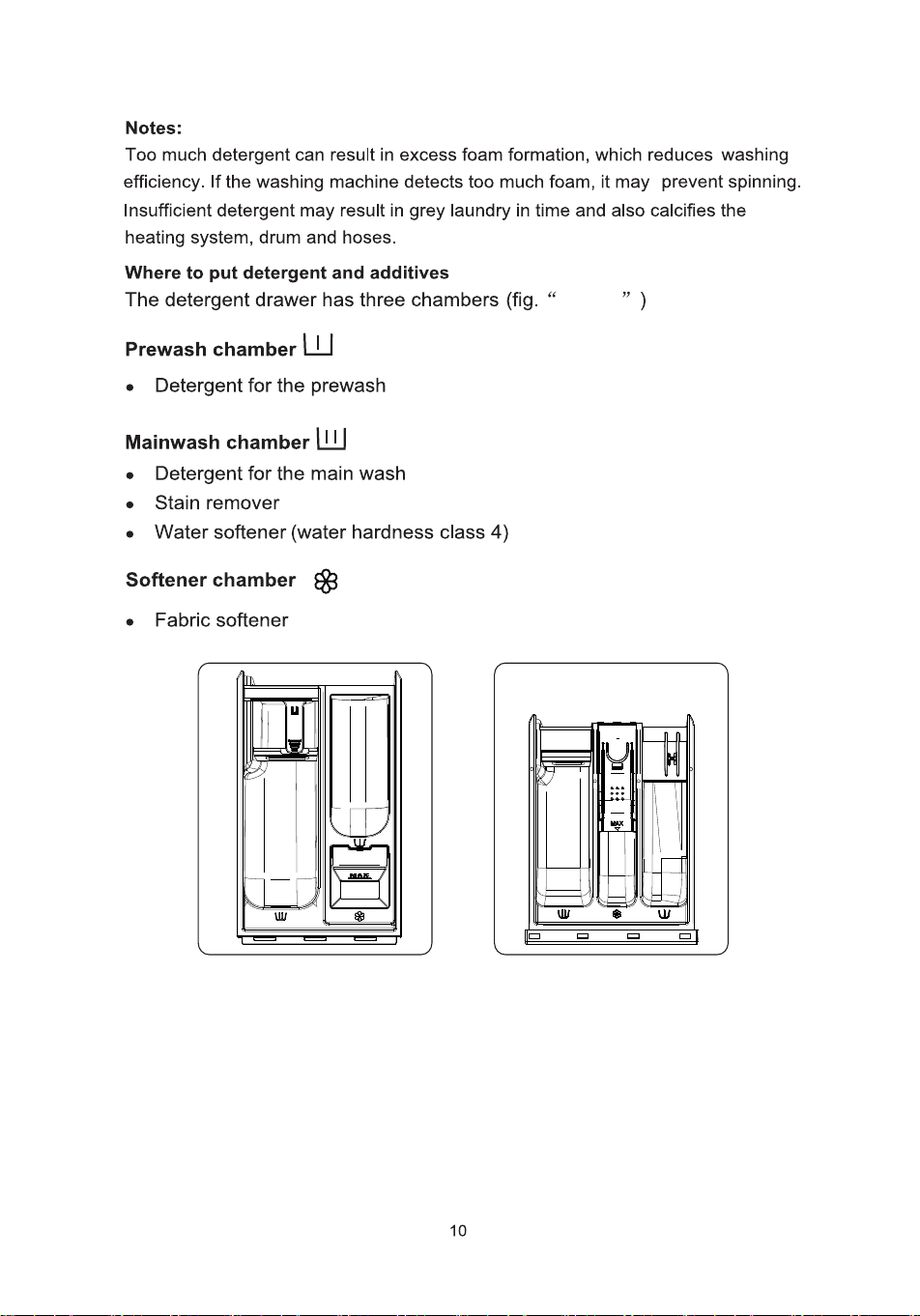

A
B
A or B

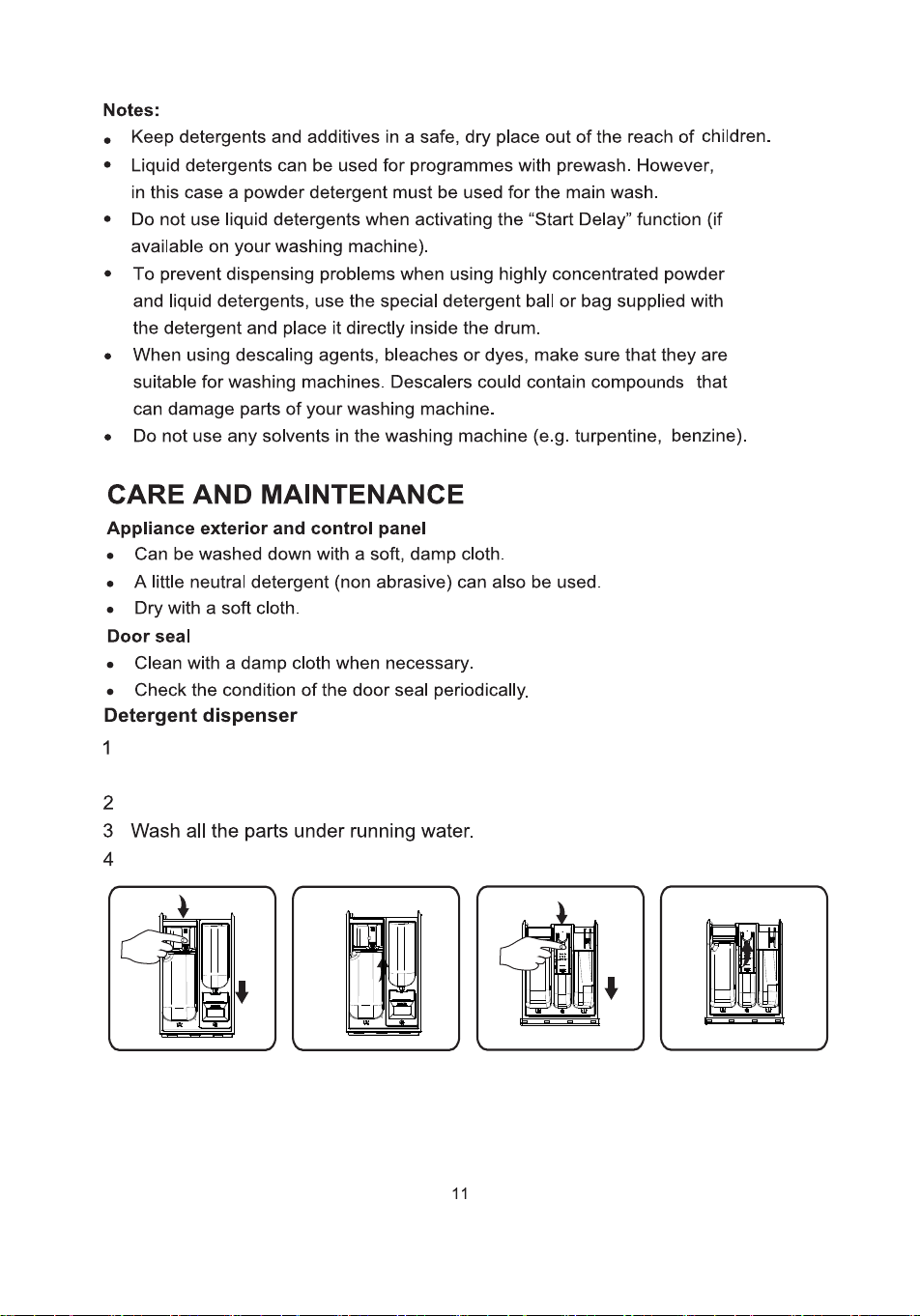

Refit the siphon in the detergent drawer and fit the drawer back inside its housing.
Press the release lever in the main wash compartment downward and
remove the drawer(fig.“C or E”).
Remove siphon in softener slot. (fig.“D or F”).
C
D
E
F
G
G
8

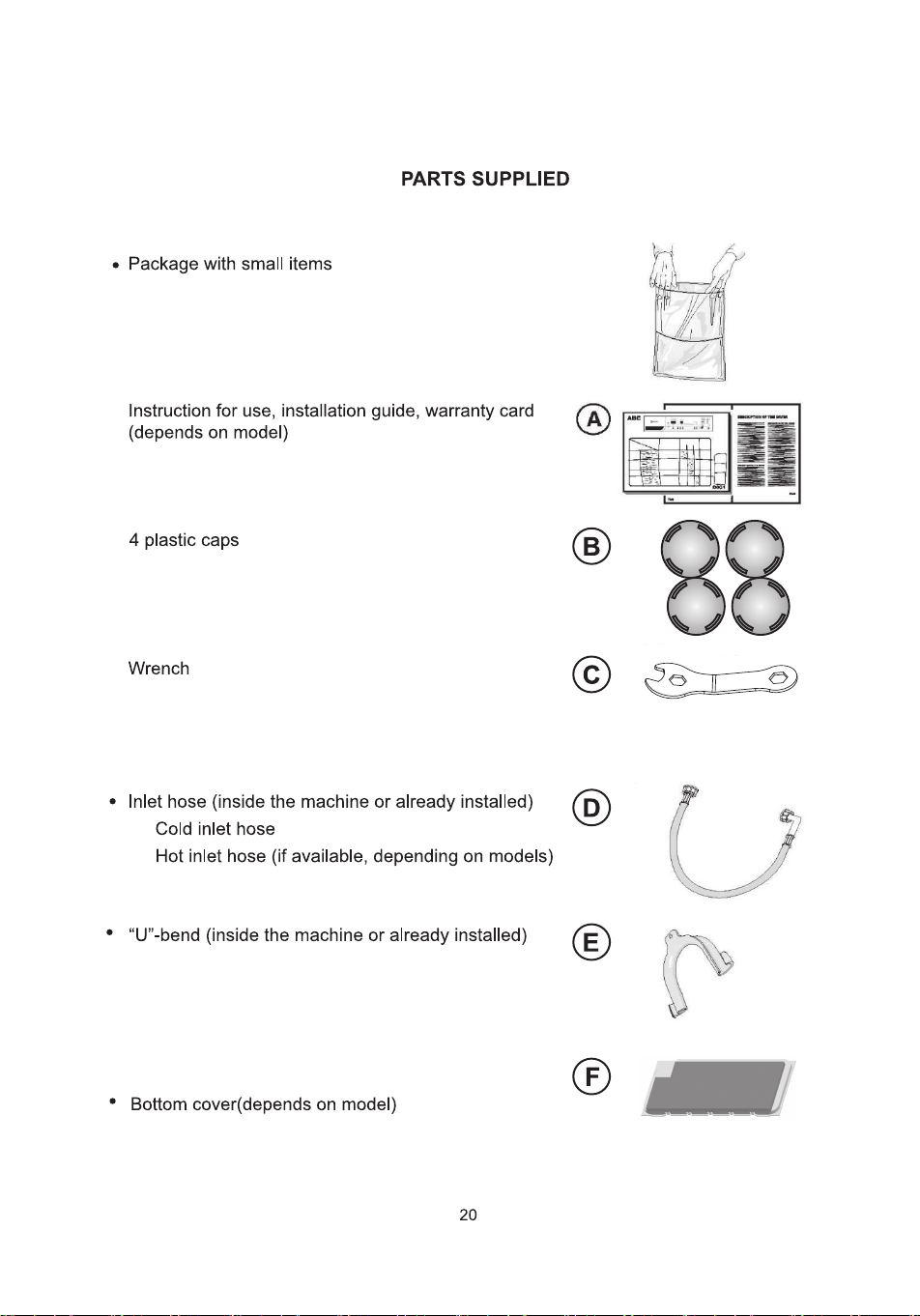

INSTALL BOTTOM COVER
To realize quieter operation, a bottom cover is supplied with the unit (only applies
to some of the Hisense washers). After installing the cover at the bottom of the
washer, the noise level will be greatly reduced. Please ask for advice from
specialists before installing the cover, nevertheless, the machine can be used
without the bottom cover.
Stick acoustic wool to the side of bottom cover plate
with the letter of “PUMP”.
Tilt the washer by 30°-40°, when installing the bottom
cover, please face the side with sound insulation
upwards and attach 'PUMP' at the corner of the cover
to the position of the pump in the washer.
PUMP
PUMP
Double sided tape
Right-angle impression
Before installing the noise-reduction bottom
plate, align and paste the acoustic absorption
wool with and along the right-angle impression
on bottom plate (this procedure is unnecessary
for some of the models without acoustic
absorption wool).
Remove surface paper on
double sided tape at four sides
of the bottom plate.
Incline the machine to an angle of 40° and let
the side with right-angle notch face towards
front of the washing machine, as shown in the
figure. Insert the side with oblique-angle notch
between two foot screws at back of the
washing machine completely in place. Then,
install the bottom plate and ensure that it
contacts with bottom of the washing machine
closely.
Press the double sided tape
on four sides manually to
secure the noise-reduction
palte to the machine body
firmly.
A:
B:
Noise-Reduction Bottom Plate Installation Instructions
Pump
2164941-X08060742C
