Swing Barrier
User Manual
Legal Informaon
©2022 Hangzhou Hikvision Digital Technology Co., Ltd. All rights reserved.
About this Manual
The Manual includes instrucons for using and managing the Product. Pictures, charts, images and
all other informaon hereinaer are for descripon and explanaon only. The informaon
contained in the Manual is subject to change, without noce, due to rmware updates or other
reasons. Please nd the latest version of this Manual at the Hikvision website ( hps://
www.hikvision.com/ ).
Please use this Manual with the guidance and assistance of professionals trained in
supporng the
Product.
Trademarks
and other Hikvision's trademarks and logos are the properes of
Hikvision in various jurisdicons.
Other trademarks and logos menoned are the properes of their respecve owners.
Disclaimer
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THIS MANUAL AND THE PRODUCT
DESCRIBED, WITH ITS HARDWARE, SOFTWARE AND FIRMWARE, ARE PROVIDED "AS IS" AND "WITH
ALL FAULTS AND ERRORS". HIKVISION MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING
WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, OR FITNESS FOR A PARTICULAR
PURPOSE. THE USE OF THE PRODUCT BY YOU IS AT YOUR OWN RISK. IN NO EVENT WILL HIKVISION
BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES,
INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS
INTERRUPTION, OR LOSS OF DATA, CORRUPTION OF SYSTEMS, OR LOSS OF DOCUMENTATION,
WHETHER BASED ON BREACH OF CONTRACT, TORT (INCLUDING NEGLIGENCE), PRODUCT LIABILITY,
OR OTHERWISE, IN CONNECTION WITH THE USE OF THE PRODUCT, EVEN IF HIKVISION HAS BEEN
ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR LOSS.
YOU ACKNOWLEDGE THAT THE NATURE OF THE INTERNET PROVIDES FOR INHERENT SECURITY
RISKS, AND HIKVISION SHALL NOT TAKE ANY RESPONSIBILITIES FOR ABNORMAL OPERATION,
PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER-ATTACK, HACKER ATTACK, VIRUS
INFECTION, OR OTHER INTERNET SECURITY RISKS; HOWEVER, HIKVISION WILL PROVIDE TIMELY
TECHNICAL SUPPORT IF REQUIRED.
YOU AGREE TO USE THIS PRODUCT IN COMPLIANCE WITH ALL APPLICABLE LAWS, AND YOU ARE
SOLELY RESPONSIBLE FOR ENSURING THAT YOUR USE CONFORMS TO THE APPLICABLE LAW.
ESPECIALLY, YOU ARE RESPONSIBLE, FOR USING THIS PRODUCT IN A MANNER THAT DOES NOT
INFRINGE ON THE RIGHTS OF THIRD PARTIES, INCLUDING WITHOUT LIMITATION, RIGHTS OF
PUBLICITY, INTELLECTUAL PROPERTY RIGHTS, OR DATA PROTECTION AND OTHER PRIVACY RIGHTS.
YOU SHALL NOT USE THIS PRODUCT FOR ANY PROHIBITED END-USES, INCLUDING THE
Swing Barrier User Manual
i
DEVELOPMENT OR PRODUCTION OF WEAPONS OF MASS DESTRUCTION, THE DEVELOPMENT OR
PRODUCTION OF CHEMICAL OR BIOLOGICAL WEAPONS, ANY ACTIVITIES IN THE CONTEXT RELATED
TO ANY NUCLEAR EXPLOSIVE OR UNSAFE NUCLEAR FUEL-CYCLE, OR IN SUPPORT OF HUMAN
RIGHTS ABUSES.
IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE LATTER
PREVAILS.
Data Protecon
During the use of device, personal data will be collected, stored and processed. To protect data,
the development of Hikvision devices incorporates privacy by design principles. For example, for
device with facial recognion features, biometrics data is stored in your device with encrypon
method; for ngerprint device, only ngerprint template will be saved, which is impossible to
reconstruct a ngerprint image.
As data controller, you are advised to collect, store, process and transfer data in accordance with
the applicable data
protecon laws and regulaons, including without limitaon, conducng
security controls to safeguard personal data, such as, implemenng reasonable administrave and
physical security controls, conduct periodic reviews and assessments of the
eecveness of your
security controls.
Swing Barrier User Manual
ii
Regulatory Informaon
FCC Informaon
Please take aenon that changes or modicaon not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
FCC compliance: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable
protecon against harmful interference in a residenal installaon. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in accordance
with the
instrucons, may cause harmful interference to radio communicaons. However, there is
no guarantee that interference will not occur in a parcular installaon. If this equipment does
cause harmful interference to radio or television
recepon, which can be determined by turning
the equipment o and on, the user is encouraged to try to correct the interference by one or more
of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the
separaon between the equipment and receiver.
—Connect the equipment into an outlet on a circuit
dierent from that to which the receiver is
connected.
—Consult the dealer or an experienced radio/TV technician for help
This equipment should be installed and operated with a minimum distance 20cm between the
radiator and your body.
FCC
Condions
This device complies with part 15 of the FCC Rules. Operaon is subject to the following two
condions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause
undesired
operaon.
EU Conformity Statement
This product and - if applicable - the supplied accessories too are marked with "CE"
and comply therefore with the applicable harmonized European standards listed
Swing Barrier User Manual
iii
under the EMC Direcve 2014/30/EU, RE Direcve 2014/53/EU,the RoHS Direcve
2011/65/EU
2012/19/EU (WEEE direcve): Products marked with this symbol cannot be disposed
of as unsorted municipal waste in the European Union. For proper recycling, return
this product to your local supplier upon the purchase of equivalent new equipment,
or dispose of it at designated
collecon points. For more informaon see:
www.recyclethis.info
2006/66/EC (baery direcve): This product contains a baery that cannot be
disposed of as unsorted municipal waste in the European Union. See the product
documentaon for specic baery informaon. The baery is marked with this
symbol, which may include
leering to indicate cadmium (Cd), lead (Pb), or mercury
(Hg). For proper recycling, return the
baery to your supplier or to a designated
collecon point. For more informaon see:www.recyclethis.info
Swing Barrier User Manual
iv
Safety Instrucon
These instrucons are intended to ensure that user can use the product correctly to avoid danger
or property loss.
The
precauon measure is divided into Dangers and Cauons:
Dangers: Neglecng any of the warnings may cause serious injury or death.
Cauons: Neglecng any of the cauons may cause injury or equipment damage.
Dangers: Follow these safeguards to prevent
serious injury or death.
Cauons: Follow these precauons to prevent
potenal injury or material damage.
Danger:
●
All the electronic operaon should be strictly compliance with the electrical safety regulaons,
re prevenon regulaons and other related regulaons in your local region.
●
Please use the power adapter, which is provided by normal company. The power consumpon
cannot be less than the required value.
●
Do not connect several devices to one power adapter as adapter overload may cause over-heat
or
re hazard.
●
Please make sure that the power has been disconnected before you wire, install or dismantle the
device.
If the top caps should be open and the device should be powered on for maintenance, make
sure:
1. Power
o the fan to prevent the operator from geng injured accidentally.
2. Do not touch bare high-voltage components.
3. Make sure the switch’s wiring sequence is correct
aer maintenance.
●
Please make sure that the power has been disconnected before you wire, install or dismantle the
device.
●
When the product is installed on wall or ceiling, the device shall be
rmly xed.
●
If smoke, odors or noise rise from the device, turn
o the power at once and unplug the power
cable, and then please contact the service center.
●
Do not ingest
baery, Chemical Burn Hazard.
This product contains a coin/buon cell baery. If the coin/buon cell baery is swallowed, it
can cause severe internal burns in just 2 hours and can lead to death.
Keep new and used
baeries away from children. If the baery compartment does not close
securely, stop using the product and keep it away from children. If you think baeries might have
been swallowed or placed inside any part of the body, seek immediate medical
aenon.
●
If the product does not work properly, please contact your dealer or the nearest service center.
Never
aempt to disassemble the device yourself. (We shall not assume any responsibility for
problems caused by unauthorized repair or maintenance.)
Swing Barrier User Manual
v
Cauons:
●
Stainless steel may be corroded in some circumstances. You need to clean and care the device by
using the stainless steel cleaner. It is suggested to clean the device every month.
●
Do not drop the device or subject it to physical shock, and do not expose it to high
electromagnesm radiaon. Avoid the equipment installaon on vibraons surface or places
subject to shock (ignorance can cause equipment damage).
●
Do not place the device in extremely hot (refer to the specicaon of the device for the detailed
operang temperature), cold, dusty or damp locaons, and do not expose it to high
electromagnec radiaon.
●
The device cover for indoor use shall be kept from rain and moisture.
●
Exposing the equipment to direct sun light, low
venlaon or heat source such as heater or
radiator is forbidden (ignorance can cause
re danger).
●
Do not aim the device at the sun or extra bright places. A blooming or smear may occur
otherwise (which is not a malfuncon however), and aecng the endurance of sensor at the
same me.
●
Please use the provided glove when open up the device cover, avoid direct contact with the
device cover, because the acidic sweat of the ngers may erode the surface coang of the device
cover.
●
Please use a
so and dry cloth when clean inside and outside surfaces of the device cover, do
not use alkaline detergents.
●
Please keep all wrappers aer unpack them for future use. In case of any failure occurred, you
need to return the device to the factory with the original wrapper.
Transportaon without the
original wrapper may result in damage on the device and lead to addional costs.
●
Improper use or replacement of the
baery may result in hazard of explosion. Replace with the
same or equivalent type only. Dispose of used baeries according to the instrucons provided by
the
baery manufacturer.
●
Biometric recognion products are not completely applicable to an-spoong environments. If
you require a higher security level, use
mulple authencaon modes.
●
Do not stay in the lane when the device is reboong.
●
RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED
BATTERIES ACCORDING TO THE INSTRUCTIONS.
●
SUITABLE FOR MOUNTING ON CONCRETE OR OTHER NON-COMBUSTIBLE SURFACE ONLY.
●
The
instrucons shall require connecon of the equipment protecve earthing conductor to the
installaon protecve earthing conductor.
Swing Barrier User Manual
vi
Available Models
Product Name Model Descripon

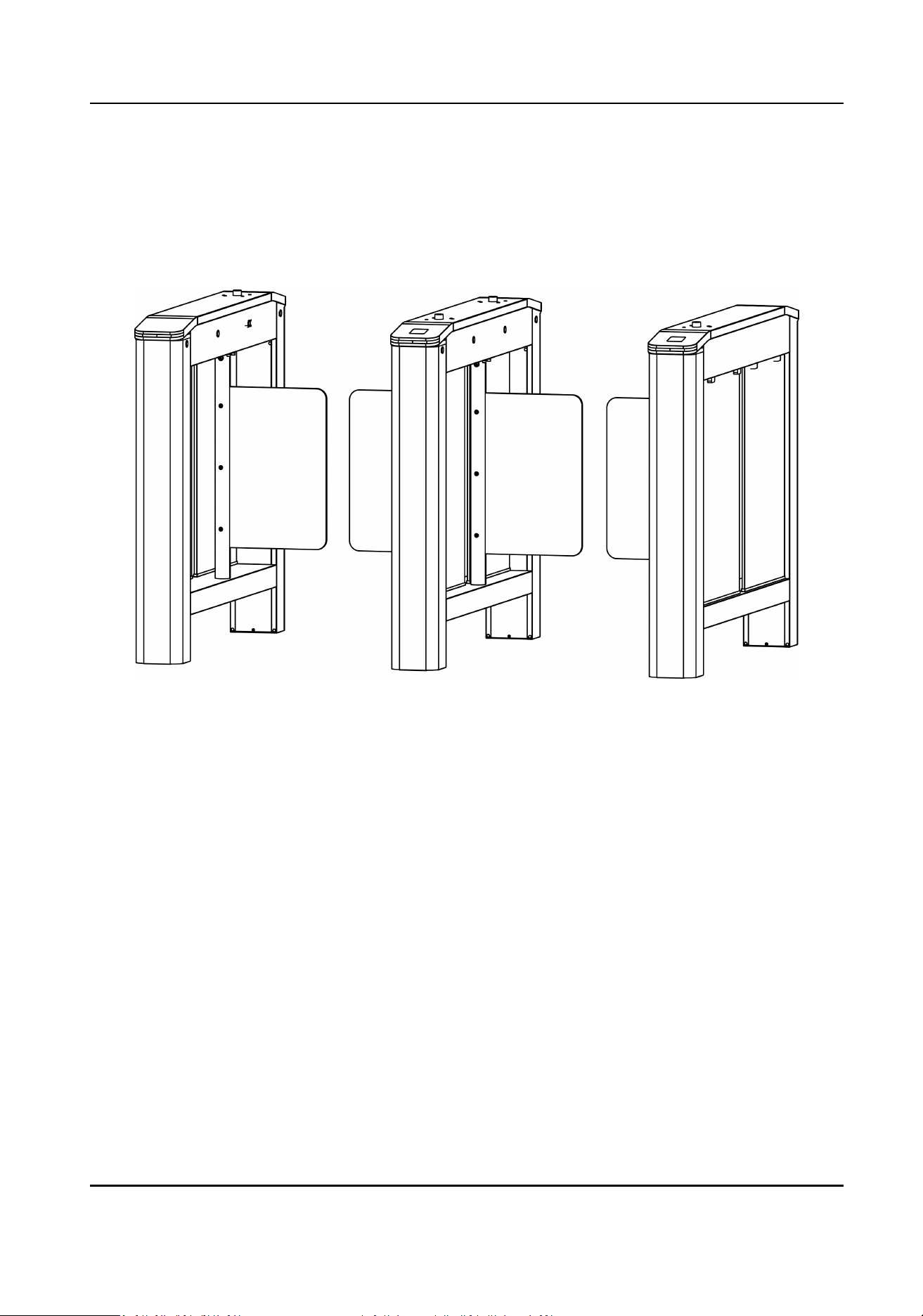

Swing Barrier DS-K3B220X-L Le Pedestal
DS-K3B220X-M Middle Pedestal
DS-K3B220X-R Right Pedestal
Swing Barrier User Manual
vii
Contents
Chapter 1 Overview .................................................................................................................... 1
1.1 Introducon ........................................................................................................................... 1
1.2 Main Features ........................................................................................................................ 1
Chapter 2 System Wiring ............................................................................................................ 3
Chapter 3 Installaon ................................................................................................................. 6
Chapter 4 General Wiring ......................................................................................................... 10
4.1 Components Introducon .................................................................................................... 10

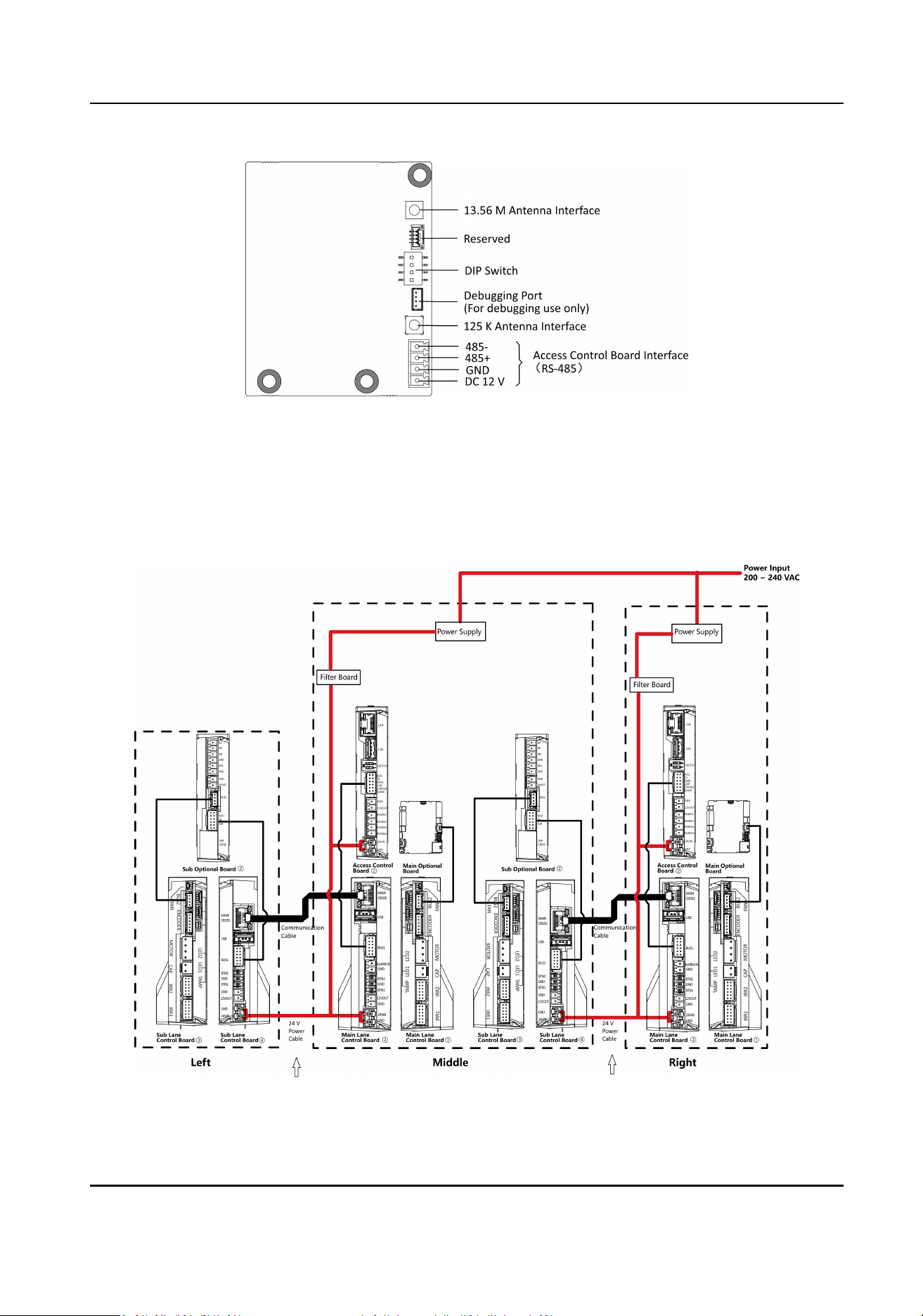

4.2 Wiring .................................................................................................................................. 12
4.3 Terminal
Descripon ............................................................................................................ 13

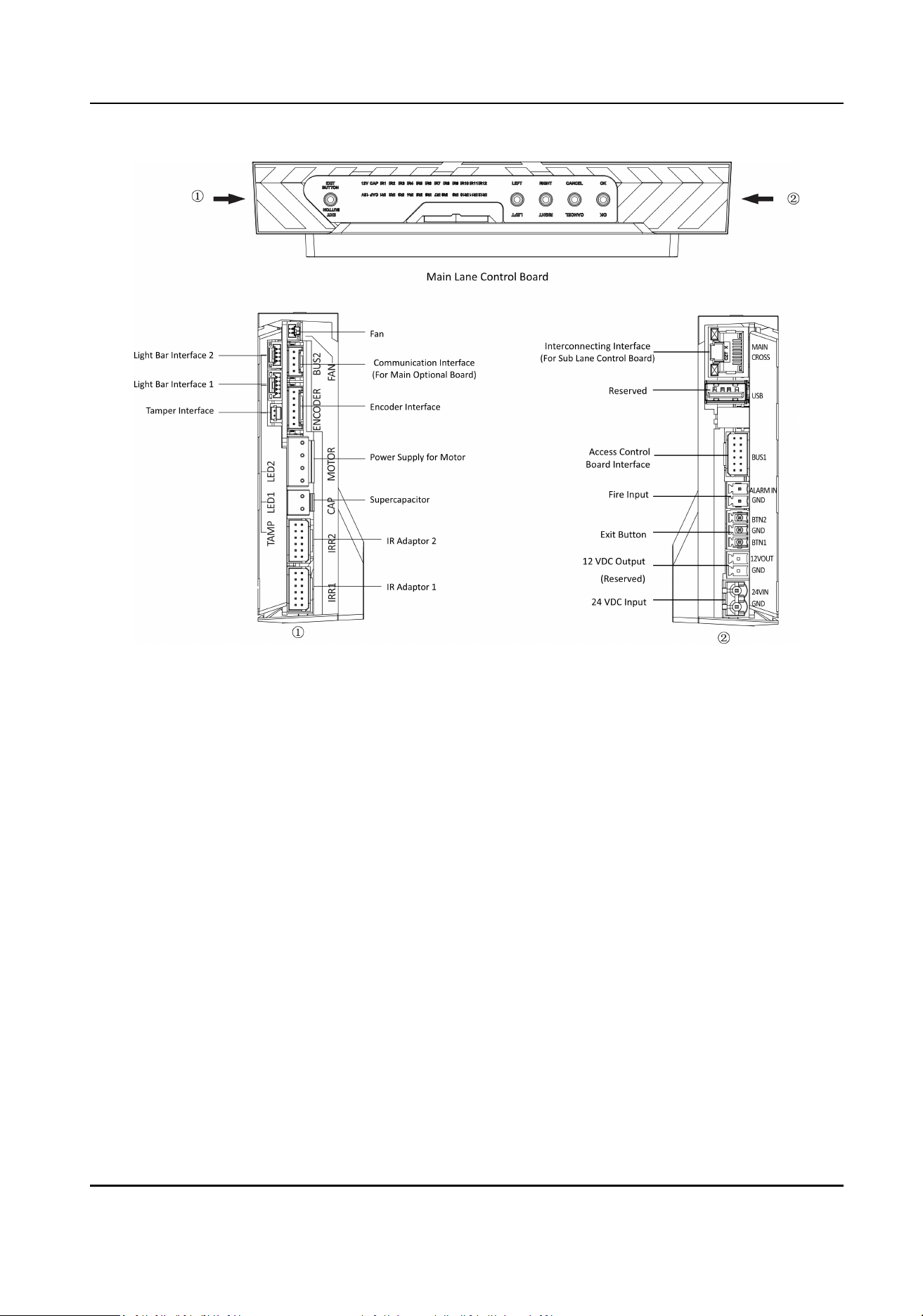

4.3.1 Main Lane Control Board Terminal Descripon .......................................................... 13

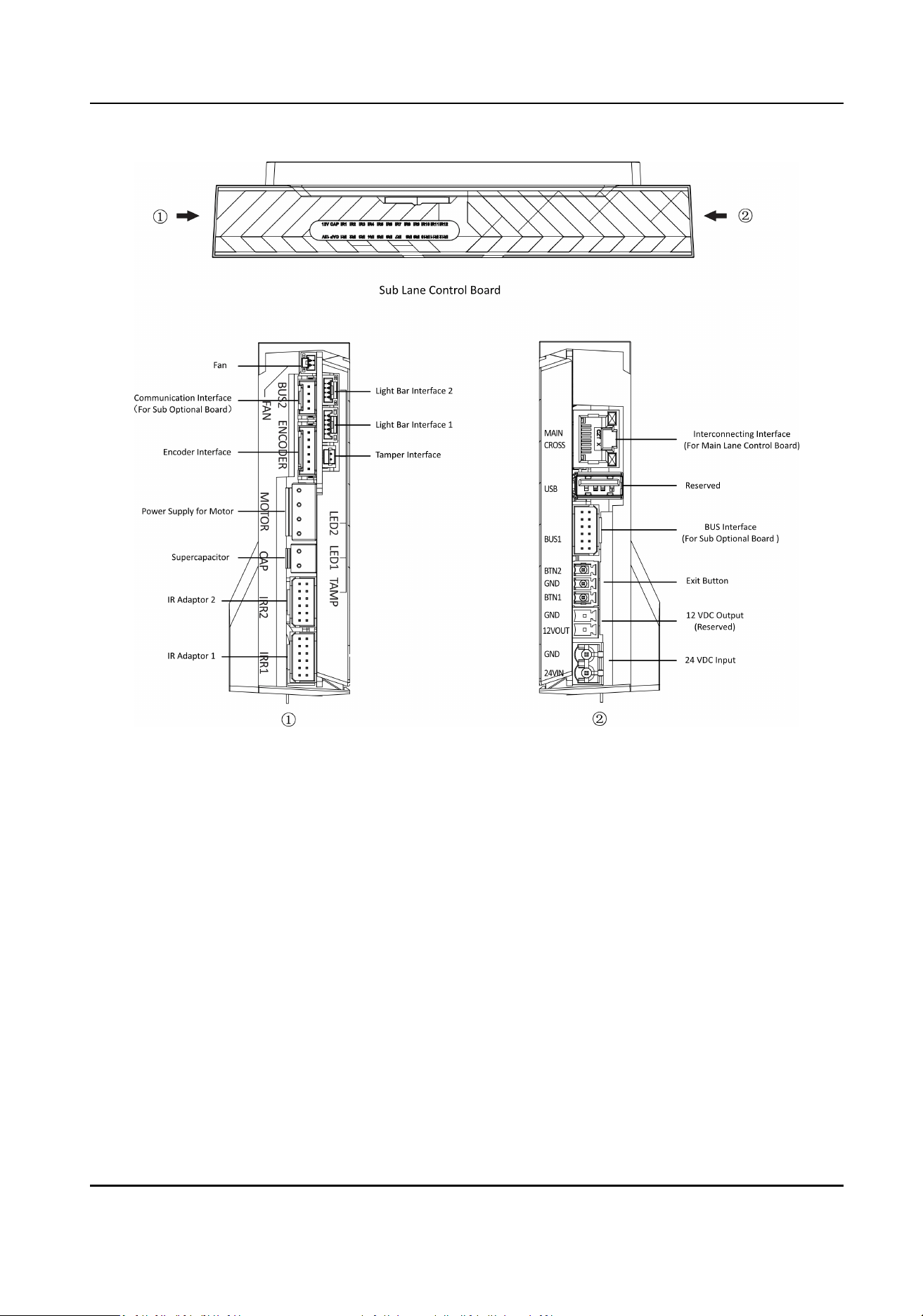

4.3.2 Sub Lane Control Board Terminal Descripon ............................................................ 14

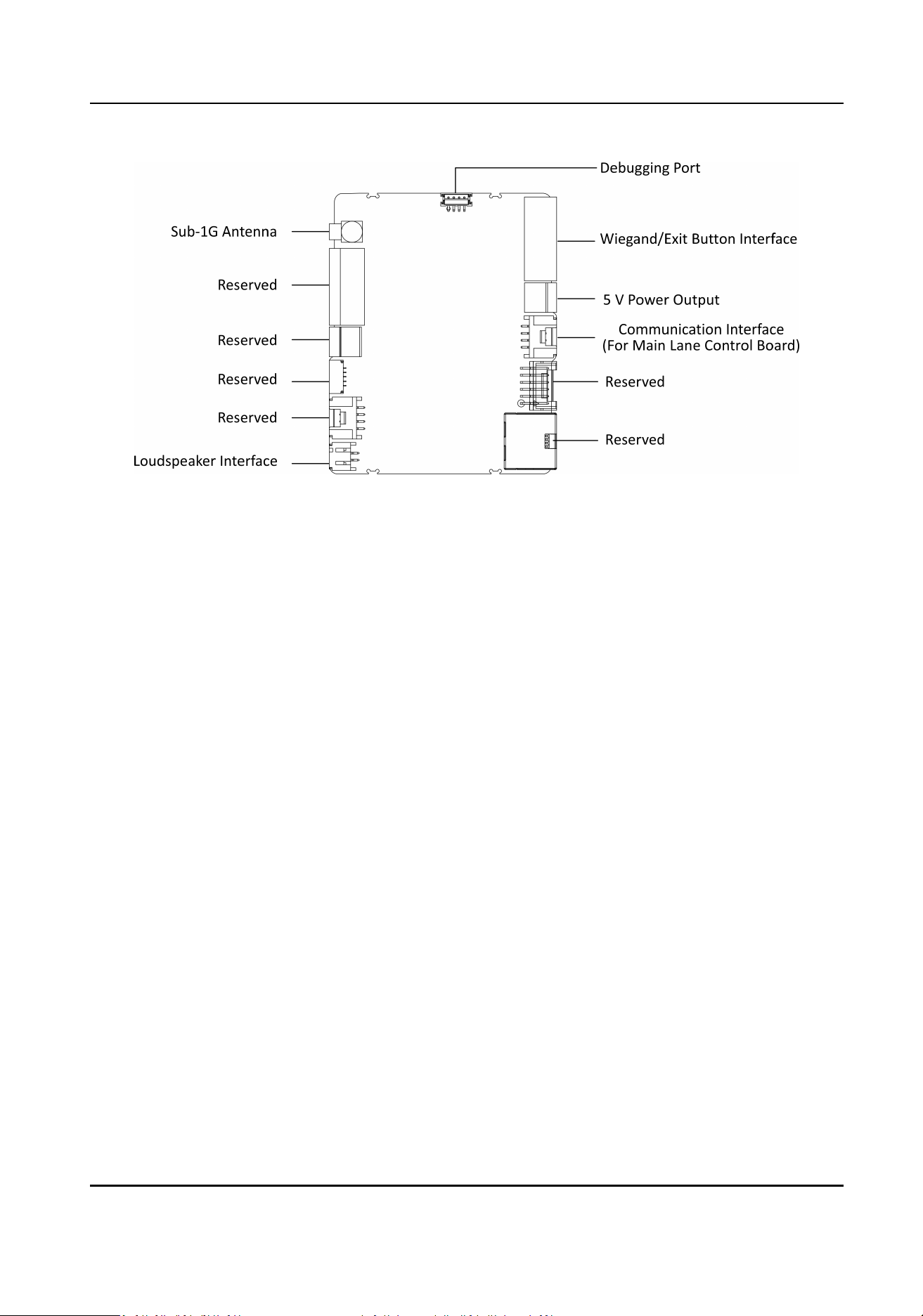

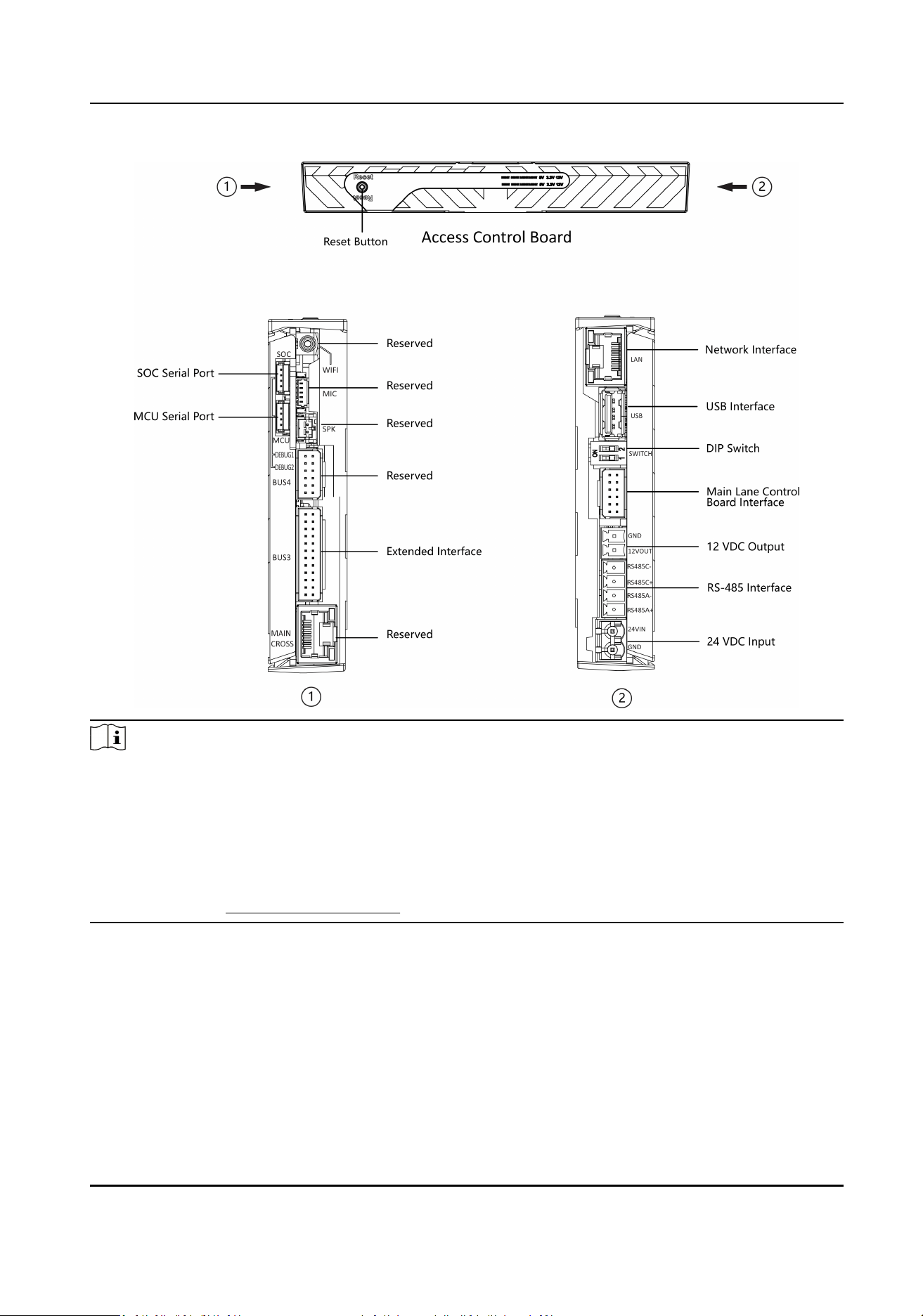

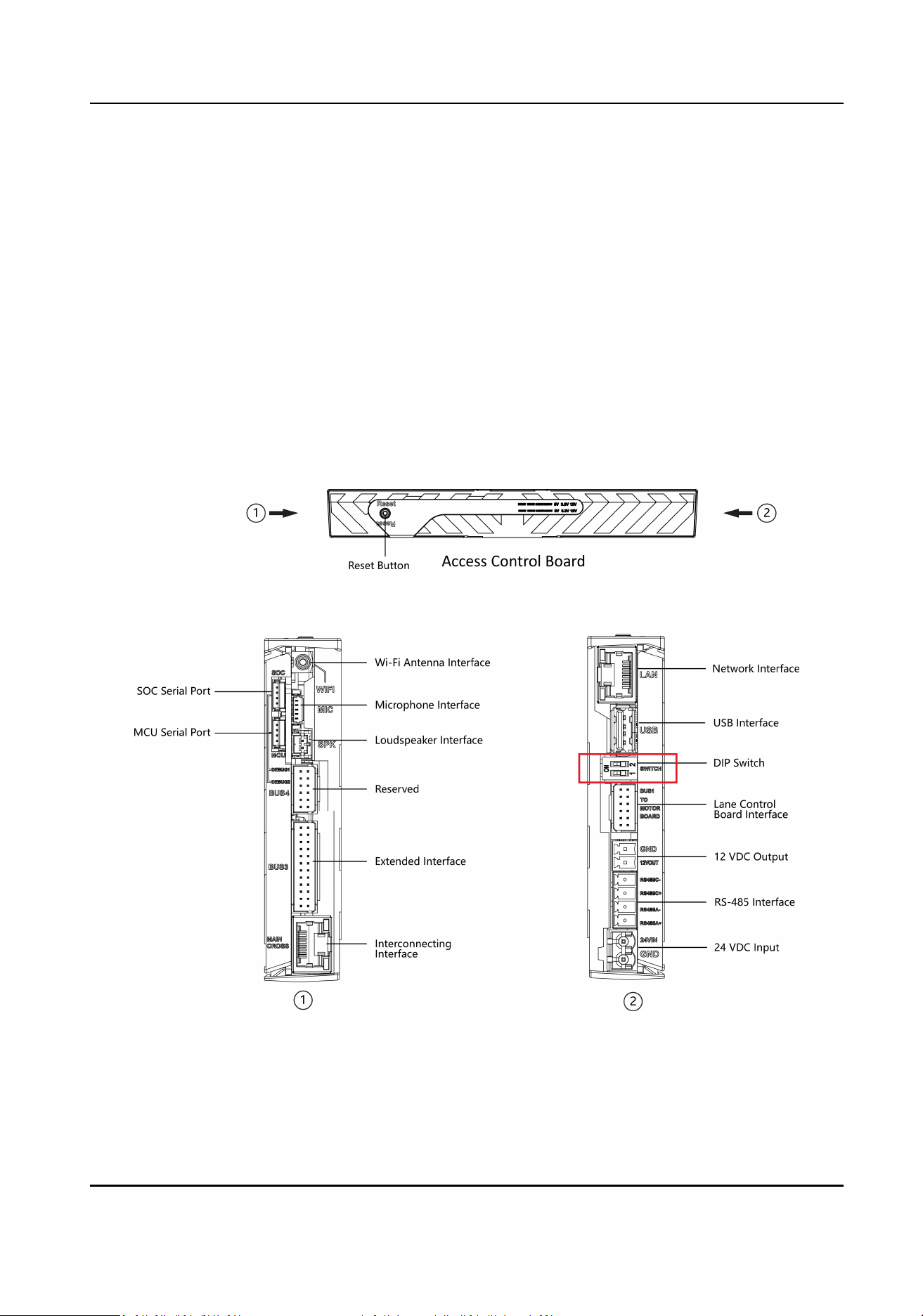

4.3.3 Access Control Board Terminal
Descripon ................................................................ 15
4.3.4 Main Oponal Board Terminal Descripon (Oponal) ............................................... 17

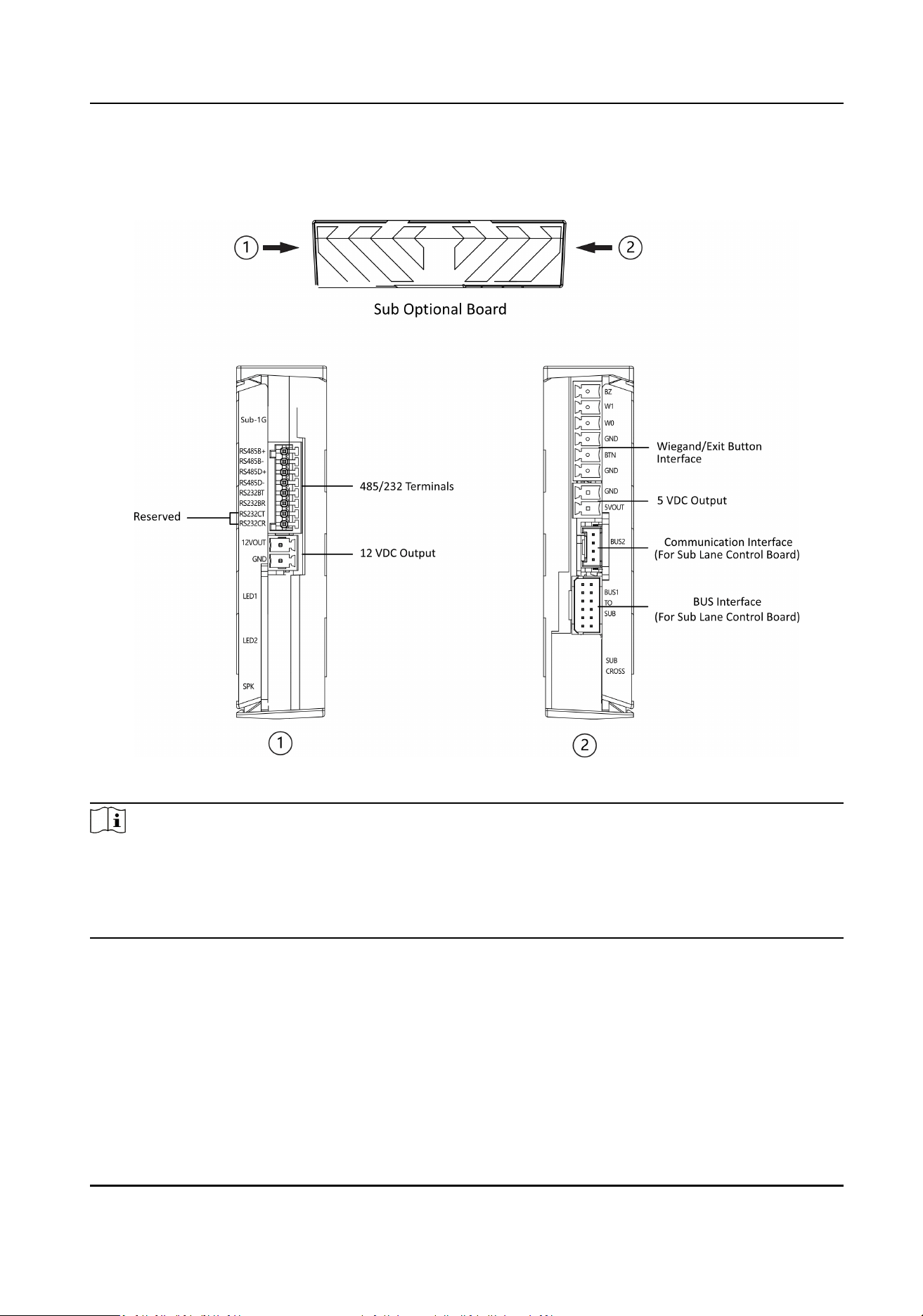

4.3.5 Sub Oponal Board Terminal Descripon (Oponal) .................................................. 19
4.3.6 Card Reader Board Terminal
Descripon .................................................................... 19
4.3.7 General Wiring ............................................................................................................ 20
4.3.8 RS-485 Wiring ............................................................................................................. 21
4.3.9 RS-232 Wiring ............................................................................................................. 22
4.3.10 Alarm Input Wiring ................................................................................................... 22
4.3.11 Exit
Buon Wiring ..................................................................................................... 23
4.4 Device
Sengs ..................................................................................................................... 24
4.4.1 Conguraon via Buon ............................................................................................. 25
4.4.2 Study Mode Sengs ................................................................................................... 28
4.4.3 Keyfob Pairing ............................................................................................................. 30
4.4.4
Inialize Device ........................................................................................................... 32
Chapter 5 Acvaon ................................................................................................................. 34
Swing Barrier User Manual
viii
5.1 Acvate via SADP ................................................................................................................. 34
5.2 Acvate Device via iVMS-4200 Client Soware ................................................................... 35
Chapter 6
Operaon via Web Browser ...................................................................................... 37
6.1 Login .................................................................................................................................... 37
6.2 Overview .............................................................................................................................. 37
6.3 Person Management ............................................................................................................ 38
6.4 Search Event ........................................................................................................................ 40
6.5 Conguraon ....................................................................................................................... 42
6.5.1 View Device Informaon ............................................................................................. 42
6.5.2 Set Time ...................................................................................................................... 42
6.5.3 Set DST ........................................................................................................................ 43
6.5.4 Change Administrator's Password ............................................................................... 43
6.5.5 Online Users ................................................................................................................ 43
6.5.6 View Device Arming/Disarming Informaon .............................................................. 44
6.5.7 Network Sengs ......................................................................................................... 44
6.5.8 Event Linkage .............................................................................................................. 46
6.5.9 Access Control
Sengs ............................................................................................... 47
6.5.10 Turnsle .................................................................................................................... 51
6.5.11 Card Sengs ............................................................................................................. 55
6.5.12 Set Privacy Parameters .............................................................................................. 57
6.5.13 Upgrade and Maintenance ....................................................................................... 57
6.5.14 Device Debugging ..................................................................................................... 58
6.5.15 Component Status .................................................................................................... 58
6.5.16 Log Query .................................................................................................................. 60
6.5.17
Cercate Management ........................................................................................... 61
Chapter 7 Client
Soware Conguraon ................................................................................... 63
7.1 Conguraon Flow of Client Soware ................................................................................. 63
7.2 Device Management ............................................................................................................ 64
Swing Barrier User Manual
ix
7.2.1 Add Device .................................................................................................................. 64
7.2.2 Reset Device Password ................................................................................................ 66
7.2.3 Manage Added Devices .............................................................................................. 67
7.3 Group Management ............................................................................................................. 68
7.3.1 Add Group ................................................................................................................... 68
7.3.2 Import Resources to Group ......................................................................................... 68
7.4 Person Management ............................................................................................................ 69
7.4.1 Add
Organizaon ........................................................................................................ 69
7.4.2 Import and Export Person Idenfy Informaon .......................................................... 70
7.4.3 Get Person Informaon from Access Control Device .................................................. 72
7.4.4 Issue Cards to Persons in Batch ................................................................................... 73
7.4.5 Report Card Loss ......................................................................................................... 73
7.4.6 Set Card Issuing Parameters ........................................................................................ 74
7.5 Congure Schedule and Template ....................................................................................... 75
7.5.1 Add Holiday ................................................................................................................. 75
7.5.2 Add Template .............................................................................................................. 76
7.6 Set Access Group to Assign Access
Authorizaon to Persons .............................................. 77
7.7 Congure Advanced Funcons ............................................................................................ 79
7.7.1 Congure Device Parameters ...................................................................................... 80
7.7.2
Congure Other Parameters ....................................................................................... 87
7.8 Door/Elevator Control .......................................................................................................... 89
7.8.1 Control Door Status ..................................................................................................... 90
7.8.2 Check Real-Time Access Records ................................................................................ 91
Appendix A. DIP Switch ............................................................................................................ 93
A.1 DIP Switch
Descripon ......................................................................................................... 93
A.2 DIP Switch Corresponded
Funcons .................................................................................... 93
Appendix B. Buon Conguraon Descripon .......................................................................... 94
Appendix C. Event and Alarm Type ......................................................................................... 105
Swing Barrier User Manual
x
Appendix D. Table of Audio Index Related Content ................................................................. 106
Appendix E. Error Code Descripon ........................................................................................ 107
Appendix F.
Communicaon Matrix and Device Command ..................................................... 108
Swing Barrier User Manual
xi
Chapter 1 Overview
1.1 Introducon
The Swing barrier with 4 IR lights is designed to detect unauthorized entrance or exit. By adopng
the swing barrier integratedly with the access control system, person should authencate to pass
through the lane via swiping IC or ID card, scanning QR code, etc. It is widely used in
aracons,
stadiums, construcon sites, residences, etc.
1.2 Main Features
●
Supports control mode, inducve mode, free passing mode, remain open mode and remain
close mode in both entrance and exit
direcon.
●
An-forced-accessing
The barrier will be locked automacally without open-barrier signal.
●
Self-detecon, self-diagnoscs, and automac alarm
●
Audible and visual alarm will be triggered when detecng intrusion, tailgang, reverse passing,
and climbing over barrier.
●
LED indicates the entrance/exit and passing status
●
Fire alarm passing
When the
re alarm is triggered, the barrier will be open automacally for emergency
evacuaon.
Swing Barrier User Manual
1
●
Valid passing duraon sengs
System will cancel the passing permission if a person does not pass through the lane within the
valid passing duraon.
●
Bidireconal (Entrance/Exit) lane
The barrier opening and closing speed can be
congured according to the visitor ow.
●
TCP/IP network communicaon
The communicaon data is specially encrypted to relieve the concern of privacy leak.
●
Permissions
validaon and an-tailgang
●
Remote barrier opening via keyfob and broadcasng via loudspeaker when the keyfob receiving
kit (oponal) is installed.
Swing Barrier User Manual
2
Chapter 2 System Wiring
The preparaon before installaon and general wiring.
Steps
Note
●
The device should be installed on the concrete surface or other non-ammable surfaces.
●
If the installaon area is too close to the wall, make sure the distance between the pedestal and
the wall should be no less than 20 mm, or you cannot open the pedestal's top panel.
●
The dimension is as follows.
Swing Barrier User Manual
3
Figure 2-1 Dimension
1.
Draw a central line on the installaon surface of the le or right pedestal.
2.
Draw other parallel lines for installing the other pedestals.
Note
The distance between the nearest two line is L + 146 mm. L represents the lane width.
3.
Slot on the installaon surface and dig installaon holes. Put 4 expansion bolts of M12*120 for
each pedestal.
Swing Barrier User Manual
4
Figure 2-2 Hole Posion and System Wiring
4.
Bury cables. Each lane buries 1 high voltage cable and 1 low voltage cable. For details, see the
system wiring diagram of step 3.
Note
●
High voltage: AC power input
Low voltage: interconnecng cable (communicaon cable and 24 V power cable) and network
communicaon cable
●
The supplied 24 V power cable length is 5 m and the
communicaon cable length is 3 m.
●
The suggested inner diameter of the low voltage conduit is larger than 30 mm.
●
If you want to bury both of the AC power cord and the low voltage cable, the two cables
should be in separated conduits to avoid interference.
●
If more peripherals are required to connect, you should increase the conduit diameter or bury
another conduit for the external cables.
●
The external AC power cord should be double-insulated.
●
The network cable must be CAT5e or the network cable has
beer performance.
Swing Barrier User Manual
5
4. Place the pedestal above the embedded expansion bolt. Unscrew and remove the maintenance
door.
Figure 3-2 Maintenance Door
5. Place the platen on the expansion bolt and adjust the posion of the pedestal to make sure the
platen ts well to the boom of the pedestal.
Swing Barrier User Manual
7
Figure 3-3 Platen
6. Fasten the nuts of the expansion bolts with a screwdriver (sha diameter under 7 mm and
shank length more than 120 mm) and reinstall the maintenance door.
Scan the QR Code to watch the
installaon guide video.
Swing Barrier User Manual
8
Swing Barrier User Manual
9
Chapter 4 General Wiring
Note
●
When you should maintain or disassemble the high voltage modules, you should remove the
enre high voltage modules and maintain it outside the turnsle. You should unplug the cables
that connected to the peripherals before maintenance to avoid destroy of the device.
●
When disassembling the high voltage module, you should disconnect the power to avoid injury.
●
If only wiring is needed without maintenance, do not remove the high voltage modules.
●
The switch and the main lane control board are already connected. The 14 AWG cable to
connect between the AC electric supply and the switch should be purchased separately.
●
2
interconnecng cables are supplied: 24 V Power Cable and Communicaon Cable.
24 V Power Cable: 5 m long, which is in the middle and right pedestal.
Communicaon Cable: 4 m long, CAT5e, which is in the package of middle and right pedestal.
4.1 Components Introducon
By default, basic components of the turnsle are connected well. The pedestals can communicate
by wiring the interconnecng cables. And the turnsle supports wiring the AC electric supply for
the whole system's power supply.
Note
The voltage uctuaon of the electric supply is between 100 VAC and 260 VAC, 50 to 60 Hz.
The picture displayed below describes the serial port on the entrance and exit direcon.
Swing Barrier User Manual
10
Figure 4-1 Serial Port
The picture displayed below describes the IR sending/receiving module and their corresponding
number on the pedestal.
Swing Barrier User Manual
11
Figure 4-2 IR Sending/Receiving Module Posion
Note
Standing at the entrance posion in the lane, the IR modules on your le are the IR sending
modules, the ones on your right are the IR receiving modules.
4.2 Wiring
Scan the QR code to watch the wiring guide video.
Swing Barrier User Manual
12
4.3 Terminal Descripon
The lane controller contains main lane controller and sub lane controller, which controls the IR
beams, motor, and other components' work.
4.3.1 Main Lane Control Board Terminal
Descripon
The main lane control board contains interconnecng interface, USB ash drive interface
(reserved), access control board interface,
re input interface, exit buon interface, 12 VDC output
interface (reserved), 24 VDC input interface, fan interface, communicaon interface, encoder
interface, power supply interface for motor, supercapacitor interface, IR adaptor interface and light
bar interface.
The picture displayed below is the main lane control board diagram.
Swing Barrier User Manual
13
Figure 4-3 Main Lane Control Board Terminals
4.3.2 Sub Lane Control Board Terminal
Descripon
The sub lane control board contains interconnecng interface, USB ash drive interface (reserved),
access control board interface, exit
buon interface, 12 VDC power output interface (reserved), 24
VDC power input interface, fan interface, communicaon interface, encoder interface, power
supply interface for motor, supercapacitor interface, IR adaptor interface and light bar interface.
The picture displayed below is the sub lane control board diagram.
Swing Barrier User Manual
14
Figure 4-4 Sub Lane Control Board Terminals
4.3.3 Access Control Board Terminal
Descripon
Access control board is mainly used for authority idencaon in places with high security levels
such as public security or judicial place, external device accessing, and communicaon with the
upper
plaorm and lane controller.
Swing Barrier User Manual
15
Note
●
RS-485A corresponds to UART 5 on web and is for QR code scanner connecon at entrance by
default; RS-485C corresponds to UART 7 on web and is for card reader connecon at entrance by
default.
●
The SOC and MCU serial port are for maintenance and debugging use only.
●
Press the Reset buon for 5 s and the device will start to restore to factory sengs.
●
The DIP switch is for study mode seng and keyfob paring. For detailed informaon about the
DIP switch, see DIP Switch Descripon .
The wiring diagram of extended interface of access control board is shown as follows.
Swing Barrier User Manual
16
Figure 4-5 Wring Diagram of BUS3 Interface
Note
RS-232A corresponds to UART 1 on web.
4.3.4 Main Oponal Board Terminal Descripon (Oponal)
The main oponal board contains the sub-1G antenna interface, loudspeaker interface, debugging
port, Wiegand/exit
buon interface, 5 VDC output and communicaon interface.
Swing Barrier User Manual
17
Figure 4-6 Main Oponal Board Terminal
Swing Barrier User Manual
18
4.3.5 Sub Oponal Board Terminal Descripon (Oponal)
Figure 4-7 Sub Oponal Board Terminal
Note
●
RS-485B corresponds to uart 6 on web and is for QR code scanner connecon by default.
●
RS-485D corresponds to uart 4 on web and is for card reader connecon by default.
●
RS-232B corresponds to uart 2 on web and is for ngerprint reader connecon by default.
●
RS-232C is reserved.
4.3.6 Card Reader Board Terminal Descripon
The card reader board can be connected to the access control board via RS-485 interface.
Swing Barrier User Manual
19
Figure 4-8 Card Reader Board
4.3.7 General Wiring
The general wiring of lane control board, access control board and oponal board.
Figure 4-9 General Wiring
Swing Barrier User Manual
20
Note
●
The power cable from power supply to the main lane control board has been connected. You will
need to prepare the 14AWG power cable to connect the AC power input to power supply.
●
The supplied 2 interconnecng cables need connecng on-site:
1. 24 V power cable of 14 AWG. The cable is 5 m in length and put inside the right/middle
pedestal at the exit.
2. UTP-5e
Communicaon cable. The cable is 3 m in length and put inside the package of the
right/middle pedestal.
●
The ① and ② or ③ and ④ refer to the two sides of a same board.
●
Barrier opens at the entrance/exit: connect to BTN1/BTN2 and GND.
4.3.8 RS-485 Wiring
The RS-485 interfaces on the access control board are suggested to connect with the face
recognion module or the card reader. Here takes connecng with a card reader as an example.
Note
●
There are 2 RS-485 interfaces on the access control board for entrance. Refer to Access Control
Board Terminal Descripon for details.
There are 2 RS-485 interfaces on the sub oponal board for exit. Refer to Sub Oponal Board
Terminal Descripon (Oponal) for details.
●
If
connecng the RS-485 with a card reader, by default, the DIP switch of the card reader is: 1 for
entrance, and 4 for exit.
●
If there are other RS-485 devices connecng, the ID of the RS-485 cannot be conicted.
●
The connected 12 V power interface for the face
recognion terminal cannot be connected with
other 12 V devices.
Figure 4-10 Wiring RS-485
Swing Barrier User Manual
21
4.3.9 RS-232 Wiring
Note
●
There is 1 RS-232 interface on the extended interface of access control board. The RS-232A
corresponds to uart 1 on web, connecng to ngerprint scanner by default.
●
There is 1 available RS-232 interface on the sub oponal board. The RS-232B corresponds to uart
2 on web,
connecng to ngerprint scanner by default.
The RS-232C interface is reserved.
Figure 4-11 RS-232 Wiring
4.3.10 Alarm Input Wiring
On the main lane control board, you can wire the re alarm input interface.
Figure 4-12 Remaining Open
Swing Barrier User Manual
22
Figure 4-13 Remaining Closed
4.3.11 Exit Buon Wiring
The main and sub lane control board each has 1 buon interface, which can be connected to exit
buon or face recognion device.
Figure 4-14 Exit Buon Wiring
Note
●
The face recognion devices are powered via 12 VDC power output interface of the main and
sub lane control board.
●
Barrier open at the entrance: connect to BTN1 and GND.
●
Barrier open at the exit: connect to BTN2 and GND.
Swing Barrier User Manual
23
4.4 Device Sengs
You can congure the device via buon on the main lane control board or the DIP switch on the
access control board.
Funcon Main Lane Control Board & Access Control
Board & Loudspeaker (Oponal)
Working Mode
Normal/Study Mode Congure via buon (refer to Set Study Mode
via Buon )
Congure via DIP switch (refer to Set Study
Mode )
Voice prompt (can be disabled)
keyfob Pairing Congure via buon (refer to Pair Keyfob via
Buon )
Congure via buon (refer to Pair Keyfob )
Passing Mode Congure via buon/web
Memory Mode Congure via buon/web
Parameter Sengs
Barrier Opening Speed Congure via buon/web
Barrier Closing Speed Congure via buon/web
Card Reading on the Alarm Area Congure via buon/web
Enter Duraon Congure via buon/web
Exit Duraon Congure via buon/web
IR Sensing Duraon Congure via buon/web
Intrusion Duraon Congure via buon/web
Overstay Duraon Congure via buon/web
Delay Time for Barrier Closing Congure via buon/web
Authencaon on Free Passing Not support
Volume Adjustment Congure via buon
Barrier Material Congure via buon/web
Barrier Length Congure via buon/web
Swing Barrier User Manual
24
Funcon Main Lane Control Board & Access Control
Board & Loudspeaker (Oponal)
Light Brightness Congure via buon/web
Restore to Default Congure via buon/web
Voice Prompt
Climbing over Barrier Enable or disable via buon
Reverse Passing Enable or disable via buon
Exceeding Passing Duraon Enable or disable via buon
Intrusion Alarm Enable or disable via buon
Tailgang Alarm Enable or disable via buon
Overstaying Alarm Enable or disable via buon
Motor Inspecon Enable or disable via buon
Self-check Voice Prompt Enable or disable via buon
Study Mode Voice Prompt Enable or disable via buon
Refer to Buon Conguraon Descripon for detailed informaon.
4.4.1
Conguraon via Buon
Swing Barrier User Manual
25
Buon Descripon
Figure 4-15 Buon
Exit Buon
●
Press to open the barrier from the entrance posion.
●
Double press to open the barrier from the exit posion.
Parameter Conguraon Buon
●
LEFT: Press to add 10 to conguraon data.
●
RIGHT: Press to add 1 conguraon data.
●
CANCEL: Return to the Level-1 menu, or exit Level-1 menu.
●
OK:
Conrm the sengs, or enter conguraon mode, or enter the Level-2 menu.
Note
●
Conguraon No. is displayed by two digital tubes.
●
Level-1 Menu: If the decimal point on the right is on, it indicates the Level-1 menu. The
number represents the conguraon No.
●
Level-2 Menu: If the decimal point in the middle is on, it indicates the level-2 menu. The
number represents the conguraon No.
Swing Barrier User Manual
26
Buon Conguraon Procedure
Figure 4-16 Procedure
Steps:
1. Hold OK buon for 3 s unl one beep occurs. The device enter the conguraon mode. Level 1
menu lights up. The display screen displays the
conguraon No. 1.
2. In the Level-1 menu, press LEFT (plus 10) and RIGHT (plus 1) to set the conguraon No. Press
OK to save
sengs and the enter the level-2 menu. Press CANCEL to exit the current menu, or
conduct no operaon for 5 s to cancel conguraon and exit the current menu.
3. Aer enter the level 2 menu, press LEFT (plus 10) and RIGHT (plus 1) to set the parameters at
your needs. Press OK to save the
sengs or press CANCEL to exit the current menu, or conduct
no operaon for 5 s to cancel conguraon and exit the current menu.
Swing Barrier User Manual
27
Note
-
The conguraon No. will display in a cycle.
-
Each conguraon No. refers to a funcon. For details about the conguraon No. and its
related funcon, see Buon Conguraon Descripon .
Example
If you want to pair keyfobs via the
buon. Hold OK for 3 s unl you hear one beep. The device
enters the conguraon mode and the level 1 decimal point lights up. The display screen will
display the No. 1.
In the Level-1 menu, press Right (plus 1) to adjust the
conguraon No. to 2. Press OK to save the
sengs and enter the Level-2 menu.
Press Right (plus 1) to adjust the
conguraon No. to 2. Press OK to save the sengs.
4.4.2 Study Mode
Sengs
Set the closed posion of the device barrier.
Set Study Mode via
Buon
Enter the study mode through buon conguraon to set the closed posion of the device barrier.
Steps
Note
●
For details about buon's operaon, see Conguraon via Buon .
●
For details about the conguraon No. and its related funcon, see Buon Conguraon
Descripon .
1.
Enter the study mode.
1) Enter the conguraon mode.
2) Set the
conguraon No. in Level-1 to 1. The device will enter the study mode.
3) Set the conguraon No. in the Level-2 menu to 2. The device will enter the study mode.
2.
Power o the device and swing the barrier unl it is vercal to the pedestal.
3.
Power on the device.
The device will remember the current
posion automacally.
4.
Reboot the device when you hear Study accomplished. Please reboot.
Set Study Mode
Enter the study mode through DIP switching to set the closed
posion of the device barrier.
Swing Barrier User Manual
28
Steps
1.
Set the No.1 of the 2-digit DIP switch on the access control board to ON by referring the
following gure to enter the study mode.
Figure 4-17 DIP Switch Locaon
Figure 4-18 Study Mode
2.
Adjust the closed posion of the barrier.
3.
Power on the device.
The device will remember the current
posion (closed posion) automacally.
4.
Power o the device.
5.
Set the No.1 switches of the 2-digit DIP Switch on the main user extended interface board by
referring to the following
gure.
Swing Barrier User Manual
29
Figure 4-19 Normal Mode
6.
Power on the device again.
Note
For details about the DIP switch value and meaning, see DIP Switch Descripon.
The barrier will open automacally and turns back to the closed posion. At this circumstance,
the device enters the normal mode.
4.4.3 Keyfob Pairing
Pair keyfob via buon or DIP switch.
Pair Keyfob via
Buon
Pair the keyfob to the device via buon to open/close the barrier remotely.
Before You Start
Ask our technique supports or sales and purchase the keyfob.
Steps
Note
●
For details about buon's operaon, see Conguraon via Buon .
●
For details about the conguraon No. and its related funcon, see Buon Conguraon
Descripon .
●
For details about the keyfob
operaon instrucons, see the keyfob's user manual.
1.
Enter the keyfob pairing mode.
1) Enter the conguraon mode.
2) Set the
conguraon No. in Level-1 to 2. The device will enter the keyfob pairing mode.
3) Set the conguraon No. in the Level-2 menu to 2. The device will enter the keyfob pairing
mode.
2.
Hold the Close
buon for more than 10 seconds.
The keyfob's indicator will
ash if the pairing is completed.
3.
Exit the keyfob pairing mode.
1) Enter the conguraon mode.
Swing Barrier User Manual
30
2) Set the conguraon No. in Level-1 to 2. The device will enter the keyfob pairing mode.
3) Set the conguraon No. in the Level-2 menu to 1. The device will exit the keyfob pairing
mode.
4.
Reboot the device to take
eect.
Pair Keyfob
Pair the remote control to the device through DIP switch to open/close the barrier remotely.
Before You Start
Ask our technique supports or sales and purchase the keyfob.
Steps
1.
Power
o the turnsle.
2.
Set the No.2 switch of the DIP Switch on the access control board to the ON side.
Figure 4-20 DIP Switch Locaon
Swing Barrier User Manual
31
Figure 4-21 Enable Keyfob Paring Mode
3.
Power on the turnsle and it will enter the keyfob pairing mode.
4.
Hold the Close
buon for more than 10 seconds.
The keyfob's indicator of the will ash twice if the pairing is completed.
5.
Set the No.2 switch to the OFF side, and reboot the turnsle to take eect.
Note
●
Only one turnsle can pair the keyfob. If mulple turnsles are in the pairing mode, the
keyfob will select only one of them to pair.
●
For details about DIP switch value and meaning, see DIP Switch Descripon .
6.
Oponal: Go to System → User → Keyfob User on the remote control page of the client
soware to delete the keyfob.
4.4.4
Inialize Device
Steps
1.
Hold the
inializaon buon on the access control board for 5 s.
Figure 4-22 Inializaon Buon Posion
2.
The device will start restoring to factory sengs.
3.
When the process is nished, the device will beep for 3 s.
Cauon
The inializaon of the device will restore all the parameters to the default seng and all the
device events are deleted.
Swing Barrier User Manual
32
Note
Make sure no persons are in the lane when powering on the device.
Swing Barrier User Manual
33
Chapter 5 Acvaon
You should acvate the device before the rst login. Aer powering on the device, the system will
switch to Device
Acvaon page.
Acvaon via the device, SADP tool and the client soware are supported.
The default values of the device are as follows:
●
The default IP address: 192.0.0.64
●
The default port No.: 80
●
The default user name: admin
5.1
Acvate via SADP
SADP is a tool to detect, acvate and modify the IP address of the device over the LAN.
Before You Start
●
Get the SADP soware from the supplied disk or the ocial website hp://
www.hikvision.com/en/ , and install the SADP according to the prompts.
●
The device and the PC that runs the SADP tool should be within the same subnet.
The following steps show how to acvate a device and modify its IP address. For batch acvaon
and IP addresses modicaon, refer to User Manual of SADP for details.
Steps
1.
Run the SADP soware and search the online devices.
2.
Find and select your device in online device list.
3.
Input new password (admin password) and
conrm the password.
Cauon
STRONG PASSWORD RECOMMENDED-We highly recommend you create a strong password of
your own choosing (using a minimum of 8 characters, including upper case leers, lower case
leers, numbers, and special characters) in order to increase the security of your product. And
we recommend you reset your password regularly, especially in the high security system,
reseng the password monthly or weekly can beer protect your product.
4.
Click
Acvate to start acvaon.
Swing Barrier User Manual
34
Status of the device becomes Acve aer successful acvaon.
5.
Modify IP address of the device.
1) Select the device.
2) Change the device IP address to the same subnet as your computer by either modifying the IP
address manually or checking Enable DHCP.
3) Input the admin password and click Modify to
acvate your IP address modicaon.
5.2
Acvate Device via iVMS-4200 Client Soware
For some devices, you are required to create the password to acvate them before they can be
added to the iVMS-4200
soware and work properly.
Steps
Note
This funcon should be supported by the device.
1.
Enter the Device Management page.
2.
Click on the right of Device Management and select Device.
3.
Click Online Device to show the online device area.
The searched online devices are displayed in the list.
4.
Check the device status (shown on Security Level column) and select an
inacve device.
5.
Click
Acvate to open the Acvaon dialog.
6.
Create a password in the password eld, and conrm the password.
Swing Barrier User Manual
35
Cauon
The password strength of the device can be automacally checked. We highly recommend you
change the password of your own choosing (using a minimum of 8 characters, including at least
three kinds of following categories: upper case leers, lower case leers, numbers, and special
characters) in order to increase the security of your product. And we recommend you change
your password regularly, especially in the high security system, changing the password monthly
or weekly can
beer protect your product.
Proper conguraon of all passwords and other security sengs is the responsibility of the
installer and/or end-user.
Note
Characters containing admin and nimda are not supported to be set as acvaon password.
7.
Click OK to acvate the device.
Swing Barrier User Manual
36
Chapter 6 Operaon via Web Browser
6.1 Login
You can login via the web browser or the remote conguraon of the client soware.
Note
Make sure the device is acvated. For detailed informaon about acvaon, see Acvaon .
Login via Web Browser
Enter the device IP address in the address bar of the web browser and press Enter to enter the
login page.
Enter the device user name and the password. Click Login.
Login via Remote
Conguraon of Client Soware
Download and open the client soware. Aer adding the device, click to enter the Conguraon
page.
6.2 Overview
You can view the device component status, real-me event, person informaon, network status,
basic
informaon, and device capacity. You can also control the barrier remotely.
Figure 6-1 Overview
Funcon Descripons:
Device Component Status
Swing Barrier User Manual
37
You can check if the device is working properly. Click View More to view the detailed
component status.
Remote Control
/ / /
The door is opened/closed/remaining open/remaining closed.
Real-Time Event
You can view the event Employee ID, Name, Card No., Event Type, Time, and
Operaon. You can
also click View More to enter the search condions, including the event type, employee ID, the
name, the card No., the start me, and the end me, and click Search. The results will be
displayed on the right panel.
Person
Informaon
You can view the added and not added informaon of person and card.
Network Status
You can view the connected and registered status of wired network, wireless network, ISUP and
cloud service.
Basic Informaon
You can view the model, serial No. and rmware version.
Device Capacity
You can view the person and card capacity.
6.3 Person Management
Click Add to add the person's informaon, including the basic informaon, cercate,
authencaon
and sengs.
Swing Barrier User Manual
38
Figure 6-2 Add Person
Add Basic
Informaon
Click Person Management → Add to enter the Add Person page.
Add the person's basic
informaon, including the employee ID, the person's name, the gender, and
person type.
If you select Visitor as the person type, you can set the visit
mes.
Click Save to save the sengs.
Set Permission Time
Click Person Management → Add to enter the Add Person page.
Swing Barrier User Manual
39
Enable Long-Term Eecve User, or set Validity Period and the person can only has the permission
within the congured me period according to your actual needs.
Click Save to save the sengs.
Add Card
Click Person Management → Add to enter the Add Person page.
Click Add Card, enter the Card No. and select the Property, and click OK to add the card.
Note
Up to 50 cards can be added.
Click Save to save the sengs.
Authencaon
Sengs
Click Person Management → Add to enter the Add Person page.
Set
Authencaon Type as Same as Device or Custom.
Click Save to save the sengs.
6.4 Search Event
Click Event Search to enter the Search page.
Swing Barrier User Manual
40
Figure 6-3 Search Event
Enter the search condions, including the event type, the employee ID, the name, the card No., the
start
me, and the end me, and click Search.
The results will be displayed on the right panel.
Swing Barrier User Manual
41
6.5 Conguraon
6.5.1 View Device Informaon
Click Conguraon → System → System Sengs → Basic Informaon to enter the conguraon
page.
You can view the device name, language, model, serial No., version, IO input, IO output, local
RS-485, alarm input, alarm output, and device capacity, etc.
You can change Device Name and click Save.
6.5.2 Set Time
Set the device's me.
Click Conguraon → System → System Sengs → Time Sengs .
Figure 6-4 Time Sengs
Click Save to save the sengs aer the conguraon.
Time Zone
Select the device located me zone from the drop-down list.
Time Sync.
NTP
Swing Barrier User Manual
42
You should set the NTP server's IP address, port No., and interval.
Manual
By default, the device me should be synchronized manually. You can set the device me
manually or check Sync. with Computer Time to synchronize the device me with the
computer's
me.
Server Address Type/Server Address/NTP Port/Interval
You can set the server address type, server address, NTP port, and interval.
6.5.3 Set DST
Steps
1.
Click
Conguraon → System → System Sengs → Time Sengs .
2.
Enable DST.
3.
Set the DST start me, end me and bias me.
4.
Click Save to save the sengs.
6.5.4 Change Administrator's Password
Steps
1.
Click
Conguraon → User Management .
2.
Click .
3.
Enter the old password and create a new password.
4.
Conrm the new password.
5.
Click OK.
Cauon
The password strength of the device can be automacally checked. We highly recommend you
change the password of your own choosing (using a minimum of 8 characters, including at least
three kinds of following categories: upper case leers, lower case leers, numbers, and special
characters) in order to increase the security of your product. And we recommend you change
your password regularly, especially in the high security system, changing the password monthly
or weekly can
beer protect your product.
Proper conguraon of all passwords and other security sengs is the responsibility of the
installer and/or end-user.
6.5.5 Online Users
The informaon of users logging into the device is shown.
Go to Conguraon → System → User Management → Online Users to view the list of online
users.
Swing Barrier User Manual
43
6.5.6 View Device Arming/Disarming Informaon
View device arming type and arming IP address.
Go to
Conguraon → User Management → Arming/Disarming Informaon .
You can view the device arming/disarming informaon. Click Refresh to refresh the page.
6.5.7 Network Sengs
Set TCP/IP and port.
Set Basic Network Parameters
Click Conguraon → Network → Network Sengs → TCP/IP .
Figure 6-5 TCP/IP Sengs Page
Set the parameters and click Save to save the sengs.
NIC Type
Swing Barrier User Manual
44
Select a NIC type from the drop-down list. By default, it is Auto.
DHCP
If uncheck the funcon, you should set the IPv4 address, IPv4 subnet mask, IPv4 default
gateway, Mac address, and MTU.
If you check the
funcon, the system will allocate the IPv4 address, IPv4 subnet mask, the IPv4
default gateway automacally.
DNS Server
Set the preferred DNS server and the Alternate DNS server according to your actual need.
Set Port Parameters
Set the HTTP, HTTPS, and HTTP Listening parameters.
Click Conguraon → Network → Network Service → HTTP(S) .
Figure 6-6 Network Service
Swing Barrier User Manual
45
HTTP
It refers to the port through which the browser accesses the device. For example, when the
HTTP Port is
modied to 81, you need to enter hp://192.0.0.65:81 in the browser for login.
HTTPS
Set the HTTPS for accessing the browser. Cercate is required when accessing.
HTTP Listening
The device can send alarm informaon to the event alarm IP address or domain name via HTTP
protocol/HTTPS protocol. Edit the event alarm IP address or domain name, URL, port, and
protocol.
Note
The event alarm IP address or domain name should support the HTTP protocol/HTTPS protocol
to receive the alarm informaon.
.
6.5.8 Event Linkage
Set linked acons for events.
Steps
1.
Click
Conguraon → Event → Basic Event → Event Linkage to enter the page.
Figure 6-7 Event Linkage
2.
Set event source.
-
If you choose Linkage Type as Event Linkage, you need to select event types from the drop-
down list.
-
If you choose Linkage Type as Card Linkage, you need to enter the card No. and select the
card reader.
Swing Barrier User Manual
46
-
If you choose Linkage Type as Employee ID Linkage, you need to enter the employee ID and
select the card reader.
3.
Set linked acon.
Linked Buzzer
Enable Linked Buzzer and select Start Buzzing or Stop Buzzing for the target event.
Linked Door
Enable Linked Door, check Door 1 or Door 2, and set the door status for the target event.
Linked Alarm Output
Enable Linked Alarm Output, check Alarm Output 1 or Alarm Output 2, and set the alarm
output status for the target event.
6.5.9 Access Control
Sengs
Set Authencaon Parameters
Click Conguraon → Access Control → Authencaon Sengs .
Note
The funcons vary according to dierent models. Refers to the actual device for details.
Figure 6-8 Set Authencaon Parameters
Click Save to save the sengs aer the conguraon.
Swing Barrier User Manual
47
Terminal
Choose Entrance or Exit for sengs.
Terminal Type/Terminal Model
Get terminal descripon. They are read-only.
Enable
Authencaon Device
Enable the authencaon funcon.
Authencaon
Select an authencaon mode according to your actual needs from the drop-down list.
Authencaon Interval
You can set the authencaon interval of the same person when authencang. The same
person can only
authencate once in the congured interval. A second authencaon will be
failed.
Alarm of Max. Failed Aempts
Enable to report alarm when the card reading aempts reach the set value.
Max. Authencaon Failed Aempts
Enable to report alarm when the card reading aempts reach the set value.
Communicaon with Controller Every
When the access control device cannot connect with the card reader for longer than the set
me, the card reader will turn oine automacally.
Note
The authencaon interval value ranges from 2 s to 255 s.
Set Door Parameters
Click Conguraon → Access Control → Door Parameters .
Swing Barrier User Manual
48
Figure 6-9 Door Parameters Sengs Page
Click Save to save the sengs aer the conguraon.
Door No.
Select Entrance or Exit for
sengs.
Door Name
You can create a name for the door.
Open Duraon
Set the door unlocking duraon. If the door is not opened for the set me, the door will be
locked.
Note
The open duraon ranges from 5 s to 60 s.
Exit Buon Type
You can set the exit buon as Remain Open or Remain Closed according to your actual needs.
By default, it is Remain Open.
Door Remain Open
Duraon with First Person
Set the door open duraon when rst person is in. Aer the rst person is authorized, it allows
mulple persons access the door or other authencaon acons.
Note
The duraon ranges from 1 s to 1440 s.
Serial Port Sengs
Set serial port parameters.
Swing Barrier User Manual
49
Steps
1.
Click Conguraon → Access Control → Serial Port Conguraon .
Figure 6-10 Serial Port Sengs
2.
Set the No., Baud Rate, Data Bit, Stop Bit and Parity.
3.
Set the Peripheral Type as Card Reader, QR Code Scanner or Disable.
4.
You can view the serial port type, connected device model and peripheral
soware version.
5.
Click Save.
Host Parameters
Set door contact sengs and RS-485 protocol.
Steps
1.
Click Conguraon → Access Control → Host Parameter to enter the page.
2.
Set door contact.
Note
You can set the door contact as Door Open Status or Door Closed Status according to your
actual needs. By default, it is Door Open Status.
3.
Set RS-485 protocol.
4.
Click Save.
Swing Barrier User Manual
50
Set Terminal Parameters
Set the working mode.
Steps
1.
Set the device working mode.
Figure 6-11 Working Mode
Permission Free Mode
The device will not verify the person's permission, but only the person's validity period. If the
person is in the validity period, the barrier will open.
You can enable Verify
Credenal Locally. Aer enabling the funcon, the device will only
verify the person's permission without the schedule template, etc.
Access Control Mode
The device works normally and will verify the person's permission to open the barrier.
2.
Oponal: Enable Blocklist Authencaon.
3.
Click Save to complete terminal parameter
sengs.
6.5.10
Turnsle
Basic Parameters
Set turnsle basic parameters.
Steps
1.
Click Conguraon → Turnsle → Basic Sengs to enter the page.
Swing Barrier User Manual
51
Figure 6-12 Basic Parameters
2.
View the Device Type, Device Model and Working Status.
3.
Set Barrier Material, Lane Width, Barrier Opening Speed and Barrier Closing Speed.
4.
Set the passing mode.
-
If you choose General Passing, you can select the barrier status for the entrance and exit from
the drop-down list.
Note
If you set barrier-free mode, the barrier remains open and will close when authencaon
fails.
-
If you choose Weekly Schedule, you can set a weekly schedule for entrance and exit barriers.
5.
Click Save.
keyfob
Set keyfob patameters.
Steps
1.
Click
Conguraon → Turnsle → Keyfob to enter the page.
Swing Barrier User Manual
52
Figure 6-13 keyfob
2.
View the keyfob working status.
3.
Set Working Mode as One-to-One or One-to-Many.
4.
Add keyfob.
1) Click Add and the keyfob adding window will pop up.
2) Enter the Name and Serial No..
3) Check to enable Remain Open Permission at your actual needs.
4) Click OK to add the keyfob.
5.
Oponal: Select a keyfob and click Delete to delete the keyfob.
6.
Click Save.
IR Detector
Set IR detector.
Steps
1.
Click Conguraon → Turnsle → IR Detector to enter the page.
Figure 6-14 IR Detector
2.
Set the entrance and exit inducve mode as Single Triggered or Triggered Simultaneously.
3.
Set custom IR detector mode.
Enable IR Emergency Mode
If some IR beams do not work properly, you can shield those IR beams to restore the lane. But
this
acon may hit person and cause injury.
Swing Barrier User Manual
53
Enable Custom An-pinch for Door Closing
An-pinch for door closing refers that the barrier will not close if the device has detected
person in the lane. Only aer the person walks out of the lane, the barrier will close. If you
enable the funcon, you can shield parts of the IR beams for closing barrier in advance. But
this acon may hit person and cause injury.
4.
Click Save.
People Counng
Set people counng .
Steps
1.
Click
Conguraon → Turnsle → People Counng to enter the page.
Figure 6-15 People Counng
2.
Check to enable People Counng.
3.
Enable Device
Oine People Counng at your actual needs.
4.
Select People Counng Type as Invalid, Passing Detecon or Authencaon Number.
5.
Oponal: Click clear to clear all the people counng informaon.
Other
Sengs
Set other parameters.
Steps
1.
Click Conguraon → Turnsle → Other Sengs to enter the page.
2.
Set Alarm Output
Duraon.
Swing Barrier User Manual
54
Note
The alarm output duraon ranges from 0 s to 3599 s.
3.
Set Temperature Unit.
4.
Check to enable Do Not Open Barrier When Lane is Not Clear.
5.
Drag the block or enter the value to adjust the light board brightness.
6.
Set the alarm buzzer beeping duraon, door closing delay me, intrusion duraon, overstaying
duraon and IR obstructed duraon.
7.
Check to enable Memory Mode at your actual needs.
Note
Mulple cards presenng for mulple person passing is allowable when enabling the memory
mode. When the passing person's number exceeds the card presenng number, or aer the
latest person passing with no other person passing within the door open duraon, the door will
close
automacally.
8.
Choose the control mode.
So Mode
The barrier will be closed aer the person has passed through the barrier when there are
tailing, forced accessing, etc.
Guard Mode
The barrier will be closed immediately when there are tailgang, forced accessing, etc.
9.
Set the
re input type.
10.
Click to enable Motor Self-Test and choose the main lane or sub lane to start motor self-
tesng.
11.
Click Save.
6.5.11 Card
Sengs
Set Card Security
Click Conguraon → Card Sengs → Card Type to enter the sengs page.
Swing Barrier User Manual
55
Figure 6-16 Card Type
Set the parameters and click Save.
Enable NFC Card
In order to prevent the mobile phone from geng the data of the access control, you can
enable NFC card to increase the security level of the data.
Enable M1 Card
Enable M1 card and
authencang by presenng M1 card is available.
M1 Card Encrypon
Sector
M1 card encrypon can improve the security level of authencaon.
Enable the funcon and set the encrypon sector. By default, Sector 13 is encrypted. It is
recommended to encrypt sector 13.
Enable EM Card
Enable EM card and authencang by presenng EM card is available.
Note
If the peripheral card reader supports presenng EM card, the funcon is also supported to
enable/disable the EM card funcon.
Swing Barrier User Manual
56
Enable CPU Card
Enable CPU card and authencang by presenng CPU card is available.
CPU Card Read Content
Aer enable the CPU card content reading funcon, the device can read the CPU card content.
Enable ID Card
Enable ID card and
authencang by presenng ID card is available.
Enable FeliCa Card
The device can read the data from FeliCa card when enabling the FeliCa card funcon.
Set Card Authencaon Parameters
Set the card reading content when authencate via card on the device.
Go to Conguraon → Card Sengs → Card NO. Authencaon Sengs .
Select a card
authencaon mode and enable reversed card No. at your actual needs. Click Save.
6.5.12 Set Privacy Parameters
Set the event storage type.
Go to
Conguraon → Security → Privacy Sengs
The event storage type is overwring by default. The earliest 5% events will be deleted when the
system detects the stored events has been over 95% of the full space.
6.5.13 Upgrade and Maintenance
Reboot device, restore device parameters, and upgrade device version.
Reboot Device
Click Maintenance and Security → Maintenance → Restart .
Click Restart to reboot the device.
Upgrade
Click Maintenance and Security → Maintenance → Upgrade .
Select an upgrade type from the drop-down list. Click and select the upgrade le from your
local PC. Click Upgrade to start upgrading.
If the device has been connected to Hik-Connect and network, when there is a new
installaon
package in Hik-Connect, you can click Upgrade aer Online Update to upgrade the device system.
Swing Barrier User Manual
57
Note
Do not power o during the upgrading.
Restore Parameters
Click Maintenance and Security → Maintenance → Backup and Reset .
Restore All
All parameters will be restored to the factory
sengs. You should acvate the device before
usage.
Restore
The device will restore to the default sengs, except for the device IP address and the user
informaon.
Import and Export Parameters
Click Maintenance and Security → Maintenance → Backup and Reset .
Export
Click Export to export the device parameters.
Note
You can import the exported device parameters to another device.
Import
Click and select the le to import. Click Import to start import conguraon le.
6.5.14 Device Debugging
You can set device debugging parameters.
Steps
1.
Click Maintenance and Security → Maintenance → Device Debugging .
2.
You can set the following parameters.
Enable SSH
To raise network security, disable SSH service. The
conguraon is only used to debug the
device for the professionals.
Print Log
You can click Export to export log.
6.5.15 Component Status
You can view the main lane and sub lane status.
Swing Barrier User Manual
58
Main Lane Status
Figure 6-17 Main Lane Status
Device Component
You can view the status of the access control board, lane control board, extended interface
board, and arrow light board.
Peripheral
You can view the status of the RS-485 card reader.
Temperature
You can view the pedestal temperature.
Movement
You can view the working status of motor encoder.
Sub Lane Status
Figure 6-18 Sub Lane Status
Device Component
You can view the status of the access control board and arrow light board.
Swing Barrier User Manual
59
Peripheral
You can view the status of the RS-485 card reader.
Movement
You can view the working status of motor encoder.
Others
Figure 6-19 Other Status
Passing Mode
You can view the entrance and exit mode.
IR Detector Status
You can view the status of each pair of the 4 IR beam sensors.
Input and Output Status
You can view the status of the event input, alarm output and
re alarm.
Other Status
You can view the status of the barrier and the keyfob receiving module.
6.5.16 Log Query
You can search and view the device logs.
Go to Maintenance and Security → Maintenance → Log .
Set the major and minor type of the log type. Set the start
me and end me for searching, and
click Search.
Swing Barrier User Manual
60
The results will be displayed below, which including the No., me, the major type the minor type,
the channel No., the local/remote user informaon, the remote host IP, etc.
6.5.17 Cercate Management
It helps to manage the server/client cercates and CA cercate.
Note
The funcon is only supported by certain device models.
Create and Install Self-signed Cercate
Steps
1.
Go to Maintenance and Security → Security → Cercate Management .
2.
In the
Cercate Files area, select a Cercate Type from the drop-down list.
3.
Click Create.
4.
Input cercate informaon.
5.
Click OK to save and install the cercate.
The created cercate is displayed in the Cercate Details area.
The
cercate will be saved automacally.
6.
Download the cercate and save it to an asking le in the local computer.
7.
Send the asking
le to a cercaon authority for signature.
8.
Import the signed cercate.
1) Select a cercate type in the Import Passwords area, and select a cercate from the local,
and click Install.
2) Select a cercate type in the Import Communicaon Cercate area, and select a cercate
from the local, and click Install.
Install Other Authorized
Cercate
If you already has an authorized cercate (not created by the device), you can import it to the
device directly.
Steps
1.
Go to Maintenance and Security → Security → Cercate Management .
2.
In the Import Passwords and Import
Communicaon Cercate areas, select cercate type
and upload cercate.
3.
Click Install.
Swing Barrier User Manual
61
Install CA Cercate
Before You Start
Prepare a CA
cercate in advance.
Steps
1.
Go to Maintenance and Security → Security → Cercate Management .
2.
Create an ID in the Import CA Cercate area.
Note
The input cercate ID cannot be the same as the exisng ones.
3.
Upload a cercate le from the local.
4.
Click Install.
Swing Barrier User Manual
62
Chapter 7 Client Soware Conguraon
You can call the hotline to get the iVMS-4200 client soware installaon package.
7.1 Conguraon Flow of Client Soware
Follow the ow diagram below to congure on the client soware.
Figure 7-1 Flow Diagram of Conguraon on Client Soware
Swing Barrier User Manual
63
7.2 Device Management
The client supports managing access control devices and video intercom devices.
Example
You can control entrance & exit and manage aendance aer adding access control devices to the
client; you can perform video intercom with the indoor staons and door staons.
7.2.1 Add Device
The client provides three device adding modes including by IP/domain, IP segment, and ISUP
protocol. The client also supports imporng mulple devices in a batch when there are large
amount of devices to be added.
Add Device by IP Address or Domain Name
If you know the IP address or domain name of the device to add, you can add devices to the client
by specifying the IP address (or domain name), user name, password, etc.
Steps
1.
Enter Device Management module.
2.
Click Device tab on the top of the right panel.
The added devices are displayed on the right panel.
3.
Click Add to open the Add window, and then select IP/Domain as the adding mode.
4.
Enter the required
informaon.
Name
Create a descripve name for the device. For example, you can use a nickname that can show
the locaon or feature of the device.
Address
The IP address or domain name of the device.
Port
The devices to add share the same port number. The default value is 8000.
Note
For some device types, you can enter 80 as the port No. This funcon should be supported by
the device.
User Name
Enter the device user name. By default, the user name is admin.
Password
Swing Barrier User Manual
64
Enter the device password.
Cauon
The password strength of the device can be automacally checked. We highly recommend
you change the password of your own choosing (using a minimum of 8 characters, including
at least three kinds of following categories: upper case leers, lower case leers, numbers,
and special characters) in order to increase the security of your product. And we recommend
you change your password regularly, especially in the high security system, changing the
password monthly or weekly can
beer protect your product.
Proper conguraon of all passwords and other security sengs is the responsibility of the
installer and/or end-user.
5.
Oponal: Check Transmission Encrypon (TLS) to enable transmission encrypon using TLS
(Transport Layer Security) protocol for security purpose.
Note
●
This funcon should be supported by the device.
●
If you have enabled Cercate Vericaon, you should click Open Cercate Directory to
open the default folder, and copy the cercate le exported from the device to this default
directory to strengthen the security. See for details about enabling
cercate vericaon.
●
You can log into the device to get the
cercate le by web browser.
6.
Check Synchronize Time to synchronize the device me with the PC running the client aer
adding the device to the client.
7.
Oponal: Check Import to Group to create a group by the device name, and import all the
channels of the device to this group.
Example
For access control device, its access points, alarm inputs/outputs, and encoding channels (if
exist) will be imported to this group.
8.
Finish adding the device.
-
Click Add to add the device and back to the device list page.
-
Click Add and New to save the sengs and connue to add other device.
Import Devices in a Batch
You can add mulple devices to the client in a batch by entering the device parameters in a pre-
dened CSV le.
Steps
1.
Enter the Device Management module.
2.
Click Device tab on the top of the right panel.
3.
Click Add to open the Add window, and then select Batch Import as the adding mode.
4.
Click Export Template and then save the
pre-dened template (CSV le) on your PC.
Swing Barrier User Manual
65
5.
Open the exported template le and enter the required informaon of the devices to be added
on the corresponding column.
Note
For detailed descripon of the required elds, refer to the introducons in the template.
Adding Mode
Enter 0 or 1 or 2.
Address
Edit the address of the device.
Port
Enter the device port number. The default port number is 8000.
User Name
Enter the device user name. By default, the user name is admin.
Password
Enter the device password.
Cauon
The password strength of the device can be automacally checked. We highly recommend
you change the password of your own choosing (using a minimum of 8 characters, including
at least three kinds of following categories: upper case leers, lower case leers, numbers,
and special characters) in order to increase the security of your product. And we recommend
you change your password regularly, especially in the high security system, changing the
password monthly or weekly can
beer protect your product.
Proper conguraon of all passwords and other security sengs is the responsibility of the
installer and/or end-user.
Import to Group
Enter 1 to create a group by the device name. All the channels of the device will be imported
to the corresponding group by default. Enter 0 to disable this funcon.
6.
Click and select the template le.
7.
Click Add to import the devices.
7.2.2 Reset Device Password
If you forgot the password of the detected online devices, you can reset the device password via
the client.
Steps
1.
Enter Device Management page.
2.
Click Online Device to show the online device area.
Swing Barrier User Manual
66
All the online devices sharing the same subnet will be displayed in the list.
3.
Select the device from the list and click on the Operaon column.
4.
Reset the device password.
-
Click Generate to pop up the QR Code window and click Download to save the QR code to
your PC. You can also take a photo of the QR code to save it to your phone. Send the picture
to our technical support.
Note
For the following operaons for reseng the password, contact our technical support.
Cauon
The password strength of the device can be automacally checked. We highly recommend you
change the password of your own choosing (using a minimum of 8 characters, including at least
three kinds of following categories: upper case leers, lower case leers, numbers, and special
characters) in order to increase the security of your product. And we recommend you change
your password regularly, especially in the high security system, changing the password monthly
or weekly can
beer protect your product.
Proper conguraon of all passwords and other security sengs is the responsibility of the
installer and/or end-user.
7.2.3 Manage Added Devices
Aer adding devices to device list, you can manage the added devices including eding device
parameters, remote conguraon, viewing device status, etc.
Table 7-1 Manage Added Devices
Edit Device Click to edit device informaon including device name, address, user
name, password, etc.
Delete Device Check one or more devices, and click Delete to delete the selected
devices.
Remote Conguraon Click to set remote conguraon of the corresponding device. For
details, refer to the user manual of device.
View Device Status Click to view device status, including door No., door status, etc.
Note
For dierent devices, you will view dierent informaon about device
status.
Swing Barrier User Manual
67
View Online User Click to view the details of online user who access the device,
including user name, user type, IP address and login me.
Refresh Device
Informaon
Click to refresh and get the latest device informaon.
7.3 Group Management
The client provides groups to manage the added resources in dierent groups. You can group the
resources into dierent groups according to the resources' locaons.
Example
For example, on the 1st
oor, there mounted 16 doors, 64 alarm inputs, and 16 alarm outputs. You
can organize these resources into one group (named 1st Floor) for convenient management. You
can control door status, and do some other
operaons of the devices aer managing the resources
by groups.
7.3.1 Add Group
You can add group to organize the added device for convenient management.
Steps
1.
Enter the Device Management module.
2.
Click Device Management → Group to enter the group management page.
3.
Create a group.
-
Click Add Group and enter a group name as you want.
-
Click Create Group by Device Name and select an added device to create a new group by the
name of the selected device.
Note
The resources (such as alarm inputs/outputs, access points, etc.) of this device will be
imported to the group by default.
7.3.2 Import Resources to Group
You can import the device resources (such as alarm inputs/outputs, access points, etc.) to the
added group in a batch.
Before You Start
Add a group for managing devices. Refer to Add Group .
Steps
1.
Enter the Device Management module.
Swing Barrier User Manual
68
2.
Click Device Management → Group to enter the group management page.
3.
Select a group from the group list and select the resource type as Access Point, Alarm Input,
Alarm Output, etc.
4.
Click Import.
5.
Select the thumbnails/names of the resources in the thumbnail/list view.
Note
You can click or to switch the resource display mode to thumbnail view or to list view.
6.
Click Import to import the selected resources to the group.
7.4 Person Management
You can add person informaon to the system for further operaons such as access control, video
intercom, me and aendance, etc. You can manage the added persons such as issuing cards to
them in a batch,
imporng and exporng person informaon in a batch, etc.
7.4.1 Add
Organizaon
You can add an organizaon and import person informaon to the organizaon for eecve
management of the persons. You can also add a surbodinate organizaon for the added one.
Steps
1.
Enter Person module.
2.
Select a parent organizaon in the le column and click Add in the upper-le corner to add an
organizaon.
3.
Create a name for the added organizaon.
Note
Up to 10 levels of organizaons can be added.
4.
Oponal: Perform the following operaon(s).
Edit
Organizaon Hover the mouse on an added organizaon and click to edit its name.
Delete
Organizaon
Hover the mouse on an added organizaon and click to delete it.
Note
●
The lower-level organizaons will be deleted as well if you delete an
organizaon.
●
Make sure there is no person added under the organizaon, or the
organizaon cannot be deleted.
Show Persons in
Sub Organizaon
Check Show Persons in Sub Organizaon and select an organizaon to
show persons in its sub organizaons.
Swing Barrier User Manual
69
7.4.2 Import and Export Person Idenfy Informaon
You can import the informaon and pictures of mulple persons to the client soware in a batch.
Meanwhile, you can also export the person
informaon and pictures and save them in your PC.
Import Person Informaon
You can enter the informaon of mulple persons in a predened template (CSV/Excel le) to
import the informaon to the client in a batch.
Steps
1.
Enter the Person module.
2.
Select an added
organizaon in the list, or click Add in the upper-le corner to add an
organizaon and then select it.
3.
Click Import to open the Import panel.
4.
Select Person
Informaon as the imporng mode.
5.
Click Download Template for Imporng Person to download the template.
6.
Enter the person informaon in the downloaded template.
Note
●
If the person has mulple cards, separate the card No. with semicolon.
●
Items with asterisk are required.
●
By default, the Hire Date is the current date.
7.
Click to select the CSV/Excel le with person informaon from local PC.
8.
Click Import to start imporng.
Note
●
If a person No. already exists in the client's database, delete the exisng informaon before
imporng.
●
You can import informaon of no more than 2,000 persons.
Import Person Pictures
Aer imporng face pictures for the added persons to the client, the persons in the pictures can be
idened by an added face recognion terminal. You can either import person pictures one by
one, or import
mulple pictures at a me according to your need.
Before You Start
Be sure to have imported person informaon to the client beforehand.
Steps
1.
Enter the Person module.
Swing Barrier User Manual
70
2.
Select an added organizaon in the list, or click Add in the upper-le corner to add an
organizaon and then select it.
3.
Click Import to open the Import panel and check Face.
4.
Oponal: Enable Verify by Device to check whether face recognion device managed in the
client can recognize the face in the photo.
5.
Click to select a face picture le.
Note
●
The (folder of) face pictures should be in ZIP format.
●
Each picture le should be in JPG format and should be no larger than 200 KB.
●
Each picture le should be named as "Person ID_Name". The Person ID should be the same
with that of the imported person
informaon.
6.
Click Import to start imporng.
The imporng progress and result will be displayed.
Export Person
Informaon
You can export the added persons' informaon to local PC as a CSV/Excel le.
Before You Start
●
Make sure you have added persons to an
organizaon.
●
Make sure you have enabled the Export Person Informaon funcon to display the Export
buon. See for details.
Steps
1.
Enter the Person module.
2.
Oponal: Select an organizaon in the list.
Note
All persons' informaon will be exported if you do not select any organizaon.
3.
Click Export.
4.
Enter the super user name and password for
vericaon.
The Export panel is displayed.
5.
Check Person Informaon as the content to export.
6.
Check desired items to export.
7.
Click Export to save the exported
le in CSV/Excel le on your PC.
Export Person Pictures
You can export face picture
le of the added persons and save in your PC.
Swing Barrier User Manual
71
Before You Start
●
Make sure you have added persons and their face pictures to an organizaon.
●
Make sure you have enabled the Export Person Informaon funcon to display the Export
buon. See for details.
Steps
1.
Enter the Person module.
2.
Oponal: Select an organizaon in the list.
Note
All persons' face pictures will be exported if you do not select any organizaon.
3.
Click Export on the top menu bar.
4.
Enter the super user name and password for vericaon.
The Export panel is displayed.
5.
Check Face as the content to export.
6.
Click Export and set an encrypon key to encrypt the exported le.
Note
●
The exported le is in ZIP format.
●
The exported face picture is named as "Person ID_Name_0" ("0" is for a full-frontal face).
7.4.3 Get Person Informaon from Access Control Device
If the access control device has been congured with person informaon (including person details,
ngerprint, and issued card informaon), you can get the person informaon from the added
device and import them to the client for further operaons.
Steps
Note
●
If the person name stored in the device is empty, the person name will be lled with the issued
card No. aer imporng to the client.
●
Persons will be Male by default.
●
If the card number or person ID (employee ID) stored on the device already exists in the client
database, the person with this card number or person ID will not be imported to the client.
1.
Enter Person module.
2.
Select an organizaon to import the persons.
3.
Click Get from Device.
4.
Select an added access control device or the enrollment
staon from the drop-down list.
Swing Barrier User Manual
72
Note
If you select the enrollment staon, you should click Login, and enter IP address, port No., user
name and password of the device.
5.
Select the Geng Mode.
Note
The geng mode varies according to dierent devices. The access control device supports
geng the person informaon by employee ID. Up to 5 employee IDs can be specied each
me.
6.
Click Import to start imporng the person informaon to the client.
Note
Up to 2,000 persons and 5,000 cards can be imported.
The person informaon, including person details, person's ngerprint informaon (if
congured), and the linked cards (if congured), will be imported to the selected organizaon.
7.4.4 Issue Cards to Persons in Batch
The client provides a convenient way to issue cards to mulple persons in a batch.
Steps
1.
Enter Person module.
2.
Click Batch Issue Cards.
All the added persons with no card issued will be displayed in the right panel.
3.
Oponal: Enter key words (name or person ID) in the input box to lter the person(s) that need
issuing cards.
4.
Oponal: Click Sengs to set the card issuing parameters. For details, refer to .
5.
Click
Inialize to inialize the card enrollment staon or card reader to make it ready for issuing
cards.
6.
Click the Card No. column and enter the card number.
-
Place the card on the card enrollment staon.
-
Swipe the card on the card reader.
-
Manually enter the card number and press the Enter key.
The person(s) in the list will be issued with card(s).
7.4.5 Report Card Loss
If the person lost his/her card, you can report the card loss so that the card's related access
authorizaon will be inacve.
Swing Barrier User Manual
73
Steps
1.
Enter Person module.
2.
Select the person you want to report card loss for and click Edit to open the Edit Person window.
3.
In the
Credenal → Card panel, click on the added card to set this card as lost card.
Aer reporng card loss, the access authorizaon of this card will be invalid and inacve. Other
person who gets this card cannot access the doors by swiping this lost card.
4.
Oponal: If the lost card is found, you can click to cancel the loss.
Aer cancelling card loss, the access authorizaon of the person will be valid and acve.
5.
If the lost card is added in one access group and the access group is applied to the device
already, aer reporng card loss or cancelling card loss, a window will pop up to nofy you to
apply the changes to the device.
Aer applying to device, these changes can take eect on the
device.
7.4.6 Set Card Issuing Parameters
The client provides two modes for reading a card's number: via card enrollment staon or via the
card reader of the access control device. If a card enrollment
staon is available, connect it to the
PC running the client by USB interface or COM, and place the card on the card enrollment to read
the card number. If not, you can also swipe the card on the card reader of the added access control
device to get the card number. As a result, before issuing a card to one person, you need to set the
card issuing parameters including the issuing mode and related parameters.
When adding a card to one person, click
Sengs to open the Card Issuing Sengs window.
Local Mode: Issue Card by Card Enrollment
Staon
Connect a card enrollment staon to the PC running the client. You can place the card on the card
enrollment staon to get the card number.
Card Enrollment
Staon
Select the model of the connected card enrollment staon
Note
Currently, the supported card enrollment staon models include DS-K1F100-D8, DS-K1F100-M,
DS-K1F100-D8E, and DS-K1F180-D8E.
Card Type
This eld is only available when the model is DS-K1F100-D8E or DS-K1F180-D8E.
Select the card type as EM card or IC card according to the actual card type.
Serial Port
It is only available when the model is DS-K1F100-M.
Select the COM the card enrollment
staon connects to.
Buzzing
Swing Barrier User Manual
74
Enable or disable the buzzing when the card number is read successfully.
Card No. Type
Select the type of the card number according to actual needs.
M1 Card Encrypon
This eld is only available when the model is DS-K1F100-D8, DS-K1F100-D8E, or DS-K1F180-D8E.
If the card is M1 card, and if you need to enable the M1 Card Encrypon funcon, you should
enable this funcon and select the sector of the card to encrypt.
Remote Mode: Issue Card by Card Reader
Select an access control device added in the client and swipe the card on its card reader to read
the card number.
7.5
Congure Schedule and Template
You can congure the template including holiday and week schedule. Aer seng the template,
you can adopt the congured template to access groups when seng the access groups, so that
the access group will take eect in the me duraons of the template.
Note
For access group sengs, refer to Set Access Group to Assign Access Authorizaon to Persons .
7.5.1 Add Holiday
You can create holidays and set the days in the holidays, including start date, end date, and holiday
duraon in one day.
Steps
Note
You can add up to 64 holidays in the soware system.
1.
Click Access Control → Schedule → Holiday to enter the Holiday page.
2.
Click Add on the le panel.
3.
Create a name for the holiday.
4.
Oponal: Enter the descripons or some nocaons of this holiday in the Remark box.
5.
Add a holiday period to the holiday list and congure the holiday duraon.
Note
Up to 16 holiday periods can be added to one holiday.
1) Click Add in the Holiday List eld.
Swing Barrier User Manual
75
2) Drag the cursor to draw the me duraon, which means in that duraon of me, the
congured access group is acvated.
Note
Up to 8 me duraons can be set to one holiday period.
3) Oponal: Perform the following operaons to edit the me duraons.
●
Move the cursor to the me duraon and drag the me duraon on the meline bar to the
desired posion when the cursor turns to .
●
Click the me duraon and directly edit the start/end me in the appeared dialog.
●
Move the cursor to the start or the end of
me duraon and drag to lengthen or shorten
the
me duraon when the cursor turns to .
4) Oponal: Select the me duraon(s) that need to be deleted, and then click in the
Operaon column to delete the selected me duraon(s).
5) Oponal: Click in the Operaon column to clear all the me duraon(s) in the me bar.
6) Oponal: Click in the Operaon column to delete this added holiday period from the
holiday list.
6.
Click Save.
7.5.2 Add Template
Template includes week schedule and holiday. You can set week schedule and assign the me
duraon of access authorizaon for dierent person or group. You can also select the added
holiday(s) for the template.
Steps
Note
You can add up to 255 templates in the soware system.
1.
Click Access Control → Schedule → Template to enter the Template page.
Note
There are two default templates: All-Day Authorized and All-Day Denied, and they cannot be
edited or deleted.
All-Day Authorized
The access authorizaon is valid in each day of the week and it has no holiday.
All-Day Denied
The access authorizaon is invalid in each day of the week and it has no holiday.
2.
Click Add on the le panel to create a new template.
3.
Create a name for the template.
4.
Enter the
descripons or some nocaon of this template in the Remark box.
5.
Edit the week schedule to apply it to the template.
Swing Barrier User Manual
76
1) Click Week Schedule tab on the lower panel.
2) Select a day of the week and draw me duraon(s) on the meline bar.
Note
Up to 8 me duraon(s) can be set for each day in the week schedule.
3) Oponal: Perform the following operaons to edit the me duraons.
●
Move the cursor to the me duraon and drag the me duraon on the meline bar to the
desired posion when the cursor turns to .
●
Click the me duraon and directly edit the start/end me in the appeared dialog.
●
Move the cursor to the start or the end of
me duraon and drag to lengthen or shorten
the
me duraon when the cursor turns to .
4) Repeat the two steps above to draw more me duraons on the other days of the week.
6.
Add a holiday to apply it to the template.
Note
Up to 4 holidays can be added to one template.
1) Click Holiday tab.
2) Select a holiday in the le list and it will be added to the selected list on the right panel.
3)
Oponal: Click Add to add a new holiday.
Note
For details about adding a holiday, refer to Add Holiday .
4) Oponal: Select a selected holiday in the right list and click to remove the selected one, or
click Clear to clear all the selected holiday(s) in the right list.
7.
Click Save to save the
sengs and nish adding the template.
7.6 Set Access Group to Assign Access
Authorizaon to Persons
Aer adding the person and conguring the person's credenals, you can create the access groups
to dene which person(s) can get access to which door(s) and then apply the access group to the
access control device to take eect.
Before You Start
●
Add person to the client.
●
Add access control device to the client and group access points. For details, refer to
Group
Management .
●
Add template.
Steps
When the access group
sengs are changed, you need to apply the access groups to the devices
again to take eect. The access group changes include changes of template, access group sengs,
person's access group sengs, and related person details (including card number, ngerprint, face
Swing Barrier User Manual
77
picture, linkage between card number and ngerprint, linkage between card number and
ngerprint, card password, card eecve period, etc).
1.
Click Access Control → Authorizaon → Access Group to enter the Access Group interface.
2.
Click Add to open the Add window.
3.
In the Name text eld, create a name for the access group as you want.
4.
Select a template for the access group.
Note
You should congure the template before access group sengs. Refer to Congure Schedule
and Template for details.
5.
In the le list of the Select Person eld, select person(s) to assign access authority.
6.
In the le list of the Select Access Point eld, select door(s), door staon(s) or oor(s) for the
selected persons to access.
7.
Click Save.
You can view the selected person(s) and the selected access point(s) on the right side of the
interface.
Figure 7-2 Display the Selected Person(s) and Access Point(s)
8.
Aer adding the access groups, you need to apply them to the access control device to take
eect.
1) Select the access group(s) to apply to the access control device.
2) Click Apply All to Devices start applying all the selected access group(s) to the access control
device or door staon.
Swing Barrier User Manual
78
3) Click Apply All to Devices or Apply Changes to Devices.
Apply All to Devices
This operaon will clear all the existed access groups of the selected devices and then
apply the new access group to the device.
Apply Changes to Devices
This operaon will not clear the existed access groups of the selected devices and only
apply the changed part of the selected access group(s) to the device(s).
4) View the applying status in the Status column or click Applying Status to view all the applied
access group(s).
Note
You can check Display Failure Only to lter the applying results.
The selected persons in the applied access groups will have the authorizaon to enter/exit the
selected doors/door staons with their linked card(s) or ngerprints.
9.
Oponal: Click to edit the access group if necessary.
Note
If you change the persons' access informaon or other related informaon, you will view the
prompt Access Group to Be Applied on the right corner of the client.
You can click the prompt to apply the changed data to the device. You can select either Apply
Now or Apply Later.
Figure 7-3 Data Synchronizaon
7.7
Congure Advanced Funcons
You can congure the advanced funcons of access control to meet some special requirements in
dierent scene, such as mul-factor authencaon, an-passback, etc.
Swing Barrier User Manual
79
Note
●
For the card related funcons(the type of access control card/mul-factor authencaon), only
the card(s) with access group applied will be listed when adding cards.
●
The advanced funcons should be supported by the device.
●
Hover the cursor on the Advanced
Funcon, and then Click to customize the advanced
funcon(s) to be displayed.
7.7.1 Congure Device Parameters
Aer adding the access control device, you can congure the parameters of access control device
(access controller), access control points (door or oor), alarm inputs, alarm outputs, card readers
and lane controller.
Congure
Parameters for Access Control Device
Aer adding the access control device, you can congure its parameters, including overlaying user
informaon on picture, uploading pictures aer capturing, saving captured pictures, etc.
Before You Start
Add access control device to the client.
Steps
1.
Click Access Control → Advanced
Funcon → Device Parameter .
Note
If you can not nd Device Parameter in the Advanced Funcon list, hover the cursor on the
Advanced Funcon, and then Click to select the Device Parameter to be displayed.
2.
Select an access device to show its parameters on the right page.
3.
Turn the switch to ON to enable the corresponding
funcons.
Note
●
The displayed parameters may vary for dierent access control devices.
●
Some of the following parameters are not listed in the Basic Informaon page, click More to
edit the parameters.
RS-485 Comm. Redundancy
You should enable this funcon if you wire the RS-485 card reader to the access control
device redundantly.
Display Detected Face
Display face picture when authencang.
Display Card Number
Swing Barrier User Manual
80
Display the card informaon when authencang.
Display Person Informaon
Display the person informaon when authencang.
Overlay Person Info. on Picture
Display the person informaon on the captured picture.
Voice Prompt
If you enable this funcon, the voice prompt is enabled in the device. You can hear the voice
prompt when
operang in the device.
Upload Pic. Aer Linked Capture
Upload the pictures captured by linked camera to the system automacally.
Save Pic. Aer Linked Capture
If you enable this funcon, you can save the picture captured by linked camera to the device.
Press Key to Enter Card Number
If you enable this funcon, you can input the card No. by pressing the key.
Wi-Fi Probe
If you enable this funcon, the device can probe the surrounding communicaon devices'
MAC address and upload the MAC address to the system. If the MAC address match the
specied MAC address, the system can trigger some linkage acons.
3G/4G
If you enable this funcon, the device can communicate in 3G/4G network.
NFC An-Cloning
If you enable this funcon, you cannot use the cloned card for authencaon and further
enhance security.
4.
Click OK.
5.
Oponal: Click Copy to, and then select the access control device(s) to copy the parameters in
the page to the selected device(s).
Congure
Parameters for Door/Elevator
Aer adding the access control device, you can congure its access point (door or oor)
parameters.
Before You Start
Add access control device to the client.
Steps
1.
Click Access Control → Advanced Funcon → Device Parameter .
2.
Select an access control device on the le panel, and then click to show the doors or oors of
the selected device.
Swing Barrier User Manual
81
3.
Select a door or oor to show its parameters on the right page.
4.
Edit the door or oor parameters.
Note
●
The displayed parameters may vary for dierent access control devices.
●
Some of the following parameters are not listed in the Basic Informaon page, click More to
edit the parameters.
Name
Edit the card reader name as desired.
Door Contact
You can set the door sensor as remaining closed or remaining open. Usually, it is remaining
closed.
Exit
Buon Type
You can set the exit buon as remaining closed or remaining open. Usually, it is remaining
open.
Door Locked Time
Aer swiping the normal card and relay acon, the mer for locking the door starts working.
Extended Open
Duraon
The door contact can be enabled with appropriate delay aer person with extended accesss
needs swipes her/his card.
Door Le Open Timeout Alarm
The alarm can be triggered if the door has not been closed in a congured me period. If it is
set as 0, no alarm will be triggered.
Lock Door when Door Closed
The door can be locked once it is closed even if the Door Locked Time is not reached.
Duress Code
The door can open by
inpung the duress code when there is duress. At the same me, the
client can report the duress event.
Super Password
The specic person can open the door by inpung the super password.
Dismiss Code
Create a dismiss code which can be used to stop the buzzer of the card reader (by entering
the dismiss code on the keypad).
Swing Barrier User Manual
82
Note
●
The duress code, super code, and dismiss code should be dierent.
●
The duress code, super password, and the dismiss code should be dierent from the
authencaon password.
●
The length of duress code, super password, and the dismiss code is according the device,
usually it should contains 4 to 8 digits.
5.
Click OK.
6.
Oponal: Click Copy to , and then select the door/oor(s) to copy the parameters in the page to
the selected doors/oor(s).
Note
The door or oor's status duraon sengs will be copied to the selected door/oor(s) as well.
Congure Parameters for Card Reader
Aer adding the access control device, you can congure its card reader parameters.
Before You Start
Add access control device to the client.
Steps
1.
Click Access Control → Advanced Funcon → Device Parameter .
2.
In the device list on the
le, click to expand the door, select a card reader and you can edit the
card reader's parameters on the right.
3.
Edit the card reader basic parameters in the Basic Informaon page.
Note
●
The displayed parameters may vary for dierent access control devices. There are part of
parameters listed as follows. Refer to the user manual of the device for more details.
●
Some of the following parameters are not listed in the Basic Informaon page, click More to
edit the parameters.
Name
Edit the card reader name as desired.
OK LED Polarity/Error LED Polarity/Buzzer Polarity
Set OK LED Polarity/Error LED Polarity/Buzzer LED Polarity of main board according to the
card reader parameters. Generally, adopts the default sengs.
Minimum Card Swiping Interval
If the interval between card swiping of the same card is less than the set value, the card
swiping is invalid. You can set it as 0 to 255.
Max. Interval When Entering PWD
Swing Barrier User Manual
83
When you inpung the password on the card reader, if the interval between pressing two
digits is larger than the set value, the digits you pressed before will be cleared automacally.
Alarm of Max. Failed Aempts
Enable to report alarm when the card reading aempts reach the set value.
Max. Times of Card Failure
Set the max. failure aempts of reading card.
Tampering Detecon
Enable the an-tamper detecon for the card reader.
Communicate with Controller Every
When the access control device cannot connect with the card reader for longer than the set
me, the card reader will turn oine automacally.
Buzzing Time
Set the card reader buzzing me. The available me ranges from 0 to 5,999s. 0 represents
connuous buzzing.
Card Reader Type/Card Reader Descripon
Get card reader type and descripon. They are read-only.
Fingerprint Recognion Level
Select the ngerprint recognion level in the drop-down list.
Default Card Reader Authencaon Mode
View the default card reader
authencaon mode.
Fingerprint Capacity
View the maximum number of available ngerprints.
Exisng Fingerprint Number
View the number of existed ngerprints in the device.
Score
The device will score the captured picture according to the yaw angle, pitch angle, and
pupillary distance. If the score is less than the congured value, face recognion will be failed.
Face Recognion Timeout Value
If the recognion me is more than the congured me, the device will remind you.
Face
Recognion Interval
The me interval between two connuous face recognions when authencang. By default,
it is 2s.
Face 1:1 Matching Threshold
Set the matching threshold when authencang via 1:1 matching mode. The larger the value,
the smaller the false accept rate and the larger the false rejecon rate when authencaon.
1:N Security Level
Swing Barrier User Manual
84
Set the matching security level when authencang via 1:N matching mode. The larger the
value, the smaller the false accept rate and the larger the false rejecon rate when
authencaon.
Live Face Detecon
Enable or disable the live face detecon funcon. If enabling the funcon, the device can
recognize whether the person is a live one or not.
Live Face
Detecon Security Level
Aer enabling Live Face Detecon funcon, you can set the matching security level when
performing live face authencaon.
Max. Failed Aempts for Face Auth.
Set the maximum live face detecon failed aempts. The system will lock the user's face for 5
minutes if the live face
detecon is failed for more than the congured aempts. The same
user cannot authencate via the fake face within 5 minutes. Within the 5 minutes, the user
can authencate via the real face twice connuously to unlock.
Lock Authencaon Failed Face
Aer enabling the Live Face Detecon funcon, the system will lock the user's face for 5
minutes if the live face detecon is failed for more than the congured aempts. The same
user cannot
authencate via the fake face within 5 minutes. Within the 5 minutes, the user
can authencate via the real face twice connuously to unlock.
Applicaon Mode
You can select indoor or others applicaon modes according to actual environment.
4.
Click OK.
5.
Oponal: Click Copy to, and then select the card reader(s) to copy the parameters in the page to
the selected card reader(s).
Congure
Parameters for Alarm Output
Aer adding the access control device, if the device links to alarm outputs, you can congure the
parameters.
Before You Start
Add access control device to the client, and make sure the device supports alarm output.
Steps
1.
Click Access Control → Advanced
Funcon → Device Parameter to enter access control
parameter conguraon page.
2.
In the device list on the
le, click to expand the door, select an alarm input and you can edit
the alarm input's parameters on the right.
3.
Set the alarm output parameters.
Name
Edit the card reader name as desired.
Swing Barrier User Manual
85
Alarm Output Acve Time
How long the alarm output will last aer triggered.
4.
Click OK.
5.
Oponal: Set the switch on the upper right corner to ON to trigger the alarm output.
Congure Parameters for Lane Controller
Aer adding the lane controller to the client, you can congure its parameters for passing through
the lane.
Before You Start
Add access control device to the client.
Steps
1.
Click Access Control → Advanced
Funcon → Device Parameter to enter Parameter Sengs
page.
2.
In the device list on the
le, select a lane controller and you can edit the lane controller's
parameters on the right.
3.
Edit the parameters.
Passing Mode
Select the controller which will control the barrier status of the device.
●
If you select According to Lane Controller's DIP
Sengs, the device will follow the lane
controller's DIP
sengs to control the barrier. The sengs on the soware will be invalid.
●
If you select According to Main Controller's Sengs, the device will follow the sengs of
the
soware to control the barrier. The DIP sengs of the lane controller will be invalid.
Free Passing Authencaon
If you enable this funcon, when both entrance and exit's barrier mode is Remain Open, the
pedestrians should authencate each me passing through the lane. Or an alarm will be
triggered.
Opening/Closing Barrier Speed
Set the barrier's opening and closing speed. You can select from 1 to 10. The greater the
value, the faster the speed.
Note
The recommended value is 6.
Audible Prompt Duraon
Set how long the audio will last, which is played when an alarm is triggered .
Note
0 refers to the alarm audio will be played unl the alarm is ended.
Swing Barrier User Manual
86
Temperature Unit
Select the temperature unit that displayed in the device status.
4.
Click OK.
7.7.2 Congure Other Parameters
Aer adding the access control device, you can set its parameters such as network parameters,
capture parameters, RS-485 parameters, Wiegand parameters, etc.
Set Parameters for Face Recognion Terminal
For face recognion terminal, you can set its parameters including face picture database, QR code
authencaon, etc.
Steps
Note
This funcon should be supported by the device.
1.
Enter the Access Control module.
2.
On the
navigaon bar on the le, enter Advanced Funcon → More Parameters .
3.
Select an access control device in the device list and click Face Recognion Terminal.
4.
Set the parameters.
Note
These parameters displayed vary according to dierent device models.
COM
Select a COM port for conguraon. COM1 refers to the RS-485 interface and COM2 refers to
the RS-232 interface.
Face Picture Database
select Deep Learning as the face picture database.
Authencate by QR Code
If enabled, the device camera can scan the QR code to authencate. By default, the funcon
is disabled.
Blocklist Authencaon
If enabled, the device will compare the person who want to access with the persons in the
blocklist.
If matched (the person is in the blocklist), the access will be denied and the device will upload
an alarm to the client.
If mismatched (the person is not in the blocklist), the access will be granted.
Swing Barrier User Manual
87
Save Authencang Face Picture
If enabled, the captured face picture when authencang will be saved on the device.
MCU Version
View the device MCU version.
5.
Click Save.
Set RS-485 Parameters
You can set the access control device's RS-485 parameters including the baud rate, data bit, the
stop bit, parity type,
ow control type, communicaon mode, work mode, and connecon mode.
Before You Start
Add access control device to the client, and make sure the device supports RS-485 interface.
Steps
1.
Enter the Access Control module.
2.
On the
navigaon bar on the le, enter Advanced Funcon → More Parameters .
3.
Select an access control device in the device list and click RS-485 to enter the RS-485 Sengs
page.
4.
Select the serial port number from the drop-down list to set the RS-485 parameters.
5.
Set the baud rate, data bit, the stop bit, parity type,
communicaon mode, working mode, and
connecon mode in the drop-down list.
Note
When the connecon mode is Connect Access Control Device, you can select Card No. or
Person ID as the output type.
6.
Click Save.
●
The congured parameters will be applied to the device automacally.
●
When you change the working mode or connecon mode, the device will reboot
automacally.
Set Wiegand Parameters
You can set the access control device's Wiegand channel and the communicaon mode. Aer
seng the Wiegand parameters, the device can connect to Wiegand card reader via Wiegand
communicaon.
Before You Start
Add access control device to the client, and make sure the device supports Wiegand.
Steps
1.
Enter the Access Control module.
2.
On the
navigaon bar on the le, enter Advanced Funcon → More Parameters .
Swing Barrier User Manual
88
3.
Select an access control device in the device list and click Wiegand to enter the Wiegand
Sengs page.
4.
Set the switch to on to enable the Wiegand funcon for the device.
5.
Select the Wiegand channel No. and the
communicaon mode from the drop-down list.
Note
If you set Communicaon Direcon as Sending, you are required to set the Wiegand Mode as
Wiegand 26 or Wiegand 34.
6.
Click Save.
●
The
congured parameters will be applied to the device automacally.
●
Aer changing the communicaon direcon, the device will reboot automacally.
Enable M1 Card
Encrypon
M1 card encrypon can improve the security level of authencaon.
Steps
Note
The funcon should be supported by the access control device and the card reader.
1.
Enter the Access Control module.
2.
On the
navigaon bar on the le, enter Advanced Funcon → More Parameters .
3.
Select an access control device in the device list and click M1 Card Encrypon to enter the M1
Card Encrypon page.
4.
Set the switch to on to enable the M1 card
encrypon funcon.
5.
Set the sector ID.
The sector ID ranges from 1 to 100.
6.
Click Save to save the
sengs.
7.8 Door/Elevator Control
In Monitoring module, you can view the real-me status of the doors or elevators managed by the
added access control device. You can also control the doors and elevators such as open/close the
door, or remain the door open/closed via the client remotely. The
real-me access event are
displayed in this module. You can view the access details and person details.
Note
For the user with door/elevator control permission, the user can enter the Monitoring module and
control the door/elevator. Or the icons used for control will not show. For seng the user
permission, refer to .
Swing Barrier User Manual
89
7.8.1 Control Door Status
You can control the status for the door(s), including unlock door, locking door, remaining the door
unlock, remaining the door locked, remain all unlocked, etc.
Before You Start
●
Add person and assign access authorizaon to designed person, and person will have the access
authorizaon to the access points (doors). For details, refer to Person Management and Set
Access Group to Assign Access Authorizaon to Persons .
●
Make sure the
operaon user has the permission of the access points (doors). For details, refer
to .
Steps
1.
Click Monitoring to enter the status monitoring page.
2.
Select an access point group on the upper-right corner.
Note
For managing the access point group, refer to Group Management .
The doors in the selected access control group will display.
3.
Click a door icon to select a door, or press Ctrl and select mulple doors.
Note
For Remain All Unlocked and Remain All Locked, ignore this step.
4.
Click the following buons to control the door.
Unlock
When the door is locked, unlock it and it will be open for once. Aer the open duraon, the
door will be closed and locked again
automacally.
Lock
When the door is unlocked, lock it and it will be closed. The person who has the access
authorizaon can access the door with credenals.
Remain Unlocked
The door will be unlocked (no maer closed or open). All the persons can access the door
with no
credenals required.
Remain Locked
The door will be closed and locked. No person can access the door even if he/she has the
authorized credenals, except the super users.
Remain All Unlocked
All doors in the group will be unlocked (no maer closed or open). All the persons can access
the doors with no credenals required.
Remain All Locked
Swing Barrier User Manual
90
All doors in the group will be closed and locked. No person can access the doors even if
he/she has the authorized credenals, except the super users.
Capture
Capture a picture manually.
Note
The Capture buon is available when the device supports capture funcon. The picture is
saved in the PC running the client. For seng the saving path, refer to .
Result
The icon of the doors will change in real-me according to the operaon if the operaon is
succeeded.
7.8.2 Check Real-Time Access Records
The real-me access records can be displayed in the client, including card swiping records, face
recognion records, skin-surface temperature informaon, etc. Also, you can view the person
informaon and view the picture captured during access.
Before You Start
You have added person(s) and access control device(s) to the client. For details, refer to Person
Management and Add Device .
Steps
1.
Click Monitoring to enter monitoring module.
Real-me access records are displayed on the boom of the page. You can view record details,
including card No., person name, event me, door locaon, temperature, authencaon type
etc.
Figure 7-4
Real-me Access Records
Note
You can right click the column name of access event table to show or hide the column according
to actual needs.
Swing Barrier User Manual
91
2.
Oponal: Select an access point group from the drop-down list in the upper-right corner to
show the real me access records of the selected group.
3.
Oponal: Check the event type and event status.
The detected events of checked type and status will be displayed in the list below.
4.
Oponal: Check Show Latest Event to view the latest access record.
The record list will be listed reverse chronologically.
5.
Oponal: Check Enable Abnormal Temperature Prompt to enable abnormal skin-surface
temperature prompt.
Note
When enabled, if there is abnormal temperature informaon, an Abnormal Temperature
window pops up when you enter Monitoring module, displaying person's picture, skin-surface
temperature, card No., person name, etc.
6.
Oponal: Click an event to view person pictures (including captured picture and prole).
Note
In Linked Capture Picture eld, you can double click the captured picture to view an enlarged
picture.
7.
Oponal: Click to view monitoring details (including person's detailed informaon and the
captured picture).
Note
In the pop-up window, you can click to view monitoring details in full screen.
Swing Barrier User Manual
92
Appendix A. DIP Switch
A.1 DIP Switch Descripon
The DIP switch is on the access control board. No.1 and No 2 is from the low bit to the high bit.
Figure A-1 DIP Switch
When the switch is towards ON, it means the switch is enabled, otherwise, the switch is o.
A.2 DIP Switch Corresponded
Funcons
Note
Aer seng the DIP switch, you should reboot the device, or the funcon cannot take eect.
The 2-bit DIP switch corresponded funcons on the access control board are as follows:
Bit
Device Mode Funcon Decimal Value DIP Switch
Address Diagram
1 Work Mode Normal Mode 0
Study Mode 1
2 Keyfob Paring
Mode
Disable Keyfob
Paring Mode
0
Enable Keyfob
Paring Mode
1
Swing Barrier User Manual
93
Appendix B. Buon Conguraon Descripon
Refer to the table below for device conguraon via buon on the main lane control board.
Level-1 Conguraon
No.
Descripon Level-1 Conguraon
No. and Funcons
Notes
1 Study Mode 1-Exit Study Mode/
Normal Mode
2-Study Mode
Note
By default, 1 will be
displayed on the
display screen.
2 keyfob Pairing Mode 1-Exit Pairing Mode
2-Pairing Mode
Note
By default, 1 will be
displayed on the
display screen.
3 Passing Mode 1-Both sides under
control
Note
By default, 1 will be
displayed on the
display screen.
2-Entrance under
control; exit prohibited
3-Entrance under
control; exit on
inducve mode
4-Both sides on
inducve mode
Swing Barrier User Manual
94
Level-1 Conguraon
No.
Descripon Level-1 Conguraon
No. and Funcons
Notes
5-Entrance on
inducve mode; exit
under control
6-Entrance on
inducve mode; exit
prohibited
7-Both sides prohibited
8-Entrance prohibited;
exit under control
9-Entrance prohibited;
exit on
inducve mode
10-Entrance under
control; exit remaining
open
11-Entrance under
control; exit on free
mode
12-Entrance on
inducve mode; exit
remaining open
13-Entrance on
inducve mode; exit
on free mode
14-Entrance
prohibited; exit
remaining open
15-Entrance
prohibited; exit on free
mode
16-Entrance remaining
open; exit under
control
17-Entrance remaining
open; exit on
inducve
mode
Swing Barrier User Manual
95
Level-1 Conguraon
No.
Descripon Level-1 Conguraon
No. and Funcons
Notes
18-Entrance remaining
open; exit remaining
open
19-Entrance remaining
open; exit on free
mode
20-Entrance remaining
open; exit prohibited
21-Entrance on free
mode; exit under
control
22-Entrance on free
mode; exit on
inducve mode
23-Entrance on free
mode; exit remaining
open
24-Entrance on free
mode; exit on free
mode
25-Entrance on free
mode; exit prohibited
4
Memory Mode 1-Disable
2-Enable
Note
By default, 2 will be
displayed on the
display screen.
5 keyfob Remote Control 1-one to one
2-one to mulple
Note
By default, 2 will be
displayed on the
display screen.
Swing Barrier User Manual
96
Level-1 Conguraon
No.
Descripon Level-1 Conguraon
No. and Funcons
Notes
6 Barrier Opening Speed 1-1, 2-2, …10-10
Note
By default, 5 will be
displayed on the
display screen.
7 Barrier Closing Speed 1-1, 2-2, …10-10
Note
By default, 5 will be
displayed on the
display screen.
8 Card Reading on the
Alarm Area
1-Do not open
2-Open
Note
By default, 2 will be
displayed on the
display screen.
9 Enter Duraon 5-5s，6-6s，7-7s, ..., 60-
60s
Note
By default, 5 will be
displayed on the
display screen.
10 Exit Duraon 5-5s，6-6s，7-7s, ..., 60-
60s
Note
By default, 5 will be
displayed on the
display screen.
11 IR Sensing Duraon 0-0s，1-1s，2-2s,..., 25-
25s
Swing Barrier User Manual
97
Level-1 Conguraon
No.
Descripon Level-1 Conguraon
No. and Funcons
Notes
Note
By default, 0 will be
displayed on the
display screen.
12 Intrusion Duraon 0-0s，1-1s，2-2s,..., 20-
20s
Note
By default, 0 will be
displayed on the
display screen.
13 Overstay Duraon 0-0s，1-1s，2-2s,..., 20-
20s
Note
By default, 0 will be
displayed on the
display screen.
14 Delay Time for Barrier
Closing
0-0s，1-1s，2-2s，3-
3s，4-4s，5-5s
Note
By default, 0 will be
displayed on the
display screen.
15 Control Mode 1-Buon Conguraon
2-DIP Switch on Access
Control Board
Note
By default, 1 will be
displayed on the
display screen.
Swing Barrier User Manual
98
Level-1 Conguraon
No.
Descripon Level-1 Conguraon
No. and Funcons
Notes
16 Authencaon on Free
Passing
1-Disable
2-Enable
Note
By default, 1 will be
displayed on the
display screen.
Unable to change
17 IR Conguraon for
Closing in Advance
1-1，2-2, …, N-N
Note
By default, 1 will be
displayed on the
display screen.
18 Lane Number 1-Dual Lanes
2-Single Lane
Note
By default, 1 will be
displayed on the
display screen.
Unable to change
19 Motor Rotaon 1-Clockwise
2-Anclockwise
Note
By default, 1 will be
displayed on the
display screen.
Unable to change
20 Motor Type 1-Dunker Motor
2-Control Motor
Note
By default, 1 will be
displayed on the
display screen.
Unable to change
Swing Barrier User Manual
99
Level-1 Conguraon
No.
Descripon Level-1 Conguraon
No. and Funcons
Notes
21 Volume 1-0，2-1，3-2，4-3，
5-4
Note
By default, 2 will be
displayed on the
display screen.
The device will be
muted when set to "1".
22 Authencated Passing 1-Disable
2-Enable
Note
By default, 1 will be
displayed on the
display screen.
Unable to change
23 Invalid Card No. 1-Disable
2-Enable
Note
By default, 1 will be
displayed on the
display screen.
Unable to change
24 Fingerprint Unmatched 1-Disable
2-Enable
Note
By default, 1 will be
displayed on the
display screen.
Unable to change
25 Climbing over Barrier 1-Disable
2-Enable
Note
By default, 1 will be
displayed on the
display screen.
Swing Barrier User Manual
100
Level-1 Conguraon
No.
Descripon Level-1 Conguraon
No. and Funcons
Notes
26 Reverse Passing 1-Disable
2-Enable
Note
By default, 1 will be
displayed on the
display screen.
27 Exceeding Passing
Duraon
1-Disable
2-Enable
Note
By default, 1 will be
displayed on the
display screen.
28 Intrusion Alarm 1-Disable
2-Enable
Note
By default, 1 will be
displayed on the
display screen.
29 Forced Passing 1-Disable
2-Enable
Note
By default, 1 will be
displayed on the
display screen.
Unable to change
30 Tailgang Alarm 1-Disable
2-Enable
Note
By default, 1 will be
displayed on the
display screen.
Swing Barrier User Manual
101
Level-1 Conguraon
No.
Descripon Level-1 Conguraon
No. and Funcons
Notes
31 Unauthorized Passing 1-Disable
2-Enable
Note
By default, 1 will be
displayed on the
display screen.
Unable to change
32 Exceeding
Authencaon
Duraon
1-Disable
2-Enable
Note
By default, 1 will be
displayed on the
display screen.
Unable to change
33 Failed Authencaon 1-Disable
2-Enable
Note
By default, 1 will be
displayed on the
display screen.
Unable to change
34 Expired Credenal 1-Disable
2-Enable
Note
By default, 1 will be
displayed on the
display screen.
Unable to change
35 Overstaying Alarm 1-Disable
2-Enable
Note
By default, 1 will be
displayed on the
display screen.
Swing Barrier User Manual
102
Level-1 Conguraon
No.
Descripon Level-1 Conguraon
No. and Funcons
Notes
36 Barrier Material 1-Acrylic
37 Barrier Length 1-550
2-600
3-650
4-700
5-750
6-800
7-850
8-900
Note
By default, 8 will be
displayed on the
display screen.
38 Motor Inspecon 1-Disable
2-Enable on Main Lane
3-Enable on Sub Lane
Note
By default, 1 will be
displayed on the
display screen.
39 Brightness of Light 0-0，1-1，2-2, … , 10-
10
Note
By default, 3 will be
displayed on the
display screen.
The higher the value is,
the brighter the light
will be.
40 Self-check Voice
Prompt
1-Disable
2-Enable
Control the device to
play the voice prompt
of self-check or not.
Swing Barrier User Manual
103
Level-1 Conguraon
No.
Descripon Level-1 Conguraon
No. and Funcons
Notes
Note
By default, 2 will be
displayed on the
display screen.
41 Study Mode Voice
Prompt
1-Disable
2-Enable
Note
By default, 2 will be
displayed on the
display screen.
Control the device to
play the voice prompt
of study mode or not.
42 IR Detector Quanty 4-4，6-6，8-8,
Note
By default, 4 will be
displayed on the
display screen.
Unable to change
99 Restore to Default 1- Default
2- Start
Note
By default, 1 will be
displayed on the
display screen.
The device will reboot.
Swing Barrier User Manual
104
Appendix C. Event and Alarm Type
Event Alarm Type
Tailgang Visual and Audible
Reverse Passing Visual and Audible
Force Accessing None
Climb over Barrier Visual and Audible
Overstay Visual and Audible
Passing Timeout None
Intrusion Visual and Audible
Free Passing
Authencaon Failed
Visual and Audible
Barrier Obstructed None
Swing Barrier User Manual
105
Appendix D. Table of Audio Index Related Content
Index Content
1 Climbing over the barrier.
2 Reverse passing.
3 Passing meout.
4 Intrusion.
5 Tailgang.
6 Overstay.
Swing Barrier User Manual
106
Appendix E. Error Code Descripon
The swing barrier will display the error code on the seven-segment display if error occurred. Refer
to the table below to
nd the descripon of each number.
Error Reason Code Error Reason Code
The First IR Beam Triggered 01 Not Studying 54
The Second IR Beam Triggered 02 Obstrucon 55
The Third IR Beam Triggered 03 Exceeding Studying Range 56
The Fourth IR Beam Triggered 04 Encoder Excepon 57
Loudspeaker Oine (If the kit
is not installed, the error code
of "49" will appear but the
device
funcons normally)
49 Motor Excepon 58
Interconnecng Excepon 53
Swing Barrier User Manual
107
Appendix F. Communicaon Matrix and Device
Command
Communicaon Matrix
Scan the following QR code to get the device communicaon matrix.
Note that the matrix contains all
communicaon ports of Hikvision access control and video
intercom devices.
Figure F-1 QR Code of Communicaon Matrix
Device Command
Scan the following QR code to get the device common serial port commands.
Note that the command list contains all commonly used serial ports commands for all Hikvision
access control and video intercom devices.
Figure F-2 Device Command
Swing Barrier User Manual
108
UD30051B-A
