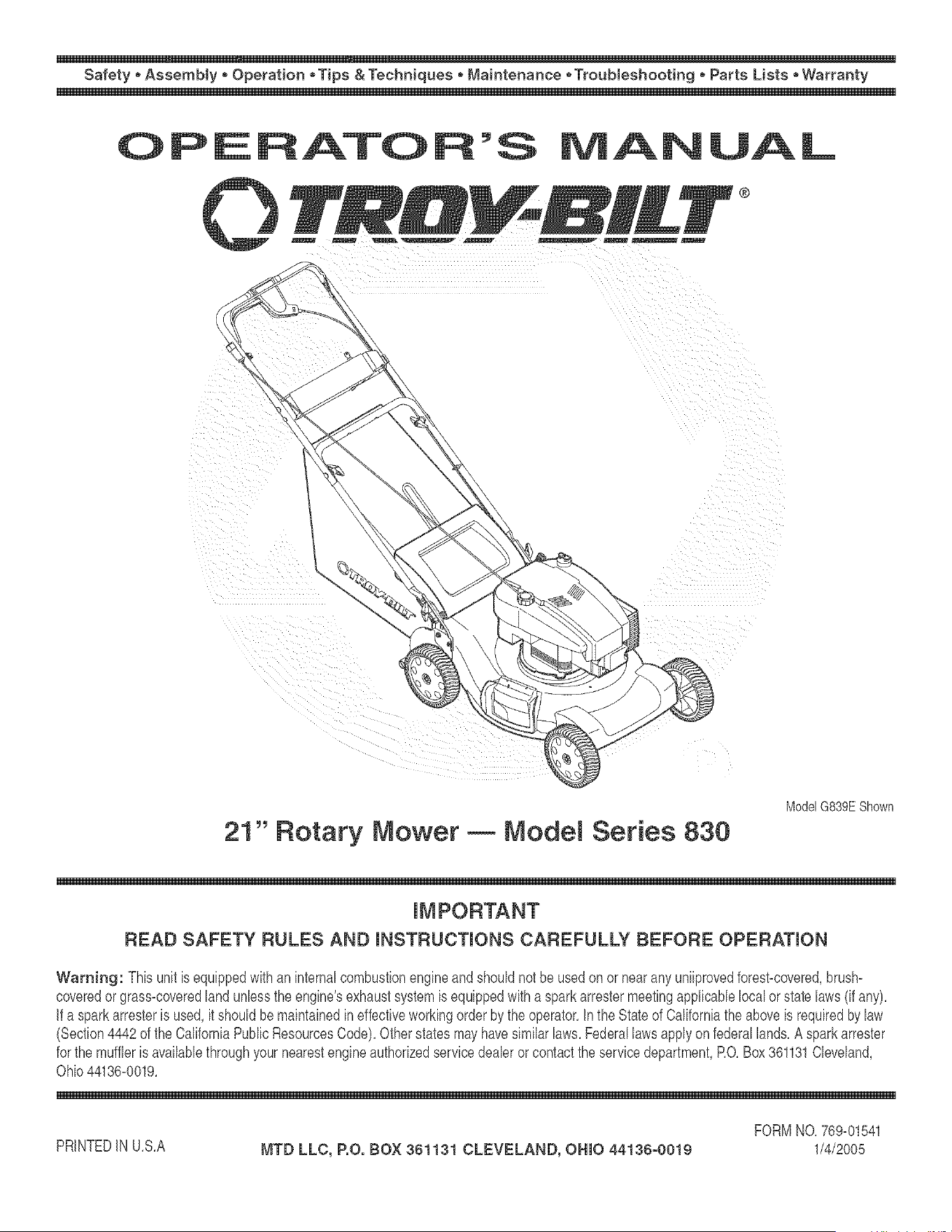

Safetyo Assembly o Operation oTips & Techniques oMaintenance * Troubleshooting o Parts Lists oWarranty
®
21" Rotary Mower -- Model Series 830
ModelG839EShown
READ SAFETY RULES AND mNSTRUCTmONS CAREFULLY BEFORE OPERATION
Warning: This unitis equippedwithan internalcombustionengineandshouldnot beusedon or nearany uniiprovedforest=covered,brush=
coveredor grass=coveredlandunlessthe engine'sexhaustsystemis equippedwitha sparkattester meetingapplicablelocalorstate laws(if any),
if a sparkattesteris used,it shouldbe maintainedineffectiveworkingorderby the operator,inthe Stateof Californiathe aboveis requiredbylaw
(Section4442of the CaliforniaPublicResourcesCode),Otherstates mayhavesimilarlaws,Federallaws applyonfederallands,A sparkattester
for the muffleris availablethroughyournearestengineauthorizedservicedealeror contactthe servicedepartment,RO,Box361131Cleveland,
Ohio44136-0019,
FORMNO,769=01541
PRINTEDiN U,S,A MTD LLC, P.O. BOX 361131 CLEVELAND, OHiO 44136-0019 1/4/2005

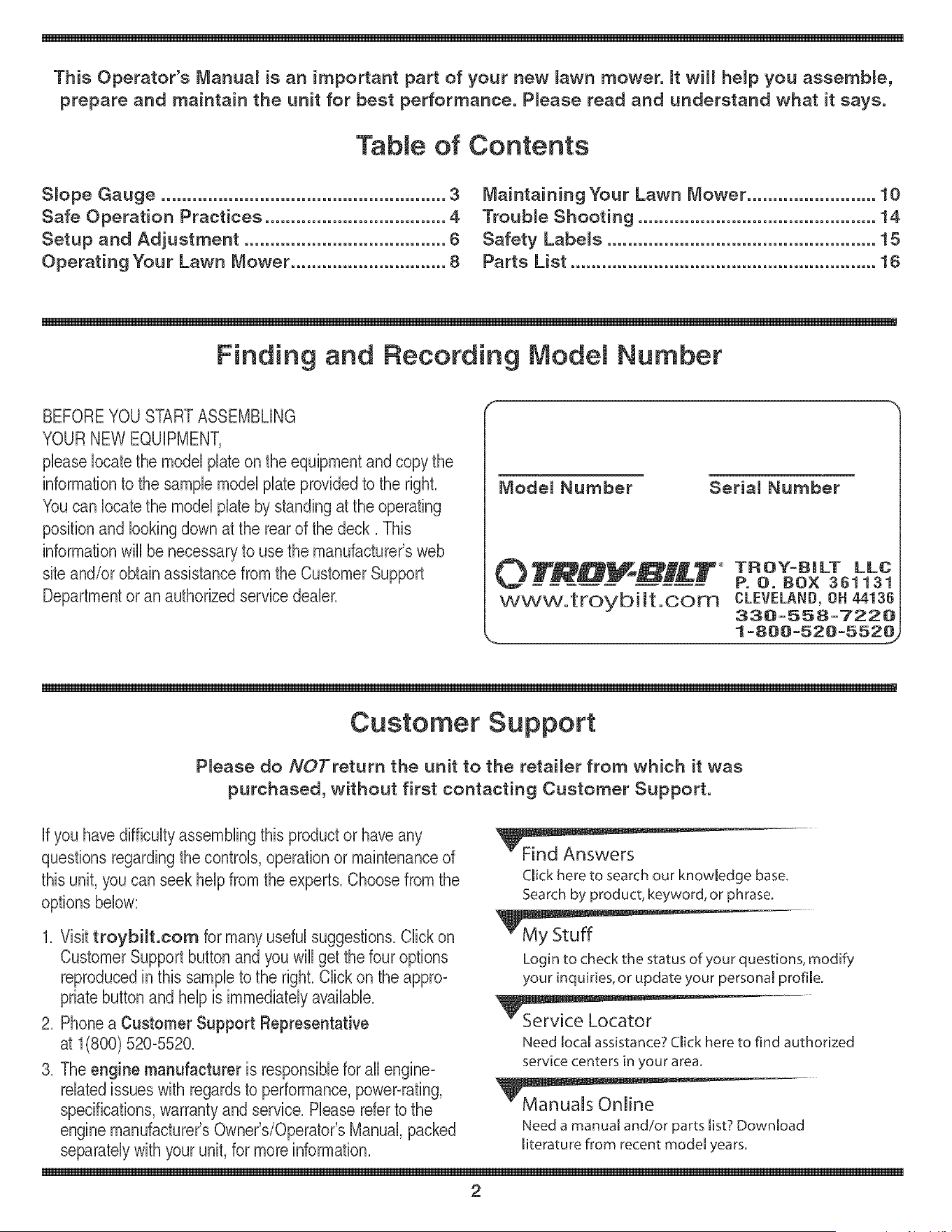

This Operator's Manua_ is an important part of your new lawn mower, mtwH_ he_p you assemble,
prepare and maintain the unit for best performance. Please read and understand what it says.
Table of Contents
Slope Gauge ....................................................... 3
Safe Operation Practices ................................... 4

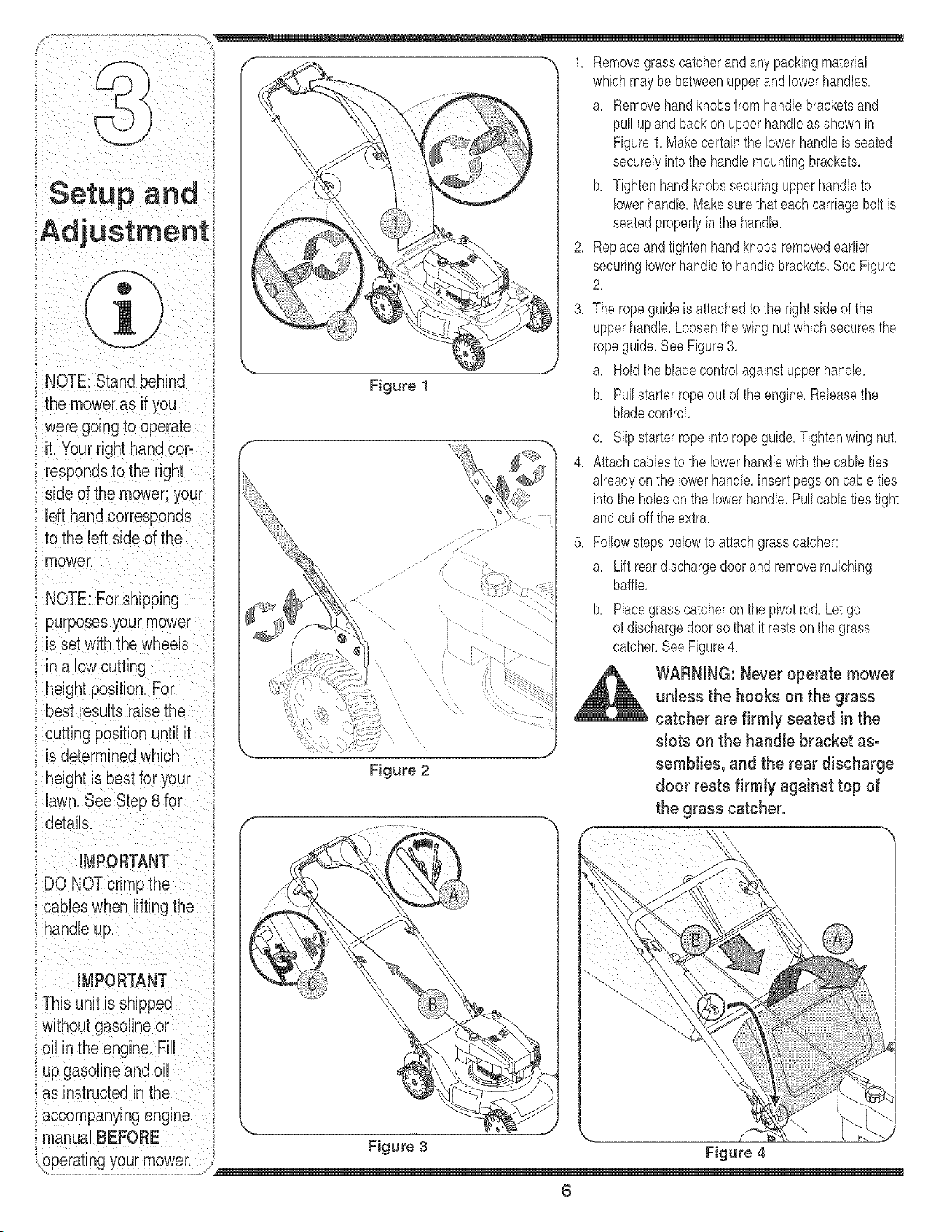

Setup and Adjustment ....................................... 6

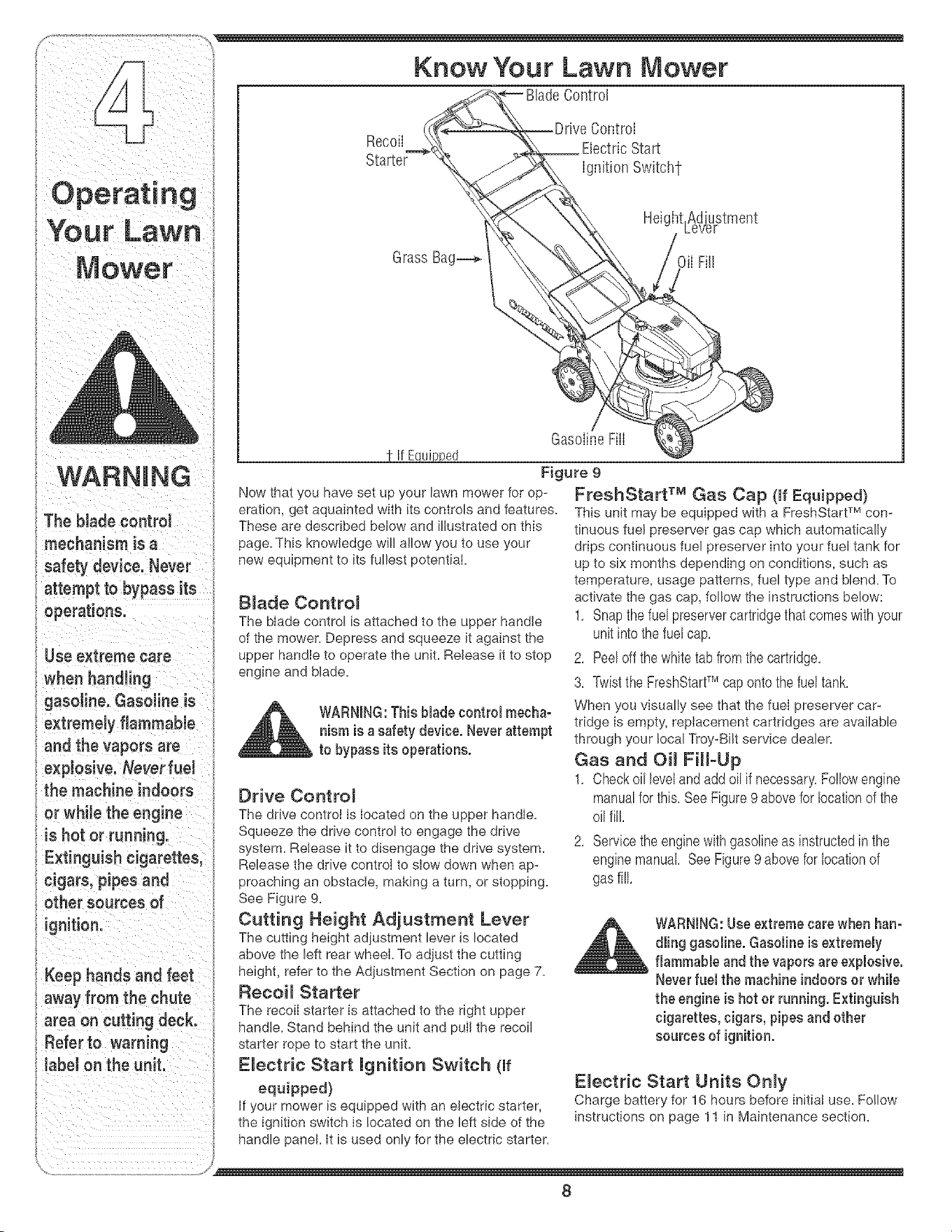

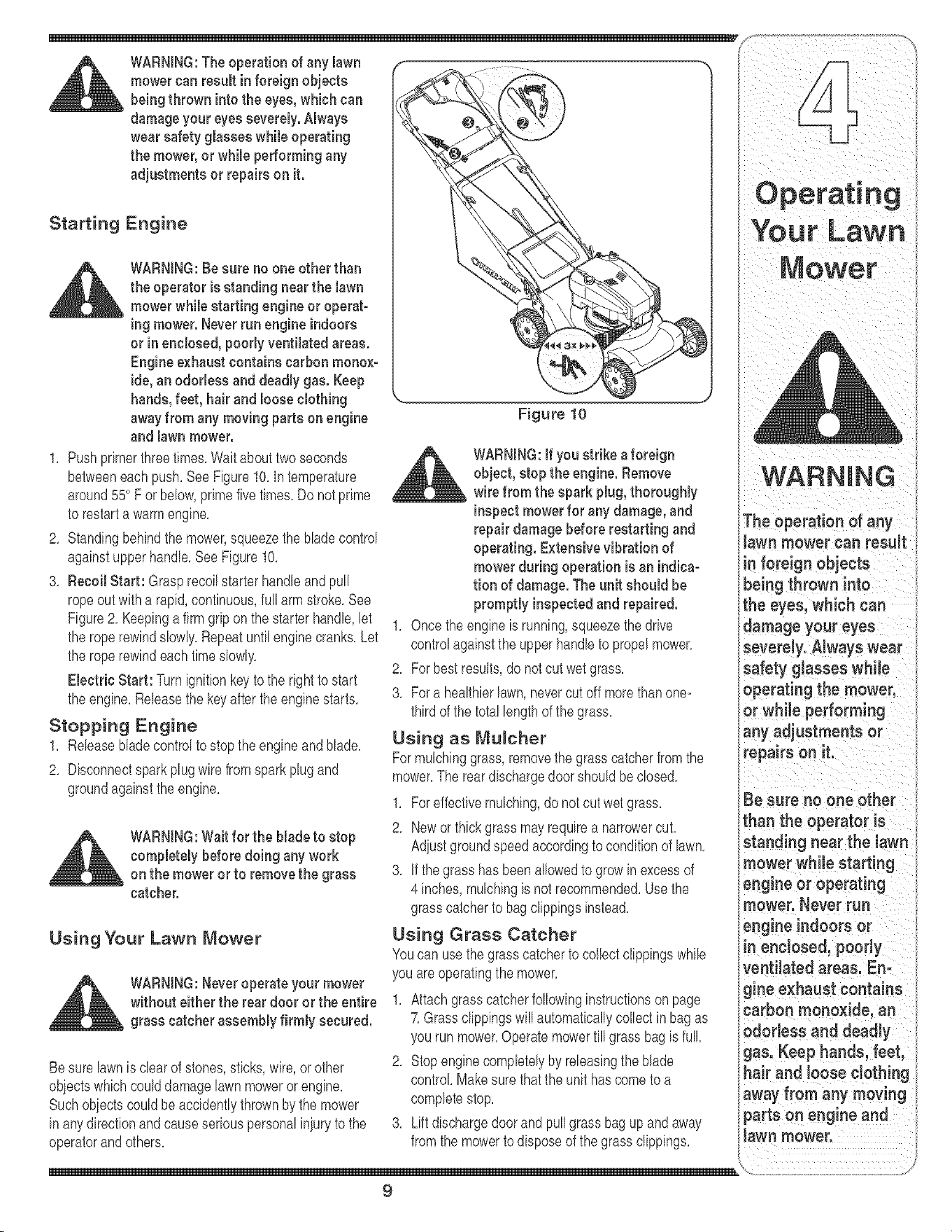

Operating Your Lawn Mower .............................. 8

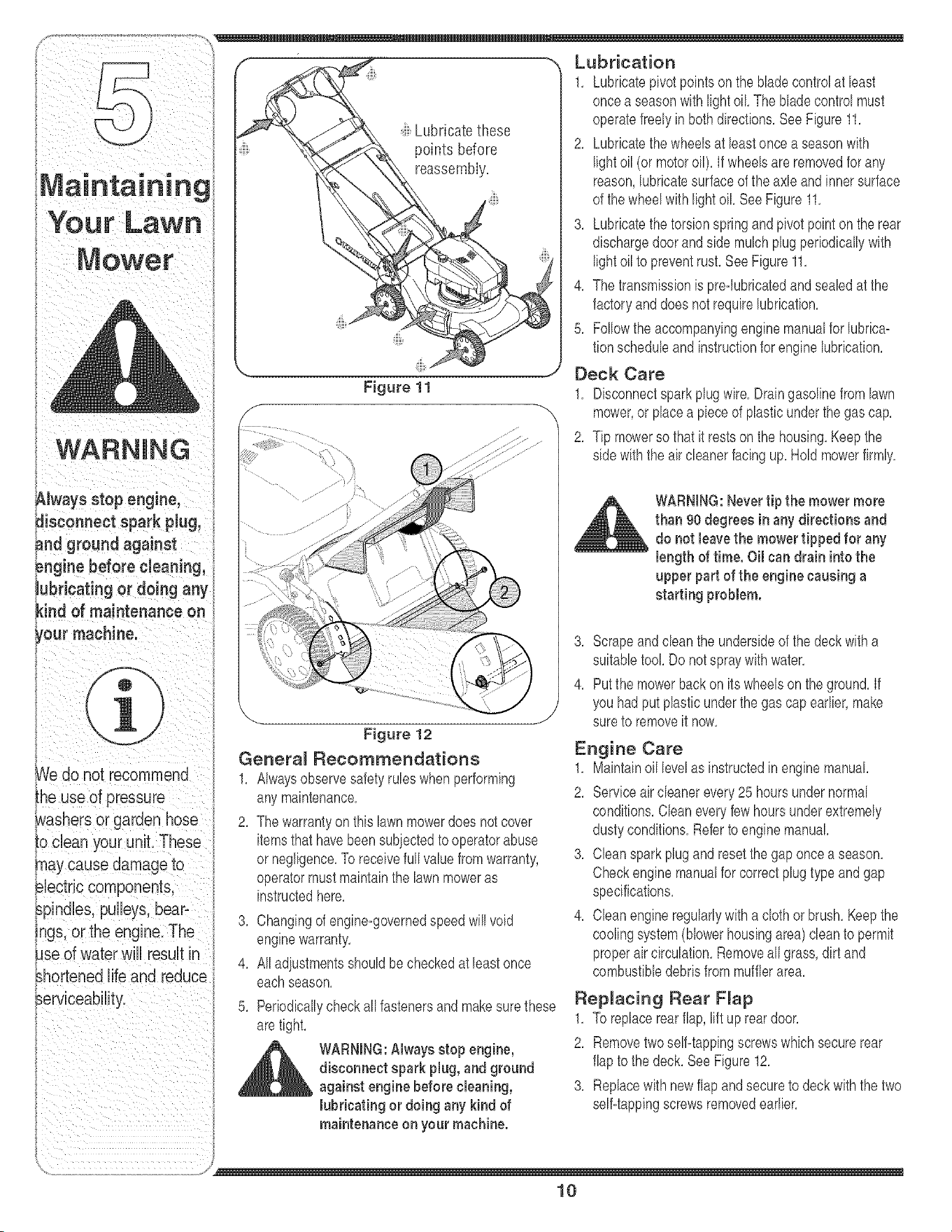

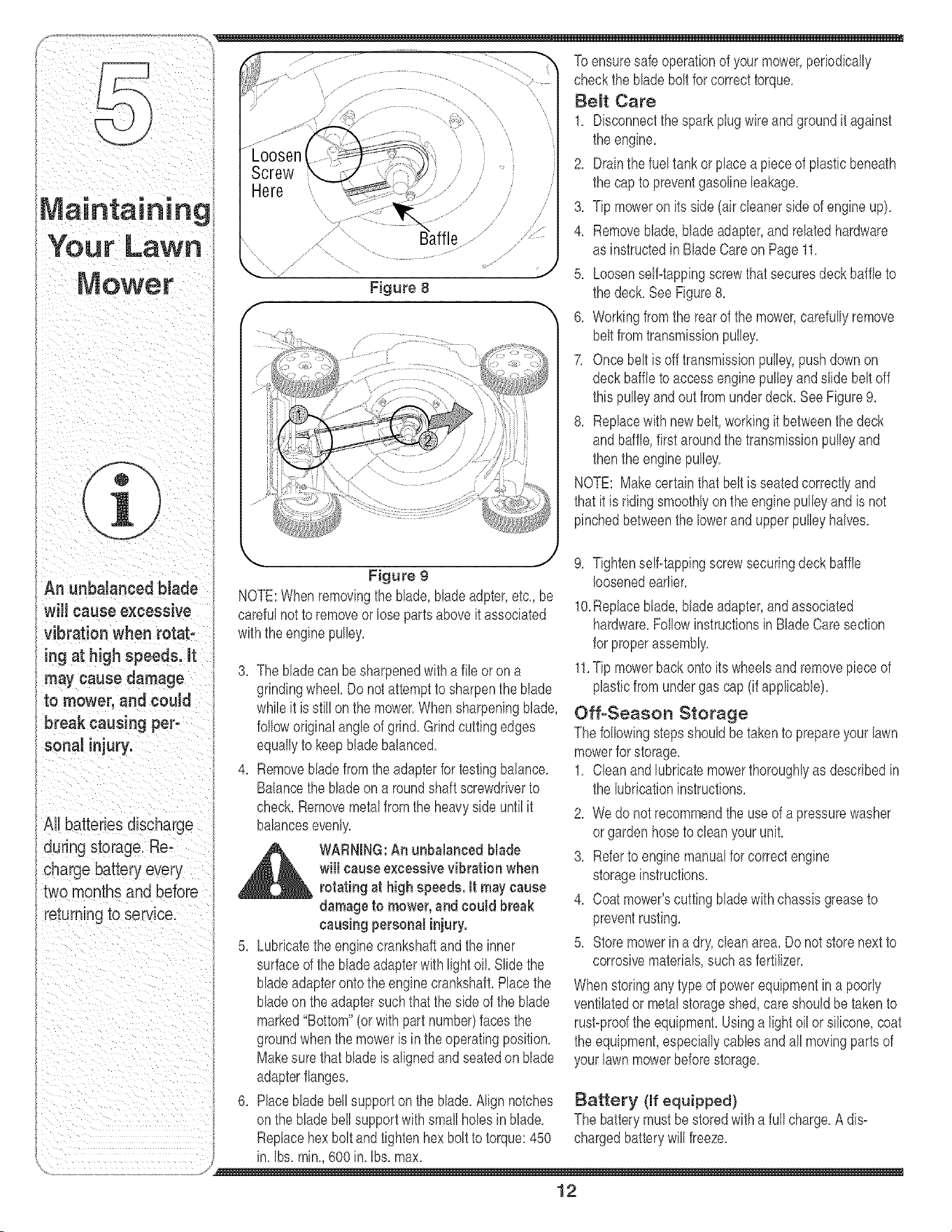

Maintaining Your Lawn Mower ......................... 10

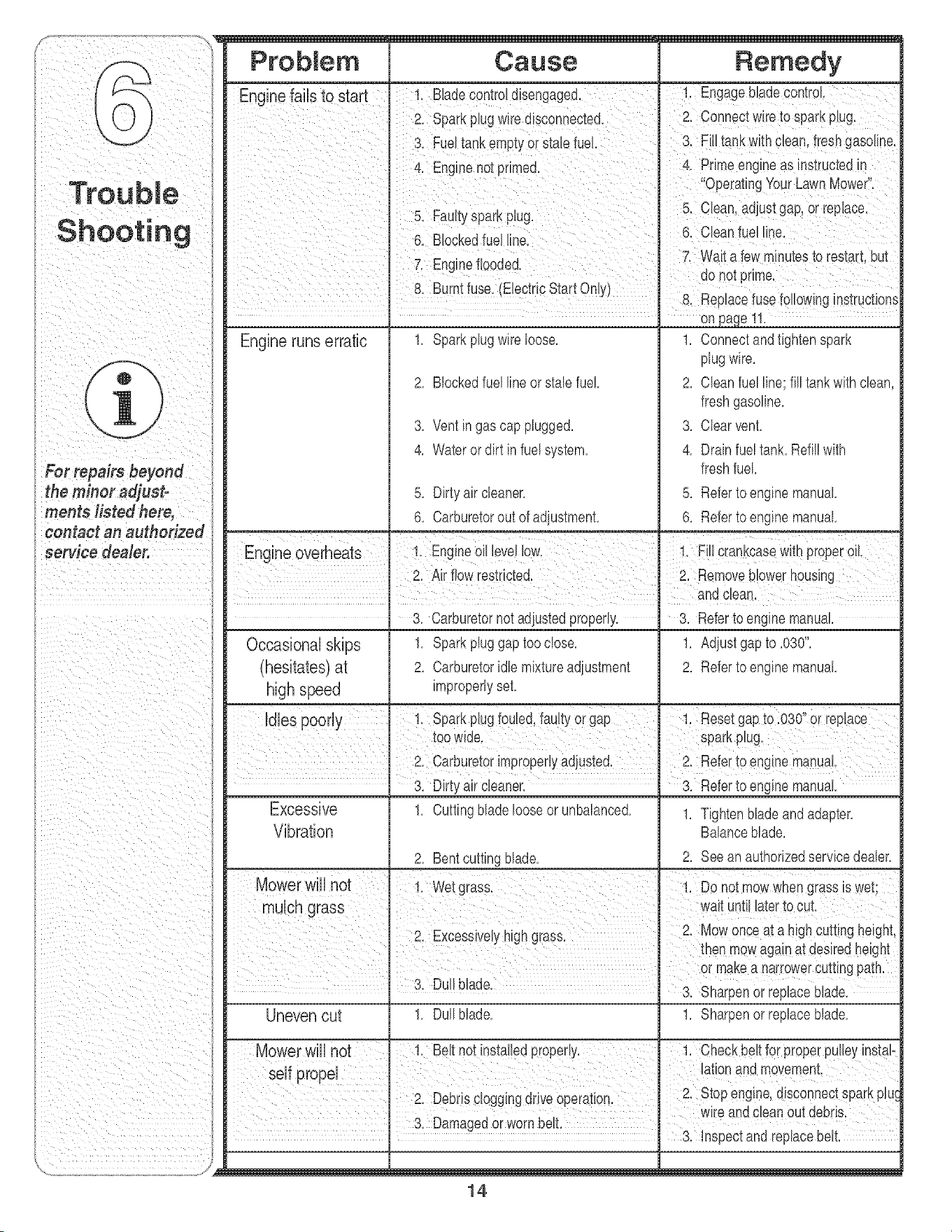

Trouble Shooting .............................................. 14

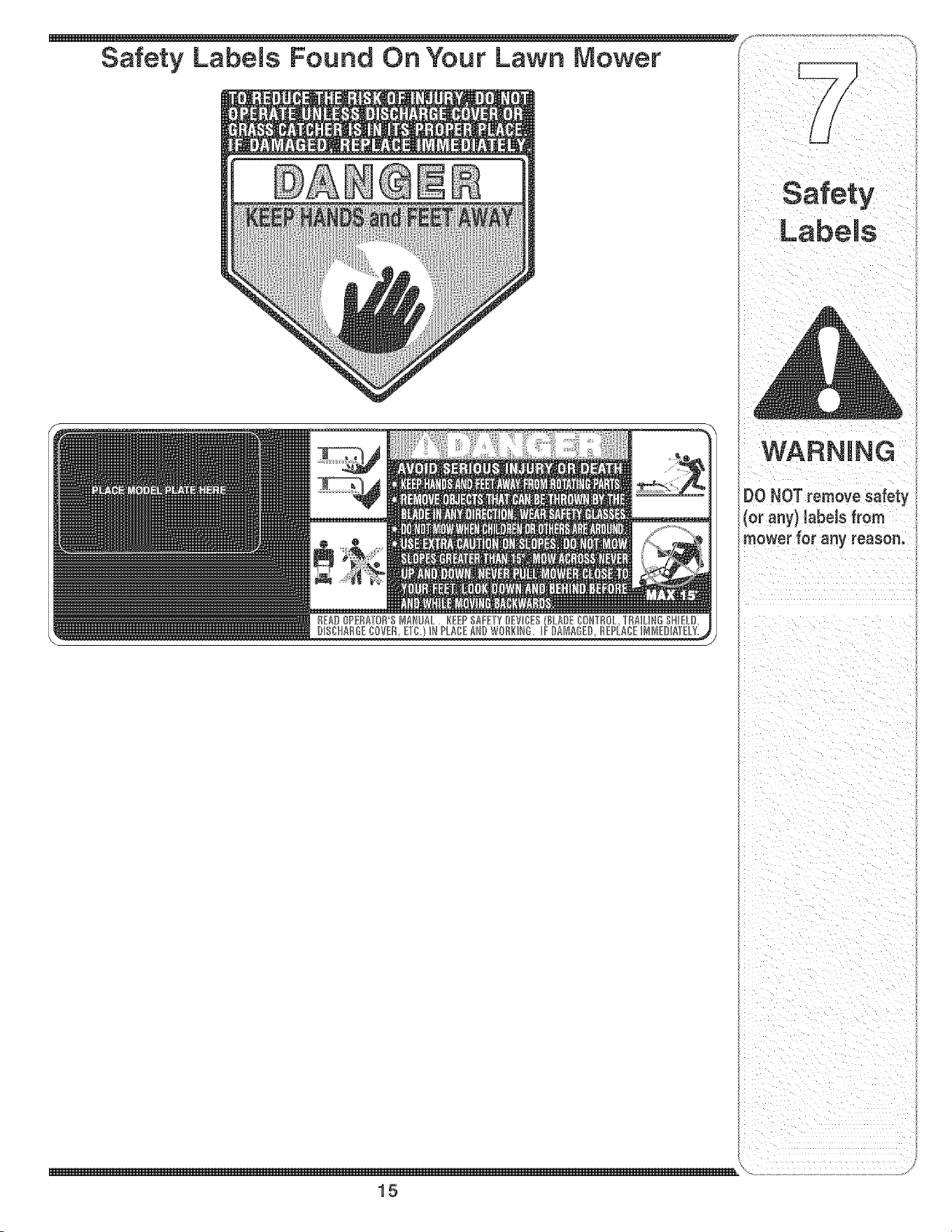

Safety Labels .................................................... 15

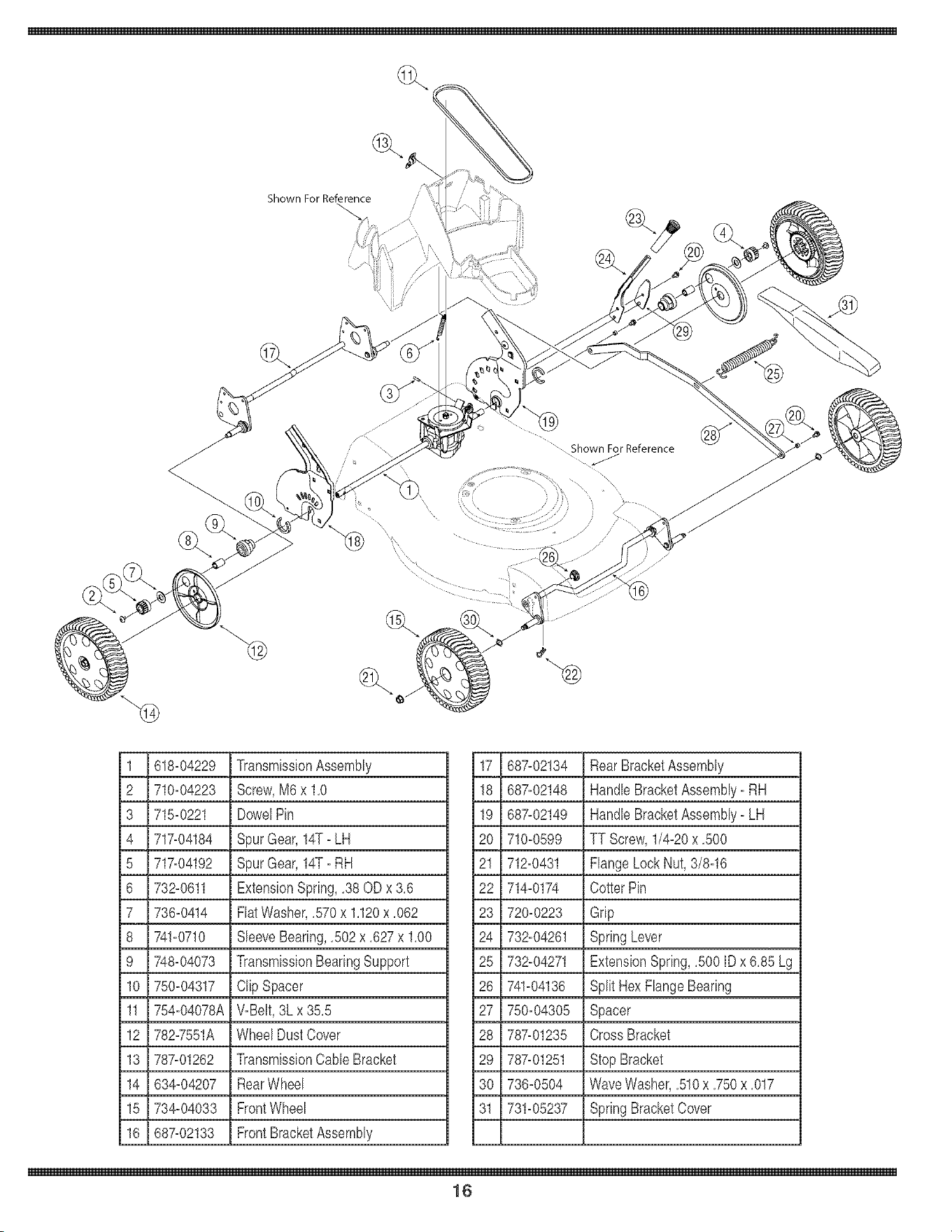

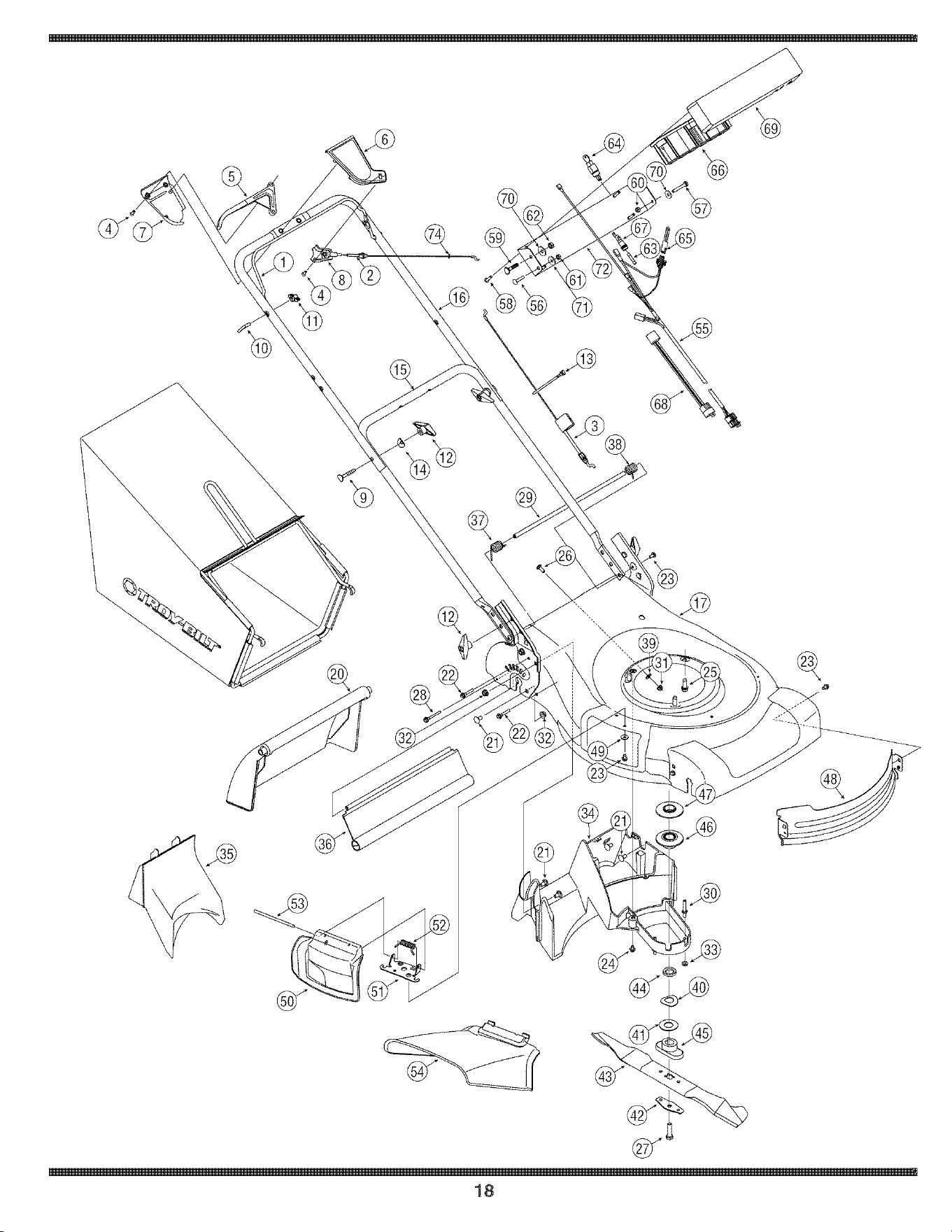

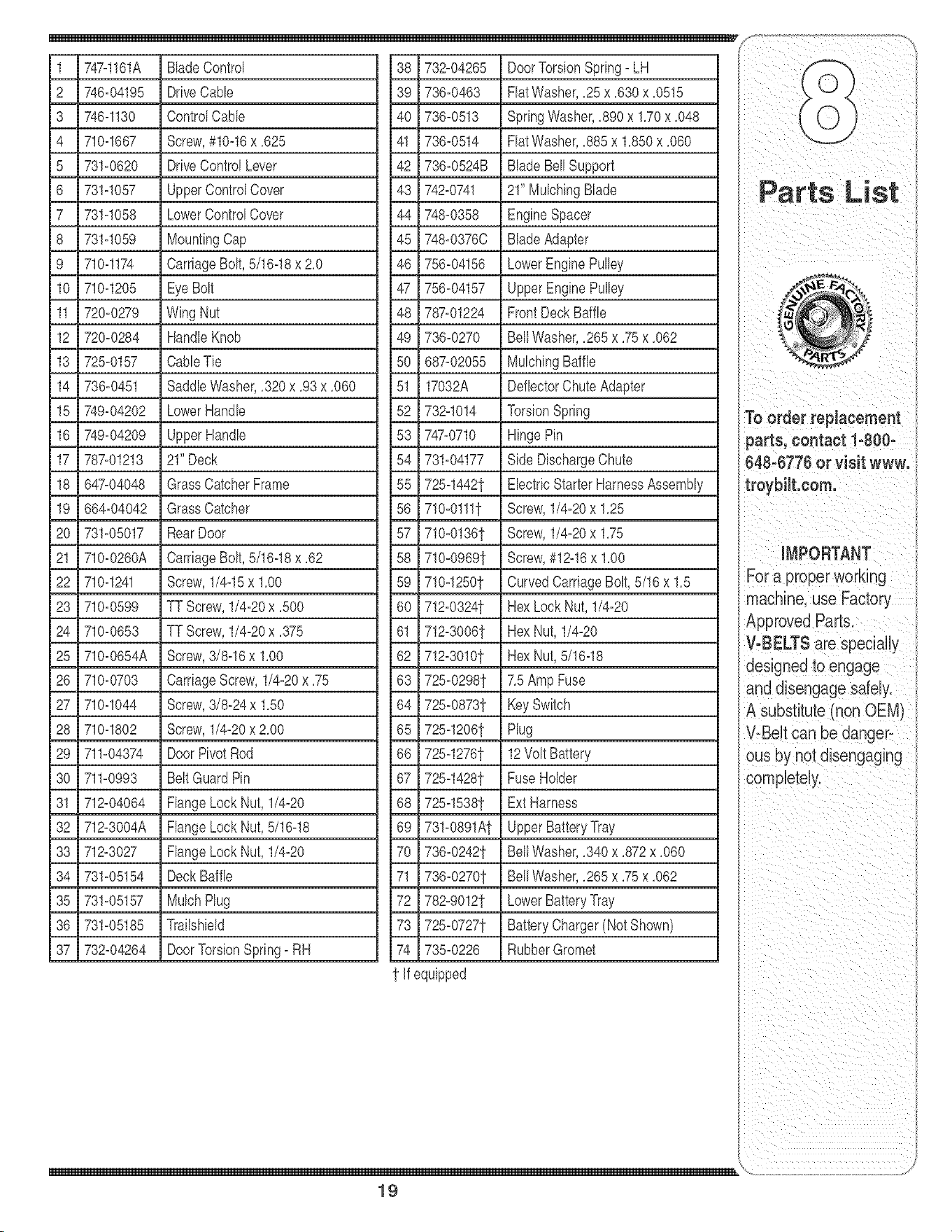

Parts List ........................................................... 16
Finding and Recording Model Number
BEFOREYOU START ASSEMBLING
YOUR NEW EQUIPMENT,
please locatethe model plate on the equipment and copy the
information to the sample model plate providedto the righL
You can locate the model plate by standing at the operating
position and looking down at the rearof the deck_ This
information will be necessary to use the manufacturer's web
site and/or obtain assistance from the Customer Support
Department or an authorized service dealer_
Modem Number Serial Number
O TRO_X_--T° TBOY=BRLT LLC
P. O. BOX 361131
www.troybilt.com CLEVELAND, ON 44136
33e=558=7220
1 =800=52e=552e
% J
Customer Support
P{ease do NOTreturn the unit to the retailer from which it was
purchased, without first contacting Customer Support.
If you have difficulty assembling this product or have any
questions regardingthe controls, operation or maintenanceof
this unit, you can seek help from the experts. Choose from the
options below:
Click here to search our knowledge base.
Search by product, keyword, or phrase.
1. Visit troybHt.com for many useful suggestions. Click on
Customer Support button and you will get the four options
reproduced in this sample to the right. Click on the appro-
priatebutton and help is immediatelyavailable.
2. Phonea Customer Support Representative
at 1(800) 520-5520.
3. The engine manufacturer is responsiblefor all engine°
related issues with regards to performance,power-rating,
Login to check the status of your questions, modify
your inquiries, or update your personal profile.
Need local assistance? Click here to find authorized
service centers in your area.
specifications, warranty and service. Please refer to the
eng Need a manual and/or parts list? Download
separatelywith your unit, for more information, literature from recent model years.
2
03 x= S
£
O
_5
o
(D
_5
03
(D
(D
Cz_
O
_5
E
o>.
(D
03
(D
Cz_
o
03
(D
@ CZ.
"7C_ O
o_
"_ o3
Ob
_50
(D O
Ob
E
£3-
03
D ;>.

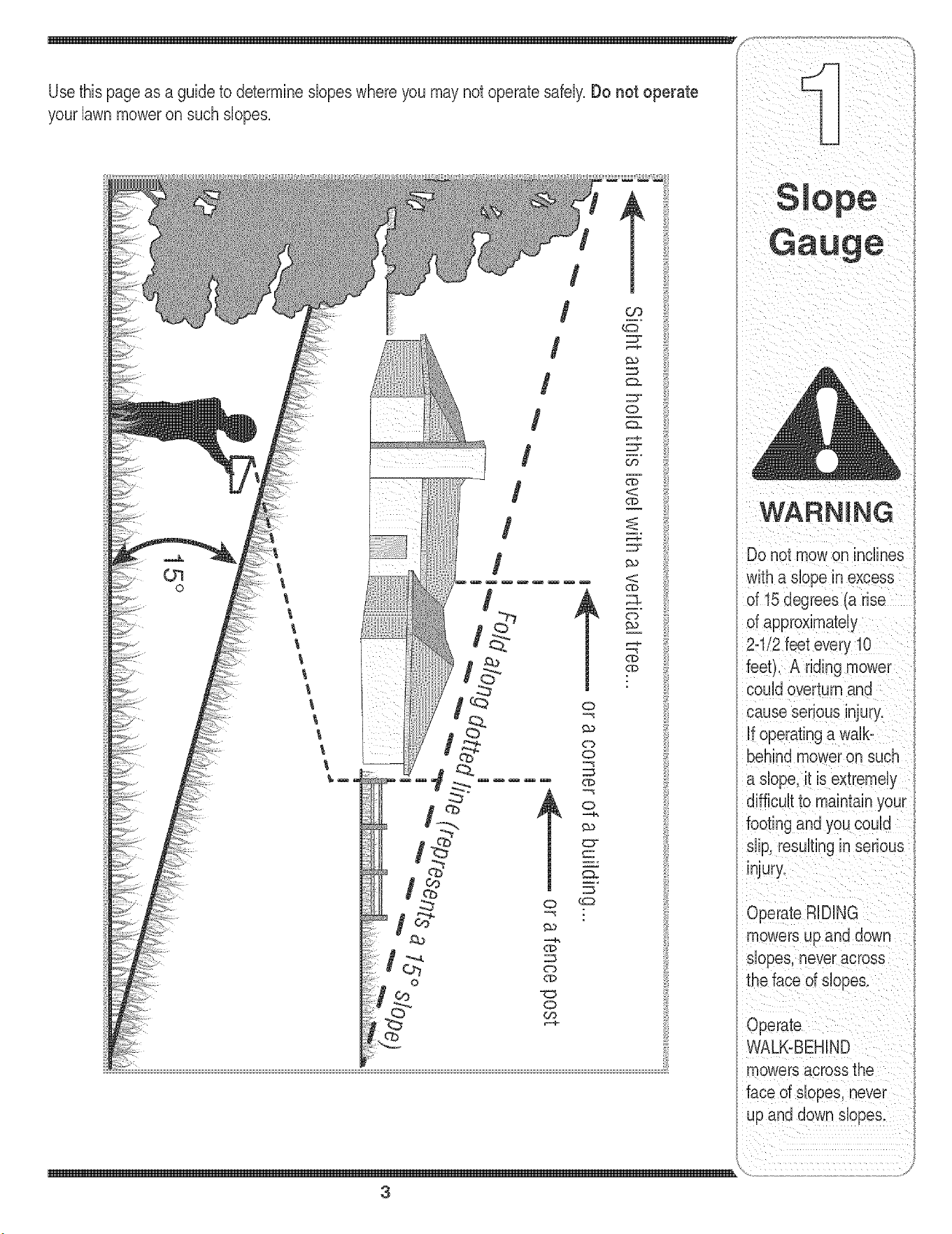

Sight andhold this levelwith a vertical tree...
_,_ or a corner of a building...
I
__ or a fence post
15°
0_

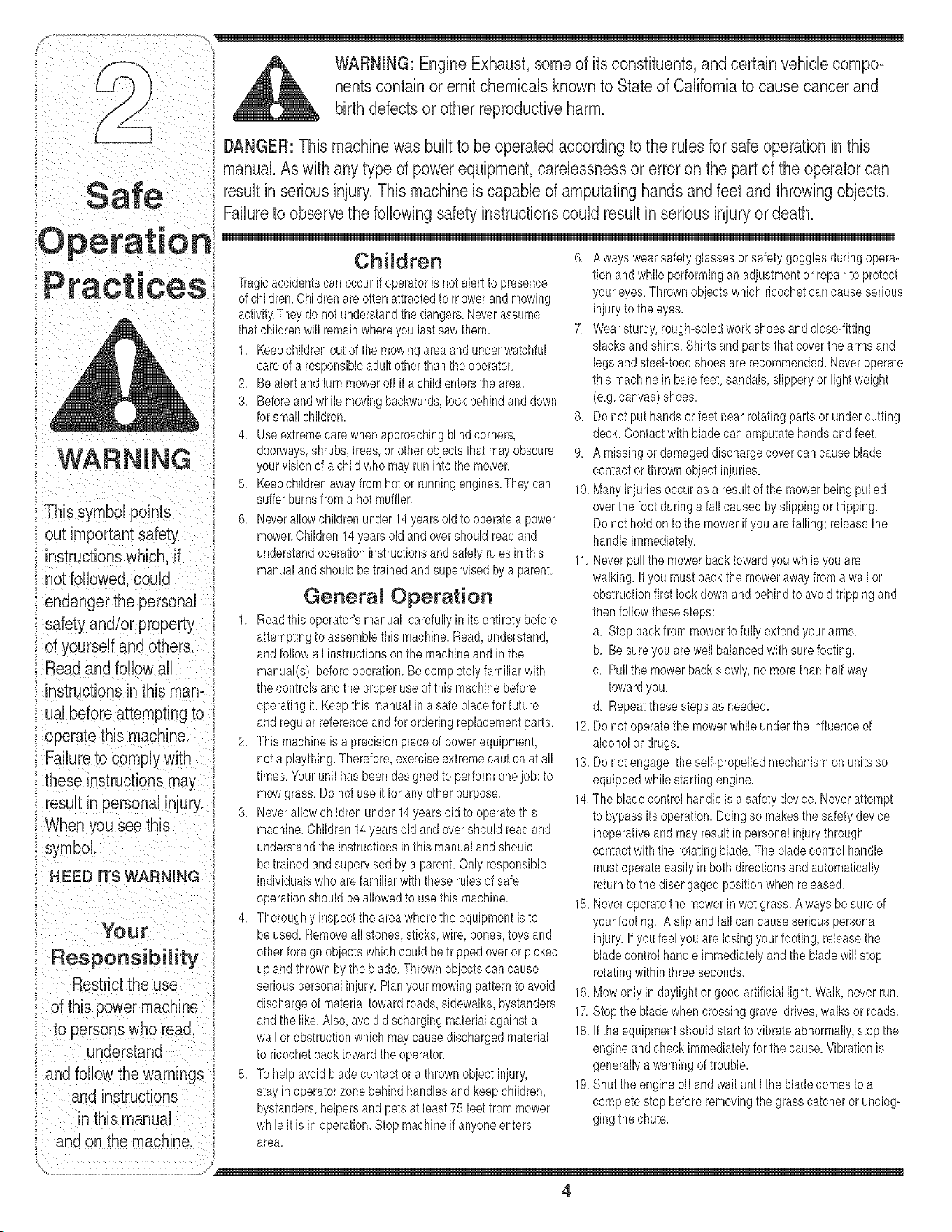

manual. As with any type of power equipment, carelessness or error on the part of the operator can
result in serious injury. This machine is capable of amputating hands and feet and throwing objects.
! Failureto observe the following safety instructions could result in serious injury or death.
endangerthe personal
safety and/or property
Children
Tragicaccidentscan occurifoperatoris notalert to presence
of children.Childrenare oftenattractedto mowerandmowing
activity.They do not understandthe dangers.Neverassume
thatchildrenwill remainwhereyou lastsawthem.
1. Keepchildrenout of the mowingarea andunderwatchful
careof a responsibleadultother thanthe operator.
2. Be alert andturn moweroff ifa childenters thearea.
3. Beforeand whilemovingbackwards,look behindanddown
forsmallchildren.
4. Useextremecare when approachingblindcorners,
doorways,shrubs,trees, or otherobjectsthat may obscure
yourvisionof a childwho mayrun intothemower.
5. Keepchildrenawayfrom hot orrunningengines.Theycan
sufferburnsfrom a hot muffler.
6. Neverallowchildrenunder14 yearsoldto operatea power
mower.Children14yearsold andovershouldreadand
understandoperationinstructionsandsafetyrulesin this
manualandshouldbe trainedandsupervisedbya parent.
General Operation
1. Readthis operator'smanual carefullyin its entiretybefore
attemptingto assemblethis machine.Read,understand,
andfollow all instructionson the machineandin the
manual(s) beforeoperation.Be completelyfamiliarwith
thecontrolsandthe properuse of this machinebefore
operatingit.Keepthis manual in a safeplace forfuture
and regularreferenceandfor orderingreplacementparts.
2. Thismachineis a precision pieceof powerequipment,
nota plaything.Therefore,exerciseextremecautionat all
times.Yourunit has been designedto performonejob: to
mow grass.Do notuse itfor any otherpurpose.
3. Neverallowchildrenunder 14yearsold to operatethis
machine.Children 14yearsold and overshould readand
understandthe instructionsin this manualandshould
be trainedand supervisedbya parent.Only responsible
individualswho arefamiliar withthese rulesof safe
operationshould be allowedto use this machine.
4. Thoroughlyinspectthe areawherethe equipmentis to
be used. Removeall stones,sticks,wire, bones,toys and
otherforeignobjectswhichcould betripped overor picked
up and thrownby the blade.Thrownobjectscan cause
seriouspersonalinjury.Planyourmowingpatternto avoid
dischargeof materialtoward roads, sidewalks,bystanders
andthe like.Also, avoiddischargingmaterialagainsta
wall or obstructionwhich maycausedischargedmaterial
to ricochetbacktoward theoperator.
6. Alwayswear safetyglassesor safetygogglesduringopera-
tion andwhile performingan adjustmentor repairto protect
youreyes. Thrownobjectswhich ricochetcan causeserious
injuryto the eyes.
7. Wearsturdy, rough-soledwork shoesand close-fitting
slacksandshirts. Shirtsand pantsthat coverthe arms and
legs andsteel-toedshoesare recommended.Neveroperate
this machinein bare feet,sandals, slipperyor lightweight
(e.g. canvas)shoes.
8. Do not puthands orfeet nearrotatingparts or undercutting
deck.Contactwithblade can amputatehands andfeet.
9. A missingor damageddischargecovercan causeblade
contactor thrownobject injuries.
10.Manyinjuriesoccur asa resultof the mowerbeing pulled
overthe foot duringa fall causedby slippingortripping.
Do notholdon to the mower if you are falling;releasethe
handle immediately.
11.Neverpullthe mowerbacktowardyou whileyou are
walking.If you mustback the mowerawayfrom a wall or
obstructionfirst look downandbehind to avoidtrippingand
thenfollow thesesteps:
a. Stepback from mowerto fully extendyour arms.
b. Be sureyou arewell balancedwithsure footing.
c. Pullthe mowerbackslowly,no morethan half way
towardyou.
d. Repeatthese stepsas needed.
12.Do not operatethe mowerwhileunderthe influenceof
alcoholor drugs.
13.Do not engage the self-propelledmechanismon units so
equippedwhilestarting engine.
14.The bladecontrol handleis a safetydevice.Neverattempt
to bypassits operation.Doing so makesthe safetydevice
inoperativeandmay resultinpersonal injurythrough
contactwith the rotatingblade.The bladecontrol handle
mustoperateeasilyin bothdirectionsandautomatically
returnto the disengagedpositionwhen released.
15.Neveroperatethe mowerinwet grass. Alwaysbe sure of
yourfooting. A slipand fallcan causeseriouspersonal
injury.If you feel youare losingyour footing,releasethe
bladecontrol handle immediatelyandthe bladewillstop
rotatingwithinthree seconds.
16.Mow only indaylightor good artificiallight. Walk,neverrun.
17.Stopthe bladewhen crossinggraveldrives,walks or roads.
18.If the equipmentshouldstart to vibrateabnormally,stopthe
engine andcheck immediatelyforthe cause.Vibrationis
and follow the warnings 5. Tohelp avoidbladecontact ora thrown objectinjury, ._ generallya _arning of !rouble.. .......
]_ _nut the engne errandwar unl: me Daaecomes-coa
and i..struction2 stay inoperatorzone behindhandlesandkeepchildren, "
u _ compete stop beforeremovng the grasscatcheror unc og
, ,i bystanders,helpersand pets at least75 feet from mower .
un_nusmanuau glngthechute
whileit is in operation.Stopmachineif anyoneenters
and on the machine, area.
..... ,J
4

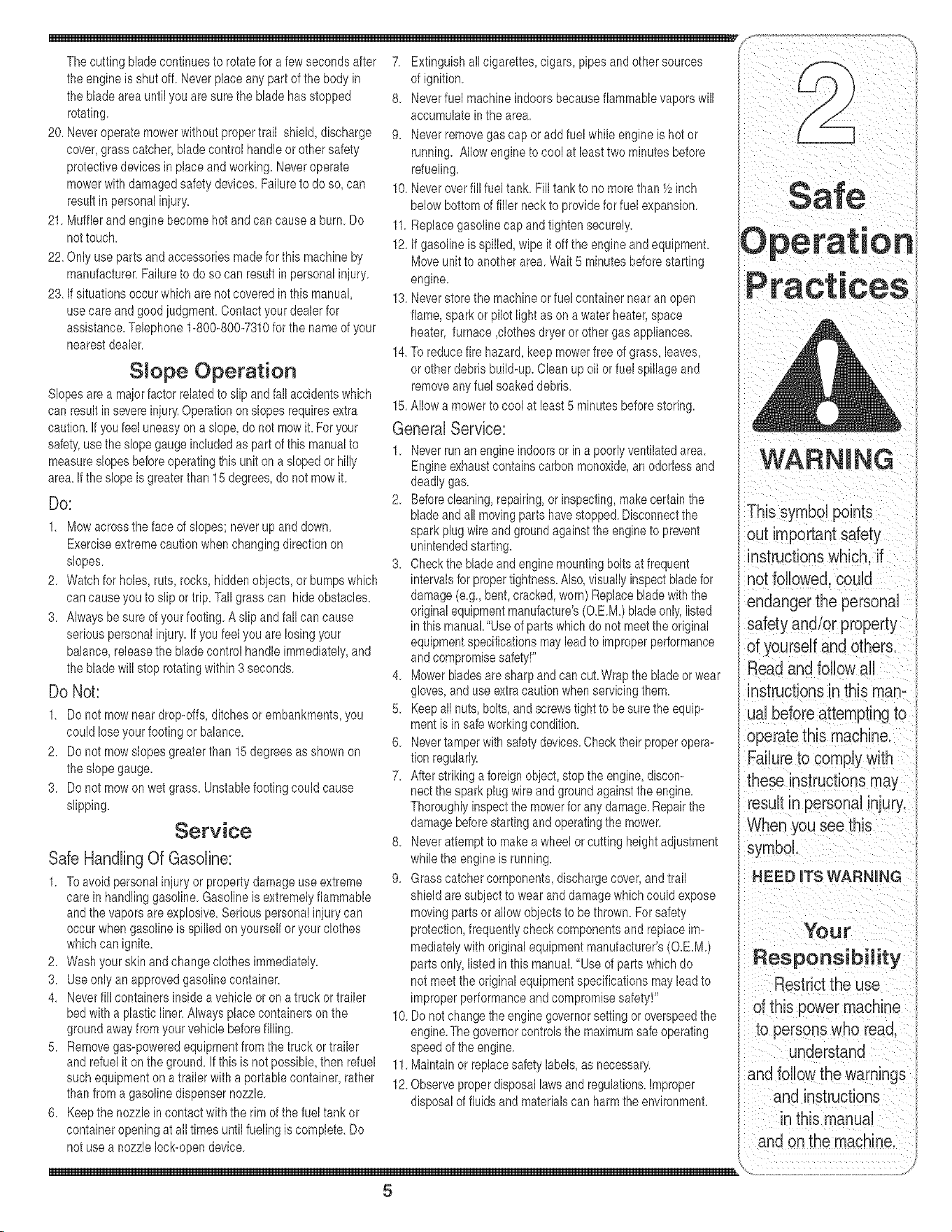

The cutting bladecontinuesto rotatefor a fewseconds after
the engineis shutoff. Neverplace any part of the bodyin
the blade areauntilyou are surethe blade has stopped
rotating.
20.Neveroperatemowerwithoutpropertrail shield,discharge
cover, grasscatcher,bladecontrolhandle or othersafety
protectivedevices in placeandworking.Neveroperate
mowerwithdamagedsafetydevices.Failureto do so,can
resultin personalinjury.
21.Mufflerandengine becomehotand can causea burn.Do
nottouch.
22.Onlyuse parts and accessoriesmadefor this machineby
manufacturer.Failureto do so can result inpersonalinjury.
23.If situationsoccurwhichare not coveredin this manual,
use careand goodjudgment. Contactyour dealerfor
assistance.Telephone1-800-800-7310forthe nameof your
nearestdealer.
SJope Operation
Slopesare a majorfactor relatedto slip andfall accidentswhich
can resultin severeinjury.Operationon slopesrequiresextra
caution.Ifyou feeluneasyon a slope,do notmow it.Foryour
safety,usethe slopegauge includedas part of this manualto
measureslopesbeforeoperatingthis uniton a slopedor hilly
area.If theslopeis greaterthan 15 degrees,do notmowit.
Do:
1. Mowacrossthe faceof slopes;neverup anddown.
Exerciseextremecautionwhenchangingdirectionon
slopes.
2. Watchfor holes,ruts, rocks,hidden objects,or bumpswhich
can causeyou to slipor trip.Tall grasscan hideobstacles.
3. Alwaysbe sure of yourfooting.A slip andfall cancause
seriouspersonalinjury.If you feel you are losingyour
balance,releasethe blade controlhandleimmediately,and
the blade willstop rotatingwithin 3 seconds.
Do Not:
1. Do not mownear drop-offs, ditchesor embankments,you
could loseyour footing or balance.
2. Do not mowslopes greaterthan 15degrees as shownon
the slopegauge.
3. Do not mowon wetgrass. Unstablefooting could cause
slipping.
Service
Safe Handling Of Gaso%e:
1. To avoid personalinjury or propertydamage useextreme
care in handling gasoline.Gasolineis extremelyflammable
andthevaporsare explosive.Serious personalinjurycan
occurwhen gasolineis spilledon yourselfor your clothes
which can ignite.
2. Washyour skinand changeclothesimmediately.
3. Useonly anapprovedgasolinecontainer.
4. Neverfill containersinsidea vehicle or on a truckor trailer
bedwith a plasticliner.Alwaysplacecontainerson the
groundawayfrom yourvehicle beforefilling.
5. Removegas-poweredequipmentfromthe truck ortrailer
andrefuel it onthe ground.Ifthis is notpossible,then refuel
such equipmentona trailerwitha portablecontainer,rather
than froma gasoline dispensernozzle.
6. Keepthe nozzlein contactwith therim of the fuel tank or
container openingat all timesuntil fuelingis complete.Do
notuse a nozzlelock-opendevice.
7. Extinguishallcigarettes,cigars, pipesandother sources
of ignition.
8. Neverfuel machineindoorsbecauseflammablevaporswill
accumulatein the area.
9. Neverremovegas cap oradd fuel whileengineis hot or
running. Allowengineto cool at least two minutesbefore
refueling.
10.Neverover fill fuel tank. Fill tankto no more than _ inch
belowbottom of filler neckto providefor fuel expansion.
11.Replacegasolinecap andtightensecurely.
12.If gasolineis spilled,wipe it offthe engineand equipment.
Moveunit to anotherarea.Wait 5 minutesbeforestarting
engine.
13.Neverstore the machineorfuel containernear an open
flame,spark or pilot light as ona water heater,space
heater, furnace ,clothesdryeror othergas appliances.
14.Toreducefire hazard,keepmowerfree of grass, leaves,
or otherdebrisbuild-up.Clean up oil orfuel spillageand
removeanyfuel soakeddebris.
15.Allowa mowerto cool at least5 minutesbeforestoring.
General Service:
1. Neverrun an engineindoorsor ina poorlyventilatedarea.
Engineexhaustcontainscarbonmonoxide,an odorlessand
deadlygas.
2. Beforecleaning,repairing,or inspecting,makecertainthe
bladeandall movingparts havestopped.Disconnectthe
sparkplug wire andgroundagainstthe engineto prevent
unintendedstarting.
3. Checkthe bladeandenginemountingbolts atfrequent
intervalsfor propertightness.Also,visually inspectbladefor
damage(e.g.,bent, cracked,worn) Replacebladewiththe
originalequipmentmanufacture's(O.EM.) bladeonly,listed
inthis manual."Useof parts whichdo not meetthe original
equipmentspecificationsmay leadto improperperformance
andcompromisesafety!"
4. Mowerbladesare sharp andcan cut.Wrap the bladeor wear
gloves,anduse extracautionwhen servicingthem.
5. Keepall nuts,bolts, andscrewstight to besurethe equip-
ment is in safeworkingcondition.
6. Nevertamperwithsafetydevices.Checktheirproper opera-
tion regularly.
7. Afterstrikinga foreignobject,stop the engine,discon-
nectthe spark plugwire andgroundagainsttheengine.
Thoroughlyinspectthe mowerfor any damage.Repairthe
damagebeforestartingandoperatingthe mower.
8. Neverattempt to makea wheel or cutting height adjustment
whilethe engineis running.
9. Grasscatchercomponents,dischargecover,and trail
shieldare subjectto wear anddamagewhichcould expose
movingparts orallow objectsto be thrown.For safety
protection,frequentlycheck componentsand replaceim-
mediatelywithoriginal equipmentmanufacturer's(O.EM.)
parts only,listed in this manual."Use of partswhich do
not meetthe original equipmentspecificationsmaylead to
improperperformanceandcompromisesafety!"
10.Donot changethe engine governorsettingor overspeedthe
engine.The governorcontrolsthe maximumsafeoperating
speedof the engine.
11.Maintainor replacesafetylabels,as necessary'.
12.Observeproperdisposallawsand regulations.Improper
disposalof fluidsand materialscan harmtheenvironment.
w o°,°o
This SymbQUpoints
ua! before attempting to
resuUt in personaUinjury_
::When you see th s
_symbol
,EEDMTSWARNmNG
Responsibility
Restd_tthe use
of this powermachine
to persons who read
understand
5
NOTE: Stand behind
Ihe moweras if you
Jveregoing to operate
it, Your right hand cor-
esponds to the right
side of the mower;your
left hand corresponds
to the left side d the
mower.
NOTE: Forshipping
purposesyour mower
is set with the wheels
in a lowcutting
height position, For
best results raise the
cutting position until il
is determinedwhich
height is best for your
lawn. See Step 8 for
details.
IMPORTANT
DO NOT crimp the
cables when lifting the
handle up.
IMPORTANT
This unit is shipped
without gasoline or
oil in the engine. Fill
up gasoline and oil
manual BEFORE
Figure 1
zJ'i .........
Figure 2
1. Removegrasscatcherand anypackingmaterial
whichmaybe betweenupperandlowerhandles.
a. Removehandknobsfromhandlebracketsand
pullupand backon upperhandleas shownin
Figure1.Makecertainthe lowerhandb is seated
securelyintothe handb mountingbrackets,
b. Tighten handknobs securingupperhandb to
lowerhandb. Makesure thateach carriagebolt is
seatedproperlyin the handb.
2. Replaceandtightenhandknobsremovedearlbr
securinglowerhandb to handlebrackets,SeeFigure
2.
3. The ropeguide is attachedto the right sideof the
upperhandb. Loosenthe wingnut whichsecuresthe
ropeguide,See Figure3.
a. Holdthe bladecontrol againstupperhandle.
b. Pullstarterrope outof the engine,Releasethe
bladecontrol.
c. Slipstarterrope intoropeguide,Tightenwingnut,
4. Attachcanes to the lowerhandb with the cane ties
alreadyonthe lowerhandle.Insertpegson cane ties
intothe hobs on the lowerhandle.Pullcane tiestight
andcutoff the extra,
5, Followstepsbelowto attachgrasscatcher:
a. Lift reardischargedoorand removemulching
baffle.
b, Placegrasscatcheronthe pivotrod,Let go
of dischargedoorso thatit restsonthe grass
catcher,See Figure4.
WARNING: Never operate mower
unless the hooks on the grass
catcher are firmly seated in the
slots on the handle bracket as°
semblies, and the rear discharge
door rests firmly against top of
the grass catcher.
Figure 3
Figure 4
operating your mower.
6
6 Followsteps belowto install the mulchingbaffle:
a Lift the rear dischargedoor and lift the grass
catcherup and off of the pivot rod,if installed
b Insertthemulchingbaffleas showninFigure5
and releasethe reardischargedoor
7 To convertto sidedischarge,makesure grasscatcher
is offthe unit andreardischargedooris closed
a On theside of the mower,lift the mulchingplug
b Slidetwo hooksof side-dischargechute under
hingepinon mulchingplugassemblyLowerside
mulchingplug SeeFigure6 Do notremovethe
side mulchingplugat any time,evenwhenyouare
notmulching
8 The cuttingheightadiustmentleveris locatedabove
the rearbft wheel SeeFigure7
a Pullthe leverout andawayfromthe mower
b Movethe leverforwardor backfor desiredcutting
height
c Rebaselevertowardsmowerdeck
9 The adiustmentwheelis locatedinthe drivecontrol
handlehousingandis usedto tightenor loosenthe
drive belt Youwill haveto adiustthe drivecontrolif
any of the followinghappens:
a The mowerdoesnot propelitselfwiththe drive
controlengaged
b The mower'sdrive wheelshesitatewith thedrive
controlengaged
If eitherof these conditionsoccur,rotatethe adiustment
wheelclockwiseto tightenthe cabb and counter-clocb
wiseto loosenthe cabb to adjustthe drivecontrol See
Figure8
\
Figure 8
Figure 5
Figure 6
/
/
Figure 7
/
1
For rough or uneven
Never operate mower
unless the hooks on
the grass Catcher are
firmly seated in the
f rmly against top of
the grass catcher,
7
WARNING
The blade control
mechanism is a
safety device. Never
attempt to bypass its
operations.
Use extreme care
when handling
gasoline. Gasoline is
extremely flammable
and the vapors are
explosive. Neverfuel
the machine indoors
or while the engine
is hot or running.
Extinguish cigarettes,
cigars, pipes and
other sources of
ignition.
Keep hands and feet
_way from the chute
tea on cutting deck.
Refer to warning
label on the unit.
Recoil
Control
__ Electric Start
Ignition Switcht
Height LAedjeustment
Fill
Gasoline FiII
Figure 9
Now that you have set up your lawn mower for op-
eration, get aquainted with its controls and features=
These are described below and illustrated on this
page= This knowledge will allow you to use your
new equipment to its fullest potential=
Blade Control
The blade control is attached to the upper handle
of the mower= Depress and squeeze it against the
upper handle to operate the unit= Release it to stop
engine and blade=
WARNING:This blade control mecha-
nism is a safety device. Never attempt
to bypass its operations.
Drive Contro_
The drive control is Iocated on the upper handIe=
Squeeze the drive control to engage the drive
system= Release it to disengage the drive system=
Release the drive controI to slow down when ap-
proaching an obstacle, making a turn, or stopping=
See Figure 9=
Cutting Height Adjustment Lever
The cutting height adjustment lever is located
above the left rear wheeI. To adjust the cutting
height, refer to the Adjustment Section on page 7=
Recoi_ Starter
The recoiI starter is attached to the right upper
handle= Stand behind the unit and puII the recoil
starter rope to start the unit=
E_ectric Start Ignition Switch (if
equipped)
If your mower is equipped with an electric starter,
the ignition switch is located on the left side of the
handle panel= It is used only for the electric starter=
FreshStart TM Gas Cap (if Equipped}
This unit may be equipped with a FreshStart TM con-
tinuous fuel preserver gas cap which automatically
drips continuous fuel preserver into your fuel tank for
up to six months depending on conditions, such as
temperature, usage patterns, fuel type and blend= To
activate the gas cap, follow the instructions below:
1, Snap the fuel preserver cartridge that comes with your
unit into the fuel cap,
2, Peel off the white tab from the cartridge,
3, Twist the FreshStartTM cap onto the fuel tank,
When you visually see that the fueI preserver car-
tridge is empty, replacement cartridges are available
through your local Troy-Bilt service dealer=
Gas and Oi_ Fill-Up
1, Check oil level and add oil if necessary, Follow engine
manual for this, See Figure 9 above for location of the
oil fill
2, Service the engine with gasoline as instructed in the
engine manual See Figure 9 above for location of
gas fill
WARNING:Useextreme care when han-
dling gasoline. Gasoline is extremely
flammable andthe vapors are explosive.
Neverfuel the machine indoors or while
the engine is hotor running. Extinguish
cigarettes, cigars, pipes and other
sources of ignition.
Electric Start Units Only
Charge battery for 16 hours before initial use= Follow
instructions on page 11 in Maintenance section=
8
adjustments or repairs on it.
Starting Engine
_k ARNING: Be sure no one other than
the operator is standing nearthe lawn
mowerwhile starting engine or operato
ing mower.Never run engine indoors
or in enclosed, poorly ventilated areas.
Engine exhaust contains carbon monox-
ide, an odorless and deadly gas. Keep
hands,feet, hair and loose clothing
awayfrom any moving parts on engine
and lawn mower.
1, Pushprimerthreetimes,Wait abouttwo seconds
betweeneachpush,SeeFigure10,Intemperature
around55° F or below,primefive times,Do not prime
to restarta warmengine,
2, Standingbehindthe mower,squeezethe bladecontrol
againstupperhandle,SeeFigure10,
3, Recoil Start: Grasprecoilstarterhandleandpull
ropeout witha rapid,continuous,full arm stroke,See
Figure2, Keepingafirmgrip onthe starterhandle,let
the roperewindslowly,Repeatuntilengine cranks,Let
the roperewindeachtimeslowly,
Electric Start: Turnignitionkeytothe rightto start
the engine,Releasethe keyaftertheenginestarts,
Stopping Engine
1, Releasebladecontrolto stopthe engineandblade,
2, Disconnectsparkplug wire fromspark plug and
groundagainstthe engine,
WARNING:Wait for the blade to stop
completely before doing any work
on the moweror to remove the grass
catcher.
Using Your Lawn Mower
WARNING:Neveroperate your mower
without either the rear door or the entire
grass catcher assembly firmly secured.
Be surelawnis clear of stones,sticks,wire,or other
obiectswhich coulddamagelawnmoweror engine,
Suchobiectscouldbe accidentlythrownby the mower
in anydirectionand causeserious personaliniuryto the
operatorandothers,
Figure 10
WARNING:If you strike aforeign
object, stop the engine. Remove
wire from the spark plug, thoroughly
inspect mowerfor any damage,and
repair damage before restarting and
operating. Extensive vibration of
mower during operation isan indica-
tion of damage.The unit should be
promptly inspected and repaired.
1, Oncethe engineis running,squeezethe drive
controlagainstthe upperhandleto propelmower,
2, For bestresults,do notcut wetgrass,
3, Fora healthierlawn,nevercutoff morethanone-
thirdof the total lengthof the grass,
Using as Muncher
Formulchinggrass,removethe grass catcherfrom the
mower,The reardischargedoorshouldbe closed,
1, Foreffectivemulching,do notcut wetgrass,
2, New or thickgrassmayrequirea narrowercut,
Adiustgroundspeedaccordingto conditionof lawn,
3, If thegrasshas beenallowedto growin excessof
4 inches,mulchingis not recommended,Usethe
grasscatcherto bag clippingsinstead,
Using Grass Catcher
Youcan usethe grass catcherto collectclippingswhile
youare operatingthe mower,
1, Attachgrasscatcherfollowinginstructionsonpage
7,Grassclippingswill automaticallycollect inbagas
yourun mower,Operatemowertill grass bag is full,
2, Stopenginecompletelyby releasingthe blade
control Makesure thatthe unit hascometo a
completestop,
3, Lift dischargedoorand pull grass bagup and away
fromthe mowerto disposeof the grassclippings,
y
can result
being thrown into
the eyes Which can ;
damage your eyes
severe!y. Nways wear
safety glasses while
iioperating the mower,
-_ngineor operating
_ower. Never tun
engine !ndoors or
in enclosed poorly
ventilated areas' En_
gine exhaust Contains
carbon monoxide, an
/
odorless and deadly
_gas, Keep hands, feet,
hair and loose Clothing
away from any mov ng
9
f====== Lubrication
/ _-J _ 1, Lubricatepivotpointson the bladecontrolat least
"_ _--'_ oncea seasonwith lightoil The bladecontrolmust
r===_) ) _ ... . operatefreelyinboth directions,SeeFigurell,
\ v / _ _. LuDrlca[e-[nose
- _ pc nts before 2, Lubricatethe wheelsat leastoncea seasonwith
-- reassembI' lightoil (or motoroil). Ifwheelsare removedfor any
,, ,, ,, y= . .
M _ | ['1 t_ ! r'_ | r'_ C reason,lubricatesurfaceof the axleand innersurface
_= ='3_ = = ........ of the wheelwith hghtoff,See Figure11,
.......... ..............
Figure 12
General Recommendations
1, Alwaysobservesafetyruleswhen performing
any maintenance,
2, Thewarrantyon thislawnmowerdoes notcover
itemsthat havebeensubjectedto operatorabuse
or negfigence,Toreceivefull valuefrom warranty,
operatormustmaintainthe lawnmoweras
instructedhere,
3, Changingofengine=governedspeedwill void
enginewarranty,
4, All adiustmentsshouldbe checkedat leastonce
eachseason,
5, Periodicallycheckall fastenersand makesurethese
aretight,
_ ARNING:Always stop engine,
disconnect spark plug, and ground
against engine before cleaning,
lubricating or doing any kind of
maintenance on your machine.
Io not reCommend
3, Lubricatethe torsionspringand pivot pointonthe rear
dischargedoor andside mulchplugperiodicallywith
lightoil to preventrust,SeeFigure11,
4, Thetransmissionis pro=lubricatedand sealedat the
factoryanddoes notrequirelubrication,
5, Followthe accompanyingenginemanualfor lubrica-
tionscheduleand instructionfor enginelubrication,
Deck Care
1, Disconnectsparkplugwire,Draingasolinefrom lawn
mower,or placea pieceof plasticunderthegas cap,
2, Tip mowerso that it restson the housing,Keepthe
sidewith the air cleanerfacingup,Hold mowerfirmly,
WARNING:Nevertip the mowermore
than 90 degrees in any directions and
do not leavethe mowertipped for any
length of time. Oil can drain intothe
upper part of the enginecausing a
starting problem.
3, Scrapeand clean the undersideof the deckwitha
suitabletool Do notspraywithwater,
4, Putthe mowerbackonits wheelsonthe ground,If
you hadput plasticunderthe gas capearlier,make
sureto removeit now,
Engine Care
1, Maintainoil levelas instructedin enginemanual,
2, Serviceair cleanerevery25 hoursundernormal
conditions,Cleaneveryfewhoursunderextremely
dustyconditions,Referto enginemanual
3, Cleansparkplugandresetthegap oncea season,
Checkenginemanualfor correctplugtype and gap
specifications,
4, Cleanengineregularlywitha clothorbrush,Keepthe
coolingsystem(blowerhousingarea) cleanto permit
properaircirculation,Removeallgrass,dirt and
combustibledebrisfrom mufflerarea,
Replacing Rear Flap
1, Toreplacerearflap, lift up rear door,
2, Removetwo self=tappingscrewswhichsecurerear
flapto thedeck, SeeFigure12,
3, Replacewith newflapandsecureto deckwiththe two
self=tappingscrewsremovedearlier,
10
Replacing Battery (Electric Start Units f -- "_
Only)
Removethe batterypackfromthe handlepanelfor ........
replacementonly.Do notseparatethe batteriesfor any
reason.Disposeof batterbs properly. _i
WARNING:Batteries contain sulfuric
acid whichmay cause burns. Do not
short circuit or mutilate batteries inany
way.Do not put batteries in fire as these
may buret or release toxic materials.
The positivebad on the wire harnesshasthe smalbr
connector.Connectthe positivebad to the positiveside
of the batterypack,thenconnectthe negativeside.
NOTE:Whenreplacingbatterypackin handb panel,bat-
tery packmust bepositionedwiththe positiveterminalto
the rightside and the negativeterminalto the left side of
panel See Figure13.Replacingbatterypack incorrectly
will causeserious damage,
Charging Battery
WARNING:The battery contains cor-
rosive fluid and toxic material; handle
with care and keep away from children.
Do not puncture, disassemble, mutilate
or incineratethe battery. Explosive
gases could be vented during charging
or discharging. Use ina well ventilated
area,away from sources of ignition.
1. Removethe protectivecap fromthe end of the battery
packbad. Alwaysplugchargerbad intobatterypack
bad first,andthen insertbatterychargerplug into120
voltstandardhouseholdoutlet.Followthisorderof
actioneverytimeyou chargethe battery.
2. Chargebatteryfor 16 hoursbeforeinitialuse.Do not
charge longer than 20 hours.
3. After charging,disconnectbatterychargerplug from
householdoutbt first,then disconnectchargerbad
frombatterypack bad.
WARNING:Do not removethe battery
pack from the handle panelfor any
reason other than replacement.
mnqine Fuse (EJectric Start Units Only)
The unit is equippedwithan in=linefuse. If the unit fails to
start,checkthe fuse insidethe batterycoverby pushing
in andturningtheend ofthe fuse holder counter=clock=
wiseandremovingfrom the batterycover.SeeFigure
14.Replacewithstandardautomotive7=1/2ampfuse.
Reinsertintobatterycoverby pushingfuse holder in and
turningclockwise.
+ Terminal ......:::::.........
a
Figure 13
Figure 14
_Use only the battery
iiiii_ _ i_ i _f_iiiii_ /
ii i . /
When removing
" J ii the cutting blade
Figure 15
_for sharpen ng Or
B_ade Care
_ WARNING:Whenremovingcutting replacement or
blade for sharpening or replacement, when sliding the belt
i /
protect your handswith a pair of around it, protect
heavy gbves or use a heavy ragto your hands with a
hold blade, pair of heavy glOVes
1. Disconnectsparkplug'direfromsparkplug.Turn or use a heavy rag to
moweronits sidemakingsurethatthe air filterand
thecarburetorareup, he d the bade.
2. Removebolt, bladebell support,blade,and blade
adapterfromthe enginecrankshaft.SeeFigure15.
11
Maintaining
Figure 8
f
To ensuresafeoperationof your mower,periodically
checkthe bladebolt for correcttorque,
Be_t Care
1, Disconnectthe sparkplugwire andgroundit against
the engine,
2, Drainthe fueltank or placea pieceof plasticbeneath
the capto preventgasolineleakage,
3, Tip moweron its side(air cleanersideof engineup),
4, Removeblade,blade adapter,andrelatedhardware
as instructedin BladeCareon Page11,
5, Loosenself-tappingscrewthatsecuresdeckbaffleto
the deck,See Figure8,
6, Workingfromthe rearof the mower,carefullyremove
beltfrom transmissionpulley,
7, Oncebelt is offtransmissionpulley,pushdownon
deckbaffleto accessenginepulleyandslide belt off
thispulleyand out from underdeck,SeeFigure9,
8, Replacewith newbelt, workingit betweenthedeck
andbaffle,firstaroundthe transmissionpulleyand
thenthe enginepulley,
NOTE: Makecertainthat beltis seatedcorrectlyand
thatit is ridingsmoothlyonthe enginepulleyand is not
pinchedbetweenthe lowerand upperpulleyhalves,
\
An unbalanced blade
wil! cause excessive
vibration when rotat-
ing at high speeds, it
may cause damage
to mower, and could
break causing per-
sonal injury.
All batteries discharge
during storage, Re-
charge battery every
two months and before
returning to service.
Figure 9
NOTE:Whenremovingthe blade,bladeadpter,etc,, be
carefulnot to removeor lose partsaboveit associated
withthe enginepulley,
3, The bladecan be sharpenedwitha file or ona
grindingwheel Do notattemptto sharpenthe blade
whileit is still on the mower,When sharpeningblade,
followoriginalangleof grind,Grindcuttingedges
equallyto keepbladebalanced,
4, Removebladefrom the adapterfor testingbalance,
Balancethe bladeon a roundshaft screwdriverto
check,Removemetalfromthe heavyside untilit
balancesevenly,
_IL ARNING:An unbalanced blade
will causeexcessive vibration when
rotating at high speeds. It may cause
damage to mower,and could break
causing personalinjury.
5, Lubricatethe enginecrankshaftandthe inner
surfaceof the bladeadapterwithlightoil, Slidethe
bladeadapterontotheengine crankshaft,Placethe
bladeon the adaptersuchthat theside of the blade
marked"Bottom"(or with partnumber)facesthe
groundwhenthe moweris in the operatingposition,
Makesurethat bladeis alignedand seatedon blade
adapterflanges,
6, Placebladebellsupportonthe blade,Align notches
onthe bladebellsupportwithsmallholesin blade,
Replacehexboltand tightenhex boltto torque:450
in, Ibs,rain,,600 in, Ibs, max,
9, Tightenself-tappingscrewsecuringdeckbaffle
loosenedearlier,
10,Replaceblade,bladeadapter,andassociated
hardware,Followinstructionsin BladeCaresection
for properassembly,
11,Tip mowerbackonto itswheelsandremovepieceof
plasticfrom undergas cap(if applicable),
OffoSeason Storage
The followingstepsshouldbetakento prepareyour lawn
mowerfor storage,
1, Cleanandlubricatemowerthoroughlyas describedin
the lubricationinstructions,
2, Wedo not recommendthe use of a pressurewasher
orgardenhoseto cleanyourunit,
3, Referto engine manualforcorrectengine
storageinstructions,
4, Coat mower'scuttingbladewith chassis greaseto
preventrusting,
5, Storemowerina dry,cleanarea,Do not storenextto
corrosivematerials,suchas fertilizer,
When storinganytype of powerequipmentin a poorly
ventilatedor metalstorageshed,careshouldbetakento
rust-proofthe equipment,Usinga lightoil orsilicone,coat
the equipment,especiallycablesand all movingpartsof
yourlawnmowerbeforestorage,
Battery (If equipped)
The batterymust bestoredwitha full charge,A dis_
chargedbatterywill freeze,
12

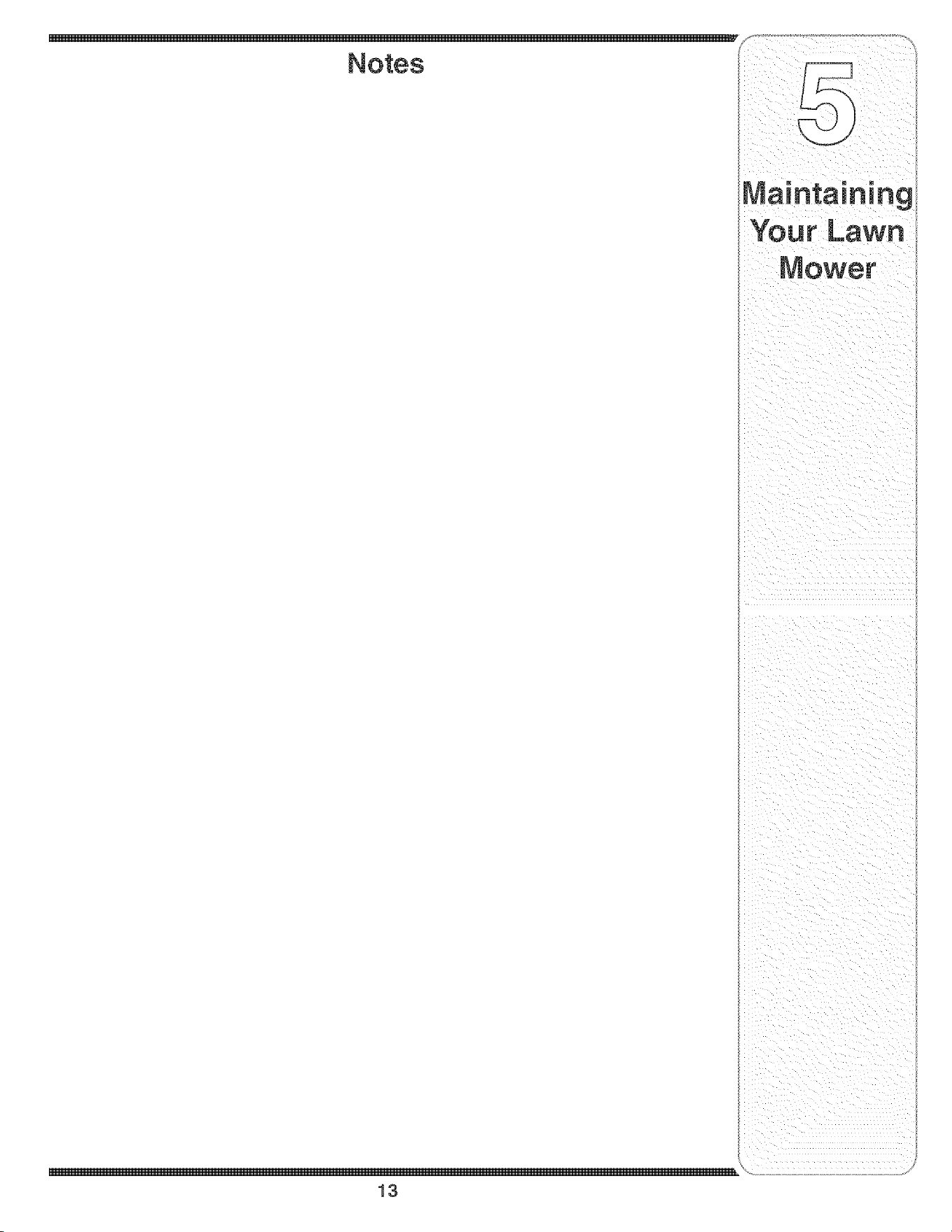

Notes
Mower
\
13
ble
Shooting
For repairs beyond
the minor adjust-
ments listed here,
eentact an authorized
serviee dealer,
I
il _ _ i i i
Problem Cause Remedy
EnginefaiUsto start !_ BladecontroEdisengaged, i !. EngageNadeeontrol,
spa[k Plugwire disconneCte& 2: connect wire to Sparkpiug:
3. Filltankwithclean,freshgasoline.
8. Replacefusefollowinginstructions
on page11.
Engine runs erratic 1. Sparkplugwireloose. 1. Connectandtightenspark
plugwire.
2. Blockedfuel lineor stale fuel 2. Cleanfuel line; fill tankwithclean,
freshgasoline.
3. Ventingas cap plugged. 3. Clearvent.
4. Wateror dirt in fuel system. 4. Drainfuel tank.Refill with
freshfuel.
5. Dirty air cleaner. 5. Referto enginemanual.
6. Carburetorout of adjustment. 6. Referto enginemanual
Eng ne overheats 1. Engineoil levellow. I. Fill crankcasewith properoil
2. Air flow restricted. 2. Removeblowerhousng
I andclean.
3. Carburetornotadjustedproperly. 3. Referto enginemanual.
Occasional skips 1. Sparkpluggaptooclose. 1. Adjustgapto .030".
(hesitates) at 2. Carburetoridlemixtureadjustment 2. Referto enginemanual
high speed improperlyset.
2. Carburetorimproperlyadjusted.
Excessive 1. Cuttingbladelooseor unbalanced.
Vibration
2. Bentcuttingblade.
Mower will not 1, Wetgrass.
mulch grass
2. Excessivelyhighgrass.
3. Dullblade.
Uneven cut 1. Dull blade.
Damagedor worn
3. belt.
3. Referto enginemanual
1. Tightenbladeand adapter.
Balanceblade.
2. Seean authorizedservicedealer.
2. Mow onceat a highcuttingheight,
then mowagainat desiredheight
or makea narrowercuttingpath.
3. Sharpenor replaceblade.
1. Sharpenor replaceblade.
wire andcleanout debris.
14
DONOTtemeve safety
(or any) labels frem
mewer fet any reasen,
\
15
Q
Q
Shown For Reference
/
............Shown For Reference
@
1 618-04229 TransmissionAssembly
2 710-04223 Screw,M6 x 1,0
3 715-0221 DowelPin
4 717-04184 SpurGear,14T-LH
5 717-04192 SpurGear,14T-RH
6 732-0611 ExtensionSpring,,38OD x 3,6
7 736-0414 FlatWasher,,570x 1,120x ,062
8 741-0710 SleeveBearing,,502 x ,627x 1,00
9 748-04073 TransmissionBearingSupport
10 750-04317 Clip Spacer
11 754-04078A WBelt,3Lx35,5
12 7867551A WheeIDustCover
13 787-01262 TransmissionCableBracket
14 634-04207 RearWheel
15 734-04033 FrontWheel
16 687-02133 FrontBracketAssembly
17 687-02134 RearBracketAssembly
18 687-02148 HandleBracketAssembly- RH
19 687-02149 HandleBracketAssembly- LH
20 710-0599 TT Screw,1/4-20x ,500
21 71b0431 Range LockNut, 3/8q6
22 714-0174 CotterPin
23 720-0223 Grip
24 732-04261 SpringLever
25 73b04271 ExtensionSpring,,500 IDx 6,85Lg
26 741-04136 Split HexFlangeBearing
27 750-04305 Spacer
28 787-01235 CrossBracket
29 787-01251 StopBracket
30 736-0504 WaveWasher,,510x ,750x ,017
31 731-05237 SpringBracketCover
16
1 721-04107 OilSeal
2 741-04106 PlasticBushing
3 707-04409 Shift Fork
4 707-04540 TransmissionBracket
5 710-04329 Screw,,1590Dx,610
6 710-04374 Hex Screw,,159OD x,43
7 711-04386 OutputShaft
8 711-04394 [nputShaft
9 712-0411 Hex Lock Nut,5/16-24
10 715-0129 SpirolPin
11 715-04030 DowelPin
12 717-04194 PlasticGear,28T
13 756-04151 Pulley,3,360D
14 721-04110 O-Ring
15 726-04043 PushNut,3/8 [Dx 3/40D
16 731-04883 LowerHousing
17 731-05099 UpperHousing
18 731-05100 ClutchLever
19 732-04278 CompressionSpring,,5251Dx,588
20 736-0105 BellWasher,,375x ,870x ,063
21 736-04170 FlatWasher,,508[D x 1,00OD
22 736-04178 FeltSIottedWasher
23 736-0572 FlatWasher,,510x 1,00x ,060
24 736-0864 ThrustWasher,,375x ,812x ,060
25 741-04116 BallBearing
1!IIIII iiiiiiii!i IIIIII
Z i i i
i i
Z
i_ ill _ i£i£i ii£i ii ii£i ii£i£i ii£i ii£i_
17
18
1 747_1161A BladeControl
2 746_04195 DriveCable
3 746_1130 ControlCable
4 710_1667 Screw,#10_16x ,625
5 731-0620 DriveControl Lever
6 731q057 UpperControICover
7 731q058 LowerControlCov'er
8 731_1059 MountingCap
9 710q174 CarriageBolt,5/16_18x 2,0
10 710-1205 EyeBolt
11 720-0279 WingNut
12 720_0284 HandleKnob
13 725_0157 CableTie
14 736_0451 SaddleWasher,,320 x ,93 x ,060
15 749_04202 LowerHandle
16 749-04209 UpperHandle
17 787_01213 21"Deck
18 647_04048 GrassCatcherFrame
19 664_04042 GrassCatcher
20 731_05017 RearDoor
21 710_0260A CarriageBolt,5/16_18x,62
22 710q241 Screw,1/4_15x 1,00
23 710_0599 TT Screw,1/4_20x ,500
24 710_0653 TT Screw,1/4_20x ,375
25 710_0654A Screw,3/8_16x1,00
26 710_0703 CarriageScrew,1/4_20x ,75
27 710q044 Screw,3/8_24x 1,50
28 710q802 Screw,1/4_20x 2,00
29 711_04374 DoorPivot Rod
30 711_0993 BeltGuard Pin
31 712_04064 FlangeLockNut, 1/4_20
32 712_3004A FlangeLockNut, 5/16-18
33 712_3027 FlangeLockNut, 1/4_20
34 731_05154 DeckBaffle
35 731_05157 MulchRug
36 731_05185 Trailshield
37 732_04264 DoorTorsionSpring- RR
39 736_0463 FlatWasher,,25 x ,630x ,0515
40 736_0513 SpringWasher,,890x 1,70x ,048
41 736_0514 FlatWasher,,885 x 1,850x ,060
42 736-0524B Blade BelISupport
43 742_0741 21"MulchingBlade
44 748_0358 EngineSpacer
45 748-0376C BladeAdapter
46 756_04156 LowerEnginePulley
47 756_04157 UpperEnginePulley
48 787-01224 FrontDeckBaffle
49 736_0270 BellWasher,,265 x ,75x ,062
50 687-02055 MulchingBaffle
51 17032A DeflectorChuteAdapter
52 732q014 TorsionSpring
53 747_0710 HingePin
54 731-04177 SideDischargeChute
55 725_1442t ElectricStarterHarnessAssembly
56 710_01111 Screw,1/4_20x 1,25
57 710_01361 Screw,1/4_20x 1,75
58 710_09691 Screw,#12_16x 1,00
59 710_12501 CurvedCarriageBolt,5/16x 1,5
60 712_0324t HexLockNut, 1/4_20
61 712-30061 HexNut, 1/4-20
62 712_30101 HexNut,5/16_18
63 725_02981 7,5AmpFuse
64 725_0873t KeySwitch
65 725_12061 Plug
66 725_12761 12VoltBattery
67 725_1428t FuseHolder
68 725q5381 ExtHarness
69 731_0891A1-UpperBatteryTray
70 736_02421 BellWasher,,340 x ,872x ,060
71 736_02701 BellWasher,,265 x ,75x ,062
72 782_9012t LowerBatteryTray
73 725_0727t BatteryCharger(Not Shown)
74 735-0226 RubberGromet
t If equipped
parts, centact 1,800,
e48L6776or visit www.
machine, use Factory
Approved Parts.
V-BELTS are specially
designed to engage
and disengage safely.
A substitute non OEMI
V-Belt can be danger-
ous by not disengaging
completely.
\
19

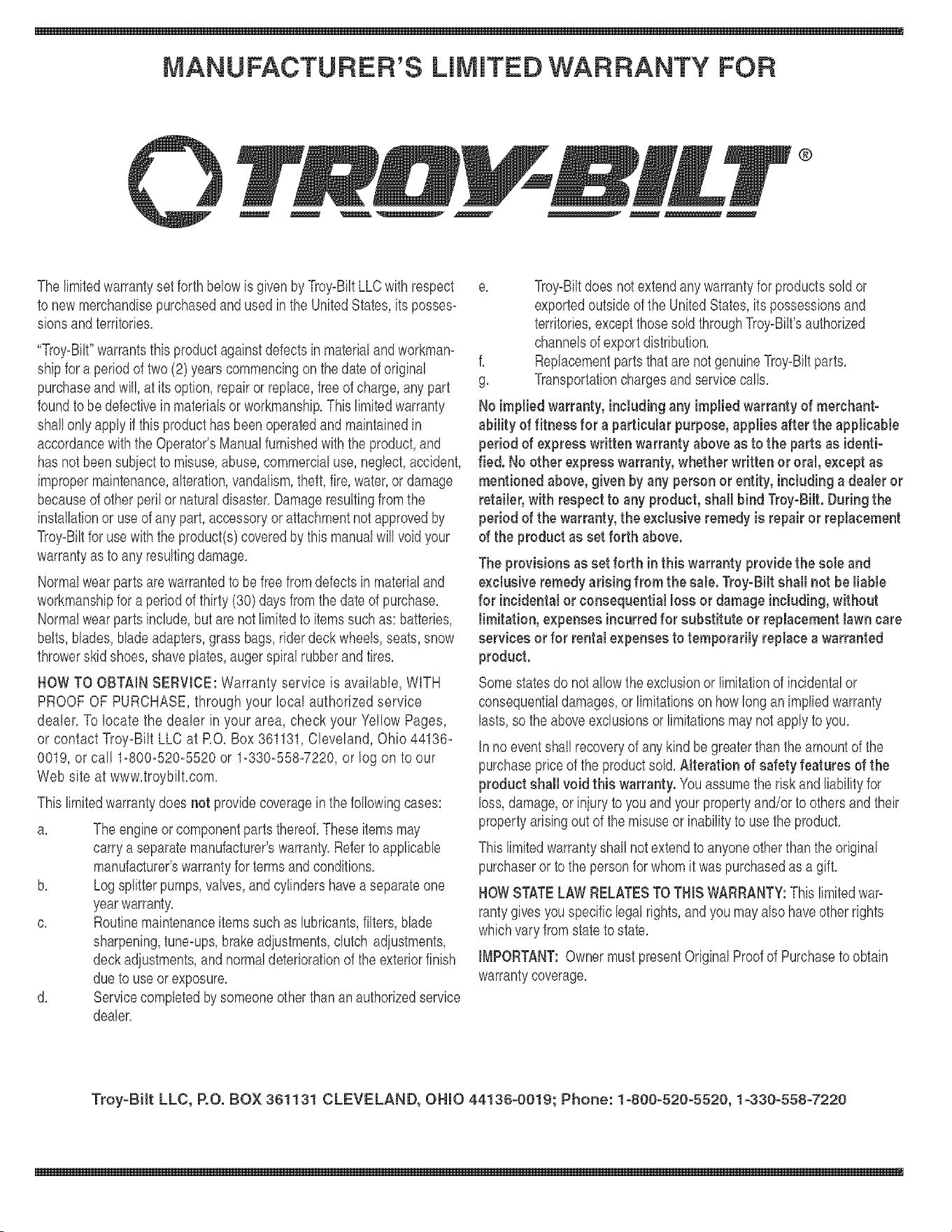

MANUFACTURER'S LIMITED WARRANTY FOR
®
The limitedwarrantyset forth belowis givenbyTroy=BiltLLCwith respect
to newmerchandisepurchasedand usedin the UnitedStates,itsposses=
sionsandterritories.
"Troy=Bilt"warrantsthis productagainstdefectsinmaterialandworkman=
shipfor a periodof two (2) years commencingon thedate of original
purchaseand will, at its option,repairorreplace,freeof charge,any part
foundto be defectivein materialsor workmanship.This limitedwarranty
shallonly applyif this producthasbeen operatedand maintainedin
accordancewiththe Operator'sManualfurnishedwiththe product,and
has notbeen subiectto misuse,abuse,commerdaluse, neglect,accident,
impropermaintenance,alteration,vandalism,theft, fire, water,or damage
becauseof other perilor naturaldisaster.Damageresultingfromthe
installationor use ofany part,accessoryor attachmentnot approvedby
Troy=Biltfor use withtheproduct(s)coveredby this manualwill voidyour
warrantyas to any resultingdamage.
Normalwearparts are warrantedto befree fromdefectsinmaterialand
workmanshipfor aperiodof thirty (30)daysfromthedate of purchase.
Normalwearparts include,butare notlimitedto itemssuch as: batteries,
belts,blades,bladeadapters,grass bags,rider deck wheels,seats,snow
throwerskid shoes,shaveplates,augerspiralrubberandtires.
NOWTO OBTAIN SERVICE: Warranty service is available, WITH
PROOFOF PURCHASE,through your local authorizedservice
dealer, To locate the dealer in your area, check your Yellow Pages,
or contact Troy=BiltLLC at RO, Box 361131,Cleveland, Ohio 44136=
0019, or can 1=800=520=5520or 1=330=558=7220,or log on to our
Web site at www,troybilt,com,
This limitedwarrantydoesnot providecoveragein the followingcases:
a. The engineor componentpartsthereof.These itemsmay
carrya separatemanufacturer'swarranty.Referto applicable
manufacturer'swarrantyfor termsandconditions.
b. Logsplitterpumps,valves,and cylindershaveaseparateone
yearwarranty.
c. Routinemaintenanceitemssuch as lubricants,filters,blade
sharpening,tune=ups,brakeadiustments,clutch adiustments,
deckadiustments,andnormaldeteriorationof the exteriorfinish
dueto use orexposure.
d. Servicecompletedbysomeoneotherthanan authorizedservice
dealer.
e. Troy=Biltdoesnot extendanywarrantyfor productssold or
exportedoutsideof the UnitedStates,its possessionsand
territories,exceptthosesold throughTroy=Bilt'sauthorized
channelsof exportdistribution.
f. Replacementpartsthatare notgenuineTroy=Biltparts.
g. Transportationchargesand servicecalls.
No implied warranty, including any implied warranty of merchant°
ability of fitness for a particular purpose, applies after the applicable
period of express written warranty above as to the parts as identi-
fied. No other express warranty, whether written or oral, except as
mentioned above,given by any person or entity, including a dealer or
retailer,with respect to any product,shall bind Troy-Bilt. During the
period of the warranty,the exclusive remedy is repair or replacement
of the product as set forth above.
The provisions as set forth inthis warranty provide the sole and
exclusive remedy arising from the sale. Troy-Bilt shall not be liable
for incidentalor consequential loss or damage including,without
limitation, expenses incurredfor substitute orreplacement lawn care
services or for rental expenses to temporarily replace a warranted
product.
Somestatesdo not allowtheexclusionor limitationof inddentalor
consequentialdamages,or limitationson howlonganimpliedwarranty
lasts,so the aboveexclusionsor limitationsmay notapplyto you.
In noeventshall recoveryof any kind be greaterthanthe amountof the
purchasepriceof the productsold.Alteration of safety features of the
product shall void this warranty. Youassumethe riskandliabilityfor
loss,damage,or iniuryto youand yourpropertyand/or to othersandtheir
propertyarisingout of the misuseor inabilityto use the product.
This limitedwarrantyshall notextendto anyoneotherthanthe original
purchaseror to the personfor whomit waspurchasedas a gift.
HOWSTATELAW RELATESTO THiS WARRANTY:This limitedwar-
rantygh,'esyouspecificlegal rights,andyou mayalso haveother rights
whichvaryfromstateto state,
IMPORTANT:OwnermustpresentOriginalProofof Purchaseto obtain
warrantycoverage,
Troy-Bilt LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019; Phone: 1-800-520-5520, 1-330-558-7220
