EZVIZ CS-C6 2K+ AI Security Camera Indoor, AI Powered Human/Pet/Crying Detection

Product's Documents

Below are documents related to this product, you can read online or download:
CS-C6 photo

User Manual

This is the main product document for model CS-C6.

The file format is pdf, 10 pages, you can download this manual here .

background
COPYRIGHT © Hangzhou EZVIZ Software Co., Ltd.. ALL RIGHTS RESERVED.
Any and all information, including, among others, wordings, pictures, graphs are the properties of
Hangzhou EZVIZ Software Co., Ltd. (hereinafter referred to as “EZVIZ”). This user manual (hereinafter
referred to as “the Manual”) cannot be reproduced, changed, translated, or distributed, partially or
wholly, by any means, without the prior written permission of EZVIZ. Unless otherwise stipulated,
EZVIZ does not make any warranties, guarantees or representations, express or implied, regarding to
the Manual.
About this Manual
The Manual includes instructions for using and managing the product. Pictures, charts, images and
all other information hereinafter are for description and explanation only. The information contained
in the Manual is subject to change, without notice, due to firmware updates or other reasons. Please
find the latest version in the ™ website (http://www.ezvizlife.com).
Revision Record
New release – August, 2021
Trademarks Acknowledgement
™, ™, and other EZVIZ’s trademarks and logos are the properties of EZVIZ in various
jurisdictions. Other trademarks and logos mentioned below are the properties of their respective
owners.
Legal Disclaimer
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THE PRODUCT DESCRIBED, WITH
ITS HARDWARE, SOFTWARE AND FIRMWARE, IS PROVIDED “AS IS”, WITH ALL FAULTS AND ERRORS,
AND EZVIZ MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION,
MERCHANTABILITY, SATISFACTORY QUALITY, FITNESS FOR A PARTICULAR PURPOSE, AND
NON-INFRINGEMENT OF THIRD PARTY. IN NO EVENT WILL EZVIZ, ITS DIRECTORS, OFFICERS,
EMPLOYEES, OR AGENTS BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR
INDIRECT DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS,
BUSINESS INTERRUPTION, OR LOSS OF DATA OR DOCUMENTATION, IN CONNECTION WITH
THE USE OF THIS PRODUCT, EVEN IF EZVIZ HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH
DAMAGES.
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL EZVIZ’S TOTAL
LIABILITY FOR ALL DAMAGES EXCEED THE ORIGINAL PURCHASE PRICE OF THE PRODUCT.
EZVIZ DOES NOT UNDERTAKE ANY LIABILITY FOR PERSONAL INJURY OR PROPERTY DAMAGE AS
THE RESULT OF PRODUCT INTERRUPTION OR SERVICE TERMINATION CAUSED BY: A) IMPROPER
INSTALLATION OR USAGE OTHER THAN AS REQUESTED; B) THE PROTECTION OF NATIONAL OR
PUBLIC INTERESTS; C) FORCE MAJEURE; D) YOURSELF OR THE THIRD PARTY, INCLUDING WITHOUT
LIMITATION, USING ANY THIRD PARTY’S PRODUCTS, SOFTWARE, APPLICATIONS, AND AMONG
OTHERS.
REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF PRODUCT SHALL BE WHOLLY
AT YOUR OWN RISKS. EZVIZ SHALL NOT TAKE ANY RESPONSIBILITES FOR ABNORMAL OPERATION,
PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER ATTACK, HACKER ATTACK,
VIRUS INSPECTION, OR OTHER INTERNET SECURITY RISKS; HOWEVER, EZVIZ WILL PROVIDE
TIMELY TECHNICAL SUPPORT IF REQUIRED. SURVEILLANCE LAWS AND DATA PROTECTION
LAWS VARY BY JURISDICTION. PLEASE CHECK ALL RELEVANT LAWS IN YOUR JURISDICTION
BEFORE USING THIS PRODUCT IN ORDER TO ENSURE THAT YOUR USE CONFORMS TO THE
APPLICABLE LAW. EZVIZ SHALL NOT BE LIABLE IN THE EVENT THAT THIS PRODUCT IS USED WITH
ILLEGITIMATE PURPOSES.
IN THE EVENT OF ANY CONFLICTS BETWEEN THE ABOVE AND THE APPLICABLE LAW, THE LATTER
PREVAILS.
background
Table of Contents
Overview ��������������������������������������������������������������������������������������������������1
1� Package Contents ���������������������������������������������������������������������������������������������������������������������������������������� 1
2� Basics ���������������������������������������������������������������������������������������������������������������������������������������������������������� 1
Setup ��������������������������������������������������������������������������������������������������������2
1� Power-on ����������������������������������������������������������������������������������������������������������������������������������������������������� 2
2� Connect to the Internet ��������������������������������������������������������������������������������������������������������������������������������� 2
Installation �����������������������������������������������������������������������������������������������3
1� Use Micro SD Card (Optional) ����������������������������������������������������������������������������������������������������������������������� 3
2� Install the Base��������������������������������������������������������������������������������������������������������������������������������������������� 4
3� Install the Camera ���������������������������������������������������������������������������������������������������������������������������������������� 4
View Your Device ��������������������������������������������������������������������������������������5
1� Live View ������������������������������������������������������������������������������������������������������������������������������������������������������ 5
2� Settings�������������������������������������������������������������������������������������������������������������������������������������������������������� 6
EZVIZ Connect ������������������������������������������������������������������������������������������ 7
1� Use Amazon Alexa ���������������������������������������������������������������������������������������������������������������������������������������� 7
2� Use Google Assistant ����������������������������������������������������������������������������������������������������������������������������������� 7
FAQ ����������������������������������������������������������������������������������������������������������8
background
1
Overview
1� Package Contents
Camera (x1) Power Adapter (x1)
Power Cable (x1) Drill Template (x1) Mounting Plate (x1)
Screw Kit (x1) Regulatory Information (x1) Quick Start Guide (x1)
The power adapter's appearance is subject to the actual one you have bought.
2� Basics
Front View
Lens
Microphone Microphone
LED Indicator
Name Description
LED Indicator Solid Red: Camera starting up.
Slow-flashing Red: Network exception.
Fast-flashing Red: Camera exception (e.g. Micro SD card
error).
Solid Blue: Video being viewed in the EZVIZ app.
Slow-flashing Blue: Camera running properly.
Fast-flashing Blue: Camera ready for Wi-Fi connection.
background
2
Micro SD Card Slot
Slide up the sphere and open the cover
Reset Button
Name Description
Micro SD Card
(sold separately)
Initialize the card in the EZVIZ app before using it.
Reset Button Hold for 5seconds to restart and set all parameters to default.
Speaker
Power Interface
Network Interface
Back View
Setup
1� Power-on
Plug the power cable into the camera, and then plug the power adapter into an outlet as shown in the figure below.
Power Outlet
Power Cable
2� Connect to the Internet
1� Get the EZVIZ App
- Connect your mobile phone to Wi-Fi (suggested).
- Download and install the EZVIZ app by searching “EZVIZ” in the App Store or Google Play
TM
.
- Launch the app and register an EZVIZ user account.
EZVIZ App
If you have already used the app, please make sure that it is the latest version. To find out if an update is available, go to the app store and
search for EZVIZ.
background
3

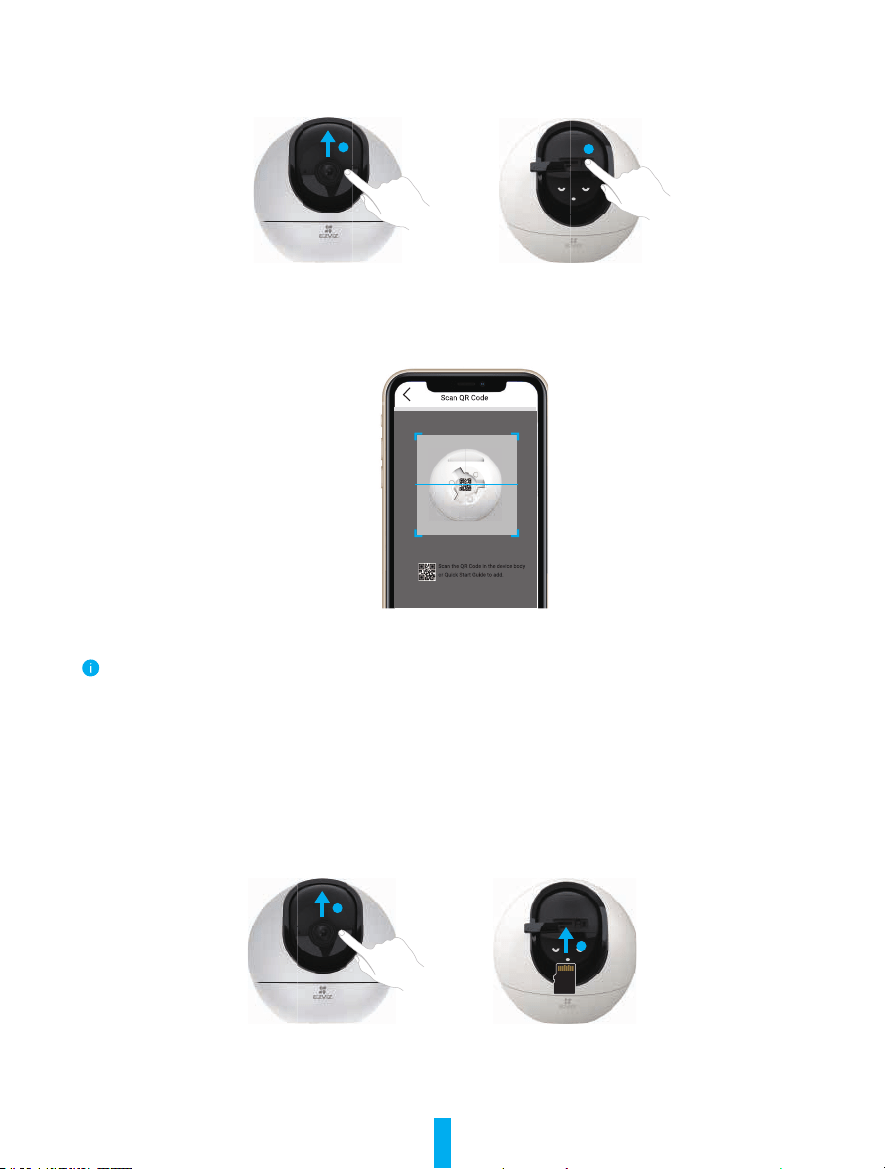

2� Add camera to EZVIZ
- Hold the reset button for 5s. When the LED indicator ashes blue quickly, indicates that the camera is ready for Wi-Fi
conguration.
1
2
- Log in to your EZVIZ user account.
- On the Home screen, tap “+” on the upper-right corner to go to the Scan QR Code interface.
- Scan the QR code on the Quick Start Guide cover or on the body of the camera.
- Follow the EZVIZ app wizard to nish Wi-Fi conguration.
If you want to change your camera's Wi-Fi, press and hold the reset button for 5s and repeat the steps above.
Installation
1� Use Micro SD Card (Optional)
1� Insert Micro SD Card
- Rotate the sphere upwards until you see the card slot.
- Insert the Micro SD card (sold separately) into the card slot as shown in the gure below.
1
2
background
4
2� Install the Base
The camera can be placed horizontally or mounted on the ceiling. Here we take ceiling mounting as an example.
Please install the device indoor as the device is not waterproof.
Make sure the ceiling is strong enough to withstand three times the weight of the camera.
Avoid positioning the camera in an area that gets a lot of light shining directly into the camera lens.
Recommended mounting height: 3 meters above the ground.
- Place the drill template onto the surface you have chosen to mount the camera.
- (For cement wall/ceiling only) Drill screw holes according to the template, and insert three anchors.
- Use three metal screws to x the camera base.
2
1
3
Drill Template
Metal Screw
Anchor
3� Install the Camera
Mount the camera to the base, and turn it clockwise until it is fixed.
background
5
View Your Device
1� Live View
When you launch the EZVIZ app, the device page displays as shown below.
You can view and listen to a live feed, take snapshots or recordings, and choose video definition as needed.
Swipe left and right across the screen to see more icons.
Icon Description
Share. Share your device with anyone you want.
Settings. View or change the device settings.
Video History. View Recordings.
Snapshot. Take a snapshot.
Record. Manually start/stop recording.
Pan/Tilt. Supports horizontal and vertical rotation.
Speak. Start using talk and listen.
Definition. Select video resolution from Ultra HD, Hi-Def or
Standard.
Privacy Mode. Enable to hide the screen display.
Please refer to the actual interface for specific information.
background
6
2� Settings
In the settings page, you can set the parameters of the device.
Parameter Description
Audio Audio functions. When disabled, neither live view or recorded videos will have audio.
Status Light
You can tell device status by different lights shining. When disabled, lights will be off.
Daytime On: By selecting this mode, the device will only be on during daytime.
Always On: By selecting this mode, the device will be on all the time.
IR Light
IR light helps the device get black and white images in low light conditions. When disabled, quality
of images captured in dark environments will be influenced.
Alarm Notification
Alarm Notification: You can select different detecting modes and the device will give out alarms
accordingly. When enabled, you will receive notifications 24/7 with no Notification Schedule set.
Notification Schedule: When enabled, the device will turn the message push notification on/off
according to your scheduled settings.
Set Notification Schedule: You can set your notification schedule here.
Motion Detection Area: You can select detection area here.
Motion Detection Sensitivity: You can select detection sensitivity here.
Time Zone
You can select time zone as needed here.
Daylight Saving Time
Select daylight saving time as needed.
Date Format
You can select date format as needed here.
Wi-Fi
You can see the Wi-Fi that the device has been connected to, and you can tap to connect another
Wi-Fi.
Cloud Storage You can subscribe cloud storage here.
Storage Status You can see the storage status of your cloud and memory card here.
Device Version You can see the device version here.
Image Encryption
If enabled, images captured by the device can only be avaliable after you enter a password.
Change Encryption Pass word
You can change your encryption password here. The default password is the device verification
code.
Flip image Tap to flip images
Advanced Image Settings
You can select different shooting modes here.
Backlight mode: When enabled, you can keep more details of overexposed parts of the image.
Original: Default image style.
Soft: Lower color saturation.
Vivid: Higher color saturation.
Offline Notification
If enabled, notifications will be pushed to your app once the device is offline.
User Guide You can read user guide of the device here.
About
You can mark where the device is installed, and get product category, device model, serial number,
and device QR code here.
Restart Tap to restart your device.
Delete Device Tap to delete the device from your EZVIZ account.
For privacy protection, please remove SD card or other storage media(if any)when transferring the device to others.
background
7
EZVIZ Connect
1� Use Amazon Alexa
These instructions will enable you to control your EZVIZ devices with Amazon Alexa. If you run into any difficulties during the
process, please refer to Troubleshooting.
Before you start, make sure that:
1. EZVIZ devices are connected to the EZVIZ app.
2. In the EZVIZ app, turn off the "Image Encryption" in the Device Settings page.
3. You have an Alexa-enabled device (i.e Echo Spot, Echo-Show, All-new Echo-Show, Fire TV (all generations), Fire TV stick
(second generation only), or Fire TV Edition smart TVs).
4. The Amazon Alexa app is already installed on your smart device, and you have created an account.
To Control EZVIZ devices with Amazon Alexa:
1. Open the Alexa app and select "Skills and Games" from the menu.
2. On the Skills and Games screen, search for "EZVIZ", and you will nd "EZVIZ" skills.
3. Select your EZVIZ device's skill, then tap ENABLE TO USE.
4. Enter your EZVIZ username and password, and tap Sign in.
5. Tap the Authorize button to authorize Alexa to access your EZVIZ account, so that Alexa can control your EZVIZ devices.
6. You will see "EZVIZ has been successfully linked", then tap DISCOVER DEVICES to allow Alexa to discover all your EZVIZ
devices.
7. Go back to Alexa app menu and select "Devices", and under devices you will see all your EZVIZ devices.
Voice Command
Discover a new smart device via the "Smart Home" menu in the Alexa app or the Alexa Voice Control function.
Once the device is found, you can control it with your voice. Speak simple commands to Alexa.
Your device's name for example: "show xxxx camera," can be modified in the EZVIZ app. Every time you change the name of the device, you
will need to discover the device again to update the name.
Troubleshooting
What do I do if Alexa fails to discover my device?
Check if there are any Internet connecting problems.
Try to reboot the smart device and re-discover the device on Alexa.
Why does the device's status show "Ofine" on Alexa?
Your wireless connection might have been disconnected. Reboot the smart device and re-discover on Alexa.
Internet access on your router could be unavailable. Check if your router is connected to the Internet and try again.
For details about countries that support the using of Amazon Alexa, see its official website.
2� Use Google Assistant
With the Google Assistant, you can activate your EZVIZ device and watch live by speaking Google Assistant voice commands.
The following devices and apps are required:
1. A functional EZVIZ app.
2. In the EZVIZ app, turn off the "Image Encryption" and turn on the "Audio" in the Device Settings page.
3. A TV with functional Chromecast connecting to it.
4. The Google Assistant app on your phone.
To get started, follow the steps below:
1. Set up the EZVIZ device and make sure it works properly on the app.
2. Download the Google Home app from the App Store or Google Play Store
TM
and log into your Google account.
3. On the Myhome screen, tap “+” on the upper-left corner, and select "Set up device" from the menu list to go to the Set up
interface.
4. Tap Works with Google, and search for "EZVIZ", where you will nd "EZVIZ" skills.
5. Enter your EZVIZ username and password, and tap Sign in.
background
8
6. Tap the Authorize button to authorize Google to access your EZVIZ account, so that Google can control your EZVIZ devices.
7. Tap Return to app.
8. Follow the above steps to complete the authorization. When synchronization is completed, EZVIZ service will be listed under
your list of services. To see a list of compatible devices under your EZVIZ account, tap on the EZVIZ service icon.
9. Now try some commands. Use the name of the camera that you created when you set up the system.
Users can manage devices as a single entity or in a group. Adding devices to a room allows users to control a group of devices
at the same time using one command.
See the link for more information:
https://support.google.com/googlehome/answer/7029485?co=GENIE.Platform%3DAndroid&hl=en
FAQ
Q:
A:
What kind of network connection does the camera support?
The camera supports wireless connection and wired connection, which can be selected according to the network situation.
Q:
A:
If the camera is offline, will the video recording be continued?
If the camera is powered on but disconnect to the Internet, then video recording on micro SD card will continue but cloud
recording will stop. If the camera is powered off, both video recordings will stop.
Q:
A:
Why the alarm is triggered when nobody in the image?
Try to set the alarm sensitivity lower. Please notice that vehicle and animals are also the trigger source.
Q:
A:
What if I forget my password?
Please go to the EZVIZ app > login page, tap on “Forgot password?” > Enter your account’s email address or phone number.
(Send)> Input the verification code > Reset your password.
Q:
A:
Why can't I receive my verication code?
1. If you registered the account via email, please check your junk mail.
If still haven't received the verification code, you might have email filter/block restricting this email, please check with
your email provider.
2. If you registered an account via mobile number, please conrm whether your mobile can receive SMS short codes or not.
3. If you still haven't received the verication code, please provide your number, your country, time of request to the support
center at [email protected] or contact your regional support team.
Q:
A:
How to solve Wi-Fi conguration failed?
Please check the following settings:
1. Ensure that your mobile phone is connected to the Wi-Fi and the Wi-Fi network is working properly.
2. Check the network condition:
Make sure your network has no firewall or other limits.
Ensure the router can distribute IP address to your device or disable the static IP setting (DHCP is enabled by default on
all EZVIZ devices).
3. Reset your camera; ensure that your device is in ready mode or Wi-Fi conguration mode > then use the EZVIZ app for
device Wi-Fi conguration.
For additional information about the device, please refer to www.ezvizlife.com.
