Thank you for choosing our product!
This User Manual is designed to show you how to use this video processor quickly and make use of all the
features. Please read all directions and instructions carefully before using this product.
Declarations
FCC/Warranty
Federal Communications Commission (FCC) Statement
This equipment has been tested and found to comply with the limits for a class A digital device, pursuant to Part 15
of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area may cause harmful
interference, in which case the user will be responsible for correcting any interference.
Guarantee and Compensation
RGBlink provides a guarantee relating to perfect manufacturing as part of the legally stipulated terms of
guarantee. On receipt, the purchaser must immediately inspect all delivered goods for damage incurred during
transport, as well as for material and manufacturing faults. RGBlink must be informed immediately in writing of
any complains.
The period of guarantee begins on the date of transfer of risks, in the case of special systems and software on the
date of commissioning, at latest 30 days after the transfer of risks. In the event of justified notice of compliant,
RGBlink can repair the fault or provide a replacement at its own discretion within an appropriate period. If this
measure proves to be impossible or unsuccessful, the purchaser can demand a reduction in the purchase price or
cancellation of the contract. All other claims, in particular those relating to compensation for direct or indirect
damage, and also damage attributed to the operation of software as well as to other service provided by RGBlink,
being a component of the system or independent service, will be deemed invalid provided the damage is not
proven to be attributed to the absence of properties guaranteed in writing or due to the intent or gross negligence
or part of RGBlink.
If the purchaser or a third party carries out modifications or repairs on goods delivered by RGBlink, or if the goods
are handled incorrectly, in particular if the systems are commissioned operated incorrectly or if, after the transfer of
risks, the goods are subject to influences not agreed upon in the contract, all guarantee claims of the purchaser will
be rendered invalid. Not included in the guarantee coverage are system failures which are attributed to programs or
special electronic circuitry provided by the purchaser, e.g. interfaces. Normal wear as well as normal maintenance
are not subject to the guarantee provided by RGBlink either.
The environmental conditions as well as the servicing and maintenance regulations specified in this manual must be
complied with by the customer.
©
Xiamen RGBlink Science & Technology Co., Ltd.
4
Operators Safety Summary
The general safety information in this summary is for operating personnel.
Do Not Remove Covers or Panels
There are no user-serviceable parts within the unit. Removal of the top cover will expose dangerous voltages. To
avoid personal injury, do not remove the top cover. Do not operate the unit without the cover installed.
Power Source
This product is intended to operate from a power source that will not apply more than 230 volts rms between the
supply conductors or between both supply conductor and ground. A protective ground connection by way of
grounding conductor in the power cord is essential for safe operation.
Do Not Operate in Explosive Atmospheres
To avoid explosion, do not operate this product in an explosive atmosphere.
Installation Safety Summary
Safety Precautions
For all product installation procedures, please observe the following important safety and handling rules to avoid
damage to yourself and the equipment.
To protect users from electric shock, ensure that the chassis connects to earth via the ground wire provided in the
AC power Cord.
The AC Socket-outlet should be installed near the equipment and be easily accessible.
Unpacking and Inspection
Before opening product shipping box, inspect it for damage. If you find any damage, notify the shipping carrier
immediately for all claims adjustments. As you open the box, compare its contents against the packing slip. If you
find any shortages, contact your sales representative.
Once you have removed all the components from their packaging and checked that all the listed components are
present, visually inspect the system to ensure there was no damage during shipping. If there is damage, notify the
shipping carrier immediately for all claims adjustments.
Site Preparation
The environment in which you install your product should be clean, properly lit, free from static, and have adequate
power, ventilation, and space for all components.
©
Xiamen RGBlink Science & Technology Co., Ltd.
5
Chapter 1 Your Product

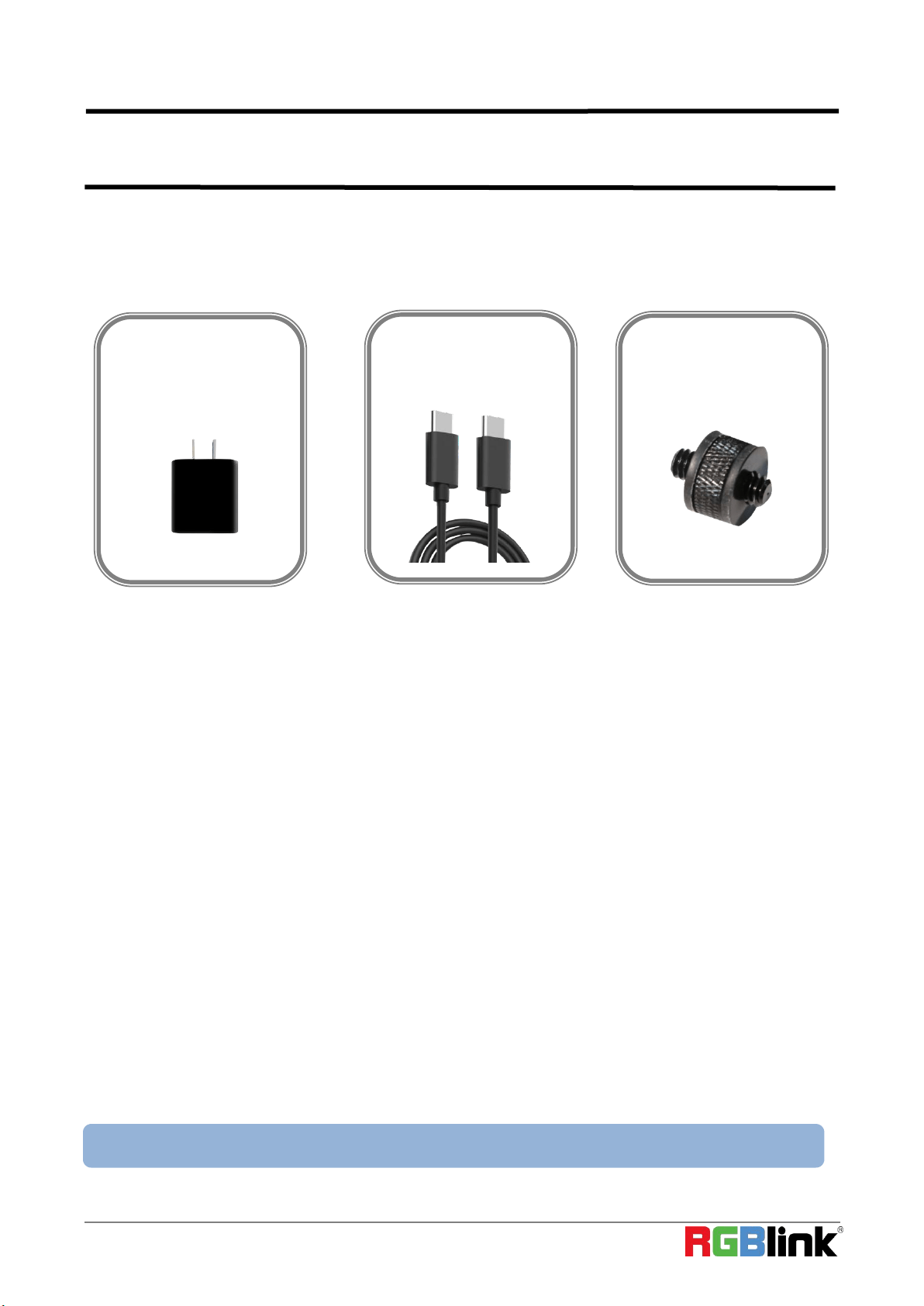

1.1 In the Box
Type-C Power Cord
Power Adapter
Doublethread
1/4 Screw
Note:The color of the accessories is subject to actual conditions
©
Xiamen RGBlink Science & Technology Co., Ltd.
6
1.2 Product Overview
TAO 1pro is a Broadcasting streaming decoder with a 5.5 inch FHD preview display,but also a 4 channels
seamless video switcher for 2 USB 3.0 and 2 HDMI 1.3 inputs, and supports streaming directly by ethernet output
which is ready to connect to external cloud based router and streaming from Anywhere to Everywhere.
TAO 1pro is compatible with standard USB 2.0 and USB 3.0 cameras by UVC protocol, and brings itself as a
much affordable and user friendly streaming tools for anybody, the talents who is willing to be Anchor Online.
TAO 1pro is also with touch panel for finger configuration, and with optional 2 chargable battery extending its
capacity for outdoor application.
TAO 1pro is a multiple function unit, can be configured as Switcher, Monitor, Recorder, Encoder and Converter.

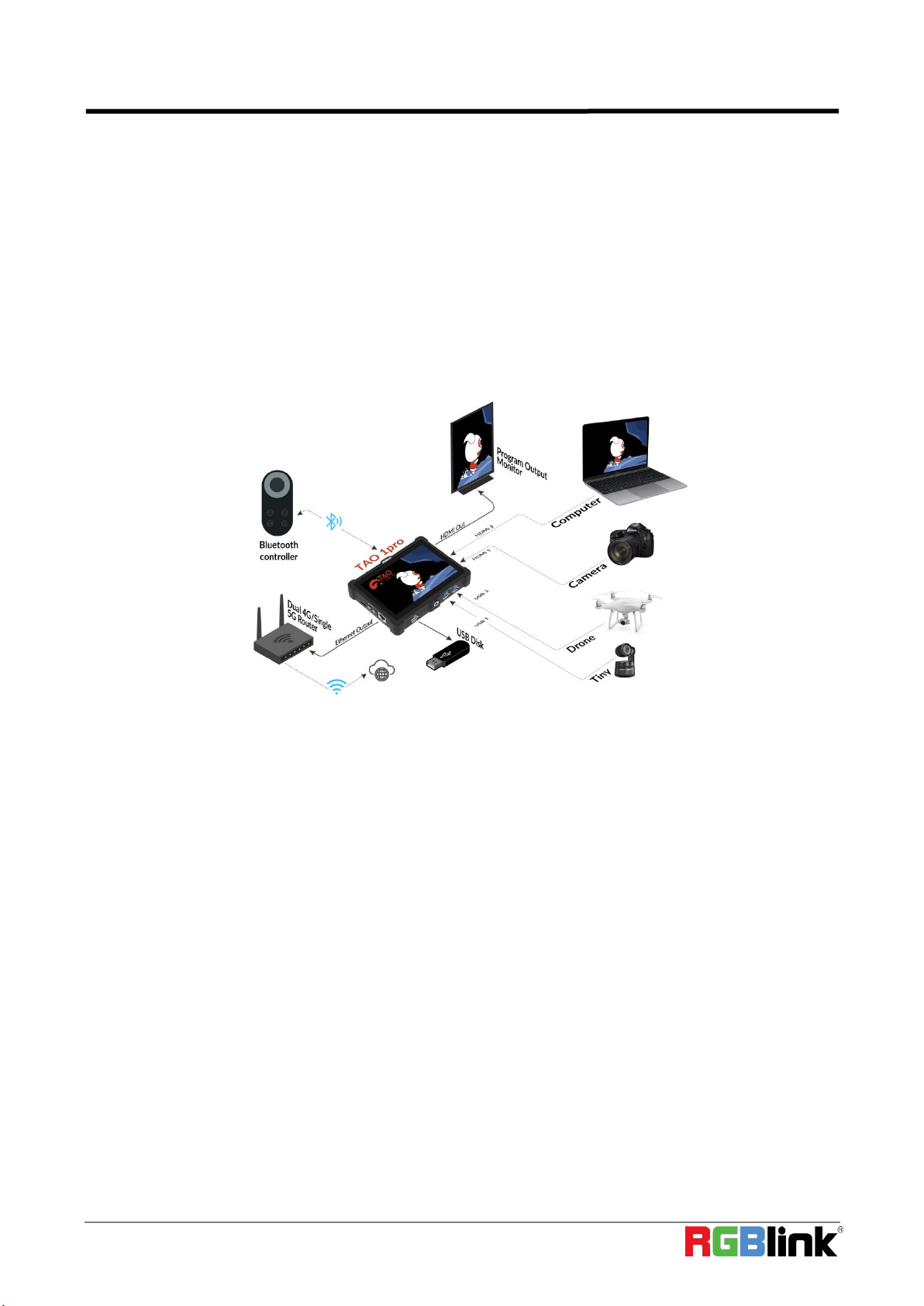

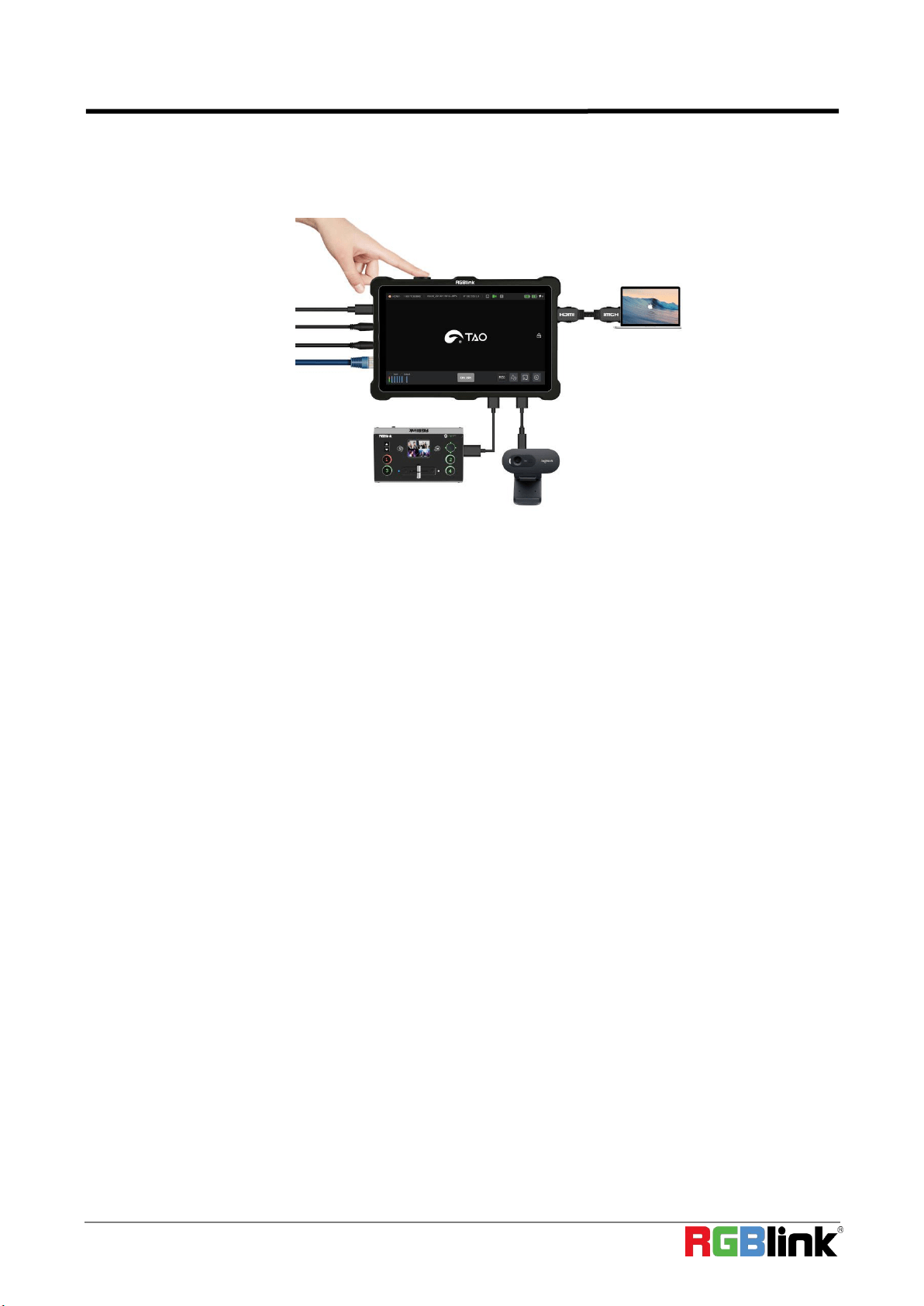

SYSTEM CONNECTION
1.2.1 Key Feature
● 5.5 inch HD touch screen for operation
● Network HD streaming,H.264 encoding
● Asynchronous rotation of main screen and HDMI output
● 2*UVC inputs,2*HDMI 1.3 input and 1* HDMI 2.0 output
● Bluetooth 5.0
● NDI 5.0 encoder
● Broadcasting Monitor with waveform, vector and histogram analyse build in
● Recorder to USB 2.0 SSD hard disk, range up to 2TB
● Multistream up to 4 Live Streaming platform Simultaneously
● External power by Type C with PD3.0 protocol compliance or optional external battery up to two batteries
©
Xiamen RGBlink Science & Technology Co., Ltd.
7

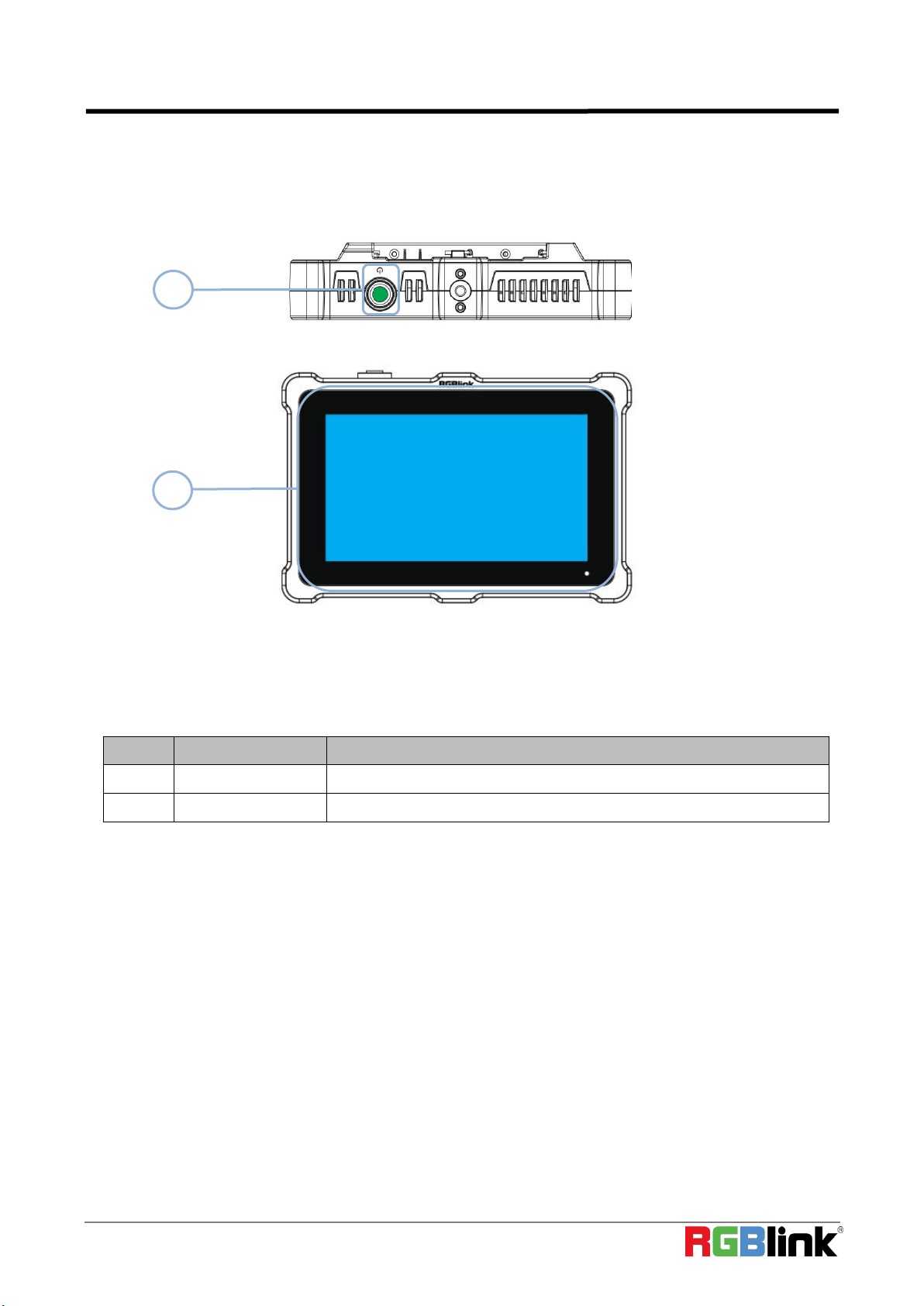

1.2.2 Front Panel
No.
Item
Description
1
Power Button
Gently press to turn on,long press 3 seconds to turn off
2
Touch Screen
5.5 inch touch screen for menu control
2
1
©
Xiamen RGBlink Science & Technology Co., Ltd.
8

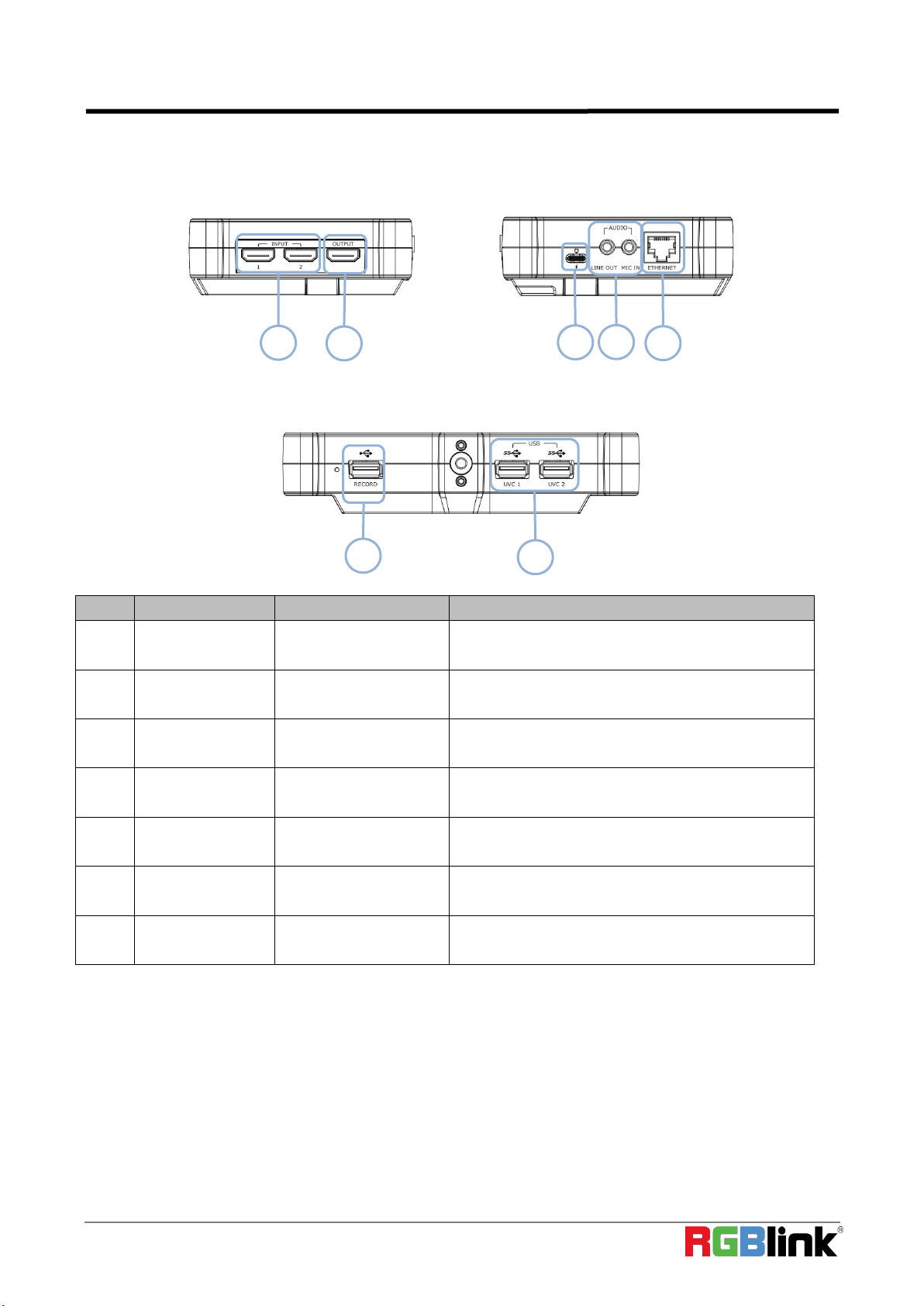

1.2.3 Interface Panel
No.
Connectors
Number
Description
1
HDMI IN
2×HDMI IN
Connect to camera and computer
2
HDMI OUT
1×HDMI OUT
Connect to external monitor
3
Type C
1×PD Type C
Connect to the power supply
4
Audio
1×MIC IN/LINE OUT
Connect to microphone and earphone
5
LAN
1×RJ45
Gigabit network port
6
USB 2.0
1×USB Type A
Connect to harddisk for recording,and storage up to
2T
7
USB 3.0
2×USB Type A
Connect to USB camera for UVC capture
5
3
4
2
7
6
Right Panel
Left Panel
Bottom Panel
1
©
Xiamen RGBlink Science & Technology Co., Ltd.
9
1.3 Dimension

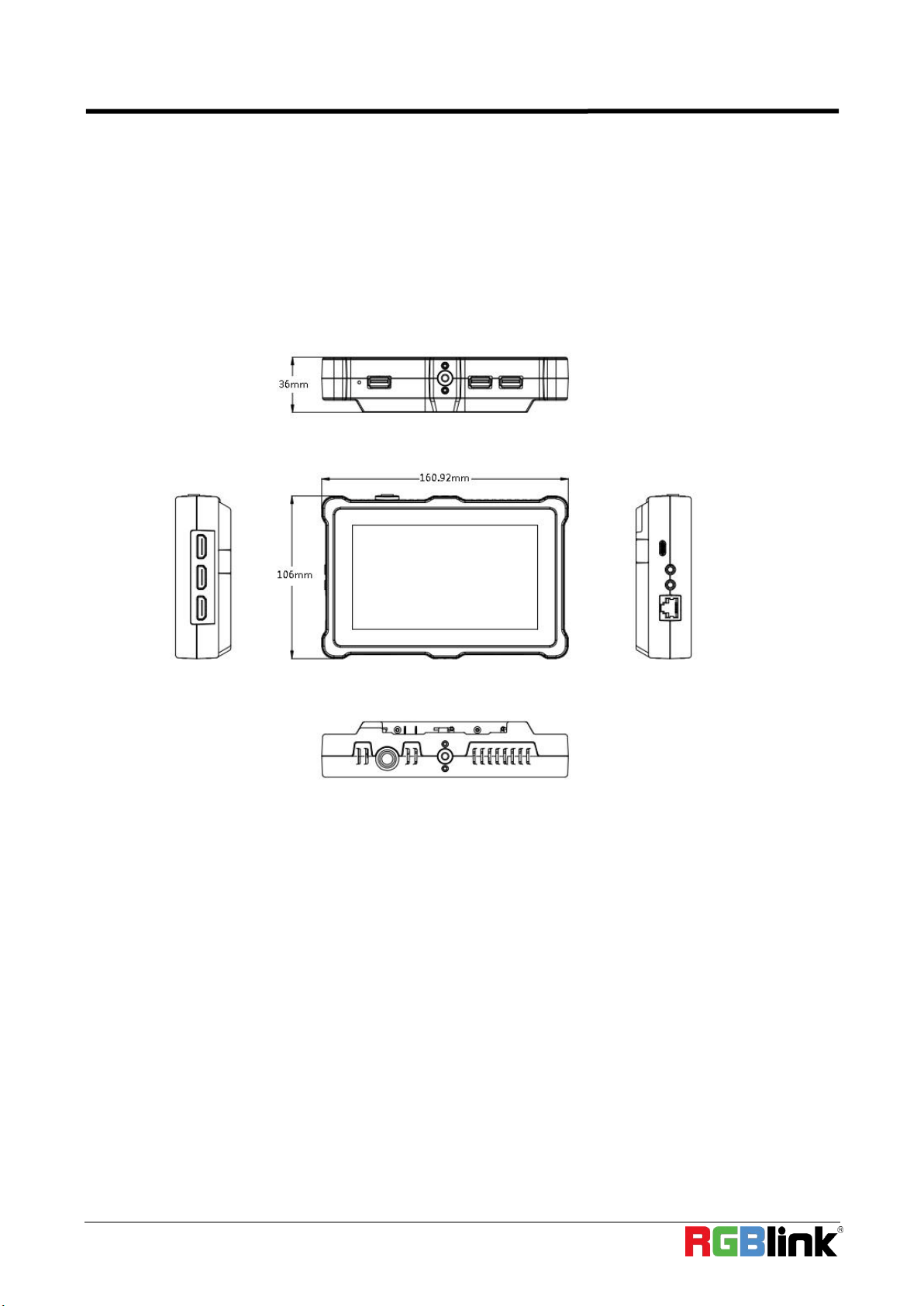

Following is the dimension of TAO 1pro for your reference:
160.92mm×106mm×36mm
©
Xiamen RGBlink Science & Technology Co., Ltd.
10
Chapter 2 Install Your Product
2.1 Plug in Power

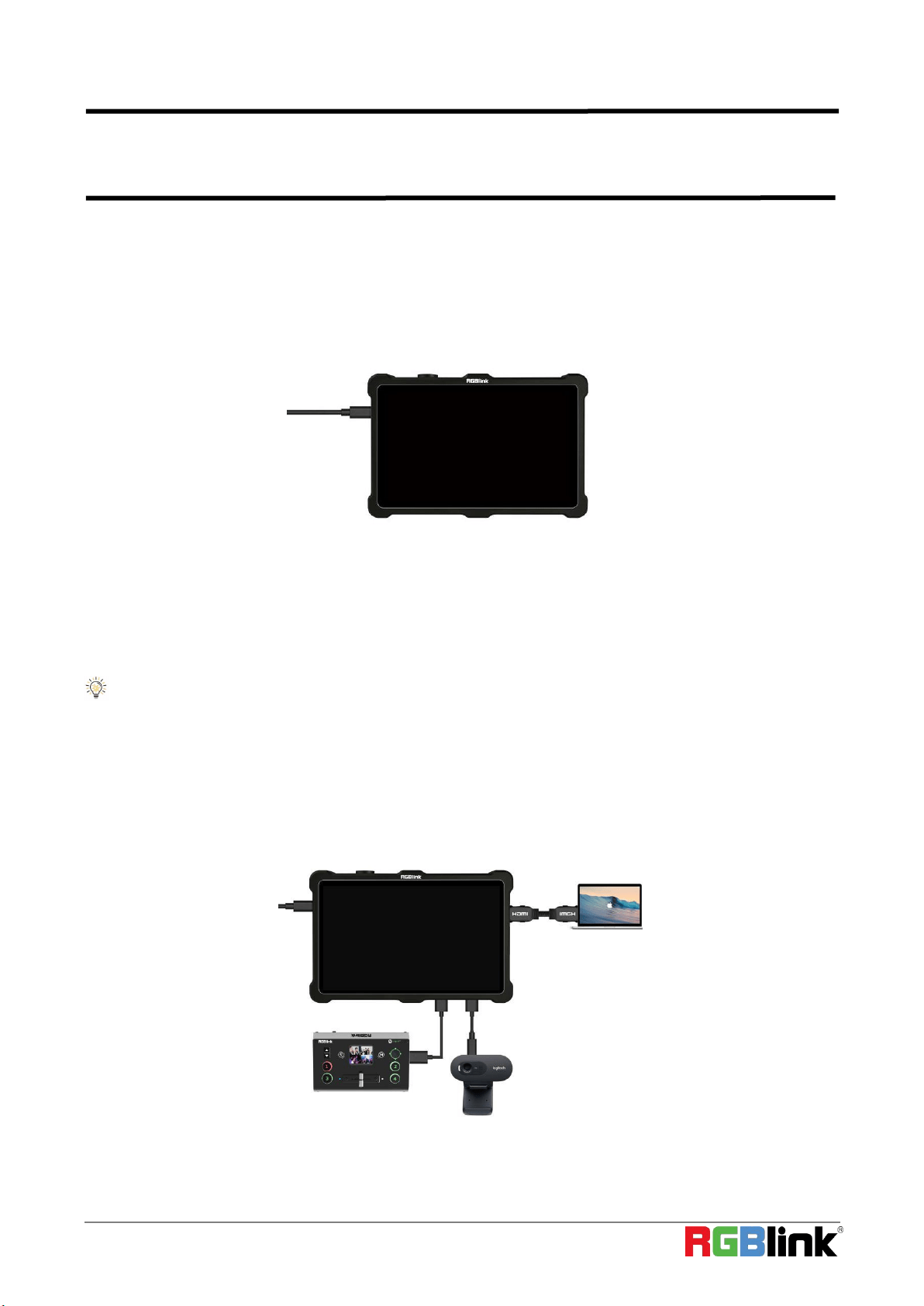

RGBlink TAO 1pro is packaged with a Type C power link cable and a standard power adapter. When connect the
power supply, please check the power supply standard used in your country/area.
Besides,TAO 1pro also supports power supply via batteries.(Battery options in <7.2> for your reference)
2.2 Connecting Input Signal
The camera or device with UVC compliance can be input signal to TAO 1pro by USB 3.0 interface.The camera
or device with HDMI 1.3 compliance can be input signal to TAO 1pro by HDMI interface.You can see the resolution
of the input signal on the 5.5 inch touch screen when there is active signal plug in.
Recommend:
TAO 1pro is compliance to 1080p50/60 device, once the input signal is interlace or other standard, it is no rec
ommend.
And it is recommended to connect the input sources firstly and then power on TAO 1pro after.
Once user change the input signal standard or re-connect the input signal cables, it is strongly recommended
to power off and on TAO 1pro to make sure its signal capture correctly.
©
Xiamen RGBlink Science & Technology Co., Ltd.
11
2.3 Connecting HDMI Output
You can use an HDMI cable to connect the HDMI output to a monitor with an HDMI input interface, so that you
can monitor the input, output and audio display in real time.
Recommend:
External HDMI 1.3 full HD monitor is recommended.
For external HDMI 2.0 monitor, only once TAO 1pro is used as an converter.
2.4 Connecting Network
On the left panel of TAO 1pro,there is a LAN port which can be connected to the router via CAT5e/CAT6 cable or
connected wirelessly via SIM card for live streaming.(Details refers to <3.4 Streaming>)
2.5 Connecting Microphone and External Monitor
On the left panel of TAO 1pro,there is two 3.5mm standard interface which can be directly connected to the
microphone.You can also use external speakers or headphones to monitor the main output audio signal in real
time.Audio supports 0~60db.
©
Xiamen RGBlink Science & Technology Co., Ltd.
12
2.6 Turn on TAO 1pro
After TAO 1pro is connected to power supply, gently press the Power button on the top panel,the device will
enter to the boot interface and enter operation interface.
©
Xiamen RGBlink Science & Technology Co., Ltd.
13
2
Chapter 3 Use Your Product
Once push the power button to power on TAO 1pro, the 5.5 inch display will show TAO logo and comes into the
main menu, and once the default input signal is connected, operator can follow with the following touch control
menu to finish the operation and config TAO 1pro to work as required mode, Switcher, Monitor, Recorder, Encoder
and Converter.
3.1 How to config TAO 1pro as a Switcher

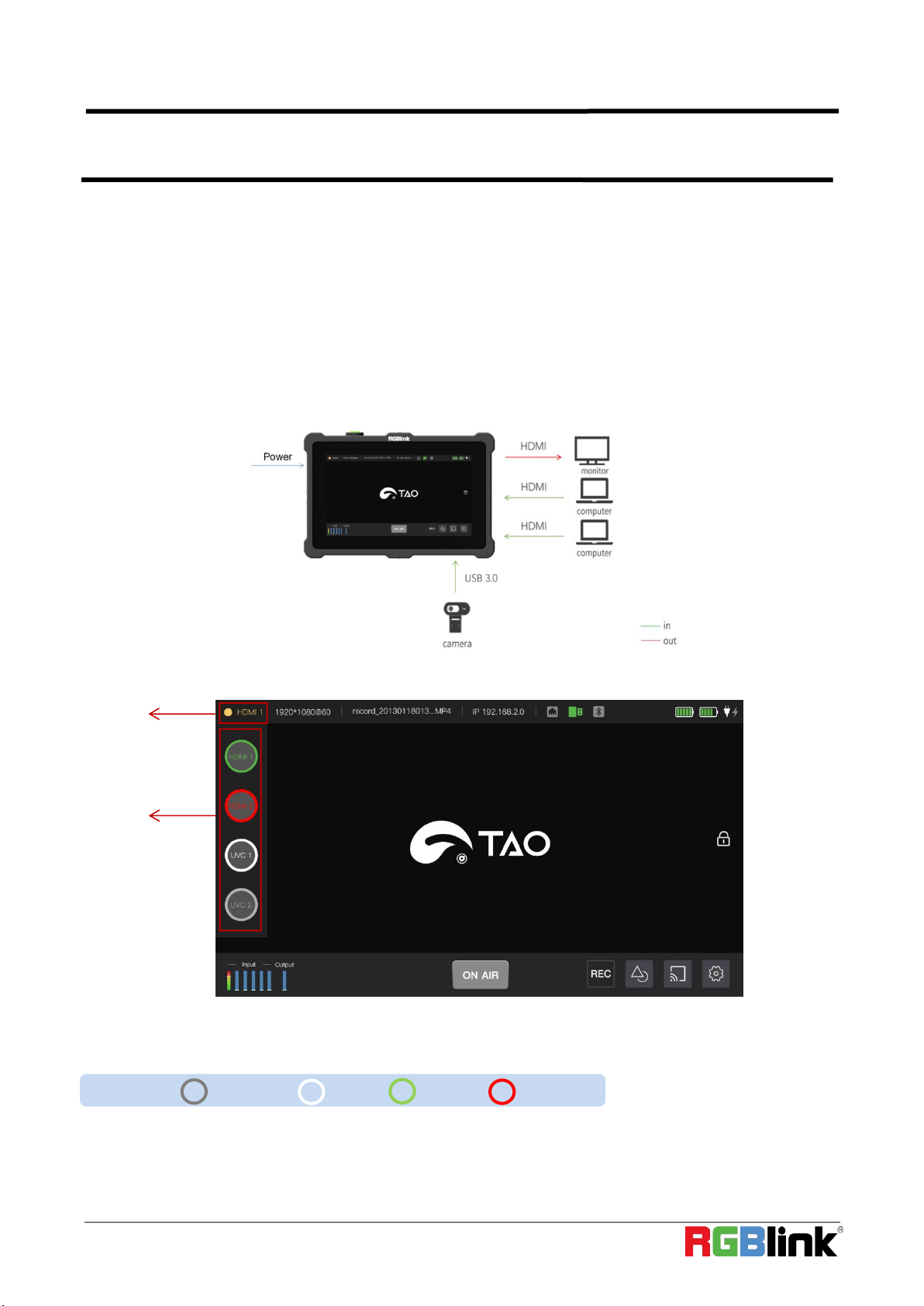

Connect the input signal and monitor as shown below:
Operate as the following steps:
Step 1：Gently touch【HDMI 1】in the top menu bar.
Step 2：Select the signal you want to switch.
Source Status: --No Source; --Ready; --In PVW; --Live PGM
Eg:Touch a source with a white button to PVW that source. Button will flash green.Touch again, button will become
red, switching this source be the PGM live output. If there is an HDMI monitor connected, this source will display on
the monitor.
1
©
Xiamen RGBlink Science & Technology Co., Ltd.
14
3.2 How to config TAO 1pro as a Broadcasting Monitor
Recommend: When TAO 1pro as a broadcasting monitor,the functions of Encoder and Recorder(streaming,NDI
encoder,recording and HDMI OUT monitor )are not recommended,the functions of Switcher work normally.
Connect the input signal and monitor as shown below:
Image parameters including Brightness waveform, RGB Waveform,Vector and Histogram can be adjusted to
acquire a better image effect.
Brightness Waveform

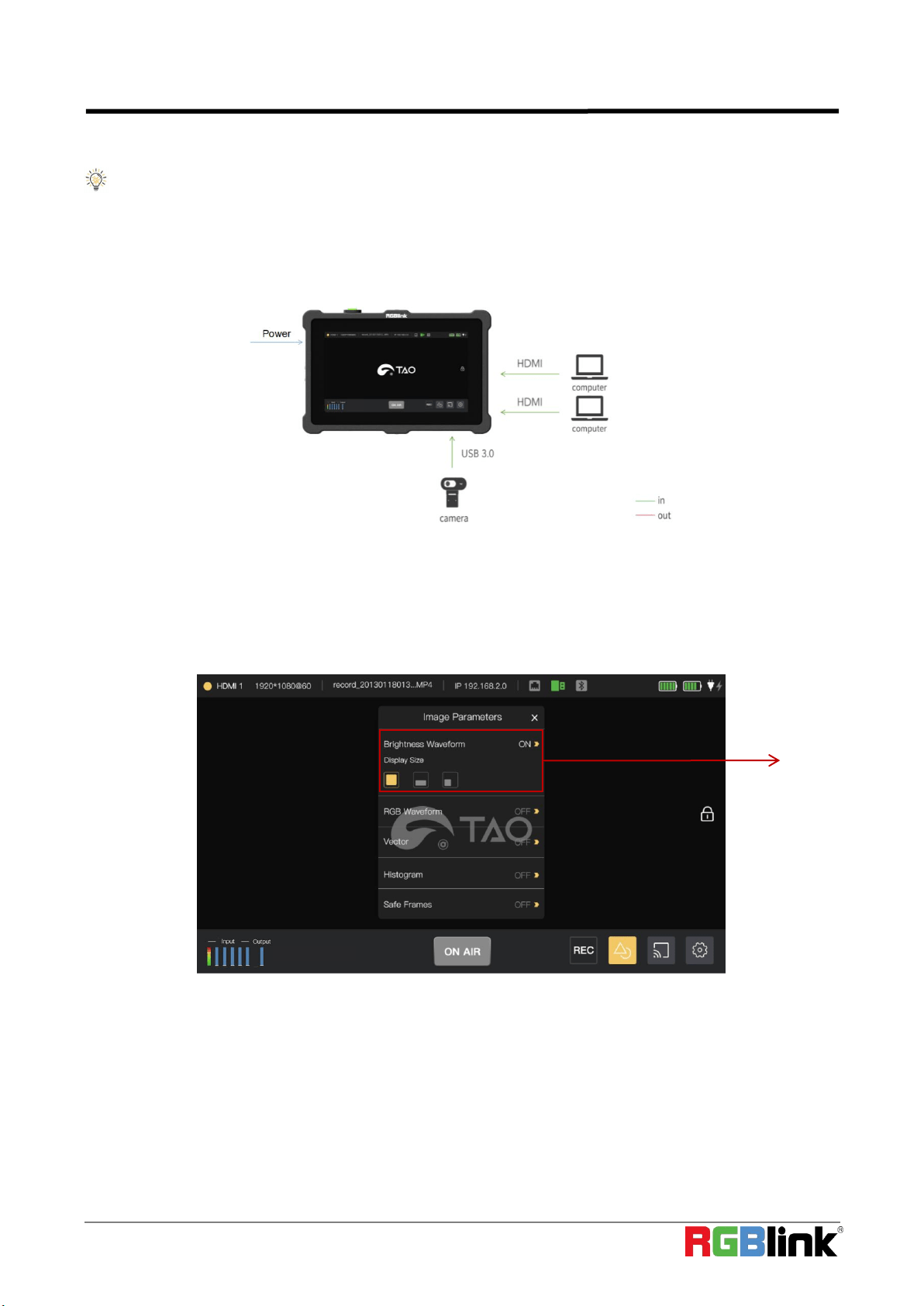

Step 1: Turn on Brightness Waveform and select display size.
1
©
Xiamen RGBlink Science & Technology Co., Ltd.
15
Step 2: As shown in the picture above,the top side of Brightness Waveform means the brightest,the bottom means
the darkest.As we can see ,the wave is close to the top side,which means the picture now is bright.
RGB Waveform

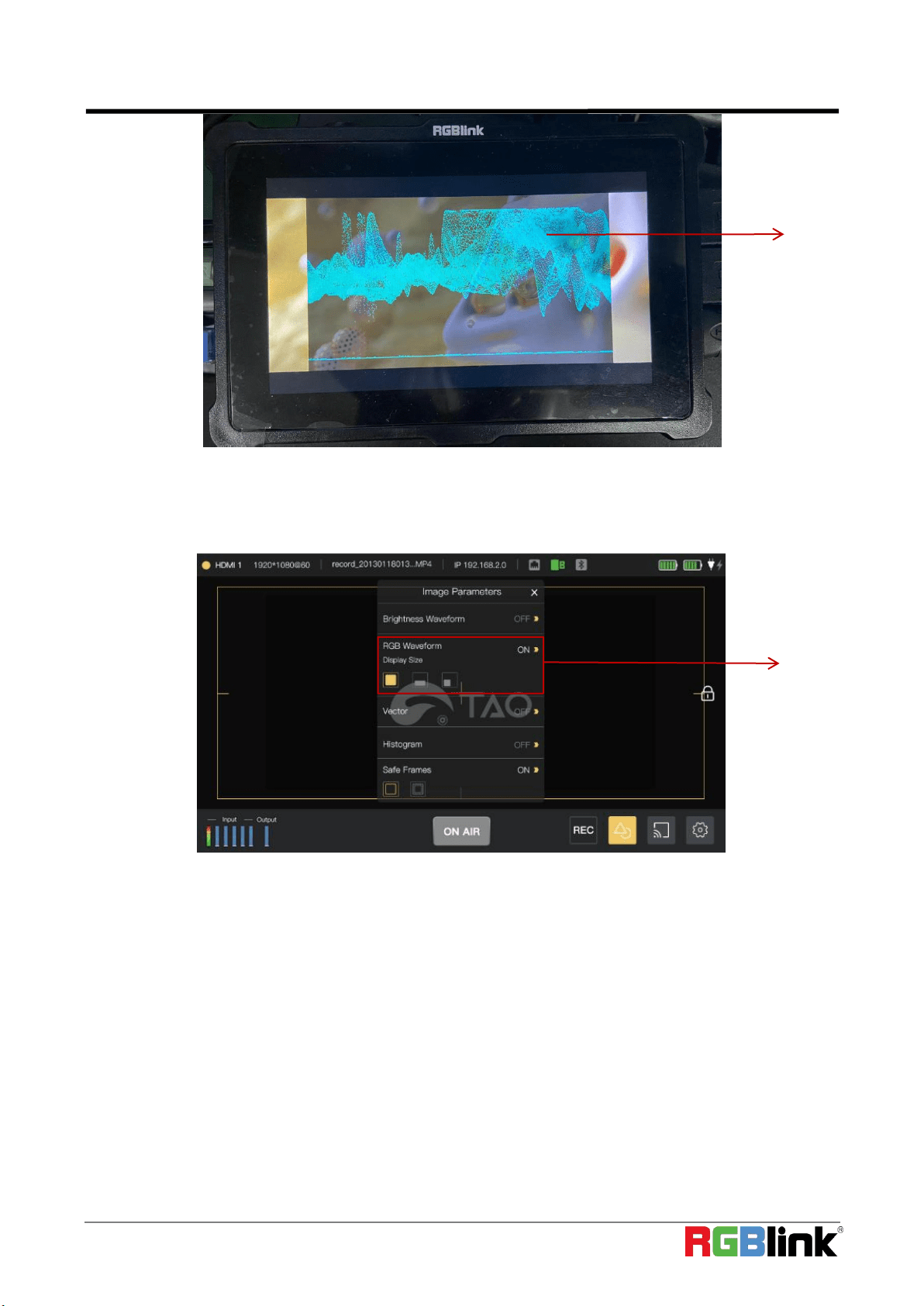

Step 1: Turn on RGB Waveform and select display size.
1
2
©
Xiamen RGBlink Science & Technology Co., Ltd.
16
Step 2: As shown in the picture above,users can see the component of red,green and blue through RGB Waveform.
When shooting a white object with a camera, and the wave level of red,green and blue are consistent,which means
that the white balance is set correctly.So RGB Waveform is used to detect white balance.

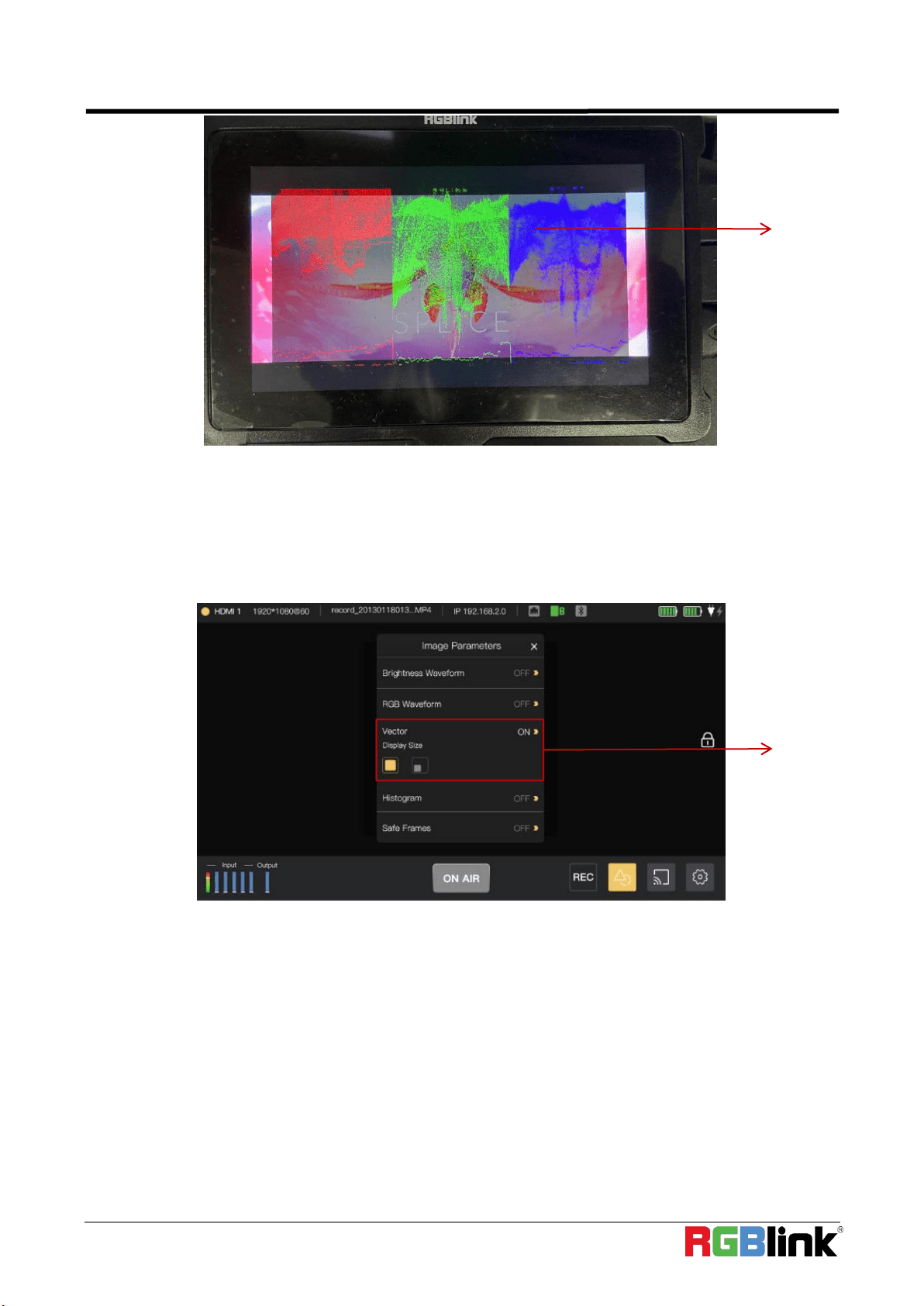

Vector
Step 1: Turn on Vector and select display size.
1
2
©
Xiamen RGBlink Science & Technology Co., Ltd.
17
Step 2: Vector shows color information of hue,vector and color intensity.By means of Vector, You can identify the low
saturation area and color balance.As shown in the picture below,there are six letters,which means: Red, Magenta,
Blue,Cyan,Green and Yellow. Through the Vector,we can easily see that the picture color are mostly yellow and cyan.

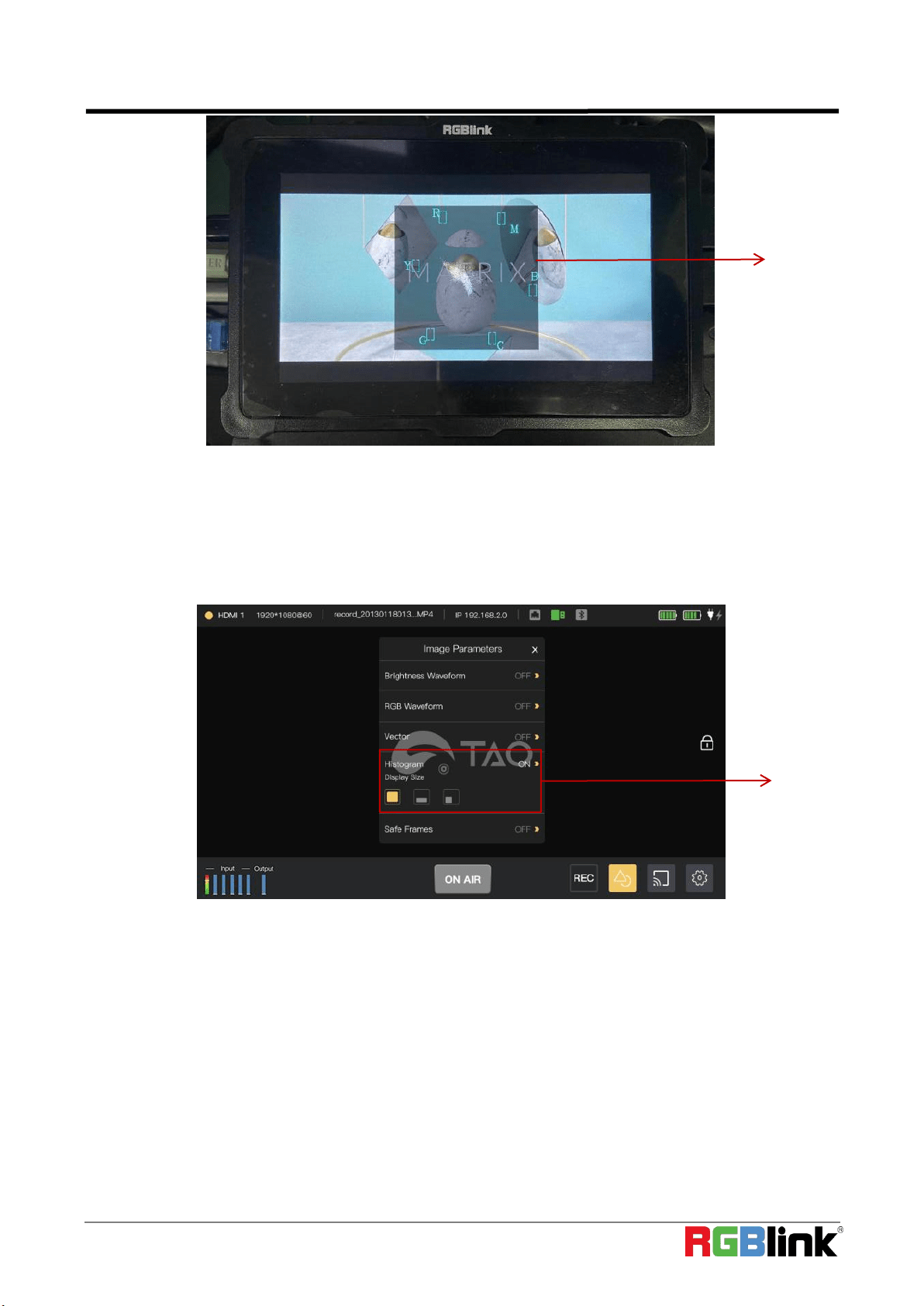

Histogram
Step 1: Turn on Histogram and select display size.
1
2
©
Xiamen RGBlink Science & Technology Co., Ltd.
18
Step 2: As shown in the picture above,the left side of the histogram means dark,right side means bright.As we can
see,the R G B color are close to the left side,which means the picture is mostly dark.It is helpful to monitor the
brightness and set a correct exposure when shooting.

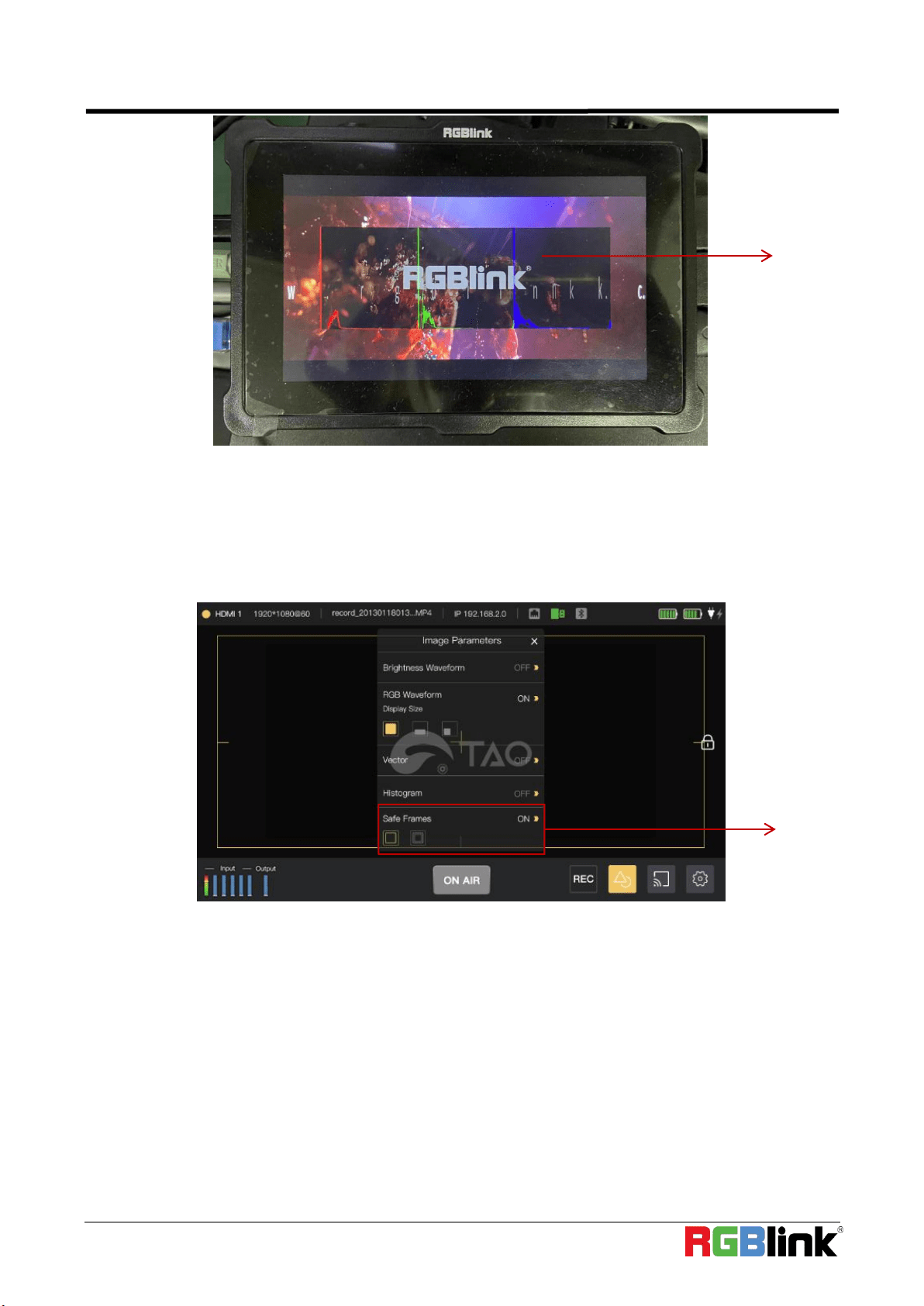

Safe Frames
Step 1: Turn on Safe Frames and select frame size(16:9 or 4:3).
1
2
©
Xiamen RGBlink Science & Technology Co., Ltd.
19
Step 2: Users can cut out the screen outside the save frame based on the actual size.
3.3 How to config TAO 1pro as a Recorder
Recommend: When TAO 1pro as a recorder,the functions of Encoder and Monitor(streaming,NDI encoder and
Image Analyse)are not recommended,the functions of Switcher works normally.
Step 1: Plug mobile harddisk(storage up to 2T) or USB storage to TAO 1pro USB 2.0 port(supported record format is
MP4)
1
2
©
Xiamen RGBlink Science & Technology Co., Ltd.
20

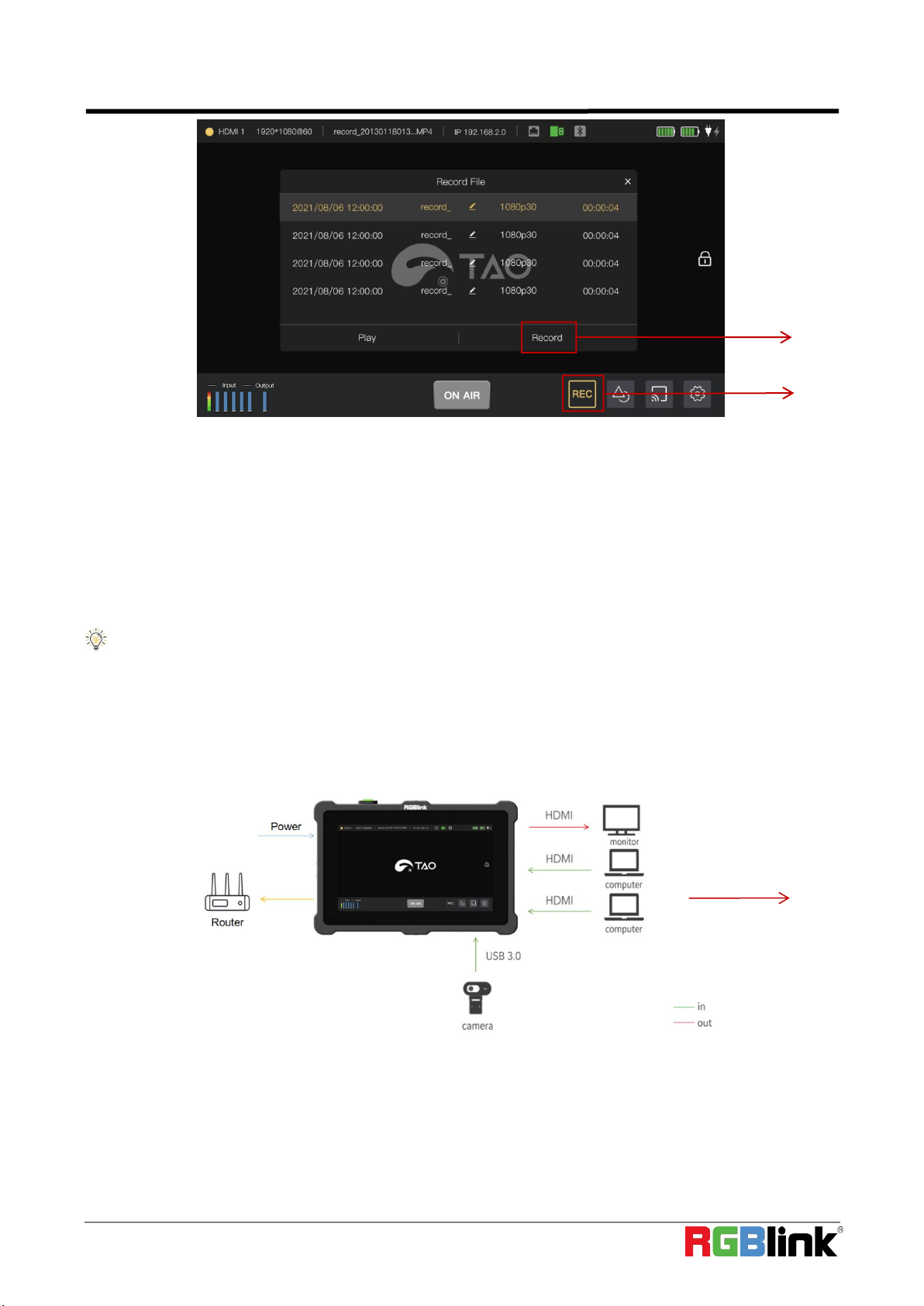

Step 2: Click【REC】in the bottom menu,you can check the recorded files and information.The list of recorded files will
be automatically arranged according to the time.The latest files will be automatically placed in the first row.
Step 3: Click【Record】to start a new recording,a red rectangle will flashing in the screen.(Every record file up to 8G) .
3.4 How to config TAO 1pro to stream to content shared
platform
Recommend: When TAO 1pro is streaming,the functions of Record,Encoder and Monitor(Record,NDI encoder
and image analyse)are not recommended,the functions of Switcher works normally.
Following steps take YouTube stream as example
Step 1: Make sure TAO 1pro connecting to the network
2
3
1
©
Xiamen RGBlink Science & Technology Co., Ltd.
21

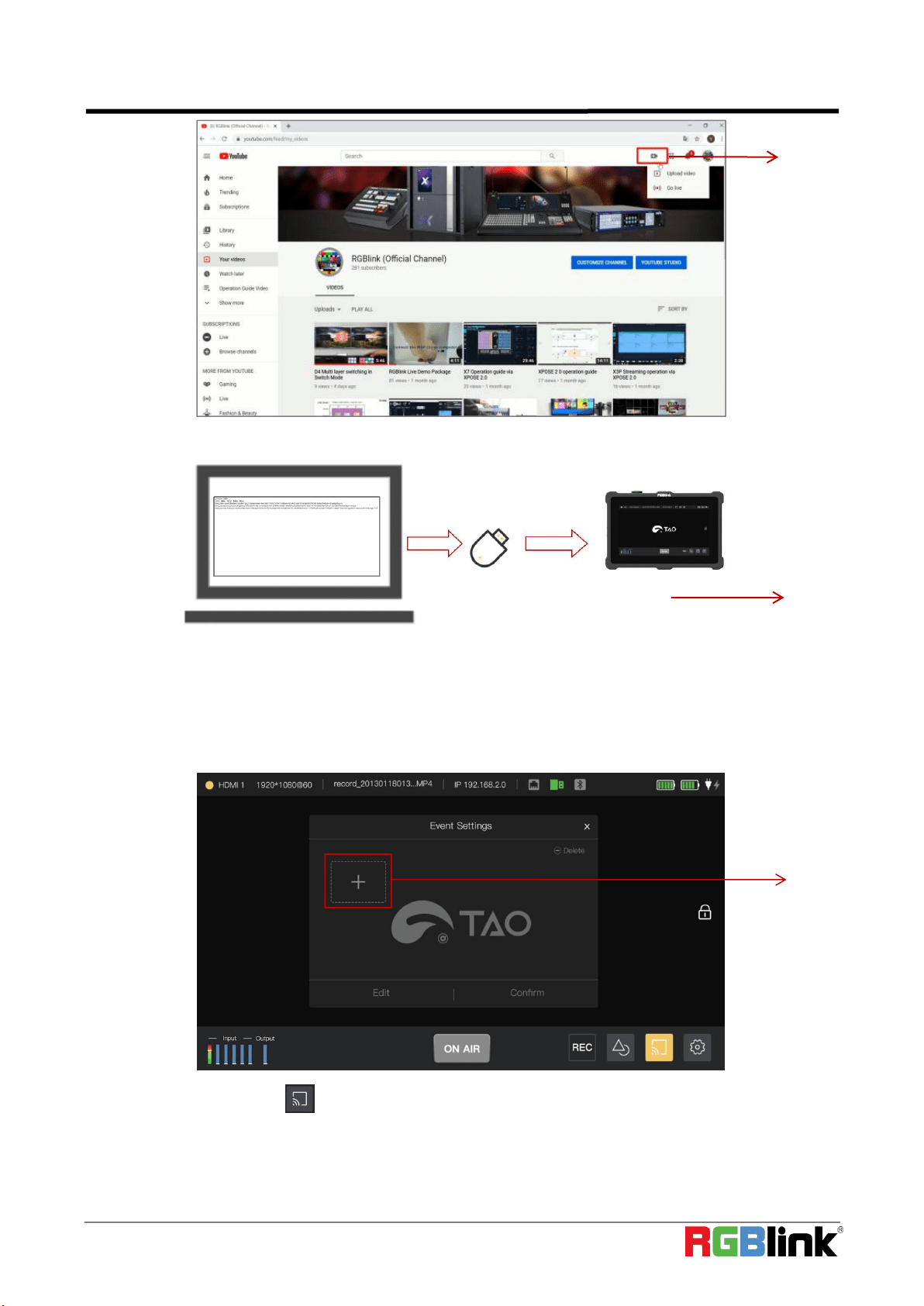

Step 2: Open YouTube Studio on your computer,select【Go Live】--【Stream】,Copy Stream URL and Stream Key
Step 3: Create a new TXT file first,and paste the Streaming URL and Stream Key (the format must be : rmtp//:YOUR
STREAM URL/YOUR STREAM KEY),and save the TXT file to USB as rmtp.ini.(Newline is required to add multiple
streaming addresses) and connect the USB disk to TAO 1pro’s RECORD USB port.
Step 4: Press【Stream Event】 ,and click 【+】 to add a new event.
2
4
3
©
Xiamen RGBlink Science & Technology Co., Ltd.
22

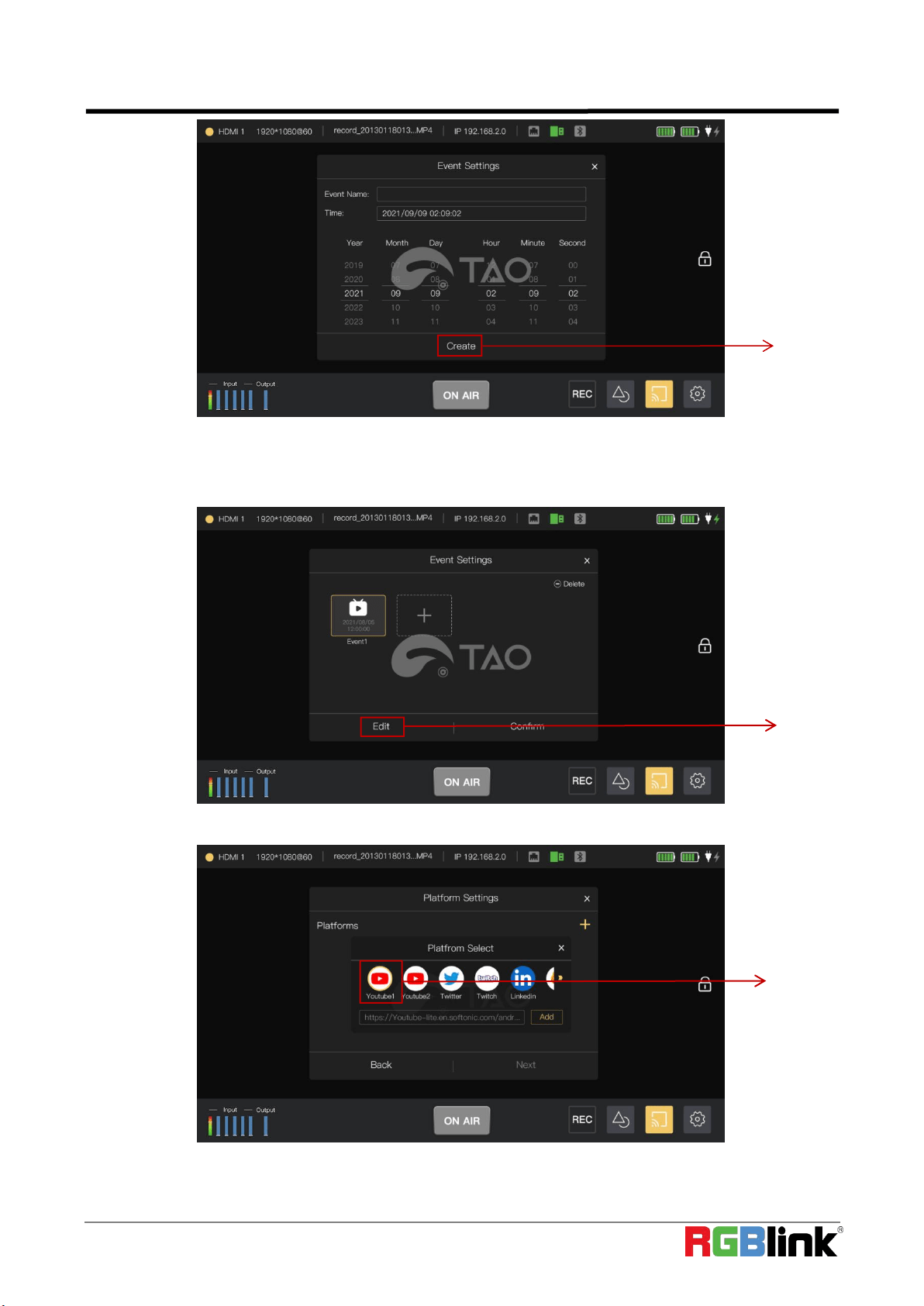

Step 5: In the menu,type in the name and time,and then click【Create】.
Step 6: Select the created event,and click 【Edit】to select platform.
Step 7: Click【+】 to select YouTube and press【Add】to confirm and then click【Next】.
6
7
5
©
Xiamen RGBlink Science & Technology Co., Ltd.
23

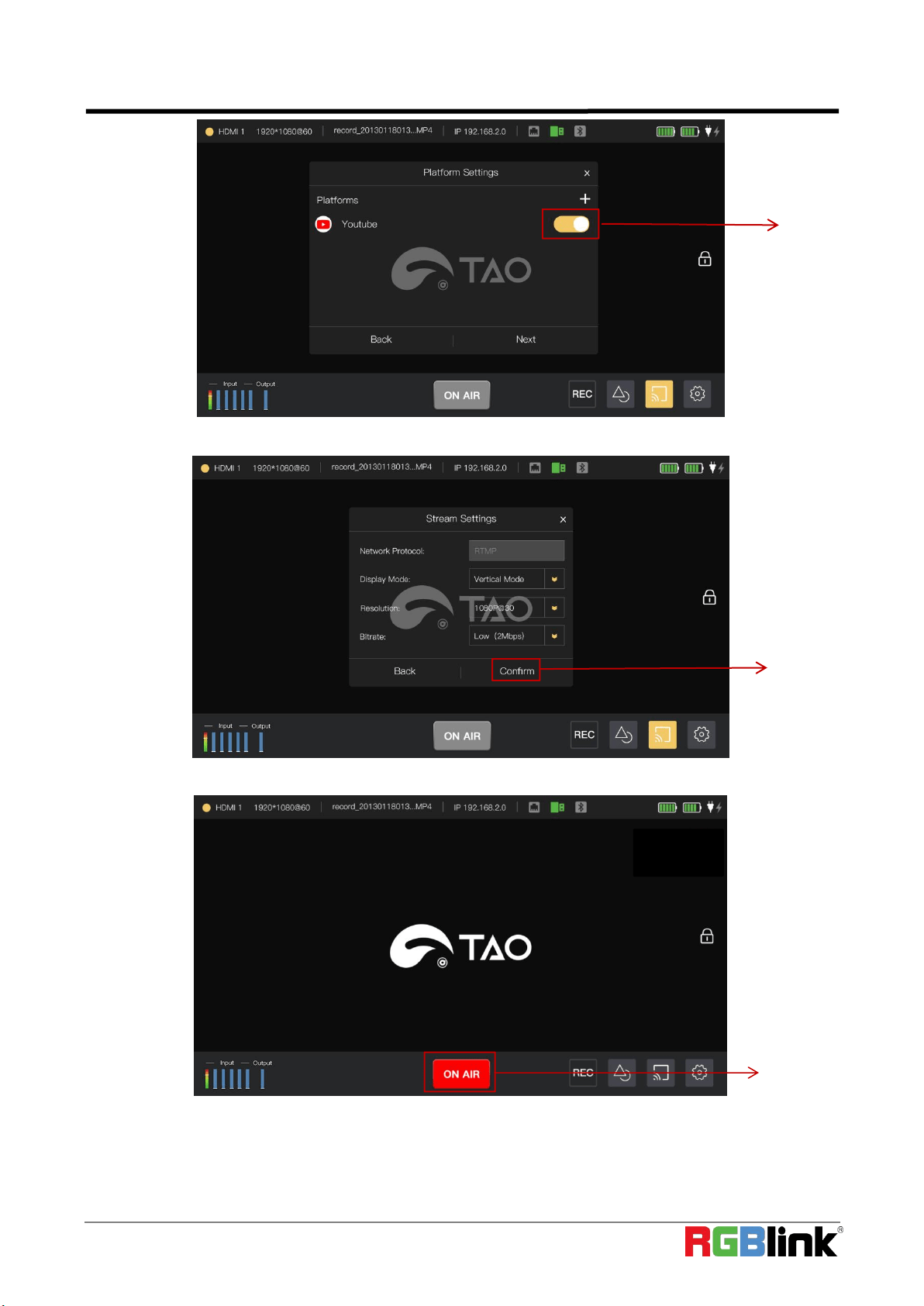

Step 8: Turn on the YouTube platform and then press【Next】.
Step 9: Adjust the display mode,resolution and bitrate in the menu for streaming and the click【Confirm】.
Step 10: Press 【ON AIR】 and the signal will stream to YouTube.
8
10
9
©
Xiamen RGBlink Science & Technology Co., Ltd.
24

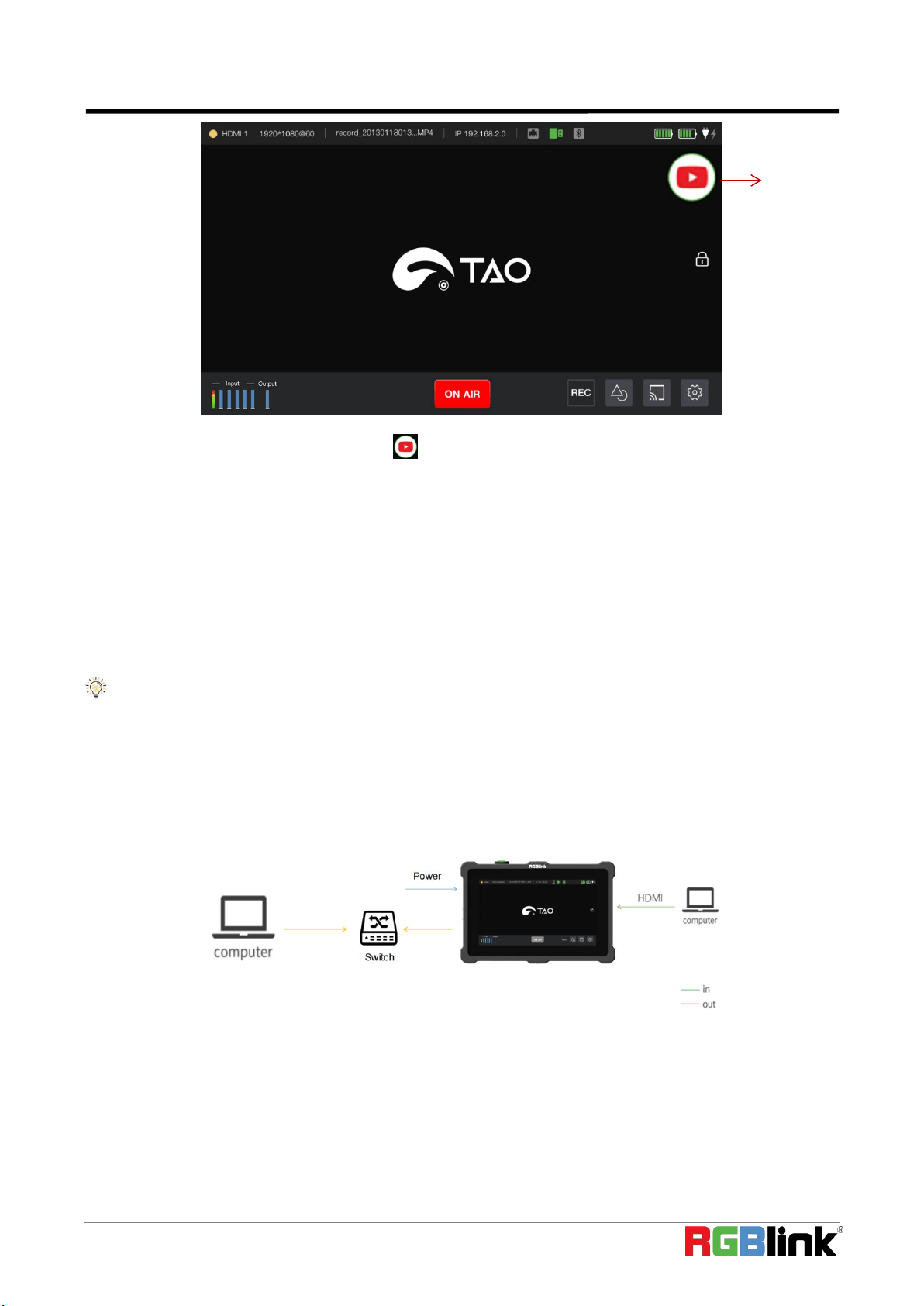

Step 11: During streaming,the platform icon can be seen in the top right corner and you can monitor the
streaming status.(Green icon indicates normal streaming,red one indicates abnormity)
3.5 How to config TAO 1pro to be NDI encoder and FULL
NDI,NDI | HX are selectable
TAO 1pro supports NDI 5.0 decoding and transmit data in H.264/H.265/RGBA/YUV442 format.In NDI network,TAO
1pro can convert video data from other channels (such as IP video streaming, HDMI, etc.) into NDI format and send
it to the receiver.

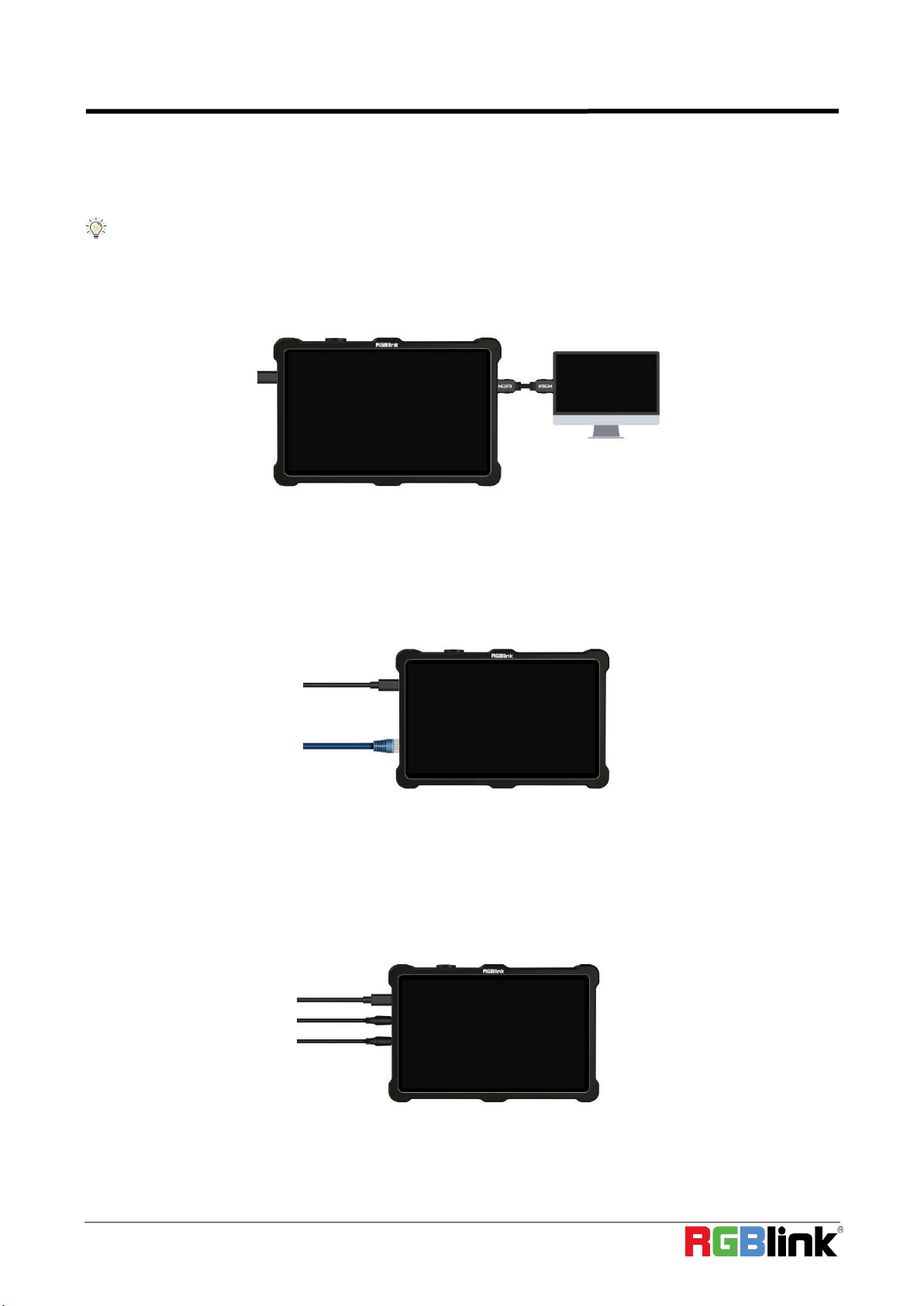

Recommend: When TAO 1pro as NDI Encoder,the functions of Record and Monitor(streaming,recording and
image analyse)are not recommended,the functions of Switcher works normally.
Connect the input signal and monitor as shown below:
11
©
Xiamen RGBlink Science & Technology Co., Ltd.
25

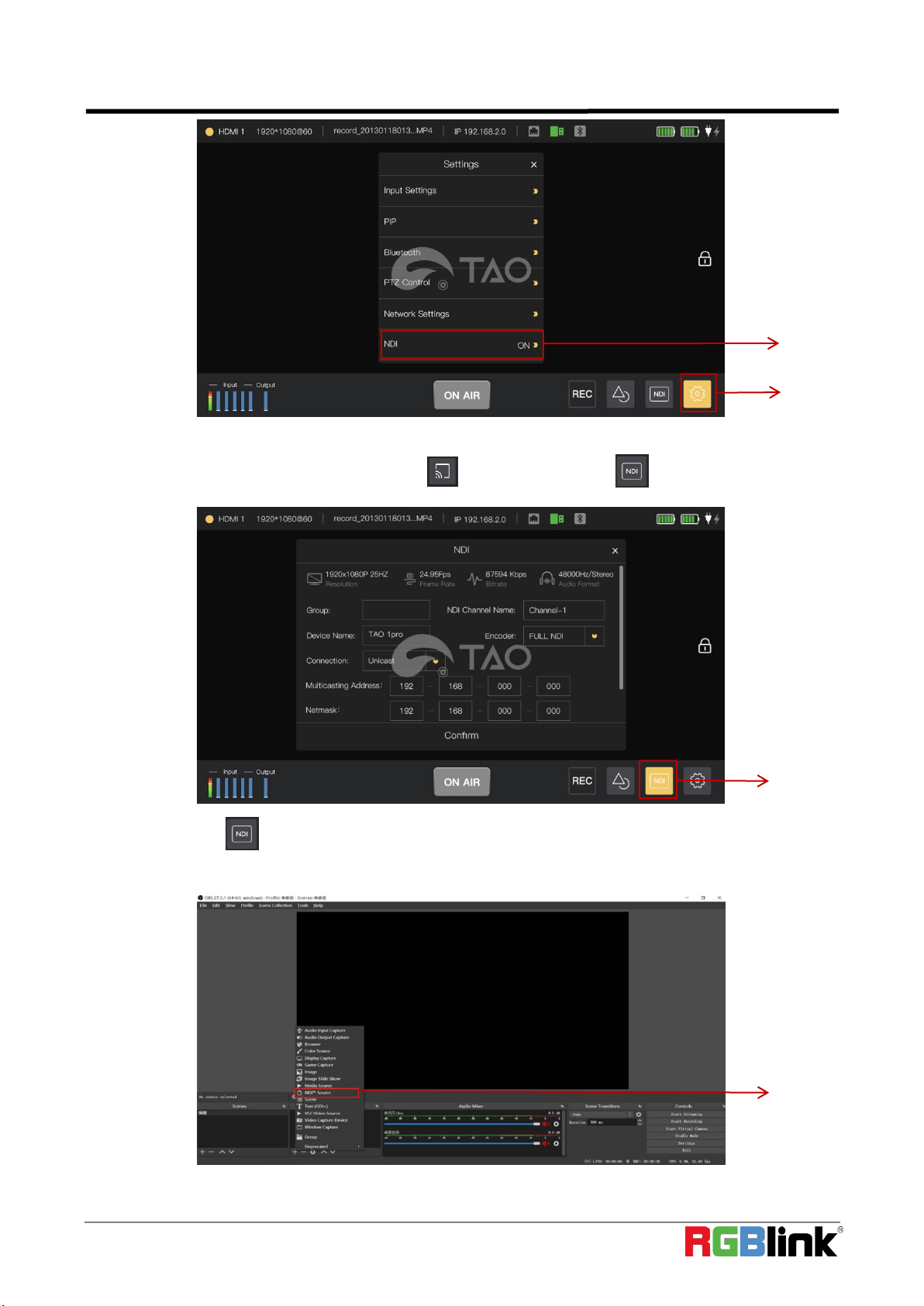

Step 1: In the【Settings】menu,
Step 2: Turn ON【NDI】,and the Event Settings icon will turn into NDI icon .
Step 3: Click the icon to enter【NDI】menu and set the Group,Channel Name,Device Name and Connection,and
then click【Confirm】,the TAO 1pro will start NDI encoding.
2
3
1
4
©
Xiamen RGBlink Science & Technology Co., Ltd.
26

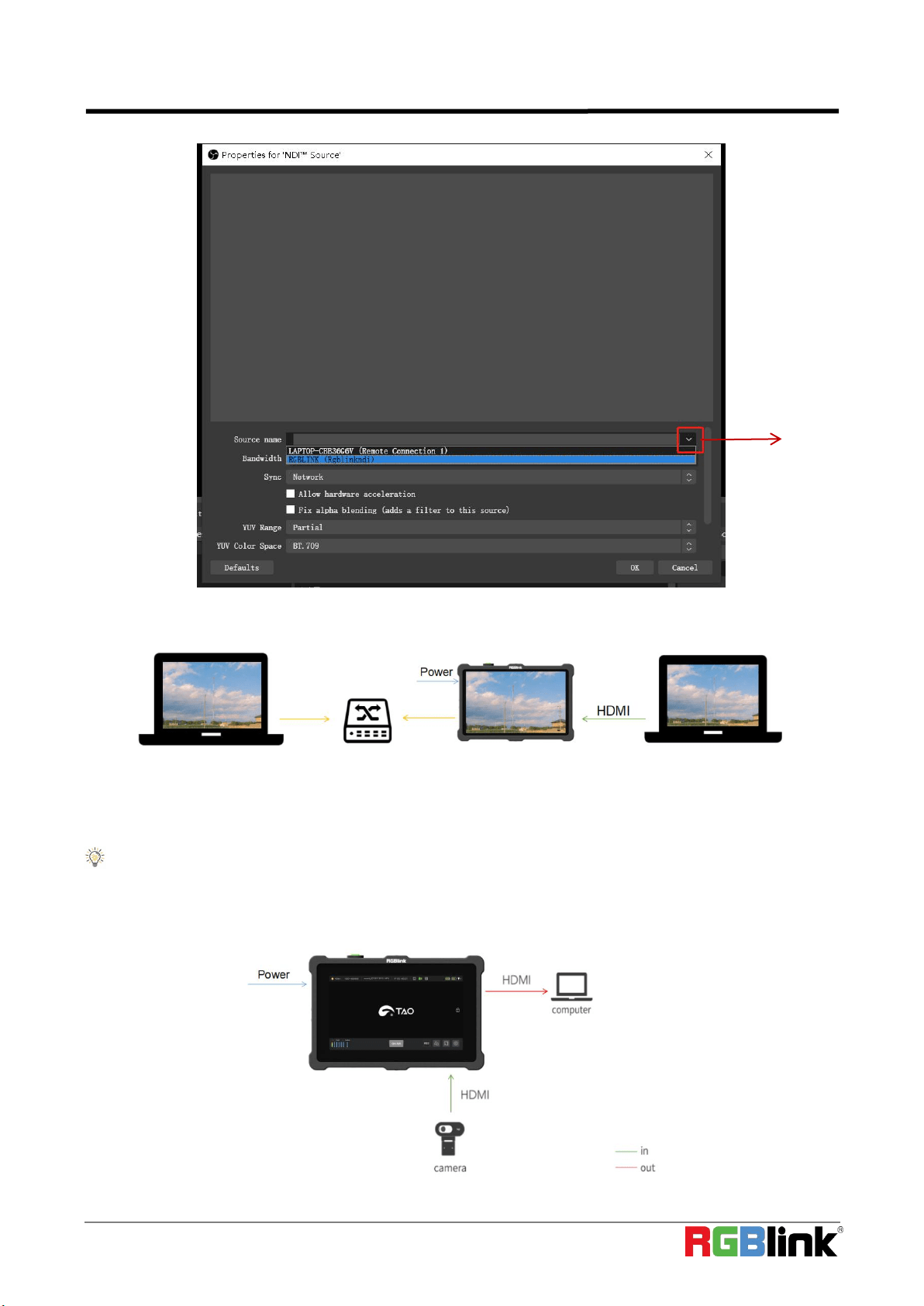

Step 4: Open an NDI software on other computer,such as obs,add an NDI source.
Step 5: Select RGBlink in the signal source.Now you can see the NDI source in OBS software.
3.6 How to config TAO 1pro as converter
Recommend:When TAO 1pro as a converter(UVC signal to HDMI 2.0 output),the functions of Monitor,
Streaming,NDI Encoder and Recorder are not recommended,the function of Switcher work normally.But the screen
will be black for 5 seconds while signal switching.
.
5
©
Xiamen RGBlink Science & Technology Co., Ltd.
27
3.7 PTZ Control

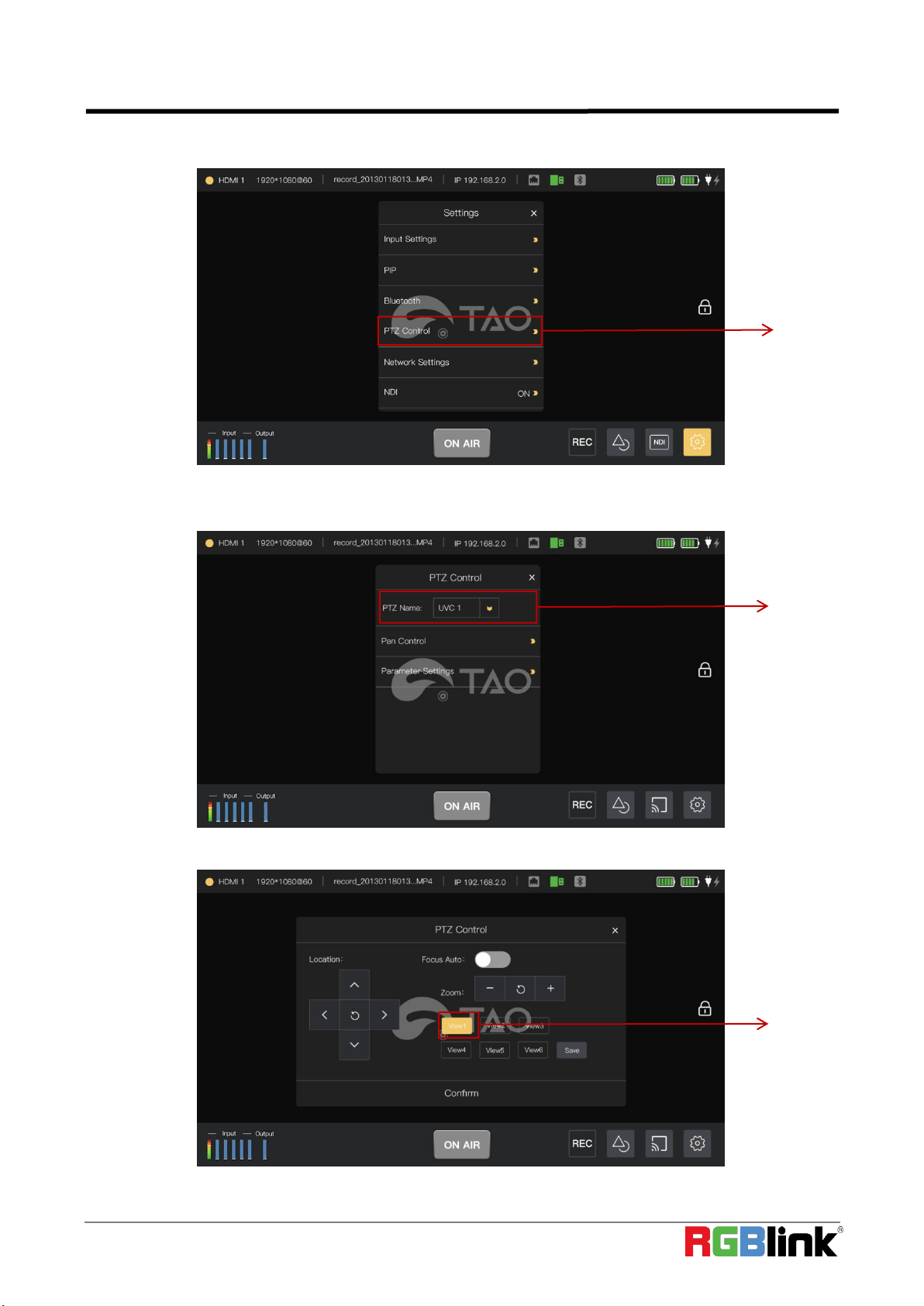

Step 1: When there are PTZ cameras connected to TAO 1pro,you can control PTZ in the menu. In the【Settings】
menu,select 【PTZ Control】
Step 2: Select the PTZ camera you want to control:UVC 1 or UVC 2.
3
2
1
©
Xiamen RGBlink Science & Technology Co., Ltd.
28

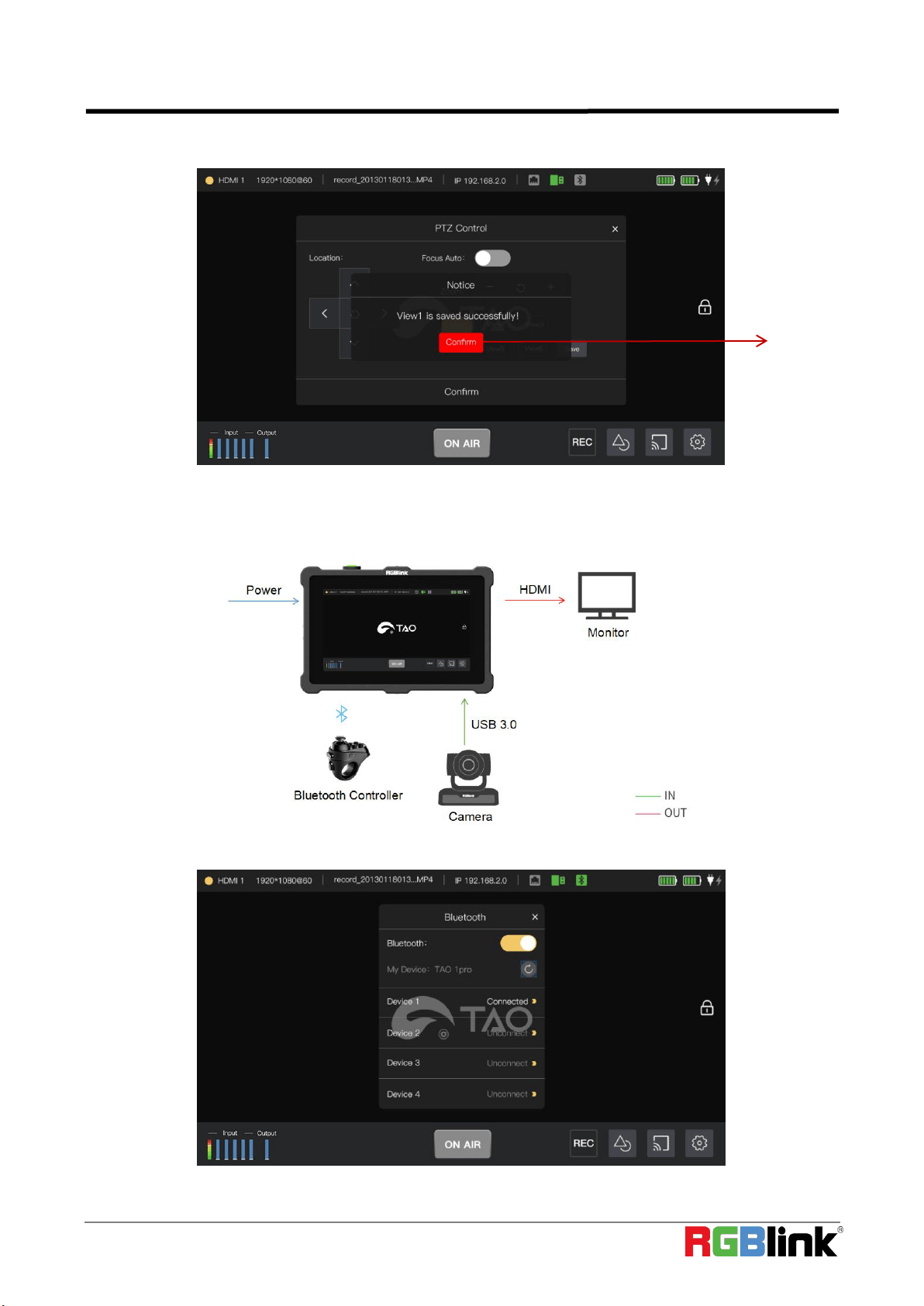

Step 3: In the 【 PTZ Control 】 menu,there are six Views to be selected.If you would like to change the default
setting,then click【View 1】and adjust the location and zoom manually or you can turn on【Focus Auto】.
Step 4: After all settings done,click【Save】to save all parameters.
3.8 Bluetooth
Turn ON Bluetooth and connect the Bluetooth controller to control PTZ camera.(only RGBlink PTZ)
4
©
Xiamen RGBlink Science & Technology Co., Ltd.
29

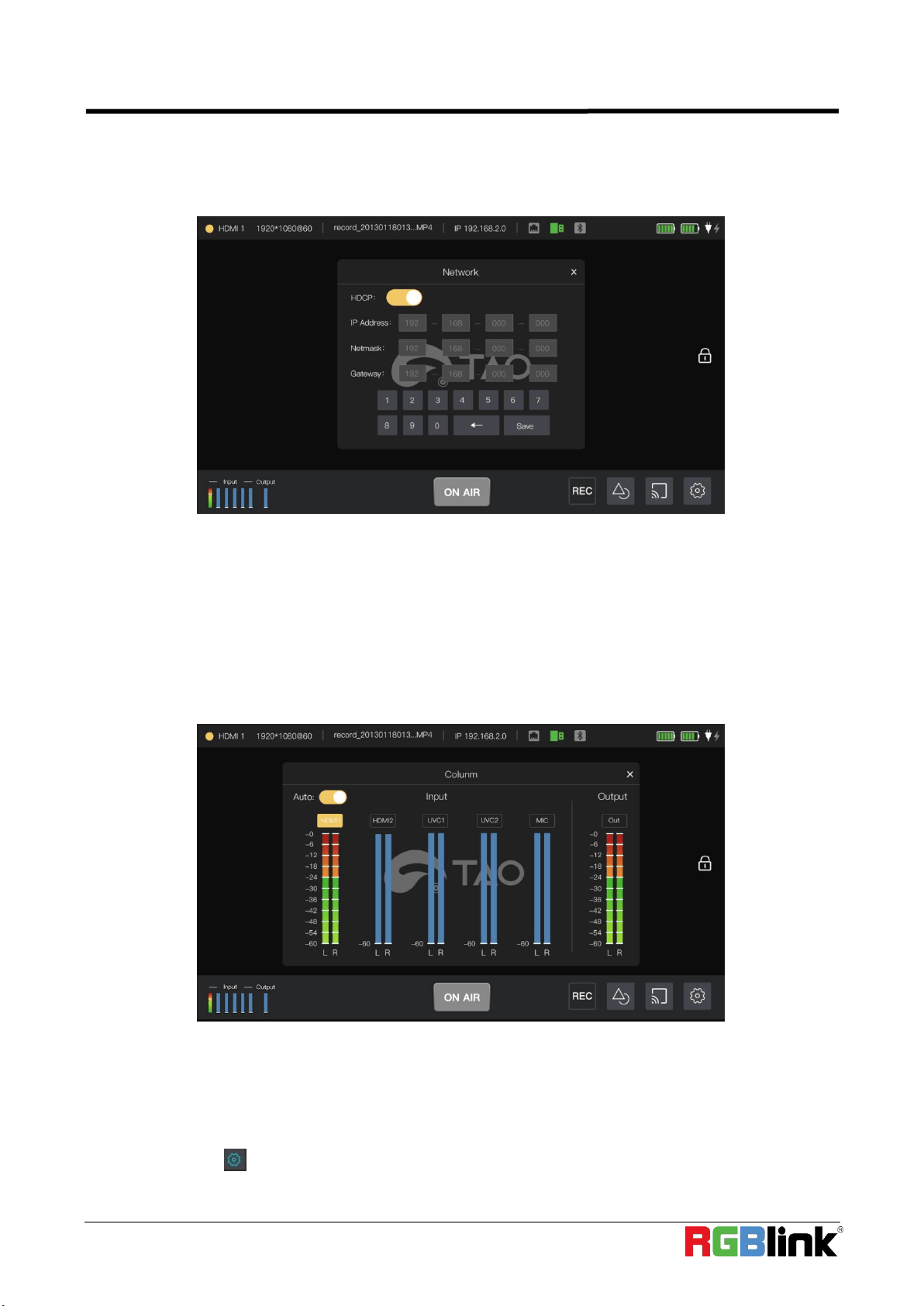

3.9 Network
When HDCP is turned off,you can manually set the IP Address,Netmask and Gateway in the menu;When HDCP is
turned on,the IP Address can be captured automatically.
3.10 Audio Column
Gently touch audio column in the lower left corner to open【 Column】 menu.There are six audio columns in the
interface,two HDMI 2.0 input audios,two UVC input audios,one 3.5 mm analog audio input and one 3.5mm analog
audio output. Every audio column is divided into left/right channel.
You can select【Auto】or manually turn on the column by touch the rectangle icon above the column.(Yellow icon
indicates selected one)

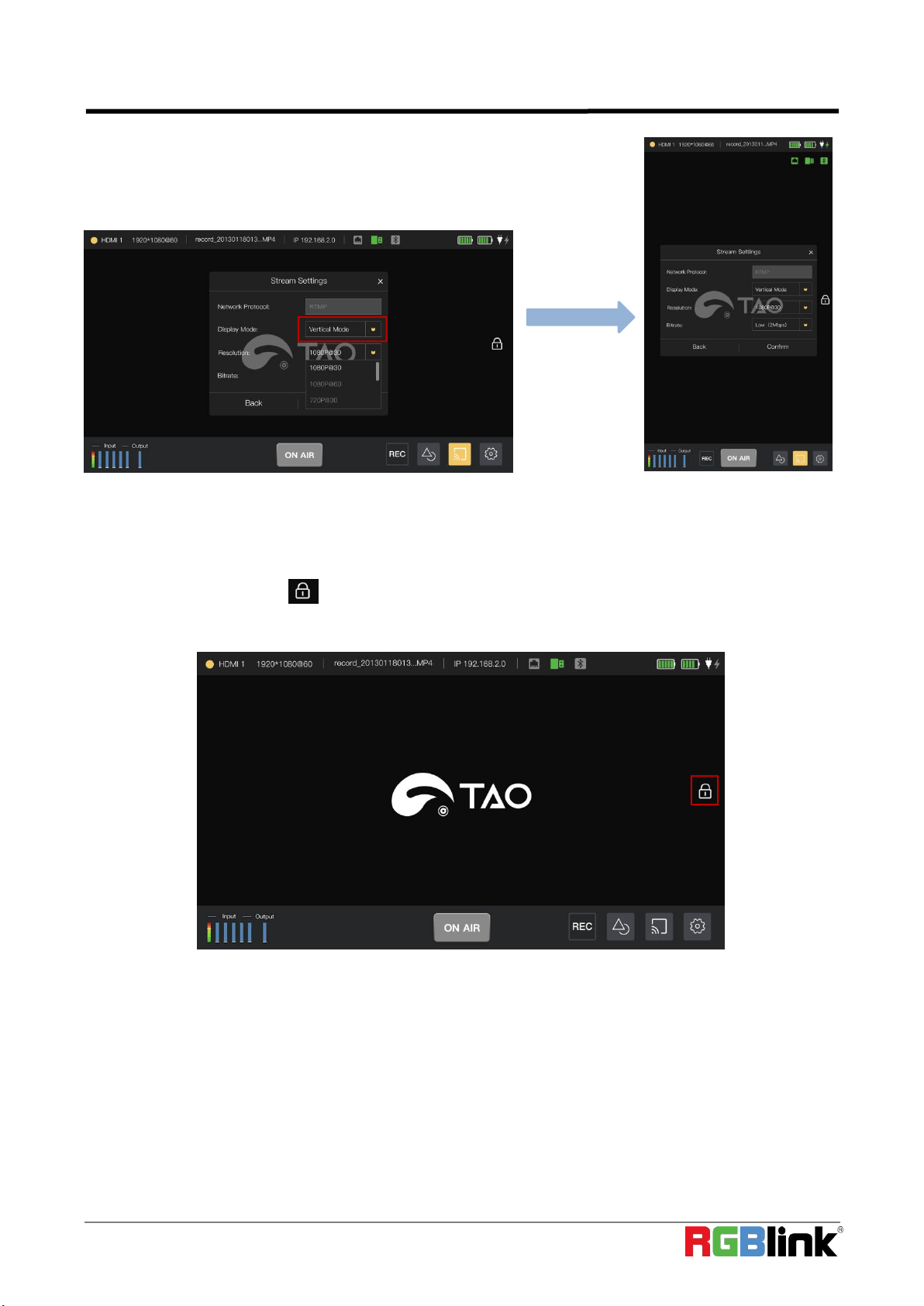

3.11 Rotation
TAO 1pro supports rotation setting.
Gently touch the icon to open【Stream Settings】menu,and select【Vertical Mode】,the output image will rotate
©
Xiamen RGBlink Science & Technology Co., Ltd.
30
as shown below.
3.12 Lock Screen and Full Screen
Lock Screen:touch the lock icon
in the right screen to prevent misoperation
;
Full Screen:If you does not operate for 10 seconds or click the blank area,TAO 1pro will turn to full screen.
©
Xiamen RGBlink Science & Technology Co., Ltd.
31

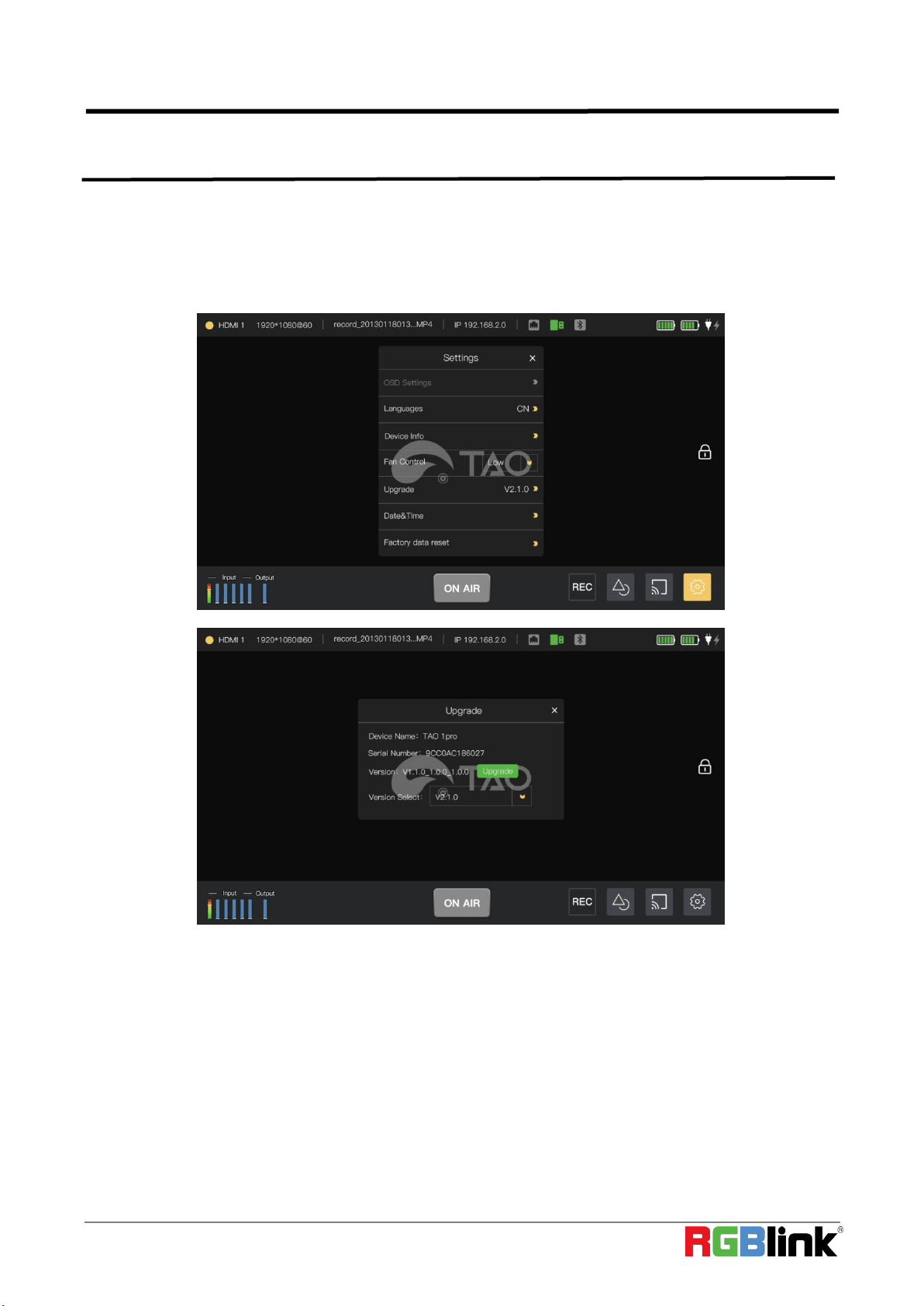

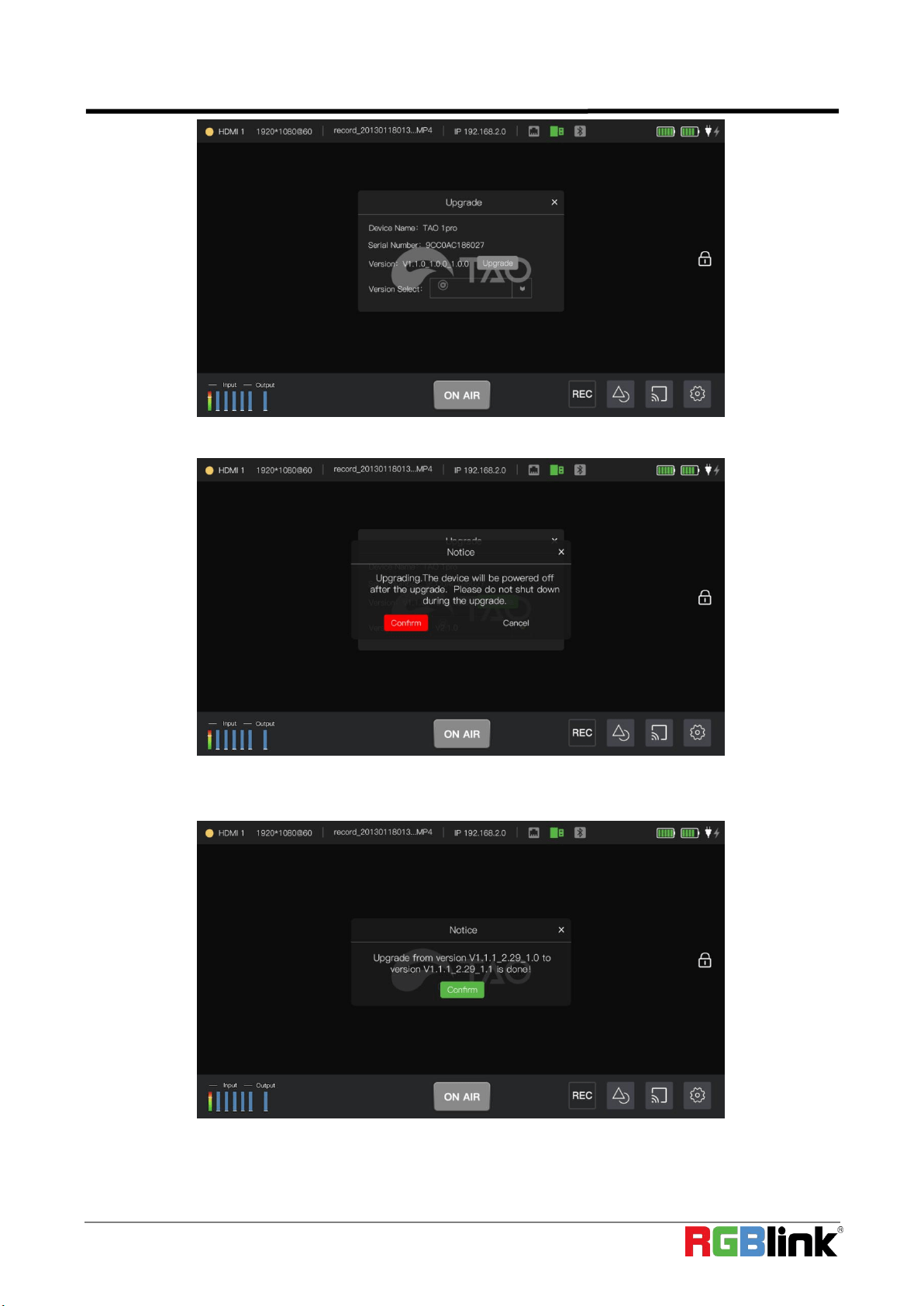

Chapter 4 Upgrade
Tool: USB disk(copy the firmware to the root directory of USB disk)
Upgrade Steps:
Step 1: Power on the device and plug the USB disk to the USB 2.0 interface,Click【Upgrade】in【Settings】menu and
select the version you need and click 【Upgrade】directly.
Note: If the USB disk does not include the upgrade version,the 【Upgrade】button will be gray,as shown in the figure
below
©
Xiamen RGBlink Science & Technology Co., Ltd.
32
Step 2: During the upgrade process,please do not power off the device.
Step 3: TAO 1pro have been upgraded after manually restarting and the notice will pop up as shown in the picture
below:
©
Xiamen RGBlink Science & Technology Co., Ltd.
33
Chapter 5 Ordering Codes
5.1 Product
410-5513-01-0 TAO 1pro
©
Xiamen RGBlink Science & Technology Co., Ltd.
34
Chapter 6 Support
6.1 Contact us
©
Xiamen RGBlink Science & Technology Co., Ltd.
35
Chapter 7 Appendix
7.1 Specification
Connectors
Input
HDMI 1.3
2×HDMI-A
USB 3.0
2×USB TypeA
Output
HDMI 2.0
1×HDMI-A
Record
USB 2.0
1×USB TypeA
SD slot
1×SD slot
Audio
In
1×3.5mm audio jack
Out
1×3.5mm audio jack
Control/Stream
LAN
1×RJ45
Power
1×PD Type-C
Performance
Input Resolution
HDMI
SMPTE
720p@50/60 | 1080p@23/24/60
VESA
1024×768@60 | 1280×720@60 | 1280×800@60 |
1280×1024@60 | 1360×768@60 | 1600×1200@60 |
1680×1050@60 | 1920×1080@60
Output
HDMI
Resolution
SMPTE
720p@50/60 | 1080p@24/25/50/60 | 2160p@60
VESA
1024×768@60 | 1280×720@50/60 | 1280×800@60 |
1280×1024@60 | 1360×768@60 | 1920×1080@50/60 |
3840×2160@60
Supported
HDMI
1.3(Input) | 2.0(Output)
Standard
USB
3.0
Screen
Screen Dimension
5.5 ’TFT
Feature
Resolution
1080×1920 pixels
Dot Pitch
0.063(H)×0.021(W)(mm)
Aspect Ratio
16:9
Brightness
450cd/m²
Contrast
1000:1
Backlight
LED
©
Xiamen RGBlink Science & Technology Co., Ltd.
36

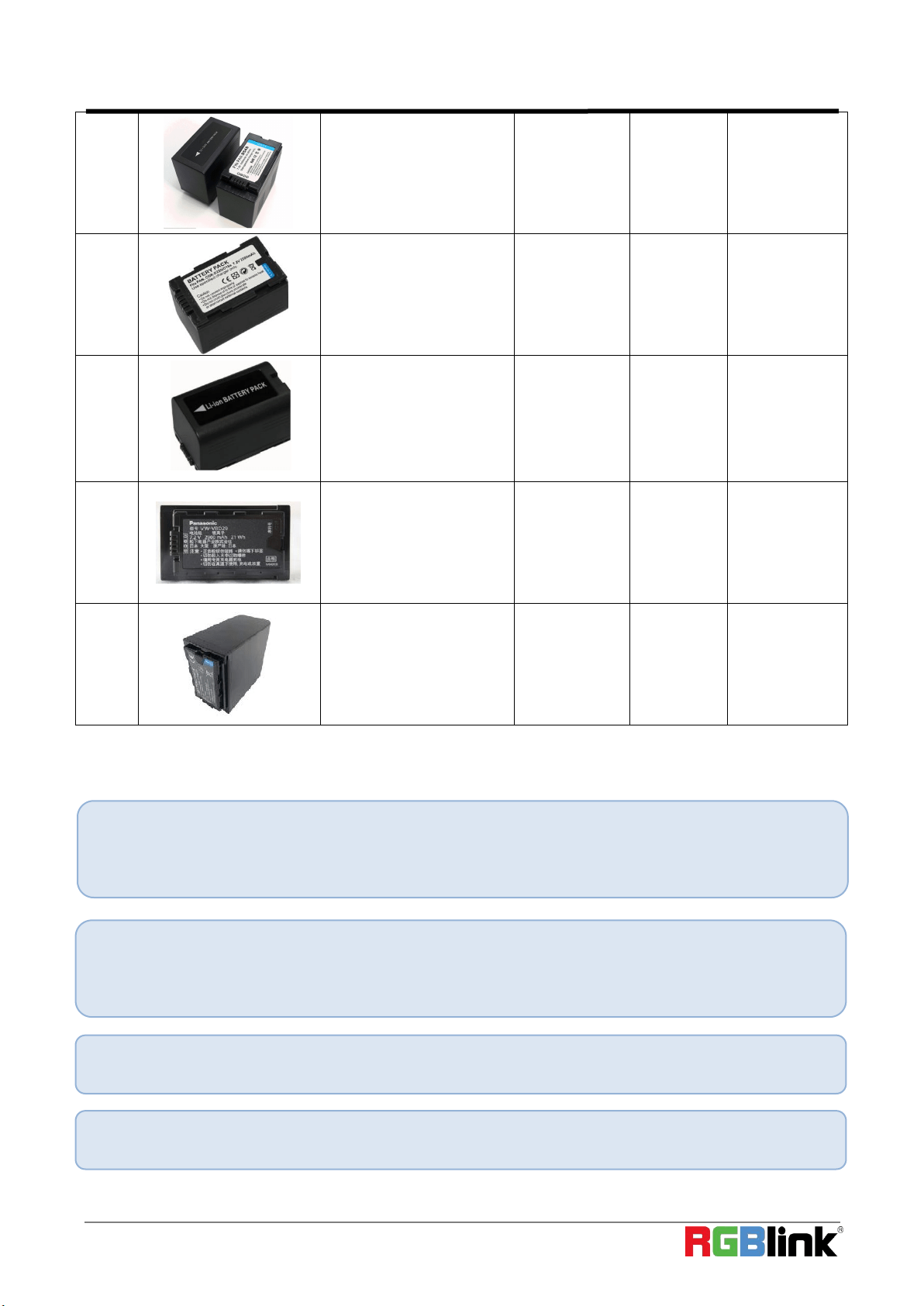

7.2 Battery Installation

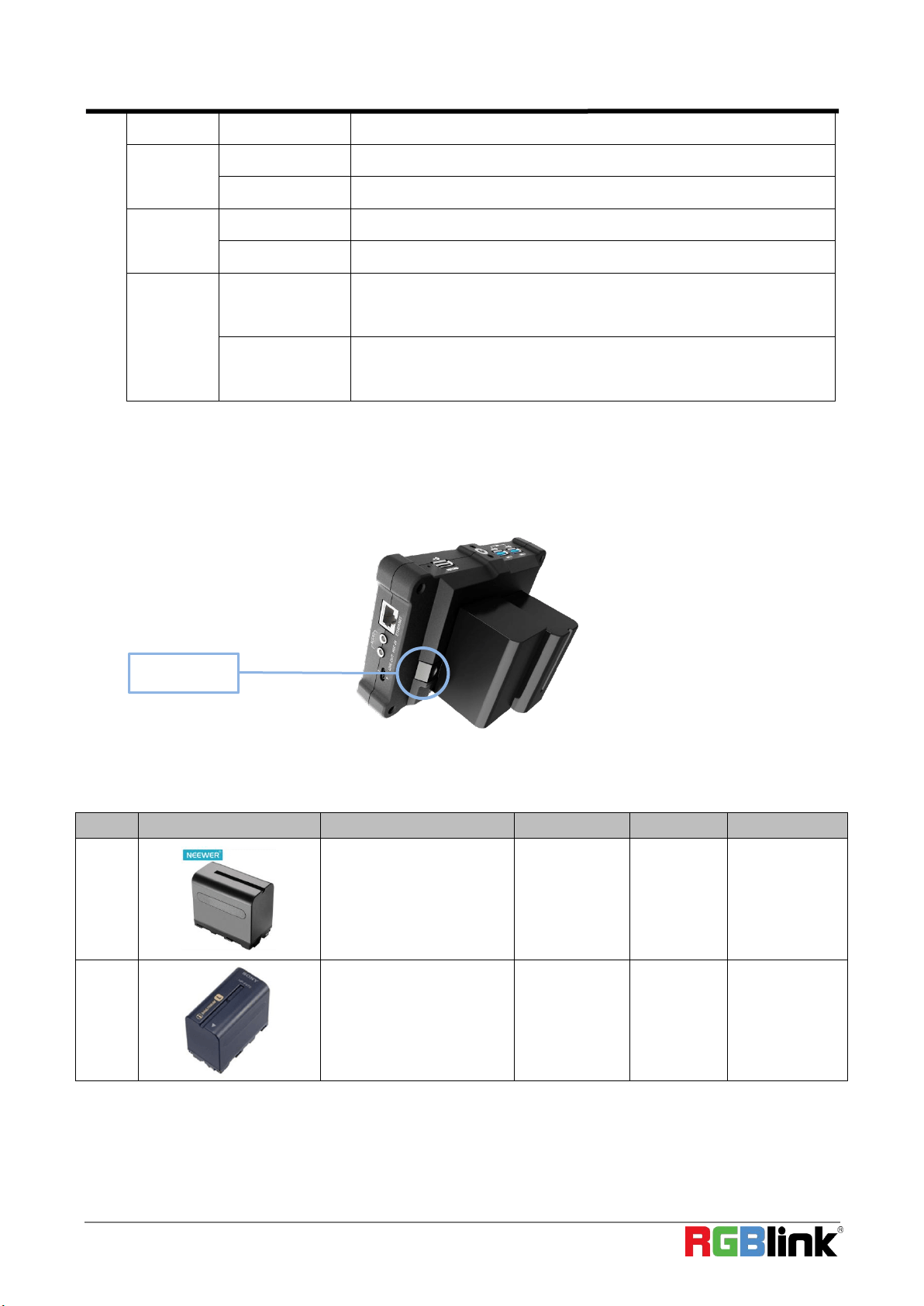

TAO 1pro supports power supply via Type C cable as well as two batteries.
Install: press the lock button first and put the batteries into the slots until it is locked in the correct position.
Remove: press lock button first and remove the batteries.

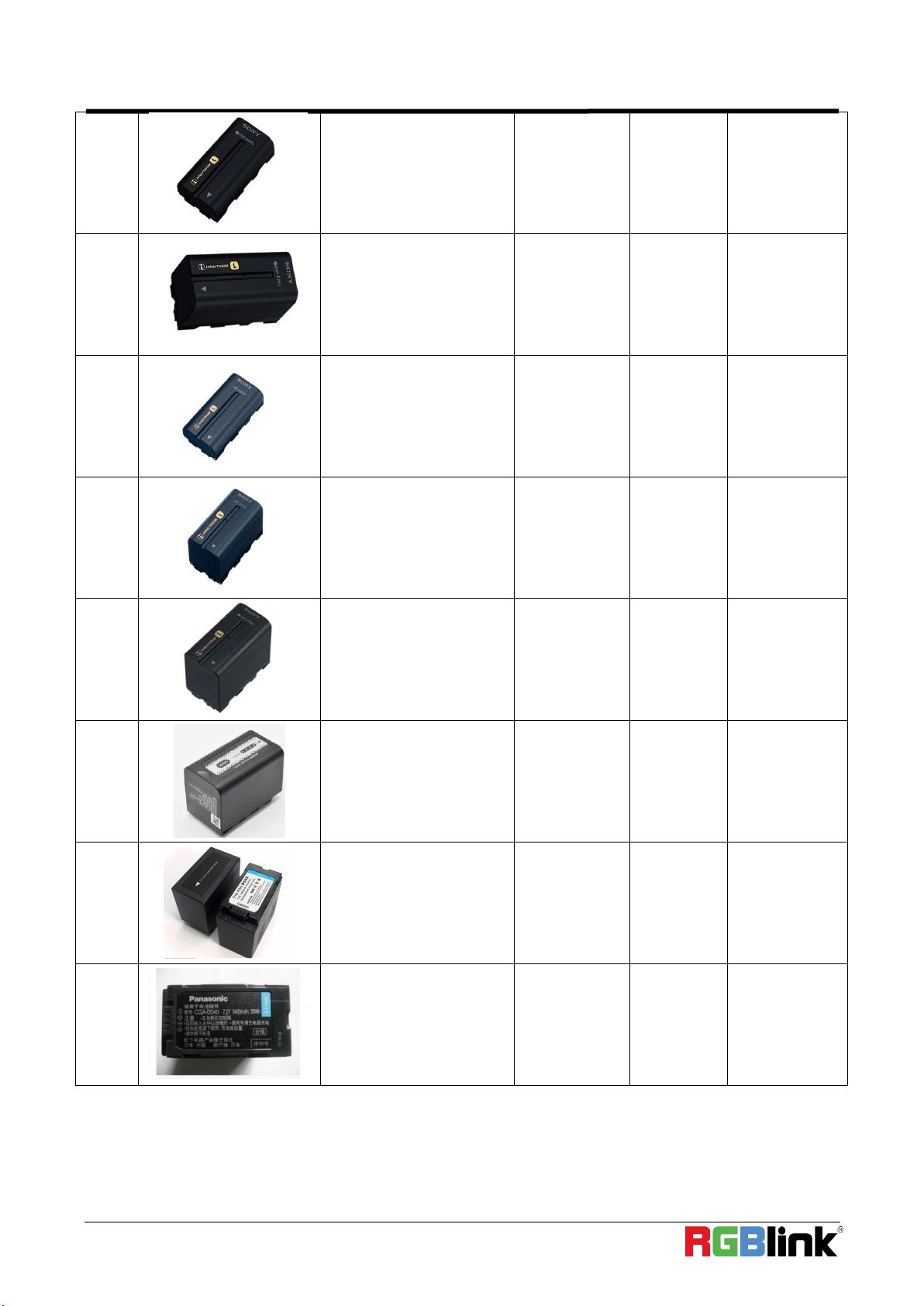

Following is battery options for your reference.
No.
Model
Capacity
Weight
Working hours
1
NEEWER 970
6600mA
600g
3~4 hours
2
Sony NP-F970
6600mA
300g
3~4 hours
View Angle
80°/80°(L/R)80°/80°(U/D)
Power
Input Voltage
9V/2A
Max Power
18W
Environment
Temperature
0℃~55℃
Humidity
5%~85%
Physical
Weight
Net
350g(without battery);882g(with battery)
Package
770g
Dimension
Net
161mm×106mm×36mm
Package
255mm×145mm×85mm
Lock button
©
Xiamen RGBlink Science & Technology Co., Ltd.
37
3
Sony NP-F550
1500mA
95g
1 hour
4
Sony NP-F750
3000mA
200g
1.5 hours
5
Sony NP-F570
2200mA
About 100g
1 hours
6
Sony NP-F770
4400mA
About 200g
2~3 hours
7
Sony NP-F960
5400mA
300g
2~3 hours
8
Panasonic AG-VBR59MC
5900mA
300g
3 hours
9
Panasonic D54S
5400mA
300g
2~3 hours
10
Panasonic CGA-D54D
5400mA
300g
2~3 hours
©
Xiamen RGBlink Science & Technology Co., Ltd.
38
11
Panasonic CGA-D54H
5400mA
300g
2~3 hours
12
Panasonic CGR-D28S
4200mA
300g
2 hours
13
Panasonic CGR-D16S
2200mA
300g
1 hours
14
Panasonic VBD29
2900mA
100g
1~2 hours
15
Panasonic VBD98
10400mA
100g
5 hours
7.3 FAQ
1.TAO 1pro recording automatically stops after 6 seconds?
A: The latest firmware(V1.2.15) has been optimized to avoid automatic recording; The USB flash drive is only
available when the USB icon is green. Latest firmware download link:
https://www.dropbox.com/sh/akcgjcqcsbn8b8q/AAAhYUsU4qVS9P7aD2-qmB46a?dl=0
2.TAO 1pro failed to record a file?
A: TAO 1pro will identify the files inside the U disk one by one after the recording starts. If the files have not been
identified completely, clicking the record will not work. To avoid this, if the file is not fully identified, the icon is left in
gray rather than green.
3. What is the recording video format and refresh rate of TAO 1pro?
A: TAO 1pro recording video format follows the streaming RJ45 output, which is MP4 and 1080P30, 8bit.
4. Is media player function supported on TAO 1pro, such as playing recording file ?
A: Currently, the playback function is not supported. It will be available in future firmware version.
©
Xiamen RGBlink Science & Technology Co., Ltd.
39
5. Introduction to Encoder features of TAO 1pro.
A: TAO 1pro has two encoder functions. The first one is RTMP, which can directly stream directly to YouTube platform
and other websites. The second is NDI, terminal NDI encoder function. The two streams cannot be applied at the
same time. Only one encoding method can be selected at a time.
6. How much is the streaming delay and external network delay of TAO 1pro?
A: The streaming delay of TAO 1pro is approximately within 100ms, and the delay of external network depends on
different networks, generally between 10-20s.
7. The LCD monitor and HDMI of TAO 1pro appear lag, similar to 10Hz.
A: When recording is enabled on TAO 1pro, the corresponding LCD screen and HDMI output will drop to about
10-15 frames. However, both recording and streaming are guaranteed to be at 30HZ.
8. Will the five features of TAO 1Pro, Monitor, Recorder, Switcher, Encoder and Streamer affect each other?
A: Besides Switcher, it is recommended to use only two of the other four functions of TAO 1pro. Otherwise, the
output frames of LCD and HDMI will be reduced to 10-15 frames to ensure A 30-frame streaming.
9. Will TAO 1pro's RTMP address change?
A: The RTMP address of TAO 1pro will never change. It is fixed and can be used directly after booting.
10. Does TAO 1pro's signal recognition allow temporary modification of signal resolution?
A: TAO 1pro does not support temporary modification of input resolution after signal intervention, nor does it have
EDID function; If the customer needs to change the input resolution, restart the device to identify the front-end
signal. The USB and HDMI inputs are the same.
11. What is the recognition of TAO 1pro HDMI signal?
A: the TAO 1pro's HDMI input is only recognized as 1080P 50,60 and 720P (computer signal excluded). Support i
format signal input; If computer signal input is used, it must be 1080P50 and 60, others are not supported. TAO 1pro
does not support de-interlacing function.
12. Does TAO 1pro have signal hot backup function?
A: TAO 1pro currently does not support signal hot backup, the screen will go black if the signal is lost.
13.TAO 1pro's HDMI output to 4K screen appears incomplete.
A: The use of TAO 1Pro requires that all input and output should be connected before starting up. The plug/plug
interface or signal and monitor screen should not be replaced during the process.
7.4 Terms & Definitions
● RCA:
Connector used primarily in consumer AV equipment for both audio and video. The RCA
connector was developed by the Radio Corporation of America.
©
Xiamen RGBlink Science & Technology Co., Ltd.
40
●
BNC:
Stands for Bayonet Neill-Concelman. A cable connector used extensively in television (named for its
inventors). A cylindrical bayonet connector that operates with a twist-locking motion .
●CVBS: C
VBS or Composite video, is an analog video signal without audio. Most commonly CVBS is used for
transmission of standard definition signals. In consumer applications the connector is typically RCA type, while
in professional applications the connector is BNC type.
●YPbPr: Used to describe the colour space for progressive-scan. Otherwise known ascomponent video.
● VGA: Video Graphics Array. VGA is an analog signal typically used on earlier computers. The signal is
non-interlaced in modes 1, 2, and 3 and interlaced when using in mode.
●DVI:
Digital Visual Interface. The digital video connectivity standard that was developed by DDWG (Digital
Display Work Group). This connection standard offers two different connectors: one with 24 pins that handles
digital video signals only, and one with 29 pins that handles both digital and analog video.
●SDI: Serial Digital Interface. Standard definition video is carried on this 270 Mbps data transfer rate. Video pixels
are characterized with a 10-bit depth and 4:2:2 color quantization. Ancillary data is included on this interface and
typically includes audio or other metadata. Up to sixteen audio channels can be transmitted. Audio is organised into
blocks of 4 stereo pairs. Connector is BNC.
●HD-SDI: High-definition serial digital interface (HD-SDI), is standardized in SMPTE 292M this provides a nominal
data rate of 1.485 Gbit/s.
●3G-SDI: Standardized in SMPTE 424M, consists of a single 2.970 Gbit/s serial link that allows replacing dual link
HD-SDI.
●6G-SDI: Standardized in SMPTE ST-2081 released in 2015, 6Gbit/s bitrate and able to support 2160p@30.
●12G-SDI: Standardized in SMPTE ST-2082 released in 2015, 12Gbit/s bitrate and able to support 2160p@60.
●U-SDI: Technology for transmitting large-volume 8K signals over a single cable. a signal interface called the ultra
high definition signal/data interface (U-SDI) for transmitting 4K and 8K signals using a single optical cable. The
interface was standardized as the SMPTE ST 2036-4.
●HDMI: H
igh Definition Multimedia Interface: An interface used for the transmission of uncompressed high
definition video, up to 8 channels of audio, and control signals, over a single cable.
●HDMI 1.3: Released on June 22 2006, and increased the maximum TMDS clock to 340 MHz (10.2 Gbit/s). Support
resolution 1920 × 1080 at 120 Hz or 2560 × 1440 at 60 Hz). It added support for 10 bpc, 12 bpc, and 16 bpc color
depth (30, 36, and 48 bit/px), called deep color.
●HDMI 1.4: Released on June 5, 2009, added support for 4096
×
2160 at 24 Hz, 3840
×
2160 at 24, 25, and 30 Hz,
and 1920
×
1080 at 120 Hz. Compared to HDMI 1.3, 3 more features added which are HDMI Ethernet Channel
(HEC) , audio return channel (ARC),3D Over HDMI, a new Micro HDMI Connector, an expanded set of color spaces.
©
Xiamen RGBlink Science & Technology Co., Ltd.
41
●HDMI 2.0: Released on September 4, 2013 increases the maximum bandwidth to 18.0 Gbit/s. Other features of
HDMI 2.0 include up to 32 audio channels, up to 1536 kHz audio sample frequency, the HE-AAC and DRA audio
standards, improved 3D capability, and additional CEC functions.
●HDMI 2.0a: Was released on April 8, 2015, and added support for High Dynamic Range (HDR) video with static
metadata.
●HDMI 2.0b: Was released March, 2016, support for HDR Video transport and extends the static metadata
signaling to include Hybrid Log-Gamma (HLG).
● HDMI 2.1: Released on November 28, 2017. It adds support for higher resolutions and higher refresh rates,
Dynamic HDR including 4K 120 Hz and 8K 120 Hz.
●DisplayPort: A VESA standard interface primarily for video, but also for audio, USB and other data. DisplayPort
(orDP) is backwards compatible with HDMI, DVI and VGA.
●DP 1.1: Was ratified on 2 April 2007, and version 1.1a was ratified on 11 January 2008. DisplayPort 1.1 allow a
maximum bandwidth of 10.8 Gbit/s (8.64 Gbit/s data rate) over a standard 4-lane main link, enough to support
1920x1080@60Hz
●DP 1.2: Introduced on 7 January 2010, effective bandwidth to 17.28 Gbit/s support increased resolutions, higher
refresh rates, and greater color depth, maximum resolution 3840 × 2160@60Hz
● DP 1.4: Publish on 1 Mar, 2016.overall transmission bandwidth 32.4 Gbit/s ,DisplayPort 1.4 adds support for
Display Stream Compression 1.2 (DSC), DSC is a "visually lossless" encoding technique with up to a 3:1 compression
ratio. Using DSC with HBR3 transmission rates, DisplayPort 1.4 can support 8K UHD (7680 × 4320) at 60 Hz or 4K
UHD (3840 × 2160) at 120 Hz with 30 bit/px RGB color and HDR. 4K at 60 Hz 30 bit/px RGB/HDR can be achieved
without the need for DSC.
●Multi-mode Fiber: Fibers that support many propagation paths or transverse modes are called multi-mode fibers,
generally have a wider core diameter and are used for short-distance communication links and for applications
where high power must be transmitted.
●Single-mode Fiber: Fiber that support a single mode are called single-mode fibers. Single-mode fibers are used
for most communication links longer than 1,000 meters (3,300 ft).
● SFP: Small form-factor pluggable , is a compact, hot-pluggable network interface module used for
both telecommunication and data communications applications.
● Optical Fiber Connector: Terminates the end of an optical fiber, and enables quicker connection and
disconnection than splicing. The connectors mechanically couple and align the cores of fibers so light can pass. 4
most common types of optical fiber connectors are SC, FC, LC,ST.
● SC: (Subscriber Connector), also known as the square connector was also created by the Japanese company –
Nippon Telegraph and Telephone. SC is a push-pull coupling type of connector and has a 2.5mm diameter.
Nowadays, it is used mostly in single mode fiber optic patch cords, analog, GBIC, and CATV. SC is one of the most
©
Xiamen RGBlink Science & Technology Co., Ltd.
42
popular options, as its simplicity in design comes along with great durability and affordable prices.
●LC：(Lucent Connector) is a small factor connector (uses only a 1.25mm ferrule diameter) that has a snap coupling
mechanism. Because of its small dimensions, it is the perfect fit for high-density connections, XFP, SFP, and SFP+
transceivers.
●FC: (Ferrule Connector) is a screw type connector with a 2.5mm ferrule. FC is a round shaped threaded fiber optic
connector,mostly used on Datacom, telecom, measurement equipment, single-mode laser.
● ST: (Straight Tip) was invented by AT&T and uses a bayonet mount along with a long spring-loaded ferrule to
support the fiber.
●USB: Universal Serial Bus is a standard that was developed in the mid-1990s that defines cables, connectors and
communication protocols. This technology is designed to allow a connection, communication and power supply for
peripheral devices and computers.
●USB 1.1: Full–Bandwidth USB, specification was the first release to be widely adopted by the consumer market.
This specification allowed for a maximum bandwidth of 12Mbps.
●USB 2.0: or Hi–Speed USB, specification made many improvements over USB 1.1. The main improvement was an
increase in bandwidth to a maximum of 480Mbps.
● USB 3.2: Super Speed USB with 3 varieties of 3.2 Gen 1(original name USB 3.0), 3.2Gen 2(original name USB 3.1),
3.2 Gen 2x2 (original name USB 3.2) with speed up to 5Gbps,10Gbps,20Gbps respectively.
USB version and connectors figure:
Type
A
Type B
Mini
A
Mini
B
Micro-
A
Micro
-B
Type C
USB 2.0
USB 3.0
USB
3.1&3.2
●
NTSC:
The colour video standard used in North America and some other parts of the world created by
the National Television Standards Committee in the 1950s. NTSC utilizes an interlaced video signals.
●
PAL:
Phase Alternate Line. A television standard in which the phase of the colour carrier is alternated from line to
line. It takes four full images (8 fields) for the colour-to-horizontalimages (8 fields) for the colour-to-horizontal phase
relationship to return to the reference point. This alternation helps cancel out phase errors. For this reason, the hue
©
Xiamen RGBlink Science & Technology Co., Ltd.
43
control is not needed on a PAL TV set. PAL, is widely used in needed on a PAL TV set. PAL, is widely used in Western
Europe, Australia, Africa, the Middle East, and Micronesia. PAL uses 625-line, 50-field (25 fps) composite colour
transmission system.
●
SMPTE:
Society of Motion image and Television Engineers. A global organization, based in the United States, that
sets standards for baseband visual communications. This includes film as well as video and television standards.
●
VESA:
Video Electronics Standards Association. An organization facilitating computer graphics through standards.
●
HDCP:
High-bandwidth Digital Content Protection (HDCP) was developed by Intel Corporation an is in wide
use for protection of video during transmission between devices.
●
HDBaseT:
A video standard for the transmission of uncompressed video (HDMI signals) and related features using
Cat 5e/Cat6 cabling infrastructure.
●ST2110: A SMPTE developed standard, ST2110 describes how to send digital video over and IP networks. Video is
transmitted uncompressed with audio and other data in a separate streams.
SMPTE2110 is intended principally for broadcast
production and distribution facilities where quality and flexibility are
more important.
●
SDVoE:
Software Defined Video over Ethernet (SDVoE) is a method for transmission, distribution and
management AV signals using a TCP/IP Ethernet infrastructure for transport with low latency. SDVoE is commonly
used in integration applications.
●
Dante AV:
The Dante protocol was developed for and widely adopted in audio systems for
the transmission of
uncompressed digital
audio on IP based networks. The more recent Dante AV specification includes support for
digital video.
●
NDI:
Network Device interface (NDI) is a software standard developed by NewTek to enable
video-compatible
products to communicate,
deliver, and receive broadcast quality video in a high quality, low latency manner that is
frame-accurate and suitable for switching in
a live production environment over TCP (UDP) Ethernet based
networks. NDI is
commonly found in broadcastapplications.
●RTMP: Real-Time Messaging Protocol (RTMP) was initially a proprietary protocol developed by Macromedia (now
Adobe) for streaming audio, video and data over the Internet, between a Flash player and a server.
●RTSP:
The Real Time Streaming Protocol (RTSP) is
a network control protocol designed for use in entertainment and
communications systems to control streaming media servers. The protocol is used for establishing and controlling
media sessions between end points.
●MPEG: Moving Picture Experts Group is a working group formed from ISO and IEC developing standards that
allow audio/video digital compression and Transmission.
©
Xiamen RGBlink Science & Technology Co., Ltd.
44
● H.264: Also known as AVC (Advanced Video Coding) or MPEG-4i is a common video
compression standard.
H.264 was standard
ized by the ITU-T Video Coding Experts Group (VCEG) together with the ISO/IEC JTC1 Moving
Picture Experts Group (MPEG).
● H.265: Also known as HEVC (High Efficiency Video Coding ) H.265 is the successor to the widely used
H.264/AVC digital video coding standard. Developed under the auspices of ITU, resolutions up to 8192x4320 may
be compressed.
●
API:
An Application Programming Interface (API) provides a predefined function which allows access
capabilitiesandfeaturesorroutines viaa
software or hardware, without accessing source
code or understanding the
details of inner working mechanism. AnAPI call may execute a
function and/or provide datafeedback/report.
●
DMX512:
The communication standard developed by USITT for entertainment and digital lighting systems.The
wide adoption of the Digital Multiplex (DMX) protocol has seen the protocol used for a wide
range of other devices
including video controllers.
DMX512 is delivered over cable of 2 twisted pairs with 5pin XLR cables for connection.
●ArtNet: An ethernet protocol based on TCP/IP protocol stack, mainly used in entertainment/events applications.
Built on the DMX512 data format, ArtNet enables multiple “ universes ” of DMX512 to be transmitted using
ethernet networks for transport.
●
MIDI:
MIDI is the abbreviation of Musical Instrument Digital Interface. As the name indicates the protocol was
developed for
communication between electronical musical
instruments and latterly computers. MIDI instructions are
triggers or commands sent over twisted pair cables, typically using 5pin DIN connectors
.
●OSC:
The principle of Open Sound Control
(OSC) protocol is for networking sound
synthesizers, computers, and
multimedia
devices for musical performance or show control. As with XML and JSON, the OSC protocol allows
sharing data. OSC is transported via UDP packets between devices connected on an Ethernet.
●Brightness:
Usually refers to the amount or intensity
of video light produced on a screen without regard to colour.
Sometimes called black level.
●
Contrast
Ratio:
The ratio of the high light output level divided by the low light output level. In theory, the
contrast ratio of the television system should be at least 100:1, if not 300:1. In reality, there are several
limitations. Well-controlled viewing conditions should yield a practical contrast ratio of 30:1 to 50:1.
●
Colour
Temperature: The colour quality, expressed in degrees Kelvin (K), of a light source. The higher the
colour
temperature, the bluer the light. The lower the temperature, the redder the light. Benchmark colour
temperature for the A/V industry include 5000°K, 6500°K, and9000°K.
●
Saturation:
Chroma, Chroma gain. The intensity of the colour, or the extent to which a given colour in any image is
free from white. The less white in a colour, the truer the colour or the greater its saturation. Saturation is the amount
of pigment in a colour, and not the intensity.
©
Xiamen RGBlink Science & Technology Co., Ltd.
45
●
Gamma:
The light output of a CRT is not linear with respect to the voltage input. The difference between
what you should have and what is actually output is known as gamma.
●Frame: In interlaced video, a frame is one complete image.A video frame is made up of two fields, or two sets of
interlaced lines. In a film, a frame is one still image of a series that makes up a motion image.
●
Genlock:
Allows synchronisation of otherwise video devices. A signal generator provides a signal pulses which
connected devices can reference. Also see Black Burst and Color Burst.
●Blackburst:
The video waveform without the video elements.It includes the vertical sync, horizontal sync,
and the Chroma burst information. Blackburst is used to synchronize video equipment to align the video
output.
●ColourBurst: In colour TV systems, a burst of subcarrier frequency located on the back part of the composite
video signal. This serves as a colour synchronizing signal to establish a frequency and phase reference for the
Chroma signal. Colour burst is 3.58 MHz for NTSC and 4.43 MHz for PAL.
●Colour Bars:
A standard test pattern of several basic
colours (white, yellow, cyan, green, magenta, red, blue, and
black) as a reference for system alignment and testing. In NTSC video, the most commonly used colour bars are the
SMPTE standard colour bars. In PAL video, the most commonly used colour bars are eight full field bars. On
computer monitors the most commonly used colour bars are two rows of reversed colour bars
●Seamless Switching: A feature found on many video switchers. This feature causes the switcher to wait until the
vertical interval to switch. This avoids a glitch (temporary scrambling) which often is seen when switching between
sources.
●Scaling: A conversion of a video or computer graphic signal from a starting resolution to a new resolution. Scaling
from one resolution to another is typically done to optimize the signal for input to an image processor, transmission
path or to improve its quality when presented on a particular display.
●
PIP:
Picture-In-Picture. A small image within a larger image created by scaling down one of image to make it
smaller. Other forms of PIP displays include Picture-By-Picture (PBP) and Picture- With-Picture (PWP), which are
commonly used with 16:9 aspect display devices. PBP and PWP image formats require a separate scaler for each
video window.
● HDR: is a high dynamic range (HDR) technique used in imaging and photography to reproduce a
greater dynamic range of luminosity than what is possible with standard digital imaging or photographic
techniques. The aim is to present a similar range of luminance to that experienced through the human visual
system.
●UHD:
Standing for Ultra High Definition and comprising
4Kand 8K television standards with a16:9 ratio, UHD
follows the 2K HDTV standard. A UHD 4K display has aphysical resolution of3840x2160 which is four times the area
©
Xiamen RGBlink Science & Technology Co., Ltd.
46
and twice both the widthandheightofaHDTV/FullHD(1920x1080) video signal.
●EDID: Extended Display Identification Data. EDID is a data structure used to communicate
video display
information, including native resolution and vertical interval refresh rate
requirements, to a source device. The source
device will then output the provided EDID data, ensuring proper video image quality.
7.5 Revision History
The table below lists the changes to the User Manual.
Format
Time
ECO#
Description
Principal
V1.0
2021-07-19
0000#
Release
Sylvia
V1.1
2021-08-06
0001#
Update upgrade guide
Sylvia
V1.2
2021-08-16
0002#
Update UI
Sylvia
V1.3
2021-09-26
0003#
1. change to 2 HDMI 1.4 input
2. Update UI
Sylvia
V1.4
2021-11-22
0004#
1. Update mode
2. Add FAQ
Sylvia
All information herein is Xiamen RGBlink Science & Technology Co Ltd. excepting noted. is a registered
trademark of Xiamen RGBlink Science & Technology Co Ltd.While all efforts are made for accuracy at time of print
ing, we reserve the right to alter otherwise make change without notice.
