GODIAG User Manual
M201 User Manual
Statement
This is the manual of M201. Without the written permission from the
manufacturer, any company or individual shall not copy or backup it in any
form (electronic, mechanical, photocopying, recording or otherwise).This
manual is only operating instructions for M201. If any result caused by using
it on other equipment, the company does not assume any responsibility for it.
If not quality problems of M201: such as equipment failure caused by user
abuse or misuse, unauthorized disassembly, repair equipment yourself, not
operate or maintain by the instructions, lose it, the repair will not be free.
Other product names mentioned in this manual are in order to describe how
to use M201, and their owners are still the original company.
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions(1) The device may not cause harmful
interference, and(2) this device must accept any interference received,
including interference that may cause undesired operation.
GODIAG User Manual
Content
Chapter 1: Summary………………………………………………………………………………….1
1.1 Features…………………………………………………………………………………………1
1.1.1 Advantages…………………………………………………………………………1
1.1.2 Durability……………………………………………………………………………1
1.2 Introduction of the device………………………………………………………………2
1.2.1 The introduction of the main unit…………………….…………………2
1.2.2 Introduction of accessories………………………..……………………….3
1.3 Hardware technical specification…………………………………………………….4
1.4 Functions setting…………………………………………………………………………….4
1.4.1 Functions selection…………………………………………..…………………5
1.4.2 System setting……………………………………………….……………………6
1.4.2.1 Language…………………………………………………………………………6
1.4.2.2 Font………………………………………………………………………………..7
1.4.2.3 Metric/Inch………………………………………….…………………………7
1.4.2.4 Data Logging………………………………………………….……………….8
1.4.3 System Information………………………………………………….…………8
1.4.4 Device Self-test……………………………………………….…………………9
1.4.4.1 Keyboard Test…………………………………………………………………9
Chapter 2: How to register & Update software………………………………..………10
2.1 Update Tool software installation………………………………………………….10
2.2 Register…………………………………………………………………………………………12
2.3 Software Update…………………………………………………………………………….13
GODIAG User Manual
1
Chapter1：Summary
1.1 Features
1.1.1 Advantages
⚫ Providing multi-language environment so it can be used in
different countries and regions.
⚫ The main unit system uses ARM high-speed chip to keep it running
fast, stable, and anti-jamming.
⚫ Modern design and high-definition true color screen realize the
integration of automotive industry and electronic information
technologies and make auto key programming easier, practical and
economical.
1.1.2 Durability
⚫ Integrity structure design makes it crack resistance, shock
resistance and durable .
⚫ Industrial design ensures the tool work stably under tough
environment, as high and low temperatures.
GODIAG User Manual
2
1.2 Introduction of the device

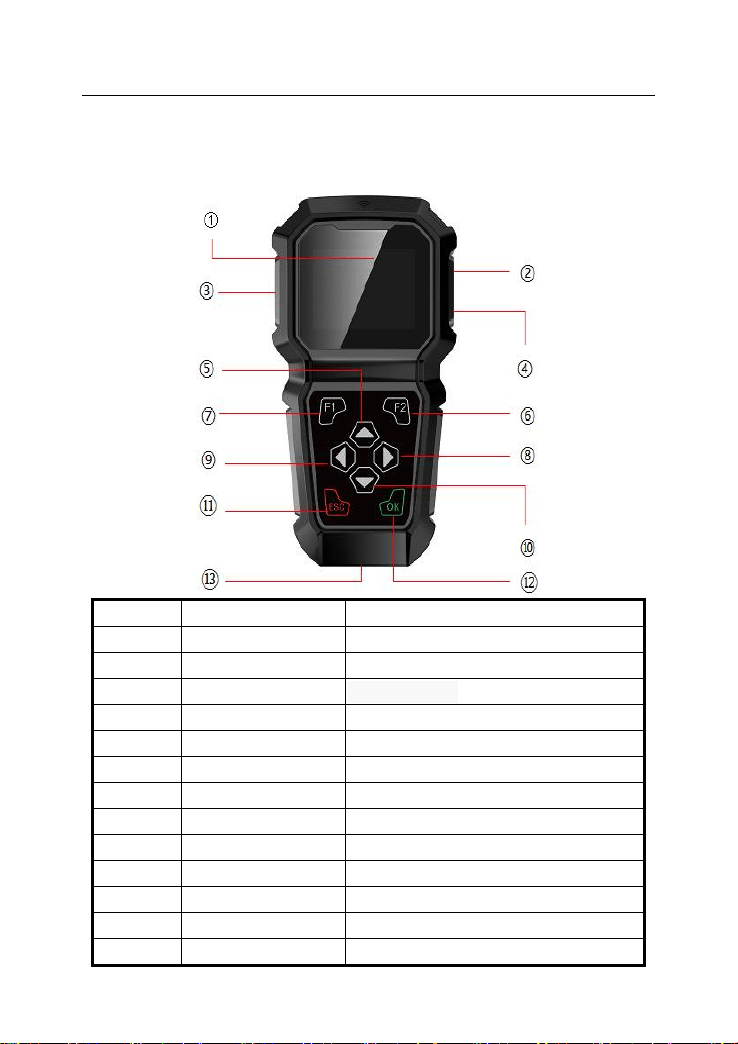

12.1 The introduction of the main unit
Number
Name
Instruction
①
Display Screen
Show information
②
Charging Interface
Connect with the charger
③
TF card slot
TF card storage
④
USB Interface
Connect with USB cable
⑤
Up
Up
⑥
F2
Keyboard input option key
⑦
F1
Keyboard input option key
⑧
Right
To right
⑨
Left
To left
⑩
Down
Down
⑪
ESC
Exit or give up
⑫
OK
OK
⑬
Testing cable port
Connect to the main test cable
GODIAG User Manual
3

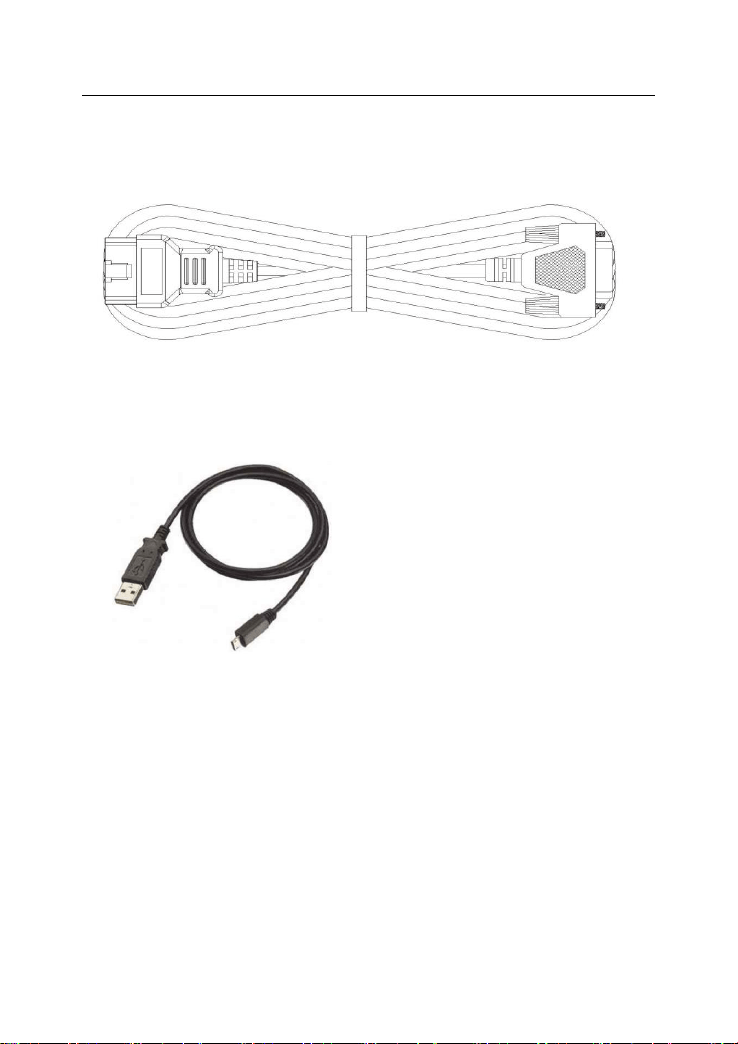

1.2.2 Introduction of accessories
OBD 16 pin testing lead (Connect to car diagnostic socket)
（USB Cable）
GODIAG User Manual
4
1.3 Hardware technical specification
⚫ Dimension: 202mm*106mm*31.6mm
⚫ CPU: ARM CORTEX M3
⚫ Power Supply:DC12V
⚫ Operation Power:DC12V
⚫ Operation Temperature: -10~60℃
⚫ Display Screen: 320×240 TFT
1.4 Functions Setting
Power on，and then press ENTER on the screen，then enter VEHICLES，
shown as below:
GODIAG User Manual
5

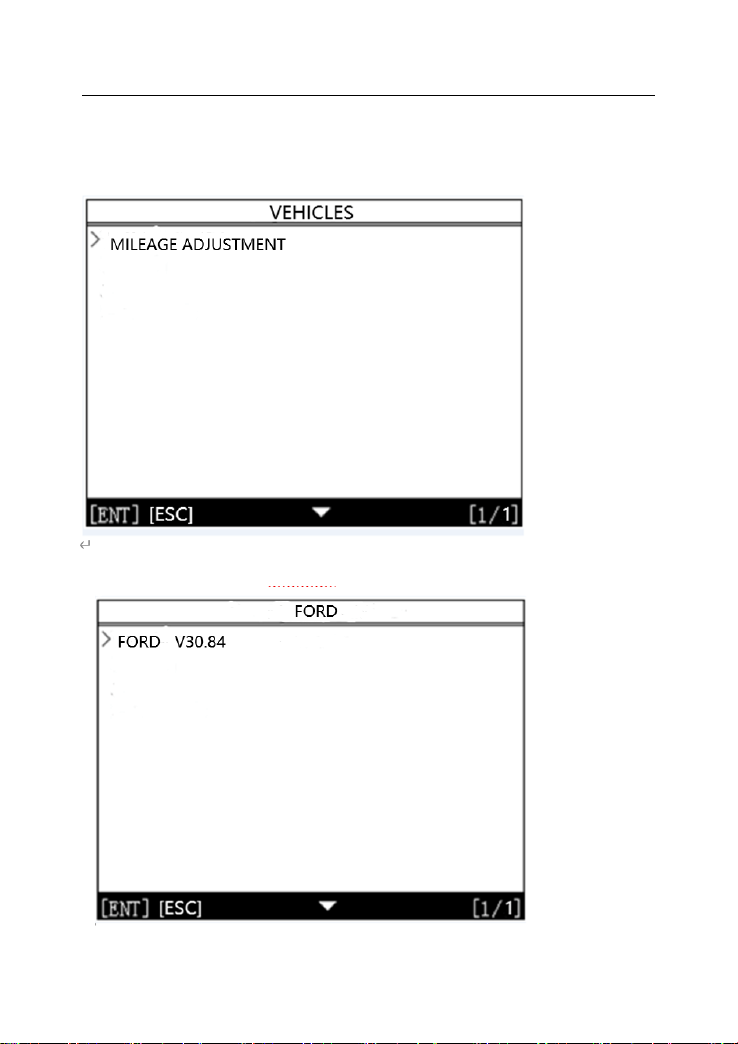

1.4.1 Vehicles
Press OK to confirm，The diagram below.
Press OK to confirm the entry.The diagram below：
Note: the number and function of different product configuration software
GODIAG User Manual
6
will be different ,Please contact the dealer for confirmation of the number of
software.
1.4.2 System Setting
Select system setting, you can set the language, font, metric/English system,
data record, as shown below.
1.4.2.1 Language selection
This device supports English. In the language directory, select required
language by Up and Down and press OK to confirm it.
GODIAG User Manual
7
1.4.2.2 Font
Choose large or small fonts
1.4.2.3 Metric/Inch
Optional metric or English system
GODIAG User Manual
8

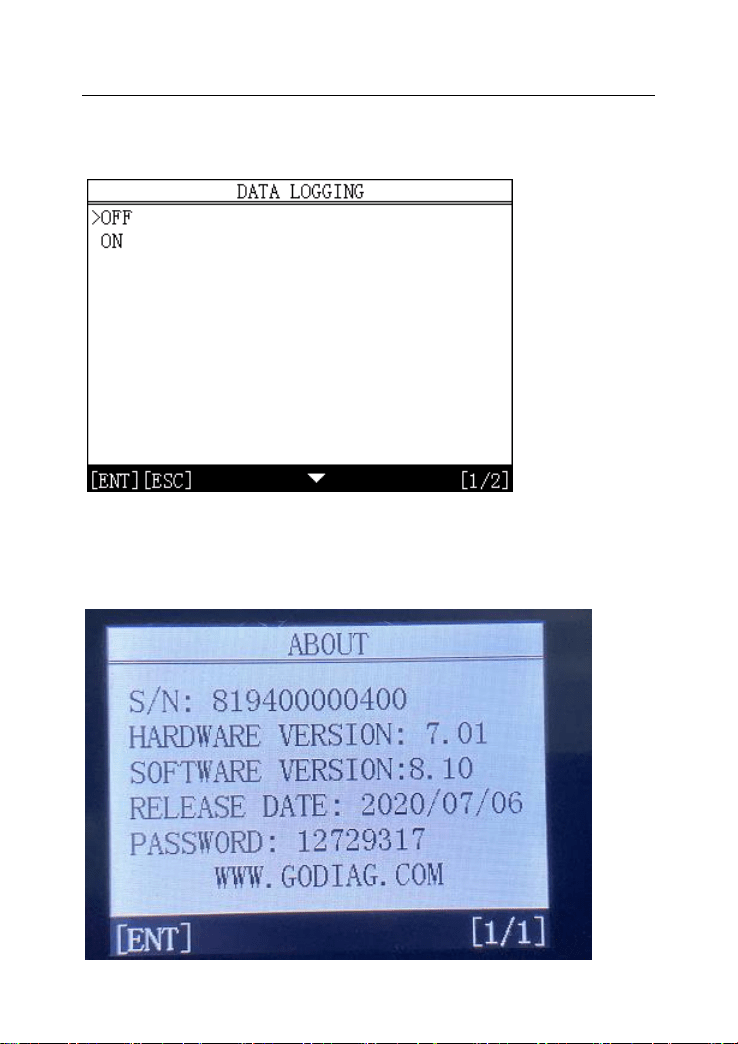

1.4.2.4 Data Logging
Optional to close or open
1.4.3 System Information
The system information includes the product serial number, the hardware
version, the software version, release date, registration password.
GODIAG User Manual
9
1.4.4 Device Self-test
Liquid crystal self-check or keyboard self-check can be selected.
1.4.4.1 Keyboard self-inspection
The machine self-check includes LCD display, keyboard test, such as the lack
of the display screen, keyboard malfunction, please send K100 to the
manufacturer for maintenance
GODIAG User Manual
10
Chapter 2: How to register & update software for K100
2.1 Install the update tool
2.2 Register
Step 1：Power on the device and you will see the following messages.
GODIAG User Manual
11

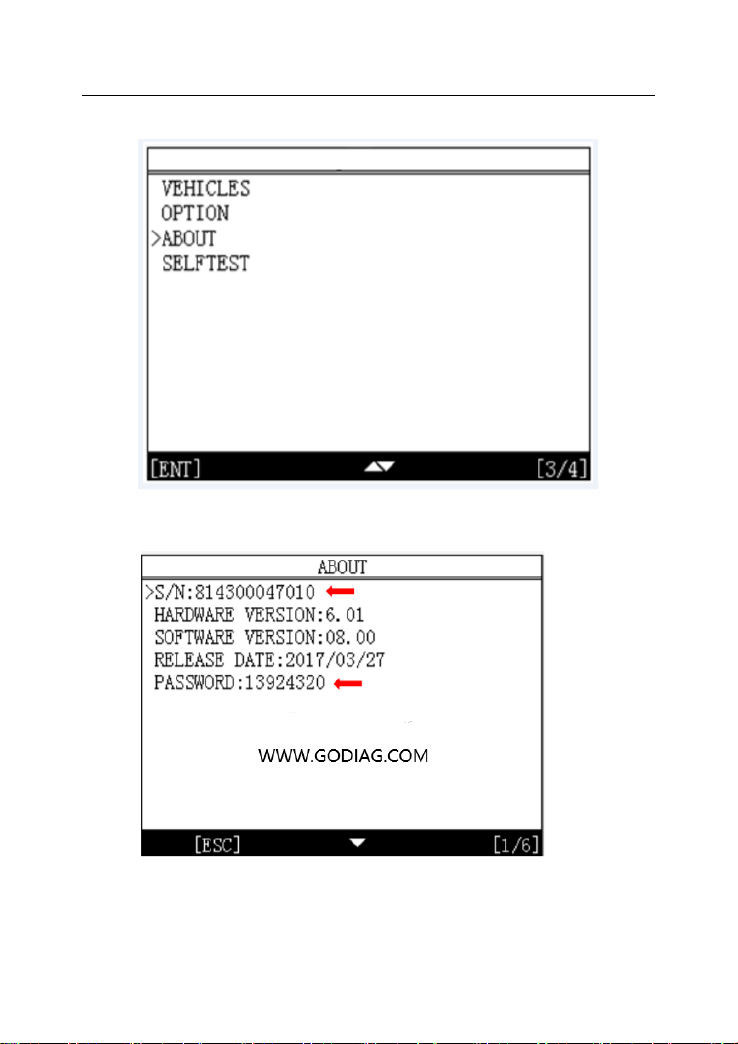

Step 2: Enter the Menu: About
Step 3: Get the S/N and the Register PASSWORD:
Step 4: enter Upgrade tool and start registeration:

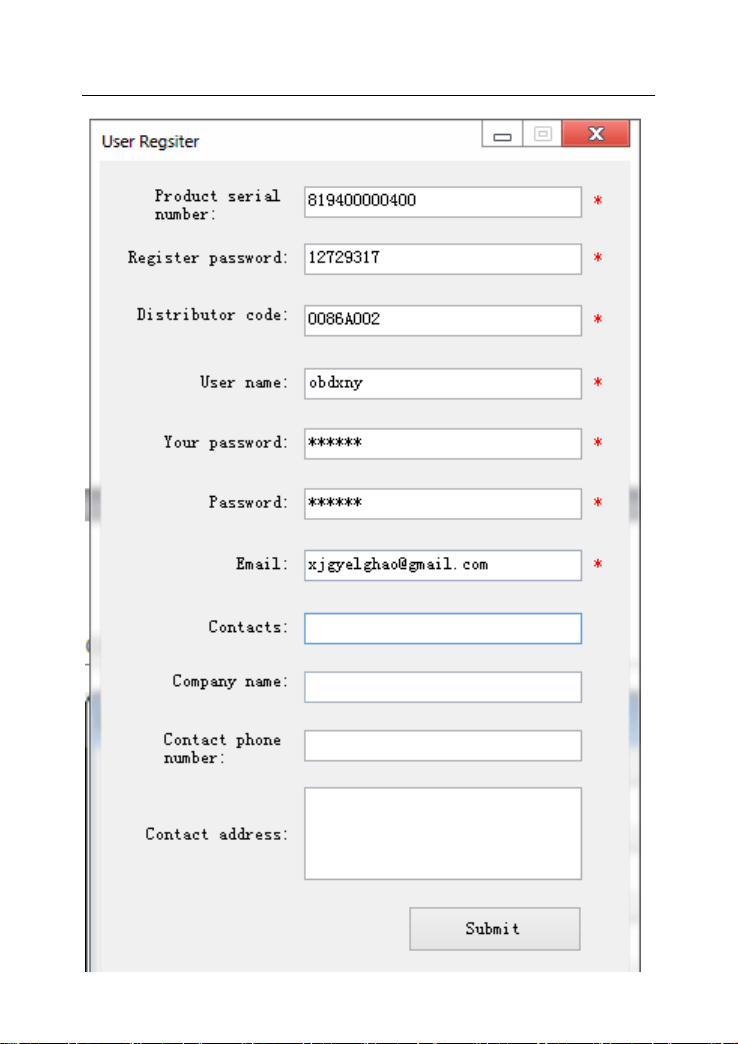

Click “Sign up” to fill in user information. Username can be English characters
or the combination of alphabet and numbers.
GODIAG User Manual
12
Serial number and register password can be referred to System information in
the device.
GODIAG User Manual
13
GODIAG User Manual
14

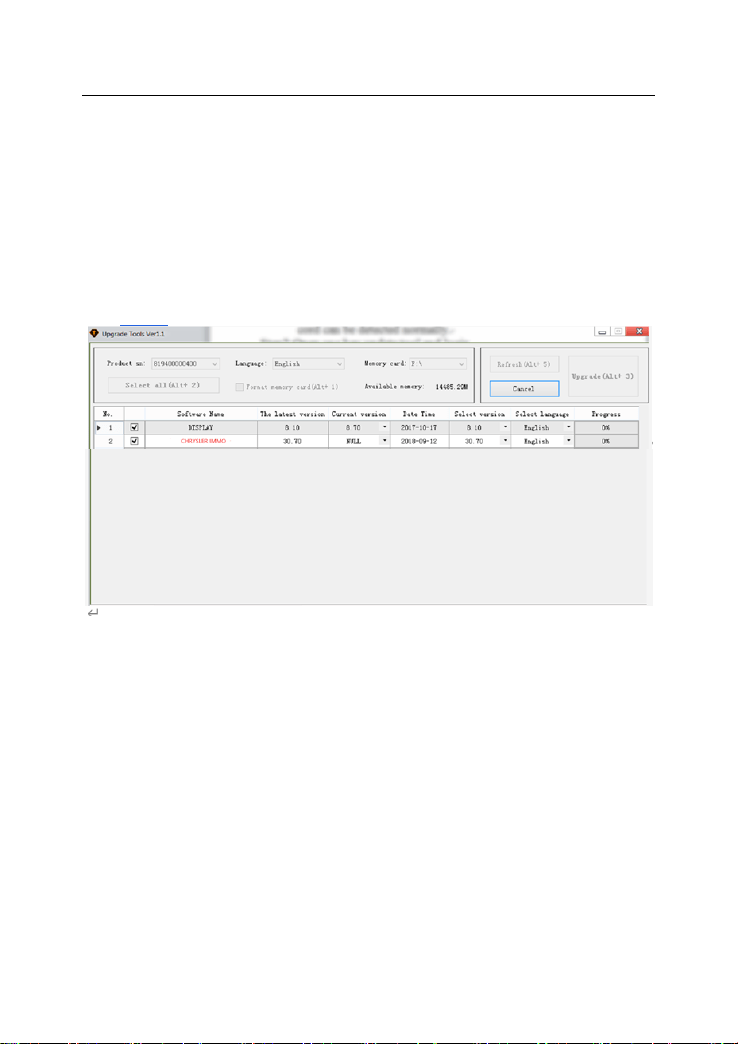

2.3 Software Updating
Operation steps as following:
Step1: Connect device to computer via usb and make sure memory cord can
be detected normally.
Step 2: Open one key update tool and login.
Step 3: Click single software or select all to update.
(Note:It's better to click "Format memory card"while updating)
Step 4: Wait for several minutes until the updating finished.
Note:For new update software and questions during updating, please contact
your distributor.
