Napoleon LV38N1 Vector Series Direct Vent Natural Gas User Manual

FRENCH

PG. 71

W415-1709 / A / 07.27.17

ADD MANUAL TITLE

Wolf Steel Ltd., 24 Napoleon Rd., Barrie, ON, L4M 0G8 Canada / 103 Miller Drive, Crittenden, Kentucky, USA, 41030

Phone 1 (866) 820-8686 • www.napoleonﬁ replaces.com • hearth@napoleonproducts.com

CERTIFIED TO THE CANADIAN AND AMERICAN NATIONAL STANDARDS:

CSA 2.22 AND ANSI Z21.50 FOR VENTED DECORATIVE GAS APPLIANCES

INSTALLER:

Leave this manual with the appliance

CONSUMER:

Retain this manual for future reference

ADD PRODUCT CODE HERE (TRADE GOTHIC LT STD FONT)

NATURAL GAS MODELS:

PROPANE GAS MODELS:

PRODUCT NAME™

ADD ____ ILLUSTRATED

ADD PRODUCT IMAGE

CSA /

INTERTEK

LOGO

SAFETY INFORMATION

- Do not store or use gasoline or other

ﬂ ammable vapors and liquids in the vicinity of

this or any other appliance.

- WHAT TO DO IF YOU SMELL GAS:

• Do not try to light any appliance.

• Do not touch any electrical switch; do not

use any phone in your building.

• Immediately call your gas supplier from a

neighbour’s phone. Follow the gas

supplier’s instructions.

• If you cannot reach your gas supplier, call

the ﬁ re department.

- Installation and service must be

performed by a qualiﬁ ed installer, service

agency, or the supplier.

This appliance may be installed in an aftermarket,

permanently located, manufactured home (USA

only) or mobile home, where not prohibited by

local codes.

This appliance is only for use with the type of gas

indicated on the rating plate. This appliance is

not convertible for use with other gases, unless

a certiﬁ ed kit is used.

FIRE OR EXPLOSION HAZARD

Failure to follow safety warnings exactly

could result in serious injury, death, or

property damage.

WARNING

ENGLISH

$10.00

FOR INDOOR USE ONLY

INSTALLATION MANUAL

LV38N-1 / LV50N-2 / LV62N / LV74N / LV38N2-1 / LV50N2-2 / LV62N2 / LV74N2

LV38P-1 / LV50P-2 / LV62P / LV38P2-1 / LV50P2-2 / LV62P2

Vector™ Series

(LV38-1 illustrated)

SAFETY BARRIER

ÉCRAN DE PROTECTION

THIS APPLIANCE IS SUITABLE FOR THE OPTIONAL DYNAMIC

HEAT CONTROL™ SYSTEM

(See Dynamic Heat Control™ installation manual)

PLACE BARCODE LABEL ON THE

OWNER’S MANUAL

CERTIFIED TO THE CANADIAN AND AMERICAN NATIONAL STANDARDS:

CSA 2.22 AND ANSI Z21.50 FOR VENTED DECORATIVE GAS APPLIANCES

FOR INDOOR USE ONLY

W415-1709 / A / 07.27.17

safety information

• This appliance is hot when operated and can

cause severe burns if contacted.

• Any changes to this appliance or its control

can be dangerous and are prohibited.

• Do not operate appliance before reading and

understanding operating instructions. Failure

to operate appliance according to operating

instructions could cause ﬁ re or injury.

• Risk of ﬁ re or asphyxiation do not operate

appliance with ﬁ xed glass removed.

• Do not connect 110 volts to the control valve.

• Risk of burns. The appliance should be turned

off and cooled before servicing.

• Do not install damaged, incomplete or substitute components.

• Risk of cuts and abrasions. Wear protective gloves, protective footwear, and safety glasses during

installation. Sheet metal edges may be sharp.

• Children and adults should be alerted to the hazards of high surface temperature and should stay away

to avoid burns or clothing ignition.

• Young children should be carefully supervised when they are in the same room as the appliance.

Toddlers, young children, and others may be susceptible to accidental contact burns. A physical barrier

is recommended if there are at risk individuals in the house. To restrict access to an appliance or stove,

install an adjustable safety gate to keep toddlers, young children and other at risk individuals out of the

room and away from hot surfaces.

• Clothing or other ﬂ ammable material should not be placed on or near the appliance.

• Due to high temperatures, the appliance should be located out of trafﬁ c and away from furniture and

draperies.

• Ensure you have incorporated adequate safety measure to protect infants/toddlers from touching hot

surfaces.

• Even after the appliance is out, the glass and/or screen will remain hot for an extended period of time.

• Check with your local hearth specialty dealer for safety screens and hearth guards to protect children

from hot surfaces. These screens and guards must be fastened to the ﬂ oor.

• Any safety screen, guard or barrier removed for servicing the appliance, must be replaced prior to

operating the appliance.

• The appliance is a vented gas-ﬁ red appliance. Do not burn wood or other materials in the appliance.

• The appliance area must be kept clear and free from combustible materials, gasoline and other

ﬂ ammable vapors and liquids.

• Under no circumstances should this appliance be modiﬁ ed.

• This appliance must not be connected to a chimney ﬂ ue pipe serving a separate solid fuel burning

appliance.

• Do not use this appliance if any part has been under water. Immediately call a qualiﬁ ed service technician

to inspect the appliance and to replace any part of the control system and any gas control which has

been under water.

LA VITRE CHAUDE CAUSERA

DES BRÛLURES.

NE PAS TOUCHER LA VITRE

AVANT QU’ELLE AIT REFROIDI.

NE JAMAIS LAISSER LES

ENFANTS TOUCHER LA VITRE.

HOT GLASS WILL CAUSE

BURNS.

DO NOT TOUCH GLASS UNTIL

COOLED.

NEVER ALLOW CHILDREN TO

TOUCH GLASS.

DANGER

AVERTISSEMENT

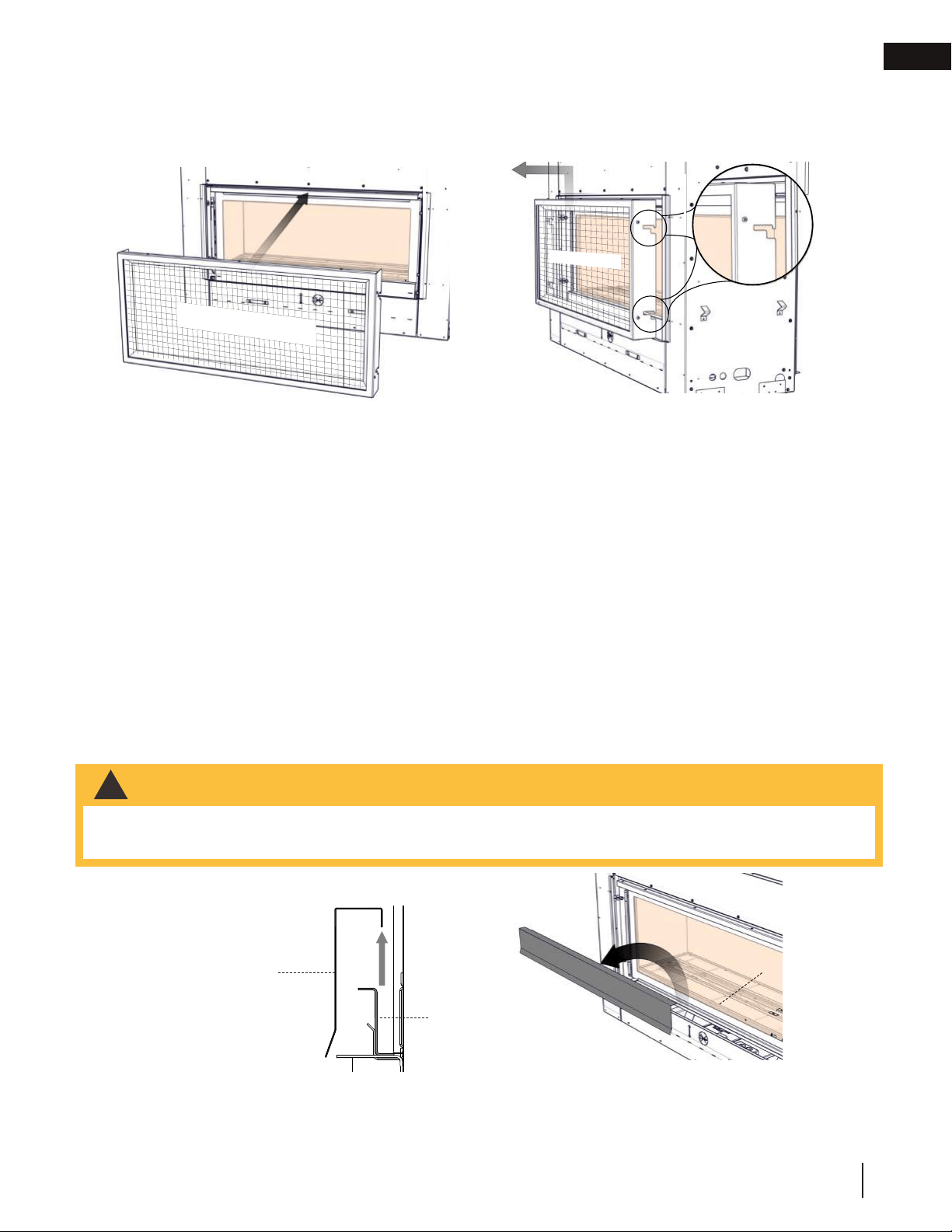

A barrier designed to reduce the risk of burns from the

hot viewing glass is provided with this appliance and

shall be installed for the protection of children and other

at-risk individuals.

Une barriére conçu à réduire le risque de brûlures

causées par le verre chaud est fourni avec l’appareil et

sera installé pour la protection des enfants et d’autres

personnes à risque.

3.1

• Do not operate the appliance with the glass door removed, cracked or broken. Replacement of the glass

should be done by a licensed or qualiﬁ ed service person.

• Do not strike or slam shut the appliance glass door.

• When equipped with pressure relief doors, they must be kept closed while the appliance is operating to

prevent exhaust fumes containing carbon monoxide, from entering into the home. Temperatures of the

exhaust escaping through these openings can also cause the surrounding combustible materials to overheat

and catch ﬁ re.

• Only doors / optional fronts certiﬁ ed with the unit are to be installed on the appliance.

• Keep the packaging material out of reach of children and dispose of the material in a safe manner. As with all

plastic bags, these are not toys and should be kept away from children and infants.

• As with any combustion appliance, we recommend having your appliance regularly inspected and serviced

as well as having a carbon monoxide detector installed in the same area to defend you and your family

against carbon monoxide.

• Ensure clearances to combustibles are maintained when building a mantel or shelves above the appliance.

Elevated temperatures on the wall or in the air above the appliance can cause melting, discolouration or

damage to decorations, a T.V. or other electronic components.

• A barrier designed to reduce the risk of burns from the hot viewing glass is provided with this appliance and

shall be installed.

• If the barrier becomes damaged, the barrier shall be replaced with the manufacturer’s barrier for this

appliance.

• Installation and repair should be done by a qualiﬁ ed service person. The appliance should be inspected

before use and at least annually by a professional service person. More frequent cleaning may be required

due to excessive lint from carpeting, bedding material, etc. It is imperative that control compartments,

burners and circulating air passageways of the appliance be kept clean.

WARNING

W415-1709 / A / 07.27.17

safety information

• This appliance is hot when operated and can

cause severe burns if contacted.

• Any changes to this appliance or its control

can be dangerous and are prohibited.

• Do not operate appliance before reading and

understanding operating instructions. Failure

to operate appliance according to operating

instructions could cause ﬁ re or injury.

• Risk of ﬁ re or asphyxiation do not operate

appliance with ﬁ xed glass removed.

• Do not connect 110 volts to the control valve.

• Risk of burns. The appliance should be turned

off and cooled before servicing.

• Do not install damaged, incomplete or substitute components.

• Risk of cuts and abrasions. Wear protective gloves, protective footwear, and safety glasses during

installation. Sheet metal edges may be sharp.

• Children and adults should be alerted to the hazards of high surface temperature and should stay away

to avoid burns or clothing ignition.

• Young children should be carefully supervised when they are in the same room as the appliance.

Toddlers, young children, and others may be susceptible to accidental contact burns. A physical barrier

is recommended if there are at risk individuals in the house. To restrict access to an appliance or stove,

install an adjustable safety gate to keep toddlers, young children and other at risk individuals out of the

room and away from hot surfaces.

• Clothing or other ﬂ ammable material should not be placed on or near the appliance.

• Due to high temperatures, the appliance should be located out of trafﬁ c and away from furniture and

draperies.

• Ensure you have incorporated adequate safety measure to protect infants/toddlers from touching hot

surfaces.

• Even after the appliance is out, the glass and/or screen will remain hot for an extended period of time.

• Check with your local hearth specialty dealer for safety screens and hearth guards to protect children

from hot surfaces. These screens and guards must be fastened to the ﬂ oor.

• Any safety screen, guard or barrier removed for servicing the appliance, must be replaced prior to

operating the appliance.

• The appliance is a vented gas-ﬁ red appliance. Do not burn wood or other materials in the appliance.

• The appliance area must be kept clear and free from combustible materials, gasoline and other

ﬂ ammable vapors and liquids.

• Under no circumstances should this appliance be modiﬁ ed.

• This appliance must not be connected to a chimney ﬂ ue pipe serving a separate solid fuel burning

appliance.

• Do not use this appliance if any part has been under water. Immediately call a qualiﬁ ed service technician

to inspect the appliance and to replace any part of the control system and any gas control which has

been under water.

LA VITRE CHAUDE CAUSERA

DES BRÛLURES.

NE PAS TOUCHER LA VITRE

AVANT QU’ELLE AIT REFROIDI.

NE JAMAIS LAISSER LES

ENFANTS TOUCHER LA VITRE.

HOT GLASS WILL CAUSE

BURNS.

DO NOT TOUCH GLASS UNTIL

COOLED.

NEVER ALLOW CHILDREN TO

TOUCH GLASS.

DANGER

AVERTISSEMENT

A barrier designed to reduce the risk of burns from the

hot viewing glass is provided with this appliance and

shall be installed for the protection of children and other

at-risk individuals.

Une barriére conçu à réduire le risque de brûlures

causées par le verre chaud est fourni avec l’appareil et

sera installé pour la protection des enfants et d’autres

personnes à risque.

3.1

• Do not operate the appliance with the glass door removed, cracked or broken. Replacement of the glass

should be done by a licensed or qualiﬁ ed service person.

• Do not strike or slam shut the appliance glass door.

• When equipped with pressure relief doors, they must be kept closed while the appliance is operating to

prevent exhaust fumes containing carbon monoxide, from entering into the home. Temperatures of the

exhaust escaping through these openings can also cause the surrounding combustible materials to overheat

and catch ﬁ re.

• Only doors / optional fronts certiﬁ ed with the unit are to be installed on the appliance.

• Keep the packaging material out of reach of children and dispose of the material in a safe manner. As with all

plastic bags, these are not toys and should be kept away from children and infants.

• As with any combustion appliance, we recommend having your appliance regularly inspected and serviced

as well as having a carbon monoxide detector installed in the same area to defend you and your family

against carbon monoxide.

• Ensure clearances to combustibles are maintained when building a mantel or shelves above the appliance.

Elevated temperatures on the wall or in the air above the appliance can cause melting, discolouration or

damage to decorations, a T.V. or other electronic components.

• A barrier designed to reduce the risk of burns from the hot viewing glass is provided with this appliance and

shall be installed.

• If the barrier becomes damaged, the barrier shall be replaced with the manufacturer’s barrier for this

appliance.

• Installation and repair should be done by a qualiﬁ ed service person. The appliance should be inspected

before use and at least annually by a professional service person. More frequent cleaning may be required

due to excessive lint from carpeting, bedding material, etc. It is imperative that control compartments,

burners and circulating air passageways of the appliance be kept clean.

WARNING

W415-1709 / A / 07.27.17

table of contents

1.0 general information 5

1.1 rates and efﬁciencies 6

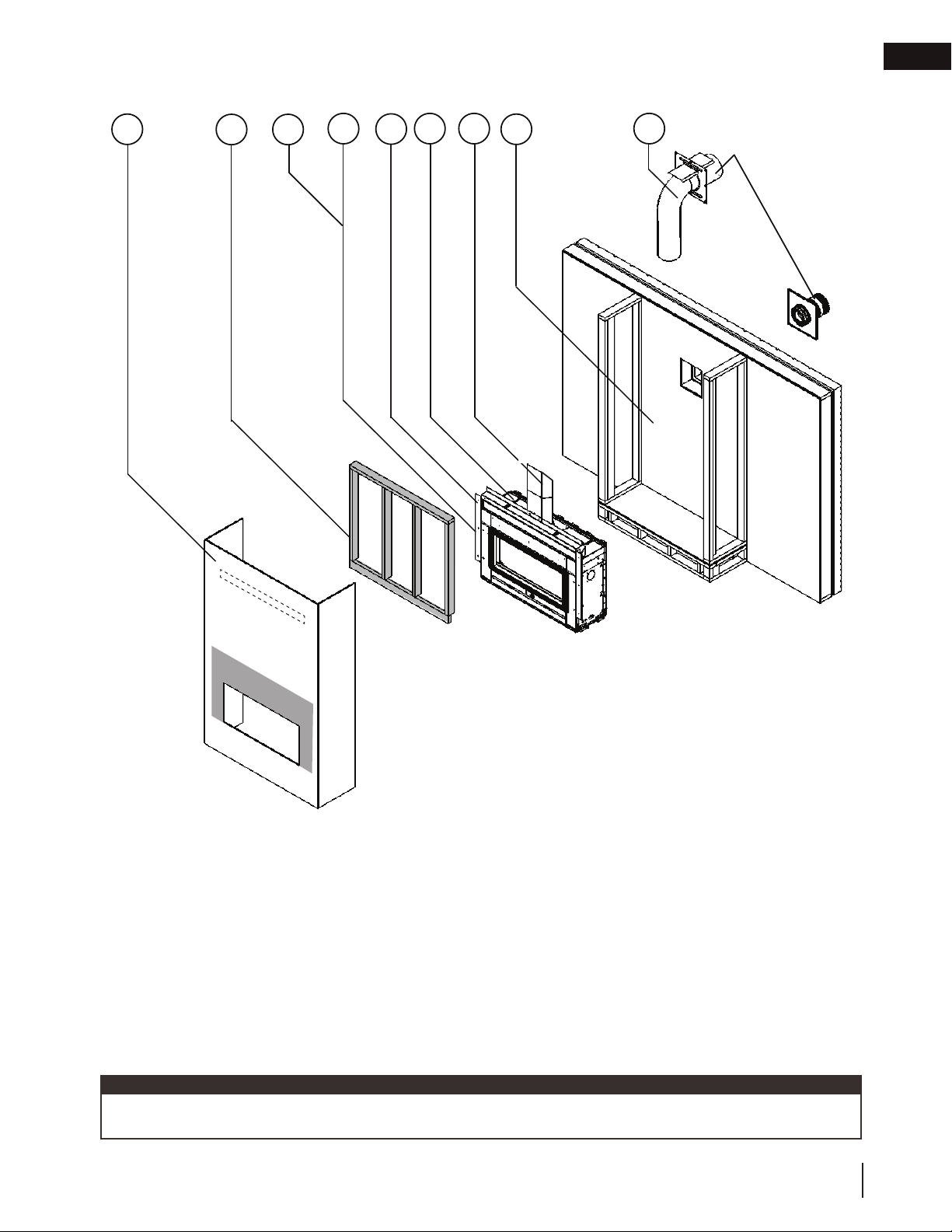

1.2 installation overview 7

1.3 rating plate/lighting instruction

location 9

1.4 mobile home installation 10

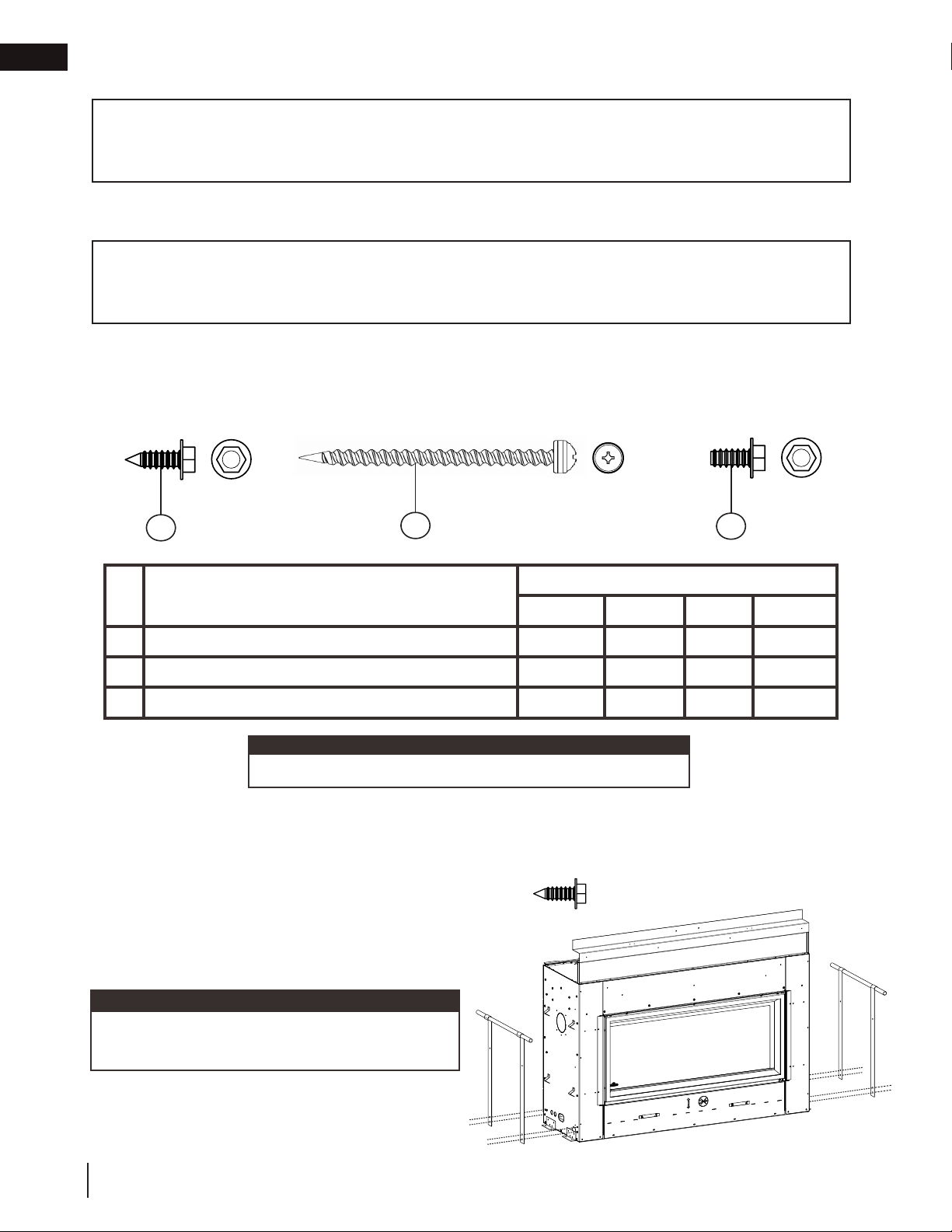

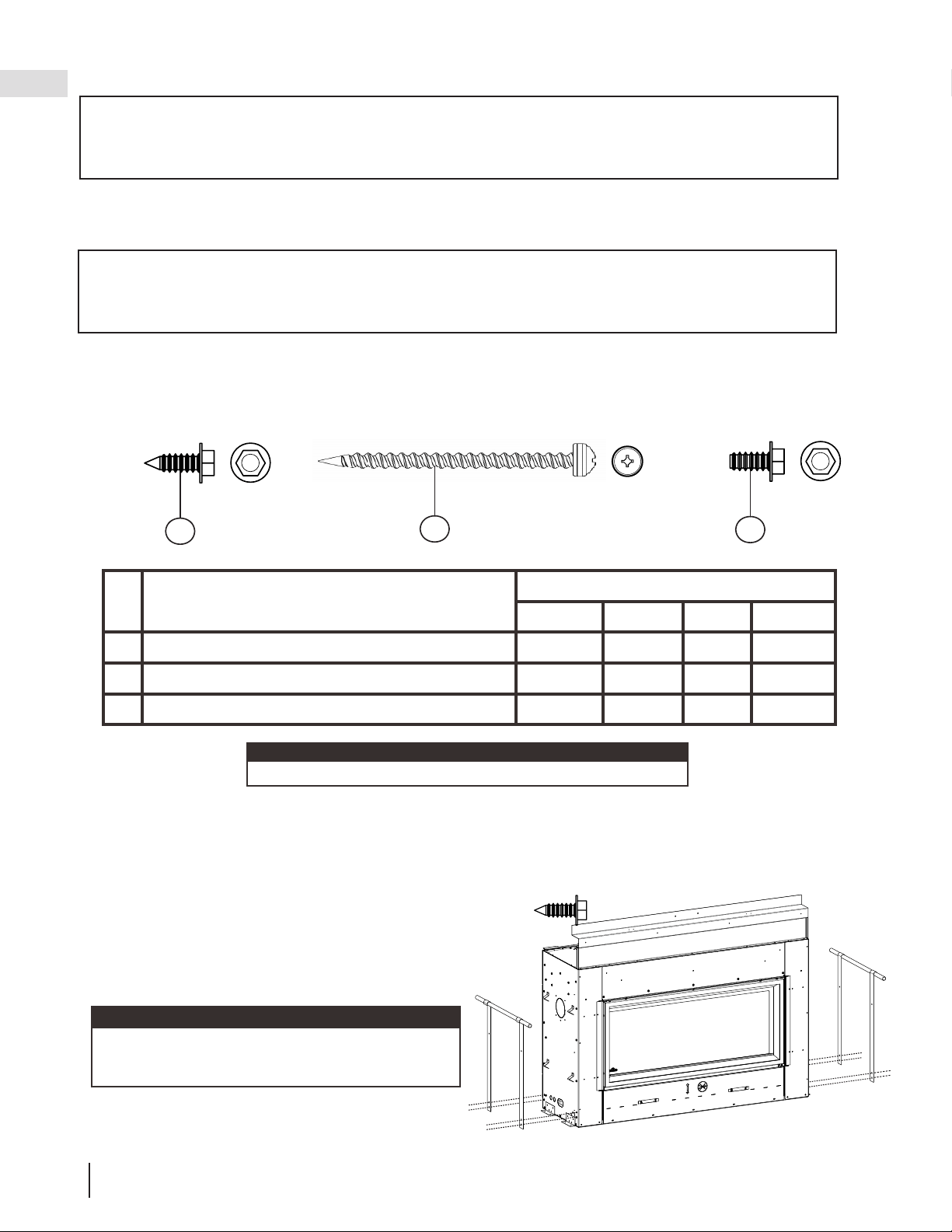

1.5 hardware list 10

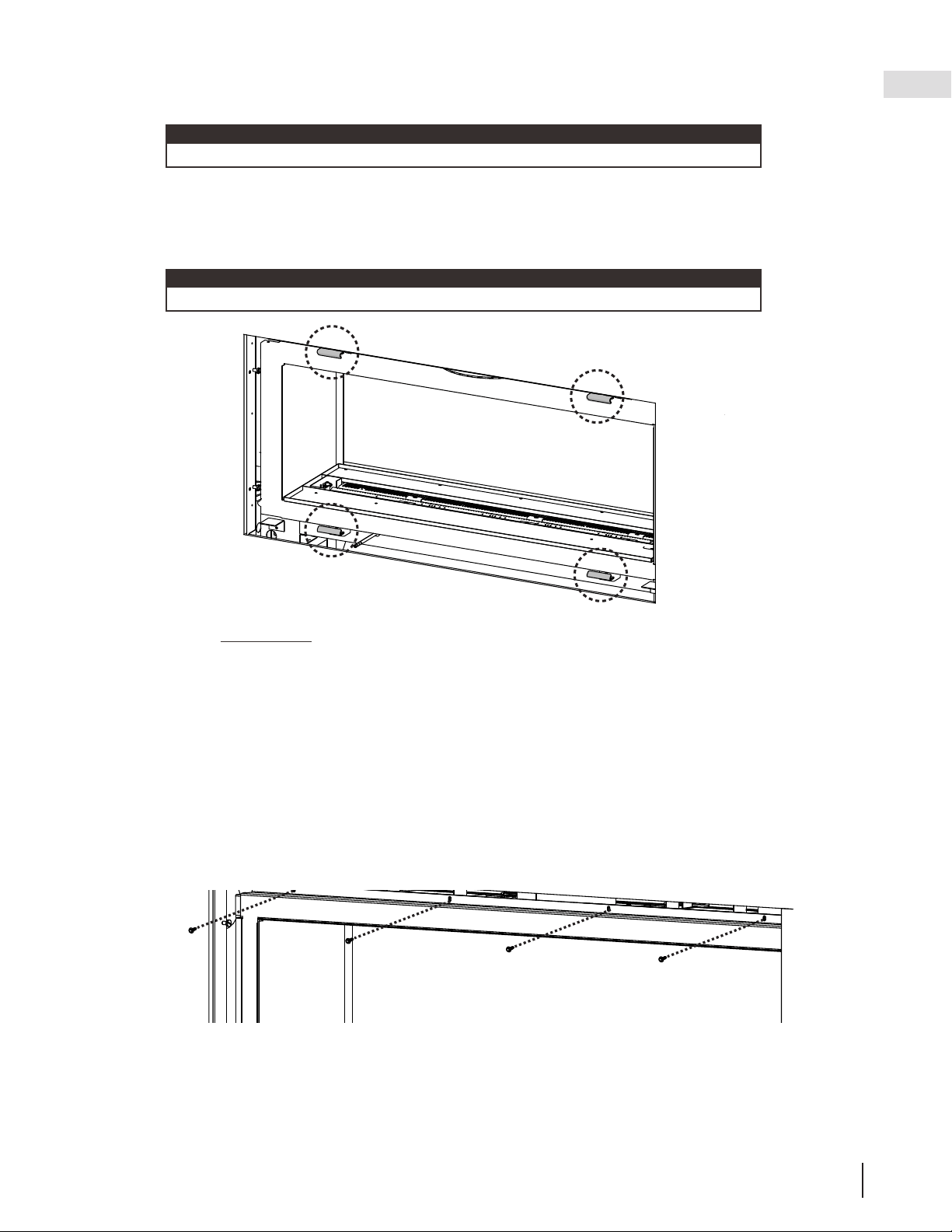

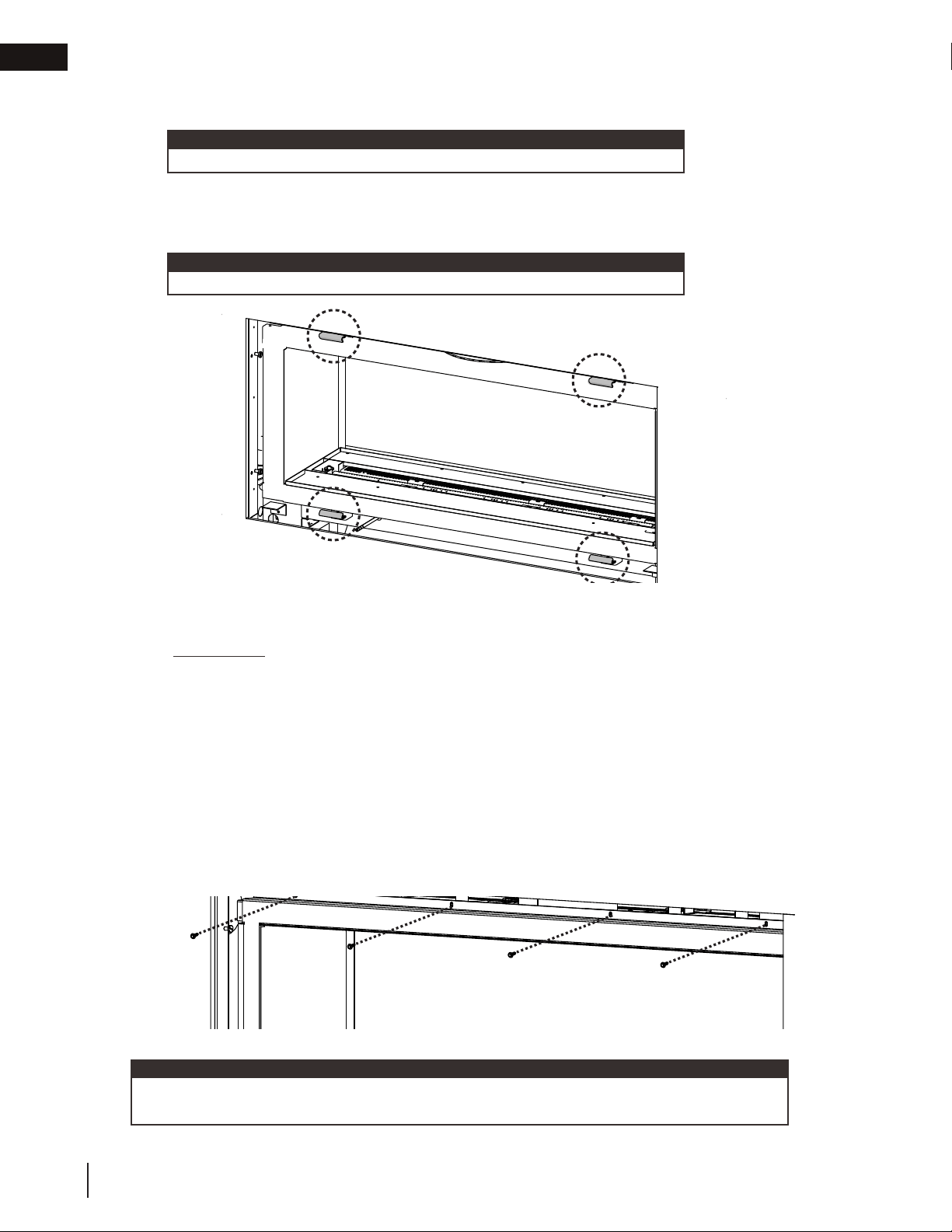

1.6 lifting handles installation/removal 10

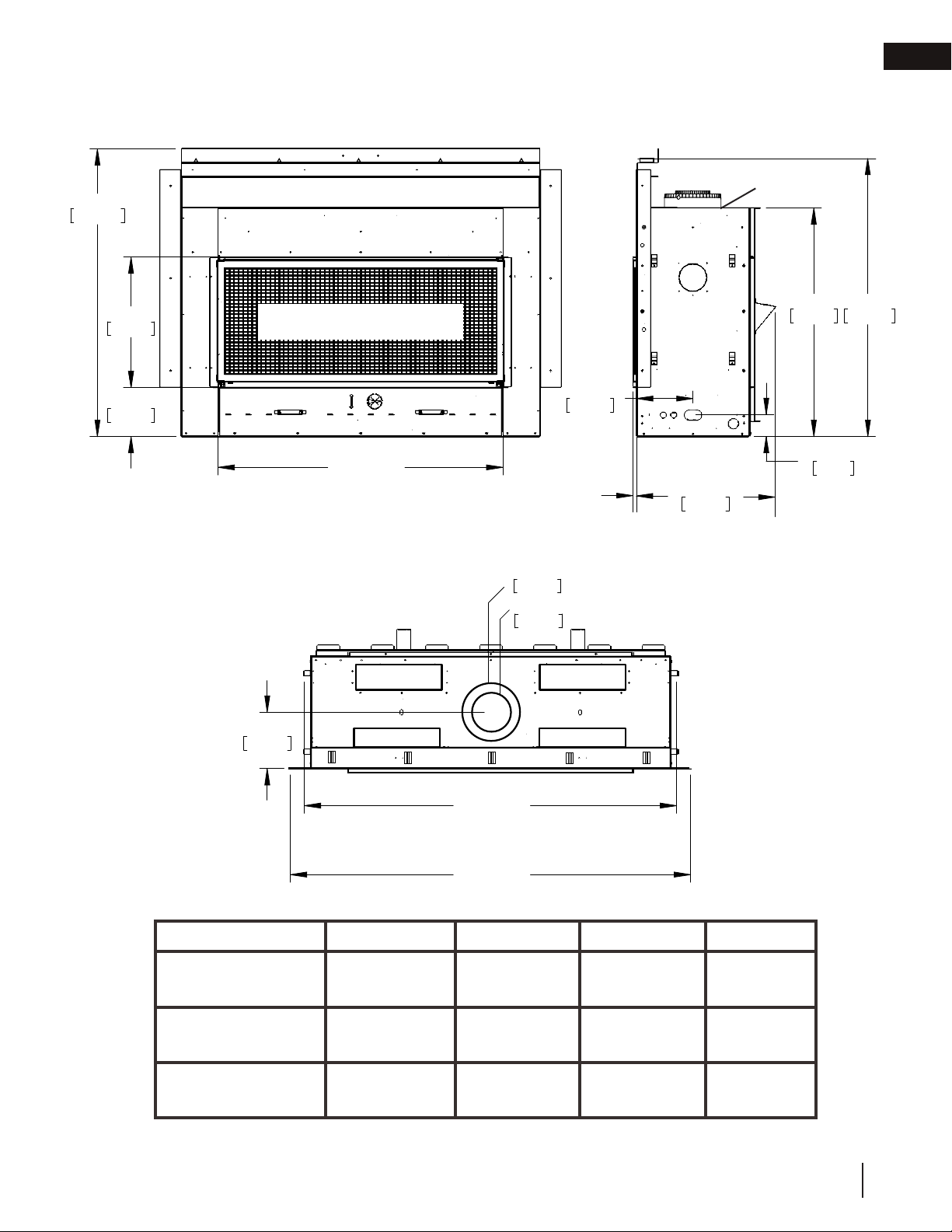

2.0 dimensions 11

2.1 single-sided 11

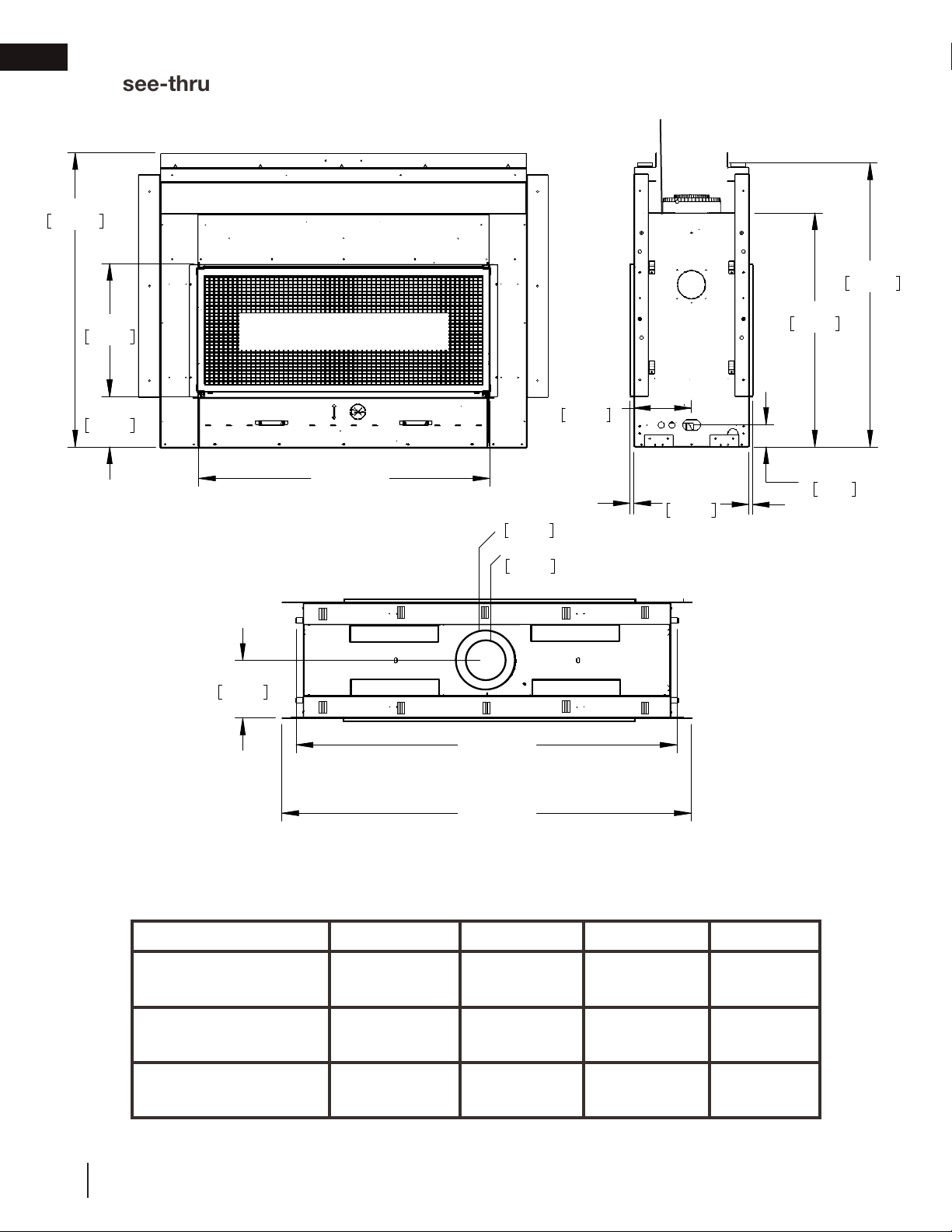

2.2 see-thru 12

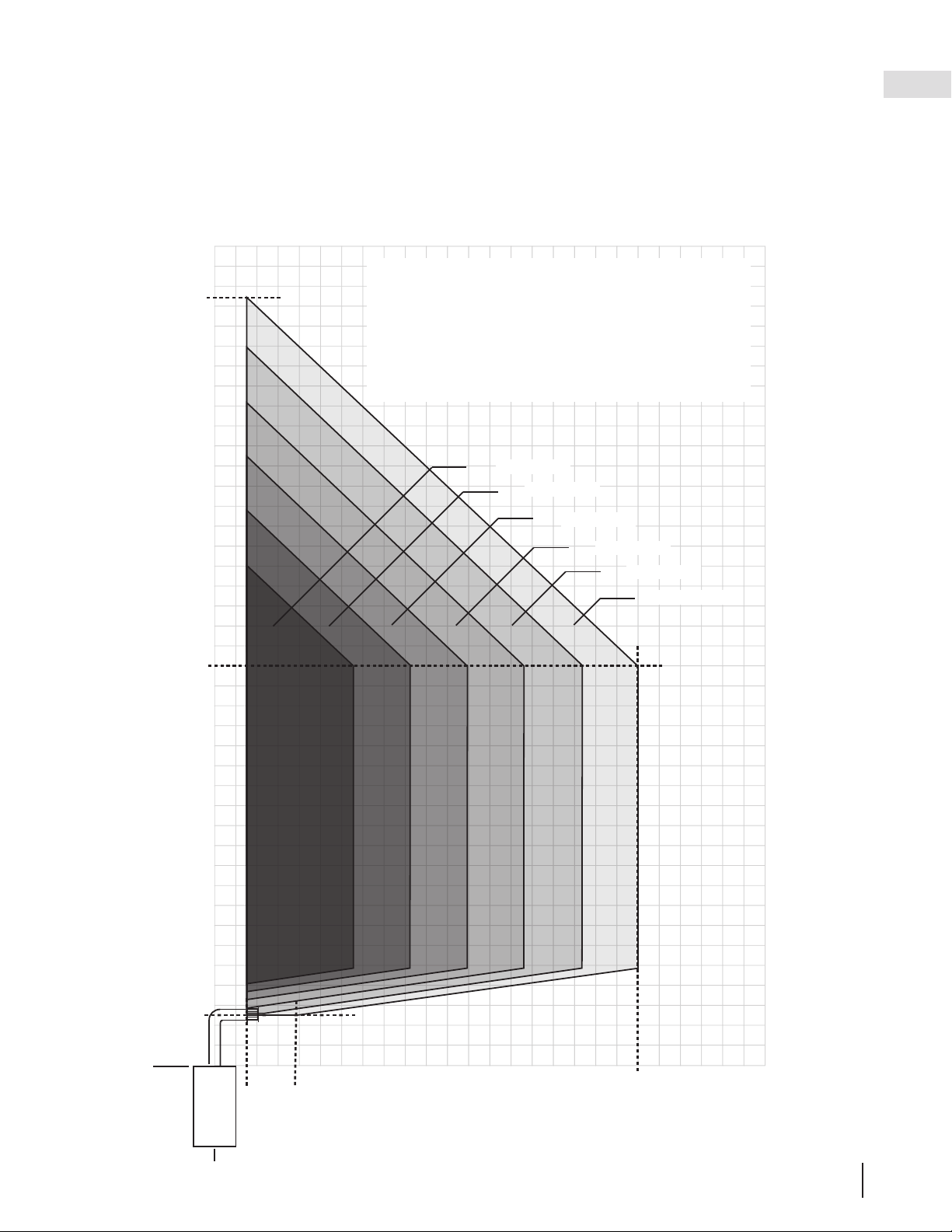

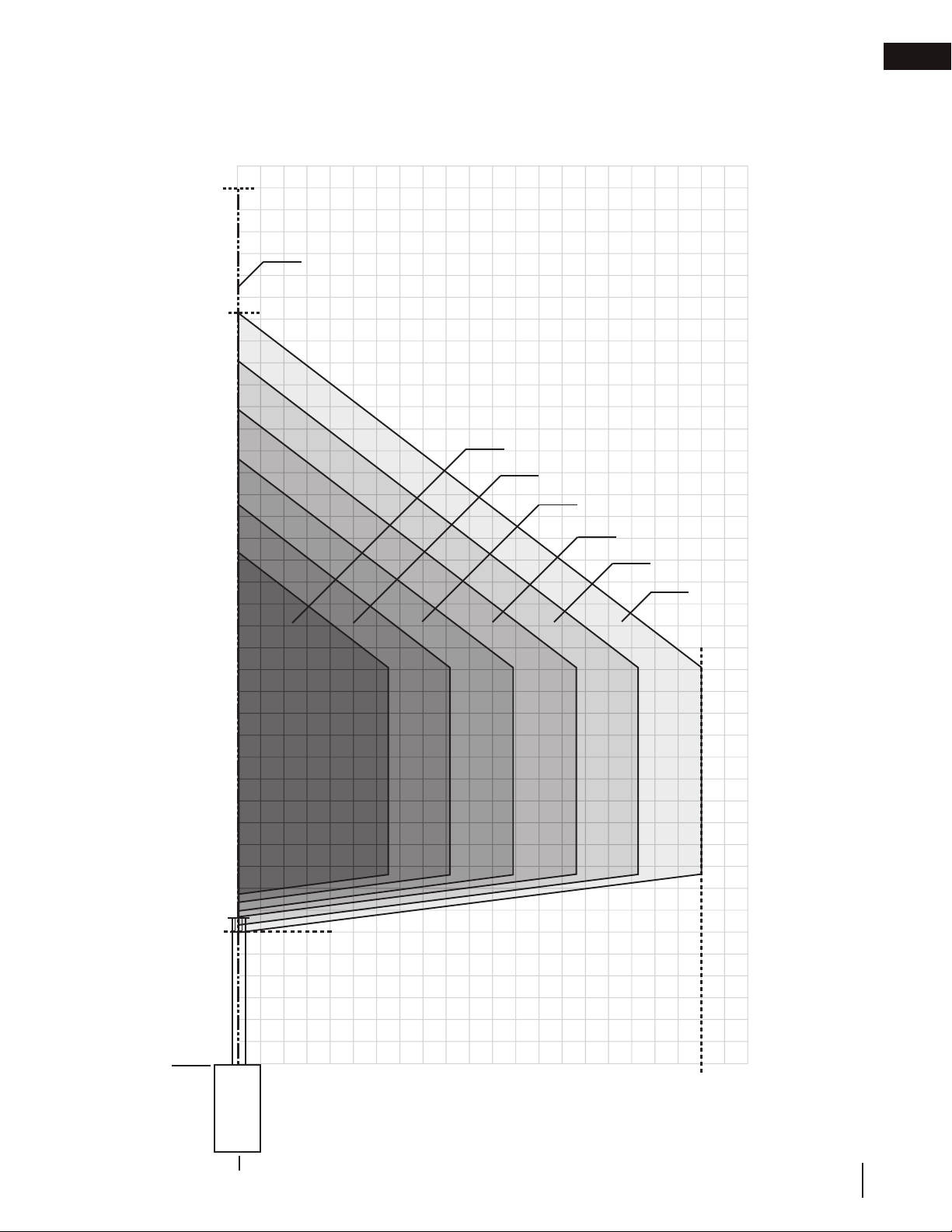

3.0 venting requirements 13

3.1 typical venting installation 15

3.2 minimum air terminal location

clearances 17

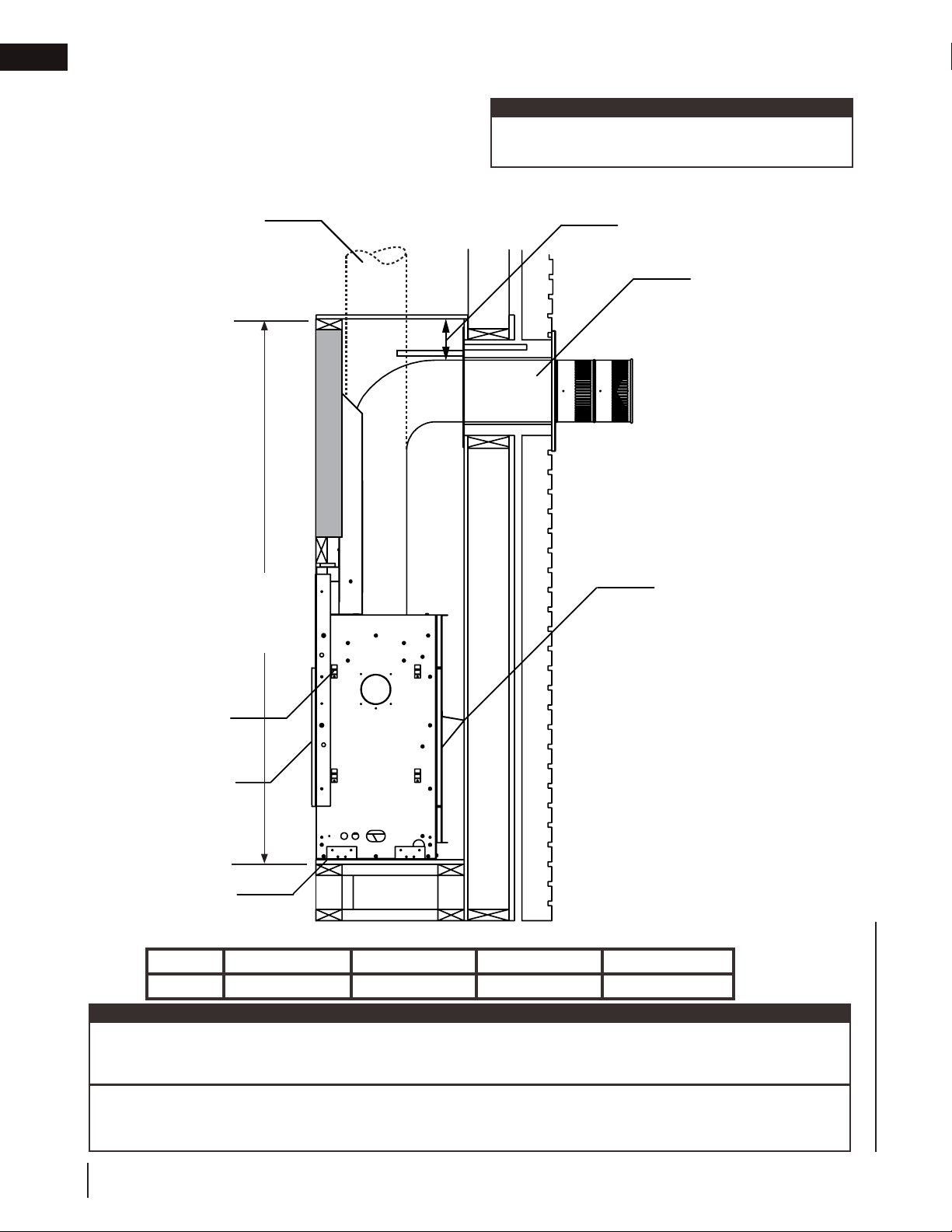

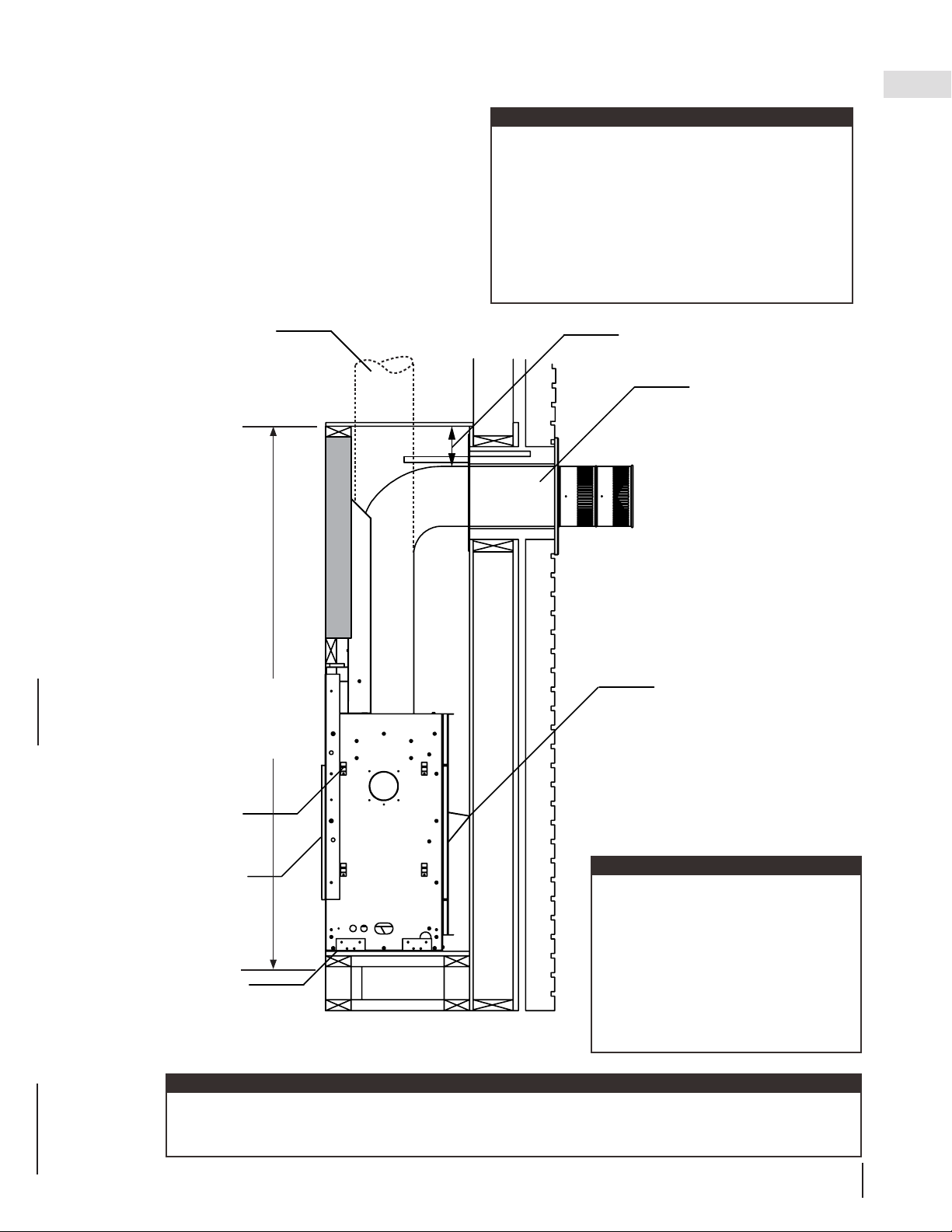

3.3 horizontal termination 18

3.4 vertical termination 21

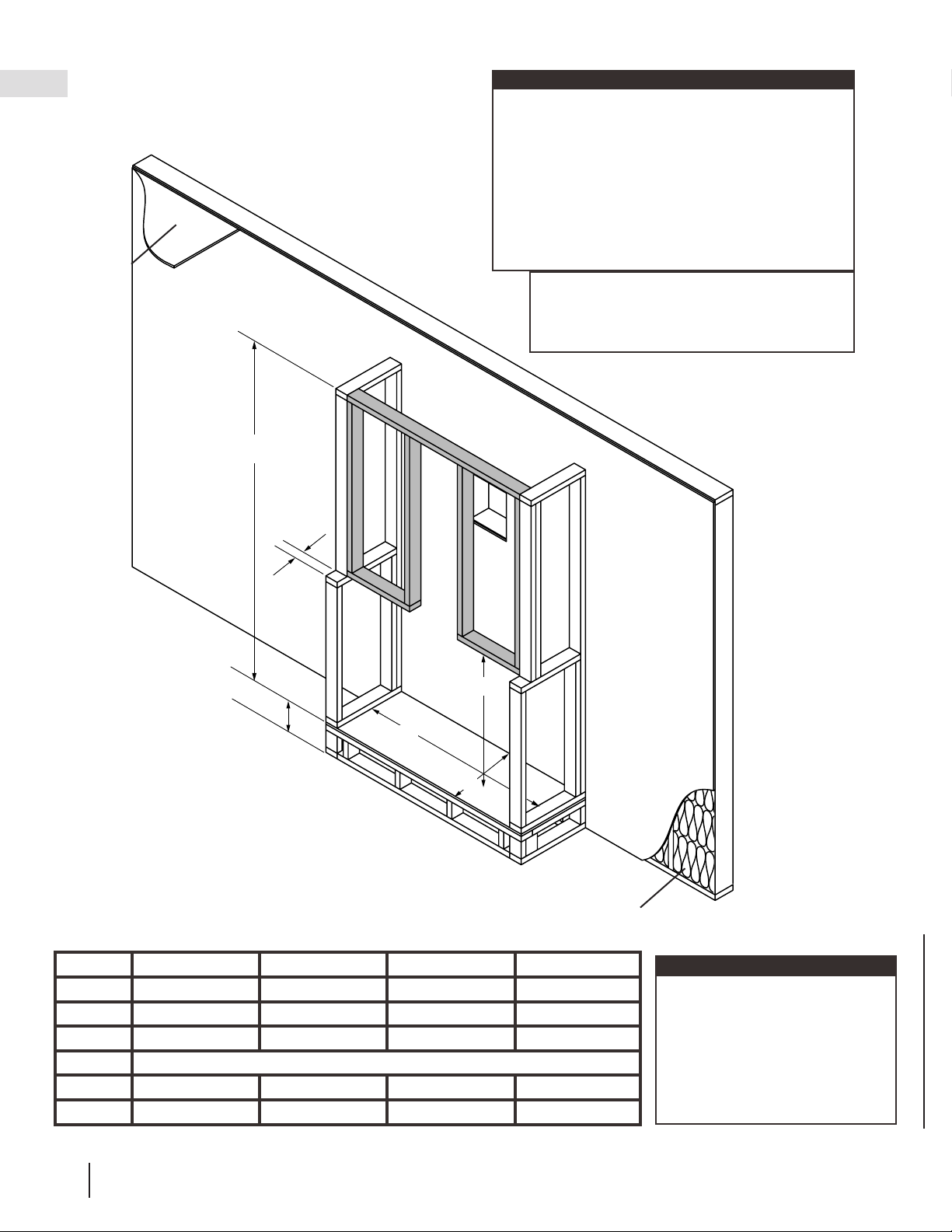

4.0 rough framing - before appliance

installation 22

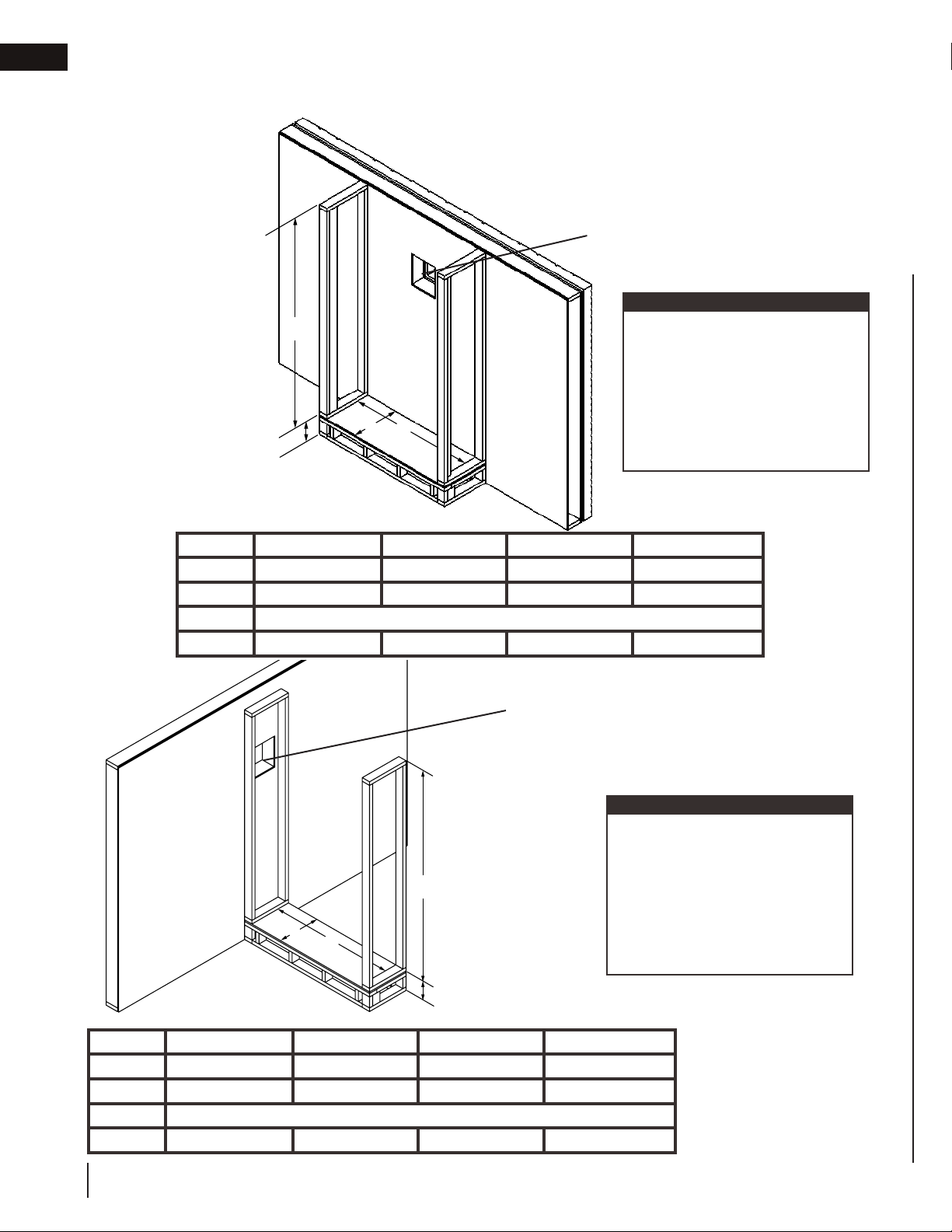

4.1 minimum framing dimensions 23

4.1.1 minimum clearance to combustible

enclosures 24

5.0 venting installation 27

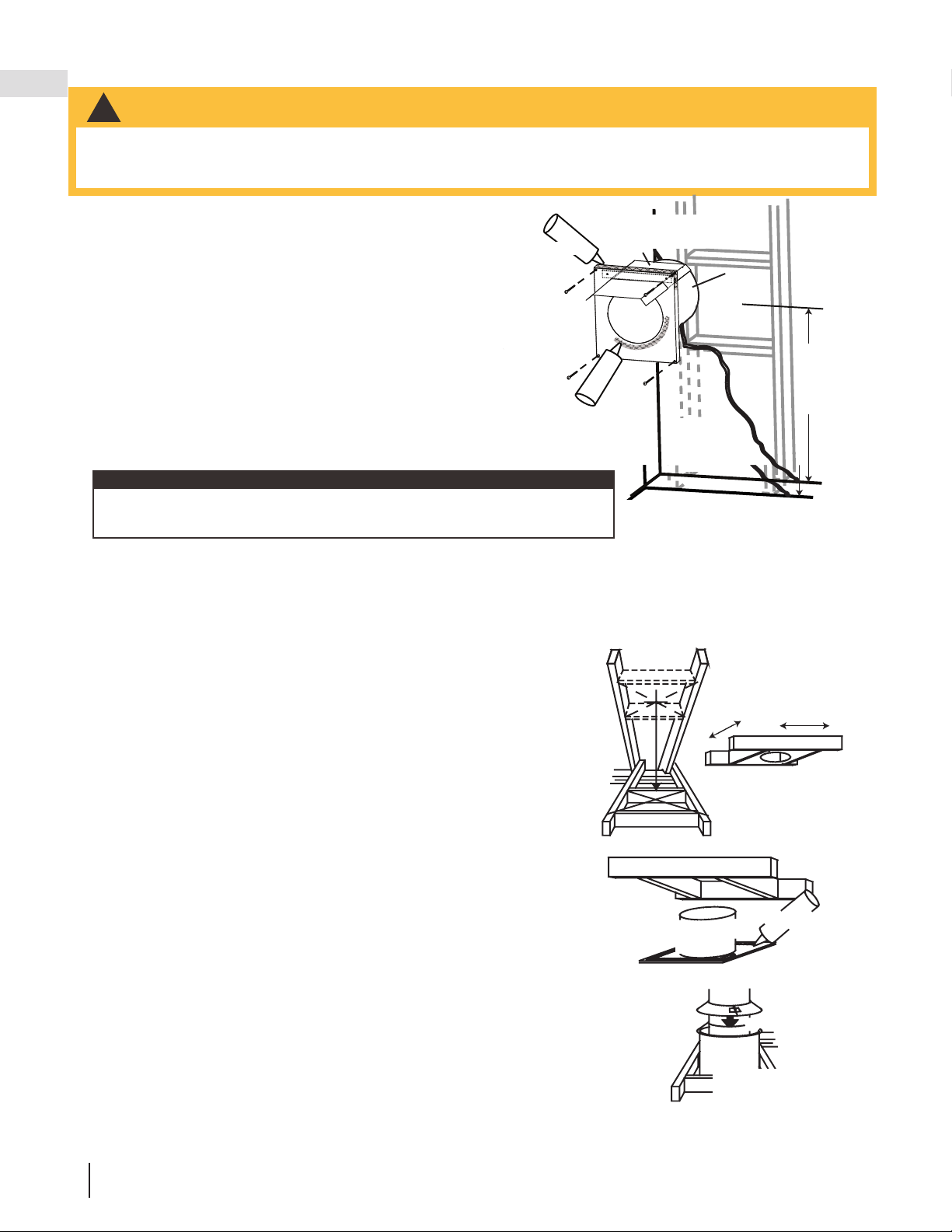

5.1 ﬁrestop spacer assembly 27

5.2 horizontal installation 29

5.3 vertical installation 29

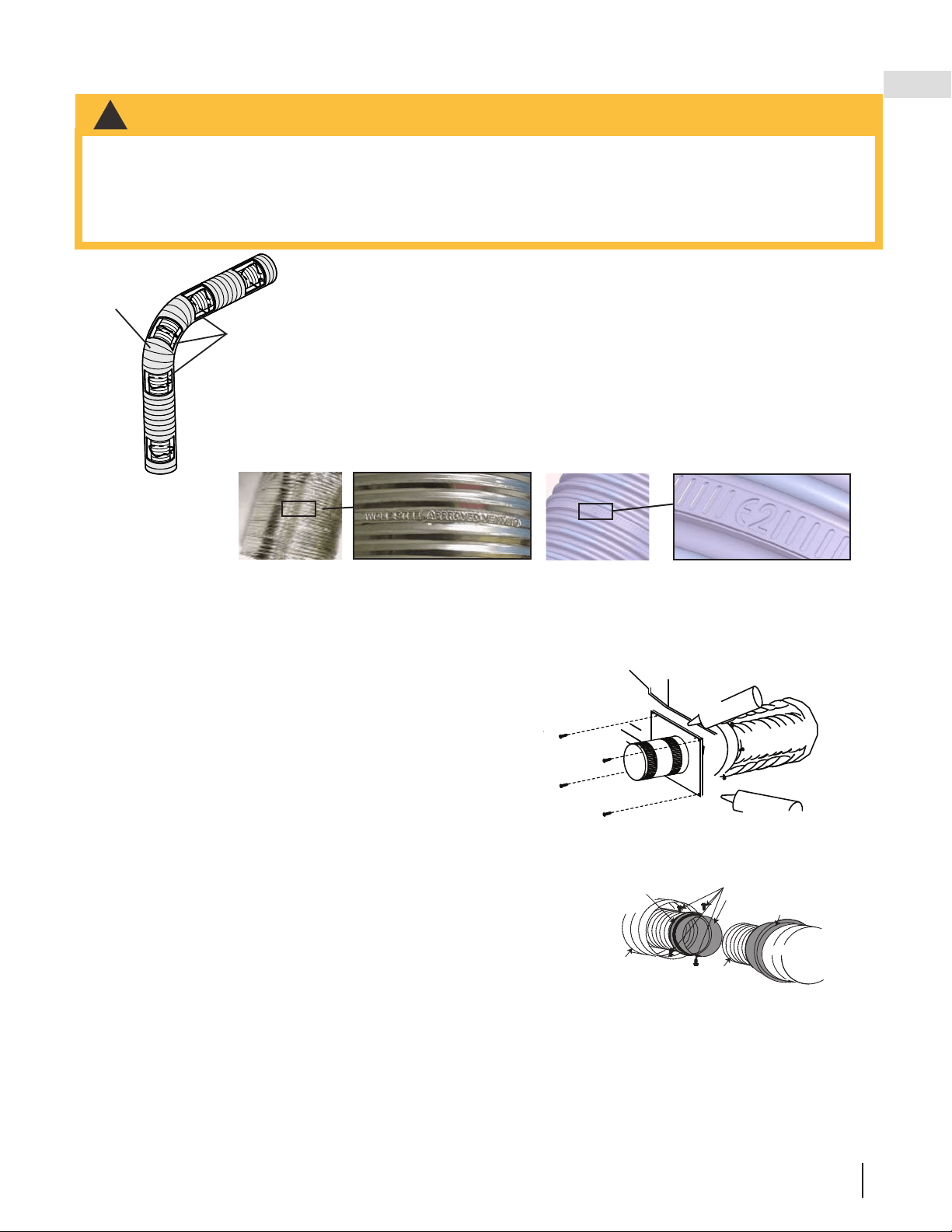

5.4 using ﬂexible vent components 30

5.4.1 horizontal air terminal installation 30

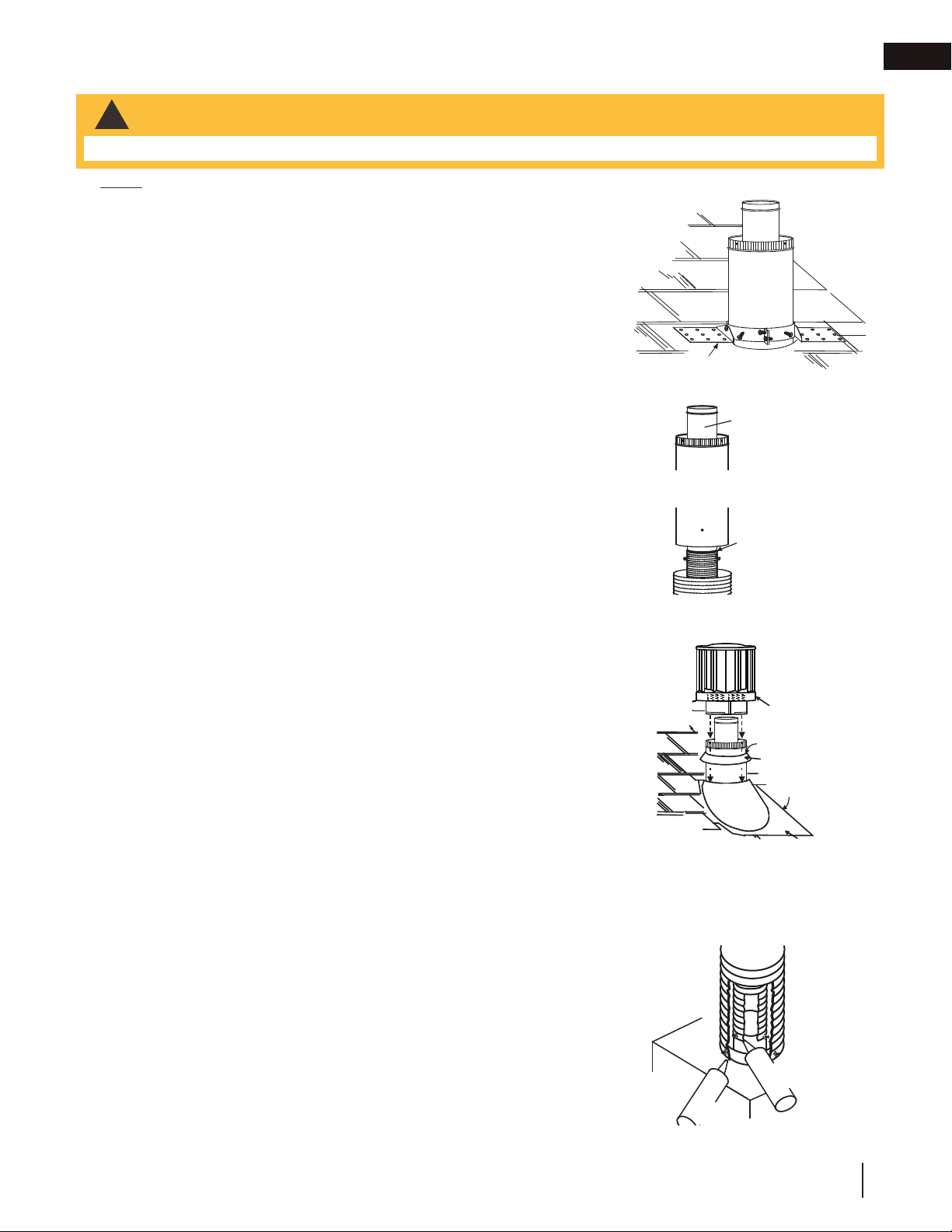

5.5 vertical air terminal installation 31

5.5.1 appliance vent connection 31

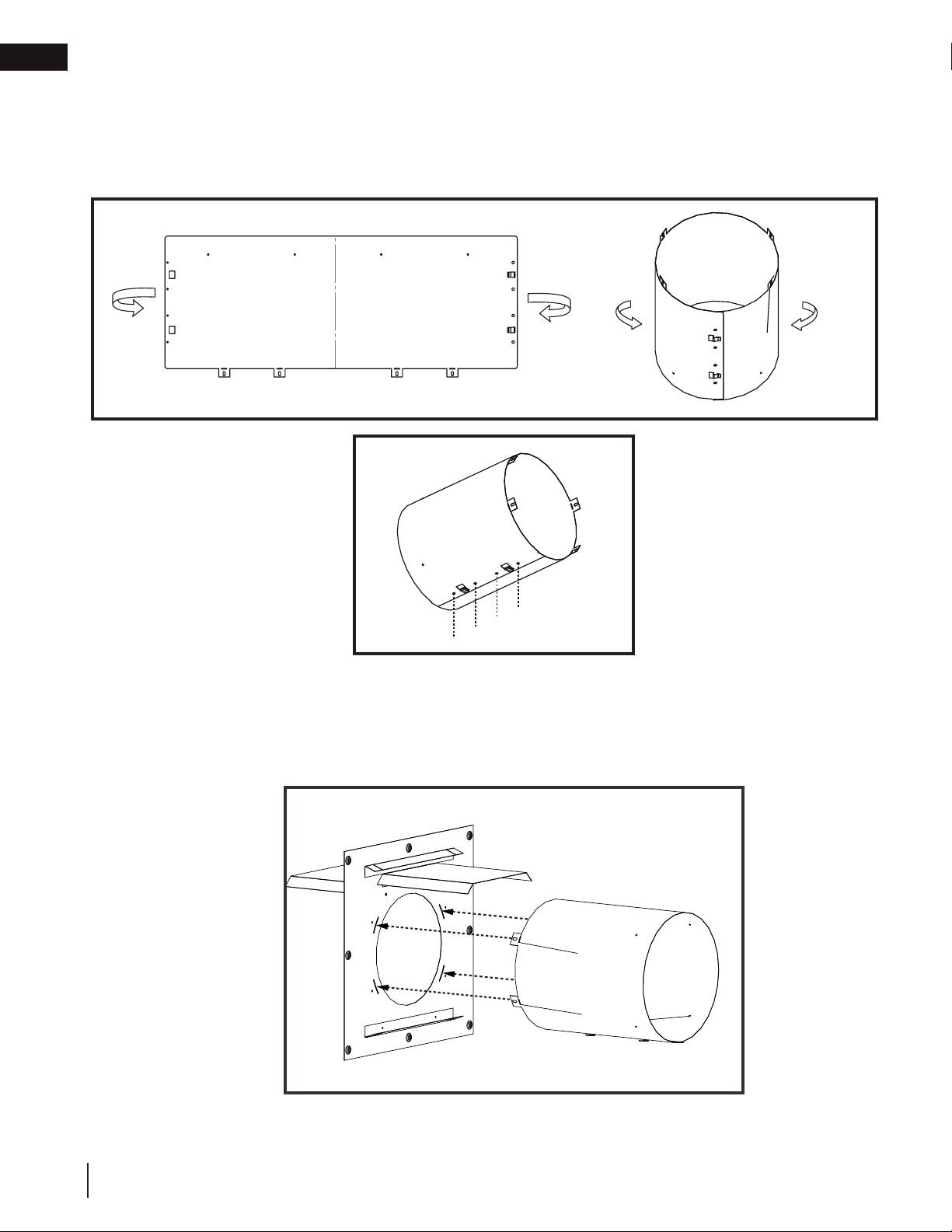

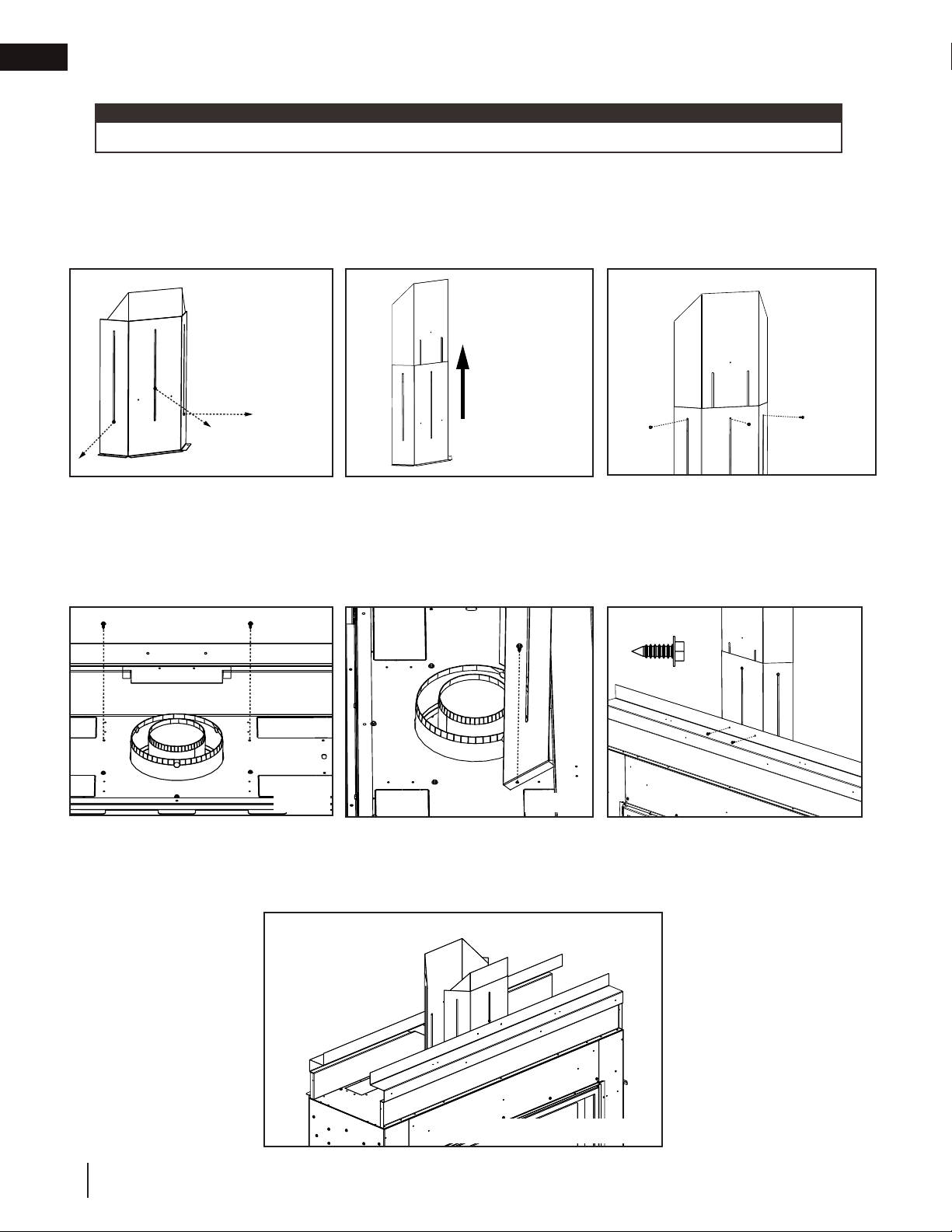

5.6 vent shield installation 32

6.1 hard wiring connection 33

6.2 receptacle wiring diagram 33

6.3 in the event of a power failure 33

6.0 electrical information 33

6.4 battery holder/switch installation 34

6.5 initializing the battery holder/switch

for the ﬁrst time 34

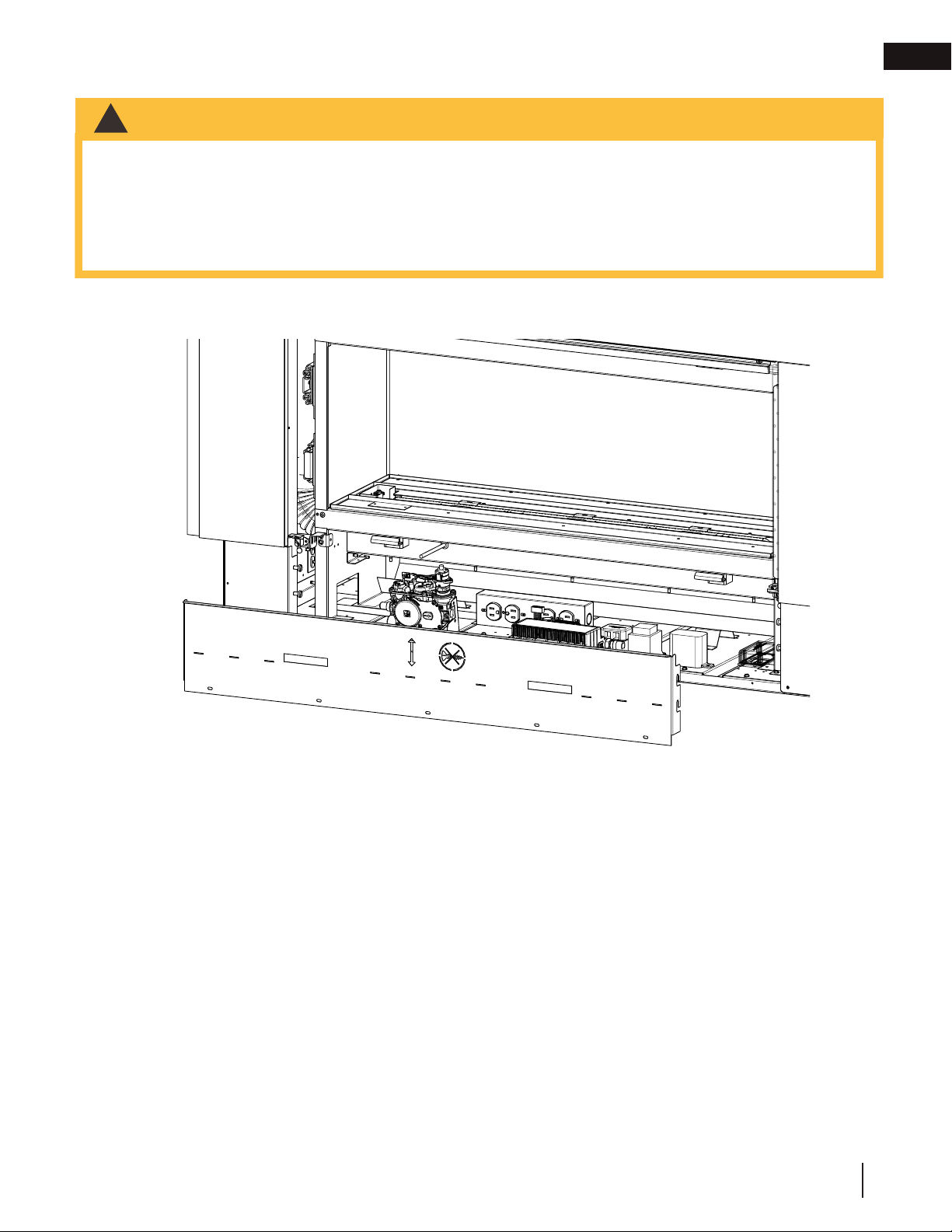

6.6 access panel 35

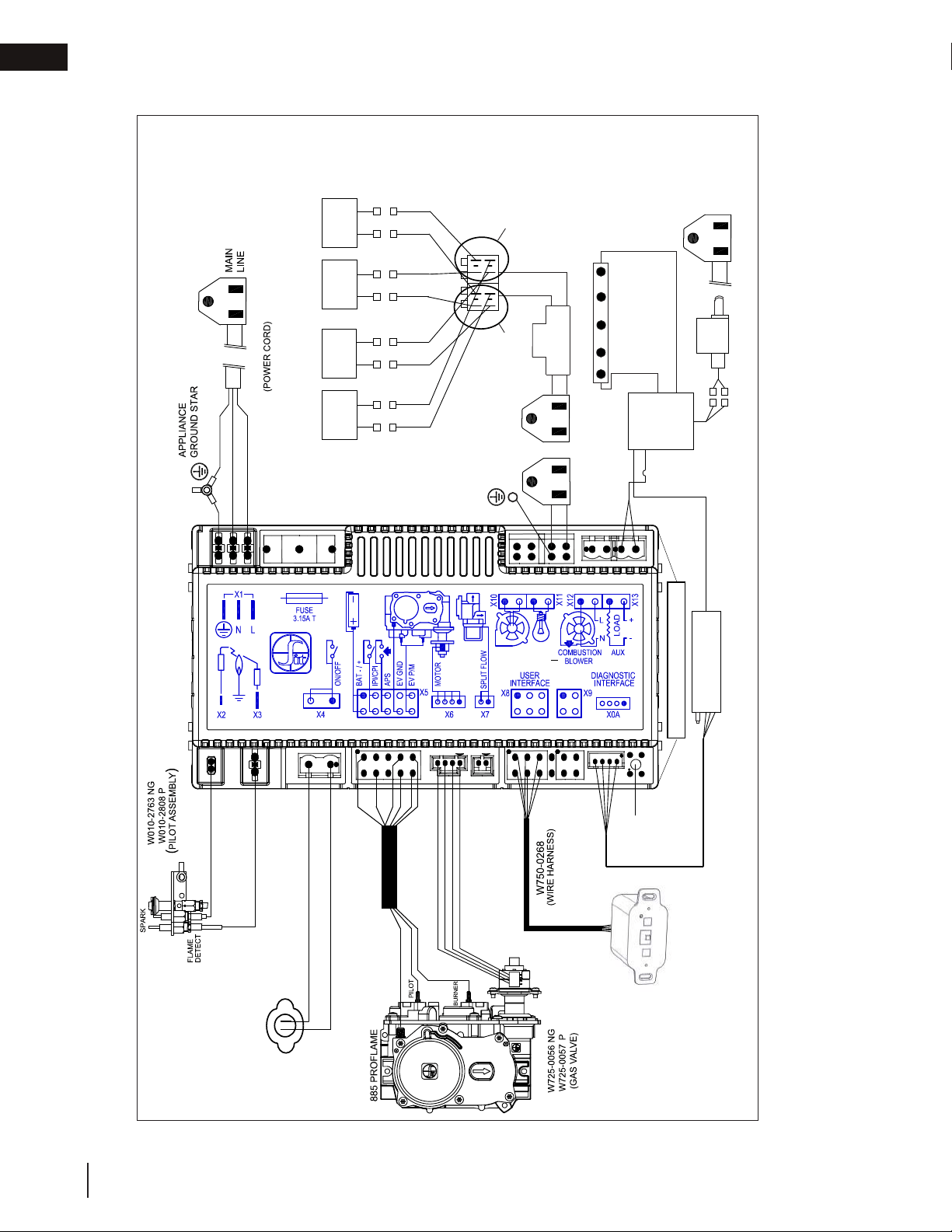

6.7 wiring diagram 36

6.8 eFIRE application controller 36

6.8.1 LV38-1/50-2 wiring diagram 37

6.8.2 LV62/74 wiring diagram 38

7.0 gas installation 39

8.0 operation 40

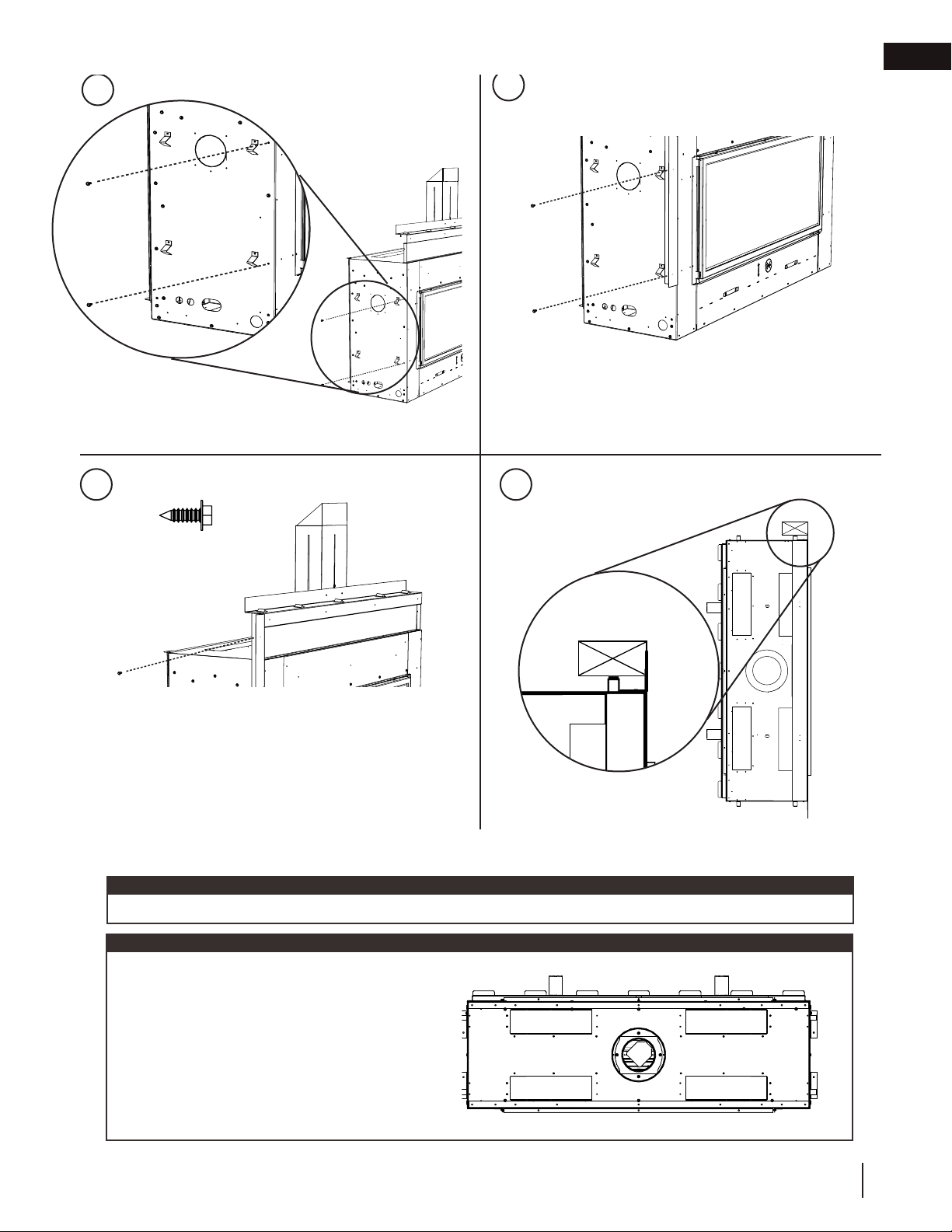

9.0 nailing tab installation 41

10.0 finish framing - after appliance

installation 42

10.1 framing with non-combustibles 42

11.0 finishing 46

11.1 fastener placement restriction 46

11.2 ﬁnishing with non-combustibles 47

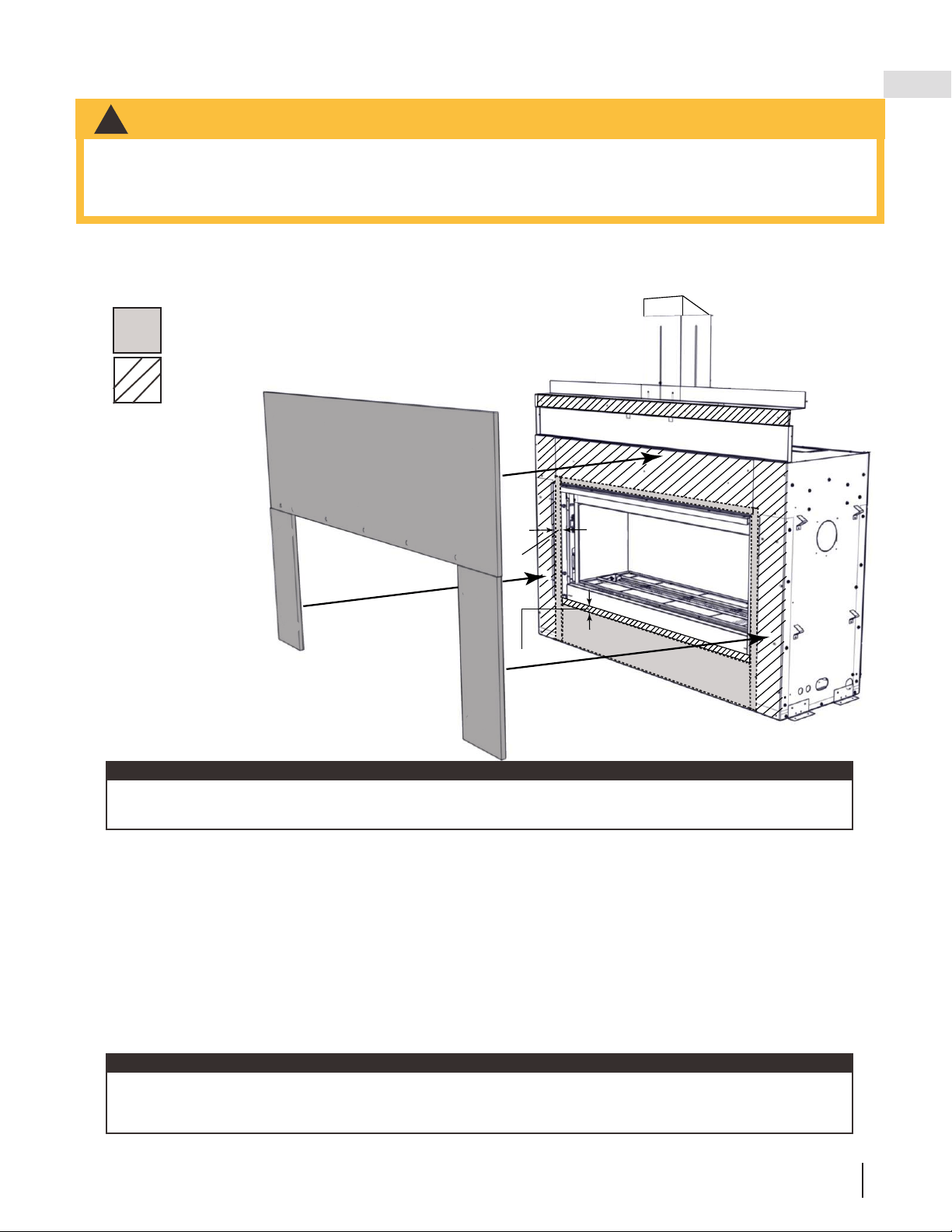

11.3 installing non-combustible board 49

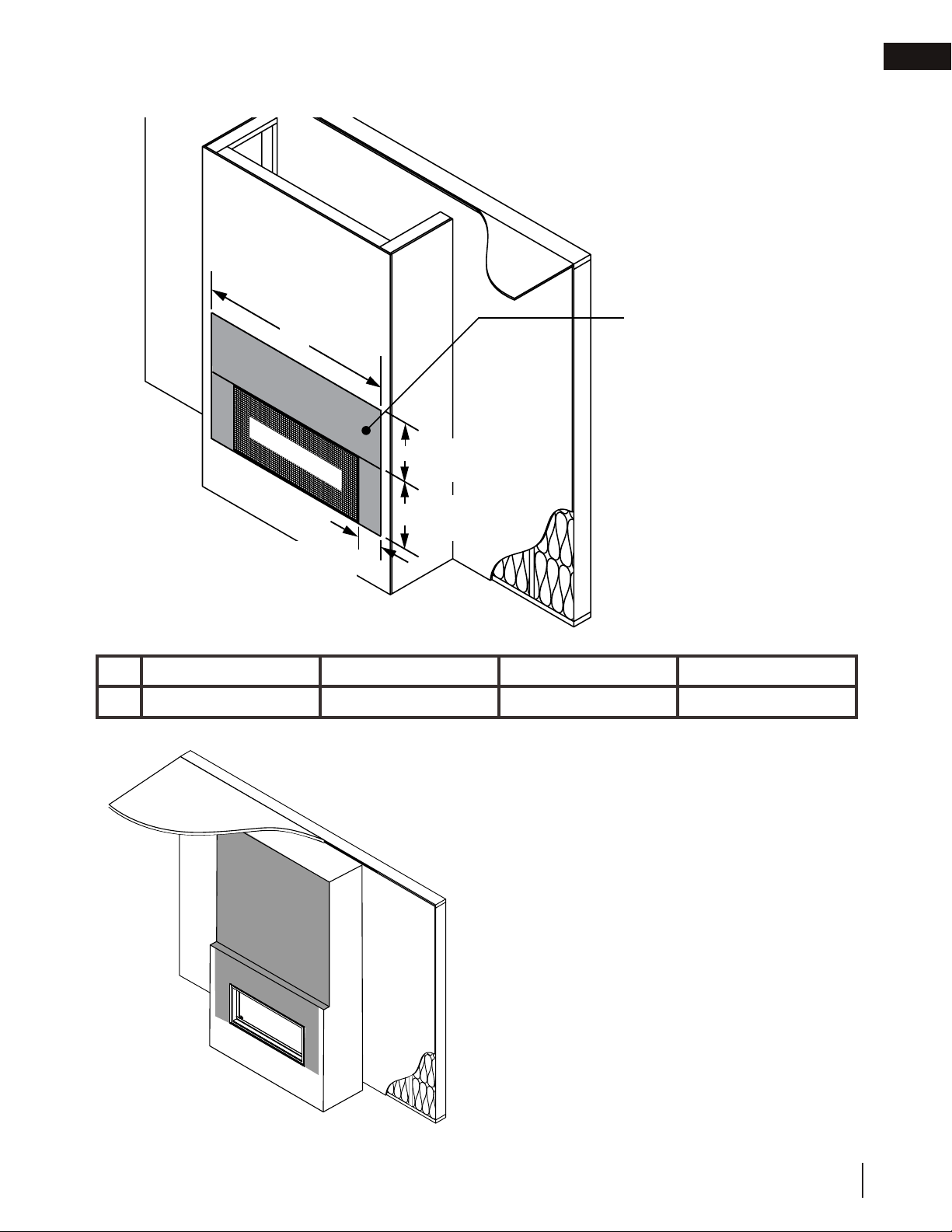

11.4 minimum combustible mantel

clearances 50

11.5 safety barrier installation / removal 51

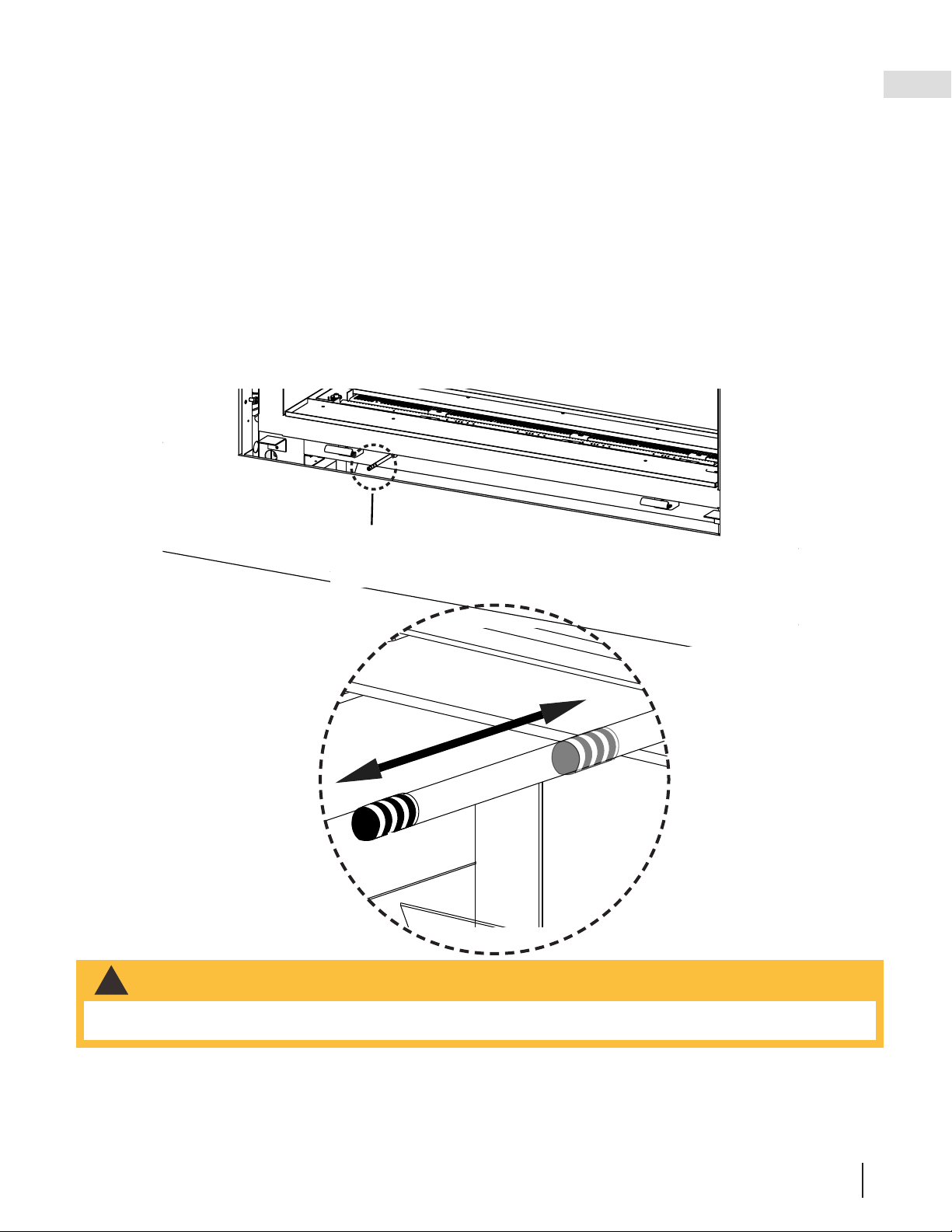

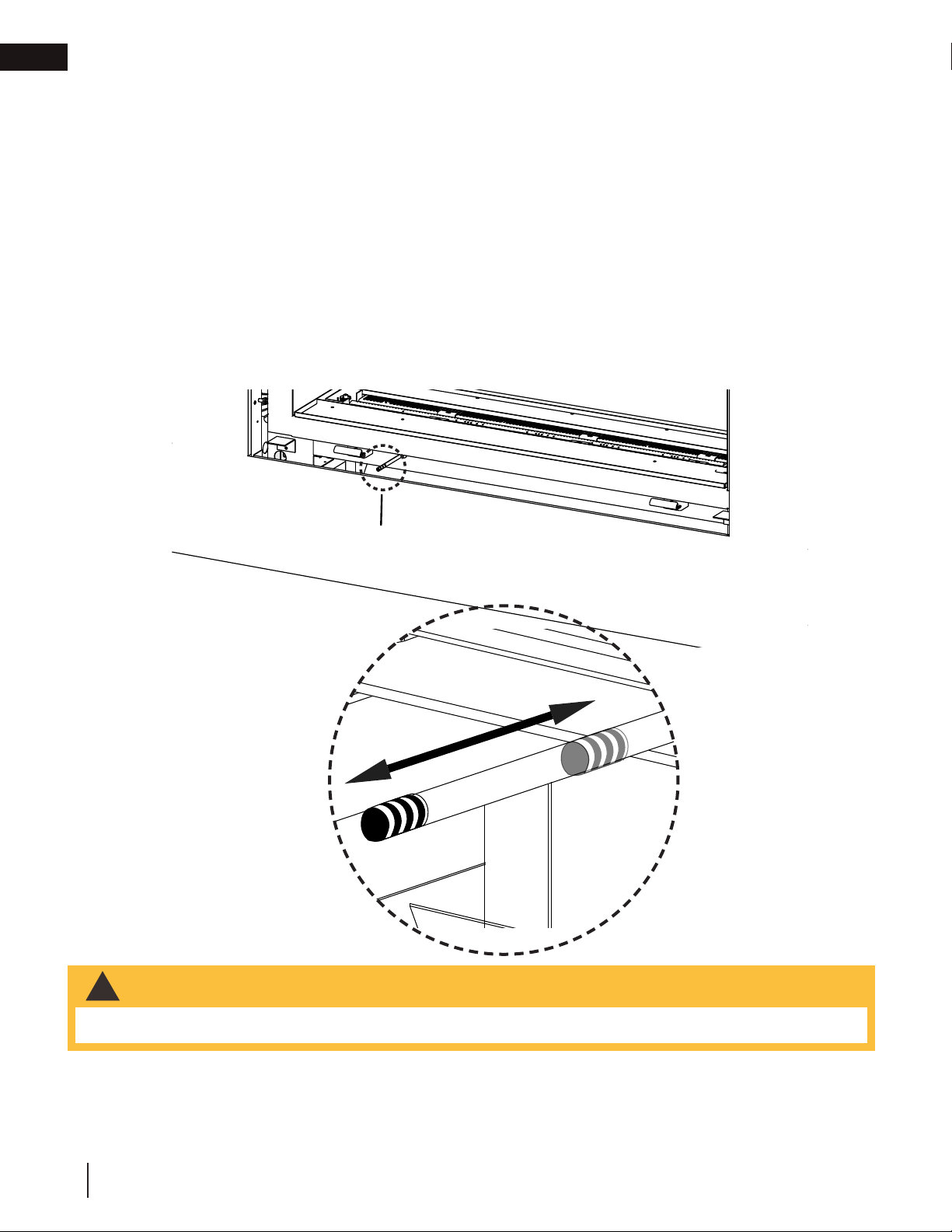

11.7 anti condensation switch 51

11.6 ﬁrebox glass door installation /

removal 51

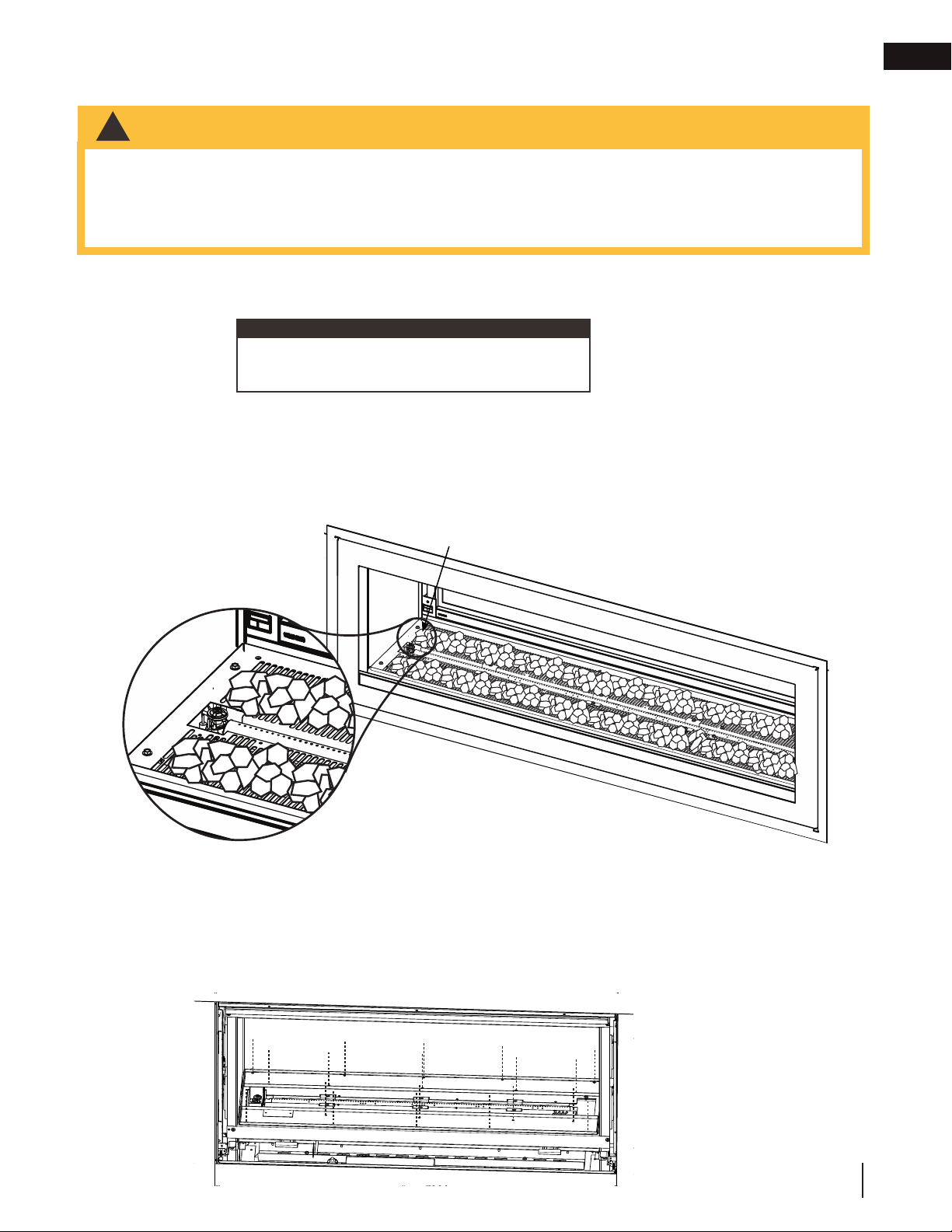

11.8 glass media installation / removal 53

11.9 optional media placement 53

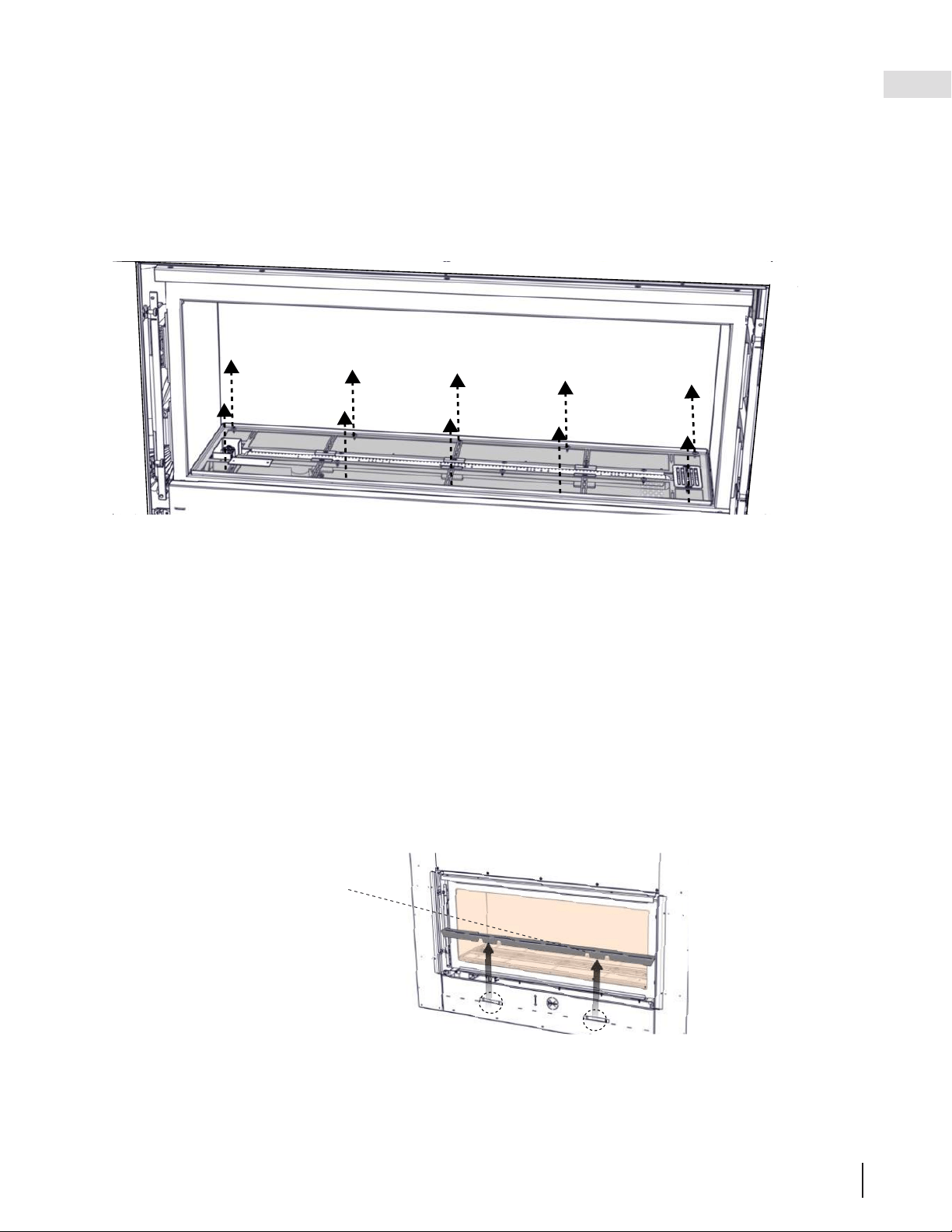

11.10 media tray removal 53

12.0 adjustments 54

12.1 restricting vertical vents 54

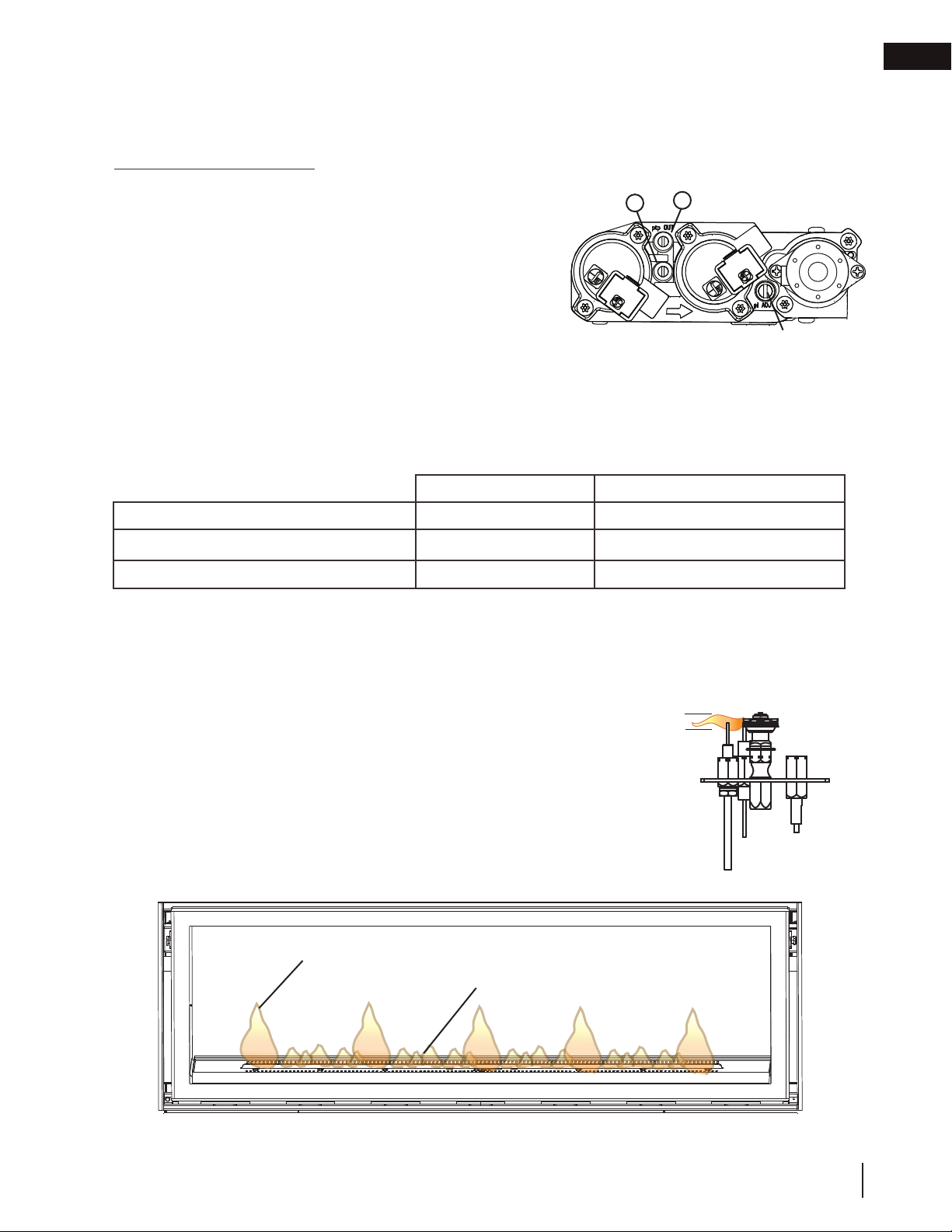

12.2 venturi adjustment 54

12.3 pilot burner adjustment 55

12.4 ﬂame characteristics 55

13.0 maintenance 56

13.1 annual maintenance 57

13.2 control access 57

13.4 burner removal 58

13.3 valve removal 58

13.5 control module removal 59

13.6 LED replacement 60

13.7 glass / door replacement 61

13.8 care of glass 61

13.9 care of plated parts 61

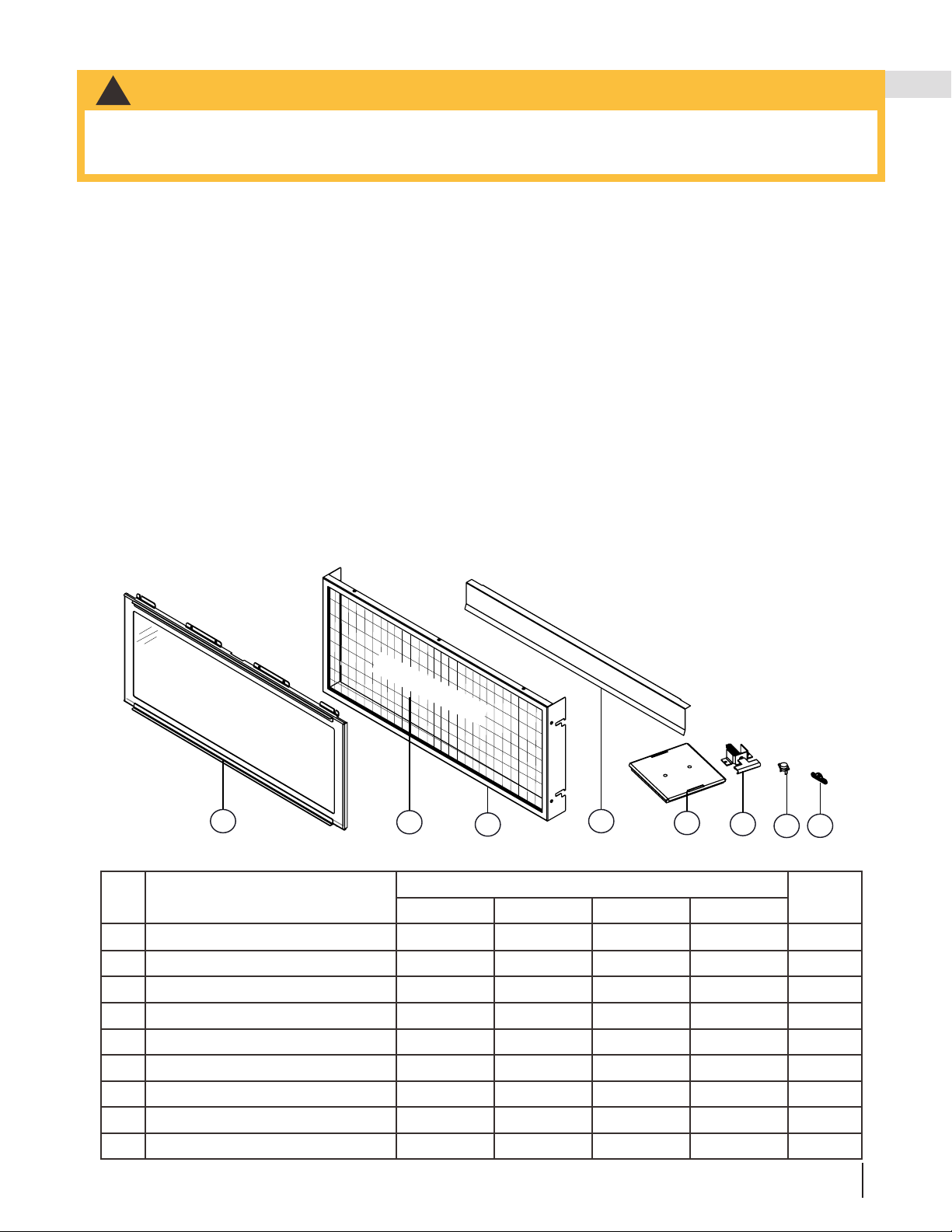

14.0 replacements 62

14.1 overview 62

14.2 burner components 63

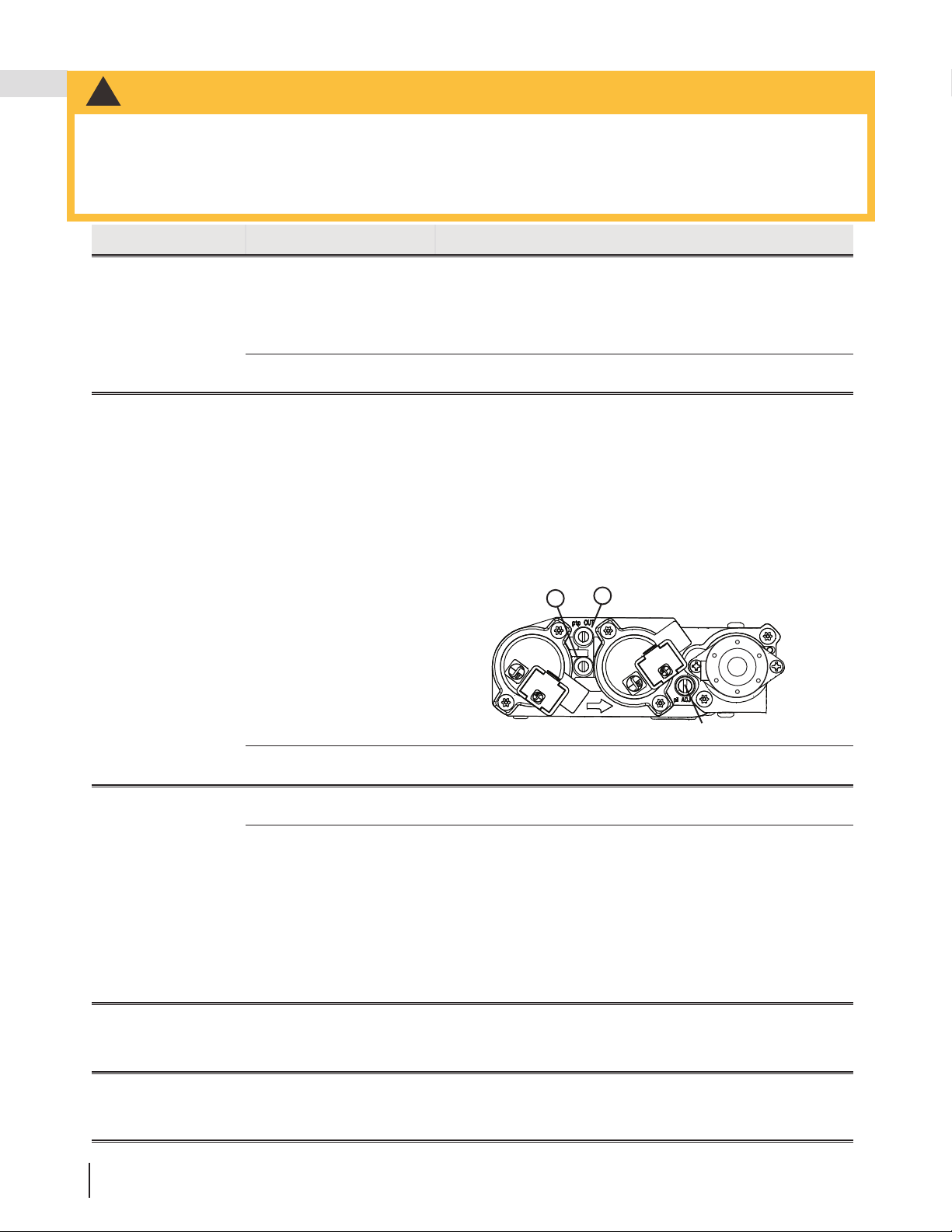

15.0 troubleshooting 65

The information throughout this manual is believed to be correct at the time of printing. Wolf Steel

Ltd. reserves the right to change or modify any information within this manual at any time without

notice. Changes, other than editorial are denoted by a vertical line in the margin.

note:

W415-1709 / A / 07.27.17

general information

Installer: please ﬁll out appliance checklist in the

owner’s manual.

When the appliance is installed at elevations above 4,500ft (1372m), and in the absence of speciﬁc recommendations

from the local authority having jurisdiction, the certiﬁed high altitude input rating shall be reduced at the rate of 4% for each

additional 1,000ft (305m). Expansion / contraction noises during heating up and cooling down cycles are normal

and are to be expected. Change in ﬂame appearance from “HI” to “LO” is more evident in natural gas than in

propane.

This appliance is approved for bathroom, bedroom and bed-sitting room installations and is certiﬁed for mobile

home installation.

This appliance is only for use with the type of gas indicated on the rating plate. This appliance is not

convertible for use with other gases, unless a certiﬁed kit is used.

There is a switch that controls the function of the appliance. The battery holder/switch must be placed in the

middle position. If the switch is not placed in the middle position, the appliance will not work.

The protective wrap on plated parts is best removed when the assembly is at room temperature but this can

be improved if the assembly is warmed, using a hair dryer or similar heat source. The protective wrap must be

removed before operating the appliance.

This appliance is a decorative product. It is not a source of heat and not intended to burn solid fuel.

This appliance is equipped with a remote control and a wall switch, which requires batteries to be installed. The

remote takes 3 “AAA” batteries and the wall switch takes 4 “AA” batteries.

This appliance is suitable for use with Napoleon’s optional Dynamic Heat Control™ & Dynamic Heat Control Plus™

systems. THIS MANUAL DOES NOT include detailed information relating to these optional systems. Framing and ﬁnishing

are NOT the same. For further details, refer to the Dynamic Heat Control™ installation manual provided with the kit before

starting installation.

note:

Batteries must be disposed of according to the local laws and regulations. Some batteries may be

recycled, and may be accepted for disposal at your local recycling center. Check with your

municipality for recycling instructions.

Les piles doivent être mises au rebut conformément aux lois et à la réglementation locales.

Certaines piles peuvent être recyclées et acceptées dans votre centre de recyclage local. Rensei-

gnez-vous auprès de votre municipalité au sujet des directives de recyclage.

Las baterías deben desecharse de acuerdo con las leyes y regulaciones locales. Algunas baterías

pueden reciclarse, y es posible que su centro de reciclado local las acepte para desecharlas.

Consulte en su municipalidad sobre las instrucciones para el reciclado.

A glass guard assembly designed to reduce the risk of burns is provided with the appliance and must be

installed. Never operate the appliance without the complete Glass Guard Barrier System installed and closed.

1.0 general information

W415-1709 / A / 07.27.17

general information

Single-Sided See-thru

Appliance Type

LV38N-1 LV38P-1 LV38N2-1 LV38P2-1

Fuel Type

Natural Gas Propane Natural Gas Propane

Altitude (FT) 0-4,500 0-4,500 0-4,500 0-4,500

Max. Input (BTU/HR) 30,000 28,000 30,000 28,000

Min. Input (BTU/HR) 21,000 24,000 21,000 24,000

P4 38.8% 38.8% 38.8% 38.8%

Single-Sided See-thru

Appliance Type

LV50N-2 LV50P-2 LV50N2-2 LV50P2-2

Fuel Type

Natural Gas Propane Natural Gas Propane

Altitude (FT) 0-4,500 0-4,500 0-4,500 0-4,500

Max. Input (BTU/HR) 36,000 32,000 36,000 32,000

Min. Input (BTU/HR) 25,000 30,000 25,000 30,000

P4 45.9% 45.9% 45.9% 45.9%

Single-Sided See-thru

Appliance Type

LV62N LV62P LV62N2 LV62P2

Fuel Type

Natural Gas Propane Natural Gas Propane

Altitude (FT) 0-4,500 0-4,500 0-4,500 0-4,500

Max. Input (BTU/HR) 42,000 34,000 42,000 34,000

Min. Input (BTU/HR) 29,000 30,000 29,000 30,000

P4 52.5% 52.5% 52.5% 52.5%

LV50-2

1.1 rates and efﬁciencies

Single-Sided See-thru

Appliance Type

LV74N LV74N2

Fuel Type

Natural Gas Natural Gas

Altitude (FT) 0-4,500 0-4,500

Max. Input (BTU/HR) 48,000 48,000

Min. Input (BTU/HR) 30,000 30,000

P4 52.5% 52.5%

LV38-1

LV62

LV74

W415-1709 / A / 07.27.17

general information

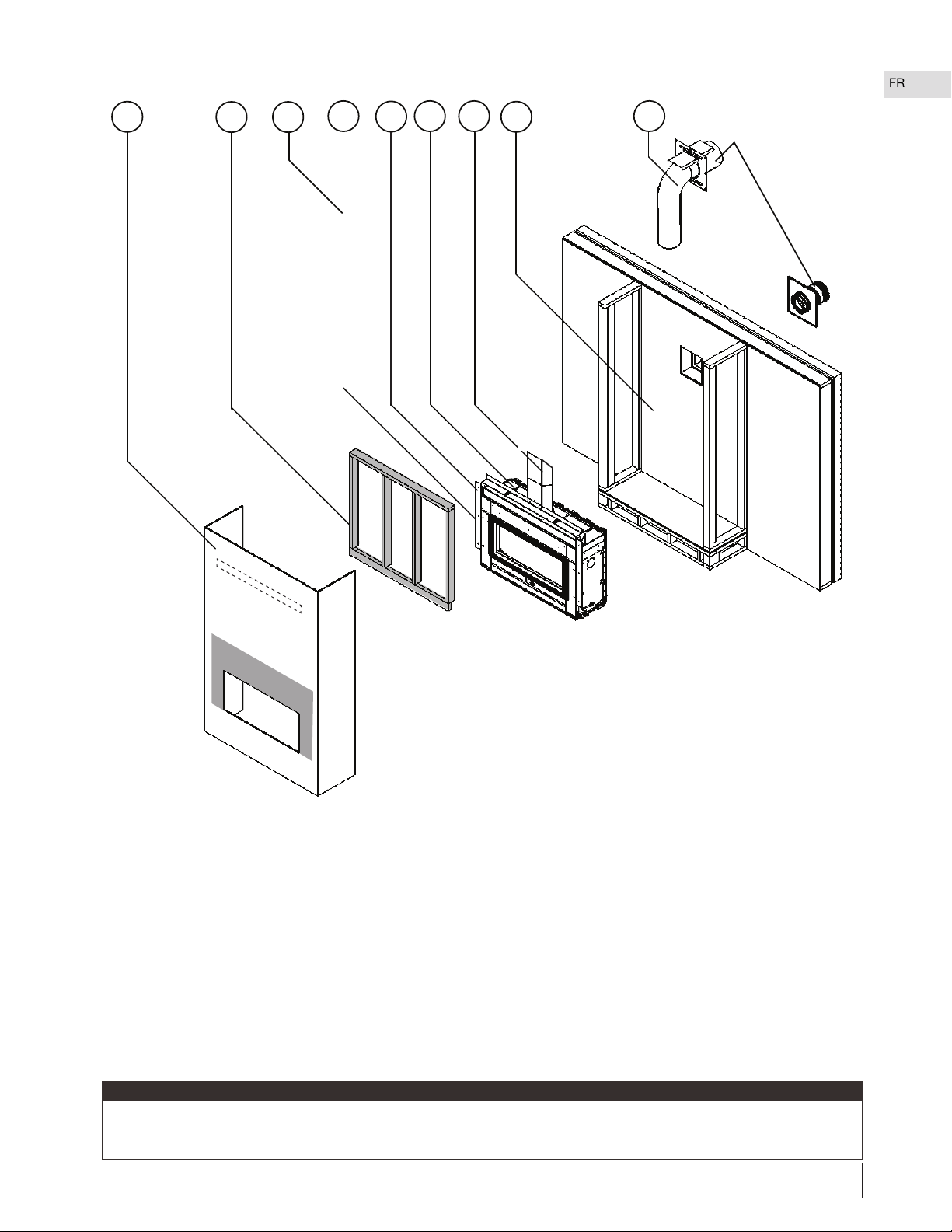

1.2 installation overview

Recommended installation steps:

1. Determine venting requirements before deciding the ﬁnal location of the appliance

2. Plan out appliance enclosure, framing, fronts, accessories, etc.

3. Install rough framing (refer to “rough framing” section)

4. Place the appliance in its ﬁnal position

5. Install nailing tabs (refer to “nailing tab installation” section)

6. Install appliance venting (refer to “venting installation” section)

7. Install vent shield (refer to “vent shield installation” section)

8. Install all electrical wirings (refer to “electrical information” section)

9. Install gas lines (refer to “gas installation” section)

10. Test appliance

11. Complete framing (refer to “ﬁnish framing” section)

12. Finishing (refer to “ﬁnishing” section)

13. Complete installation checklist in the owner’s manual and apply serial number to owner’s manual.

For Dynamic Heat Control™ installation steps, refer to the leaﬂet provided with the Dynamic Heat Control™ kit.

Start Dynamic Heat Control™ installation before step 3 (place the appliance in its ﬁnal position)

note:

W415-1709 / A / 07.27.17

general information

WARNING

• Always light the pilot whether for the ﬁrst time or if the gas supply has run out, with the glass door opened

or removed.

• Provide adequate clearance for servicing and operating the appliance.

• Provide adequate ventilation.

• Never obstruct the front opening of the appliance.

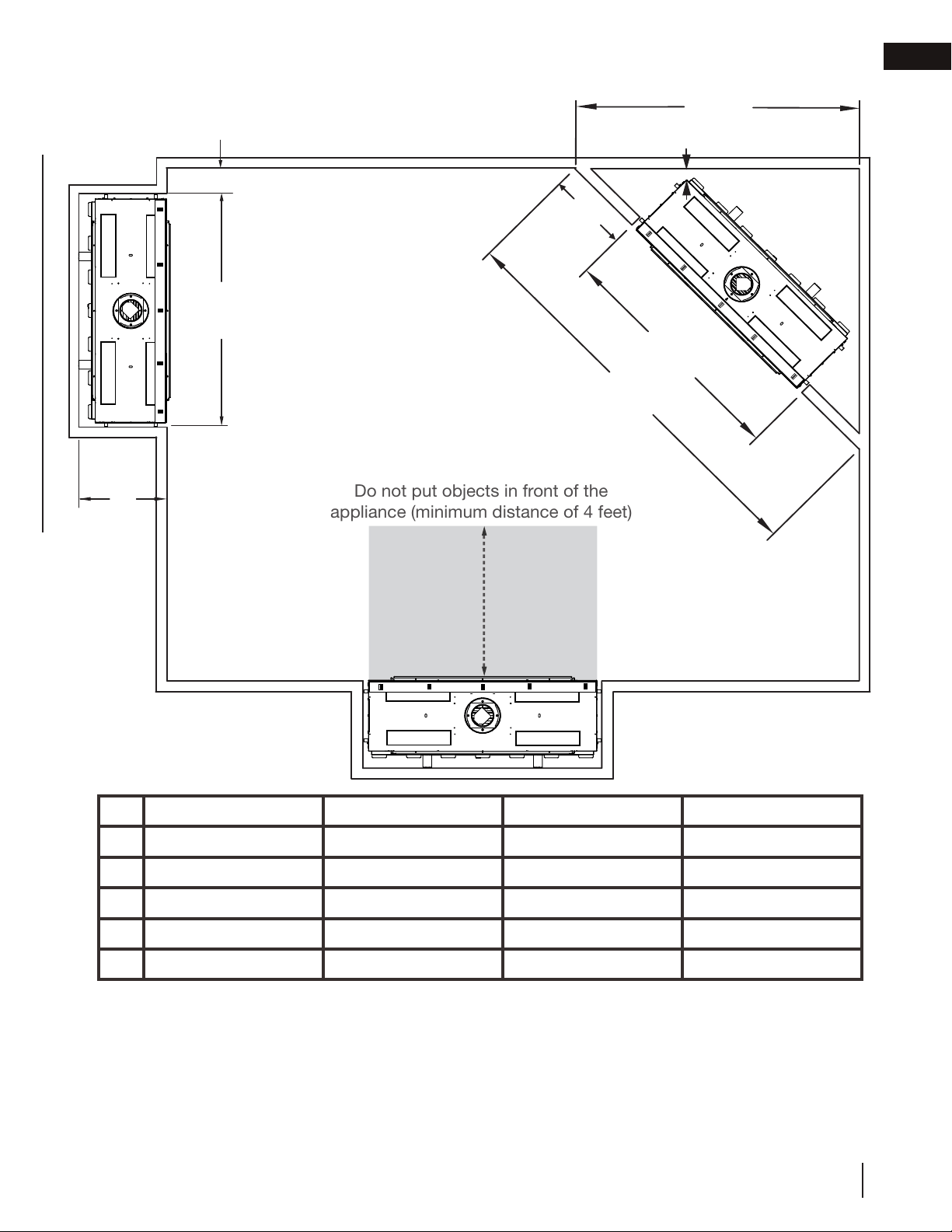

• Objects placed in front of the appliance must be kept a minimum of 48” (121.9cm) from the front face of

the appliance.

• Surfaces around and especially above the appliance can become hot. Avoid contact when appliance is

operating.

• Fire risk. Explosion hazard.

• High pressure will damage valve. Disconnect gas supply piping before pressure testing gas line at test

pressures above 1/2 PSIG. Close the manual shut-off valve before pressure testing gas line at test

pressures equal to or less than 1/2 PSIG (35mb).

• Use only Wolf Steel approved optional accessories and replacement parts with this appliance using non-

listed accessories (blowers, doors, louvres, trims, gas components, venting components, etc.) could result

in a safety hazard and will void the warranty and certiﬁcation.

• The appliance must not be operated at temperatures below freezing (32ºF / 0ºC). Allow the appliance to

warm, to above freezing prior to operation.

• This appliance has been designed and certiﬁed for indoor use only.

4.1

THIS GAS APPLIANCE MUST BE INSTALLED AND SERVICED BY A QUALIFIED INSTALLER to conform with local

codes. Installation practices vary from region to region and it is important to know the speciﬁ cs that apply to your area, for

example in Massachusetts State:

• This product must be installed by a licensed plumber or gas ﬁ tter when installed within the commonwealth of

Massachusetts.

• The appliance damper must be removed or welded in the open position prior to installation of an appliance insert or gas

log.

• The appliance off valve must be a “T” handle gas cock.

• The ﬂ exible connector must not be longer than 36 inches (0.9m).

• A carbon monoxide detector is required in all rooms containing gas ﬁ red appliances.

• The appliance is not approved for installation in a bedroom or bathroom unless the unit is a direct vent sealed

combustion product.

The installation must conform with local codes or, in absence of local

codes, the National Gas and Propane Installation Code CSA B149.1

in Canada, or the National Fuel Gas Code, ANSI Z223.1 / NFPA 54

in the United States. Suitable for mobile home installation if installed

in accordance with the current standard CAN/CSA Z240MH Series,

for gas equipped mobile homes, in Canada or ANSI Z223.1 and

NFPA 54 in the United States.

The appliance and its individual shutoff valve must be disconnected

from the gas supply piping system during any pressure testing

of that system at test pressures in excess of 1/2 psig (35 mb).

The appliance must be isolated from the gas supply piping system by closing its individual manual shutoff valve during any

pressure testing of the gas supply piping system at test pressures equal to or less than 1/2 psig (35 mb). When installed

with a blower or fan, the junction box must be electrically connected and grounded in accordance with local codes. In the

absence of local codes, use the current CSA C22.1 Canadian Electrical Code in Canada or the ANSI / NFPA 70 National

Electric Code in the United States. In the case where the blower is equipped with a power cord, it must be connected into a

properly grounded receptacle. The grounding prong must not be removed from the cord plug.

The following does not apply to inserts; as long as the required clearance to combustibles is maintained, the most desirable

and beneﬁ cial location for an appliance is in the center of a building, thereby allowing the most efﬁ cient use of the heat

created. The location of windows, doors and, the trafﬁ c ﬂ ow in the room where the appliance is to be located should be

considered. If possible, you should choose a location where the vent will pass through the house without cutting a ﬂ oor or

roof joist. If the appliance is installed directly on carpeting, vinyl tile or other combustible material other than wood ﬂ ooring, the

appliance shall be installed on a metal or wood panel extending the full width and depth, unless otherwise tested.

We suggest that our gas

hearth products be installed

and serviced by professionals

who are certied in the U.S.

by the National Fireplace

Institute

(NFI) as NFI Gas

Specialists

www.ncertied.org

W415-1709 / A / 07.27.17

general information

KEEP BURNER AND CONTROL

COMPARTMENT CLEAN. SEE

INSTALLATION AND OPERATING

INSTRUCTIONS MANUAL.

APPLIANCE NEEDS FRESH

AIR FOR SAFE OPERATION

AND MUST BE INSTALLED

WITH ADEQUATE PROVISIONS

FOR COMBUSTION

AND VENTILATION AIR.

GARDEZ LE BRÛLEUR ET LE

COMPARTIMENT DES

CONTRÔLES PROPRES.

CONSULTEZ LE MANUEL

D’INFORMATION ET

D’INSTALLATION. PAR

MESURE DE SÉCURITÉ.

CET APPAREIL DOIT

ÊTRE ALIMENTÉE EN AIR

FRAIS ET AVEC SUFFISANT

D’AIR COMBURANTET

DE VENTILATION.

WARNING:

IMPROPER INSTALLATION,

ADJUSTMENT, ALTERATION,

SERVICE OR MAINTENANCE

CAN CAUSE PROPERTY DAMAGE,

PERSONAL INJURY OR LOSS OF

LIFE. REFER TO OWNER’S

MANUAL. INSTALLATION AND

SERVICE MUST BE PERFORMED

BY A QUALIFIED INSTALLER,

SERVICE AGENCY OR THE

GAS SUPPLIER.

ATTENTION:

UN INSTALLATION OU UNE

MODIFICATION INAPPROPRIÉE

DU RÉGLAGE, DU SERVICE ET DE

L’ENTRETIEN POURRAIENT ÊTRE

LA CAUSE DE DOMMAGES À LA

PROPRIETÉ DE BLESSURES

CORPORELLES OU MÊME LA

MORT. CONSULTER LE MANUEL

D’INFORMATION, L’INSTALLATION

ET LE SERVICE DOIVENT

ÊTRE EXECUTÉS PAR UN

INSTALLATEUR QUALIFIÉ POUR

LE GAZ, UNE ENTREPRISE DE

SERVICE OU LE FOURNISSEUR

DE GAZ SEULEMENT.

FOR YOUR SAFETY:

DO NOT STORE OR USE GASOLINE

OR OTHER FLAMMABLE VAPORS

AND LIQUIDS IN VICINITY OF THIS

OR ANY OTHER APPLIANCE.

CAUTION: DO NOT OPERATE

THE FIREPLACE WITH THE GLASS

REMOVED, CRACKED OR BROKEN.

REPLACEMENT OF THE GLASS

SHOULD BE DONE BY A LICENSED

OR QUALIFIED PERSON.

CAUTION:

HOT WHILE OPERATING. DO NOT TOUCH.

KEEP CHILDREN, CLOTHING, FURNITURE,

GASOLINE OR OTHER FLAMMABLE VAPORS

AWAY.

AVERTISSEMENT:

L’APPAREIL EST CHAUD PENDANT SON

FONCTIONNEMENT. LES ENFANTS, LES

VÉTEMENTS, LES MEUBLES, L’ESSENCE ET

AUTRES LIQUIDES QUI ÉMETTENT DES GAZ

VOLATILS INFLAMMABLES DOIVENT

ÉTRE TENUS ÉLOIGNES DE L’APPAREIL.

“This appliance is only for use with the type(s)

of gas indicated on the rating plate and may

be installed in an aftermarket, permanently

located, manufactured home (USA only) or

mobile home, where not prohibited by local

codes. See owner’s manual for details. This

appliance is supplied with a conversion kit.”

«Cet appareil doit être utilisé uniquement

avec les types de gaz indiqués sur la plaque

signalétique et peut être installé dans une

maison préfabriquée (É.-U. seulement) ou

mobile installée à demeure si les règlements

locaux le permettent. Voir la notice de

l’utilisateur pour plus de renseignements. Une

trousse de conversion est fournie avec cet

appareil.»

POUR VOTRE

SÉCURITÉ:

NE PAS ENTREPOSER NI UTILISER

D’ESSENCE NI D’AUTRES VAPEURS

OU LIQUIDES INFLAMMABLES

DANS LE VOISINAGE DE CET

APPAREIL OU DE TOUT AUTRE

APPAREIL.

AVERTISSEMENT: NE PAS

UTILISER L’APPAREIL SI LE

PANNEAU FRONTAL EN VERRE

N’EST PAS EN PLACE, EST CRAQUÉ

OU BRISÉ. CONFIEZ LE

REMPLACEMENT DU

PANNEAU À UN

TECHNICIEN

AGRÉÉ.

TITLE: RATING PLATE LV38

REVISION:

DWG#: W385-2106

DATE: 10.28.15_NS

WOLF STEEL LTD.

PAGE 2 OF 2

MAX SIZE: 8.5" X 4.75"

HOLE TO BE 0.250"Ø

MATERIAL: CLASS III A-2, PERMANENT LABEL, WATERPROOF, .010MIL VELVET MATTE LEXAN AND/OR .050 HI-TEMP POLYESTER.

MIN. LETTERING FOR "NOT FOR USE WITH SOLID FUEL. ", "UN COMBUSTIBLE SOLIDE NE DOIT PAS ETRE UTILISE AVEC CELUI. " TO BE 10 POINT ARIAL, BOLD FACE,

UPPER CASE AND 2 POINT LEADING SPACING OR EQUIVALENT.

BLACK LETTERING ON WHITE BACKGROUND.

SERIAL NUMBERS TO BE ASCENDING FROM LV38 301150

TITLE: LABEL, RATING PLATE LV38-1

REVISION:

DWG#: W385-2183

DATE: 05.03.17_J.F.K.

MAX SIZE: 8.5" X 4.75"

HOLE TO BE 0.250"Ø

MATERIAL: CLASS III A-2, PERMANENT LABEL, WATERPROOF, .010MIL VELVET MATTE LEXAN AND/OR .050 HI-TEMP POLYESTER, CAPABLE OF WITHSTANDING A

MAXIMUM TEMPERATURE OF 175°F (79°C).

MIN. LETTERING FOR "NOT FOR USE WITH SOLID FUEL. ", "UN COMBUSTIBLE SOLIDE NE DOIT PAS ÊTRE UTILISÉ AVEC CELUI. " TO BE 10 POINT ARIAL, BOLD FACE,

UPPER CASE AND 2 POINT LEADING SPACING OR EQUIVALENT.

BLACK LETTERING ON WHITE BACKGROUND.

SERIAL NUMBERS TO BE ASCENDING FROM LV38 019817

W385-2183

DIRECT VENT, VENTED GAS FIREPLACES. APPROVED FOR BEDROOM, BATHROOM AND BED-SITTING

ROOM INSTALLATION. SUITABLE FOR MOBILE HOME INSTALLATION IF INSTALLED IN ACCORDANCE

WITH THE CURRENT STANDARD CAN/CSA Z240MH SERIES GAS EQUIPPED MOBILE HOMES,

IN CANADA OR IN THE UNITED STATES THE MANUFACTURED HOME CONSTRUCTION AND

SAFETY STANDARD, TITLE 24 CFR, PART 3280. WHEN THIS US STANDARD IS NOT

APPLICABLE USE THE STANDARD FOR FIRE SAFETY CRITERIA FOR MANUFACTURED HOME

INSTALLATIONS, SITES AND COMMUNITIES, ANSI / NFPA 501A. THIS APPLIANCE MUST BE

INSTALLED IN ACCORDANCE WITH LOCAL CODES, IF ANY; IF NONE, FOLLOW THE CURRENT

ANSI Z223.1, OR CSA B149, INSTALLATION CODES.

FOR USE WITH BARRIER W565-0267.

FOLLOW THE INSTALLATION INSTRUCTIONS LOCATED IN THE INSTALLATION MANUAL.

FOYER À GAZ VENTILÉ. HOMOLOGUÉ POUR INSTALLATION DANS UNE CHAMBRE À COUCHER, UNE

SALLE DE BAIN ET UN STUDIO. APPROPRIÉ POUR INSTALLATION DANS UNE MAISON MOBILE SI

SON INSTALLATION CONFORME AUX EXIGENCES DE LA NORME CAN/CSA Z240MH SÉRIE DE

MAISONS MOBILES ÉQUIPÉES AU GAZ, EN VIGUEUR AU CANADA OU AUX ÉTATS-UNIS DE LA

NORME DE SÉCURITÉ ET DE CONSTRUCTION DE MAISONS MANUFACTURÉES, TITRE 24

CFR, SECTION 3280. DANS LE CAS OU CETTE NORME D'ÉTATS-UNIS NE PEUT ÊTRE

APPLIQUÉE, SE RÉFÉRER A LA NORME RELATIVE AU CRITÈRE DE MESURES DE SÉCURITÉ

CONTRE L'INCENDIE POUR LES INSTALLATIONS DANS LES MAISONS MANUFACTURÉS, LES

SITES ET LES COMMUNAUTÉS, ANSI/NFPA 501A. CODES. INSTALLER L’APPAREIL SELON LES

CODES OU RÈGLEMENTS LOCAUX, OU EN L’ABSENCE DE TELS RÈGLEMENTS, SELON LES

CODES D’INSTALLATION ANSI Z223.1 OU CSA-B149 EN VIGUER.

POUR UNE UTILISER AVEC

BARRIÈRE

W565-0267

. SUIVEZ LES INSTRUCTIONS D'INSTALLATION SE TROUVENT DANS LE

MANUEL D'INSTALLATION.

UN COMBUSTIBLE SOLIDE NE DOIT PAS ÊTRE UTILISÉ AVEC

CET APPAREIL. UTILISER AVEC LES PORTES VITRÉES

HOMOLOGUÉES SEULEMENT AVEC CETTE APPAREIL.

AVERTISSEMENT: N’AJOUTEZ PAS A CET APPAREIL AUCUN MATÉRIAU DEVANT ENTRER EN CONTACT AVEC

LES FLAMMES AUTRE QUE CELUI QUI EST FOURNI AVEC CET APPAREIL PAR LE FABRICANT.

THE APPLIANCE MUST BE VENTED USING THE APPROPRIATE NAPOLEON VENT KITS. SEE OWNERS INSTALLATION MANUAL

FOR VENTING SPECIFICS. PROPER REINSTALLATION AND RESEALING IS NECESSARY AFTER SERVICING THE VENT-AIR

INTAKE SYSTEM.

L'APPAREIL DOIT ÉVACUER SES GAZ EN UTILISANT L'ENSEMBLE D'ÉVACUATION PROPRE À NAPOLEON. RÉFÉRER AU

MANUEL D'INSTALLATION DE PROPRIÉTAIRE POUR L'ÉVACUATION PRÉCISE. IL EST IMPORTANT DE BIEN RÉINSTALLER ET

RESCELLER L'ÉVENT APRÈS AVOIR ASSURÉ LE MAINTIEN DU SYSTÈME DE PRISE D'AIR.

SERIAL NUMBER/NO. DE SÉRIE: LV38

WOLF STEEL LTD.

24 NAPOLEON ROAD, BARRIE, ON, L4M 0G8 CANADA

CERTIFIED TO CANADIAN AND AMERICAN NATIONAL STANDARDS: CSA 2.22-2016 AND ANSI Z21.50-2016 FOR VENTED DECORATIVE GAS FIREPLACES.

CERTIFIÉ SELON LES NORMES NATIONALES CANADIENNES ET AMÉRICAINES: CSA 2.22-2016 ET ANSI Z21.50-2016 POUR LES APPAREILS À GAZ VENTILÉS DÉCORATIFS.

9700539 (WSL) 4001657 (NGZ)

4001658 (NAC) 4001659 (WUSA)

LV38N-1 CLV38N-1 MODEL CLV38P-1 LV38P-1

0-4500FT (0-1370m) ALTITUDE / ÉLÉVATION 0-4500FT (0-1370m)

30,000 BTU/h INPUT / ALIMENTATION 30,000 BTU/h

REDUCED INPUT / ALIMENTATION RÉDUITE

21,000 BTU/h

24,000 BTU/h

38.8%38.8%

NOT FOR USE WITH SOLID FUEL. FOR USE WITH GLASS DOORS

CERTIFIED WITH THIS APPLIANCE ONLY.

WARNING:

DO NOT ADD ANY MATERIAL TO THE APPLIANCE, WHICH WILL COME IN CONTACT WITH THE FLAMES, OTHER

THAN THAT SUPPLIED BY THE MANUFACTURER WITH THE APPLIANCE.

MINIMUM CLEARANCE TO COMBUSTIBLE MATERIALS / DÉGAGEMENTS MINIMAUX DES MATÉRIAUX COMBUSTIBLES:

SIDES & BACK: PER STAND OFF SPACERS FOR FRAMING AND FINISHING MATERIALS. FOR NON-COMBUSTIBLE FRAMING AND

FINISHING MATERIALS, SEE INSTALLATION MANUAL. DESSUS, CÔTÉS & ARRIÈRE: SELON LES ESPACEURS DE DÉGAGEMENT

POUR LES MATÉRIAUX D'OSSATURE SELON LA MANUEL DE PROPRIÉTAIRE POUR LES MATÉRIAUX DE FINITION.

TOP / DESSUS 0" RECESSED DEPTH ONE SIDED/ PROFONDEUR D'ENCASTRE UNE FACE 20 1/8"

FLOOR / PLANCHER 0" RECESSED DEPTH SEE THRU/ PROFONDEUR D'ENCASTRE TRAVERS 16 3/16"

SIDES / CÔTÉS 0" BACK / ARRIÈRE 0"

VENT TOP / DESSUS DU CONDUIT D’ÉVENT 3"

VENT SIDES & BOTTOM / CÔTÉS ET DESSOUS DU CONDUIT D'ÉVENT 2"

VERTICAL VENT / CONDUIT D’ÉVENT VERTICAL 1"

MANTEL / TABLETTE 12" *

* MAXIMUM HORIZONTAL EXTENSION / L'EXTENSION HORIZONTALE MAXIMALE: 2". SEE INSTALLATION MANUAL FOR GREATER

EXTENSIONS. RÉFÉRER AU MANUEL D'INSTRUCTION POUR DES EXTENSIONS PLUS GRANDES. SEE INSTALLATION MANUAL FOR

MINIMUM AND MAXIMUM VENT LENGTHS. RÉFÉRER AU MANUEL D'INSTALLATION DE PROPRIÉTAIRE POUR LES LONGUEURS

D'ÉVACUATION MINIMALE ET MAXIMALE. CLEARANCE TO COMBUSTIBLES CAN BE REDUCED BY USING NAPOLEON HEAT

CONTROL. SEE INSTALLATION MANUAL. DÉGAGEMENTS MINIMAUX DES MATÉRIAUX COMBUSTIBLES PEUVENT ÊTRE RÉDUIT PAR

UTILISANT LE CONTRÔLE DE TEMPÉRATURE DE NAPOLÉON. RÉFÉRER AU MANUEL D'INSTALLATION.

ELECTRICAL RATING: 115V, 60HZ. LESS THAN 12 AMPERES

SPÉCIFICATIONS ÉLECTRIQUES: 115V, 60HZ. MOINS DE 12 AMPÈRE

DECORATIVE PRODUCT: NOT FOR USE AS A HEATING APPLIANCE

PRODUIT DÉCORATIF: NE PAS UTILISER COMME APPAREIL DE CHAUFFAGE

MANIFOLD PRESSURE: 3.5 INCHES W.C. (NG)

PRESSION AU COLLECTEUR: 3.5" D'UNE

COLONNE D'EAU(GN)

MIN SUPPLY PRESSURE: 4.5" W.C.(NG)

PRESSION D'ALIMENTATION MIN: 4.5" D'UNE

COLONNE D'EAU (GN)

MAX. SUPPLY PRESSURE: 7"* W.C. (NG)

PRESSION D'ALIMENTATION MAX: 7"* D'UNE

COLONNE D'EAU (GN)

MANIFOLD PRESSURE: 10 INCHES W.C.(P)

PRESSION AU COLLECTEUR: 10" D'UNE

COLONNE D'EAU (P)

MIN SUPPLY PRESSURE: 11" W.C. (P)

PRESSION D'ALIMENTATION MIN: 11" D'UNE

COLONNE D'EAU (P)

MAX. SUPPLY PRESSURE: 13" W.C. (P)

PRESSION D'ALIMENTATION MAX: 13" D'UNE

COLONNE D'EAU (P)

WOLF STEEL LTD.

*MAXIMUM INLET PRESSURE NOT TO EXCEED 13".

*PRESSION D'ALIMENTATION MAXIMALE NE DEVAIT PAS DÉPASSER 13".

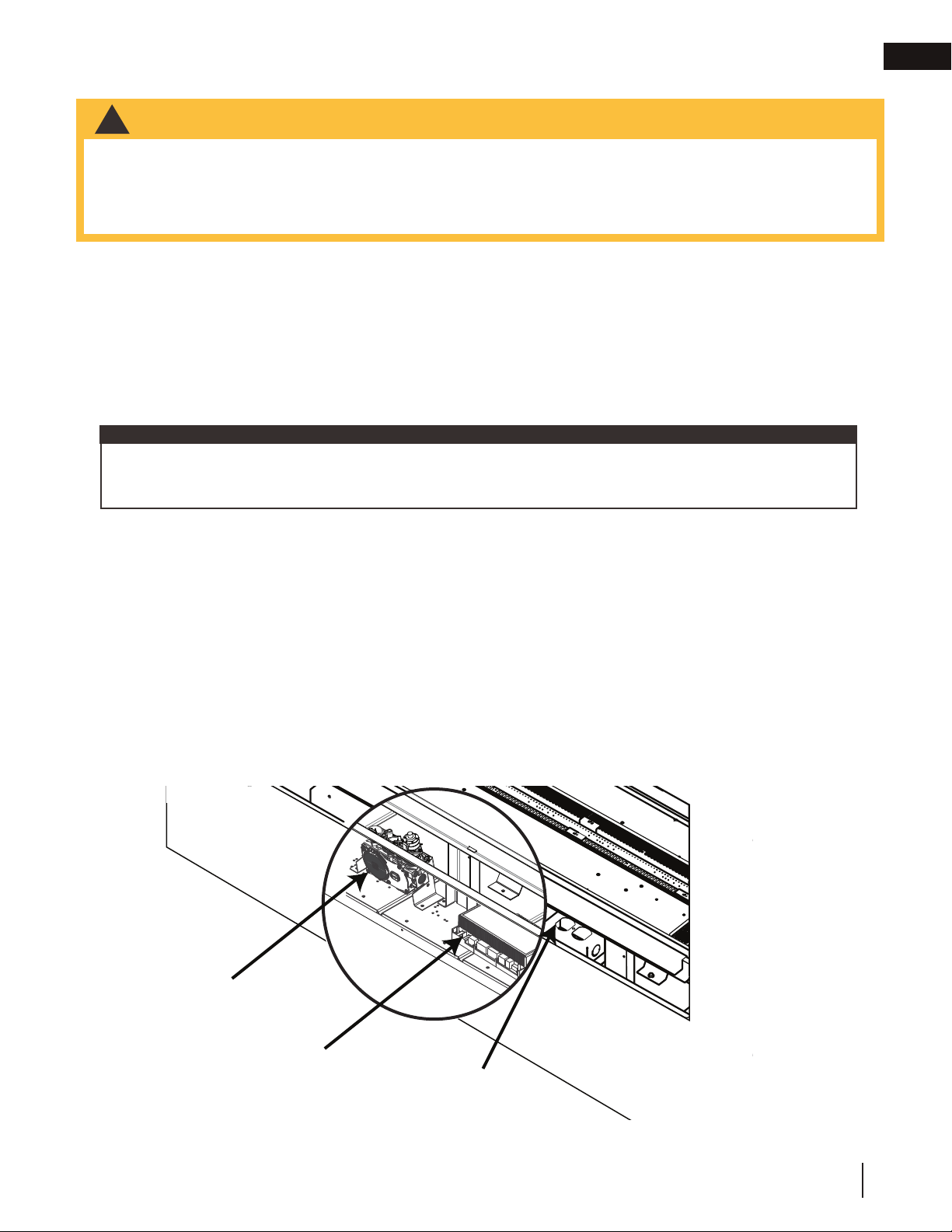

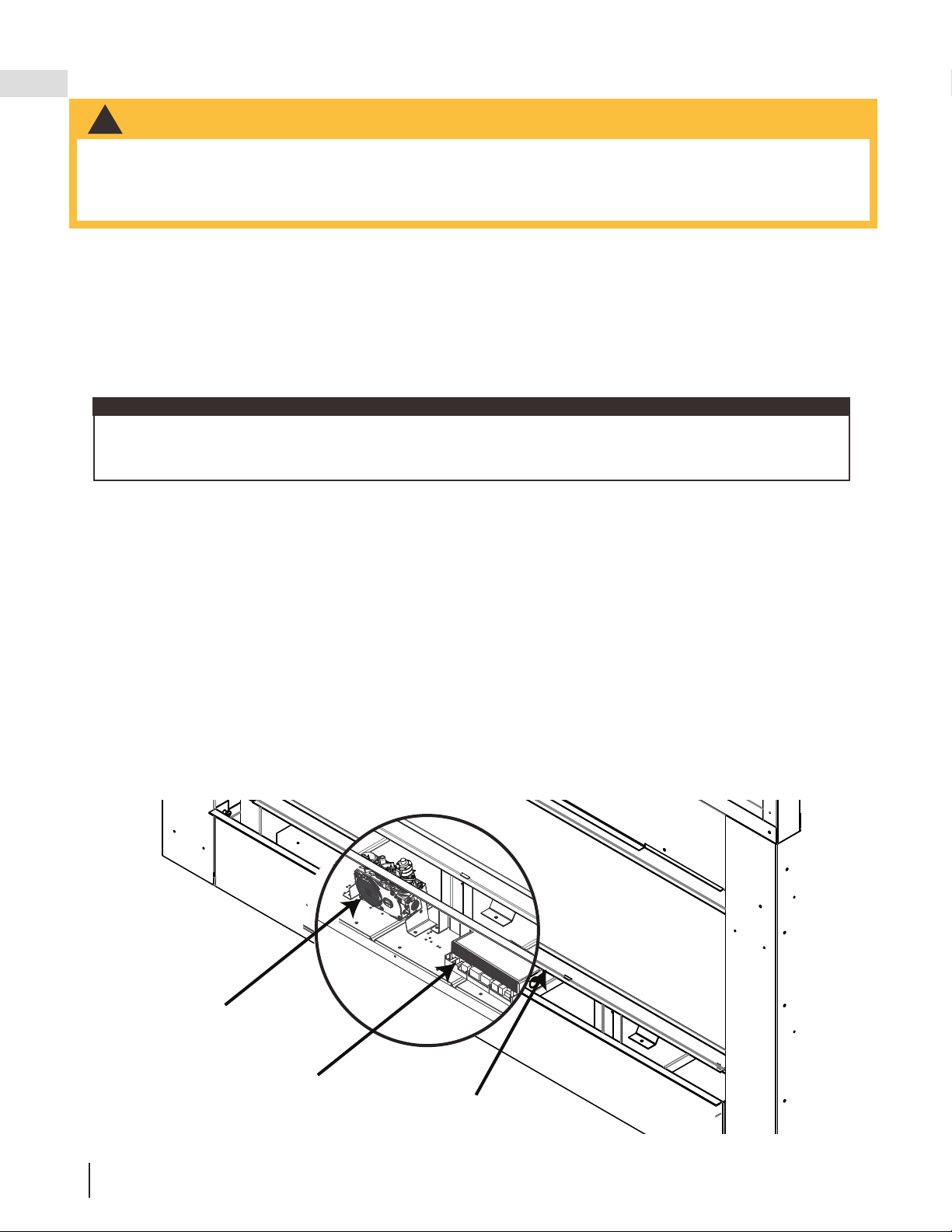

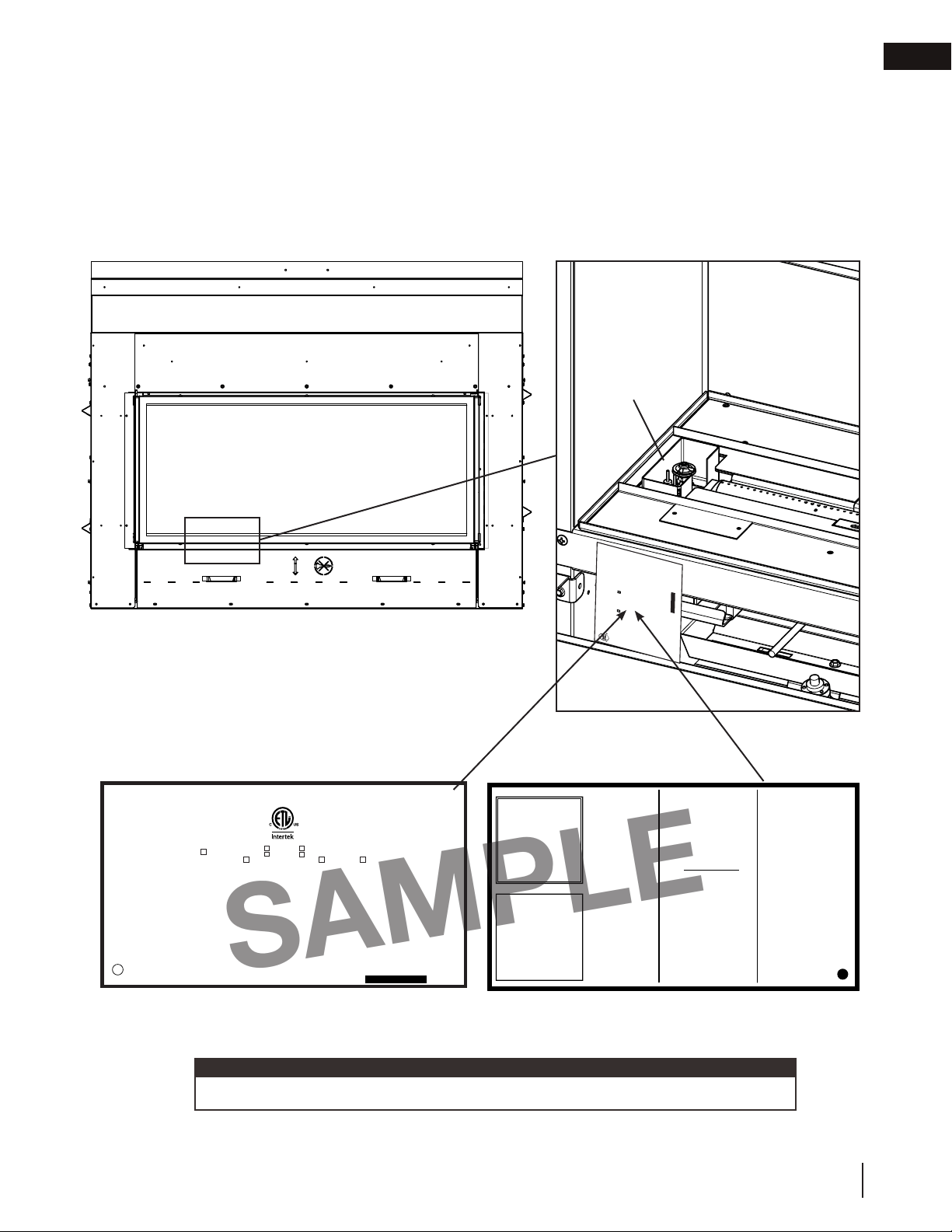

1.3 rating plate/lighting instruction location

Both the rating plate and lighting instructions are attached to a chain located on the left side of the control area

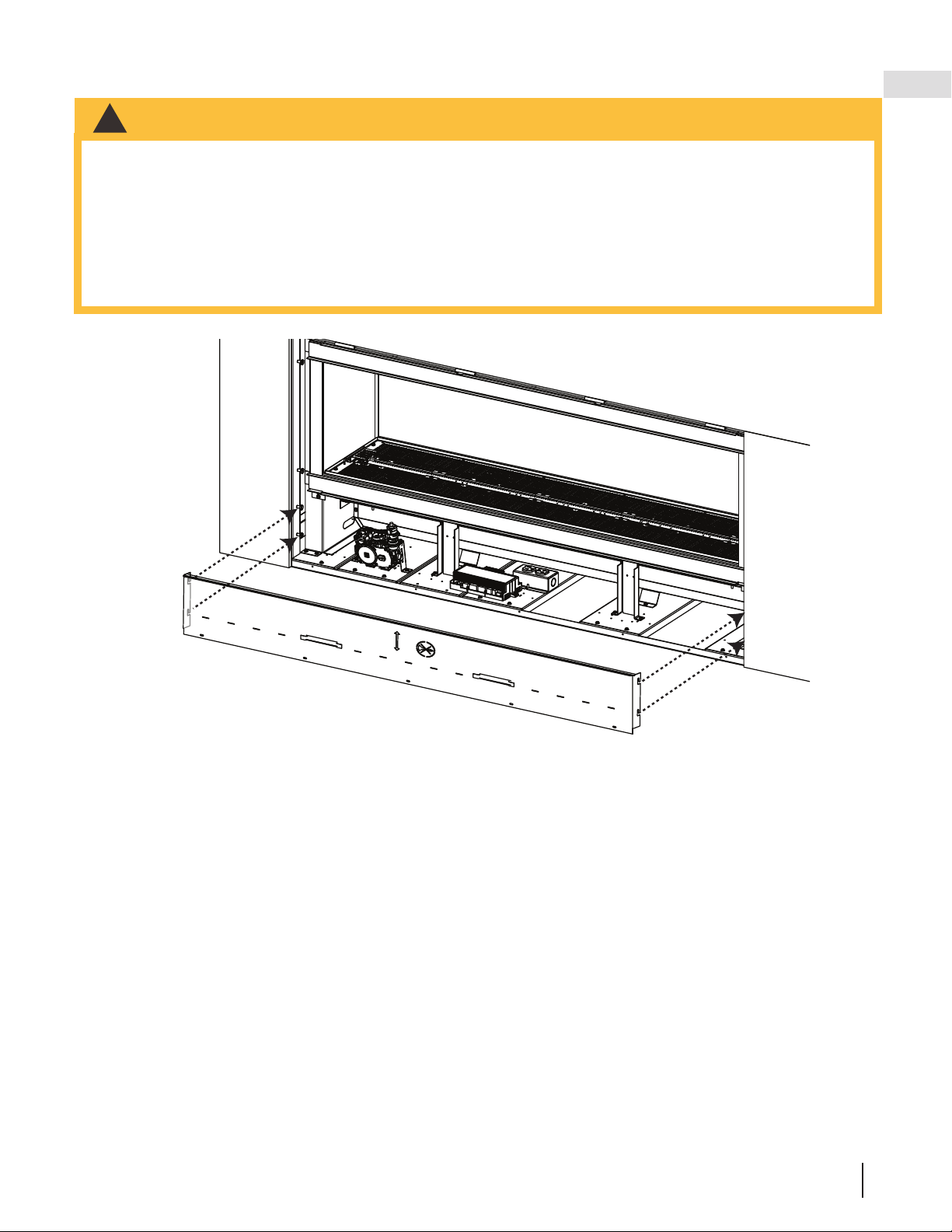

near the valve (access side). Remove the safety barrier and the control cover to gain access to the control area,

refer to the “safety barrier

installation / removal” section for detailed removal instructions.

To replace, slide the instructions back into the control area and reinstall the safety barrier assembly.

This illustration is for reference only. Refer to the rating plate on the appliance for accurate information.

SAMPLE

The rating plate must remain with the appliance at all times. It must not be removed.

note:

CERTIFIED UNDER / HOMOLOGUE SELON LES NORMES: CSA 2.33b - 2008, ANSI Z21.88b- 2008 VENTED GAS FIREPLACE HEATER / APPAREIL DE CHAUFFAGE ALIMENTÉ

AU GAZ ET VENTILÉ

VENTED GAS FIREPLACE HEATER. APPROVED FOR BEDROOM, BATHROOM AND BED-SITTING ROOM INSTALLATION. SUITABLE FOR MOBILE HOME INSTALLATION IF INSTALLED IN ACCORDANCE WITH THE

CURRENT STANDARD CAN/CSA Z240MH SERIES GAS EQUIPPED MOBILE HOMES, IN CANADA OR IN THE UNITED STATES THE MANUFACTURED HOME CONSTRUCTION AND SAFETY STANDARD, TITLE 24 CFR,

PART 3280. WHEN THIS US STANDARD IS NOT APPLICABLE USE THE STANDARD FOR FIRE SAFETY CRITERIA FOR MANUFACTURED HOME INSTALLATIONS, SITES AND COMMUNITIES, ANSI / NFPA 501A.

FOYER DE CHAUFFAGE AU GAZ AVEC ÉVACUATION. HOMOLOGUÉ POUR INSTALLATION DANS UNE CHAMBRE À COUCHER, UNE SALLE DE BAIN ET UN STUDIO. APPROPRIÉ POUR INSTALLATION DANS UNE

MAISON MOBILE SI SON INSTALLATION CONFORME AUX EXIGENCES DE LA NORME CAN/CSA Z240MH SÉRIE DE MAISONS MOBILES ÉQUIPÉES AU GAZ, EN VIGUEUR AU CANADA OU AUX ÉTATS-UNIS DE LA

NORME DE SECURITÉ ET DE CONSTRUCTION DE MAISONS MANUFACTURÉES, TITRE 24 CFR, SECTION 3280. DANS LE CAS OU CETTE NORME D'ÉTATS-UNIS NE PEUT ÊTRE APPLIQUÉE, SE RÉFÉRER A LA NORME

RELATIVE AU CRITÈRE DE MESURES DE SÉCURITÉ CONTRE L'INCENDIE POUR LES INSTALLATIONS DANS LES MAISONS MANUFACTURÉS, LES SITES ET LES COMMUNAUTÉS, ANSI/NFPA 501A.

NOT FOR USE WITH

SOLID FUEL. FOR USE

WITH GLASS DOORS

CERTIFIED WITH THIS

UNIT ONLY.

WARNING

DO NOT ADD ANY MATERIAL

TO THE APPLIANCE, WHICH WILL COME

IN CONTACT WITH THE FLAMES, OTHER

THAN THAT SUPPLIED BY THE

MANUFACTURER WITH THE APPLIANCE.

MINIMUM CLEARANCE TO

COMBUSTIBLE MATERIALS:

TOP 0”

FLOOR 0”

RECESSED DEPTH ONE SIDED 23"

RECESSED DEPTH SEE THRU 13.5”

FRAMING (NOT INCLUDING

FACE MATERIAL)

SIDES 0”

VENT 2"

BACK 0”

MANTLE 15" *

TOP, SIDES & BACK: PER STAND OFF SPACERS FOR FRAMING MATERIALS. FOR FINISHING MATERIALS

SEE OWNERS MANUAL

UN COMBUSTIBLE SOLIDE NE

DOIT PAS ÊTRÉ UTILISÉ AVEC

CET APPAREIL. UTILISER AVEC

LES PORTES VITRÉES

HOMOLOGUÉES SEULEMENT

AVEC CETTE UNITÉ.

AVERTISSEMENT:

N'AJOUTEZ PAS A

CET APPAREIL AUCUN MATÉRIAU DEVANT

ENTRER EN CONTACT AVEC LES FLAMMES

AUTRE QUE CELUI QUI EST FOURNI AVEC

CET APPAREIL PAR LE FABRICANT.

DÉGAGEMENTS MINIMAUX DES

MATÉRIAUX COMBUSTIBLES:

DESSUS 0”

PROFONDEUR D'ENCASTRÉ 25"

PLANCHER 0”

ÉVENT 2"

CÔTES 0”

MANTEAU 15" *

ARRIÉRE 0”

MADE IN CANADA / FABRIQUÉ AU CANADA

WOLF STEEL LTD. BARRIE, ONTARIO, CANADA

ALTITUDE / ÉLÉVATION

INPUT / ALIMENTATION

REDUCED INPUT / ALIMENTATION RÉDUITE

ORIFICE / INJECTEUR

MANIFOLD PRESSURE /

PRESSION AU COLLECTEUR

MINIMUM SUPPLY PRESSURE /

PRESSION D'ALIMENTATION MINIMALE

MAXIMUM SUPPLY PRESSURE /

PRESSION D'ALIMENTATION MAXIMALE

0-4500FT (0-1370M)

30,000 BTU/H

23,000 BTU/H

#38

3.5" WATER COLUMN/D'UNE COLONNE D'EAU

4.5" WATER COLUMN/D'UNE COLONNE D'EAU

7.0" WATER COLUMN/D'UNE COLONNE D'EAU

0-4500FT (0-1370M)

30,000 BTU/H

23,000 BTU/H

#53

10" WATER COLUMN/D'UNE COLONNE D'EAU

11" WATER COLUMN/D'UNE COLONNE D'EAU

13" WATER COLUMN/ D'UNE COLONNE D'EAU

THE APPLIANCE MUST BE VENTED USING THE APPROPRIATE

NAPOLEON VENT KITS. SEE OWNERS INSTALLATION MANUAL

FOR VENTING SPECIFICS. PROPER REINSTALLATION AND

RESEALING IS NECESSARY AFTER SERVICING THE VENT-AIR

INTAKE SYSTEM.

L'APPAREIL DOIT ÉVACUER SES GAZ EN UTILISANT L'ENSEMBLE

D'ÉVACUATION PROPRE A NAPOLEON. RÉFÉRER AU MANUEL

D'INSTALLATION DE PROPRIÉTAIRE POUR L'ÉVACUATION

PRÉCISE. IL EST IMPORTANT DE BIEN RÉINSTALLER ET

RESCELLER L'ÉVENT APRÈS AVOIR ASSURÉ LE MAINTIEN DU

SYSTÉME DE PRISE D'AIR.

CLASSIFICATION: 115V 0.82AMP, 60HZ

W385-2007

MODEL NATURAL GAS /

GAZ NATURAL

LHD50NT

MODEL PROPANE

LHD50PT

SERIAL NUMBER/NO. DE SÉRIE: LV50

ELECTRICAL RATING: 115V 0.82AMP, 60HZ

REFERENCE #

W/N 16131

* MAXIMUM HORIZONTAL EXTENSION / L'EXTENSION

HORIZONTALE MAXIMALE: 2". SEE INSTRUCTION MANUAL FOR GREATER EXTENSIONS.

SEE OWNER'S INSTRUCTION MANUAL FOR MINIMUM AND MAXIMUM VENT LENGTHS.

DESSUS, COTÉS & ARRIÈRE: SELON LES ESPACEURS DE DÉGAGEMENT POUR LES MATÉRIAUX D'OSSATURE

SELON LE MANUEL DE PROPRIÉTAIRE POUR LES MATÉRIAUX DE FINITION.

* L'EXTENSION HORIZONTALE MAXIMALE: 2". RÉFÉRER AU MANUEL D'INSTRUCTION POUR DES EXTENSIONS

PLUS GRANDES. RÉFÉRER AU MANUEL D'INSTALLATION DE PROPRIÉTAIRE.

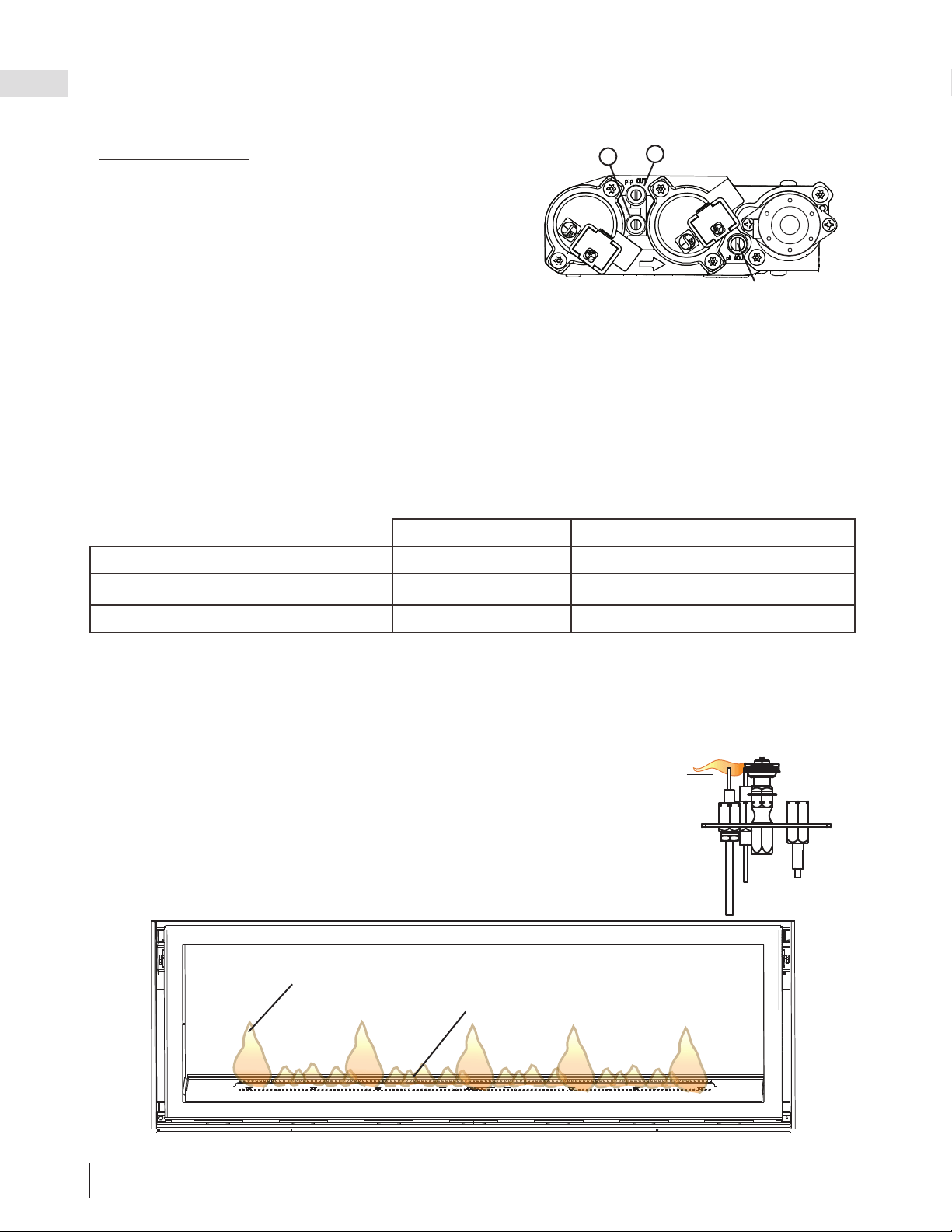

Pilot location

Rating plate

location

access side

W415-1709 / A / 07.27.17

general information

note:

1.4 mobile home installation

1.5 hardware list

Description Quantity

LV38-1 LV50-2 LV62 LV74

Hex Head Sheet Metal Screw 22 22 22 22

Round Head Sheet Metal Screw 4 4 4 4

Hex Head Sheet Metal Bolt 18 18 18 18

Only fasteners supplied with the appliance are illustrated.

This appliance must be installed in accordance with the manufacturer’s instructions and the Manufactured

Home Construction and Safety Standard, Title 24 CFR, Part 3280, in the United States or the Mobile Home

Standard, CAN/CSA Z240 MH Series, in Canada. This appliance is only for use with the type(s) of gas

indicated on the rating plate.

This mobile/manufactured home listed appliance comes factory equipped with a means to secure the appliance. The

shipping brackets that secure the appliance to the pallet can be used to secure the appliance to the ﬂoor for mobile

home installation. For mobile home installations, the appliance must be secured.

This appliance is certiﬁed to be installed in an aftermarket permanently located, manufactured (mobile) home,

where not prohibited by local codes.

This appliance is only for use with the type of gas indicated on the rating plate. This appliance is not convertible

for use with other gases, unless a certiﬁed kit is used.

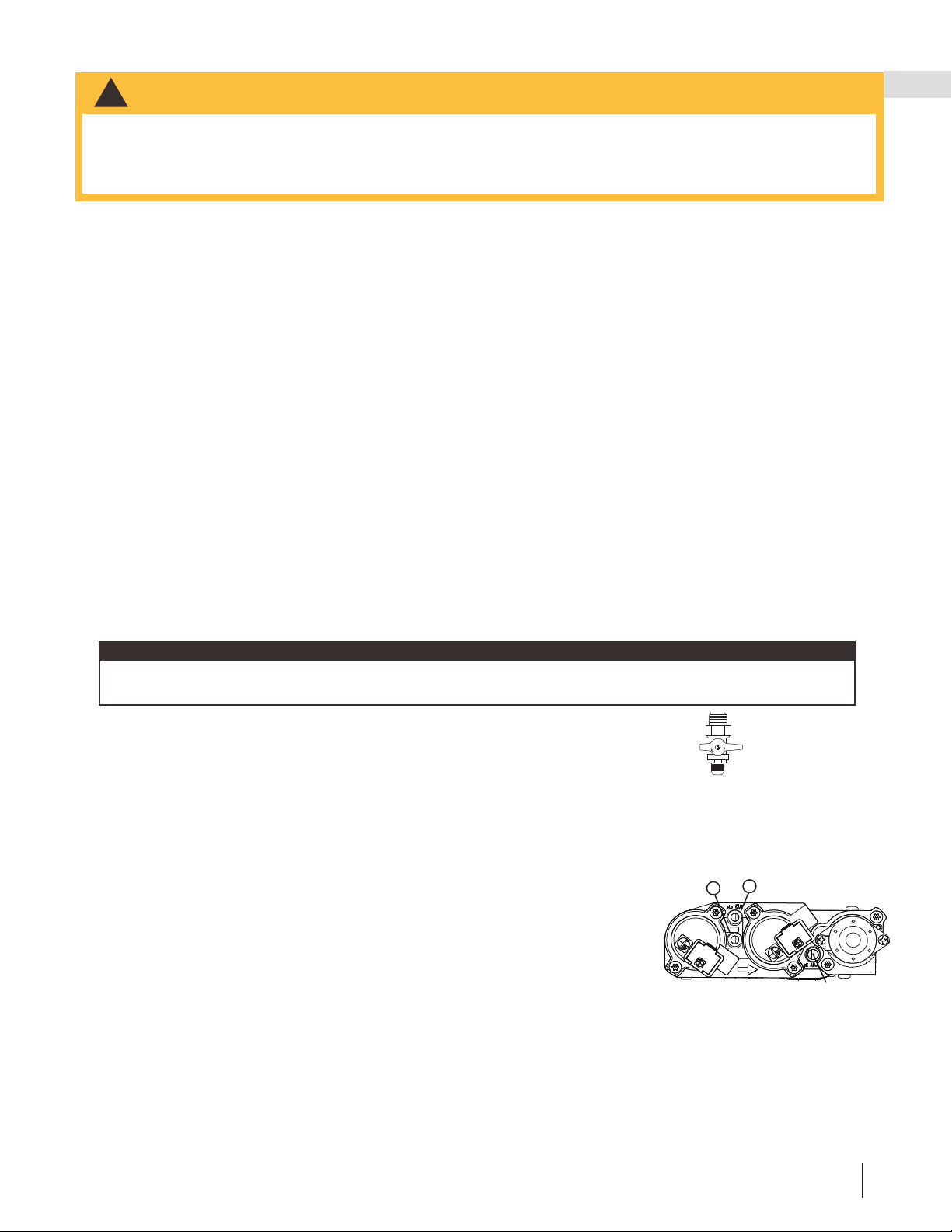

Conversion Kits

This appliance is ﬁeld convertible between Natural Gas (NG) and Propane (P). Propane not available for LV74.

To convert from one gas to another, consult your Authorized dealer/distributor.

Secure the lifting handles to the side of the appliance

as shown with the screws supplied. Once the appliance

is in place remove the four screws each handle to the

appliance. Discard the lifting handles.

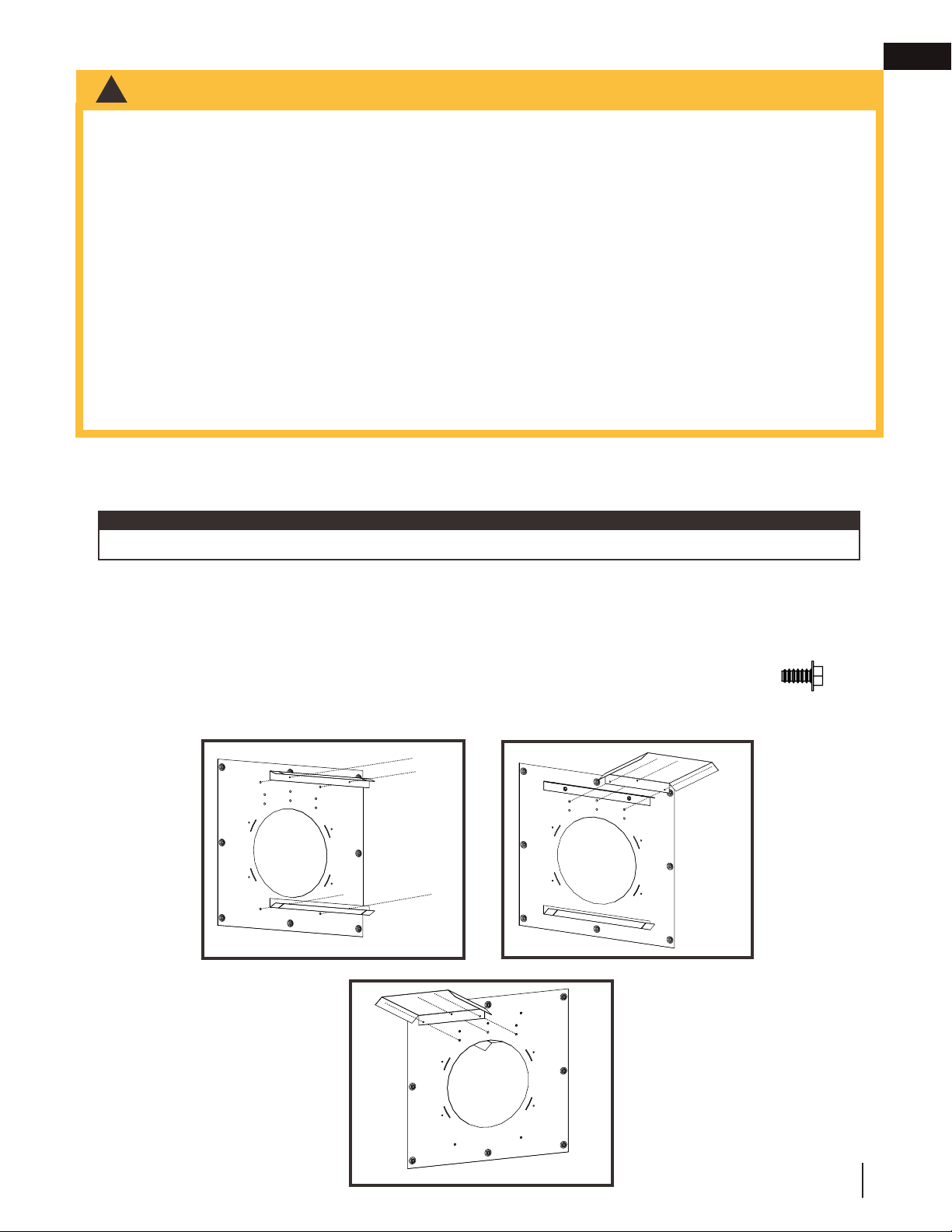

1.6 lifting handles installation/removal

note:

The lifting handles MUST be removed prior to rough

framing the appliance.

Type 1 (x4)

W415-1709 / A / 07.27.17

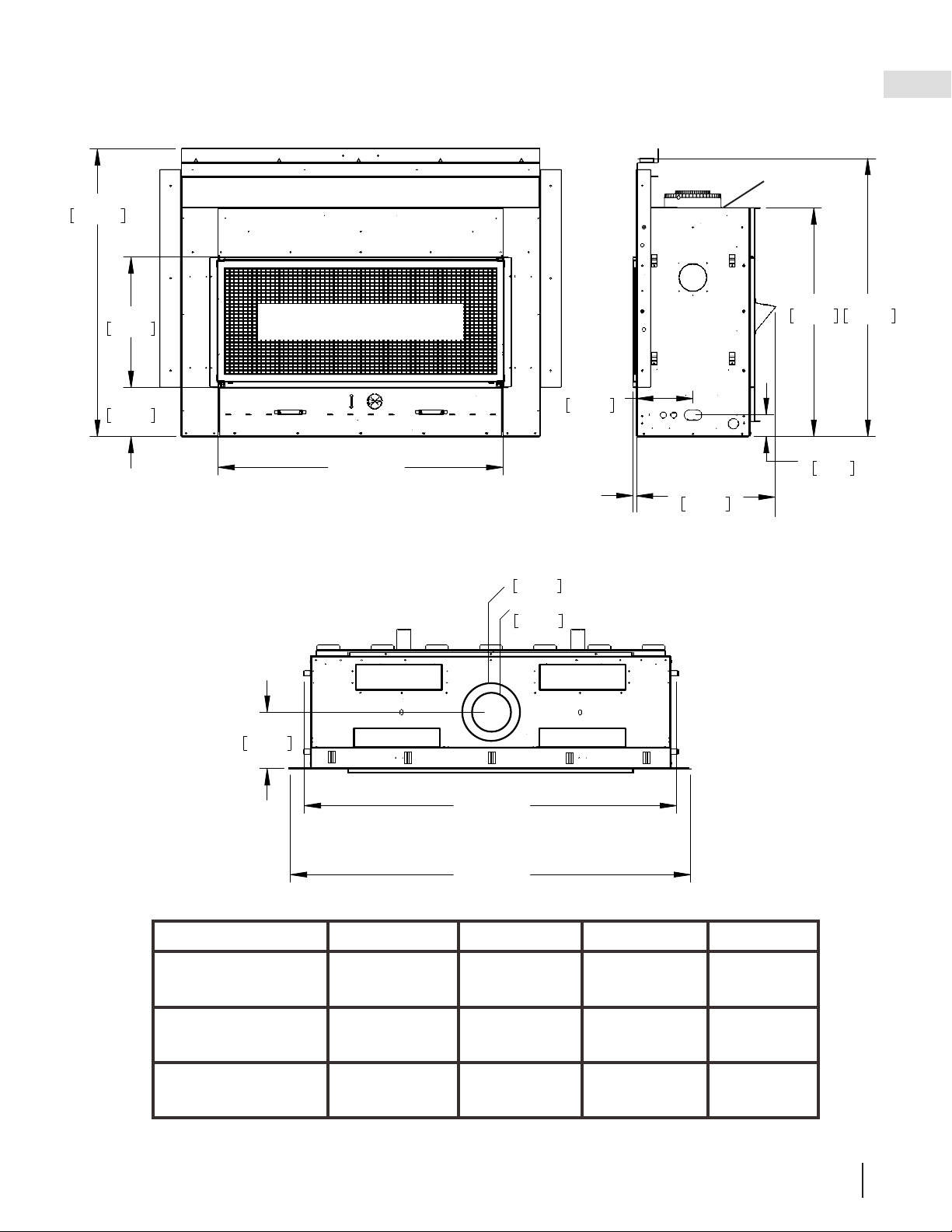

dimensions

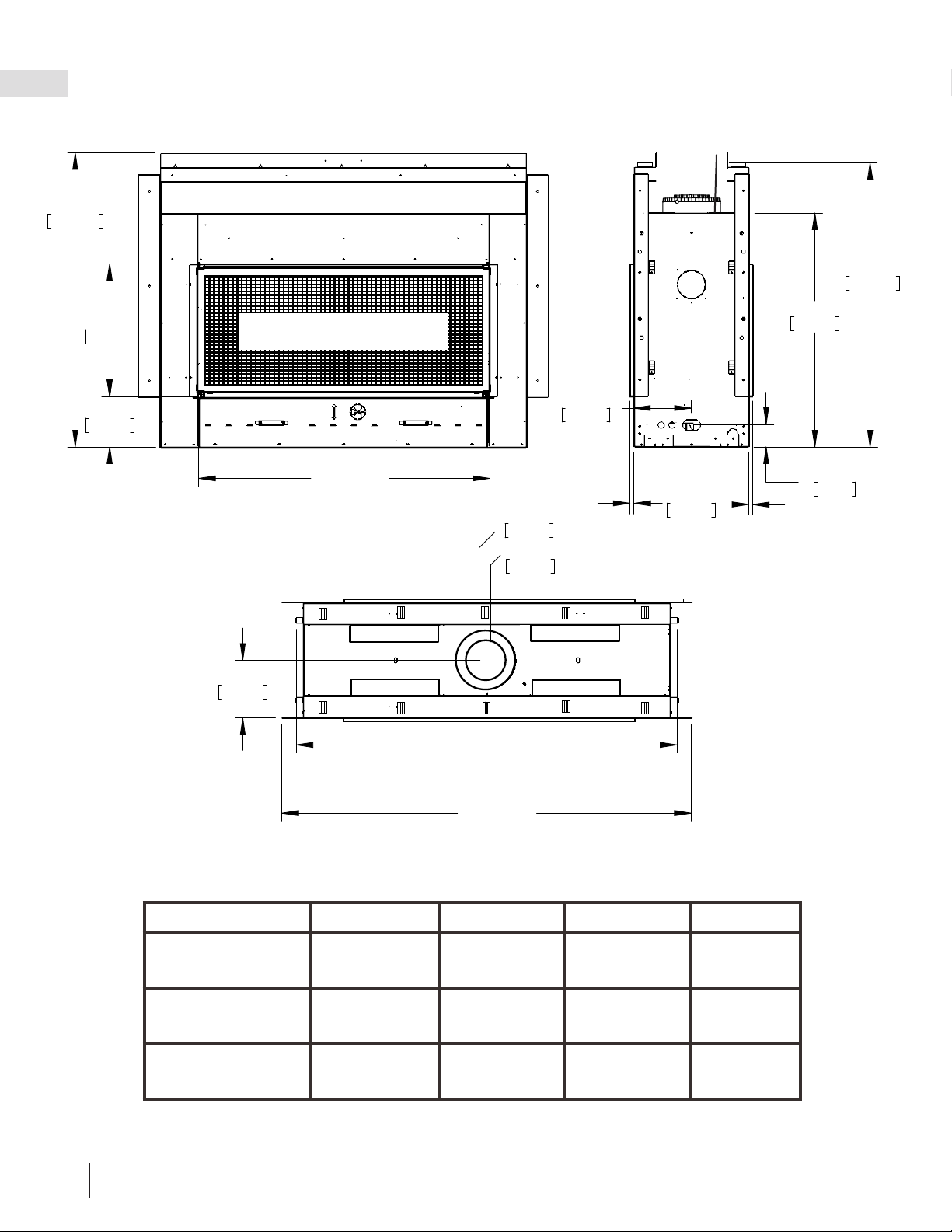

2.0 dimensions

2.1 single-sided

LV38-1 LV50-2 LV62 LV74

(Finishing Flange)

40 3/4”

(1035mm)

52 3/4”

(1340mm)

64 3/4”

(1645mm)

76 3/4”

(1949mm)

53 5/16”

(1354mm)

65 5/16”

(1659mm)

77 5/16”

(1964mm)

89 5/16”

(2269mm)

57 5/16”

(1456mm)

69 5/16”

(1761mm)

81 5/16”

(2065mm)

93 5/16”

(2370mm)

41 3/16"

1046mm

7 1/16"

179mm

18 5/8"

473mm

3 1/8"

80mm

19 7/8"

1/2”

[12.7mm]

505mm

32 3/4"

832mm

39 11/16"

1008mm

8 1/16"

205mm

8 1/16"

205mm

Ø 8"

203mm

Ø 5"

127mm

SAFETY BARRIER

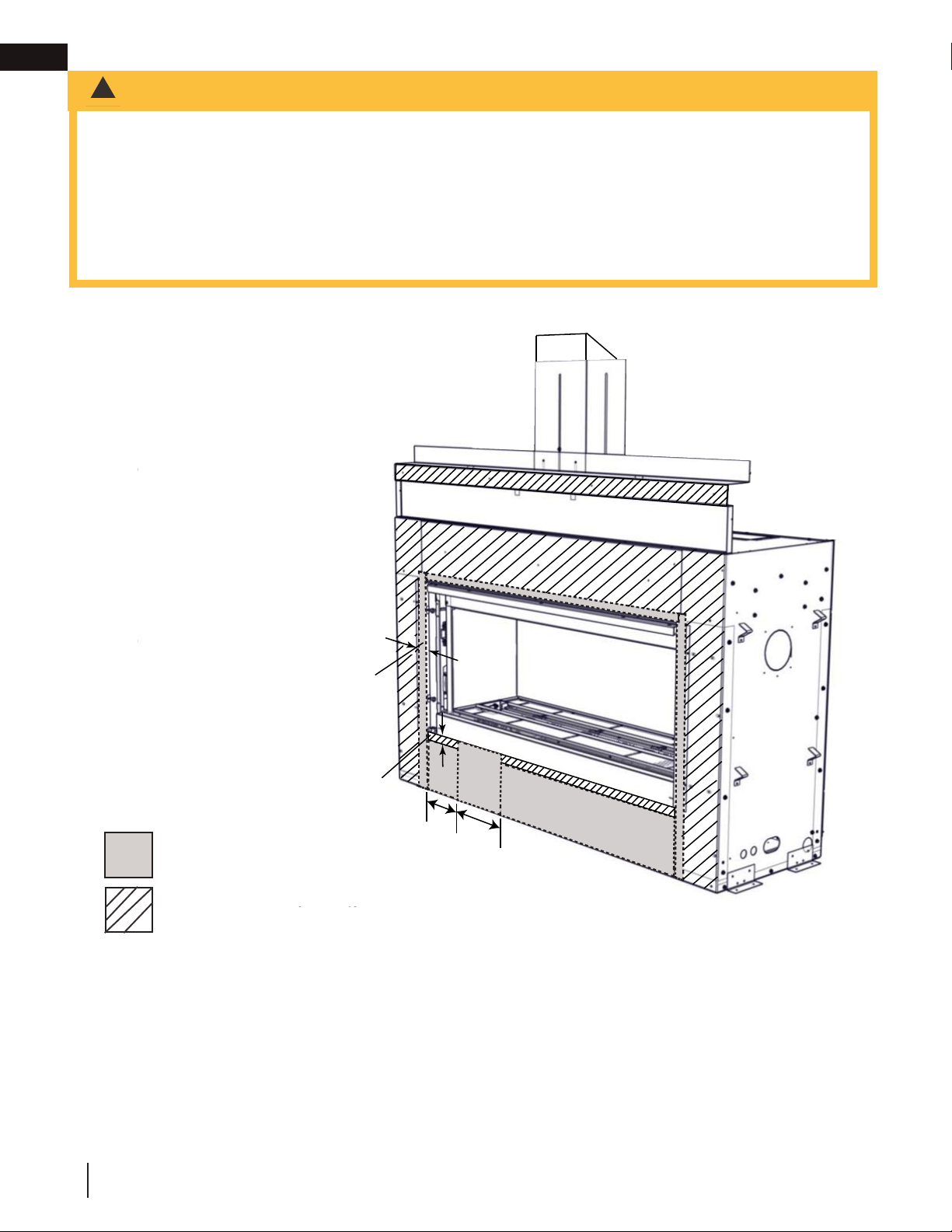

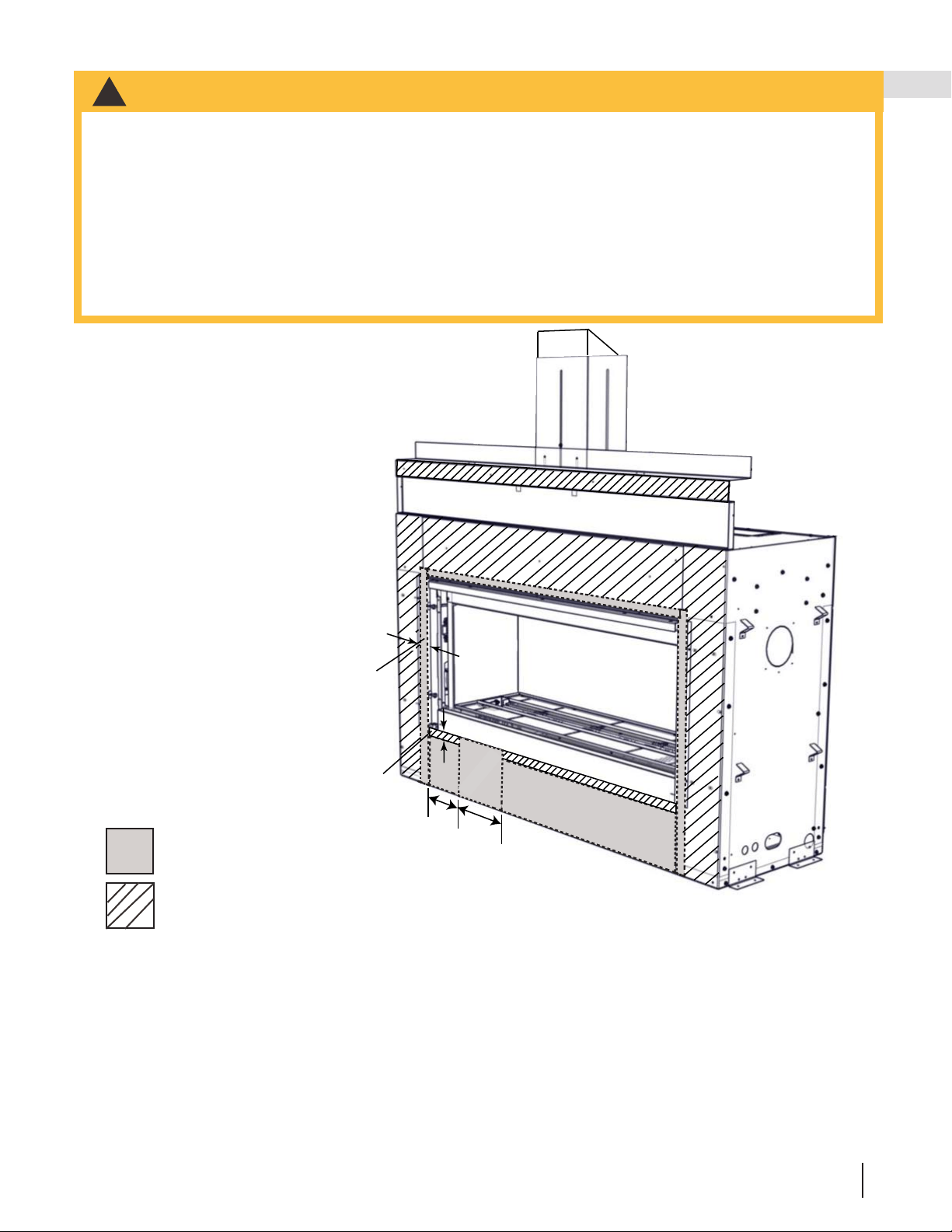

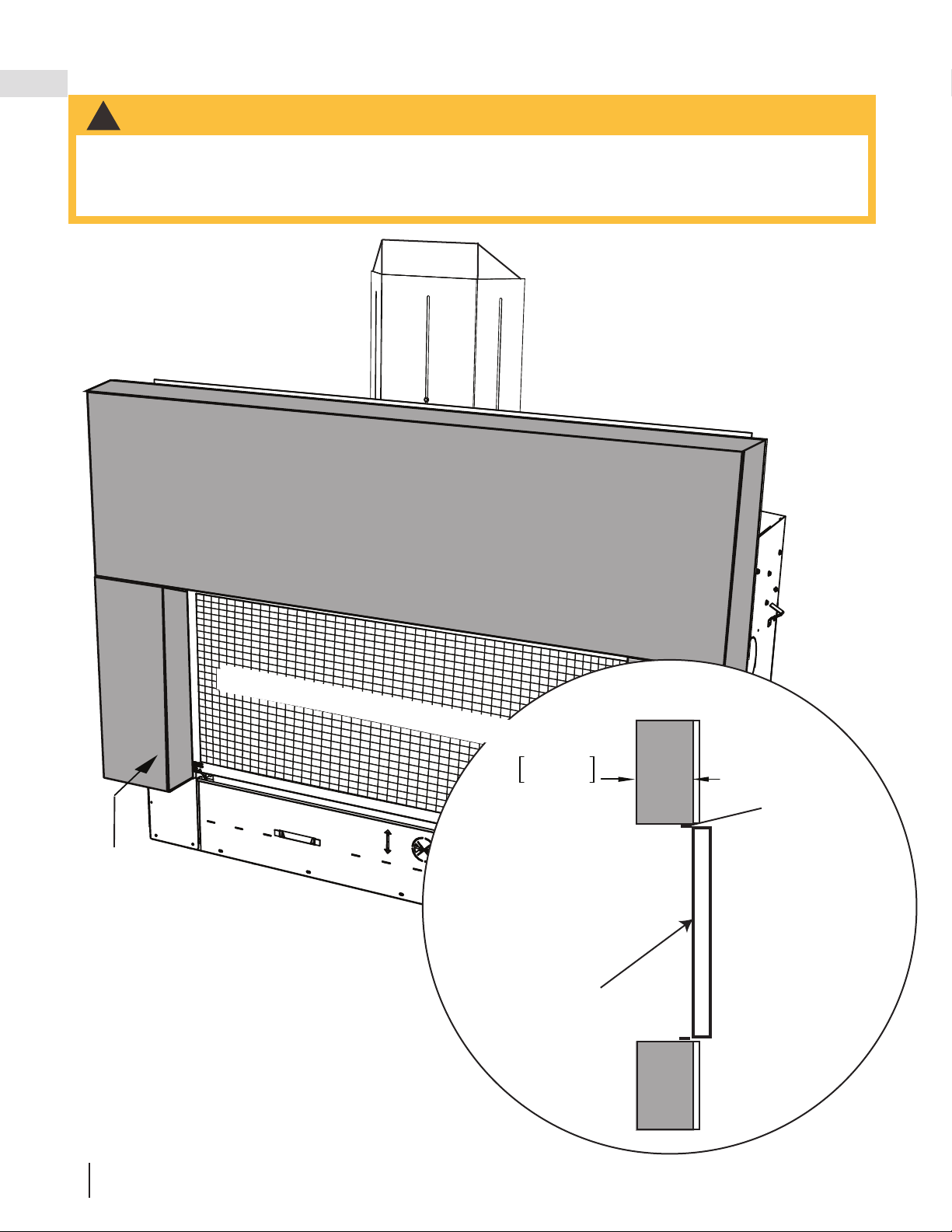

*Finishing flange depth (the finishing flange defines the perimeter of the fireplace opening.

Framing or finishing materials must NEVER encroach inside the finishing flange).

Base of air collar

W415-1709 / A / 07.27.17

dimensions

LV38-1 LV50-2 LV62 LV74

(Finishing Flange)

40 3/4”

(1035mm)

52 3/4”

(1340mm)

64 3/4”

(1645mm)

76 3/4”

(1949mm)

53 5/16”

(1354mm)

65 5/16”

(1659mm)

77 5/16”

(1964mm)

89 5/16”

(2269mm)

57 5/16”

(1456mm)

69 5/16”

(1761mm)

81 5/16”

(2065mm)

93 5/16”

(2370mm)

2.2 see-thru

41 3/16"

1046mm

7 1/16"

179mm

18 5/8"

473mm

3 1/8"

80mm

32 3/4"

832mm

39 11/16"

1008mm

16 3/16"

411mm

8 1/16"

205mm

8 1/16"

205mm

Ø 8"

203mm

Ø 5"

127mm

1/2"

[12.7mm]

1/2"

[12.7mm]

SAFETY BARRIER

*Finishing flange depth (the finishing flange defines the perimeter of the fireplace opening.

Framing or finishing materials must NEVER encroach inside the finishing flange).

Base of air collar

W415-1709 / A / 07.27.17

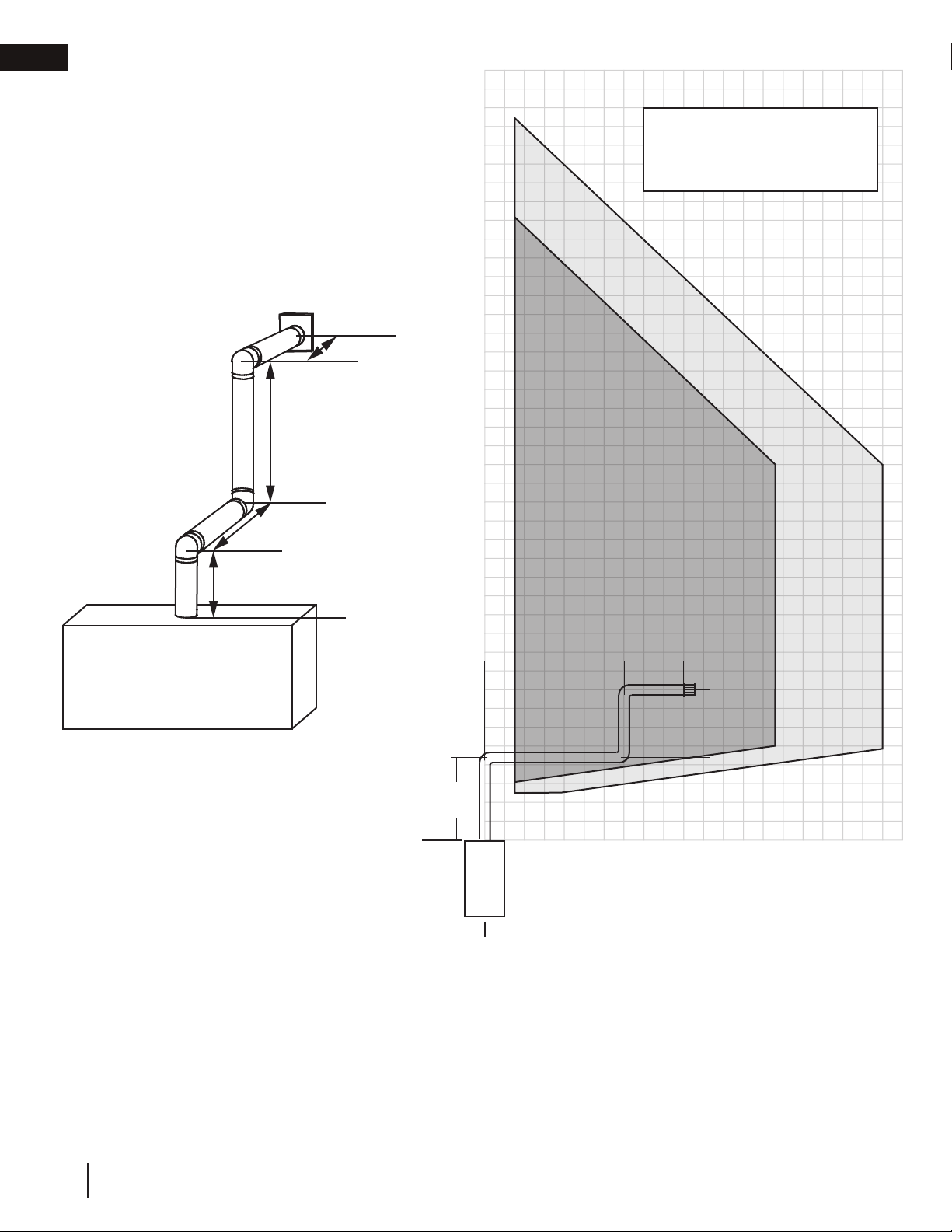

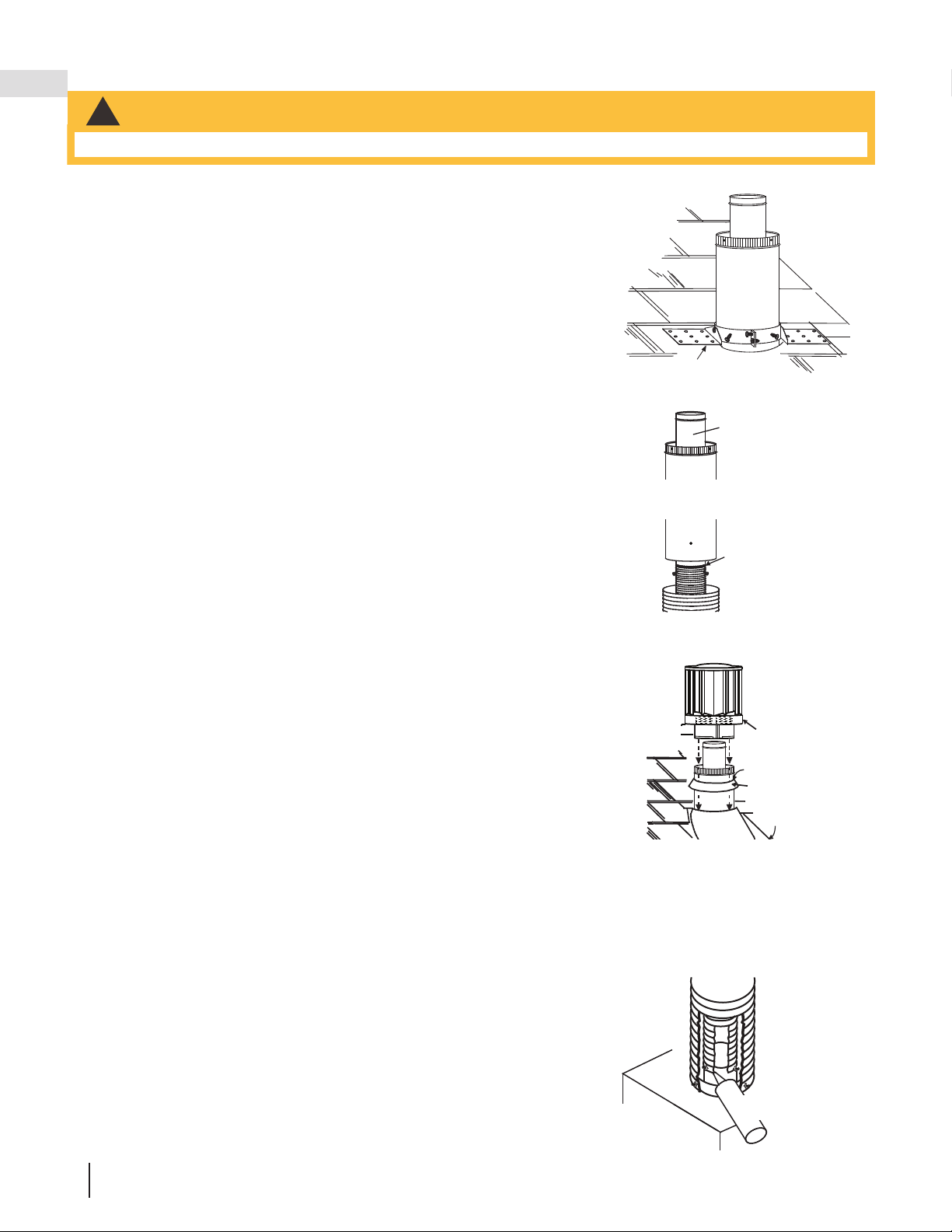

venting requirements

3.0 venting requirements

7.2

WARNING

• Risk of ﬁ re. Maintain speciﬁ ed air space clearances to vent pipe and appliance.

• If venting is included with spacers, the vent system must be supported every 3’(0.9m) for both vertical and

horizontal runs. Use support ring assembly W010-0067 or equivalent non-combustible strapping to maintain

the minimum clearance to combustibles for both vertical and horizontal runs. Spacers are attached to the

inner pipe at predetermined intervals to maintain an even air gap to the outer pipe. This gap is required

for safe operation. A spacer is required at the start, middle, and end of each elbow to ensure this gap is

maintained. These spaces must not be removed.

This appliance uses a 5” (127mm) exhaust / 8” (203.2mm) air intake vent pipe system. Refer to the

section applicable to your installation.

For safe and proper operation of the appliance follow the venting instructions exactly. Deviation from the

minimum vertical vent length can create difﬁ culty in burner start-up and/or carboning. Under extreme vent

conﬁ gurations, allow several minutes (5-15) for the ﬂ ame to stabilize after ignition. Although not a requirement,

it is recommended for vent lengths that pass through unheated spaces (attics, garages, crawl spaces) be

insulated with the insulation wrapped in a protective sleeve to minimize condensation. Provide a means for

visually checking the vent connection to the appliance after the appliance is installed. Use a ﬁ restop, vent pipe

shield or attic insulation shield when penetrating interior walls, ﬂ oor or ceiling.

The vent terminal may be painted with a high temperature paint to match exterior colours. Use an outdoor paint

suitable for 400°F (200°C). Application and performance of paint is the consumer’s responsibility. Spot testing is

recommended.

For vent systems that provide seals on the inner exhaust ﬂ ue, only the outer air intake joints must be sealed using

a red high temperature silicone (RTV). This same sealant may be used on both the inner exhaust and outer intake

vent pipe joints of all other approved vent systems except for the exhaust vent pipe connection to the appliance

ﬂ ue collar which must be sealed using the black high temperature sealant Mill Pac.

When using Wolf Steel venting components, use only approved Wolf Steel rigid / ﬂ exible components with the

following termination kits: wall terminal kit GD422-1, GD422R-1, or 1/12 to 7/12 pitch roof terminal kit GD410,

8/12 to 12/12 roof terminal kit GD411, ﬂ at roof terminal kit GD412 or periscope kit GD401 (for wall penetration

below grade). With ﬂ exible venting, in conjunction with the various terminations, use either the 5 foot (1.5m) vent

kit GD420 or the 10 foot (3.1m) vent kit GD430.

For optimum ﬂ ame appearance and appliance performance, keep the vent length and number of elbows to

a minimum.

The air terminal must remain unobstructed at all times. Examine the air terminal at least once a year

to verify that it is unobstructed and undamaged.

Rigid and ﬂ exible venting systems must not be combined. Different venting manufacturer components

must not be combined.

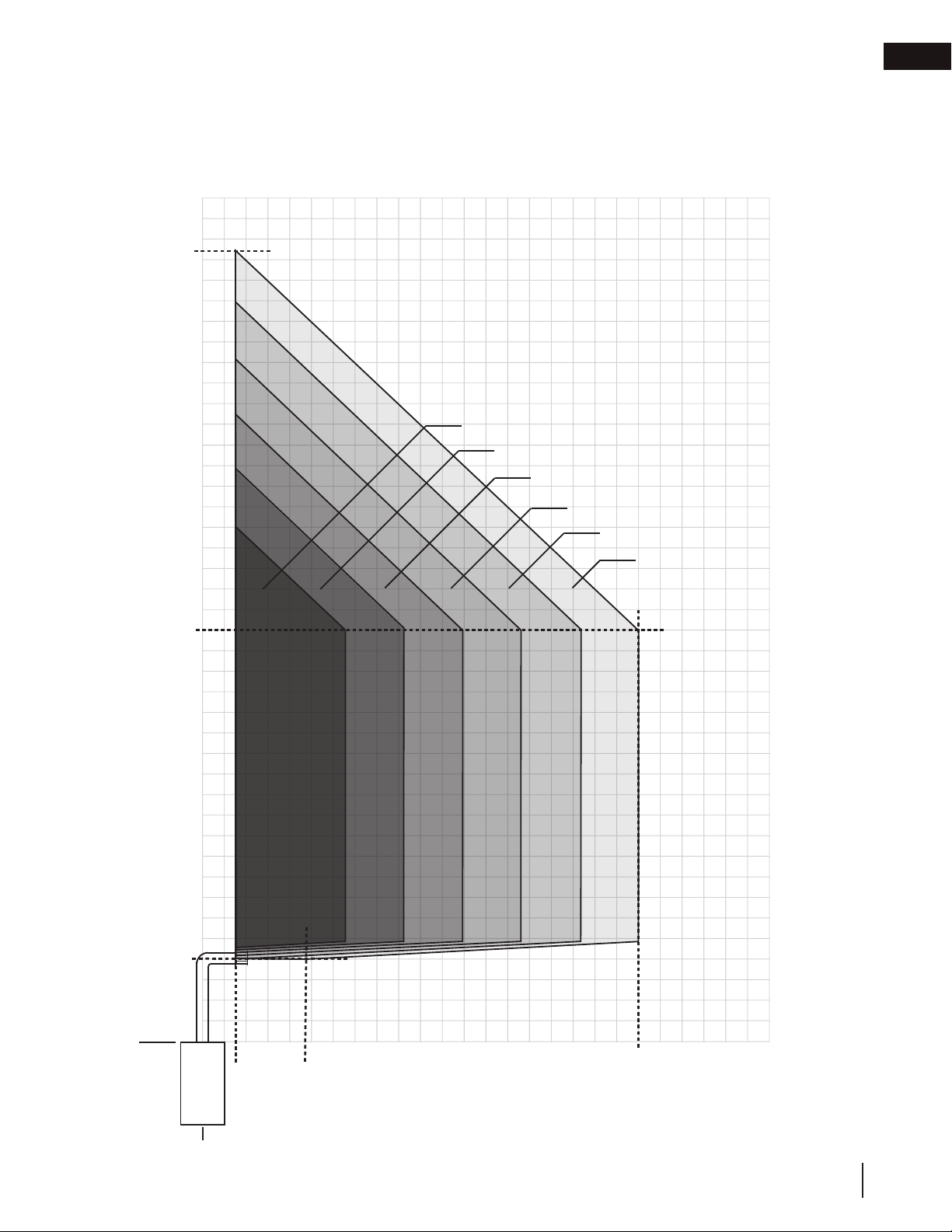

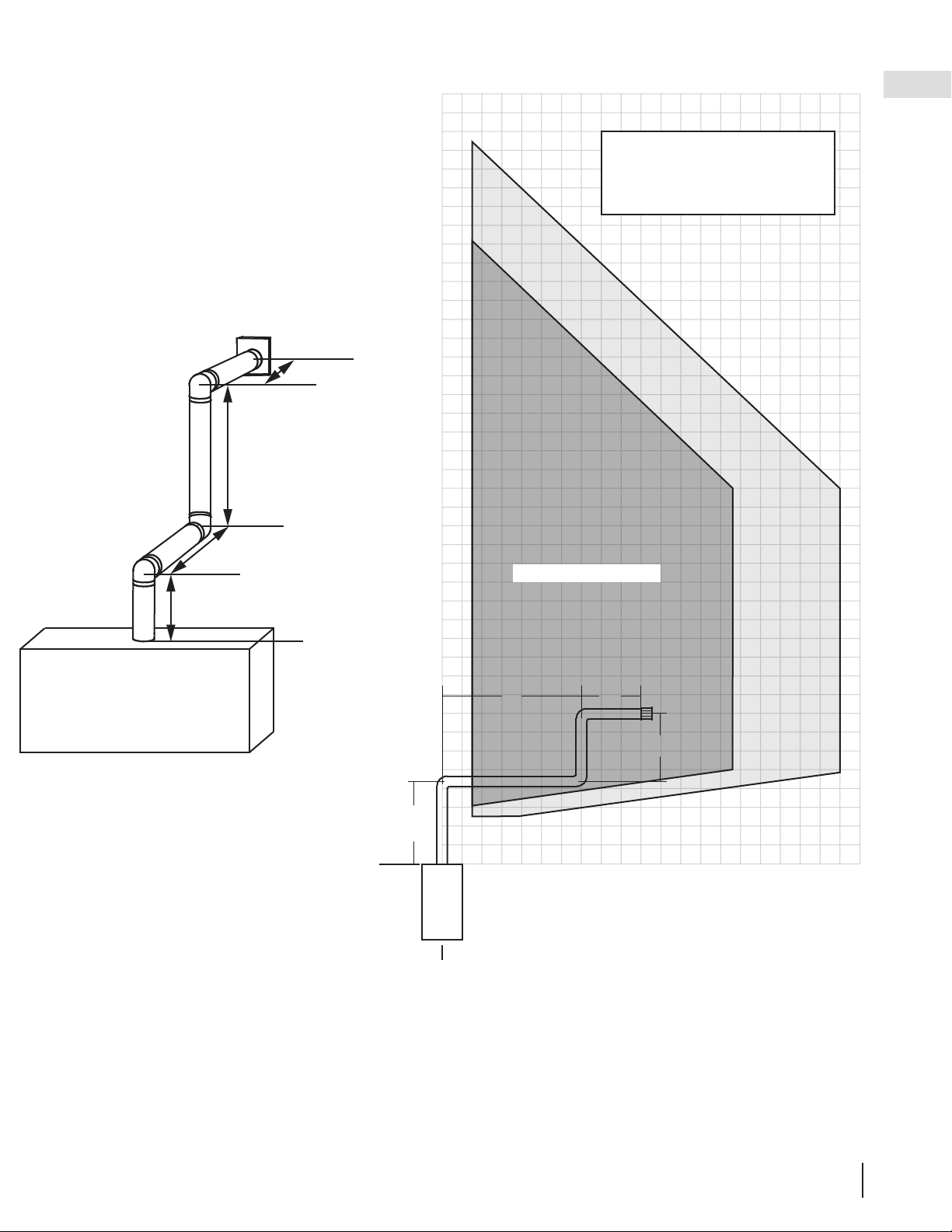

These vent kits allow for either horizontal or vertical venting of the appliance. The maximum allowable horizontal

run is 20 feet (6.1m). The maximum allowable vertical vent length is 40 feet (12.2m). The maximum number of

vent connections is two horizontally or three vertically (excluding the appliance and the air terminal connections)

when using ﬂ exible venting.

Horizontal runs may have a 0” (0mm) rise per foot/meter however for optimum performance it is recommended

that all horizontal runs have a minimum 1/4” (21mm) rise per foot/meter using ﬂ exible venting. For safe and

proper operation of the appliance, follow the venting instructions exactly.

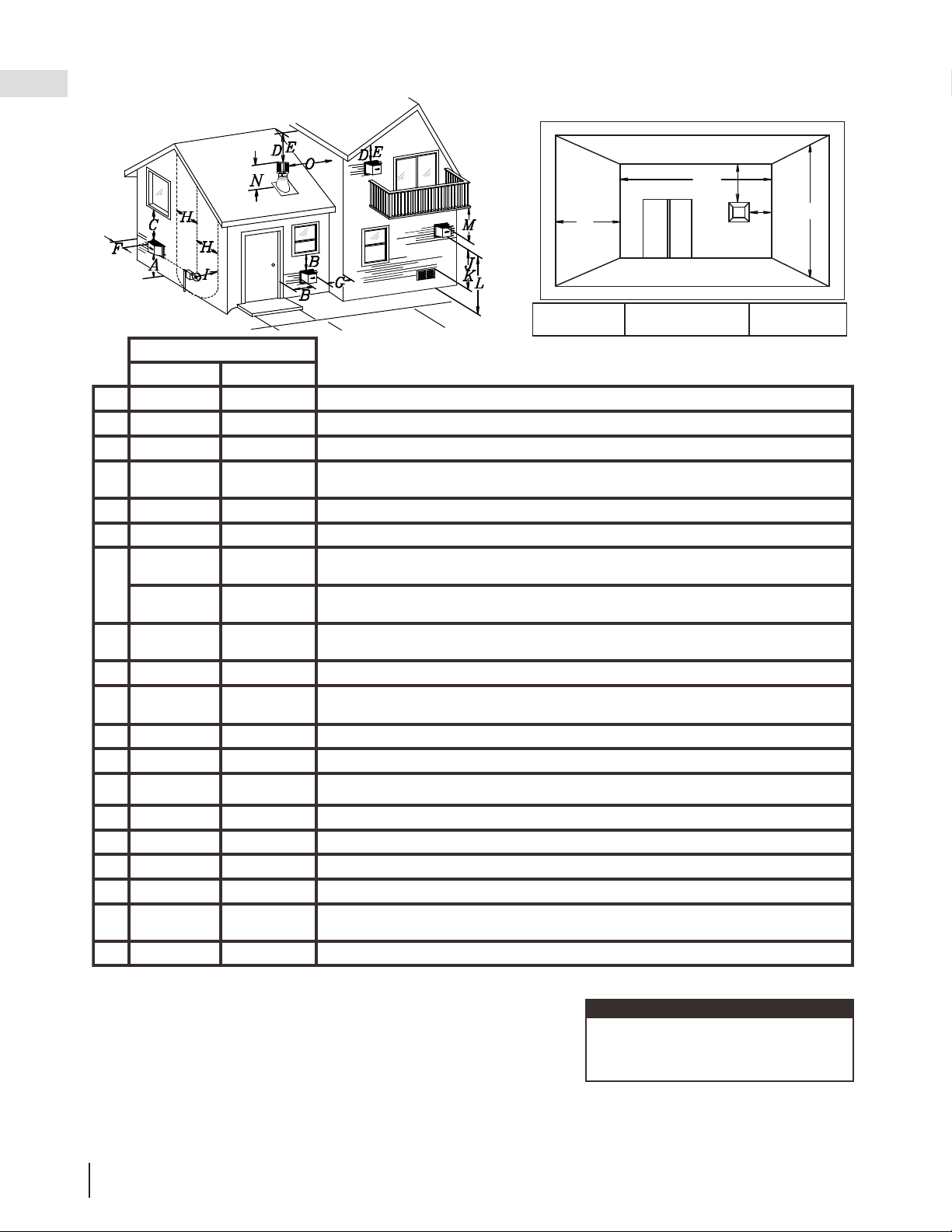

A terminal shall not terminate directly above a sidewalk or paved driveway which is located between two single

family dwellings and serves both dwellings. Local codes or regulations may require different clearances.

Do not allow the inside liner to bunch up on horizontal or vertical runs and elbows. Keep it pulled tight. A 1¼”

(31.8mm) air gap all around between the inner liner and outer liner is required for safe operation.

Vent

Manufacturer

Starter Adapter Part

Number

Supplier Website

Duravent W175-0170 Wolf Steel www.duravent.com

Amerivent 5DSC-N2 American Metal www.americanmetalproducts.com

Direct Temp 5DT-AA Selkirk www.selkirkcorp.com

SuperSeal 5DNA Metal-Fab www.mtlfab.com

Use only Wolf Steel, Simpson Dura-Vent, Selkirk Direct Temp, American Metal Amerivent or Metal-Fab venting

components. Minimum and maximum vent lengths, for both horizontal and vertical installations, clearances from

vent pipes to combustibles and air terminal locations as set out in this manual apply to all vent systems and

must be adhered to. For Simpson Dura-Vent, Selkirk Direct Temp, American Metal Amerivent and Metal-Fab,

follow the installation procedure provided with the venting components. A starter adaptor must be used with the

following vent systems and may be purchased from the corresponding supplier:

If for any reason the vent air intake system is disassembled; reinstall per the instructions provided for the

initial installation.

This appliance must be installed with a continuous connection of exhaust and air intake vent pipes. Utilizing

alternate constructions, such as a chimney as part of the vent system, is not permitted.

note:

The vent terminal may be painted with high temperature paint to match exterior colours. Use an outdoor paint

suitable for 400°F (200°C). Application and performance of paint is the consumer’s responsibility. Spot testing is

recommended. Appliance should be off.

All vent measurements start at the base of the air collar of the appliance.

This appliance uses a 5” (127mm) exhaust / 8” (203.2mm) air intake vent pipe system. Refer to the

section applicable to your installation.

For safe and proper operation of the appliance follow the venting instructions exactly. Deviation from the

minimum vertical vent length can create difﬁculty in burner start-up and/or carboning. Under extreme vent

conﬁgurations, allow several minutes (5-15) for the ﬂame to stabilize after ignition. Although not a requirement,

it is recommended for vent lengths that pass through unheated spaces (attics, garages, crawl spaces) be

insulated with the insulation wrapped in a protective sleeve to minimize condensation.

Provide a means for visually checking the vent connection to the appliance after the appliance is installed. Use a

ﬁrestop, vent pipe shield or attic insulation shield when penetrating interior walls, ﬂoor or ceiling.

If for any reason the vent air intake system is disassembled; reinstall per the instructions provided for the

initial installation.

This appliance must be installed with a continuous connection of exhaust and air intake vent pipes. Utilizing

alternate constructions, such as a chimney as part of the vent system, is not permitted.

note:

W415-1709 / A / 07.27.17

venting requirements

For vent systems that provide seals on the inner exhaust ﬂue, only the outer air intake joints must be sealed using

a red high temperature silicone (RTV). This same sealant may be used on both the inner exhaust and outer

intake vent pipe joints of all other approved vent systems except for the exhaust vent pipe connection

to the appliance ﬂue collar which must be sealed using the black high temperature sealant Mill Pac.

When using Wolf Steel venting components, use only approved Wolf Steel ﬂexible components with the wall

terminal kit GD422R-2, or 1/12 to 7/12 pitch roof terminal kit GD410, 8/12 to 12/12 roof terminal kit GD411,

ﬂat roof terminal kit GD412 or periscope kit GD401 (for wall penetration below grade). With ﬂexible venting, in

conjunction with the various terminations, use either the 5 foot (1.5m) vent kit GD420 or the 10 foot (3.1m) vent

kit GD430.

For optimum ﬂame appearance and appliance performance, keep the vent length and number of elbows to

a minimum.

Horizontal runs may have a 0” (0mm) rise per foot/meter however for optimum performance it is

recommended that all horizontal runs have a minimum 1/4” (21mm) rise per foot/meter using ﬂexible

venting. For safe and proper operation of the appliance, follow the venting instructions exactly.

The air terminal must remain unobstructed at all times. Examine the air terminal at least once a year

to verify that it is unobstructed and undamaged.

Rigid and ﬂexible venting systems must not be combined. Different venting manufacturer components

must not be combined.

These vent kits allow for either horizontal or vertical venting of the appliance. The maximum allowable

horizontal run is 20 feet (6.1m). The maximum allowable vertical vent length is 40 feet (12.2m). The maximum

number of vent connections is two horizontally or three vertically (excluding the appliance and the air terminal

connections) when using ﬂexible venting.

A terminal shall not terminate directly above a sidewalk or paved driveway which is located between two single

family dwellings and serves both dwellings. Local codes or regulations may require different clearances.

Do not allow the inside liner to bunch up on horizontal or vertical runs and elbows. Keep it pulled tight. A 1¼”

(31.8mm) air gap all around between the inner liner and outer liner is required for safe operation.

Vent

Manufacturer

Starter Adapter Part

Number

Supplier Website

Duravent W175-0170 Wolf Steel www.duravent.com

Amerivent 5DSC-N2 American Metal www.americanmetalproducts.com

Direct Temp 5DT-AA Selkirk www.selkirkcorp.com

SuperSeal 5DNA Metal-Fab www.mtlfab.com

Use only Wolf Steel, Simpson Dura-Vent, Selkirk Direct Temp, American Metal Amerivent or Metal-Fab venting

components. Minimum and maximum vent lengths, for both horizontal and vertical installations, clearances from

vent pipes to combustibles and air terminal locations as set out in this manual apply to all vent systems and

must be adhered to. For Simpson Dura-Vent, Selkirk Direct Temp, American Metal Amerivent and Metal-Fab,

follow the installation procedure provided with the venting components. A starter adaptor must be used with the

following vent systems and may be purchased from the corresponding supplier:

W415-1709 / A / 07.27.17

venting requirements

LV38-1 LV50-2 LV62 LV74

40” 46 1/2” N/A N/A

LV38-1 LV50-2 LV62 LV74

40” 46 1/2” 52 1/2” 58 1/2”

30”

(76.2cm)

LV38-1 & LV50-2: 30” (76.2cm) min

LV62 & LV74: 48” (121.9cm) min

LV38-1 & LV50-2: 62 3/4” (76.2cm)

min plus rise

LV62 & LV74: 80 3/4” (205.1cm)

min plus rise

62 3/4"

(159.4cm)

18"

(45.7cm)

SINGLE-SIDED

SEE-THRU

3.1 typical venting installation

minimum plus rise

maximum

minimum

base of

air collar

base of

air collar

special vent installation (periscope termination)

Use the periscope kit to locate the air termination above grade. The periscope must be installed so that when

ﬁnal grading is completed, the bottom air slot is located a minimum 12” (30.5cm) above grade. The maximum

allowable vent length is 10’ (3m).

12"

(30.5cm)

minimum

to grade

minimum

30”

(76.2cm)

base of air collar

12"

(30.5cm)

minimum

to grade

base of air collar

LV38-1 & LV50-2: 30” (76.2cm) min

LV62 & LV74: 48” (121.9cm) min

W415-1709 / A / 07.27.17

venting requirements

40 ft (12m)

maximum

6 ft (1.83m)

minimum

16" (40.6cm)

minimum

SINGLE-SIDED OR SEE-THRU

base of air collar

W415-1709 / A / 07.27.17

venting requirements

3.2 minimum air terminal location clearances

Covered balcony applications ††*

MIN

MAX

= 3 feet

(0.9m)

= 2 x

≤ 15 feet

(4.6m)

ACTUAL

INSTALLATIONS

CANADA U.S.A.

12” (30.5cm) 12” (30.5cm) Clearance above grade, veranda porch, deck or balcony.

12” (30.5cm)

9” (229mm) Clearance to windows or doors that open.

12” (30.5cm)* 9” (229mm) * Clearance to permanently closed windows.

18”

(45.7cm)**

18”

(45.7cm)**

Vertical clearance to ventilated sofﬁ ts located above the terminal within a horizontal distance of 2’

(0.6m) from the center line of the terminal.

12” (30.5cm)** 12” (30.5cm)** Clearance to unventilated sofﬁ t.

0” (0mm) 0” (0mm) Clearance to an outside corner wall.

0” (0mm)*** 0” (0mm)***

Clearance to an inside non-combustible corner wall or protruding non-combustible obstructions (chimney, etc.).

2” (51mm)*** 2” (51mm)*** Clearance to an inside combustible corner wall or protruding combustible obstructions (vent chase, etc.).

3’(0.9m) 3’(0.9m)****

Clearance to each side of the center line extended above the meter / regulator assembly to a maxi-

mum vertical distance of 15’ (4.6m).

3’ (0.9m) 3’ (0.9m)**** Clearance to a service regulator vent outlet.

12” (30.5cm) 9” (229mm) Clearance to a non-mechanical air supply inlet to the building or a combustion air inlet to any other appliance.

6’ (1.8m) 3’ (0.9m) † Clearance to a mechanical air supply inlet.

7’ (2.1m) ‡ 7’ (2.1m) **** Clearance above a paved sidewalk or paved driveway located on public property.

12” (30.5cm)†† 12” (30.5cm)**** Clearance under a veranda, porch or deck.

16” (40.6cm) 16” (40.6cm) Clearance above the roof.

2’ (0.6m)†* 2’ (0.6m) †* Clearance from an adjacent wall including neighbouring buildings.

8’ (2.4m) 8’ (2.4m)

Roof must be non-combustible without openings.

3’ (0.9m) 3’ (0.9m) See chart for wider wall dimensions.

6’ (1.8m) 6’ (1.8m)

See chart for deeper wall dimensions. The terminal shall not be installed on any wall that has an

opening between the terminal and the open side of the structure.

12” (30.5cm) 12” (30.5cm) Clearance under a covered balcony

Δ The terminal shall not be located less than 6 feet under a window that opens on a horizontal plane in a structure with three walls and a roof.

* Recommended to prevent condensation on windows and thermal breakage

** It is recommended to use a heat shield and to maximize the distance to vinyl clad sofﬁ ts.

*** The periscope requires a minimum 18 inches clearance from an inside corner.

**** This is a recommended distance. For additional requirements, check local codes.

† 3 feet above if within 10 feet horizontally.

‡ A vent shall not terminate where it may cause hazardous frost or ice accumulations on adjacent property surfaces.

†† Permitted only if the veranda, porch, or deck is fully open on a minimum of two sides beneath the ﬂ oor.

†* Recommended to prevent recirculation of exhaust products. For additional requirements, check local codes.

††* Permitted only if the balcony is fully open on a minimum of one side.

In the absence of local codes and

gas supplier requirements, installation

must be done in accordance to the

national country requirements.

note:

9.1

W415-1709 / A / 07.27.17

venting requirements

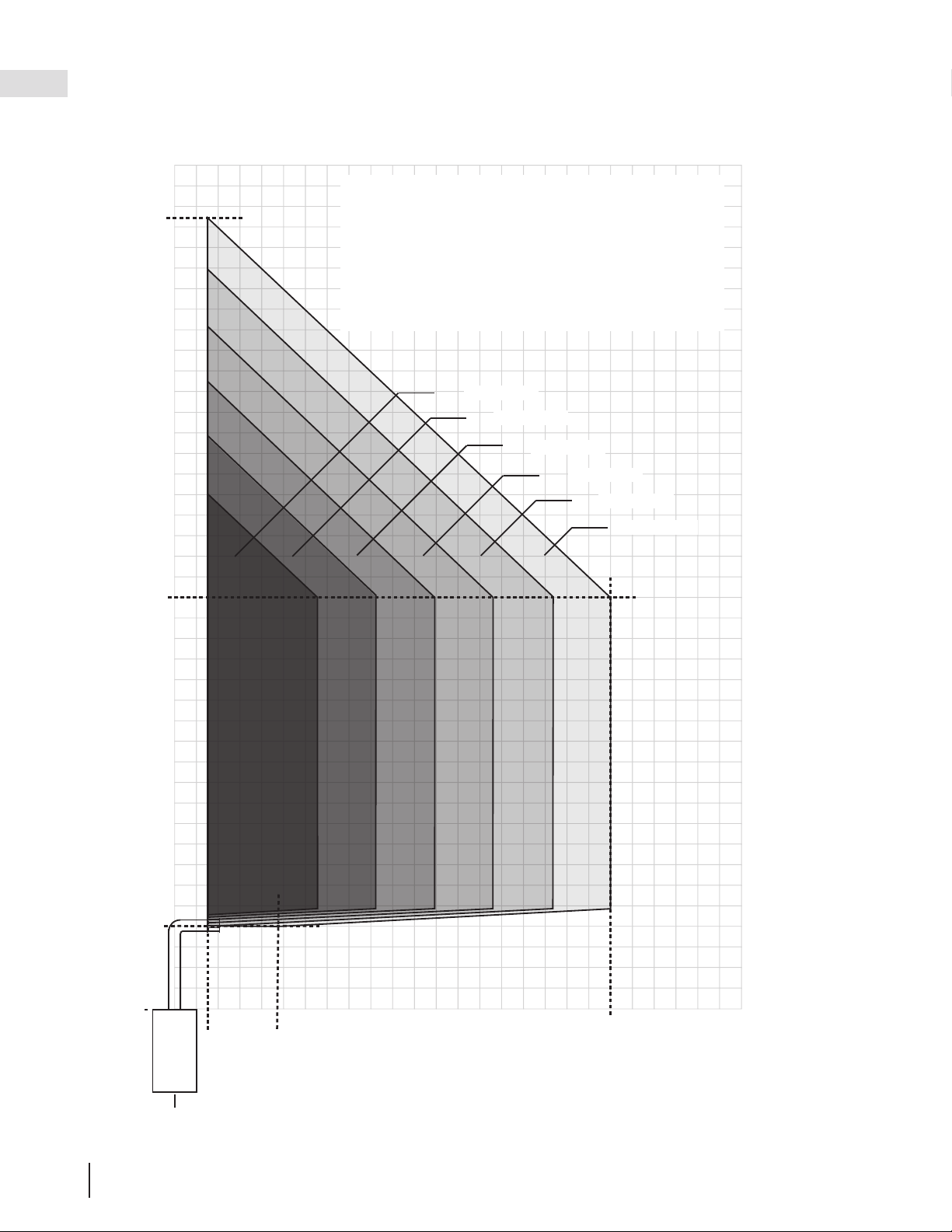

3.3 horizontal termination

0’

Base of

air collar

10’

15’

20’

25’

20’

30’

40’

5’

3 7/8’

(46 1/2”)

1 1/2’

(18”)

2 1/2’

(30”)

38 1/2’

(462”)

5’

1 elbow zone

1-2 elbow zone

1-3 elbow zone

1-4 elbow zone

1-5 elbow zone

1-6 elbow zone

V+H ≤ 40 ft. (For longer vent runs, a power

vent is required).

H ≤ 20 ft.

V + H are measured from the centre of vent

elbows. Elbows are considered as 90º.

Two 45º elbows = One 90º elbow.

LV38-1 / LV50-2 / LV62 / LV74 SINGLE-SIDED

LV38-1 / LV50-2 SEE-THRU

W415-1709 / A / 07.27.17

venting requirements

0’

Base of

air collar

10’

15’

20’

25’

20’

30’

40’

5’

4 7/8’

(58 1/2”)

1 1/2’

(18”)

4’

(48”)

5’

1 elbow zone

1-2 elbow zone

1-3 elbow zone

1-4 elbow zone

1-5 elbow zone

1-6 elbow zone

V+H ≤ 40 ft. (For longer vent runs, a power

vent is required).

H ≤ 20 ft.

V + H are measured from the centre of vent

elbows. Elbows are considered as 90º.

Two 45º elbows = One 90º elbow.

38 1/2’

(462”)

LV62/ LV74 SEE-THRU

W415-1709 / A / 07.27.17

venting requirements

10’

15’

20’

30’

40’

5’

1-3 elbow zone

= 8 ft

= 10 ft

90°

V and H are measured from the center of the vent elbows

This example represents a vent that has a maximum of three 90º elbows, a combined horizontal vent length (H ) of

10 feet and a combined vertical vent length (V ) of 8 feet.

0’

Base of

air collar

Base of

air collar

Since the vent is located in the dark shaded area, it is within the acceptable vent conﬁguration

W415-1709 / A / 07.27.17

venting requirements

3.4 vertical termination

10’

15’

20’

30’

40’

5’

6’

0 elbow zone

2 elbow zone

2-3 elbow zone

2-4 elbow zone

2-5 elbow zone

2-6 elbow zone

2-7 elbow zone

0’

Base of

air collar

V+H ≤ 40 ft. (For longer vent runs,

a power vent is required).

H ≤ 20 ft.

V + H are measured from the

centre of vent elbows. Elbows are

considered as 90º.

Two 45º elbows = One 90º elbow.

ALL APPLIANCES

W415-1709 / A / 07.27.17

rough framing - before appliance installation

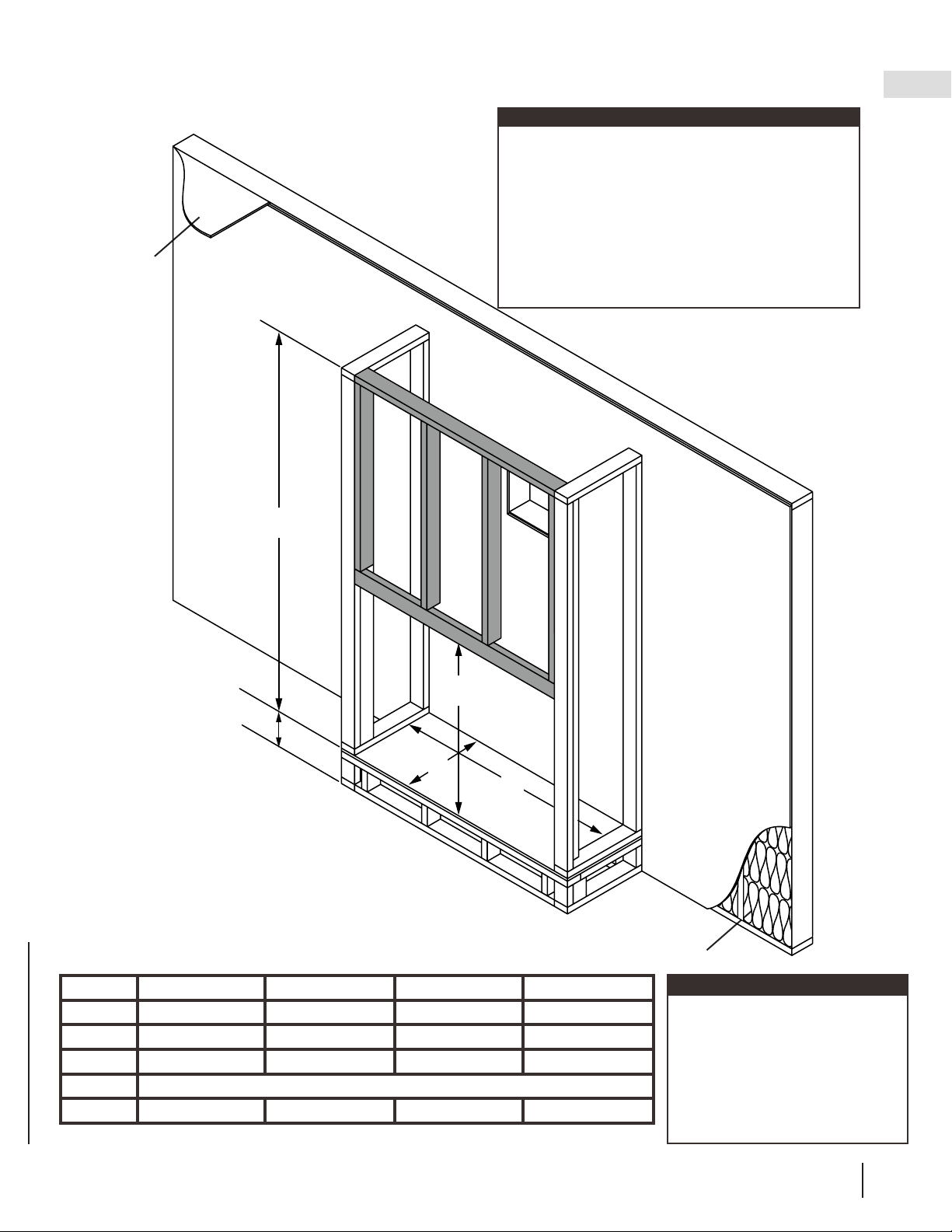

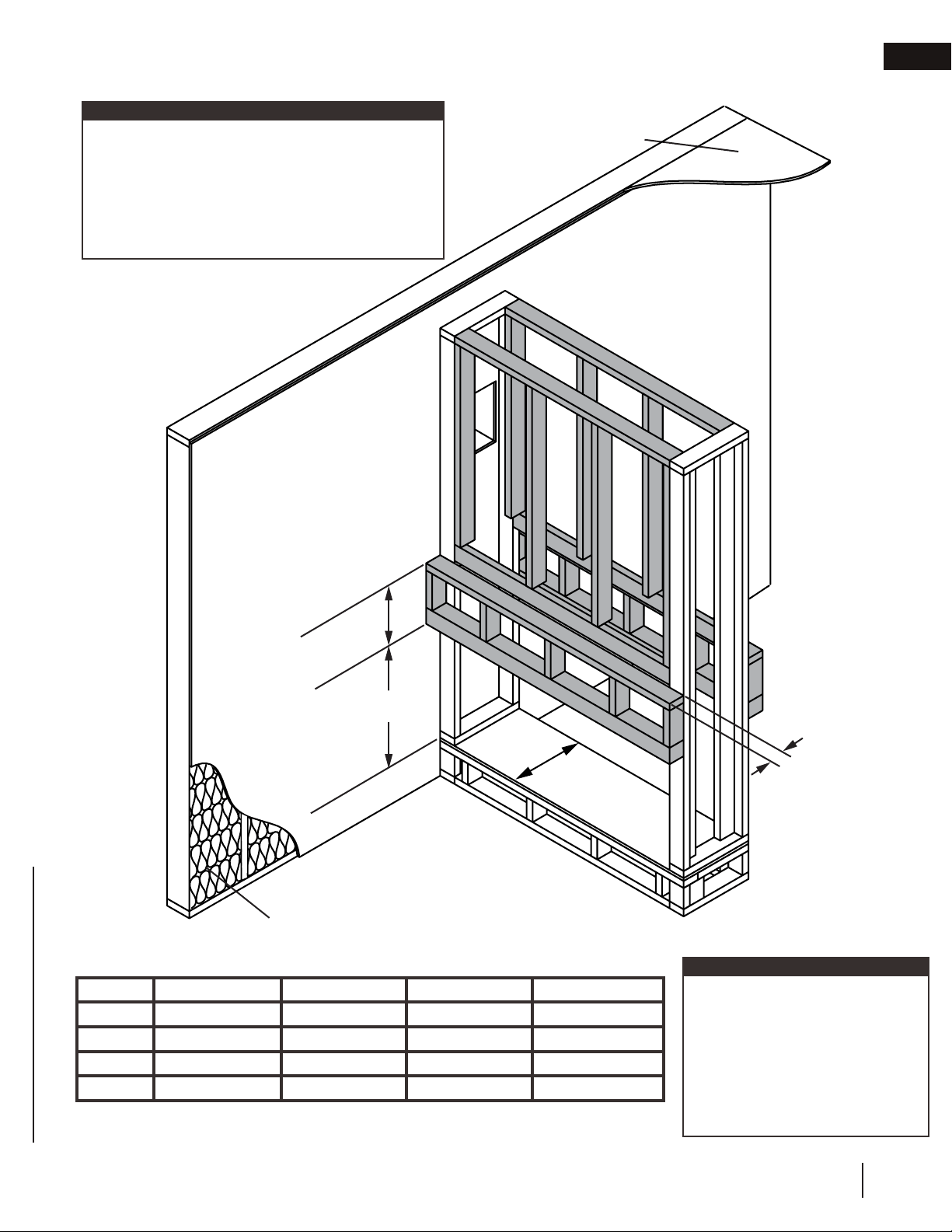

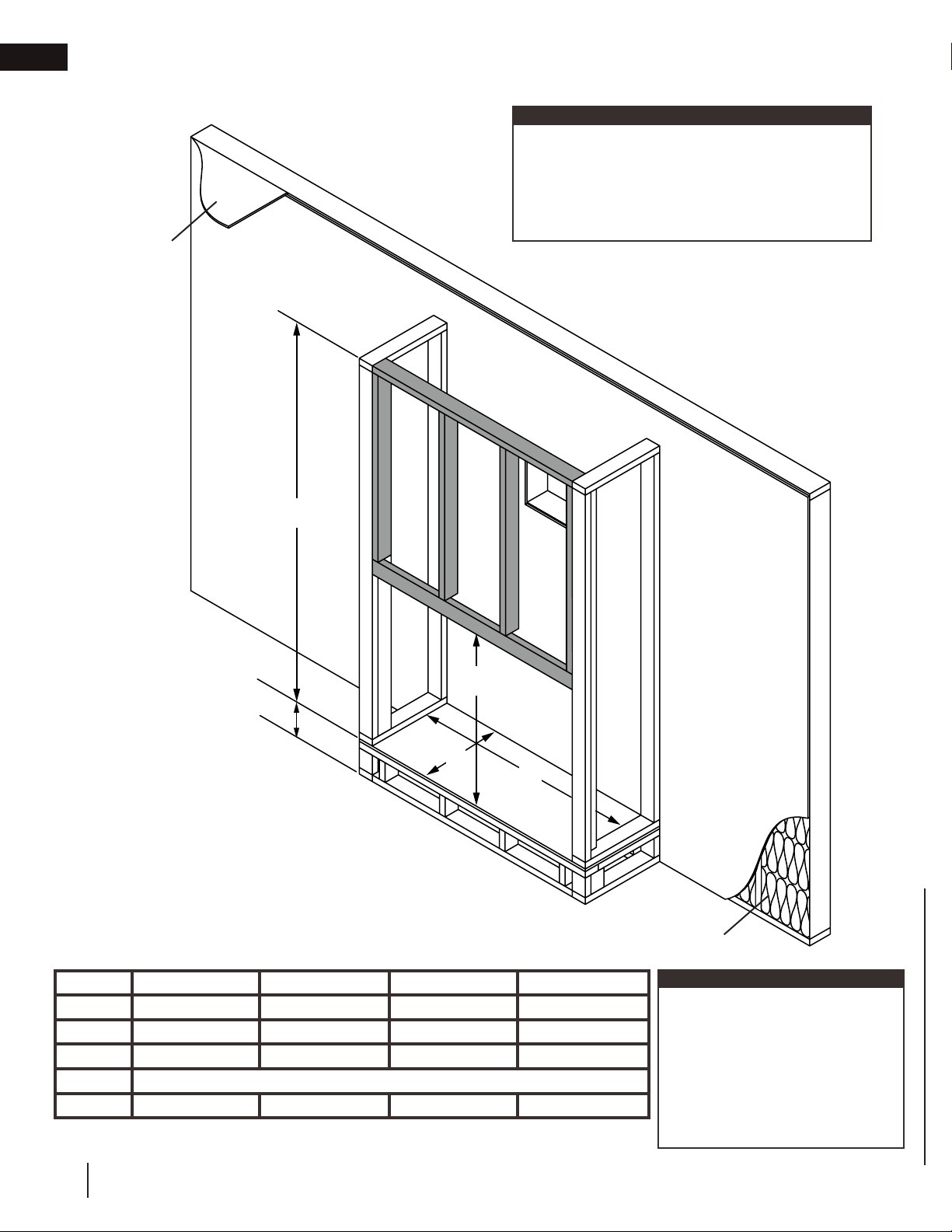

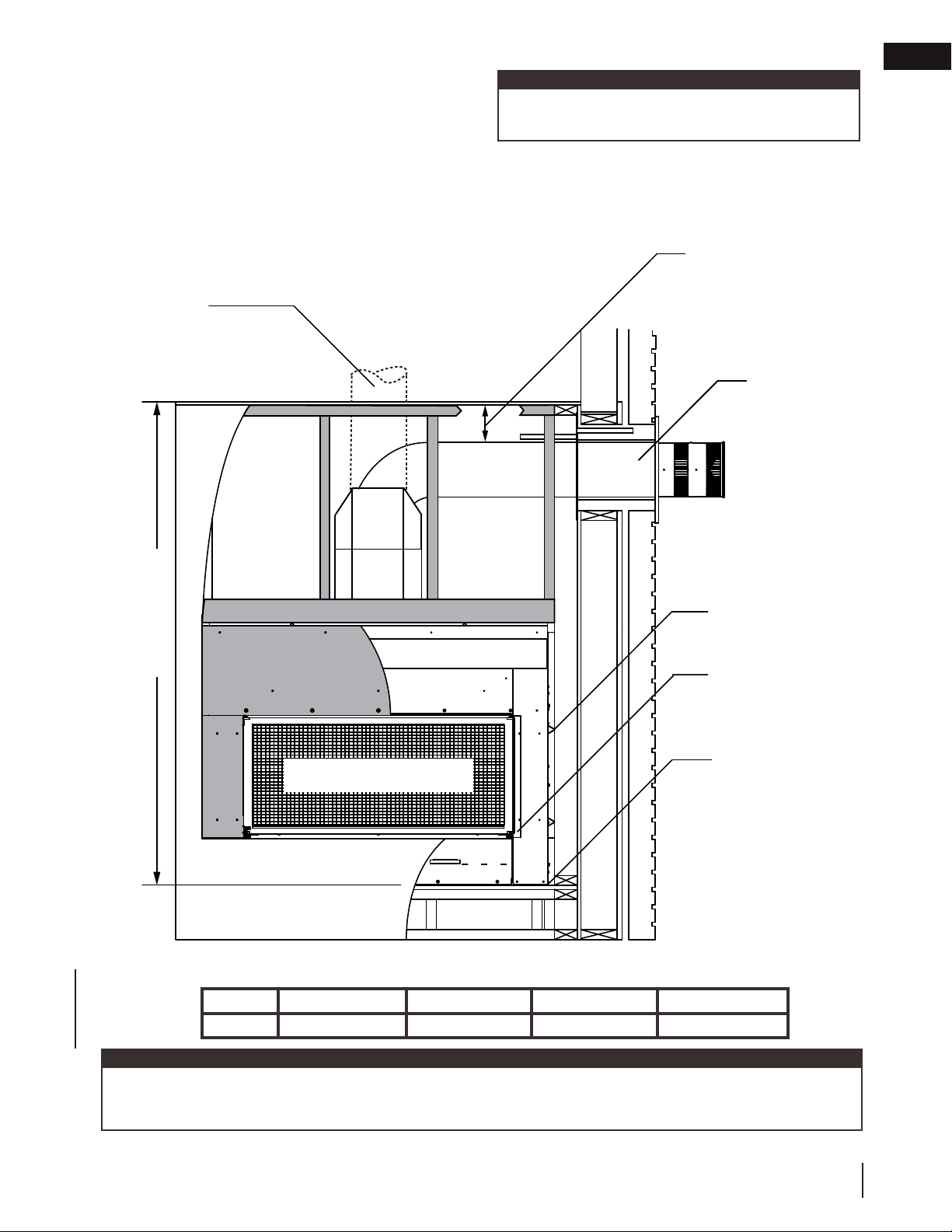

4.0 rough framing - before appliance installation

WARNING

• Risk of ﬁ re!

• In order to avoid the possibility of exposed insulation or vapour barrier coming in contact with the appliance

body, it is recommended that the walls of the appliance enclosure be “ﬁ nished” (i.e. drywall / sheetrock),

as you would ﬁ nish any other outside wall of a home. This will ensure that clearance to combustibles is

maintained within the cavity.

• Do not notch the framing around the appliance stand offs. Failure to maintain air space clearance may cause

over heating and ﬁ re. Prevent contact with sagging or loose insulation or framing and other combustible

materials. Block opening into the chase to prevent entry of blown-in insulation. Make sure insulation and

other materials are secured.

• When constructing the enclosure allow for ﬁ nishing material closer than the minimums listed must be

constructed entirely of non-combustible materials. Materials consisting entirely of steel, iron, brick, tile,

concrete, slate, glass or plasters, or any combination thereof are suitable. Materials that are reported as

passing ASTM E136, standard test method for behaviour of materials in a vertical tube furnace at 1382ºF

(750ºC) and UL763 shall be considered non-combustible materials.

• Minimum clearance to combusibles must be maintained or a serious ﬁ re hazard could result.

• The appliance requires a minimum enclosure height. Measure from the appliance base.

• If steel stud framing kits with cement board are provided, or speciﬁ ed in the installation instructions, they

must be installed.

• If speciﬁ ed in the installation instruction, ﬁ nishing must be done using a non-combustible board, ceramic tile,

marble, etc. Do NOT use wood or drywall. Any ﬁ re rated drywall is not acceptable.

When using optional ﬁ nishing accessories, the framing dimensions and ﬁ nishing materials may differ from

what is outlined in the section below; refer to the leaﬂ et instructions supplied in the accessory kit for speciﬁ c

framing and ﬁ nishing speciﬁ cations.

44.1
