Napoleon GSST8P Riverside Torch Series Vent Free Liquid User Manual

W415-0689 / C / 06.13.12

INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE.

CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE.

NEVER LEAVE CHILDREN OR OTHER AT RISK INDIVIDUALS ALONE WITH THE APPLIANCE.

INSTALLATION AND

OPERATING INSTRUCTIONS

1.22B

Wolf Steel Ltd., 24 Napoleon Rd., Barrie, ON, L4M 0G8 Canada /

103 Miller Drive, Crittenden, Kentucky, USA, 41030

Phone (705)721-1212 • Fax (705)722-6031 • www.napoleonﬁ replaces.com • [email protected]

SAFETY INFORMATION

WARNING

If the information in these instructions are

not followed exactly, a ﬁ re or explosion

may result causing property damage,

personal injury or loss of life.

- Do not store or use gasoline or other ﬂ ammable

vapors and liquids in the vicinity of this or any

other appliance.

- WHAT TO DO IF YOU SMELL GAS:

• Do not try to light any appliance.

• Do not touch any electrical switch; do not use

any phone in your building.

• Immediately call your gas supplier from a

neighbour’s phone. Follow the gas supplier’s

instructions.

• If you cannot reach your gas supplier, call the

ﬁ re department.

- Installation and service must be performed by a

qualiﬁ ed installer, service agency or the supplier.

CERTIFIED FOR CANADA AND UNITED STATES USING ANSI/CSA METHODS.

$10.00

HOT GLASS WILL CAUSE

BURNS.

DO NOT TOUCH GLASS UNTIL

COOLED.

NEVER ALLOW CHILDREN TO

TOUCH GLASS.

WARNING

This appliance is only for use with the type of gas

indicated on the rating plate. This appliance is

not convertible for use with other gases, unless a

certiﬁ ed kit is used.

GSST8N

NATURAL GAS

GSST8P

PROPANE

CERTIFIED UNDER CANADIAN AND AMERICAN NATIONAL STANDARDS: CR97-003 ● CAN-2.21-M85 ● IAS US. 4-96

WARNING: FOR OUTDOOR USE ONLY

W415-0689 / C / 06.13.12

NOTE: Changes, other than editorial, are denoted by a line in the margin.

TABLE OF CONTENTS

1.0 INSTALLATION OVERVIEW 3

2.0 INTRODUCTION 4

2.1 DIMENSIONS 5

2.2 GENERAL INSTRUCTIONS 5

2.3 GENERAL INFORMATION 6

2.4 RATING PLATE INFORMATION 7

3.0 INSTALLATION 8

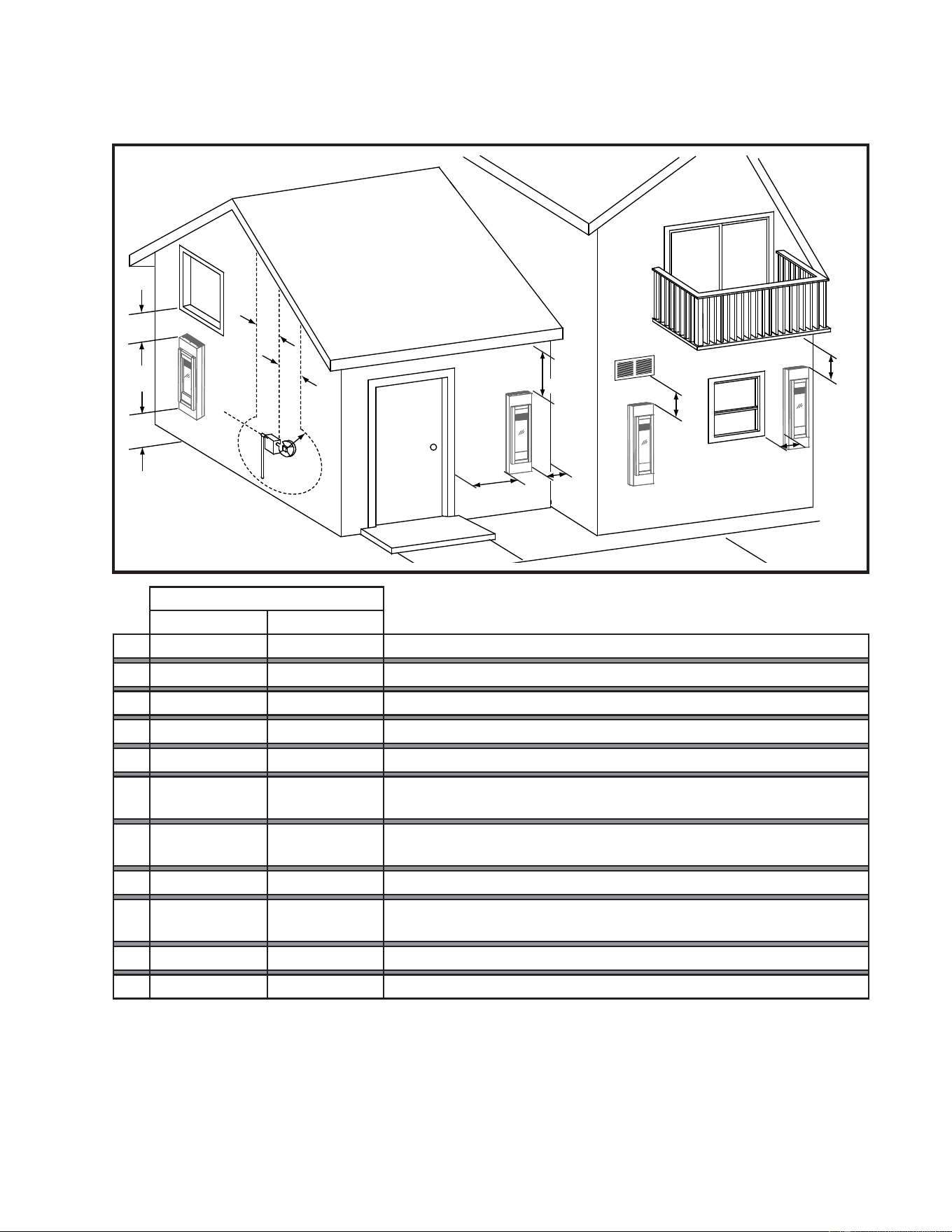

3.1 INSTALLATION CLEARANCES 8

3.2 GAS INSTALLATION 9

3.3 COMBUSTION AND VENTILATION AIR 9

4.0 FRAMING 10

4.1 CLEARANCES TO COMBUSTIBLES 10

5.0 FINISHING 11

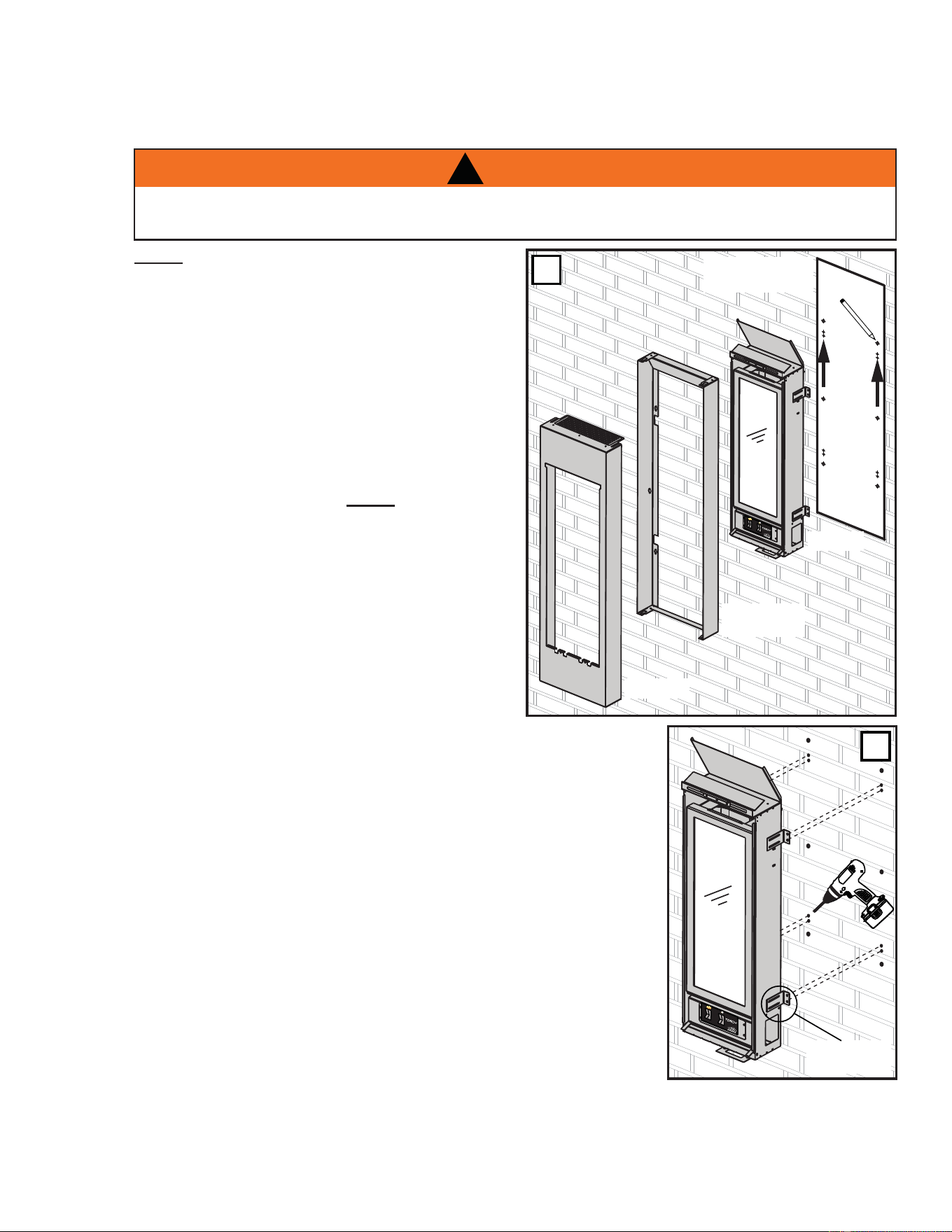

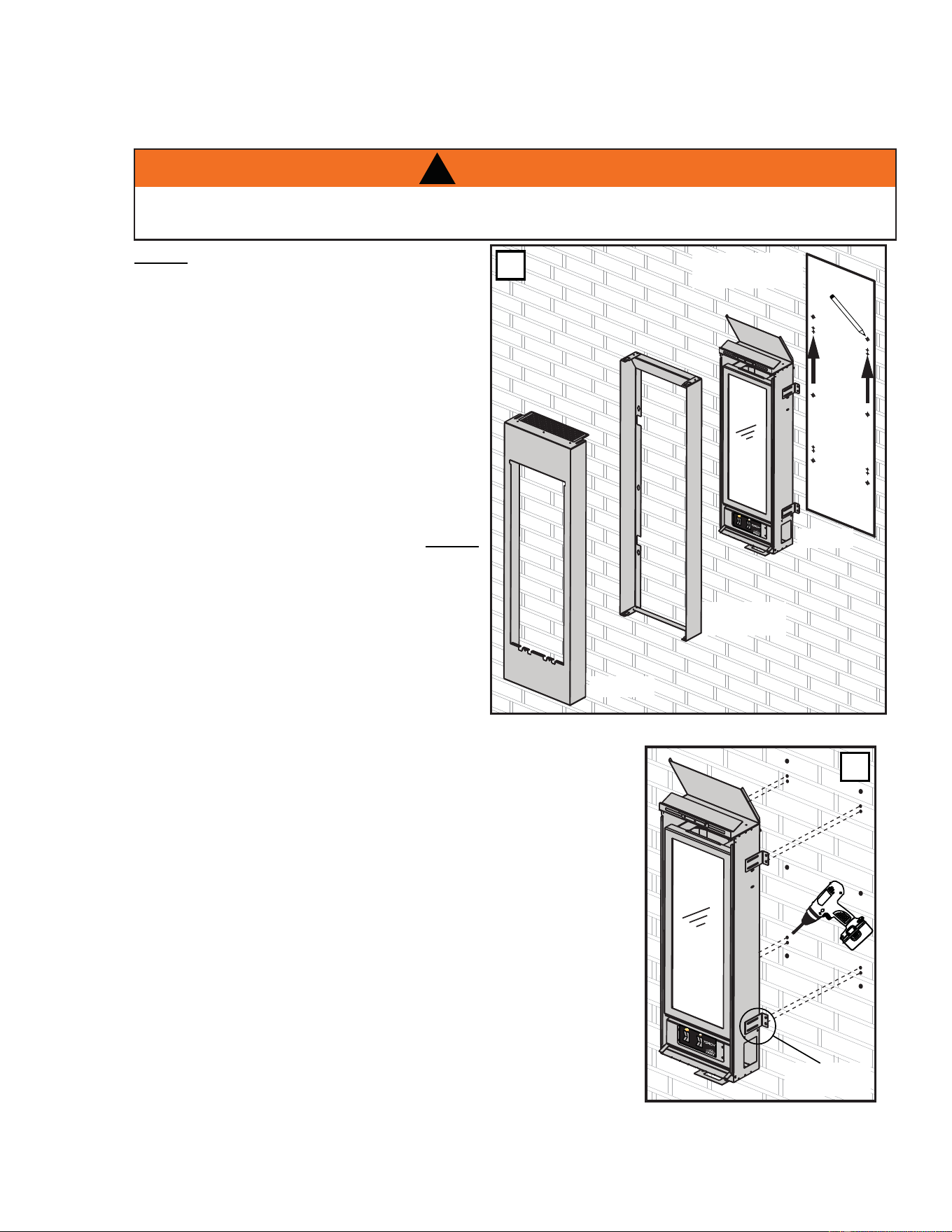

5.1 TMCSS MOUNTING CABINET INSTALLATION 11

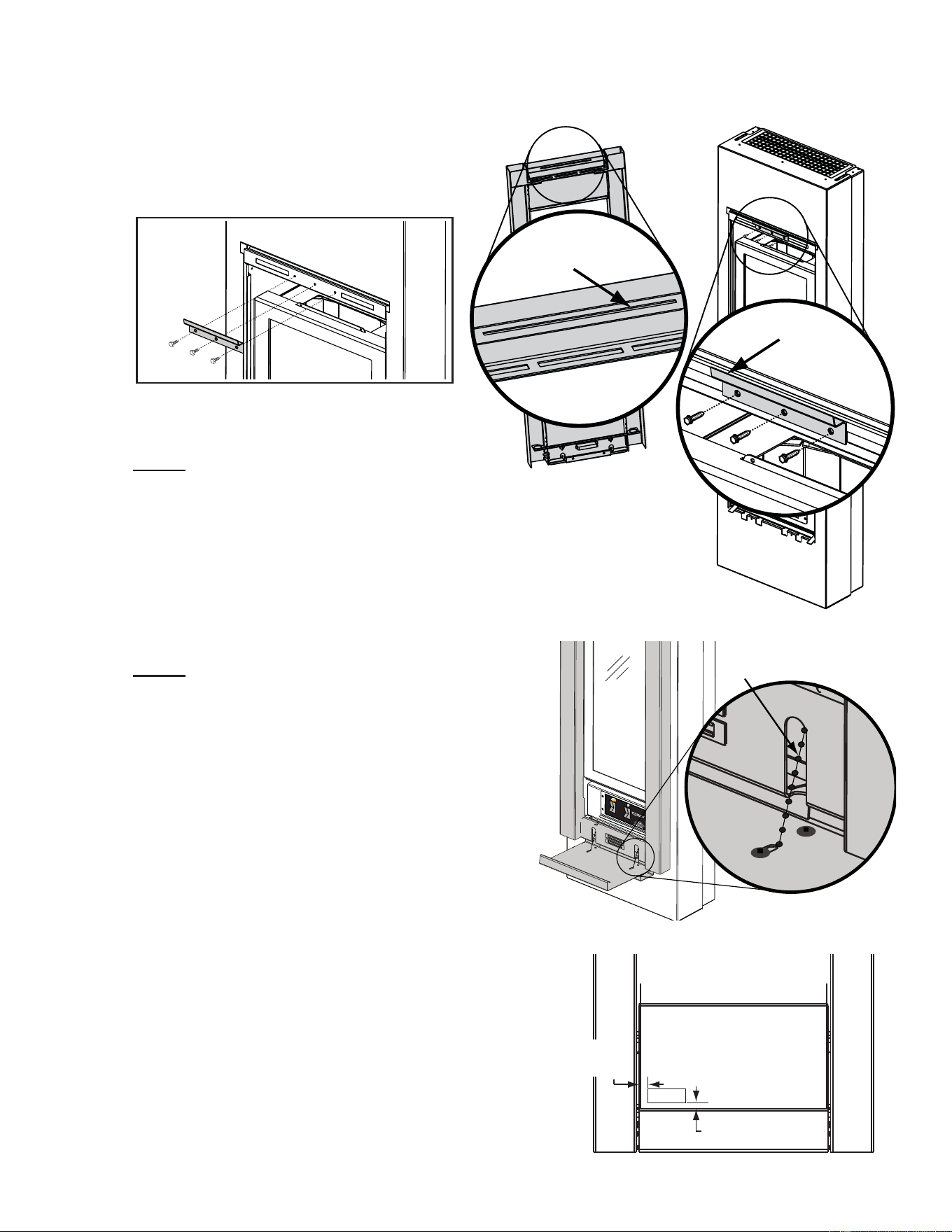

5.2 RAIN TABS 12

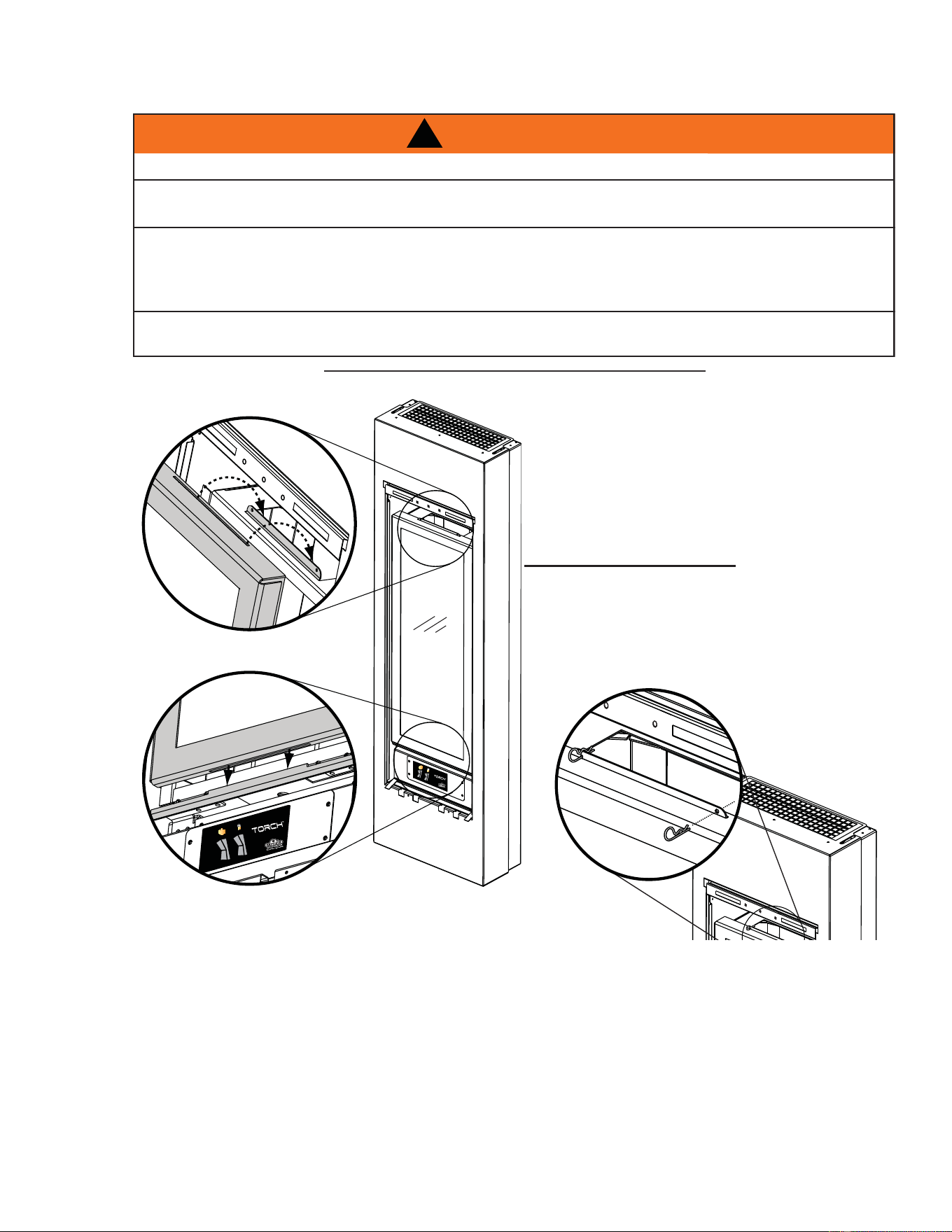

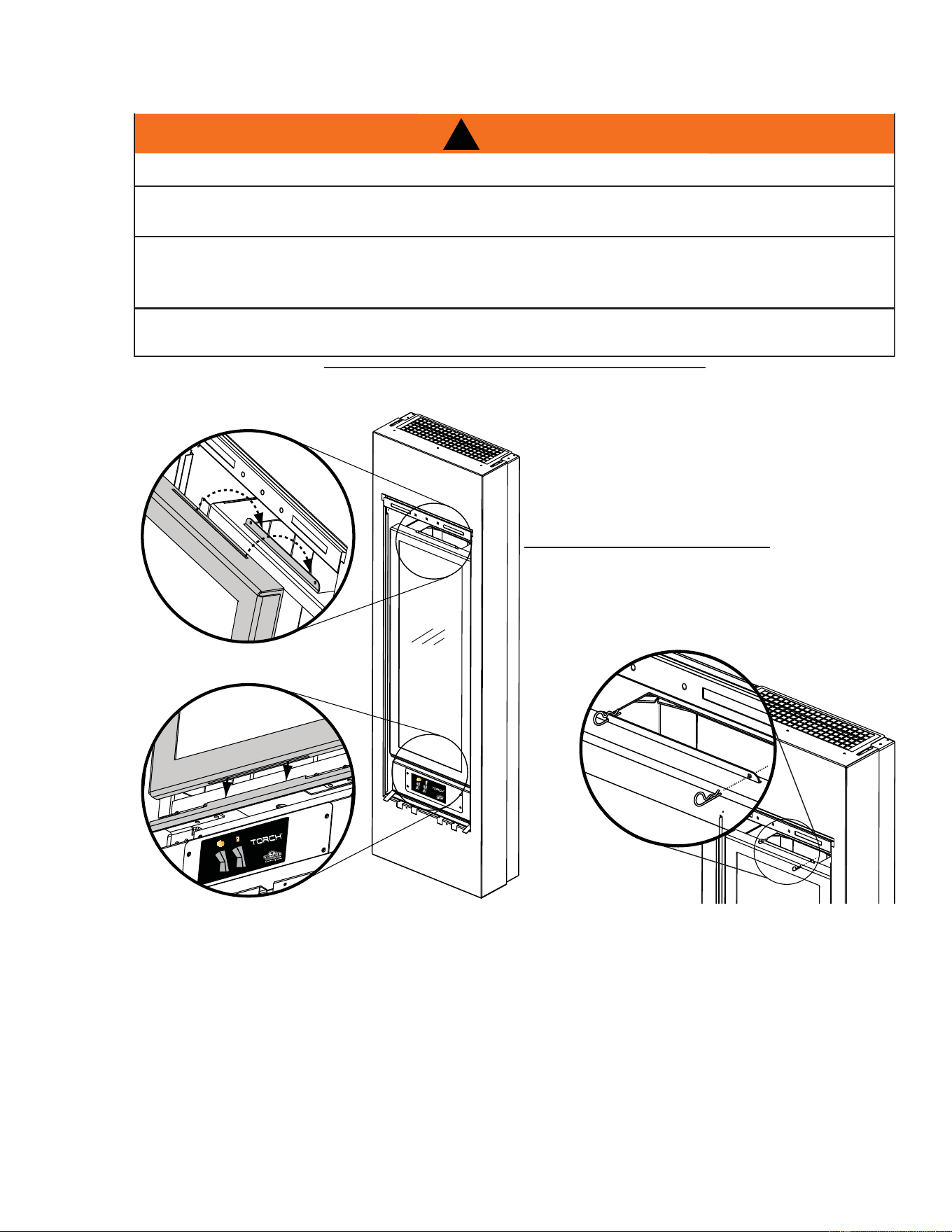

5.3 DOOR REMOVAL 13

5.4 GLASS MEDIA INSTALLATION 14

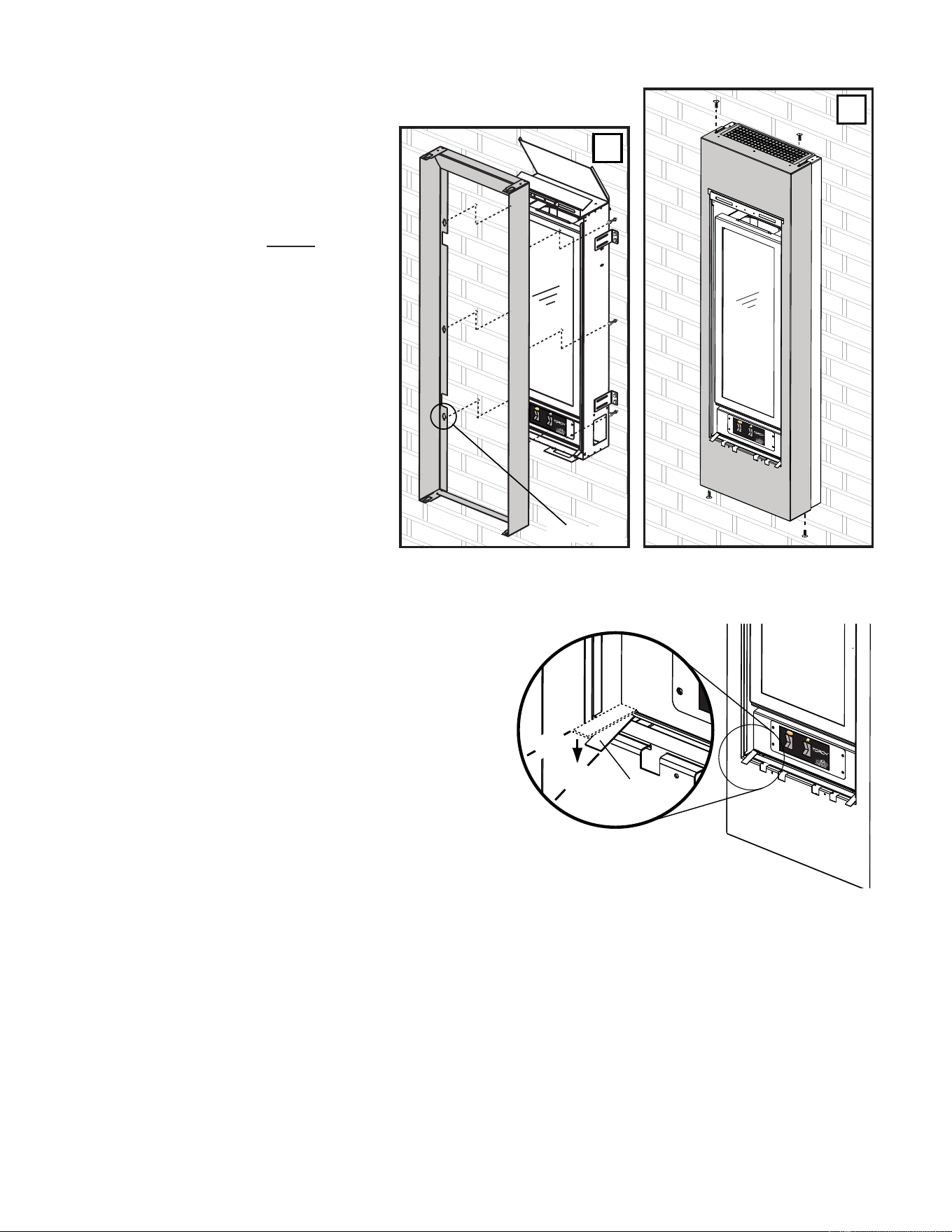

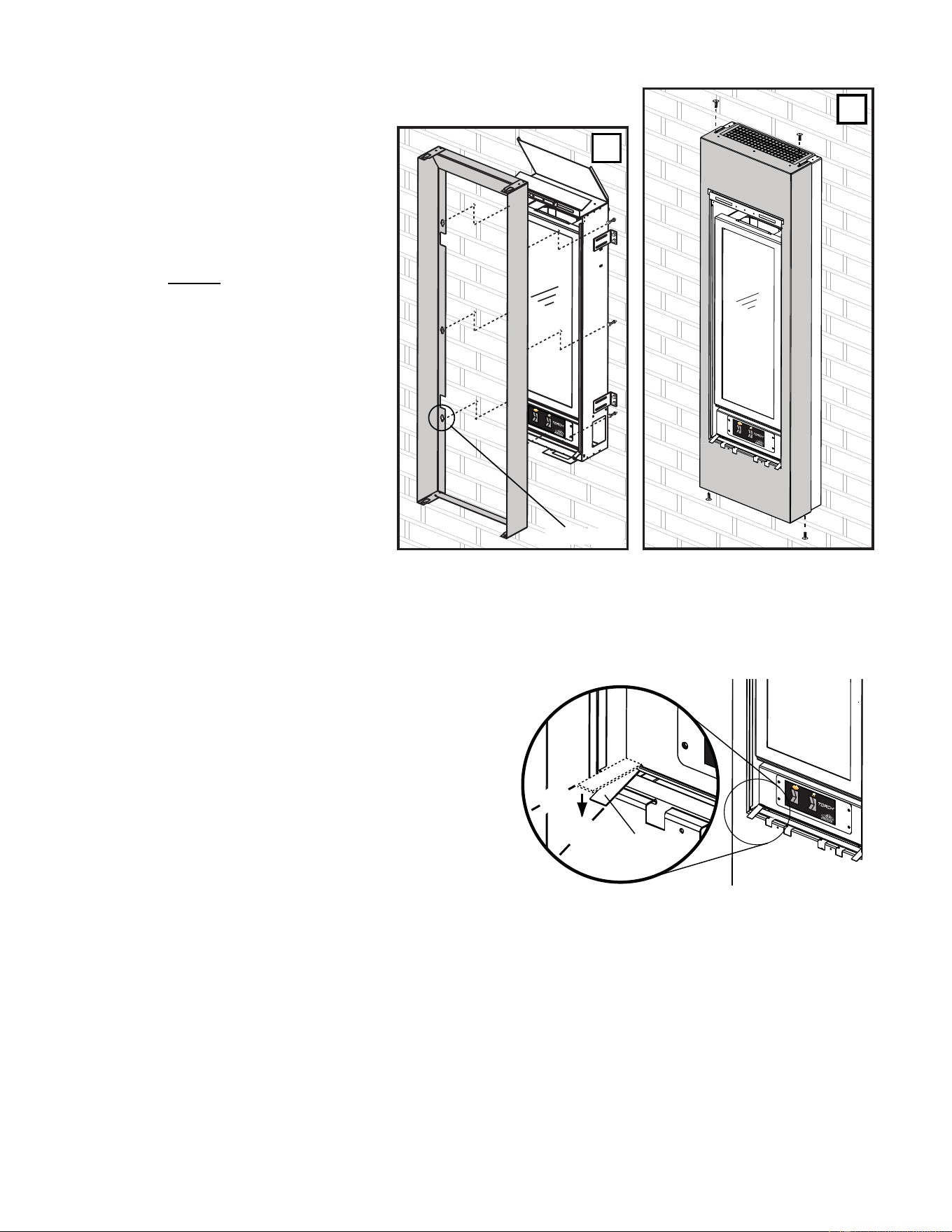

5.5 TFSSO FRAME INSTALLATION 15

5.6 LOGO PLACEMENT 15

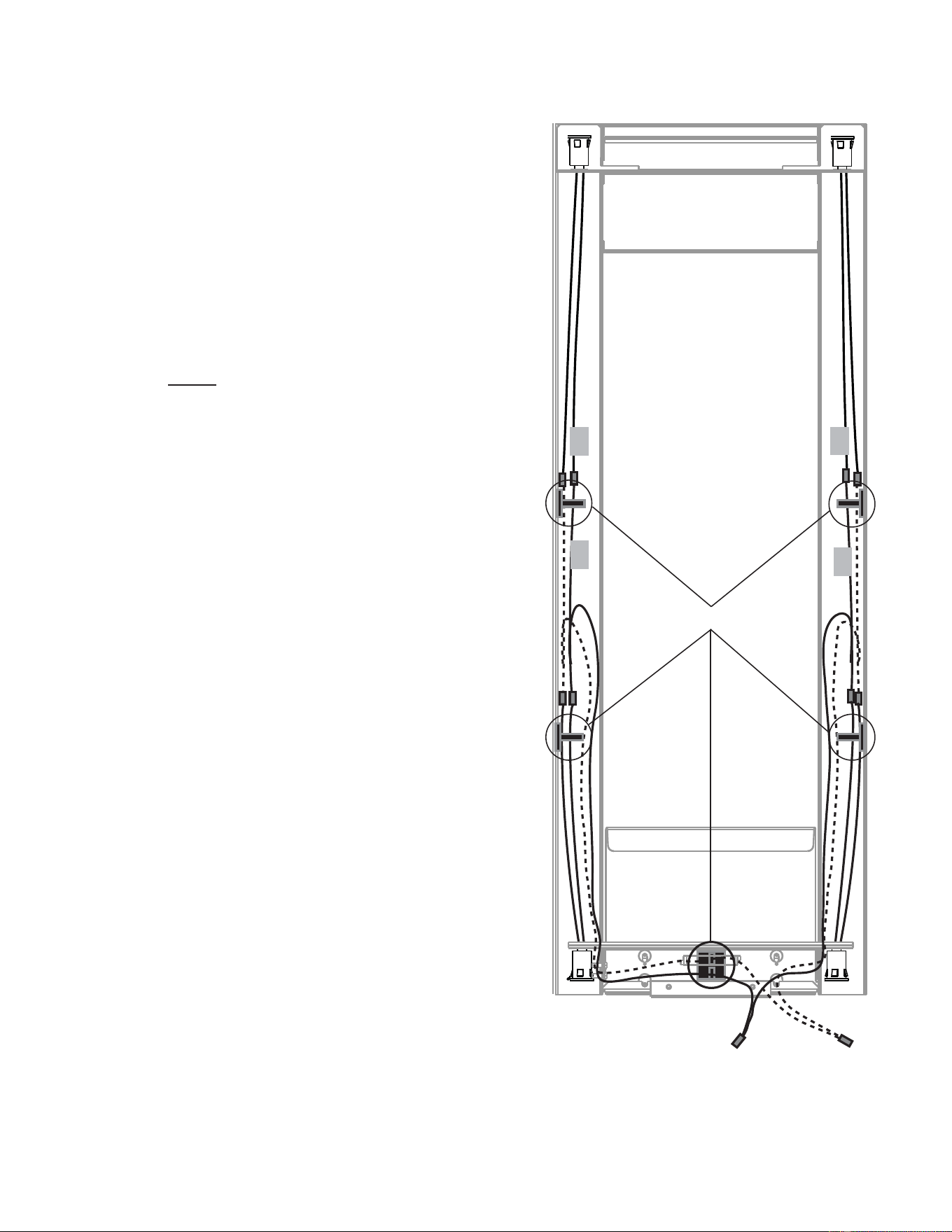

5.7 LK8 LIGHT INSTALLATION (OPTIONAL) 16

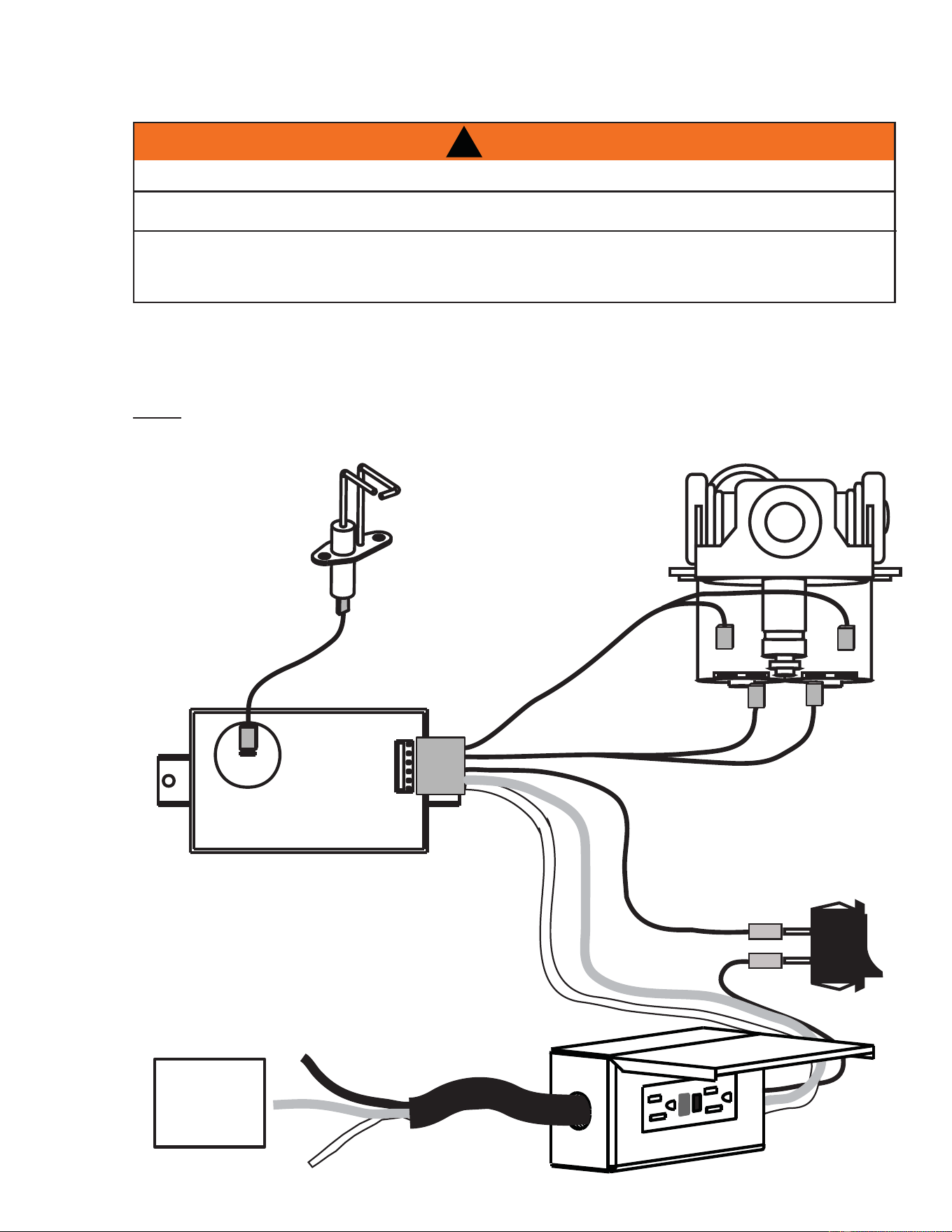

6.0 ELECTRICAL INFORMATION 17

7.0 OPERATION 18

8.0 ADJUSTMENTS 19

8.1 GAS PRESSURE ADJUSTMENT 19

8.2 VENTURI ADJUSTMENT 19

8.3 FLAME CHARACTERISTICS 19

9.0 MAINTENANCE 20

9.1 CARE OF GLASS 20

9.2 DOOR GLASS REPLACEMENT 21

9.3 CARE OF STAINLESS STEEL 21

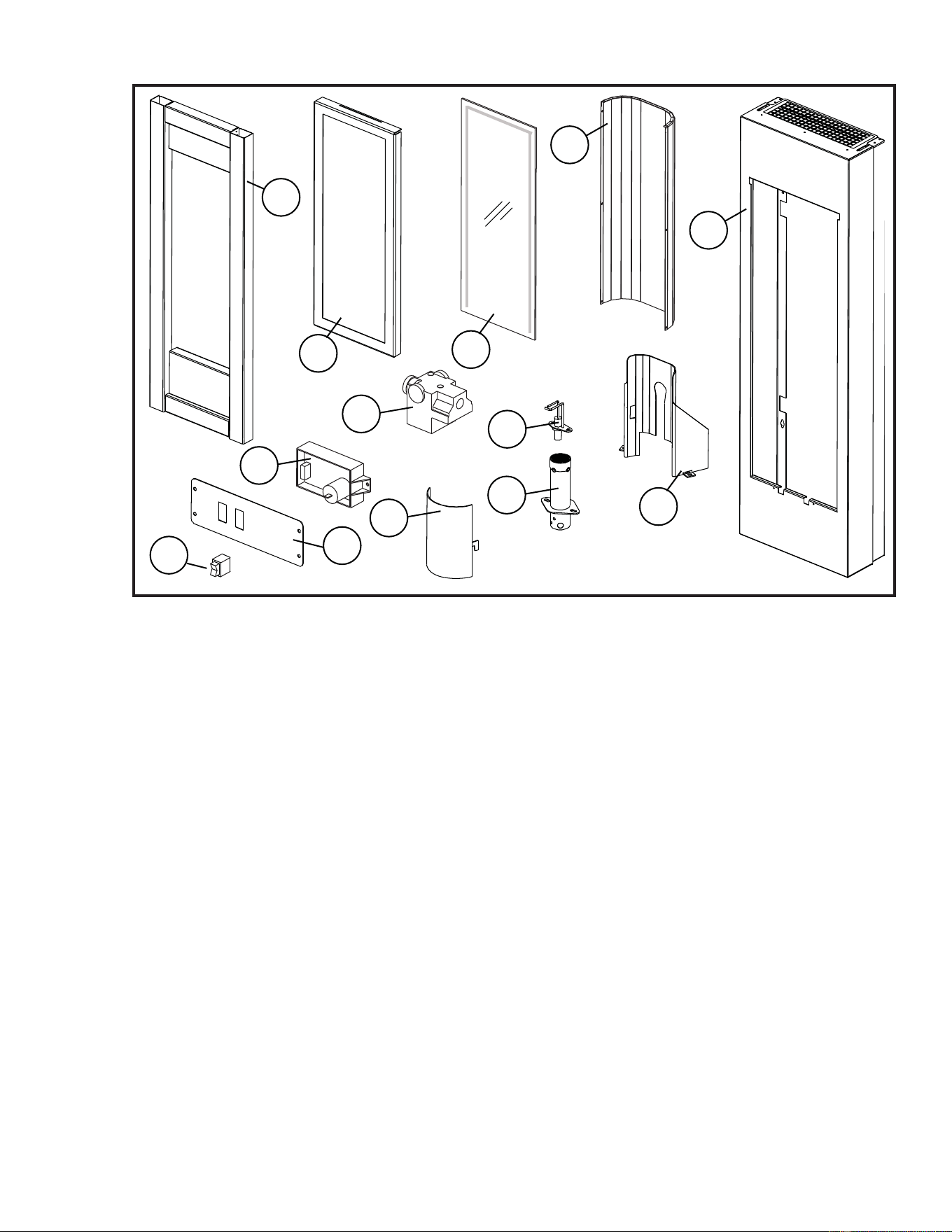

10.0 REPLACEMENTS 22

11.0 TROUBLESHOOTING 24

12.0 WARRANTY 26

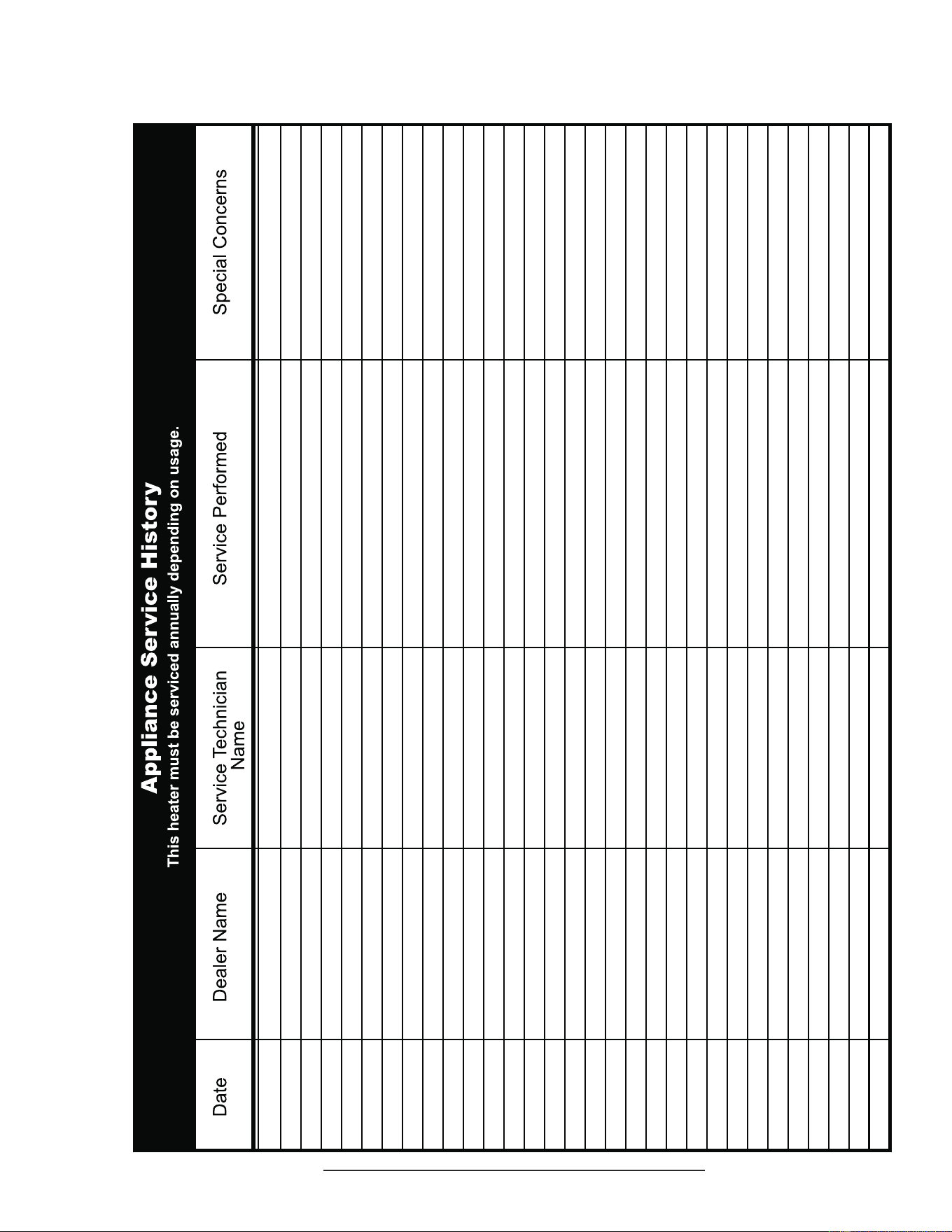

13.0 SERVICE HISTORY 27

W415-0689 / C / 06.13.12

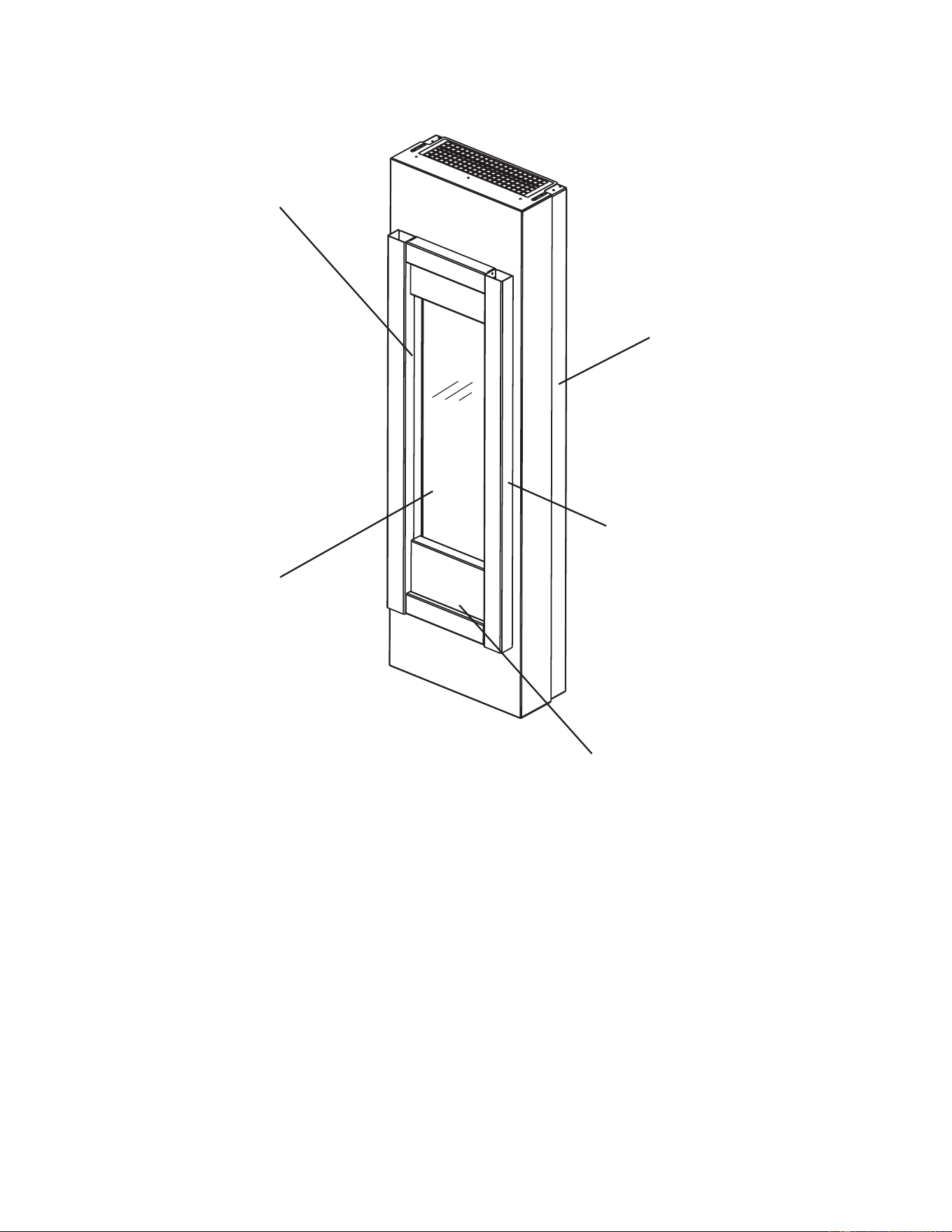

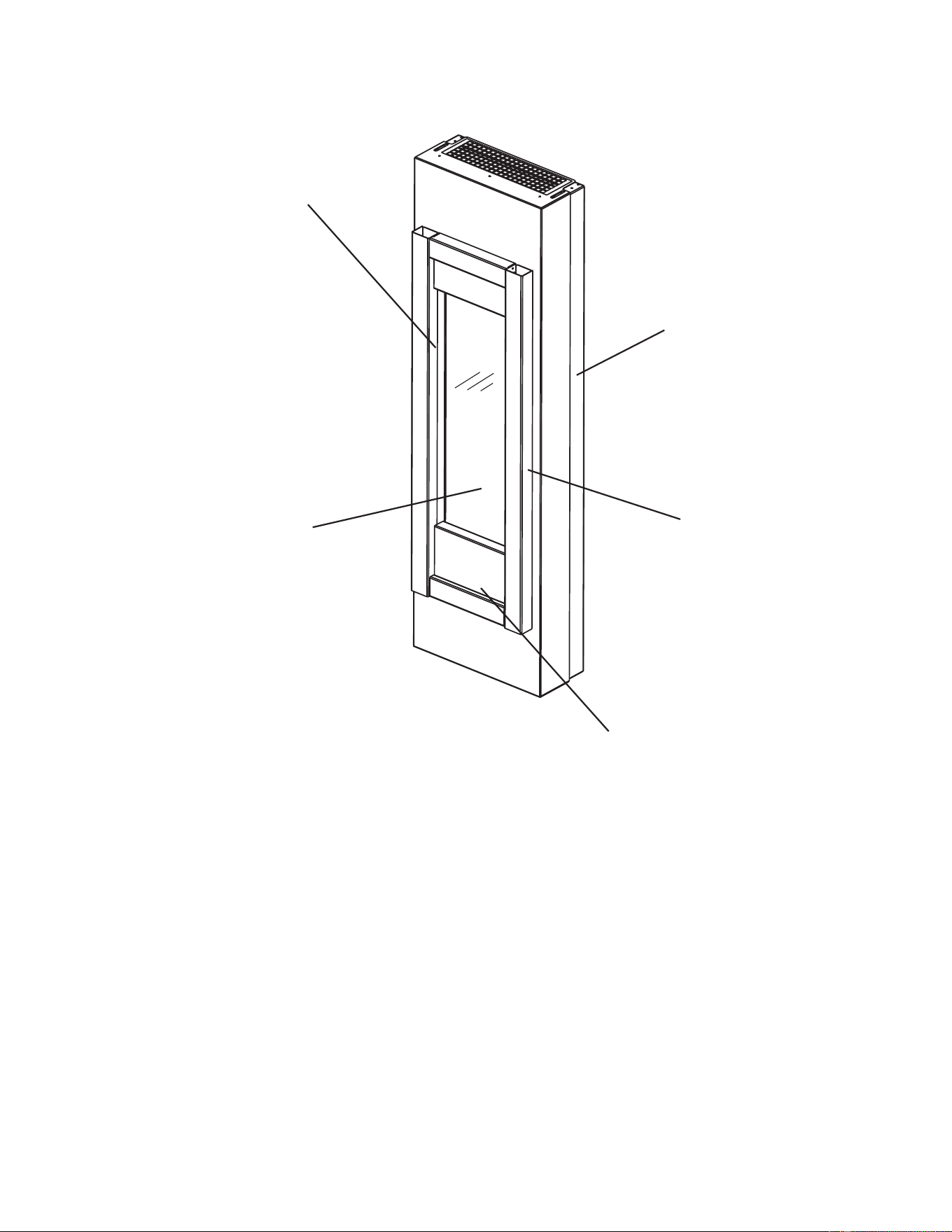

1.0 INSTALLATION OVERVIEW

Cabinet, see “MOUNTING

CABINET INSTALLATION”

section.

Door, see “DOOR

REMOVAL” section.

Glass, see “DOOR GLASS

REPLACEMENT” section.

Frame, see “FRAMING” section.

Rating plate, see “RATING PLATE

INFORMATION” section.

W415-0689 / C / 06.13.12

3.14A

WARNING

• THIS APPLIANCE IS HOT WHEN OPERATED AND CAN CAUSE SEVERE BURNS IF CONTACTED.

• Do not operate appliance before reading and understanding operating instructions. Failure to operate

appliance according to operating instructions could cause ﬁ re or injury.

• Any changes to this appliance or its controls can be dangerous and is prohibited.

• Risk of burns. The appliance should be turned off and cooled before servicing.

• Do not install damaged, incomplete or substitute components.

• Risk of cuts and abrasions. Wear protective gloves and safety glasses during installation. Sheet metal

edges may be sharp.

• Do not burn wood or other materials in this appliance.

• Provide adequate ventilation and combustion air. Provide adequate accessibility clearance for servicing

and operating the appliance. Never obstruct the front opening of the appliance.

• If appliance keeps shutting off, have it serviced. Keep burner and control compartment clean.

• Do not allow wind to blow directly into the appliance. Avoid any drafts that alter burner ﬂ ame patterns.

• Children and adults should be alerted to the hazards of high surface temperature and should stay away

to avoid burns or clothing ignition.

• Young children should be carefully supervised when they are in the same area as the appliance.

Toddlers, young children and others may be susceptible to accidental contact burns. A physical barrier

is recommended if there are at risk individuals in the vicinity of the appliance. To restrict access to an

appliance, install an adjustable safety gate to keep toddlers, young children and other at risk individuals

away from hot surfaces.

• Clothing or other ﬂ ammable material should not be placed on or near the appliance.

• Furniture or other objects must be kept a minimum of 4 feet away from the front of the appliance.

• Ensure you have incorporated adequate safety measures to protect infants/toddlers from touching hot

surfaces.

• Even after the appliance is off, it will remain hot for an extended period of time.

• Check with your local hearth specialty dealer for safety screens and hearth guards to protect children

from hot surfaces. These screens and guards must be fastened to the ﬂ oor.

• Any safety screen or guard removed for servicing must be replaced prior to operating the appliance.

• It is imperative that the control compartments, burners and circulating blower and its passageway in

the appliance and venting system are kept clean. The appliance should be inspected before use and

at least annually by a qualiﬁ ed service person. The appliance area must be kept clear and free from

combustible materials, gasoline and other ﬂ ammable vapors and liquids.

• Under no circumstances should this appliance be modiﬁ ed.

• Do not use this appliance if any part has been under water. Immediately call a qualiﬁ ed service

technician to inspect the appliance and to replace any part of the control system and any gas control

which has been under water.

• Keep the packaging material out of reach of children and dispose of the material in a safe manner. As

with all plastic bags, these are not toys and should be kept away from children and infants.

• This appliance must not be installed indoors or within any structure that prevents or inhibits the exhaust

gases from dissipating in the outside atmosphere.

2.0 INTRODUCTION

W415-0689 / C / 06.13.12

2.1 DIMENSIONS

2.2 GENERAL INSTRUCTIONS

”

GAS LINE

ACCESS

ELECTRICAL

ACCESS

6 Ǫ”

1 ½”

15”

13”

”

ALWAYS LIGHT THE PILOT WHETHER FOR THE FIRST TIME OR IF THE GAS SUPPLY HAS RAN OUT,

WITH THE GLASS DOOR OPENED OR REMOVED.

NEVER OBSTRUCT THE FRONT OPENING OF THE APPLIANCE.

OBJECTS PLACED IN FRONT OF THE APPLIANCE MUST BE KEPT A MINIMUM OF 48” FROM THE

FRONT FACE OF THE APPLIANCE.

FIRE RISK. EXPLOSION HAZARD.

HIGH PRESSURE WILL DAMAGE VALVE. DISCONNECT GAS SUPPLY PIPING BEFORE PRESSURE

TESTING GAS LINE AT TEST PRESSURES ABOVE 1/2 PSIG. CLOSE THE MANUAL SHUT-OFF VALVE

BEFORE PRESSURE TESTING GAS LINE AT TEST PRESSURES EQUAL TO OR LESS THAN 1/2 PSIG.

USE ONLY WOLF STEEL APPROVED OPTIONAL ACCESSORIES AND REPLACEMENT PARTS WITH

THIS APPLIANCE. USING NON-LISTED ACCESSORIES (BLOWERS, DOORS, LOUVRES, TRIMS, GAS

COMPONENTS, VENTING COMPONENTS, ETC.) COULD RESULT IN A SAFETY HAZARD AND WILL

VOID THE WARRANTY AND CERTIFICATION.

THE APPLIANCE IS ONLY FOR USE WITH THE TYPE OF GAS INDICATED ON THE RATING PLATE.

THIS APPLIANCE IS NOT CONVERTIBLE FOR USE WITH OTHER GASES.

WARNING

W415-0689 / C / 06.13.12

RATES AND EFFICIENCIES

NATURAL GAS PROPANE GAS

Altitude 0 - 4,500* 0 - 4,500*

Maximum Input 6,000 6,000

Minimum Inlet Gas Supply Pressure 4.5” Water Column 11” Water Column

Maximum Inlet Gas Supply Pressure 7” Water Column 13” Water Column

Manifold Pressure Under Flow Conditions 3.5” Water Column 10” Water Column

4.3A

THIS GAS APPLIANCE SHOULD BE INSTALLED AND SERVICED BY A QUALIFIED INSTALLER to

conform with local codes. Installation practices vary from region to region and it is important to know the

speciﬁ cs that apply to your area, for example in Massachusetts State:

• The appliance off valve must be a “T” handle gas cock.

• The ﬂ exible connector must not be longer than 36 inches.

The installation must conform with local codes or, in

absence of local codes, the National Gas and Propane

Installation Code CSA B149.1 in Canada, or the National

Fuel Gas Code, ANSI Z223.1 / NFPA 54 in the United

States.

We suggest that our gas

hearth products be installed

and serviced by professionals

who are certied in the U.S.

by the National Fireplace

Institute

(NFI) as NFI Gas

Specialists

www.ncertied.org

2.3 GENERAL INFORMATION

FOR YOUR SATISFACTION, THIS APPLIANCE HAS BEEN TEST-FIRED TO ENSURE ITS OPERATION

AND QUALITY!

When the appliance is installed at elevations above 4,500ft, and in the absence of speciﬁ c recommendations

from the local authority having jurisdiction, the certiﬁ ed high altitude input rating shall be reduced at the rate of

4% for each additional 1,000ft.

This appliance is only for use with the type of gas indicated on the rating plate. This appliance is not

convertible for use with other gases, unless a certiﬁ ed kit is used.

Expansion / contraction noises during heating up and cooling down cycles are normal and are to be expected.

Purge all gas lines with the glass door of the appliance removed. Ensure that a continuous gas ﬂ ow is at the

burner before replacing the door.

Objects placed in front of the appliance must be kept a minimum of 48” from the front face of the unit.

Use only authorized accessories designed for and listed with the model.

W415-0689 / C / 06.13.12

2.4 RATING PLATE INFORMATION

RATING LABEL LOCATION: THE RATING LABEL IS LOCATED UNDER THE CONTROL PANEL AND IS

CHAINED TO THE APPLIANCE. DO NOT REMOVE.

CERTIFIED UNDER : CGA CR97-003 (July, 1997) CSA US Req. 4-96, 3rd Ed. OUTDOOR GAS FIREPLACE

IF APPLIANCE HAS BEEN SUPPLIED WITH A GAS PRESSURE REGULATOR, IT MUST BE USED.

THE GAS SUPPLY MUST BE TURNED OFF AT THE LP-GAS SUPPLY CYLINDER WHEN THIS

APPLIANCE IS NOT IN USE. DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE

VAPORS AND LIQUIDS IN THE VICINITY OF THIS OR ANY OTHER APPLIANCE. IMPROPER

INSTALLATION, ADJUSTMENT, ALTERATION, SERVICE OR MAINTENANCE CAN CAUSE INJURY

OR PROPERTY DAMAGE. REFER TO THE OWNER’S MANUAL PROVIDED WITH THIS

APPLIANCE. FOR ASSISTANCE OR ADDITIONAL INFORMATION, CONSULT A QUALIFIED

INSTALLER, SERVICE AGENCY OR GAS SUPPLIER. MUST NOT BE USED FOR COOKING. FOR

OUTDOOR USE ONLY. IF STORED INDOORS, DETACH AND LEAVE CYLINDER OUTDOORS.

ALTITUDE

INPUT

MANIFOLD PRESSURE: 3.5" WATER COLUMN

MINIMUM SUPPLY PRESSURE: 4.5" WATER COLUMN

MAXIMUM SUPPLY PRESSURE: 7.0" WATER COLUMN

MANIFOLD PRESSURE: 10" WATER COLUMN

MINIMUM SUPPLY PRESSURE: 11" WATER COLUMN

MAXIMUM SUPPLY PRESSURE: 13" WATER COLUMN

0-4500FT (0-1370m)

6,000 BTU/h

0-4500FT (0-1370m)

6,000 BTU/h

GSST8N

MODEL

GSST8P

MODEL

W385-0420 / E

GSST8

NOT FOR USE WITH SOLID FUEL. FOR USE WITH

GLASS DOOR. CERTIFIED WITH THIS UNIT ONLY.

WARNING: DO NOT ADD ANY MATERIAL TO THE

APPLIANCE, WHICH WILL COME IN CONTACT WITH THE

FLAMES, OTHER THAN THAT SUPPLIED BY THE

MANUFACTURER WITH THE APPLIANCE.

MINIMUM CLEARANCES TO COMBUSTIBLE MATERIALS

TOP 18” BACK 0”

SIDES 1” FLOOR 8”

SERIAL NUMBER:

ELECTRICAL RATING: 115v 0.82AMP, 60HZ

TOP, SIDES & BACK AS PER ABOVE. FOR FINISHING

MATERIAL, SEE OWNERS MANUAL.

(NATURAL GAS) (PROPANE)

THIS APPLIANCE IS ONLY FOR USE WITH THE TYPE

OF GAS INDICATED ON THE RATING PLATE. THIS

APPLIANCE IS NOT CONVERTIBLE FOR USE WITH

OTHER GASES, UNLESS A CERTIFIED KIT IS USED.

WOLF STEEL LTD.

24 NAPOLEON ROAD. BARRIE, ONTARIO L4M 0G8 CANADA

9700539 (WSL)

4001657 (NGZ)

4001658 (NAC)

4001659 (WUSA)

Ed. OUTDOOR Gd. OUTDOOR

EGULATOR, IT MUSEGULATOR, IT MU

UPPLY CYLINDER WHENPPLY CYLINDER WHEN

OLINE OR OTHER FLAMMABL

NE OR OTHER FLAMMABL

Y OTHER APPLIANCE. IMPROPAPPLIANCE. IMPROP

E OR MAINTENANCE CAN CAUANCE CAN CAU

S MANUAL PROVIDED WITH THS MANUAL PROVIDED WITH T

L INFORMATION, CONSULT A QUINFORMATION, CONSULT A Q

PLIER. MUST NOT BE USED FOR. MUST NOT BE USED F

RS, DETACH AND LEAVE CYLINS, DETACH AND LEAVE CYLIN

TITUDETITUDE

TERT

COLUM

WWW

TERTER

AAA

COLUM

7.0"0"

WWW

TERTER

AAA

COLUM

ANIFOL

DMANIFOLD

MINIMUMMINIMU

MAXIMAXIM

Y MATERIAL TO THE RIAL TO THE

ME IN CONTACT WITH THEME IN CONTACT WITH THE

AT SUPPLIED BY THE AT SUPPLIED BY THE

THE APPLIANCE.HE APPLIANCE.

CES TO COMBUSTIBLE MATERO COMBUSTIBLE MATE

BACK CK

FLOOR FLOOR

RICAL RATING: 115v 0.82AMP,

AL RATING: 115v 0.82AMP

& BACK AS PER ABOVE. FOR & BACK AS PER ABOVE. FO

L, SEE OWNERS MANUAL.

SEE OWNERS MANUAL.

SAMPLE

This illustration is for reference only. Refer to the rating plate on the appliance for accurate information.

NOTE: The rating plate must remain with the appliance at all time. It must not be removed.

W415-0689 / C / 06.13.12

3.0 INSTALLATION

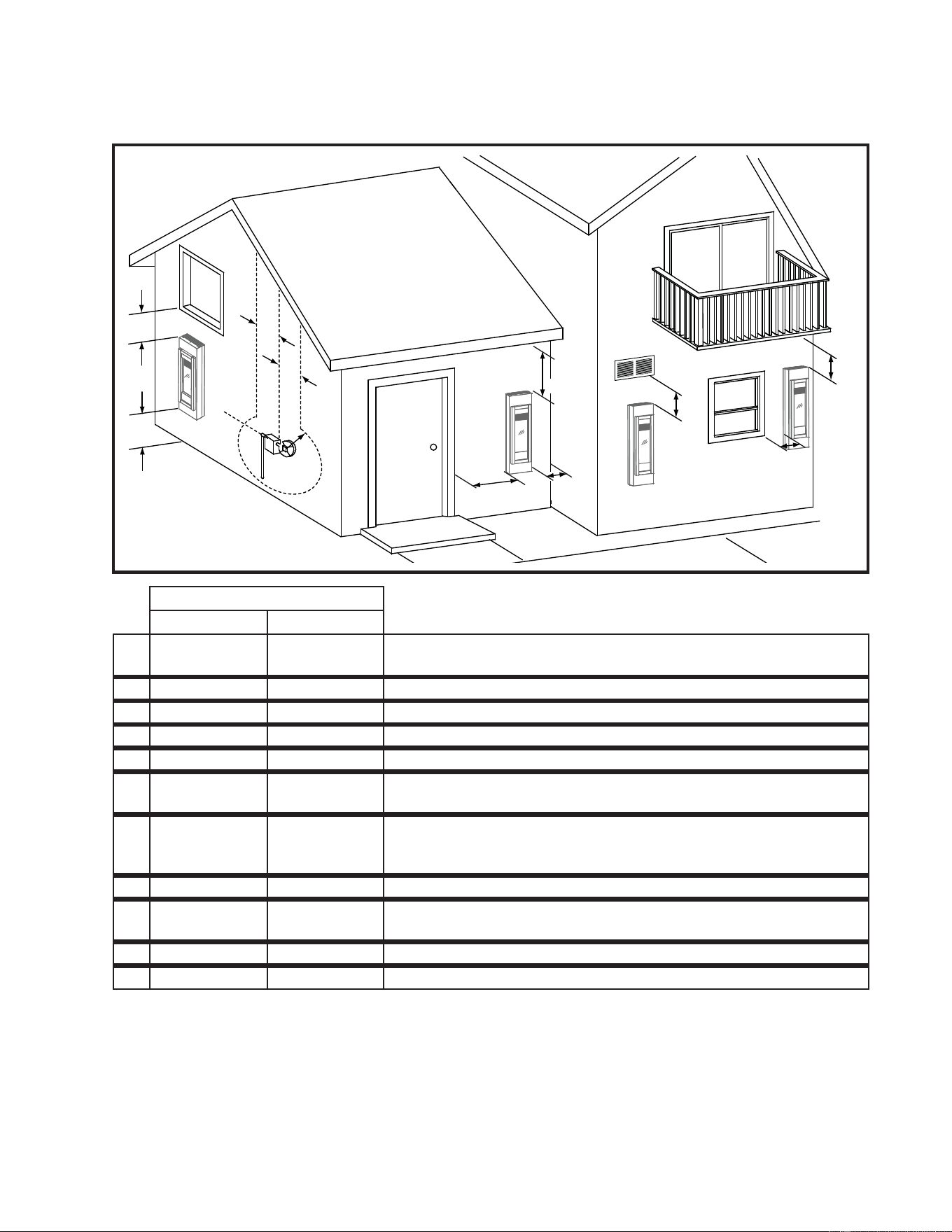

3.1 INSTALLATION CLEARANCES

INSTALLATIONS

CANADA U.S.A.

A 8 INCHES 8 INCHES Clearance above grade, veranda porch, deck or balcony.

B 12 INCHES 9 INCHES Clearance to windows or doors that open.

C 12 INCHES* 12 INCHES* Clearance to permanently closed windows.

D 18 INCHES** 18 INCHES** Vertical clearance to ventilated sofﬁ t.

E 12 INCHES** 12 INCHES** Vertical clearance to an unventilated sofﬁ t.

F 1 INCH 1 INCH

Clearance to an inside combustible corner wall or protruding

combustible obstructions. (vent chase, etc.)

G 3 FEET 3 FEET***

Clearance to each side of the centre line extended above the metre/

regulator assembly to a maximum vertical distance of 15 ft.

H 3 FEET 3 FEET*** Clearance to a service regulator vent outlet.

I 12 INCHES 9 INCHES

Clearance to a non-mechanical air supply inlet to the building or a

combustion air inlet to any other appliance.

J 6 FEET 3 FEET**** Clearance to a mechanical air supply inlet.

K 12 INCHES 12 INCHES*** Clearance under a veranda, porch, deck or balcony.

* Recommended to prevent condensation on windows and thermal breakage.

** It is recommended to use a heat shield and to maximize the distance to vinyl clad sofﬁ ts.

*** This is a recommended distance. For additional requirements check local codes.

**** Three feet above if within 10 feet horizontally.

W415-0689 / C / 06.13.12

3.2 GAS INSTALLATION

A. The appliance is designed to accept a 1/2” gas

supply line. The appliance is equipped with a 1/2”

manual shut-off valve.

B. The access to the gas inlet is located in the bottom

of the cabinet.

C. The shut off valve / ﬂ ex connector assembly must

always be contained within the cabinet.

D. When ﬂ exing any gas line, support the gas valve

so that the lines are not kinked.

E. Check for gas leaks by brushing on a soap and

water solution.

W385-0380

SHUT OFF

VALVE

FLEX

CONNECTOR

WARNING

ALL GAS CONNECTIONS MUST BE CONTAINED WITHIN THE APPLIANCE WHEN COMPLETE.

DO NOT USE OPEN FLAME.

This appliance is intended for installation on an outdoor patio or in your yard. It must never be installed inside

the warm air envelope of your structure.

It is highly recommended that this appliance be installed in a “sheltered” area. Direct wind will cause an erratic

ﬂ ame and possible pilot or main burner outage. An erratic ﬂ ame could also lead to excessive carboning (black

soot), this condition is not a safety issue but is visually undesirable.

Typical installation may include covered patio, screened porch, gazebo, or on an outside wall of a house.

3.3 COMBUSTION AND VENTILATION AIR

WARNING

ENSURE THE AREA HAS ADEQUATE VENTILATION.

W415-0689 / C / 06.13.12

WARNING

YOUR APPLIANCE IS DESIGNED FOR OUTDOOR APPLICATION ONLY. THE APPLIANCE MUST

BE INSTALLED IN THE CABINET PROVIDED. THE CABINET IS DESIGNED TO BE INSTALLED ON

FINISHED SURFACES.

THE CABINET MAY BE INSTALLED DIRECTLY ONTO A COMBUSTIBLE SURFACE.

4.0 FRAMING

MINIMUM CLEARANCES TO COMBUSTIBLES:

- 18” to top

- 1” to sides

- 8” to bottom

- 0” to rear

4.1 CLEARANCES TO COMBUSTIBLES

24”

MAX.

18”

MIN.

OUTDOOR

8”

MIN.

VENTILLATED

SOFFIT

W415-0689 / C / 06.13.12

5.0 FINISHING

5.1 TMCSS MOUNTING CABINET INSTALLATION

INSTALLATION

TEMPLATE

TORCH

MOUNTING

FRAME

CABINET

NOTE: It is recommended that all fasteners be

stainless steel.

A. Using the installation template (W122-0401)

supplied, determine the best mounting location

for your new Torch. (Refer to your manual for

clearances) Mark all 14 hole centres on the

wall (surface) using the template.

B. Remove the template. Depending on the

surface and fasteners, drill the appropriate

holes. Hold the Torch up, aligning the

mounting brackets to the mounting holes.

Secure the Torch to the wall using the

appropriate fasteners. NOTE: The Torch has

been designed to have a 1/2” clearance

between the rear outer panel and the

mounting surface.

WARNING

BEFORE STARTING THE INSTALLATION, REMOVE THE PROTECTIVE LAYER FROM ALL THREE

COMPONENTS THAT MAKE UP THE GSST8 (CABINET, FRAME AND TORCH).

MOUNTING

BRACKET

W415-0689 / C / 06.13.12

5.2 RAIN TABS

RAIN

TAB

When shipped, the rain tabs should be at a 90º

angle. Push the rain tabs down until they are at an

approximate 60º angle to assist rain in running off and

out of the unit.

KEYHOLE

C. Start the fasteners into each

of the six remaining mounting

holes. Align the keyholes of

the frame to the heads of the

fasteners and slide the frame

down onto the fasteners.

Ensure the frame is plumb

and level before tightening

the fasteners. NOTE: It is

recommended that the gas

and electrical be connected

to the appliance at this

stage. Both must enter the

appliance at the opening

created between the bottom

of the Torch and the bottom

of the mounting frame.

D. Slide the front of the cabinet

over the mounting frame,

ensuring the “mesh” is to the

top. Start each of the four

screws (supplied) through the

slots. Once the cabinet has

been adjusted for depth the

four screws can be tightened.

W415-0689 / C / 06.13.12

5.3 DOOR REMOVAL

WARNING

GLASS MAY BE HOT, DO NOT TOUCH GLASS UNTIL COOLED.

THE DOOR LATCHES ARE PART OF A SAFETY SYSTEM AND MUST BE PROPERLY ENGAGED. DO

NOT OPERATE THE APPLIANCE WITH LATCHES DISENGAGED.

FACING AND/OR FINISHING MATERIALS MUST NOT INTERFERE WITH AIR FLOW THROUGH AIR

OPENINGS, LOUVRES OPENINGS, OPERATION OF LOUVRES OR DOORS OR ACCESS FOR

SERVICE. OBSERVE ALL CLEARANCES WHEN APPLYING COMBUSTIBLE MATERIALS.

BEFORE DOOR IS REMOVED TURN THE APPLIANCE OFF AND WAIT UNTIL APPLIANCE IS COOL TO

THE TOUCH. DOORS ARE HEAVY AND FRAGILE SO HANDLE WITH CARE.

75.1

SECURING THE DOOR IN PLACE

When shipped, the door is secured with two hitch pins

along the top edge, replacing them is optional.

To secure the door in place use the supplied hitch

pins as illustrated.

HITCH PIN

The door is held in place at the bottom by a retainer

tab that inserts into a slot in the bottom edge of the

door, and at the top with a tab that secures in the

same fashion. The door is removed by lifting it off the

tabs. When replacing, guide the door over the upper

tab ﬁ rst, then over the lower tab.

W415-0689 / C / 06.13.12

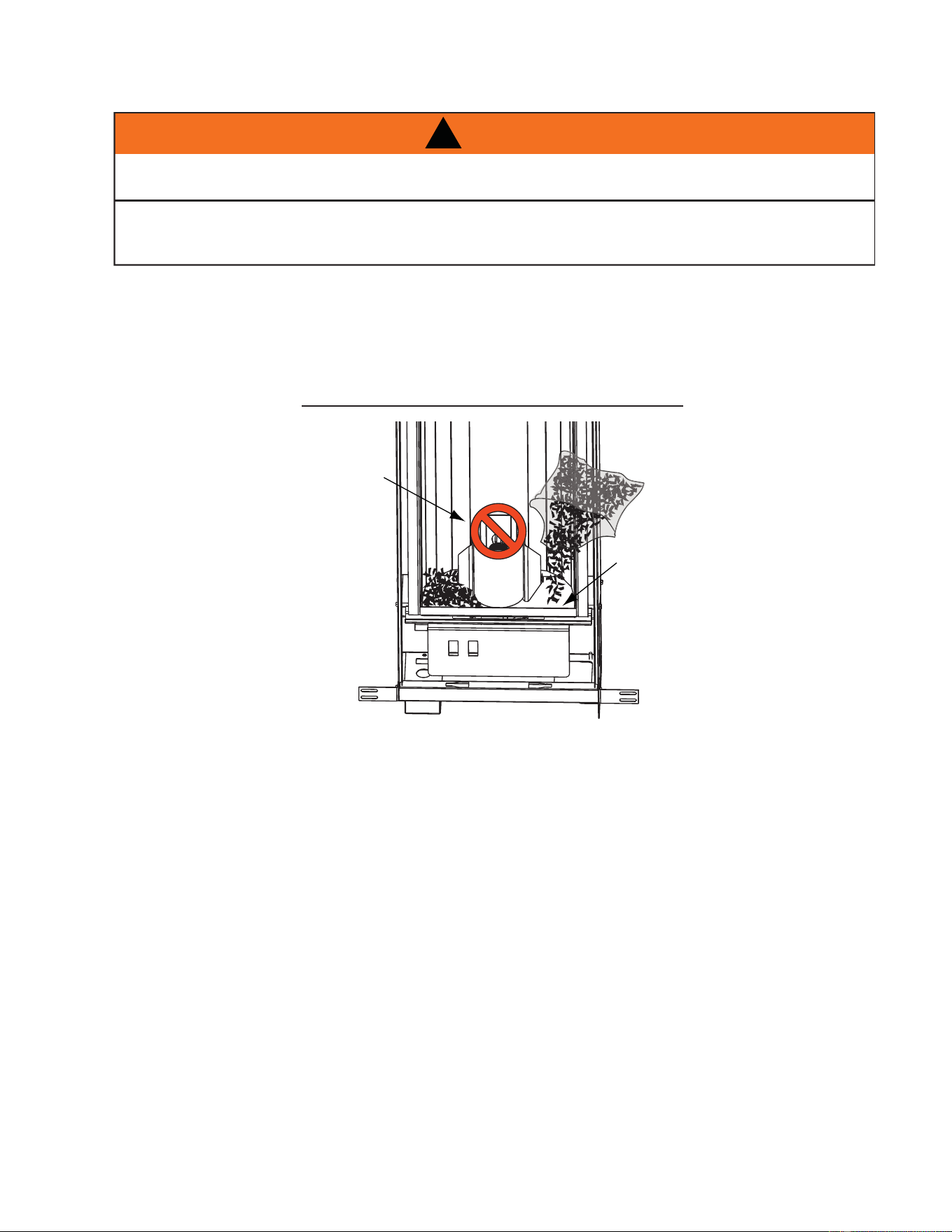

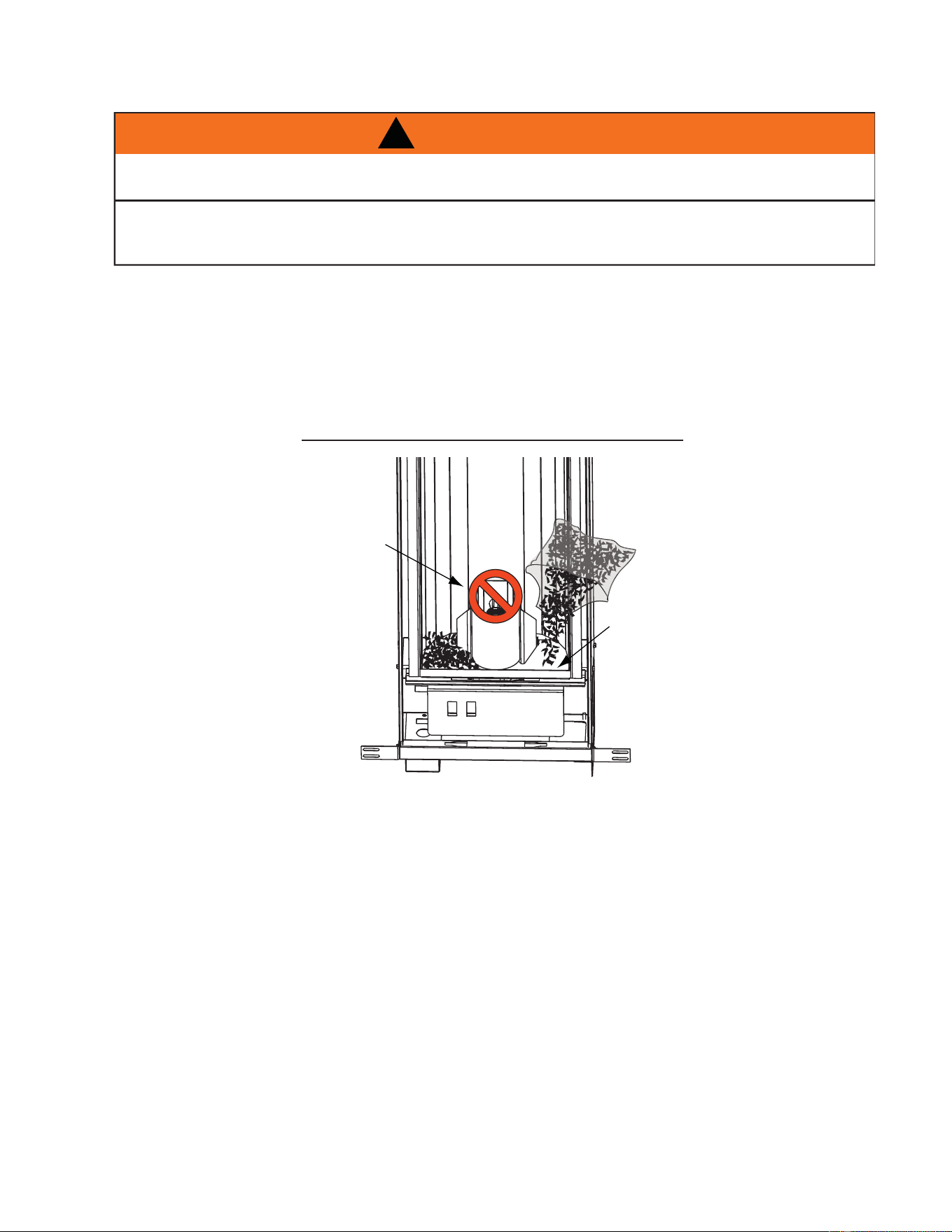

5.4 GLASS MEDIA INSTALLATION

74.2A

Evenly spread the glass media onto the media tray, ensuring no glass media falls into the pilot opening. If this

happens, insert a clean bag into your vacuum cleaner and vacuum out the glass media. Replacement glass

can be purchased from your local authorized dealer / distributor.

CLEANING GLASS MEDIA

Glass media may have a ﬁ ne oil residue that needs to be cleaned prior to installation. Clean the glass with mild

dish soap, drain, rinse thoroughly and dry before placing around the burner.

CLEAN THE GLASS MEDIA PRIOR TO INSTALLATION. BEFORE APPLYING THE CLEANED GLASS, ENSURE

THAT IT IS DRY.

DO NOT CHANGE OR SUBSTITUTE THE GLASS MEDIA MATERIAL PROVIDED WITH THIS APPLIANCE. IF

REPLACING, USE ONLY THE REPLACEMENT GLASS MEDIA AVAILABLE FROM YOUR AUTHORIZED

DEALER / DISTRIBUTOR.

WARNING

MEDIA

TRAY

GLASS

MEDIA

BURNER

W415-0689 / C / 06.13.12

1/4”

(APPROX.)

CONTROL

DOOR

1/4”

(APPROX.)

LOGO

With the control door closed, afﬁ x the logo to the front face of

the control door at the bottom left corner.

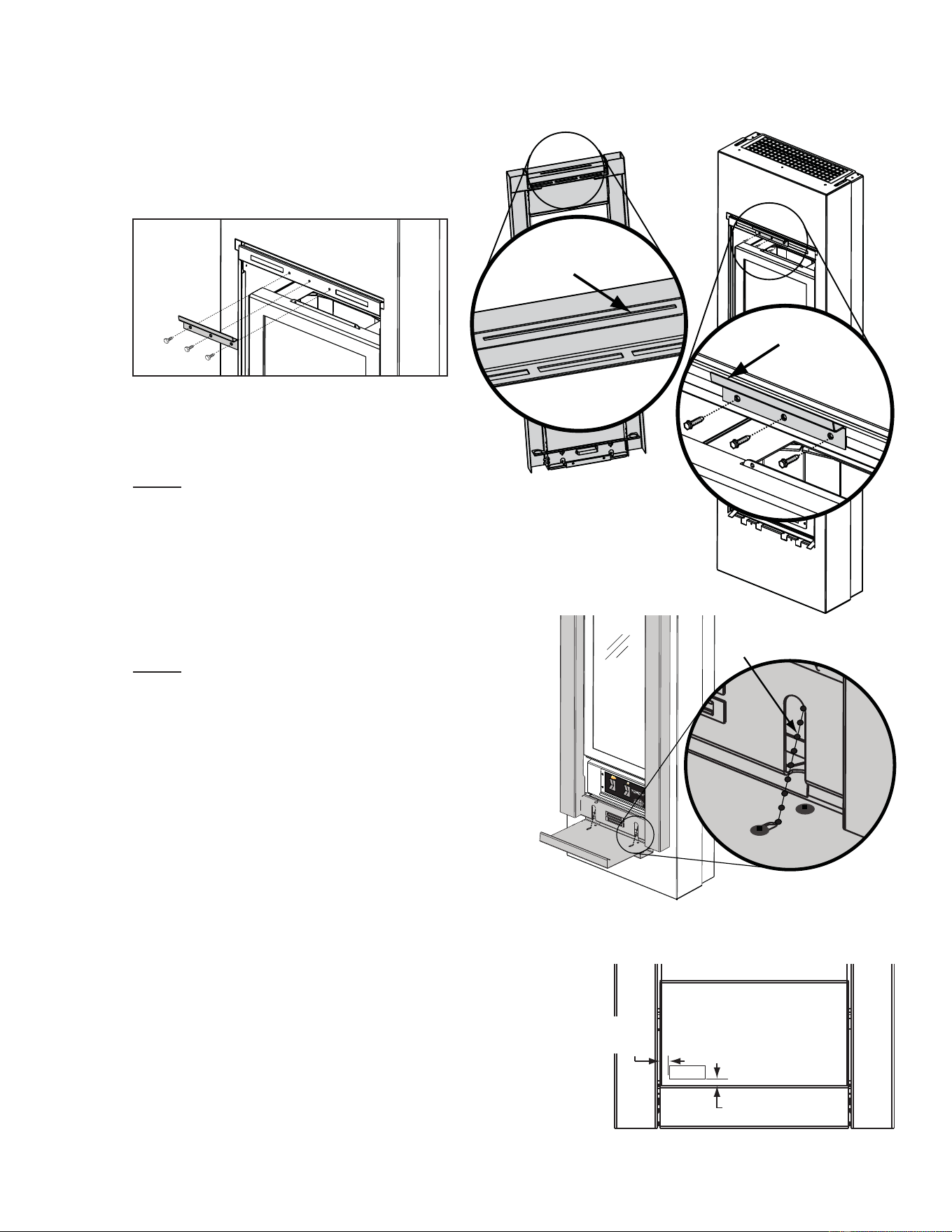

5.5 TFSSO FRAME INSTALLATION

DOOR

CHAIN

SLOT

FRAME

(REAR VIEW)

TRIM

BRACKET

TRIM

BRACKET

5.6 LOGO PLACEMENT

A. Hang the frame onto the ﬁ rebox by

engaging the top trim bracket into the

slot in the top of the frame and the

bottom hooks of the frame into the slot

in the mounting cabinet.

B. Install the trim bracket supplied in your

manual baggie to the ﬁ rebox using 3

screws.

NOTE: If the frame needs to be secured, use

two screws in the holes provided behind the

control door.

Insert the door stop chain into the receiving slot

in the control door. Then insert the door chain

into the receiving slot in the frame so that when

fully opened the control door has a clearance of

1/8” to the mounting cabinet.

NOTE: In most cases a count of 15 balls on

the chain between receiving slots will be

sufﬁ cient.

W415-0689 / C / 06.13.12

A. Turn off the electrical and gas supply to the

appliance.

B. Remove the frame from the unit by removing the 2

stainless steel hex head securing screws from the

bottom and lifting the frame off of the top trim bracket.

C. Lay the frame down on its front, being careful not to

scratch the ﬁ nish.

D. Starting at the top of the frame, take one light

assembly and carefully snap it into place in the hole

provided. Repeat for each of the light assemblies.

The wires on the top 2 light assemblies will need to

be fed in behind the heat shields.

NOTE: When installing the light kit be careful not

to scratch your ﬁ ngers on any of the exposed

screws in the frame.

E. Connect the light assemblies to the appropriate ﬂ ags

on the wire harness. The wire harness is labeled

(TR) top right, (BR) bottom right (TL) Top left and

(BL) bottom left.

F. Secure the wires into the clips at both sides and the

bottom of the frame. Use the extra clips provided to

retain any loose wires.

G. Re-attach frame onto unit.

H. Open the control panel door, leave the wires

connected to the ON/OFF switch and place the

transformer into the bottom of the unit. Plug the

transformer into the receptacle.

I. Attach one of the wire leads from the transformer to

the lead on the wire harness labeled “TRANS”, and

the other to the ON/OFF switch. Attach the last lead

on the wire harness labeled “SWI” to the ON/OFF

switch.

J. Close the control panel door.

K. Turn on the gas supply and electrical power.

TRANS

SWI

CLIPS X 5

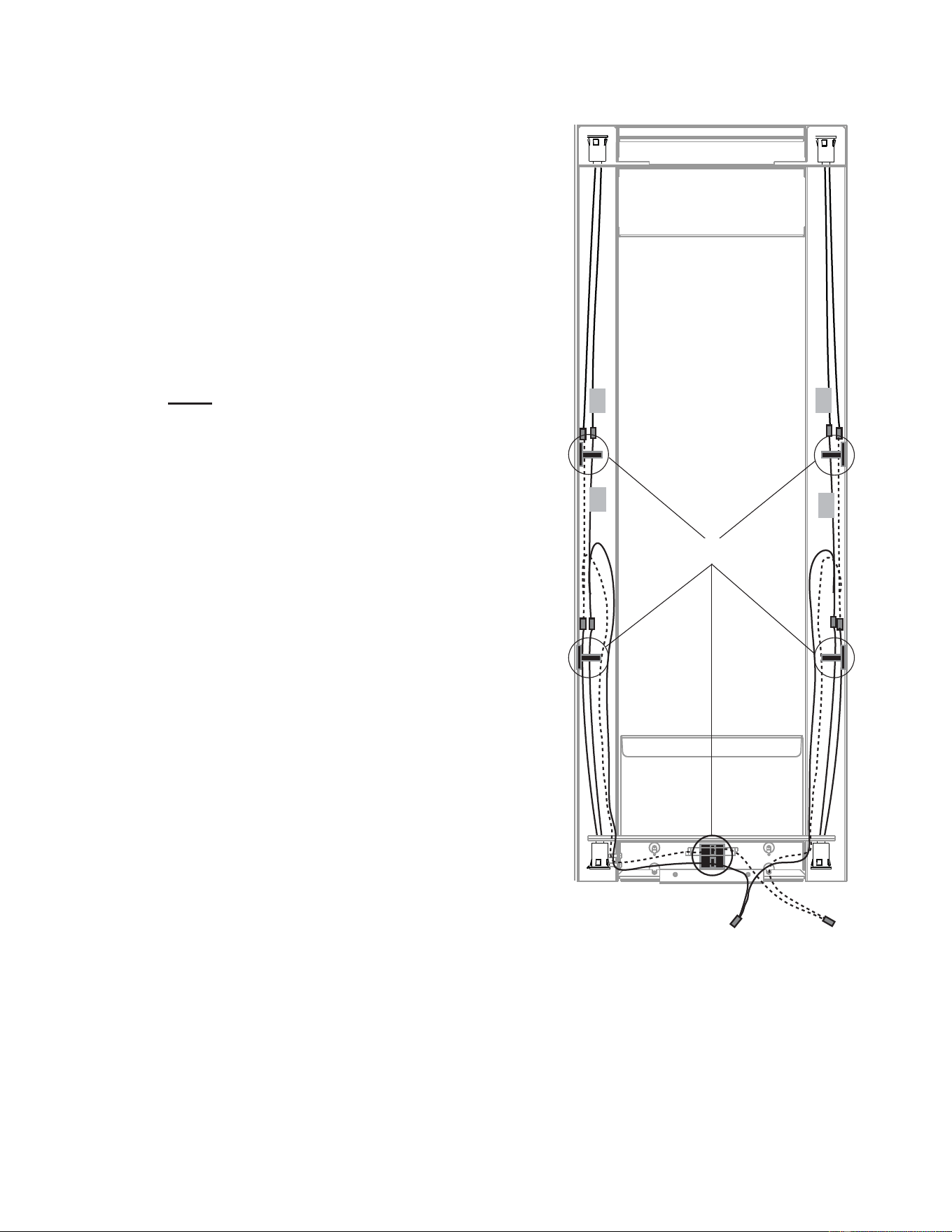

5.7 LK8 LIGHT INSTALLATION (OPTIONAL)

W415-0689 / C / 06.13.12

It is necessary to hard wire this appliance.

This appliance must be electrically connected and grounded in accordance with local codes. In the absence

of local codes, use the current CSA C22.1 Canadian Electrical Code in Canada or the ANSI/NFPA 70-1996

national electrical code in the United States.

NOTE: During assembly, anti-oxidant compound was applied to all electrical connections. If replacing

the existing wire harness or disconnecting any connectors, it is highly recommended to re-apply anti-

oxidant compound to the relative connections.

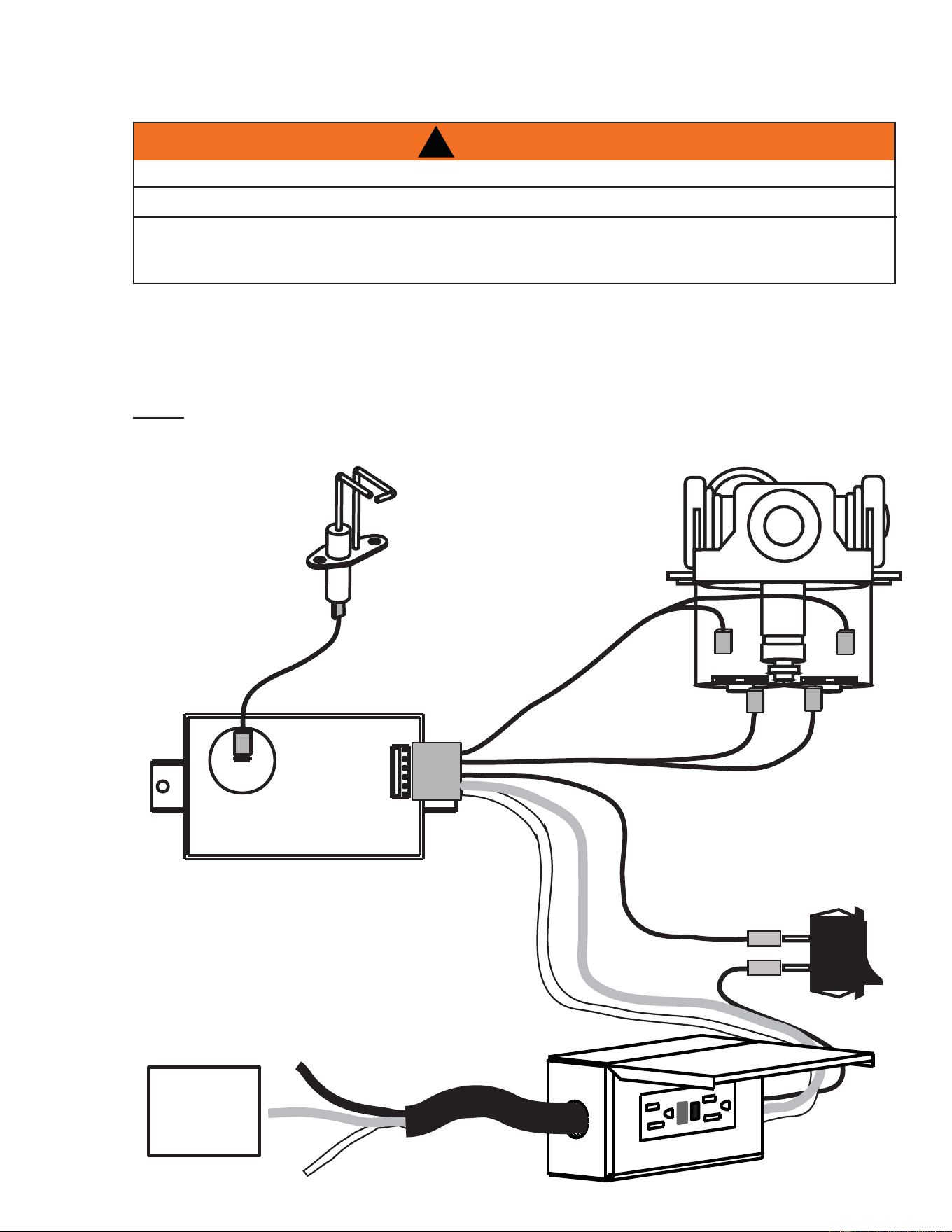

6.0 ELECTRICAL INFORMATION

WARNING

RISK OF ELECTRIC SHOCK!

CONTROL AND VALVE OPERATE WITH 110V.

DO NOT USE THIS APPLIANCE IF ANY PART HAS BEEN UNDER WATER. CALL A QUALIFIED SER-

VICE TECHNICIAN IMMEDIATELY TO HAVE THE APPLIANCE INSPECTED FOR DAMAGE TO THE

ELECTRICAL CIRCUIT.

YELLOW

BROWN

IGNITOR

WIRE

IGNITOR

GAS

VALVE

SWITCH

CONTROL MODULE

110v

POWER

SUPPLY

GFI

(Ground Fault Interrupter)

Illustration for reference only.

Follow the complete installation

instructions included with the GFI.

RESET

TEST

W415-0689 / C / 06.13.12

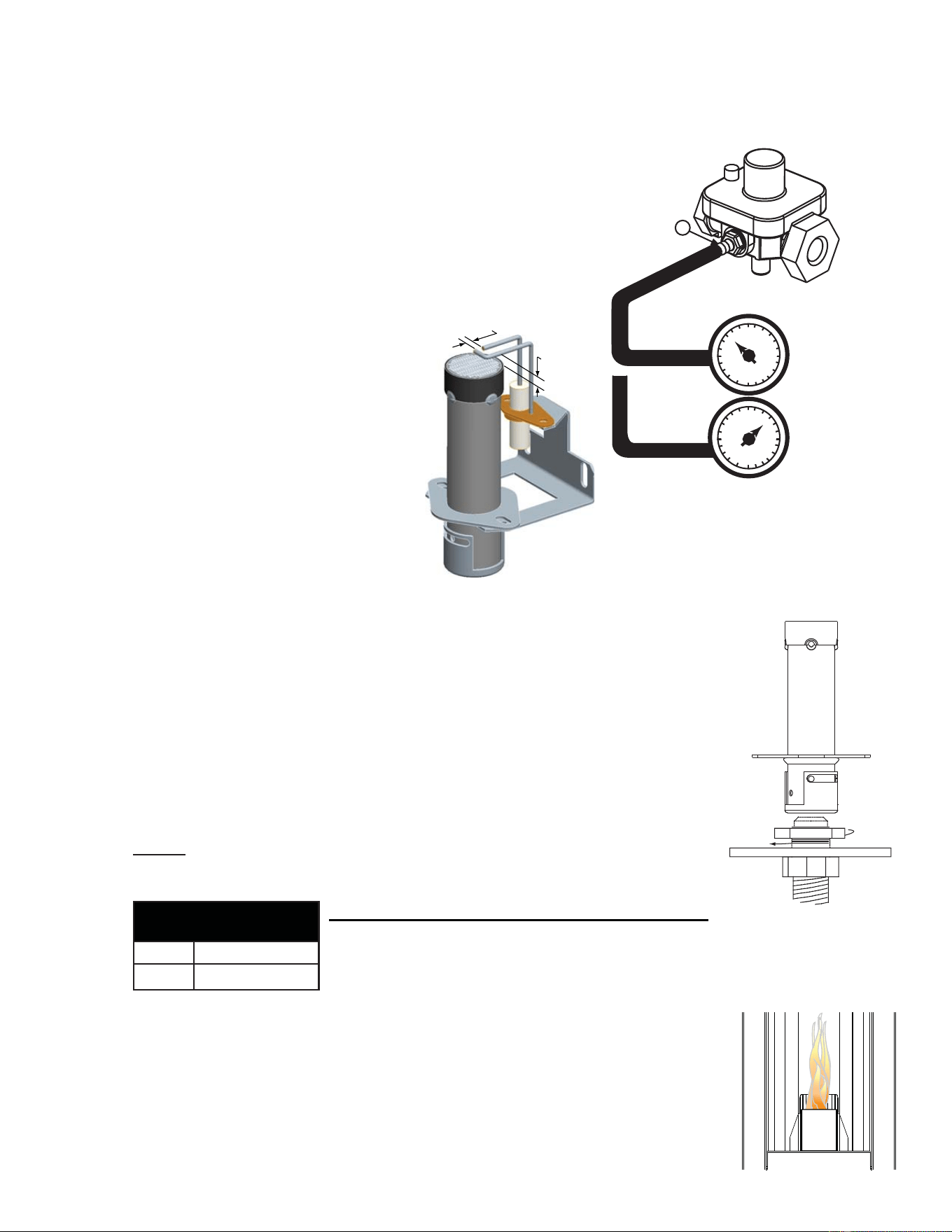

Ensure that a continuous gas ﬂ ow is at the burner before installing the door. When lit for the ﬁ rst time, the

ﬁ replace will emit an odor for a few hours. This is a normal temporary condition caused by the “burn-in” of

paints and lubricants used in the manufacturing process and will not occur again. After extended periods of

non-operation such as following a vacation or a warm weather season, the ﬁ replace may emit a slight odor for

a few hours. This is caused by dust particles in the heat exchanger burning off. In both cases, open a window

to sufﬁ ciently ventilate the room.

FOR YOUR SAFETY READ BEFORE LIGHTING:

A. This ﬁ replace is equipped with an ignition device which automatically lights the pilot. Do not try to light

by hand.

B. Before operating smell all around the ﬁ replace area for gas and next to the ﬂ oor because some gas is

heavier than air and will settle on the ﬂ oor.

C. Do not use this ﬁ replace if any part has been under water. Immediately call a qualiﬁ ed service techni-

cian to inspect the ﬁ replace and replace any part of the control system and any gas control which has

been under water.

WHAT TO DO IF YOU SMELL GAS:

• Turn off all gas to the ﬁ replace.

• Open windows.

• Do not try to light any appliance.

• Do not touch any electric switch; do not use

any phone in your building.

• Immediately call your gas supplier from

a neighbour’s phone. Follow the gas

supplier’s instructions.

• If you cannot reach your gas supplier,

call the ﬁ re department.

LIGHTING INSTRUCTIONS:

1. Stop! Read the above safety information on this label.

2. Turn off all electrical power to the ﬁ replace.

3. This ﬁ replace is equipped with an ignition device which auto-

matically lights the pilot. Do not try to light the pilot by hand.

4. Open the glass door.

5. Wait ﬁ ve (5) minutes to clear out any gas. If you smell gas

including near the ﬂ oor, STOP! Follow “B” in the above safety

information on this label. If you don’t smell gas go to the next

step.

6. Close the glass door.

7. Turn on all electric power to the ﬁ replace and re-install

batteries into the transmitter.

8. Turn the ﬁ replace switch to the ON position.

9. If ﬁ replace will not operate, follow instructions “To Turn Off Gas” and call your service technician or gas supplier.

1. Turn the ﬁ replace switch to the OFF position.

2. Turn off all electrical power to the ﬁ replace if service is to be performed.

3. Turn manual shut-off valve clockwise to off. Do not force.

TO TURN OFF GAS:

47.8

MANUAL SHUT-OFF

(SHOWN IN OFF POSITION)

IF YOU DO NOT FOLLOW THESE INSTRUCTIONS EXACTLY, A FIRE OR EXPLOSION MAY RESULT

CAUSING PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE.

WARNING

7.0 OPERATION

W415-0689 / C / 06.13.12

8.0 ADJUSTMENTS

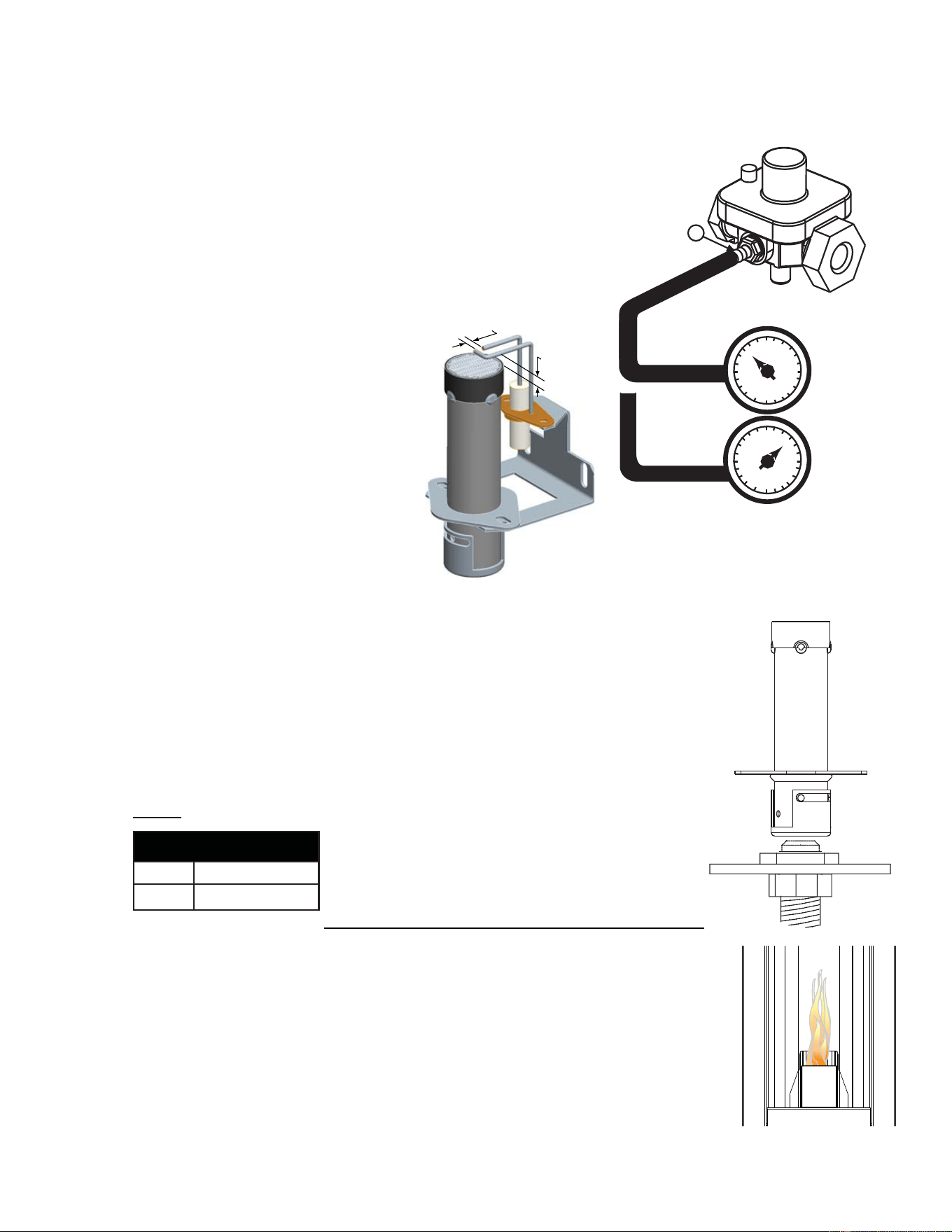

8.1 GAS PRESSURE ADJUSTMENT

Outlet pressure can be adjusted if not measuring 3.5” W.C. (NG)

or 10.0” W.C. (LP).

A. Pressure can be checked by removing cap (A) using a

3/16 Allen key and replacing it with a 1/8 NPT barb ﬁ tting.

B. Place pressure gauge tube over the ﬁ tting.

C. Pressure can be adjusted by removing cap (B) using a

ﬂ at screwdriver, and adjusting the nylon plug with the

same screw driver. Turning

the plug in (clockwise) will

increase the pressure.

1/8”

1/4”

1/8

NPT BARB

FITTING

PROPANE

GAS

PRESSURE

GAUGE

NATURAL

GAS

3.5

8.2 VENTURI ADJUSTMENT

This model has an air shutter that has been factory set open according to the chart below:

Closing the air shutter will cause a more yellow ﬂ ame, but can lead to carboning.

Opening the air shutter will cause a more blue ﬂ ame, but can cause ﬂ ame lifting

from the burner ports. The ﬂ ame may not appear yellow immediately; allow 15

to 30 minutes for the ﬁ nal ﬂ ame color to be established.

IR SHUTTER ADJUSTMENT MUST ONLY BE DONE BY A QUALIFIED

INSTALLER!

NOTE: It is important that the venturi sits down tight on the oriﬁ ce.

49.3

VENTURI

BURNER

AIR

SHUTTER

OPENING

AIR SHUTTER OPENINGS

LP 3/16” DIA

NG 1/16” DIA

8.3 FLAME CHARACTERISTICS

It is important to periodically perform a visual check of the burner ﬂ ame. Compare them

to the illustration provided.

W415-0689 / C / 06.13.12

• Visually inspect the appliance for carbon buildup.

• Using a small whisk or brush, brush off the excess carbon and vacuum up or sweep into the garbage.

• Check the ﬁ replace for corrosion of the main burner base.

9.0 MAINTENANCE

CAUTION: Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper

and dangerous operation. Verify proper operation after servicing. This appliance and its venting system

should be inspected before use and at least annually by a qualiﬁ ed service person. The appliance area must

be kept clear and free of combustible materials, gasoline or other ﬂ ammable vapors and liquids. The ﬂ ow of

combustion and ventilation air must not be obstructed.

A. In order to properly clean the burner and pilot assembly, remove the logs, rocks and/or glass to

expose both assemblies.

B. Keep the control compartment, media, burner, air shutter opening and the area surrounding the logs

clean by vacuuming or brushing, at least once a year.

C. Check to see that all burner ports are burning. Clean out any of the ports which may not be burning or

are not burning properly.

D. Check to see that the pilot ﬂ ame is large enough to engulf the ﬂ ame sensor and/or thermocouple /

thermopile as well as reaches the burner.

E. Replace the cleaned logs, rocks or glass. Failure to properly position the media may cause carboning

which can be distributed in the surrounding living area.

F. Check to see that the main burner ignites completely on all openings when turned on. A 5 to 10

second total light-up period is satisfactory. If ignition takes longer, consult your local authorized dealer /

distributor.

G. Check that the gasketing on the sides, top and bottom of the door is not broken or missing. Replace if

necessary.

H. If for any reason the vent air intake system is disassembled, re-install and re-seal per the instructions

provided for the initial installation.

40.1

MAINTENANCE

TURN OFF THE GAS AND ELECTRICAL POWER BEFORE SERVICING THE APPLIANCE.

APPLIANCE MAY BE HOT, DO NOT SERVICE UNTIL APPLIANCE HAS COOLED.

DO NOT USE ABRASIVE CLEANERS.

WARNING

9.1 CARE OF GLASS

5.1

DO NOT CLEAN GLASS WHEN HOT! DO NOT USE

ABRASIVE CLEANERS TO CLEAN GLASS.

Buff lightly with a clean dry soft cloth. Clean both sides

of the glass after the ﬁ rst 10 hours of operation with a

recommended ﬁ replace glass cleaner. Thereafter clean

as required. If the glass is not kept clean permanent

discoloration and / or blemishes may result.

HOT GLASS WILL

CAUSE BURNS.

DO NOT TOUCH GLASS

UNTIL COOLED.

NEVER ALLOW CHILDREN

TO TOUCH GLASS.

WARNING

W415-0689 / C / 06.13.12

81.1

Stainless steel tends to oxidize or stain in the presence of chlorides and sulﬁ des, particularly in coastal areas

and other harsh environments, such as the warm, highly humid atmosphere around pools and hot tubs. These

stains could be perceived as rust, but can be easily removed or prevented. To provide stain prevention and

removal, wash all stainless steel surfaces every 3-4 weeks or as often as required with fresh water and/or

stainless steel cleaner.

CLEANING THE STAINLESS STEEL SURFACE:

Do not use abrasive cleaners or steel wool on the stainless steel parts. Doing so will scratch the ﬁ nish. Sur-

faces should be cleaned with warm soapy water while the metal is still warm to the touch. To clean stainless

surfaces, use a stainless steel or non-abrasive cleaner. Always wipe in the direction of the grain. Over time,

stainless steel parts discolour when heated, usually to a golden or brown hue. This discolouration is normal

and does not affect the performance of the appliance.

9.2 DOOR GLASS REPLACEMENT

WARNING

DO NOT USE SUBSTITUTE MATERIALS.

GLASS MAY BE HOT, DO NOT TOUCH GLASS UNTIL COOLED.

CARE MUST BE TAKEN WHEN REMOVING AND DISPOSING OF ANY BROKEN DOOR GLASS OR

DAMAGED COMPONENTS. BE SURE TO VACUUM UP ANY BROKEN GLASS FROM INSIDE THE

APPLIANCE BEFORE OPERATION.

DO NOT STRIKE, SLAM OR SCRATCH GLASS. DO NOT OPERATE APPLIANCE WITH GLASS

REMOVED, CRACKED, BROKEN OR SCRATCHED.

56.2

Having removed the door, lay on a smooth ﬂ at surface, face

down. There are 4 glass retainers that need to be bent

away from the glass to release it from the frame. Do not

pry on the glass.

When replacing DO NOT SUBSTITUTE MATERIAL,

replace the gasket (W562-0008) and the glass (W300-

0110). Set new glass into the frame and gently bend tabs

into the gasket to secure.

GLASS

RETAINERS

GASKET*

GLASS

TOP

* When installing the door glass ensure

that the gasketed end is placed into the

top of the door frame.

9.3 CARE OF STAINLESS STEEL

W415-0689 / C / 06.13.12

10.0 REPLACEMENTS

Contact your dealer or the factory for questions concerning prices and policies on replacement parts. Normally

all parts can be ordered through your Authorized dealer / distributor.

FOR WARRANTY REPLACEMENT PARTS, A PHOTOCOPY OF THE ORIGINAL INVOICE WILL BE

REQUIRED TO HONOUR THE CLAIM.

When ordering replacement parts always give the following information:

• Model & Serial Number of appliance

• Installation date of appliance

• Part number

• Description of part

• Finish

* IDENTIFIES ITEMS WHICH ARE NOT ILLUSTRATED. FOR

FURTHER INFORMATION, CONTACT YOUR AUTHORIZED DEALER.

41.1

FAILURE TO POSITION THE PARTS

IN ACCORDANCE WITH THIS

MANUAL OR FAILURE TO USE ONLY

PARTS SPECIFICALLY APPROVED

WITH THIS APPLIANCE MAY

RESULT IN PROPERTY DAMAGE OR

PERSONAL INJURY.

WARNING

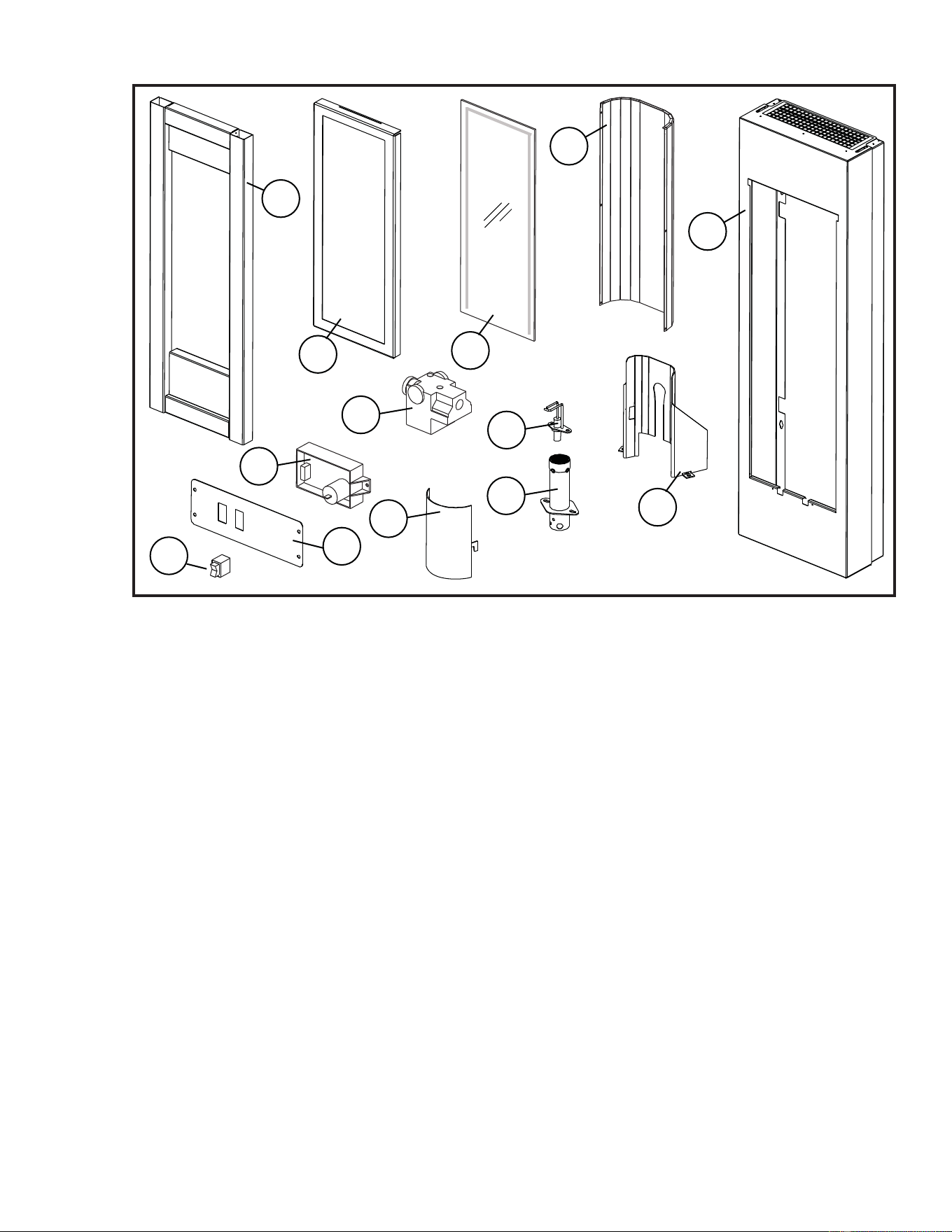

COMPONENTS

REF NO. PART NO. DESCRIPTION

1 W225-0223 DOOR FRAME

2* W562-0008 DOOR GASKET

3 W010-1959 GLASS C/W GASKET

4* W300-0110 GLASS

5 W100-0111 BURNER

6 W357-0006 IGNITOR

7 W190-0026 CONTROL, MODULE

8* W750-0202 WIRE HARNESS

9* W750-0184 IGNITION CABLE

10 W200-0263 IGNITOR COVER

11 W200-0262 BURNER COVER

12 W725-0052 NATURAL GAS VALVE - 3.5” W.C.

12 W725-0053 PROPANE GAS VALVE - 10.0” W.C.

13* W455-0085 NATURAL GAS ORIFICE

13* W455-0086 PROPANE GAS ORIFICE

14 W475-0590 BACK PANEL

15* W300-0108 ACCENT GLASS (BLACK)

16* W562-0046 ROPE GASKET, BACK PANEL

17* W385-0334 NAPOLEON® LOGO

18 W475-0595 CONTROL PANEL

19* W385-0380 CONTROL PANEL LABEL

20* W660-0082 OUTDOOR ON/OFF SWITCH

ACCESSORIES

REF NO. PART NO. DESCRIPTION

21 TMCSS MOUNTING CABINET

22 TFSSO FRAME KIT

23* LK8 LIGHT KIT

24* W573-0002 HIGH TEMPERATURE SEALANT

25* W573-0007 HIGH TEMPERATURE SEALANT

26* W175-0270 CONVERSION KIT - NG TO LP

27* W175-0274 CONVERSION KIT - LP TO NG

W415-0689 / C / 06.13.12

Items not shown to scale.

W415-0689 / C / 06.13.12

11.0 TROUBLESHOOTING

SYMPTOM PROBLEM TEST SOLUTION

Electrode sparks,

burner ignites,

electrode continues

to spark for complete

7 seconds, burner

shuts down.

Hot and neutral wires

are reversed at control

module.

- Connect the hot wire to the black wire. Connect the

neutral wire to the white wire.

Sensor / ﬂ ame not

connecting

- Raise electrode / sensor up into ﬂ ame.

Flame length

consistently too

large or too small.

Carboning occurs.

Unit is over-ﬁ red or

under-ﬁ red.

- Check pressure readings

- Outlet pressure can be checked by removing cap

(A) and replacing it with a 1/8” NPT barb ﬁ tting.

Next, place pressure gauge tubing over the ﬁ tting.

Gauge should read 3.5” W.C. for natural gas or 10.0”

W.C. for propane. AFTER TAKING PRESSURE

READINGS, BE SURE TO REPLACE CAP TO

RESEAL. DO NOT OVER-TORQUE.

- Leak test with a soap and water solution.

Carbon is being

deposited on glass,

logs or combustion

chamber surfaces.

Air shutter has

become blocked.

- Ensure air shutter opening is free of lint or other

obstructions.

Flame is impinging

on the combustion

chamber.

- Open air shutter to increase the primary air.

- Check the input rate: check the manifold pressure

and oriﬁ ce size as speciﬁ ed by the rating plate

values.

- Check that the door gasketing is not broken or

missing and that the seal is tight.

White / grey ﬁ lm

forms.

Sulphur from fuel

is being deposited

on glass, logs or

combustion chamber

surfaces.

- Clean the glass with a gas ﬁ replace glass cleaner.

DO NOT CLEAN GLASS WHEN HOT. If deposits

are not cleaned off regularly, the glass may become

permanently marked.

No gas to the main

burner; switch is on.

Switch is defective. - Connect a jumper wire across the wall switch

terminals; if main burner lights, replace switch /

thermostat.

Burner oriﬁ ce is

blocked.

- Remove stoppage in oriﬁ ce.

Control valve faulty. - Replace.

Faulty valve. - Replace.

42.22

MANUAL SHUT-OFF

(SHOWN IN OFF POSITION)

WARNING

ALWAYS LIGHT THE PILOT WHETHER FOR THE FIRST TIME OR IF THE GAS SUPPLY HAS RAN OUT,

WITH THE GLASS DOOR OPEN OR REMOVED.

TURN OFF THE GAS AND ELECTRICAL POWER BEFORE SERVICING THE APPLIANCE.

APPLIANCE MAY BE HOT, DO NOT SERVICE UNTIL APPLIANCE HAS COOLED.

DO NOT USE ABRASIVE CLEANERS.

W415-0689 / C / 06.13.12

SYMPTOM PROBLEM TEST SOLUTION

Burner will not light,

ignitor sparks.

No gas at the burner. - Check that the manual valve is turned on.

- Replace the valve.

Out of propane gas. - Fill the tank.

Ignitor will not spark. No spark at ignitor. - Check the power source. (ie. fuse, circuit breaker)

- Check that the wire is connected to both the ignitor

and the control module.

- Check that the spark is not jumping to ignitor cover.

- Replace the wire if the wire insulation is broken or

frayed.

- Replace the electrode if the ceramic insulator is

cracked or broken.

Spark gap is incorrect. - Spark gap should be 0.125” (1/8” approx.) from the

electrode tip to the sensor tip.

Remote wall switch

is in “OFF” position;

burner comes on.

Wall switch is mounted

upside down.

- Reverse.

Remote wall switch is

grounding.

- Replace.

Remote wall switch

wire is grounding.

- Check for ground (short); repair ground or replace

wire.

Faulty wire. - Replace.

CERAMIC

BODY

ELECTRODE

HIGH

VOLTAGE

IGNITION

CABLE

/8”

GAP

SENSOR

42.22_2

W415-0689 / C / 06.13.12

NAPOLEON® warrants its products against manufacturing defects to the original purchaser only. Registering your warranty is not necessary.

Simply provide your proof of purchase along with the model and serial number to make a warranty claim. NAPOLEON® reserves the right to have

its representative inspect any product or part thereof prior to honouring any warranty claim. Provided that the purchase was made through an

authorized NAPOLEON® dealer your appliance is subject to the following conditions and limitations:

Warranty coverage begins on the date of original installation.

This limited warranty applies only while the unit remains at the site of original installation, and only if the unit is installed in Canada or the United

States.

This factory warranty is nontransferable and may not be extended whatsoever by any of our representatives.

Installation must be done in accordance with the installation instructions included with the product and all local and national building and ﬁ re codes.

This limited warranty does not cover damages caused by misuse, lack of maintenance, accident, alterations, abuse or neglect and parts installed

from other manufacturers will nullify this warranty.

This limited warranty further does not cover any scratches, dents, corrosion or discolouring caused by excessive heat, abrasive and chemical

cleaners, mechanical breakage of logs and embers.

In the ﬁ rst year only, this warranty extends to the repair or replacement of warranted parts which are defective in material or workmanship provided

that the product has been operated in accordance with the operation instructions and under normal conditions.

After the ﬁ rst year, with respect to this Limited Warranty, NAPOLEON® may, at its discretion, fully discharge all obligations with respect to this

warranty by refunding to the original warranted purchaser the wholesale price of any warranted but defective part(s).

After the ﬁ rst year, NAPOLEON® will not be responsible for installation, labour or any other costs or expenses related to the reinstallation of a

warranted part, and such expenses are not covered by this warranty.

Notwithstanding any provisions contained in this Limited Warranty, NAPOLEON’S responsibility under this warranty is deﬁ ned as above and it shall

not in any event extend to any incidental, consequential or indirect damages.

This warranty deﬁ nes the obligations and liability of NAPOLEON® with respect to the NAPOLEON® gas appliance and any other warranties

expressed or implied with respect to this product, its components or accessories are excluded.

This limited warranty does not cover damages resulting from the use of components not supplied with the appliance, or the use of fuel other than

those speciﬁ ed.

Any damages to appliance due to weather, long periods of dampness, condensation, damaging chemicals or cleaners will not be the responsibility

of NAPOLEON®.

The bill of sale or copy will be required together with a serial number and a model number when making any warranty claims from your authorized

dealer. The warranty registration card must be returned within fourteen days to register the warranty.

NAPOLEON® reserves the right to have its representative inspect any product or part thereof prior to honouring any warranty claim.

All parts replaced under the Limited warranty policy are subject to a single claim.

All parts replaced under the warranty will be covered for a period of 90 days from the date of their installation.

The manufacturer may require that defective parts or products be returned or that digital pictures be provided to support the claim. Returned

products are to be shipped prepaid to the manufacturer for investigation. If a product is found to be defective, the manufacturer will repair or replace

such defect.

Before shipping your appliance or defective components, your dealer must obtain an authorization number. Any merchandise shipped without

authorization will be refused and returned to sender.

Shipping costs are not covered under this warranty.

Additional service fees may apply if you are seeking warranty service from a dealer.

Labour, travel, diagnostic tests, shipping and other related charges are not covered by this warranty.

2.9B

NAPOLEON® gas appliances are manufactured under the strict Standard of the world recognized

ISO 9001 : 2008 Quality Assurance Certiﬁ cate.

NAPOLEON® products are designed with superior components and materials, assembled by trained craftsmen who take

great pride in their work. The burner and valve assembly are leak and test-ﬁ red at a quality test station. Once assembled

the complete appliance is thoroughly inspected by a qualiﬁ ed technician before packaging to ensure that you, the customer,

receives the quality product that you expect from NAPOLEON®.

All stainless steel components of your new NAPOLEON® gas appliance are warranted against defects for

ﬁ ve years.

All parts such as gas valves, logs, gasketing are covered and NAPOLEON® will provide replacement parts

free of charge during the ﬁ rst year of the limited warranty.*

Labour related to warranty repair is covered free of charge during the ﬁ rst year. Repair work, however,

requires the prior approval of an authorized company ofﬁ cial. Labour costs to the account of NAPOLEON®

are based on a predetermined rate schedule and any repair work must be done through an authorized

NAPOLEON® dealer.

* Construction of models vary. Warranty applies only to components included with your speciﬁ c appliance.

NAPOLEON® GAS APPLIANCE 5 YEAR LIMITED WARRANTY

CONDITIONS AND LIMITATIONS

ALL SPECIFICATIONS AND DESIGNS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE DUE TO ON-GOING PRODUCT IMPROVEMENTS.

NAPOLEON® IS A REGISTERED TRADEMARK OF WOLF STEEL LTD.

12.0 WARRANTY

W415-0689 / C / 06.13.12

13.0 SERVICE HISTORY

43.1

W415-0689 / C / 07.24.12

INSTALLATEUR : LAISSEZ CE MANUEL AVEC L’APPAREIL.

PROPRIÉTAIRE : CONSERVEZ CE MANUEL POUR CONSULTATION ULTÉRIEURE.

NE LAISSEZ PAS LES ENFANTS OU AUTRES INDIVIDUS À RISQUE SEULS À PROXIMITÉ DE L’APPAREIL.

1.22B

Wolf Steel Ltd., 24 Napoleon Rd., Barrie, ON, L4M 0G8 Canada /

103 Miller Drive, Crittenden, Kentucky, USA, 41030

Téléphone 705-721-1212 • Télécopieur 705-722-6031 • www.napoleonfoyers.com • [email protected]

CERTIFIÉ POUR LE CANADA ET LES ÉTATS-UNIS SELON LES MÉTHODES ANSI/CSA.

INSTRUCTIONS

D’INSTALLATION ET

D’OPÉRATION

APPOSEZ L’ÉTIQUETTE DU NUMÉRO DE SÉRIE DU CARTON

N° de série

N° DE MODÈLE

10,00 $

LA VITRE CHAUDE CAUSERA

DES BRÛLURES.

NE PAS TOUCHER LA VITRE

AVANT QU’ELLE AIT REFROIDI.

NE JAMAIS LAISSER LES

ENFANTS TOUCHER LA VITRE.

AVERTISSEMENT

CONSIGNES DE SÉCURITÉ

AVERTISSEMENT

- N’entreposez pas et n’utilisez pas d’essence ou autres

liquides et vapeurs inﬂ ammables à proximité de cet ap-

pareil ou tout autre appareil.

- QUE FAIRE SI VOUS DÉTECTEZ UNE ODEUR DE GAZ :

• N’allumez aucun appareil.

• Ne touchez à aucun interrupteur électrique;

n’utilisez aucun téléphone dans votre immeuble.

• Appelez immédiatement votre fournisseur de gaz

d’un téléphone voisin. Suivez ses instructions.

• Si vous ne pouvez pas rejoindre votre fournisseur

de gaz, appelez le service des incendies.

- L’installation et l’entretien doivent être faits par un

installateur qualiﬁ é, une agence d’entretien ou le

fournisseur.

Cet appareil doit être utilisé uniquement avec le type de

gaz indiqué sur la plaque signalétique. Cet appareil ne

peut être converti à d’autres gaz, sauf si une trousse de

conversion est utilisée.

Si ces instructions ne sont pas suivies à la

lettre, un incendie ou une explosion pourraient

s’ensuivre, causant des dommages matériels,

des blessures corporelles ou des pertes de vie.

GSST8N

GAZ NATUREL

GSST8P

PROPANE

HOMOLOGUÉ SELON LES NORMES NATIONALES CANADIENNES ET AMÉRICAINES : CR97-003 ● CAN-2.21-M85 ● IAS US. 4-96

AVERTISSEMENT : POUR UTILISATION

EXTÉRIEURE SEULEMENT

W415-0689 / C / 07.24.12

NOTE : Les changements autres que de nature éditoriale sont dénotés par une ligne verticale dans la

marge.

1.0 VUE D’ENSEMBLE DE L’INSTALLATION 3

2.0 INTRODUCTION 4

2.1 DIMENSIONS 5

2.2 INSTRUCTIONS GÉNÉRALES 5

2.3 INFORMATION GÉNÉRALE 6

2.4 INFORMATION À PROPOS DE LA PLAQUE D’HOMOLOGATION 7

3.0 INSTALLATION 8

3.1 EMPLACEMENTS ET DÉGAGEMENTS MINIMAUX 8

3.2 BRANCHEMENT DU GAZ 9

3.3 AIR COMBURANT ET DE VENTILATION 9

4.0 OSSATURE 10

4.1 DÉGAGEMENTS AUX MATÉRIAUX COMBUSTIBLES 10

5.0 FINITIONS 11

5.1 INSTALLATION DU CABINET TMCSS 11

5.2 LANGUETTES D’ÉGOUTTEMENT 12

5.3 ENLÈVEMENT DE LA PORTE 13

5.4 INSTALLATION DES BRAISES EN VERRE 14

5.5 INSTALLATION DU CONTOUR TFSSO 15

5.6 MISE EN PLACE DU LOGO 15

5.7 INSTALLATION DU SYSTÈME D’ÉCLAIRAGE LK8 (OPTIONNEL) 16

6.0 BRANCHEMENT ÉLECTRIQUE 17

7.0 FONCTIONNEMENT 18

8.0 RÉGLAGES 19

8.1 RÉGLAGE DE LA PRESSION DU GAZ 19

8.2 VENTURI ADJUSTMENT 19

8.3 CARACTÉRISTIQUES DE LA FLAMME 19

9.0 ENTRETIEN 20

9.1 SOINS DE LA VITRE 20

9.2 REMPLACEMENT DE LA VITRE DE PORTE 21

9.3 SOINS DE L’ACIER INOXYDABLE 21

10.0 RECHANGES 22

11.0 GUIDE DE DÉPANNAGE 24

12.0 GARANTIE 26

13.0 HISTORIQUE D’ENTRETIEN 27

TABLE DES MATIÈRES

W415-0689 / C / 07.24.12

1.0 VUE D’ENSEMBLE DE L’INSTALLATION

Cabinet, voir la section

« INSTALLATION DU

CABINET ».

Porte, voir la section

« ENLÈVEMENT DE LA

PORTE ».

Vitre, voir la section

« REMPLACEMENT DE LA

VITRE ».

Contour, voir la section

« OSSATURE ».

Plaque d'homologation, voir la

section « INFORMATION SUR LA

PLAQUE D’HOMOLOGATION ».

W415-0689 / C / 07.24.12

3.14A

AVERTISSEMENT

• CET APPAREIL EST CHAUD LORSQU’IL FONCTIONNE ET PEUT CAUSER DE GRAVES

BRÛLURES EN CAS DE CONTACT.

• Ne faites pas fonctionner l’appareil avant d’avoir lu et compris les instructions d’opération. Omettre

d’utiliser l’appareil selon les instructions d’opération pourrait causer un incendie ou des blessures.

• Toute modiﬁ cation apportée à cet appareil ou aux contrôles peut être dangereux et est interdit.

• Risque de brûlures. L’appareil doit être éteint et refroidi avant d’effectuer un entretien.

• N’installez pas de composants endommagés ou incomplets ni des composants substituts.

• Risque de coupures et d’éraﬂ ures. Portez des gants protecteurs et des lunettes de sécurité lors de

l’installation. Les bordures des pièces de métal peuvent être coupantes.

• Ne brûlez pas de bois ou autres matériaux dans cet appareil.

• Assurez-vous d’une quantité sufﬁ sante d’air de combustion et de ventilation. Prévoyez un accès

sufﬁ sant pour entretenir et opérer l’appareil. N’obstruez jamais l’ouverture sur le devant de l’appareil.

• Si l’appareil s’éteint de façon répétitive, faites-le inspecter. Gardez le brûleur et le compartiment de

contrôle propres.

• Ne laissez pas le vent soufﬂ er directement dans l’appareil. Évitez les courants d’air qui modiﬁ ent

l’apparence de la ﬂ amme.

• Les enfants et les adultes devraient être informés des dangers que posent les températures de surface

élevées et se tenir à distance afin d’éviter des brûlures ou que leurs vêtements ne s’enflamment.

• Les jeunes enfants doivent être supervisés attentivement lorsqu’ils sont dans la même pièce que

l’appareil. Les jeunes enfants et autres personnes sont sujets aux brûlures accidentelles. Une barrière

de protection est recommandée s’il y a des personnes à risque à proximité de l’appareil. Aﬁ n de

restreindre l’accès à l’appareil, installez une barrière de protection ajustable pour garder les jeunes

enfants ou autres personnes à risque loin des surfaces chaudes.

• Les vêtements et autres matériaux combustibles ne doivent pas être posés sur l’appareil ou à proximité.

• Les meubles ou autres objets doivent être gardés à une distance d’au moins 4 pieds du devant de

l’appareil.

• Assurez-vous de disposer de mesures de sécurité adéquates pour empêcher les jeunes enfants de

toucher aux surfaces chaudes.

• Même une fois que l’appareil est éteint, le pare-étincelles demeurera chaud pendant un temps

prolongé.

• Consultez votre détaillant local de foyer pour connaître les grillages de sécurité et les écrans offerts

pour protéger les enfants des surfaces chaudes. Ces grillages de sécurité et ces écrans doivent être

ﬁ xés au plancher.

• Les grillages de sécurité ou écrans enlevés pour faire l’entretien devront être remis en place avant

d’utiliser l’appareil.

• Il est primordial de garder propres les compartiments de contrôle, les brûleurs, la soufﬂ erie, les bouches

d’air de l’appareil ainsi que le système d’évacuation. L’appareil doit être inspecté avant la première

utilisation et au moins une fois l’an par un spécialiste en entretien. L’emplacement de l’appareil doit être

gardé libre de tous matériaux combustibles, essence ou autres liquides et vapeurs inﬂ ammables.

• Cet appareil ne devra être modiﬁ é en aucun cas.

• N’utilisez pas cet appareil si une partie quelconque a été submergée. Contactez immédiatement un

technicien de service qualiﬁ é pour inspecter l’appareil et pour remplacer toute pièce du système de

contrôle et du contrôle du gaz qui aurait été submergée.

• Les matériaux d’emballage doivent être gardés hors de la portée des enfants et mis au rebut de

façon sécuritaire. Comme tous les emballages de plastique, ceux-ci ne sont pas des jouets et doivent

demeurer hors de la portée des enfants et des bébés.

• Cet appareil ne doit pas être installé à l’intérieur ni dans une structure qui empêche la dissipation des

gaz de combustion dans l’environnement extérieur.

2.0 INTRODUCTION

W415-0689 / C / 07.24.12

2.1 DIMENSIONS

”

Ǫ´

1 ½”

15”

13”

”

ENTRÉE

DU GAZ

ENTRÉE

ÉLECTRIQUE

2.2 INSTRUCTIONS GÉNÉRALES

ALLUMEZ TOUJOURS LA VEILLEUSE, QUE CE SOIT POUR LA PREMIÈRE FOIS OU LORSQUE

L’APPROVISIONNEMENT EN GAZ EST ÉPUISÉ, AVEC LA PORTE VITRÉE OUVERTE OU RETIRÉE.

N’OBSTRUEZ JAMAIS L’OUVERTURE DE L’APPAREIL.

LES OBJETS PLACÉS DEVANT L’APPAREIL DOIVENT ÊTRE GARDÉS À UNE DISTANCE D'AU MOINS

48" DE LA FACE VITRÉE DE L'APPAREIL.

RISQUE D’INCENDIE OU D’EXPLOSION.

LES PRESSIONS ÉLEVÉES ENDOMMAGERONT LA SOUPAPE. L’ALIMENTATION EN GAZ DOIT ÊTRE

DÉBRANCHÉE PENDANT LES ESSAIS DE PRESSION DE CE SYSTÈME LORSQUE LES PRESSIONS

D’ESSAI EXCÈDENT ½ LB/PO² (3,5 KPA). FERMEZ LA SOUPAPE D’ARRÊT MANUELLE PENDANT

TOUT ESSAI DE PRESSION DU SYSTÈME D’ALIMENTATION EN GAZ LORSQUE LA PRESSION EST DE

½ LB/PO² (3,5 KPA) OU MOINS.

N’UTILISEZ QUE LES ACCESSOIRES OPTIONNELS ET LES PIÈCES DE RECHANGE APPROUVÉS PAR WOLF

STEEL POUR CET APPAREIL. L’UTILISATION D’ACCESSOIRES NON LISTÉS (SOUFFLERIE, PORTES, PER-

SIENNES, MOULURES, COMPOSANTS DE GAZ, COMPOSANTS D’ÉVACUATION, ETC.) POURRAIT ÊTRE NON

SÉCURITAIRE ET ANNULERA LA GARANTIE ET LA CERTIFICATION.

CET APPAREIL NE DOIT FONCTIONNER QU’AVEC LE TYPE DE GAZ SPÉCIFIÉ SUR LA PLAQUE

D’HOMOLOGATION. CET APPAREIL NE PEUT ÊTRE CONVERTI À UN AUTRE TYPE DE GAZ.

AVERTISSEMENT

W415-0689 / C / 07.24.12

4.3A

CE FOYER AU GAZ DEVRAIT ÊTRE INSTALLÉ ET ENTRETENU PAR UN INSTALLATEUR QUALIFIÉ en se

conformant aux codes locaux. Les pratiques d’installation peuvent varier d’une région à l’autre. Il est donc important de

connaître les normes spéciﬁ ques qui s’appliquent à votre région. Par exemple dans l’état du Massachusetts :

• La soupape d’arrêt doit être un robinet à gaz avec une poignée en T.

• Le raccord ﬂ exible ne doit pas mesurer plus que 36 pouces.

L’installation doit se conformer aux codes locaux. En l’absence de

codes locaux, l’installation doit être conforme au Code d’installation

du gaz naturel et du propane CSA B149.1 au Canada ou le

National Fuel Gas Code, ANSI Z223.1 / INFPA 54 aux États-Unis.

Nous suggérons que nos

appareils au gaz soient installés

et que l'entretien soit effectué

par des professionnels certi-

fiés par le National Fireplace

Institute® (NFI) comme

spécialiste du gaz NFI.

2.3 INFORMATION GÉNÉRALE

POUR VOTRE SATISFACTION, CE FOYER A ÉTÉ MIS À L’ESSAI POUR CONFIRMER SON FONCTIONNEMENT

ET SA QUALITÉ!

RENDEMENT ET EFFICACITÉ

GAZ NATUREL PROPANE

Altitude 0 - 4 500* 0 - 4 500*

Débit maximum 6 000 6 000

Pression d’arrivée minimale 4,5” de colonne d’eau 11” de colonne d’eau

Pression d’arrivée maximale 7” de colonne d’eau 13” de colonne d’eau

Pression du collecteur lorsque le gaz circule 3,5” de colonne d’eau 10” de colonne d’eau

Lorsque l’appareil est installé à des élévations dépassant 4500 pieds, et en l’absence de recommandations

spéciﬁ ques de l’autorité compétente locale, l’indice certiﬁ é du débit à haute altitude devra être réduit au taux de

4 % pour chaque 1 000 pieds supplémentaires.

Cet appareil ne doit fonctionner qu’avec le gaz spéciﬁ é sur la plaque d’homologation. Cet appareil ne peut être

converti à un autre type de gaz à moins d’utiliser un ensemble de conversion certiﬁ é.

Les bruits causés par l’expansion et la contraction lors des cycles de chauffage et de refroidissement sont tout

à fait normaux et il faut s’y attendre.

Purgez toutes les conduites de gaz avec la porte vitrée retirée. Assurez-vous que l’arrivée de gaz au brûleur est

continue avant de réinstaller la porte.

Les objets placés devant l’appareil doivent être gardés à une distance d’au moins 48” de la face vitrée de l’appareil.

N’utilisez que des accessoires homologués et conçus pour votre modèle d’appareil.

W415-0689 / C / 07.24.12

2.4 INFORMATION À PROPOS DE LA PLAQUE D’HOMOLOGATION

Cette illustration est à titre de référence seulement. Consultez la plaque d’homologation pour obtenir

l’information précise.

NOTE: La plaque d’homologation doivent rester avec l’appareil toujours. Il ne doit pas être enlevé.
