Dreame D10S PRO Robot Vacuum User Manual

For more support, contact us via aftersales@dreame.tech

Website: https://global.dreametech.com

Manufactured by: Dreame Trading (Tianjin) Co., Ltd.

Made in China

"追觅" יניסה םשה לילצ לע ססובמה קיתעת והז .Dreame Technology Co., Ltd. and its subsidiaries תיניסה הרבחה לש רצוקמה ומש וניה Dreame

.היגולגונכטה םוחתב קסופ יתלב ןפואב ףורדלו שפחל הרבחה ןוזח תא וכותב שיחממו

يعسلل ةكرشلا ةيؤر "追觅"ينيصلا ىمسملل ةيتوصلا ةمجرتلا سكعتو ،اهل ةعباتلا تاكرشلاو ةدودحملا ايجولونكتلل ميرد ةكرش ع قلطيو ةينيص ةسسؤم يه ميرد

.ايجولونكتلا يف ثحبلاو فاشكتساو رمتسملا

The word "dreame" is the abbreviation of Dreame Technology Co., Ltd. and its subsidiaries in China. It is the transliteration of the company's Chinese name " 追觅",

which means striving for excellence in every endeavor and re󽗊ects the company's vision of continuous pursuit, exploration and search in technology.

Das Wort "dreame" ist die Abkürzung von Dreame Technology Co., Ltd und seinen Tochterunternehmen in China. Es ist die Transliteration des chinesischen

Namens " 追觅" dieser Firma, was für das Streben nach Vollendung steht und die Vision des Unternehmens widerspiegelt, nämlich im Bereich der Technolo-

gie unaufhaltsam weiterzustreben, zu erforschen und entdecken.

Dreame est l'abréviation de l'entreprise chinoise Dreame Technology Co. et ses 󽗉liales, qui est la traduction phonétique du nom chinois de l'entreprise,

re󽗊étant la vision de l'entreprise qui consiste à poursuivre, explorer et rechercher constamment les avancées technologiques.

La parola "dreame" è l'abbreviazione dell'azienda Dreame Technology Co., Ltd. e delle sue 󽗉liali in Cina. È la traslitterazione del nome cinese dell'azienda "追

觅

", che dimostra la continua ricerca, esplorazione e visione di ricerca dell'azienda nella tecnologia.

La palabra "dreame" es la abreviatura de Dreame Technology Co., Ltd. y sus subsidiarias en China. Es la transliteración del nombre chino de "Dreame", que

signi󽗉ca luchar por la excelencia en cada esfuerzo y re󽗊eja la visión de la compañía de continuamente buscar, explorar e investigar en tecnologás.

Dreame — сокращённое название китайской компании Dreame Technology Co., Ltd. и ее дочерних предприятий. Dreame является транслитерацией

названия компании на китайском языке « 追觅», в котором отражено корпоративное видение компании в сфере науки и технологий —

непрерывный поиск, исследования и стремление к успеху.

Słowo "dreame" to skrót od Dreame Technology Co., Ltd. i spółek w Chinach. Jest to transliteracja chińskiej nazwy 󽗉rmy " 追觅" co oznacza dążenie do

doskonałości w każdym przedsięwzięciu, odzwierciedlając wizję 󽗉rmy, jaką jest ciągłe prowadzenie, odkrywanie i poszukiwania w nauce i technologii.

The illustrations in this manual are for reference only. Please refer to the actual product.

Robot Vacuum and Mop

User Manual

D10 s

RLS6A-EU-A01

09/2022

Usage Restrictions

To avoid electric shock, fire or injury caused by improper use of the appliance, please read the user manual

carefully before using the appliance and keep it for future reference.

Safety Information

This product should not be used by children younger than 8 years old nor persons

with physical, sensory, intellectual deficiencies, or limited experience or knowledge

without the supervision of a parent or guardian to ensure safe operation and to

avoid any risks. Cleaning and maintenance shall not be performed by children

without supervision.

Children shall not play with this product. Ensure children and pets are kept at a safe

distance from the robot while it is operating.

If the power cord becomes damaged or broken, stop using it immediately and

contact after-sales service.

This product is for floor cleaning in a home environment only. Do not use it outdoors,

on non-floor surfaces, or in a commercial or industrial setting.

Do not use the robot in an area suspended above ground level without a protective

barrier.

Do not place the robot upside down. Do not use the LDS cover, robot cover, or

bumper as a handle for the robot.

Do not use the robot at an ambient temperature above 40° C or below 0° C or on a

floor with liquids or sticky substances.

Pick up any cables from the floor before using the robot to prevent it from dragging

them while cleaning.

Remove fragile or small items from the floor to prevent the robot from bumping into

and damaging them.

Contents

User Manual

Benutzerhandbuch

Manuel d'utilisation

Manuale utente

Manual de usuario

Инструкция по эксплуатации

Instrukcja obsługi

107

129

150

170

مادختسا ليلد

שמתשמל ךירדמ

Usage Restrictions

To avoid electric shock, fire or injury caused by improper use of the appliance, please read the user manual

carefully before using the appliance and keep it for future reference.

Safety Information

This product should not be used by children younger than 8 years old nor persons

with physical, sensory, intellectual deficiencies, or limited experience or knowledge

without the supervision of a parent or guardian to ensure safe operation and to

avoid any risks. Cleaning and maintenance shall not be performed by children

without supervision.

Children shall not play with this product. Ensure children and pets are kept at a safe

distance from the robot while it is operating.

If the power cord becomes damaged or broken, stop using it immediately and

contact after-sales service.

This product is for floor cleaning in a home environment only. Do not use it outdoors,

on non-floor surfaces, or in a commercial or industrial setting.

Do not use the robot in an area suspended above ground level without a protective

barrier.

Do not place the robot upside down. Do not use the LDS cover, robot cover, or

bumper as a handle for the robot.

Do not use the robot at an ambient temperature above 40° C or below 0° C or on a

floor with liquids or sticky substances.

Pick up any cables from the floor before using the robot to prevent it from dragging

them while cleaning.

Remove fragile or small items from the floor to prevent the robot from bumping into

and damaging them.

Contents

User Manual

Benutzerhandbuch

Manuel d'utilisation

Manuale utente

Manual de usuario

Инструкция по эксплуатации

Instrukcja obsługi

107

129

150

170

مادختسا ليلد

שמתשמל ךירדמ

2 3

ENEN

Usage Restrictions Batteries and

Charging

Safety Information Safety Information

Batteries and

Charging

Do not use any third-party battery, power cord, or charging dock. Use only with RCS0

supply unit.

Do not attempt to disassemble, repair, or modify the battery or charging dock on

your own.

Do not place the charging dock near a heat source.

Do not use a wet cloth or wet hands to wipe or clean the dock's charging contacts.

Do not improperly dispose of old batteries. Unneeded batteries should be discarded

at an appropriate recycling facility.

If the robot will not be used for an extended period, fully charge it, then turn it off

and store in a cool, dry place. Recharge the robot at least once every 3 months to

avoid over-discharging the battery.

This product contains batteries that can only be replaced by qualified technicians or

after-sales service.

Keep hair, fingers, and other body parts away from the suction opening of the

robots.

To prevent damage or harm from dragging, clear any loose objects from the floor,

and remove cables or power cords on the cleaning path before operating the

appliance.

Keep the brush cleaning tool out of reach of children.

Do not place children, pets, or any item on top of the robot regardless of whether it

is stationary or moving.

Do not use the robot to clean any burning objects. Do not use the robot to pick up

flammable or combustible liquids, corrosive gases, or undiluted acids or solvents.

Do not vacuum hard or sharp objects. Do not use the appliance to pick up objects

such as stones, large pieces of paper or any item that may clog the appliance.

Make sure the robot is turned off and the charging dock is unplugged before

cleaning or performing maintenance.

Do not use a wet cloth to wipe or any liquid to rinse the robot and charging dock.

Washable parts must be dried completely before installing and using them.

Make sure the robot is turned off when being transported and kept in its original

packaging if possible.

Please use this product in accordance with the instructions in the User Manual. Users

are responsible for any loss or damage that arise from improper use of this product.

Hereby, Dreame Trading

（

Tianjin

）

Co., Ltd. declares that the radio equipment type RLS6A is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is

available at the following internet address: https://global.dreametech.com

For detailed e-manual, please go to https://global.dreametech.com/pages/user-manuals-and-faqs

Laser Safety

Information

The laser sensor in this product meets the IEC 60825-1: 2014 Standard for Class 1

laser products. Please avoid direct eye contact with it during use.

2 3

ENEN

Usage Restrictions Batteries and

Charging

Safety Information Safety Information

Batteries and

Charging

Do not use any third-party battery, power cord, or charging dock. Use only with RCS0

supply unit.

Do not attempt to disassemble, repair, or modify the battery or charging dock on

your own.

Do not place the charging dock near a heat source.

Do not use a wet cloth or wet hands to wipe or clean the dock's charging contacts.

Do not improperly dispose of old batteries. Unneeded batteries should be discarded

at an appropriate recycling facility.

If the robot will not be used for an extended period, fully charge it, then turn it off

and store in a cool, dry place. Recharge the robot at least once every 3 months to

avoid over-discharging the battery.

This product contains batteries that can only be replaced by qualified technicians or

after-sales service.

Keep hair, fingers, and other body parts away from the suction opening of the

robots.

To prevent damage or harm from dragging, clear any loose objects from the floor,

and remove cables or power cords on the cleaning path before operating the

appliance.

Keep the brush cleaning tool out of reach of children.

Do not place children, pets, or any item on top of the robot regardless of whether it

is stationary or moving.

Do not use the robot to clean any burning objects. Do not use the robot to pick up

flammable or combustible liquids, corrosive gases, or undiluted acids or solvents.

Do not vacuum hard or sharp objects. Do not use the appliance to pick up objects

such as stones, large pieces of paper or any item that may clog the appliance.

Make sure the robot is turned off and the charging dock is unplugged before

cleaning or performing maintenance.

Do not use a wet cloth to wipe or any liquid to rinse the robot and charging dock.

Washable parts must be dried completely before installing and using them.

Make sure the robot is turned off when being transported and kept in its original

packaging if possible.

Please use this product in accordance with the instructions in the User Manual. Users

are responsible for any loss or damage that arise from improper use of this product.

Hereby, Dreame Trading

（

Tianjin

）

Co., Ltd. declares that the radio equipment type RLS6A is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is

available at the following internet address: https://global.dreametech.com

For detailed e-manual, please go to https://global.dreametech.com/pages/user-manuals-and-faqs

Laser Safety

Information

The laser sensor in this product meets the IEC 60825-1: 2014 Standard for Class 1

laser products. Please avoid direct eye contact with it during use.

4 5

ENEN

Accessories

Product Overview

Charging Dock

Water Tank Side Brush

Cleaning Tool Power Cord

Mop Pad

Robot

Product Overview

Spot Cleaning Button

· Press briefly to start spot cleaning

Power/Clean Button

· Press and hold for 3 seconds to turn on or o

· Press briefly to start cleaning after the robot is turned on

Dock Button

· Press to send robot back to the charging dock

· Press and hold for 3 seconds to disable Child Lock

Status Indicator

· Solid white: Cleaning or cleanup is completed

· Blinking Orange: Error

· Solid blue: Camera monitoring enabled

4 5

ENEN

Accessories

Product Overview

Charging Dock

Water Tank Side Brush

Cleaning Tool Power Cord

Mop Pad

Robot

Product Overview

Spot Cleaning Button

· Press briefly to start spot cleaning

Power/Clean Button

· Press and hold for 3 seconds to turn on or o

· Press briefly to start cleaning after the robot is turned on

Dock Button

· Press to send robot back to the charging dock

· Press and hold for 3 seconds to disable Child Lock

Status Indicator

· Solid white: Cleaning or cleanup is completed

· Blinking Orange: Error

· Solid blue: Camera monitoring enabled

6 7

ENEN

Robot

Robot Sensors

Product Overview

Reset Button

Cover

Wi-Fi Indicator

Cleaning Tool

Air Outlet/Speaker

Laser Distance Sensor (LDS)

Bumper

AI Visual Sensor

Cli Sensors

Main Wheels

Main Brush

Charging Contacts

Brush Guard Clips

Universal Wheel

Side Brush

Press and hold for 3 seconds

to restore the robot to factory

settings

Dust Bin Mopping Module

Charging Dock

Product Overview

Water Inlet

Water Tank

Mop Pad

Attaching Area

Filter

Bin Cover

Bin Clip

Signaling Area

Charging Contacts

Power Port

Water Tank Release Clip

6 7

ENEN

Robot

Robot Sensors

Product Overview

Reset Button

Cover

Wi-Fi Indicator

Cleaning Tool

Air Outlet/Speaker

Laser Distance Sensor (LDS)

Bumper

AI Visual Sensor

Cli Sensors

Main Wheels

Main Brush

Charging Contacts

Brush Guard Clips

Universal Wheel

Side Brush

Press and hold for 3 seconds

to restore the robot to factory

settings

Dust Bin Mopping Module

Charging Dock

Product Overview

Water Inlet

Water Tank

Mop Pad

Attaching Area

Filter

Bin Cover

Bin Clip

Signaling Area

Charging Contacts

Power Port

Water Tank Release Clip

8 9

ENEN

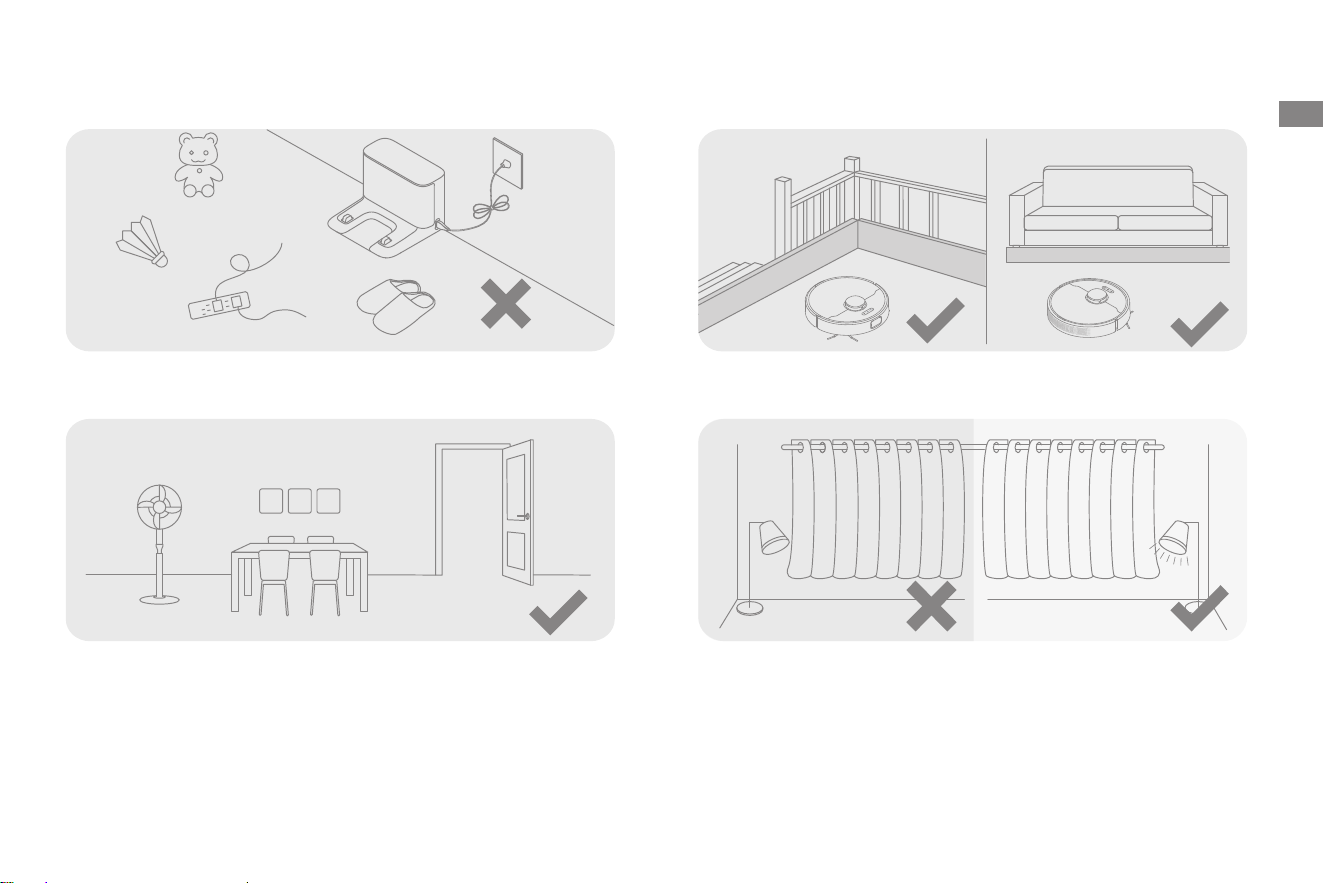

Preparing Your Home

Tidy up items such as power cords, cloths, slippers, and toys to

improve the eciency of the robot.

Open the door of the room to be cleaned, and put the furniture in

its proper place to leave more space.

With the AI visual sensor, the robot can better recognize and

avoid obstacles such as power cords, shoes, and socks, to get the

most out of the AI visual sensor, make sure that all areas to be

cleaned are well-lit.

Before cleaning, place a physical barrier at the edge of the stairs

and sofa to ensure the secure and smooth operations of the robot.

When operating the robot for the first time, follow it around while cleaning to remove any potential obstacles in time.

To prevent the robot from not recognizing areas that need to be cleaned, do not stand in front of the robot, threshold, hallway, or narrow places.

Note:

1. Remove the protective strips

2. Install the side brush

Click

Before Use

Note: Install the side brush until it clicks into place.

Battery Level Indicator

• White: Battery level is more than 15%

• Orange: Battery level is less than 15%

Fully charging is recommended before first-time use.

Do not install the mopping module while charging. Be extra careful with the wet mop

as it can damage the floor.

Note:

3. Set up the charging dock

Peel o the double-sided tape at the bottom of the charging dock,

then place the dock on the level ground against the wall and

connect it to a power outlet.

＞ 1.5 m

＞ 0.5 m

4. Place the robot onto the charging dock to charge

Note:

Keep the immediate area 1.5m in front of the charger and 0.5m to both sides of the

charging dock clear of objects.

To ensure you can connect to the robot with your phone well, make sure the robot and

charging dock are within Wi-Fi range.

Do not place the charging dock in an area with direct sunlight or where other objects

might block the signal, as this may hinder the robot from returning to the charging dock.

Use of the double-sided tape depends on your need.

Please clean the floor area where the charging dock will be placed with a dry rag.

If necessary, remove the double-sided tape slowly to reduce adhesive residue.

8 9

ENEN

Preparing Your Home

Tidy up items such as power cords, cloths, slippers, and toys to

improve the eciency of the robot.

Open the door of the room to be cleaned, and put the furniture in

its proper place to leave more space.

With the AI visual sensor, the robot can better recognize and

avoid obstacles such as power cords, shoes, and socks, to get the

most out of the AI visual sensor, make sure that all areas to be

cleaned are well-lit.

Before cleaning, place a physical barrier at the edge of the stairs

and sofa to ensure the secure and smooth operations of the robot.

When operating the robot for the first time, follow it around while cleaning to remove any potential obstacles in time.

To prevent the robot from not recognizing areas that need to be cleaned, do not stand in front of the robot, threshold, hallway, or narrow places.

Note:

1. Remove the protective strips

2. Install the side brush

Click

Before Use

Note: Install the side brush until it clicks into place.

Battery Level Indicator

• White: Battery level is more than 15%

• Orange: Battery level is less than 15%

Fully charging is recommended before first-time use.

Do not install the mopping module while charging. Be extra careful with the wet mop

as it can damage the floor.

Note:

3. Set up the charging dock

Peel o the double-sided tape at the bottom of the charging dock,

then place the dock on the level ground against the wall and

connect it to a power outlet.

＞ 1.5 m

＞ 0.5 m

4. Place the robot onto the charging dock to charge

Note:

Keep the immediate area 1.5m in front of the charger and 0.5m to both sides of the

charging dock clear of objects.

To ensure you can connect to the robot with your phone well, make sure the robot and

charging dock are within Wi-Fi range.

Do not place the charging dock in an area with direct sunlight or where other objects

might block the signal, as this may hinder the robot from returning to the charging dock.

Use of the double-sided tape depends on your need.

Please clean the floor area where the charging dock will be placed with a dry rag.

If necessary, remove the double-sided tape slowly to reduce adhesive residue.

10 11

ENEN

This product works with the Dreamehome app, which can be used to control your device.

Connecting with Dreamehome App

Note: If your robot cannot connect to the app successfully, reset the Wi-Fi and add the

device again.

1.Download the Dreamehome App 3. Reset Wi-Fi

Scan the QR code on the robot, or search "Dreamehome" in the

app store to download and install the app based on your needs.

Simultaneously press and hold the buttons

and until you

hear a voice say, “Waiting for the network configuration.” Once the

Wi-Fi indicator is blinking slowly, the Wi-Fi has been successfully

reset.

Wi-Fi Indicator

·Blinking slowly: To be connected

·Blinking quickly: Connecting

·On: Connected

Under the

Cover

2.Add Device

Open the Dreamehome app, tap "

" in the upper right, and

then scan the QR code above again to add "DreameBot D10s Pro".

Please follow the prompts to finish the Wi-Fi connection.

Only 2.4 GHz Wi-Fi networks are supported.

Due to upgrades in the app software, the actual operations may be dierent from the

statements in this manual. Please follow the instructions based on the current app

version.

Note:

Note: Before a cleaning task, make sure the robot starts from the charging dock. Do not

move the charging dock while the robot is cleaning.

1. Fast Mapping

How to Use

After configuring the network for the first time, follow the

instructions on the app to quickly create a map, and the robot

will start mapping without cleaning. The mapping process will be

completed when the robot returns to the charging dock, and the

map will be saved automatically.

2. Turn On/Of

Press and hold the

button for 3 seconds to turn on the robot.

The power indicator should be illuminated. Place the robot onto

the charging dock, the robot should turn on automatically and

begin charging. To turn o the robot, move the robot away from

the dock and press and hold the button for 3 seconds.

4. Pause/Sleep

When the robot is running, press any button to pause it. If the

robot is paused for more than 10 minutes, it automatically enters

sleep mode. All indicators on the robot will turn o. Press any

button on the robot, or use the app to wake up the robot.

The robot will turn o automatically if left in Sleep Mode for more than 12 hours.

When the robot is paused, placing it onto the charging dock will end the current

cleaning task.

Note:

3. Start Cleaning

Press the button

briefly to start cleaning after the robot is

turned on. The robot will accurately map out a route, methodically

clean along the edges and walls, then finish by cleaning each

room in an S-shaped pattern to ensure a thorough job.

5. Do Not Disturb (DND) Mode

When the robot is set to the Do Not Disturb (DND) mode, the robot

will be prevented from resuming cleaning and the power indicator

goes out. The DND mode is disabled by default at the factory.

You can use the app to enable the DND mode or modify the DND

period. The DND period is 22:00-8:00 by default.

The scheduled cleaning tasks will be performed on time during the DND period.

The robot will resume cleanup where it left o after the DND period expires.

Note:

6. Spot Cleaning

When the robot is on standby, press briefly the

button to enable

the spot cleaning mode. In this mode, the robot cleans a square-

shaped area of 1.5 × 1.5 meters around it and returns to its starting

point once the spot cleaning is completed.

10 11

ENEN

This product works with the Dreamehome app, which can be used to control your device.

Connecting with Dreamehome App

Note: If your robot cannot connect to the app successfully, reset the Wi-Fi and add the

device again.

1.Download the Dreamehome App 3. Reset Wi-Fi

Scan the QR code on the robot, or search "Dreamehome" in the

app store to download and install the app based on your needs.

Simultaneously press and hold the buttons

and until you

hear a voice say, “Waiting for the network configuration.” Once the

Wi-Fi indicator is blinking slowly, the Wi-Fi has been successfully

reset.

Wi-Fi Indicator

·Blinking slowly: To be connected

·Blinking quickly: Connecting

·On: Connected

Under the

Cover

2.Add Device

Open the Dreamehome app, tap "

" in the upper right, and

then scan the QR code above again to add "DreameBot D10s Pro".

Please follow the prompts to finish the Wi-Fi connection.

Only 2.4 GHz Wi-Fi networks are supported.

Due to upgrades in the app software, the actual operations may be dierent from the

statements in this manual. Please follow the instructions based on the current app

version.

Note:

Note: Before a cleaning task, make sure the robot starts from the charging dock. Do not

move the charging dock while the robot is cleaning.

1. Fast Mapping

How to Use

After configuring the network for the first time, follow the

instructions on the app to quickly create a map, and the robot

will start mapping without cleaning. The mapping process will be

completed when the robot returns to the charging dock, and the

map will be saved automatically.

2. Turn On/Of

Press and hold the

button for 3 seconds to turn on the robot.

The power indicator should be illuminated. Place the robot onto

the charging dock, the robot should turn on automatically and

begin charging. To turn o the robot, move the robot away from

the dock and press and hold the button for 3 seconds.

4. Pause/Sleep

When the robot is running, press any button to pause it. If the

robot is paused for more than 10 minutes, it automatically enters

sleep mode. All indicators on the robot will turn o. Press any

button on the robot, or use the app to wake up the robot.

The robot will turn o automatically if left in Sleep Mode for more than 12 hours.

When the robot is paused, placing it onto the charging dock will end the current

cleaning task.

Note:

3. Start Cleaning

Press the button

briefly to start cleaning after the robot is

turned on. The robot will accurately map out a route, methodically

clean along the edges and walls, then finish by cleaning each

room in an S-shaped pattern to ensure a thorough job.

5. Do Not Disturb (DND) Mode

When the robot is set to the Do Not Disturb (DND) mode, the robot

will be prevented from resuming cleaning and the power indicator

goes out. The DND mode is disabled by default at the factory.

You can use the app to enable the DND mode or modify the DND

period. The DND period is 22:00-8:00 by default.

The scheduled cleaning tasks will be performed on time during the DND period.

The robot will resume cleanup where it left o after the DND period expires.

Note:

6. Spot Cleaning

When the robot is on standby, press briefly the

button to enable

the spot cleaning mode. In this mode, the robot cleans a square-

shaped area of 1.5 × 1.5 meters around it and returns to its starting

point once the spot cleaning is completed.

12 13

ENEN

7. Scheduled Cleaning

How to Use

You can schedule cleaning time in the Dreamehome app. The robot

will automatically start cleaning at the designated time and then

return to the charging dock to recharge when the cleaning is done.

8. Additional App Functions

Follow the instructions on the app interface to use more functions.

The version of the app might have been updated; please follow

the instructions based on the current app version.

9. Use the Mopping Function

It is recommended that all floors are vacuumed at least three

times before the first mopping session to achieve a better cleaning

eect.

1) Dampen the mop pad and wring out excess water. Install the

mop pad as shown in the diagram.

2) Fill the tank with water.

Do not use detergent or disinfectant.

Do not fill with hot water, which may cause distortion of the water tank.

Note:

It is not recommended to use the mopping function on carpets.

Use the app to adjust the water flow as required.

Note:

3) Align the mopping module as indicated by the arrow, then

slide it into the back of the robot until it clicks into place. Press the

button

or use the Dreamehome app to start cleaning.

Click

Routine Maintenance

Parts

To keep the robot in good condition, it is recommended to refer to the

following table for routine maintenance.

Part

Maintenance

Frequency

Replacement Period

Mop pad After each use Every 3 to 6 months

Main brush

Once every 2 weeks

Every 6 to 12 months

Dust bin filter

Every 3 to 6 months

Side brush

Charging dock's

signaling area

Once every month

Charging contacts

Universal wheel

Laser Distance

Sensor (LDS)

AI visual sensor

Cli sensors

Water tank

Clean it as needed

Dust bin

Note: The replacement frequency will depend on your usage of the robot. If an exception

occurs due to special circumstances, the parts should be replaced.

Clean the Dust Bin and Filter

1. Open the robot cover and press the bin clip to remove the dust bin.

2. Open the bin cover and empty the bin as shown in the diagram.

12 13

ENEN

7. Scheduled Cleaning

How to Use

You can schedule cleaning time in the Dreamehome app. The robot

will automatically start cleaning at the designated time and then

return to the charging dock to recharge when the cleaning is done.

8. Additional App Functions

Follow the instructions on the app interface to use more functions.

The version of the app might have been updated; please follow

the instructions based on the current app version.

9. Use the Mopping Function

It is recommended that all floors are vacuumed at least three

times before the first mopping session to achieve a better cleaning

eect.

1) Dampen the mop pad and wring out excess water. Install the

mop pad as shown in the diagram.

2) Fill the tank with water.

Do not use detergent or disinfectant.

Do not fill with hot water, which may cause distortion of the water tank.

Note:

It is not recommended to use the mopping function on carpets.

Use the app to adjust the water flow as required.

Note:

3) Align the mopping module as indicated by the arrow, then

slide it into the back of the robot until it clicks into place. Press the

button

or use the Dreamehome app to start cleaning.

Click

Routine Maintenance

Parts

To keep the robot in good condition, it is recommended to refer to the

following table for routine maintenance.

Part

Maintenance

Frequency

Replacement Period

Mop pad After each use Every 3 to 6 months

Main brush

Once every 2 weeks

Every 6 to 12 months

Dust bin filter

Every 3 to 6 months

Side brush

Charging dock's

signaling area

Once every month

Charging contacts

Universal wheel

Laser Distance

Sensor (LDS)

AI visual sensor

Cli sensors

Water tank

Clean it as needed

Dust bin

Note: The replacement frequency will depend on your usage of the robot. If an exception

occurs due to special circumstances, the parts should be replaced.

Clean the Dust Bin and Filter

1. Open the robot cover and press the bin clip to remove the dust bin.

2. Open the bin cover and empty the bin as shown in the diagram.

14 15

ENEN

Routine Maintenance

3. Remove the filter and tap its basket gently.

4. Rinse the dust bin and filter with water and dry them completely

before reinstalling.

Note: Do not attempt to clean the filter with a brush, a finger or sharp objects to prevent

damage.

Rinse the dust bin and filter with clean water only. Do not use any detergent.

Use the dust bin and filter only when they are completely dry.

111

210

24 hrs

Note:

Clean the Mopping Module

1. Slide the two release clips on the side of water tank to remove

the mopping module, and then pull the mop pad o the mopping

module.

2. Pour out the water in the tank. Clean with water only and leave

to air dry before re-installing.

Note: Do not expose the tank to the sun directly.

Routine Maintenance

3. Clean the mop pad with water only and leave to air dry before

re-installing.

4. If slow water flow occurs, or the outflow is not well-distributed,

please clean the air hole in the cover of the water tank.

Remove the pad from the mopping module before cleaning it, and make sure dirty

water does not flow back into the water outlet to avoid clogging.

Note:

Clean the Main Brush

1. Press the brush guard clips inwards to remove the brush guard

and lift the brush out of the robot.

2. Pull out the brush cover as shown in the diagram. Use the

included cleaning tool to remove any hairs tangled in the brush.

Note: Do not pull out the hair tangled in the main brush excessively. Otherwise,

the brush may be damaged.

111

210

24 hrs

14 15

ENEN

Routine Maintenance

3. Remove the filter and tap its basket gently.

4. Rinse the dust bin and filter with water and dry them completely

before reinstalling.

Note: Do not attempt to clean the filter with a brush, a finger or sharp objects to prevent

damage.

Rinse the dust bin and filter with clean water only. Do not use any detergent.

Use the dust bin and filter only when they are completely dry.

111

210

24 hrs

Note:

Clean the Mopping Module

1. Slide the two release clips on the side of water tank to remove

the mopping module, and then pull the mop pad o the mopping

module.

2. Pour out the water in the tank. Clean with water only and leave

to air dry before re-installing.

Note: Do not expose the tank to the sun directly.

Routine Maintenance

3. Clean the mop pad with water only and leave to air dry before

re-installing.

4. If slow water flow occurs, or the outflow is not well-distributed,

please clean the air hole in the cover of the water tank.

Remove the pad from the mopping module before cleaning it, and make sure dirty

water does not flow back into the water outlet to avoid clogging.

Note:

Clean the Main Brush

1. Press the brush guard clips inwards to remove the brush guard

and lift the brush out of the robot.

2. Pull out the brush cover as shown in the diagram. Use the

included cleaning tool to remove any hairs tangled in the brush.

Note: Do not pull out the hair tangled in the main brush excessively. Otherwise,

the brush may be damaged.

111

210

24 hrs

16 17

ENEN

Clean the Side Brush

Clean the Main Wheel / Universal Wheel

Routine Maintenance

Pull out the side brush and use the included cleaning tool to remove

any hair tangled in the brush.

Note: Use a tool such as a small screwdriver to separate the axle and tire of the universal

wheel.

Clean the LDS Laser

Sensor

Clean the AI Visual Sensor

Clean the Cli Sensor

Note: Wet cloths can damage sensitive elements within the robot and charging dock.

Please use dry rags for cleaning.

Clean the Charging Contacts

Routine Maintenance

If the robot stops responding or cannot be turned o, press and

hold down the button

for 10 seconds to forcefully turn it off.

Then press and hold the button for 3 seconds to turn the robot

on.

The robot contains a high-performance lithium-ion battery

pack. Please ensure that it remains well-charged for daily use to

maintain optimal battery performance. If the robot is not used for

an extended period of time, turn it o and put it away. To prevent

damage from over-discharging, the robot should be recharged at

least once every three months.

Robot Restarting

Battery

16 17

ENEN

Clean the Side Brush

Clean the Main Wheel / Universal Wheel

Routine Maintenance

Pull out the side brush and use the included cleaning tool to remove

any hair tangled in the brush.

Note: Use a tool such as a small screwdriver to separate the axle and tire of the universal

wheel.

Clean the LDS Laser

Sensor

Clean the AI Visual Sensor

Clean the Cli Sensor

Note: Wet cloths can damage sensitive elements within the robot and charging dock.

Please use dry rags for cleaning.

Clean the Charging Contacts

Routine Maintenance

If the robot stops responding or cannot be turned o, press and

hold down the button

for 10 seconds to forcefully turn it off.

Then press and hold the button for 3 seconds to turn the robot

on.

The robot contains a high-performance lithium-ion battery

pack. Please ensure that it remains well-charged for daily use to

maintain optimal battery performance. If the robot is not used for

an extended period of time, turn it o and put it away. To prevent

damage from over-discharging, the robot should be recharged at

least once every three months.

Robot Restarting

Battery

18 19

ENEN

FAQ

Problem Solution

Robot does not turn on

Battery level is low. Recharge the robot at the charging dock, then try again.

The temperature of the battery is too low or too high. It is recommended to operate the appliance at a

temperature between 32

℉

(0°C) and 104

℉

(40°C).

Robot does not

recharge

The charging dock is not receiving power. Please confirm that both ends of the power cord are plugged

in correctly.

Poor contact. Clean the charging contacts of the charging dock and the robot.

Robot does not return

to charging dock

There are too many obstructions around the charging dock. Place the charging dock in a more open

area.

Please clean the dock's signaling area.

Robot is malfunctioning Turn o the robot and then reactivate it.

Robot is making a

strange noise

A foreign object may be caught in the main brush, side brush, or one of the main wheels. Stop the

robot and remove any debris.

Robot no longer cleans

eciently or leaves dust

behind

The dust bin is full. Please clean it.

The filter is blocked. Please clean it.

A foreign object is caught in the main brush. Please clean it.

Robot cannot connect

to Wi-Fi

There is something wrong with the Wi-Fi connection. Reset the Wi-Fi and download the latest version

of the Dreamehome app, then try reconnecting.

Location permission is not open. Please ensure the location permission on the Dreamehome app is

enabled.

Wi-Fi signal is weak. Make sure the robot is in an area with good Wi-Fi coverage.

5GHz Wi-Fi is not supported. Please ensure your robot connects to 2.4GHz Wi-Fi.

The username or password of Wi-Fi is incorrect. Please enter the correct username and password.

Robot does not perform

scheduled cleaning

The robot has low battery. Scheduled cleaning will not start unless the robot has at least 15% battery

left.

FAQ

Problem Solution

Does leaving the robot on the

charging dock consume power if it

is already fully charged?

Leaving the robot on the charging dock after it’s fully charged consumes very little

electricity and helps maintain optimal battery performance.

No water comes out of the water

tank, or only a little bit comes

out

Confirm that the water tank is filled with water, and clean the mop pad if necessary.

Clean the mop pad if it becomes dirty.

Make sure the mop pad is installed correctly according to the user manual.

Clean the air hole on the top of the water tank.

Robot doesn’t resume cleaning

after charging

Make sure the robot is not set to Do Not Disturb Mode, which will prevent it from resuming

cleaning.

The robot does not resume cleaning when it is manually recharged or placed onto the charging

dock.

Robot doesn’t return to charging

dock after being moved

Moving the robot may cause it to re-position itself or re-map its surroundings. If the robot

is too far from the charging dock, it might not be able to automatically return on its own, in

which case you need to manually place the robot onto the charging dock.

For additional services, please contact us via aftersales@dreame.tech

Website: https://global.dreametech.com

18 19

ENEN

FAQ

Problem Solution

Robot does not turn on

Battery level is low. Recharge the robot at the charging dock, then try again.

The temperature of the battery is too low or too high. It is recommended to operate the appliance at a

temperature between 32

℉

(0°C) and 104

℉

(40°C).

Robot does not

recharge

The charging dock is not receiving power. Please confirm that both ends of the power cord are plugged

in correctly.

Poor contact. Clean the charging contacts of the charging dock and the robot.

Robot does not return

to charging dock

There are too many obstructions around the charging dock. Place the charging dock in a more open

area.

Please clean the dock's signaling area.

Robot is malfunctioning Turn o the robot and then reactivate it.

Robot is making a

strange noise

A foreign object may be caught in the main brush, side brush, or one of the main wheels. Stop the

robot and remove any debris.

Robot no longer cleans

eciently or leaves dust

behind

The dust bin is full. Please clean it.

The filter is blocked. Please clean it.

A foreign object is caught in the main brush. Please clean it.

Robot cannot connect

to Wi-Fi

There is something wrong with the Wi-Fi connection. Reset the Wi-Fi and download the latest version

of the Dreamehome app, then try reconnecting.

Location permission is not open. Please ensure the location permission on the Dreamehome app is

enabled.

Wi-Fi signal is weak. Make sure the robot is in an area with good Wi-Fi coverage.

5GHz Wi-Fi is not supported. Please ensure your robot connects to 2.4GHz Wi-Fi.

The username or password of Wi-Fi is incorrect. Please enter the correct username and password.

Robot does not perform

scheduled cleaning

The robot has low battery. Scheduled cleaning will not start unless the robot has at least 15% battery

left.

FAQ

Problem Solution

Does leaving the robot on the

charging dock consume power if it

is already fully charged?

Leaving the robot on the charging dock after it’s fully charged consumes very little

electricity and helps maintain optimal battery performance.

No water comes out of the water

tank, or only a little bit comes

out

Confirm that the water tank is filled with water, and clean the mop pad if necessary.

Clean the mop pad if it becomes dirty.

Make sure the mop pad is installed correctly according to the user manual.

Clean the air hole on the top of the water tank.

Robot doesn’t resume cleaning

after charging

Make sure the robot is not set to Do Not Disturb Mode, which will prevent it from resuming

cleaning.

The robot does not resume cleaning when it is manually recharged or placed onto the charging

dock.

Robot doesn’t return to charging

dock after being moved

Moving the robot may cause it to re-position itself or re-map its surroundings. If the robot

is too far from the charging dock, it might not be able to automatically return on its own, in

which case you need to manually place the robot onto the charging dock.

For additional services, please contact us via aftersales@dreame.tech

Website: https://global.dreametech.com

20 21

ENEN

Speci󽗉cations

Charging Dock

Under normal use of condition, this equipment should be kept a

separation distance of at least 20 cm between the antenna and

the body of the user.

Robot

ModelRLS6A

Charging TimeApprox. 6 hours

Rated Voltage14.4 V

Rated Power46 W

Operation

Frequency

2400-2483.5 MHz

Maximum

Output Power

＜ 20 dBm

Model RCS0

Rated Input 100-240 V~50/60 Hz 0.5 A

Rated Output 19.8 V

1 A

Battery Disposal and Removal

The built-in lithium-ion battery contains substances that are

hazardous to the environment. Before disposing of the battery,

make sure the battery is removed by qualified technicians and

discarded at an appropriate recycling facility.

• the battery must be removed from the appliance before it is

scrapped;

• the appliance must be disconnected from the supply mains when

removing the battery;

• the battery is to be disposed of safely.

CAUTION:

• Before removing the battery, disconnect the power and run out

the battery as much as possible.

• Unneeded batteries should be discarded at an appropriate

recycling facility.

• Do not expose to high temperature environment to avoid risks of

explosion.

• Under abusive conditions, liquid may be ejected from the battery.

If contact occurs, flush with water and seek medical help.

WEEE Information

All products bearing this symbol are waste electrical and electronic equipment (WEEE as in directive 2012/19/EU) which should not be mixed with

unsorted household waste. Instead, you should protect human health and the environment by handing over your waste equipment to a designated

collection point for the recycling of waste electrical and electronic equipment, appointed by the government or local authorities. Correct disposal and

recycling will help prevent potential negative consequences to the environment and human health. Please contact the installer or local authorities for

more information about the location as well as terms and conditions of such collection points.

Removal Guide

1. Turn over the robot, use a proper tool to remove the screws on

the back of the robot, and then remove the cover.

2. Unplug the terminals between the battery and PCB board to

remove the battery.

20 21

ENEN

Speci󽗉cations

Charging Dock

Under normal use of condition, this equipment should be kept a

separation distance of at least 20 cm between the antenna and

the body of the user.

Robot

ModelRLS6A

Charging TimeApprox. 6 hours

Rated Voltage14.4 V

Rated Power46 W

Operation

Frequency

2400-2483.5 MHz

Maximum

Output Power

＜ 20 dBm

Model RCS0

Rated Input 100-240 V~50/60 Hz 0.5 A

Rated Output 19.8 V

1 A

Battery Disposal and Removal

The built-in lithium-ion battery contains substances that are

hazardous to the environment. Before disposing of the battery,

make sure the battery is removed by qualified technicians and

discarded at an appropriate recycling facility.

• the battery must be removed from the appliance before it is

scrapped;

• the appliance must be disconnected from the supply mains when

removing the battery;

• the battery is to be disposed of safely.

CAUTION:

• Before removing the battery, disconnect the power and run out

the battery as much as possible.

• Unneeded batteries should be discarded at an appropriate

recycling facility.

• Do not expose to high temperature environment to avoid risks of

explosion.

• Under abusive conditions, liquid may be ejected from the battery.

If contact occurs, flush with water and seek medical help.

WEEE Information

All products bearing this symbol are waste electrical and electronic equipment (WEEE as in directive 2012/19/EU) which should not be mixed with

unsorted household waste. Instead, you should protect human health and the environment by handing over your waste equipment to a designated

collection point for the recycling of waste electrical and electronic equipment, appointed by the government or local authorities. Correct disposal and

recycling will help prevent potential negative consequences to the environment and human health. Please contact the installer or local authorities for

more information about the location as well as terms and conditions of such collection points.

Removal Guide

1. Turn over the robot, use a proper tool to remove the screws on

the back of the robot, and then remove the cover.

2. Unplug the terminals between the battery and PCB board to

remove the battery.

22 23

Nutzungseins-

chränkungen

Um Stromschläge, Brände oder Verletzungen durch unsachgemäßen Gebrauch des Geräts zu vermeiden, lesen

Sie bitte die Bedienungsanleitung vor dem Gebrauch sorgfältig durch und bewahren Sie sie zum späteren

Gebrauch auf.

Sicherheitsinformationen

Um einen sicheren Betrieb zu gewährleisten und Risiken zu vermeiden, darf dieses Produkt

nicht von Kindern unter 8 Jahren, von Personen mit körperlichen, sensorischen oder geistigen

Einschränkungen oder von Personen mit mangelnden Kenntnissen ohne Aufsicht eines

Elternteils oder Vormunds verwendet werden.Kinder dürfen die Reinigung und Wartung nicht

ohne Aufsicht durchführen.

Kinder dürfen nicht mit diesem Produkt spielen. Sorgen Sie dafür, dass Kinder und Haustiere

während des Betriebs des Roboters einen sicheren Abstand zum Gerät halten.

Wenn das Stromkabel beschädigt ist, schalten Sie das Gerät sofort aus und wenden Sie sich

an den Kundendienst.

Dieses Produkt ist nur für die Bodenreinigung in einer häuslichen Umgebung geeignet.

Benutzen Sie es nicht im Freien, auf anderen Oberflächen als dem Boden oder in einer

kommerziellen oder industriellen Umgebung.

Verwenden Sie den Roboter nicht in einem Bereich, der sich über dem Bodenniveau befindet

und der nicht durch eine Schutzbarriere begrenzt wird.

Stellen Sie den Roboter nicht auf den Kopf. Verwenden Sie die LDS-Abdeckung, die

Roboterabdeckung oder den Bumper nicht als Griff für den Roboter.

Benutzen Sie den Roboter nicht in Umgebungen, in denen die Temperaturen über 40 ° C oder

unter 0 ° C liegen, und auch nicht auf Böden mit Flüssigkeiten oder klebrigen Substanzen.

Heben Sie Kabel vom Boden auf, bevor Sie den Roboter benutzen, um zu verhindern, dass

diese während der Reinigung mitgezogen werden.

Entfernen Sie zerbrechliche oder kleine Gegenstände vom Boden, um zu verhindern, dass der

Roboter sie anstößt und beschädigt.

Nutzungseins-

chränkungen

Sicherheitsinformationen

Entfernen Sie lose Gegenstände vom Boden und entfernen Sie Kabel oder Netzkabel am

Reinigungsweg, bevor Sie das Gerät in Betrieb nehmen, um Schäden oder Schäden beim

Anziehen zu verhindern.

Halten Sie Haare, Finger und andere Körperteile von der Saugöffnung des Roboters fern.

Bitte halten Sie die Reinigungswerkzeuge für die Bürste von Kindern fern.

Kinder, Haustiere oder Gegenstände dürfen weder auf dem stillstehenden noch dem sich

bewegenden Roboter positioniert werden.

Benutzen Sie den Roboter nicht zum Aufwischen oder Aufsaugen brennender Substanzen.

Verwenden Sie den Roboter nicht zum Aufsaugen von entflammbaren oder brennbaren

Flüssigkeiten, ätzenden Gasen oder unverdünnten Säuren oder Lösungsmitteln.

Saugen Sie keine harten oder scharfen Gegenstände ein. Verwenden Sie das Gerät nicht zum

Aufnehmen von Gegenständen wie Steinen, großen Papierstücken oder anderen Dingen, die

das Gerät verstopfen könnten.

Stellen Sie sicher, dass der Roboter ausgeschaltet und die Ladestation vom Strom getrennt ist,

bevor Sie Reinigungs- oder Wartungsarbeiten durchführen.

Verwenden Sie kein nasses Tuch zum Abwischen oder eine Flüssigkeit zum Spülen des

Roboters und der Ladestation. Waschbare Teile müssen vollständig getrocknet werden, bevor

sie installiert und verwendet werden.

Stellen Sie sicher, dass der Roboter beim Transport ausgeschaltet ist und möglichst in der

Originalverpackung befördert wird.

Bitte verwenden Sie das Produkt gemäß den Anweisungen im Benutzerhandbuch. Der

Benutzer ist für jeglichen Verlust oder Schaden verantwortlich, der aufgrund inkorrekter

Verwendung dieses Produkts entsteht.

22 23

Nutzungseins-

chränkungen

Um Stromschläge, Brände oder Verletzungen durch unsachgemäßen Gebrauch des Geräts zu vermeiden, lesen

Sie bitte die Bedienungsanleitung vor dem Gebrauch sorgfältig durch und bewahren Sie sie zum späteren

Gebrauch auf.

Sicherheitsinformationen

Um einen sicheren Betrieb zu gewährleisten und Risiken zu vermeiden, darf dieses Produkt

nicht von Kindern unter 8 Jahren, von Personen mit körperlichen, sensorischen oder geistigen

Einschränkungen oder von Personen mit mangelnden Kenntnissen ohne Aufsicht eines

Elternteils oder Vormunds verwendet werden.Kinder dürfen die Reinigung und Wartung nicht

ohne Aufsicht durchführen.

Kinder dürfen nicht mit diesem Produkt spielen. Sorgen Sie dafür, dass Kinder und Haustiere

während des Betriebs des Roboters einen sicheren Abstand zum Gerät halten.

Wenn das Stromkabel beschädigt ist, schalten Sie das Gerät sofort aus und wenden Sie sich

an den Kundendienst.

Dieses Produkt ist nur für die Bodenreinigung in einer häuslichen Umgebung geeignet.

Benutzen Sie es nicht im Freien, auf anderen Oberflächen als dem Boden oder in einer

kommerziellen oder industriellen Umgebung.

Verwenden Sie den Roboter nicht in einem Bereich, der sich über dem Bodenniveau befindet

und der nicht durch eine Schutzbarriere begrenzt wird.

Stellen Sie den Roboter nicht auf den Kopf. Verwenden Sie die LDS-Abdeckung, die

Roboterabdeckung oder den Bumper nicht als Griff für den Roboter.

Benutzen Sie den Roboter nicht in Umgebungen, in denen die Temperaturen über 40 ° C oder

unter 0 ° C liegen, und auch nicht auf Böden mit Flüssigkeiten oder klebrigen Substanzen.

Heben Sie Kabel vom Boden auf, bevor Sie den Roboter benutzen, um zu verhindern, dass

diese während der Reinigung mitgezogen werden.

Entfernen Sie zerbrechliche oder kleine Gegenstände vom Boden, um zu verhindern, dass der

Roboter sie anstößt und beschädigt.

Nutzungseins-

chränkungen

Sicherheitsinformationen

Entfernen Sie lose Gegenstände vom Boden und entfernen Sie Kabel oder Netzkabel am

Reinigungsweg, bevor Sie das Gerät in Betrieb nehmen, um Schäden oder Schäden beim

Anziehen zu verhindern.

Halten Sie Haare, Finger und andere Körperteile von der Saugöffnung des Roboters fern.

Bitte halten Sie die Reinigungswerkzeuge für die Bürste von Kindern fern.

Kinder, Haustiere oder Gegenstände dürfen weder auf dem stillstehenden noch dem sich

bewegenden Roboter positioniert werden.

Benutzen Sie den Roboter nicht zum Aufwischen oder Aufsaugen brennender Substanzen.

Verwenden Sie den Roboter nicht zum Aufsaugen von entflammbaren oder brennbaren

Flüssigkeiten, ätzenden Gasen oder unverdünnten Säuren oder Lösungsmitteln.

Saugen Sie keine harten oder scharfen Gegenstände ein. Verwenden Sie das Gerät nicht zum

Aufnehmen von Gegenständen wie Steinen, großen Papierstücken oder anderen Dingen, die

das Gerät verstopfen könnten.

Stellen Sie sicher, dass der Roboter ausgeschaltet und die Ladestation vom Strom getrennt ist,

bevor Sie Reinigungs- oder Wartungsarbeiten durchführen.

Verwenden Sie kein nasses Tuch zum Abwischen oder eine Flüssigkeit zum Spülen des

Roboters und der Ladestation. Waschbare Teile müssen vollständig getrocknet werden, bevor

sie installiert und verwendet werden.

Stellen Sie sicher, dass der Roboter beim Transport ausgeschaltet ist und möglichst in der

Originalverpackung befördert wird.

Bitte verwenden Sie das Produkt gemäß den Anweisungen im Benutzerhandbuch. Der

Benutzer ist für jeglichen Verlust oder Schaden verantwortlich, der aufgrund inkorrekter

Verwendung dieses Produkts entsteht.

24 25

Akkus und Ladung

Sicherheitsinformationen

Verwenden Sie keine Batterien, Netzkabel oder Ladestationen von Drittanbietern. Bitte

ausschließlich mit RCS0 Netzgerät verwenden.

Versuchen Sie nicht, den Akku oder die Ladestation selbst zu zerlegen, zu reparieren oder zu

modifizieren.

Stellen Sie die Ladestation nicht in der Nähe einer Wärmequelle ab.

Benutzen Sie kein nasses Tuch oder nasse Hände, um die Ladekontakte der Ladestation zu

reinigen.

Entsorgen Sie alte Akkus sachgemäß. Unbenutzte Akkus sollten in einer geeigneten Recycling-

Einrichtung entsorgt werden.

Wenn der Roboter für eine längere Zeit nicht benutzt werden soll, laden Sie ihn voll auf,

schalten ihn aus und lagern ihn an einem kühlen und trockenen Ort. Laden Sie den Roboter

mindestens je 3 Monate auf, um eine Tiefentladung des Akkus zu vermeiden.

Dieses Produkt enthält Akkus, die nur von qualifizierten Technikern oder dem Kundendienst

ausgewechselt werden können.

Lasersicherhei-

tsinformationen

Der Lasersensor in diesem Produkt erfüllt die Norm IEC 60825-1: 2014 für Laserprodukte der

Klasse 1. Bitte vermeiden Sie direkten Augenkontakt mit ihm während des Gebrauchs.

Hiermit bestätigt, Dreame Trading (Tianjin) Co., Ltd. dass das Funkgerät des Typs RLS6A mit der Verordnung 2014/53/EU in Einklangsteht. Der vollständige Wortlaut der EU-

Konformitätserklärung ist unter der folgenden Internetadresse abrufbar: https://global.dreametech.com

Ein detailliertes elektronisches Handbuch finden Sie unterhttps://global.dreametech.com/pages/user-manuals-and-faqs

Zubehör

Produktübersicht

Ladestation

Wassertank

Seitenbürste

Reinigungswerkzeug Netzkabel

Wischmopp

24 25

Akkus und Ladung

Sicherheitsinformationen

Verwenden Sie keine Batterien, Netzkabel oder Ladestationen von Drittanbietern. Bitte

ausschließlich mit RCS0 Netzgerät verwenden.

Versuchen Sie nicht, den Akku oder die Ladestation selbst zu zerlegen, zu reparieren oder zu

modifizieren.

Stellen Sie die Ladestation nicht in der Nähe einer Wärmequelle ab.

Benutzen Sie kein nasses Tuch oder nasse Hände, um die Ladekontakte der Ladestation zu

reinigen.

Entsorgen Sie alte Akkus sachgemäß. Unbenutzte Akkus sollten in einer geeigneten Recycling-

Einrichtung entsorgt werden.

Wenn der Roboter für eine längere Zeit nicht benutzt werden soll, laden Sie ihn voll auf,

schalten ihn aus und lagern ihn an einem kühlen und trockenen Ort. Laden Sie den Roboter

mindestens je 3 Monate auf, um eine Tiefentladung des Akkus zu vermeiden.

Dieses Produkt enthält Akkus, die nur von qualifizierten Technikern oder dem Kundendienst

ausgewechselt werden können.

Lasersicherhei-

tsinformationen

Der Lasersensor in diesem Produkt erfüllt die Norm IEC 60825-1: 2014 für Laserprodukte der

Klasse 1. Bitte vermeiden Sie direkten Augenkontakt mit ihm während des Gebrauchs.

Hiermit bestätigt, Dreame Trading (Tianjin) Co., Ltd. dass das Funkgerät des Typs RLS6A mit der Verordnung 2014/53/EU in Einklangsteht. Der vollständige Wortlaut der EU-

Konformitätserklärung ist unter der folgenden Internetadresse abrufbar: https://global.dreametech.com

Ein detailliertes elektronisches Handbuch finden Sie unterhttps://global.dreametech.com/pages/user-manuals-and-faqs

Zubehör

Produktübersicht

Ladestation

Wassertank

Seitenbürste

Reinigungswerkzeug Netzkabel

Wischmopp

26 27

Roboter

Produktübersicht

Taste für die Punktreinigung

· Kurz drücken, um die Punktreinigung zu starten

Ein-/Aus- und Reinigungstaste

· Halten Sie die Taste 3 Sekunden lang gedrückt, um das

Gerät ein- oder auszuschalten

· Kurz drücken zum Start der Reinigung nach dem

Einschalten des Roboters

Schaltfläche zum Andocken

· Drücken, um den Roboter zur Ladestation zurückzufahren

· Halten Sie die Taste 3 Sekunden lang gedrückt, um die

Kindersicherung zu deaktivieren

Statusanzeige

· Weiß: Reinigung im Prozess oder Reinigung ist abgeschlossen

· Blinkt Orange: Fehler

· Blau: Kameraüberwachung aktiviert

Roboter

Robotersensor

Produktübersicht

Reset-Taste

Abdeckung

WLAN-Anzeiger

Reinigungswerkzeug

Luftauslass/Lautsprecher

Laserdistanzsensor

Stoßfänger

AI Visueller Sensor

Absturz-Sensoren

Haupträder

Hauptbürste

Ladekontakte

Freigabe

Hauptbürstenabdeckung

Universal-Rad

Seitenbürste

Halten Sie 3 Sekunden lang

gedrückt, um die ursprünglichen

Einstellungen wiederherzustellen

26 27

Roboter

Produktübersicht

Taste für die Punktreinigung

· Kurz drücken, um die Punktreinigung zu starten

Ein-/Aus- und Reinigungstaste

· Halten Sie die Taste 3 Sekunden lang gedrückt, um das

Gerät ein- oder auszuschalten

· Kurz drücken zum Start der Reinigung nach dem

Einschalten des Roboters

Schaltfläche zum Andocken

· Drücken, um den Roboter zur Ladestation zurückzufahren

· Halten Sie die Taste 3 Sekunden lang gedrückt, um die

Kindersicherung zu deaktivieren

Statusanzeige

· Weiß: Reinigung im Prozess oder Reinigung ist abgeschlossen

· Blinkt Orange: Fehler

· Blau: Kameraüberwachung aktiviert

Roboter

Robotersensor

Produktübersicht

Reset-Taste

Abdeckung

WLAN-Anzeiger

Reinigungswerkzeug

Luftauslass/Lautsprecher

Laserdistanzsensor

Stoßfänger

AI Visueller Sensor

Absturz-Sensoren

Haupträder

Hauptbürste

Ladekontakte

Freigabe

Hauptbürstenabdeckung

Universal-Rad

Seitenbürste

Halten Sie 3 Sekunden lang

gedrückt, um die ursprünglichen

Einstellungen wiederherzustellen

28 29

Staubbehälter Wischmodul

Ladestation

Produktübersicht

Wasserzufluss

Wassertank

Wischmopp

Befestigungsbereich

Filter

Staubbehälterabdeckung

Freigabe Staubbehälter

Signalbereich

Ladekontakte

Stromanschluss

Freigabe Wassertankabdeckung

Ihr Zuhause vorbereiten

Ordnen Sie Gegenstände wie Netzkabel, Tücher, Hausschuhe und

Spielzeug, um die Ezienz der Reinigung zu verbessern.

Önen Sie die Tür des zu reinigenden Raumes und stellen Sie die

Möbel in die geeignete Position, um mehr Platz zu schaen.

Mit dem visuellen KI-Sensor kann der Roboter Hindernisse wie

Stromkabel, Schuhe und Socken besser erkennen und vermeiden,

um den visuellen KI-Sensor auszunutzen. Stellen Sie sicher, dass

alle zu reinigenden Bereiche gut beleuchtet sind.

Montieren Sie vor der Reinigung die physische Barriere an

den Kanten von Treppen und Möbeln, um dem Roboter ein

reibungsloses Arbeiten zu ermöglichen.

Hinweis:

Wenn Sie den Roboter zum ersten Mal in Betrieb nehmen, folgen Sie ihm während der Reinigung, um mögliche Hindernisse rechtzeitig zu beseitigen.

Um zu verhindern, dass der Roboter den zu reinigenden Bereich nicht erkennt, stellen Sie sich nicht vor den Roboter, vor eine Schwelle, oder die enge Stelle einer Flur hin.

28 29

Staubbehälter Wischmodul

Ladestation

Produktübersicht

Wasserzufluss

Wassertank

Wischmopp

Befestigungsbereich

Filter

Staubbehälterabdeckung

Freigabe Staubbehälter

Signalbereich

Ladekontakte

Stromanschluss

Freigabe Wassertankabdeckung

Ihr Zuhause vorbereiten

Ordnen Sie Gegenstände wie Netzkabel, Tücher, Hausschuhe und

Spielzeug, um die Ezienz der Reinigung zu verbessern.

Önen Sie die Tür des zu reinigenden Raumes und stellen Sie die

Möbel in die geeignete Position, um mehr Platz zu schaen.

Mit dem visuellen KI-Sensor kann der Roboter Hindernisse wie

Stromkabel, Schuhe und Socken besser erkennen und vermeiden,

um den visuellen KI-Sensor auszunutzen. Stellen Sie sicher, dass

alle zu reinigenden Bereiche gut beleuchtet sind.

Montieren Sie vor der Reinigung die physische Barriere an

den Kanten von Treppen und Möbeln, um dem Roboter ein

reibungsloses Arbeiten zu ermöglichen.

Hinweis:

Wenn Sie den Roboter zum ersten Mal in Betrieb nehmen, folgen Sie ihm während der Reinigung, um mögliche Hindernisse rechtzeitig zu beseitigen.

Um zu verhindern, dass der Roboter den zu reinigenden Bereich nicht erkennt, stellen Sie sich nicht vor den Roboter, vor eine Schwelle, oder die enge Stelle einer Flur hin.

30 31

1. Die Schutzstreifen entfernen

3. Richten Sie die Ladestation ein

2. Seitenbürste installieren

Klick

4. Platzieren Sie den Roboter zum Aufladen in der Ladestation

Vor der Verwendung

Hinweis:

Akkuladestandsanzeige

Vollständige Aufladung vor dem ersten Gebrauch.

Montieren Sie den Moppaufsatz nicht, während das Gerät geladen wird. Gehen Sie

vorsichtig mit dem nassen Mop um, da die Feuchtigkeit den Boden beschädigen kann.

Hinweis: Installieren Sie die Seitenbürste, bis sie einrastet.

Stellen Sie sicher, dass auf beiden Seiten der Ladestation ein Abstand von mindestens 0,5

Metern und vor der Ladestation ein Abstand von mehr als 1,5 Metern eingehalten wird.

Um sicherzustellen, dass Sie den Roboter einfach mit dem Telefon verbinden können,

stellen Sie sicher, dass sich der Roboter und die Ladestation im Bereich des WLAN befinden.

Platzieren Sie die Ladestation nicht in einem Bereich mit direkter Sonneneinstrahlung oder

in einem Bereich, in dem andere Objekte den Signalbereich blockieren könnten, da dies den

Roboter daran hindern könnte, zur Ladestation zurückzukehren.

Verwenden Sie doppelseitiges Band nach Ihren Bedürfnissen.

Bitte reinigen Sie die Bodenfläche, in der die Ladestation platziert wird, mit einem trockenen

Lappen.

Entfernen Sie das doppelseitige Klebeband bei Bedarf langsam, um Kleberückstände zu

reduzieren.

Weiß: Der Akkustand beträgt mehr als 15 %

Orange: Der Akkustand beträgt weniger als

15 %

＞ 1,5 m

＞ 0,5 m

Ziehen Sie das doppelseitige Klebeband an der Unterseite der

Ladestation ab, stellen Sie die Ladestation auf ebenem Boden an

die Wand und schließen Sie sie an eine Steckdose an.

Dieses Produkt funktioniert mit der Dreamehome App, mit der Sie Ihr Gerät steuern können.

Verbinden mit Dreamehome App

Hinweis: Wenn Ihr Telefon keine erfolgreiche Verbindung mit dem Roboter herstellen

kann, setzen Sie das WLAN zurück und fügen Sie das Gerät erneut hinzu.

1.Laden Sie die Dreamehome App herunter 3. WLAN zurücksetzen

Scannen Sie den QR-Code auf dem Roboter oder suchen Sie

im App Store nach "Dreamehome" um die App nach Ihren

Bedürfnissen herunterzuladen und zu installieren.

Gleichzeitig drücken und halten Sie die

und Taste bis Sie

eine Sprachmeldung hören „Warten auf Netzwerkkonfiguration“.

Sobald die WLAN-Anzeige langsam blinkt, wurde das WLAN

erfolgreich zurückgesetzt.

WLAN-Anzeiger

·Langsam blinkend: Wartet auf

Verbindung

·Schnell blinkend: Verbindung wird

hergestellt

·Ein: Verbunden

2.Fügen Sie das Gerät hinzu

Önen Sie das Dreamehome, tippen Sie oben rechts auf "

" und

scannen Sie den obigen QR-Code erneut, um "DreameBot D10s

Pro" hinzuzufügen. Bitte folgen Sie den Anweisungen, um die

WLANVerbindung abzuschließen.

Es wird nur WLAN mit 2,4 GHz unterstützt.

Die App-Software wird aktualisiert, die tatsächliche Bedienung kann sich von den

Angaben in diesem Handbuch abweichen. Bitte befolgen Sie die Anweisungen

basierend auf der aktuellen App-Version.

Hinweis:

Unter der

Abdeckung
