The illustrations in this manual are for reference only. Please refer to the actual product.
Robot Vacuum and Mop with
Auto-Empty and Mop Self-Cleaning
User Manual
X40
Ultra
Theword"dreame"istheabbreviationofDreameTechnologyCo.,Ltd.andits subsidiaries inChina.Itisthetransliterationofthecompany'sChinesename" 追觅",
which meansstrivingforexcellenceineveryendeavorandreflectsthecompany's visionofcontinuouspursuit,explorationandsearchintechnology.
1
Contents
Usage Restrictions
Safety Information
·
This product should not be used by children younger than 8 years old nor
persons with physical, sensory, intellectual deficiencies, or limited experience
or knowledge without the supervision of a parent or guardian to ensure safe
operation and to avoid any risks. Cleaning and maintenance shall not be
performed by children without supervision.
·
The appliance is only to be used with the power supply unit provided with the
appliance.
·
This appliance contains batteries that are only replaceable by skilled persons.
·
Clear the area to be cleaned. Children shall not play with the appliance.
Ensure children and pets are kept at a safe distance from the robot while it is
operating.
·
Do not install, charge or use the appliance in the bathrooms or around the
pools.
·
This product is for floor cleaning in a home environment only. Do not use it
outdoors, on non-floor surfaces, or in a commercial or industrial setting.
·
Ensure that the appliance operates correctly in a proper environment.
Otherwise, do not use the appliance.
·
If the power cord is damaged, it must be replaced by a special cord or
assembly available from the manufacturer or its service agent.
To avoid electric shock, fire or injury caused by improper use of the appliance, please read the user manual carefully before using the
appliance and keep it for future reference.
Safety Information
Product Overview
Preparing Your Home
Before Use
Connecting with the Dreamehome App
How to Use
Routine Maintenance
Troubleshooting
Specifications
Battery Disposal and Removal
1
5
9
10
12
13
16
24
27
28
1
Contents
Usage Restrictions
Safety Information
·
This product should not be used by children younger than 8 years old nor
persons with physical, sensory, intellectual deficiencies, or limited experience
or knowledge without the supervision of a parent or guardian to ensure safe
operation and to avoid any risks. Cleaning and maintenance shall not be
performed by children without supervision.
·
The appliance is only to be used with the power supply unit provided with the
appliance.
·
This appliance contains batteries that are only replaceable by skilled persons.
·
Clear the area to be cleaned. Children shall not play with the appliance.
Ensure children and pets are kept at a safe distance from the robot while it is
operating.
·
Do not install, charge or use the appliance in the bathrooms or around the
pools.
·
This product is for floor cleaning in a home environment only. Do not use it
outdoors, on non-floor surfaces, or in a commercial or industrial setting.
·
Ensure that the appliance operates correctly in a proper environment.
Otherwise, do not use the appliance.
·
If the power cord is damaged, it must be replaced by a special cord or
assembly available from the manufacturer or its service agent.
To avoid electric shock, fire or injury caused by improper use of the appliance, please read the user manual carefully before using the
appliance and keep it for future reference.
Safety Information
Product Overview
Preparing Your Home
Before Use
Connecting with the Dreamehome App
How to Use
Routine Maintenance
Troubleshooting
Specifications
Battery Disposal and Removal
1
5
9
10
12
13
16
24
27
28
2 3
EN
Usage Restrictions
Safety Information Safety Information
·
Do not use the robot in an area suspended above ground level without a
protective barrier.
·
Do not place the robot upside down. Do not use the LDS cover, robot cover, or
bumper as a handle for the robot.
·
Use the robot in environments with an ambient temperature above 0°C and
below 40°C. Make sure there is no liquid or sticky substance on the floor.
·
To prevent damage or harm from dragging, clear any loose objects from the
floor, and remove cables or power cords on the cleaning path before operating
the appliance.
·
Remove fragile or small items from the floor to prevent the robot from bumping
into and damaging them.
·
Keep hair, fingers, and other body parts away from the suction opening of the
robot.
·
Keep the cleaning tool out of reach of children.
·
Do not operate the appliance in a room where an infant or child is sleeping.
·
Do not place children, pets, or any item on top of the robot regardless of
whether it is stationary or moving.
·
Only clean water and the officially-approved cleaning solution can be added
to the clean water tank. Do not add any other liquid such as alcohol or
disinfectant. The ratio of the cleaning solution to clean water can be checked
on the cleaning solution bottle. Keep the cleaning solution out of reach of
children.
Batteries and
Charging
·
Do not use any third-party battery or base station. The robot can only be used
with the model RCXE0307/RCXE0307-5 base station.
·
Do not attempt to disassemble, repair, or modify the battery or the base station
on your own.
·
Do not place the base station near a heat source.
·
Do not use a wet cloth or wet hands to wipe or clean the base station's
charging contacts.
·
Do not use the robot to clean any burning objects. Do not use the robot to pick
up flammable or combustible liquids, corrosive gases, or undiluted acids or
solvents.
·
Do not vacuum hard or sharp objects. Do not use the appliance to pick up
objects such as stones, large pieces of paper or any item that may clog the
appliance.
·
Plug must be removed from the socket-outlet before cleaning or maintaining
the appliance.
·
Do not wipe the robot or the base station with a wet cloth or rinse them with
any liquid. After cleaning washable parts, fully dry the parts before reinstalling
and using them.
·
Please use this product in accordance with the instructions in the User Manual.
Users are responsible for any loss or damage that arise from improper use of
this product.
Usage Restrictions
2 3
EN
Usage Restrictions
Safety Information Safety Information
·
Do not use the robot in an area suspended above ground level without a
protective barrier.
·
Do not place the robot upside down. Do not use the LDS cover, robot cover, or
bumper as a handle for the robot.
·
Use the robot in environments with an ambient temperature above 0°C and
below 40°C. Make sure there is no liquid or sticky substance on the floor.
·
To prevent damage or harm from dragging, clear any loose objects from the
floor, and remove cables or power cords on the cleaning path before operating
the appliance.
·
Remove fragile or small items from the floor to prevent the robot from bumping
into and damaging them.
·
Keep hair, fingers, and other body parts away from the suction opening of the
robot.
·
Keep the cleaning tool out of reach of children.
·
Do not operate the appliance in a room where an infant or child is sleeping.
·
Do not place children, pets, or any item on top of the robot regardless of
whether it is stationary or moving.
·
Only clean water and the officially-approved cleaning solution can be added
to the clean water tank. Do not add any other liquid such as alcohol or
disinfectant. The ratio of the cleaning solution to clean water can be checked
on the cleaning solution bottle. Keep the cleaning solution out of reach of
children.
Batteries and
Charging
·
Do not use any third-party battery or base station. The robot can only be used
with the model RCXE0307/RCXE0307-5 base station.
·
Do not attempt to disassemble, repair, or modify the battery or the base station
on your own.
·
Do not place the base station near a heat source.
·
Do not use a wet cloth or wet hands to wipe or clean the base station's
charging contacts.
·
Do not use the robot to clean any burning objects. Do not use the robot to pick
up flammable or combustible liquids, corrosive gases, or undiluted acids or
solvents.
·
Do not vacuum hard or sharp objects. Do not use the appliance to pick up
objects such as stones, large pieces of paper or any item that may clog the
appliance.
·
Plug must be removed from the socket-outlet before cleaning or maintaining
the appliance.
·
Do not wipe the robot or the base station with a wet cloth or rinse them with
any liquid. After cleaning washable parts, fully dry the parts before reinstalling
and using them.
·
Please use this product in accordance with the instructions in the User Manual.
Users are responsible for any loss or damage that arise from improper use of
this product.
Usage Restrictions
4 5
EN
Package Contents
Other Accessories
Product Overview
Mop Pad × 2
(pre-installed)
Robot
Base Station
Mop Pad
Holder × 2
Cleaning ToolDust Bag × 2
(1 pre-installed)
User ManualPower Cord Base Station Ramp
Extension Plate
Auto-Detergent
Compartment
(pre-installed)
Cleaning Solution
·
The laser sensor in this product meets the IEC 60825-1:2014/EN 60825-1:2014/
A11:2021 Standard for Class 1 laser products. Please avoid direct eye contact
with it during use.
CLASS 1 LASER PRODUCT
CONSUMER LASER PRODUCT
EN 50689:2021
Batteries and
Charging
Laser Safety
Information
Safety Information
Hereby, Dreame Trading (Tianjin) Co., Ltd. declares that the radio equipment type RLX63CE is in compliance with Directive 2014/53/EU. The
full text of the EU declaration of conformity is available at the following internet address: https://global.dreametech.com
For detailed e-manual, please go to https://global.dreametech.com/pages/user-manuals-and-faqs
·
Do not improperly dispose of old batteries. Unneeded batteries should be
discarded at an appropriate recycling facility.
·
If the power cord becomes damaged or broken, stop using it immediately and
contact after-sales service.
·
Make sure the robot is turned off when being transported and kept in its
original packaging if possible.
·
If the robot will not be used for an extended period of time, fully charge it, then
turn it off and store it in a cool, dry place. Recharge the robot at least once
every 3 months to avoid over-discharging the battery.
4 5
EN
Package Contents
Other Accessories
Product Overview
Mop Pad × 2
(pre-installed)
Robot
Base Station
Mop Pad
Holder × 2
Cleaning ToolDust Bag × 2
(1 pre-installed)
User ManualPower Cord Base Station Ramp
Extension Plate
Auto-Detergent
Compartment
(pre-installed)
Cleaning Solution
·
The laser sensor in this product meets the IEC 60825-1:2014/EN 60825-1:2014/
A11:2021 Standard for Class 1 laser products. Please avoid direct eye contact
with it during use.
CLASS 1 LASER PRODUCT
CONSUMER LASER PRODUCT
EN 50689:2021
Batteries and
Charging
Laser Safety
Information
Safety Information
Hereby, Dreame Trading (Tianjin) Co., Ltd. declares that the radio equipment type RLX63CE is in compliance with Directive 2014/53/EU. The
full text of the EU declaration of conformity is available at the following internet address: https://global.dreametech.com
For detailed e-manual, please go to https://global.dreametech.com/pages/user-manuals-and-faqs
·
Do not improperly dispose of old batteries. Unneeded batteries should be
discarded at an appropriate recycling facility.
·
If the power cord becomes damaged or broken, stop using it immediately and
contact after-sales service.
·
Make sure the robot is turned off when being transported and kept in its
original packaging if possible.
·
If the robot will not be used for an extended period of time, fully charge it, then
turn it off and store it in a cool, dry place. Recharge the robot at least once
every 3 months to avoid over-discharging the battery.
6 7
EN
Robot
Product Overview

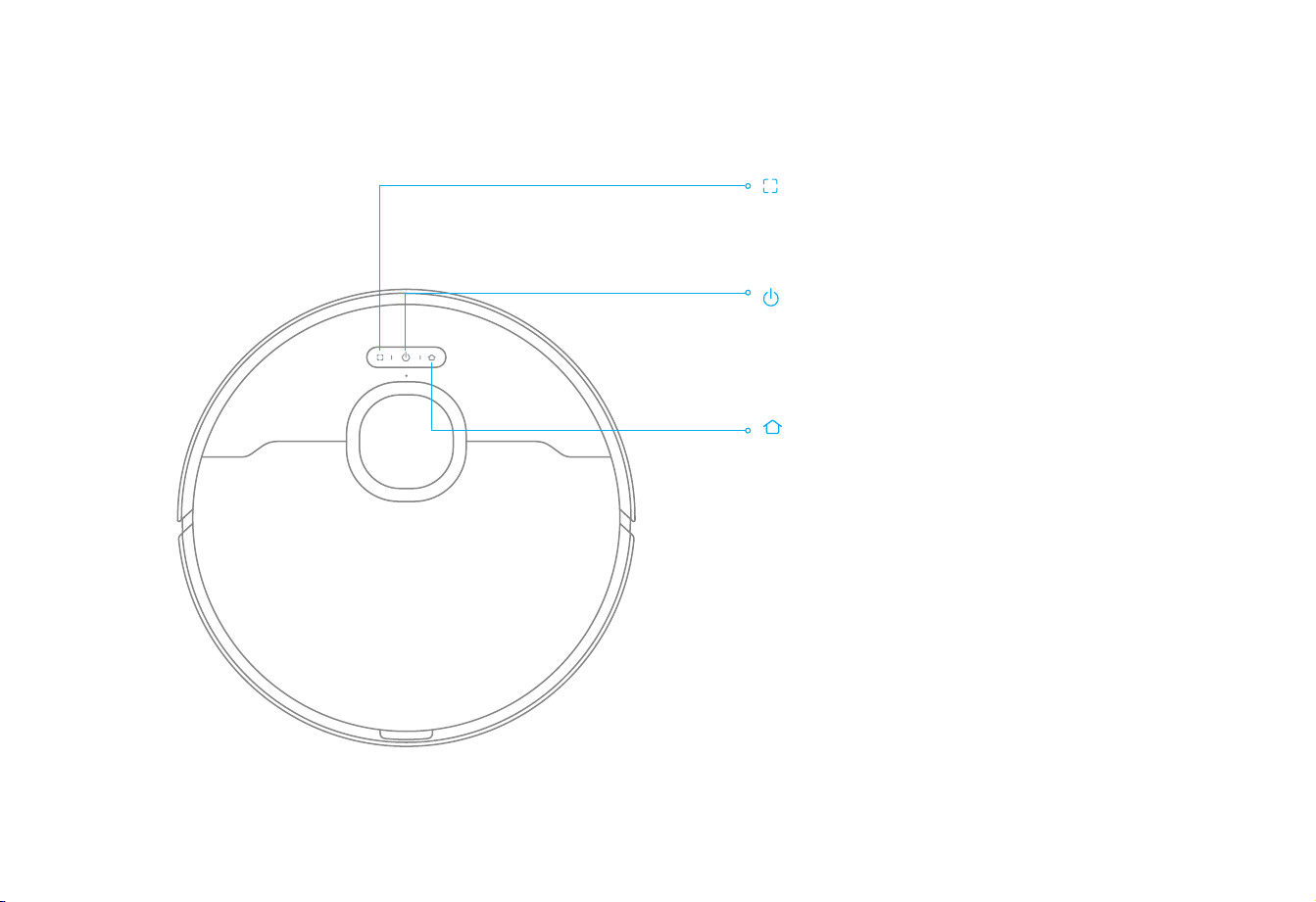

Spot Cleaning Button
· Press to start spot cleaning
Power / Clean Button
· Press and hold for 3 seconds to turn on or off
· Press to start cleaning after the robot is turned on
Dock Button
· Press to send the robot back to the base station
· Press and hold for 3 seconds to disable Child Lock
Status Indicator
· Solid White: Cleaning or cleanup completed
· Breathing White: Charging (not low battery)
· Solid Orange: Standby at low battery or paused at low battery
· Breathing Orange: Charging (low battery)
· Blinking Orange: Error
Note:
· Press any button on the robot to pause while the robot is cleaning
or returning to charge.
· Child Lock can be enabled/disabled through the Dreamehome
App.
Robot and Sensors
Product Overview
Dust Box
Mop Assembly
Mop Pad
Attachment Area
Mop Pad Holder Mop Pad
Cover
Charging
Contacts
Auto-empty Vent
Automatic
Water Refilling
Inlet
Reset Button
· Press and hold for 3
seconds to restore to
factory settings
Wi-Fi Indicator
Edge Sensor
Microphone
Laser Distance Sensor (LDS)
LDS Cover
Bumper Window
Bumper
3D Dual-Line Laser Sensors
AI HD Camera
AI IR Camera
Camera Indicator
(The camera indicator will light up when the
camera is activated)
LED Auxiliary Light
Cli Sensors
Main Wheel
Main Brush
Omnidirectional
Wheel
Brush Guard
Main Wheel
Brush Guard
Clips
Mop Pad Holder
Mounting Holes
Side Brush Extension Assembly
Carpet Sensor
MopExtend
Assembly
Filter
Filter Handle
Auto-empty Vent
Dust Box Cover Clip
Dust Box Clip
Dust Box Cover
6 7
EN
Robot
Product Overview
Spot Cleaning Button
· Press to start spot cleaning
Power / Clean Button
· Press and hold for 3 seconds to turn on or off
· Press to start cleaning after the robot is turned on
Dock Button
· Press to send the robot back to the base station
· Press and hold for 3 seconds to disable Child Lock
Status Indicator
· Solid White: Cleaning or cleanup completed
· Breathing White: Charging (not low battery)
· Solid Orange: Standby at low battery or paused at low battery
· Breathing Orange: Charging (low battery)
· Blinking Orange: Error
Note:
· Press any button on the robot to pause while the robot is cleaning
or returning to charge.
· Child Lock can be enabled/disabled through the Dreamehome
App.
Robot and Sensors
Product Overview
Dust Box
Mop Assembly
Mop Pad
Attachment Area
Mop Pad Holder Mop Pad
Cover
Charging
Contacts
Auto-empty Vent
Automatic
Water Refilling
Inlet
Reset Button
· Press and hold for 3
seconds to restore to
factory settings
Wi-Fi Indicator
Edge Sensor
Microphone
Laser Distance Sensor (LDS)
LDS Cover
Bumper Window
Bumper
3D Dual-Line Laser Sensors
AI HD Camera
AI IR Camera
Camera Indicator
(The camera indicator will light up when the
camera is activated)
LED Auxiliary Light
Cli Sensors
Main Wheel
Main Brush
Omnidirectional
Wheel
Brush Guard
Main Wheel
Brush Guard
Clips
Mop Pad Holder
Mounting Holes
Side Brush Extension Assembly
Carpet Sensor
MopExtend
Assembly
Filter
Filter Handle
Auto-empty Vent
Dust Box Cover Clip
Dust Box Clip
Dust Box Cover
8 9
EN
Base Station
Product Overview
Filter
Auto-Detergent Compartment
Dust Bag Slot
Washboard
Ramp
Extension
Plate
Upper Cover
Clean Water Tank
Used Water Tank
Auto-empty Vent
Water Tank Clip
Water Tank
Clip
Float Ball
Water Pipe
Filter
Used Water Tank Clean Water Tank
Floater
Dust Tank
Cover
Status Indicator
· Solid White: The base station
is connected to power
· Solid Orange: The base
station has an error
Signaling Area
Charging Contacts
Automatic Water Adding Outlet
Note: The water hookup kit for auto refilling and draining needs to be
purchased separately. (Only available in specific regions)
Reserved Slot for
Connecting the Water
Hookup Kit for Auto
Refilling and Draining
Power Cord Storage Slot
Power Port
I : ON
O : OFF
Preparing Your Home
Before cleaning, please move away unstable, fragile, valuable or dangerous
items, and clean up cables, cloths, toys, hard objects and sharp objects on
the ground to avoid being entangled, scratched or knocked over by the robot
and causing losses.
Open the door of the room to be cleaned, and put the furniture in its proper
place to leave more space.
To prevent the robot from not recognizing areas that need to be cleaned, do
not stand in front of the robot, threshold, hallway, or narrow places.
Before cleaning, place a physical barrier at the edge of the stairs and sofa to
ensure the secure and smooth operations of the robot.
Note:
· When operating the robot for the first time, follow it around while cleaning to remove any potential obstacles in time.
· The LED auxiliary light will provide auxiliary lighting in dimly lit environments.
· Do not vacuum hard objects like stones, steel balls and toy parts, or sharp objects like construction waste, broken glass and nails, otherwise the ground may be
scratched.
8 9
EN
Base Station
Product Overview
Filter
Auto-Detergent Compartment
Dust Bag Slot
Washboard
Ramp
Extension
Plate
Upper Cover
Clean Water Tank
Used Water Tank
Auto-empty Vent
Water Tank Clip
Water Tank
Clip
Float Ball
Water Pipe
Filter
Used Water Tank Clean Water Tank
Floater
Dust Tank
Cover
Status Indicator
· Solid White: The base station
is connected to power
· Solid Orange: The base
station has an error
Signaling Area
Charging Contacts
Automatic Water Adding Outlet
Note: The water hookup kit for auto refilling and draining needs to be
purchased separately. (Only available in specific regions)
Reserved Slot for
Connecting the Water
Hookup Kit for Auto
Refilling and Draining
Power Cord Storage Slot
Power Port
I : ON
O : OFF
Preparing Your Home
Before cleaning, please move away unstable, fragile, valuable or dangerous
items, and clean up cables, cloths, toys, hard objects and sharp objects on
the ground to avoid being entangled, scratched or knocked over by the robot
and causing losses.
Open the door of the room to be cleaned, and put the furniture in its proper
place to leave more space.
To prevent the robot from not recognizing areas that need to be cleaned, do
not stand in front of the robot, threshold, hallway, or narrow places.
Before cleaning, place a physical barrier at the edge of the stairs and sofa to
ensure the secure and smooth operations of the robot.
Note:
· When operating the robot for the first time, follow it around while cleaning to remove any potential obstacles in time.
· The LED auxiliary light will provide auxiliary lighting in dimly lit environments.
· Do not vacuum hard objects like stones, steel balls and toy parts, or sharp objects like construction waste, broken glass and nails, otherwise the ground may be
scratched.
10 11
EN
1. Place the Base Station and Connect to an Electrical Outlet
Place the base station in a location that is as open as possible with a good
Wi-Fi signal. Remove any objects that are closer than 1.5 m from the front and
5 cm from either side of the base station. Insert the power cord into the base
station and plug it into the socket.
3. Remove Robot Protections and Install the Mop Assembly
2. Install the Ramp Extension Plate
Before Use
Note:
· Make sure that no objects might block the signaling area.
· To prevent water stains from wetting wood floors or carpets, placing the
base station on tile floors or marble floors is recommended.
②
①
③
④
Firmly insert the power cord
upwards until the indicator turns
on.
I : ON
O : OFF
4. Connect the Robot to the Base Station
Press and hold the button on the robot for 3 seconds to turn it on. Place
the robot onto the base station with the mop assembly facing toward
the washboard. Then you will hear a voice notification when the robot
successfully connects to the base station.
5. Add the Cleaning Solution
(1) Remove the dust tank cover and pull out the auto-detergent compartment.
(2) Open the upper lid of the compartment and add the cleaning solution.
(3) Close the lid of the compartment, put it back into the base station, and
then reinstall the dust tank cover. The cleaning solution will be added
Before Use
Note: It is recommended to fully charge the robot before its first use. When
the robot cannot be turned on after the battery is depleted, manually connect
the robot with the station to charge it.
Note:
·
The auto-detergent compartment can be filled up with cleaning solution
for use. Do not add any liquid other than the officially-approved cleaning
solution to help prevent malfunction.
·
Install the auto-detergent compartment until it clicks into place.
6. Add Water to the Clean Water Tank
Take out the clean water tank from the base station and fill up the tank with
clean water. Then install it back into the base station.
Note: Do not add hot water into the water tank, as this may cause the tank to
become deformed.
automatically while working.
> 1.5 m
> 5 cm
>
5 cm
10 11
EN
1. Place the Base Station and Connect to an Electrical Outlet
Place the base station in a location that is as open as possible with a good
Wi-Fi signal. Remove any objects that are closer than 1.5 m from the front and
5 cm from either side of the base station. Insert the power cord into the base
station and plug it into the socket.
3. Remove Robot Protections and Install the Mop Assembly
2. Install the Ramp Extension Plate
Before Use
Note:
· Make sure that no objects might block the signaling area.
· To prevent water stains from wetting wood floors or carpets, placing the
base station on tile floors or marble floors is recommended.
②
①
③
④
Firmly insert the power cord
upwards until the indicator turns
on.
I : ON
O : OFF
4. Connect the Robot to the Base Station
Press and hold the button on the robot for 3 seconds to turn it on. Place
the robot onto the base station with the mop assembly facing toward
the washboard. Then you will hear a voice notification when the robot
successfully connects to the base station.
5. Add the Cleaning Solution
(1) Remove the dust tank cover and pull out the auto-detergent compartment.
(2) Open the upper lid of the compartment and add the cleaning solution.
(3) Close the lid of the compartment, put it back into the base station, and
then reinstall the dust tank cover. The cleaning solution will be added
Before Use
Note: It is recommended to fully charge the robot before its first use. When
the robot cannot be turned on after the battery is depleted, manually connect
the robot with the station to charge it.
Note:
·
The auto-detergent compartment can be filled up with cleaning solution
for use. Do not add any liquid other than the officially-approved cleaning
solution to help prevent malfunction.
·
Install the auto-detergent compartment until it clicks into place.
6. Add Water to the Clean Water Tank
Take out the clean water tank from the base station and fill up the tank with
clean water. Then install it back into the base station.
Note: Do not add hot water into the water tank, as this may cause the tank to
become deformed.
automatically while working.
> 1.5 m
> 5 cm
>
5 cm
12 13
EN
2. Add Device
Open the Dreamehome app, tap " " in the upper right corner, and scan the
same QR code on the robot again to add the device. Please follow the prompts to
finish the Wi-Fi connection.
Note: If you want to reset Wi-Fi, repeat step 2 and then follow the prompts to
finish the Wi-Fi connection.
Connecting with the Dreamehome App
1. Download the Dreamehome App
Scan the QR code on the robot, or search "Dreamehome" in the app store to
download and install the app.
Wi-Fi Indicator
· Blinking slowly:
To be connected
· Blinking quickly:
Connecting
· On: Connected
QR Code
Note:
·
Only 2.4 GHz Wi-Fi is supported.
·
Due to upgrades in the app software, the actual operations may differ from
the directions in this manual. Please follow the instructions based on the
current app version.
QR Code
How to Use
Turn On/O
Press and hold the button for 3 seconds to turn on the robot. The power
indicator should be illuminated. Place the robot onto the base station, the
robot should turn on automatically and begin charging. To turn o the robot,
move the robot away from the base station and press and hold the button
for 3 seconds.
Fast Mapping
After configuring the network for the first time, follow the instructions in the
app to quickly create a map. The robot will start mapping without cleaning.
When the robot returns to the base station, the mapping process has been
completed and the map will be saved automatically.
Pause/Sleep
When the robot is running, press any button to pause it. If the robot is paused
for more than 10 minutes, it automatically enters sleep mode. All indicators
on the robot will turn o. Press any button on the robot, or use the app to
wake up the robot.
Note: If the robot is paused and placed onto the base station, the current
cleaning process will end.
Auto Resume Cleaning
If the battery is too low, the robot will automatically return to the base station
to charge. After charging to the appropriate battery level, it will resume
unfinished cleaning tasks.
Note: To use this function, please enable it in the app.
Do Not Disturb (DND) Mode
When the robot is set to the Do Not Disturb (DND) mode, the robot will be
prevented from resuming cleaning and the power indicator goes out. The DND
mode is disabled by default at the factory. You can use the app to enable the
DND mode or modify the DND period. The DND period is 22:00-8:00 by default.
Note:
·
The scheduled cleaning tasks will be performed as usual during the DND
period.
·
The robot will resume cleanup where it left off after the DND period expires.
Spot Cleaning
When the robot is on standby, press briefly the button to enable the spot
cleaning mode. In this mode, the robot cleans a square-shaped area of 1.5 ×
1.5 meters around it and returns to its starting point once the spot cleaning is
completed.
Robot Restarting
If the robot stops responding or cannot be turned o, press and hold the
button for 10 seconds to forcefully turn it o. Then, press and hold the
button for 3 seconds to turn the robot on.
12 13
EN
2. Add Device
Open the Dreamehome app, tap " " in the upper right corner, and scan the
same QR code on the robot again to add the device. Please follow the prompts to
finish the Wi-Fi connection.
Note: If you want to reset Wi-Fi, repeat step 2 and then follow the prompts to
finish the Wi-Fi connection.
Connecting with the Dreamehome App
1. Download the Dreamehome App
Scan the QR code on the robot, or search "Dreamehome" in the app store to
download and install the app.
Wi-Fi Indicator
· Blinking slowly:
To be connected
· Blinking quickly:
Connecting
· On: Connected
QR Code
Note:
·
Only 2.4 GHz Wi-Fi is supported.
·
Due to upgrades in the app software, the actual operations may differ from
the directions in this manual. Please follow the instructions based on the
current app version.
QR Code
How to Use
Turn On/O
Press and hold the button for 3 seconds to turn on the robot. The power
indicator should be illuminated. Place the robot onto the base station, the
robot should turn on automatically and begin charging. To turn o the robot,
move the robot away from the base station and press and hold the button
for 3 seconds.
Fast Mapping
After configuring the network for the first time, follow the instructions in the
app to quickly create a map. The robot will start mapping without cleaning.
When the robot returns to the base station, the mapping process has been
completed and the map will be saved automatically.
Pause/Sleep
When the robot is running, press any button to pause it. If the robot is paused
for more than 10 minutes, it automatically enters sleep mode. All indicators
on the robot will turn o. Press any button on the robot, or use the app to
wake up the robot.
Note: If the robot is paused and placed onto the base station, the current
cleaning process will end.
Auto Resume Cleaning
If the battery is too low, the robot will automatically return to the base station
to charge. After charging to the appropriate battery level, it will resume
unfinished cleaning tasks.
Note: To use this function, please enable it in the app.
Do Not Disturb (DND) Mode
When the robot is set to the Do Not Disturb (DND) mode, the robot will be
prevented from resuming cleaning and the power indicator goes out. The DND
mode is disabled by default at the factory. You can use the app to enable the
DND mode or modify the DND period. The DND period is 22:00-8:00 by default.
Note:
·
The scheduled cleaning tasks will be performed as usual during the DND
period.
·
The robot will resume cleanup where it left off after the DND period expires.
Spot Cleaning
When the robot is on standby, press briefly the button to enable the spot
cleaning mode. In this mode, the robot cleans a square-shaped area of 1.5 ×
1.5 meters around it and returns to its starting point once the spot cleaning is
completed.
Robot Restarting
If the robot stops responding or cannot be turned o, press and hold the
button for 10 seconds to forcefully turn it o. Then, press and hold the
button for 3 seconds to turn the robot on.
14 15
EN
How to Use
3. Automatically empty the dust box and wash and dry the mop
pads
After the robot finishes a cleaning task and returns to the base station to
charge, the base station will automatically start emptying the dust box. Then
it will wash and dry the mop pads.
4. Clean the used water tank
After the robot has completed its task, please clean the used water tank to
prevent any odor.
Note:
·
If the auto-empty function is turned off in the app, the base station will not
automatically empty the dust box.
·
The base station will empty the dust box according to the setting in the app.
Vacuum Only
Enable the vacuuming function in the app, and the robot will automatically
remove the mop assembly on the base station and start vacuuming.
Mop after Vacuuming
Enable the mopping after vacuuming function in the app, and the robot will
automatically remove the mop assembly on the base station to vacuum the
floor. After vacuuming is completed, the robot will return to the base station
to install the mop assembly and the base station will automatically start
emptying the dust box. And then, the robot will start mopping after the main
brush and side brush are raised.
Mop Only
Enable the mopping function in the app, and the robot will automatically check
if the mop assembly is installed on the base station. If not, the robot will install
the mop assembly and start mopping after the main brush and side brush are
raised.
How to Use
Vacuum and Mop
Note: When using the mop assembly for the first time, the robot performs the
"Vacuum and Mop" task by default.
1. Start cleaning
Press the button on the robot, or use the app to make the robot start from
the base station. Then the robot will plan the optimal cleaning route and
perform the cleaning task based on the created map.
2. Auto mop washing
When cleaning, the robot will automatically return to the base station to wash
mop pads based on the mop pad cleaning frequency specified in the app.
The base station will automatically refill the robot's water tank and the robot
will resume cleanup.
Note:
·
To ensure the robot easily returns to the base station after cleaning, it is
recommended to make the robot start from the base station.
·
The mop pads will be cleaned before the robot starts mopping, please wait
patiently.
·
Do not move the base station, the clean water tank, the used water tank, or
the washboard during operation.
·
Hot water cleaning can be enabled in the app for mop pad and washboard
base cleaning tasks, which applies to all modes. To prevent scalding, do
not touch the water outlet when the function is on.
14 15
EN
How to Use
3. Automatically empty the dust box and wash and dry the mop
pads
After the robot finishes a cleaning task and returns to the base station to
charge, the base station will automatically start emptying the dust box. Then
it will wash and dry the mop pads.
4. Clean the used water tank
After the robot has completed its task, please clean the used water tank to
prevent any odor.
Note:
·
If the auto-empty function is turned off in the app, the base station will not
automatically empty the dust box.
·
The base station will empty the dust box according to the setting in the app.
Vacuum Only
Enable the vacuuming function in the app, and the robot will automatically
remove the mop assembly on the base station and start vacuuming.
Mop after Vacuuming
Enable the mopping after vacuuming function in the app, and the robot will
automatically remove the mop assembly on the base station to vacuum the
floor. After vacuuming is completed, the robot will return to the base station
to install the mop assembly and the base station will automatically start
emptying the dust box. And then, the robot will start mopping after the main
brush and side brush are raised.
Mop Only
Enable the mopping function in the app, and the robot will automatically check
if the mop assembly is installed on the base station. If not, the robot will install
the mop assembly and start mopping after the main brush and side brush are
raised.
How to Use
Vacuum and Mop
Note: When using the mop assembly for the first time, the robot performs the
"Vacuum and Mop" task by default.
1. Start cleaning
Press the button on the robot, or use the app to make the robot start from
the base station. Then the robot will plan the optimal cleaning route and
perform the cleaning task based on the created map.
2. Auto mop washing
When cleaning, the robot will automatically return to the base station to wash
mop pads based on the mop pad cleaning frequency specified in the app.
The base station will automatically refill the robot's water tank and the robot
will resume cleanup.
Note:
·
To ensure the robot easily returns to the base station after cleaning, it is
recommended to make the robot start from the base station.
·
The mop pads will be cleaned before the robot starts mopping, please wait
patiently.
·
Do not move the base station, the clean water tank, the used water tank, or
the washboard during operation.
·
Hot water cleaning can be enabled in the app for mop pad and washboard
base cleaning tasks, which applies to all modes. To prevent scalding, do
not touch the water outlet when the function is on.
16 17
EN
Note: If the roller cover is blocked by wipers on both sides of the washboard,
rotate the roller to move them aside.
Routine Maintenance
Washboard Base
The base station will perform washboard self-cleaning along with each mop
pad cleaning. For deep cleaning, please refer to the following steps.
1. Enable the washboard base cleaning function in the app, and the robot
will exit the base station automatically. Take out the washboard and wait for
water to fill the washboard base.
2. Use the cleaning tool to clean the washboard base. After a moment, the
base station will automatically pump out the used water. Then wipe the
washboard base with a soft and dry cloth.
3. Flip the washboard over, remove the roller cover and the roller in turn, and
then pull o the end caps of the roller.
4. Remove the hair tangled in the roller, and then reassemble the parts
according to corresponding colors, as shown in the figure below.
Wipers
Routine Maintenance
Parts
To keep the robot in good condition, it is recommended to refer to the accessory usage in the app or the following table for routine maintenance.
Part Maintenance Frequency Replacement Period
Used water tank After each use
/
Clean water tank
Once every 2 weeks
Main brush Every 6 to 12 months
Dust box's filter
Every 3 to 6 months
Side brush
Mop pad holder /
Washboard Once every 2 months /
Base station's
signaling area
Once every month /
Base station's
charging contacts
Base station's
auto-empty vent
Omnidirectional
wheel
Edge sensor
Laser Distance
Sensor (LDS)
3D dual-line laser
sensors
Part Maintenance Frequency Replacement Period
Carpet sensor
Once every month
/
Cli sensors
Bumper Window
Robot's charging
contacts
Bumper
Robot's auto-empty
vent
Robot's automatic
water refilling inlet
Bottom of the robot
Dust box Clean it as needed
Dust bag
/
Every 2 to 4 months
Mop pad Every 1 to 3 months
Note: The replacement frequency will depend on your usage of the robot.
If an exception occurs due to special circumstances, the parts should be
replaced.
16 17
EN
Note: If the roller cover is blocked by wipers on both sides of the washboard,
rotate the roller to move them aside.
Routine Maintenance
Washboard Base
The base station will perform washboard self-cleaning along with each mop
pad cleaning. For deep cleaning, please refer to the following steps.
1. Enable the washboard base cleaning function in the app, and the robot
will exit the base station automatically. Take out the washboard and wait for
water to fill the washboard base.
2. Use the cleaning tool to clean the washboard base. After a moment, the
base station will automatically pump out the used water. Then wipe the
washboard base with a soft and dry cloth.
3. Flip the washboard over, remove the roller cover and the roller in turn, and
then pull o the end caps of the roller.
4. Remove the hair tangled in the roller, and then reassemble the parts
according to corresponding colors, as shown in the figure below.
Wipers
Routine Maintenance
Parts
To keep the robot in good condition, it is recommended to refer to the accessory usage in the app or the following table for routine maintenance.
Part Maintenance Frequency Replacement Period
Used water tank After each use
/
Clean water tank
Once every 2 weeks
Main brush Every 6 to 12 months
Dust box's filter
Every 3 to 6 months
Side brush
Mop pad holder /
Washboard Once every 2 months /
Base station's
signaling area
Once every month /
Base station's
charging contacts
Base station's
auto-empty vent
Omnidirectional
wheel
Edge sensor
Laser Distance
Sensor (LDS)
3D dual-line laser
sensors
Part Maintenance Frequency Replacement Period
Carpet sensor
Once every month
/
Cli sensors
Bumper Window
Robot's charging
contacts
Bumper
Robot's auto-empty
vent
Robot's automatic
water refilling inlet
Bottom of the robot
Dust box Clean it as needed
Dust bag
/
Every 2 to 4 months
Mop pad Every 1 to 3 months
Note: The replacement frequency will depend on your usage of the robot.
If an exception occurs due to special circumstances, the parts should be
replaced.
18 19
EN
Routine Maintenance
Dust Bag
1. Remove the dust tank cover and discard the dust bag.
3. Install a new dust bag.
4. Reinstall the dust tank cover.2. Remove the dust and debris from the filter with a dry cloth.
Note: Pulling upwards on the handle will seal the bag to prevent the dust and
debris from accidentally falling out.
Note: During cleaning, do not make the robot return to the base station.
Routine Maintenance
6. Use the app or briefly press the button on the robot to make it return
to the base station.
5. Rinse the washboard with clean water, wipe it clean and then put it back
into the base station downwards in an inclined way.
Note: The float ball in the used water tank is a movable part. Do not apply
too much force when cleaning it to avoid damaging it.
Used Water Tank
1. Remove the used water tank, open its cover and pour out the used water.
2. Rinse the used water tank with clean water, and use the provided
cleaning tool to clean the inner wall of the used water tank.
18 19
EN
Routine Maintenance
Dust Bag
1. Remove the dust tank cover and discard the dust bag.
3. Install a new dust bag.
4. Reinstall the dust tank cover.2. Remove the dust and debris from the filter with a dry cloth.
Note: Pulling upwards on the handle will seal the bag to prevent the dust and
debris from accidentally falling out.
Note: During cleaning, do not make the robot return to the base station.
Routine Maintenance
6. Use the app or briefly press the button on the robot to make it return
to the base station.
5. Rinse the washboard with clean water, wipe it clean and then put it back
into the base station downwards in an inclined way.
Note: The float ball in the used water tank is a movable part. Do not apply
too much force when cleaning it to avoid damaging it.
Used Water Tank
1. Remove the used water tank, open its cover and pour out the used water.
2. Rinse the used water tank with clean water, and use the provided
cleaning tool to clean the inner wall of the used water tank.
20 21
EN
Routine Maintenance
Main Brush
1. Press the brush guard clips inwards to remove the brush guard and lift the
brush out of the robot.
2. Pull out the brush covers at both ends of the brush as shown in the figure.
Use the provided cleaning tool to remove any hair tangled in the brush.
Reinstall the brush covers on both ends of the brush, and then reinstall the
brush. Press on the brush guard to lock it in place.
Side Brush
Unscrew the side brush with a screwdriver, clean the hair from the brush, and
then screw it back on.
Routine Maintenance
3. Gently tap the basket of the filter to remove the dirt.
4. Rinse the dust box and filter with water and dry them completely before
reinstalling.
Note: Do not attempt to clean the filter with a brush, a finger or sharp objects
to prevent damage.
Note:
·
Rinse the dust box and filter with clean water only. Do not use any detergent.
·
Use the dust box and filter only when they are completely dry.
24h
Dust Box and Filter
1. Open the robot cover and press the dust box clip to remove the dust box.
2. Open the dust box cover, remove the filter, and then empty the dust box as
shown in the diagram.
20 21
EN
Routine Maintenance
Main Brush
1. Press the brush guard clips inwards to remove the brush guard and lift the
brush out of the robot.
2. Pull out the brush covers at both ends of the brush as shown in the figure.
Use the provided cleaning tool to remove any hair tangled in the brush.
Reinstall the brush covers on both ends of the brush, and then reinstall the
brush. Press on the brush guard to lock it in place.
Side Brush
Unscrew the side brush with a screwdriver, clean the hair from the brush, and
then screw it back on.
Routine Maintenance
3. Gently tap the basket of the filter to remove the dirt.
4. Rinse the dust box and filter with water and dry them completely before
reinstalling.
Note: Do not attempt to clean the filter with a brush, a finger or sharp objects
to prevent damage.
Note:
·
Rinse the dust box and filter with clean water only. Do not use any detergent.
·
Use the dust box and filter only when they are completely dry.
24h
Dust Box and Filter
1. Open the robot cover and press the dust box clip to remove the dust box.
2. Open the dust box cover, remove the filter, and then empty the dust box as
shown in the diagram.
22 23
EN
Routine Maintenance
Mop Pad
Remove the mop pad from the mop pad holder to replace it.
Battery
The robot contains a high-performance lithium-ion battery pack. Make sure
that the battery remains well-charged for daily use to maintain optimal
battery performance. If the robot is not used for an extended period of time,
turn it o and put it away. To prevent damage from over-discharging, charge
the robot at least once every three months.
Charging Contacts
Clean the charging contacts and the signaling area of the base station with a
soft and dry cloth.
Auto-empty Vents
Clean the auto-empty vents of the robot and the base station with a soft and
dry cloth.
Routine Maintenance
Robot Sensors and Charging Contacts
Wipe sensors and charging contacts of the robot by using a soft and dry cloth,
as shown in the below figure:
Note: A wet cloth can damage sensitive elements within the robot and the
base station. Please use a dry cloth for cleaning.
Edge Sensor
Bumper Window
3D Dual-Line Laser Sensors
Bumper
Charging Contacts
Laser Distance
Sensor (LDS)
Carpet Sensor
Cli Sensors
Omnidirectional Wheel
Note:
·
Use a tool such as a small screwdriver to separate the axle and tire of the
omnidirectional wheel. Do not use excessive force.
·
Rinse the omnidirectional wheel under the running water and put it back
after drying it completely.
Mop Pad Holder
Remove and clean the mop pad holder.
22 23
EN
Routine Maintenance
Mop Pad
Remove the mop pad from the mop pad holder to replace it.
Battery
The robot contains a high-performance lithium-ion battery pack. Make sure
that the battery remains well-charged for daily use to maintain optimal
battery performance. If the robot is not used for an extended period of time,
turn it o and put it away. To prevent damage from over-discharging, charge
the robot at least once every three months.
Charging Contacts
Clean the charging contacts and the signaling area of the base station with a
soft and dry cloth.
Auto-empty Vents
Clean the auto-empty vents of the robot and the base station with a soft and
dry cloth.
Routine Maintenance
Robot Sensors and Charging Contacts
Wipe sensors and charging contacts of the robot by using a soft and dry cloth,
as shown in the below figure:
Note: A wet cloth can damage sensitive elements within the robot and the
base station. Please use a dry cloth for cleaning.
Edge Sensor
Bumper Window
3D Dual-Line Laser Sensors
Bumper
Charging Contacts
Laser Distance
Sensor (LDS)
Carpet Sensor
Cli Sensors
Omnidirectional Wheel
Note:
·
Use a tool such as a small screwdriver to separate the axle and tire of the
omnidirectional wheel. Do not use excessive force.
·
Rinse the omnidirectional wheel under the running water and put it back
after drying it completely.
Mop Pad Holder
Remove and clean the mop pad holder.
24 25
EN
Troubleshooting
Problem Solution
The charging speed is
slow.
It takes about 4.5 hours to fully charge the robot when its battery is low.
If you operate the robot at temperatures outside of the specified range, the charging speed will automatically slow
down to extend the battery life.
The charging contacts on both the robot and the base may be dirty, please wipe them with a dry cloth.
The noise increases
while the robot is
operating.
Check whether the dust box filter is clogged. If so, clean it or replace it.
A hard object may be caught in the main brush or the dust box. Check and remove any hard object.
The main brush or the side brush may become tangled. Check and remove any foreign objects.
Switch the suction mode to Standard or Quiet.
The robot moves
without following the
set route.
Objects such as power cords and slippers should be organized before using the robot.
Working on wet slippery surfaces causes the main wheel to slip. It is recommended to dry the wet places before using
the robot.
Wipe the bumper window and 3D dual-line laser sensors on the robot with a clean, soft cloth to keep them clean and
unobstructed.
The robot misses the
rooms to be cleaned.
Make sure that the doors of the rooms to be cleaned are open.
Check whether there is a threshold higher than about 2 cm at the door of the room. The robot cannot climb over high
thresholds or steps.
The place in front of the room to be cleaned may be wet and slippery, causing the robot to slip and work abnormally.
Please try drying the floor before using the robot.
The robot will not
resume cleaning after
charging.
Make sure that the robot is not set to the Do Not Disturb (DND) mode, which will prevent it from resuming cleaning.
The robot will not resume cleaning after you manually place the robot on the base station or send the robot to charge
via the app or the button .
Problem Solution
The robot will not turn on.
The battery is low. Recharge the robot on the base and try again.
The temperature of the battery is too low or too high. It is recommended to operate the appliance at a temperature
between 32°F (0°C) and 104°F (40°C).
The robot will not charge.
The base station is not connected to power, please make sure both ends of its power cord are correctly plugged in.
The contact between the charging contacts on the base station and the robot is poor, please clean the charging contacts.
Check whether there is any foreign object at the connector of the robot and remove the foreign object if any.
The robot fails to connect
to Wi-Fi.
The Wi-Fi network password is incorrect. Make sure the password used to connect to your Wi-Fi network is correct.
The robot does not support a 5 GHz Wi-Fi connection. Make sure the robot is connected to a 2.4 GHz Wi-Fi connection.
The Wi-Fi signal is weak. Make sure the robot is in an area with good Wi-Fi coverage.
The robot may not be ready to be configured. Please exit and re-enter the app, and then try again as instructed.
The robot cannot find and
return to the base station.
The base station is disconnected from power or moved when the robot is not on it. Please connect the base station to the
power supply or place the robot onto the base station to charge.
There are too many obstructions around the base station. Place the base station in a more open area.
Moving the robot may cause it to re-position itself, and it will recreate a map if re-positioning fails. If the robot is too far
from the base station, it might not be able to automatically return on its own, in which case you will need to manually
place the robot onto the base station.
Wipe the signaling area on the base station to remove dust or debris.
The robot gets stuck in
front of the base station
and cannot return to it.
Clear any obstruction within 5 cm on the left and right sides or within 1.5 m in front of the base station to prevent the robot
from being blocked.
The route for returning to charge is blocked, e.g. the door is closed.
The robot may slip if the floor in front of the base station is overly wet. If so, clean the excess water before trying again.
It is recommended to move the base station to a dierent place and try again.
Make sure the ramp extension plate is installed properly.
The robot will not turn o.
The robot cannot be turned o when it is charging. It is recommended to move the robot from the base station, and then
press and hold the button for 3 seconds to turn it o.
If the robot cannot be turned o by performing step 1, press and hold the button for 10 seconds to forcibly turn o the
robot. If the problem persists, please contact after-sales service.
Troubleshooting
24 25
EN
Troubleshooting
Problem Solution
The charging speed is
slow.
It takes about 4.5 hours to fully charge the robot when its battery is low.
If you operate the robot at temperatures outside of the specified range, the charging speed will automatically slow
down to extend the battery life.
The charging contacts on both the robot and the base may be dirty, please wipe them with a dry cloth.
The noise increases
while the robot is
operating.
Check whether the dust box filter is clogged. If so, clean it or replace it.
A hard object may be caught in the main brush or the dust box. Check and remove any hard object.
The main brush or the side brush may become tangled. Check and remove any foreign objects.
Switch the suction mode to Standard or Quiet.
The robot moves
without following the
set route.
Objects such as power cords and slippers should be organized before using the robot.
Working on wet slippery surfaces causes the main wheel to slip. It is recommended to dry the wet places before using
the robot.
Wipe the bumper window and 3D dual-line laser sensors on the robot with a clean, soft cloth to keep them clean and
unobstructed.
The robot misses the
rooms to be cleaned.
Make sure that the doors of the rooms to be cleaned are open.
Check whether there is a threshold higher than about 2 cm at the door of the room. The robot cannot climb over high
thresholds or steps.
The place in front of the room to be cleaned may be wet and slippery, causing the robot to slip and work abnormally.
Please try drying the floor before using the robot.
The robot will not
resume cleaning after
charging.
Make sure that the robot is not set to the Do Not Disturb (DND) mode, which will prevent it from resuming cleaning.
The robot will not resume cleaning after you manually place the robot on the base station or send the robot to charge
via the app or the button .
Problem Solution
The robot will not turn on.
The battery is low. Recharge the robot on the base and try again.
The temperature of the battery is too low or too high. It is recommended to operate the appliance at a temperature
between 32°F (0°C) and 104°F (40°C).
The robot will not charge.
The base station is not connected to power, please make sure both ends of its power cord are correctly plugged in.
The contact between the charging contacts on the base station and the robot is poor, please clean the charging contacts.
Check whether there is any foreign object at the connector of the robot and remove the foreign object if any.
The robot fails to connect
to Wi-Fi.
The Wi-Fi network password is incorrect. Make sure the password used to connect to your Wi-Fi network is correct.
The robot does not support a 5 GHz Wi-Fi connection. Make sure the robot is connected to a 2.4 GHz Wi-Fi connection.
The Wi-Fi signal is weak. Make sure the robot is in an area with good Wi-Fi coverage.
The robot may not be ready to be configured. Please exit and re-enter the app, and then try again as instructed.
The robot cannot find and
return to the base station.
The base station is disconnected from power or moved when the robot is not on it. Please connect the base station to the
power supply or place the robot onto the base station to charge.
There are too many obstructions around the base station. Place the base station in a more open area.
Moving the robot may cause it to re-position itself, and it will recreate a map if re-positioning fails. If the robot is too far
from the base station, it might not be able to automatically return on its own, in which case you will need to manually
place the robot onto the base station.
Wipe the signaling area on the base station to remove dust or debris.
The robot gets stuck in
front of the base station
and cannot return to it.
Clear any obstruction within 5 cm on the left and right sides or within 1.5 m in front of the base station to prevent the robot
from being blocked.
The route for returning to charge is blocked, e.g. the door is closed.
The robot may slip if the floor in front of the base station is overly wet. If so, clean the excess water before trying again.
It is recommended to move the base station to a dierent place and try again.
Make sure the ramp extension plate is installed properly.
The robot will not turn o.
The robot cannot be turned o when it is charging. It is recommended to move the robot from the base station, and then
press and hold the button for 3 seconds to turn it o.
If the robot cannot be turned o by performing step 1, press and hold the button for 10 seconds to forcibly turn o the
robot. If the problem persists, please contact after-sales service.
Troubleshooting
26 27
EN
Specifications
Robot
Model RLX63CE
Charging Time Approx. 4.5 hours
Rated Voltage 14.4 V
Rated Power 75 W
Operation Frequency 2400–2483.5 MHz
Maximum Output Power <20 dBm
Note:
·
Rated Power (during hot water cleaning) is determined by the power
value during the representative period (water temperature 25°C).
·
Rated Power (during charging and drying) is determined by the power
value during full load period.
Model RCXE0307/RCXE0307-5
Rated Input 220-240 V 50-60 Hz
Rated Output 20 V 2 A
Rated Power (during dust
emptying)
700 W
Rated Power (during hot
water cleaning)
1160 W
Rated Power (during
charging and drying)
89 W
Under normal use of condition, this equipment should be kept a
separation distance of at least 20 cm between the antenna and the
body of the user.
Base Station
Troubleshooting
Problem Solution
The station cannot
automatically empty
the dust box.
Check whether the dust bag in the dust tank is full.
If the dust bag is not full, check whether there is any obstruction at the auto-empty vents of the robot, the base station,
or the dust box. If any, clean the blocked part in time.
The water level in
the washboard is
abnormal.
Check whether the seal on the used water tank is loose or not correctly installed, and manually reset it if so. If the
problem persists, please contact the after-sales service team.
Gently press down on the used water tank to make sure it is installed correctly.
Remove the washboard and check whether the sewage drain is blocked and clean it.
Check the cleaning solution. Do not add any liquid other than the ocially-approved cleaning solution.
The mop pad holder is
raised abnormally.
Please remove the mop pad holder to check if there is any foreign object stuck in it, and try to restart the robot. If the
problem persists, please contact the after-sales service team.
There is water under
the clean water tank or
around the seal.
When taking out the clean water tank, some water in the pipe may be left under the tank or around the seal. This is
normal. Please wipe with a dry cloth.
For more support, contact us via https://global.dreametech.com
26 27
EN
Specifications
Robot
Model RLX63CE
Charging Time Approx. 4.5 hours
Rated Voltage 14.4 V
Rated Power 75 W
Operation Frequency 2400–2483.5 MHz
Maximum Output Power <20 dBm
Note:
·
Rated Power (during hot water cleaning) is determined by the power
value during the representative period (water temperature 25°C).
·
Rated Power (during charging and drying) is determined by the power
value during full load period.
Model RCXE0307/RCXE0307-5
Rated Input 220-240 V 50-60 Hz
Rated Output 20 V 2 A
Rated Power (during dust
emptying)
700 W
Rated Power (during hot
water cleaning)
1160 W
Rated Power (during
charging and drying)
89 W
Under normal use of condition, this equipment should be kept a
separation distance of at least 20 cm between the antenna and the
body of the user.
Base Station
Troubleshooting
Problem Solution
The station cannot
automatically empty
the dust box.
Check whether the dust bag in the dust tank is full.
If the dust bag is not full, check whether there is any obstruction at the auto-empty vents of the robot, the base station,
or the dust box. If any, clean the blocked part in time.
The water level in
the washboard is
abnormal.
Check whether the seal on the used water tank is loose or not correctly installed, and manually reset it if so. If the
problem persists, please contact the after-sales service team.
Gently press down on the used water tank to make sure it is installed correctly.
Remove the washboard and check whether the sewage drain is blocked and clean it.
Check the cleaning solution. Do not add any liquid other than the ocially-approved cleaning solution.
The mop pad holder is
raised abnormally.
Please remove the mop pad holder to check if there is any foreign object stuck in it, and try to restart the robot. If the
problem persists, please contact the after-sales service team.
There is water under
the clean water tank or
around the seal.
When taking out the clean water tank, some water in the pipe may be left under the tank or around the seal. This is
normal. Please wipe with a dry cloth.
For more support, contact us via https://global.dreametech.com
28
EN
All products bearing this symbol are waste electrical and electronic equipment (WEEE as in directive 2012/19/EU) which should not be mixed
with unsorted household waste. Instead, you should protect human health and the environment by handing over your waste equipment to a
designated collection point for the recycling of waste electrical and electronic equipment, appointed by the government or local authorities.
Correct disposal and recycling will help prevent potential negative consequences to the environment and human health. Please contact the
installer or local authorities for more information about the location as well as terms and conditions of such collection points.
WEEE Information
CAUTION:
Removal Guide:
Battery Disposal and Removal
The built-in lithium-ion battery contains substances that are hazardous to the environment. Before disposing of the battery, make sure the battery is removed
by qualified technicians and discarded at an appropriate recycling facility.
– the battery must be removed from the appliance before it is scrapped;
– the appliance must be disconnected from the supply mains when removing the battery;
– the battery is to be disposed of safely.
Before removing the battery, disconnect the power and run out the battery as much as possible.
Unneeded batteries should be discarded at an appropriate recycling facility.
Do not expose to high temperature environment to avoid risks of explosion.
Under abusive conditions, liquid may be ejected from the battery. If contact occurs, flush with water and seek medical help.
1. Turn over the robot, use a proper tool to remove the screws on the back of the robot, and then remove the cover.
2. Unplug the terminals between the battery and PCB board to remove the battery.
For more support, contact us via https://global.dreametech.com
Manufactured by: Dreame Trading (Tianjin) Co., Ltd.
Made in China AU-A00
The illustrations in this manual are for reference only. Please refer to the actual product.
Robot Vacuum and Mop with
Auto-Empty and Mop Self-Cleaning
User Manual
X40
Ultra
Theword"dreame"istheabbreviationofDreameTechnologyCo.,Ltd.andits subsidiaries inChina.Itisthetransliterationofthecompany'sChinesename" 追觅",
which meansstrivingforexcellenceineveryendeavorandreflectsthecompany's visionofcontinuouspursuit,explorationandsearchintechnology.
