Quick Start Guide
USB 2.0 OTG Cable
with 2-in-1 Connector
USB A (Male) + Micro-USB B (Male) to Micro-USB B (Male)
Model: U050-07N-OTG
USB A (Male) + Micro-USB B (Male) to USB A (Female)
Model: U052-06N-OTG-AM
Features

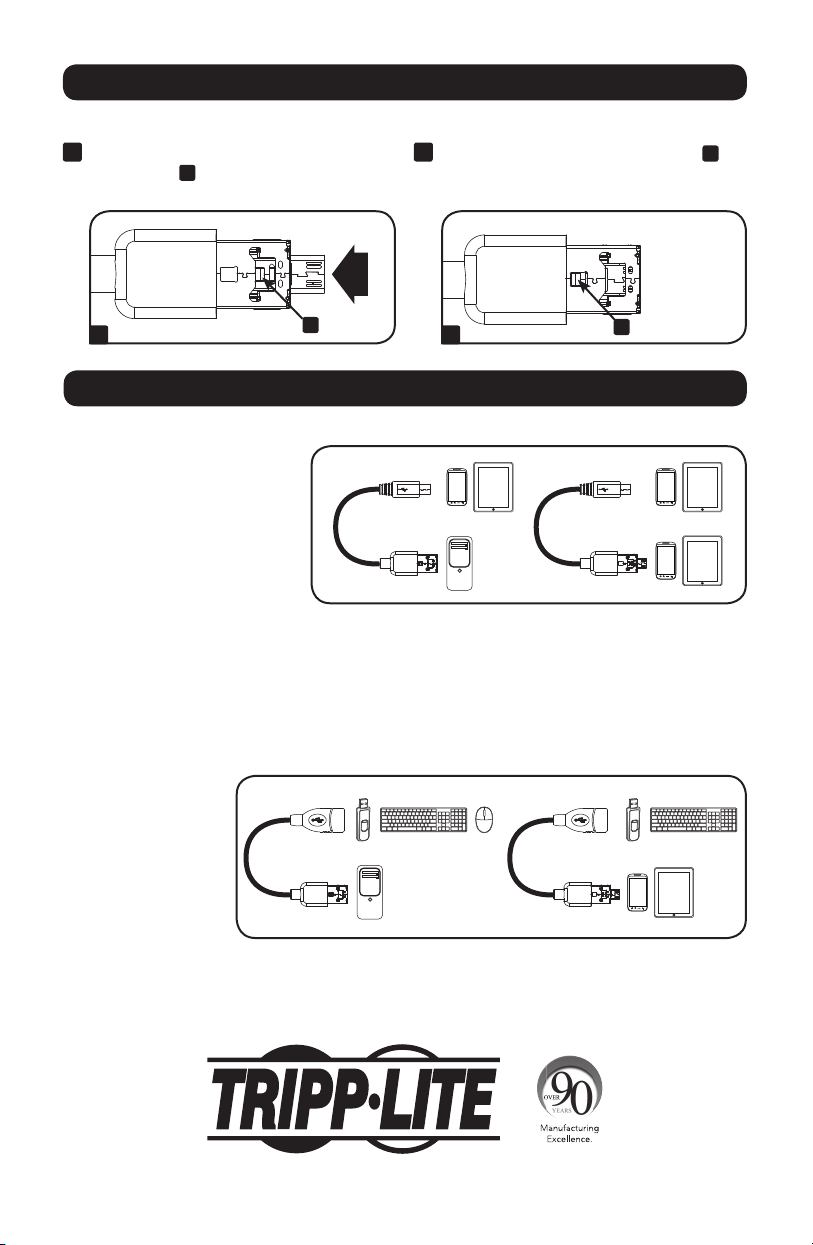

Using the 2-in-1 Connector
• USB 2.0 charging and data
transfer rates up to 480 Mbps
• Supports On-the-Go (OTG)
devices
• Plug-and-Play; No drivers or
software required
To extend the Micro-USB connector:
1
Place a thumbnail or
fingernail in the white slit
A
located on the bottom of
the USB A connector. Slide
the connector forward.
2
Using your fingers, pull the
Micro-USB connector out
B
.
Note: You can alternately use
a fingernail in the second slit to
further extend the Micro-USB
connector.
3
The white button
C
will lock
the Micro-USB connector
into place.
1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support
Copyright © 2015 Tripp Lite. All rights reserved.
PROTECT YOUR INVESTMENT!
Register your product for quicker service
and ultimate peace of mind.
You could also win an ISOBAR6ULTRA
surge protector—a $50 value!
www.tripplite.com/warranty
1
2
3
A
B
C
15-05-137-933443.indd 1 5/13/2015 12:30:33 PM
1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support
15-05-137 93-3443_RevB
To retract the Micro-USB connector:
1
Place a thumbnail or fingernail on the
white button
A
and push the Micro-USB
connector inward.
2
When fully retracted, the white button
B
will
lock the Micro-USB connector into the USB
A connector.
1 2
A
B
Using the 2-in-1 Connector
