English
DMH-T450EX
RDS AV RECEIVER
Important (Serial number)
The serial number is located on the bottom of this unit. For your own security and convenience, be
sure to record this number on the enclosed warranty card.
Operation Manual
- 2 -
English
Important
■Precaution ................................................................................... 3
■Parts and controls ....................................................................... 8
■Basic operation ........................................................................... 9
■Bluetooth®................................................................................. 12
■AV source................................................................................... 16
■Radio.......................................................................................... 17
■Compressed files....................................................................... 18
■iPhone........................................................................................ 22
■WebLink™ .................................................................................. 24
■AUX ............................................................................................ 26
■Camera View.............................................................................. 27
■Settings...................................................................................... 28
Displaying the setting screen ..................................................................................................................... 28
System Settings................................................................................................................................................ 28
Theme Settings ................................................................................................................................................ 29
Audio Settings.................................................................................................................................................. 29
■Other functions......................................................................... 31
■Appendix ................................................................................... 32
Contents
Thank you for buying this Pioneer product.
Please read through these instructions so you will know how to operate your model
properly. After you have finished reading the instructions, keep this document in a safe
place for future reference.
The screen shown in the examples may differ from actual screens, which may be
changed without notice for performance and function improvements.
English
- 3 -
WARNING
• Do not attempt to install or service this product by yourself. Installation or servicing of this product by
persons without training and experience in electronic equipment and automotive accessories may
be dangerous and could expose you to the risk of electric shock, injury or other hazards.
• Do not allow this product to come into contact with liquids. Electrical shock could result. Also,
damage to the product, smoke, and overheating could result from contact with liquids.
• If liquid or foreign matter should get inside this product, park your vehicle in a safe place, turn the
ignition switch off (ACC OFF) immediately and consult your dealer or the nearest authorized Pioneer
Service Station. Do not use this product in this condition because doing so may result in a fire, electric
shock, or other failure.
• If you notice smoke, a strange noise or odor from this product, or any other abnormal signs on the
LCD screen, turn off the power immediately and consult your dealer or the nearest authorized
Pioneer Service Station. Using this product in this condition may result in permanent damage to the
system.
• Do not disassemble or modify this product, as there are high-voltage components inside which may
cause an electric shock. Be sure to consult your dealer or the nearest authorized Pioneer Service
Station for internal inspection, adjustments or repairs.
Before using this product, be sure to read and fully understand the following safety
information:
• Do not operate this product, any applications, or the rear view camera option (if
purchased) if doing so will divert your attention in any way from the safe operation of
your vehicle. Always observe safe driving rules and follow all existing traffic
regulations. If you experience difficulty in operating this product, pull over, park your
vehicle in a safe location and apply the parking brake before making the necessary
adjustments.
• Never set the volume of this product so high that you cannot hear outside traffic and
emergency vehicles.
• To promote safety, certain functions are disabled unless the vehicle is stopped and the
parking brake is applied.
• Keep this manual handy as a reference for operating procedures and safety
information.
• Do not install this product where it may (i) obstruct the driver’s vision, (ii) impair the
performance of any of the vehicle’s operating systems or safety features, including air
bags or hazard lamp buttons or (iii) impair the driver’s ability to safely operate the
vehicle.
• Please remember to fasten your seat belt at all times while operating your vehicle. If
you are ever in an accident, your injuries can be considerably more severe if your seat
belt is not properly buckled.
• Never use headphones while driving.
Precaution
Important safety information
- 4 -
English
• Rear visibility systems (backup cameras) are required in certain new vehicles sold in
the U.S. and Canada. U.S. regulations began according to a two year phase-in on May
1, 2016, and both the U.S. and Canada require that all such vehicles manufactured on
or after May 1, 2018 have rear visibility systems. Owners of vehicles equipped with
compliant rear visibility systems should not install or use this product in a way
that alters or disables that system's compliance with applicable regulations. If
you are unsure whether your vehicle has a rear visibility system subject to the U.S. or
Canadian regulations, please contact the vehicle manufacturer or dealer.
If your vehicle has a compliant backup camera that displays the backup view through
the factory receiver, do not use the Pioneer receiver unless it is connected to and
displays the same view as the factory backup camera. Connection to the factory
backup camera will require an adaptor, sold separately. Not all vehicles may be able to
connect. Please check with a qualified professional installer for installation options
specific to your vehicle.
Certain functions (such as viewing of video image and certain touch panel key
operations) offered by this product could be dangerous (possibly resulting in serious
injury or death) and/or unlawful if used while driving. To prevent such functions from
being used while the vehicle is in motion, there is an interlock system that senses when
the parking brake is set and when the vehicle is moving. If you attempt to use the
functions described above while driving, they will become disabled until you stop the
vehicle in a safe place, and (1) apply the parking brake, (2) release the parking brake, and
then (3) apply the parking brake again. Please keep the brake pedal pushed down
before releasing the parking brake.
WARNING
• LIGHT GREEN LEAD AT POWER CONNECTOR IS DESIGNED TO DETECT PARKED STATUS AND
MUST BE CONNECTED TO THE POWER SUPPLY SIDE OF THE PARKING BRAKE SWITCH.
IMPROPER CONNECTION OR USE OF THIS LEAD MAY VIOLATE APPLICABLE LAW AND MAY
RESULT IN SERIOUS INJURY OR DAMAGE.
• Do not take any steps to tamper with or disable the parking brake interlock system which is in
place for your protection. Tampering with or disabling the parking brake interlock system
could result in serious injury or death.
• To avoid the risk of damage and injury and the potential violation of applicable laws, this
product is not for use with a video image that is visible to the driver.
• In some countries the viewing of video image on a display inside a vehicle even by persons other
than the driver may be illegal. Where such regulations apply, they must be obeyed.
If you attempt to watch video image while driving, the warning “Viewing of front seat
video source while driving is strictly prohibited.” will appear on the screen. To watch
Parking brake interlock
To ensure safe driving
English
- 5 -
video image on this display, stop the vehicle in a safe place and apply the parking brake.
Please keep the brake pedal pushed down before releasing the parking brake.
The video output terminal is for connection of a display to enable passengers in the rear
seats to watch video images.
WARNING
NEVER install the rear display in a location that enables the driver to watch video images while driving.
Be sure to run the vehicle engine while using this product. Using this product without
running the engine can drain the battery.
WARNING
Do not install this product in a vehicle that does not have an ACC wire or circuitry available.
With an optional rear view camera, you are able to use this product as an aid to keep an
eye on trailers, or backing into a tight parking spot.
WARNING
• SCREEN IMAGE MAY APPEAR REVERSED.
• USE INPUT ONLY FOR REVERSE OR MIRROR IMAGE REAR VIEW CAMERA. OTHER USE MAY RESULT IN
INJURY OR DAMAGE.
CAUTION
The rear view mode is to use this product as an aid to keep an eye on the trailers, or while backing up.
Do not use this function for entertainment purposes.
CAUTION
• To prevent data loss and damage to the storage device, never remove it from this product while data
is being transferred.
• Pioneer cannot guarantee compatibility with all USB mass storage devices and assumes no
responsibility for any loss of data on media players, iPhone, smartphone, or other devices while using
this product.
When using a display connected to the video
output terminal
To avoid battery exhaustion
Rear view camera
Handling the USB connector
- 6 -
English
• It may not be recognized properly by this product if a USB device that had been incorrectly
disconnected from the computer is connected.
After-sales service for Pioneer products

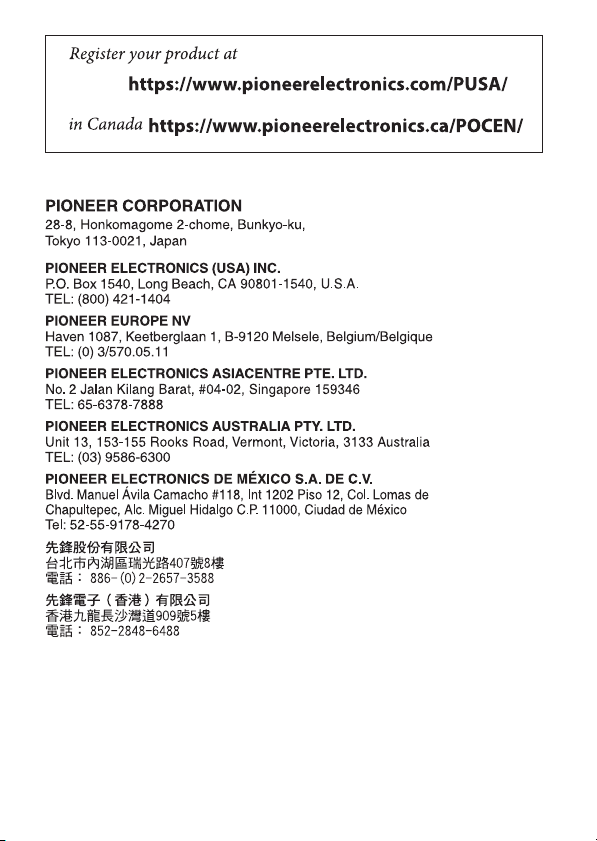

Visit us at the following site:
https://www.pioneerelectronics.com/PUSA/
https://www.pioneerelectronics.ca/POCEN/
1 Register your product.
2 Receive updates on the latest products and technologies.
3 Download owner’s manuals, order product catalogs, research new products, and
much more.
4 Receive notices of software upgrades and software updates.
• Do not expose the LCD screen to direct sunlight when this product is not used. This
may result in LCD screen malfunction due to the resulting high temperatures.
• When using a cellular phone, keep the antenna of the cellular phone away from the
LCD screen to prevent disruption of the video in the form of spots, colored stripes, etc.
• To protect the LCD screen from damage, be sure to touch the touch panel keys only
with your finger and do so gently.
Failure to operate
Please contact the dealer or distributor from which you purchased the product for after-sales service
(including warranty conditions) or any other information. In case the necessary information is not
available, please contact the companies listed below.
Please do not ship your product to the companies at the addresses listed below for repair without
making advance contact.
–USA&CANADA
Pioneer Electronics (USA) Inc.
CUSTOMER SUPPORT DIVISION
P.O. Box 1760 Long Beach, CA 90801-1760, U.S.A
800-421-1404
For warranty information, please see the Limited Warranty sheet included with your product.
Visit our website
Protecting the LCD panel and screen
English
- 7 -
• The information will be erased by disconnecting the yellow lead from the battery (or
removing the battery itself ).
• Some of the settings and recorded contents will not be reset.
• This manual uses diagrams of actual screens to describe operations. However, the
screens on some units may not match those shown in this manual depending on the
model used.
• When an iPhone is connected to the unit, the source name on the unit appears as
[iPod]. Please note that this unit only supports iPhone regardless of the source name.
For details of iPhone compatibility, refer to Compatible iPhone models (page 38).
Notes on internal memory
About this manual
Meanings of symbols used in this manual
This indicates to touch the appropriate soft key on the touch screen.
This indicates to touch and hold the appropriate soft key on the touch screen.
- 8 -
English
Parts and controls
Main unit
Touch to turn off the display information. To turn on the display information,
touch again.
Touch and hold to power off. To power back on, touch again.
TIP
If you power the unit off, you can turn off almost all functions. The unit turns
on by operating the following functions:
• A rear view camera image is input when the vehicle is in reverse.
• The ignition switch is turned off (ACC OFF), then turned on (ACC ON).
NOTE
If you display the image from the back camera while the power is off, the
image may be displayed on the rear monitor for a moment.
Touch to display the top menu screen.
Touch and hold to mute or unmute.
VOL (+/-) Touch to adjust the volume.
LCD screen
RESET Press to reset the microprocessor (page 9).
English
- 9 -
CAUTION
• Pressing the RESET button resets settings and recorded contents to the factory settings.
– Do not perform this operation when a device is connected to this product.
– Some of the settings and recorded contents will not be reset.
• The microprocessor must be reset under the following conditions:
– Prior to using this product for the first time after installation.
– If this product fails to operate properly.
– If there appears to be problems with the operation of the system.
1 Turn the ignition switch OFF.
2 Grab the display at each side and tilt it rightward until you can see RESET.
3 Press RESET with a pen tip or other pointed tools.
Settings and recorded contents are reset to the factory settings.
You can operate this product by touching the keys on the screen directly with your
fingers.
NOTE
To protect the LCD screen from damage, be sure to touch the screen only with your finger gently.
Basic operation
Resetting the microprocessor
Using the touch panel
RESET
- 10 -
English
: Returns to the previous screen.
: Close the screen.
Common touch panel keys
Operating list screens
Touching an item on the list allows you to narrow down the options and
proceed to the next operation.
Touch and slide to search by alphabet.
Touch to view any hidden items.
Operating the time bar
You can change the playback point by touching in the bar.
video folder
abcdefghi
abcdefghi
abcdefghi
abcdefghi
#
A
I
R
Z
.
.
.
.
.
.
USB/video/
50:00 99:99
- 12 -
English
1 Turn on the Bluetooth function on the device.
2 Touch .
3 Touch [Phone] or [Bluetooth Audio].
The unit name is shown on the display only when the parking brake is applied.
4 Select the unit name shown in the mobile device display.
5 Perform the pairing operation by the mobile device and this unit.
After the device is successfully registered, a Bluetooth connection is established by
the system.
TIP
To disconnect the connection, touch the connected device name on the top of the phone number
input screen (page 13).
NOTE
You need to disconnect the Bluetooth connection with connected mobile device to connect another
mobile device.
To use this function you need to connect your cellular phone to this product via
Bluetooth in advance (page 12).
CAUTION
For your safety, avoid talking on the phone as much as possible while driving.
1 Touch .
2 Touch [Phone].
The phone menu screen appears.
3 Touch one of the call icons on the phone menu screen.
Bluetooth®
Bluetooth connection
Hands-free phoning
Making a phone call
English
- 13 -
▶To end the call
1 Touch .
1 Touch to answer the call.
Touch to end the call.
By connecting your iPhone to this product, you can use the voice recognition function
on this product.
You can switch the audio output between this unit and the connected mobile device.
1 Touch when calling.
The audio output switches each time by touching the icon.
TIP
Touch to mute or unmute the connected microphone.
Synchronizes the contacts and call history on your phone manually.
Using phone book
Select a contact from the phone book. Touch the contact on the list.
TIP
You can use initial search by touching the character at the right side of the phone
book screen.
Using call history
Make a phone call by touching the one of the icon from the received call ,
dialed call , or missed call .
Direct phone number input
Touch the number keys to enter the phone number then touch to make a call.
TIP
You can redial to the last dialed number by touching without entering the
number.
Receiving a phone call
Voice recognition function (for iPhone)
Switching the audio output
- 14 -
English
▶General notes
• Connection to all cellular phones featuring Bluetooth wireless technology is not
guaranteed.
• The line-of-sight distance between this product and your cellular phone must be 10
meters or less when sending and receiving voice and data via Bluetooth technology.
• With some cellular phones, the ring sound may not be output from the speakers.
• If private mode is selected on the cellular phone, hands-free phoning may be disabled.
▶Registration and connection
• Cellular phone operations vary depending on the type of cellular phone. Refer to the
instruction manual that came with your cellular phone for detailed instructions.
• When phone book transfer does not work, disconnect your phone and then perform
pairing again from your phone to this product.
▶Making and receiving calls
• You may hear a noise in the following situations:
– When you answer the phone using the button on the phone.
– When the person on the other end of the line hangs up the phone.
• If the person on the other end of the line cannot hear the conversation due to an echo,
decrease the volume level for hands-free phoning.
• With some cellular phones, even after you press the accept button on the cellular
phone when a call comes in, hands-free phoning may not be performed.
• The registered name in the phone book is displayed if the phonebook is transferred to
this unit.
▶The received call and dialed number histories
• The received calls with no phone number are not displayed in the received call history
on the unit.
▶Phone book transfers
• If there are more than 1 000 phone book entries on your cellular phone, not all entries
may download completely.
• Depending on the phone, this product may not display the phone book correctly.
• If the phone book in the phone contains image data, the phone book may not be
transferred correctly.
• Depending on the cellular phone, phone book transfer may not be available.
Before using the Bluetooth audio player, register and connect the device to this product
(page 12).
Notes for hands-free phoning
Bluetooth audio
English
- 15 -
NOTES
• Depending on the Bluetooth audio player connected to this product, the available operations with
this product may be limited to the following two levels:
– A2DP (Advanced Audio Distribution Profile): Only playing back songs on your audio player is
possible.
– A2DP and AVRCP (Audio/Video Remote Control Profile): Playing back, pausing, selecting songs, etc.,
are possible.
• Depending on the Bluetooth device connected to this product, the available operations with this
product may be limited or differ from the descriptions in this manual.
• While you are listening to songs on your Bluetooth device, refrain from operating the phone function
as much as possible. If you try operating, the signal may cause noise for song playback.
• When you are talking on the Bluetooth device connected to this product via Bluetooth, it may pause
playback.
1 Touch .
2 Touch [Bluetooth Audio].
The Bluetooth audio playback screen appears.
Basic operation
Switches between playback and pause.
Skips files forward or backward.
Performs fast forward or fast reverse.
Sets a repeat play range.
Plays files in random order.
- 16 -
English
You can play or use the following sources with this product.
• Radio
• USB
The following sources can be played back or used by connecting an auxiliary device.
• iPhone
• Bluetooth audio
• AUX
1 Touch .
2 Touch the source icon.
AV source
Supported AV source
Selecting a source
English
- 17 -
1 Touch .
2 Touch [Radio].
The Radio screen appears.
NOTE
Some functions are available only when you receive the FM band.
Radio
Starting procedure
Basic operation
Recalls the preset channel stored to a key from memory.
Stores the current broadcast frequency to a key.
Selects the FM1, FM2, FM3, AM1 or AM2 band.
Automatically stores the six strongest broadcast frequencies.
NOTES
• Storing broadcast frequencies with BSM may replace those you have already
saved.
• Previously stored broadcast frequencies may remain stored if the number of
frequencies stored has not reached the limit.
Manual tuning
Seek tuning
Skips to the nearest station from the current frequency.
Tunes into only radio stations with sufficiently strong signals.
NOTE
Only available with the stations with the strongest signals when [Local] is set to on.
Switches to display or hide the radio station name.
XX.XX
1
XX.XX
6
FM1
BSM
Local
PS
- 18 -
English
You can play compressed audio, compressed video, or still image files stored in an
external storage device.
1 Pull out the plug from the USB port of the USB cable.
2 Plug a USB storage device into the USB cable.
NOTES
• This product may not achieve optimum performance with some USB storage devices.
• Connection via a USB hub is not possible.
• A USB cable is required for connection.
1 Pull out the USB storage device from the USB cable.
NOTES
• Check that no data is being accessed before pulling out the USB storage device.
• Turn off (ACC OFF) the ignition switch before unplugging the USB storage device.
1 Plug the USB storage device into the USB cable.
Compressed files
Plugging/unplugging a USB storage device
Plugging a USB storage device
USB cable
USB storage device
Unplugging a USB storage device
Starting procedure
English
- 19 -
TIP
You can also start this source by touching then touching [USB].
CAUTION
For safety reasons, video images cannot be viewed while your vehicle is in motion. To view video
images, stop in a safe place and apply the parking brake.
Basic operation
Audio source
Switches between playback and pause.
Skips files forward or backward.
Performs fast forward or fast reverse.
Sets a repeat play range for all files/the current folder/the current file.
Plays files or does not play in random order.
Selects a file from the list.
Touch a file on the list to playback.
TIPS
• Touching a folder on the list shows its contents. You can play a file on the list by
touching it.
• You can switch the following media file types.
– : Compressed audio files
– : Compressed video files
– : Image files
NOTE
The files and folders displayed depend on the media. Some files and folders may
not be displayed if there are 3 000 files or more in the media, if the files contain
additional information, or if many folders are registered.
Video source
- 20 -
English
Switches between playback and pause.
Stops playback then displays playlist.
Skips files forward or backward.
Performs fast forward or fast reverse.
Sets a repeat play range for all files/the current folder/the current file.
Selects a file from the list.
Touch a file on the list to playback.
TIPS
• Touching a folder on the list shows its contents. You can play a file on the list by
touching it.
• You can switch the following media file types.
– : Compressed audio files
– : Compressed video files
– : Image files
NOTE
The files and folders displayed depend on the media. Some files and folders may
not be displayed if there are 1 300 files or more in the media, if the files contain
additional information, or if many folders are registered.
Displays the hidden function bar.
Switches screen display mode.
Switches the audio/subtitle language. (only some files)
Still image source
Switches between playback and pause.
01
01
English
- 21 -
Stops playback then displays playlist.
Skips files forward or backward.
Rotates the displayed picture 90° counterclockwise.
Sets a repeat play range for all files/the current folder/the current file.
Selects a file from the list.
Touch a file on the list to playback.
TIPS
• Touching a folder on the list shows its contents. You can play a file on the list by
touching it.
• You can switch the following media file types.
– : Compressed audio files
– : Compressed video files
– : Image files
NOTE
The files and folders displayed depend on the media. Some files and folders may
not be displayed if there are 1 300 files or more in the media, if the files contain
additional information, or if many folders are registered.
Displays the hidden function bar.
Switches screen display mode.
90
- 22 -
English
NOTE
iPhone may be referred to as iPod in this manual.
When connecting an iPhone to this product, the settings are automatically configured
according to the device to be connected. For details of the compatibility, refer to
Compatible iPhone models (page 38).
NOTE
[iPhone USB Settings] is set to [iPod] (page 28).
1 Connect your iPhone via USB.
Playback is automatically performed.
TIP
You can also start this source by touching then touching [iPod].
NOTE
For USB connection, refer to the Installation Manual.
iPhone
Starting procedure
Basic operation
Switches between playback and pause.
Skips files forward or backward.
Performs fast forward or fast reverse.
Sets a repeat play range for the selected list or album/the current file.
Plays songs within the selected list/album randomly.
English
- 23 -
NOTE
Depending on the generation or version of the iPhone, some functions may not be available.
Selects a song from the list.
Touch the category then the title of the list to playback of the selected list.
TIP
You can switch the song list by selecting the character in the initial bar while the
initial bar is displayed.
NOTE
Only 3 000 songs in the iPhone are available in the list if the iPhone has more than
3 000 songs. The number of songs available may be less than 3 000, due to the
additional information included in the songs. Available songs depend on the
iPhone.
- 24 -
English
You can operate WebLink compatible applications with finger gestures such as tapping,
dragging, scrolling, or flicking on the screen of this product.
NOTES
• The supported finger gestures may vary depending on the WebLink compatible application.
• To use WebLink, you must first install the WebLink Host app on the iPhone or smartphone. For details
about the WebLink Host app, visit the following site: https://www.abaltatech.com/weblink/
• Be sure to read Using app-based connected content (page 39) before you perform this operation.
• Copyright protected files such as DRM cannot be played.
WARNING
Certain uses of the iPhone or smartphone may not be legal while driving in your jurisdiction, so you
must be aware of and obey any such restrictions. If in doubt as to a particular function, only perform it
while the car is parked. No feature should be used unless it is safe to do so under the driving conditions
you are experiencing.
Important
• Pioneer is not responsible for content or functions accessed via WebLink, which are the responsibility
of the application and content providers.
• Availability of non-Pioneer content and services, including apps and connectivity, may change or
discontinue without notice.
• When using WebLink with the Pioneer product, available content and functions will be limited while
driving.
System requirement
iOS 15 or higher
NOTE
[iPhone USB Settings] is set to [WebLink] (page 28).
1 Unlock your iPhone and connect it to this product via USB.
WebLink is automatically launched.
TIP
You can also start this source by touching then touching [WebLink].
WebLink™
Using WebLink
Starting procedure
For iPhone users
English
- 25 -
NOTE
For USB connection, refer to the Installation Manual.
System requirement
Android 9.0 or higher
NOTE
The video playback capability depends on the connected Android device.
1 Unlock your smartphone and connect it to this product via USB.
WebLink is automatically launched.
TIP
You can also start this source by touching then touching [WebLink].
NOTES
• For USB connection, refer to the Installation Manual.
• Make sure that file transfer mode for USB connection is enabled on your smartphone if WebLink
does not start automatically.
Touch the desired application icon after the WebLink app is launched. The desired
application is launched, and the application operation screen appears.
TIPS
• If you connect your device to this product while a WebLink compatible application is already running,
the application operation screen will appear on this product.
• Check the Bluetooth connection between the mobile device and this unit if there is no sound output
from this unit (page 12).
For smartphone (Android™) users
Basic operation
Displays the main menu of the WebLink source screen.
- 26 -
English
You can display the video image output by the device connected to AUX input.
CAUTION
For safety reasons, video images cannot be viewed while your vehicle is in motion. To view video
images, stop in a safe place and apply the parking brake.
NOTE
A Mini-jack AV cable (sold separately) is required for connection. For details, refer to the Installation
Manual.
1 Touch .
2 Touch [AUX].
The AUX screen appears.
AUX
Starting procedure
English
- 27 -
You can display the video image output by the device connected to camera input. For
details, refer to the Installation Manual.
CAUTION
Rear camera function is only as an assistant tool for driving. It cannot replace the drivers' attentions and
judgement.
▶Rear view camera
This product features a function that automatically switches to the full-screen image of
the rear view camera installed on your vehicle when the shift lever is in the REVERSE (R)
position.
▶Camera for Camera View mode
Camera View can be displayed at all times. Note that with this setting, the camera image
is not resized to fit, and that a portion of what is seen by the camera is not viewable.
CAUTION
Pioneer recommends the use of a camera which outputs mirror reversed images, otherwise the screen
image may appear reversed.
• Immediately verify whether the display changes to the rear view camera image when the shift lever is
moved to REVERSE (R) from another position.
1 Touch .
2 Touch [Camera View] for connected camera view.
The video image is displayed on the screen.
Camera View
Starting procedure
- 28 -
English
You can adjust various settings in the main menu.
1 Touch .
2 Touch .
3 Touch one of the following categories, then select the options.
:System Settings (page 28)
:Theme Settings (page 29)
:Audio Settings (page 29)
NOTE
Some settings are available only when you stop your vehicle in a safe place and apply the parking
brake.
Settings
Displaying the setting screen
System Settings
Menu Item Description
[System Language] Select the system language.
NOTES
• If the embedded language and the selected language setting are
not the same, the text information may not display properly.
• Some characters may not be displayed properly.
[iPhone USB Settings]
[iPod], [WebLink]
Select the desired function to use when the iPhone is
connected via USB.
[Date & Time] Set the date and time by touching or .
TIPS
• You can change the time display format to [AM], [PM] or [24H].
• You can change the order of the month/date display format.
[Back Camera Input] Select to enable or disable camera view or rear view
camera function.
[Dimmer Trigger]
[Auto] [Day] [Night]
Select the screen brightness automatically according to the
vehicle's lighting switch or select the brightness manually
by [Day] or [Night].
[Dimmer Value] Adjust the display brightness in the day time or night time.
English
- 29 -
NOTE
This setting is not available when the video/image file is in playback.
[Picture Adjustment]
[Brightness] [Contrast]
[Color] [Hue] [Sharpness]
Adjust the image quality while playing USB video.
TIP
Adjust the image quality of the camera image by touching
anywhere on the screens while in Camera View mode.
[Restore Settings] Touch [OK] to restore the settings to the default settings.
CAUTION
Do not turn off the engine while restoring the settings.
NOTES
• The source is turned off and the Bluetooth connection is
disconnected before the process starts.
• Before starting the restore process, disconnect any device that is
connected to the USB port. Otherwise, some settings may not be
restored correctly.
[System Information] Displaying the firmware version.
[License] Displaying the open source license.
Theme Settings
Menu Item Description
[Background] Select the wall paper from the preset items in this product.
[Illumination] Select an illumination color from the preset list.
Audio Settings
Menu Item Description
[EQ]
[Flat] [Super Bass]
[Powerful] [Natural]
[Vocal] [Custom]
Select or customize the equalizer curve.
[Fader/Balance] Touch or to adjust the front/rear speaker balance.
Set front/rear speaker balance to 0 when using a dual
speaker system.
Touch or to adjust the left/right speaker balance.
TIP
You can also set the value by touching the desired place on the
displayed table.
Menu Item Description
- 30 -
English
[Volume] Adjust the volume level by touching [+]/[-].
[Main Volume] Other than Bluetooth audio
[Talking Volume] Hands-free phone
[Bluetooth Audio
Volume]
Bluetooth audio
[Loudness]
[Off] [Low] [Mid] [High]
Compensates for deficiencies in the low-frequency and
high-frequency ranges at low volume.
[Bass Boost] Adjust the bass boost level.
[Sub/X-Over]
[Front HPF] [Rear HPF]
[Subwoofer LPF]
Adjust each speaker cutoff frequency value.
[Beep Tone] Select off to disable the beep sound when the button or
the screen is touched.
Menu Item Description
English
- 31 -
You can adjust the date and time from [Date & Time] in the [System Settings] menu
(page 28).
You can restore settings or recorded content to the default settings from [Restore
Settings] in the [System Settings] menu (page 29).
When the latest software is released on our website, you can update the software of this
unit (page 6).
CAUTION
• The USB storage device for updating must contain only the correct update file.
• Never turn this product off or disconnect the USB storage device while the firmware is being updated.
• You can only update the firmware when the vehicle is stopped and the parking brake is engaged.
1 Download the firmware update files into your computer.
2 Connect a blank (formatted) USB storage device to your computer then locate the
correct update file and copy it onto the USB storage device.
3 Connect the USB storage device to this product (page 18).
4 Follow the on-screen instructions to finish updating the firmware.
NOTES
• This product will reset automatically after the firmware update is completed if the update is
successful.
• If an error message appears on the screen, perform the above steps again.
• If the update fails and the product does not start, insert the USB storage device containing the update
file into the unit, turn the ignition switch off (ACC OFF) then on (ACC ON) again, and retry the update
to see if the update is executed.
Other functions
Setting the time and date
Restoring this product to the default settings
Firmware update
English
- 32 -
If you have problems operating this
product, refer to this section. The most
common problems are listed below, along
with likely causes and solutions. If a
solution to your problem cannot be found
here, contact your dealer or the nearest
authorized Pioneer service facility.
A black screen is displayed, and
operation is not possible using the touch
panel keys.
→ Power off mode is on.
– Touch on this product to release
the mode.
The screen is covered by a caution
message and the video cannot be shown.
→ The parking brake lead is not connected
or the parking brake is not applied.
– Connect the parking brake lead
correctly, and apply the parking brake.
→ The parking brake interlock is activated.
– Park your vehicle in a safe place and
apply the parking brake.
The audio or video skips.
→ This product is not firmly secured.
– Secure this product firmly.
No sounds are produced. The volume
level will not rise.
→ Cables are not connected correctly.
– Connect the cables correctly.
iPhone cannot be operated.
→ The iPhone is frozen.
– Reconnect the iPhone with the USB
interface cable for iPhone.
– Update the iPhone software version.
→ An error has occurred.
– Reconnect the iPhone with the USB
interface cable for iPhone.
– Park your vehicle in a safe place, and
then turn off the ignition switch (ACC
OFF). Subsequently, turn the ignition
switch to on (ACC ON) again.
– Update the iPhone software version.
→ Cables are not connected correctly.
– Connect the cables correctly.
Sound from the iPhone cannot be heard.
→ The audio output direction may switch
automatically when the Bluetooth and
USB connections are used at the same
time.
– Use the iPhone to change the audio
output direction.
No back camera image when the vehicle
is in reverse.
→ The back camera input setting on the
receiver is set to Off.
– Change the back camera setting to On
in the settings menu. (Refer to the
System Settings section of this manual
to adjust.)
→ The camera input may be loose or not
connected.
– Check the connection and make sure
the male end of the camera is
connected to the brown input on the
back of the receiver. (Refer to the
installation manual.)
→ The reverse lead on the receiver may
not be connected to the proper wire at
the reverse lamp.
Appendix
Troubleshooting
Common problems
Problems with the AV screen
English
- 33 -
– Check the connection and make sure
that the violet/white lead of the
receiver is connected to the lead
whose voltage changes when the shift
lever is put in reverse. (Refer to the
installation manual.)
Black screen displayed when the vehicle
is in reverse, with no camera installed.
→ Back camera input is set to On.
– Turn the setting to Off in the settings
menu. (Refer to the System Settings
section of this manual to adjust.)
Dialing is impossible because the touch
panel keys for dialing are inactive.
→ Your phone is out of range for service.
– Retry after re-entering the range for
service.
The screen is displayed, but operation
does not work at all.
→ An error has occurred.
– Park your vehicle in a safe place, and
then turn off the ignition switch (ACC
OFF). Subsequently, turn the ignition
switch to on (ACC ON) again.
The smartphone was not charged.
→ Charging stopped because the
temperature of the smartphone rose
due to prolonged use of the
smartphone during charging.
– Disconnect the smartphone from the
cable, and wait until the smartphone
cools down.
→ More battery power was consumed
than was gained from charging.
– This problem may be resolved by
stopping any unnecessary services on
the smartphone.
When problems occur with this product, an
error message appears on the display.
Refer to the table below to identify the
problem, then take the suggested
corrective action. If the error persists,
record the error message and contact your
dealer or your nearest Pioneer service
center.
AMP Error
→ This product fails to operate or the
speaker connection is incorrect; the
protective circuit is activated.
– Check the speaker connection. If the
message fails to disappear even after
the engine is switched off/on, contact
your dealer or an authorized Pioneer
Service Station for assistance.
HUB Error
→ The connected USB hub is not
supported by this product.
– Directly connect the USB storage
device to this product.
No Response
→ This product cannot recognize the
connected USB storage device.
– Disconnect the device and replace it
with another USB storage device.
Load Failed
→ Failed to load the USB storage device.
– Reconnect the USB storage device.
Problems with the phone screen
Problems with Application
screen
Error messages
Common
USB storage device
English
- 34 -
→ Security for the connected USB storage
device is enabled.
– Follow the USB storage device
instructions to disable security.
→ This product cannot recognize the
connected USB storage device.
– Disconnect the device and replace it
with another USB storage device.
Device Not Supported
→ The connected USB storage device is
not supported by this product.
– Disconnect your device and replace it
with a compatible USB storage device.
No Media Files
→ There is no file in the USB storage
device.
– Check that the files in the USB storage
device are compatible with this
product.
Unplayable File
→ This type of file is not supported on this
product.
– Select a file that can be played.
Audio Format not supported
→ This type of file is not supported on this
product.
– Select a file that can be played.
Device Not Supported
→ The connected iPhone is not supported
by this product.
– Disconnect your device and replace it
with a compatible iPhone.
→ Failed to load the iPhone.
– Disconnect the connected iPhone and
check the iPhone is working properly.
No Music Files
→ There is no playable file in the selected
folder.
– Select a compatible file with this
product in another folder.
No Video Signal
→ There is no video signal input.
– Confirm whether the connection with
the unit is established and there is an
output from the external device.
Common notes about the USB storage
device
• Do not leave the USB storage device in
any location with high temperatures.
• Depending on the kind of the USB
storage device you use, this product may
not recognize the storage device or files
may not be played back properly.
• The text information of some audio and
video files may not be correctly
displayed.
• File extensions must be used properly.
• There may be a slight delay when starting
playback of files on an USB storage
device with complex folder hierarchies.
• Operations may vary depending on the
kind of an USB storage device.
• It may not be possible to play some music
files from USB because of file
characteristics, file format, recorded
application, playback environment,
storage conditions, and so on.
USB storage device compatibility
• For details about USB storage device
compatibility with this product, refer to
Specifications (page 41).
iPhone
Camera View & AUX
Detailed information
for playable media
Compatibility
English
- 35 -
• Protocol: bulk
• You cannot connect a USB storage device
to this product via a USB hub.
• Partitioned USB storage device is not
compatible with this product.
• Firmly secure the USB storage device
when driving. Do not let the USB storage
device fall onto the floor, where it may
become jammed under the brake or gas
pedal.
• There may be a slight delay when starting
playback of audio files encoded with
image data.
• Some USB storage devices connected to
this product may generate noise on the
radio.
• Do not connect anything other than the
USB storage device.
The sequence of audio files on USB storage
device.
For USB storage device, the sequence is
different from that of USB storage device.
Handling guidelines and supplemental
information
• Copyright protected files cannot be
played back.
General
• Maximum playback time of audio file
stored on an USB storage device: 7.5 h
(450 minutes)
• Files may not be played back properly
depending on the environment in which
the file was created or on the contents of
the file.
USB storage device
MP3 compatibility
• Ver. 2.x of ID3 tag is prioritized when both
Ver. 1.x and Ver. 2.x exist.
• This product is not compatible with the
following: MP3i (MP3 interactive), mp3
PRO, m3u playlist
WMA compatibility
• This product is not compatible with the
following: Windows Media™ Audio 9.2
Professional, Lossless, Voice
WAV compatibility
• The sampling frequency shown in the
display may be rounded.
AAC compatibility
• This product plays back AAC files
encoded by iTunes.
FLAC compatibility
Video files compatibility
• This product is not compatible with
packet write data transfer.
Media compatibility chart
CODEC FORMAT MP3, WMA,
WAV, AAC,
FLAC, AVI,
MPEG-PS, MP4,
WMV, MKV,
MOV, FLV,
MPEG-TS
SAMPLING FREQUENCY 8 kHz to 48 kHz
TRANSMISSION RATE CBR (8 kbps to
320 kbps)/VBR
ID3 TAG ver.1.0/1.1/2.2/
2.3/2.4
SAMPLING FREQUENCY 32 kHz to 48
kHz
TRANSMISSION RATE CBR (8 kbps to
320 kbps)/VBR
SAMPLING FREQUENCY 16 kHz to 48
kHz
QUANTIZATION BIT RATE 8 bit, 16 bit
SAMPLING FREQUENCY 8 kHz to 48 kHz
TRANSMISSION RATE CBR (16 kbps to
320 kbps)
SAMPLING FREQUENCY 8 kHz to 192
kHz
QUANTIZATION BIT RATE 8 bit, 16 bit, 24
bit
English
- 36 -
• This product can recognize up to 32
characters, beginning with the first
character, including extension for the file
and folder name. Depending on the
display area, this product may try to
display them with a reduced font size.
However, the maximum number of the
characters that you can display varies
according to the width of each character,
and of the display area.
• Folder selection sequence or other
operations may be altered, depending on
the encoding or writing software.
• Regardless of the length of blank section
between the songs of original recording,
compressed audio files play with a short
pause between songs.
• Files may not be able to be played back
depending on the bit rate.
• The maximum resolution depends on the
compatible video codec.
.avi
.mpg/.mpeg
.mp4
.mkv
.mov
.flv
.wmv
.m4v
.ts
.m2ts
.mts
Example of a hierarchy
NOTE
This product assigns folder numbers. The
user cannot assign folder numbers.
Compatible video codec MPEG4, H.264
Maximum resolution 1 920 × 1 080
Maximum frame rate 30 fps
Compatible video codec MPEG2
Maximum resolution 720 × 576
Maximum frame rate 30 fps
Compatible video codec MPEG4, H.264
Maximum resolution 1 920 × 1 080
Maximum frame rate 30 fps
Compatible video codec MPEG4, H.264,
VC-1
Maximum resolution 1 920 × 1 080
Maximum frame rate 30 fps
Compatible video codec MPEG4, H.264
Maximum resolution 1 920 × 1 080
Maximum frame rate 30 fps
Compatible video codec H.264, H.263
Maximum resolution 1 920 × 1 080
Maximum frame rate 30 fps
Compatible video codec VC-1
Maximum resolution 1 920 × 1 080
Maximum frame rate 30 fps
Compatible video codec H.264
Maximum resolution 1 920 × 1 080
Maximum frame rate 30 fps
Compatible video codec H.264, MPEG2
Maximum resolution 1 920 × 1 080
Maximum frame rate 30 fps
Compatible video codec H.264, MPEG2
Maximum resolution 1 920 × 1 080
Maximum frame rate 30 fps
Compatible video codec H.264
Maximum resolution 1 920 × 1 080
Maximum frame rate 30 fps
English
- 37 -
The Bluetooth® word mark and logos are
registered trademarks owned by Bluetooth SIG,
Inc. and any use of such marks by Pioneer
Corporation is under license. Other trademarks
and trade names are those of their respective
owners.
Windows Media is either a registered trademark
or trademark of Microsoft Corporation in the
United States and/or other countries.
• This product includes technology owned
by Microsoft Corporation and cannot be
used or distributed without a license
from Microsoft Licensing, Inc.
Copyright © 2000-2009 Josh Coalson
Copyright © 2011-2013 Xiph.Org
Foundation
Redistribution and use in source and
binary forms, with or without modification,
are permitted provided that the following
conditions are met:
– Redistributions of source code must
retain the above copyright notice, this list
of conditions and the following
disclaimer.
– Redistributions in binary form must
reproduce the above copyright notice,
this list of conditions and the following
disclaimer in the documentation and/or
other materials provided with the
distribution.
– Neither the name of the Xiph.org
Foundation nor the names of its
contributors may be used to endorse or
promote products derived from this
software without specific prior written
permission.
THIS SOFTWARE IS PROVIDED BY THE
COPYRIGHT HOLDERS AND
CONTRIBUTORS “AS IS” AND ANY EXPRESS
OR IMPLIED WARRANTIES, INCLUDING, BUT
NOT LIMITED TO, THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE ARE
DISCLAIMED. IN NO EVENT SHALL THE
FOUNDATION OR CONTRIBUTORS BE
LIABLE FOR ANY DIRECT, INDIRECT,
INCIDENTAL, SPECIAL, EXEMPLARY, OR
CONSEQUENTIAL DAMAGES (INCLUDING,
BUT NOT LIMITED TO, PROCUREMENT OF
SUBSTITUTE GOODS OR SERVICES; LOSS OF
USE, DATA, OR PROFITS; OR BUSINESS
INTERRUPTION) HOWEVER CAUSED AND
ON ANY THEORY OF LIABILITY, WHETHER
IN CONTRACT, STRICT LIABILITY, OR TORT
(INCLUDING NEGLIGENCE OR OTHERWISE)
ARISING IN ANY WAY OUT OF THE USE OF
THIS SOFTWARE, EVEN IF ADVISED OF THE
POSSIBILITY OF SUCH DAMAGE.
AAC is short for Advanced Audio Coding
and refers to an audio compression
technology standard used with MPEG-2
and MPEG-4. Several applications can be
used to encode AAC files, but file formats
and extensions differ depending on the
application which is used to encode. This
unit plays back AAC files encoded by
iTunes.
WebLink™ is a trademark of Abalta
Technologies, Inc.
Bluetooth
WMA
FLAC
AAC
WebLink
English
- 38 -
Android is a trademark of Google LLC.
• Pioneer accepts no responsibility for data
lost from an iPhone, even if that data is
lost while using this product. Please back
up your iPhone data regularly.
• Do not leave the iPhone in direct sunlight
for extended amounts of time. Extended
exposure to direct sunlight can result in
iPhone malfunction due to the resulting
high temperature.
• Do not leave the iPhone in any location
with high temperatures.
• Firmly secure the iPhone when driving.
Do not let the iPhone fall onto the floor,
where it may become jammed under the
brake or gas pedal.
• For details, refer to the iPhone manuals.
Use of the Made for Apple badge means
that an accessory has been designed to
connect specifically to the Apple
product(s) identified in the badge and
has been certified by the developer to
meet Apple performance standards.
Apple is not responsible for the
operation of this device or its
compliance with safety and regulatory
standards.
Please note that the use of this
accessory with an Apple product may
affect wireless performance.
iPhone and Lightning are trademarks of
Apple Inc., registered in the U.S. and
other countries.
IOS is a trademark or registered
trademark of Cisco in the U.S. and other
countries and is used under license.
iTunes is a trademark of Apple Inc.,
registered in the U.S. and other
countries.
• iPhone 13 Pro Max
• iPhone 13 Pro
• iPhone 13
• iPhone 13 mini
• iPhone 12 Pro Max
• iPhone 12 Pro
• iPhone 12
• iPhone 12 mini
• iPhone SE (2nd generation)
• iPhone 11 Pro Max
• iPhone 11 Pro
• iPhone 11
• iPhone XR
• iPhone XS Max
• iPhone XS
• iPhone X
• iPhone 8
• iPhone 8 Plus
• iPhone 7
• iPhone 7 Plus
• iPhone SE (1st generation)
• iPhone 6s
• iPhone 6s Plus
Depending on the iPhone models, it may
not be compatible with some AV sources.
Android
Detailed information
regarding connected
iPhone devices
iPhone and Lightning
iOS
iTunes
Compatible iPhone models
English
- 39 -
For details about iPhone compatibility with
this product, refer to the information on
our website.
Important
Requirements to access app-based
connected content services using this
product:
• Latest version of the Pioneer compatible
connected content application(s) for the
smartphone, available from the service
provider, downloaded to your
smartphone.
• A current account with the content
service provider.
• Smartphone Data Plan.
Note: if the Data Plan for your
smartphone does not provide for
unlimited data usage, additional charges
from your carrier may apply for accessing
app-based connected content via 3G,
EDGE and/or LTE (4G) networks.
• Connection to the Internet via 3G, EDGE,
LTE (4G) or Wi-Fi network.
• Optional Pioneer adapter cable
connecting your iPhone to this product.
Limitations:
• Access to app-based connected content
will depend on the availability of cellular
and/or Wi-Fi network coverage for the
purpose of allowing your smartphone to
connect to the Internet.
• Service availability may be
geographically limited to the region.
Consult the connected content service
provider for additional information.
• Ability of this product to access
connected content is subject to change
without notice and could be affected by
any of the following: compatibility issues
with future firmware versions of
smartphone; compatibility issues with
future versions of the connected content
application(s) for the smartphone;
changes to or discontinuation of the
connected Content application(s) or
service by its provider.
• Pioneer is not liable for any issues that
may arise from incorrect or flawed app-
based content.
• The content and functionality of the
supported applications are the
responsibility of the App providers.
• In WebLink, functionality through the
product is limited while driving, with
available functions determined by the
App providers.
• Availability of WebLink functionalities is
determined by the App provider, and not
determined by Pioneer.
• WebLink allows access to applications
other than those listed (subject to
limitations while driving), but the extent
to which content can be used is
determined by the App providers.
Remember that use of this system for
commercial or public viewing purposes
may constitute an infringement on the
author’s rights as protected by the
Copyright Law.
• When the LCD screen is subjected to
direct sunlight for a long period of time, it
will become very hot, resulting in
Using app-based
connected content
Notice regarding video
viewing
Using the LCD screen
correctly
Handling the LCD screen
English
- 40 -
possible damage to the LCD screen.
When not using this product, avoid
exposing it to direct sunlight as much as
possible.
• The LCD screen should be used within
the temperature ranges shown in
Specifications on page 40.
• Do not use the LCD screen at
temperatures higher or lower than the
operating temperature range, because
the LCD screen may not operate normally
and could be damaged.
• The LCD screen is exposed in order to
increase its visibility within the vehicle.
Please do not press strongly on it as this
may damage it.
• Do not push the LCD screen with
excessive force as this may scratch it.
• Never touch the LCD screen with
anything besides your finger when
operating the touch panel functions. The
LCD screen can scratch easily.
• If the LCD screen is near the vent of an air
conditioner, make sure that air from the
air conditioner is not blowing on it. Heat
from the heater may break the LCD
screen, and cool air from the cooler may
cause moisture to form inside this
product, resulting in possible damage.
• Small black dots or white dots (bright
dots) may appear on the LCD screen.
These are due to the characteristics of the
LCD screen and do not indicate a
malfunction.
• The LCD screen will be difficult to see if it
is exposed to direct sunlight.
• When using a cellular phone, keep the
antenna of the cellular phone away from
the LCD screen to prevent disruption of
the video in the form of disturbances
such as spots or colored stripes.
• When removing dust from or cleaning
the LCD screen, first turn this product off
and then wipe the screen with a soft dry
cloth.
• When wiping the LCD screen, take care
not to scratch the surface. Do not use
harsh or abrasive chemical cleaners.
A light emitting diode is used inside the
display to illuminate the LCD screen.
• At low temperatures, using the LED
backlight may increase image lag and
degrade the image quality because of the
characteristics of the LCD screen. Image
quality will improve with an increase in
temperature.
• The product lifetime of the LED backlight
is more than 10 000 hours. However, it
may decrease if used in high
temperatures.
• If the LED backlight reaches the end of its
product lifetime, the screen will become
dimmer and the image will no longer be
visible. In that case, please consult your
dealer or the nearest authorized Pioneer
Service Station.
General
Rated power source:
14.4 V DC (allowable voltage range: 10.8
V to 15.1 V DC)
Grounding system:
Negative type
Maximum current consumption:
10.0 A
Dimensions (W × H × D):
Liquid crystal display (LCD)
screen
Maintaining the LCD screen
LED (light-emitting diode)
backlight
Specifications
English
- 41 -
Chassis (D):
178 mm × 100 mm × 110 mm (7 in. × 3-
7/8 in. × 4-3/8 in.)
Nose:
170.4 mm × 96.2 mm × 8.9 mm (6-3/4
in. × 3-3/4 in. × 3/8 in.)
Monitor:
236 mm × 140.7 mm × 32.1 mm (9-1/4
in. × 5-1/2 in. × 1-1/4 in.)
Weight:
Body:
1.1 kg (2.4 lbs)
Monitor:
0.8 kg (1.8 lbs)
Display
Screen size/aspect ratio:
9.0 inch wide/16:9 (effective display area:
196.608 mm × 114.15 mm) (7-3/4 in. × 4-
1/2 in.)
Pixels:
1 024 (Width) × 600 (Height) × 3 (RGB)
Display method:
9" color TFT, TN Mode, Normally White,
Transmissive
Color system:
PAL/NTSC compatible
Temperature range:
-10 ˚C to +60 ˚C (+14 ˚F to +140 ˚F)
Audio
Maximum power output:
50 W × 4
Continuous power output:
22 W × 4 (50 Hz to 15 kHz, 5 %THD, 4 Ω
LOAD, Both Channels Driven)
Load impedance:
4 Ω (4 Ω to 8 Ω allowable)
Preout output level (max): 2.0 V
Equalizer (13-Band Graphic Equalizer):
Frequency:
50 Hz/80 Hz/125 Hz/200 Hz/315 Hz/
500 Hz/800 Hz/1.25 kHz/2 kHz/3.15
kHz/5 kHz/8 kHz/12.5 kHz
Gain: ±12 dB (2 dB/step)
HPF:
Frequency:
25 Hz/32 Hz/40 Hz/50 Hz/63 Hz/80 Hz/
100 Hz/125 Hz/160 Hz/200 Hz/250 Hz
Subwoofer/LPF:
Frequency:
25 Hz/32 Hz/40 Hz/50 Hz/63 Hz/80 Hz/
100 Hz/125 Hz/160 Hz/200 Hz/250 Hz
Bass boost:
Gain: +12 dB to 0 dB (2 dB/step)
USB
USB standard spec:
USB 1.1, USB 2.0 full speed, USB 2.0 high
speed
Max current supply: 1.5 A
USB Class:
MSC (Mass Storage Class)
File system: FAT16, FAT32, NTFS
<USB audio>
MP3 decoding format:
MPEG-1 & 2 & 2.5 Audio Layer 3
WMA decoding format:
Ver. 7, 8, 9, 9.1, 9.2 (2 ch audio)
AAC decoding format:
MPEG-4 AAC (iTunes encoded only) (Ver.
12.5 and earlier)
FLAC decoding format:
Ver. 1.3.0 (Free Lossless Audio Codec)
WAV signal format:
Linear PCM
Sampling frequency:
Linear PCM:
16 kHz/22.05 kHz/24 kHz/32 kHz/44.1
kHz/48 kHz
<USB image>
JPEG decoding format:
.jpeg, .jpg
Pixel Sampling: 4:2:2, 4:2:0
Decode Size:
MAX: 7 680 (H) × 8 192 (W)
MIN: 32 (H) × 32 (W)
PNG decoding format:
.png
Decode Size:
MAX: 576 (H) × 720 (W)
MIN: 32 (H) × 32 (W)
English
- 42 -
BMP decoding format:
.bmp
Decode Size:
MAX: 936 (H) × 1 920 (W)
MIN: 32 (H) × 32 (W)
<USB video>
H.264 video decoding format:
Base Line Profile, Main Profile, High
Profile
H.263 video decoding format:
Base Line Profile 0/3
VC-1 video decoding format:
Simple Profile, Main Profile, Advanced
Profile
AVI video decoding format
MPEG4 video decoding format:
Simple Profile, Advanced Simple Profile
MPEG1, 2 video decoding format:
Main Profile
Quick Time video decoding format
Matroska video decoding format
TS Stream video decoding format
Bluetooth
Version:
Bluetooth 4.2 certified
Output power:
+4 dBm Max. (Power class 2)
Frequency band(s):
2.402 GHz to 2.48 GHz
FM tuner
Frequency range:
87.9 MHz to 107.9 MHz
Usable sensitivity:
12 dBf (1.1 μV/75 Ω, mono, S/N: 30 dB)
Signal-to-noise ratio:
50 dB (analog broadcasting) (IHF-A
network)
AM tuner
Frequency range:
530 kHz to 1 710 kHz
Usable sensitivity:
28 μV (S/N: 20 dB)
Signal-to-noise ratio:
45 dB (analog broadcasting) (IHF-A
network)
NOTE
Specifications and design are subject to possible
modifications without notice due to
improvements.
