1100LBS MOTORCYCLE LIFT
USER'S MANUAL
MODEL: 110203
- 1 -
110203
<Picture Only For Reference >
PLEASE READ THIS MANUAL CAREFULLY BEFORE USE
Have product questions? Need technical support? Please feel free to
contact us:
CustomerService@vevor.com
NEED HELP? CONTACT US!
This is the original instruction, please read all manual instructions
carefully before operating. VEVOR reserves a clear interpretation of our
user manual. The appearance of the product shall be subject to the
product you received. Please forgive us that we won't inform you again if
there are any technology or software updates on our product.
1100LBS
MOTORCYCLE LIFT
- 2 -
1. Use
Screw design, adjusting the height by rotating the screw manually, it is an
ideal second lifting tool for tire changing and maintenance on your
motorcycle.
2. Operation
a. Rotate the screw by ratchet wrench to adjust the height of the platform.
b. Adjust the platform to the appropriate height and place the lift to the
bottom of the motorcycle. Make sure that the center of the load align
with the pivot, and keep the load stable and safe.
c. When all this is done, lift the motorcycle to the proper height and insert
the safety pin.
d. Tighten the motorcycle with other tools to keep it stable.
e. After repairing, pull out the safety pin, rotate the ratchet wrench slowly
and gently to lower the platform until it departs from pivot, and then
take the lift away.
3. Warning and maintenance
a. Read and understand the user manual before assembling, installing,
operating, or servicing this product. Failure to follow these warnings
and instructions can cause death, personal injury or damage to
valuable property. And Keep the user manual .
b. Do not overload the Engine Stand. Never exceed the maximum weight
capacity of 1100 Lbs.
c. The lift must be used on a solid and level surface, not allowing gradient
and uneven surface.
d. Keep the load stable and prevent the load from losing balance.
e. Before using, lubricate the screw and the nuts with grease to make the
lift flexible and antifriction.
f. Keep children and unauthorized persons away from the work area.
g. Wear ANSI approved safety goggles when operating the lift.
h. Only use this lift on a big , stable ,level, dry and not slippery motorcycle
lift platform. Keep the surface clean,tidy and free from unrelated
materials and ensure that there is adequate lighting.
- 3 -
i. Always keep your hands and feet away from working area.
4. Specification

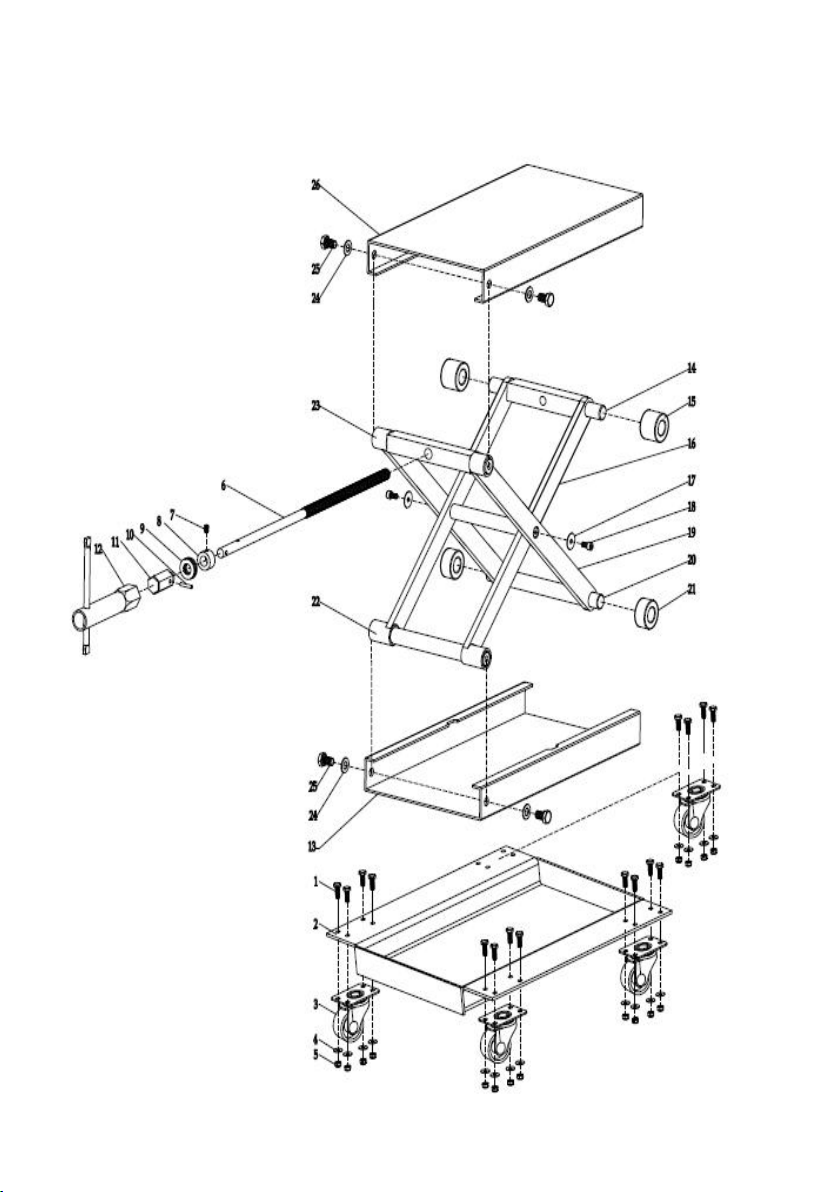

5. DISASSEMBLE DRAWING
Part No
Description
QTY
Part No
Description
QTY
1
Screw M6
16
14
Inside Removable
Spindle
1
2
Chassis
1
15
Inside Frame Roller
1
3
Swivel
Caster
4
16
Inside Lifting Arm
1
4
Washer
16
17
Washer
1
5
Lock Nut
16
18
Screw
1
6
Lifting Screw
1
19
Outside Lifting Arm
1
7
Lock Nut M6
1
20
Outside Removable
Spindle
1
8
Fixing Nut
1
21
Outside Frame Roller
2
9
Bearing
2
22
Inside Fixing Spindle
1
10
Pin
1
23
Outside Fixing Spindle
1
11
Head Of
Lifting Screw
2
24
Washer
4
12
Handle
2
25
Screw
4
13
Base Plat
1
26
Platform
1
NOTE:You can use it without the chassis(2).
Model
Rated
capacity( LBS)
Lifting
Ranget(mm)
Lifting
Ranget(without
chassis) (mm)
G.W.(kg)
110203
1100
120-390
95-365
21.8
