Dreametech D9 PRO 2-in-1 Robot Vacuum And Mop Cleaner User Manual

Read this manual carefully before use and keep it for future reference.

Robot Vacuum and Mop

User Manual

RLS5-BL0-EU-R00

For more information, please visit www.dreame-technology.com

Manufactured by: Dreame Trading (Tianjin) Co., Ltd.

Made in China

.ايجولونكتلا يف ثحبلاو فاشكتساو رمتسملا يعسلل ةكرشلا ةيؤر "追觅"ينيصلا ىمسملل ةيتوصلا ةمجرتلا سكعتو ،اهل ةعباتلا تاكرشلاو ةدودحملا ايجولونكتلل ميرد ةكرش ىلع قلطيو ةينيص ةسسؤم يه ميرد

•

The word "dreame" is the abbreviation of Dreame Technology Co., Ltd. and its subsidiaries in China. It is the transliteration of the company's Chinese name " 追觅 ",

which means striving for excellence in every endeavor and re󽗊ects the company's vision of continuous pursuit, exploration and search in technology.

•

Das Wort "dreame" ist die Abkürzung von Dreame Technology Co., Ltd und seinen Tochterunternehmen in China. Es ist die Transliteration des chinesischen Namens

"追觅" dieser Firma, was für das Streben nach Vollendung steht und die Vision des Unternehmens widerspiegelt, nämlich im Bereich der Technologie unaufhaltsam

weiterzustreben, zu erforschen und entdecken.

•

Dreame est l'abréviation de l'entreprise chinoise Dreame Technology Co. et ses 󽗉liales, qui est la traduction phonétique du nom chinois de l'entreprise, re󽗊étant la

vision de l'entreprise qui consiste à poursuivre, explorer et rechercher constamment les avancées technologiques.

•

La parola "dreame" è l'abbreviazione dell'azienda Dreame Technology Co., Ltd. e delle sue 󽗉liali in Cina. È la traslitterazione del nome cinese dell'azienda " 追觅 ",

che dimostra la continua ricerca, esplorazione e visione di ricerca dell'azienda nella tecnologia.

•

La palabra "dreame" es la abreviatura de Dreame Technology Co., Ltd. y sus subsidiarias en China. Es la transliteración del nombre chino de "Dreame", que signi󽗉ca

luchar por la excelencia en cada esfuerzo y re󽗊eja la visión de la compañía de continuamente buscar, explorar e investigar en tecnologás.

•

Dreame — сокращённое название китайской компании Dreame Technology Co., Ltd. и ее дочерних предприятий. Dreame является транслитерацией

названия компании на китайском языке « 追觅 », в котором отражено корпоративное видение компании в сфере науки и технологий — непрерывный

поиск, исследования и стремление к успеху.

•

Słowo "dreame" to skrót od Dreame Technology Co., Ltd. i spółek w Chinach. Jest to transliteracja chińskiej nazwy 󽗉rmy " 追觅 " co oznacza dążenie do

doskonałości w każdym przedsięwzięciu, odzwierciedlając wizję 󽗉rmy, jaką jest ciągłe prowadzenie, odkrywanie i poszukiwania w nauce i technologii.

•

A plavara "dreame" é a abreviatura da Empresa Tecnológia de Dreame Co.,Ltd, também é a tradução do seu nome chinês " 追觅 ", o que signi󽗉ca buscar a

excelência em todos os empreendimentos e re󽗊ete a visão da empresa de busca, exploração e criação da tecnologia.

Usage Restrictions

Safety Information

·This product can be used by children aged 8 years and above and persons with

physical, sensory, intellectual deficiencies, or limited experience or knowledge under

the supervision of a parent or guardian to ensure safe operation and to avoid any risks.

Cleaning and maintenance shall not be done by children without supervision.

·Children shall not play with this product. Ensure children and pets are kept at a safe

distance from the robot while it is operating.

·This product is for floor cleaning in a home environment only. Do not use it outdoors,

on non-floor surfaces, or in a commercial or industrial setting.

·Do not use the robot in an area suspended above ground level without a protective

barrier.

·Do not use the robot at an ambient temperature above 40° C or below 0° C or on a floor

with liquids or sticky substances.

·Pick up any cables from the floor before using the robot to prevent it from dragging

them while cleaning.

·Remove fragile or small items from the floor to prevent the robot from bumping into

and damaging them.

·Keep hair, fingers, and other body parts away from the suction opening of the robots.

·Keep the brush cleaning tool out of reach of children.

·Do not place children, pets, or any item on top of the robot regardless of whether it is

stationary or moving.

·Do not use the robot to clean any burning objects.

·Do not vacuum hard or sharp objects.

·Make sure the robot is turned off and the charging dock is unplugged before cleaning or

performing maintenance.

·Do not wipe any part of the product using a wet cloth or liquids.

·Please use this product in accordance with the instructions in the User Manual. Users

User Manual

Benutzerhandbuch

Manuel d'utilisation

Manuale utente

Manual de usuario

Руководство пользовател

Instrukcja obsługi

Manual do utilizador

مدختسملا ليلد

101

121

141

161

Usage Restrictions

Safety Information

·This product can be used by children aged 8 years and above and persons with

physical, sensory, intellectual deficiencies, or limited experience or knowledge under

the supervision of a parent or guardian to ensure safe operation and to avoid any risks.

Cleaning and maintenance shall not be done by children without supervision.

·Children shall not play with this product. Ensure children and pets are kept at a safe

distance from the robot while it is operating.

·This product is for floor cleaning in a home environment only. Do not use it outdoors,

on non-floor surfaces, or in a commercial or industrial setting.

·Do not use the robot in an area suspended above ground level without a protective

barrier.

·Do not use the robot at an ambient temperature above 40° C or below 0° C or on a floor

with liquids or sticky substances.

·Pick up any cables from the floor before using the robot to prevent it from dragging

them while cleaning.

·Remove fragile or small items from the floor to prevent the robot from bumping into

and damaging them.

·Keep hair, fingers, and other body parts away from the suction opening of the robots.

·Keep the brush cleaning tool out of reach of children.

·Do not place children, pets, or any item on top of the robot regardless of whether it is

stationary or moving.

·Do not use the robot to clean any burning objects.

·Do not vacuum hard or sharp objects.

·Make sure the robot is turned off and the charging dock is unplugged before cleaning or

performing maintenance.

·Do not wipe any part of the product using a wet cloth or liquids.

·Please use this product in accordance with the instructions in the User Manual. Users

User Manual

Benutzerhandbuch

Manuel d'utilisation

Manuale utente

Manual de usuario

Руководство пользовател

Instrukcja obsługi

Manual do utilizador

مدختسملا ليلد

101

121

141

161

2 3

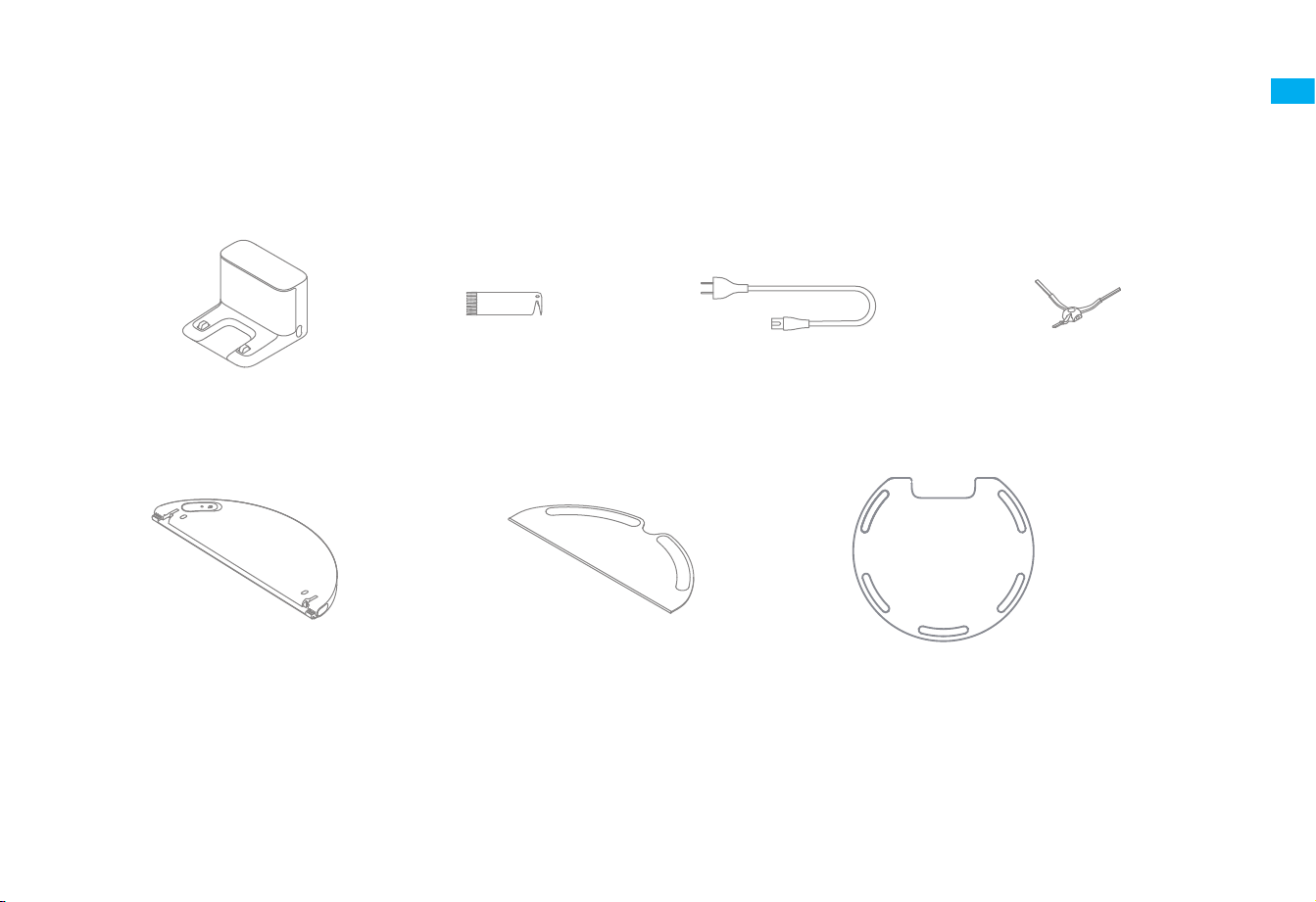

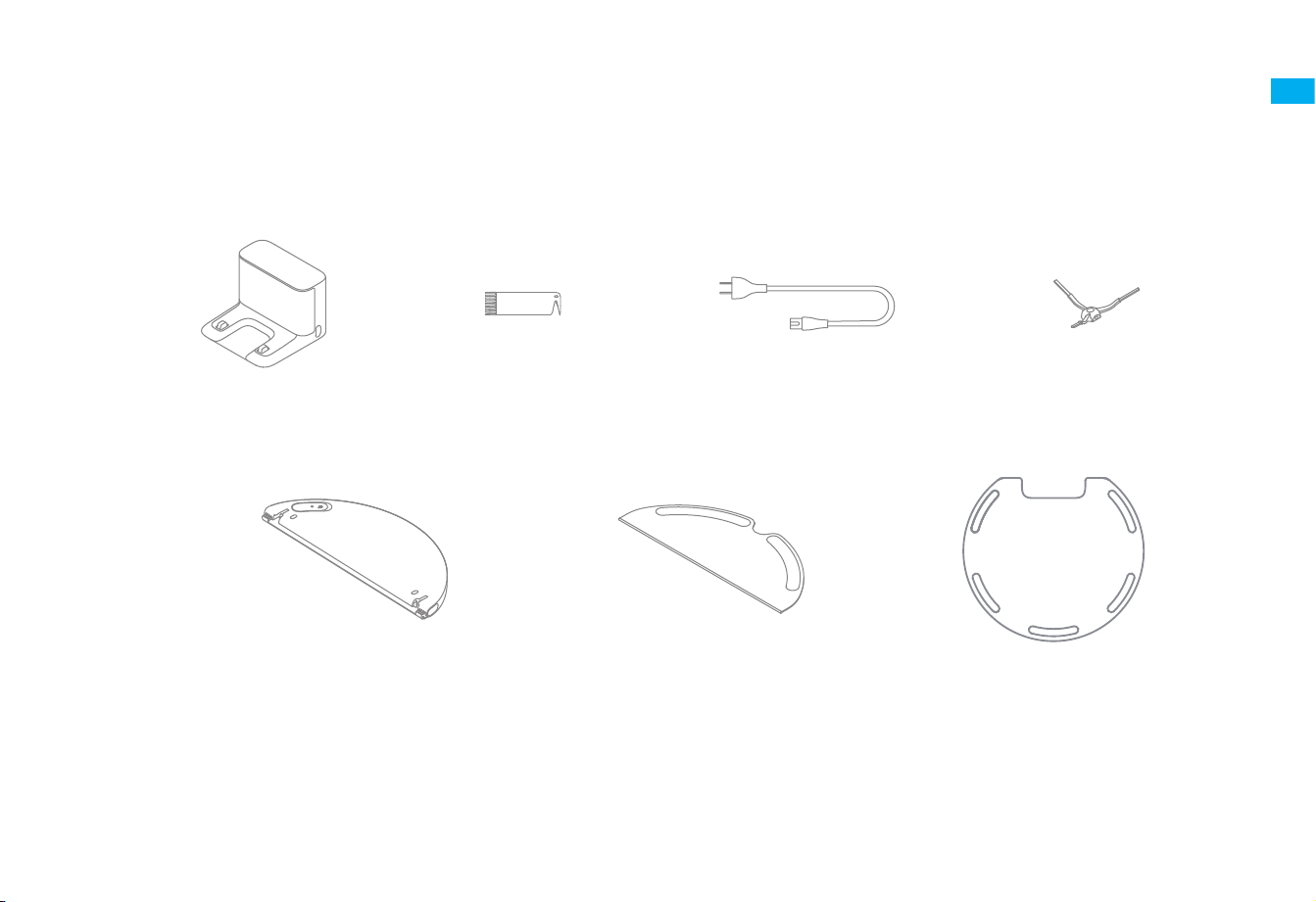

Accessories

Product Overview

Note: The illustrations in this manual are for reference only. Please refer to the actual product.

Charging Dock

Water Tank

Side BrushCleaning Tool Power Cord

Mop Pad

Damp-proof Pad

·Do not use any third-party battery, charger, or charging dock. Use only with RCS0 supply unit.

·Do not attempt to disassemble, repair, or modify the battery or charging dock on your own.

·Do not place the charging dock near a heat source.

·Do not use a wet cloth or wet hands to wipe or clean the dock's charging contacts.

·Do not improperly dispose of old batteries. Unneeded batteries should be discarded at an

appropriate recycling facility.

·If the power cord becomes damaged or broken, stop using it immediately and contact after-

sales service.

·Make sure the robot is turned off when being transported and kept in its original packaging if

possible.

·If the robot will not be used for an extended period, fully charge it, then turn it off and

store in a cool, dry place. Recharge the robot at least once every 3 months to avoid over-

discharging the battery.

·This product contains batteries that can only be replaced by qualified technicians or after-

sales service.

Batteries and

Charging

Safety Information

Hereby, Dreame Trading（Tianjin）Co., Ltd. declares that the radio equipment type RLS5-BL0 is in compliance with Directive 2014/53/EU. The full

text of the EU declaration of conformity is available at the following internet address: www.dreame-technology.com

For detailed e-manual, please go to https://www.dreame-technology.com/pages/user-manuals-and-faqs

are responsible for any loss or damage that arise from improper use of this product.

2 3

Accessories

Product Overview

Note: The illustrations in this manual are for reference only. Please refer to the actual product.

Charging Dock

Water Tank

Side BrushCleaning Tool Power Cord

Mop Pad

Damp-proof Pad

·Do not use any third-party battery, charger, or charging dock. Use only with RCS0 supply unit.

·Do not attempt to disassemble, repair, or modify the battery or charging dock on your own.

·Do not place the charging dock near a heat source.

·Do not use a wet cloth or wet hands to wipe or clean the dock's charging contacts.

·Do not improperly dispose of old batteries. Unneeded batteries should be discarded at an

appropriate recycling facility.

·If the power cord becomes damaged or broken, stop using it immediately and contact after-

sales service.

·Make sure the robot is turned off when being transported and kept in its original packaging if

possible.

·If the robot will not be used for an extended period, fully charge it, then turn it off and

store in a cool, dry place. Recharge the robot at least once every 3 months to avoid over-

discharging the battery.

·This product contains batteries that can only be replaced by qualified technicians or after-

sales service.

Batteries and

Charging

Safety Information

Hereby, Dreame Trading（Tianjin）Co., Ltd. declares that the radio equipment type RLS5-BL0 is in compliance with Directive 2014/53/EU. The full

text of the EU declaration of conformity is available at the following internet address: www.dreame-technology.com

For detailed e-manual, please go to https://www.dreame-technology.com/pages/user-manuals-and-faqs

are responsible for any loss or damage that arise from improper use of this product.

4 5

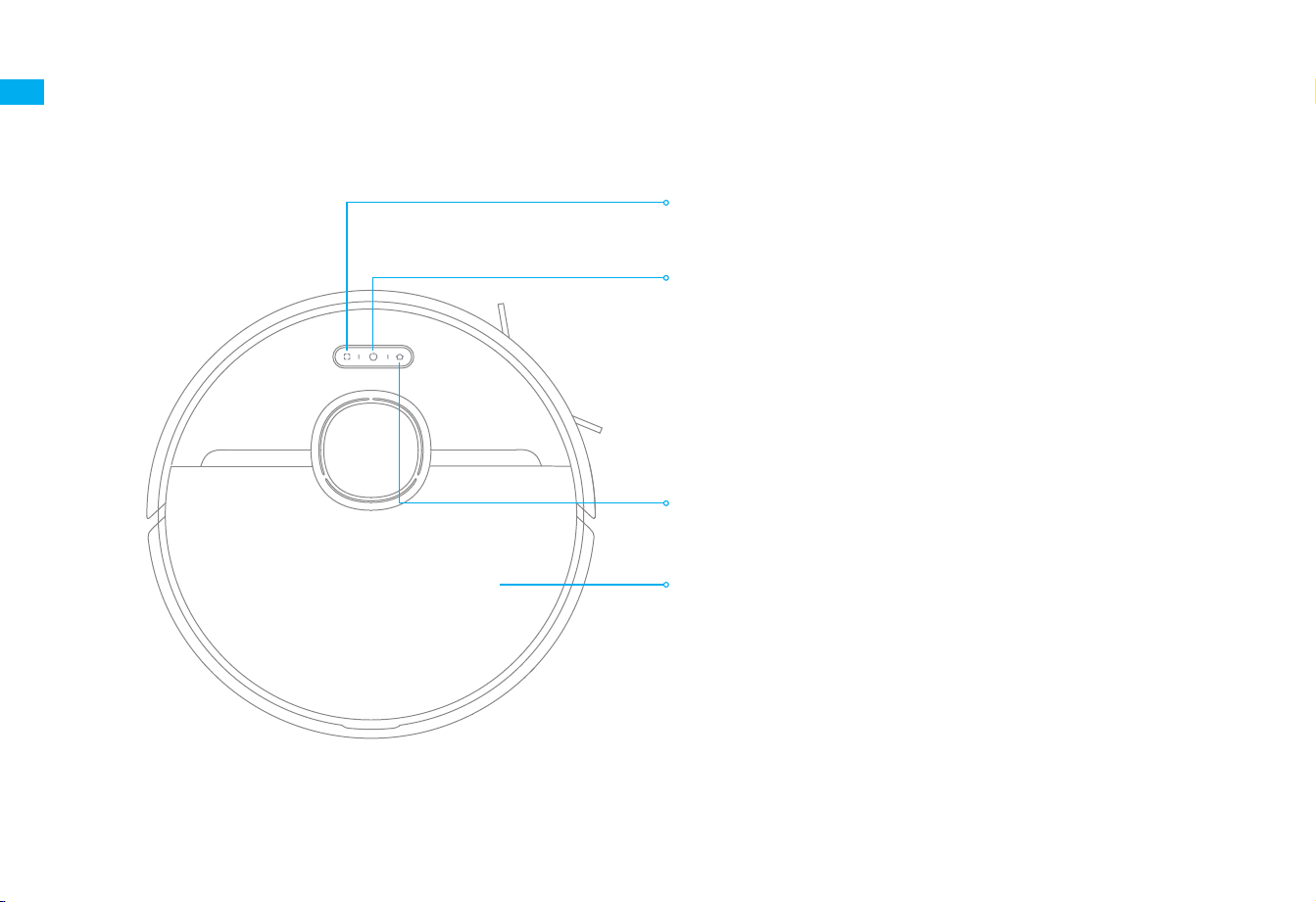

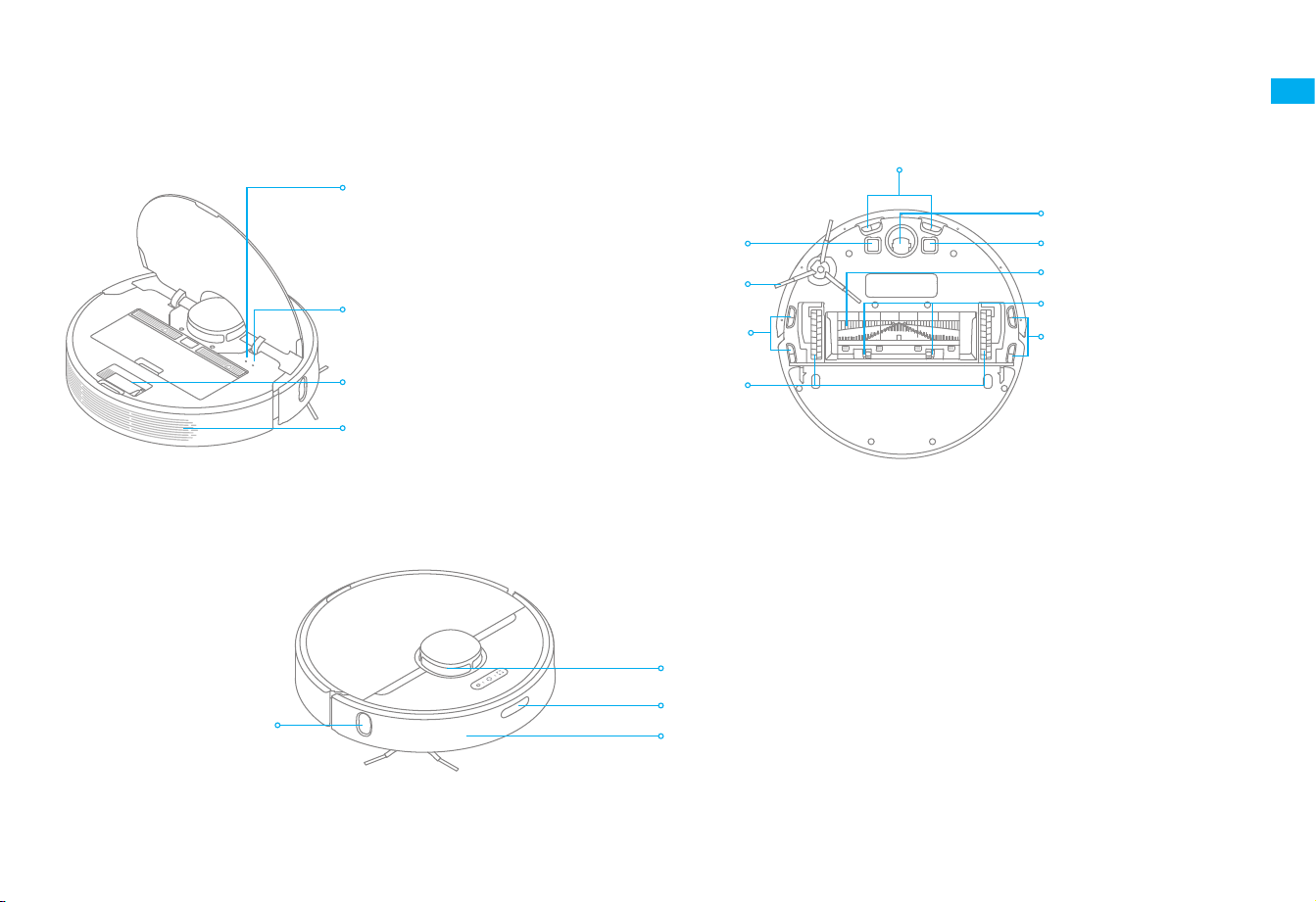

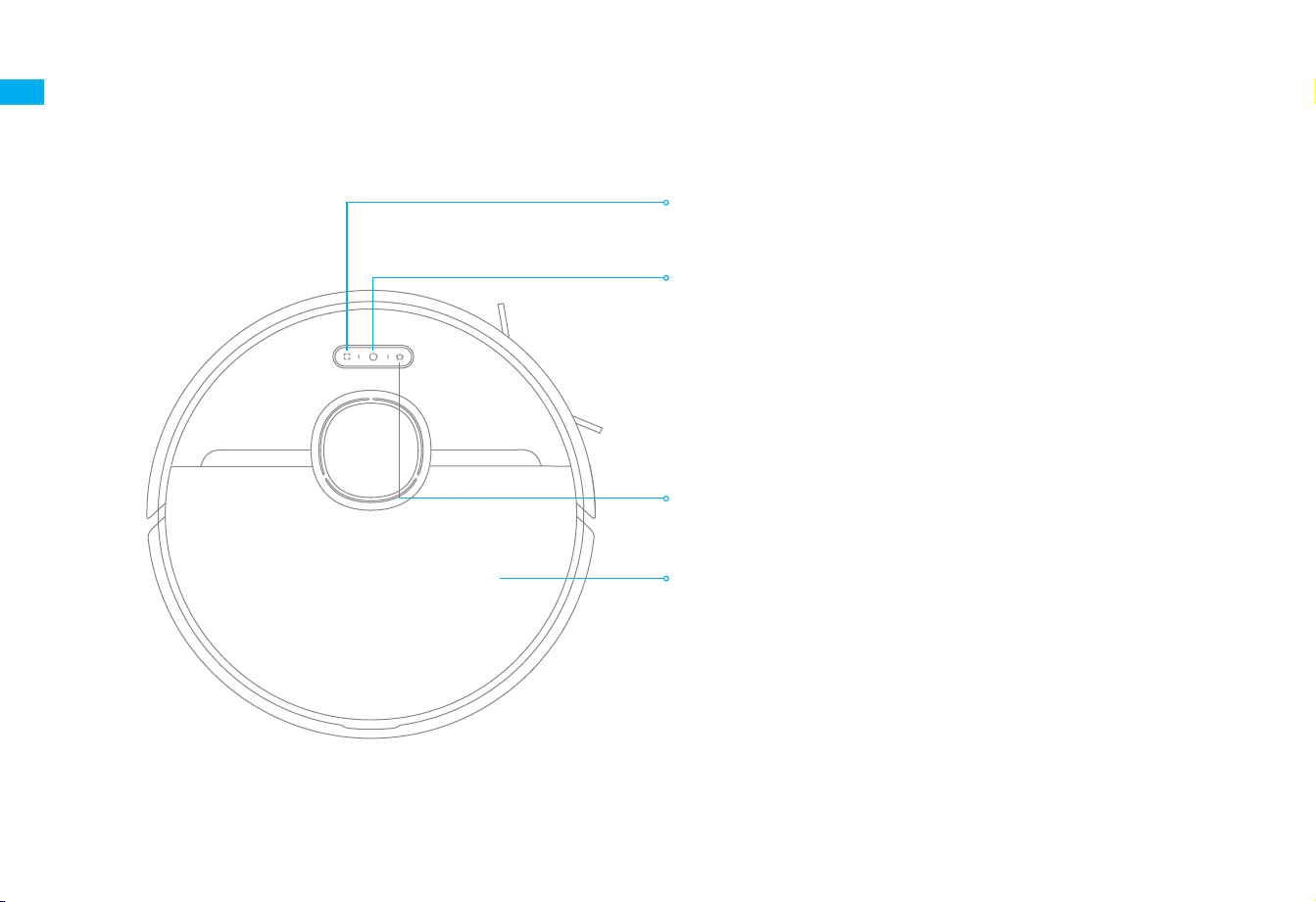

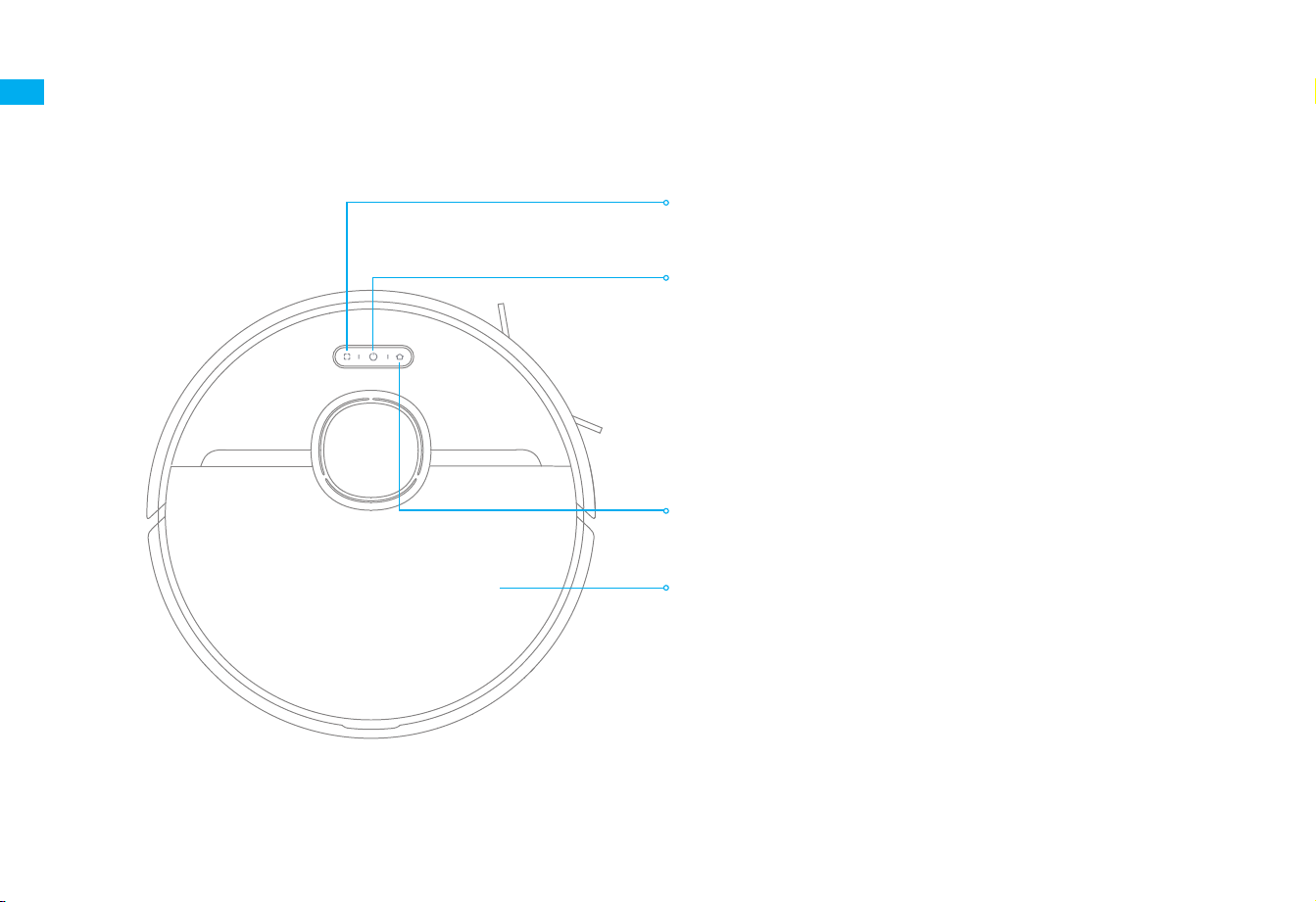

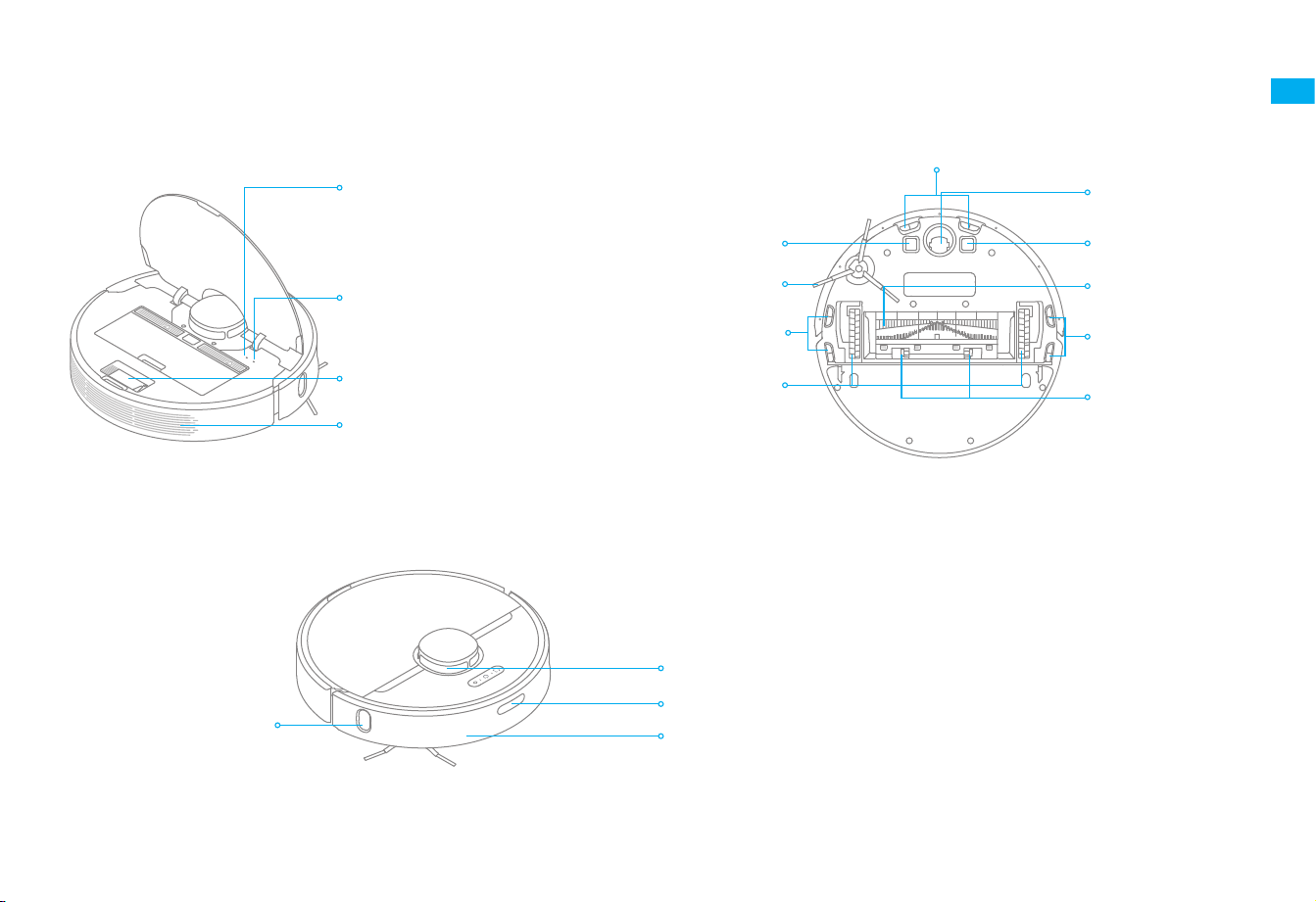

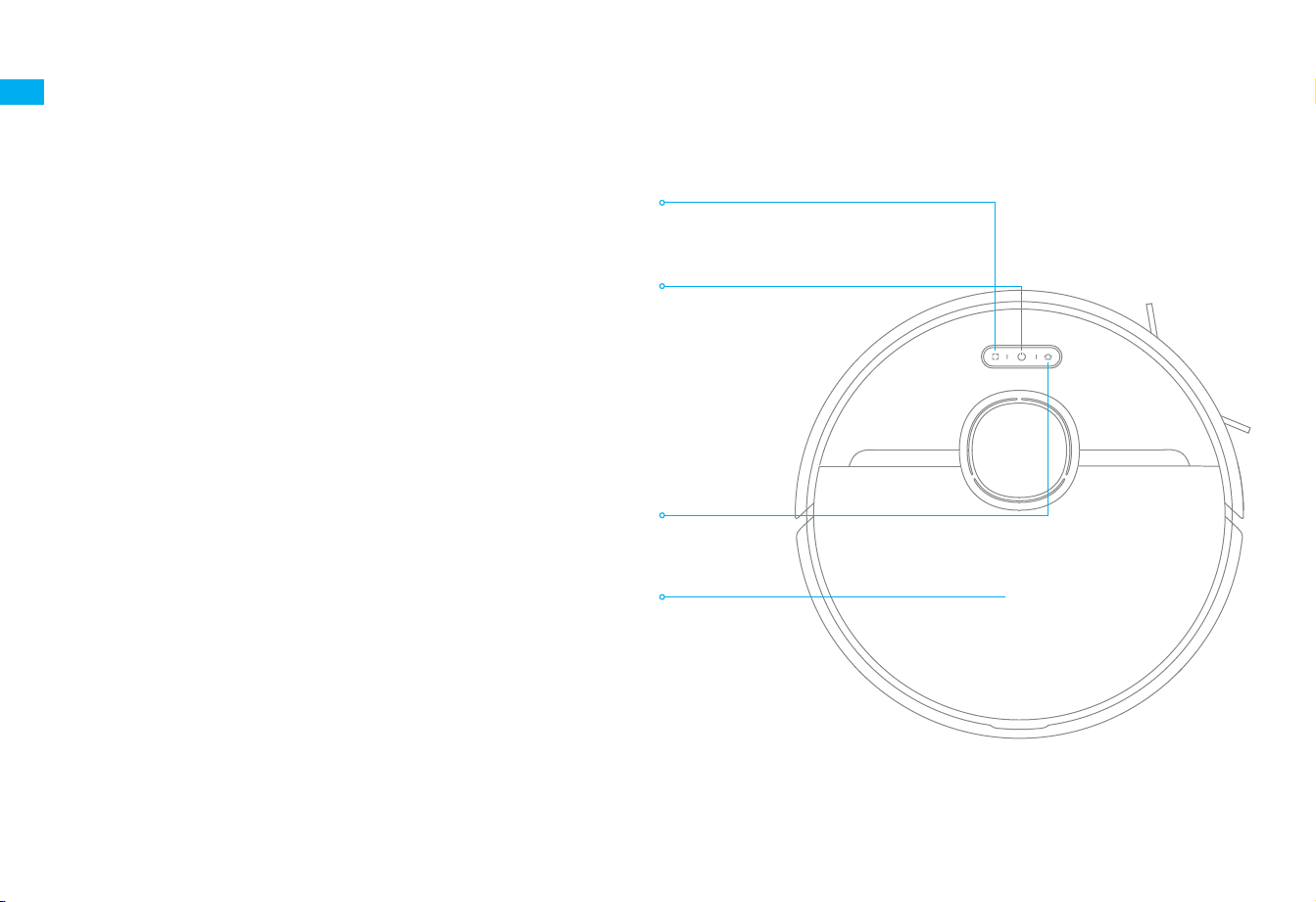

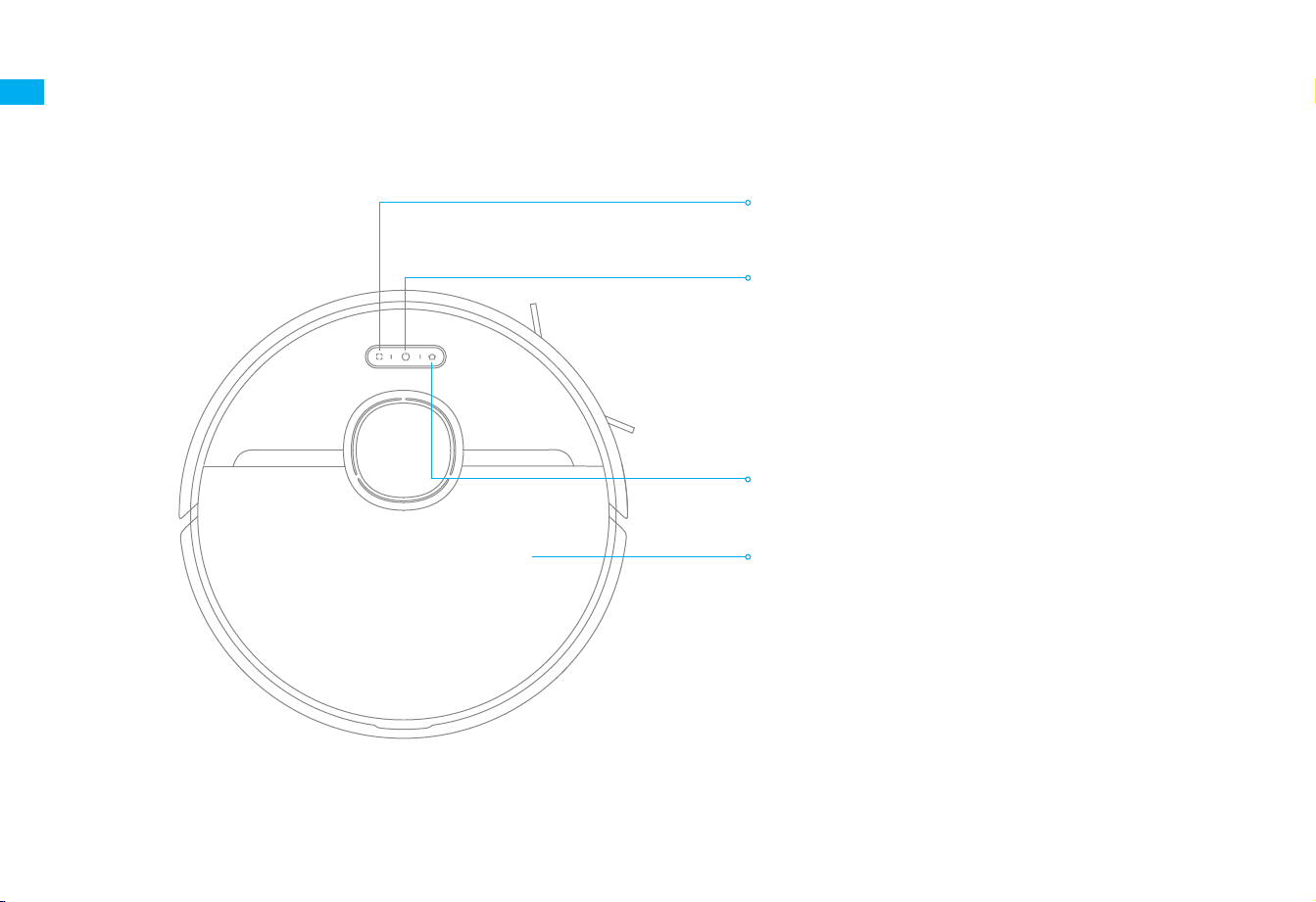

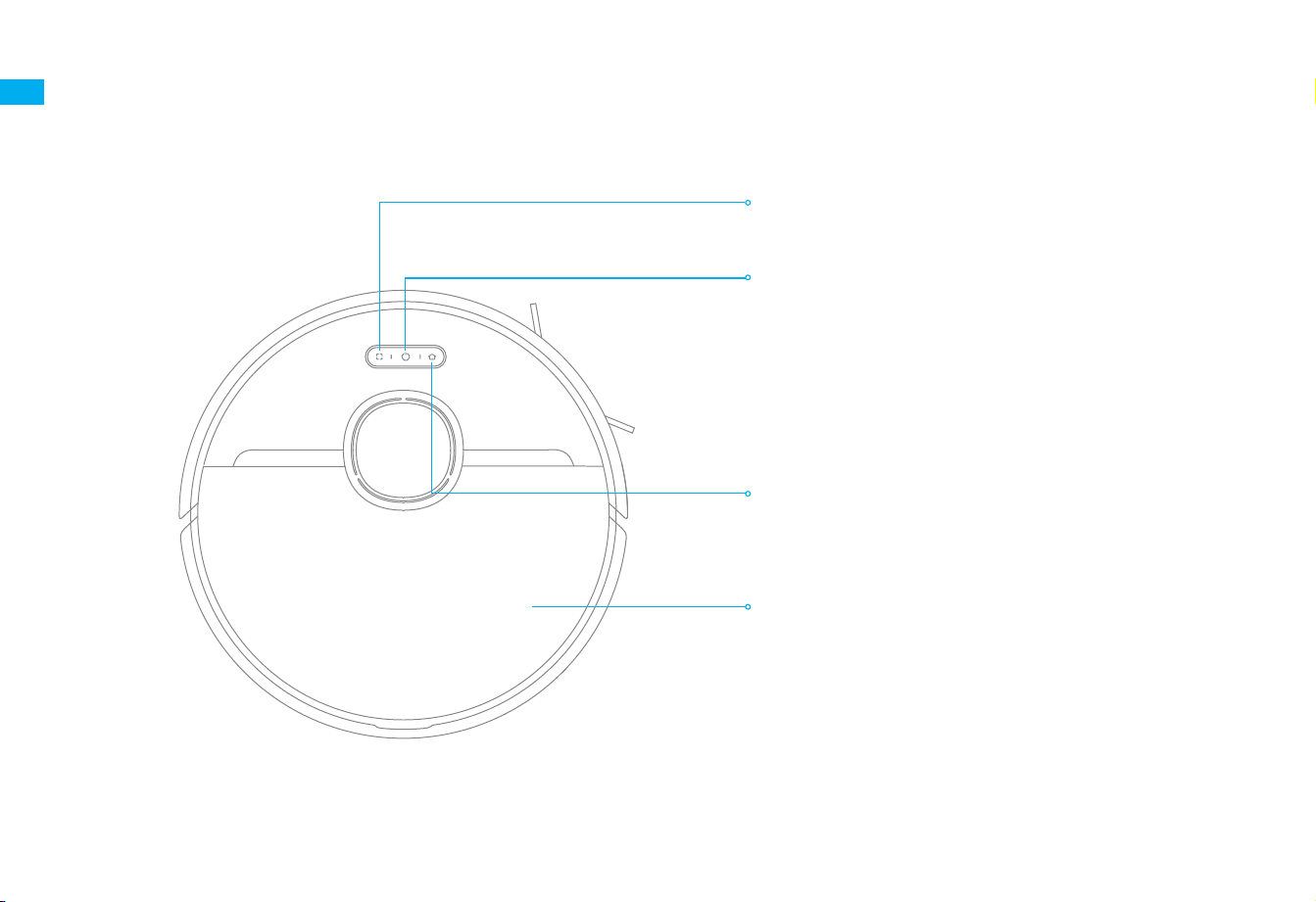

Robot

Product Overview

Spot Clean Button

·Press brie󽗊y to begin Spot Clean Mode

Power/Clean Button

·Press and hold for 3 seconds

·Press to begin cleaning after the robot is powered on

Status Indicator

·White: Cleaning or cleanup is completed

·Blinking Orange: Error

Dock Button

·Press to send robot back to the charging dock

Cover

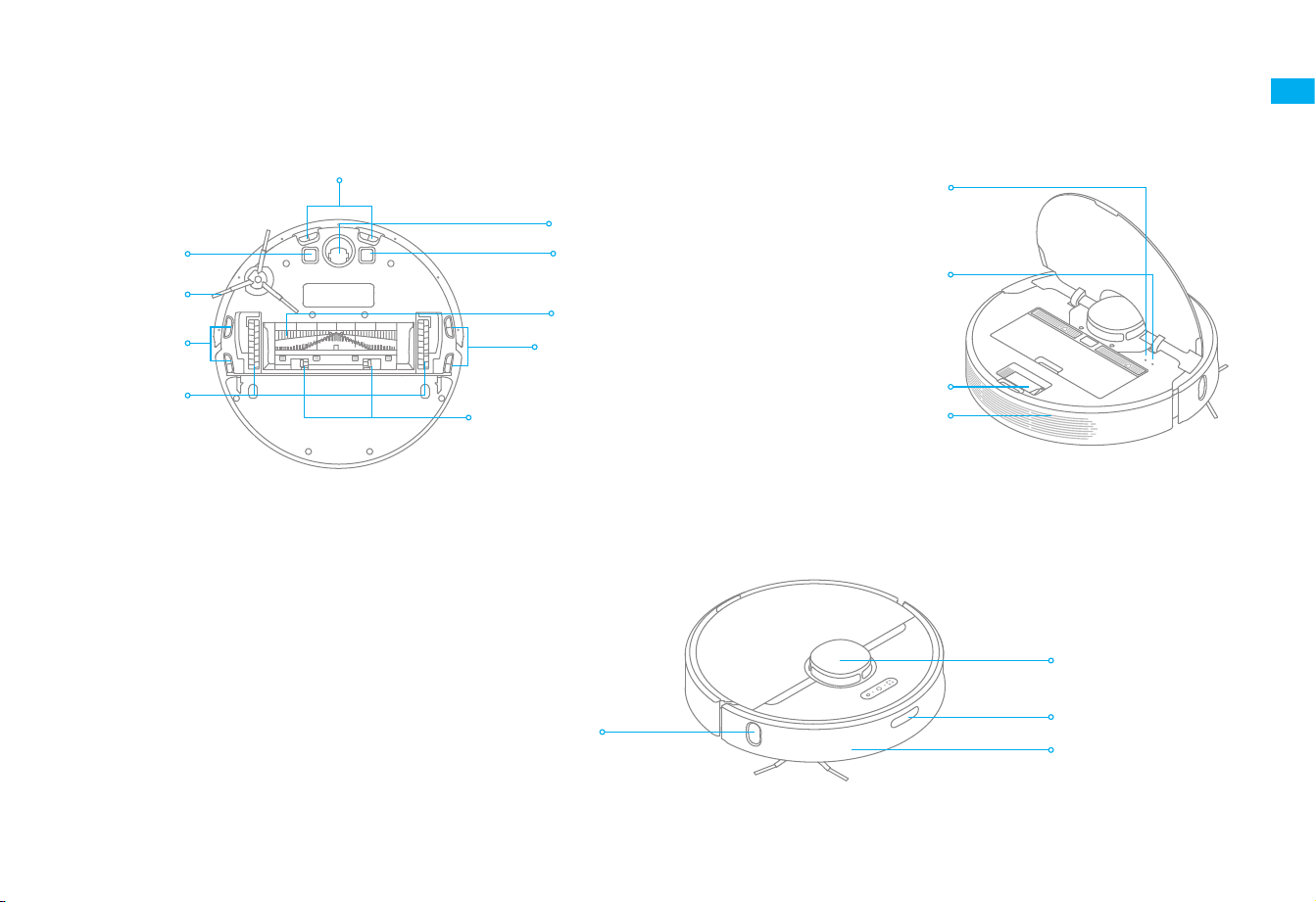

Robot

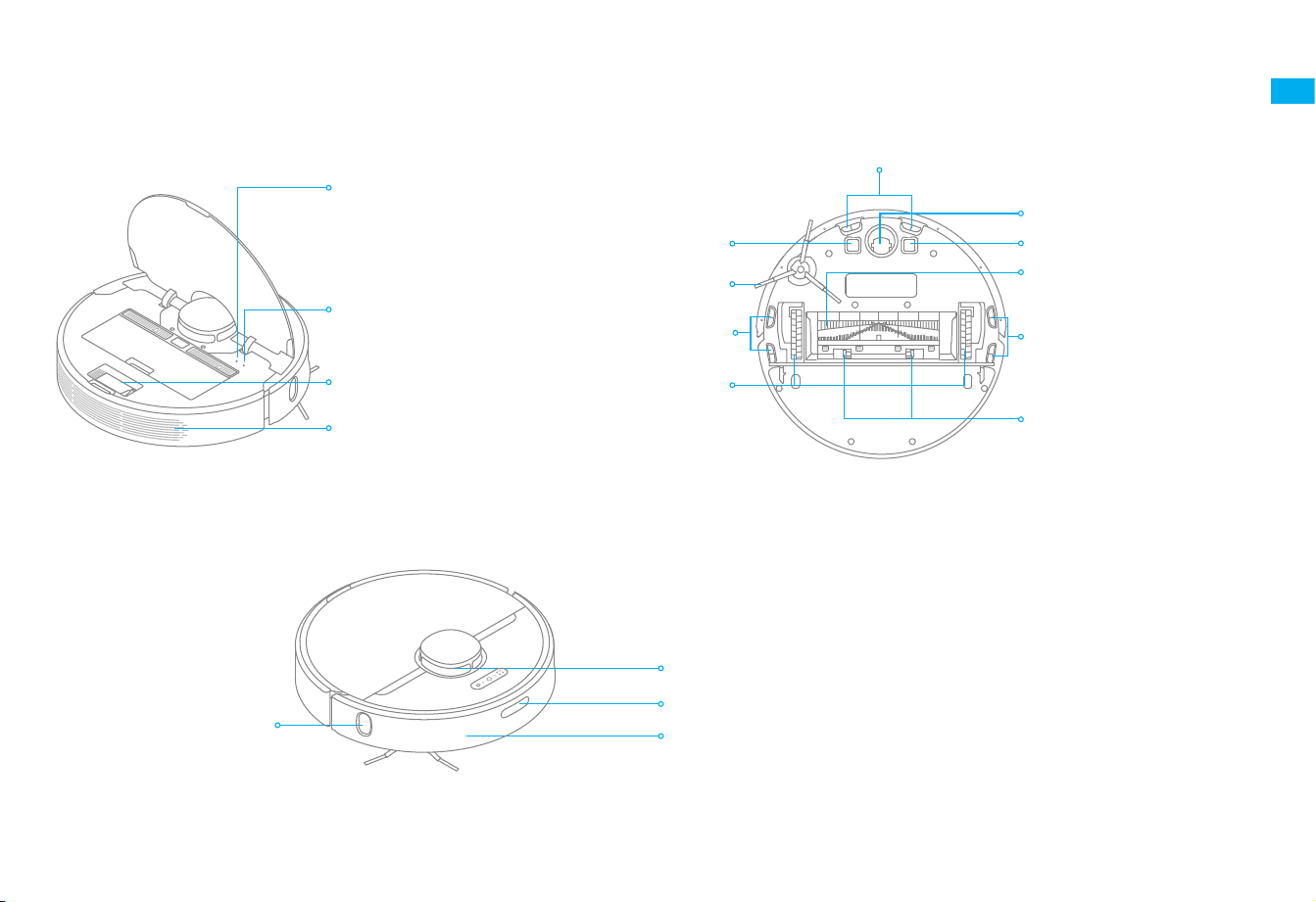

Robot Sensors

Product Overview

Reset Button

Wi-Fi Indicator

Cleaning Tool

Air Outlet/Speaker

Laser Distance Sensor

Returning-to-dock Sensor

Bumper

Edge Sensor

Cli󽗈 Sensor

Main Wheels

Main Brush

Charging Contacts

Brush Guard Clips

Omnidirectional Wheel

Side Brush

Charging Contacts

Press and hold for 3

seconds to restore the

robot to factory settings

4 5

Robot

Product Overview

Spot Clean Button

·Press brie󽗊y to begin Spot Clean Mode

Power/Clean Button

·Press and hold for 3 seconds

·Press to begin cleaning after the robot is powered on

Status Indicator

·White: Cleaning or cleanup is completed

·Blinking Orange: Error

Dock Button

·Press to send robot back to the charging dock

Cover

Robot

Robot Sensors

Product Overview

Reset Button

Wi-Fi Indicator

Cleaning Tool

Air Outlet/Speaker

Laser Distance Sensor

Returning-to-dock Sensor

Bumper

Edge Sensor

Cli󽗈 Sensor

Main Wheels

Main Brush

Charging Contacts

Brush Guard Clips

Omnidirectional Wheel

Side Brush

Charging Contacts

Press and hold for 3

seconds to restore the

robot to factory settings

6 7

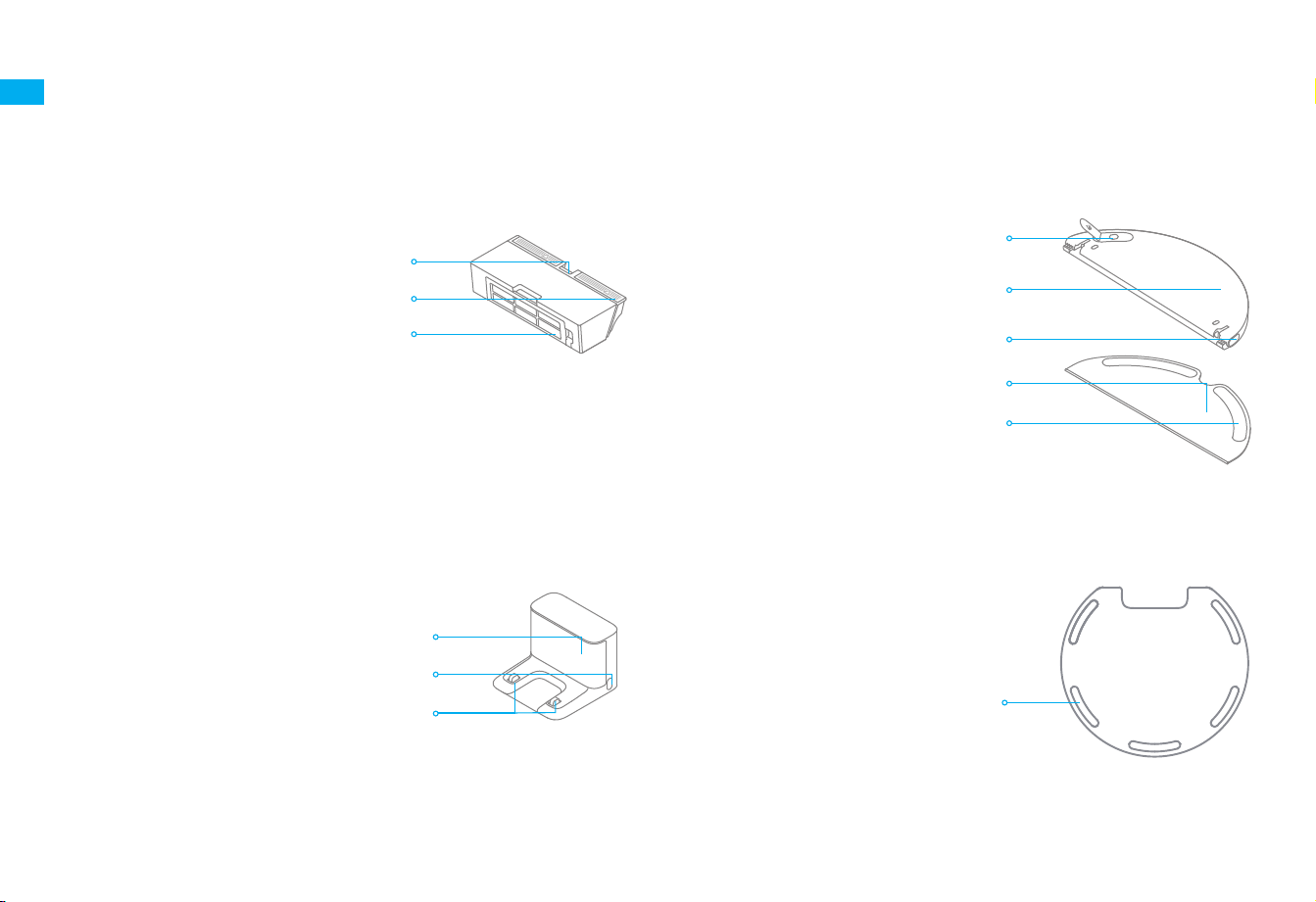

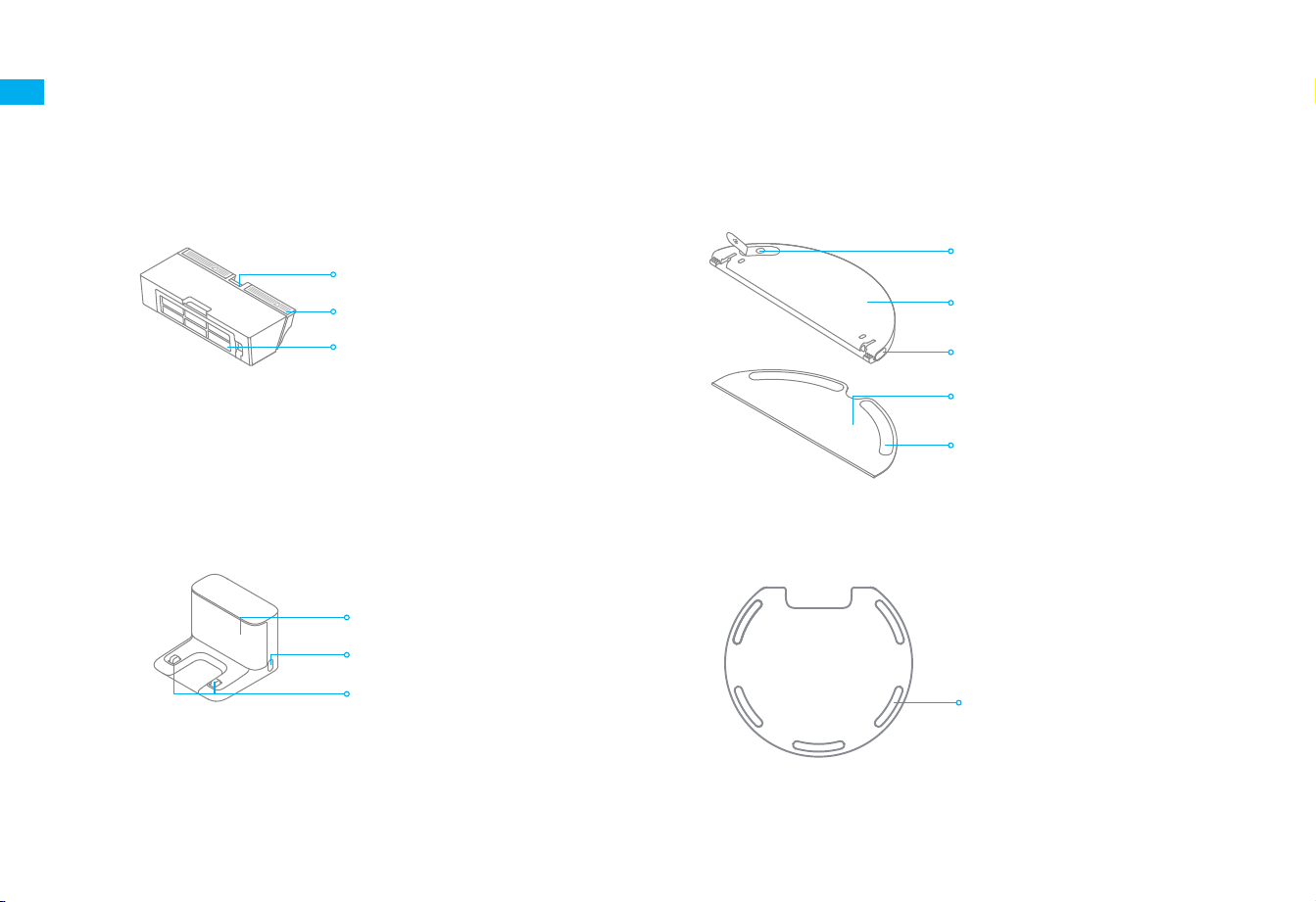

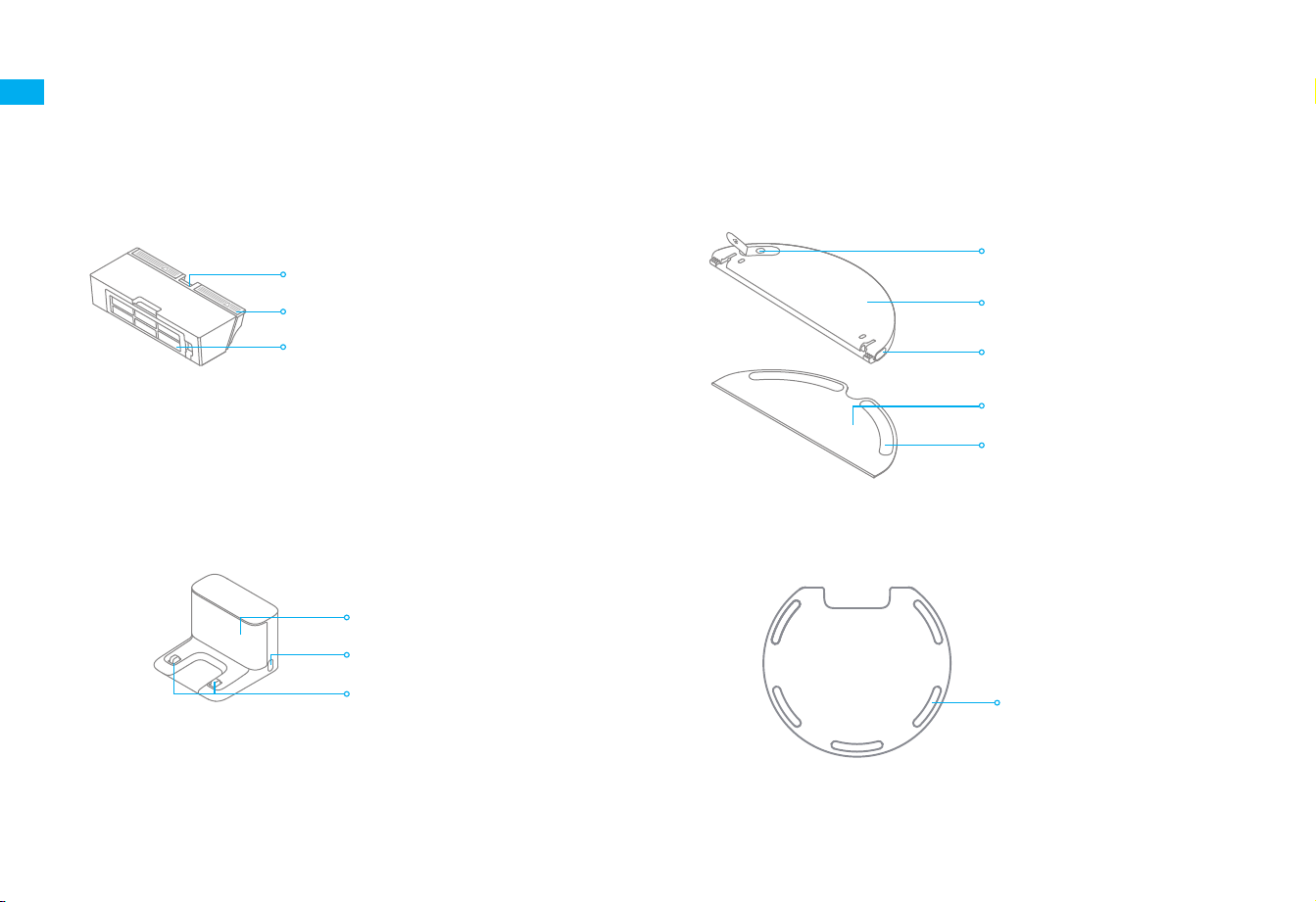

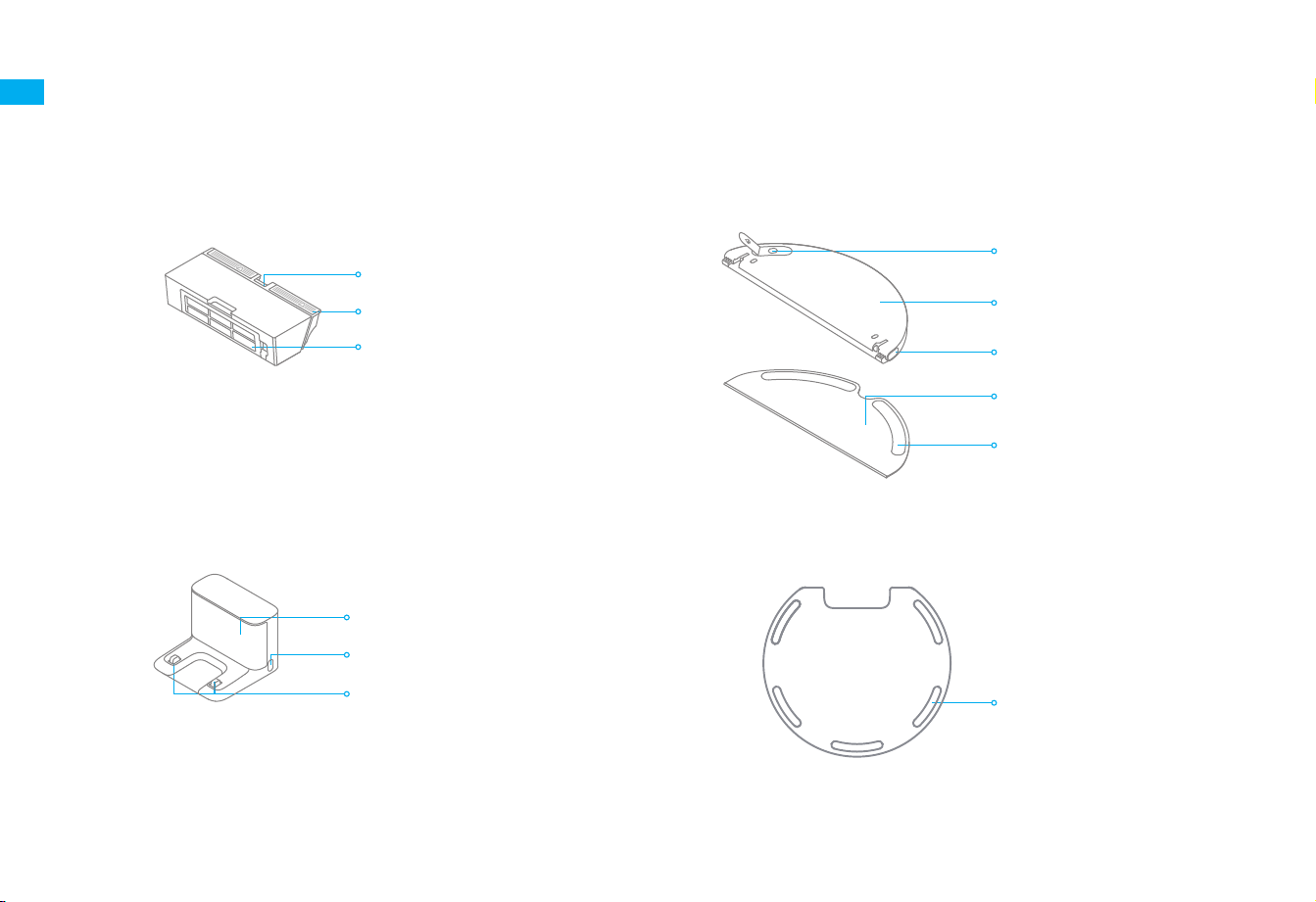

Product Overview

Dust Bin

Mopping Module

Charging Dock Damp-proof Pad

Water Inlet

Water Tank

Mop Pad

Attaching Area

Filter

Bin Cover

Bin Clip

Signaling Area

Charging Contacts

Power Port

Water Tank Release Clip

Attaching Area

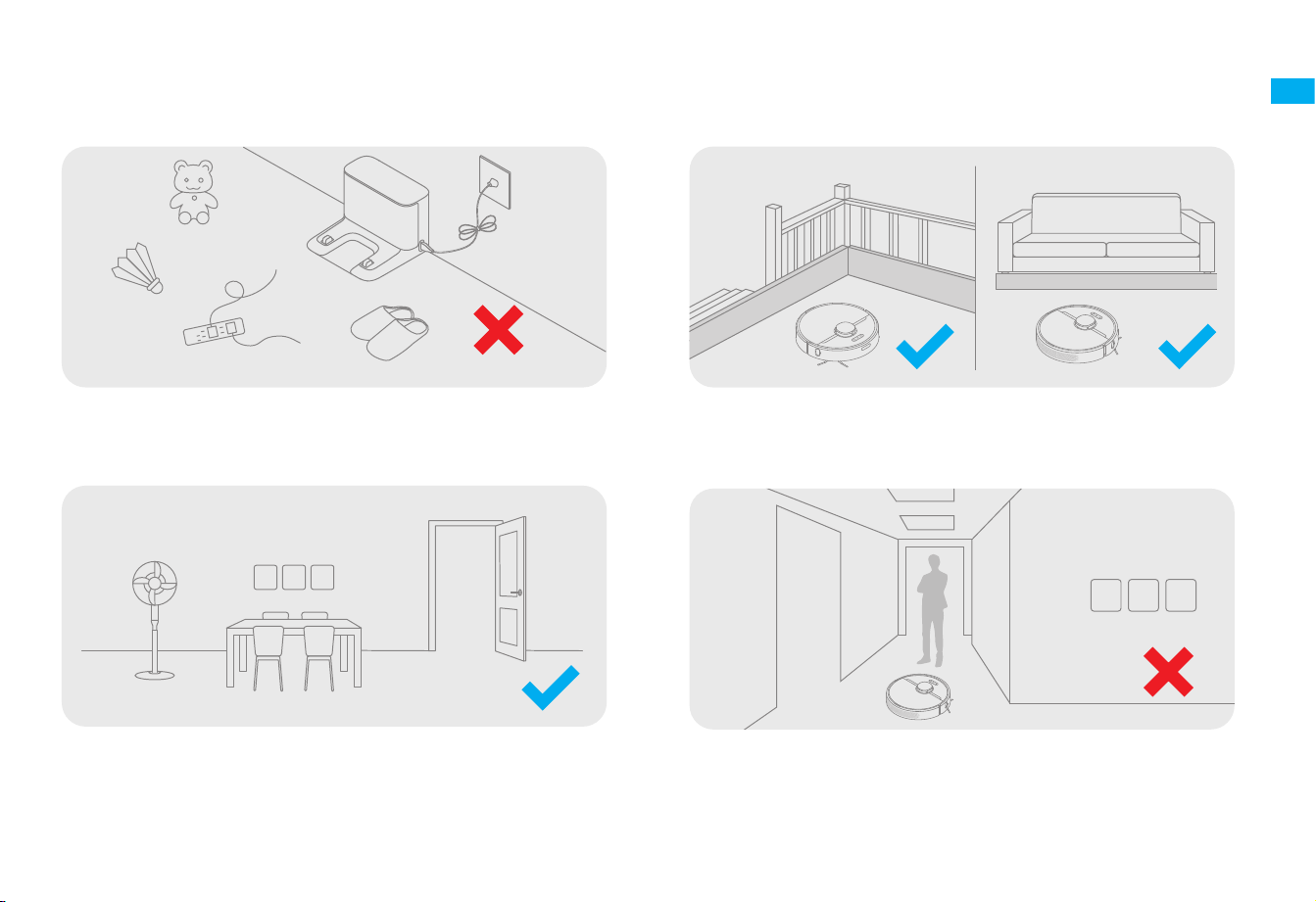

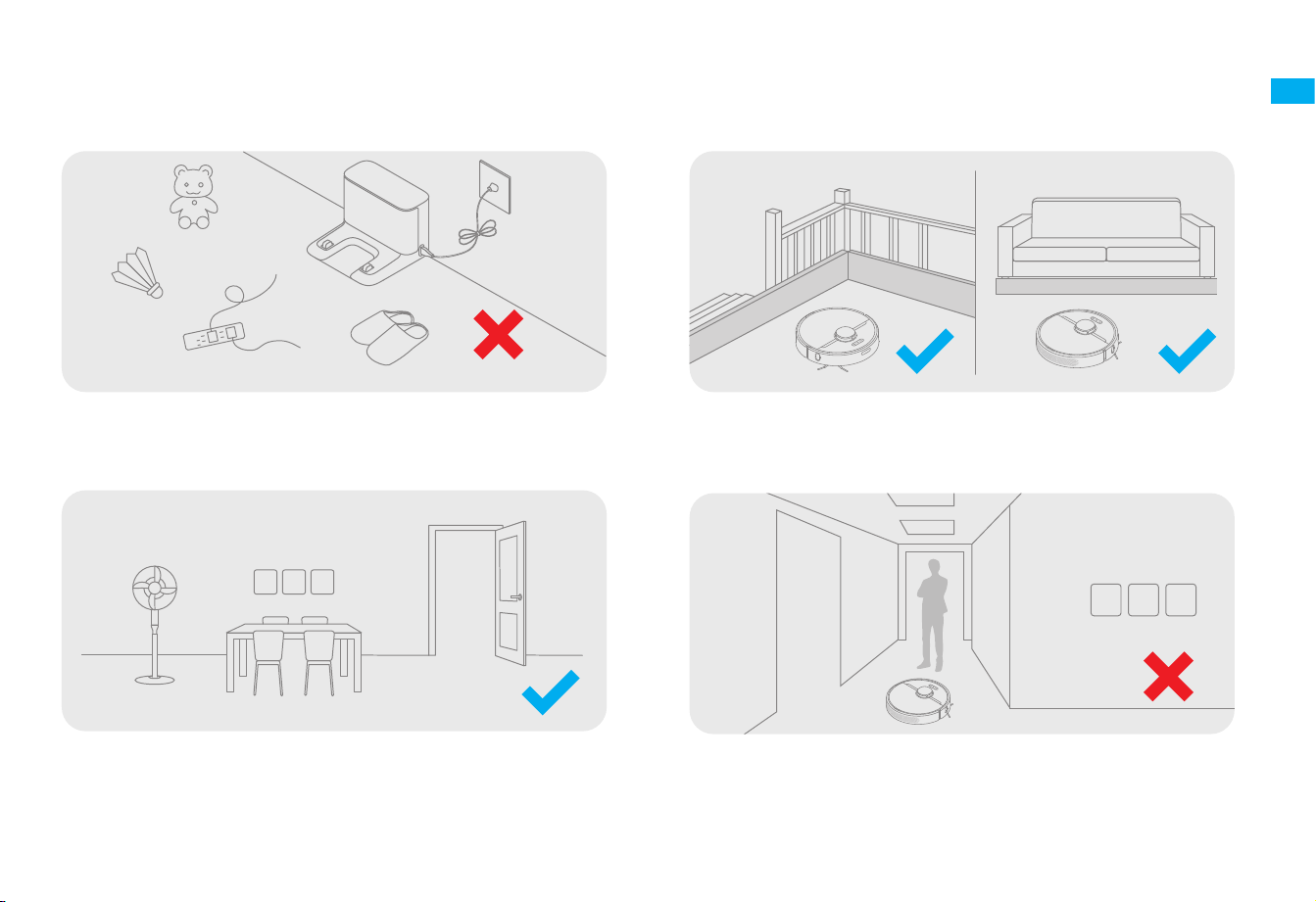

Clearing Home Environment

To improve the working e󽗋ciency of your robot, put away any loose

cords (including the power cord of the charging dock), rags, slippers,

toys, etc.

Open the door of the room to be cleaned, and put the furniture in its

proper place to make more space.

To prevent the robot from not recognizing the area to be cleaned,

do not stand in the front of the robot, threshold, hall way, or narrow

places.

Before cleaning, place a physical barrier at the edge of the stairs

and sofa to ensure safe and smooth operation of the robot.

6 7

Product Overview

Dust Bin

Mopping Module

Charging Dock Damp-proof Pad

Water Inlet

Water Tank

Mop Pad

Attaching Area

Filter

Bin Cover

Bin Clip

Signaling Area

Charging Contacts

Power Port

Water Tank Release Clip

Attaching Area

Clearing Home Environment

To improve the working e󽗋ciency of your robot, put away any loose

cords (including the power cord of the charging dock), rags, slippers,

toys, etc.

Open the door of the room to be cleaned, and put the furniture in its

proper place to make more space.

To prevent the robot from not recognizing the area to be cleaned,

do not stand in the front of the robot, threshold, hall way, or narrow

places.

Before cleaning, place a physical barrier at the edge of the stairs

and sofa to ensure safe and smooth operation of the robot.

8 9

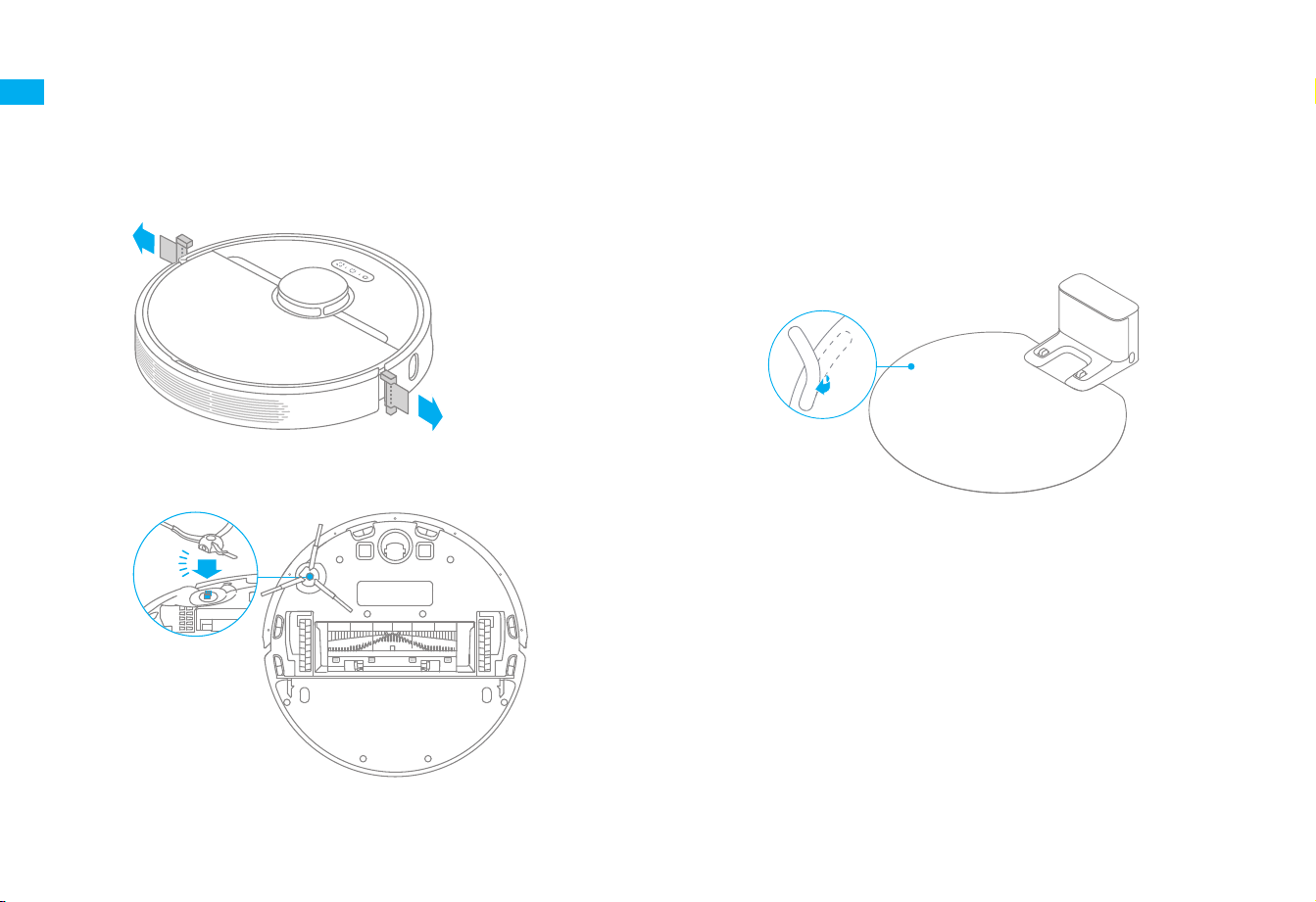

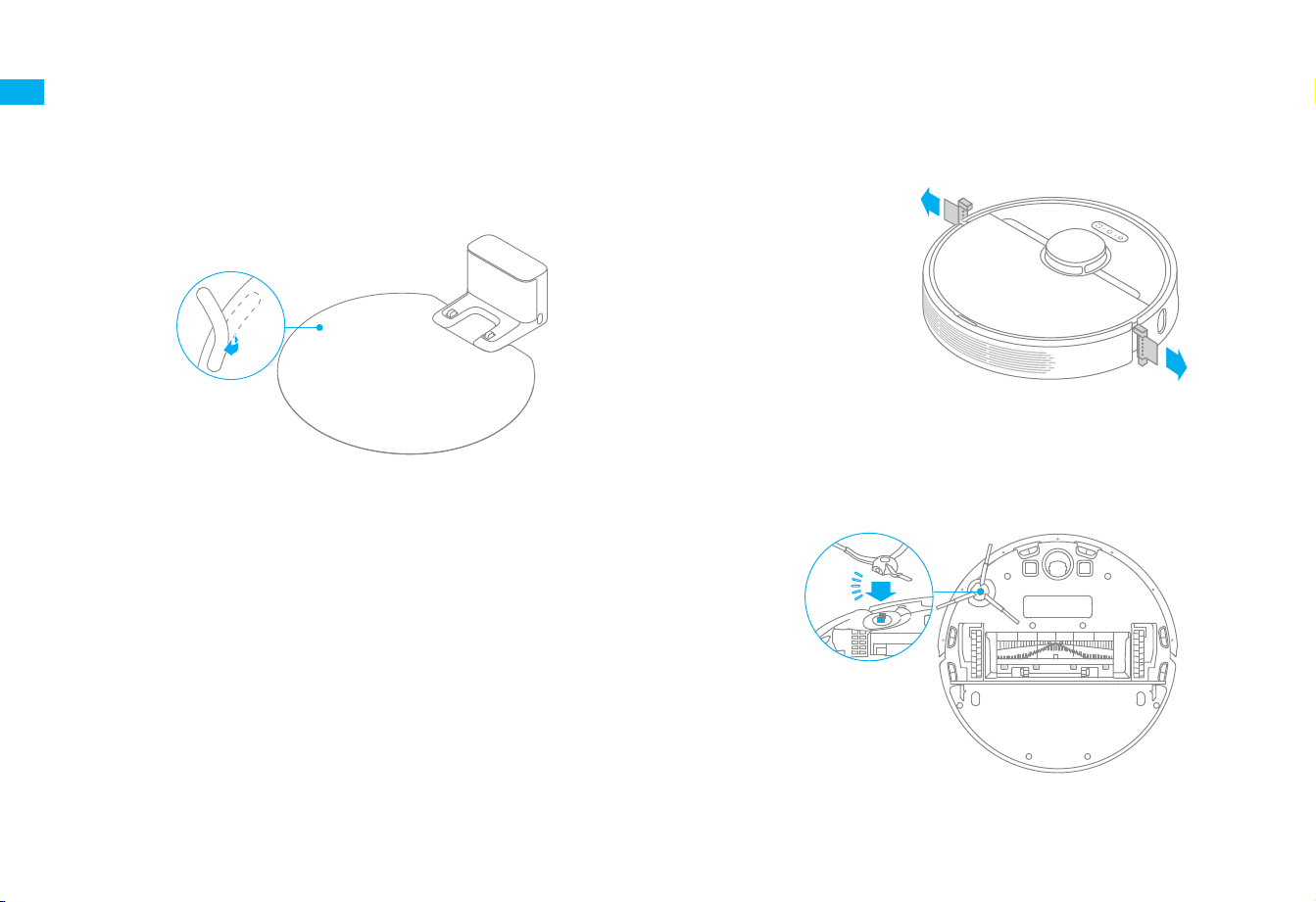

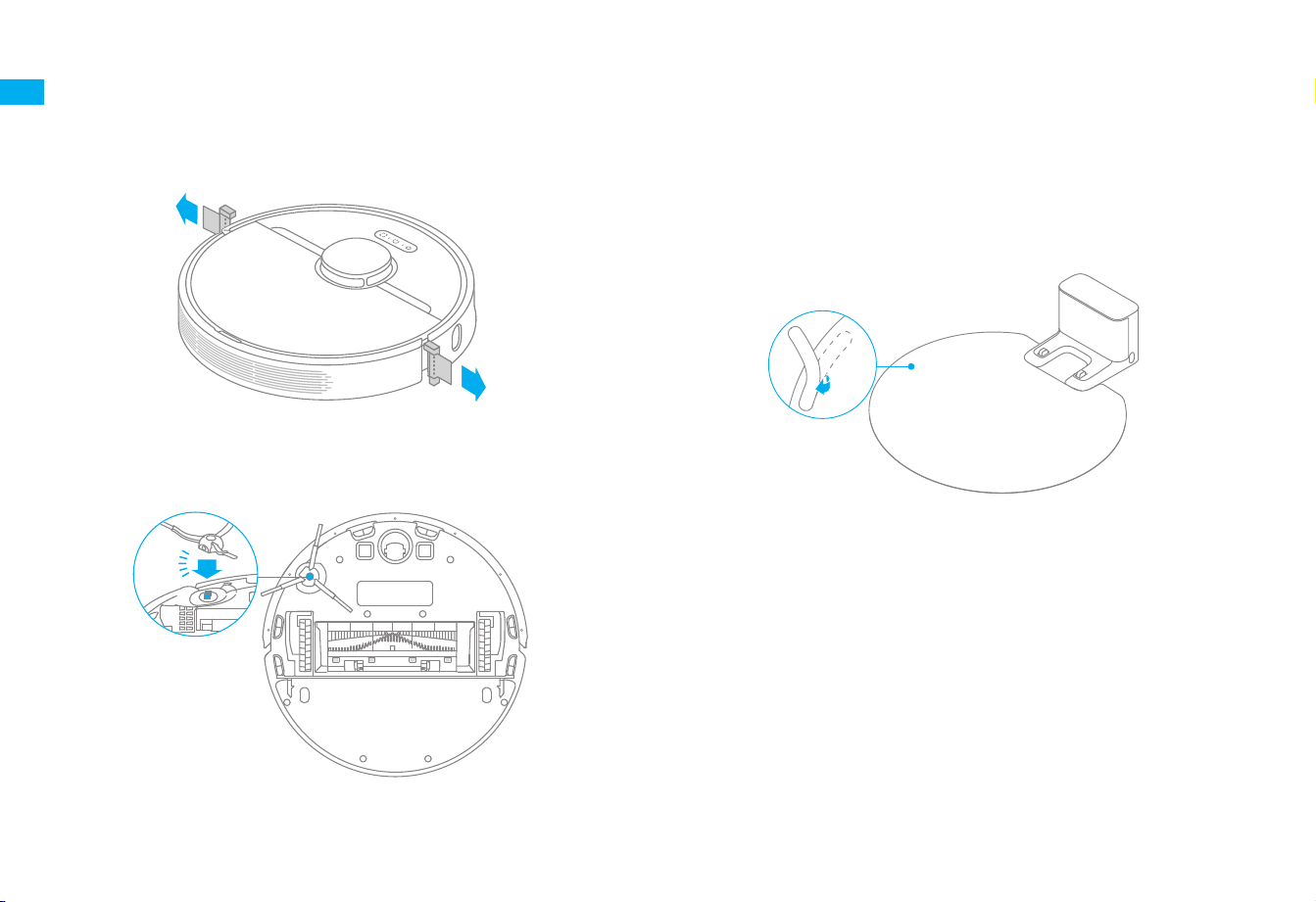

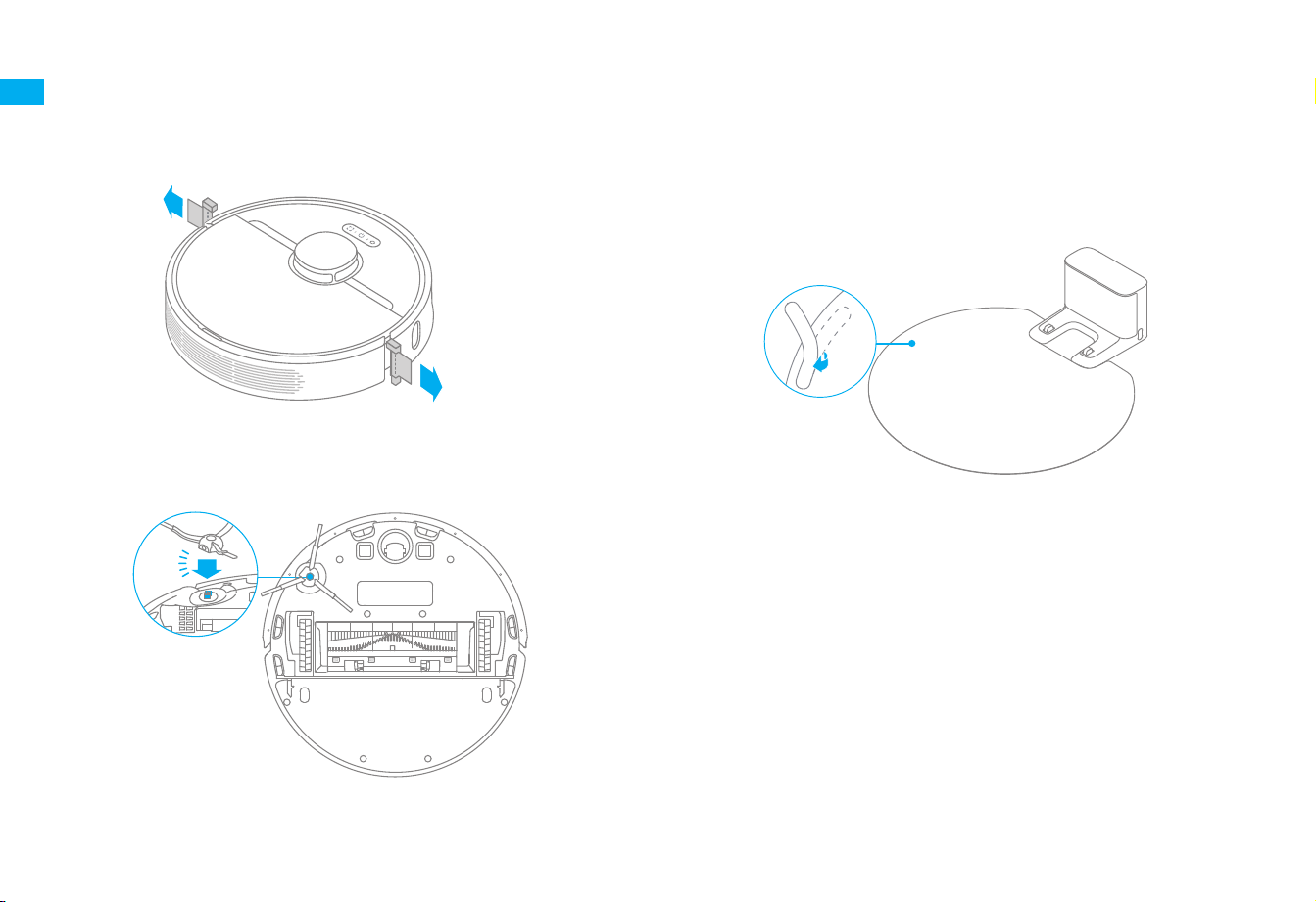

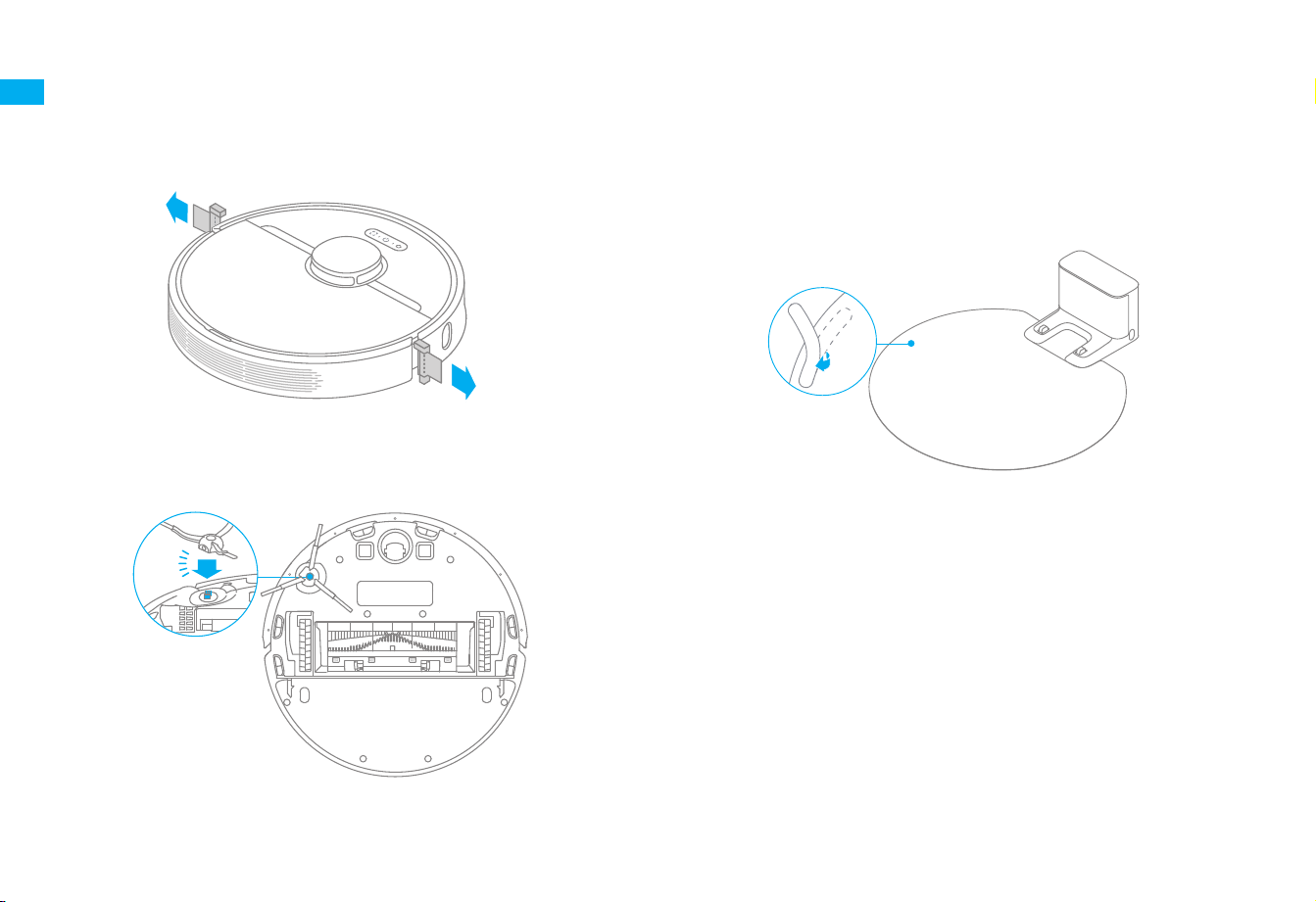

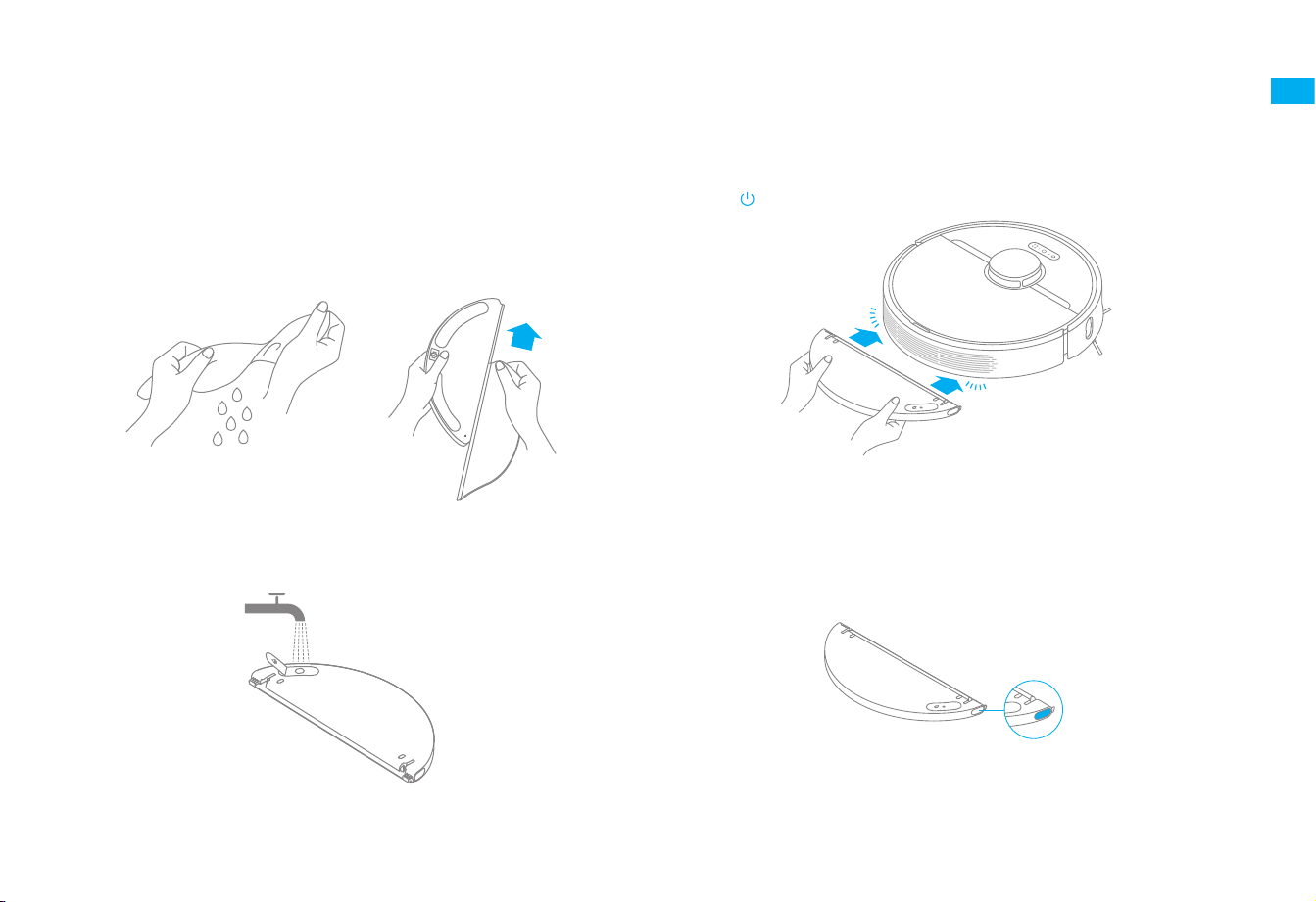

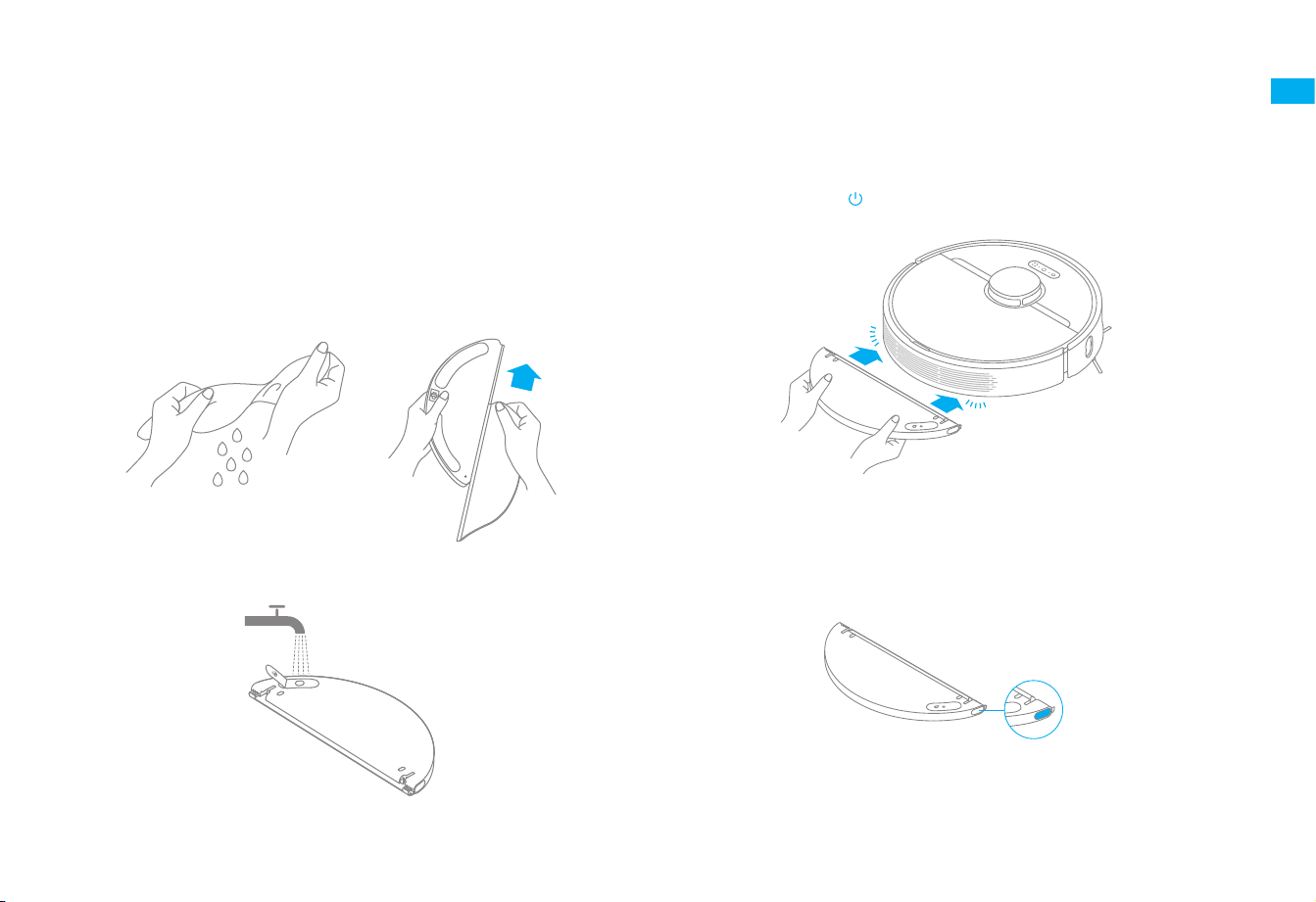

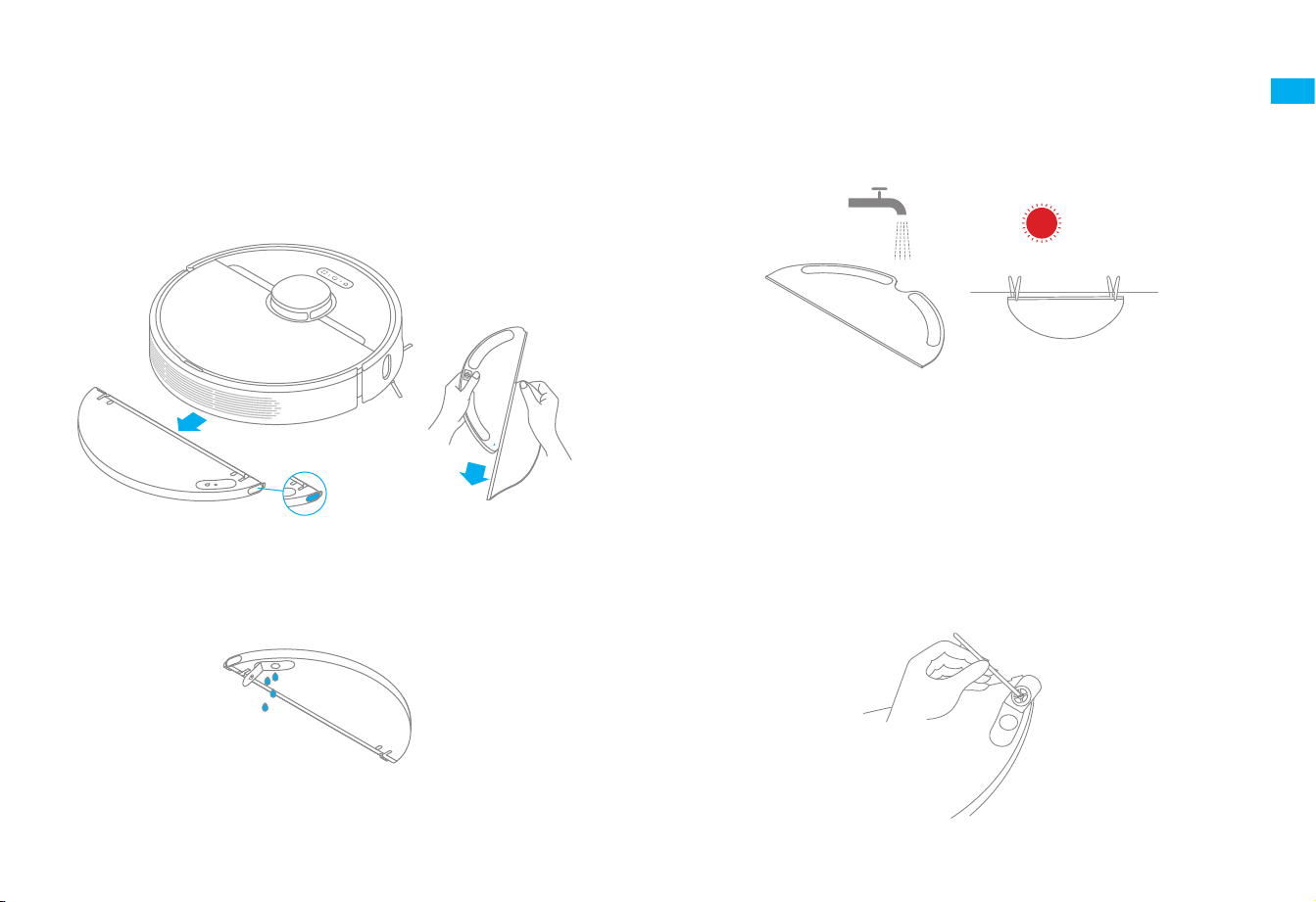

1. Remove the protective matter

2. Install the side brush

Click

Preparation Before Use

Note: Install the side brush until it clicks into place.

3. Fasten the damp-proof pad

· It is recommended that the damp-proof pad be fastened on the wooden 󽗊oor.

· If you need to remove the damp-proof pad, please remove it slowly to avoid

adhesive residue.

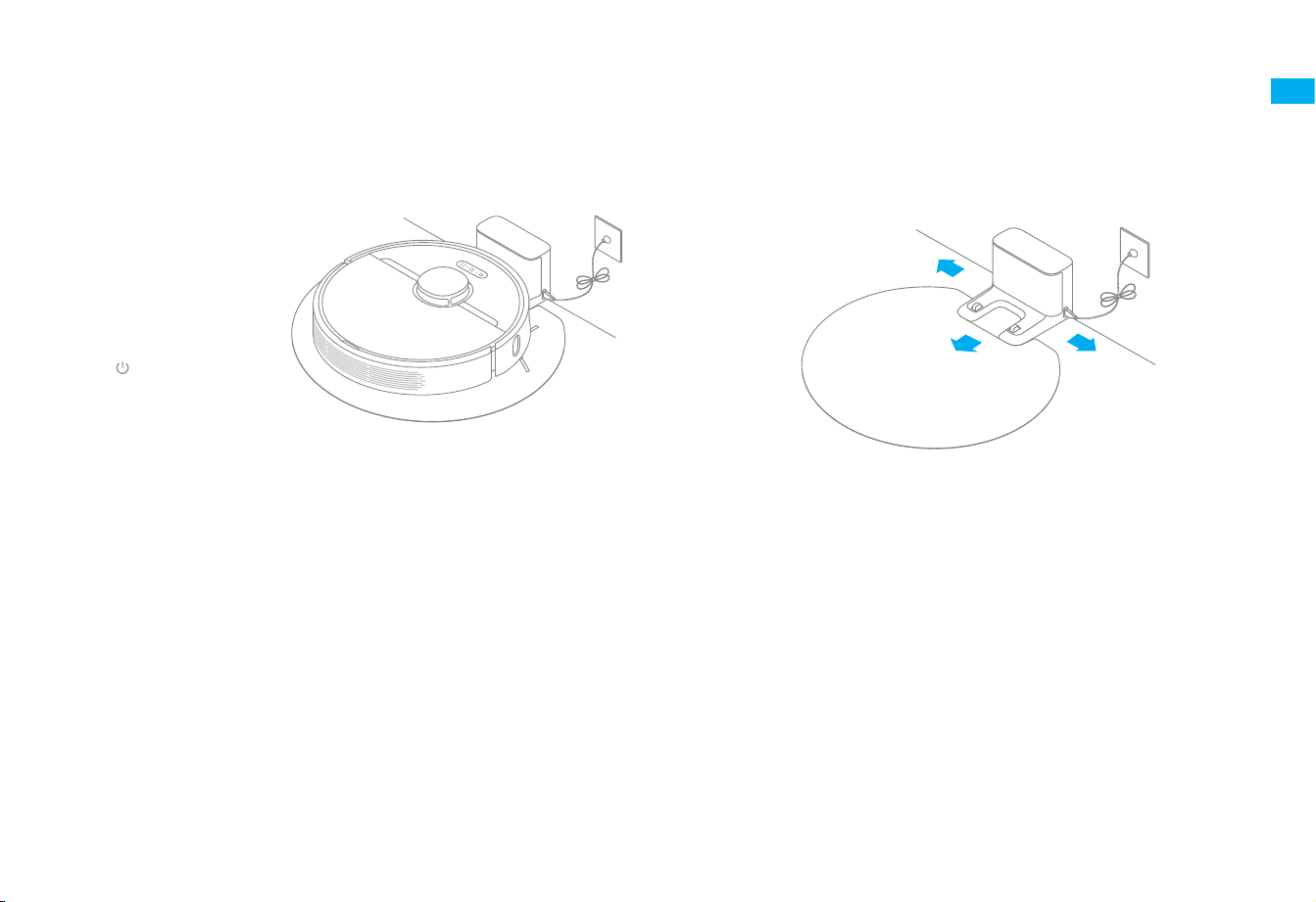

Select a clean location to place the charging dock. Tear o󽗈 the

adhesive tape at the bottom of the damp-proof pad, and stick the

pad on the ground as shown in the 󽗉gure.

Note:

4. Connect to a power outlet 5. Start recharging

· Keep the immediate area 1.5m in front of the charger and 0.5m to both sides

of the charging dock clear of objects.

· To ensure you can connect to the robot with your phone well, make sure the

robot and charging dock are within WiFi range.

· Do not place the charging dock in an area with direct sunlight or where other

objects might block the signal, as this may hinder the robot from returning to

the charging dock.

Battery Level Indicator

＞ 1.5 m

＞ 0.5 m

Preparation Before Use

Note:

Note: It is recommended to fully charge your robot before 󽗉rst-time use.

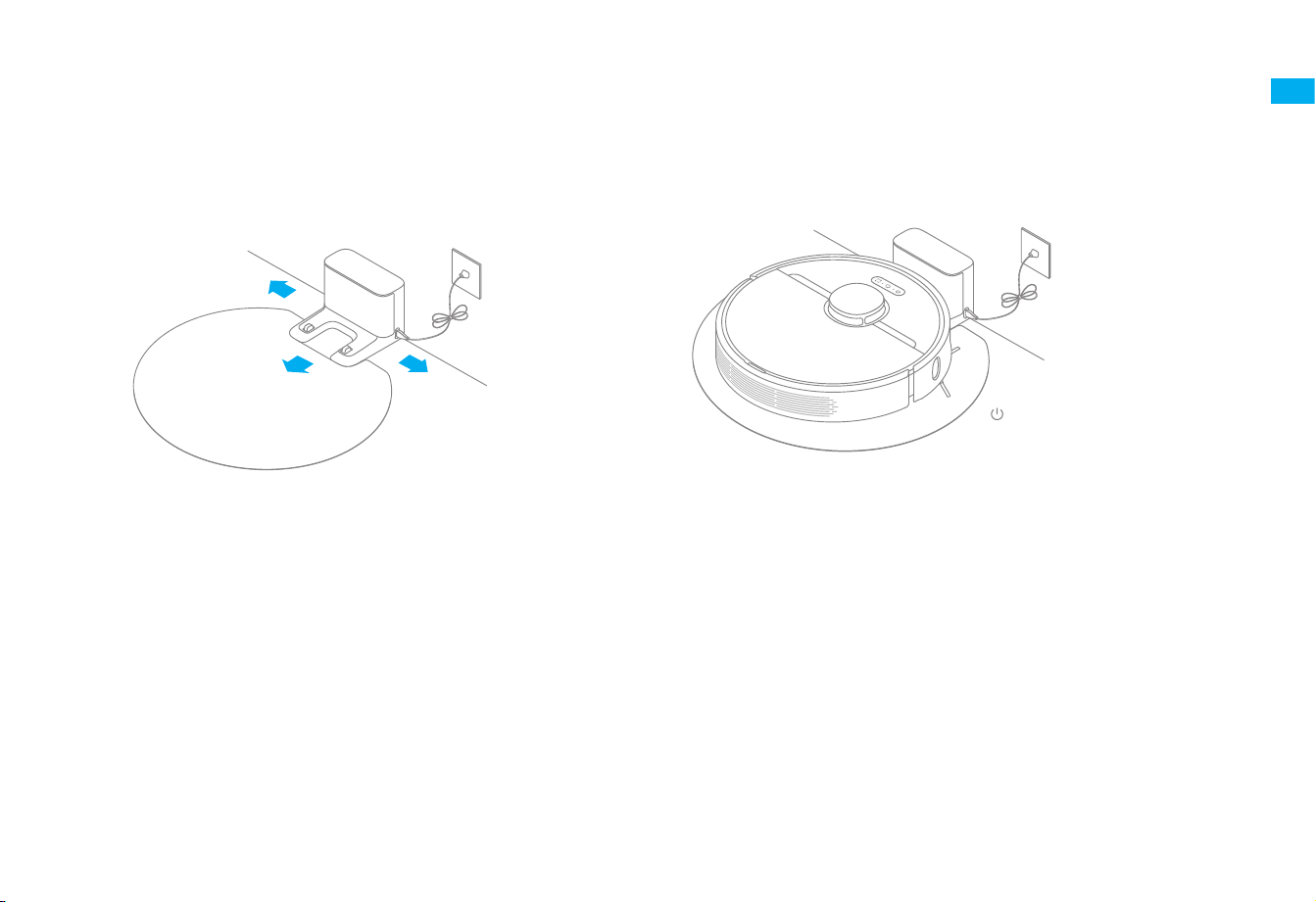

Place the charging dock on the level ground against the wall and

connect it to a power outlet.

Place the robot onto the charging dock to recharge. The robot will

turn on automatically and begin recharging.

· White: Battery level is more than 15%

· Orange: Battery level is less than 15%

8 9

1. Remove the protective matter

2. Install the side brush

Click

Preparation Before Use

Note: Install the side brush until it clicks into place.

3. Fasten the damp-proof pad

· It is recommended that the damp-proof pad be fastened on the wooden 󽗊oor.

· If you need to remove the damp-proof pad, please remove it slowly to avoid

adhesive residue.

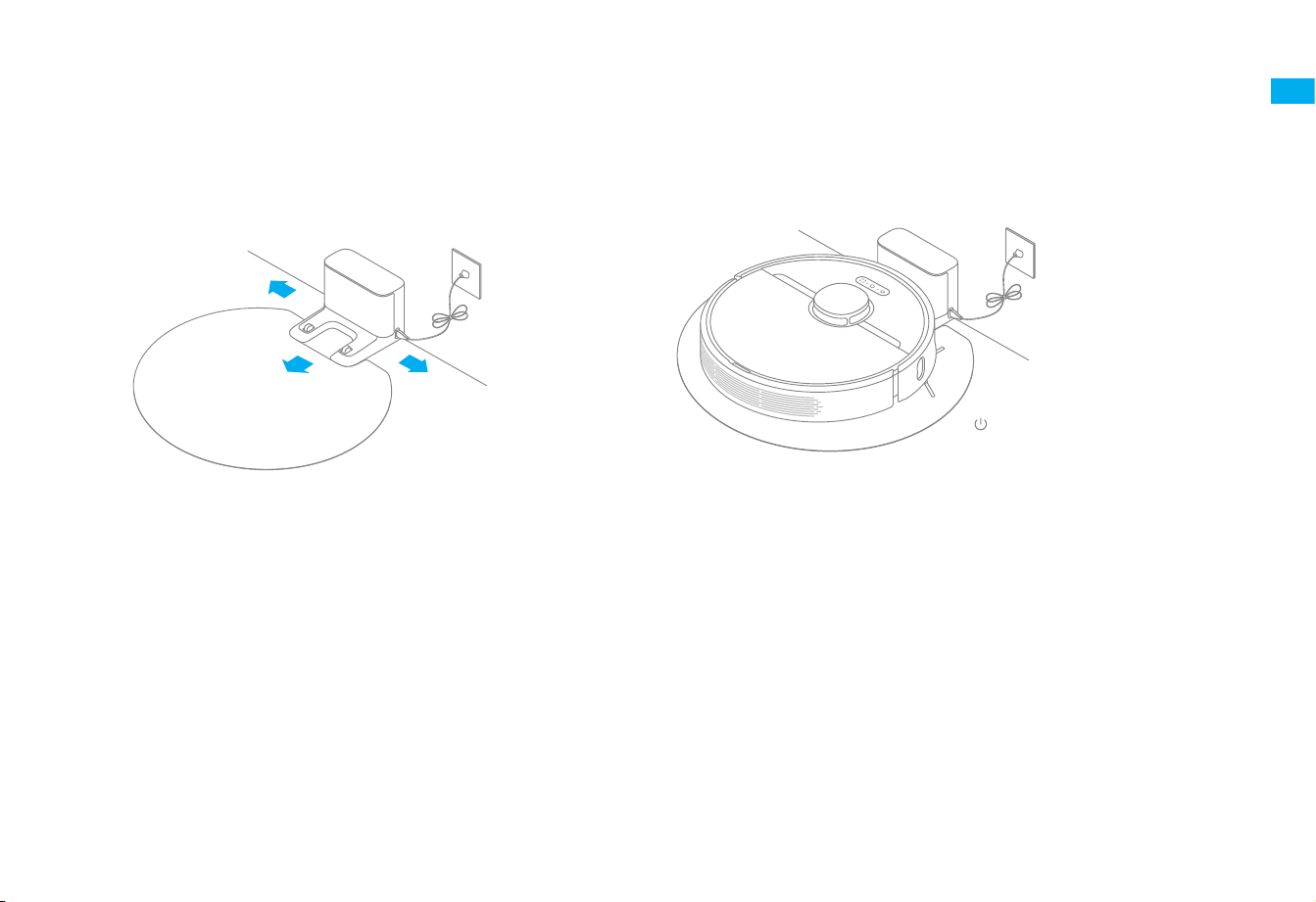

Select a clean location to place the charging dock. Tear o󽗈 the

adhesive tape at the bottom of the damp-proof pad, and stick the

pad on the ground as shown in the 󽗉gure.

Note:

4. Connect to a power outlet 5. Start recharging

· Keep the immediate area 1.5m in front of the charger and 0.5m to both sides

of the charging dock clear of objects.

· To ensure you can connect to the robot with your phone well, make sure the

robot and charging dock are within WiFi range.

· Do not place the charging dock in an area with direct sunlight or where other

objects might block the signal, as this may hinder the robot from returning to

the charging dock.

Battery Level Indicator

＞ 1.5 m

＞ 0.5 m

Preparation Before Use

Note:

Note: It is recommended to fully charge your robot before 󽗉rst-time use.

Place the charging dock on the level ground against the wall and

connect it to a power outlet.

Place the robot onto the charging dock to recharge. The robot will

turn on automatically and begin recharging.

· White: Battery level is more than 15%

· Orange: Battery level is less than 15%

10 11

This product works with the Mi Home/Xiaomi Home app. * Use the Mi Home/Xiaomi Home app to control your device and to interact with other

smart home devices.

Connecting with Mi Home/Xiaomi Home App

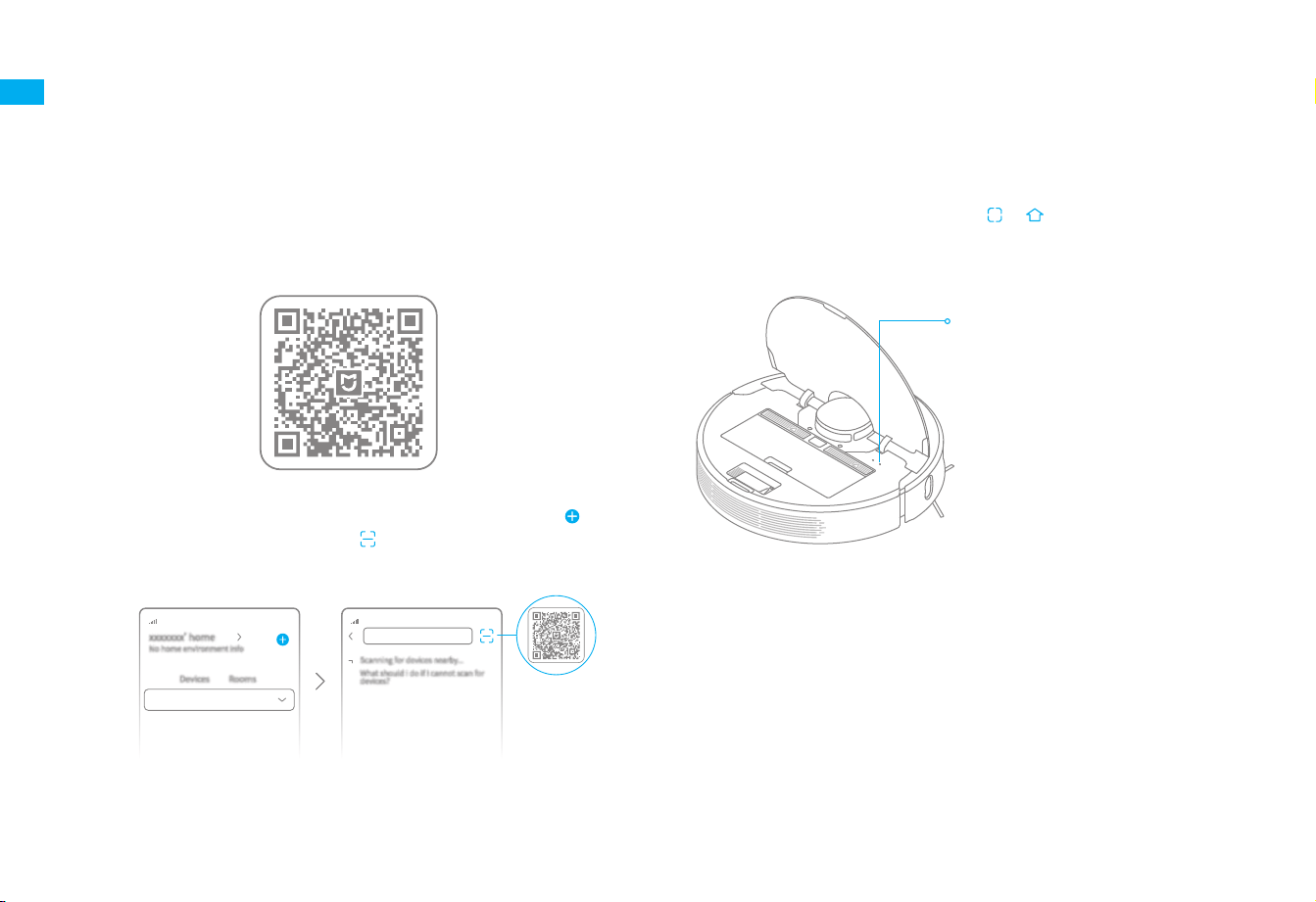

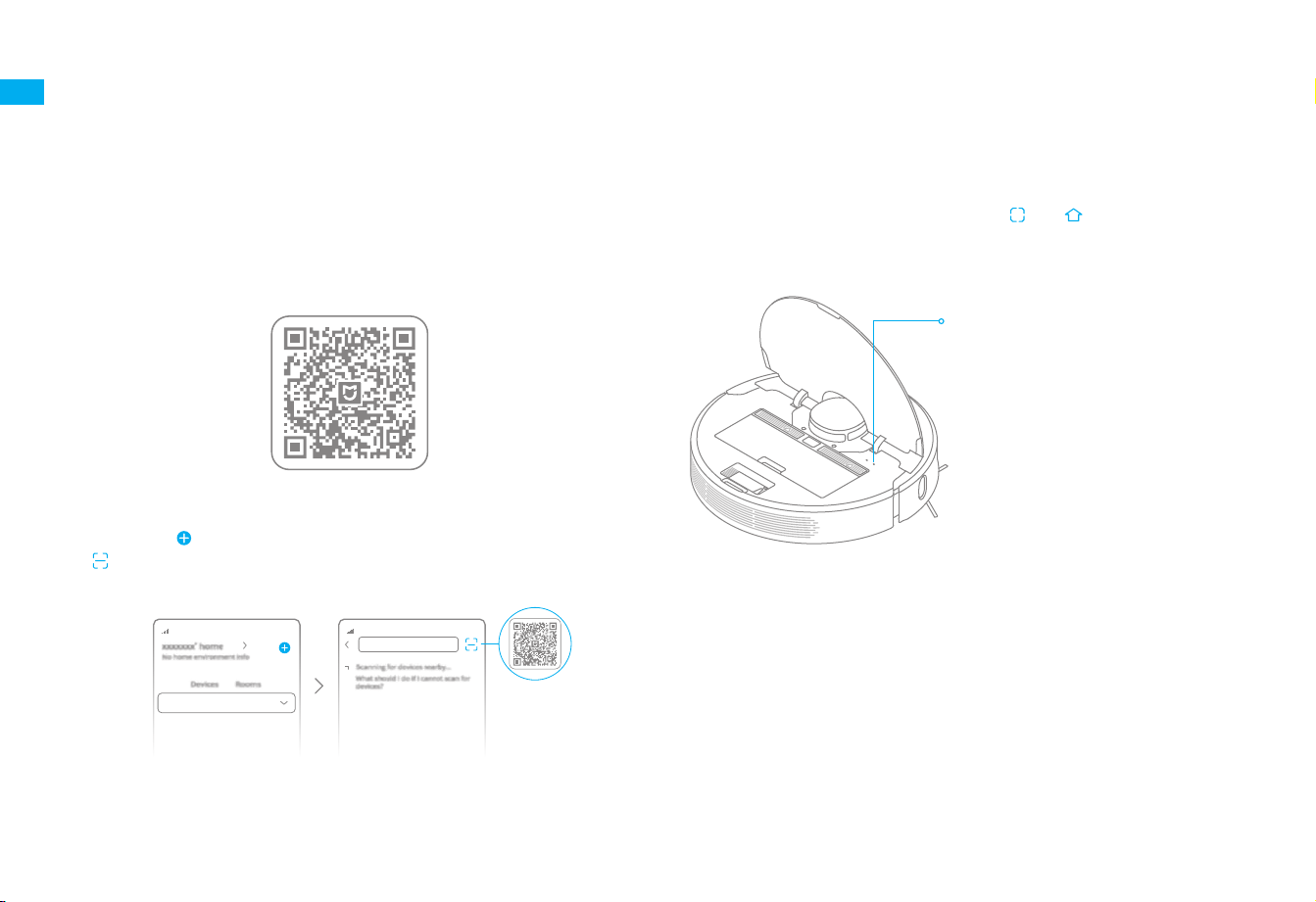

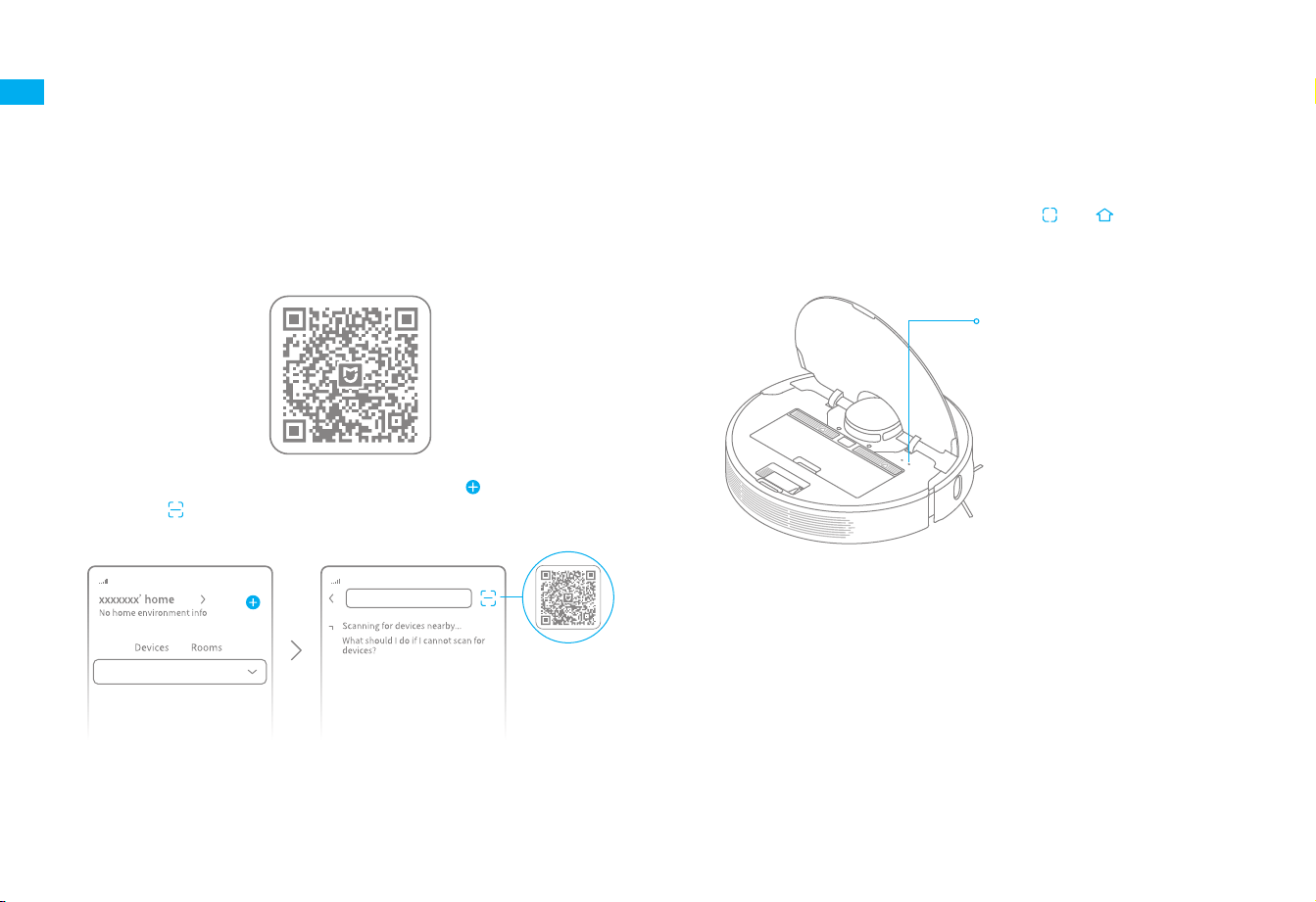

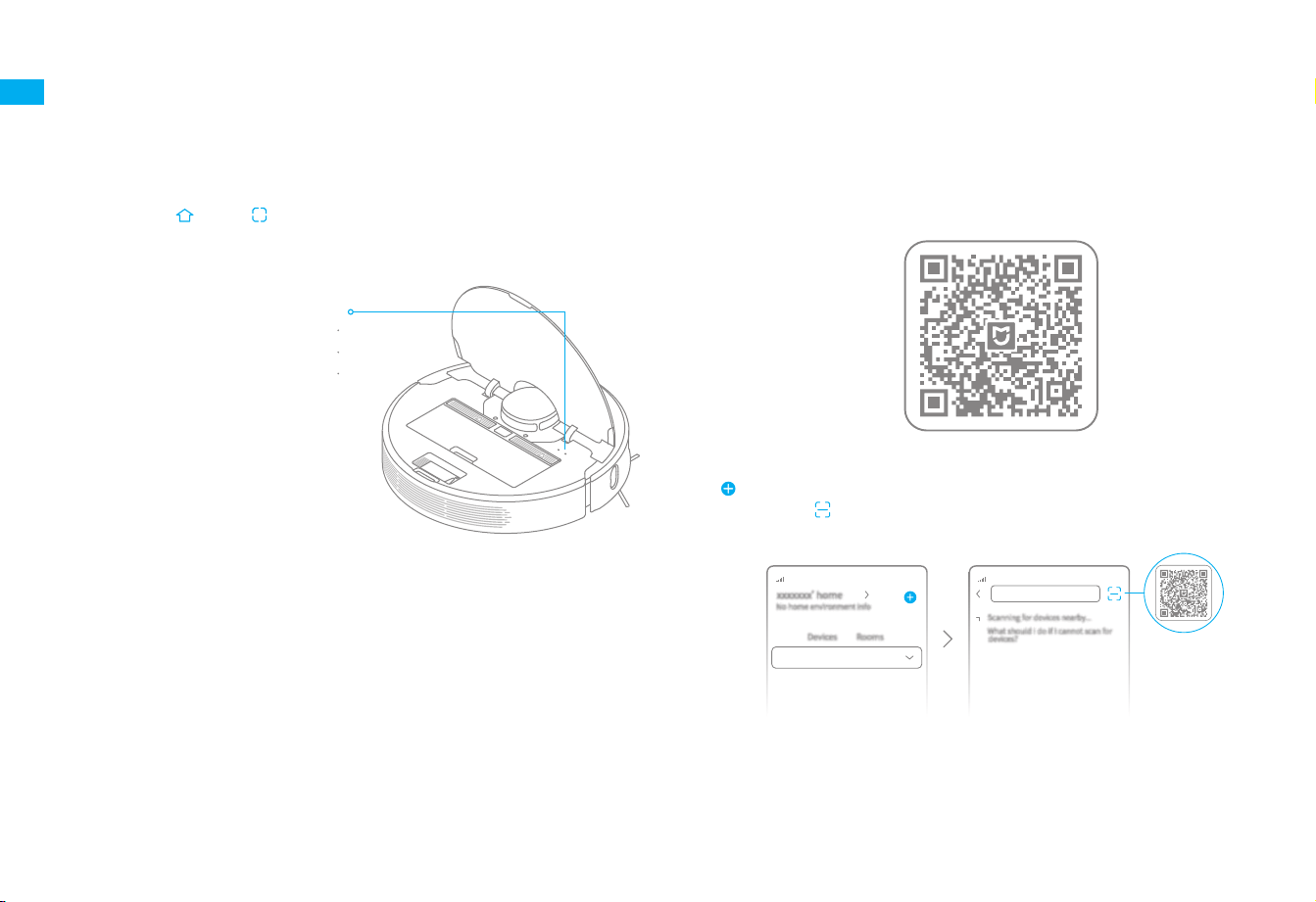

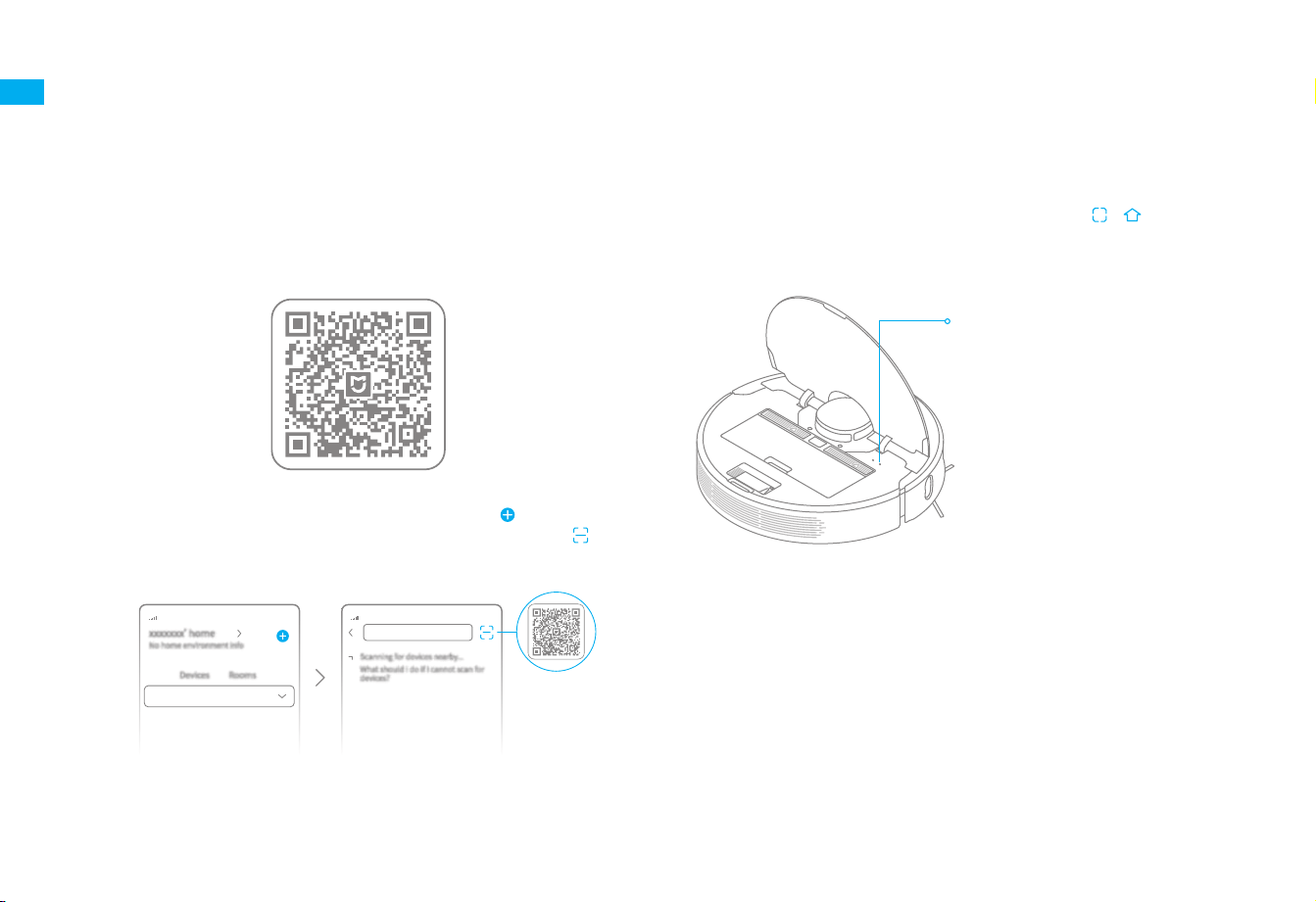

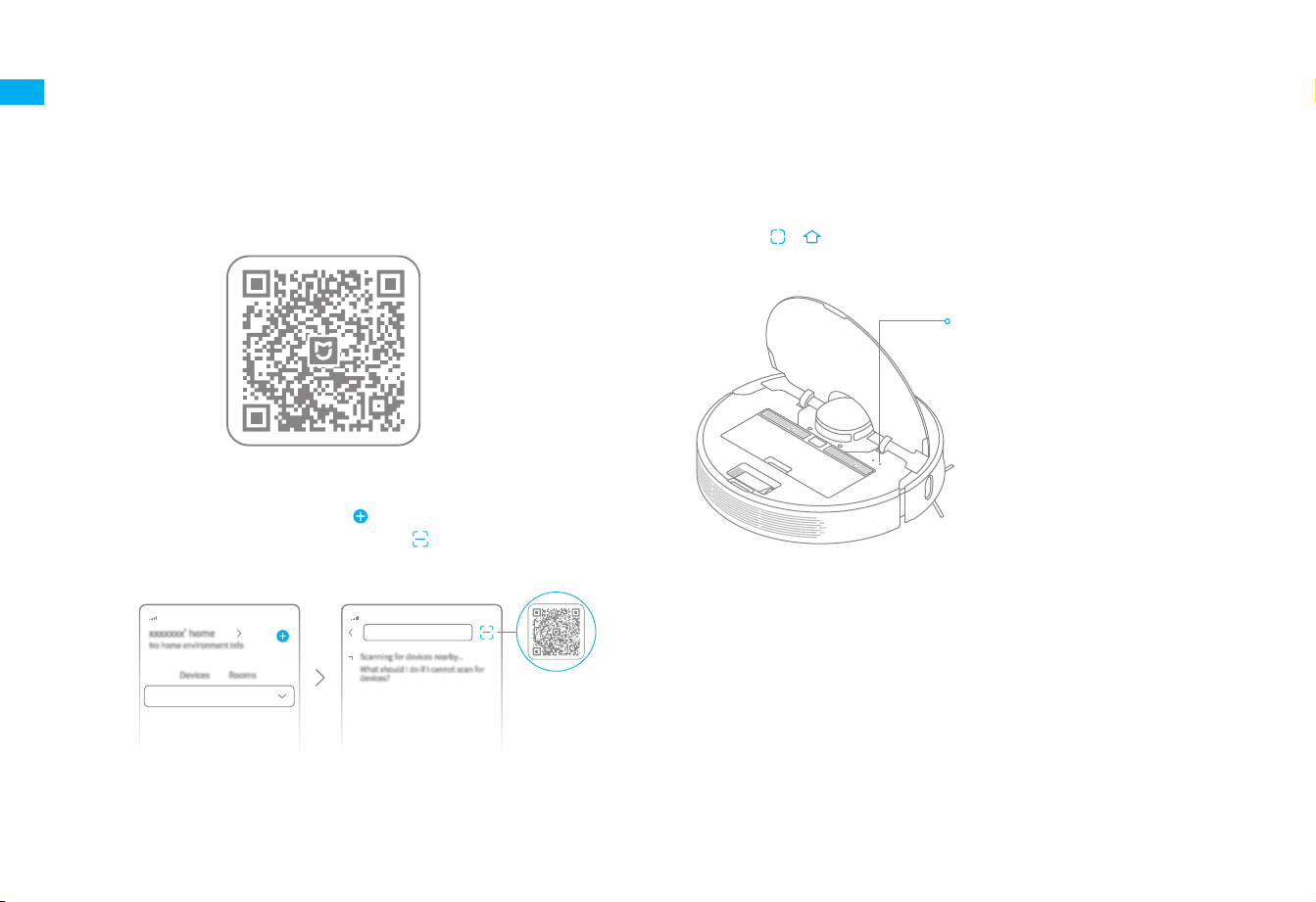

1. Download the Mi Home/Xiaomi Home App

2. Add Device

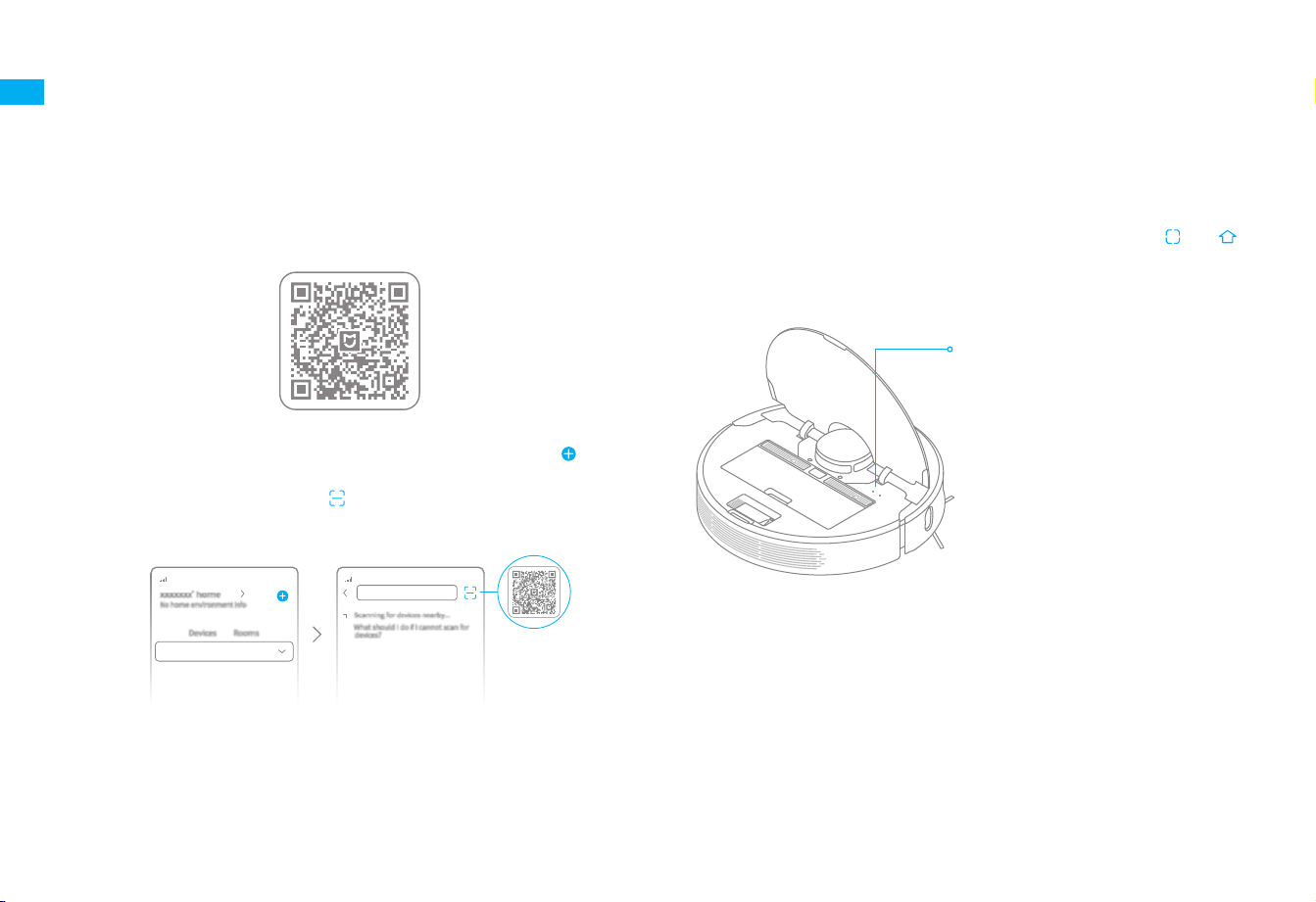

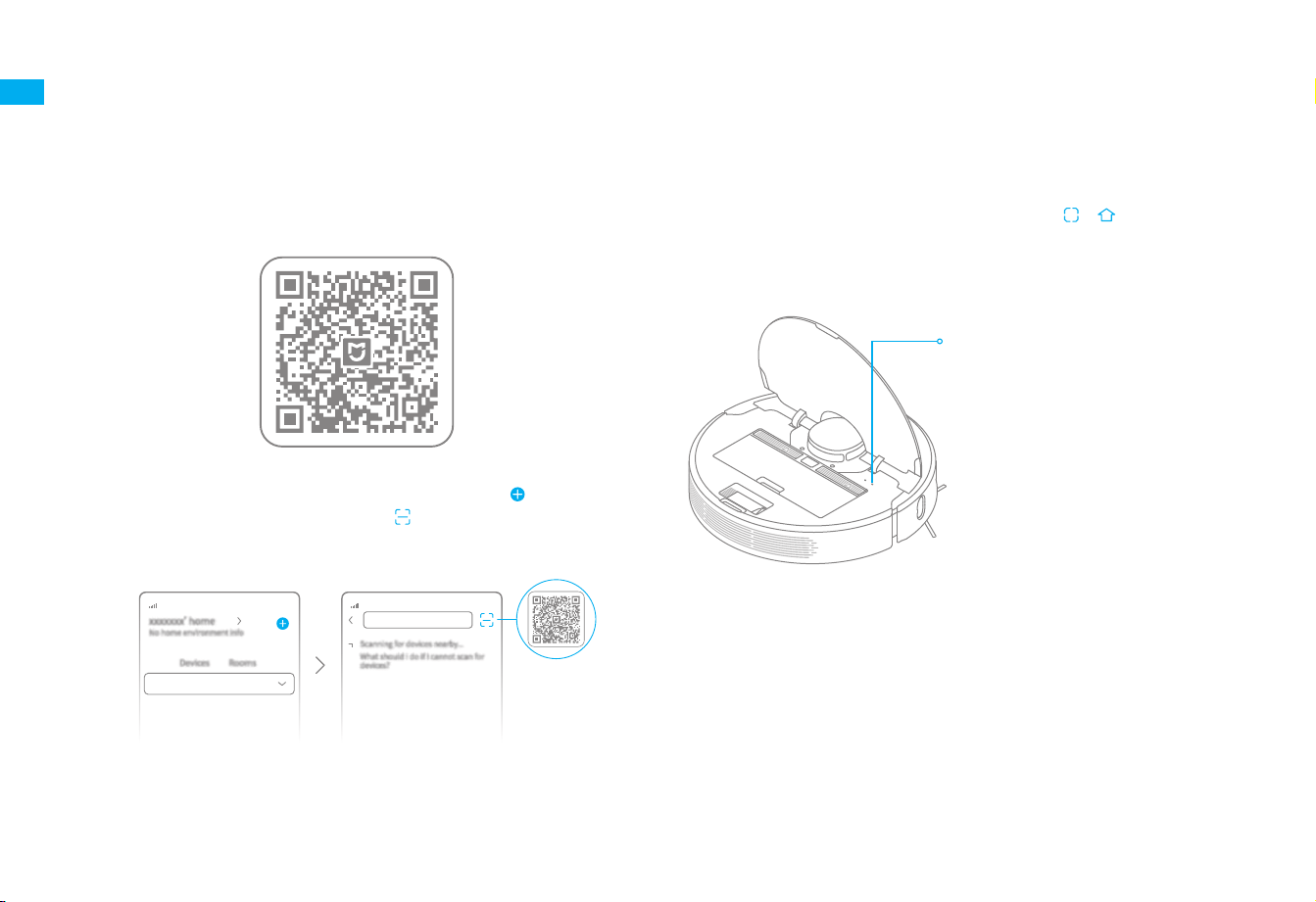

Scan the QR code to download and install the app. You will be

directed to the connection setup page if the app has been installed

already. Alternatively, search “Mi Home/Xiaomi Home” in the app

store to download and install it.

Open the Mi Home/Xiaomi Home app, and tap " " in the upper right.

Then tap " " in the top right corner, scan the QR code, add "Dreame

Bot D9 Pro", and follow the prompts to 󽗉nish the connection.

3. Reset Wi-Fi

Note: If your robot cannot connect to the app successfully, reset the Wi-Fi and

add the device again.

Simultaneously press and hold the buttons and until you hear a

voice say, “Waiting for the network con󽗉guration.” Once the Wi-Fi

indicator is blinking slowly, the Wi-Fi has been successfully reset.

Wi-Fi Indicator

· Blinking slowly: To be connected

· Blinking quickly: Connecting

· On: Wi-Fi connected

· Only 2.4GHz Wi-Fi is supported.

· The version of the app might have been updated, please follow the

instructions based on the current app version.

Note:

1. Turn On/O󽗈 3. Cleaning Mode

How to Use

Dreame Bot L10 S has four cleaning modes: Quiet, Standard, Strong

and Turbo. The default mode is Standard. You can specify the

cleaning mode in the Mi Home/Xiaomi Home app.

2. Start Cleaning

Press the button brie󽗊y to turn on the robot. Upon activation, the

robot will accurately map out a route, methodically clean each room

along the edges and walls, then 󽗉nish by cleaning in an S-shaped

pattern to ensure a thorough job.

Press and hold the button for 3 seconds to turn on the robot. Once

the power indicator turns solid white, the robot is in standby mode.

To turn o󽗈 the robot, press and hold the button for 3 seconds when

the robot is not moving. Turning o󽗈 the robot will end the current

cleaning task.

· Before a cleaning task, make sure the robot is fully charged and starts

from the charging dock. Do not move the charging dock while the robot is

cleaning.

· If the battery is too low, the robot will automatically return to the dock

to charge. It will resume un󽗉nished cleaning tasks after charging to the

necessary battery level. (The breakpoint continuous cleaning function must

be enabled on the app in advance.)

Note:

4. Pause/Sleep Mode

Pause: Press any button to pause the robot during cleaning.

Sleep Mode: The robot will automatically enter Sleep Mode after 10

minutes of inactivity, then the power and charging indicators will go

o󽗈. To wake up the robot, press any button.

· The robot will turn o󽗈 automatically if left in Sleep Mode for more than 12 hours.

· When the robot is paused, placing it onto the charging dock will end the

current cleaning task.

Note:

5. Do Not Disturb Mode

Do Not Disturb Mode prevents the robot from automatically starting

cleaning tasks, and the power indicator remains o󽗈. You can enable

Do Not Disturb Mode or modify its hours in the app. (The mode is on

by default from 22:00 to 08:00.)

· Scheduled cleaning tasks will still be carried out during the DND period.

· The robot will continue cleaning after the DND period ends.

Note:

10 11

This product works with the Mi Home/Xiaomi Home app. * Use the Mi Home/Xiaomi Home app to control your device and to interact with other

smart home devices.

Connecting with Mi Home/Xiaomi Home App

1. Download the Mi Home/Xiaomi Home App

2. Add Device

Scan the QR code to download and install the app. You will be

directed to the connection setup page if the app has been installed

already. Alternatively, search “Mi Home/Xiaomi Home” in the app

store to download and install it.

Open the Mi Home/Xiaomi Home app, and tap " " in the upper right.

Then tap " " in the top right corner, scan the QR code, add "Dreame

Bot D9 Pro", and follow the prompts to 󽗉nish the connection.

3. Reset Wi-Fi

Note: If your robot cannot connect to the app successfully, reset the Wi-Fi and

add the device again.

Simultaneously press and hold the buttons and until you hear a

voice say, “Waiting for the network con󽗉guration.” Once the Wi-Fi

indicator is blinking slowly, the Wi-Fi has been successfully reset.

Wi-Fi Indicator

· Blinking slowly: To be connected

· Blinking quickly: Connecting

· On: Wi-Fi connected

· Only 2.4GHz Wi-Fi is supported.

· The version of the app might have been updated, please follow the

instructions based on the current app version.

Note:

1. Turn On/O󽗈 3. Cleaning Mode

How to Use

Dreame Bot L10 S has four cleaning modes: Quiet, Standard, Strong

and Turbo. The default mode is Standard. You can specify the

cleaning mode in the Mi Home/Xiaomi Home app.

2. Start Cleaning

Press the button brie󽗊y to turn on the robot. Upon activation, the

robot will accurately map out a route, methodically clean each room

along the edges and walls, then 󽗉nish by cleaning in an S-shaped

pattern to ensure a thorough job.

Press and hold the button for 3 seconds to turn on the robot. Once

the power indicator turns solid white, the robot is in standby mode.

To turn o󽗈 the robot, press and hold the button for 3 seconds when

the robot is not moving. Turning o󽗈 the robot will end the current

cleaning task.

· Before a cleaning task, make sure the robot is fully charged and starts

from the charging dock. Do not move the charging dock while the robot is

cleaning.

· If the battery is too low, the robot will automatically return to the dock

to charge. It will resume un󽗉nished cleaning tasks after charging to the

necessary battery level. (The breakpoint continuous cleaning function must

be enabled on the app in advance.)

Note:

4. Pause/Sleep Mode

Pause: Press any button to pause the robot during cleaning.

Sleep Mode: The robot will automatically enter Sleep Mode after 10

minutes of inactivity, then the power and charging indicators will go

o󽗈. To wake up the robot, press any button.

· The robot will turn o󽗈 automatically if left in Sleep Mode for more than 12 hours.

· When the robot is paused, placing it onto the charging dock will end the

current cleaning task.

Note:

5. Do Not Disturb Mode

Do Not Disturb Mode prevents the robot from automatically starting

cleaning tasks, and the power indicator remains o󽗈. You can enable

Do Not Disturb Mode or modify its hours in the app. (The mode is on

by default from 22:00 to 08:00.)

· Scheduled cleaning tasks will still be carried out during the DND period.

· The robot will continue cleaning after the DND period ends.

Note:

12 13

6. Spot Clean Mode 7. Scheduled Cleaning

How to Use

You can schedule cleaning time in the Mi Home/Xiaomi Home app.

The robot will automatically start cleaning at the designated time

and then return to the charging dock to recharge when the cleaning

is done.

Note: When the robot is paused, placing it onto the charging dock will end the

current cleaning task.

When the robot is paused or in Standby Mode, press and hold the

button for 3 seconds to start Spot Clean Mode. In this mode, it will

clean a square-shaped area of 1.5 ×1.5 meters directly around the

robot. When the spot cleaning is done, the robot will automatically

return to its original location and power o󽗈.

8. Additional App Functions

Follow the instructions on the app interface to use more functions.

The version of the app might have been updated; please follow the

instructions based on the current app version.

1.5 meter

9. Use the Mopping Function

How to Use

It is recommended that all 󽗊oors are vacuumed at least three times

before the 󽗉rst mopping session to achieve a better cleaning e󽗈ect.

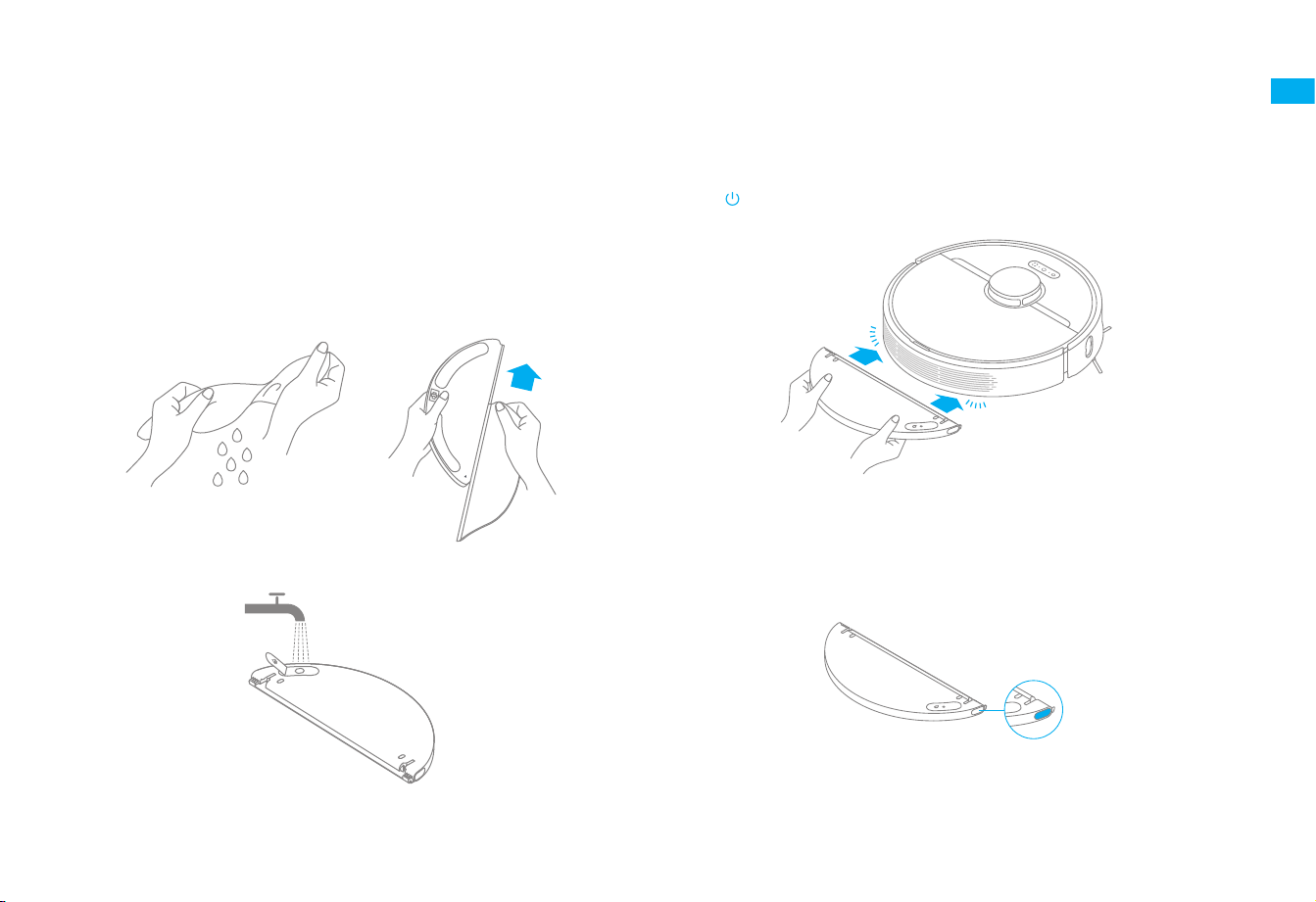

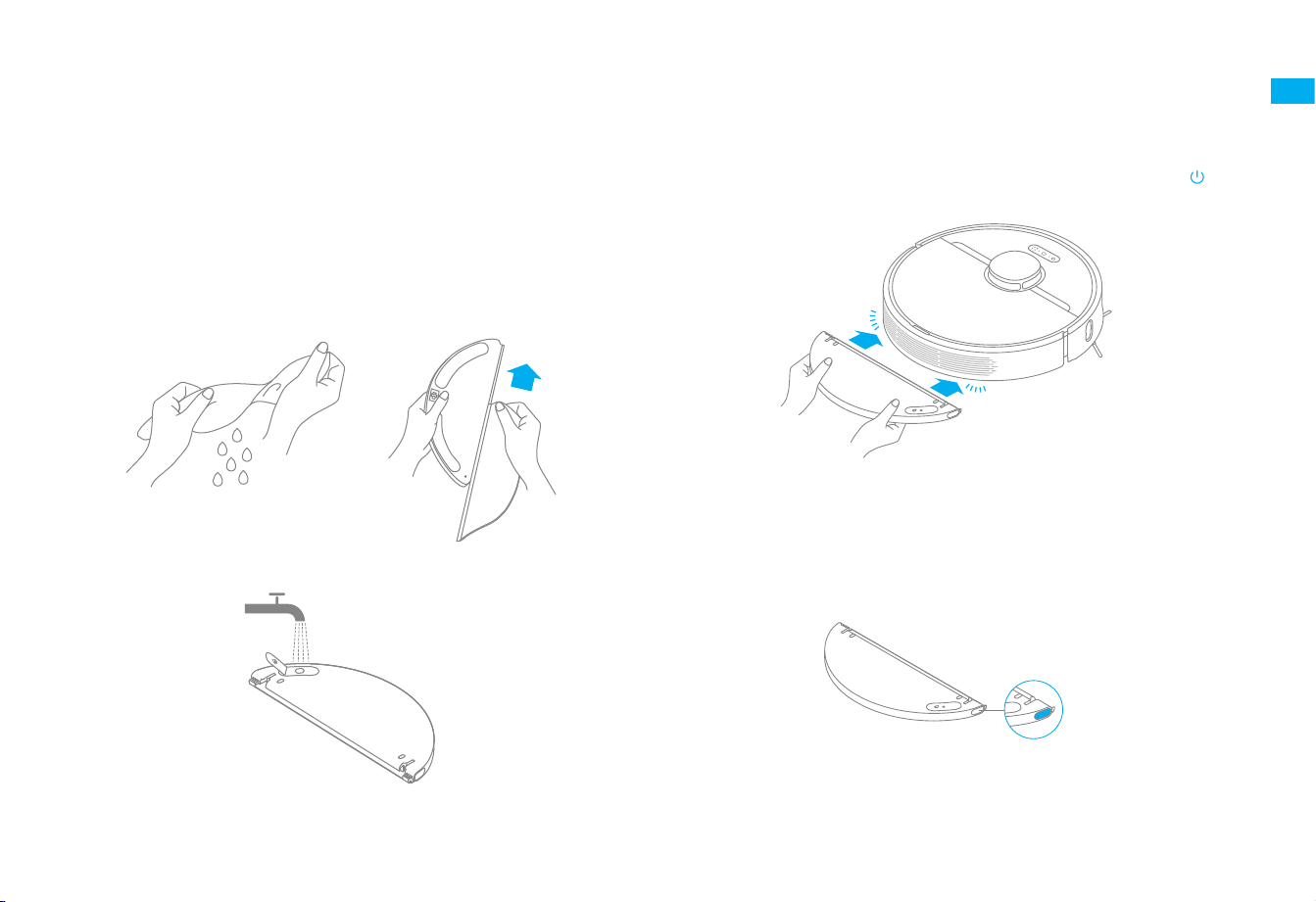

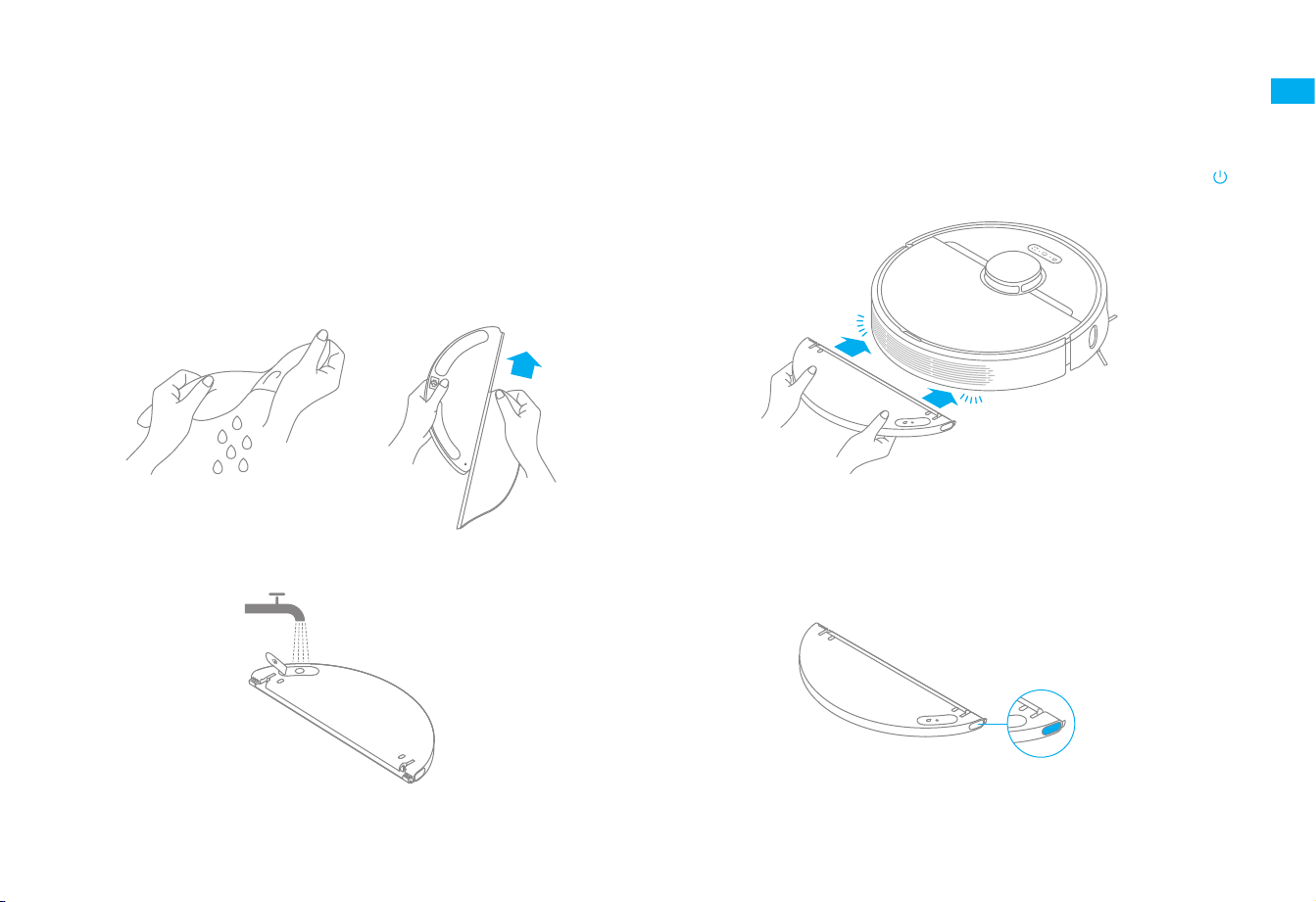

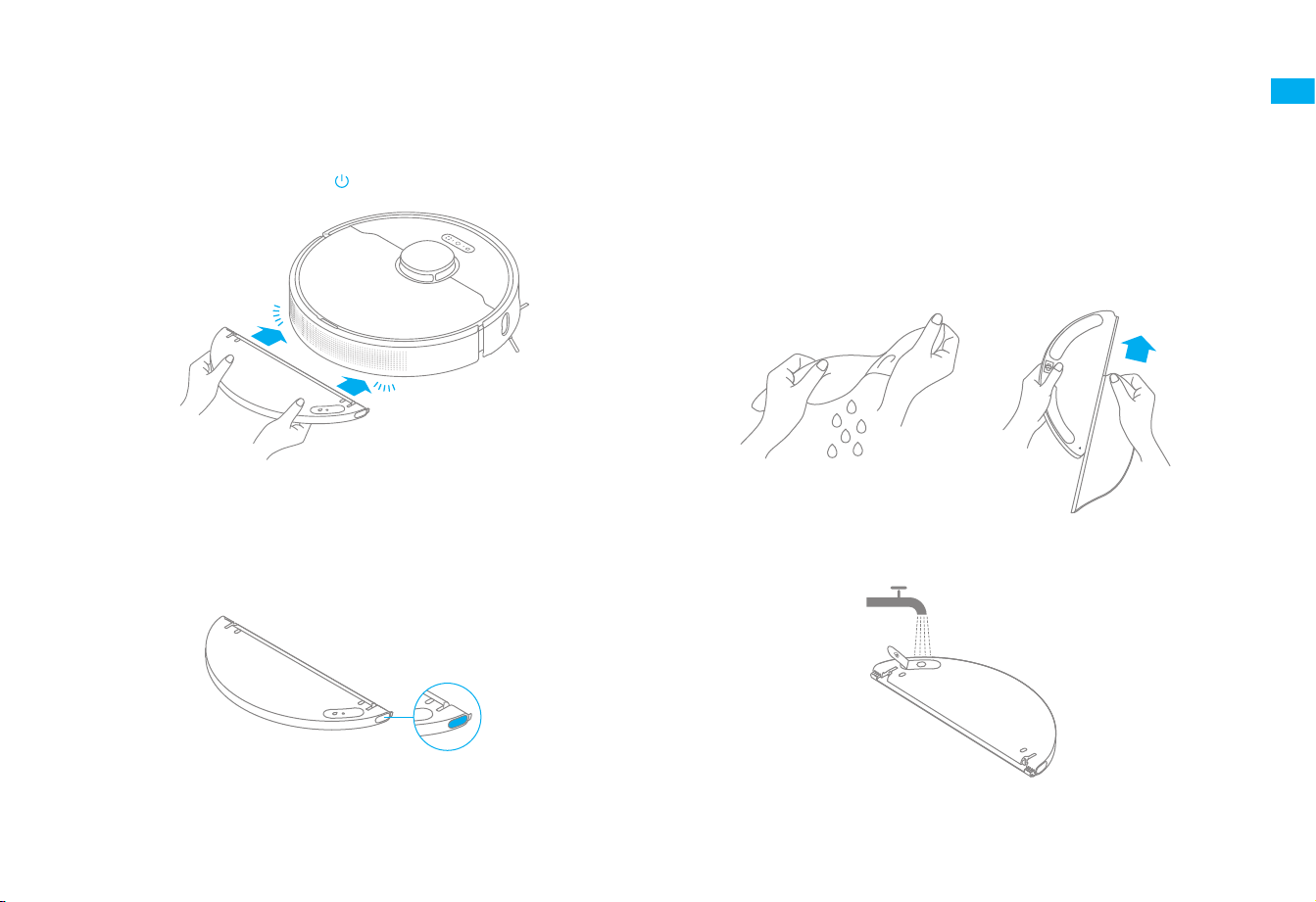

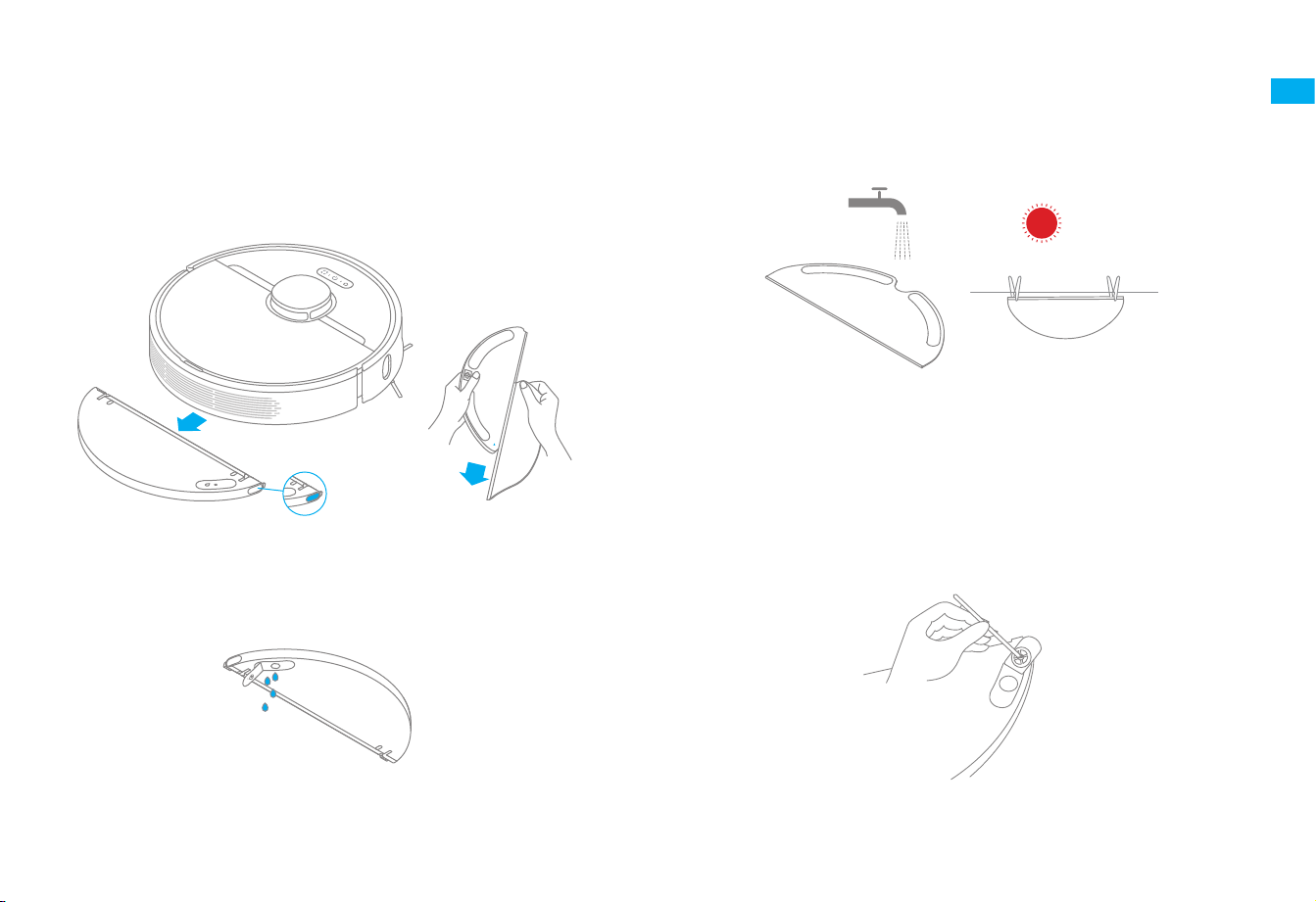

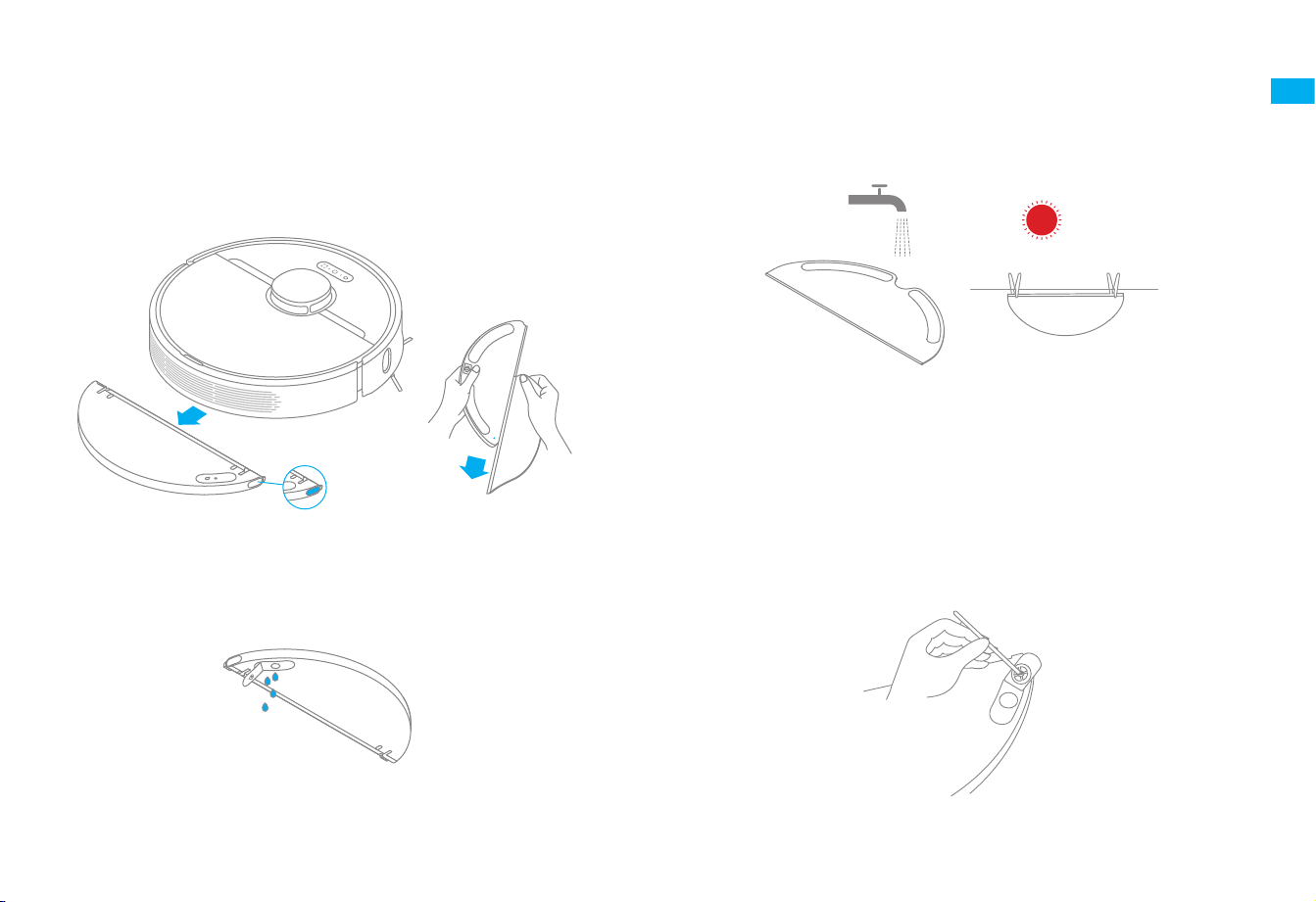

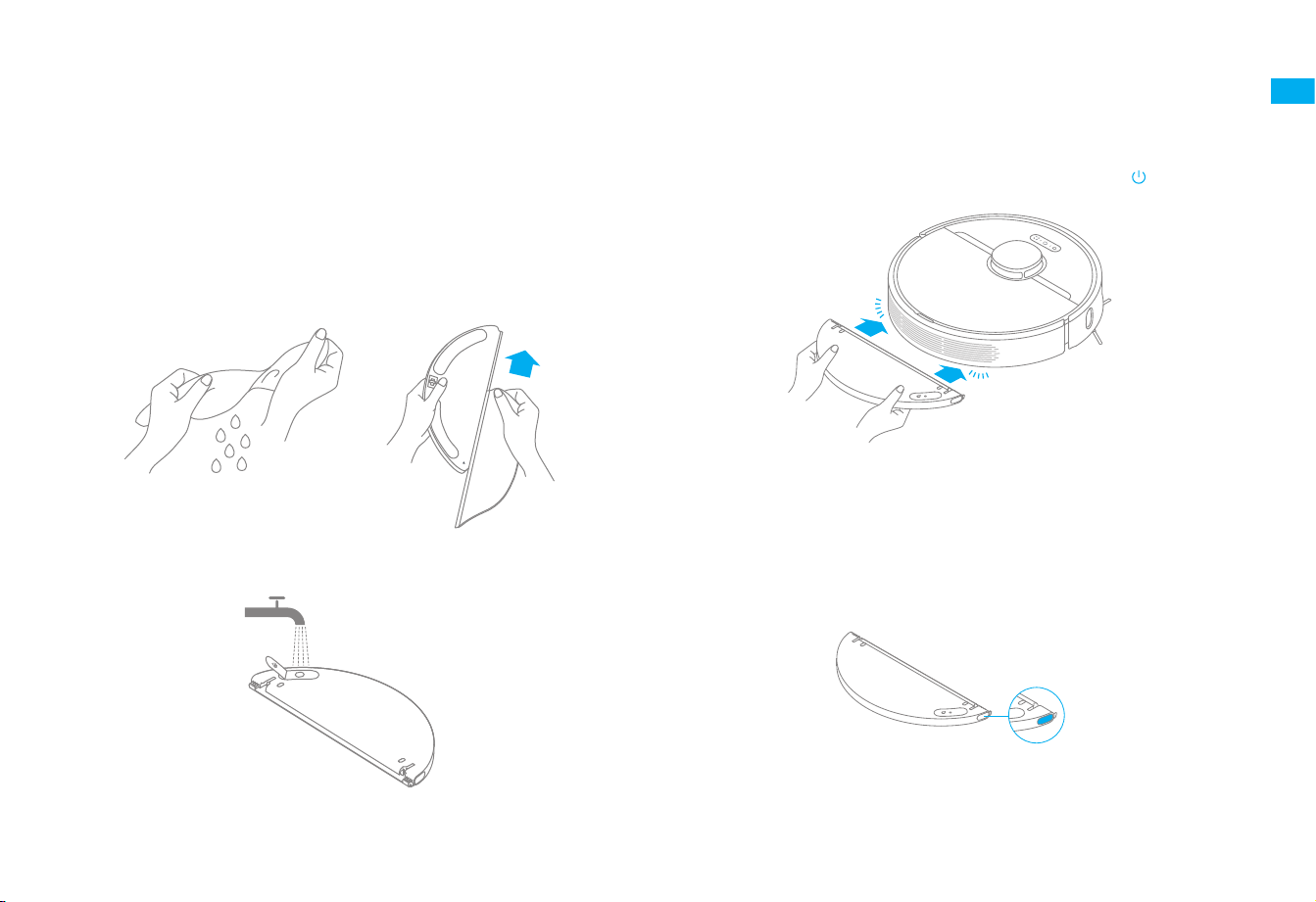

1) Dampen the mop pad and wring out excess water. Slide the pad all

the way into the slot of the water tank until it is securely in place.

2) Open the water tank lid, 󽗉ll the tank with water, then securely close

the lid.

4) Press the two side clips inwards and slide the water tank backwards

to separate it from the robot.

· It is not recommended to use the mopping function on carpets.

· Use the app to adjust the water 󽗊ow as required.

Note: Do not use detergent or disinfectant.

Note: When the robot is charging or not in use, remove the mopping module,

pour out all the remaining water in the tank, and clean the mop pad to prevent

mildew or odor.

3) Align the mopping module as indicated by the arrow, then slide it

into the back of the robot until it clicks into place. Press the button

or use the Mi Home/Xiaomi Home app to start cleaning.

Click

Note:

12 13

6. Spot Clean Mode 7. Scheduled Cleaning

How to Use

You can schedule cleaning time in the Mi Home/Xiaomi Home app.

The robot will automatically start cleaning at the designated time

and then return to the charging dock to recharge when the cleaning

is done.

Note: When the robot is paused, placing it onto the charging dock will end the

current cleaning task.

When the robot is paused or in Standby Mode, press and hold the

button for 3 seconds to start Spot Clean Mode. In this mode, it will

clean a square-shaped area of 1.5 ×1.5 meters directly around the

robot. When the spot cleaning is done, the robot will automatically

return to its original location and power o󽗈.

8. Additional App Functions

Follow the instructions on the app interface to use more functions.

The version of the app might have been updated; please follow the

instructions based on the current app version.

1.5 meter

9. Use the Mopping Function

How to Use

It is recommended that all 󽗊oors are vacuumed at least three times

before the 󽗉rst mopping session to achieve a better cleaning e󽗈ect.

1) Dampen the mop pad and wring out excess water. Slide the pad all

the way into the slot of the water tank until it is securely in place.

2) Open the water tank lid, 󽗉ll the tank with water, then securely close

the lid.

4) Press the two side clips inwards and slide the water tank backwards

to separate it from the robot.

· It is not recommended to use the mopping function on carpets.

· Use the app to adjust the water 󽗊ow as required.

Note: Do not use detergent or disinfectant.

Note: When the robot is charging or not in use, remove the mopping module,

pour out all the remaining water in the tank, and clean the mop pad to prevent

mildew or odor.

3) Align the mopping module as indicated by the arrow, then slide it

into the back of the robot until it clicks into place. Press the button

or use the Mi Home/Xiaomi Home app to start cleaning.

Click

Note:

14 15

Clean the Dust Bin and Filter

Routine Maintenance

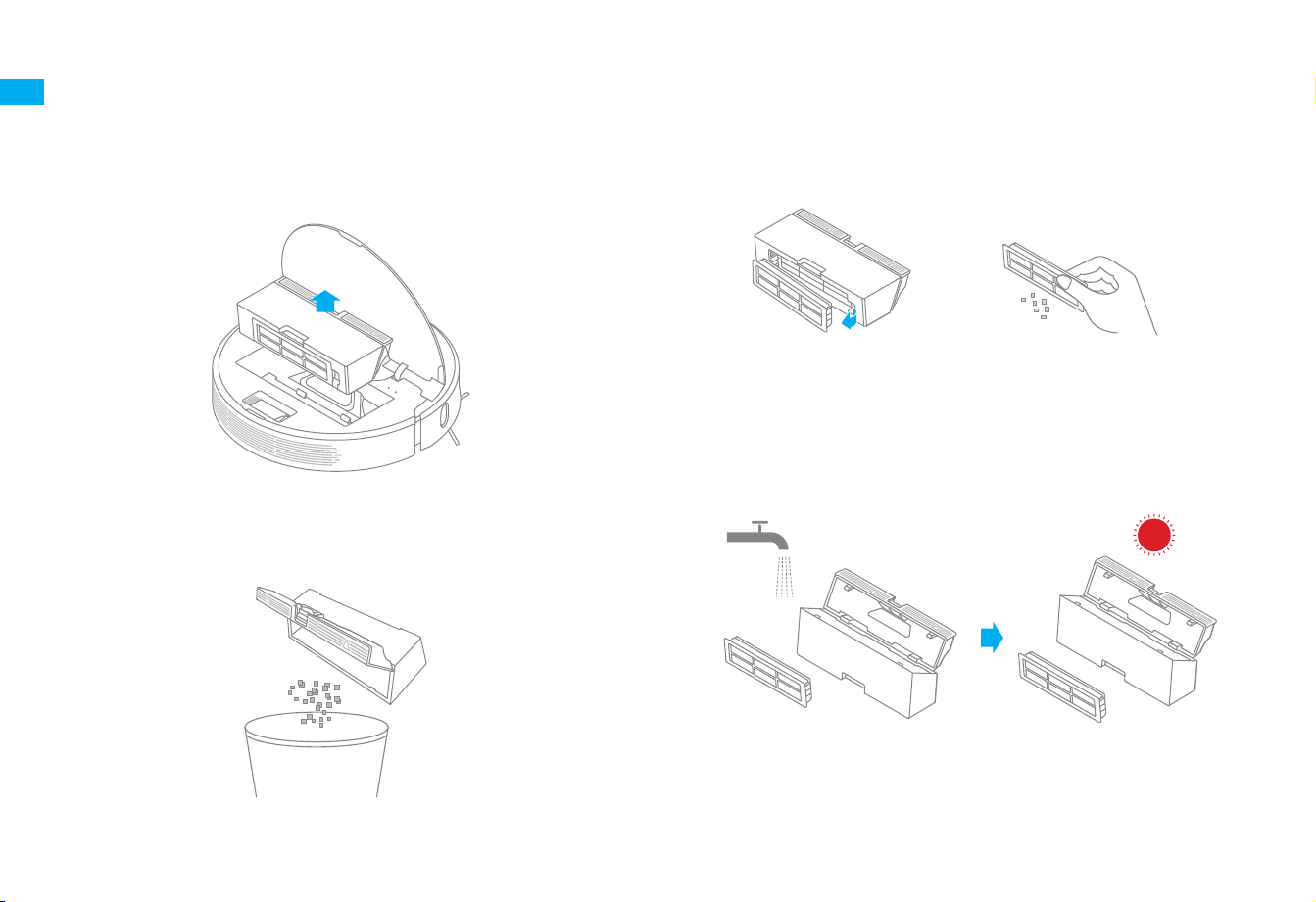

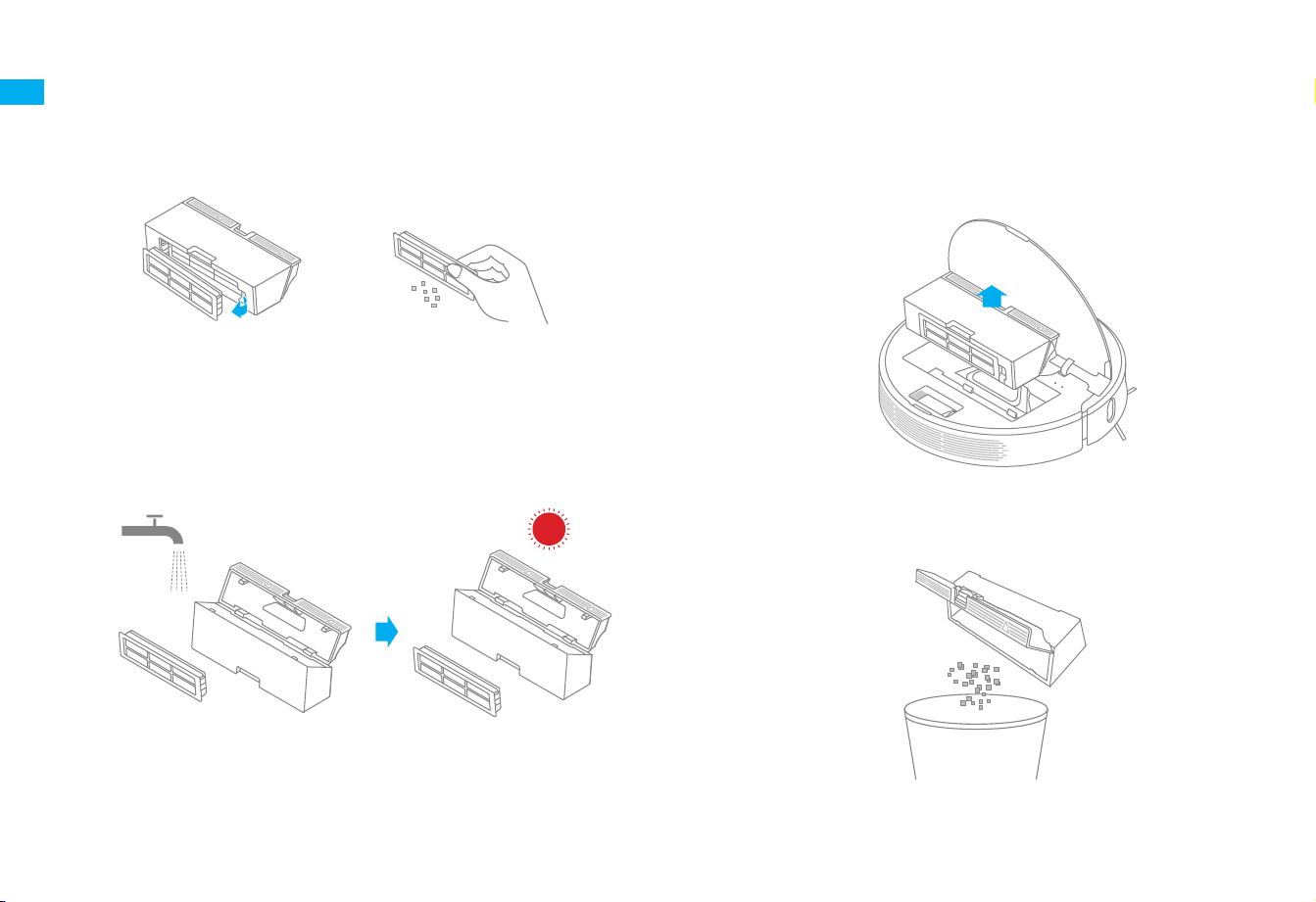

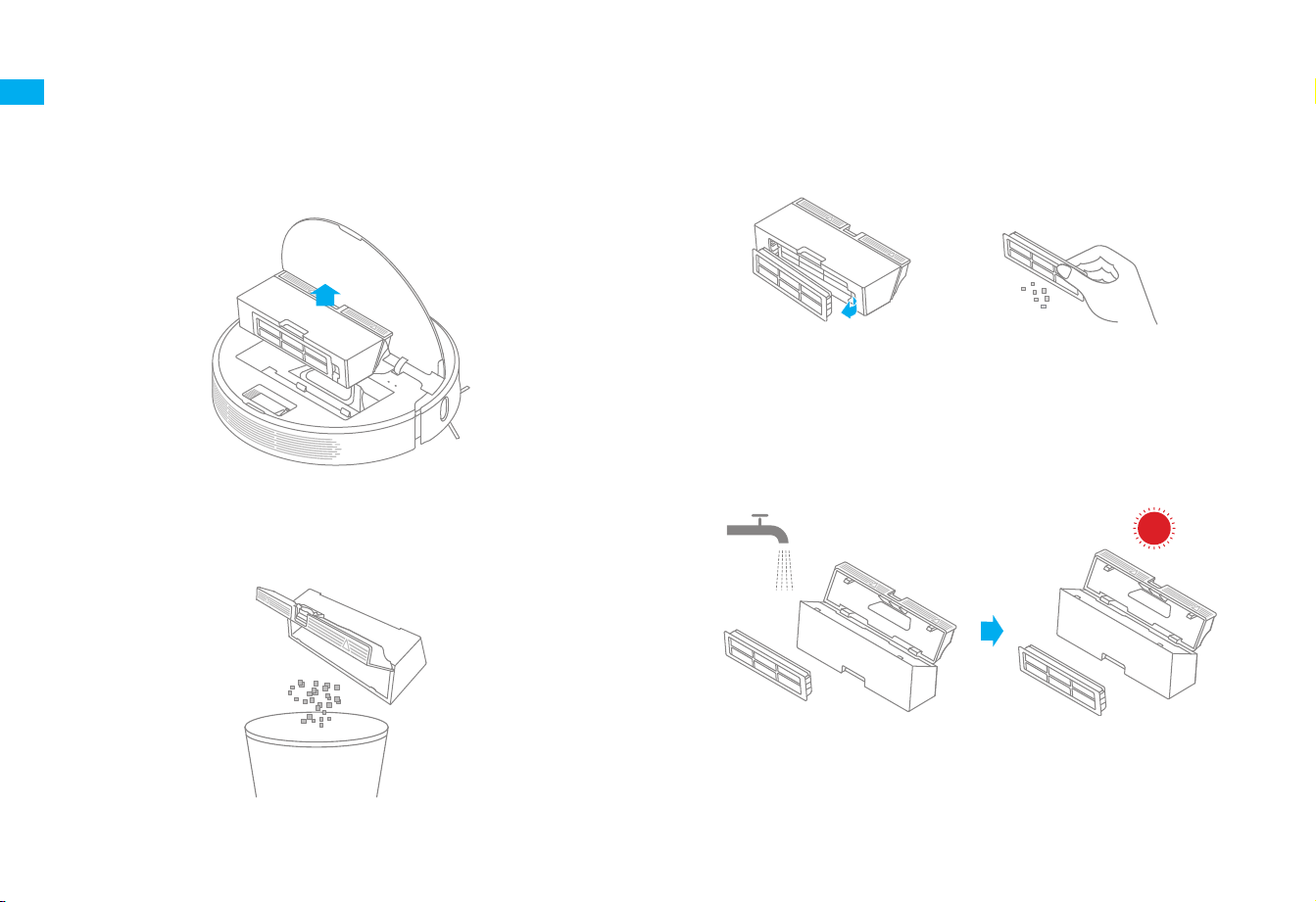

1. Open the robot cover, then press the dust bin clip to remove the

dust bin.

2. Open the dust bin cover as indicated by the diagram.

3. Remove the 󽗉lter and tap its basket gently.

4. Rinse the dust bin and 󽗉lter with water until they are clean.

Thoroughly dry the 󽗉lter before re-installing.

Note: Do not attempt to clean the 󽗉lter with a brush or 󽗉nger.

· Only clean water should be used to clean the 󽗉lter. Do not use detergent.

· Keep it in a well-ventilated or cool place.

Note:

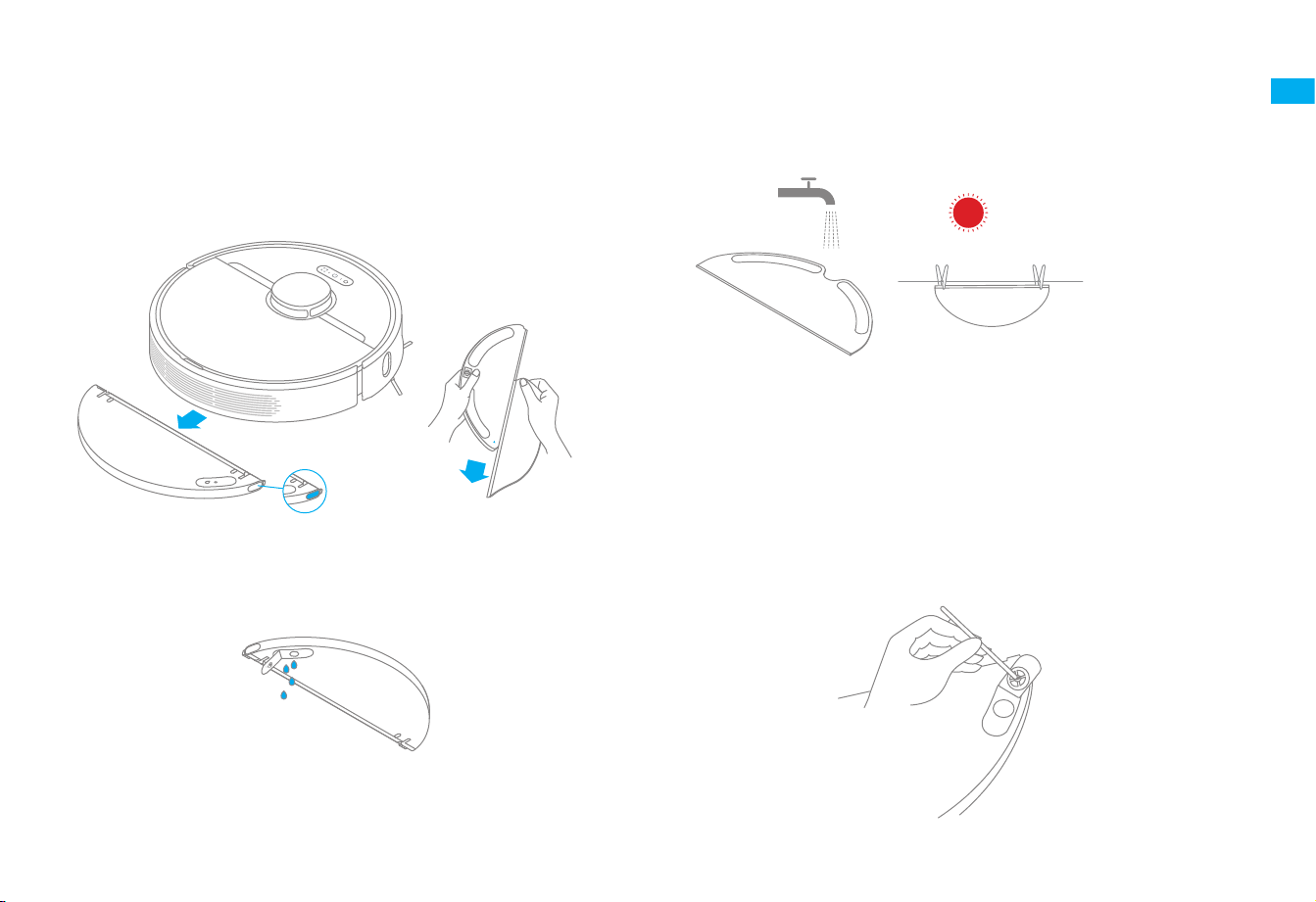

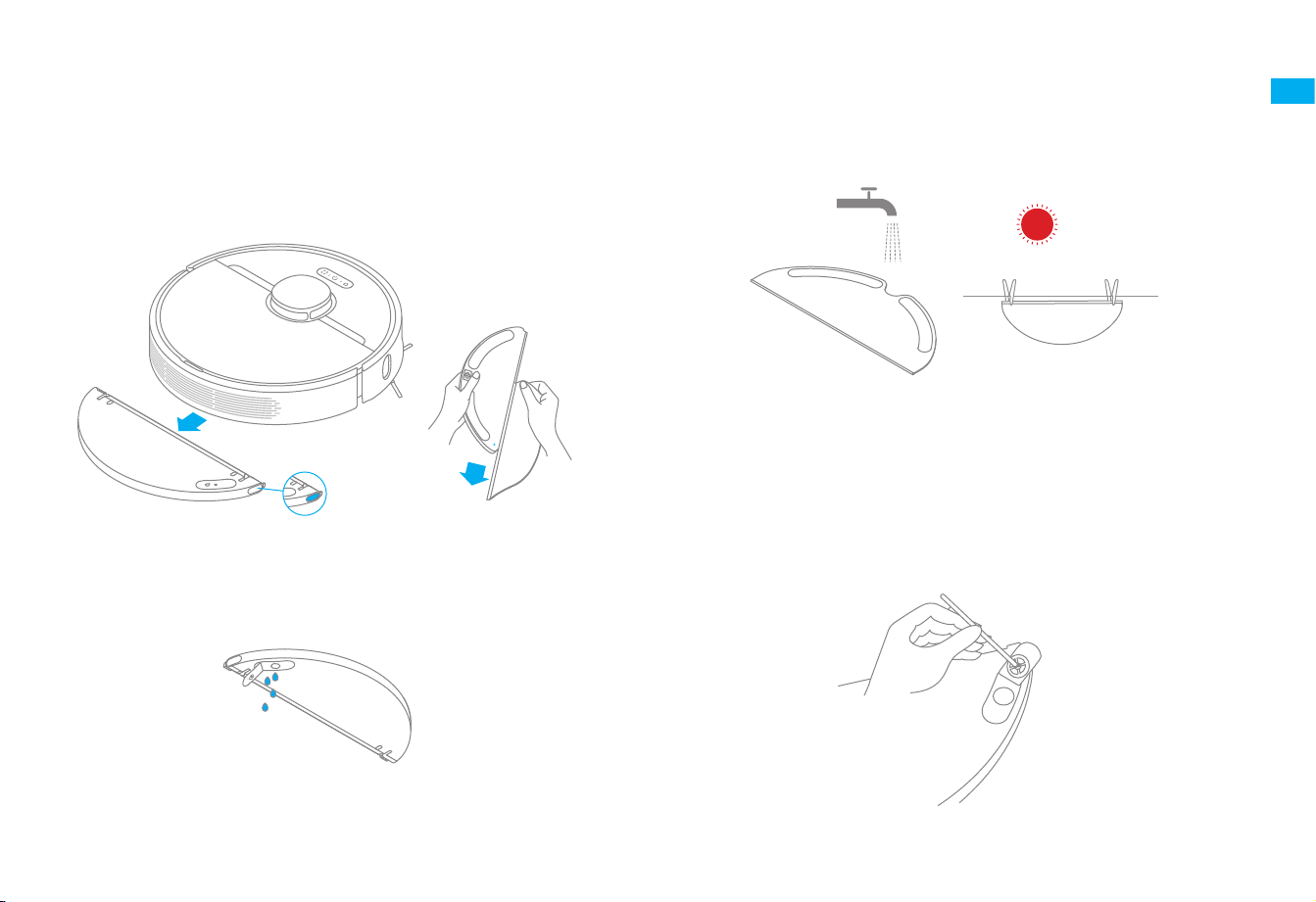

Clean the Mopping Module

Routine Maintenance

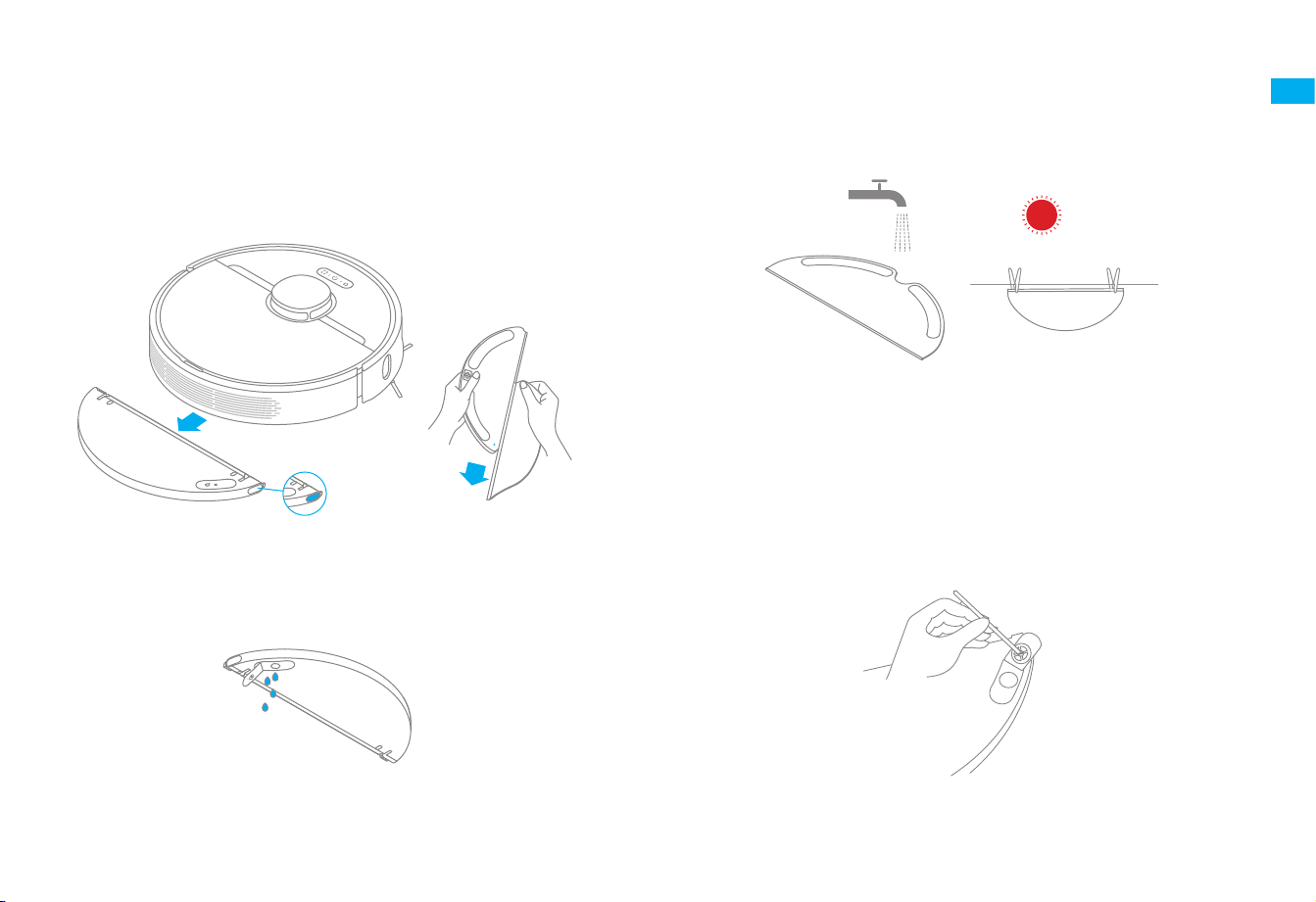

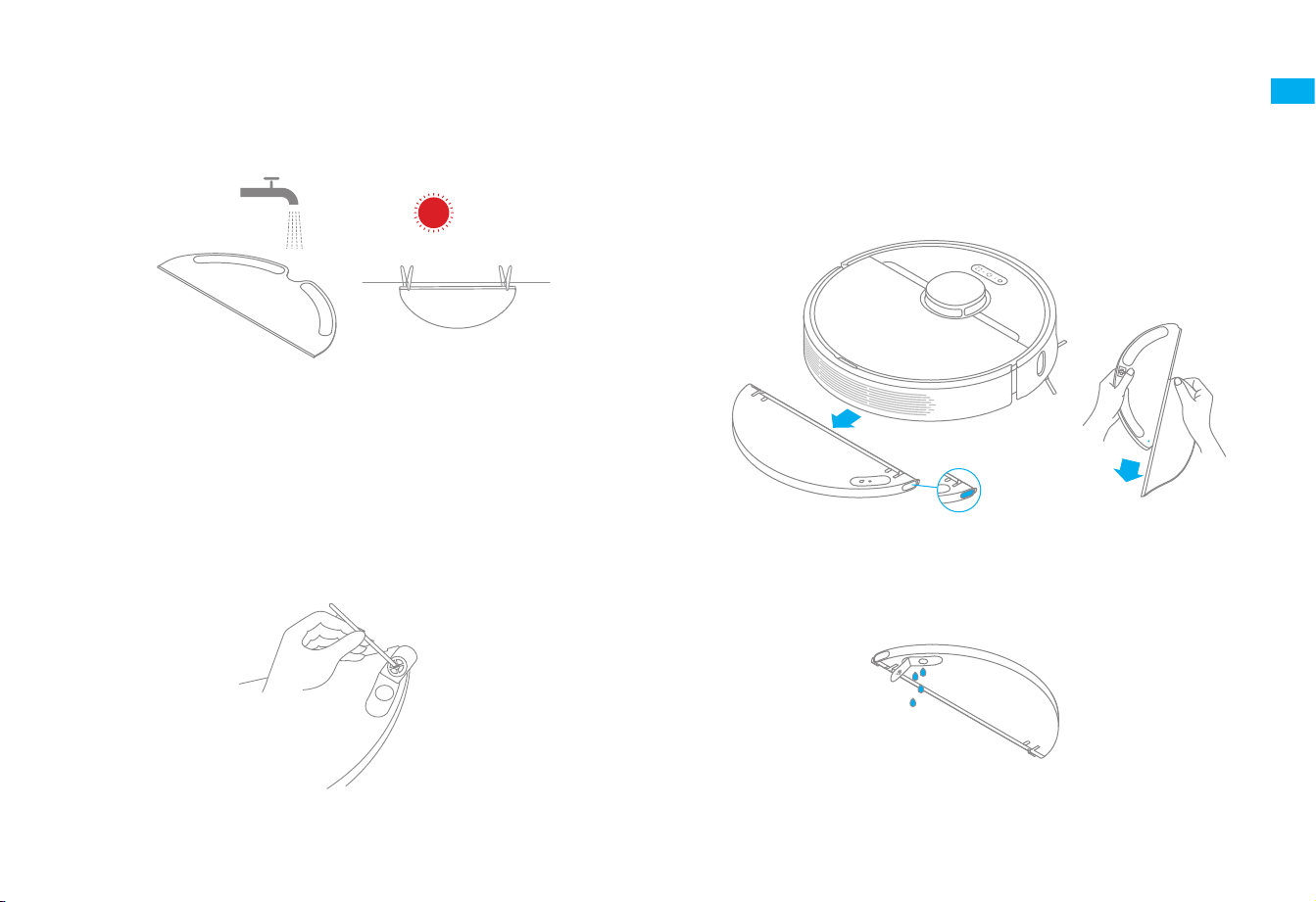

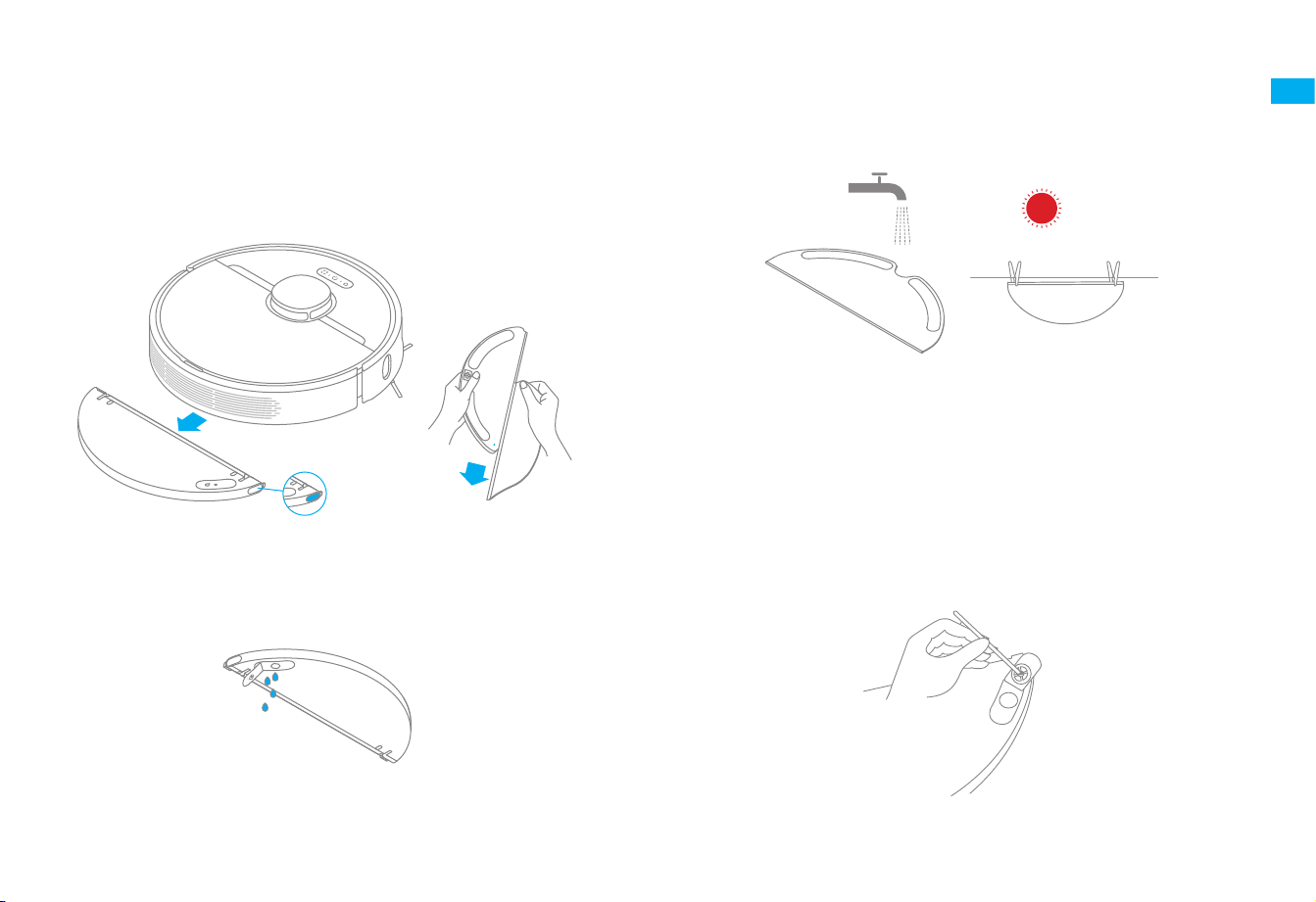

1. Press the two release clips on the side of water tank, remove the

mopping module and pull the mop pad o󽗈 the mopping module.

3. Clean the mop pad with water only and leave to air dry before re-

installing.

2. Pour out the water in the tank. Clean with water only and leave to

air dry before re-installing.

4. If slow water 󽗊ow occurs, or the volume is not well-distributed,

please clean the air hole in the cover of the water tank.

Note: Do not expose the tank to the sun directly.

· Remove the pad from the mopping module before cleaning it, and make sure

dirty water does not 󽗊ow back into the water outlet to avoid clogging.

· For optimal performance, it is recommended to replace the mop pad every 3

to 6 months.

Note:

14 15

Clean the Dust Bin and Filter

Routine Maintenance

1. Open the robot cover, then press the dust bin clip to remove the

dust bin.

2. Open the dust bin cover as indicated by the diagram.

3. Remove the 󽗉lter and tap its basket gently.

4. Rinse the dust bin and 󽗉lter with water until they are clean.

Thoroughly dry the 󽗉lter before re-installing.

Note: Do not attempt to clean the 󽗉lter with a brush or 󽗉nger.

· Only clean water should be used to clean the 󽗉lter. Do not use detergent.

· Keep it in a well-ventilated or cool place.

Note:

Clean the Mopping Module

Routine Maintenance

1. Press the two release clips on the side of water tank, remove the

mopping module and pull the mop pad o󽗈 the mopping module.

3. Clean the mop pad with water only and leave to air dry before re-

installing.

2. Pour out the water in the tank. Clean with water only and leave to

air dry before re-installing.

4. If slow water 󽗊ow occurs, or the volume is not well-distributed,

please clean the air hole in the cover of the water tank.

Note: Do not expose the tank to the sun directly.

· Remove the pad from the mopping module before cleaning it, and make sure

dirty water does not 󽗊ow back into the water outlet to avoid clogging.

· For optimal performance, it is recommended to replace the mop pad every 3

to 6 months.

Note:

16 17

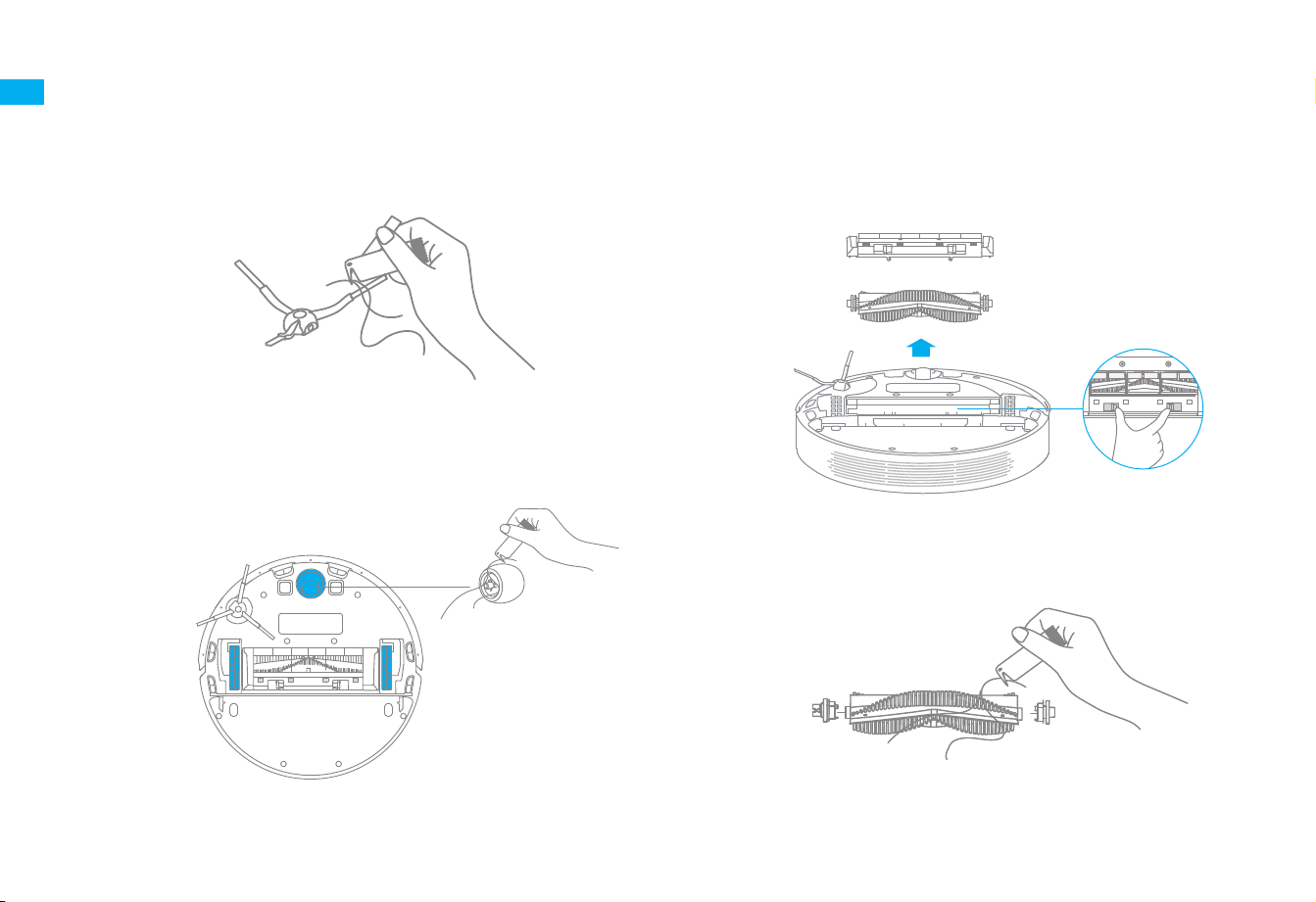

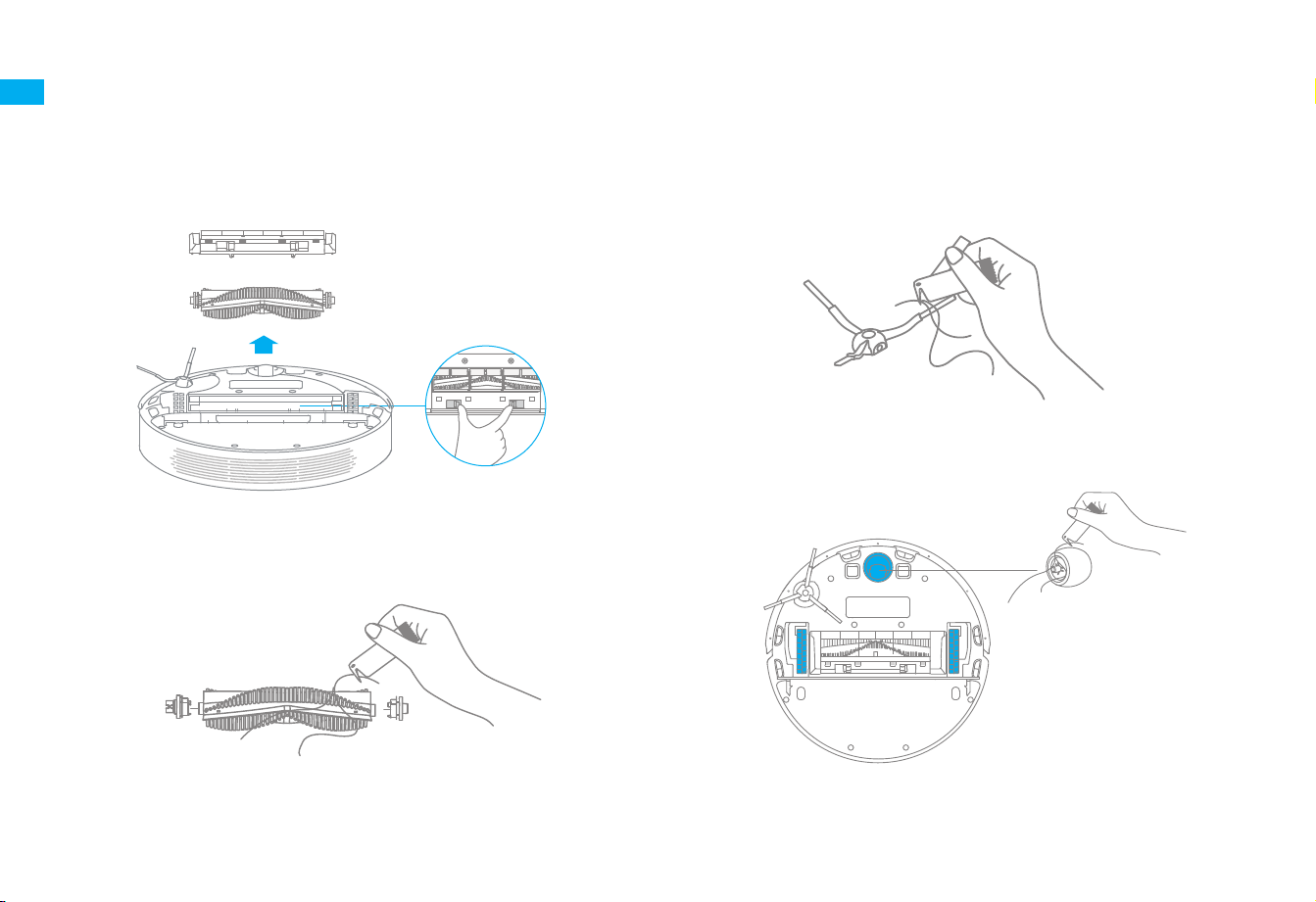

Clean the Main Brush Clean the Side Brush

Clean the Main Wheel/Omnidirectional Wheel

Routine Maintenance

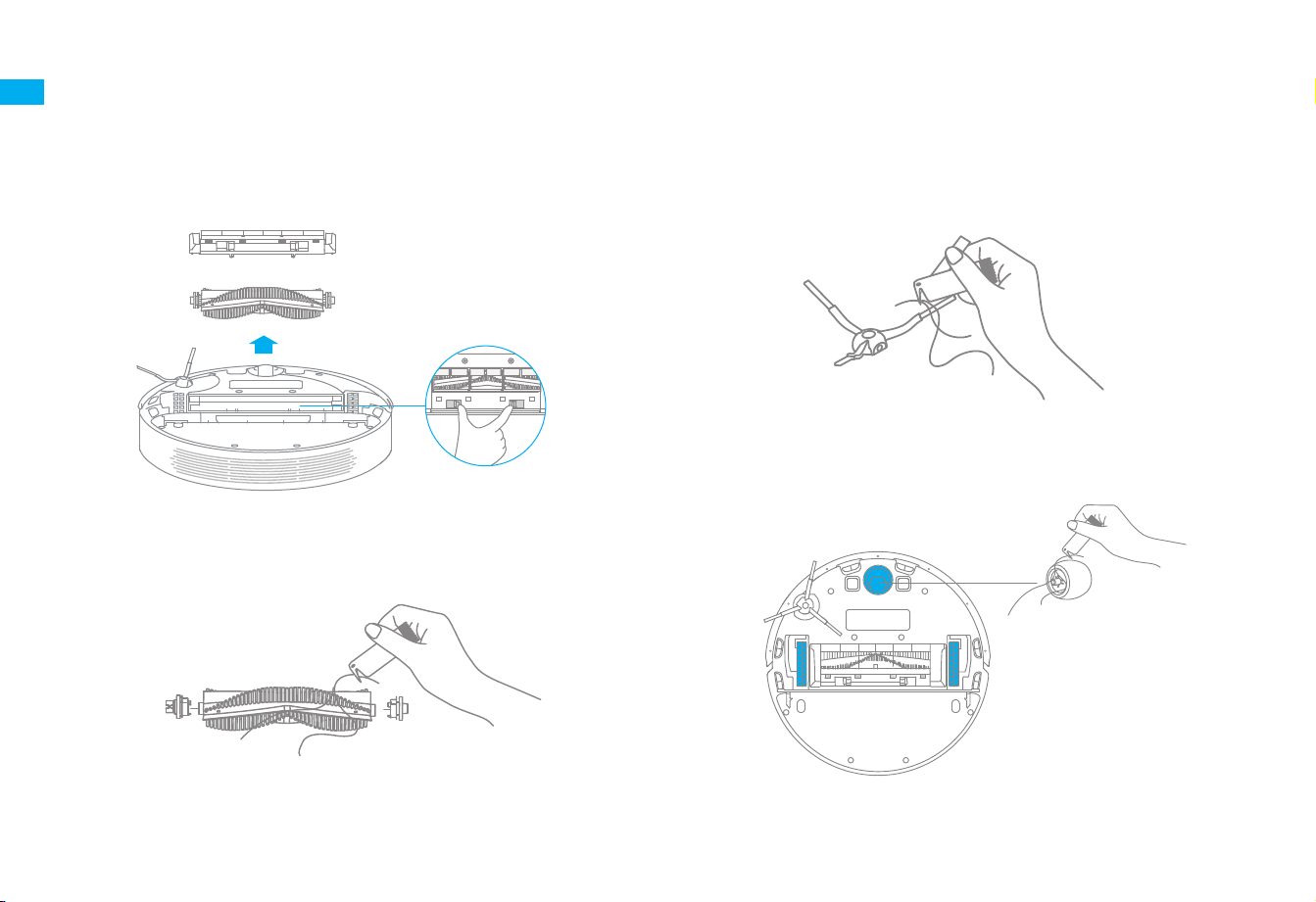

Press the brush guard clips inwards to remove the brush guard and

lift the brush out of the robot.

Pull out the side brush and use the included cleaning tool to remove

any hair tangled on the brush.

Pull out the brush cover as shown in the diagram. Use the included

cleaning tool to remove any hairs tangled in the brush.

Note: Do not pull out the hair excessively to avoid damaging the main brush

when the hair is tightly tangled in the main brush.

Note: Use a tool such as a small screwdriver to separate the axle and the tire.

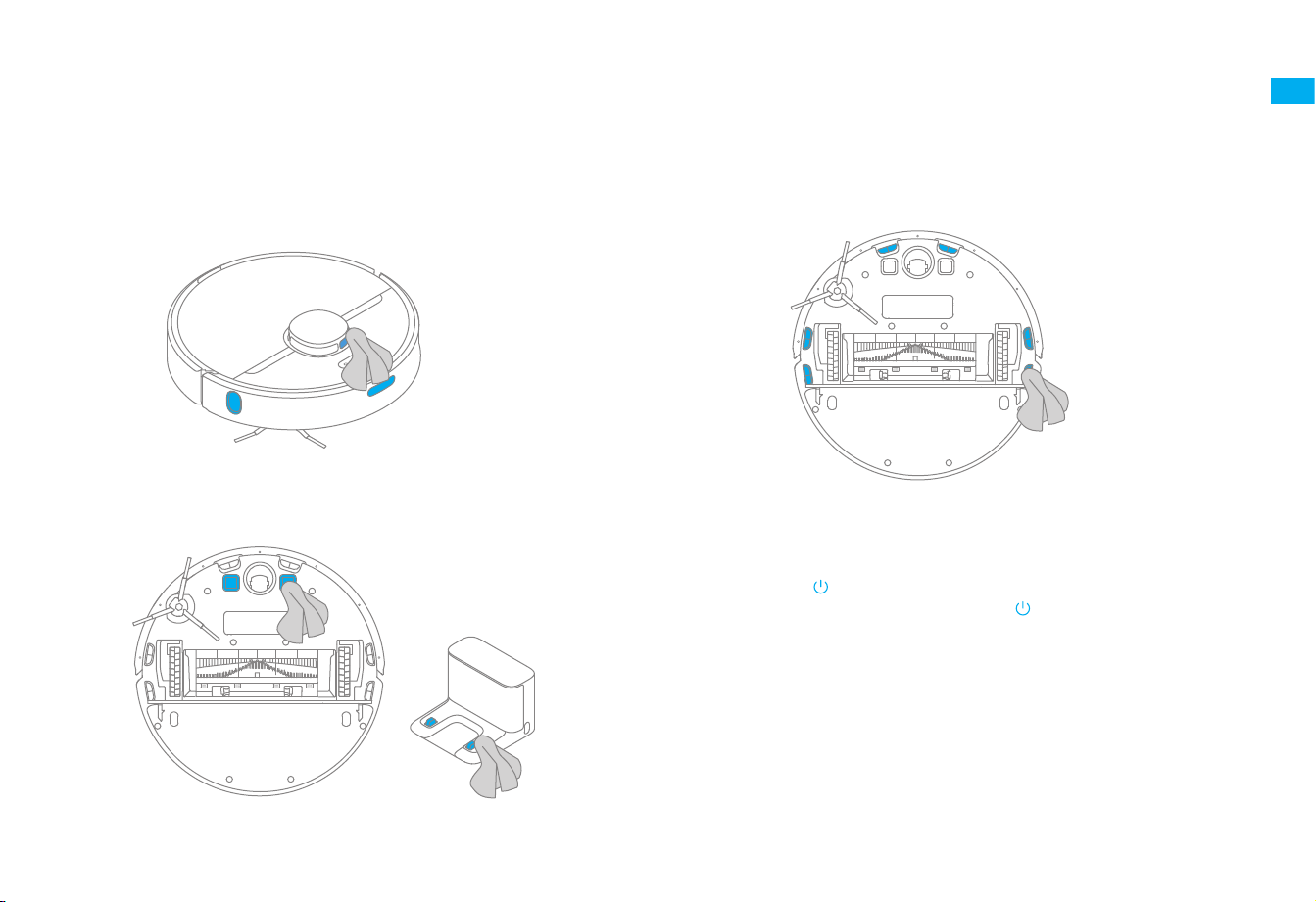

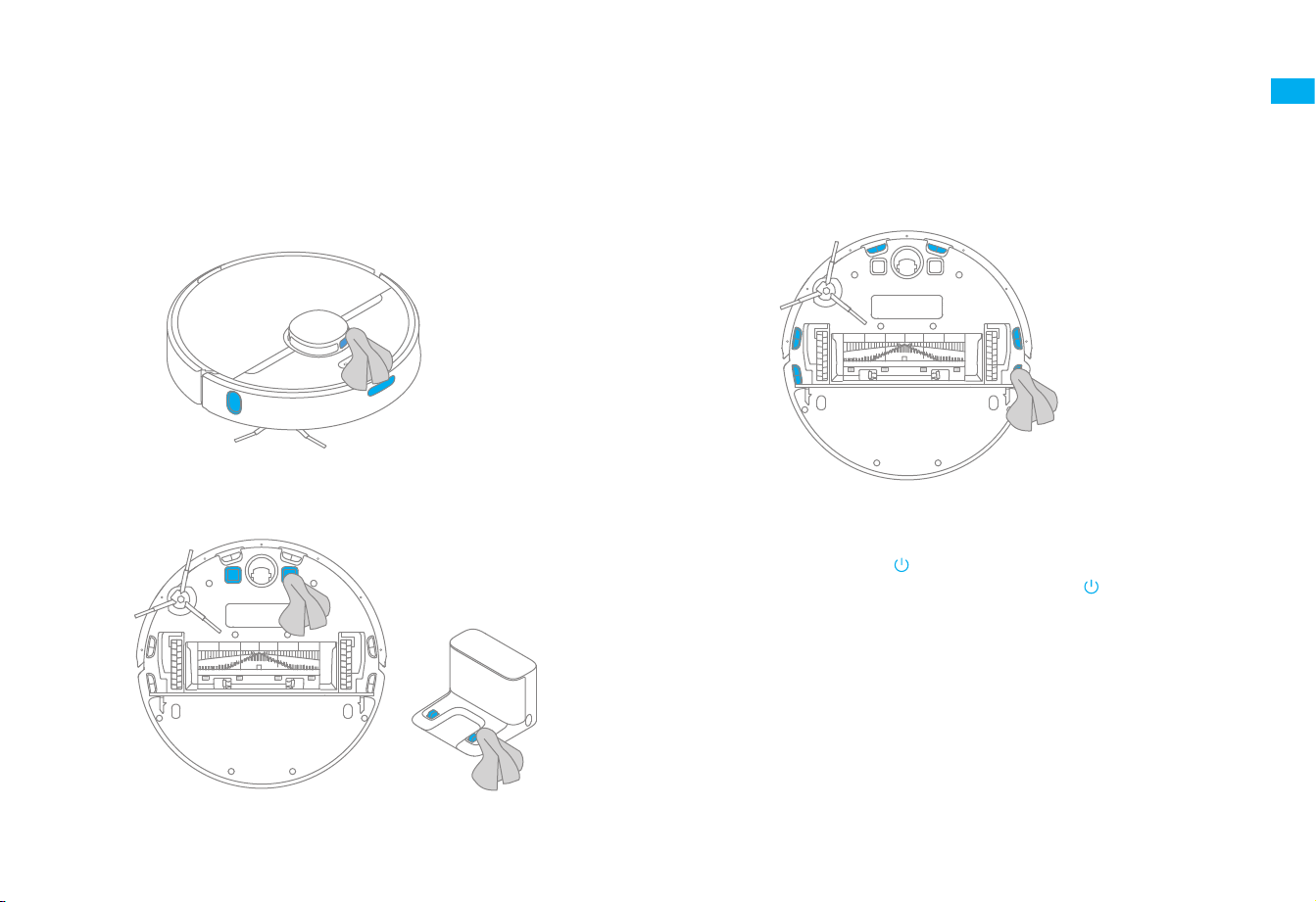

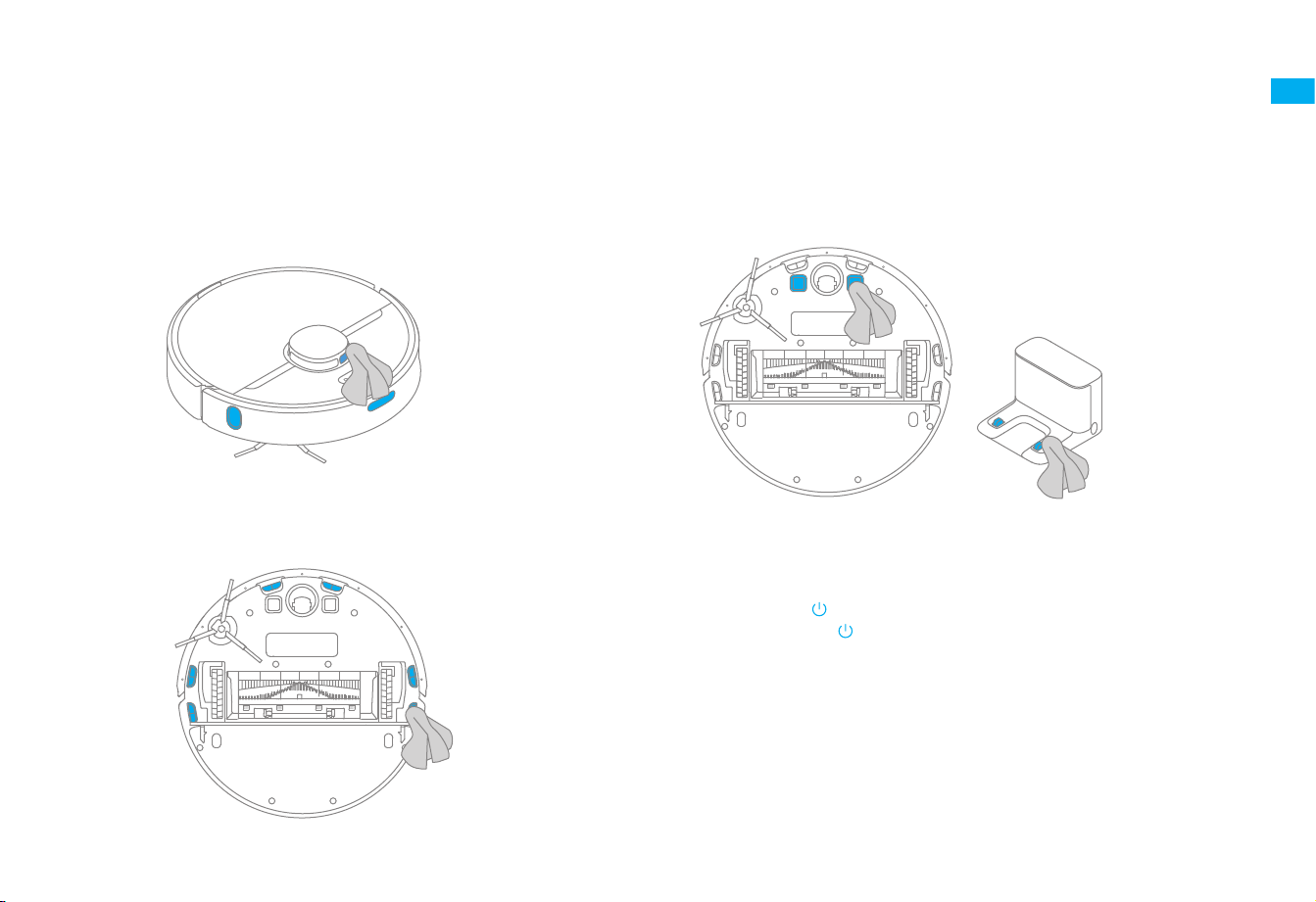

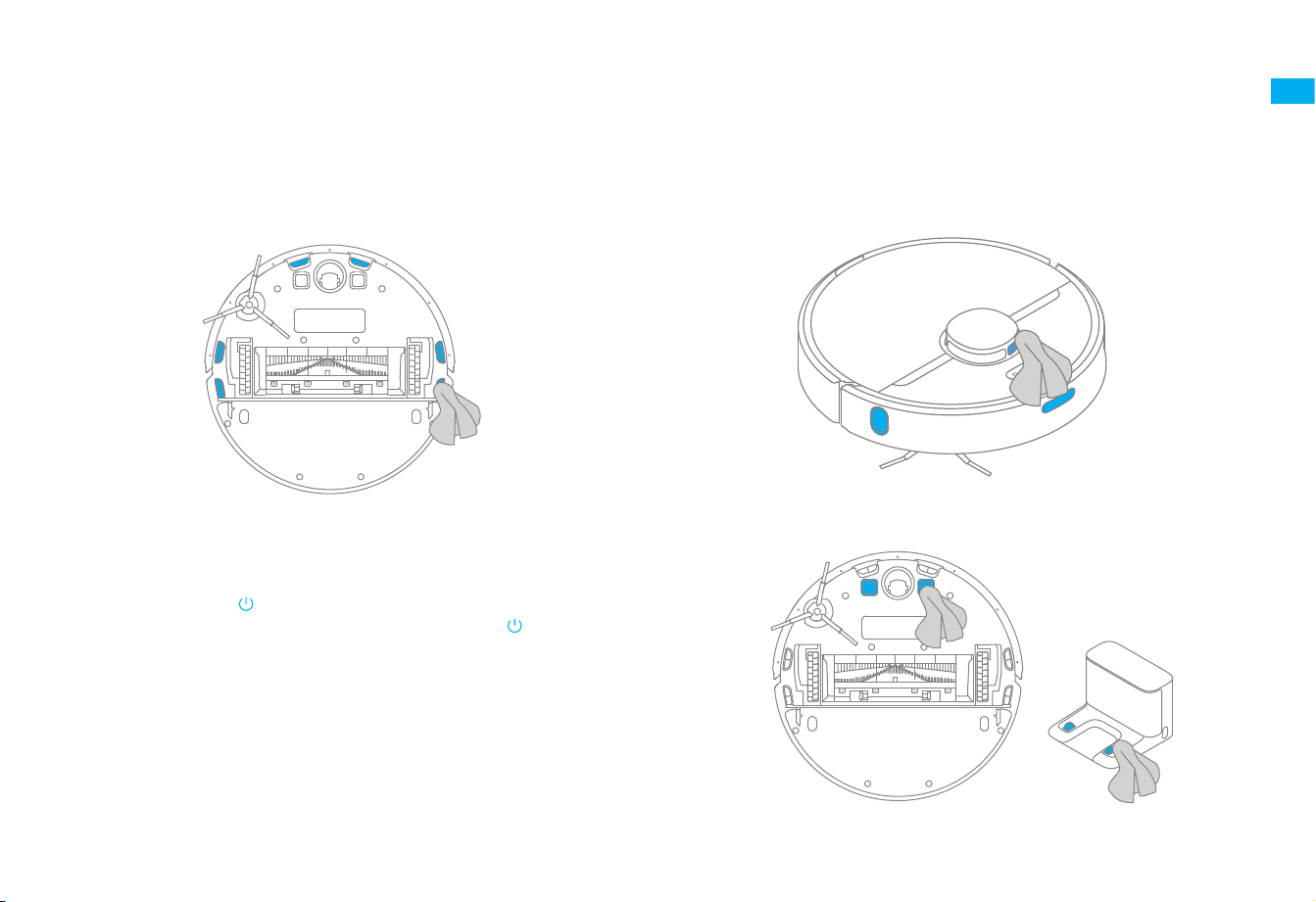

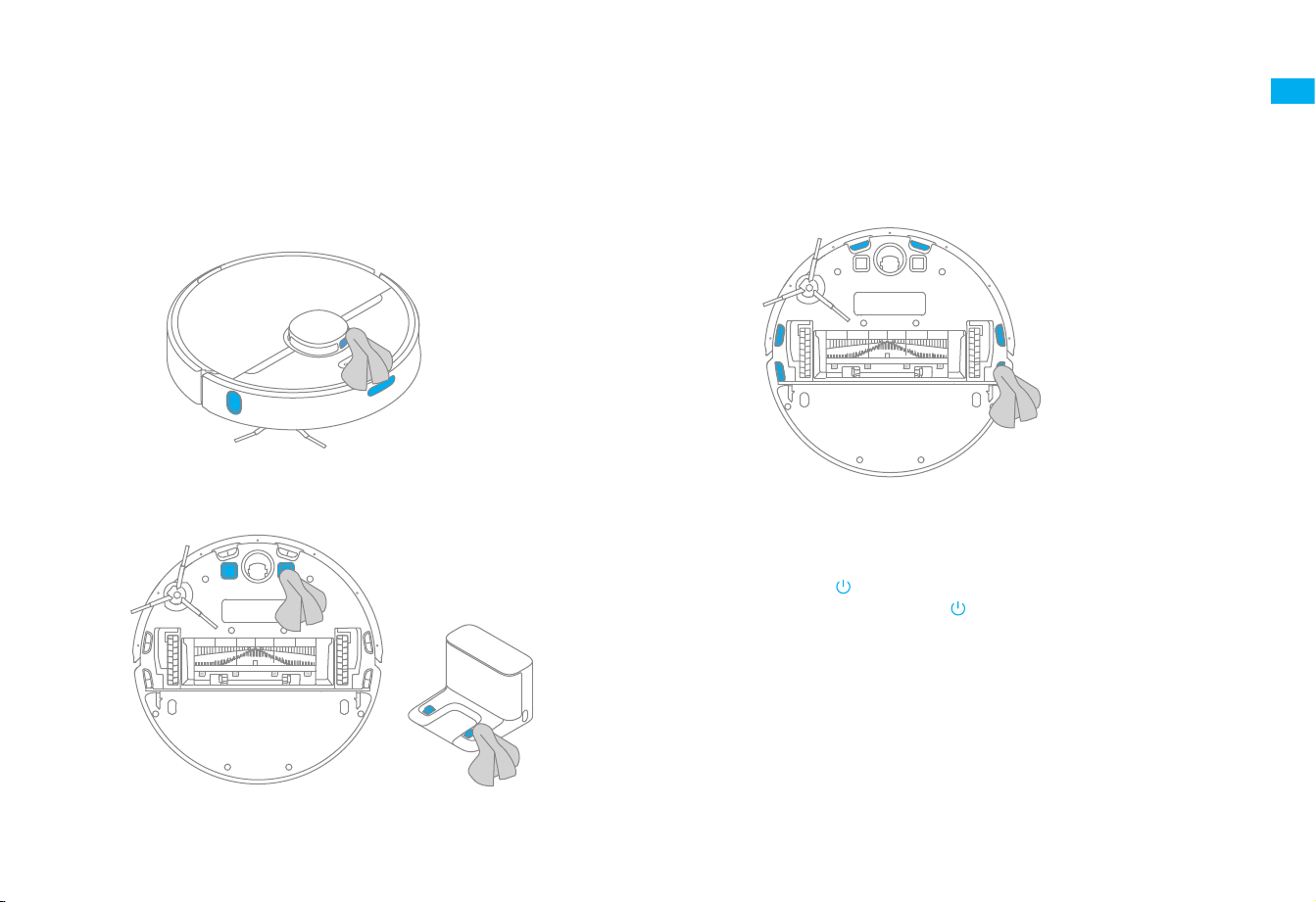

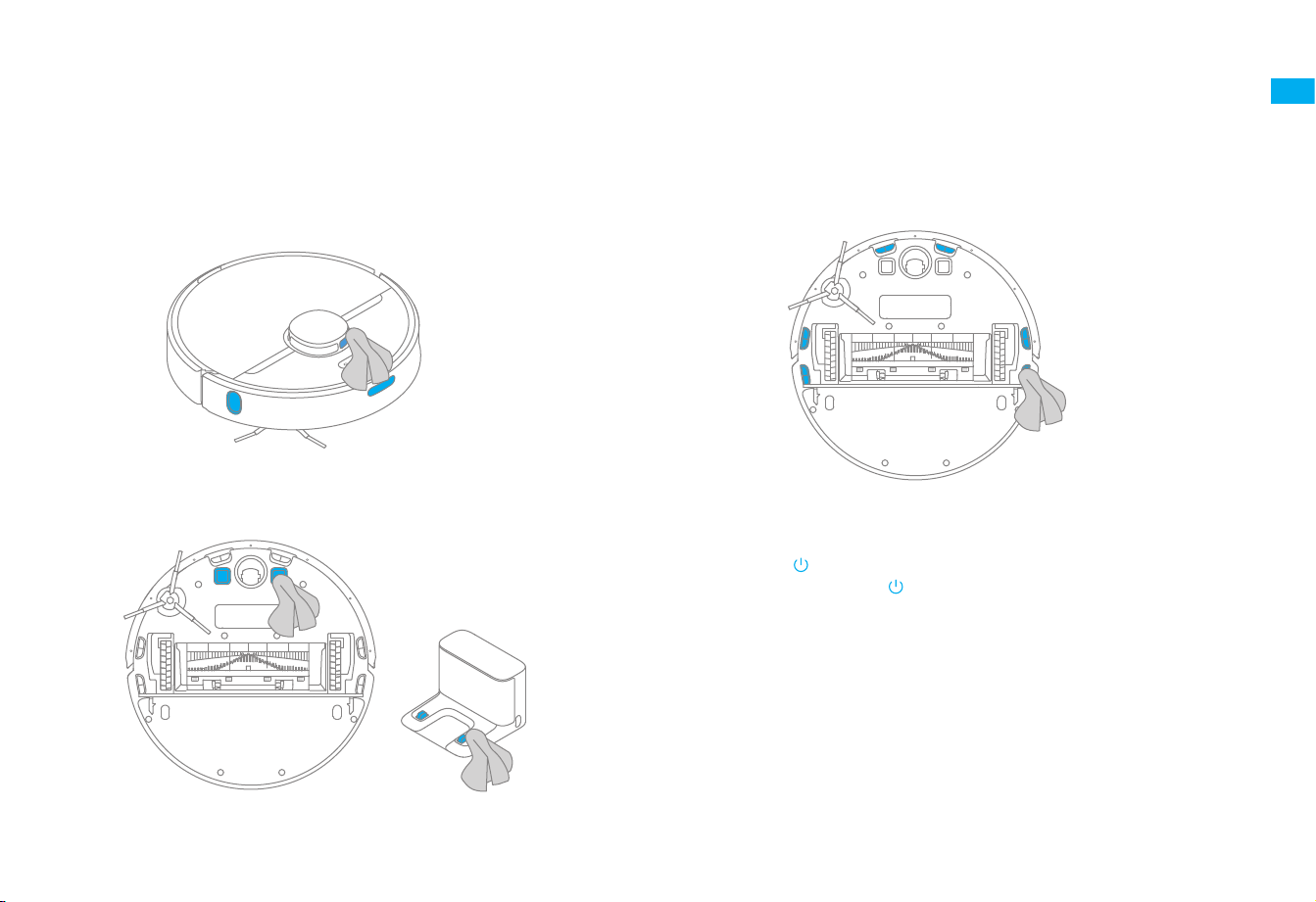

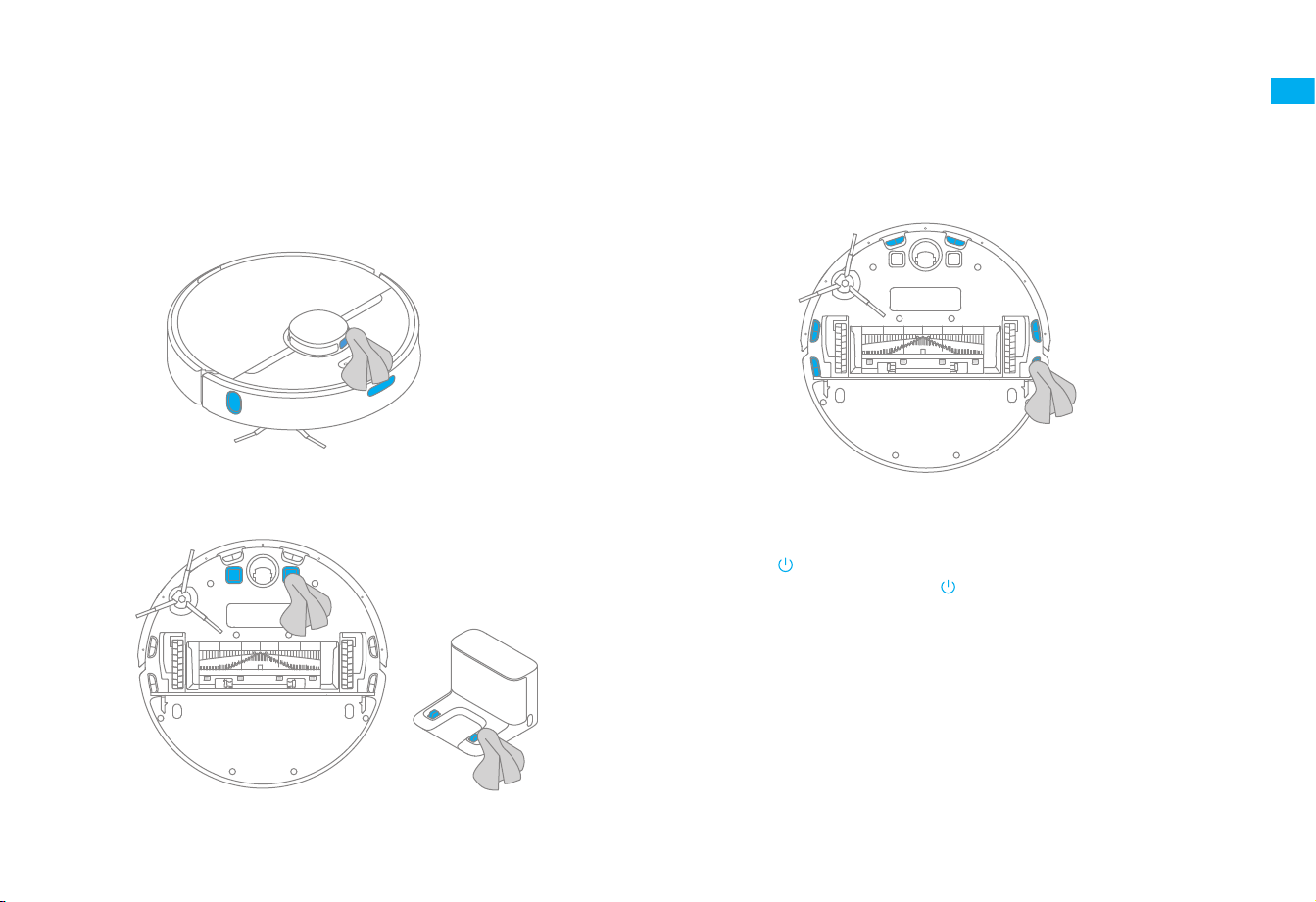

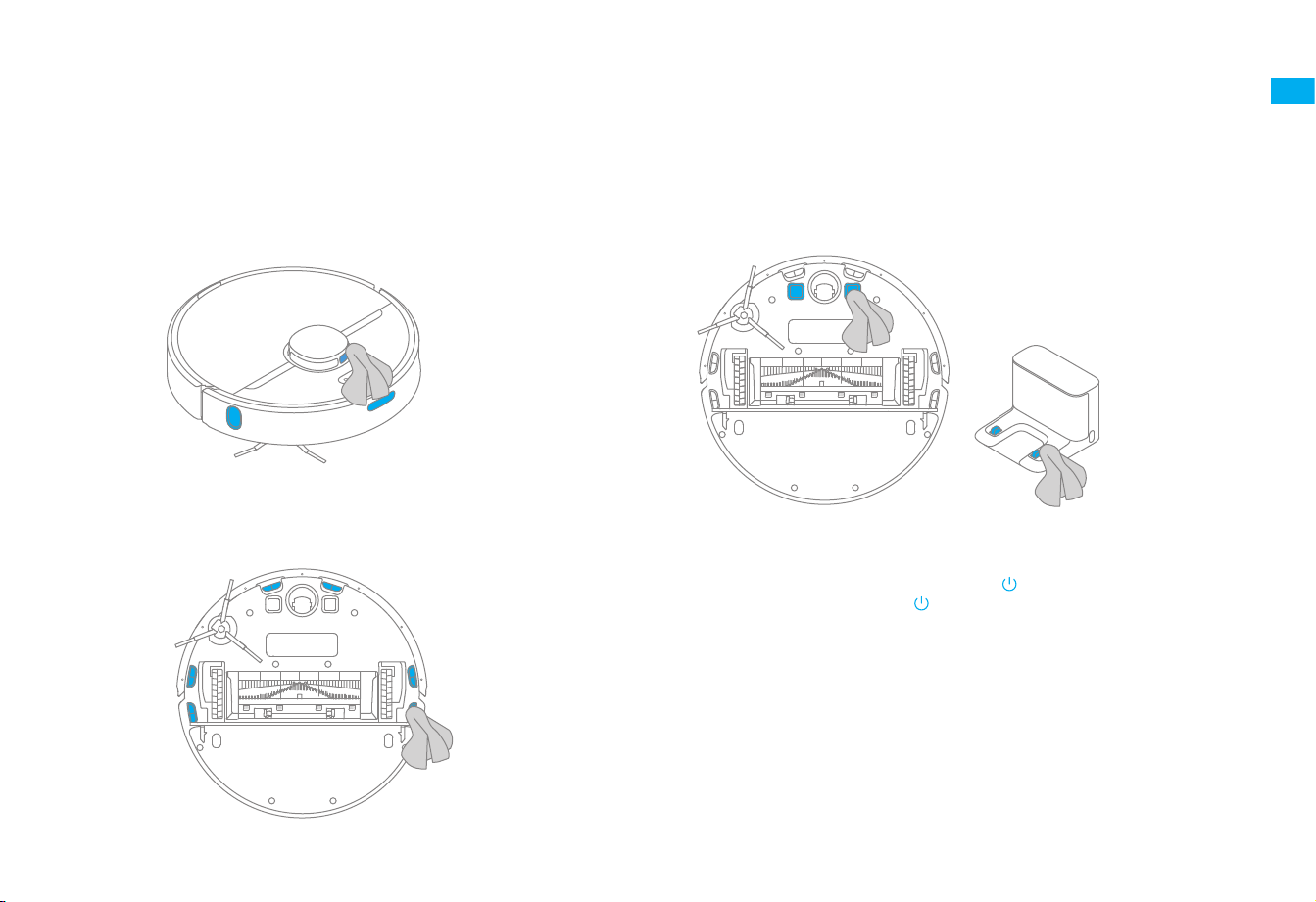

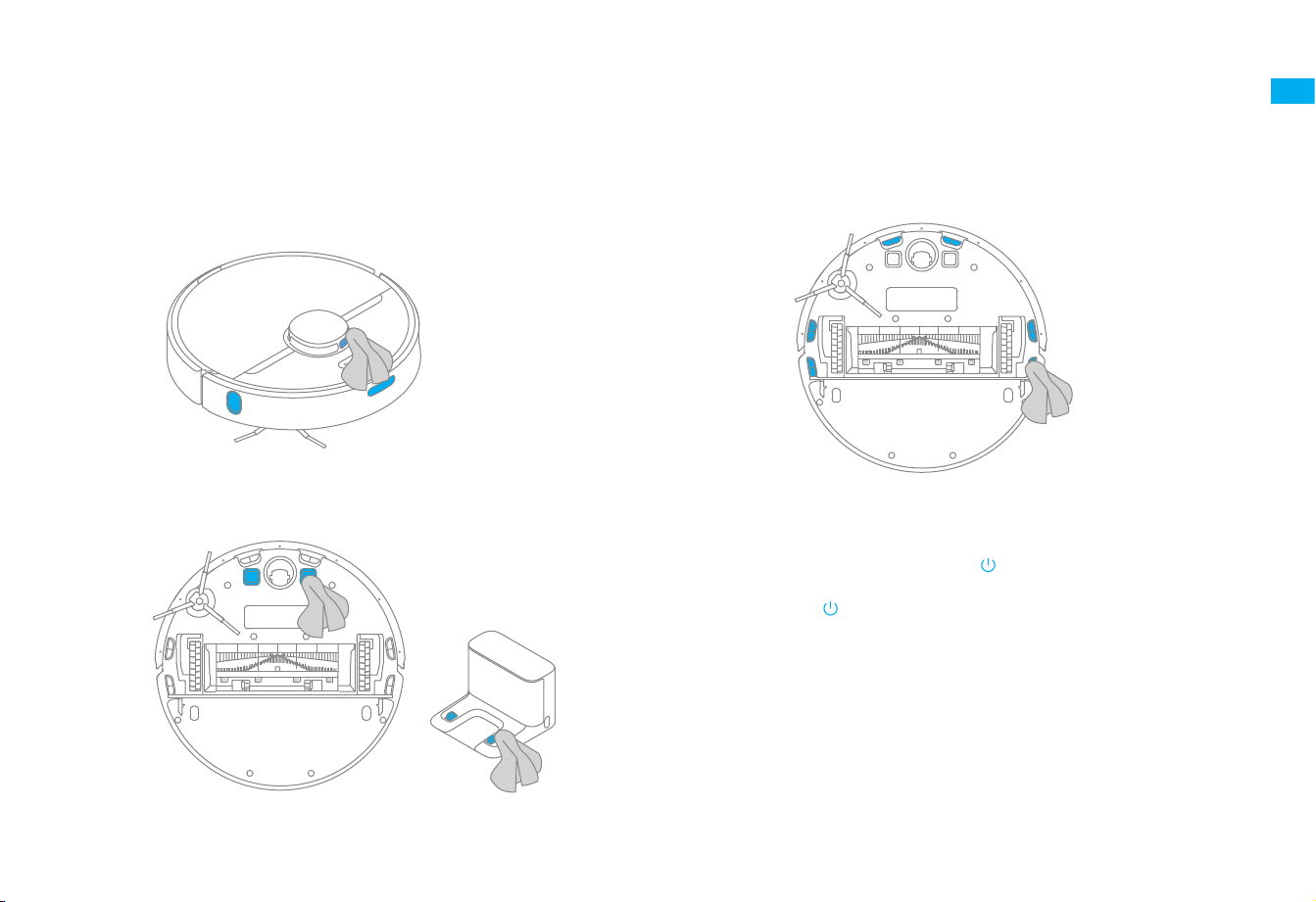

Clean the Laser Distance Sensor/Returning-to-dock Sensor/Edge

Sensor

Clean the Charging Contact

Clean the Cli󽗈 Sensor

Routine Maintenance

Note: Wet cloths can damage sensitive elements within the robot and charging dock. Please use dry rags for cleaning.

Robot Restarting

If the robot stops responding or cannot be turned o󽗈, press and hold

down the button for 10 seconds to forcefully turn it o󽗈. Then press

and hold the button for 3 seconds to turn the robot on.

Battery

The robot contains a high-performance lithium-ion battery pack.

Please ensure that it remains well-charged for daily use to maintain

optimal battery performance. If the robot is not used for an extended

period of time, turn it o󽗈 and put it away. To prevent damage from

over-discharging, the robot should be recharged at least once every

three months.

16 17

Clean the Main Brush Clean the Side Brush

Clean the Main Wheel/Omnidirectional Wheel

Routine Maintenance

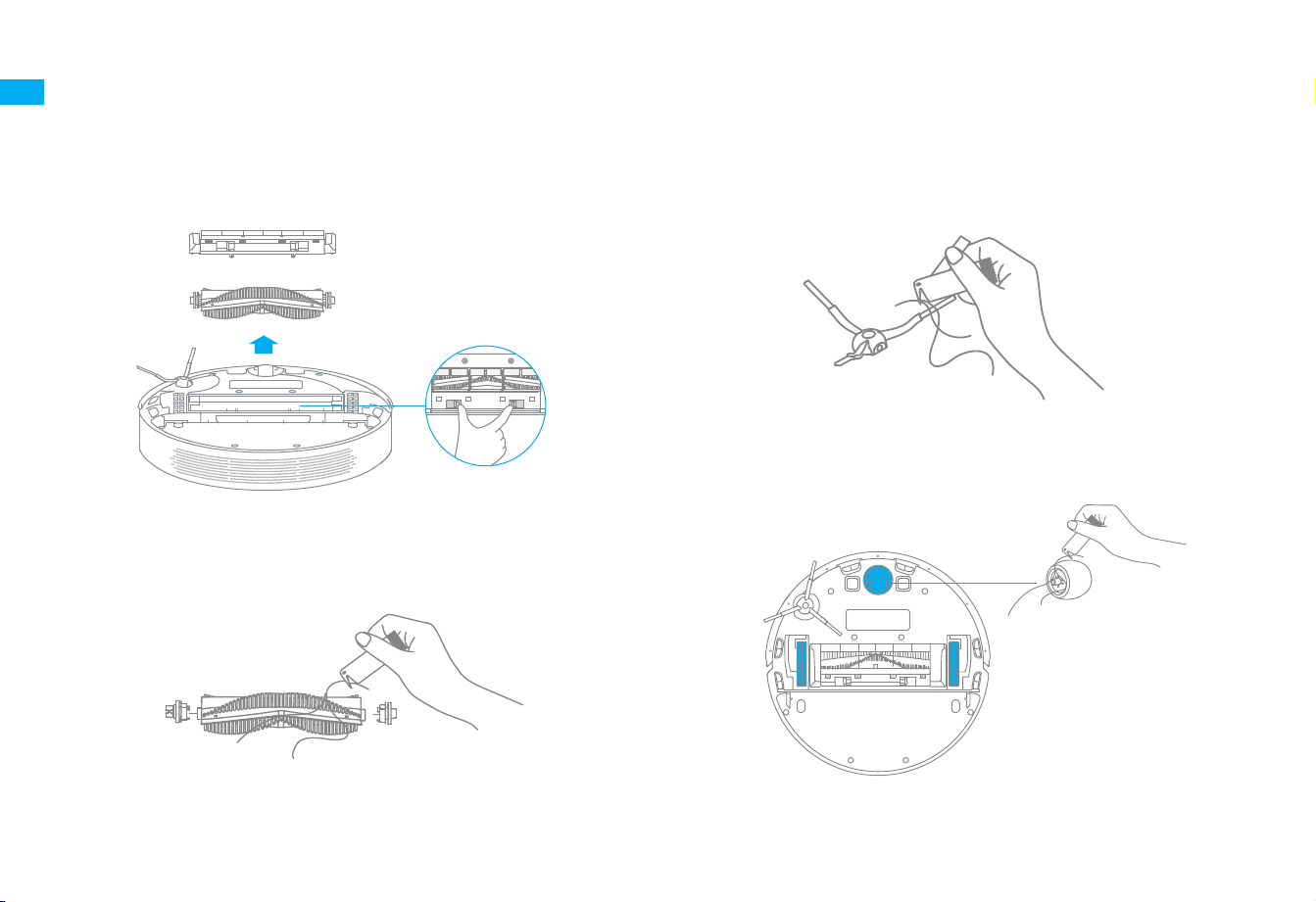

Press the brush guard clips inwards to remove the brush guard and

lift the brush out of the robot.

Pull out the side brush and use the included cleaning tool to remove

any hair tangled on the brush.

Pull out the brush cover as shown in the diagram. Use the included

cleaning tool to remove any hairs tangled in the brush.

Note: Do not pull out the hair excessively to avoid damaging the main brush

when the hair is tightly tangled in the main brush.

Note: Use a tool such as a small screwdriver to separate the axle and the tire.

Clean the Laser Distance Sensor/Returning-to-dock Sensor/Edge

Sensor

Clean the Charging Contact

Clean the Cli󽗈 Sensor

Routine Maintenance

Note: Wet cloths can damage sensitive elements within the robot and charging dock. Please use dry rags for cleaning.

Robot Restarting

If the robot stops responding or cannot be turned o󽗈, press and hold

down the button for 10 seconds to forcefully turn it o󽗈. Then press

and hold the button for 3 seconds to turn the robot on.

Battery

The robot contains a high-performance lithium-ion battery pack.

Please ensure that it remains well-charged for daily use to maintain

optimal battery performance. If the robot is not used for an extended

period of time, turn it o󽗈 and put it away. To prevent damage from

over-discharging, the robot should be recharged at least once every

three months.

18 19

FAQ

Problem Type Solution

Robot does not turn on

The battery level is low. Recharge the robot at the charging dock, then try again.

The ambient temperature is too low (below 0° C) or too high (above 40° C). The operating temperature of

the robot is 0° C to 40° C.

Robot does not

recharge

The charging dock is not receiving power. Please con󽗉rm that both ends of the power cord are plugged in

correctly.

Poor contact. Clean the charging contacts of the charging dock and the robot.

Robot does not return

to charging dock

There are too many obstructions around the charging dock. Place the charging dock in a more open area.

Please clean the dock's signaling area.

Robot is malfunctioning Turn o󽗈 the robot and then reactivate it.

Robot is making a

strange noise

A foreign object may be caught in the main brush, side brush, or one of the main wheels. Stop the robot

and remove any debris.

Robot no longer cleans

e󽗋ciently or leaves

dust behind

The dust bin is full. Please clean it.

The 󽗉lter is blocked. Please clean it.

A foreign object is caught in the main brush. Please clean it.

Robot cannot connect

to Wi-Fi

There is something wrong with the Wi-Fi connection. Reset the Wi-Fi and download the latest version of

the Mi Home/Xiaomi Home app, then try reconnecting.

Location permission is not open. Please ensure the location permission on the Mi Home/Xiaomi Home

app is enabled.

Wi-Fi signal is weak. Make sure the robot is in an area with good Wi-Fi coverage.

5GHz Wi-Fi is not supported. Please ensure your robot connects to 2.4GHz Wi-Fi.

The username or password of Wi-Fi is incorrect. Please enter the correct username and password.

Robot does not perform

scheduled cleaning

The robot has low battery. Scheduled cleaning will not start unless the robot has been recharged in time.

FAQ

Problem Type Solution

Does leaving the robot on the

charging dock consume power if it

is already fully charged?

Leaving the robot on the charging dock after it’s fully charged consumes very little electricity

and helps maintain optimal battery performance.

No water comes out of the

mopping module, or only a little bit

comes out

Con󽗉rm that the water tank is 󽗉lled with water, and clean the mop pad if necessary.

Clean the mop if it becomes dirty.

Make sure the mop pad is installed correctly according to the user manual.

Clean the blowhole on the top of the water tank.

Robot doesn’t resume cleaning

after charging

Make sure the robot is not set to Do Not Disturb Mode, which will prevent it from resuming cleaning.

The robot does not resume cleaning when it is manually recharged or placed onto the charging dock.

Robot doesn’t return to charging

dock after being moved

Moving the robot may cause it to re-position itself or re-map its surroundings. If the robot

is too far from the charging dock, it might not be able to automatically return on its own, in

which case you need to manually place the robot onto the charging dock.

18 19

FAQ

Problem Type Solution

Robot does not turn on

The battery level is low. Recharge the robot at the charging dock, then try again.

The ambient temperature is too low (below 0° C) or too high (above 40° C). The operating temperature of

the robot is 0° C to 40° C.

Robot does not

recharge

The charging dock is not receiving power. Please con󽗉rm that both ends of the power cord are plugged in

correctly.

Poor contact. Clean the charging contacts of the charging dock and the robot.

Robot does not return

to charging dock

There are too many obstructions around the charging dock. Place the charging dock in a more open area.

Please clean the dock's signaling area.

Robot is malfunctioning Turn o󽗈 the robot and then reactivate it.

Robot is making a

strange noise

A foreign object may be caught in the main brush, side brush, or one of the main wheels. Stop the robot

and remove any debris.

Robot no longer cleans

e󽗋ciently or leaves

dust behind

The dust bin is full. Please clean it.

The 󽗉lter is blocked. Please clean it.

A foreign object is caught in the main brush. Please clean it.

Robot cannot connect

to Wi-Fi

There is something wrong with the Wi-Fi connection. Reset the Wi-Fi and download the latest version of

the Mi Home/Xiaomi Home app, then try reconnecting.

Location permission is not open. Please ensure the location permission on the Mi Home/Xiaomi Home

app is enabled.

Wi-Fi signal is weak. Make sure the robot is in an area with good Wi-Fi coverage.

5GHz Wi-Fi is not supported. Please ensure your robot connects to 2.4GHz Wi-Fi.

The username or password of Wi-Fi is incorrect. Please enter the correct username and password.

Robot does not perform

scheduled cleaning

The robot has low battery. Scheduled cleaning will not start unless the robot has been recharged in time.

FAQ

Problem Type Solution

Does leaving the robot on the

charging dock consume power if it

is already fully charged?

Leaving the robot on the charging dock after it’s fully charged consumes very little electricity

and helps maintain optimal battery performance.

No water comes out of the

mopping module, or only a little bit

comes out

Con󽗉rm that the water tank is 󽗉lled with water, and clean the mop pad if necessary.

Clean the mop if it becomes dirty.

Make sure the mop pad is installed correctly according to the user manual.

Clean the blowhole on the top of the water tank.

Robot doesn’t resume cleaning

after charging

Make sure the robot is not set to Do Not Disturb Mode, which will prevent it from resuming cleaning.

The robot does not resume cleaning when it is manually recharged or placed onto the charging dock.

Robot doesn’t return to charging

dock after being moved

Moving the robot may cause it to re-position itself or re-map its surroundings. If the robot

is too far from the charging dock, it might not be able to automatically return on its own, in

which case you need to manually place the robot onto the charging dock.

Model RCS0

Rated Input 100-240 V~50/60 Hz 0.5 A

Rated Output 19.8 V 1 A

Speci󽗉cations

Robot Charging Dock

Under normal use of condition, this equipment should be kept a

separation distance of at least 20cm between the antenna and the

body of the user.

WEEE Information

All products bearing this symbol are waste electrical and electronic equipment (WEEE as in directive 2012/19/EU) which should not be mixed with

unsorted household waste. Instead, you should protect human health and the environment by handing over your waste equipment to a designated

collection point for the recycling of waste electrical and electronic equipment, appointed by the government or local authorities. Correct disposal and

recycling will help prevent potential negative consequences to the environment and human health. Please contact the installer or local authorities for

more information about the location as well as terms and conditions of such collection points.

Model RLS5-BL0

Battery 5200 mAh (Battery Nominal Capacity)

Wireless

Connectivity

Wi-Fi IEEE 802.11b/g/n 2.4 GHz

Charging Time Approx. 6 hours

Rated Voltage 14.4 V

Rated Power 40 W

Operation

Frequency

2400-2483.5 MHz

Maximum

Output Power

＜ 20 dBm

Model RCS0

Rated Input 100-240 V~50/60 Hz 0.5 A

Rated Output 19.8 V 1 A

Speci󽗉cations

Robot Charging Dock

Under normal use of condition, this equipment should be kept a

separation distance of at least 20cm between the antenna and the

body of the user.

WEEE Information

All products bearing this symbol are waste electrical and electronic equipment (WEEE as in directive 2012/19/EU) which should not be mixed with

unsorted household waste. Instead, you should protect human health and the environment by handing over your waste equipment to a designated

collection point for the recycling of waste electrical and electronic equipment, appointed by the government or local authorities. Correct disposal and

recycling will help prevent potential negative consequences to the environment and human health. Please contact the installer or local authorities for

more information about the location as well as terms and conditions of such collection points.

Model RLS5-BL0

Battery 5200 mAh (Battery Nominal Capacity)

Wireless

Connectivity

Wi-Fi IEEE 802.11b/g/n 2.4 GHz

Charging Time Approx. 6 hours

Rated Voltage 14.4 V

Rated Power 40 W

Operation

Frequency

2400-2483.5 MHz

Maximum

Output Power

＜ 20 dBm

Nutzungseinschränkungen

Sicherheitsinformationen

·Dieses Produkt kann von Kindern im Alter ab acht Jahren, und von Personen mit

physischen, sensorischen und intellektuellen Einschränkungen oder begrenzter

Erfahrung oder Wissen benutzt werden, dies muss jedoch unter Aufsicht von Eltern

oder einer Aufsichtsperson erfolgen, um einen sicheren Betrieb zu gewährleisten und

Gefahren auszuschließen. Eine Wartung und Reinigung darf durch Kinder nur unter

Aufsicht erfolgen.

·Kinder dürfen nicht mit diesem Produkt spielen. Sorgen Sie dafür, dass Kinder und

Haustiere während des Betriebs des Roboters einen sicheren Abstand zum Gerät halten.

·Dieses Produkt ist nur für die Bodenreinigung in einer häuslichen Umgebung geeignet.

Benutzen Sie es nicht im Freien, auf anderen Oberflächen als dem Boden oder in einer

kommerziellen oder industriellen Umgebung.

·Verwenden Sie den Roboter nicht in einem Bereich, der sich über dem Bodenniveau

befindet und der nicht durch eine Schutzbarriere begrenzt wird.

·Benutzen Sie den Roboter nicht in Umgebungen, in denen die Temperaturen über 40

° C oder unter 0 ° C liegen, und auch nicht auf Böden mit Flüssigkeiten oder klebrigen

Substanzen.

·Heben Sie Kabel vom Boden auf, bevor Sie den Roboter benutzen, um zu verhindern,

dass diese während der Reinigung mitgezogen werden.

·Entfernen Sie zerbrechliche oder kleine Gegenstände vom Boden, um zu verhindern,

dass der Roboter sie anstößt und beschädigt.

·Halten Sie Haare, Finger und andere Körperteile von der Saugöffnung des Roboters

fern.

·Bitte halten Sie die Reinigungswerkzeuge für die Bürste von Kindern fern.

·Kinder, Haustiere oder Gegenstände dürfen weder auf dem stillstehenden noch dem

sich bewegenden Roboter positioniert werden.

·Benutzen Sie den Roboter nicht zum Aufwischen oder Aufsaugen brennender

Substanzen.

·Saugen Sie keine harten oder scharfen Gegenstände ein.

Nutzungseinschränkungen

Sicherheitsinformationen

·Dieses Produkt kann von Kindern im Alter ab acht Jahren, und von Personen mit

physischen, sensorischen und intellektuellen Einschränkungen oder begrenzter

Erfahrung oder Wissen benutzt werden, dies muss jedoch unter Aufsicht von Eltern

oder einer Aufsichtsperson erfolgen, um einen sicheren Betrieb zu gewährleisten und

Gefahren auszuschließen. Eine Wartung und Reinigung darf durch Kinder nur unter

Aufsicht erfolgen.

·Kinder dürfen nicht mit diesem Produkt spielen. Sorgen Sie dafür, dass Kinder und

Haustiere während des Betriebs des Roboters einen sicheren Abstand zum Gerät halten.

·Dieses Produkt ist nur für die Bodenreinigung in einer häuslichen Umgebung geeignet.

Benutzen Sie es nicht im Freien, auf anderen Oberflächen als dem Boden oder in einer

kommerziellen oder industriellen Umgebung.

·Verwenden Sie den Roboter nicht in einem Bereich, der sich über dem Bodenniveau

befindet und der nicht durch eine Schutzbarriere begrenzt wird.

·Benutzen Sie den Roboter nicht in Umgebungen, in denen die Temperaturen über 40

° C oder unter 0 ° C liegen, und auch nicht auf Böden mit Flüssigkeiten oder klebrigen

Substanzen.

·Heben Sie Kabel vom Boden auf, bevor Sie den Roboter benutzen, um zu verhindern,

dass diese während der Reinigung mitgezogen werden.

·Entfernen Sie zerbrechliche oder kleine Gegenstände vom Boden, um zu verhindern,

dass der Roboter sie anstößt und beschädigt.

·Halten Sie Haare, Finger und andere Körperteile von der Saugöffnung des Roboters

fern.

·Bitte halten Sie die Reinigungswerkzeuge für die Bürste von Kindern fern.

·Kinder, Haustiere oder Gegenstände dürfen weder auf dem stillstehenden noch dem

sich bewegenden Roboter positioniert werden.

·Benutzen Sie den Roboter nicht zum Aufwischen oder Aufsaugen brennender

Substanzen.

·Saugen Sie keine harten oder scharfen Gegenstände ein.

22 23

Zubehör

Produktübersicht

Hinweis: Die Abbildungen in dieser Anleitung dienen nur als Referenz, bitte beziehen Sie sich auf das eigentliche Produkt für die tatsächliche Erscheinung.

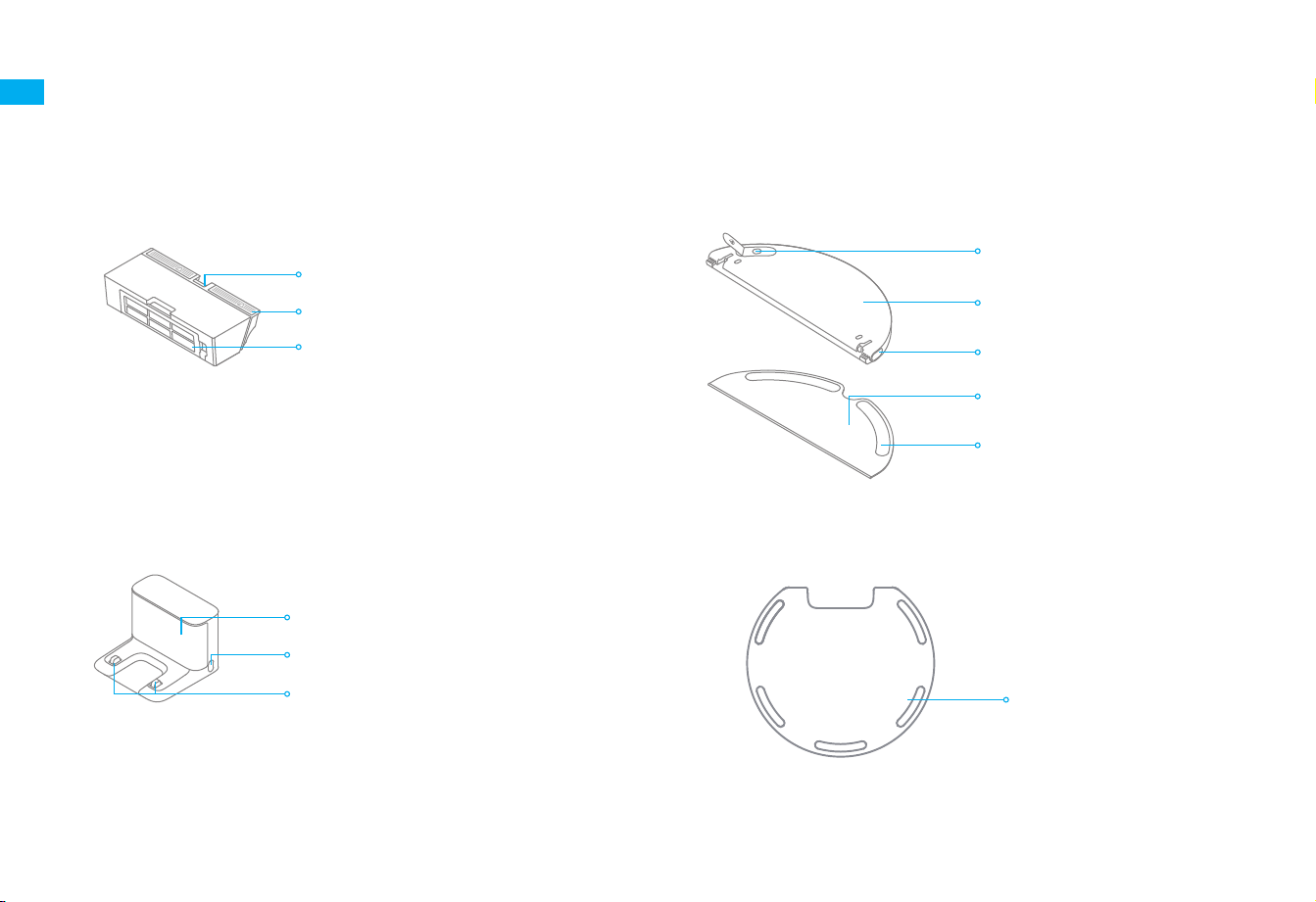

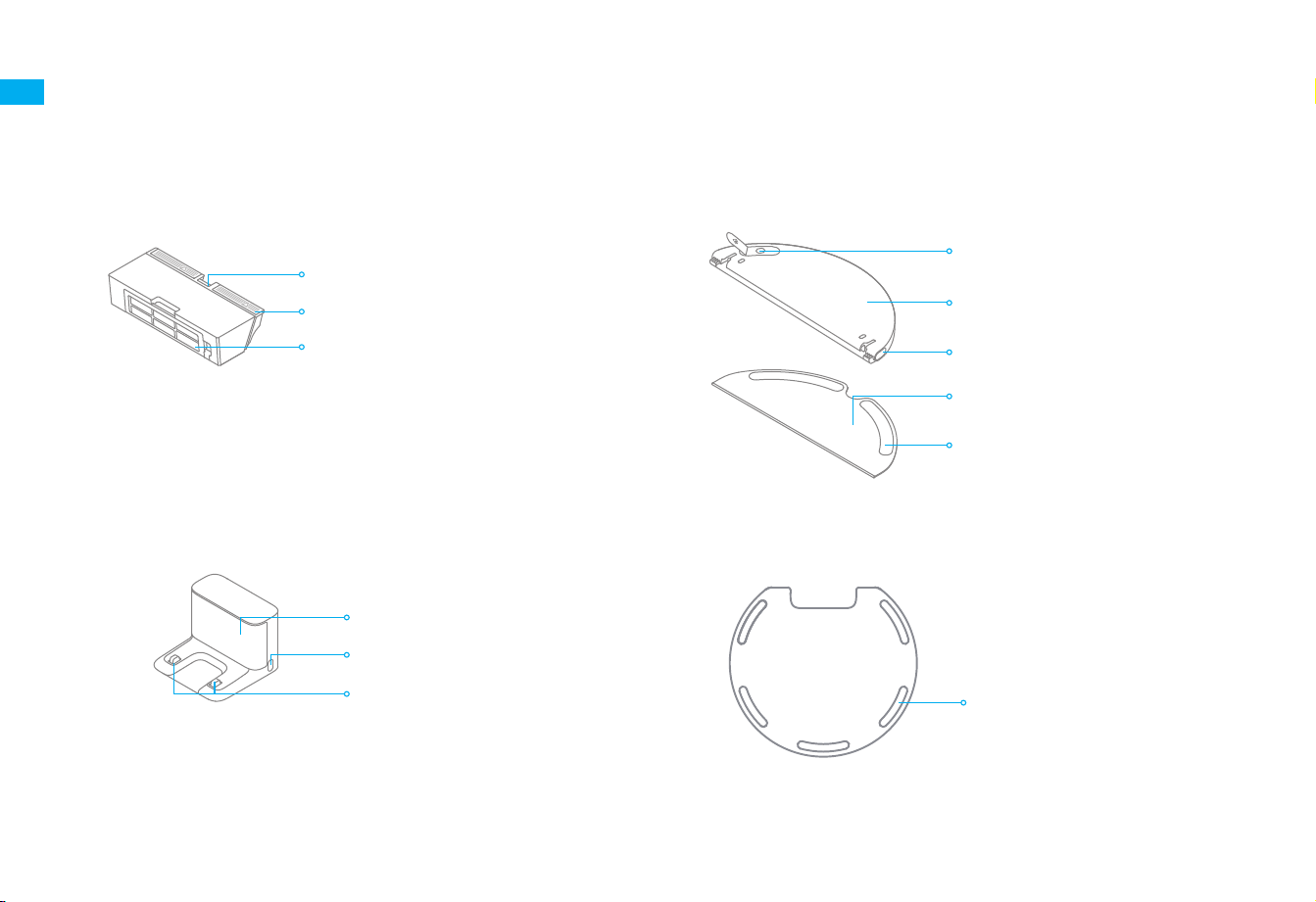

Ladestation

Wassertank

SeitenbürsteReinigungswerkzeug Stromkabel

Wischer

Feuchtigkeitsdichtes Pad

·Verwenden Sie keine Akkus, Ladegeräte oder Ladestationen von Drittanbietern. Bitte

ausschließlich mit RCS0 Netzgerät verwenden.

·Versuchen Sie nicht, den Akku oder die Ladestation selbst zu zerlegen, zu reparieren oder

zu modifizieren.

·Stellen Sie die Ladestation nicht in der Nähe einer Wärmequelle ab.

·Benutzen Sie kein nasses Tuch oder nasse Hände, um die Ladekontakte der Ladestation zu

reinigen.

·Entsorgen Sie alte Akkus sachgemäß. Unbenutzte Akkus sollten in einer geeigneten

Recycling-Einrichtung entsorgt werden.

·Wenn das Stromkabel beschädigt ist, schalten Sie das Gerät sofort aus und wenden Sie sich

an den Kundendienst.

·Stellen Sie sicher, dass der Roboter beim Transport ausgeschaltet ist und möglichst in der

Originalverpackung befördert wird.

·Wenn der Roboter für eine längere Zeit nicht benutzt werden soll, laden Sie ihn voll auf,

schalten ihn aus und lagern ihn an einem kühlen und trockenen Ort. Laden Sie den Roboter

mindestens alle 3 Monate auf, um eine Tiefentladung des Akkus zu vermeiden.

·Dieses Produkt enthält Akkus, die nur von qualifizierten Technikern oder dem

Kundendienst ausgewechselt werden sollten.

Akkus und Ladung

Sicherheitsinformationen

Hiermit bestätigt, Dreame Trading（Tianjin）Co., Ltd. dass das Funkgerät des Typs RLS5-BL0 mit der Verordnung 2014/53/EU in Einklangsteht.

Der vollständige Wortlaut der EU-Konformitätserklärung ist unter der folgenden Internetadresse abrufbar: www.dreame-technology.com

Ein detailliertes elektronisches Handbuch 󽗉nden Sie unter https://www.dreame-technology.com/pages/user-manuals-and-faqs

·Stellen Sie sicher, dass der Roboter ausgeschaltet und die Ladestation vom Strom getrennt

ist, bevor Sie Reinigungs- oder Wartungsarbeiten durchführen.

·Wischen Sie Teile dieses Produkt nicht mit nassen Lappen oder Flüssigkeiten ab.

·Bitte verwenden Sie das Produkt gemäß den Anweisungen im Benutzerhandbuch. Der

Benutzer ist für jeglichen Verlust oder Schaden verantwortlich, der aufgrund inkorrekter

Verwendung dieses Produkts entsteht.
