EN-1
ENGLISH
Household use only
Thank you very much for buying this SHARP product. Before using your SHARP
refrigerator, please read this operation manual to ensure that you gain the maximum
benefi t from it.
• This refrigerator is intended for making ice cubes, refrigerating and freezing foods.
• This refrigerator is for household use only, with ambient temperature indicated
in the table. The climate class is specifi ed on the rating plate. If the refrigerator
operates out of range (ambient temperature range) of the climate class which
is rated for that model, it may not be able to maintain satisfactory internal
temperatures. If the refrigerator is used at colder temperatures, the refrigerator will
not be damaged up to a temperature of +5°C.
• The refrigerator should not be subjected to temperatures of -10°C or below for a
long period of time.
Refrigerant
This refrigerator contains fl ammable refrigerant (R600a:
isobutane) and insulation blowing gas (cyclopentane).
Observe the following rules to prevent ignition and
explosion.
■
Do not allow any sharp objects to have contact with the
refrigeration system. The refrigeration system behind
and inside the refrigerator contains refrigerant.
■
Do not use mechanical devices or other means to
accelerate the defrosting process. (This refrigerator has
adopted automatic defrosting system.)
■
Do not use electrical appliances inside the refrigerator.
■
Do not block the space around the refrigerator.
■
Do not use fl ammable sprays, such as spray paint near
the refrigerator.
■
In the case of failure of the refrigeration system, do not
touch the wall socket and use open fl ames.
Open the window and air out the room. Then ask a
service agent approved by SHARP for service.
Power cord, Plug, Socket
Read carefully the following rules to prevent electric
shock or fi re.
■
Make sure to protect the power cord from being
damaged during installation or moving. If the power
plug or cord is loose, do not insert the power plug.
■
Do not place multiple portable socket-outlets or
portablepower supplies at the rear of the refrigerator.
■
Connect the power plug into the wall socket fi rmly and
directly. Do not use an extension cord or adapter plug.
■
Connect the power plug to the socket with the required
rated voltage.
■
Connect the earth pin to the earth terminal properly.
■
Do not touch the power plug with wet hands.
■
Disconnect from the main electricity supply by removing
the main plug from the socket.
Do not remove by pulling the power cord.
■
Dust deposited on the power plug may cause fi re.
Wipe it off carefully.
Climate
class
Acceptable range of
ambient temperature
SN +10°C to 32°C
N +16°C to 32°C
ST +16°C to 38°C
T +16°C to 43°C
Safety information
WARNING
This means that there are high risks of death or serious injury.
CAUTION
This means that there are high risks of material damage or personal injury.
CAUTION
Fire marks means this refrigerator has risk of fire accident.
WARNING
■
Pull out the plug if the refrigerator is not used for a long
time.
■
If the fl exible supply cord is damaged, it must be
replaced by service agent approved by SHARP in order
to avoid a hazard.
Installation
■
Do not install the refrigerator in a damp or wet location.
It may cause the damage to the insulation or electrical
leak. Dew may also appear on the outer cabinet and it
causes rust.
■
The refrigerator should be installed fl atly and fi rmly on
the fl oor.
In use
■
Do not store volatile and fl ammable materials such
as ether, petrol, propane gas, aerosol cans, adhesive
agents and pure alcohol etc. These materials are easy
to explode.
■
Do not store temperature-sensitive products such as
pharmaceutical products in the refrigerator.
There are high risks of changes in product quality .
■
Do not attempt to change or modify this refrigerator.
This may result in fi re, electric shock or injury.
■
Do not place bottled drinks and cans in the freezer
compartment.
■
Do not place any object on the top of refrigerator.
If the object falls down from the top, it may cause injury.
■
This appliance can be used by children aged from 8
years or above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way or understanding the hazards involved. Children
shall not play with the appliance. Cleaning and user
maintenance shall not be done by children without
supervision.
SJ-RF22E-DS_TINS-C138CBRZ.indb 1SJ-RF22E-DS_TINS-C138CBRZ.indb 1 24/2/2566 BE 10:0324/2/2566 BE 10:03
EN-2
Care and Cleaning
■
Unplug the refrigerator fi rst to prevent electric shock.
■
Do not splash water directly on the outer cabinet or the
interior. This may lead to rusting and deterioration of
the electrical insulation.
Trouble
■
If you smell something burnt, pull out the power plug
immediately. Then ask a service agent approved by
SHARP for service.
■
In case of gas leak, ventilate the area by opening
window. Do not touch the refrigerator or the power
socket.
Disposal
■
Ensure that the refrigerator presents no danger to
children while being stored for disposal. (e.g. remove
the magnetic door seals to prevent child entrapment.)
■
This refrigerator should be disposed appropriately.
Take the refrigerator to a professional recycling plant
for fl ammable refrigerant and insulation blowing gases.
Transportation
■

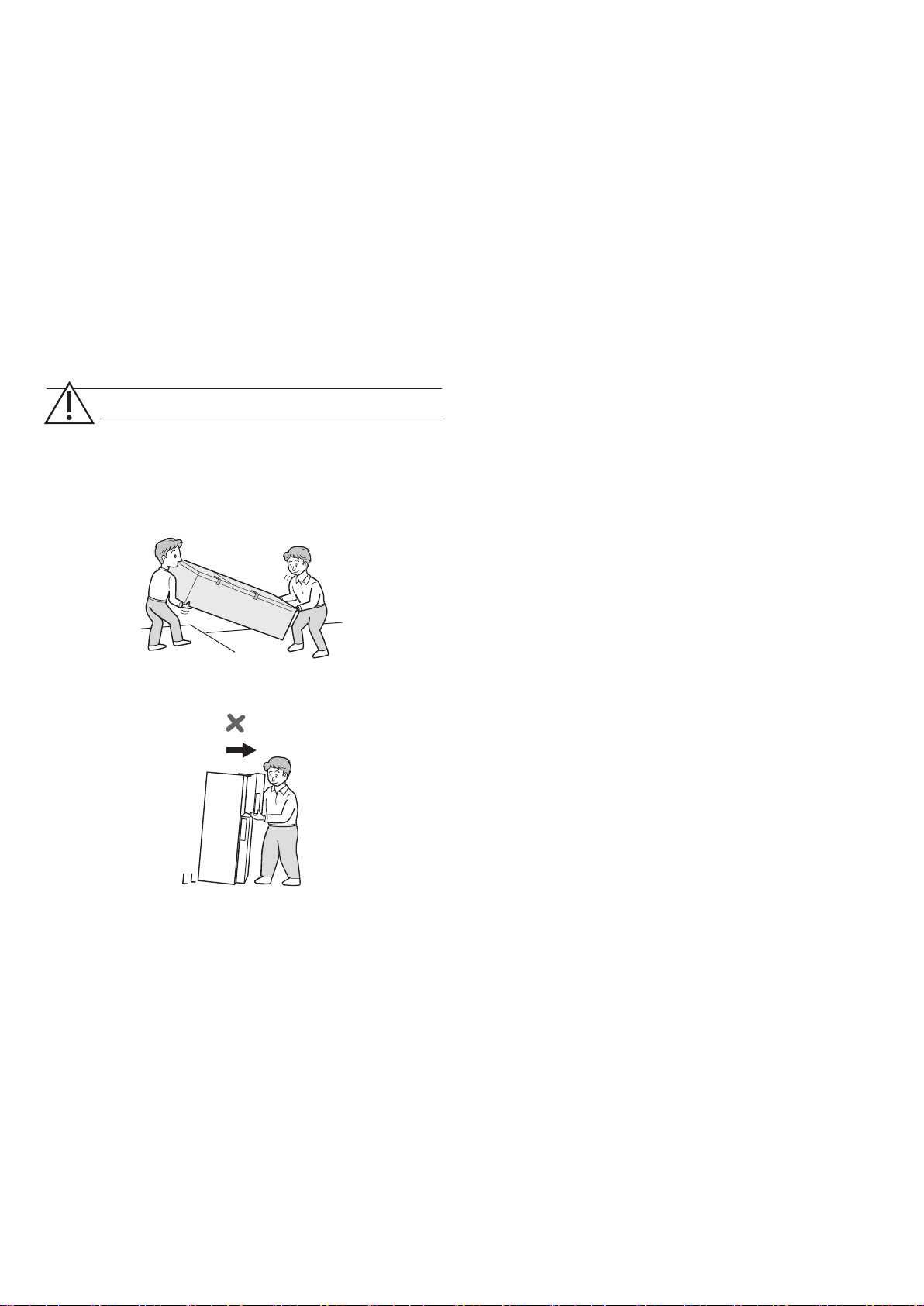

When you install or move your refrigerator, use curing
mat to protect the fl oor from being damaged.
■
Carry the refrigerator securely.
If you lift up the refrigerator improperly, it may cause
injury.
■
Do not use the doors to carry the refrigerator.
■
Make sure to contact the authorized service center
before you install or move the refrigerator.
In use
■
Do not touch the compressor unit or its peripheral
parts, as they become extremely hot during operation
and the metal edges may cause injury.
■
Do not touch foods or metal containers in the freezer
compartment with wet hands. This may cause
frostbite.
■
Do not use other than potable water to make ice
cubes.
■
Do not place bottled drinks and cans in the freezer
compartment.
■
Do not open or close the door when other people put
a hand near the door. There is a risk that the other
people may get their fi ngers caught in the door.
■
Do not put oversized object in the pockets of the door.
If the object falls down from the pockets, it may cause
injury.
■
Make sure to handle the glass shelves with care to
install or uninstall. If you drop the glass shelves, it may
break or cause injury.
CAUTION
SJ-RF22E-DS_TINS-C138CBRZ.indb 2SJ-RF22E-DS_TINS-C138CBRZ.indb 2 24/2/2566 BE 10:0324/2/2566 BE 10:03
EN-3
ENGLISH
1
Keep adequate ventilation space around the
refrigerator.
The picture shows the minimum required space for
installing the refrigerator. The measurement condition
of energy consumption is conducted under a different
space dimension.
Installation
Free standing type
2
Use the adjustable foot to place the refrigerator fl atly
and fi rmly on the fl oor.
Adjustable
foot
Note
• Place your refrigerator to access the plug.
• Keep your refrigerator out of direct sunlight and do not
place next to heat generating appliance.
• Do not use shipping materials as a stand.
Place the refrigerator on a hard fl oor, not directly on the
earthen fl oor.
In the case of placing the refrigerator on the earthen
fl oor, use an appropriate base such as a wooden board
under the refrigerator.
Before using your refrigerator
• Clean the inside parts with a cloth soaked in warm
water.
If soapy water is used, wipe it off thoroughly with water.
• Remove packing materials (cushion, blue tapes etc.).
Rear clearance
The space between the rear of the refrigerator and the
wall should be 50mm or more, and less than 75mm. If
the space is wider than 75mm, you may get injured by
touching compressor and its peripheral parts which are
extremely hot during the operation.
Note
• By keeping greater space, the refrigerator may consume
a less amount of power consumption.
• If use the refrigerator in the smaller space dimension
than fi gured, it may cause temperature rise in the unit,
loud noise and failure.
• Do not push the refrigerator against the wall. The wall
surrounding the refrigerator may get dirty or discolored
because of the air fl ow caused by heat radiation.
Overall space required in use
1113mm
980mm
90mm
or more
60mm
or more
60mm
or more
SJ-RF22E-DS_TINS-C138CBRZ.indb 3SJ-RF22E-DS_TINS-C138CBRZ.indb 3 24/2/2566 BE 10:0324/2/2566 BE 10:03
EN-4

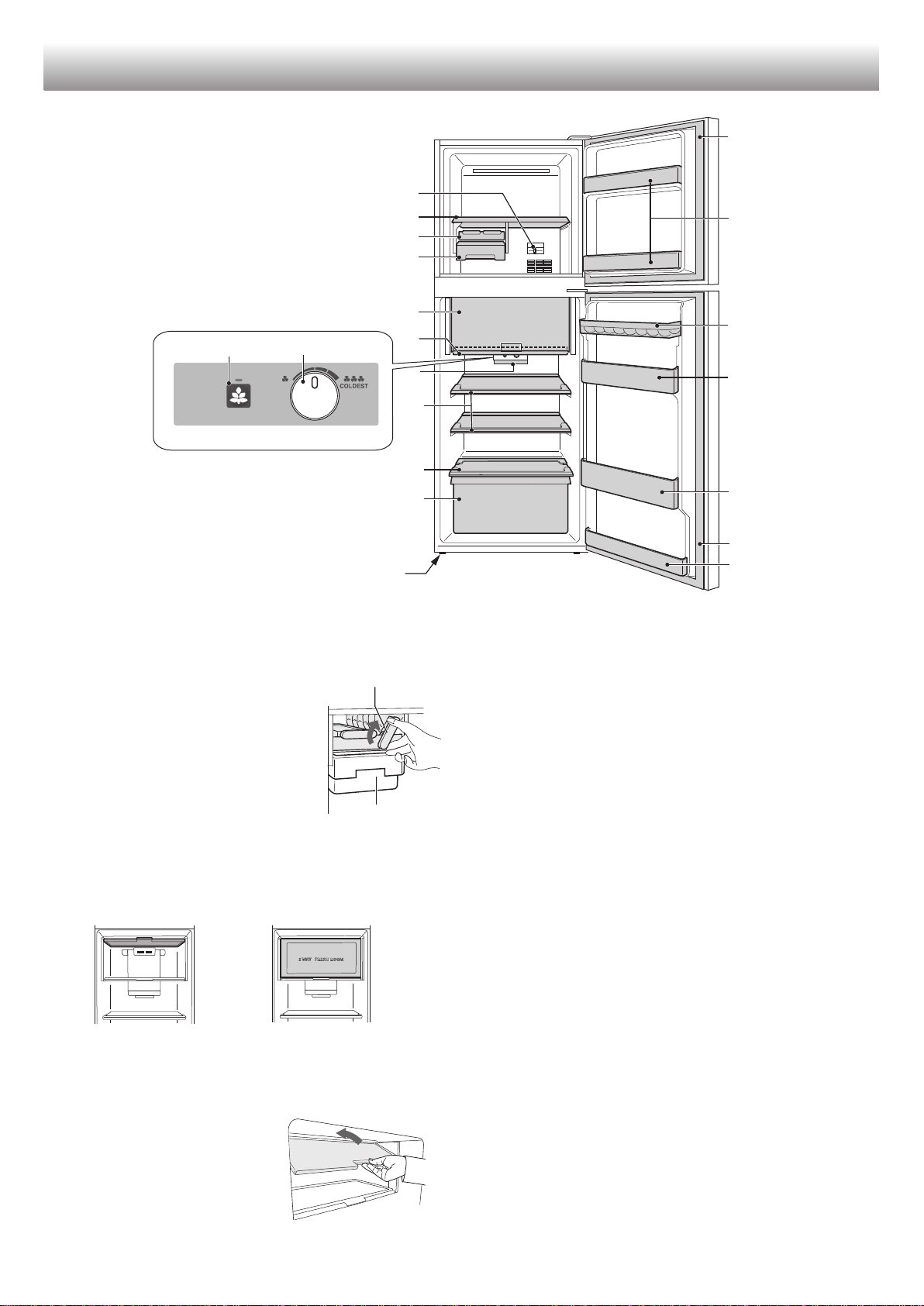

1. Temperature control lever
2. Freezer shelf
3. Ice cube maker
1) Do not overfi ll this tray with water.
Otherwise the ice cubes will join
together when frozen.
2) When ice cubes are made, turn
the lever clockwise to put the ice
into the ice cube box.
4. Ice cube box
Note
To prevent the ice cube box from being damaged,
do not pour oil into the box or make ice in it.
5. Two-way fresh room door
Description
15
5
10
11
12
6
13
1
2
3
4
14
16
18
14
19
17
7
8
9
6. Fresh shelf
7. Energy saving button
8. Temperature control knob
9. LED light
10. Refrigerator shelf
11. Vegetable shelf
12. Vegetable case
13. Adjustable foot
14. Magnetic door seal
15. Freezer door pocket
16. Egg pocket
17. Refrigerator door pocket
18. Bottle pocket
19. Utility pocket
Deodorizing unit
Deodorizing catalyst is installed on the routes of cold air.
There is no need to operate and clean.
If you wish to store large items within your
refrigerator
• You may remove any shelves or any pockets numbered
2,3,4,6,10,11,12,15,16,17,18,19 in the picture above.
• Energy consumption of this model is measured without the
ice cube maker and the ice cube box in accordance with
the international standards.
How to open Two-way fresh room door
1) Lift up the door.
2) Insert the door into the frame
and push it back to the stopper.
It is locked properly.
Open Close
Use the space as
refrigerator room.
Use the space as
fresh room.
Lever
Ice cube box
TEMPERATURE CONTROL
SJ-RF22E-DS_TINS-C138CBRZ.indb 4SJ-RF22E-DS_TINS-C138CBRZ.indb 4 24/2/2566 BE 10:0324/2/2566 BE 10:03
EN-5
ENGLISH
Controlling temperature
Energy saving
Use this mode when you want to switch the refrigerator
to energy-saving operation.
While this mode is operating, the inside temperature
of the refrigerator and freezer compartment becomes
higher than the normal operation as follows.
Freezer
compartment
Refrigerator
compartment
Under “Energy
saving” mode
Approx.
3°C plus
Approx.
4°C plus
Cancel this mode when you feel the beverages are not
cooled enough or ice making takes longer time.
How to start the operation
Press “Energy saving” button.
Lighting
How to cancel the operation
Press “Energy saving” button again.
Turn off
Note
• The effi ciency of power saving depends on the
usage environment (controlling temperature, ambient
temperature, frequency of opening or closing the door,
amount of food).
Temp. control knob
(in the refrigerator compartment)
The default setting of this knob is shown in below
picture.This knob is for adjusting the cooling strength of
the refrigeration system according to the temperature in
the refrigerator compartment.
When the knob is turned to “COLDEST” side, both
compartments (refrigerator compartment and freezer
compartment ) are cooled well.
Temp. control lever
(in the freezer compartment)
Set the lever to the center for normal use.
This lever is to open or close the air passage to the
refrigerator compartment.
When the lever is slide to “COLDEST” side, only the
freezer compartment is cooled well.
TEMP. CONTROL
Position of
the lever
Condition
Left
• Cold air fl ows into the
refrigerator
compartment
more.
• The
refrigerator compartment
is
cooled well.
Right
• Cold air fl ows into the
freezer
compartment
more.
• The
freezer compartment
is
cooled well.
Recommended temperature settings are shown
below.
Temp. control lever
Temp. control
knob
Normal
TEMP. CONTROL
In winter
(Colder than
10°C)
TEMP. CONTROL
• Set to the right.
• Do not set to left side.
SJ-RF22E-DS_TINS-C138CBRZ.indb 5SJ-RF22E-DS_TINS-C138CBRZ.indb 5 24/2/2566 BE 10:0324/2/2566 BE 10:03
EN-6
IN
OUT
Fruit / Vegetables
Fruit and vegetables should be loosely enclosed in a
plastic material e.g. wrap, bags (do not seal) and placed
in the vegetable case to minimize moisture loss.
Dairy Products & Eggs
• Most dairy products have their best-before date on
the outer packaging which informs the recommended
temperature and shelf life of the foods.
• Eggs should be stored in the Egg pocket.
Meats / Fish / Poultry
• Place on a plate or a dish and cover with paper or
plastic wrap.
• For larger cuts of meat, fi sh, or poultry, place to the rear
of the shelves.
• Ensure all cooked food is wrapped securely or placed in
an airtight container.
For best freezing
• Quality of foods should be fresh.
• Freeze small quantities of food at a time in order to
freeze them quickly.
• Food should be properly sealed or covered tightly.
• Place foods in the freezer evenly.
• Label bags or containers to keep an inventory of
freezing food.
*Notes for fresh food
- Fresh food (securely wrapped) should be stored in
limited time to prevent spoilage and badly affecting
other stored foods.
Advice for preventing dew or frost
inside the refrigerator
• Keep the door securely closed. If the food falls down,
it may cause a gap between the cabinet and the door.
Move it back to the shelf or the pocket.
• Food with high-moisture should be stored in airtight
container or sealed tightly.
Advice for storing food
• Evenly place the food on the shelves to allow the cooling
air to circulate effi ciently.
• Opening the door for long periods can cause
a signifi cant increase of the temperature in the
compartments of the appliance.
• Hot foods should be cooled before storing. Storing hot
foods increases the temperature in the unit and the risk
of food spoilage.
• Do not block the outlet and inlet of the cool air circulating
circuit with foods or containers; otherwise the foods is
not be evenly cooled throughout the refrigerator.
• Do not place food directly in front of cold air outlet.
This may lead to the food freezing.air to circulate
effi ciently.
• Ensure that the food is of the freshest possible quality to maximize the storage life of perishable food. The following is a
general guide to help promote longer food storage.
• Food has a limited storage life. Make sure not to exceed use-by date indicated by manufacturer.
Storing food
Tips for saving energy
■
Install the refrigerator in a well-ventilated area and
keep the space to ventilate.
■
The amount of energy consumption of this model is
measured as shown in the picture below.
90mm
300m m 300m m
50mm
■
Keep your refrigerator out of direct sunlight, and do
not place it next to heat generating appliance.
■
Avoid opening the door as much as possible.
■
Hot foods should be cooled before storing.
■
Place the food evenly on the shelves to allow the
cool air to circulate effi ciently.
Do not place food on shaded area.
This may lead to the food freezing.
Do not place food directly in
front of cold air outlet.
This may lead to the food
freezing.
SJ-RF22E-DS_TINS-C138CBRZ.indb 6SJ-RF22E-DS_TINS-C138CBRZ.indb 6 24/2/2566 BE 10:0324/2/2566 BE 10:03
EN-7
ENGLISH
Important
Follow the tips below to prevent cracks on the inner
surfaces and plastic components
• Wipe out food oil adhered to plastic parts.
• Some household chemicals may cause damage, so use
only diluted washing-up liquid (soapy water).
• If undiluted detergent is used or soapy water is not
wiped off thoroughly, it may result in cracks of plastic
parts.
Cleaning
For hygienic reasons, make sure to do following
things regularly.
■
Remove the accessories (e.g. shelves) from the cabinet
and the door. Wash them by warm soapy dishwashing
water. After that, rinse them in clean water and dry.
■
Clean the inside with a cloth soaked in warm soapy
dishwashing water. Then, use cold water to wipe off
soapy water thoroughly.
■
Wipe the exterior with a soft cloth each time it gets
dirty.
■
Clean the Magnetic door seal with a toothbrush and
warm soapy dishwashing water.
Note
• After cleaning, make sure to put the shelves and the
cases on original position.
• Do not use heavy-duty cleansers or solvents (lacquer,
paint, polishing powder, benzine, boiled water, etc.)
which may cause damages.
• If you pull out the power plug once, wait 5 minutes at
least before connecting the power plug again.
• The glass shelves are heavy to carry. Hold them fi rmly
when you remove the shelves from the cabinet.
• Do not drop objects inside the refrigerator or strike the
inner wall. This may cause cracks to inner surface.
Defrosting
Defrosting is automatically operated by a unique energy
saving system.
When the compartment light is blown
Contact the service agent approved by SHARP to replace
the light. The light is not to be replaced other than by
qualifi ed service personnel.
Switching off your refrigerator
If the refrigerator needs to be switched off for an extended
period, the following steps should be taken to reduce the
growth of mold:
1. Remove all food.
2. Remove the power plug from the socket.
3. Clean and dry the interior thoroughly.
4. Keep all the doors open slightly for a few days to dry.
Care and cleaning
SJ-RF22E-DS_TINS-C138CBRZ.indb 7SJ-RF22E-DS_TINS-C138CBRZ.indb 7 24/2/2566 BE 10:0324/2/2566 BE 10:03
EN-8
Before calling for service, check the following points.
Problem Solution
The outside of the cabinet is
hot when touching.
It is normal. The hot pipe is in the cabinet in order to prevent dew generation.
When there is refrigerator
noise.
It is normal for the refrigerator to make the following sounds.
• Loud noise is made by the compressor when its operation starts
-- Sound becomes quieter after a while.
• The compressor makes loud noise once a day.
-- Operating sound is made immediately after automatic defrost operation.
• Sound of flowing fluid (gurgling sound, fizzing sound)
-- Sound of refrigerant flowing in pipes (sound may become louder from time to time).
• Cracking or crunching sound, squeaking sound
-- Sound produced by expansion and contraction of inner walls and internal parts during
cooling.
Frost or dew appears inside
or outside the refrigerator.
This may occur in one of the following cases. Use a wet cloth for wiping frost and a dry
cloth for wiping dew.
• When the ambient humidity is high.
• When the door is frequently opened and closed.
• When foods containing plenty of moisture are stored. (Wrapping is required.)
The foods in the refrigerator
compartment freeze.
• Is the refrigerator operated for a long time with the temp. control knob set COLDEST?
-- Change the temperature control to the other setting.
• If ambient temperature is low, foods may freeze even if the the temp. control knob is set
at leftmost position.
Odors in the compartment. • Wrapping is required for the foods with strong odors.
• Deodorizing unit cannot remove all odors.
The refrigerator door is hard to
open.
The refrigerator door may become hard to open right after closing the freezer door,
because the air temperature and the pressure inside the refrigerator compartment go
down.
Please wait for approximately 10-15 seconds to open the refrigerator door.
If you still require service
Refer to your nearest service agent approved by SHARP.
Before you call for service
SJ-RF22E-DS_TINS-C138CBRZ.indb 8SJ-RF22E-DS_TINS-C138CBRZ.indb 8 24/2/2566 BE 10:0324/2/2566 BE 10:03
ᳫ㑅
ZH-1
ِՃǏŝů
ƗǷןɷ5*#42лȞ뼶ćů5*#42ܳƥǡ뼷ĦǷĨѾ֥ŒůǷǨןɷ
Āܳ뼷ɐࢅի୰քǕůĹdžΌ뼶
sǕܳĻůǏخǟܳՀ뼵һڅŠһഏηˀ뼶
sǕِܳࣂŝů뼷ůܳĀտؗѹʇǢćȩϜġϴdž뼶ǬȊՏǢćԆײĘ
ރիĹdž뼶Ƨưܳć˾ՏǨǭĀǬȊՏ׆쨞տؗѹʇ׆쨟ʋǟ뼷ĻĨ
ƃʑέʸđĀʮˌѹʇ뼶ƧćֈһĀѹʇĪůǕܳ뼷צѹʇć삸ŗʮ
ăĚধܳ뼶
sܳćĂьǣIJǍʮă˅ɩĖ삸ͱŗĪĀѹʇ뼶
һƝ
ǕܳߒĈͲยһ쨞4C쨰ࡉࣼἺ쨟ŠӑɴţܴǬɄ
쨞տⅹἺ쨟뼶
Ħ֑ٜōΖŠڞଉ뼷ɐᆯࡳŗĪܩצ뼶
■ ăđŻ௩ޔˀɄˈخһͶՓ뼶ܳŷ൫ӍʮˌĀ
خһͶՓߒĈһ뼶
■ ɐ୫ůƭᅟѴѥͱȺŴƶКčȀэפ།ļԘ뼶
ˤܳǢ৸ůĢƘפ།ͶՓ뼶
■ ɐ୫ćܳʮůǖ،뼶
■ ɐ୫௹ܳ׆ĀˬǍ뼶
■ ɐ୫ćܳઐ˥ůͲยȡ૦ฆོ뼷ૼƧ૦࿚뼷ۚצĻ
ĨĚٍ֠ڞଉͱΖฯ뼶
■ ƧưܳĀһ˃ͶՓśƌтච뼷ɐ୫ˈૻǖ۷
ǝ뼷ģ୫ůdžΖ뼶
ŧܢд뼷ˬǬȸʘ뼶ƔŷԔ5*#42ΗĻĀߊ
ŷ˖ӨġķɖDŽέզ뼶
ǖ۷ϟ뼷Ǻ뼷ǝ
Ħ֑ٜǖͱΖฯ뼷ɐࢅի୰քŗĪܩצ뼶
■ ڪćȫͱࡡƘļԘġ֔ǖ۷ᣓϟăɩধ뼶
Ƨưǖ۷Ǻͱǖ۷ϟśƌ۟ƘDžŰߨ뼷ɐ୫Ɍǖ۷
Ǻ뼶
■ ɐ୫ćܳŷˌǽٝĠĊࡡƘКǝͱࡡƘКǖ۷ࣂ
˅،뼶
■ ˢˈțǖ۷ǺŞɌૻǖ۷ǝ뼶ɐ୫ů
ǣĀǖϟͱʼҖǺ뼶
■ țǖ۷ǺɌʸǭǖإđĀǝĘ뼶
■ ȢڪŞțˈŞգΨˈĖˈŞܸŔ뼶
■ ɐ୫ůঃƋˈǖ۷Ǻ뼶
■ śǖ۷ǺIJ뼷˅˾΄ʐǺܸś뼶
ɐăđŮӘʐǖ۷ϟ뼶
■ ǖ۷ǺĘϕଝĻĨڇŐΖฯ뼶
ȁˤ뼷ɐIJ˩țȺࠚش뼶
ǬȊՏ ĻˈɩĀտؗѹʇ׆
50 삸`삸
0 삸`삸
56 삸`삸
6 삸`삸
ȫƼNjƂּ
ܔг
Ēȩdžٍ֠ǧ୬ͱȶ˻ĀɣٖňƬ뼶
Nj
Ēȩdžٍ֠ࠒնɩধͱĉ˳ɩ˻ĀɣٖňƬ뼶
Nj
ΖฯԆࢄȩФ˾ܳԪćΖฯƂтĀɣٖ뼶
ܔг
■ ܳƧưǣIJǍăů뼷ɐțǺś뼶
■ ܼĻഓفᣓϟধ뼷κݯύ5*#42ࣩӂĀ˖Өͳȗĉ
ƑҖᣓϟ뼶
ȫ
■ ɐ୫țܳѴٝćঃǬĠӍឆīĖnjĀŞƶ뼶ĒƠĚȁ
ӑ՚˫вƦٍ֠ǖ뼶ƦؼĈIJĚćܳʋ൫ʨ܋뼶
■ țܳჹŞȫćŞذĀnjːʞٝĘ뼶
ůġ
■ ɐ୫ভڅகţȡˀΘŠͲยȡˀΘ뼷ƧႨ⓬뼵ޱЅ뼵
ᢅἺ뼵Ǭฆོ໌뼵ྀʸོ뼵ښႨྔDž뼶ˤˀΘͲ
ڞଉ뼶
■ ɐ୫ćܳʮভԪѹʇ઼ƗՏлȞ뼷ૼƧֳۺлȞ뼶
ۚצлȞԫĻĨĚȼΘ뼶
■ ɐ୫ɇȼƑͱϐǕܳ뼶
ĒĻĨٍ֠Ζฯ뼵ǖͱɩ˻뼶
■ ɐ୫țӋͱ໌նǽɌһഏب뼶
■ ɐ୫ćܳڊˌǽٝˀȞ뼶
ƧưˀȞȭܳڊˌҎҔ뼷ĻĨĚٍ֠ĉ˳ɩ˻뼶
■ ˤܳҏʸίͱŗĘĀɰٿů뼶ćĈʸǖ،ů
ȫƼĀટႹͱϱ֠ͱᔆನćٖ߭ĀǡĪ뼷ˤܳ
ģҏʸǻɄ뼵ƗЋͱғƺƶǚĈܿౡĀචĉՂ뼷ͱ
ܿఆȠȯƾԤͱƢԹĀĉՂů뼶ɰٿăīʂൂܳ뼶
ćƃટႹĀŰߨĪ뼷ɰٿăīšܳɖDŽʓӍ
ůѵ뼶
SJ-RF22E-DS_TINS-C138CBRZ.indb 1SJ-RF22E-DS_TINS-C138CBRZ.indb 1 24/2/2566 BE 10:0324/2/2566 BE 10:03
ZH-2
ѵ
■ Ħą֑ٜǖ뼷ϘϵҎܳĀǖ۷Ǻ뼶
■ ɐ୫ˢˈțnjೞćܳĀʮˌŠʋˌ뼶ĒƠĚٍ֠ŀự
Ӎӑ՚ȡĨĪܰ뼶
тච
■ ƧưǷշĖĈʀɞ౦ą뼷צӐśǖ۷Ǻ뼶Ɣŷ
Ԕ5*#42ΗĻĀߊŷ˖ӨġķɖDŽέզ뼶
■ пĂţŀူٞƂт뼷ɐǙŧܢдʘɣ뼶ɐ୫ܳ
ͱǖ۷ǝ뼶
ܳĀȗ
■ ڪܳćԪǽIJăĚšɰٿҜŪٖ߭뼷ˢٍݻڟĦ
ٜ뼶쨞ૼƧ뼷Īܳɟտ뼷֑ٜɰٿౡɌܑؗ뼶쨟
■ ˅ჹڒٝǕܳ뼶ɐțܳχʖˠĀͲยһӍ
ӑɴţܴǬɄƫʴ뼶
ࢪ
■ ȫͱࡡƘܳIJ뼷ɐů֑֔ŗ֑ٜŞذɩধ뼶
■ ȫƼܳ뼶
ƧưŐܳĀƶКăȋ뼷ĻĨĚٍ֠ĉ˳ɩ˻뼶
■ ܳIJɐ୫ʐܳɟ뼶
■ ćȫͱࡡƘܳǡ뼷ɐڪϵԔࣾךέզġķ뼶
ůġ
■ ύǏإരƭ˲ʻͱȺʋ׆ˌɫć߽ǟļԘġțȼī
ο˩Ƌ뼷ԮпăđŅ뼷ۚצ뼷țĚƻ˔՚
˻뼶
■ ăđůঃƋŅһഏبʮĀηȞŠخ،뼶
ࣺĚٍ֠Ƌഏ˻뼶
■ ɐ୫ůůnjŗʋĀnjخǟܳՀ뼶
■ ɐ୫țӋͱ໌նǽɌһഏب뼶
■ ćĈĉțƋǽćܳɟઐ˥IJ뼷ɐ୫ŧȯɟ뼶ԪćȺŴ
ĉĻĨĚƻܳɟపʐƋϱĀɣٖ뼶
■ ɐ୫ćܳɟĀܳ૿Ęǽٝഀ૭ļęĀˀȞ뼶
Ƨư˾ˀȞȭܳ૿ĘҎҔ뼷ĻĨĚٍ֠ĉ˳ɩ˻뼶
■ ڪćȫͱഋפරඌڜߑIJđྏȗරඌڜߑ뼶
ƧưǷǽĪරඌڜߑ뼷ĻĨĚۂഛͱҜŪ˻ҳ뼶
Nj
SJ-RF22E-DS_TINS-C138CBRZ.indb 2SJ-RF22E-DS_TINS-C138CBRZ.indb 2 24/2/2566 BE 10:0324/2/2566 BE 10:03
ᳫ㑅
ZH-3
1
ܳĀ׆˅ڪӖѾĀʘɣˬǍ뼶
ˤʍ׃ФąȫܳǨĀŕŇˬǍ뼶ćăǜĀˬǍ
ഀ૭ĪɖDŽĨ۷ϥഹԎʔʰɫ뼶
90mm
or more
60mm
or more
60mm
or more
М
ŗĘ
М
ŗĘ
М
ŗĘ
ŷˌشˬ
ܳŷˌȇɄƥǍĀˬǍࡍ˅ęǏOOؼŇǏ
OO뼶ܼˤˬǍęǏOO뼷Н୫ćDŽġļɴĀ
إരƭӍȺʋ׆তɫ뼷ŗыɩ˻뼶
ɐNj
sܳ׆ĀˬǍɾę뼷ܳDŽIJĀഹǖʔɾŇ뼶
sƧưćŇǏƧʍǨФĀˬǍഀ૭ġůܳ뼷ĻĨĚ֠
ٍٝѹʇƬ뼵ᕒęӍтච뼶
sɐ୫țܳϣȖ뼶ܳ׆ĀૻĻĨĚȁɴሀׯڇ
ŐĀǬȸƦȼัͱȼɡ뼶
ůIJǨɻɄˬǍ
1113mm
980mm
ȫ
њӐՏ
2
ɐϙůЭђט뼷țܳːŞǽćŞذĘ뼶
Эђט
ɐNj
sѴٝܳIJđ֥ŒҨজϔǏܻ뼶
sɐ୫țܳǽćїʾˢׯĀŞƶͱţɴƭ،Ā˔뼶
sɐ୫dzࢪࠒնůǟжߑ뼶
dzܳǽćҰࢫĀŞذĘ뼷ƦăĄˢˈǽćౠעŞ
ذĘ뼶
ƧưțܳǽćౠעŞذĘ뼷ɐćܳĪƶůʸҏĀ
Ъǝ뼷Ƨ҂ذ뼶
ćůܳǡ
sůѹnj༝ܴļĀݜҘʓܳʮˌ뼶
Ƨưůْnj뼷ɐůnjોЪࠚᓴٹش뼶
sഋࠒն쨞ஆ뼵١ɡ൵ɬDž쨟뼶
SJ-RF22E-DS_TINS-C138CBRZ.indb 3SJ-RF22E-DS_TINS-C138CBRZ.indb 3 24/2/2566 BE 10:0324/2/2566 BE 10:03
ZH-4
ѹʇߝႳ
һഏبַߑ
Āخܳƭ
ɐ୫ćܳϜġnj뼶
ۚצ뼷خŪĀܳĚΨʨćĂŐ뼶
ܳخŪŗŷ뼷ɐ܍؊IJ࣌ƶˋʼ
ƘߝႳ뼷țܳԦɖভܳ૿ʮ뼶
ভܳ
ɐNj
Ħą֑ٜভܳ૿ɩধ뼷ɐ୫ćȺġ
ԦɌЅͱůǏخܳ뼶
ƨůܳѹبɟ
ڧبַߑ
ˌʞǩ
15
5
10
11
12
6
13
1
2
3
4
14
16
18
14
19
17
7
8
9
·ךĨ۷܍ᔧ
ѹʇߝණᔧ
.'&ϱФࠈ
һڅبַߑ
ീưַߑ
ീư
Эђט
ɟտ
һഏبɟ
ӳ
һڅبɟ
Ӌ
ŇˀȞߑ
ٝ
ǢƾțѴٝćһǬĀʘƅĘ뼶
ăđɖDŽ߽ǟŠʓ뼶
ƧưĞđćܳʮভԪęՏˀȞ
sǷĻĨđĪĘʍġী뼵뼵뼵뼵뼵뼵뼵
뼵뼵뼵뼵Āַߑͱܳ૿뼶
sǕƭՏĀĨഹĄ܍ř٘ԆӂԎʔƦī뼷ăخܳƭŠভܳ
૿ĀĨഹ뼶
ƧǙŧƨůܳѹبɟ
Őܳѹبɟ뼶
țܳѹبɟجɌɟᅢġ뼷Ɣŷˋ
ŷȖĖവذ뼶ȺțȢڪŞǭ
Ėʞ뼶
ŧȯ
țˬǍůǟһڅب뼶 țˬǍůǟܳѹب뼶
ߝႳ
ভܳ
ѹʇߝ
SJ-RF22E-DS_TINS-C138CBRZ.indb 4SJ-RF22E-DS_TINS-C138CBRZ.indb 4 24/2/2566 BE 10:0324/2/2566 BE 10:03
ᳫ㑅
ZH-5
ǮůβĨ
·ךĨ۷
ĞțܳНҖĦ·ךĨ۷ĀʼޔѐIJ뼷ɐů˾
٣К뼶
Ǖ٣КDŽIJ뼷һڅبŠһഏبĀѹʇĚƬǏŗĪ˩
ܩ߽ǟ뼶
һഏب һڅب
ćq·ךĨ۷r
٣КĪ
Ęęך삸 Ęęך삸
ƧưƵīնăѾܳױͱخܳƖIJ뼷ĻȾϥˤβĨ뼶
ƧƘ߽ǟ
܍Ī뺸·ךĨ۷뺹܍ᔧ뼶
ࣆа
ƧȾϥ߽ǟ
Ǟơ܍Ī뺸·ךĨ۷뺹܍ᔧ뼶
ȯহ
ɐNj
s·Ĩв߀ȾљǏůտؗ쨞׆ѹʇ뼷ŧȯܳɟĀ
ӥ߀뼷ηˀɻʔ쨟뼶
ѹʇߝණᔧ
ʞǏһڅبʮ
˾ණᔧĀ٪ѴѴǭƧĪʍǨФ뼶˾ණᔧĀǟůĄ֭֫һ
څبĀѹʇЭ·خһͶՓĀһ˃ˑʇ뼶
ȋණᔧʼĖ뺸%1.&'56뺹൫IJ뼷ƨĊভڅب쨞һڅبŠ
һഏب쨟ߴһ˃ݘČ뼶
ѹʇߝႳ
ʞǏһഏبʮ
țߝႳЭχġǍ뼷ŗࣂȢ˩ů뼶
˾ߝႳůǏŧȯʘˋһڅبĀˬǬʘƅ뼶
ȋߝႳતĖ뺸%1.&'56뺹൫IJ뼷ŮĈһഏبһ
˃ݘČ뼶
TEMP. CONTROL
ߝႳĀʞٝ ʰɫ
ڽ൫
sɖɌһڅبĀһǬʔƑĠ뼶
sһڅبһ˃ݘČ뼶
ޣ൫
sɖɌһഏبĀһǬʔƑĠ뼶
sһഏبһ˃ݘČ뼶
ӚڰĀѹʇѴǭƧĪǨФ뼶
ѹʇߝႳ ѹʇߝණᔧ
Ȣ˩
TEMP. CONTROL
ćࡈՅ
ӢǏ삸
TEMP. CONTROL
sѴǭćޣ൫뼶
sɐ୫Ѵǭćڽ൫뼶
SJ-RF22E-DS_TINS-C138CBRZ.indb 5SJ-RF22E-DS_TINS-C138CBRZ.indb 5 24/2/2566 BE 10:0324/2/2566 BE 10:03
ZH-6
ɖ
ś
njư존ീ҅
ĦپʔɹnjŒĀȸ˫뼷njưŠീ҅đůڧࡩӍŔ쨞
ăˍ쨟ƥĀർ൵ΛΛĘ뼷թțȺǽɌീư૿ʮ뼶
خȞŠ٬ӳ
sǵٯǨĈخȞĀʋĘĝԆĈҏȋĀԪѹʇŠ
ԪʿՃ뼶
sɐůӳ૿Ԫǽ٬ӳ뼶
ѡ존ʶ존ሆѡ
sɐțȺǽć،Ę뼷թĘڧ뼶
sܼĄęՀĀѡ뼵ʶͱሆѡ뼷ɐțȺǽćַߑĀŷˌ뼶
sǢƾٺĀηȞӨݯůڧČ뼷ͱțȺǽćݦ
،ʮ뼶
ĦРĖŕމһഏвư
sηȞȞΘ˅ȋĤڧ뼶
sܼđŨэһഏηȞ뼷ƲơĝκݯɹʔǽɌ뼶
sηȞ˅ჹڒݦͱࣥӵ뼶
sțηȞߴŞǽɌһഏب뼶
sŔŠ،ĘđԆĘԆФ뼷թϴʓࡻһഏηȞĀʮ뼶
࣌šĤڧηȞƥNjƂּ
ĤڧηȞ쨞ȫƼ쨟˅ভԪĈՃIJǍ뼷ŗ֑ȼΘթߗ
ȶڔȺŴভԪĀηȞ뼶
֑ٜܳʮˌʨnjͱʨ།ĀӚڰ
sɟӵݦȯĘ뼶ƧưηȞҔĪ뼷ĻĨٍ֠ܳȇܳɟ
ƥǡĈᎇ뼶țȺǽƫڜߑͱɟ૿ġ뼶
snjŒߒʔƬĀηȞ˅Ԫǽćݦহ،ġͱݦԪ뼶
ӚڰভԪηˀ
sĦһǬ֥Œ౼տ뼷ɐțηȞߴŞǽćַߑĘ뼶
sܳɟǣIJǍŧĻĨĚҜŪǖ،ʮˌˬǍѹʇdž׃
Ƭ뼶
sɐțֈɴĀηȞױĪčŗŷ뼷ƷԪŐč뼶Ƨưțֈɴ
ĀηȞǽɖܳ뼷ܳʮĀѹʇĚƬ뼷ĒƠϰϰň
Ͳٍ֠ηȞઈȼΘ뼶
sɐ୫ŻηȞͱ،വʐһǬ౼տྉɢĀśɣˍŠɖǬ
ˍ뼶ۚצ뼷ηȞćܳʮďăĨߴŞһ˃뼶
sɐ୫ˢˈțηȞǽćһǬśɣˍ뼶
ĒƠĚڇٍηȞʨܳ뼶
sڪηȞέŕĤڧĀȞΘ뼷ŗͲઈηȞĀԪʿՃŕę뼶ĪԉĦщՎǣηȞভԪĀĂݎϱϒ뼶
sηȞĀভԪIJǍĈՃ뼶ڪăɸļخҜԄϱФĀԪʿՃ뼶
ηȞĀভԪ
·ךĨʔĀቦɟ
■ dzܳȫćʘɣݘČĀŞƶ뼷թʘɣ뼶
■ ˤ٣ՏĀĨ۷ϥഹʔƧĪʍǨФԎʔ뼶
90mm
300m m 300m m
50mm
■ ɐ୫țܳǽćїʾˢׯĀŞƶͱţɴƭ،Ā˔뼶
■ ԃʔыŧɟ뼶
■ ɐțֈɴĀηȞױĪčŗŷ뼷ƷԪŐč뼶
■ ĦһǬ֥Œ౼տ뼷ɐțηȞߴŞǽćַߑĘ뼶
ɐ୫țηȞǽٝćঈҞ뼶
ĒƠĚڇٍηȞഏʨ뼶
ɐ୫ˢˈțηȞǽćһǬ
śɣˍ뼶
ĒƠĚڇٍηȞഏʨ뼶
SJ-RF22E-DS_TINS-C138CBRZ.indb 6SJ-RF22E-DS_TINS-C138CBRZ.indb 6 24/2/2566 BE 10:0324/2/2566 BE 10:03
ᳫ㑅
ZH-7
ȶđФ
ᆯ౼Īǚ݈Ղ뼷֑ٜʮˌȩǚȇർ൵ʻɫśƌഛൎ
sηůЅᅪĘർնˌɫIJ뼷ɐțƥࠚҎ뼶
sԚȏŝůƒҀᖠོĻĨĚٍ֠ܳধ˻뼷ȁƦŮĨů
શࣴļĀುӭůҀᖠོ쨞ْnj쨟뼶
sƧưůλશࣴĀҀོͱλોЪࠚشْnj뼷צĈĻĨ
ধܳĀർնˌɫ뼶
ʓ
śǏێŀȗύ뼷ɐڪǭʿɖDŽŗĪ߽ǟ뼶
■ ഋĪܳɄŠɟĘĀԜɫ쨞Ƨַߑ쨟뼶ůѹnjŠುӭ
ůҀᖠོʓҀ뼶Ɣŷ뼷ůnjҀʓթƥٹۛ뼶
■ ů༝ܴುӭůҀᖠོĀѹnjġĀݜҘʓܳʮˌ뼶
ˈōůһnjોЪࠚפҀᖠnj뼶
■ ܳĀʋ࿎ᅪĘᙓIJ뼷ɐů߃ݜĀҘՀࠚҀ뼶
■ ܳɟտđůುӭůҀᖠོĀѹnjŠ࠭ݨҀش뼶
ɐNj
sʓƥŷ뼷ɐڪțַߑŠʴઘ૿ǽćʅǕĀʞٝĘ뼶
sɐ୫ůˑƺʓོͱዳོ쨞Ѕ࿚뼵૰ն뼵ୋʾӻ뼵
ޱЅ뼵njDž쨟뼷ۚצĻĨٍ֠ܳধ˻뼶
sśǖ۷Ǻ뼷ɐDžΰχɹŒҙƥŷǞȶĤˈʘ
ǖ۷뼶
sරඌڜߑňȶ뼷ăͲ뼶ȋǷȭܳഋڜߑIJ뼷
ɐܙʐ뼶
sćܳʮɐ୫ˀɄҎҔ뼷ͱůˀɄˑݰʮૻ뼶
ۚצĻĨٍ֠ʮૻۂഛ뼶
פ།
ǕܳۛļњĀ·ךĨ۷ͶՓ뼷ȥƼǮƌĢƘפ།뼶
ȋһڅبʮࠈধIJ
ɐԔ5*#42ΗĻĀߊŷ˖ӨġķƑҖʮࠈ뼶οʸѻ
ϜĀέզĉ˳ăīƑҖʮࠈ뼶
НאܳĀǖ۷IJ
ƧưܳđǣIJǍȯহ뼷צ˅৸ȾŗĪϲበŗɹᕡཕ
ŀǣ
΄śǨĈηˀ뼶
ȭǝפǖ۷Ǻ뼶
ોЪʓթٹʮˌҞ뼶
ǨĈܳɟලŲŧǽǵĐɖDŽٹ뼶
ѵ
SJ-RF22E-DS_TINS-C138CBRZ.indb 7SJ-RF22E-DS_TINS-C138CBRZ.indb 7 24/2/2566 BE 10:0324/2/2566 BE 10:03
ZH-8
զƥǡ뼷ɐণзŗĪǵŽ뼶
ɜʛ š
ܳɄʋˌŐčň뼶 Ēթοࡉ˩뼶ɴϯʞǏܳɄʮ뼷ŗ֑ٜʨ܋뼶
ܳţśᕒIJ뼶 ܳƧţśŗĪ뼷Ēթοࡉ˩뼶
s إരƭʼŧ˧IJĚţśֈęĀᕒ
ă΅ĚȼŇ뼶
s إരƭƲūĂơţśֈęᕒ뼶
ćĢƘפ།ǟˠƥŷ뼷ӐĚţśǟ뼶
s ઃɄȸƘĀ쨞ᅡᆌ뼵쨟
һćϯƅġȸƘĀ쨞IJƦĚȼīֈę쨟뼶
s ሶ࿈ͱᘁཿ뼷ᘁᘁ
һ˃IJʮૻŠʮˌতɫᖬ႖ŠʴരлŀĀ뼶
ܳʮˌŠܳʋ൫ʨ།ͱ
ʨ܋뼶
ćĪԉŰ֜ĪĈĻĨţŀĒƝƌղ뼶ɐůঃҘࠚҎ།뼷ůٹҘࠚҎ܋뼶
s ׆ѹʇֈƬIJ뼶
s ӥŧܳɟIJ뼶
s ԪǽnjŒֈĠĀηȞIJ뼶쨞ɐůڧĘ쨟
һڅبʮĀηȞʨܳ뼶 s ĄۚǣʿćѹʇߝණᔧѴĦ%1.&'56ĀޔѐĪůܳ쨵
țѹʇЭ·ѴǭϐĦȺŴѴǭ뼶
s ćտؗѹʇֈӢIJ뼷țѹʇߝණᔧѴǭĦŕڽ൫ʞٝ뼷ηȞģĻĨĚʨܳ뼶
ܳʮˌĈࡉ뼶 s ɐțǬֈˑĀηȞůڧࡩŐč뼶
s ٝăĨŅҎǨĈࡉ뼶
ܳɟňȨǙŧ뼶 ǓȯĘһഏبɟŷ뼷ĻĨȨŗǙŧܳɟ뼷ĒĄȁĦһڅبʮĀǬѹŠإƺĚĪܰ뼶
ɐDžΰęךڀŷǞǙŧܳɟ뼶
ƾণзŷঞđզIJ
ɐȇď˥Ā5*#42ΗĻĀߊŷ˖Өġķઅ뼶
զƥǡĀحϲণз
SJ-RF22E-DS_TINS-C138CBRZ.indb 8SJ-RF22E-DS_TINS-C138CBRZ.indb 8 24/2/2566 BE 10:0324/2/2566 BE 10:03
SJ-RF22E-DS_TINS-C138CBRZ.indb 9SJ-RF22E-DS_TINS-C138CBRZ.indb 9 24/2/2566 BE 10:0324/2/2566 BE 10:03
SHARP CORPORATION
TINS-C138CBRZ 23DF TH
1
SJ-RF22E-DS_TINS-C138CBRZ.indb 10SJ-RF22E-DS_TINS-C138CBRZ.indb 10 24/2/2566 BE 10:0324/2/2566 BE 10:03
