PSIP24
USER’S MANUAL
SOUND ABSORBING WALL PANEL
STUDIO FOAM WITH STAND
2

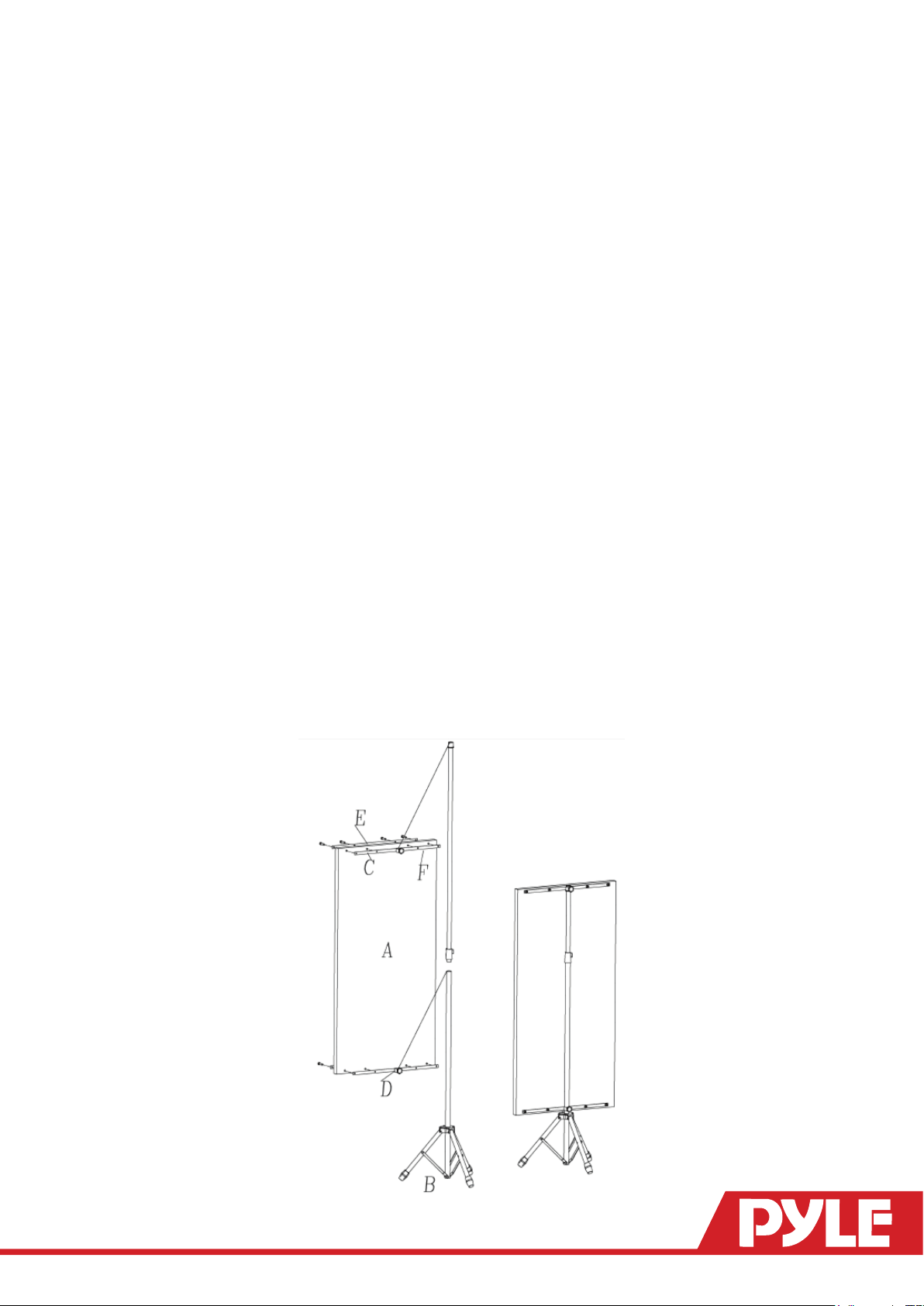

Open the box and you will nd below parts:
1* Foam (A)
1* Stand (B)
1* Steel at bar welded with a small round tube (C)
1* Steel at bar welded with a big round tube (D)
2* Steel at bars (maybe connected with above two bars)(E)
8* Bolts( maybe connected with above two bars)(F)
1* Allen key(G)
1. Align the at bar (C)(E) and (D)(E) with 4 holes on the foam(A) and use Allen key(G) and bolts(F) to put
them together. Don’t tighten the bolts too much.
2. Open the legs of the stand.
3. Pull away the top tube of the stand and take away the height adjusting knob in the middle of the
stand.
4. Put the at bar welded with big round tube(D) on the stand.
5. Install back the height adjusting knob back on the stand and install back the top tube.
6. Put the round tube of (C) on the top of the top tube of the stand and tighten the knob.
7. Adjust the height of the stand or adjust the height of the foam.
8. Pull down the bottom at bar a little down and make the foam to be as at as possible then tighten
the knob to keep the foam in tension.
*Thefoammaybenotatintherstfewhoursbecauseofthepackingbutitwillrecovertoit’sshape
verysoon,sodon’tworry.
3
Features
• Quick and Easy Sound Isolation Setup
• Lightweight & Portable Acoustical Sound Panel
• Wedgie Wall-Pad Style Studio Sound Absorption
• Assists in Achieving Optimal Audio Performance
• Helps Promote the Flow of ‘Clean’ Sound Projection
• Tested to Reduce Unwanted Noise & Sound Reection
• Reduces Vibration & Unwanted Audio Resonance
• Stabilizes and Isolates Sound When Recording
• Effective Noise-Reducing and Sound Dampening
• Tripod Mounted Absorber Shield for Added Stability
• 2’’ -inch Thick Engineered Noise-Reducing Foam
• Extra Large Machined Pyramid-Style Wedge Panel
• Greater Surface Area for Open Exposure to Sound Waves
• Suitable for All Recording Environments and In-Studio Use
• Includes Base Stand Mount and Acoustic Panel
• For Beginner and Professional Applications
• Perfect for Vocal Booths, Recoding Rooms, Studios, Podcasts, etc.
• Used by Musicians, Instrument Players, Performers, Sound Engineers, DJ, MC, etc.
• Foam Color: Charcoal Gray
Dimensions:
• Foam Panel: 23.7’’ x 47.2’’ x 2.0’’ (60.0 x 120.0 x 5.0cm)
• Height Adjustable: 55.0’’ to 87.0’’ (139cm x 220cm)
• Adjustable Height of Foam to Floor: 7.8” - 39.4’’ (20.0 - 100.0cm)
• Weight: 7.74 lbs.
SOUND ABSORBING WALL PANEL STUDIO FOAM WITH STAND
FEATURES AND SPECIFICATIONS
