OWNER’S MANUAL
SLI 2.2 - SLI 4.2
connection.eu
background
background
3
WARNINGWARNING
• Before you start your installation, make sure you carefully read and understand all instructions.
Disregarding them might cause accidental harms or damage your devices.
• The vehicle electric system must have 12 VDC voltage with negative to ground. Make sure
yourcarhasitinordertoavoidanydamagestoyouramplierandtothevehicle.
• Install the device in the vehicle parts where temperature is between 0° C (32° F) and 55° C (131° F).
• Make sure the location you chose for the components does not affect the correct functioning
of the vehicle mechanical and electric devices.
• Do not run the cables or install the device next to electronic gearcases.
• Always wear protective eyewear when using tools that may generate splinters.
• When installation is over, and before plugging the main power supply fuse, check the system
wiring and make sure all connections were done in the right way.
•Safetymustbeattherstplacewhiledriving.Listeningvolumemustnevercovernoisecomingfrom
the outside and from the vehicle, in order for you to be able to promptly face emergency situation.
•AlwaysinsulatetheconnectionbetweentheSLIandtheOEMheadunit/OEMamplierto
avoid damage them.
•AlwaysinsulatetheconnectionbetweentheSLIandthe+12Vpowersupplysystem(battery).
•Alwaysfuse+12VSLIcable(RED)with1Afusetoavoidanydamagetothevehicleelectrical
systemandoreventofre.
Elettromediawillnotbeliableforthedirectorindirectdamagesduetoawronguseorawrong
connection of the device.
background
4

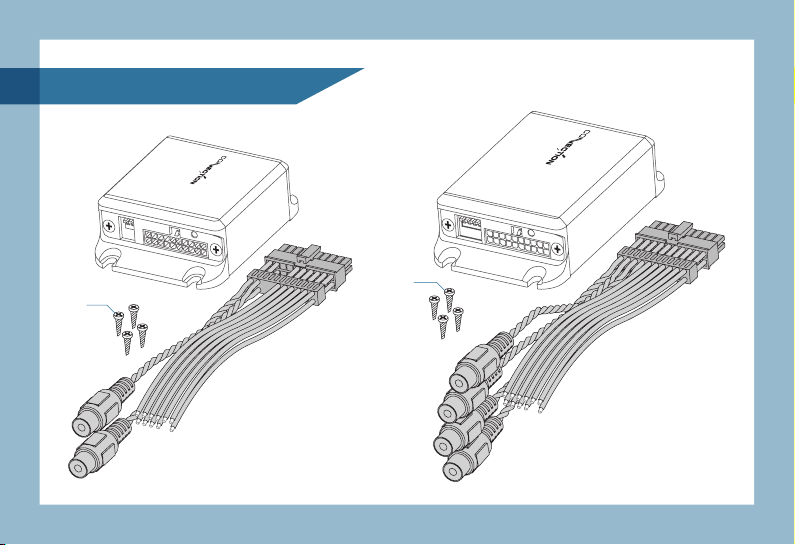

PACKAGING CONTENTSPACKAGING CONTENTS
SLI 2.2SLI 2.2 SLI 4.2SLI 4.2
x 4
x 4
background
5
INSTALLATION - FIXING - SIZEINSTALLATION - FIXING - SIZE
DD
HH
WW
CLICKCLICK
SLI 2.2 SLI 2.2 -- SLI 4.2 SLI 4.2
W H D
SLI 2.2
61
(2.4)
82
(3.2)
28
(1.1)
mm
(in.)
SLI 4.2
61
(2.4)
102
(4)
28
(1.1)
mm
(in.)
background
6

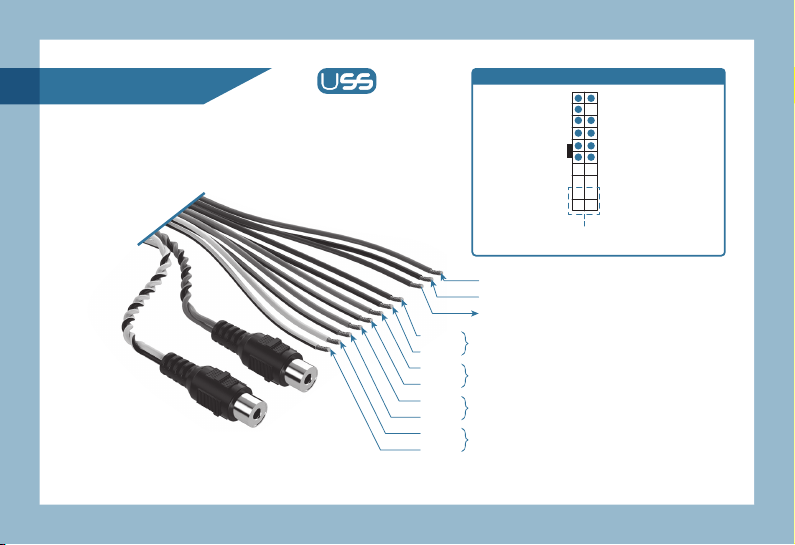

CONNECTIONSCONNECTIONS
SLI 2.2SLI 2.2
*
DuetothepresenceoftheUSScircuit,pleasemakesuretoconnectthehighlevelcablestotheRLandRRinputsonlyiftheyare
disconnectedfromtheOEMrearspeakers.
UNIVERSAL SPEAKERS
SIMULATOR circuit, simulates
theloadoftheOEMspeakers
onthe4Front+Rearinput
channels, for a complete
compatibilitywithOEM
Headunit/OEMAmplier.
SLI 2.2 CABLE OUTPUT VIEW
RCA
OUT
GND (Black)
NC
IN RR- (Purple/Black)
IN RL- (Green/Black)
IN FR- (Grey/Black)
IN FL- (White/Black)
NC
NC
OUT FR- (Grey/Black)
OUT FL- (White/Black)
(Red) +12V
(Blue) REM OUT
(Purple) IN RR+
(Green) IN RL+
(Grey) IN FR+
(White) IN FL+
NC
NC
(Grey) OUT FR+
(White) OUT FL+
+12V
GND
RCA
Front Right
Out
RCA
Front Left
Out
RemOut
INRR+
INRL+
INFR+
INFL+
INRR-
INRL-
INFR-
INFL-
Rear
Right
Front
Right
Rear
Left
Front
Left
background
7
CONNECTIONSCONNECTIONS
SLI 4.2SLI 4.2
UNIVERSAL SPEAKERS
SIMULATOR circuit, simulates
theloadoftheOEMspeakers
onthe4Front+Rearinput
channels, for a complete
compatibilitywithOEM
Headunit/OEMAmplier.
RCA
OUT
+12V
GND
RCA
Front Right
Out
RCA
Rear Right
Out
RCA
Front Left
Out
RCA
Rear Left
Out
RemOut
INRR+
INRL+
INFR+
INFL+
INRR-
INRL-
INFR-
INFL-
Rear
Right
Front
Right
Rear
Left
Front
Left
SLI 4.2 CABLE OUTPUT VIEW
GND (Black)
NC
IN RR- (Purple/Black)
IN RL- (Green/Black)
IN FR- (Grey/Black)
IN FL- (White/Black)
OUT RR- (Purple/Black)
OUT RL- (Green/Black)
OUT FR- (Grey/Black)
OUT FL- (White/Black)
(Red) +12V
(Blue) REM OUT
(Purple) IN RR+
(Green) IN RL+
(Grey) IN FR+
(White) IN FL+
(Purple) OUT RR+
(Green) OUT RL+
(Grey) OUT FR+
(White) OUT FL+
background
8
CONNECTIONS: SLI 2.2 with OEM Headunit (without ARTCONNECTIONS: SLI 2.2 with OEM Headunit (without ART
™
function) function)
DSR: DOUBLESTEP-DOWNRATIO,allowscorrectlevelinterfacingwithOEMHeadunitorOEMAmplierbyswitchselection.
OEM Headunit
IN (high level)
OUT (low level)
Remote
High Power
(OEM AMP)
Low Power
(OEM SOURCE)
OFF
ON
background
9

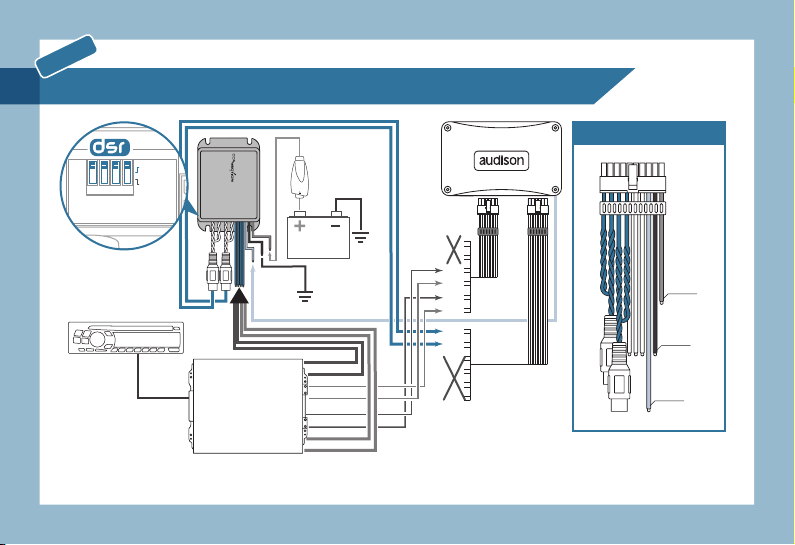

CONNECTIONS: SLI 2.2 with OEM Headunit (with ARTCONNECTIONS: SLI 2.2 with OEM Headunit (with ART
™
function) function)
DSR: DOUBLESTEP-DOWNRATIO,allowscorrectlevelinterfacingwithOEMHeadunitorOEMAmplierbyswitchselection.
ART™: AUTOMATICREMOTETURN-ON/OFFfunction,generatesa12VremoteoutputwhentheOEMHeadunit/AmplieristurnedON/OFF
(availableonlywhenSLIispowered).
High Power
(OEM AMP)
Low Power
(OEM SOURCE)
OFF
ON
OEM Headunit
Fuse
IN (high level)
OUT (low level)
RED
+12 V
GND
Black
REM OUT
Blue
Remote
ART
TM
FUNCTION
Fuse Holder
not provided
suggested fuse
T 1A-delayed.
background
10
CONNECTIONS: SLI 4.2 with OEM Headunit (without ARTCONNECTIONS: SLI 4.2 with OEM Headunit (without ART
™
function) function)
OEM Headunit
IN (high level)
OUT (low level)
Remote
Front
Front
Rear
Rear
OFF
ON
High Power
(OEM AMP)
Low Power
(OEM SOURCE)
DSR: DOUBLESTEP-DOWNRATIO,allowscorrectlevelinterfacingwithOEMHeadunitorOEMAmplierbyswitchselection.
background
11
CONNECTIONS: SLI 4.2 with OEM Headunit (with ARTCONNECTIONS: SLI 4.2 with OEM Headunit (with ART
™
function) function)
DSR: DOUBLESTEP-DOWNRATIO,allowscorrectlevelinterfacingwithOEMHeadunitorOEMAmplierbyswitchselection.
ART™: AUTOMATICREMOTETURN-ON/OFFfunction,generatesa12VremoteoutputwhentheOEMHeadunit/AmplieristurnedON/OFF
(availableonlywhenSLIispowered).
RED
+12 V
GND
Black
REM OUT
Blue
ART
TM
FUNCTION
OEM Headunit
IN (high level)
OUT (low level)
Remote
Front
Front
Rear
Rear
OFF
ON
High Power
(OEM AMP)
Low Power
(OEM SOURCE)
Fuse
Fuse Holder
not provided
suggested fuse
T 1A-delayed.
background
12

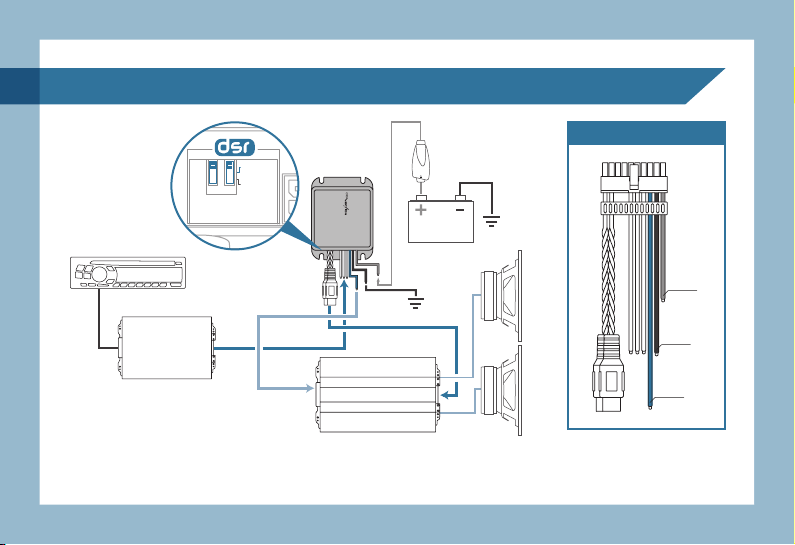

CONNECTIONS: SLI 2.2 with OEM Amplifier (with ARTCONNECTIONS: SLI 2.2 with OEM Amplifier (with ART
™
function) function)
RED
+12 V
GND
Black
REM OUT
Blue
ART
TM
FUNCTION
DSR: DOUBLESTEP-DOWNRATIO,allowscorrectlevelinterfacingwithOEMHeadunitorOEMAmplierbyswitchselection.
ART™: AUTOMATICREMOTETURN-ON/OFFfunction,generatesa12VremoteoutputwhentheOEMHeadunit/AmplieristurnedON/OFF
(availableonlywhenSLIispowered).
OEM
AMPLIFIER
IN
(high level)
OUT (low level)
Remote
OFF
ON
High Power
(OEM AMP)
Low Power
(OEM SOURCE)
OEM Headunit
Fuse
Fuse Holder
not provided
suggested fuse
T 1A-delayed.
background
13

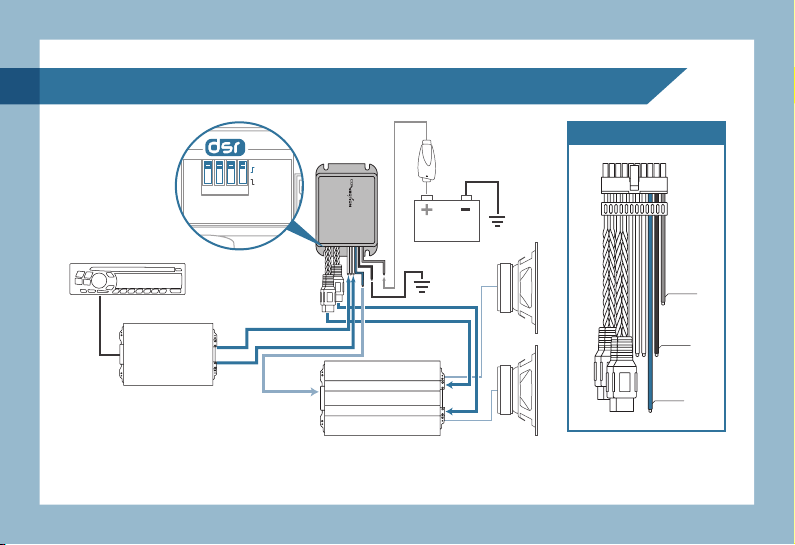

CONNECTIONS: SLI 4.2 with OEM Amplifier (with ARTCONNECTIONS: SLI 4.2 with OEM Amplifier (with ART
™
function) function)
DSR: DOUBLESTEP-DOWNRATIO,allowscorrectlevelinterfacingwithOEMHeadunitorOEMAmplierbyswitchselection.
ART™: AUTOMATICREMOTETURN-ON/OFFfunction,generatesa12VremoteoutputwhentheOEMHeadunit/AmplieristurnedON/OFF
(availableonlywhenSLIispowered).
RED
+12 V
GND
Black
REM OUT
Blue
ART
TM
FUNCTION
OEM
AMPLIFIER
IN (high level)
Rear
Rear
Front
Front
OUT (low level)
Remote
OFF
ON
High Power
(OEM AMP)
Low Power
(OEM SOURCE)
OEM Headunit
Fuse
Fuse Holder
not provided
suggested fuse
T 1A-delayed.
background
14

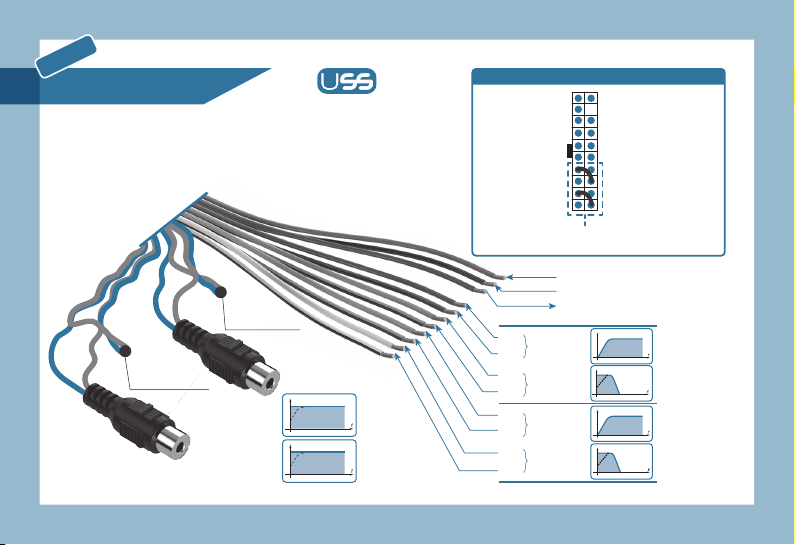

SLI 4.2SLI 4.2
RCA
OUT
+12V
GND
RemOut
Right Hi-Pass
Input
Left Hi-Pass
Input
Right Lo/Band-Pass
Input
Left Lo/Band-Pass
Input
SLI 4.2 CABLE OUTPUT VIEW
GND (Black)
NC
IN HI R- (Purple/Black)
IN LO R- (Green/Black)
IN HI L- (Grey/Black)
IN LO L- (White/Black)
OUT R- (Purple/Black)
*
(Green/Black)
OUT L- (Grey/Black)
*
(White/Black)
(Red) +12V
(Blue) REM OUT
(Purple) IN HI R+
(Green) IN LO R+
(Grey) IN HI L+
(White) IN LO L+
(Purple)
*
(Green) OUT R+
(Grey)
*
(White) OUT L+
to stereo to stereo
passive passive
mixermixer
CONNECTIONSCONNECTIONS
UNIVERSAL SPEAKERS
SIMULATOR circuit, simulates
theloadoftheOEMspeakers
ontheLo-Pass+Hi-Pass
input channels, for a complete
compatibilitywithOEM
Headunit/OEMAmplier.
*
Bridge
*
Bridge
IN+
(White)
IN-
(White/Black)
IN+
(Green)
IN-
(Green/Black)
IN+
(Grey)
IN-
(Grey/Black)
IN+
(Purple)
IN-
(Purple/Black)
+(Green)
-(Purple/Black)
Sum Right Out
+(White)
-(Grey/Black)
Sum Left Out
Right Mix
Output
Left Mix
Output
*
+(Grey)
-(White/Black)
*
+(Purple)
-(Green/Black)
EXPERTEXPERT
ModeModeModeMode
background
15
CONNECTIONS: SLI 4.2 with Audison AP bit amplifierCONNECTIONS: SLI 4.2 with Audison AP bit amplifier
OFF
ON
High Power
(OEM AMP)
Low Power
(OEM SOURCE)
OEM Headunit
Hi Level IN
IN 1
IN 3
IN 5
IN 2
IN 4
TWFRRight
SPK
IN
TWFRLeft
MIDFRLeft
RearLeft
RearRight
WFFRLeft
MIDFRRight
WFFRRight
IN 6
DSR: DOUBLESTEP-DOWNRATIO,allowscorrectlevelinterfacingwithOEMHeadunitorOEMAmplierbyswitchselection.
EXPERTEXPERT
ModeModeModeMode
OEM
AMPLIFIER
background
16
CONNECTIONS: SLI 4.2 with Audison AP F8.9 bit amplifierCONNECTIONS: SLI 4.2 with Audison AP F8.9 bit amplifier
OEM Headunit
IN 1
IN 1
IN 3
IN 3
IN 5
UNUSED UNUSED
IN 5
IN 2
IN 2
IN 4
IN 4
TWFRRight
TWFRLeft
MIDFRLeft
RearLeft
RearRight
WFFRLeft
MIDFRRight
WFFRRight
IN 6
IN 6
REM OUT
REM IN
SPK
IN
PRE
IN
ART
TM
FUNCTION
RED
+12 V
GND
Black
REM OUT
Blue
Fuse
OFF
ON
High Power
(OEM AMP)
Low Power
(OEM SOURCE)
EXPERTEXPERT
ModeModeModeMode
Fuse Holder
not provided
suggested fuse
T 1A-delayed.
OEM
AMPLIFIER
DSR: DOUBLESTEP-DOWNRATIO,allowscorrectlevelinterfacingwithOEMHeadunitorOEMAmplierbyswitchselection.
ART™: AUTOMATICREMOTETURN-ON/OFFfunction,generatesa12VremoteoutputwhentheOEMHeadunit/AmplieristurnedON/OFF
(availableonlywhenSLIispowered).
background
17
TECHNICAL SPECIFICATIONSTECHNICAL SPECIFICATIONS
SLI 2.2 SLI 4.2
Input / Output Channels 4*/2 4/4
Maximum Input Power 50W@4Ω(Lo-Power)/150W@4Ω(Hi-Power)
Nominal Conversion Ratio 4:1Lo-Power/8:1Hi-Power
Input Impedance
**
200Ω
Output Impedance 400Ω
Distortion
(THD+N@25W rms input, Lo-Power)
0,15% 100 Hz,
0,07% 1 kHz,
0,07% 10 kHz
Frequency Response (-3dB) 15 ÷ 40 kHz
Remote Out
***
(Only when LSI is Powered)
12VDC-100mAmax@13VDCinput
Weight (kg. / lb.) including cable 0,16 (0.36) 0,25 (0.55)
*
DuetothepresenceoftheUSScircuit,pleasemakesuretoconnectthehighlevelcablestotheRLandRRinputsonlyiftheyare
disconnectedfromtheOEMrearspeakers.
**
InputimpedancewhentheUSSfunctionisOff.
***
IncountrieswherethelegislationonelectromagneticcompatibilityisnotmandatoryunderECE/UNRegulationno.10/5.
background
18
Note
background
19
Note
background
20
WARRANTYWARRANTY
INFOINFO
CONNECTION PART OF ELETTROMEDIA
62018 Potenza Picena (MC) Italy - T +39 0733 870 870 - F +39 0733 870 880 - www.elettromedia.it
The products are guaranteed according to the laws in force.
Possibledamagedproductsmustbesentback,withauthorization,to
CONNECTIONdealertoberepairedorreplaced.
Productsdamagedbyincorrectuse/installationarenotcoveredbywarranty.
LFL000_Rev.22e
In Italy: [email protected]
Abroad: [email protected]

Specifications

Connection SLI2.2 Questions and Answers

Find answers or ask new question.
Questions and Answers
