CP2100A/CP2100B
2 / 10
Version
Modified content
Release time
1.0
First edition
2019.05
1.1
Parameter modification
2019.12
The information provided in this document is provided "as is" and is subject to change in future
versions without notice. In addition, to the maximum extent permitted by applicable laws, Micsig
does not provide any express or implied guarantees for this manual and any information contained
in it, including but not limited to implied guarantees for merchantability and suitability for specific
purposes. Micsig is not responsible for errors or accidental or consequential damages caused by
the provision, use or use of this document or any information contained in it. If a separate written
agreement has been reached between Micsig and the user that contains warranty terms related
to the content of this document, but the warranty terms conflict with these terms, the warranty
terms in the separate agreement shall prevail.
3 / 10
Safety Precautions ..............................................................................................
1. Product introduction .....................................................................................
2. Appearance ...................................................................................................
3. Specifications ...............................................................................................
4. Instructions ...................................................................................................
5. Maintain .......................................................................................................
4 / 10
Safety Precautions
➢ The measurable circuit should be CAT II 600V or below
➢ Do not measure bare conductors
➢ Do not touch the measured conductor and sensor head during
measurement
➢ Do not use in a humid environment
➢ Do not touch the instrument or the measured object with wet hands
➢ Please use this product within the range allowed by the end-user
➢ Please use this product as required
➢ Please ground this product through the USB power cord
5 / 10
1. Product Introduction
The CP2100 series is a current probe that can measure both DC and AC. It adopts split
design and has small and beautiful appearance. It uses a standard BNC interface and is
suitable for oscilloscopes. It can also be used for multimeters via connector. The maximum
current can be measured to 100Apk (70Arms); it has 2 models: CP2100A and CP2100B,
CP2100A can measure bandwidth to DC 800KHz, CP2100B can measure bandwidth to
DC 2.5MHz; 2 optional measuring ranges: 10A and 100A. Automatic and manual zero
adjustment, powered by USB, no additional power supply, making measurement more
convenient. Often used in motor drives, industrial frequency, inverters, power supplies,
avionics and other fields.

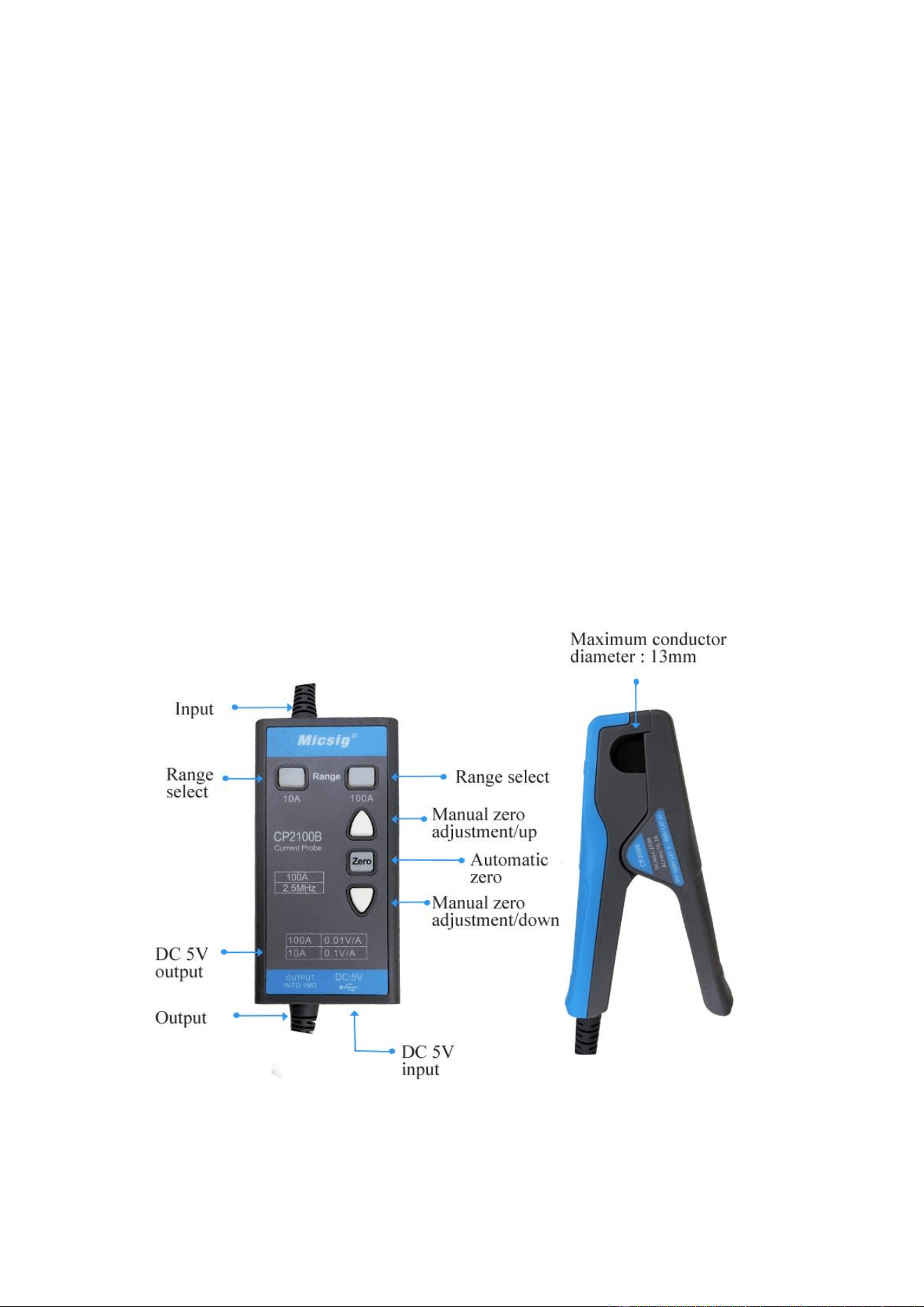

2. Appearance
6 / 10
3. Specifications
Model
CP2100A
CP2100B
Bandwidth
DC~800KHz
DC~2.5MHz
Rise time
≤437.5ns
≤140ns
Range
10A/100A
Output sensitivity
0.1V/A（10A）
0.01V/A（100A）
DC accuracy (typical)
3%±50mA（10A）
4%±50mA（100A，500mA~40Apk）
15%（100A，40Apk~100Apk）
Signal delay
＜150ns（10A）
＜200ns（100A）
DC linearity (typical)
typical on page 6
Measuring range
50mA~10Apk（10A）
1A~100Apk（100A）
Maximum measuring current
100Apk，70.7Arms（DC+ACpk）
200Apk-pk，70.7Arms（AC）
Maximum working voltage
CAT III 300V CAT II 600V
Maximum floating voltage
CAT III 300V CAT II 600V
Maximum conductor diameter
13mm
Overload indication
The buzzer sounds long and the button light flashes
Supplied power
DC 5V
Probe head size
11*6.1*2.5cm
Control box size
10.8*5.6*2.6cm
Length
228cm
Weight
290g
Package weight
1000g
Package dimensions
29.5*23.6*5.7cm
Operating temperature
0~50°C
Storage temperature
-20℃~80℃
Operating humidity
5%~95%(0~40℃, No condensation)
5%~65%(40℃~50℃, No condensation)
Operating altitude
≤3000m
Storage altitude
≤12000m
7 / 10

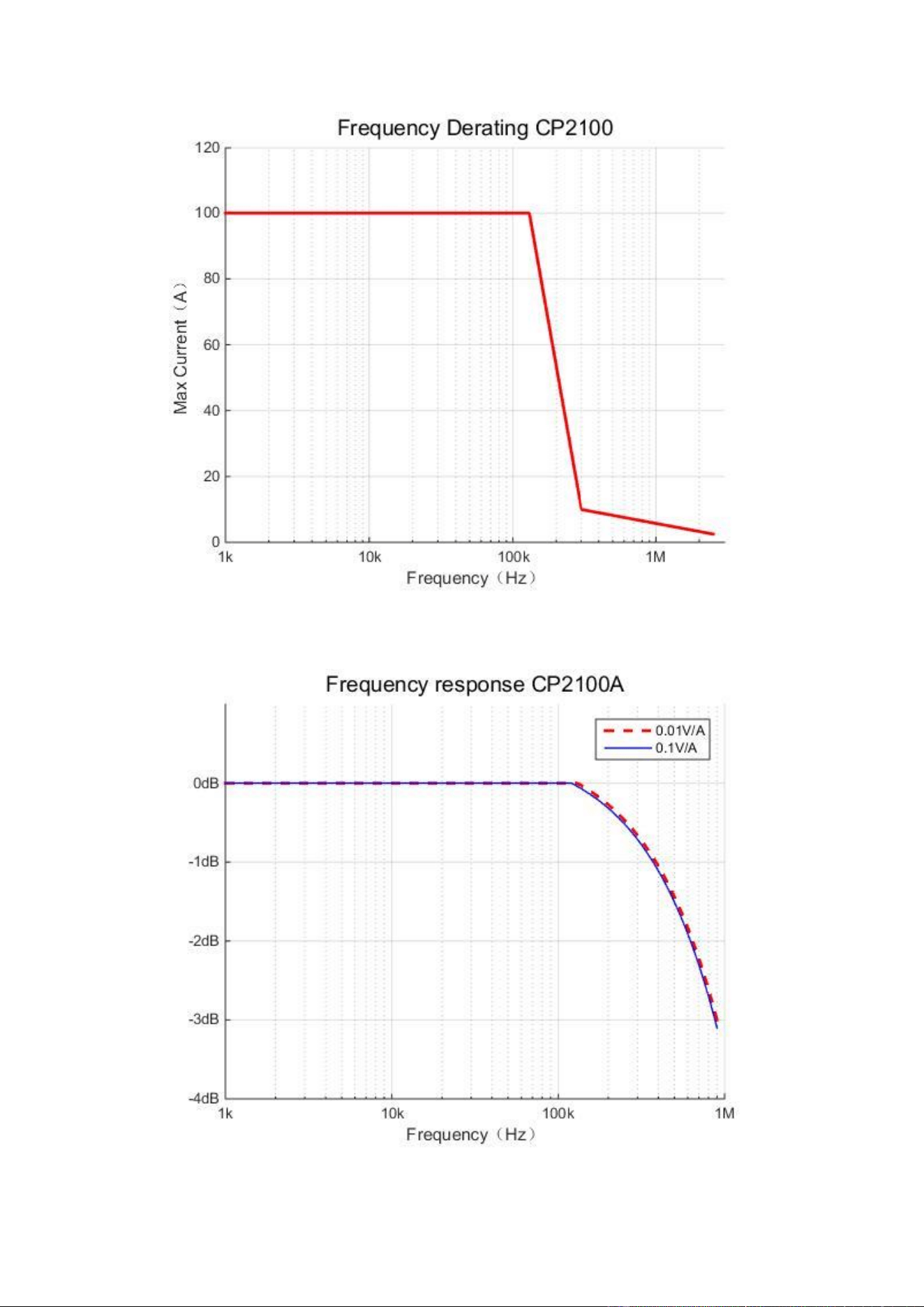

Maximum current VS Frequency curve
Amplitude-frequency characteristic curve-CP2100A
8 / 10

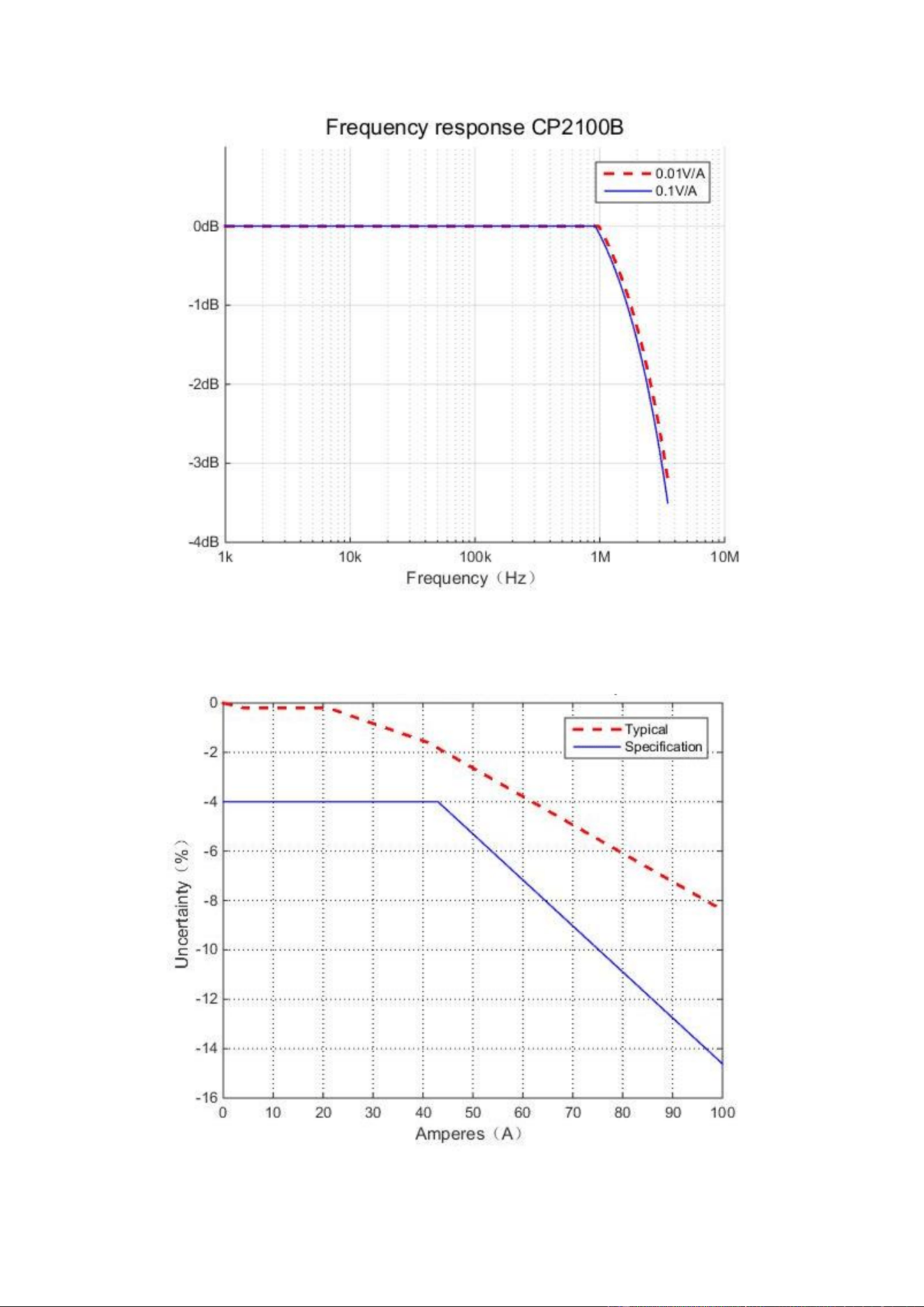

Amplitude-frequency characteristic curve-CP2100B
DC signal linearity (0.01V/A)
9 / 10
4. Instructions
1、Connect the BNC of the current probe to the oscilloscope (or other instruments), and connect
the USB cable to power the current probe;
2、Select the appropriate range on the probe according to current range, the corresponding button
light will turn Green;
3、Adjust the oscilloscope settings: input impedance 1MΩ; select probe to Current or display as
A；Set attenuation factor for corresponding channel，range 100A（0.01V/A） set to 100X， range
10A（0.1V/A）set to 10X；
4、Press Automatic zero adjustment button to realize zero adjustment of the probe，after success，
the buzzer “beep” one time；if “beep” three times，indicating that the zero adjustment has failed；
Manual zero adjustment is also possible；the external magnetic field may have a slight influence
on the DC zero position of the probe，do not move it in a large range after the zero adjustment is
completed;
5、Open the jaws to clamp the conductor under test according to the direction indicated by the
clamp head. Note: If the measured current flows in the opposite direction to the clamp head, the
output will be negative;
6、Adjust the oscilloscope to get the best waveform;
Note: When the current exceeds the range, the buzzer will beep for a long time and the button
light will flash.
10 / 10
5. Maintenance
During the warranty period of the product (one-year) and under normal use, the company will be
responsible for free repairs due to fault caused by the quality of the product itself, and the product
must not been disassembled and repaired without Micsig permission.
Please keep the product dry, clean and tidy. If there is dirt, use a soft cloth or sponge with alcohol
to wipe off the dirt. Do not use water.
In order to ensure the performance of the product, it is recommended to check or calibrate once
a year.
