Model: DWMSCP4570VW
2
Important Safety Instructions
Warranty and Product Registration
CAUTION
• Read the entire instruction manual before you start assembly and installation. Do not begin installation until you have
read and understood all the instructions and warnings contained in this installation sheet. If you have questions about
any of the instructions or warnings, contact Tripp Lite Support.
• Use with products heavier than the rated weights indicated may result in instability, causing possible injury.
• Mounts must be attached as specified in these instructions. Improper installation may result in damage or serious
personal injury.
• Safety gear and proper tools must be used. This product should only be installed by professionals.
• Ensure the supporting surface will safely support the combined weight of the equipment and all attached hardware and
components.
• Use the mounting screws provided, tighten them firmly, but DO NOT OVERTIGHTEN the mounting screws. Overtightening
can cause damage to the items. This greatly reduced their holding power.
• This product contains small items that could be a choking hazard if swallowed. Keep these items away from children.
• This product is intended for indoor use only. Using this product outdoors could lead to product failure and personal injury.
• Check that the bracket is secure and safe to use at regular intervals (at least every three months).
5-Year Limited Warranty
Seller warrants this product, if used in accordance with all applicable instructions, to be free from original defects in material and workmanship for a period of
5 years from the date of initial purchase. If the product should prove defective in material or workmanship within that period, Seller will repair or replace the
product, at its sole discretion.
THIS WARRANTY DOES NOT APPLY TO NORMAL WEAR OR TO DAMAGE RESULTING FROM ACCIDENT, MISUSE, ABUSE OR NEGLECT. SELLER MAKES NO
EXPRESS WARRANTIES OTHER THAN THE WARRANTY EXPRESSLY SET FORTH HEREIN. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ALL IMPLIED
WARRANTIES, INCLUDING ALL WARRANTIES OF MERCHANTABILITY OR FITNESS, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE;
AND THIS WARRANTY EXPRESSLY EXCLUDES ALL INCIDENTAL AND CONSEQUENTIAL DAMAGES. (Some states do not allow limitations on how long an implied
warranty lasts, and some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not
apply to you. This warranty gives you specific legal rights, and you may have other rights which vary from jurisdiction to jurisdiction.)
WARNING: The individual user should take care to determine prior to use whether this device is suitable, adequate or safe for the use intended. Since
individual applications are subject to great variation, the manufacturer makes no representation or warranty as to the suitability or fitness of these devices for
any specific application.
PRODUCT REGISTRATION
Visit tripplite.com/warranty today to register your new Tripp Lite product. You’ll be automatically entered into a drawing for a chance to win a FREE Tripp Lite
product!*
* No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.
Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice. Images may differ slightly from actual products.
3

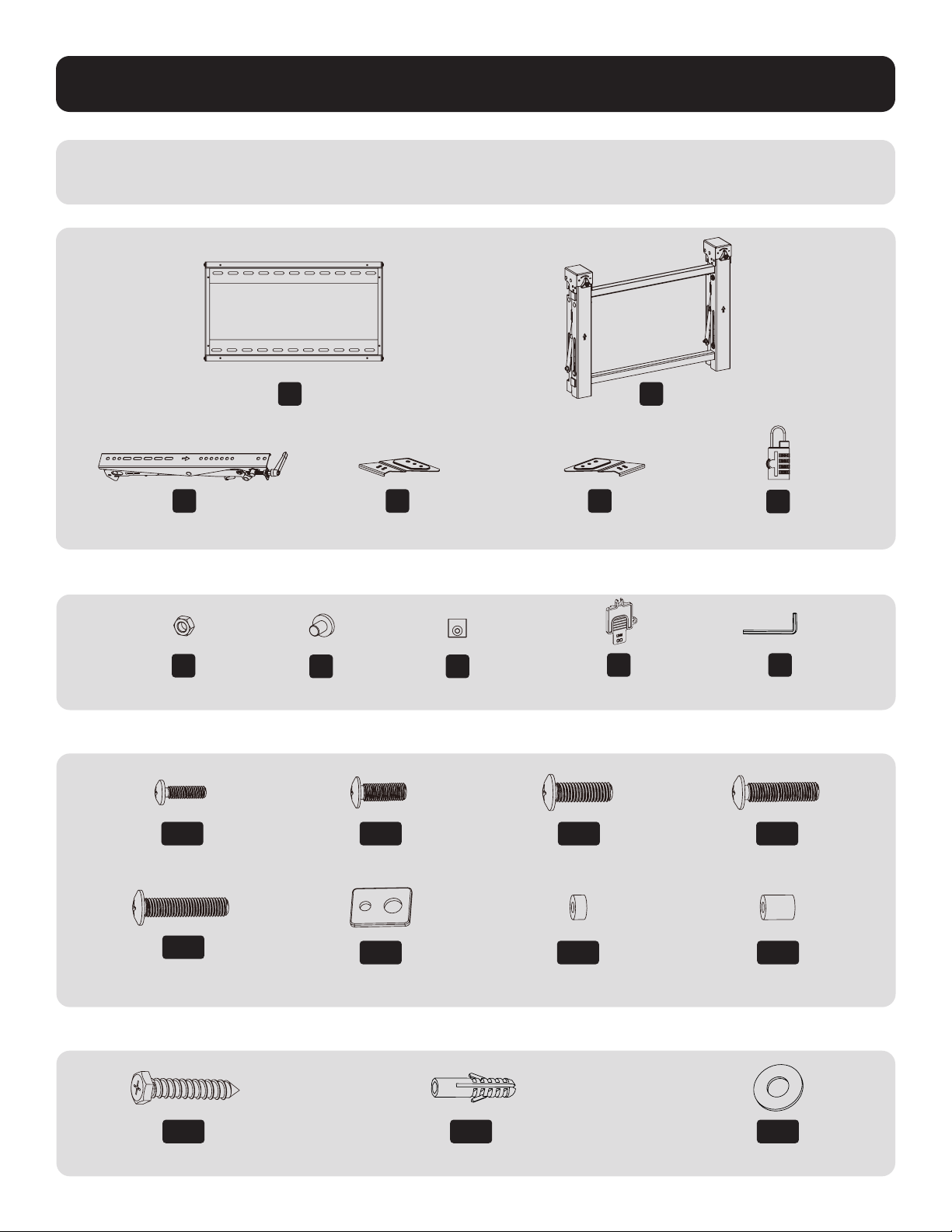

Component Checklist
IMPORTANT: Ensure you have received all parts according to the component checklist prior to installing.
If any parts are missing or faulty, visit tripplite.com/support for service.
B
Pop-Out Module (x1)
A
Wall Plate (x1)
Package W
M-A
M5x14 (x4)
M-F
Washer (x4)
M-B
M6x14 (x4)
M-G
Small Spacer (x8)
M-H
Large Spacer (x4)
M-C
M8x20 (x4)
W-A
ST6.3x55 (x6)
M-D
M6x30 (x4)
W-B
Concrete Anchor (x6)
M-E
M8x30 (x4)
W-C
D6 Washer (x6)
Package P
Package M
D
VESA Adapter (x2)
H
Anti-Skid Block (x2)
F
M8 Nut (x8)
K
Lock (x1)
E
VESA Adapter (x2)
I
Plastic Locking Piece (x2)
J
Hex Key (x1)
C
Adapter Bracket (x2)
G
M8x12 (x8)
4

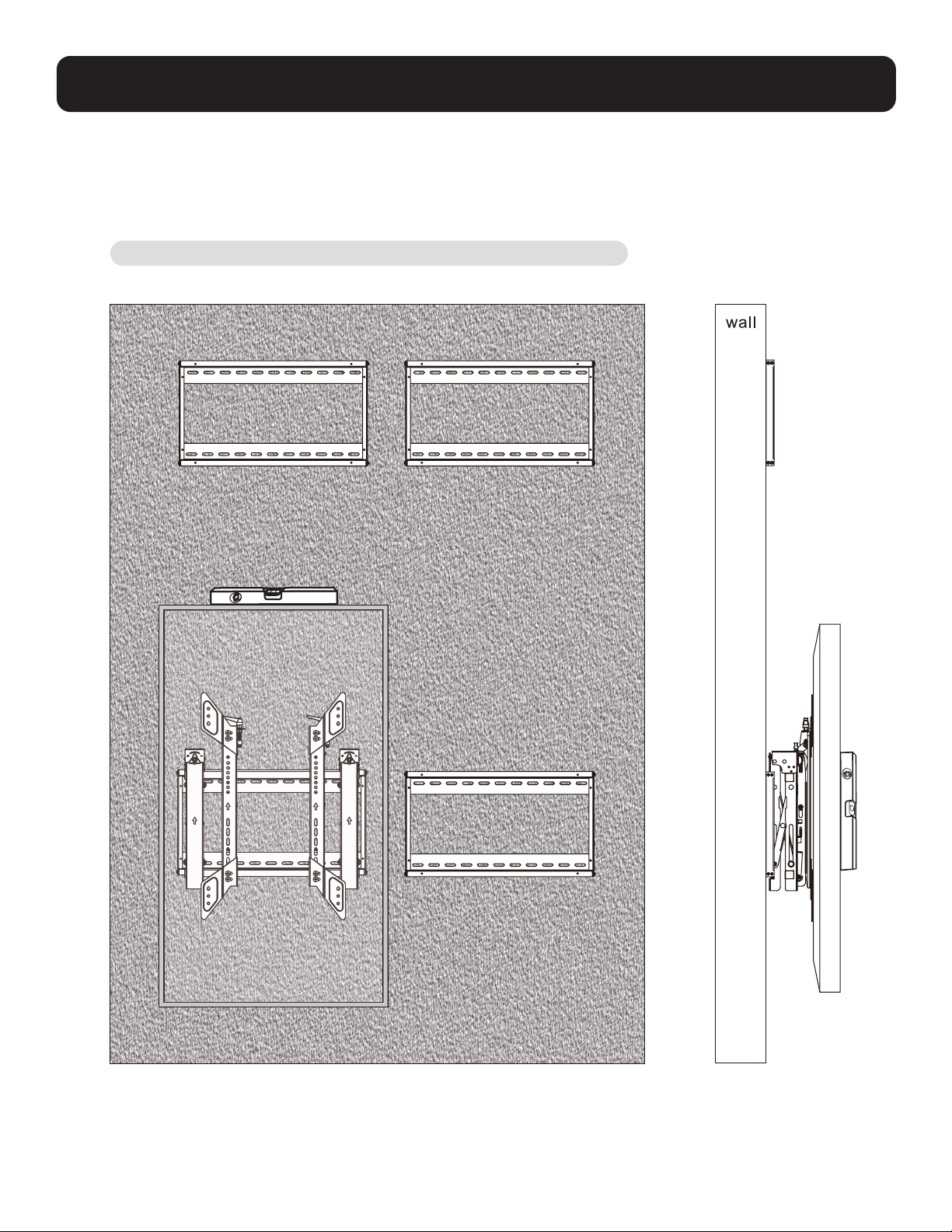

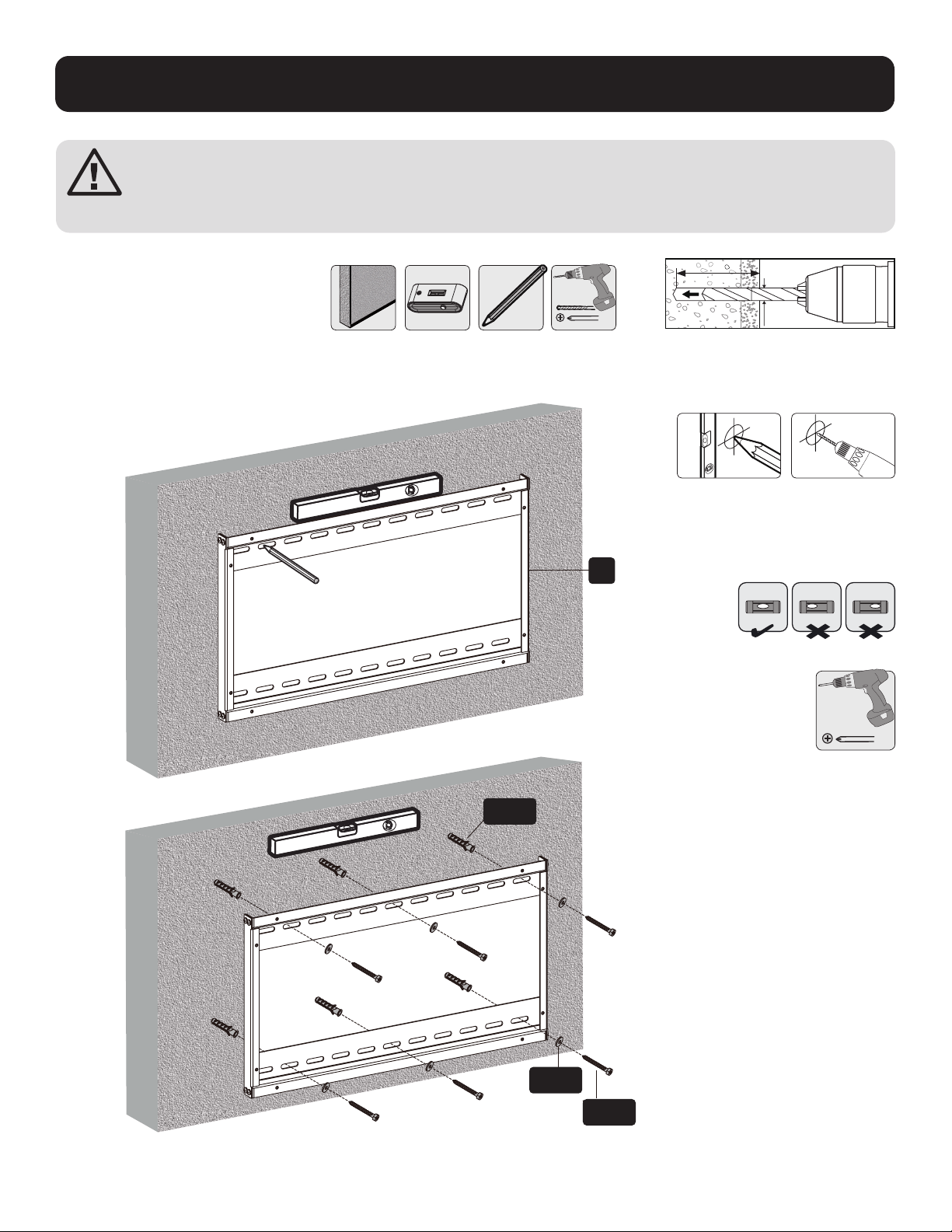

1. Solid Brick and Concrete Wall Mounting
Mark the exact
location of the
mounting holes.
Screw the wall
mount onto
the wall.
Drill pilot holes
1
2
95 mm95 mm
(3.7")(3.7")
2.4”
(60 mm)
W-B
W-C
W-A
A
WARNING
Installers must verify that the supporting surface will safely support the combined weight of the equipment and
all attached hardware and components.
Ø 3/8”
(Ø 10 mm)
5

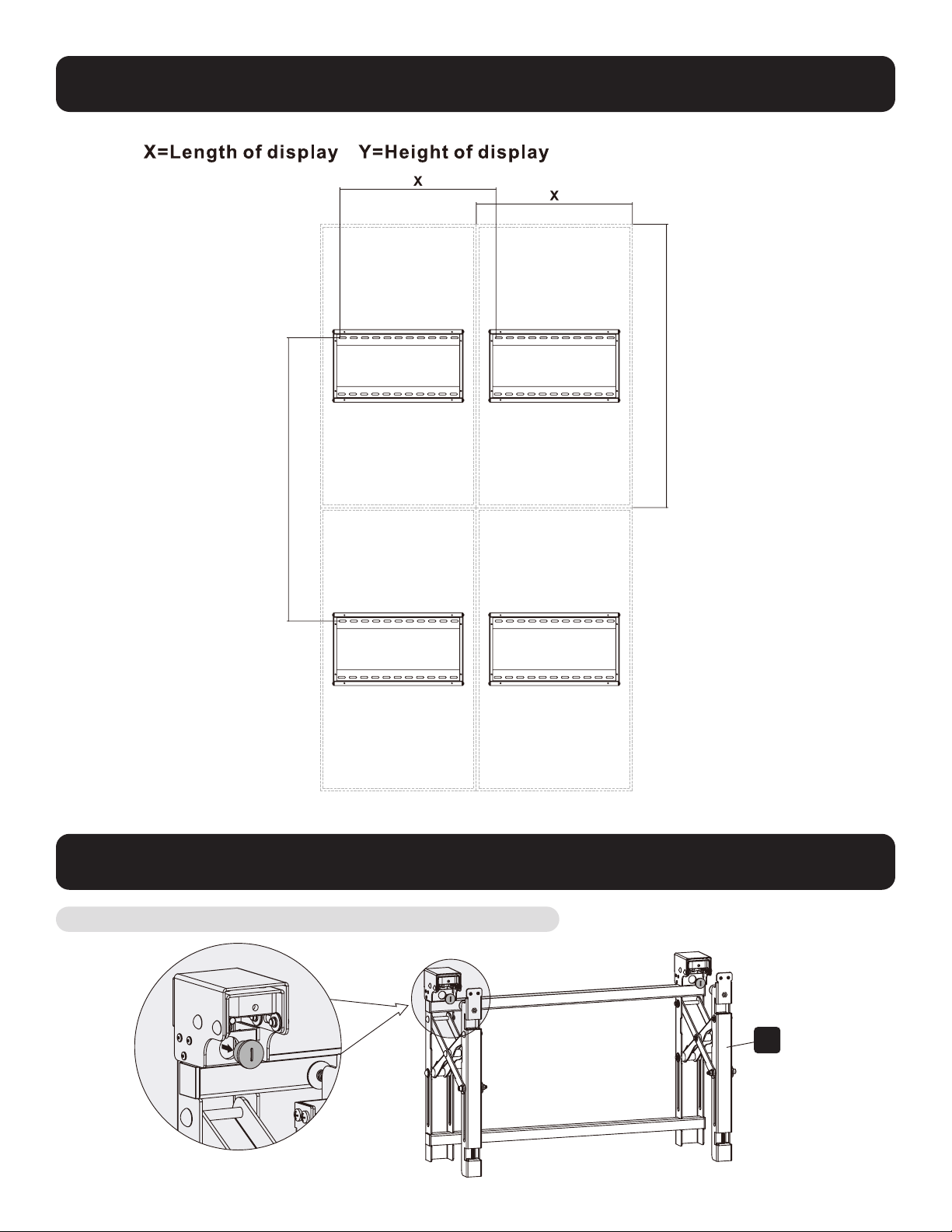

2. Video Wall Installation (mounting space as shown below)
3. Installing the Pop-Out Module
B
Y = 0.2" (5 mm)
Y = 0.2" (5 mm)
Remove caps before installing the pop-out module.
6
4. Installing the Adapter Brackets

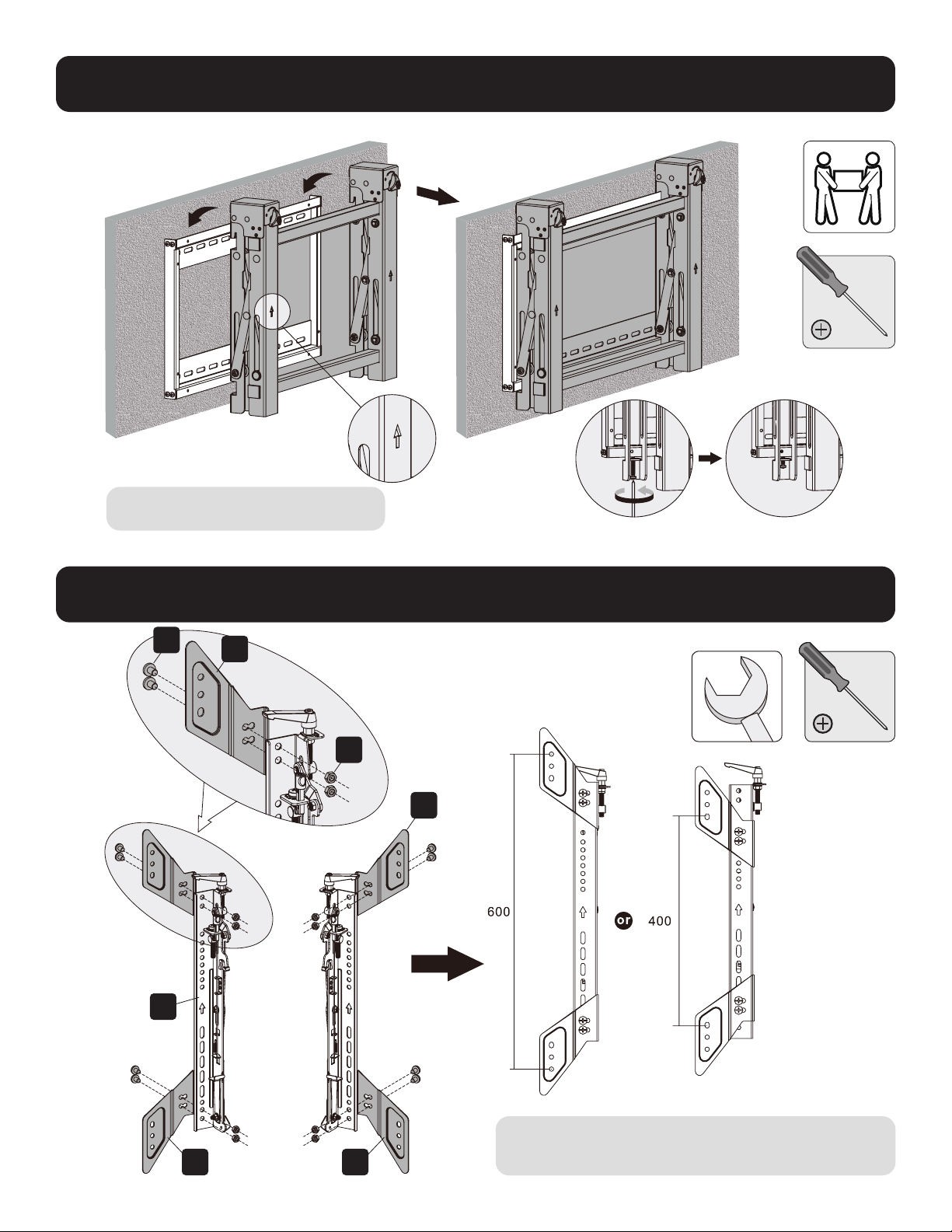

Hang the pop-up module onto the wall plate.
Secure it by tightening both screws.
Attach the VESA adapters to the adapter brackets using the appropriate
screws and nuts so that the hole pattern can be expanded to VESA
400x400 or 600x400.
3. Installing the Pop-Out Module
For VESA hole patterns
400x400 or 600x400
D
G
C
E
E
D
F
7
4. Installing the Adapter Brackets

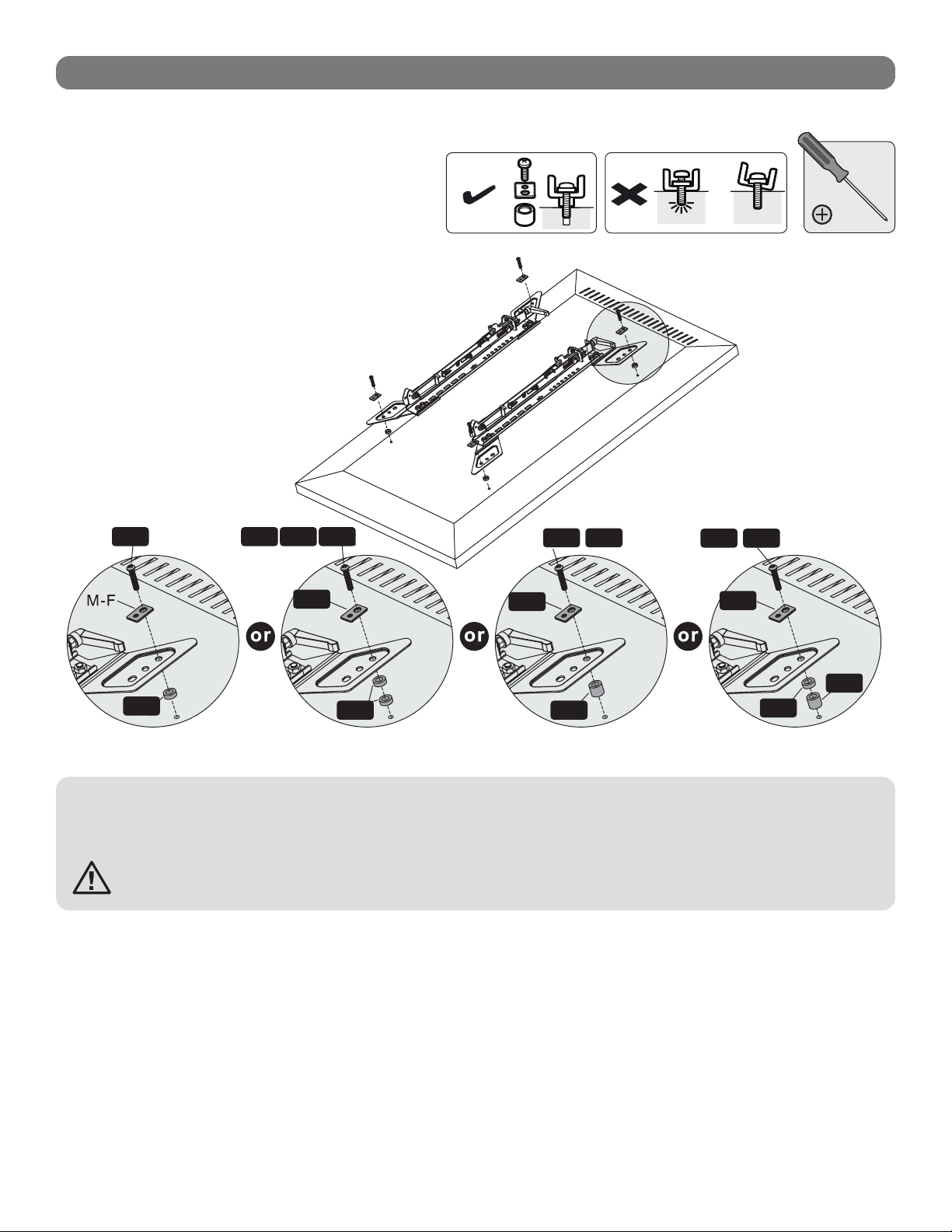

4.1 For Flat-Back Screens
TV
TV
TV
M-A
M-B
M-C
M-F
8

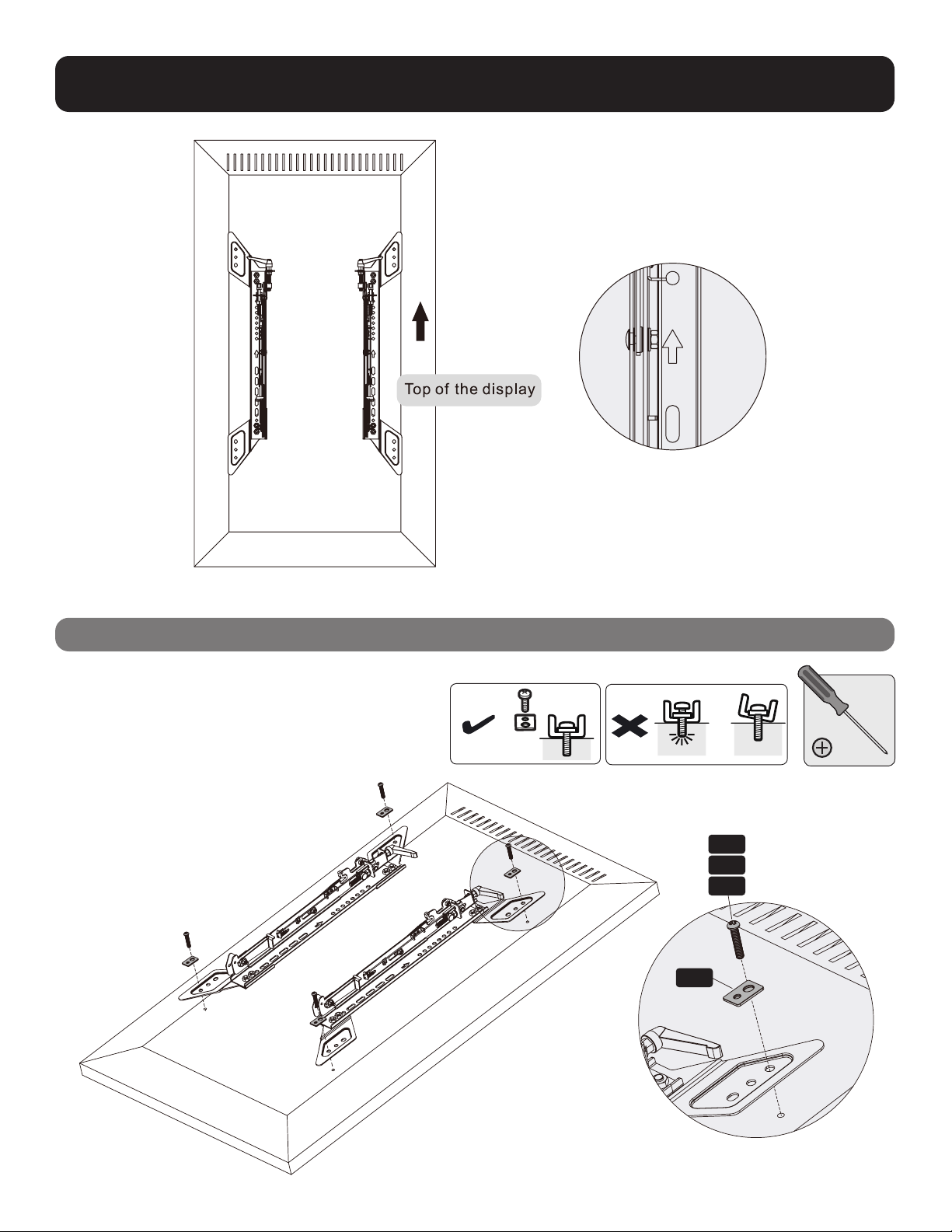

4.2 For Bump-Out or Recessed-Back Screens
Notes:
• Choose the appropriate screws, washers and spacers (if necessary) according to the type of screen.
• Position the adapter brackets as close as possible to the center of the display.
• Screw the adapter brackets onto the display.
Tighten all screws but do not overtighten.
TV
TV
TV
M-H
M-H
M-G
M-G
M-G
M-F
M-F
M-F
M-C
M-D M-E
M-DM-C M-E
M-D M-E
9

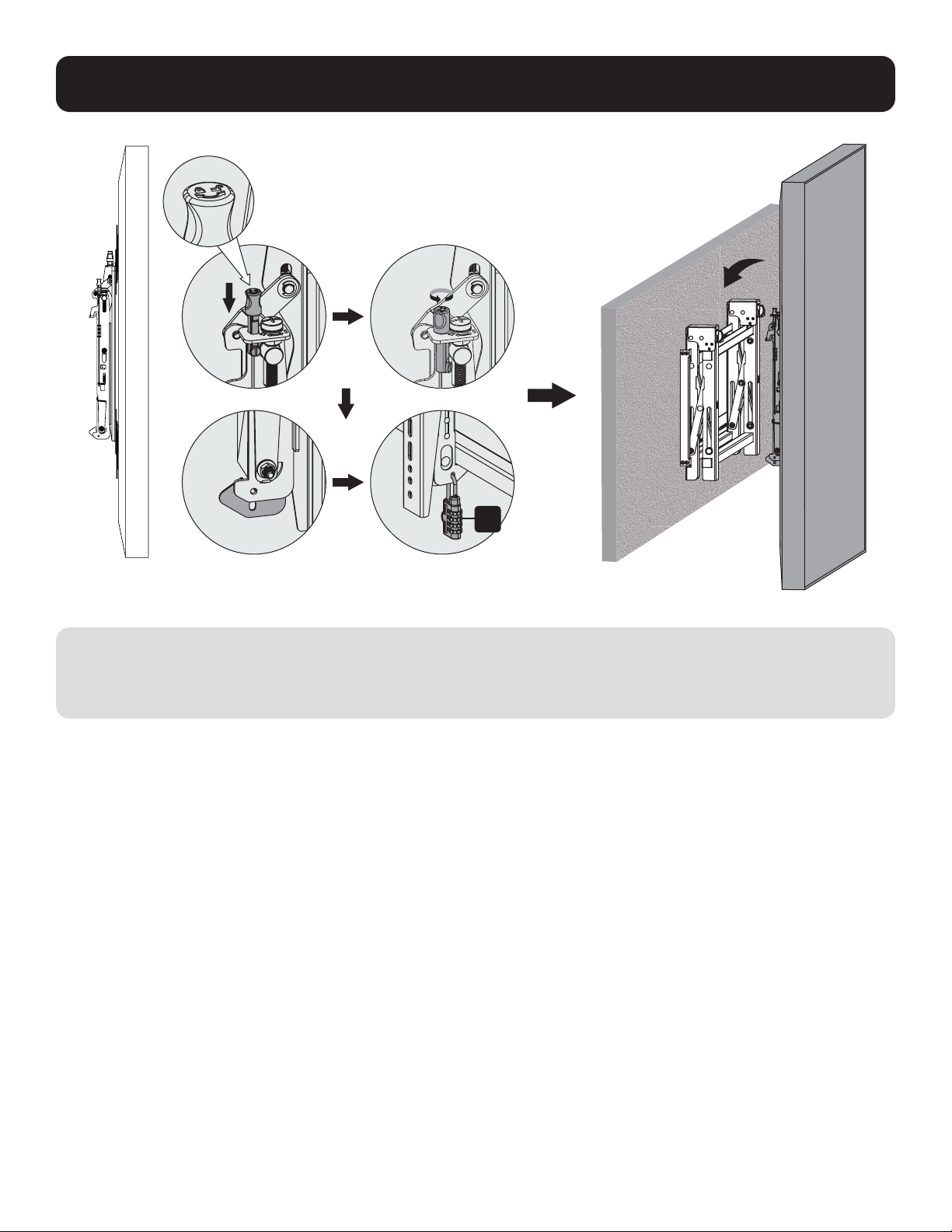

5. Hooking the Display onto the Pop-Out Module
Notes:
• Before Hooking the display, ensure the knobs are rotated to the unlock position.
• Lift the display carefully and hook it onto the pop-out module. Rotate the knobs to the lock position to secure the display.
• Use the lock to prevent the display from being removed from the mount.
K
10

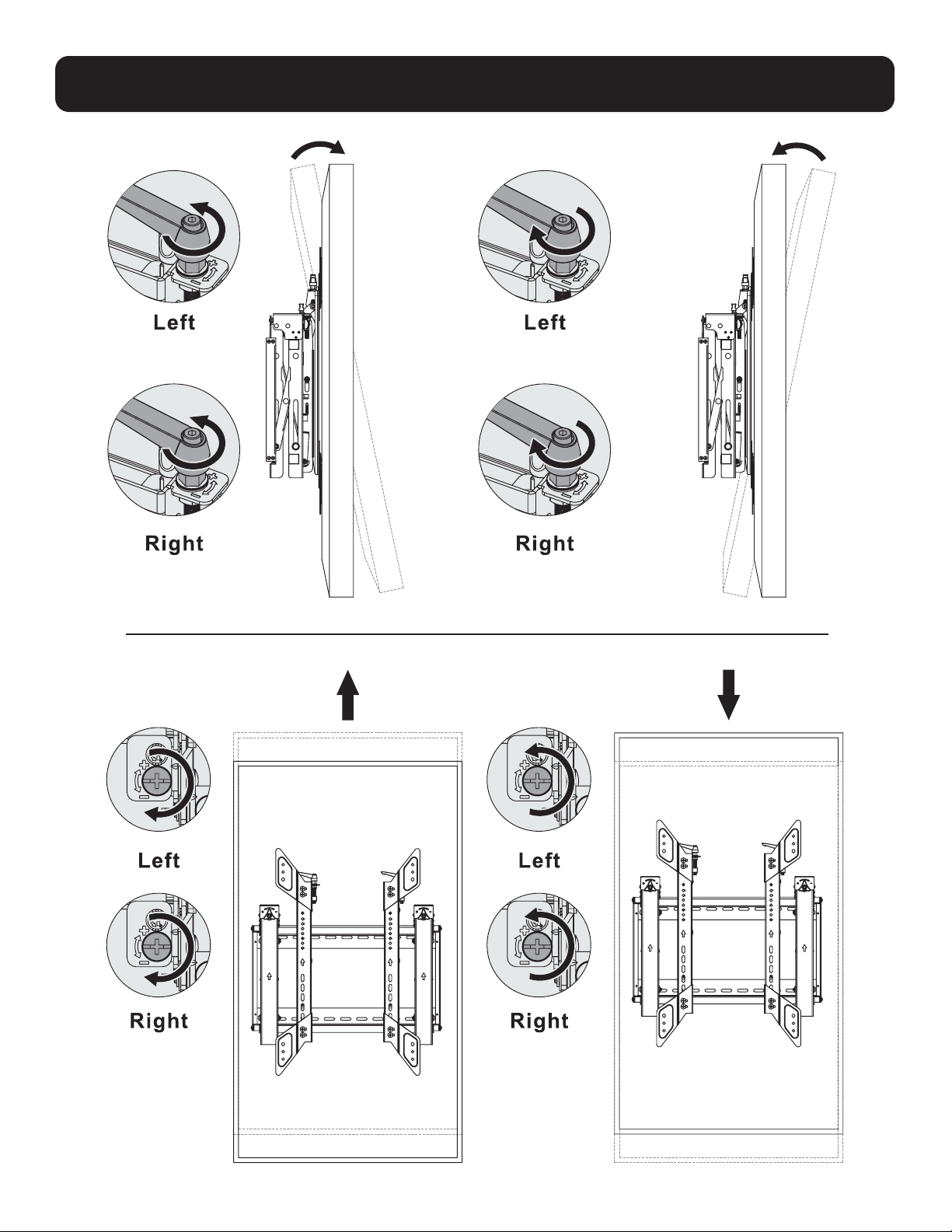

6. Adjustment
Push the display left or right
for fast alignment.
Handles for tilt adjustment
Screws for up-and-down
micro-adjustments
Knobs for in-and-out
micro-adjustments
11

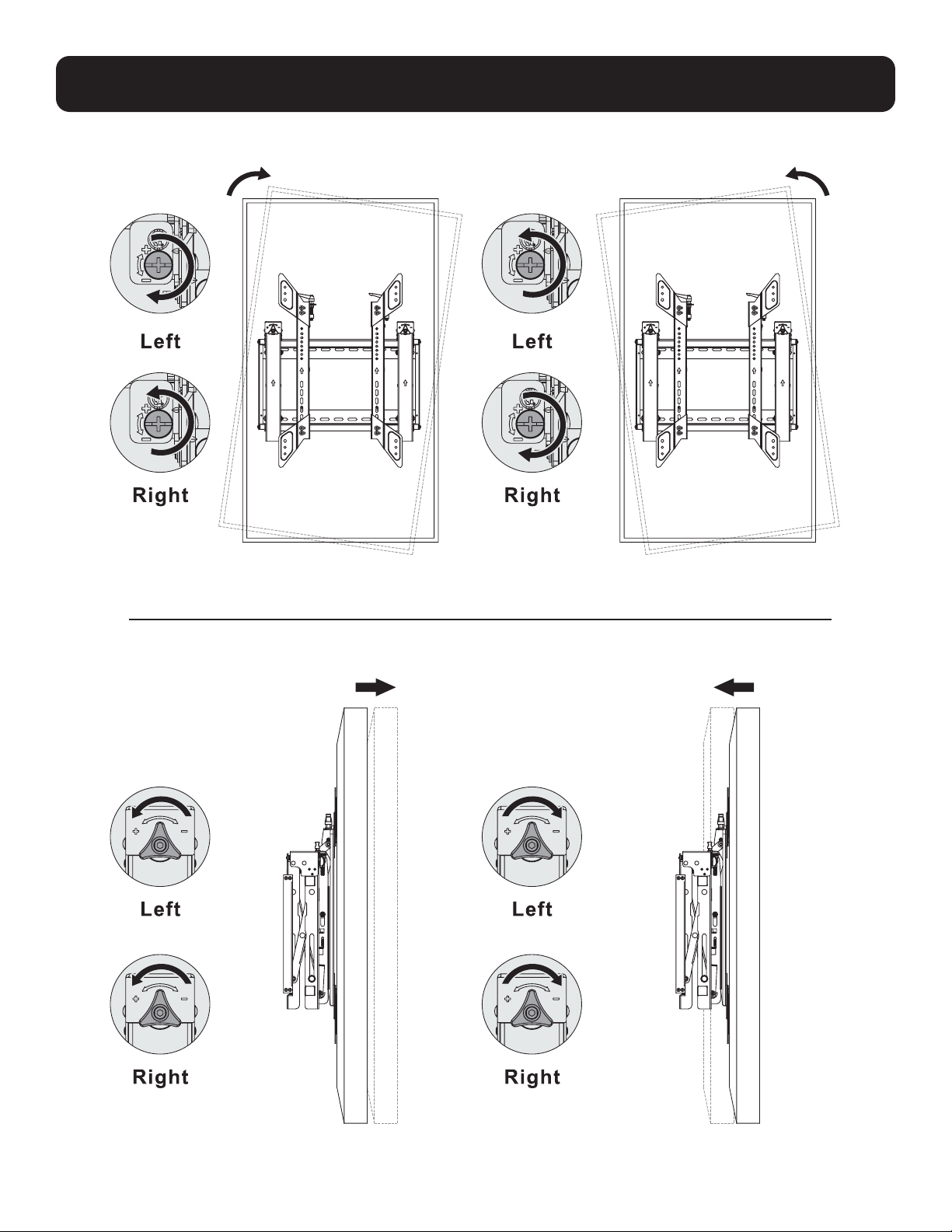

6. Adjustment
12

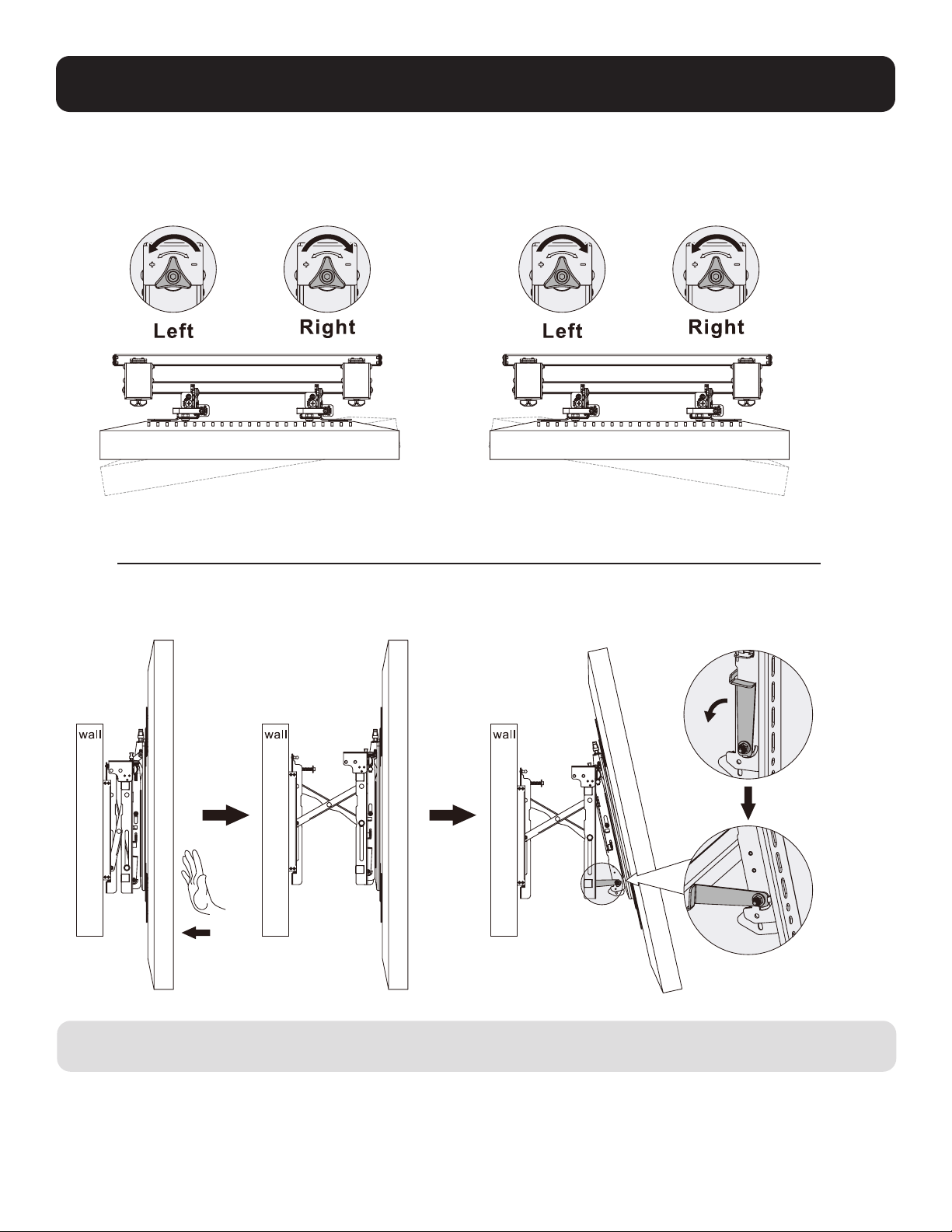

6. Adjustment
13
6. Adjustment
To pop out the display, push it inward and then release it.
Kickstands provide tilt access for easy cable management and maintenance.
14

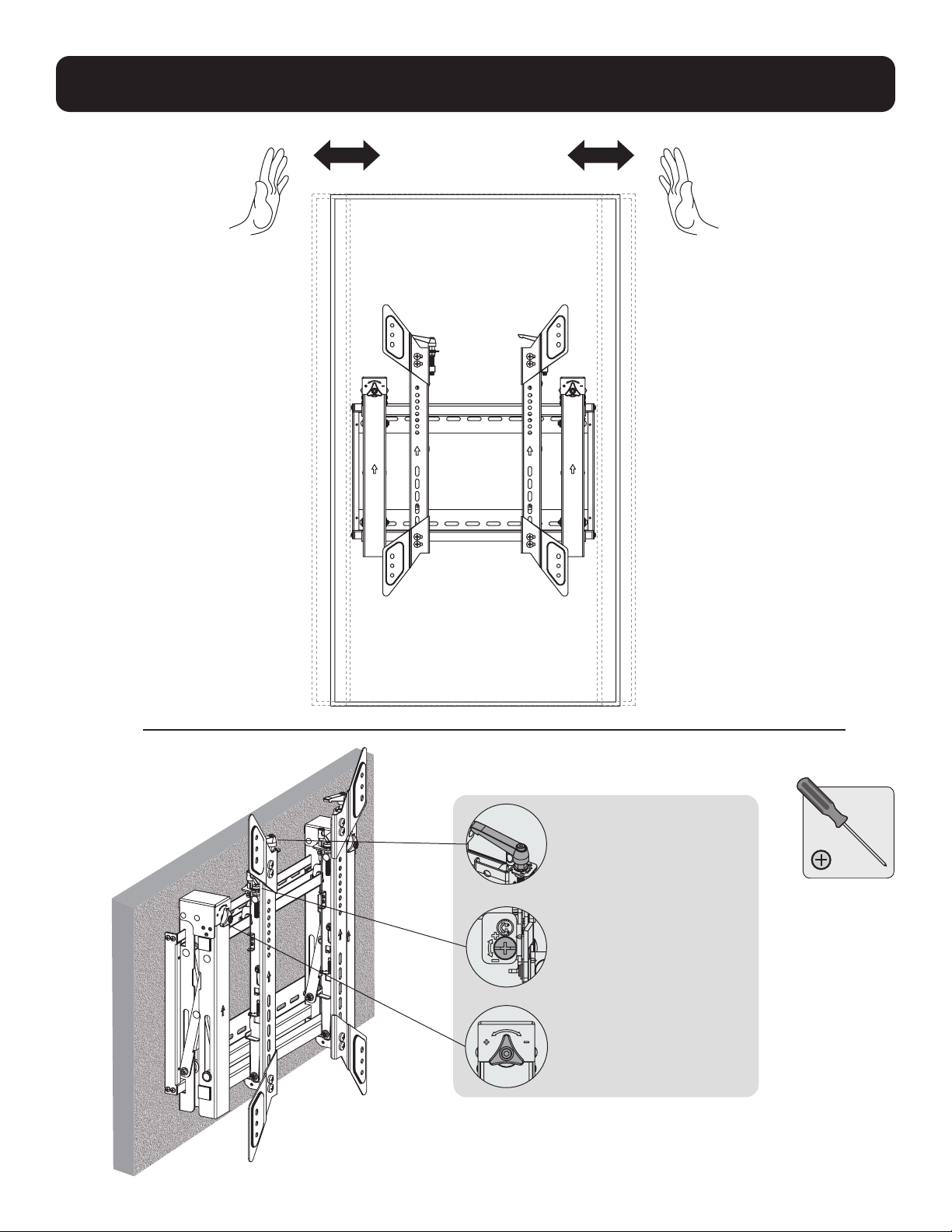

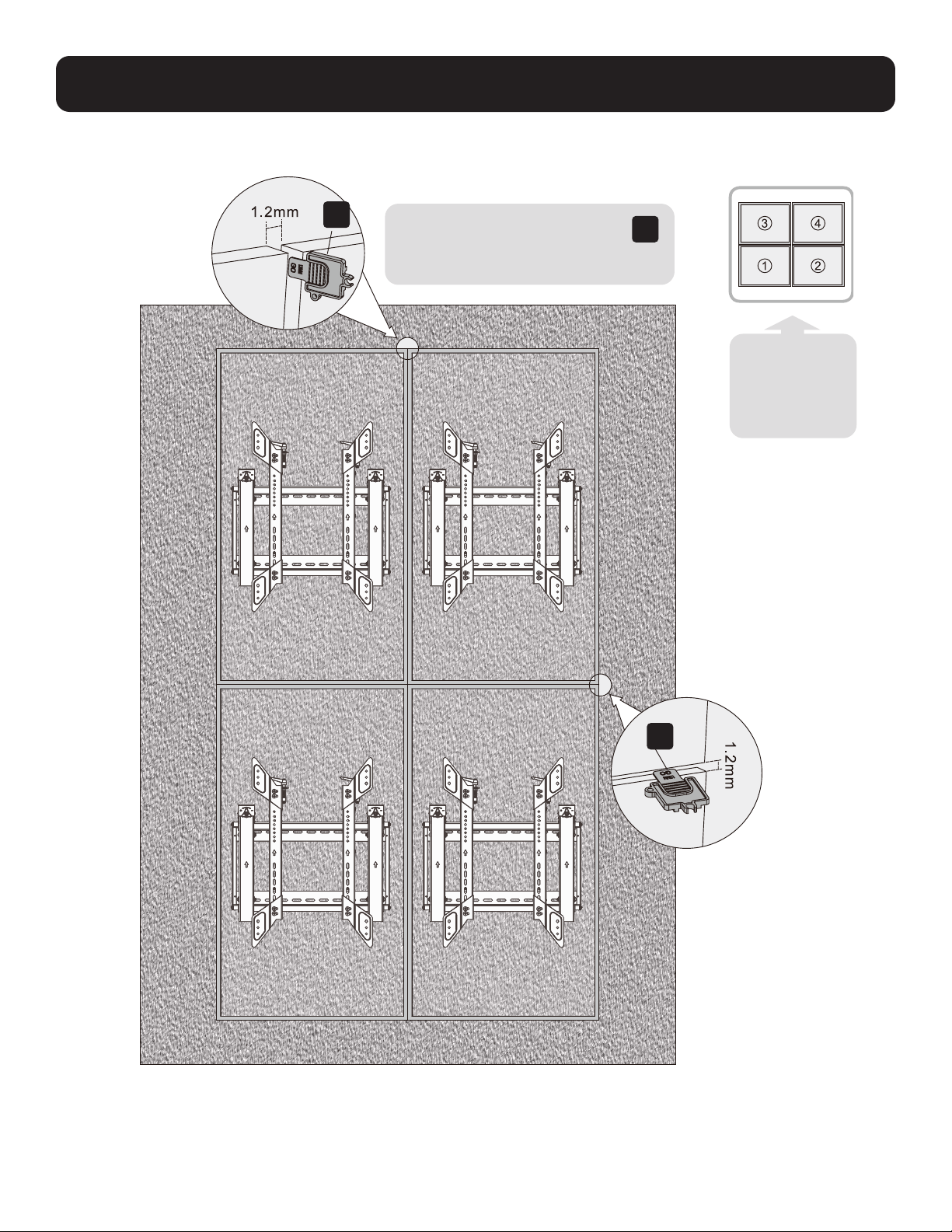

7. Level the Displays
Adjust the display to keep it level in vertical and horizontal directions.
15
7. Level the Displays
E
Note: Use the plastic locking piece
E
to measure and keep a 1.2 mm
gap between displays.
Note: Install
and adjust
displays in
the numerical
order shown.
I
16
1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support
21-06-105 933F12_RevA

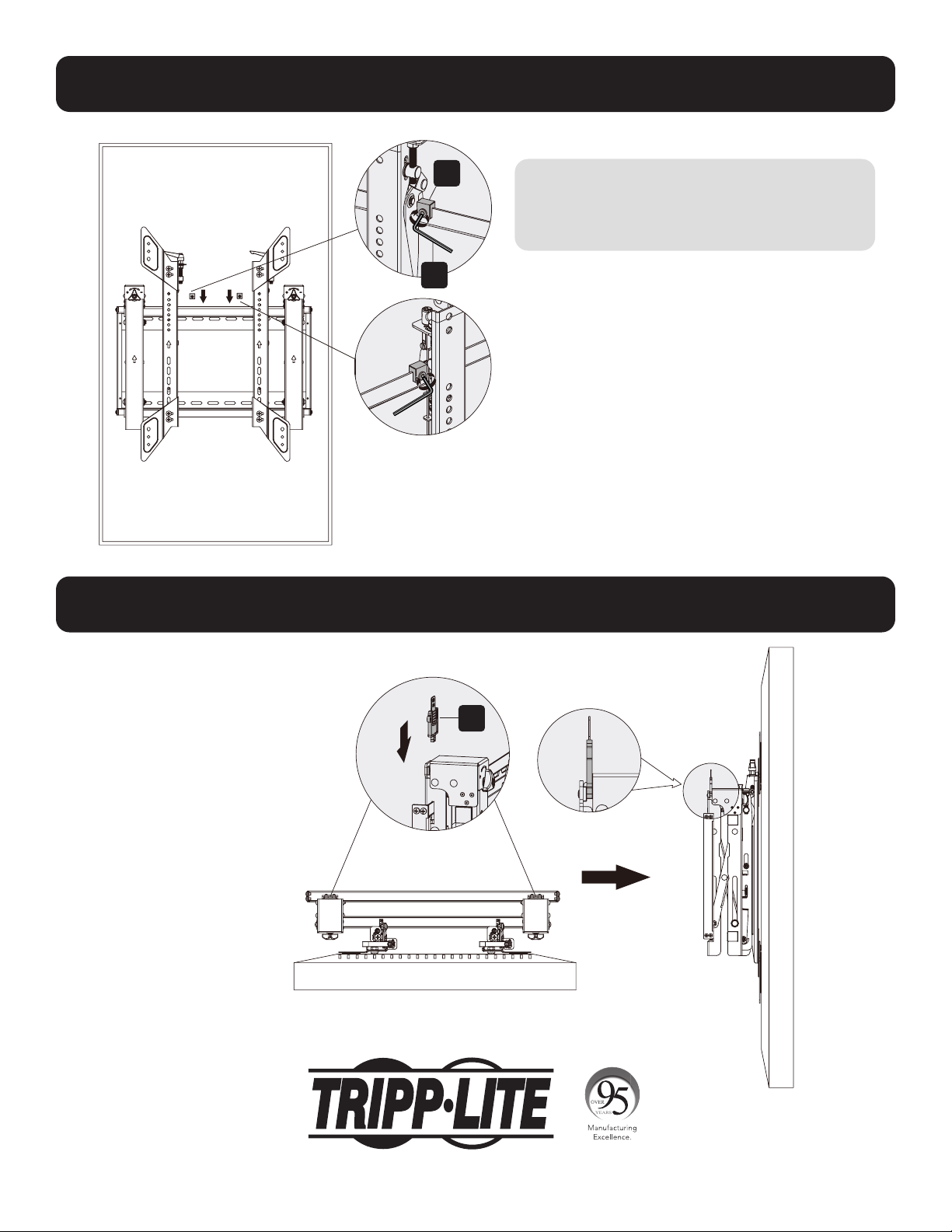

8. Fixing the Bracket Positions with the Anti-Skid Blocks
9. Lock the Pop-Out Module with the Plastic Locking Pieces
Install both of the anti-skid blocks as close to the
adapter brackets as possible. Tighten screws on
the anti-skid blocks using a hex key to prevent the
display from moving.
H
J
Side ViewTop View
I
