IC E MAKER
INSTRUCTIO N MANUAL
Model: ICM1508
THANK YOU FOR CHOOSING OUR ICE MAKER
PLEASE READ THE MANUAL CAREFULLY BEFORE OPERATING
2
When using an electrical appliance, basic safety precautions should
always be followed to reduce the risk of fire, electric shock, and/or
injury, including the following:
1. Read all instructions before using.
2. Remove all packing material and carefully check your ice maker
to ensure it is in good condition and that there is no damage to
the ice maker or power cord and plug.
3. Before using the Ice maker for the first time, please wait 2 hours
after positioning it, and keep the transparent lid open for at least 2
hours
4. Pure water is not allowed to be used on this unit, spring water is
recommended.
5. Ensure the voltage is compliant with the voltage range stated on
the rating label, and ensure the earthing of the socket is in good
condition.
6. If the supply cord is damaged, it must be replaced by the
manufacturer or its service agent or a similarly qualified person in
order to avoid a hazard.
7. Do not upend this product or incline it over a 45℃ angle.
8. To protect against risk of electric shock, do not pour water on
cord, plug and ventilation, immerse the appliance in water or any
other liquid.
9. Unplug the appliance after using or before cleaning.
10. Keep the appliance 150mm from other objects to ensure the
good heat releasing.
11. Do not use the accessories which are not recommended by
manufacturer.
12. This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities, or
IMPORTANT NOTICES
3
lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a
person responsible for their safety. Children should be
supervised to ensure that they do not play with the appliance.
13. Do not use the appliance close by flames, hot plates or stoves.
14. Do not switch on the power button frequently (ensure 5 minutes
interval at least) to avoid the damage of compressor.
15. Metal sheet or other electric objects are not allowed to be
inserted into the appliance to avoid fire and short circuit.
16. Do not use outdoors.
17. Never clean with scouring powders or hard implements.
18. Please keep the instruction manual.
19. Warning: Do not store explosive substances such as aerosol
cans with a flammable propellant in this appliance.
20. This appliance is intended to be used in household and similar
applications such as
–staff kitchen areas in shops, offices and other working
environments;
–farm houses and by clients in hotels, motels and other
residential type environments;
–bed and breakfast type environments;
–catering and similar non-retail applications
21. When positioning the appliance, ensure the supply cord is not
trapped or damaged.
22. Do not locate multiple portable socket-outlets or portable power
supplies at the rear of the appliance.
23. The refrigerant and insulation blowing gas is flammable, when
disposing of the appliance, do so only at an authorized waste
disposal centre. Do not expose to flame.
4
This symbol indicates the refrigerant R600a and the
non-metallic materials of the appliance are flammable. It’s a warning
symbol. Warning: Risk of fire / flammable materials.
WARNING: When positioning the appliance, ensure the supply cord
is not trapped or damaged.
WARNING: Do not locate multiple portable socket-outlets or portable
power supplies at the rear of the appliance.
To avoid contamination of food, please respect the following
instructions:
– Clean regularly surfaces that can come in contact with food and
accessible drainage systems.
–Clean water tanks if they have not been used for 48 h; flush the
water system connected to a water supply if water has not been
drawn for 5 days.
–If the refrigerating appliance is left empty for long periods, switch
off, defrost, clean, dry, and leave the door open to prevent mould
developing within the appliance.)
Regarding the information pertaining to the use of the appliance,
thanks to refer to the below paragraph of the manual.
5
SPECIFICATIONS
Model Number：ICM1508
Voltage: AC110-120V/60Hz
Power Consumption: 120 W
Daily Ice Output：15kg / 24 hours
Ice Storage Capacity：600 g
Water Reservoir Capacity：2.1 L
N.W：9.5kg
G.W：10.9kg
Ice making mode: large and small
Compression-type refrigeration: AC110-120V/60Hz
Cooling agent: R600a environmental friendly refrigerant
Max overall dimensions (W XD XH)：248X 364X321mm
Packing Dimensions: 476X 351X 407mm
6

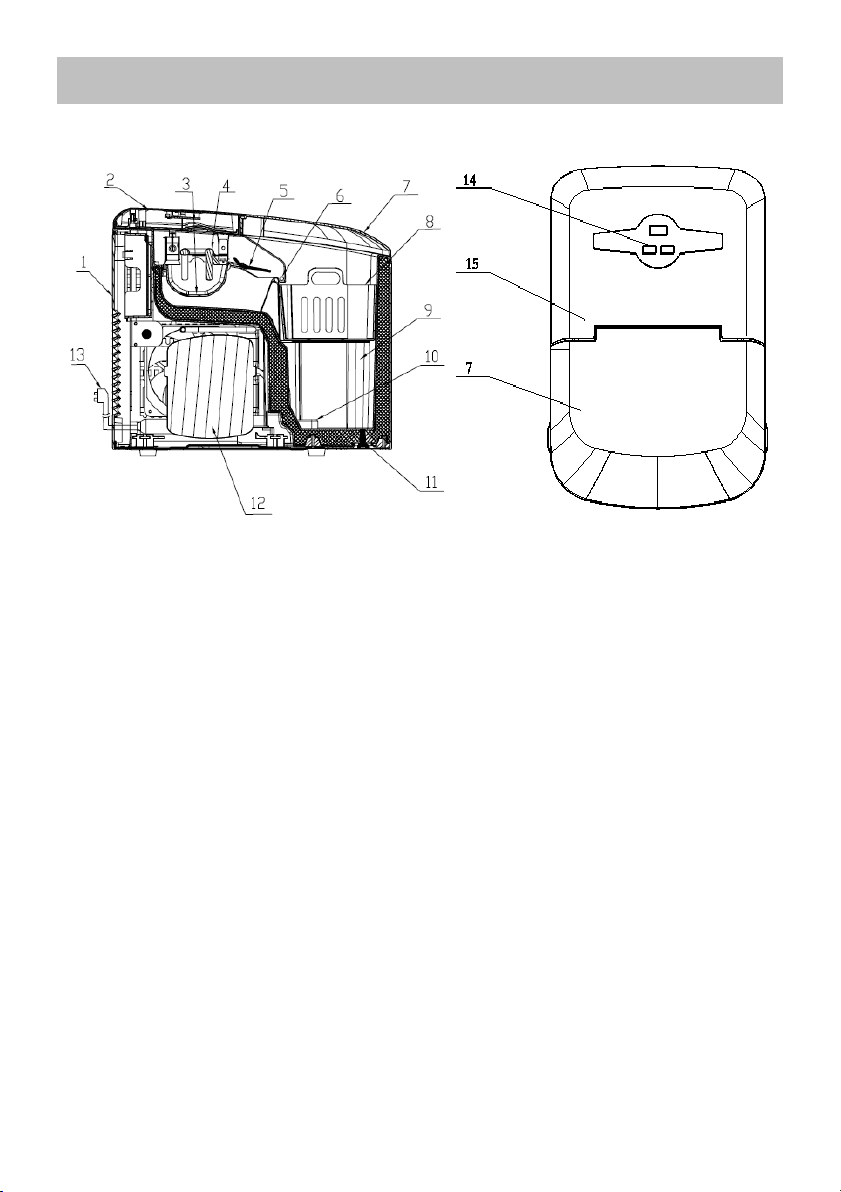

DESCRIPTION
1. Rear cover
2. Upper cover
3. Water pan
4. Evaporator
5. Ice shovel
6. Ice-Bin-Full Sensor
7. Transparent lid
9. Water tank
10. Filter screen
11. Drain plug
12. Compressor
13. Power cord
14. Buttons
15. Stainless steel panel
8. Ice collecting tray
7
FEATURE
Quick ice making
Two different sizes of ice can be made
Prompt when the ice is full and water is insufficient
Bullet ice
10pcs ice can be made in nine minutes
1. During transportation, do not tilt the machine more than 45
degrees, do not reverse the machine. This may damage the
compressor and the sealing system.
2. Remove all packing materials, check the machine carefully and
make sure that the machine, power cord and plug are normal.
3. The machine should be on a level surface. To ensure sufficient
ventilation, the distance of the back of ice maker to the wall should
be at least 150mm, it should be away from the oven, radiator or other
heat source.
4. Before using the machine for the first time, place the machine and
leave the transparent cover open for at least two hours.
5. Make sure that the home voltage is consistent with the voltage
indicated by the machine.
6. Distilled water is not allowed. Mineral water is recommended.
8
CONTROL PANEL OPERATION
CLEAN SIZE
1. Plug in power, the machine will start the de-icing function first,
and the machine will automatically enter the standby mode after
ICE FULL ALARM
WATER SHORTAGE ALARM
CLEAN BUTTON
START/STOP BUTTON
no operation.
2. CLEAN BUTTON: cleaning function, press the CLEAN button,
then press the START/STOP button, the machine will
automatically enter the cleaning function, the period is about 150
seconds. Please do not turn off the power during the cleaning,
the machine automatically enters the standby mode after
cleaning.
3. S/L BUTTON: Select the ice size mode. The default is the large
ice production mode. The icon of the selected mode is displayed.
The production time of small ice is 8 minutes and that of large ice
is 9 minutes.
SMALL ICE ICON
LARGE ICE ICON
SIZE BUTTON
9
4. START/STOP BUTTON: Plug in power, press the START/STOP
button, the machine starts the ice making function, the default is
the large ice production mode.
5. WATER SHORTAGE ALARM: If no water flow is detected during
1.2 seconds during pumping, the water shortage icon is
displayed and the machine stops working.
6. ICE FULL REMINDER: When the machine compressor is not
working, the infrared indicator light is blocked for more than 12
seconds, then the ice full icon is displayed, and the machine
stops working. The ice full icon flashes in 1/4 second. The
infrared light continues to be detected, and the machine
continues to work when the detection is not blocked.
OPERATING INSTRUCTIONS
Step 1
Open the lid and take out the basket and add water to the reservoir.
Note: There is a maximum scale MAX in the reservoir. The water
should not exceed the MAX position. If the water exceeds the
maximum scale MAX, you need to open the bottom drain plug,
release the excess water, and cover with a transparent cover.
Step 2
Plug in the power and press the START/STOP button to start the
machine.
10
Step 3
Select the size of the ice you want to make, the default mode is large
ice mode.
1. When the indoor temperature is lower than 15 degrees, please
choose small ice. When the indoor temperature is higher than 30
degrees, it is recommended to choose large ice.
2. The three cycles used for the first time, the ice produced is small
and irregular.
3. When the ice collecting tray is full, please take out the ice
immediately, do not let the ice overflow the ice collecting tray.
11
CLEANING & USE GUIDANCE
1. Clean the inner liner, ice collecting tray, water box, ice shovel
and evaporator frequently. When cleaning, unplug the unit and
remove the ice cubes. Use a diluted solution of water and
vinegar to clean the inside and the outside surface of the Ice
maker. Do not spray Ice maker with chemicals or diluted agents
such as acids, gasoline or oil. Rinse thoroughly before starting.
2. Keep ventilation openings in the appliance enclosure, or in the
built-in structure, clear of obstruction. Do not use mechanical
devices or other means to accelerate the defrosting process,
other than those recommended by the manufacturer.
3. Reuse the machine after being idled for a period of time, it may
not have enough water to pump for air blockage. In this case,
just repress START/STOP button to restart the ice maker.
4. To ensure the cleanness of ice, please change water for water
reservoir at least once one day. If do not use for a long time,
please drain the water out and clean it up.
5. If the compressor takes a strike action for shortage water, fully
water or interruption of power supply, it will delay for 3 minutes to
start up after restarted.
6. Always use fresh water before starting ice production either at
initial installation or after a long shut-off period.
12
TROUBLESHOOTING
1. Please note, if a power failure occurs due to disconnection of the
power cord, or the power button has been pushed off during an ice
making cycle, small ice chips may formed and lodge in the
automatic shovel causing it to jam. If this occurs, the ice chips may
be removed by disconnecting the power cord and gently pushing
the shovel to the rear of the cabinet and removing the ice chips,
then restarting.
2. Please check if the water reservoir is flat when the ice shovel can
not remove the ice to ice basket. If not, please push the ice shovel
gently by finger, then press START/STOP button to restart.
13
PROBLEM POSSIBLE CAUSE SUGGESTED SOLUTIONS
The compressor works
abnormally with a
buzzing noise
The voltage is lower than
recommended
Stop the ice maker and do not restart
until the voltage is normal.
Water shortage
indicator light is on
1.There is no water
2.The pump is full of air
1.Add to some water until it reaches
MAX position
2. Press POWER button to restart the
machine.
Indicator lights on
display are not on Blown fuse/ No power Replace fuse / Turn power on
The ice made is too
large and with pieces
sticking together.
1. Wrong ice size selected
2. Ice of previous cycles left
in the water tray
1.Select small size
2.Take out the ice under the standby
state
The ice making process
was correct, but no ice
came out?
1. The compressor has
no refrigerant
2. Compressor damaged
3. Fan motor damaged
Call the service hotline
Machine stuck and not
working
1. The water box is blocked
by ice.
2. The motor is stuck, or
the motor falls off, or the
motor is damaged
3. Micro switch damaged
1. Take out the ice which under the ice
shovel, plug in power again, and press
the Start/Stop button. After 3 minutes,
the machine will restart automatically.
2. Call the service hotline
The machine has been
working, but the water
has been warming
Solenoid broke down Replace the solenoid valve
When the ice is full, the
machine does not
display the ice full Icon
Ice full sensor damaged 1. Replace the ice full sensor
2. Call the service hotline
14
1. If the power cord is damaged; it must be replaced by the
manufacturer, its service agent or a similarly qualified person in
order to avoid a hazard.
2. Fill with potable water only.
3. It is normal for the compressor and condenser surface to reach
temperatures between 70°C and 90°C during operation and
surrounding areas may be very hot.
4. Due to fast freezing, ice cubes may opaque. This is air trapped in
the water and will not affect quality or taste of ice.
5. This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities or
lack of experience and knowledge unless they have been given
supervision or instruction concerning use of the appliance by a
person responsible for their safety.
6. Children should be supervised to ensure that they do not play
with the appliance.
7. Do not immerse in water.
Correct Disposal of this product
This marking indicates that this product should not
be disposed with other household wastes throughout
the EU. To prevent possible harm to the environment
or human health from uncontr
olled waste disposal,
recycle it responsibly to promote the sustainable
reuse of material resources. To return your used
device, please use the return and collection systems
or contact the retailer where the product was
purchased. They can take this produc
t for
environmental safe recycling.
